Wireless Connectivity
PAN W602-xx
Wi-Fi Single-Band 2.4 GHz and Bluetooth
®
Module
Wi-Fi Dual-Band 2.4/5 GHz and Bluetooth
®
Module
Product Specification
Rev. 1.0
PAN W602 Bluetooth/Wi-Fi Modul
Product Specification Rev. 1.0 Page 2 of 82
Overview
The PAN W602-1x is a single band 2.4 GHz
companion module with integrated Bluetooth® Low
Energy for cost-effective projects and is based on
the chipset CC3301 from Texas Instruments.
The PAN W602-2x is a dual band 2.4 & 5 GHz
companion module with integrated Bluetooth® Low
Energy for projects which require more data rates
or less interferences and is based on the chipset
CC3351 from Texas Instruments.
In a compact form factor the module either comes
with an integrated chip antenna or the option to
connect an external antenna via the bottom Pad.
Latest technologies like multiuser MIMO and
OFDMA improve the efficiency in large networks.
Integrated power management, 802.11i/w security
standard support, and high-speed data interfaces
deliver the performance for the speed, reliability,
and quality requirements of next generation
products.
Features
•
Single & Dual band (2.4 GHz & 5 GHz) 802.11
a/b/g/n/ax Wi-Fi
•
Bluetooth® 5.4 Low Energy (1M, 2M, LE
Coded PHY)
•
WPA3 Personal and Enterprise as station
•
Multirole support: Access point & station
•
WiFi 6: Target Wake Time (TWT), OFDMA,
MUMIMO (Downlink), Basic Service Set
Coloring
•
Simultaneous operation of Wi-Fi and
Bluetooth
®
•
IEEE 802.11ax, 1×1 spatial stream with data
rates up to 86 Mbps (MCS7, 20 MHz channel
bandwidth)
•
Enhanced security such as firmware
authentication and anti-rollback protection
•
Support for host processors running a Linux
®
operating system
Characteristics
•
Integrated antenna or bottom pad version
•
Dimensions [mm]
– Bottom Pad: 8.8 x 10.0 x 1.8
– Integrated Antenna: 8.8 x 15.25 x 1.8
•
Host Interface
– WiFi: SDIO 2.0 (1.8 V)
– Bluetooth®: Highspeed UART (1.8 V)
•
Coexistence: 3-wire or 1-wire PTA for external
coexistence with additional 2.4-GHz radios
•
Tx power up to +16 dBm
•
20 MHz channel bandwidth
•
Rx Sensitivity: -96 dBm at IEEE 802.11b 1
Mbps
•
Power supply: 1.8 V (core and I/O) and 3.3
(PA)
•
Wide temperature range: -40 °C to +85 °C
•
Typical current consumption
– Tx:115mA (V
1V8
) and 215mA (V
3V3
) @
802.11ax (HE MCS7) 2.4 GHz, Rx: 62mA
@ 2.4 GHz,
– Tx:175mA (V
1V8
) and 190mA (V
3V3
) @
802.11ax (HE MCS7) 5 GHz, Rx:110mA @
5 GHz
•
Low Power Shutdown Mode
– 313 uA @ 2.4 GHz
– 348 uA @ 5 GHz
Block Diagram
PAN W602 Bluetooth/Wi-Fi Modul
Product Specification Rev. 1.0 Page 3 of 82
By purchasing any of the products described in this document the customer accepts the document's
validity and declares their agreement and understanding of its contents and recommendations. Panasonic
Industrial Devices Europe GmbH (Panasonic) reserves the right to make changes as required at any time
without notification. Please consult the most recently issued Product Specification before initiating or
completing a design.
© Panasonic Industrial Devices Europe GmbH 2026.
This specification sheet is copyrighted. Reproduction of this document is permissible only if reproduction is
without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Do
not disclose it to a third party.
All rights reserved.
This Product Specification does not lodge the claim to be complete and free of mistakes.
If this document is marked as preliminary, please be aware that its final content is not yet concluded and
the use of it is at your own risk.
Document Acceptance
By signing the Product Specification, you acknowledge that you are a legal representative for your
company and that you understand and accept the validity of the contents herein.
If the signed version of the Product Specification has not been returned to Panasonic within 30 days
after receipt of the product, the specification or approval sheet shall be deemed to be accepted by
you.
Engineering Samples (ES)
If Engineering Samples are delivered to the customer, these samples have the status “Engineering
Samples”. This means that the design of this product is not yet concluded. Engineering Samples may be
partially or fully functional, and they may differ from the published Product Specification.
Engineering Samples are not qualified and they are not to be used for reliability testing or series
production.
Disclaimer
The customer acknowledges that samples may deviate from the Product Specification and may bear
defects due to their status of development and the lack of qualification mentioned above.
Panasonic rejects any liability or product warranty for Engineering Samples. In particular, Panasonic
disclaims liability for damages caused by:
• The use of the Engineering Sample other than for evaluation purposes, particularly the installation
or integration in another product to be sold by the customer,
• Deviation or lapse in function of the Engineering Sample,
• Improper use of the Engineering Sample.
Panasonic Industrial Devices Europe GmbH disclaims any liability for consequential and incidental
damages. In case of any queries regarding the Engineering Samples, please contact your local sales
partner or the related product manager.
Information on Software
The PAN W602 module does not contain any software ex works, i.e. software is provided by 3rd party
suppliers only. The essential software resources can be found on the partner website of Texas Instruments
Incorporated (https://www.ti.com).
PIDEU provides a factory software programming service for your customized firmware; for further
information please reach out to your local sales contact this regarding 7.3.1 Contact Us.
PAN W602 Bluetooth/Wi-Fi Modul
Product Specification Rev. 1.0 Page 4 of 82
Table of Contents
1 About This Document ......................................................................................................................... 6
1.1 Purpose and Audience .............................................................................................................. 6
1.2 Revision History ......................................................................................................................... 6
1.3 Use of Symbols ......................................................................................................................... 6
1.4 Related Documents ................................................................................................................... 6
2 Overview .............................................................................................................................................. 7
2.1 Block Diagram ........................................................................................................................... 8
2.2 Pin Configuration ....................................................................................................................... 9
2.3 Host Interface .......................................................................................................................... 13
2.4 WLAN ...................................................................................................................................... 14
2.5 Bluetooth ................................................................................................................................. 14
3 Detailed Description ......................................................................................................................... 15
3.1 Dimensions .............................................................................................................................. 15
3.2 Footprint .................................................................................................................................. 17
3.3 Packaging ................................................................................................................................ 18
3.4 Case Marking .......................................................................................................................... 24
4 Specification ..................................................................................................................................... 28
4.1 Default Test Conditions ........................................................................................................... 28
4.2 Absolute Maximum Ratings ..................................................................................................... 28
4.3 Recommended Operating Conditions ...................................................................................... 29
4.4 Power-up Sequence ................................................................................................................ 30
4.5 Current Consumption............................................................................................................... 30
4.6 Interfaces ................................................................................................................................. 31
4.7 RF Electrical Characteristics .................................................................................................... 35
4.8 Reliability Tests ....................................................................................................................... 46
4.9 Recommended Soldering Profile ............................................................................................. 47
5 Cautions ............................................................................................................................................ 48
5.1 Design Notes ........................................................................................................................... 48
5.2 Installation Notes ..................................................................................................................... 48
5.3 Usage Condition Notes ............................................................................................................ 49
5.4 Storage Notes .......................................................................................................................... 49
5.5 Safety Cautions ....................................................................................................................... 49
5.6 Other Cautions ........................................................................................................................ 50
5.7 Restricted Use ......................................................................................................................... 51
6 Regulatory and Certification Information ....................................................................................... 52
6.1 RoHS and REACH Declaration ............................................................................................... 52
6.2 Conformity According to Radio Equipment Directive (RED-2014/53/EU) for Europe .............. 52
6.3 United Kingdom Conformity According to Statutory Instrument (SI-2017/1206) ...................... 56
6.4 Federal Communications Commission (FCC) for US .............................................................. 58
6.5 Innovation, Science, and Economic Development (ISED) for Canada .................................... 64
6.6 Bluetooth Special Interest Group (SIG) ................................................................................... 70
PAN W602 Bluetooth/Wi-Fi Modul
Product Specification Rev. 1.0 Page 5 of 82
7 Appendix ........................................................................................................................................... 72
7.1 Channels and Power Settings per Country .............................................................................. 72
7.2 Ordering Information ................................................................................................................ 81
7.3 Contact Details ........................................................................................................................ 82
PAN W602 Bluetooth/Wi-Fi Modul 1 About This Document
Product Specification Rev. 1.0 Page 6 of 82
1 About This Document
1.1 Purpose and Audience
This Product Specification provides details on the functional, operational, and electrical
characteristics of the Panasonic PAN W602 module. It is intended for hardware design,
application, and Original Equipment Manufacturers (OEM) engineers.
The product is referred to as “PAN W602” and “module” within this document.
1.2 Revision History
Revision
Date
Modifications/Remarks
1.0
2026-07-09
Initial release
1.3 Use of Symbols
Symbol
Description
Note
Indicates important information for the proper use of the product.
Non-observance can lead to errors.
Attention
Indicates important notes that, if not observed, can put the product’s functionality
at risk.
[chapter number]
[chapter title]
Cross reference
Indicates cross references within the document.
Example:
Description of the symbols used in this document 1.3 Use of Symbols.
1.4 Related Documents
For related documents please refer to the Panasonic website 7.3.2 Product Information.
PAN W602 Bluetooth/Wi-Fi Modul 2 Overview
Product Specification Rev. 1.0 Page 7 of 82
2 Overview
The PAN W602-xx is a single band 2.4 GHz or dual band 2.4 GHz/5GHz 802.11 a/b/g/n/ax Wi-
Fi combo radio module including Bluetooth
®
Low Energy for cost-sensitive projects, which is
based on the chipsets CC3301 and CC3351 from Texas Instruments
®
. The simultaneous and
independent operation of the two technologies enable the high efficiency modes of 802.11ax
and the low-power operation of the latest Bluetooth
®
Low Energy standard.
Latest technologies like multiuser MIMO and OFDMA improve the efficiency in large networks.
Integrated power management, 802.11i/w security standard support, and high-speed data
interfaces deliver the performance for the speed, reliability, and quality requirements of next
generation products.
To enable seamless wireless communication, the module connects via SDIO for Wi-Fi and high-
speed UART for Bluetooth
®
to a host processor platform capable of running a Linux
®
and
Android
®
operating system.
For related documents please refer to 7.3.2 Product Information.
For further information on the variants and versions please refer to 7.2 Ordering Information.
PAN W602 Bluetooth/Wi-Fi Modul 2 Overview
Product Specification Rev. 1.0 Page 8 of 82

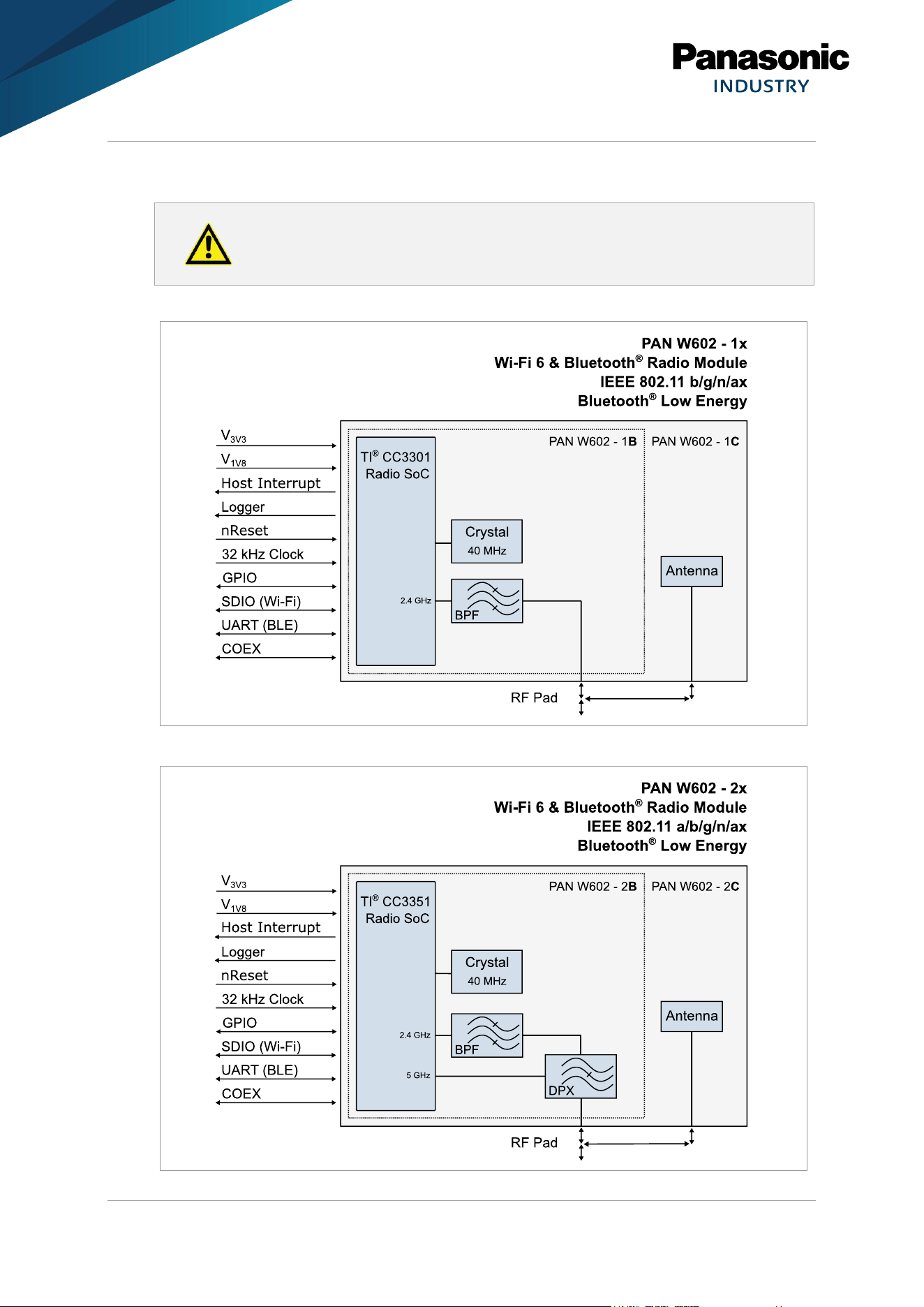

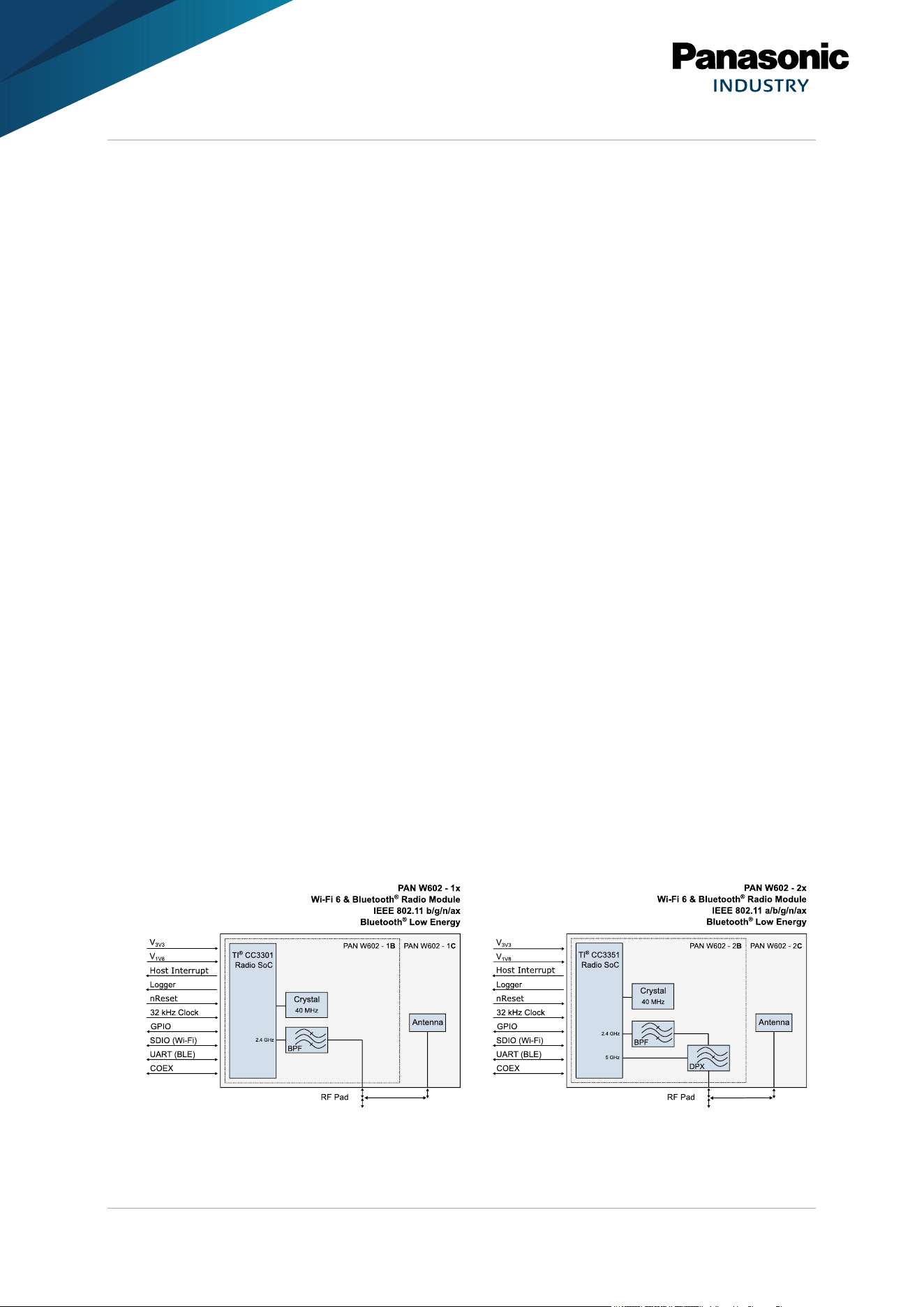

2.1 Block Diagram
Please note that variants PAN W602-1B (ENWF9211C) and PAN W602-1C
(ENWF9211A) are currently still in progress of regulatory certification.
PAN W602 Bluetooth/Wi-Fi Modul 2 Overview
Product Specification Rev. 1.0 Page 9 of 82

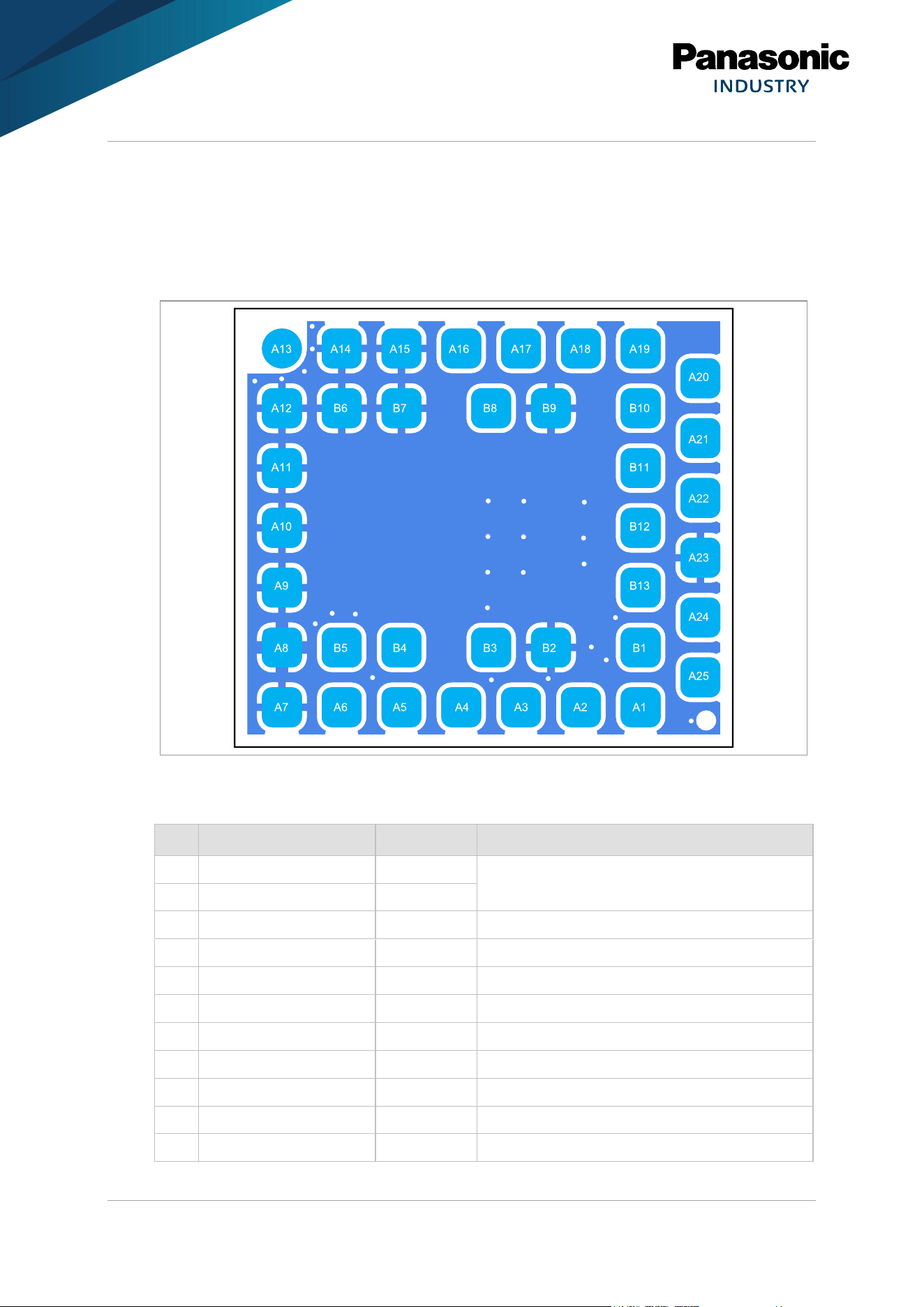

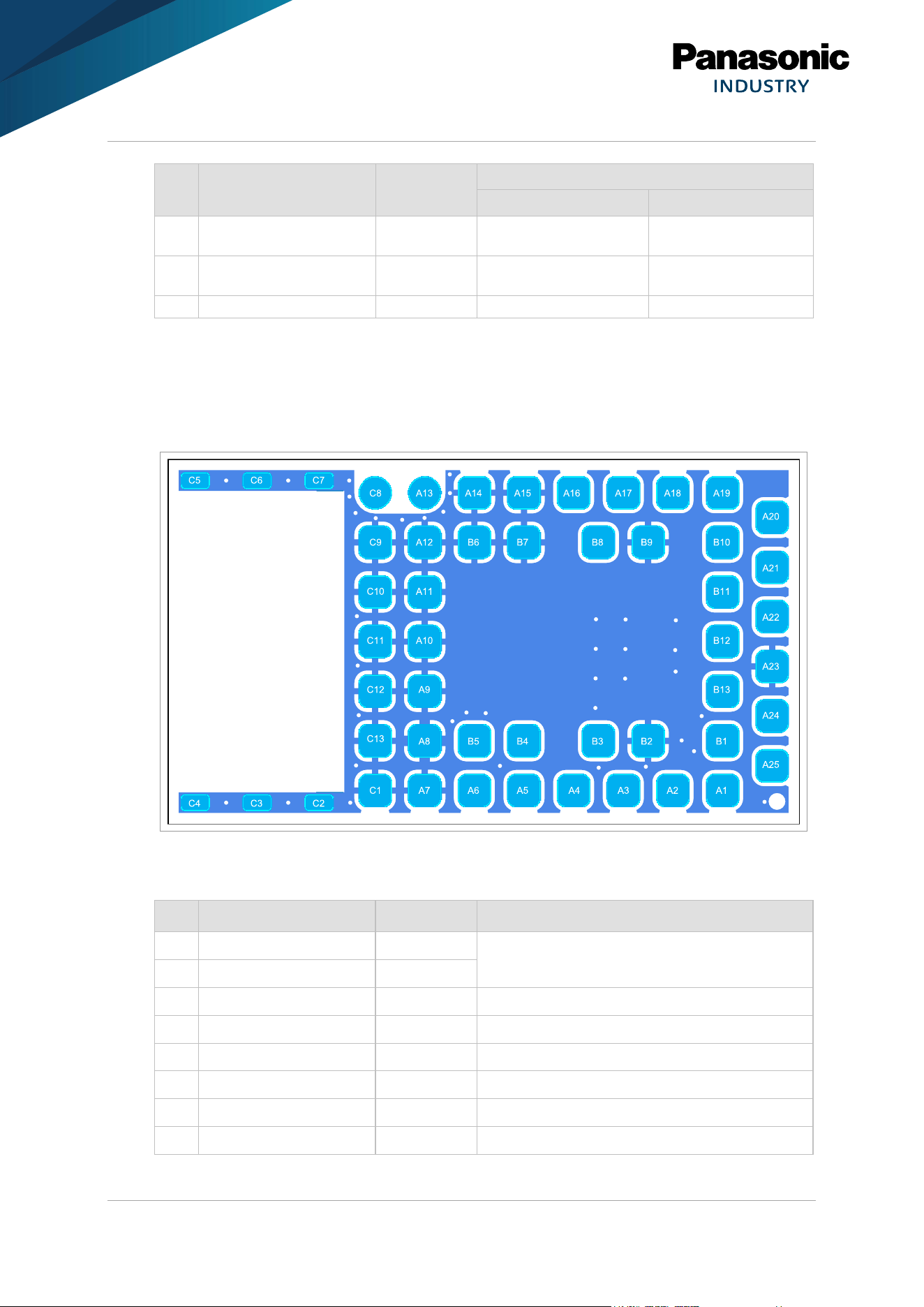

2.2 Pin Configuration
2.2.1 PAN W602-xB
Pin Assignment
Bottom View
Pin Functions
No.
Pin Name
Pin Type
Description
A1
SDIO_CMD
Digital I/O
For SDIO specific terminals please refer to SDIO Pin
Functions.
A2
SDIO_CLK
Digital I/O
A3
SWCLK
Input signal
Serial wire debug clock
A4
LOGGER
Output signal
Tracer (UART TX debug logger)
A5
HOST_IRQ_WL
Output signal
Interrupt request to host for WLAN
A6
3V3
Power
+3.3 V power supply connection
A7
GND
Ground pin
Connect to ground
A8
GND
Ground pin
Connect to ground
A9
GND
Ground pin
Connect to ground
A10
GND
Ground pin
Connect to ground
A11
GND
Ground pin
Connect to ground
PAN W602 Bluetooth/Wi-Fi Modul 2 Overview
Product Specification Rev. 1.0 Page 10 of 82
No.
Pin Name
Pin Type
Description
A12
GND
Ground pin
Connect to ground
A13
BT_WL_ANT
RF port
50 Ω bottom pad Wi-Fi/Bluetooth
A14
GND
Ground pin
Connect to ground
A15
GND
Ground pin
Connect to ground
A16
1V8
Power
+1.8 V power supply connection
A17
SLOW_CLK_IN
Input signal
External low power clock input (32.768 kHz)
A18
COEX_GRA
Output signal
Coexistence interface: Grant
A19
COEX_PRI
Input signal
Coexistence interface: Priority
A20
GPIO1
Digital I/O
General Purpose I/O – GPIO[1]
A21
UART_CTS
Input signal
Data set ready from peripheral device
A22
UART_TX
Output signal
Serial data input from peripheral device
A23
GND
Ground pin
Connect to ground
A24
SDIO_D2
Digital I/O
For SDIO specific terminals please refer to SDIO Pin
Functions.
A25
SDIO_D0
Digital I/O
B1
SDIO_D1
Digital I/O
B2
GND
Ground pin
Connect to ground
B3
SWDIO
Digital I/O
Serial wire debug I/O
B4
HOST_IRQ_BLE
Output signal
Reserved for future use
B5
3V3
Power
+3.3 V power supply connection
B6
GND
Ground pin
Connect to ground
B7
GND
Ground pin
Connect to ground
B8
nRESET
Input signal
Reset line (active low)
B9
GND
Ground pin
Connect to ground
B10
COEX_REQ
Input signal
Coexistence interface: Request
B11
UART_RTS
Output signal
Data terminal ready to peripheral device
B12
UART_RX
Input signal
Serial data input from peripheral device
B13
SDIO_D3
Digital I/O
For SDIO specific terminals please refer to SDIO Pin
Functions.
SDIO Pin Functions
No.
Pin Name
Pin Type
Decription
SDIO 4-Bit Mode
SPI Mode
A2
SDIO_CLK
Digital I/O
Clock
Clock
A1
SDIO_CMD
Digital I/O
Command Line
Command Line
A25
SDIO_D0
Digital I/O
Data Line bit [0]
Data Line
PAN W602 Bluetooth/Wi-Fi Modul 2 Overview
Product Specification Rev. 1.0 Page 11 of 82
No.
Pin Name
Pin Type
Decription
SDIO 4-Bit Mode
SPI Mode
B1
SDIO_D1
Digital I/O
Data Line bit [1] or Interrupt
(optional)
Interrupt
A24
SDIO_D2
Digital I/O
Data Line bit [2] or Read
Wait (optional)
Read Wait (optional)
B13
SDIO_D3
Digital I/O
Data Line bit [3]
Not used
2.2.2 PAN W602-xC
Pin Assignment
Bottom View
Pin Functions
No.
Pin Name
Pin Type
Description
A1
SDIO_CMD
Digital I/O
For SDIO specific terminals please refer to SDIO Pin
Functions.
A2
SDIO_CLK
Digital I/O
A3
SWCLK
Input signal
Serial wire debug clock
A4
LOGGER
Output signal
Tracer (UART TX debug logger)
A5
HOST_IRQ_WL
Output signal
Interrupt request to host for WLAN
A6
3V3
Power
+3.3 V power supply connection
A7
GND
Ground pin
Connect to ground
A8
GND
Ground pin
Connect to ground
PAN W602 Bluetooth/Wi-Fi Modul 2 Overview
Product Specification Rev. 1.0 Page 12 of 82
No.
Pin Name
Pin Type
Description
A9
GND
Ground pin
Connect to ground
A10
GND
Ground pin
Connect to ground
A11
GND
Ground pin
Connect to ground
A12
GND
Ground pin
Connect to ground
A13
BT_WL_ANT
RF port
50 Ω bottom pad Wi-Fi/Bluetooth
A14
GND
Ground pin
Connect to ground
A15
GND
Ground pin
Connect to ground
A16
1V8
Power
+1.8 V power supply connection
A17
SLOW_CLK_IN
Input signal
External low power clock input (32.768 kHz)
A18
COEX_GRA
Output signal
Coexistence interface: Grant
A19
COEX_PRI
Input signal
Coexistence interface: Priority
A20
GPIO1
Digital I/O
General Purpose I/O – GPIO[1]
A21
UART_CTS
Input signal
Data set ready from peripheral device
A22
UART_TX
Output signal
Serial data input from peripheral device
Connect to ground
A23
GND
Ground pin
A24
SDIO_D2
Digital I/O
For SDIO specific terminals please refer to SDIO Pin
Functions.
A25
SDIO_D0
Digital I/O
B1
SDIO_D1
Digital I/O
B2
GND
Ground pin
Connect to ground
B3
SWDIO
Digital I/O
Serial wire debug I/O
B4
HOST_IRQ_BLE
Output signal
Reserved for future use
B5
3V3
Power
+3.3 V power supply connection
B6
GND
Ground pin
Connect to ground
B7
GND
Ground pin
Connect to ground
B8
nRESET
Input signal
Reset line (active low)
B9
GND
Ground pin
Connect to ground
B10
COEX_REQ
Input signal
Coexistence interface: Request
B11
UART_RTS
Output signal
Data terminal ready to peripheral device
B12
UART_RX
Input signal
Serial data input from peripheral device
B13
SDIO_D3
Digital I/O
For SDIO specific terminals please refer to SDIO Pin
Functions.
C1
GND
Ground pin
Connect to ground
C2
GND
Ground pin
Connect to ground
C3
GND
Ground pin
Connect to ground
C4
GND
Ground pin
Connect to ground
PAN W602 Bluetooth/Wi-Fi Modul 2 Overview
Product Specification Rev. 1.0 Page 13 of 82
No.
Pin Name
Pin Type
Description
C5
GND
Ground pin
Connect to ground
C6
GND
Ground pin
Connect to ground
C7
GND
Ground pin
Connect to ground
C8
RF_to_ANT
RF port
50 Ω antenna pad Wi-Fi/Bluetooth
C9
GND
Ground pin
Connect to ground
C10
GND
Ground pin
Connect to ground
C11
GND
Ground pin
Connect to ground
C12
GND
Ground pin
Connect to ground
C13
GND
Ground pin
Connect to ground
SDIO Pin Functions
No.
Pin Name
Pin Type
Description
4-Bit SDIO Mode
SPI Mode
A2
SDIO_CLK
Digital I/O
Clock
Clock
A1
SDIO_CMD
Digital I/O
Command Line
Command Line
A25
SDIO_D0
Digital I/O
Data Line bit [0]
Data Line
B1
SDIO_D1
Digital I/O
Data Line bit [1] or Interrupt
(optional)
Interrupt
A24
SDIO_D2
Digital I/O
Data Line bit [2] or Read
Wait (optional)
Read Wait (optional)
B13
SDIO_D3
Digital I/O
Data Line bit [3]
Not used
2.3 Host Interface
Type
Features
High-speed UART interface
The device supports a high-speed Universal Asynchronous
Receiver/Transmitter (UART) interface.
•
Fully compliant to the Bluetooth HCI UART specification
•
Two flow control pins
SDIO interface / SPI interface
The device supports a SDIO device interface or a SPI device interface that
allows a host controller using the SDIO of SPI bus protocol to access the
device.
•
4-bit SDIO transfer mode with clock range up to 52 MHz
− Default speed with clock range up to 26 MHz
− High speed with clock range up to 52 MHz
•
SPI transfer mode with clock range up to 26 MHz
The SDIO interface can be used as a shared Wi-Fi and Bluetooth interface.
For further information please refer to 4.6.1 Host Interface.
PAN W602 Bluetooth/Wi-Fi Modul 2 Overview
Product Specification Rev. 1.0 Page 14 of 82
2.4 WLAN
2.4.1 Features
Type
Features
IEEE 802.11 Standards
•
802.11 data rates: 1 Mbps and 2 Mbps (DSSS)
•
802.11b data rates: 5.5 Mbps and 11 Mbps (CCK)
•
802.11a/g data rate: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps (OFDM)
•
802.11n with maximum data rates: up to 72 Mbps (20 MHz
channel)
•
802.11ax with maximum data rates: up to 86 Mbps (20 MHz
channel)
•
802.11ax 1x1 SU and MU-MIMO (Station mode only, Downlink
only) / OFDMA (Station mode only)
•
802.11e Medium Access Control (MAC): Quality of Service
Enhancements
WLAN Extended Features
•
OFDMA Trigger Frames
•
Basic Service Set (BSS) coloring
•
Target Wake Time (TWT)
•
Multirole support (e.g. concurrent Station and Access Point)
•
802.11ac-compatible (20 MHz channel and max. MCS7 only)
WLAN MAC
•
IEEE 802.11 a/b/g/n/ax support
WLAN Baseband
•
802.11ax 1x1 MU-MIMO baseband, backwards compatible with
802.11n/a/g/b technology
•
Bandwidth support
– 20 MHz
•
Modulation and Coding Schemes (MCS)
– 802.11ax: MCS0~7
– 802.11n: MCS0~7
WLAN Radio and Frontend
•
5 GHz and 2.4 GHz Wi-Fi band operation (PAN W602-2x only)
•
2.4 GHz Wi-Fi band operation (PAN W602-1x only)
•
802.11ax 1x1 MU-MIMO on-chip RF radio
•
Shared RF bottom pad for WLAN and Bluetooth
WLAN Encryption
•
Supports WPA2 and WPA3 personal and enterprise
− Personal (Access Point & Station): WPA3, WPA2-PSK, WPS
PBC + PIN, open
− Enterprise (Station only): WPA3 GCMP support + 192-bit keys,
EAP Methods (TLS, TTLS, TTLS-MSCHAP, PEAPv0-
MSCHAP, and PEAPv1-TLS)
2.5 Bluetooth
2.5.1 Features
Type
Features
General
•
Supports Bluetooth 5.4 Low Energy features
•
Shared RF pad with Wi-Fi
•
Simultaneous receive with Wi-Fi
•
Coexistence with Wi-Fi
Bluetooth Low Energy (LE)
•
Bluetooth 5.4 features
•
Supported Bluetooth Low Energy PHY data rates
•
1 Mbps (GFSK)
•
2 Mbps (GFSK)
•
Host controller interface (HCI) transport with option for UART or
shared SDIO
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 15 of 82
3 Detailed Description

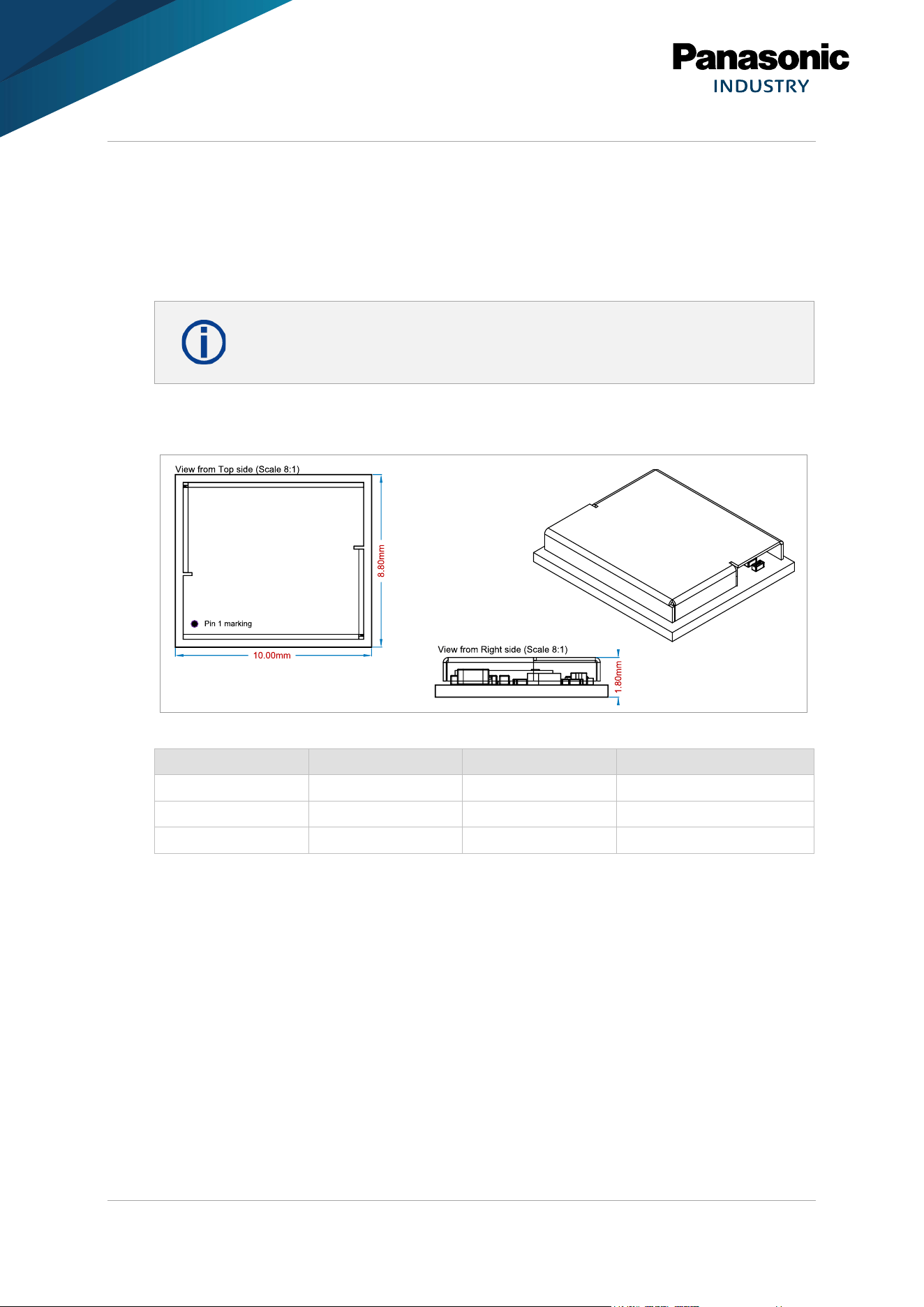

3.1 Dimensions
3.1.1 PAN W602-xB
The dimensions are in millimeters.

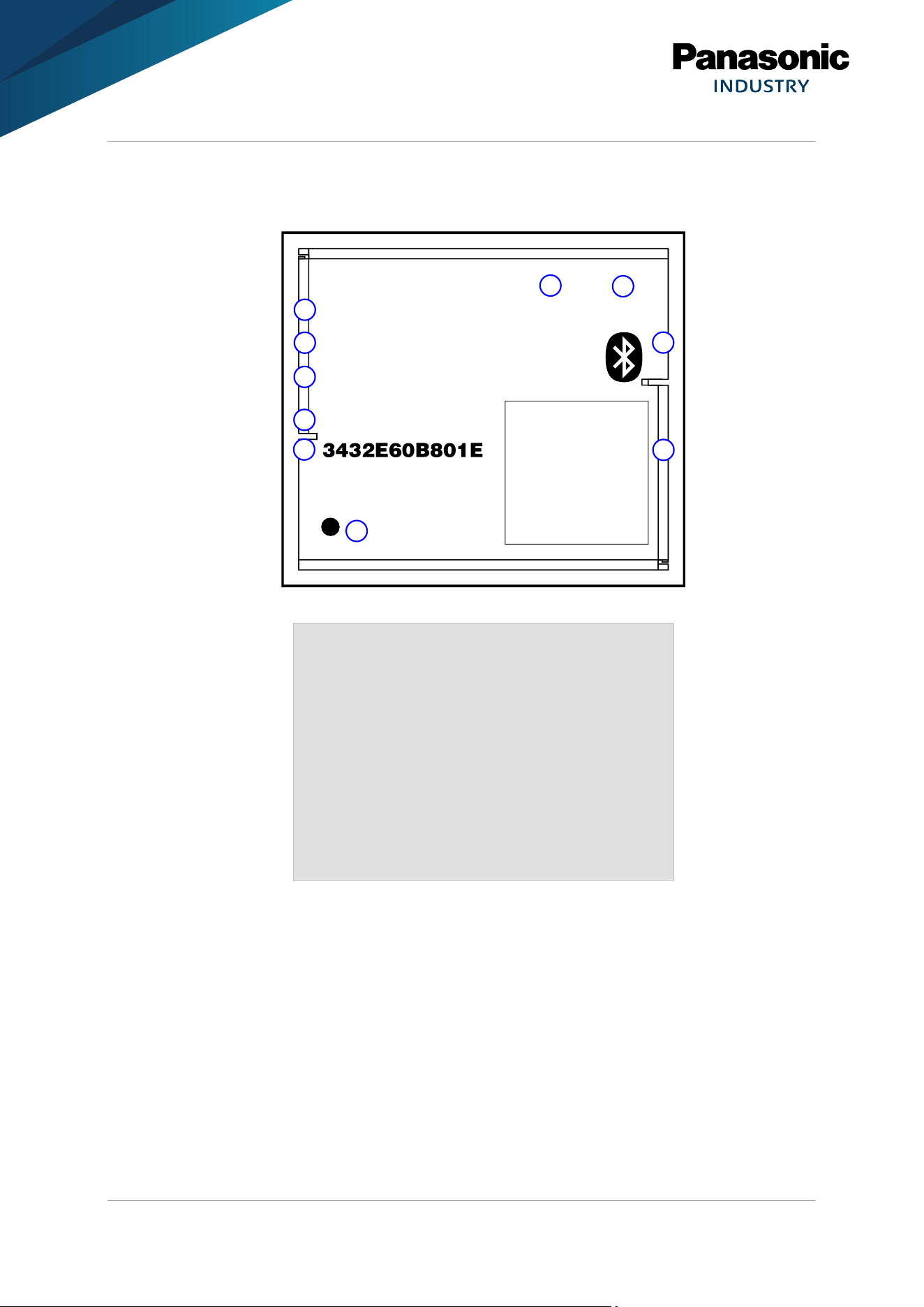

Top View
Item
Dimension
Tolerance
Remark
Width
8.80
±0.35
Length
10.00
±0.35
Height
1.80
±0.20
With case
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 16 of 82

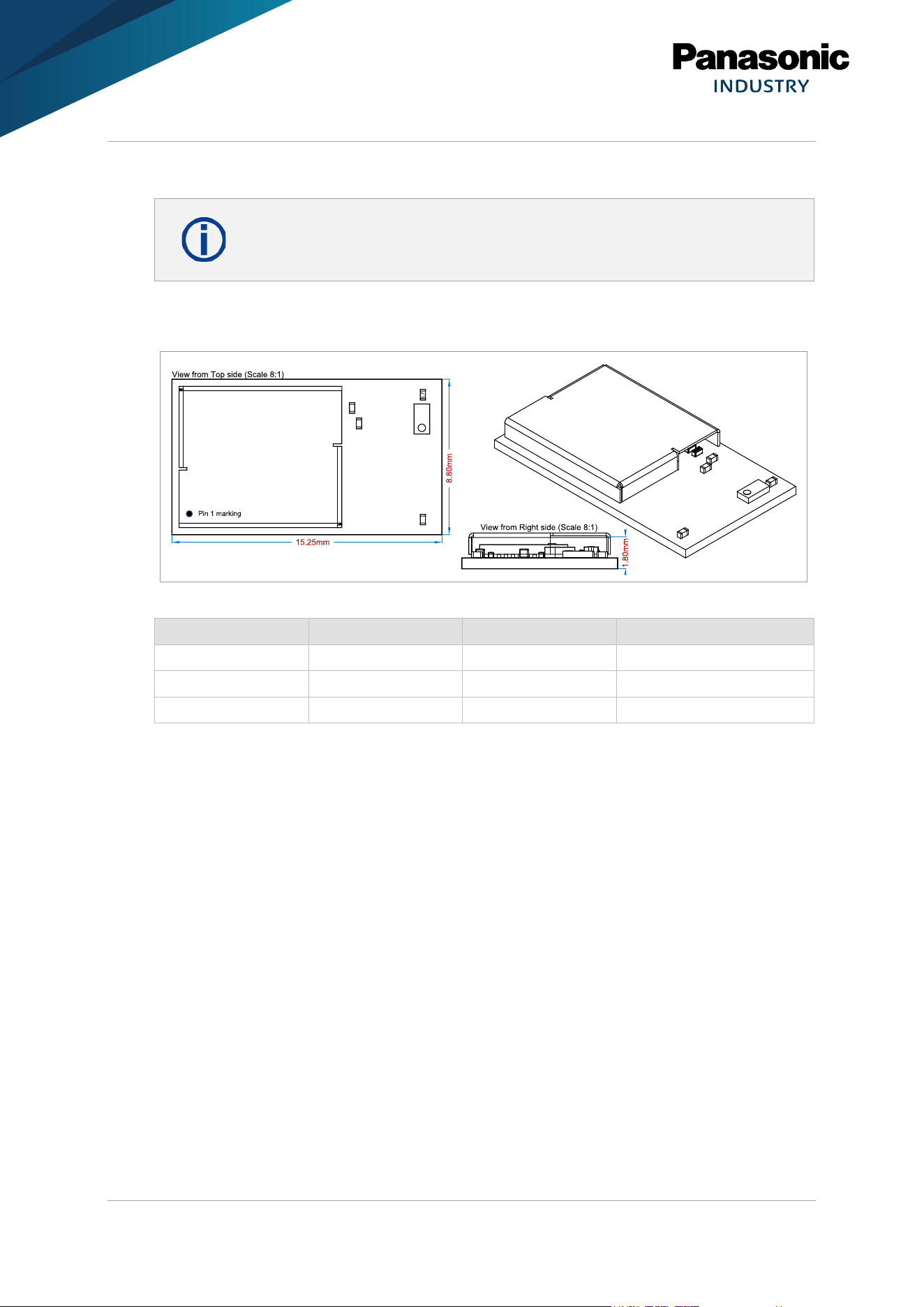

3.1.2 PAN W602-xC
The dimensions are in millimeters.
Top View
Item
Dimension
Tolerance
Remark
Width
8.80
±0.35
Length
15.25
±0.35
Height
1.80
±0.20
With case
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 17 of 82

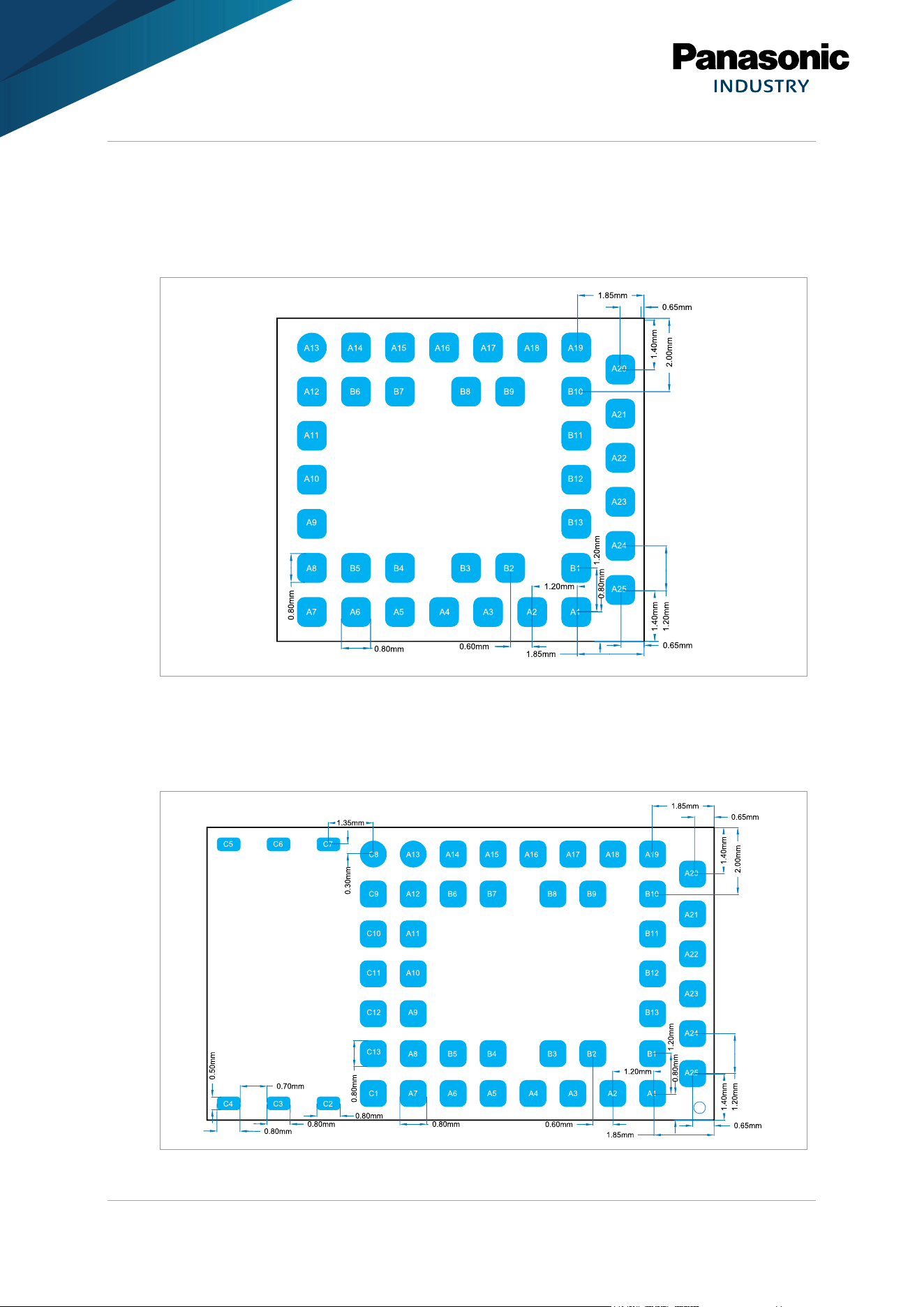

3.2 Footprint
3.2.1 PAN W602-xB
Bottom View
3.2.2 PAN W602-xC
Bottom View
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 18 of 82
3.3 Packaging
The module is a mass production status product and will be delivered in the package described
below.

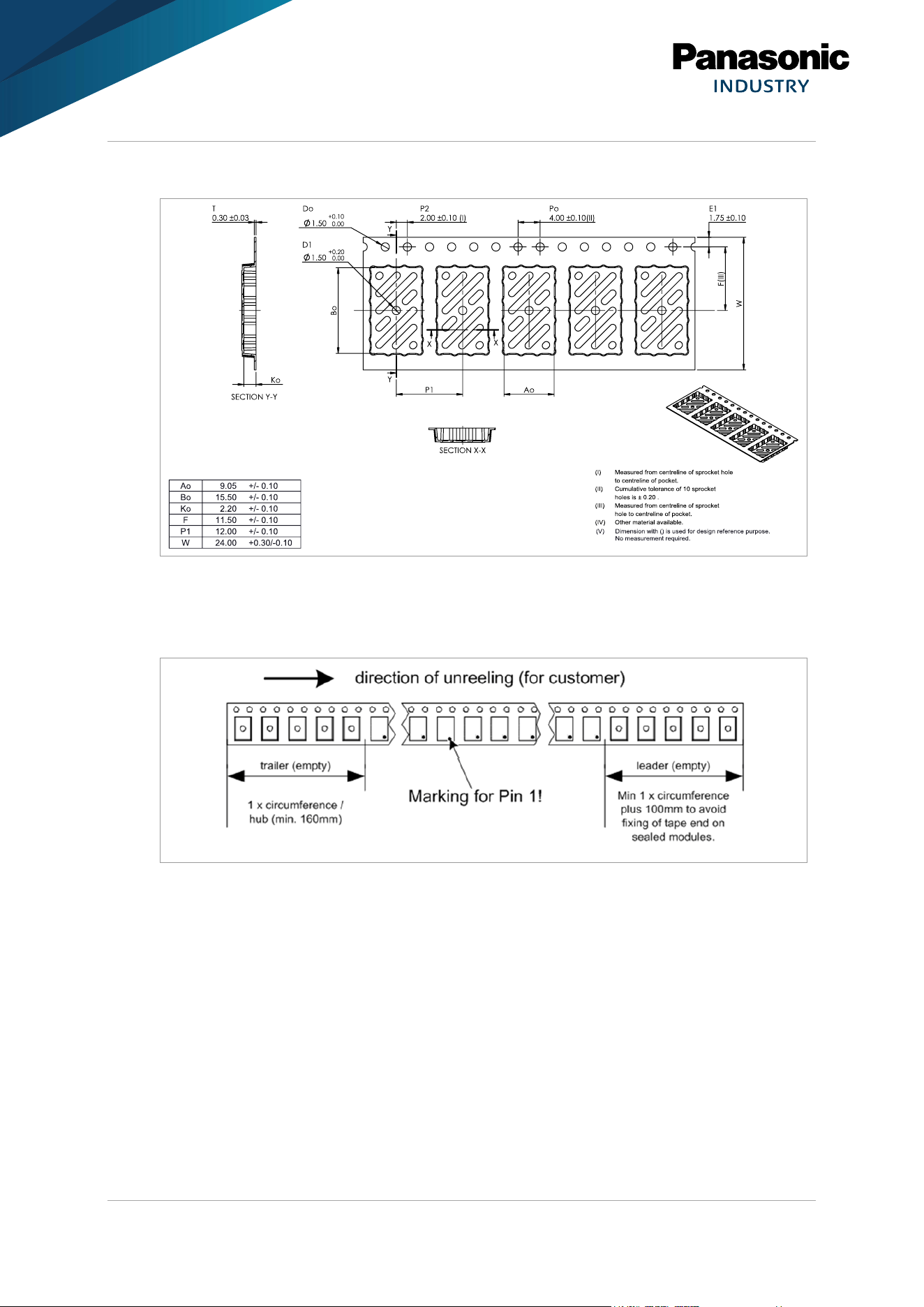

3.3.1 Tape Dimensions
3.3.1.1 PAN W602-xB
All Dimensions are in millimeters unless otherwise stated.
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 19 of 82
3.3.1.2 PAN W602-xC
All Dimensions are in millimeters unless otherwise stated.
3.3.2 Packing in Tape
Empty spaces in the component packed area shall be less than two per reel and those spaces
shall not be consecutive.
The top cover tape shall not be found on reel holes and it shall not stick out from the reel.
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 20 of 82

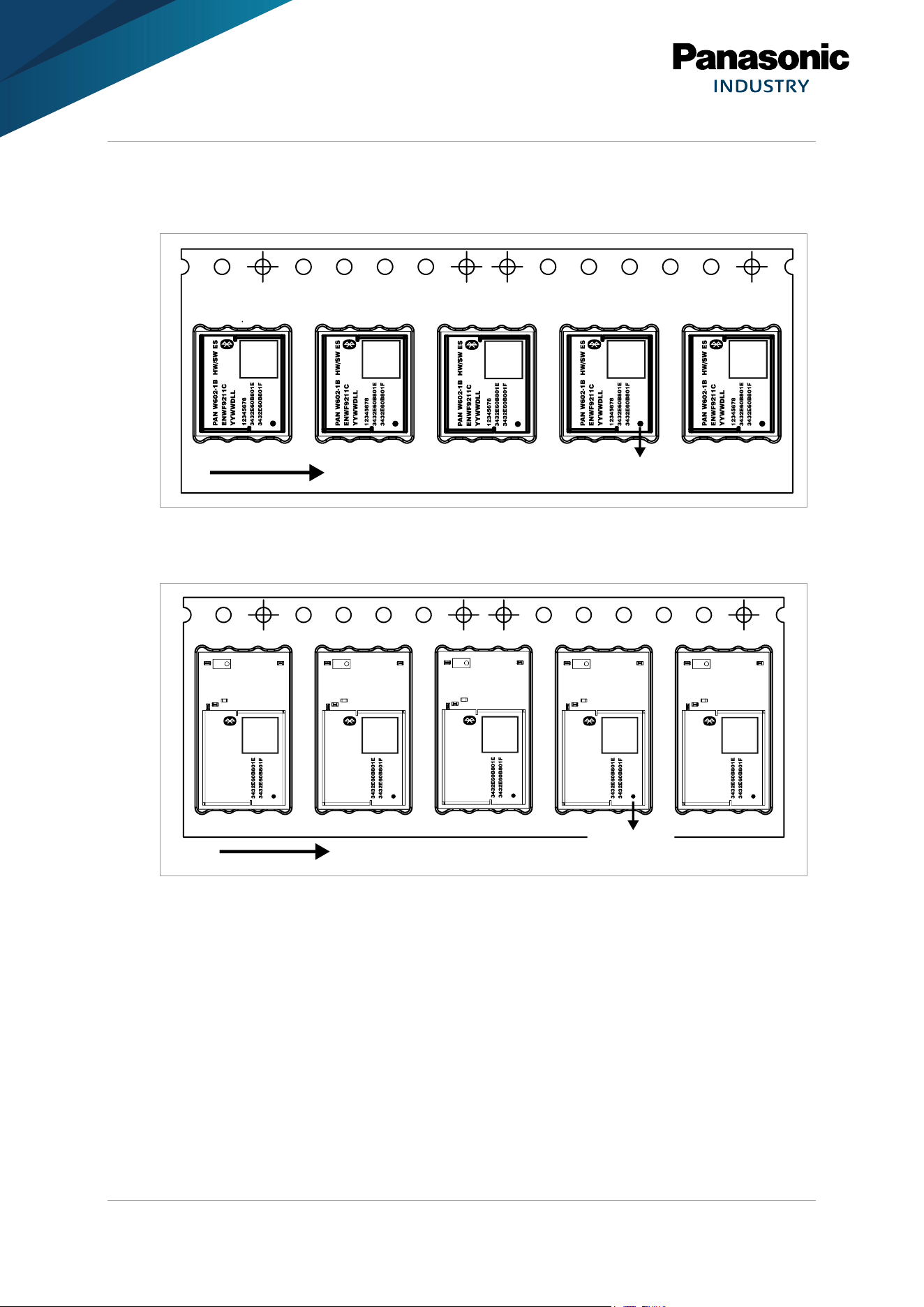

3.3.3 Component Direction
3.3.3.1 PAN W602-xB
3.3.3.2 PAN W602-xC
D arco de
D arco de
D arco de
D arco de
D arco de
Direction o unreelin or customer
in mar in
Top side
D arcode
D arcode
D arcode
D arcode
D arcode
Direction o unreelin or customer
in mar in
Top side
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 21 of 82

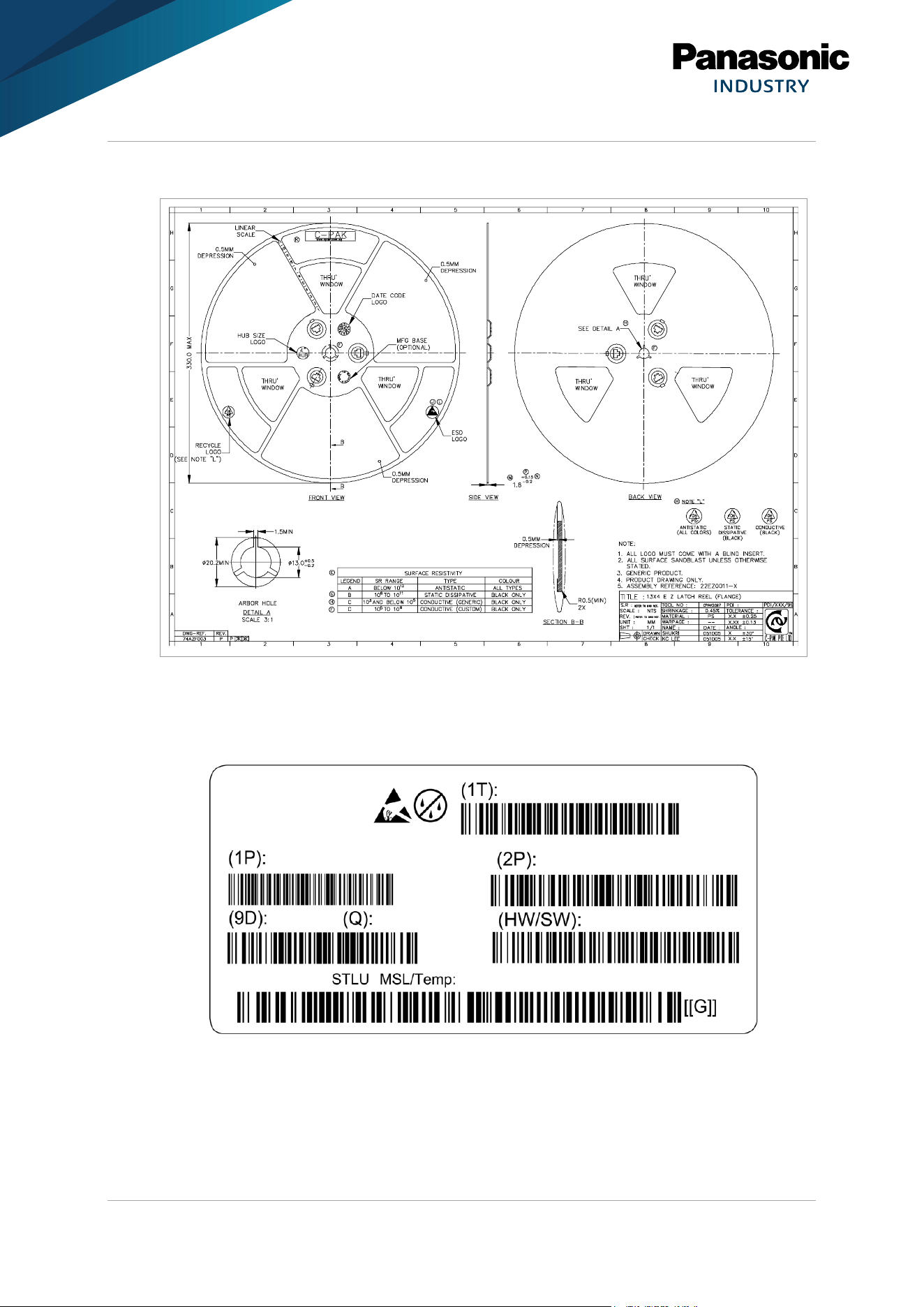

3.3.4 Reel Dimension
3.3.5 Package Label
Example:
Te t is not S cannot display
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 22 of 82
(1T)
(1P)
(2P)
(9D)
(Q)
(HW/SW)
Lot code
Customer order number, if applicable
Order number
Date code
Quantity
Hardware/software version

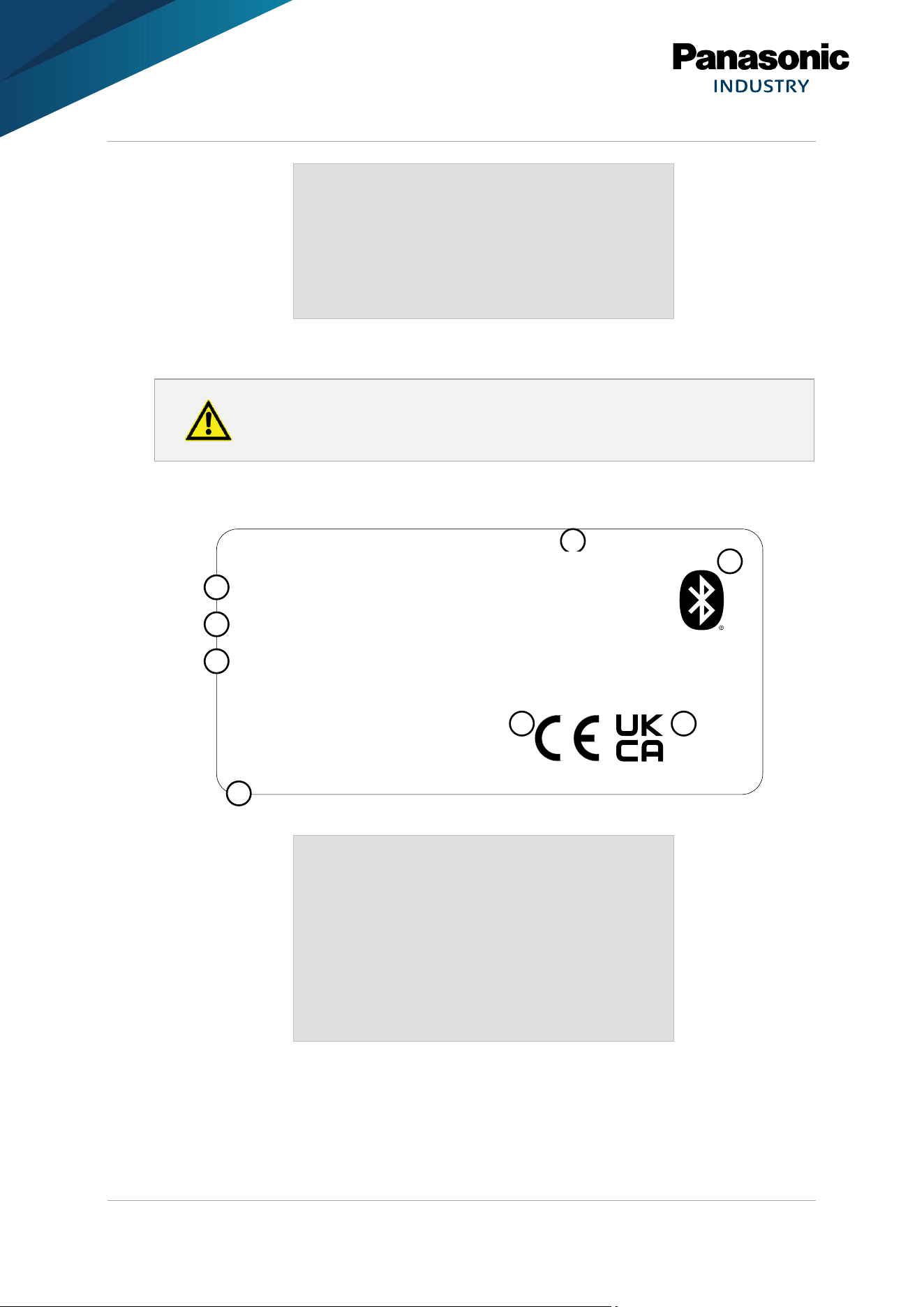

3.3.6 Regulatory Label
Please note that all variants are currently still in progress of regulatory
certification. Therefore, the CE and UKCA markings are not applied, yet.
Example:
1
2
3
4
5
6
7
8
Regulatory Product Number
Marketing Name
FCC ID
IC ID
CE Mark
UK-CA Mark
UK Importer Address
Bluetooth SIG Logo
ENWF921xx
FCC ID: T7V-W602
IC ID: 216Q-W602
Importer in the UK: Panasonic Indus try Europe GmbH UK B ranch, Ma xis 2, Western Road, Brack ne ll, B erkshir e, R G12 1RT
PAN W602-xx
abc
1
2
3
4
5 6
7
8
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 23 of 82
3.3.7 Total Package
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 24 of 82

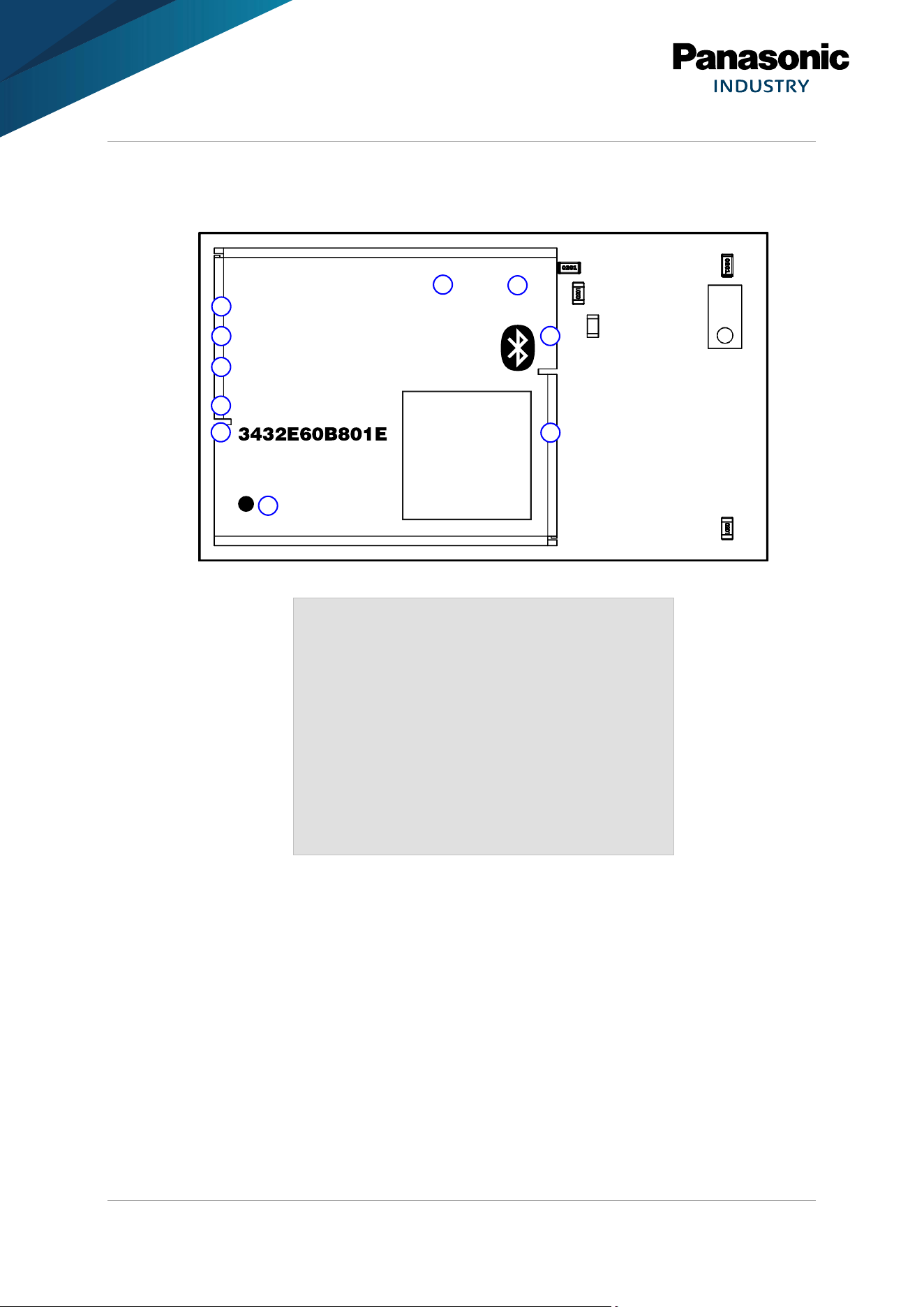

3.4 Case Marking

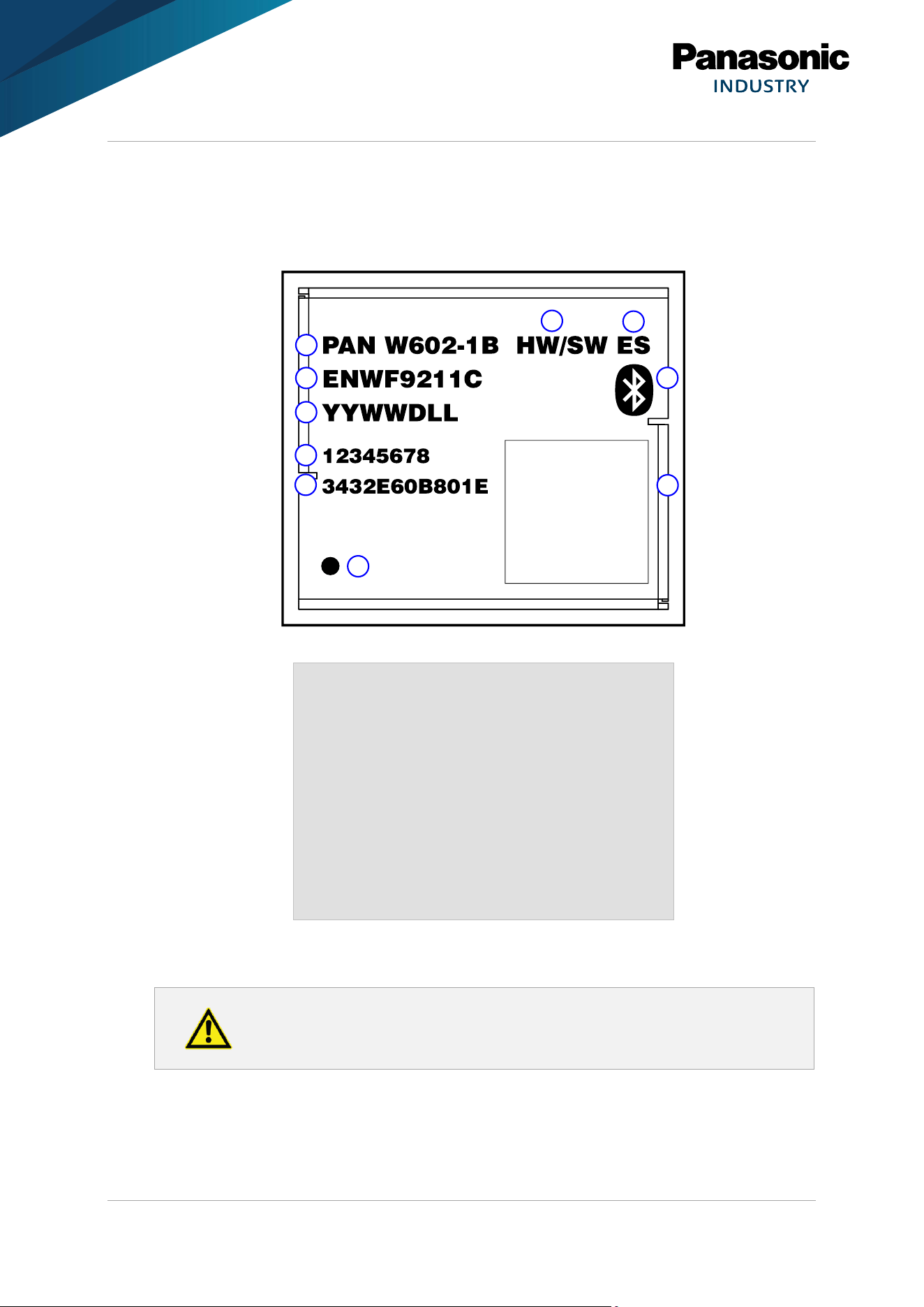

3.4.1 ENWF9211C
Example:
1
2
3
4
5
6
7
8
9
10
Brand name
Hardware/software version
Engineering Sample marking, if applicable
Regulatory product number
Lot code
Serial number
Wi-Fi MAC address
Marking for Pin 1
Bluetooth marking
2D barcode, for internal usage only
Please note that variants PAN W602-1B (ENWF9211C) and PAN W602-1C
(ENWF9211A) are currently still in progress of regulatory certification.
D arcode
2
5
0
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 25 of 82

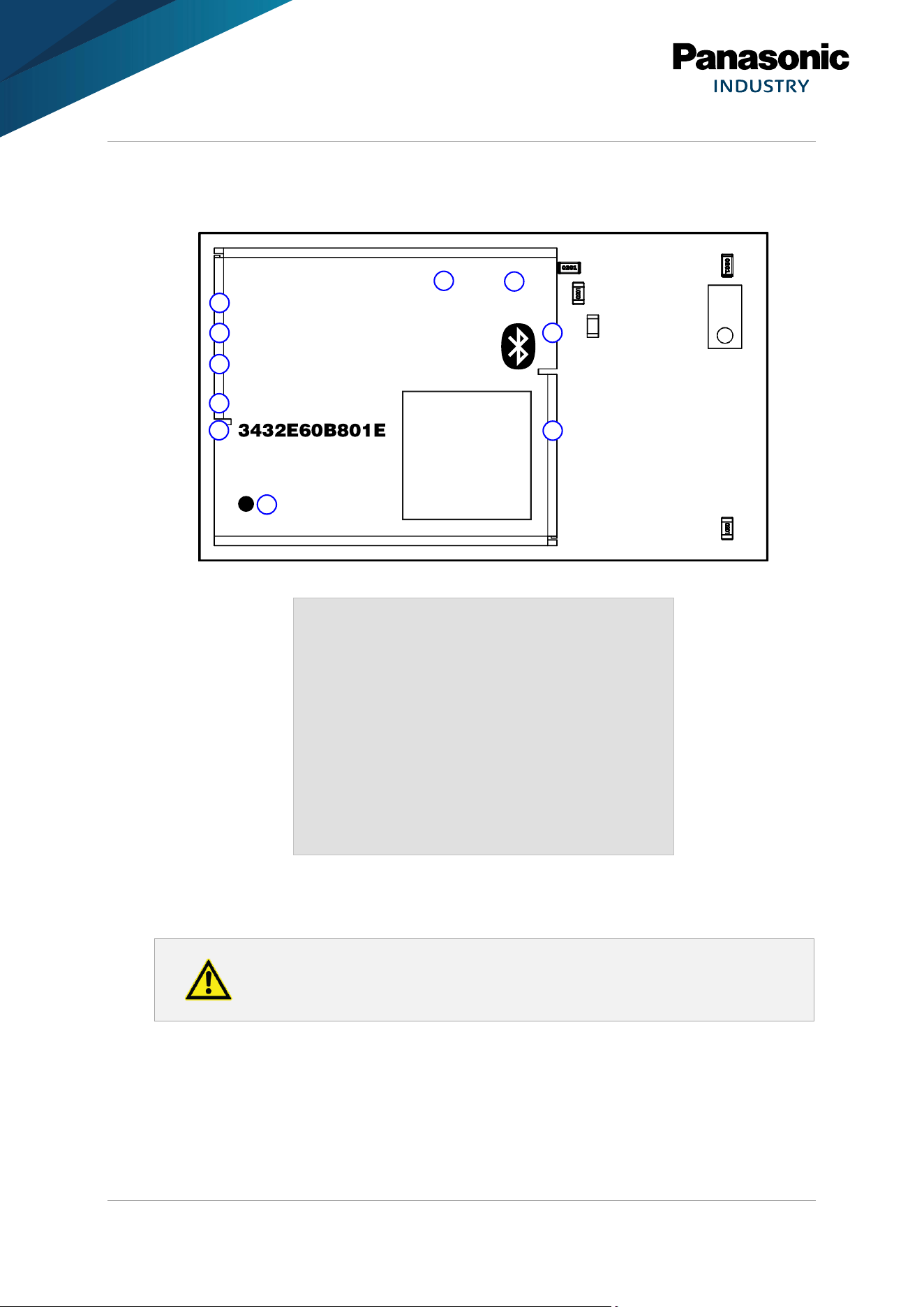

3.4.2 ENWF9215C
Example:
1
2
3
4
5
6
7
8
9
10
Brand name
Hardware/software version
Engineering Sample marking, if applicable
Regulatory product number
Lot code
Serial number
Wi-Fi MAC address
Marking for Pin 1
Bluetooth marking
2D barcode, for internal usage only
D arcode
2
5
0
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 26 of 82
3.4.3 ENWF9211A
Example:
1
2
3
4
5
6
7
8
9
10
Brand name
Hardware/software version
Engineering Sample marking, if applicable
Regulatory product number
Lot code
Serial number
Wi-Fi MAC address
Marking for Pin 1
Bluetooth marking
2D barcode, for internal usage only
Please note that variants PAN W602-1B (ENWF9211C) and PAN W602-1C
(ENWF9211A) are currently still in progress of regulatory certification.
D arcode
2
5
0
PAN W602 Bluetooth/Wi-Fi Modul 3 Detailed Description
Product Specification Rev. 1.0 Page 27 of 82
3.4.4 ENWF9215A
Example:
1
2
3
4
5
6
7
8
9
10
Brand name
Hardware/software version
Engineering Sample marking, if applicable
Regulatory product number
Lot code
Serial number
Wi-Fi MAC address
Marking for Pin 1
Bluetooth marking
2D barcode, for internal usage only
D arcode
2
5
0
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 28 of 82
4 Speci ication
All specifications are over temperature and process, unless indicated
otherwise.
4.1 Default Test Conditions
Temperature: 25 °C ± 0 °C
Humidity: 40 % to 5 % RH
Supply Voltage: = . and = . V
4.2 Absolute Maximum Ratings
The maximum ratings may not be exceeded under any circumstances, not even
momentarily or individually, as permanent damage to the module may result.
Symbol
Parameter
Condition
Min.
Typ.
Max.
Unit
T
STOR
Storage
Temperature
-40
85
°C
V
ESD
ESD
Robustness
All pads, according to human
body model (HBM), JEDEC
STD 22, method A114
1 000
V
P
RF
RF Input
Level
Wi-Fi 802.11b DSSS
0
dBm
Wi-Fi 802.11b CCK
-8.5
dBm
Wi-Fi OFDM
-17.5
dBm
Bluetooth Low Energy
0.2
dBm
V
3V3
Maximum
Voltage
3.0
3.3
3.6
V
V
1V8
1.62
1.8
1.98
V
V
GPIO
Maximum
Voltage
Range for
GPIO Pins
-0.5
V
1V8
+ 0.5
V
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 29 of 82
4.3 Recommended Operating Conditions
The maximum ratings may not be exceeded under any circumstances, not even
momentarily or individually, as permanent damage to the module may result.
Symbol
Parameter
Condition
Min.
Typ.
Max.
Unit
T
A
Ambient
Operating
Temperature
Range
Industrial grade
-40
85
°C
V
3V3
Recommended
supply voltage
3.0
3.3
3.6
V
V
1V8
1.62
1.8
1.98
V
4.3.1 Digital Pin Characteristics
Symbol
Parameter
Condition
Min.
Typ.
Max.
Unit
V
IH
High Level
Input Voltage
0.65 x V
1V8
V
1V8
V
V
IL
Low Level Input
Voltage
0
0.35 x V
1V8
V
V
OH
High Level
Output Voltage
@ 4 mA
V
1V8
- 0.45
V
1V8
V
V
OL
Low Level
Output Voltage
@ 4 mA
0
0.45
V
4.3.2 Internal Operating Frequencies
Symbol
Parameter
Condition
Min.
Typ.
Max.
Unit
f
REFCLK
Crystal fundamental
frequency
Frequency tolerance < ±20 ppm over
operating temperature and lifetime
40
MHz
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 30 of 82
4.3.3 External Sleep Clock Requirements
Symbol
Parameter
Condition
Min.
Typ.
Max.
Unit
Input slow clock
frequency
Square wave
32.768
kHz
Frequency accuracy
Initial + temperature drift +
aging
-250
+250
ppm
Input Duty cycle
30
50
70
%
T
r
/T
f
Rise and fall time
10% to 90% (rise) and 90% to
10% (fall) of digital signal level
100
ns
V
IL
Input low level
0
0.35 x V
1V8
V
IH
Input high level
0.65 x V
1V8
Input impedance
1
MΩ
Input capacitance
5
pF
4.4 Power-up Sequence
For proper operation of the PAN W602 module, perform the recommended power-up
sequencing as follows:
1. All supplies (3V3 and 1V8) shall be available before nRESET is released.
2. For an external slow clock, confirm that the clock is stable before nRESET is deasserted
(high).
3. The nRESET pin must be held low for at least 10 µs after stabilization of the external
power supplies.
4.5 Current Consumption
The current consumption depends on the user scenario and on the setup and
timing in the power modes.
Assume 3V3 = 3.3 V, 1V8 = 1.8 V, T
amb
= 25 °C, if nothing else stated.
TBD
4.5.1 WLAN Current Consumption
TBD
4.5.2 Bluetooth Current Consumption
TBD
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 31 of 82
4.6 Interfaces
4.6.1 Host Interface
4.6.1.1 SDIO Interface
SDIO is the main host interface for WLAN.
SDIO Timing Diagram – Default Speed – Input Timing
SDIO Timing Diagram – Default Speed – Output Timing
SS
SS
DD
DD
loc nput
Data nput
ot alid ot alid alid
t
T
t
T
t
t
t
S
t
SS
DD
Data Output
SS
DD
loc nput
t
T
t
T
t
OD
min
t
OD
ma
t
t
O
O
O
O
ot alid ot alid alid
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 32 of 82
SDIO Timing Parameters – Default Speed
Symbol
Parameter
Condition
Min.
Typ.
Max.
Unit
f
Clock
Clock frequency
Clock
26
MHz
t
High
High Period
10
ns
t
Low
Low Period
10
ns
t
TLH
Rise time
Clock
10
ns
t
THL
Fall time
Clock
10
ns
t
ISU
Setup time
Input valid before clock rise
5
ns
t
IH
Hold time
Input valid after clock rise
5
ns
t
ODLY
Delay time
Clock fall to output valid
2
14
ns
C
L
Capacitive load
On outputs
15
40
pF

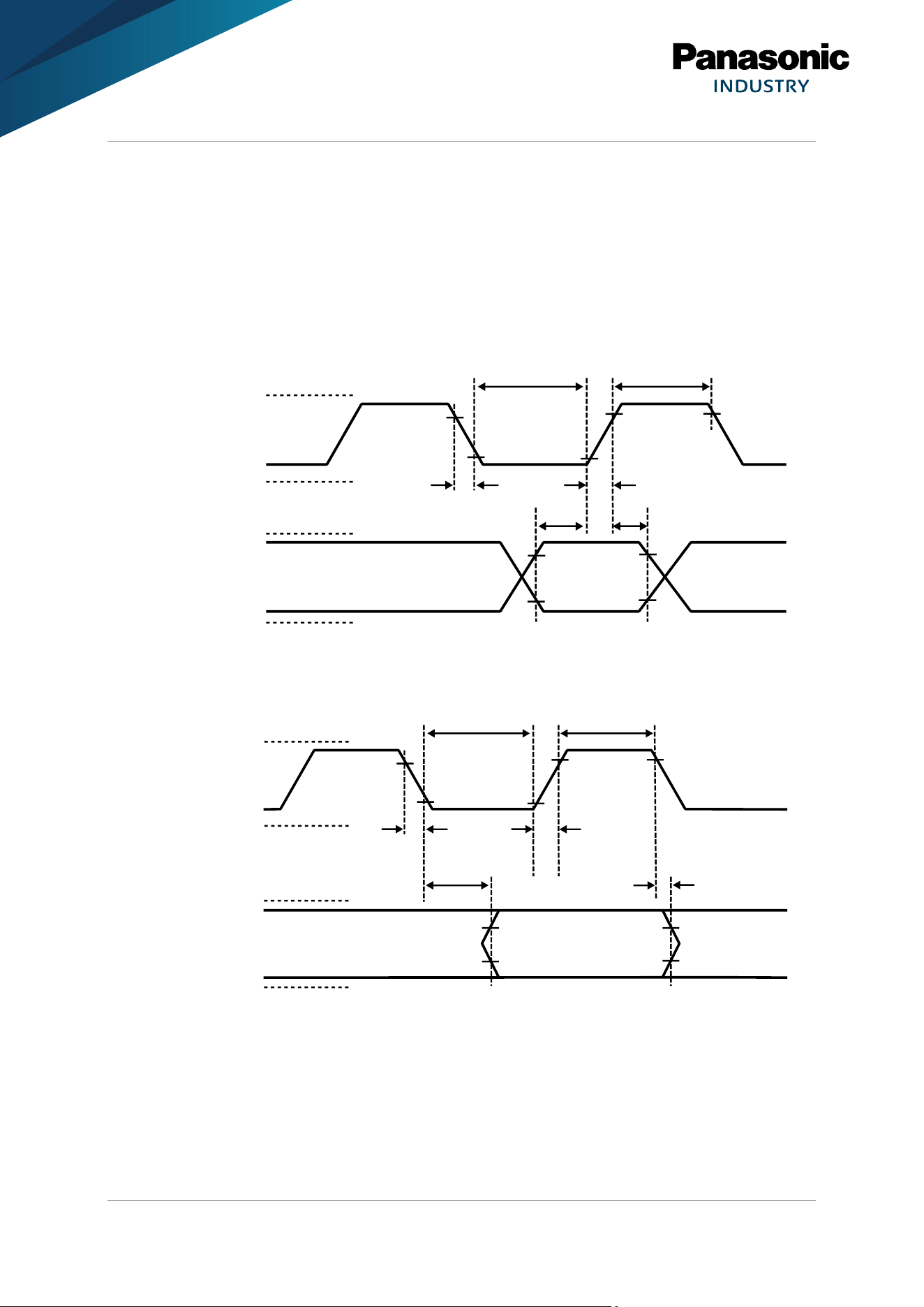

SDIO Timing Diagram – High Speed – Input Timing
SDIO Timing Diagram – High Speed – Output Timing
SS
SS
DD
DD
loc nput
Data nput
DD
ot alid ot alid alid
t
T
t
T
t
t
t
S
t
SS
DD
Data Output
SS
DD
loc nput
t
T
t
T
t
O
min
t
OD
m a
t
t
O
O
O
O
ot alid ot alid alid
DD
DD
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 33 of 82
SDIO Timing Parameters – High Speed
Symbol
Parameter
Condition
Min.
Typ.
Max.
Unit
f
Clock
Clock frequency
Clock
52
MHz
t
High
High Period
7
ns
t
Low
Low Period
7
ns
t
TLH
Rise time
Clock
3
ns
t
THL
Fall time
Clock
3
ns
t
ISU
Setup time
Input valid before clock rise
6
ns
t
IH
Hold time
Input valid after clock rise
2
ns
t
ODLY
Delay time
Clock fall to output valid
2
14
ns
C
L
Capacitive load
On outputs
15
40
pF
4.6.1.2 SPI Interface

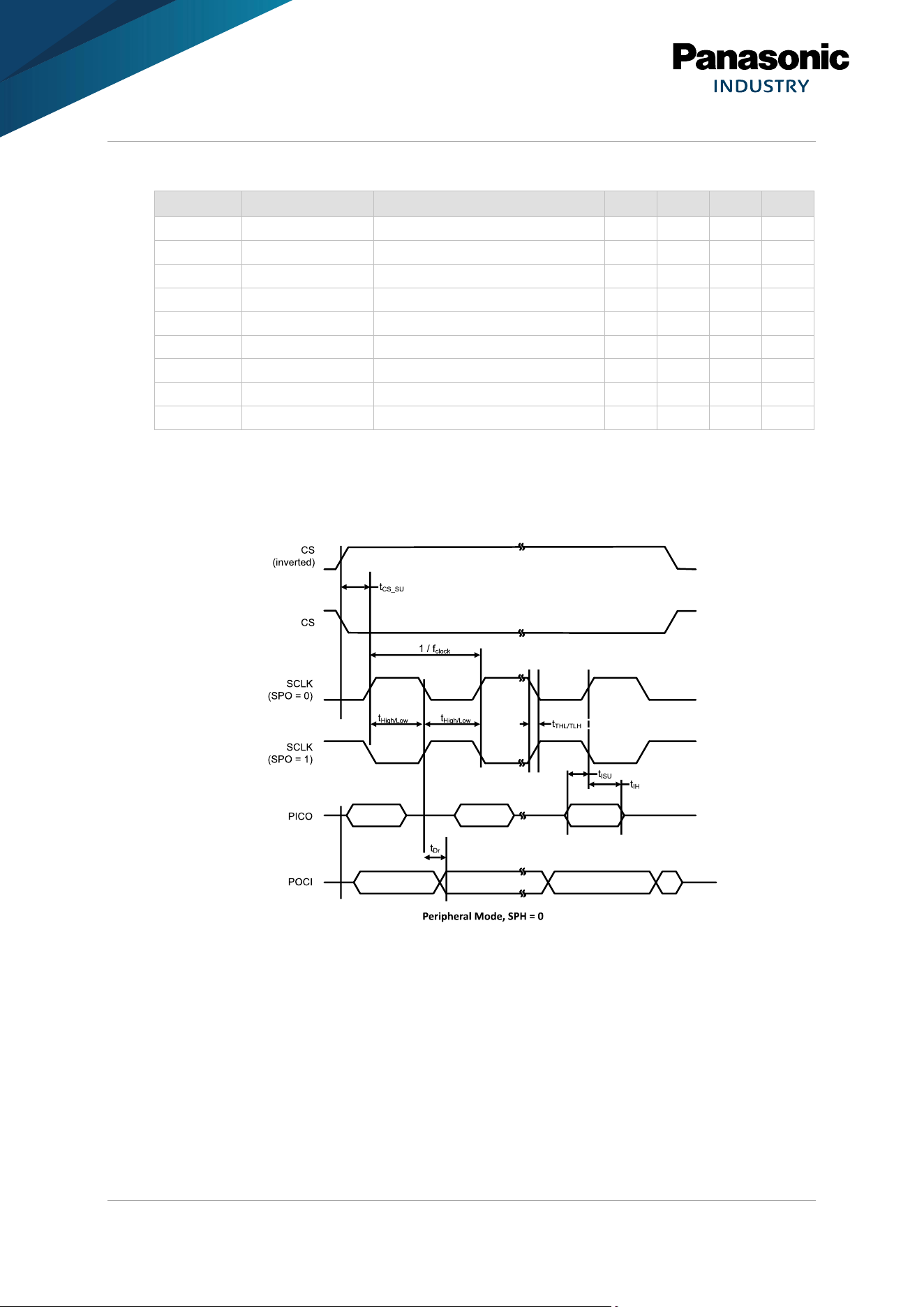

SPI Timing Diagram – Peripheral Mode SPH = 0
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 34 of 82

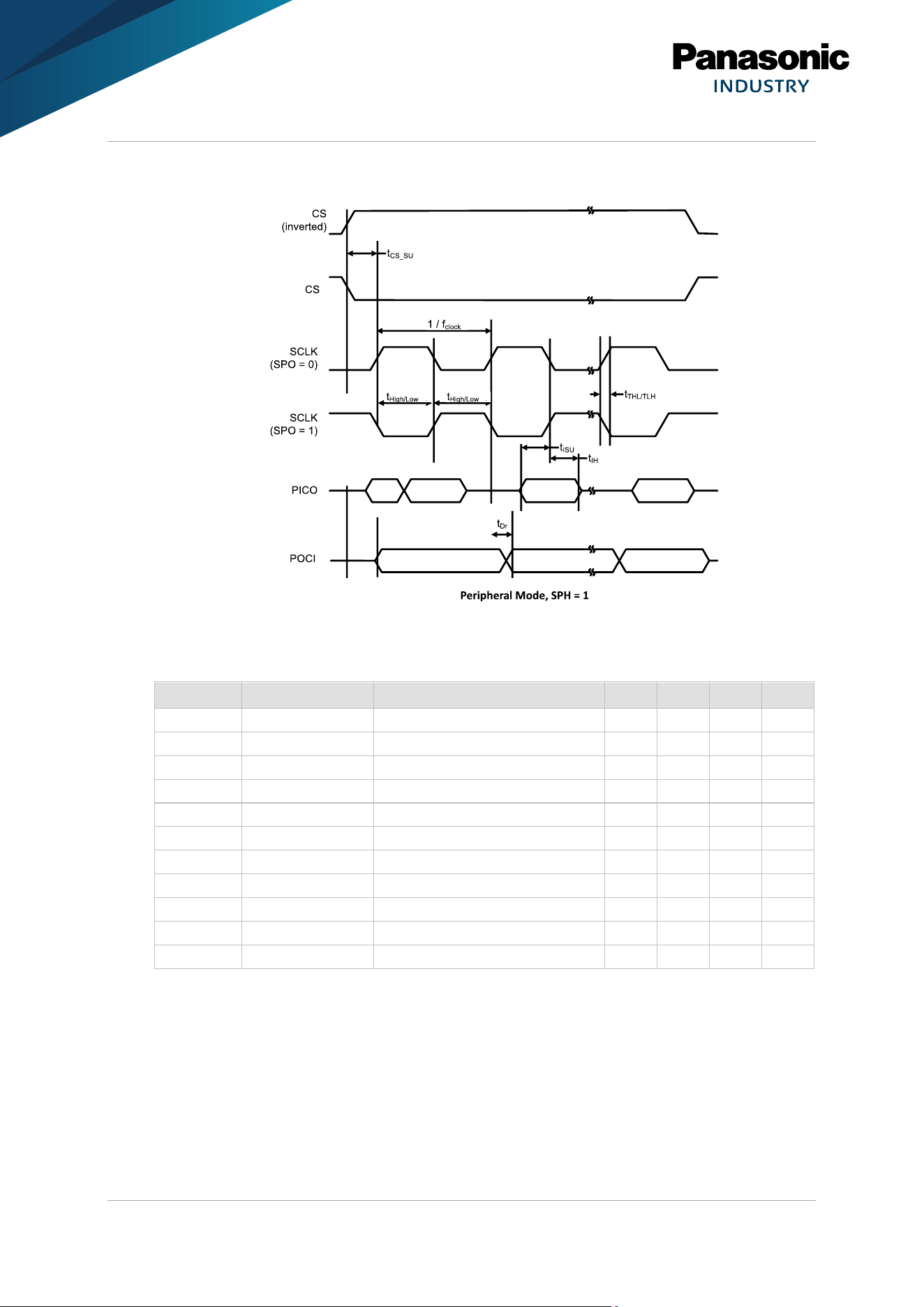

SPI Timing Diagram – Peripheral Mode SPH = 0
SPI Timing Parameters
Symbol
Parameter
Condition
Min.
Typ.
Max.
Unit
f
Clock
Clock frequency
Clock
26
MHz
t
High
High Period
10
ns
t
Low
Low Period
10
ns
t
TLH
Rise time
Clock
3
ns
t
THL
Fall time
Clock
3
ns
t
CSsu
Setup time
CS valid before clock rise
3
ns
t
ISU
PICO
Input valid before clock rise
3
ns
t
IH
PICO hold time
Input valid after clock rise
3
ns
t
Dr
, t
Df
-Active
Delay time
Clock rise/fall to output valid
2
10
ns
t
Dr
, t
Df
-Sleep
Delay time
Clock rise/fall to output valid
12
ns
C
L
Capacitive load
On outputs
15
40
pF
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 35 of 82
4.6.1.3 High-Speed UART Interface
UART is the main host interface for Bluetooth Low Energy which supports the host controller
interface (HCI) transport layer.

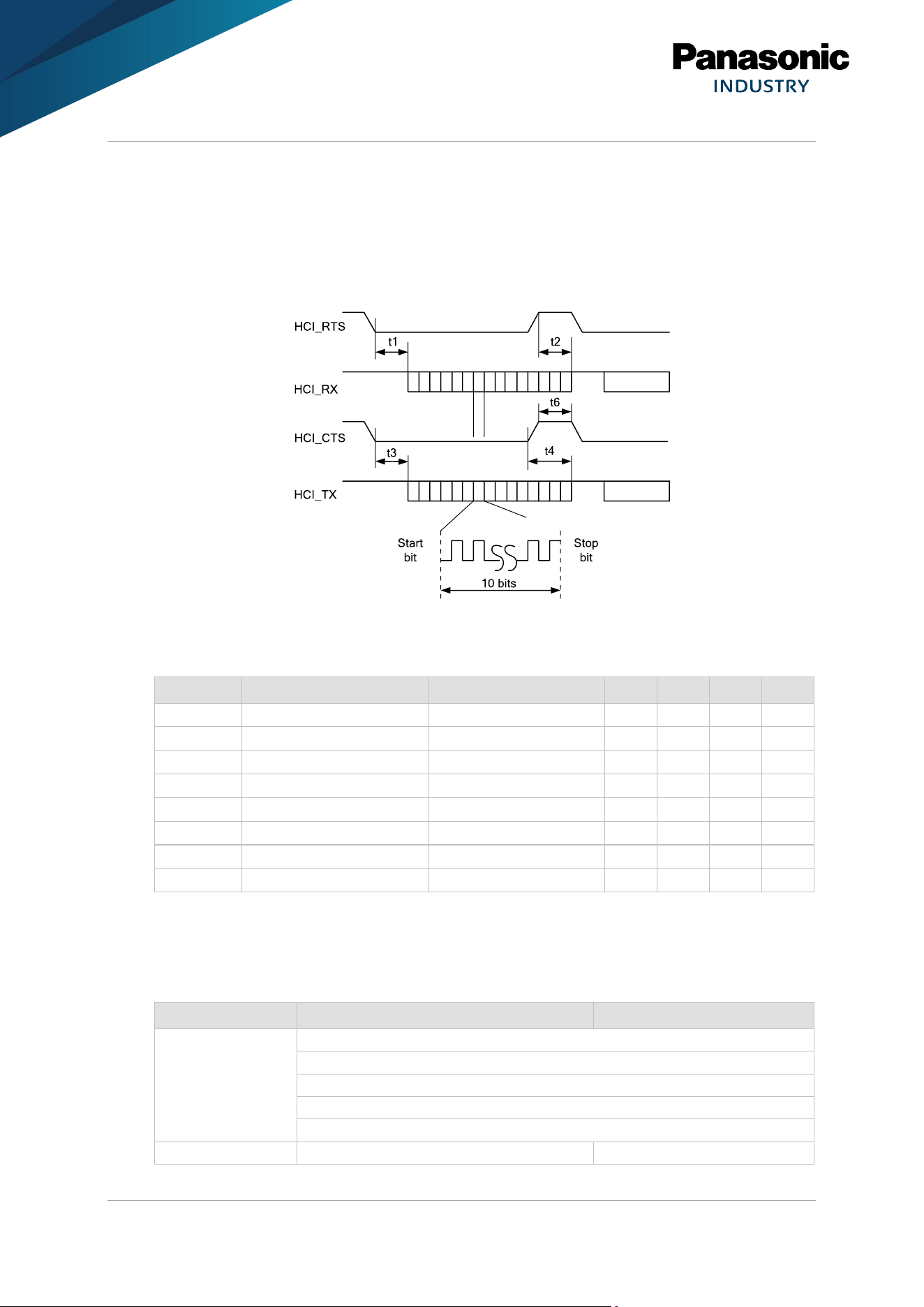

UART Timing Diagram
UART Timing Parameters
Symbol
Parameter
Condition
Min.
Typ.
Max.
Unit
Baud rate
37.5
4 364
kbps
Baud rate accuracy per byte
Receive / Transmit
-2.5
+1.5
%
Baud rate accuracy per bit
Receive / Transmit
-12.5
+12.5
%
CTS low to TX_DATA on
0
2
ms
CTS high to TX_DATA off
Hardware flow control
1
Byte
CTS high pulse width
1
bit
RTS low to TX_DATA on
0
2
ms
RTS high to TX_DATA off
Interupt set to ¼ FIFO
16
Byte
4.7 RF Electrical Characteristics
4.7.1 WLAN Radio Specification
Parameter
Operation Mode
Specification
Standard Conformance
IEEE 802.11/IEEE 802.11b
IEEE 802.11a
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ax
Modulation
IEEE 802.11a
OFDM
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 36 of 82
Parameter
Operation Mode
Specification
IEEE 802.11b
DSSS/CCK
IEEE 802.11g
OFDM
IEEE 802.11n
OFDM at MCS0~7
IEEE 802.11ax
OFDM at MCS0~7
OFDMA at MCS0~7
Physical layer data
rates
IEEE 802.11
Mbps, 2 Mbps at DSSS
IEEE 802.11b
5.5 Mbps, Mbps at DSSS/CCK
Supported data rates
IEEE 802.11g
[ , , 2, , 2 , , , 5 ] Mbps
IEEE 802.11a
[ , , 2, , 2 , , , 5 ] Mbps
IEEE 802.11n
MCS0~7
HT20
1.6 µs GI
[6.5, 13, 19.5, 26, 39, 52, 58.5,
5] Mbps
0.8 µs GI
[7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65,
2.2] Mbps
IEEE 802.11ax
Single User
HE_SU
MCS0~7
HE20
3.2 µs GI
[7.3, 14.6, 21.9, 29.3, 43.9, 58.5, 65.8,
73.1] Mbps
1.6 µs GI
[8.1, 16.3, 24.4, 32.5, 48.8, 65, 73.1,
81.3] Mbps
0.8 µs GI
[8.6, 17.2, 25.8, 34.4, 51.6, 68.8, 77.4,
86] Mbps
IEEE 802.11ax
OFDMA
HE_TB (Tx only)
HE_MU (Rx only)
MCS0~7
26-RU
3.2 µs GI
[0.8, 1.5, 2.3, 3.0, 4.5, 6.0, 6.8, 7.5]
Mbps
1.6 µs GI
[0.8, 1.7, 2.5, 3.3, 5.0, 6.7, 7.5, 8.3]
Mbps
0.8 µs GI
[0.9, 1.8, 2.6, 3.5, 5.3, 7.1, 7.9, 8.8]
Mbps
52-RU
3.2 µs GI
[1.5, 3.0, 4.5, 6.0, 9.0, 12.0, 13.5,
15.0] Mbps
1.6 µs GI
[1.7, 3.3, 5.0, 6.7, 10.0, 13.3, 15.0,
16.7] Mbps
0.8 µs GI
[1.8, 3.5, 5.3, 7.1, 10.6, 14.1, 15.9,
17.6] Mbps
106-RU
3.2 µs GI
[3.2, 6.4, 9.6, 12.8, 19.1, 25.5, 28.7,
31.9] Mbps
1.6 µs GI
[3.5, 7.1, 10.6, 14.2, 21.3, 28.3, 31.9,
35.4] Mbps
0.8 µs GI
[3.8, 7.5, 11.3, 15.0, 22.5, 30.0, 33.8,
37.5] Mbps
242-RU
3.2 µs GI
[7.3, 14.6, 21.9, 29.3, 43.9, 58.5, 65.8,
73.1] Mbps
1.6 µs GI
[8.1, 16.3, 24.4, 32.5, 48.8, 65.0, 73.1,
81.3] Mbps
0.8 µs GI
[8.6, 17.2, 25.8, 34.4, 51.6, 68.8, 77.4,
86.0] Mbps
Supported bandwidth
IEEE 802.11n
20 MHz (HT20)
IEEE 802.11ax
20 MHz (HE20)
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 37 of 82
Parameter
Operation Mode
Specification
Supported Resource
Units (RUs)
IEEE 802.11ax Multiuser OFDMA
26 tone RUs (26-RU), 52 tone RUs
(52-RU), 106 tone RUs (106-RU), 242
tone Rus (242-RU)
Supported Guard
Interval
IEEE 802.11n
0.4 µs (SGI), 0.8 µs (L I)
IEEE 802.11ax
1x HE-LTF
2x HE-LTF
0.8 µs, 1.6 µs
4x HE-LTF
0.8 µs, 3.2 µs
Channels and Frequencies (without Regulatory Restrictions)
This section shows the general capabilities of the hardware. The implemented
and supported channels may differ.
Please refer to 7.1 Channels and Power Settings per Country for product
specific information.
2.4 GHz Band - M z hannels
Channel
Frequency
Unit
1
2 412
MHz
2
2 417
MHz
3
2 422
MHz
4
2 427
MHz
5
2 432
MHz
6
2 437
MHz
7
2 442
MHz
8
2 447
MHz
9
2 452
MHz
10
2 457
MHz
11
2 462
MHz
12
2 467
MHz
13
2 472
MHz
5 GHz Band - M z hannels
Channel
Frequency
Unit
36
5 180
MHz
40
5 200
MHz
44
5 220
MHz
48
5 240
MHz
52
5 260
MHz
56
5 280
MHz
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 38 of 82
5 GHz Band - M z hannels
Channel
Frequency
Unit
60
5 300
MHz
64
5 320
MHz
100
5 500
MHz
104
5 520
MHz
108
5 540
MHz
112
5 560
MHz
116
5 580
MHz
120
5 600
MHz
124
5 620
MHz
128
5 640
MHz
132
5 660
MHz
136
5 680
MHz
140
5 700
MHz
149
5 745
MHz
153
5 765
MHz
157
5 785
MHz
161
5 805
MHz
165
5 825
MHz
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 39 of 82
4.7.2 WLAN RF Characteristics
4.7.2.1 IEEE 802.11b (RF Characteristics)
Assume V
3V3
= 3.3 V, V
1V8
= 1.8 V, T
amb
= +25 °C, if nothing else stated.
50 Ω terminal load connected to the RF connector.
Parameter
Condition
Min.
Typ.
Max.
Unit
RF Frequency Range
2 400
2 483.5
MHz
Carrier Frequency
Tolerance
-25
+25
ppm
Transmit Output Power
1
16
dBm
Spectrum Mask
f
C
± MHz
-30
dBr
f
C
±22 MHz
-50
dBr
Power-on/Power-down
Ramp
2
µs
RF Carrier Suppression
-15
dB
Error Vector Magnitude
(EVM)
Peak
35
%
Minimum Receive
Sensitivity
Mbps (DSSS)
PER ≤ %
-96
-80
dBm
Mbps (CCK)
PER ≤ %
-88
-76
dBm
Maximum Input Level
Mbps (DSSS)
PER ≤ %
0
dBm
Adjacent Channel
Rejection
PER ≤ %
35
dB
4.7.2.2 IEEE 802.11g (RF Characteristics)
Assume V
3V3
= 3.3 V, V
1V8
= 1.8 V, T
amb
= +25 °C, if nothing else stated.
50 Ω terminal load connected to the RF connector.
Parameter
Condition
Min.
Typ.
Max.
Unit
RF Frequency Range
2 400
2 483.5
MHz
Carrier Frequency
Tolerance
-25
+25
ppm
Transmit Output Power
1
Mbps~54 Mbps
14
dBm
Spectrum Mask
f
C
± MHz
-20
dBr
f
C
±20 MHz
-28
dBr
1
Please note that the maximum transmit power depends on the country of operation. Details about the output
power are provided in 7.1 Channels and Power Settings per Country.
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 40 of 82
Parameter
Condition
Min.
Typ.
Max.
Unit
f
C
± 0 MHz
-40
dBr
Transmitter Center
Frequency Leakage
-15
dB
Transmitter Spectral
Flatness
-4
+4
dB
Constellation Error (EVM)
BPSK, CR /2 ( Mbps)
-5
dB
BPSK, CR / ( Mbps)
-8
dB
QPSK, CR /2 ( 2 Mbps)
-10
dB
QPSK, CR / ( Mbps)
-13
dB
16-QAM, CR /2 (2 Mbps)
-16
dB
16-QAM, CR / ( Mbps)
-19
dB
64-QAM, CR 2/ ( Mbps)
-22
dB
64-QAM, CR / (5 Mbps)
-25
dB
Minimum Receive
Sensitivity
BPSK, CR /2 ( Mbps)
PER ≤ 0 %
-90
-82
dBm
64-QAM, CR / (5 Mbps)
PER ≤ 0 %
-74
-65
dBm
Maximum Input Level
BPSK, CR /2 ( Mbps)
PER ≤ 0 %
0
dBm
64-QAM, CR / (5 Mbps)
PER ≤ 0 %
-9
dBm
Adjacent Channel
Rejection
BPSK, CR /2 ( Mbps)
PER ≤ 0 %
16
dB
64-QAM, CR / (5 Mbps)
PER ≤ 0 %
-1
dB
4.7.2.3 EEE 8 . n: M z RF haracteristics at .4 G z
Assume V
3V3
= 3.3 V, V
1V8
= 1.8 V, T
amb
= +25 °C, if nothing else stated.
50 Ω terminal load connected to the RF connector.
Parameter
Condition
Min.
Typ.
Max.
Unit
RF Frequency Range
2. Hz
2 400
2 483.5
MHz
Carrier Frequency
Tolerance
-25
+25
ppm
Transmit Output Power
2
MCS0~MCS7
14
dBm
Spectrum Mask
f
C
± MHz
-20
dBr
f
C
±20 MHz
-28
dBr
f
C
± 0 MHz
-45
dBr
Transmitter Center
Frequency Leakage
-15
dB
Transmitter Spectral
Flatness
-4
+4
dB
2
Please note that the maximum transmit power depends on the country of operation. Details about the output
power are provided in 7.1 Channels and Power Settings per Country.
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 41 of 82
Parameter
Condition
Min.
Typ.
Max.
Unit
Constellation Error (EVM)
BPSK, CR 1/2 (MCS0)
-5
dB
QPSK, CR 1/2 (MCS1)
-10
dB
QPSK, CR 3/4 (MCS2)
-13
dB
16-QAM, CR 1/2 (MCS3)
-16
dB
16-QAM, CR 3/4 (MCS4)
-19
dB
64-QAM, CR 2/3 (MCS5)
-22
dB
64-QAM, CR 3/4 (MCS6)
-25
dB
64-QAM, CR 5/6 (MCS7)
-27
dB
Minimum Receive
Sensitivity
MCS0
PER ≤ 0 %
-90
-82
dBm
MCS7
PER ≤ 0 %
-71
-64
dBm
Maximum Input Level
MCS0
PER ≤ 0 %
0
dBm
MCS7
PER ≤ 0 %
-9
dBm
Adjacent Channel
Rejection
MCS0
PER ≤ 0 %
16
dB
MCS7
PER ≤ 0 %
-2
dB
4.7.2.4 EEE 8 . a : M z RF haracteristics at .4 G z
Assume V
3V3
= 3.3 V, V
1V8
= 1.8 V, T
amb
= +25 °C, if nothing else stated.
50 Ω terminal load connected to the RF connector.
Parameter
Condition
Min.
Typ.
Max.
Unit
RF Frequency Range
2. Hz
2 400
2 483.5
MHz
Carrier Frequency
Tolerance
-25
+25
ppm
Transmit Output Power
3
MCS0~MCS7
14
dBm
Spectrum Mask
fC± 0.5 MHz
-20
dBr
f
C
±20 MHz
-28
dBr
f
C
± 0 MHz
-40
dBr
Transmitter Center
Frequency Leakage
-32
dB
Transmitter Spectral
Flatness
-4
+4
dB
Constellation Error (EVM)
BPSK, CR 1/2 (MCS0)
-5
dB
QPSK, CR 1/2 (MCS1)
-10
dB
QPSK, CR 3/4 (MCS2)
-13
dB
16-QAM, CR 1/2 (MCS3)
-16
dB
16-QAM, CR 3/4 (MCS4)
-19
dB
64-QAM, CR 2/3 (MCS5)
-22
dB
3
Please note that the maximum transmit power depends on the country of operation. Details about the output
power are provided in 7.1 Channels and Power Settings per Country.
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 42 of 82
Parameter
Condition
Min.
Typ.
Max.
Unit
64-QAM, CR 3/4 (MCS6)
-25
dB
64-QAM, CR 5/6 (MCS7)
-27
dB
Minimum Receive
Sensitivity
4
MCS0
PER ≤ 0 %
-90
-82
dBm
MCS7
PER ≤ 0 %
-71
-52
dBm
Maximum Input Level
MCS0
PER ≤ 0 %
0
dBm
MCS7
PER ≤ 0 %
-9
dBm
Adjacent Channel
Rejection
4
MCS0
PER ≤ 0 %
16
dB
MCS7
PER ≤ 0 %
-14
dB
4.7.2.5 IEEE 802.11a (RF Characteristics)
Assume V
3V3
= 3.3 V, V
1V8
= 1.8 V, T
amb
= +25 °C, if nothing else stated.
50 Ω terminal load connected to the RF connector.
Parameter
Condition
Min.
Typ.
Max.
Unit
RF Frequency Range
5GHz
4 900
5 895
MHz
Carrier Frequency
Tolerance
-20
+20
ppm
Transmit Output Power
5
Mbps~54 Mbps
13
dBm
Spectrum Mask
f
C
± MHz
-20
dBr
f
C
±20 MHz
-28
dBr
f
C
± 0 MHz
-40
dBr
Transmitter Center
Frequency Leakage
-15
dB
Transmitter Spectral
Flatness
-4
+4
dB
Constellation Error (EVM)
BPSK, CR /2 ( Mbps)
-5
dB
BPSK, CR / ( Mbps)
-8
dB
QPSK, CR /2 ( 2 Mbps)
-10
dB
QPSK, CR / ( Mbps)
-13
dB
16-QAM, CR /2 (2 Mbps)
-16
dB
16-QAM, CR / ( Mbps)
-19
dB
64-QAM, CR 2/ ( Mbps)
-22
dB
64-QAM, CR / (5 Mbps)
-25
dB
4
4x long training field (LTF), guard time = 3.2 µs
5
Please note that the maximum transmit power depends on the country of operation. Details about the output
power are provided in 7.1 Channels and Power Settings per Country.
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 43 of 82
Parameter
Condition
Min.
Typ.
Max.
Unit
Minimum Receive
Sensitivity
BPSK, CR /2 ( Mbps)
PER ≤ 0 %
-90
-82
dBm
64-QAM, CR / (5 Mbps)
PER ≤ 0 %
-74
-65
dBm
Maximum Input Level
MCS0
PER ≤ 0 %
-8.5
dBm
MCS7
PER ≤ 0 %
-17.5
dBm
Adjacent Channel
Rejection
BPSK, CR /2 ( Mbps)
PER ≤ 0 %
16
dB
64-QAM, CR / (5 Mbps)
PER ≤ 0 %
-1
dB
4.7.2.6 EEE 8 . n: M z RF haracteristics at 5 GHz)
Assume V
3V3
= 3.3 V, V
1V8
= 1.8 V, T
amb
= +25 °C, if nothing else stated.
50 Ω terminal load connected to the RF connector.
Parameter
Condition
Min.
Typ.
Max.
Unit
RF Frequency Range
5 Hz
4 900
5 895
MHz
Carrier Frequency
Tolerance
-20
+20
ppm
Transmit Output Power
6
MCS0~MCS7
13
dBm
Spectrum Mask
f
C
± MHz
-20
dBr
f
C
±20 MHz
-28
dBr
f
C
± 0 MHz
-40
dBr
Transmitter Center
Frequency Leakage
-15
dB
Transmitter Spectral
Flatness
-4
+4
dB
Constellation Error (EVM)
BPSK, CR 1/2 (MCS0)
-5
dB
QPSK, CR 1/2 (MCS1)
-10
dB
QPSK, CR 3/4 (MCS2)
-13
dB
16-QAM, CR 1/2 (MCS3)
-16
dB
16-QAM, CR 3/4 (MCS4)
-19
dB
64-QAM, CR 2/3 (MCS5)
-22
dB
64-QAM, CR 3/4 (MCS6)
-25
dB
64-QAM, CR 5/6 (MCS7)
-27
dB
Minimum Receive
Sensitivity
MCS0
PER ≤ 0 %
-90
-82
dBm
MCS7
PER ≤ 0 %
-71
-64
dBm
6
Please note that the maximum transmit power depends on the country of operation. Details about the output
power are provided in 7.1 Channels and Power Settings per Country.
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 44 of 82
Parameter
Condition
Min.
Typ.
Max.
Unit
Maximum Input Level
MCS0
PER ≤ 0 %
-8.5
dBm
MCS7
PER ≤ 0 %
-17.5
dBm
Adjacent Channel
Rejection
MCS0
PER ≤ 0 %
16
dB
MCS7
PER ≤ 0 %
-2
dB
4.7.2.7 EEE 8 . a : M z RF haracteristics at G z
Assume V
3V3
= 3.3 V, V
1V8
= 1.8 V, T
amb
= +25 °C, if nothing else stated.
50 Ω terminal load connected to the RF connector.
Parameter
Condition
Min.
Typ.
Max.
Unit
RF Frequency Range
5 GHz
4 900
5 895
MHz
Carrier Frequency
Tolerance
-20
+20
ppm
Transmit Output Power
7
MCS0~MCS7
13
dBm
Spectrum Mask
f
C
± 0.5 MHz
-20
dBr
f
C
±20 MHz
-28
dBr
f
C
± 0 MHz
-40
dBr
Transmitter Center
Frequency Leakage
-32
dB
Transmitter Spectral
Flatness
-4
+4
dB
Constellation Error (EVM)
BPSK, CR 1/2 (MCS0)
-5
dB
QPSK, CR 1/2 (MCS1)
-10
dB
QPSK, CR 3/4 (MCS2)
-13
dB
16-QAM, CR 1/2 (MCS3)
-16
dB
16-QAM, CR 3/4 (MCS4)
-19
dB
64-QAM, CR 2/3 (MCS5)
-22
dB
64-QAM, CR 3/4 (MCS6)
-25
dB
64-QAM, CR 5/6 (MCS7)
-27
dB
Minimum Receive
Sensitivity
8
MCS0
PER ≤ 0 %
-90
-82
dBm
MCS7
PER ≤ 0 %
-71
-52
dBm
Maximum Input Level
MCS0
PER ≤ 0 %
-8.5
dBm
MCS7
PER ≤ 0 %
-17.5
dBm
Adjacent Channel
Rejection
8
MCS0
PER ≤ 0 %
16
dB
MCS7
PER ≤ 0 %
-14
dB
7
Please note that the maximum transmit power depends on the country of operation. Details about the output
power are provided in 7.1 Channels and Power Settings per Country.
8
4x long training field (LTF), guard time = 3.2 µs
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 45 of 82
4.7.3 Bluetooth Radio Specification
4.7.4 Bluetooth RF Characteristics
Assume V
3V3
= 3.3 V, V
1V8
= 1.8 V, T
amb
= +25 °C, if nothing else stated.
50 Ω terminal load connected to the RF connector.
4.7.4.1 Receiver Section RF Characteristics
Parameter
Condition
Min.
Typ.
Max.
Units
RF frequency range
2 400
2 483.5
MHz
Interference Performance
(Low Energy)
C/I Ratio
GFSK
RSL = -67 dBm
BER 0.1 %
1 Mbps
C/I (Co-channel)
21
dB
C/I ( MHz)
15
dB
C/I (2 MHz)
-17
dB
C/I (≥ MHz)
-27
dB
C/I (Image)
-9
dB
C/I (Image ± MHz)
-15
dB
GFSK
RSL = -67 dBm
BER 0.1 %
2 Mbps
C/I (Co-channel)
21
dB
C/I (2 MHz)
15
dB
C/I ( MHz)
-17
dB
C/I (≥ MHz)
-27
dB
C/I (Image)
-9
dB
C/I (Image ± 2 MHz)
-15
dB
GFSK
RSL = -67 dBm
BER 0.1 %
Long Range
S = 8 (125 kbps)
C/I (Co-channel)
12
dB
C/I ( MHz)
6
dB
C/I (2 MHz)
-26
dB
C/I (≥ MHz)
-36
dB
C/I (Image)
-18
dB
C/I (Image ± MHz)
-24
dB
GFSK
RSL = -67 dBm
BER 0.1 %
Long Range
S = 2 (500 kbps)
C/I (Co-channel)
17
dB
C/I ( MHz)
11
dB
C/I (2 MHz)
-21
dB
C/I (≥ MHz)
-31
dB
C/I (Image)
-13
dB
C/I (Image ± MHz)
-19
dB
Minimum Receive Sensitivity
LE, 1 Mbps
BER ≤ 0. %
-70
dBm
LE, 2 Mbps
BER ≤ 0. %
-70
dBm
LE-LR, S = 2
BER ≤ 0. %
Payload < 37 bytes
-75
dBm
LE-LR, S = 8
BER ≤ 0. %
Payload < 37 bytes
-82
dBm
0 MHz to 2 000 MHz
-30
dB
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 46 of 82
Parameter
Condition
Min.
Typ.
Max.
Units
Out-of-band blocking
(Low Energy)
Interfering Signal Power
GFSK
RSL = -67 dBm
BER 0.1 %
2 Hz to 2. Hz
-35
dB
2. Hz to Hz
-35
dB
Hz to 2. 5 Hz
-30
dB
Maximum Input Level
0
dBm
4.7.4.2 Transmitter Section RF Characteristics
Parameter
Condition
Min.
Typ.
Max.
Units
RF frequency range
2 400
2 483.5
MHz
Output power
9
Low energy (LE)
10
dBm
Spurious emission (LE)
(in-band)
Mbps
LR S = 2
LR S = 8
± 2 MHz, |M-N| = 2
-20
dBm
± MHz or greater, |M-N| ≥
-30
dBm
2 Mbps
± MHz, |M-N| = 4
-20
dBm
± 5 MHz, |M-N| = 5
-20
dBm
± MHz or greater, |M-N| ≥
-30
dBm
4.8 Reliability Tests
The measurement should be done after the test module has been exposed to room temperature
and humidity for one hour.
No.
Item
Limit
Condition
1
Variable Vibration Test
Electrical parameters should be
within specification
Freq.: 20~2 000 Hz, Acc.: 17-50 G,
Sweep: 8 min, TBD hours, For: XYZ
axis
2
Shock Drop Test
Drop parts on concrete from a height
of 1 m for 3 times
3
Temperature Cycling
Test
At -40 °C and 85 °C for 1 h/cycle
Total = TBD cycles
4
Temperature Humidity
Bias Test
At 60 °C, 85 % r.H., TBD h
5
Low Temperature
Storage Life Test
At -40 °C, TBD h
6
High Temperature
Storage Life Test
At 85 °C, TBD h
9
Please note that the maximum output power depends on the country of operation.
PAN W602 Bluetooth/Wi-Fi Modul 4 Specification
Product Specification Rev. 1.0 Page 47 of 82

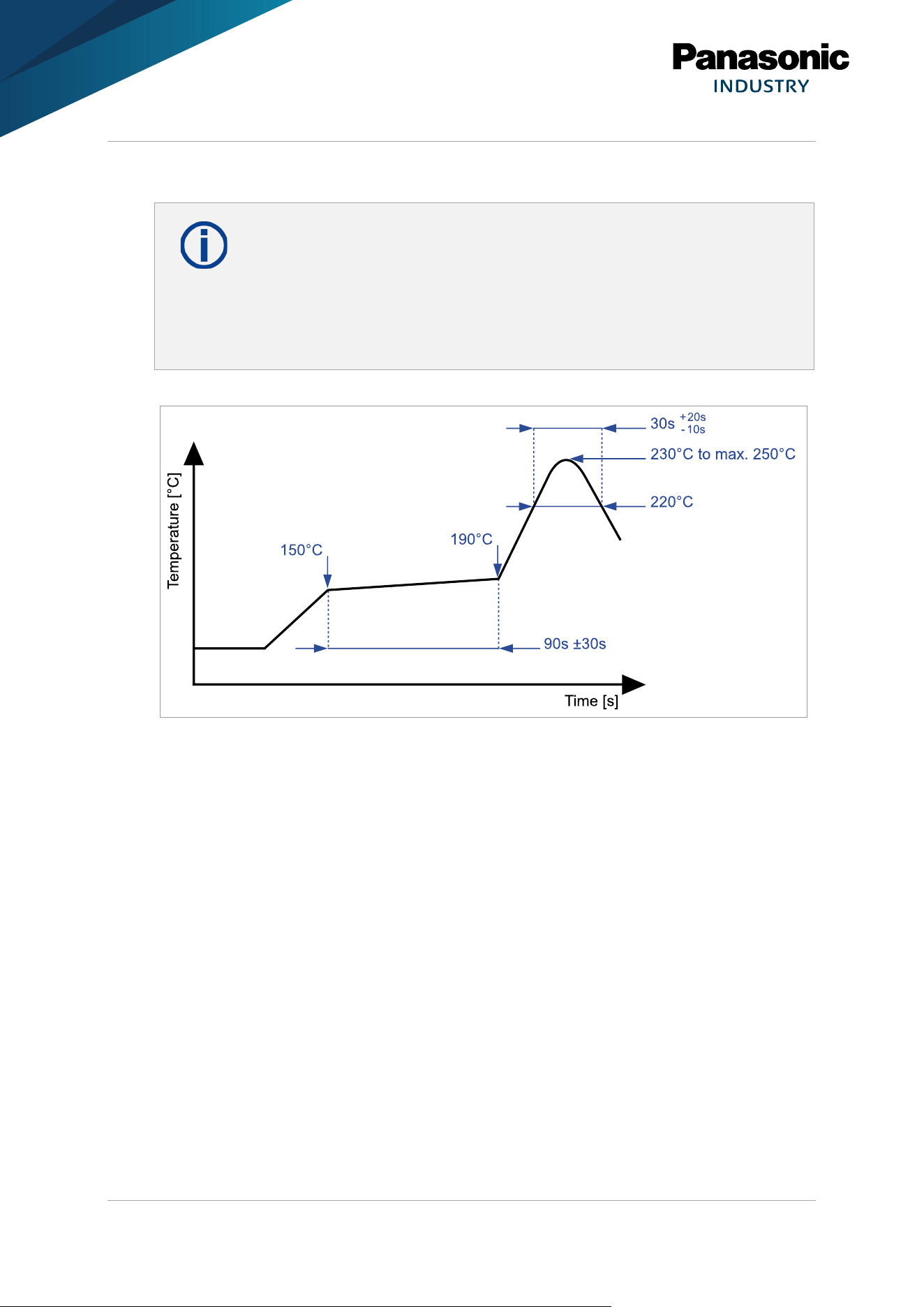

4.9 Recommended Soldering Profile
•
Reflow permissible cycles: 2
•
Opposite side reflow is prohibited due to module weight
•
More than 75 percent of the soldering area shall be coated by solder
•
The soldering profiles should be adhered to in order to prevent electrical
or mechanical damage
•
Soldering profile assumes lead-free soldering
PAN W602 Bluetooth/Wi-Fi Modul 5 Cautions
Product Specification Rev. 1.0 Page 48 of 82
5 autions
Failure to follow the guidelines set forth in this document may result in
degrading of the module functions and damage to the module.
5.1 Design Notes
1. Follow the conditions written in this specification, especially the control signals of this
module.
2. The supply voltage should abide by the maximum ratings ( 4.2 Absolute Maximum
Ratings).
3. The supply voltage must be free of AC ripple voltage (for example from a battery or a low
noise regulator output). For noisy supply voltages, provide a decoupling circuit (for
example a ferrite in series connection and a bypass capacitor to ground of at least µF
directly at the module).
4. This module should not be mechanically stressed when installed.
5. Keep this module away from heat. Heat is the major cause of decreasing the life time of
these modules.
6. Avoid assembly and use of the target equipment in conditions where the module
temperature may exceed the maximum tolerance.
7. Keep this module away from other high frequency circuits.
8. Refer to the recommended pattern when designing a board.
5.2 Installation Notes
1. Reflow soldering is possible twice based on the conditions set forth in
4.9 Recommended Soldering Profile. Set up the temperature at the soldering portion
of this module according to this reflow profile.
2. Carefully position the module so that the heat will not burn into printed circuit boards or
affect other components that are susceptible to heat.
3. Carefully locate the module, to avoid an increased temperature caused by heat
generated by neighboring components.
4. If a vinyl-covered wire comes into contact with the module, the wire cover will melt and
generate toxic gas, damaging the insulation. Never allow contact between a vinyl cover
and these modules to occur.
5. This module should not be mechanically stressed or vibrated when reflowed.
6. To repair the board by hand soldering, follow the conditions set forth in this chapter.
7. Do not wash this product.
8. Pressing on parts of the metal cover or fastening objects to the metal will cause damage
to the module.
PAN W602 Bluetooth/Wi-Fi Modul 5 Cautions
Product Specification Rev. 1.0 Page 49 of 82
5.3 Usage Condition Notes
1. Take measures to protect the module against static electricity.
If pulses or transient loads (a large load, which is suddenly applied) are applied to the
modules, check and evaluate their operation before assembly of the final products.
2. Do not use dropped modules.
3. Do not touch, damage, or soil the pins.
4. Follow the recommended condition ratings about the power supply applied to this
module.
5. Electrode peeling strength: Do not apply a force of more than . N in any direction on
the soldered module.
6. Pressing on parts of the metal cover or fastening objects to the metal cover will cause
damage.
7. These modules are intended for general purpose and standard use in general electronic
equipment, such as home appliances, office equipment, information, and communication
equipment.
5.4 Storage Notes
1. The module should not be stressed mechanically during storage.
2. Do not store these modules in the following conditions or the performance characteristics
of the module, such as RF performance will be adversely affected:
– Storage in salty air or in an environment with a high concentration of corrosive gas,
such as Cl
2
, H
2
S, NH
3
, SO
2
, or NO
X
,
– Storage in direct sunlight,
– Storage in an environment where the temperature may be outside the range of 5 °C
to 5 °C, or where the humidity may be outside the 5 % to 5 % range,
– Storage of the modules for more than one year after the date of delivery storage
period: Please check the adhesive strength of the embossed tape and soldering
after 6 months of storage.
3. Keep this module away from water, poisonous gas, and corrosive gas.
4. This module should not be stressed or shocked when transported.
5. Follow the specification when stacking packed crates (max. 10).
5.5 Safety Cautions
These specifications are intended to preserve the quality assurance of products and individual
components.
Before use, check and evaluate the operation when mounted on your products. Abide by these
specifications without deviation when using the products. These products may short-circuit. If
electrical shocks, smoke, fire, and/or accidents involving human life are anticipated when a
short circuit occurs, provide the following failsafe functions as a minimum:
PAN W602 Bluetooth/Wi-Fi Modul 5 Cautions
Product Specification Rev. 1.0 Page 50 of 82
1. Ensure the safety of the whole system by installing a protection circuit and a protection
device.
2. Ensure the safety of the whole system by installing a redundant circuit or another system
to prevent a single fault causing an unsafe status.
5.6 Other Cautions
1. Do not use the module for other purposes than those listed in section 5.3 Usage
Condition Notes.
2. Be sure to provide an appropriate fail-safe function on your product to prevent any
additional damage that may be caused by the abnormal function or the failure of the
module.
3. This module has been manufactured without any ozone chemical controlled under the
Montreal Protocol.
4. These modules are not intended for use under the special conditions shown below.
Before using these modules under such special conditions, carefully check their
performance and reliability under the said special conditions to determine whether or not
they can be used in such a manner:
– In liquid, such as water, salt water, oil, alkali, or organic solvent, or in places where
liquid may splash,
– In direct sunlight, outdoors, or in a dusty environment,
– In an environment where condensation occurs,
– In an environment with a high concentration of harmful gas (e. g. salty air, HCl, Cl
2
,
SO
2
, H
2
S, NH
3
, and NO
X
).
5. If an abnormal voltage is applied due to a problem occurring in other components or
circuits, replace these modules with new modules, because they may not be able to
provide normal performance even if their electronic characteristics and appearances
appear satisfactory.
For further information please refer to the Panasonic website 7.3.2 Product
Information.
PAN W602 Bluetooth/Wi-Fi Modul 5 Cautions
Product Specification Rev. 1.0 Page 51 of 82
5.7 Restricted Use
5.7.1 Life Support Policy
This Panasonic Industrial Devices Europe GmbH product is not designed for use in life support
appliances, devices, or systems where malfunction can reasonably be expected to result in a
significant personal injury to the user, or as a critical component in any life support device or
system whose failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.
Panasonic customers using or selling these products for use in such applications do so at their
own risk and agree to fully indemnify Panasonic Industrial Devices Europe GmbH for any
damages resulting.
5.7.2 Restricted End Use
This Panasonic Industrial Devices Europe GmbH product is not designed for any restricted
activity that supports the development, production, handling usage, maintenance, storage,
inventory or proliferation of any weapons or military use.
Transfer, export, re-export, usage or reselling of this product to any destination, end user or any
end use prohibited by the European Union, United States or any other applicable law is strictly
prohibited.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 52 of 82
6 Re ulatory and erti ication n ormation
Please note that variants PAN W602-1B (ENWF9211C) and PAN W602-1C
(ENWF9211A) are currently still in progress of regulatory certification.
For the device the following certifications are available:
Certification
Status
Reference
FCC
for USA
Available
6.4 Federal Communications
Commission (FCC) for US
ISED
for Canada
Available
6.5 Innovation, Science, and Economic
Development (ISED) for Canada
RED
for Europe
Planned
6.2 Conformity According to Radio
Equipment Directive (RED-2014/53/EU) for
Europe
UKCA
for United Kingdom
Planned
6.3 United Kingdom Conformity
According to Statutory Instrument (SI-
2017/1206)
RCM
for New Zealand
Up on Request
for Australia
Up on Request
For regions “upon request”, please reach out to your Sales contact for the
most recent status of the certification process 7.3.1 Contact Us.
6.1 RoHS and REACH Declaration
The latest declaration of environmental compatibility (Restriction of Hazardous Substances,
RoHS and Registration, Evaluation, Authorisation and Restriction of Chemicals, REACH) for
supplied products can be found on the Panasonic website in the “Downloads” section of the
respective product 7.3.2 Product Information.
6.2 Conformity According to Radio Equipment Directive (RED-
2014/53/EU) for Europe
Please note that all variants are currently still in progress of regulatory
certification.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 53 of 82
All modules described in this Product Specification comply with the standards according to the
following LVD (2014/35/EU), EMC-D (2014/30/EU) together with RED (2014/53/EU) articles:
3.1a Safety/Health: EN 62368-1: 2014/A11: 2017
EN 62311: 2008
3.1b EMC: EN 301 489-1 V2.2.3: 2019-11
EN 301 489-17 V3.3.1: 2024-09
3.2 Radio: EN 300 328 V2.2.2: 2019-07
EN 301 893 V2.2.1: 2024-09
3.3 Common Security: EN 18031-1:2024
•
Due to the model size, the CE marking is displayed in the installation instruction only and
it cannot be displayed conform to regulation (EU) No. 765/2008 in 5 mm height on the
module’s label due to the limited space.
•
The RED EU Type Examination Certificate No. tbd issued by the EU Notified Body 0682
can be used for the OEM end product conformity assessment. If a Notified Body has
been contracted for the end product conformity assessment, it should be noted that this
EU Type Examination Certificate should be used for conformance assessment.
As a result of the conformity assessment procedure described in 2014/53/EU Directive, the end
customer equipment should be labelled as follows:
The end customer has to assure that the device has a distance of more than
tbd cm from the human body under all circumstances.
If the end customer application intends to use the PAN W602 in a distance
smaller tbd cm from the human body, SAR evaluation has to be repeated by
the OEM.
The end customer equipment must meet the actual Safety/Health requirements
according to RED. Further analysis must be conducted, as the addition of
firmware and other functions requires the evaluation of additional threats and
assets.
PAN W602 and its model versions in the specified reference design can be used in all countries
of the European Economic Area (Member States of the EU, European Free Trade Association
States [Iceland, Liechtenstein, Norway]), Monaco, San Marino, Andorra, and Turkey.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 54 of 82
6.2.1 Manu acturer’s Details
Name
Panasonic Industrial Devices Europe GmbH
Postal Address - Street
Zeppelinstr. 19
Postal Address - Postal Code and City
21337 Lüneburg
Postal Address - Country
Germany
6.2.2 Radio Equipment Directive
The Radio Equipment Directive 2014/53/EU (RED) establishes a regulatory framework for
placing radio equipment on the market. It ensures a Single Market for radio equipment by
setting essential requirements for safety and health, electromagnetic compatibility, and the
efficient use of the radio spectrum.
The RED aligned the previous Directive, the Radio and Telecommunication Terminal Equipment
Directive 1999/5/EC (R&TTED), with the new legislative framework for the marketing of
products. The RED is applicable as of 2016-06-13. It included a one-year transitional period,
which ended on 2017-06-12 (Article 48). On 2017-06-20, the Commission Implementing
Regulation (EU) 2017/1354 was adopted. This specifies how to present the information
provided for in Article 10(10) of Directive 2014/53/EU.
Article 10(10) RED
In cases of restrictions on putting into service or of requirements for authorisation of use,
information available on the packaging shall allow the identification of the Member States or the
geographical area within a Member State where such restrictions apply. Additional information
shall be included in the instructions accompanying the radio equipment. The Commission may
adopt implementing acts specifying how to present that information. Those implementing acts
shall be adopted in accordance with the advisory procedure referred to in Article 45(2).
•
Class 1:
Radio equipment that can be operated without any restriction in EU, EEA, and EFTA.
According to Article 8(1)b of the RED, it is clarified that no national radio interfaces
specifications are required to be notified under RED;
•
Other:
Radio equipment subject to restrictions in one or more EU, EEA and EFTA countries
where the technical parameters are not harmonized through EU, EEA, and EFTA;
Radio equipment class means a class identifying particular categories of radio equipment
which, under this Directive, are considered similar and those radio interfaces for which the radio
equipment is designed.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 55 of 82
Article 8 RED
Notification of radio interface specifications and assignment of radio equipment classes 1:
1) Member States shall notify, in accordance with the procedure set out in Directive 98/34/EC,
the radio interfaces which they intend to regulate except:
a) The radio interfaces which fully and without any deviation comply with the Commission
decisions on the harmonized use of radio spectrum adopted pursuant to Decision
No. 676/2002/EC; and
b) The radio interfaces which, in accordance with implementing acts adopted pursuant to
paragraph 2 of this Article, correspond to radio equipment which can be put into service
and used without restrictions within the Union.
2) The Commission shall adopt implementing acts establishing the equivalence between
notified radio interfaces and assigning a radio equipment class, details of which shall be
published in the Official Journal of the European Union. Those implementing acts shall be
adopted in accordance with the examination procedure referred to in Article 45(3).
The Radio Interface Specifications Templates are provided for information in the EFIS database
for applications which use is in harmonized radio spectrum, however with restrictions.
6.2.3 Equipment Classes
The PAN W602 is a radio module classified as class-1. This equipment class is passed on the
end-product which integrates the module.
Class 1
Class 1 radio equipment can be placed on the market and put into service without restrictions
according to Article 1(3) of Commission Decision 2000/299/EC (Version 2018-01).
This radio module is defined as Class 1 radio equipment when it is restricted to operate in the
following frequency bands:
Annex
Application/Reference
Frequency Band
(MHz)
Transmit Power/Power Density
3
b
Wideband Data
Transmission Systems
EN 300 328
2 400 to 2 483.5
00 mW e.i.r.p. and 00 mW/ 00 kHz
e.i.r.p. density applies when frequency
hopping modulation is used, 0 mW/MHz
e.i.r.p. density applies when other types of
modulation are used.
A
e1
Wireless Access Systems
including Radio Local Area
Networks (WAS/RLANs)
Restricted to indoor use
EN 301 893
5 150 to 5 350
Ma . 200 mW mean e.i.r.p. and ma .
0 mW/MHz mean e.i.r.p. density in any
MHz band.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 56 of 82
Annex
Application/Reference
Frequency Band
(MHz)
Transmit Power/Power Density
A
e2
Wireless Access Systems
including Radio Local Area
Networks (WAS/RLANs)
EN 301 893
5 470 to 5 725
W e.i.r.p., 50 mW/MHz mean e.i.r.p.
density in any MHz band.
1
j
Wireless Access Systems
including Radio Local Area
Networks (WAS/RLANs)
EN 301 893
(Annex B: Equipment
operating within the band
5 725 MHz to 5 850 MHz
(sub-band 4) )
5 725 – 5 875
100 mW e.i.r.p., 5 mW/MHz mean e.i.r.p.
density in any 1 MHz band.
Note: If TPC is used, the RF output power
in sub-band 4 at the lowest power level of
the TPC range in sub-band 4 (P
L,4
) shall
be at least 6 dB less than the applicable
RF output power limit with TPC.
Restricted Radio Equipment
Radio equipment is restricted in accordance with Article 1(3) of Commission Decision
2000/299/EC1 if the equipment falls not within the scope of Class 1.
The usage of PAN W602 module in a vehicular environment cannot be
considered as indoor use.
Any use of the module outside the limitations specified in this document will
result in the module no longer falling under Class 1 radio equipment in the end
application.
Non-Class 1 radio equipment shall be marked with the pictogram specified in
Annex I of Commission Implementing Regulation (EU) 2017/1354.
6.3 United Kingdom Conformity According to Statutory Instrument
(SI-2017/1206)
Please note that all variants are currently still in progress of regulatory
certification.
All modules described in this Product Specification comply with the designated standards
according to the following Regulations: Electrical Equipment (Safety) SI 2016/1101, EMC SI
2016/1091 together with Radio Equipment Regulation 2017 (RER) SI 2017/1206:
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 57 of 82
3.1a Safety/Health: EN 62368-1: 2014/A11: 2017
EN 62311: 2008
3.1b EMC: EN 301 489-1 V2.2.3: 2019-11
EN 301 489-17 V3.3.1: 2024-09
3.2 Radio: EN 300 328 V2.2.2: 2019-07
EN 301 893 V2.2.1: 2024-09
3.3 Common Security: EN 18031-1:2024
•
Due to the model size, the UK marking is displayed in the installation instruction only and
it cannot be displayed conform to SI 2017/1206 on the module’s label due to the limited
space.
•
The RED EU Type Examination Certificate No. tbd issued by the EU Notified Body 0682
can be used for the OEM end product conformity assessment. If a Notified Body has
been contracted for the end product conformity assessment, it should be noted that this
EU Type Examination Certificate should be used for conformance assessment.
As a result of the conformity assessment procedure described in SI 2017/1206 Directive, the
end customer equipment should be labelled as as specified on www.gov.uk.
Restrictions or Requirements in the UK
The end customer has to assure that the device has a distance of more than
tbd cm from the human body under all circumstances.
If the end customer application intends to use the PAN W602 in a distance
smaller tbd cm from the human body, SAR evaluation has to be repeated by the
OEM.
The end customer equipment must meet the actual Safety/Health requirements
according to SI 2017/1206.
PAN W602 and its model versions in the specified reference design can be used in the UK.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 58 of 82
6.4 Federal Communications Commission (FCC) for US
6.4.1 FCC Notice
The PAN W602-1C (ENWF9211A) and PAN W602-2C (ENWF9215A)
including the antennas, which are listed in 6.4.5 Approved Antenna List,
complies with Part 15 of the FCC Rules.
The device meets the requirements for modular transmitter approval as detailed in FCC public
Notice DA00-1407. The transmitter operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
6.4.2 Caution
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by
Panasonic Industrial Devices Europe GmbH may void the user's authority to
operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
There is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna,
•
Increase the separation between the equipment and receiver,
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected,
•
Consult the dealer or an experienced radio/TV technician for help.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 59 of 82
6.4.3 Label Requirements
The OEM must ensure that FCC labelling requirements are met. This includes
a clearly visible label on the outside of the OEM enclosure specifying the
appropriate Panasonic FCC identifier for this product as well as the FCC
Notice above.
The FCC identifier is FCC ID: T7V-W602.
This FCC identifier is valid for the PAN W602. The end product must in any case be labelled on
the exterior with:
"Contains FCC ID: T7V-W602".
6.4.4 Antenna Warning
The device is tested with a standard MHF4 connector and with the antenna listed below. When
integrated into the OEM’s product, these fi ed antennas require installation preventing end
users from replacing them with non-approved antennas. Any antenna not in the following table
must be tested to comply with FCC Section 15.203 for unique antenna connectors and with
Section 15.247 for emissions. The FCC identifier for the device with the antenna listed in
6.4.5 Approved Antenna List is the same (FCC ID: T7V-W602).
6.4.5 Approved Antenna List
6.4.5.1 Chip Antennas
The PAN W602-xC versions ENWF9211A and ENWF9215A integrate the listed chip antenna.
Using one of these module variants requires the integrator to follow special design rules on the
carrier PCB. The rules and their application are described in the PAN W602 Integration Guide.
Part Number
Vendor
Type
Max. Gain
(2.4 GHz
band)
Max. Gain
(5 GHz
band)
Cable Variants
ANT162442DT-2001A2
TDK
Chip
Antenna
2.1 dBi
2.3 dBi
50 Ohm trace
Min. length: 15 mm
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 60 of 82
6.4.5.2 PCB Antennas
Part Number
Vendor
Type
Max. Gain
(2.4 GHz
band)
Max. Gain
(5 GHz
band)
Cable Options
10
2108792
TE-
Connectivity
Flex PCB
4.9 dBi
3.5 dBi
-6 (50 mm)
-7 (100 mm)
-8 (150 mm)
-9 (200 mm)
2JF1002P
2J
Flex PCB
4.2 dBi
8 dBi
-005MC137-MHF4L (50 mm)
-010MC137-MHF4L (100 mm)
-015MC137-MHF4L (150 mm)
-020MC137-MHF4L (200 mm)
-025MC137-MHF4L (250 mm)
-030MC137-MHF4L (300 mm)
2JF0102P
2J
Flex PCB
2.2 dBi
3.8 dBi
-005MC137-MHF4L (50 mm)
-010MC137-MHF4L (100 mm)
-015MC137-MHF4L (150 mm)
-020MC137-MHF4L (200 mm)
-025MC137-MHF4L (250 mm)
-030MC137-MHF4L (300 mm)
FXP830
Taoglas
Flex PCB
2.5 dBi
4.7 dBi
.54.0055C (55 mm)
.54.0100C (100 mm)
.54.0150C (150 mm)
.54.0200C (200 mm)
W3P35X8W04
Kyocera
AVX
PCB
2.3 dBi
5 dBi
-H050D3B0A (50 mm)
-H100D3B0A (100 mm)
-H150D3B0A (150 mm)
W3F35X8W01
Kyocera
AVX
Flex PCB
2.3 dBi
5 dBi
-H050D3B0C (50 mm)
-H100D3B0C (100 mm)
-H150D3B0C (150 mm)
1001932PT
Kyocera
AVX
Flex PCB
2.0 dBi
4.5 dBi
-AC10L0050 (50 mm)
-AC10L0100 (100 mm)
10
Cable option with MHF4L connector; Product number: [Part Number][Cable Option]
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 61 of 82
6.4.5.3 Terminal Mount Antennas
11
MHF4L to RP-SMA (female) cable
Part Number
Vendor
Type
Max. Gain
(2.4 GHz
band)
Max. Gain
(5 GHz
band)
Cables
11
2108923-3
(black)
2108923-4
(white)
TE-
Connectivity
Terminal
Mount
2.5 dBi
3.2 dBi
2016694-1 (50 mm)
2016694-2 (100 mm)
2016694-3 (150 mm)
2016694-4 (200 mm)
GW.51.5153
Taoglas
Terminal
Mount
5.2 dBi
5.5 dBi
CAB.S140 (50 mm)
CAB.S119 (100 mm)
CAB.S141 (150 mm)
CAB.S142 (200 mm)
CAB.S143 (300 mm)
2JW1102-
C943B
2J
Terminal
Mount
4.1 dBi
3.9 dBi
C213GST-005MC137-MHF4L
(50 mm)
C213GST-010MC137-MHF4L
(100 mm)
C213GST-015MC137-MHF4L
(150 mm)
C213GST-020MC137-MHF4L
(200 mm)
C213GST-025MC137-MHF4L
(250 mm)
C213GST-030MC137-MHF4L
(300 mm)
X9000294-
W3DRMB
Kyocera
AVX
Terminal
Mount
3.2 dBi
4.5 dBi
ACM13-04LB030SAR00 (30 mm)
ACM13-04LB050SAR00 (50 mm)
ACM13-04LB100SAR00 (100 mm)
ACM13-04LB150SAR00 (150 mm)
ACM13-04LB200SAR00 (200 mm)
ACM13-04LB300SAR00 (300 mm)
X9001748-
W3DRMB
Kyocera
AVX
Terminal
Mount
3.2 dBi
3.6 dBi
ACM13-04LB030SAR00 (30 mm)
ACM13-04LB050SAR00 (50 mm)
ACM13-04LB100SAR00 (100 mm)
ACM13-04LB150SAR00 (150 mm)
ACM13-04LB200SAR00 (200 mm)
ACM13-04LB300SAR00 (300 mm)
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 62 of 82
6.4.6 RF Exposure
To comply with FCC RF Exposure requirements, the OEM must ensure that
only antennas from the Approved Antenna List are installed 6.4.5 Approved
Antenna List.
The preceding statement must be included as a “CAUTION” statement in
manuals for products operating with the approved antennas in the previous
table to alert users on FCC RF Exposure compliance.
Any notification to the end user of installation or removal instructions about the
integrated radio module is not allowed.
The radiated output power of the PAN W602 with one of the listed antennas
(FCC ID: T7V-W602) is below the FCC radio frequency exposure limits. The
PAN W602 shall be used in such a manner that the potential for human
contact during normal operation is minimized.
End users may not be provided with the module installation instructions.
OEM integrators and end users must be provided with transmitter operating
conditions for satisfying RF exposure compliance.
6.4.7 Integration Instructions
This chapter gives integration instructions for host product manufacturers according to
KDB 996369 D03 OEM Manual v01.
Section
Topic and Comment
2.2
List of applicable FCC rules
47 CFR Section
Part 15C
Frequency Band (MHz)
2 400 to 2 483.5
Systems
Digital Transmission Systems operating within the 2 00 MHz to 2
.5 MHz Band
Reference/Requirement
15.247(a)(2), 15.247(b)(1), 15.207, 15.247(d), 15.247(e)
Part Number
Vendor
Type
Max. Gain
(2.4 GHz
band)
Max. Gain
(5 GHz
band)
Cables
11
X9003019-
W3DRMB
(Black)
X9003019-
W3DRMW
(White)
Kyocera
AVX
Terminal
Mount
2.8 dBi
4.9 dBi
ACM13-04LB030SAR00 (30 mm)
ACM13-04LB050SAR00 (50 mm)
ACM13-04LB100SAR00 (100 mm)
ACM13-04LB150SAR00 (150 mm)
ACM13-04LB200SAR00 (200 mm)
ACM13-04LB300SAR00 (300 mm)
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 63 of 82
Complied Module M/N
ENWF9211C, ENWF9215C, ENWF9211A, ENWF9215A
47 CFR Section
Part 15E
Systems
Unlicensed National Information Infrastructure Devices in the 5 Hz
Bands
Reference Method
KDB 905462 D02 v02
Reference/Requirement
15E.407(h)(2)
Complied Module M/N
ENWF9211C, ENWF9215C, ENWF9211A, ENWF9215A
2.3
Summarize the specific operational use conditions
Please refer to sections 5 Cautions, 5.3 Usage Condition Notes, and 6.4.5 Approved
Antenna List.
2.4
Limited module procedures
Not applicable, the module has a single-modular transmitter approval.
2.5
Trace antenna designs
Not applicable, a chip antenna can be integrated on the carrier board or external antennas as
listed in 6.4.5 Approved Antenna List can be used. For guidance regarding the PCB layout
requirements for module integration refer to the module integration guide linked in 7.3.2 Product
Information.
2.6
RF exposure considerations
Mobile application, the end customer has to assure that the device has a distance of more than
20 cm from the human body under all circumstances.
2.7
Antennas
Please refer to sections 6.4.4 Antenna Warning and 6.4.5 Approved Antenna List.
2.8
Label and compliance information
Please refer to section 6.4.3 Label Requirements.
2.9
Information on test modes and additional testing requirements
The documents for integration guidance and compliance testing are available here
7.3.2 Product Information.
2.10
Additional testing, Part 15 Subpart B disclaimer
The single-modular transmitter is FCC authorized for the specific rule parts listed at section 2.2
“List of applicable FCC rules“.
The host product manufacturer needs to also consider the FCC requirements for certified modular
transmitter being used in the host product and maintain documentation on how the host product
with the certified modular transmitter complies with the FCC rules. Host product manufacturers are
responsible to follow the integration guidance and to perform a limited set of transmitter module
verification testing, to ensure the end product is in compliance with the FCC rules. Also host
product manufacturers are responsible for all additional equipment authorization and testing for
technical requirements not covered by the module grant (e.g., unintentional radiator Part 15
Subpart B requirements, or transmitters used in the host that are not certified modules).
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 64 of 82
6.5 Innovation, Science, and Economic Development (ISED) for
Canada
English
The PAN W602 is licensed to meet the regulatory requirements of ISED.
License ID: IC: 216Q-W602
Manufacturers of mobile, fixed or portable devices incorporating this module are advised to
clarify any regulatory questions and ensure compliance for SAR and/or RF exposure limits.
Users can obtain Canadian information on RF exposure and compliance from www.ic.gc.ca.
This device has been designed to operate with the antennas listed in 6.4.5 Approved
Antenna List, having a maximum gain of 5.2 dBi for 2. Hz and 8 dBi for 5 Hz. Antennas not
included in this list or having a gain greater than 5.2 dBi for 2. Hz and 8 dBi for 5 Hz are
strictly prohibited for use with this device. The required antenna impedance is 50 ohms. The
antenna used for this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Due to the model size, the IC identifier is displayed in the installation instruction only and it
cannot be displayed on the module’s label due to the limited size.
French
PAN W602 est garanti conforme aux dispositions règlementaires d’ Innovation, Sciences et
Développement économique Canada (ISDE).
License: IC: 216Q-W602
Il est recommandé au fabricants d’appareils fi es, mobiles ou portables de consulter la
réglementation en vigueur et de vérifier la conformité de leurs produits relativement aux limites
d’e position au rayonnements radiofréquence ainsi qu’au débit d’absorption spécifique
maximum autorisé.
Des informations pour les utilisateurs sur la réglementation Canadienne concernant l’e position
aux rayonnements RF sont disponibles sur le site www.ic.gc.ca.
Ce produit a été développé pour fonctionner spécifiquement avec les antennes listées dans le
tableau 6.4.5 Approved Antenna List, présentant un gain maximum de 5.2 dBi pour 2. Hz
et dBi pour 5 Hz. Des antennes autres que celles listées ici, ou présentant un gain supérieur
à 5.2 dBi pour 2. Hz et dBi pour 5 Hz ne doivent en aucune circonstance être utilisées en
combinaison avec ce produit. L’impédance des antennes compatibles est 50 Ohm. L’antenne
utilisée avec ce produit ne doit ni être située à pro imité d’une autre antenne ou d’un autre
émetteur, ni être utilisée conjointement avec une autre antenne ou un autre émetteur.
En raison de la taille du produit, l’identifiant IC est fourni dans le manuel d’installation.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 65 of 82
6.5.1 Radio Standards Specification RSS-247 Issue 4
The Radio Standards Specification RSS-247, Issue 4, RSS-247 — Digital Transmission
Systems, Frequency Hopping Systems and Licence-Exempt Local Area Network Devices in
902-928 MHz, 2400-2483.5 MHz, 5150-5350 MHz, and 5470-5895 MHz bands, replaces
RSS-247, Issue 3, dated August 2023. It sets out certification requirements for radio apparatus
operating in the bands 2 00 MHz to 2 .5 MHz and 5 25 MHz to 5 50 MHz employing
frequency hopping, digital modulation and/or a combination (hybrid) of both techniques. It also
includes license exempt local area network (LE-LAN) devices operating in the bands 5 50 MHz
to 5 250 MHz, 5 250 MHz to 5 50 MHz, 5 0 MHz to 5 25 MHz and 5 25 MHz to 5 50 MHz
as specified in SP-5 50 MHz.
6.5.1.1 General
Equipment covered by the standard RSS-247 is classified as Category I equipment. Either a
technical acceptance certificate (TAC) issued by the Certification and Engineering Bureau of
Innovation, Science and Economic Development Canada (ISED) or a certificate issued by a
certification body (CB) is required.
6.5.1.2 Certification Requirements
RSS-247 shall be used in conjunction with RSS-Gen, General Requirements for Compliance of
Radio Apparatus, for general specifications and information relevant to the equipment for which
this standard applies. Equipment certified under the standard is required to comply with the
provisions in RSS‑Gen with respect to emissions falling within restricted frequency bands.
These restricted frequency bands are listed in RSS‑Gen.
6.5.1.3 Measurement Method
In addition to the requirements in RSS-Gen and the requirements of the standard RSS-247, the
method for measuring DTS devices is provided in ANSI C63.10.
6.5.1.4 Requirements for LE-LAN and DTS Operating in the 5 GHz Band
The section provides standards for Licence-Exempt Local Area Network (LE-LAN) devices
operating in the bands:
•
5 150 to 5 250 MHz
•
5 250 to 5 50 MHz
•
5 470 to 5 00 MHz
•
5 600 to 5 650 MHz
•
5 650 to 5 25 MHz
•
5 725 to 5 50 MHz
For DTSs operating in the band 5 25 MHz to 5 50 MHz that employ digital modulation
technology, but are not designed for LE-LAN operation.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 66 of 82
Devices with occupied bandwidths which overlap different bands shall comply with all
operational requirements for each band.
RSS-247 Section
6.2.1
Frequency Band (MHz)
5 150 to 5 250
Device Type
LE-LAN devices are restricted to indoor operation only.
Devices out of Scope
OEM devices installed in vehicles.
Power Limits
Ma imum e.i.r.p. shall not e ceed 200 mW or 0+ 0 log
10
B dBm, whichever
power is less. B is the % emission bandwidth in megahertz. The e.i.r.p.
spectral density shall not e ceed 0 dBm in any MHz band.
Unwanted Emission
Limits
For transmitters with operating frequencies in the band 5 50 MHz to
5 250 MHz, all emissions outside the band 5 50 MHz to 5 50 MHz shall not
exceed -2 dBm/MHz e.i.r.p. Any unwanted emissions that falls into the band
5 250 MHz to 5 50 MHz shall be attenuated below the channel power by at
least 2 dB, when measured using a resolution bandwidth between % and
5 % of the occupied bandwidth (i.e. % bandwidth), above 5 250 MHz. The
2 dB bandwidth may fall into the 5 250 MHz to 5 50 MHz band; if the
occupied bandwidth also falls within the 5 250 MHz to 5 350 MHz band, the
transmission is considered as intentional and the devices shall comply with all
requirements in the band 5 250 MHz to 5 50 MHz including implementing
dynamic frequency selection (DFS) and transmit power control (TPC), on the
portion of the emission that resides in the 5 250 MHz to 5 50 MHz band.
Complied Module M/N
ENWF9211C, ENWF9215C, ENWF9211A, ENWF9215A
RSS-247 Section
6.2.2
Frequency Band (MHz)
5 250 to 5 350
Device Type
For devices, other than devices installed in vehicles.
Devices out of Scope
OEM devices installed in vehicles, outdoor fixed devices, and other devices
having an e.i.r.p. grater than 200 mW.
Power Limits
The ma imum conducted output power shall not e ceed 250 mW or
+ 0 log
10
B, dBm, whichever is less. The power spectral density shall not
e ceed dBm in any MHz band.
Unwanted Emission
Limits
All emissions outside the band 5 250 MHz to 5 50 MHz shall not
exceed -2 dBm/MHz e.i.r.p.; or:
All emissions outside the band 5 50 MHz to 5 50 MHz shall not
exceed -2 dBm/MHz e.i.r.p. and its power shall comply with the spectral
power density for operation within the band 5 50 MHz to 5 250 MHz. The
device shall be labelled or include in the user manual the following te t “For
indoor use only.”.
Complied Module M/N
ENWF9211C, ENWF9215C, ENWF9211A, ENWF9215A
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 67 of 82
RSS-247 Section
6.2.3
Frequency Band (MHz)
5 470 to 5 600 and 5 650 to 5 725
Device Type
Devices shall not be capable of transmitting in the band 5 00 MHz to
5 50 MHz. This restriction is for the protection of Environment Canada’s
weather radars operating in this band.
Devices out of Scope
N/A
Power Limits
The ma imum conducted output power shall not e ceed 250 mW or
+ 0 log
10
B, dBm, whichever is less. The power spectral density shall not
e ceed dBm in any MHz band.
Unwanted Emission
Limits
Emissions outside the band 5 0 MHz to 5 25 MHz shall not
exceed -2 dBm/MHz e.i.r.p. Devices with bandwidth overlapping the band
edge of 5 25 MHz can meet the emission limit of -2 dBm/MHz e.i.r.p. at
5 50 MHz instead of 5 25 MHz.
Complied Module M/N
ENWF9211C, ENWF9215C, ENWF9211A, ENWF9215A
RSS-247 Section
6.2.4
Frequency Band (MHz)
5 725 to 5 850
Device Type
For equipment operating in the band 5 25 MHz to 5 50 MHz
Devices out of Scope
Fixed point-to-point devices and devices with antenna gain greater than dBi.
Power Limits
The minimum dB bandwidth shall be at least 500 kHz. The ma imum
conducted output power shall not e ceed W. The output power spectral
density shall not e ceed 0 dBm in any 500 kHz band.
Unwanted Emission
Limits
Devices shall have e.i.r.p. of unwanted emissions comply with the following:
•
2 dBm/MHz at frequencies from the band edges decreasing linearly to
5. dBm/MHz at 5 MHz above or below the band edges
•
5. dBm/MHz at 5 MHz above or below the band edges decreasing
linearly to 0 dBm/MHz at 25 MHz above or below the band edges
•
0 dBm/MHz at 25 MHz above or below the band edges decreasing
linearly to -2 dBm/MHz at 5 MHz above or below the band edges
•
-2 dBm/MHz at frequencies more than 5 MHz above or below the band
edges
Complied Module M/N
ENWF9211C, ENWF9215C, ENWF9211A, ENWF9215A
For further information about module variants and its supported channel table
please refer to 7.1 Channels and Power Settings per Country.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 68 of 82
6.5.2 IC Notice
English
The device PAN W602 ( 7.2 Ordering Information), including the antennas
( 6.4.5 Approved Antenna List), complies with Canada RSS-GEN Rules.
The device meets the requirements for modular transmitter approval as
detailed in RSS-Gen.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
French
Le présent appareil PAN W602 ( 7.2 Ordering Information), les antennes y
compris ( 6.4.5 Approved Antenna List), est conforme aux CNR-Gen
d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
1. L'appareil ne doit pas produire de brouillage, et
2. L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 69 of 82
6.5.3 Labeling and Documentation Requirements
English
Labeling Requirements
The OEM must ensure that IC labelling requirements are met. This includes a
clearly visible label on the outside of the OEM’s product enclosure and inside
the user manual specifying the appropriate Panasonic IC identifier for this
product as well as the IC Notice above.
The IC identifier is IC: 216Q-W602.
This IC identifier is valid for all PAN W602 modules 7.2 Ordering
Information. In any case, the end product must be labelled on the exterior with:
"Contains IC: 216Q-W602”.
In any case, the user manual must include following statement:
“This device contains IC: 216Q-W602.
This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may
cause undesired operation of the device.”
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 70 of 82
French
Obligations d’étiquetage
Les fabricants d’équipement d’origine (FEO) – en anglais Original Equipment
Manufacturer (OEM) – doivent s’assurer que les obligations d’étiquetage IC du
produit final sont remplies. Ces obligations incluent une étiquette clairement
visible à l’e térieur de l’emballage e terne et dans le manuel de l’utilisateur,
comportant l’identifiant IC du module Panasonic inclus, ainsi que la notification
ci-dessus.
L’ identifiant IC est IC: 216Q-W602.
Cet identifiant est valide pour tous les modules PAN W602 7.2 Ordering
Information. Dans tous les cas les produits finaux doivent indiquer sur leur
emballage externe la mention suivante:
"Contient IC: 216Q-W602”.
Dans tous les cas les produits finaux doivent indiquer dans le manuel de
l’utilisateur la mention suivante:
“Contient IC: 216Q-W602.
L’émetteur/récepteur e empt de licence contenu dans le présent appareil est
conforme au CNR d’Innovation, Sciences et Développement économique
Canada applicables au appareils radio e empts de licence. L’e ploitation est
autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage.
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.”
6.6 Bluetooth Special Interest Group (SIG)
The final Bluetooth end product listing needs to be created by using the following IDs:
Core Configuration
Design Name
DID/DN
QDID(s) and Included DN(s)
LE Core-Controller
PAN W602-xx
Q392027
Q386756
If the module is combined with a host stack that is Bluetooth qualified as “Host Subsystem" it is
possible to list an “End Product” without any further qualification tests.
PAN W602 Bluetooth/Wi-Fi Modul 6 Regulatory and Certification Information
Product Specification Rev. 1.0 Page 71 of 82
Bluetooth Marks
According to the Bluetooth SIG, the PAN W602 fulfills the criteria to label your product as a
Bluetooth device:
For further information please refer to the Bluetooth website www.bluetooth.com.
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 72 of 82
7 Appendi
7.1 Channels and Power Settings per Country
7.1.1 World Wide (WW)
Radio
Bandwidth
Channels
Modulation
Power (dBm)
Wi-Fi
2.4 GHz
20 MHz
Single User
1-11
11b: 1-11 Mbit/s
12.0
11g: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
12-14
Not supported
-
OFDMA Multi-User
1-11
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
12-13
Not supported
-
Wi-Fi
5 GHz
20 MHz
Single User
36
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
40-60
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
64
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
OFDMA Multi-User
36
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
40-60
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
64
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 73 of 82
7.1.2 European Union (EU)
Radio
Bandwidth
Channels
Modulation
Power (dBm)
Wi-Fi
2.4 GHz
20 MHz
Single User
1-12
11b: 1-11 Mbit/s
12.0
11g: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
13
11b: 1-11 Mbit/s
12.0
11g: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
14
Not supported
-
OFDMA Multi-User
1-12
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
13
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
Wi-Fi
5 GHz
20 MHz
Single User
36-48
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
52-64
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
100-140
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
144
Not supported
-
149-165
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
169
Not supported
-
OFDMA Multi-User
36-48
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
52-64
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 74 of 82
Radio
Bandwidth
Channels
Modulation
Power (dBm)
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
100-140
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
144
Not supported
-
149-165
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
169
Not supported
-
7.1.3 United States of America (US)
Radio
Bandwidth
Channels
Modulation
Power (dBm)
Wi-Fi
2.4 GHz
20 MHz
Single User
1-2
11b: 1-11 Mbit/s
15.0
11g: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
3-9
11b: 1-11 Mbit/s
16.0
11g: 6-54 Mbit/s
14.0
11n/ac/ax: MCS 0-7
14.0
10-11
11b: 1-11 Mbit/s
15.0
11g: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
12-14
Not supported
-
OFDMA Multi-User
1-2
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
3-9
11ax MCS 0-7 OFDMA: 26-tone RU
4.0
11ax MCS 0-7 OFDMA: 52-tone RU
7.0
11ax MCS 0-7 OFDMA: 106-tone RU
10.0
11ax MCS 0-7 OFDMA: 242-tone RU
14.0
10-11
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 75 of 82
Radio
Bandwidth
Channels
Modulation
Power (dBm)
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
12-13
Not supported
-
Wi-Fi
5 GHz
20 MHz
Single User
36
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
40-60
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
64
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
100
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
104-165
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
169
Not supported
-
OFDMA Multi-User
36
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
40-60
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
64
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
100
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
104-165
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
169
Not supported
-
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 76 of 82
7.1.4 Canada (CA)
Radio
Bandwidth
Channels
Modulation
Power (dBm)
Wi-Fi
2.4 GHz
20 MHz
Single User
1-2
11b: 1-11 Mbit/s
15.0
11g: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
3-9
11b: 1-11 Mbit/s
16.0
11g: 6-54 Mbit/s
14.0
11n/ac/ax: MCS 0-7
14.0
10-11
11b: 1-11 Mbit/s
15.0
11g: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
12-14
Not supported
-
OFDMA Multi-User
1-2
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
3-9
11ax MCS 0-7 OFDMA: 26-tone RU
4.0
11ax MCS 0-7 OFDMA: 52-tone RU
7.0
11ax MCS 0-7 OFDMA: 106-tone RU
10.0
11ax MCS 0-7 OFDMA: 242-tone RU
14.0
10-11
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
12-13
Not supported
-
Wi-Fi
5 GHz
20 MHz
Single User
36
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
40-60
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
64
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
100
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
104-116
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 77 of 82
Radio
Bandwidth
Channels
Modulation
Power (dBm)
120-128
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
132-165
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
169
Not supported
-
OFDMA Multi-User
36
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
40-60
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
64
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
100
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
104-116
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
120-128
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
132-165
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
169
Not supported
-
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 78 of 82
7.1.5 Australia (AU)
Radio
Bandwidth
Channels
Modulation
Power (dBm)
Wi-Fi
2.4 GHz
20 MHz
Single User
1-12
11b: 1-11 Mbit/s
12.0
11g: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
13
11b: 1-11 Mbit/s
12.0
11g: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
14
Not supported
-
OFDMA Multi-User
1-12
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
13
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
Wi-Fi
5 GHz
20 MHz
Single User
36-48
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
52-64
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
100-116
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
120-128
Not supported
-
132-140
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
144
Not supported
-
149-165
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
169
Not supported
-
OFDMA Multi-User
36-48
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 79 of 82
Radio
Bandwidth
Channels
Modulation
Power (dBm)
52-64
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
100-116
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
120-128
Not supported
-
132-140
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
144
Not supported
-
149-165
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
169
Not supported
-
7.1.6 New Zealand (NZ)
Radio
Bandwidth
Channels
Modulation
Power (dBm)
Wi-Fi
2.4 GHz
20 MHz
Single User
1-12
11b: 1-11 Mbit/s
12.0
11g: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
13
11b: 1-11 Mbit/s
12.0
11g: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
14
Not supported
-
OFDMA Multi-User
1-12
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
13
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 80 of 82
Radio
Bandwidth
Channels
Modulation
Power (dBm)
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
Wi-Fi
5 GHz
20 MHz
Single User
36-48
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
52-64
11a: 6-54 Mbit/s
12.0
11n/ac/ax: MCS 0-7
12.0
100-116
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
120-128
Not supported
-
132-140
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
144
Not supported
-
149-165
11a: 6-54 Mbit/s
13.0
11n/ac/ax: MCS 0-7
13.0
169
Not supported
-
OFDMA Multi-User
36-48
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
52-64
11ax MCS 0-7 OFDMA: 26-tone RU
2.0
11ax MCS 0-7 OFDMA: 52-tone RU
5.0
11ax MCS 0-7 OFDMA: 106-tone RU
8.0
11ax MCS 0-7 OFDMA: 242-tone RU
12.0
100-116
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
120-128
Not supported
-
132-140
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
144
Not supported
-
149-165
11ax MCS 0-7 OFDMA: 26-tone RU
3.0
11ax MCS 0-7 OFDMA: 52-tone RU
6.0
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 81 of 82
Radio
Bandwidth
Channels
Modulation
Power (dBm)
11ax MCS 0-7 OFDMA: 106-tone RU
9.0
11ax MCS 0-7 OFDMA: 242-tone RU
13.0
169
Not supported
-
7.2 Ordering Information
Variants and Versions
Please note that variants PAN W602-1B (ENWF9211C) and PAN W602-1C
(ENWF9211A) are currently still in progress of regulatory certification.
Order Number
Brand Name
Description
MOQ
12
ENWF9211C1KF
13
PAN W602-1B
Wi-Fi Single-Band 2.4 GHz and Bluetooth® Low
Energy Module
1 000
ENWF9211A1KF
13
PAN W602-1C
Wi-Fi Single-Band 2.4 GHz and Bluetooth® Low
Energy Module
1 000
ENWF9215C1KF
13
PAN W602-2B
Wi-Fi Single-Band 2.4 GHz and Bluetooth®
Module
1 000
ENWF9215A1KF
13
PAN W602-2C
Wi-Fi Single-Band 2.4 GHz and Bluetooth®
Module
1 000
ENWF9215CMKF
14
PAN W602-xB EVD
M.2 Key E card with the PAN W602-2B module
mounted. It can be used for evaluation of the 1B
and 2B variants.
1
ENWF9215AMKF
14
PAN W602-xC EVD
M.2 Key E card with the PAN W602-2C module
mounted. It can be used for evaluation of the 1C
and 2C variants.
1
12
Abbreviation for Minimum Order Quantity (MOQ). The default MOQ for mass production is 1000 pieces,
fewer only on customer demand. Samples for evaluation can be delivered at any quantity via the distribution
channels.
13
Samples are available on customer demand.
14
The M.2 Key E cards are for evaluation only. They must not be used in any end product.
PAN W602 Bluetooth/Wi-Fi Modul 7 Appendix
Product Specification Rev. 1.0 Page 82 of 82
7.3 Contact Details
7.3.1 Contact Us
For any technical inquiries, please use our dedicated contact form
https://pideu.panasonic.de/en/contact/?subject=Wireless%20Connectivity.
For information on worldwide sales channels and authorized distributors, please visit our
distribution overview
https://pideu.panasonic.de/en/wireless-connectivity#distributors.
7.3.2 Product Information
For the latest product information, documentation, and updates, please visit our product
overview
https://pideu.panasonic.de/en/all-products/.
For access to evaluation tools, schematics, software resources, and additional development
support, please visit the “Panasonic Wireless Connectivity Development Hub”
https://pideu.panasonic.de/development-hub/.
