Installation Manual Inside
1. Take a photo of the camera icon including
thepoints ( ).
2. Send it in by texting the photo to 71403 (US).
www.chamberlain.com
• Please read this manual and the enclosed safety materials carefully!
• Fasten the manual near the garage door after installation.
• The door WILL NOT CLOSE unless the Protector System® is connected and properly aligned.
• Periodic checks of the garage door opener are required to ensure safe operation.
• The model number label is located on the left side panel of your garage door opener.
• This garage door opener is compatible with myQ® and Security+ 2.0® accessories.
• DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended
devices and features are to be used ONLY with sectional doors.
Installation Manual
LED Belt Drive Garage Door Opener
Models B4603T • B4643T • B4613T •
B4655T• B6713T • B6753T • B6755T
FOR RESIDENTIAL USE ONLY
PRE-PROGRAMMED REMOTE
CONTROL INCLUDED
To register your garage door opener to receive
updates and offers from Chamberlain, visit
chamberlain.registria.com or use the icon below:
4
When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not comply with the cautionary statements that accompany it.
Read them carefully.
WARNING: This product can expose you to chemicals including lead, which are known to the State
of California to cause cancer or birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
Unattended Operation
The Timer-to-Close (TTC) feature, and the myQ® App are examples of unattended close and are to be used ONLY
with sectional doors. Any device or feature that allows the door to close without being in the line of sight of the
door is considered unattended close. The Timer-to-Close (TTC) feature, the myQ® App, and any other myQ®
devices are to be used ONLY with sectional doors.
The images throughout this manual are for reference only and your product
may look different.
Safety Symbol and Signal Word ReviewContents
Preparation ......................................................................................................................................5
Assembly..........................................................................................................................................9
Installation ....................................................................................................................................14
Install the Door Control ............................................................................................................24
Install the Protector System® ...................................................................................................26
Connect Power ......................................................................................................................... 30
Adjustments ..................................................................................................................................32
Battery Backup .............................................................................................................................35
myQ® App Control .........................................................................................................................36
Connect With Your Smartphone ..............................................................................................36
Camera ...........................................................................................................................................37
Operation ....................................................................................................................................... 38
Using your Garage Door Opener ..............................................................................................38
Motion Detecting Control Panel ..............................................................................................39
Remote Control and Keyless Entry ........................................................................................... 40
HomeLink® ................................................................................................................................ 40
Erase the Memory .....................................................................................................................41
To Open the Door Manually......................................................................................................41
Maintenance .................................................................................................................................42
Troubleshooting ............................................................................................................................ 43
Warranty ........................................................................................................................................45
Automatic Garage Door Opener Safety & Maintenance Guide ................................................46
Repair Parts ...................................................................................................................................48
Rail Assembly Parts ..................................................................................................................48
Installation Parts ......................................................................................................................48
Model B4603T ..........................................................................................................................49
Model B4613T ..........................................................................................................................50
Model B4643T and B4655T ..................................................................................................... 51
Models B6713T , B6753T, and B6755T ..................................................................................52
This garage door opener has been designed and tested to oer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the
possibility of serious injury or death if you do not comply with the warnings that accompany them. The
hazard may come from something mechanical or from electric shock. Read the warnings carefully.
5

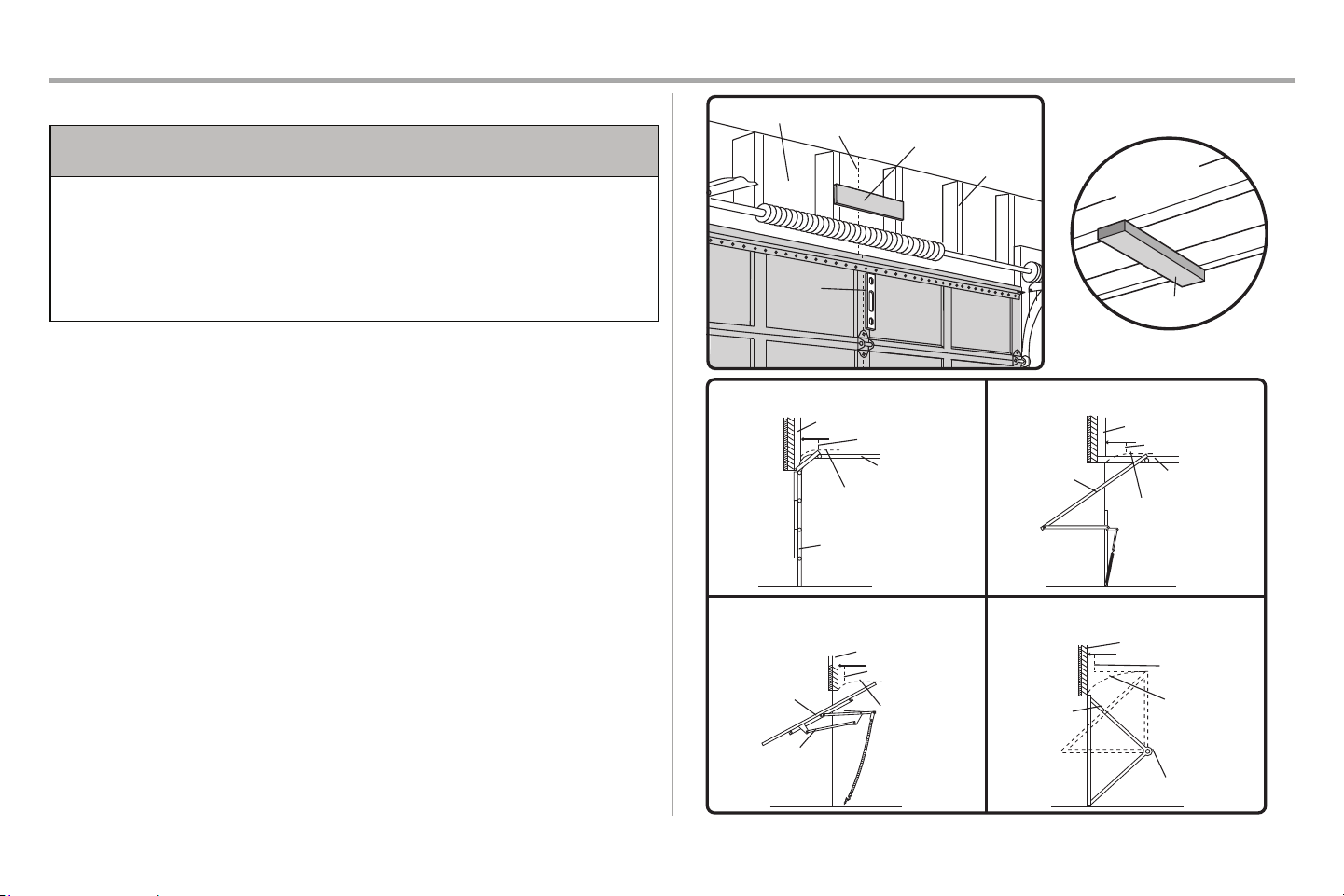

Torsion
Spring
Extension
Spring
Preparation
Check the Door
Before you begin:
1. Disable locks and remove any ropes connected to the garage door.
2. Lift the door halfway up. Release the door. If balanced, it should stay in place, supported entirely by its
springs.
3. Raise and lower the door to check for binding or sticking. If your door binds, sticks, or is out of balance,
call a trained door systems technician.
4. Check the seal on the bottom of the door. Any gap between the oor and the bottom of the door must not
exceed 1/4” (6 mm). Otherwise, the safety reversal system may not work properly.
5. The opener should be installed above the center of the door. If there is a torsion spring or center bearing
plate in the way of the header bracket, it may be installed within 4 feet (1.2 m) to the left or right of the
door center. See page 15.
Before You Connect with Your Smartphone
Monitor and control your garage door from anywhere using the myQ® App. You will need a router with Wi-Fi®
and a smartphone or other mobile device. Make sure your mobile device is connected to your Wi-Fi® network.
Hold your mobile device in the place where your garage door opener will be installed and check the Wi-Fi® signal
strength.
Visit support.chamberlaingroup.com for more details.
See myQ® App Control page 36 to connect your garage door opener to your Wi-Fi® network.

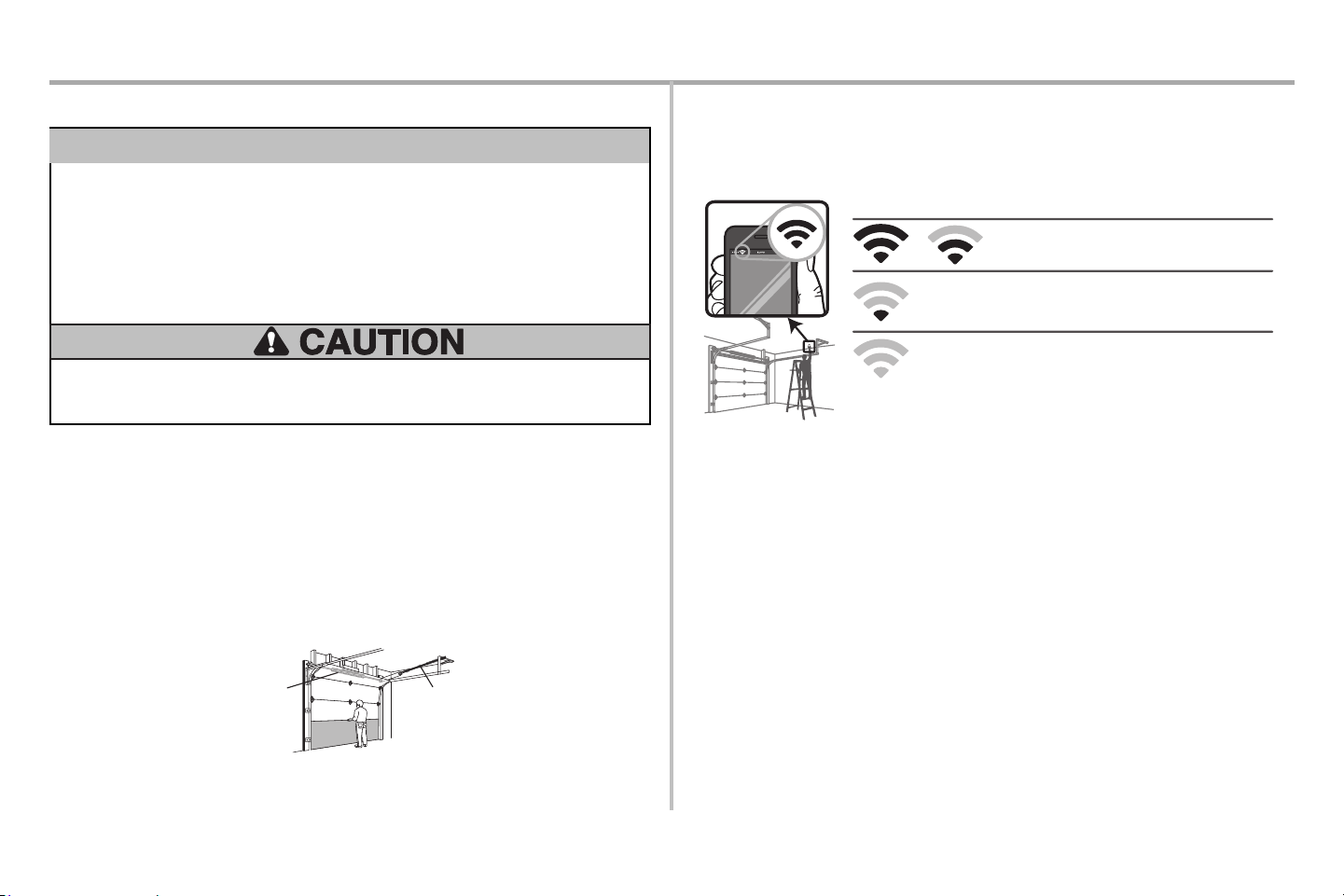

Check Signal Strength. If you see:
Wi-Fi signal is strong. You’re all set!
Install your new garage door opener.
Wi-Fi signal is weak.
The garage door opener will likely connect to your Wi-Fi-
network. If not, try one of the options below.
No Wi-Fi signal. Try one of the following:
• Move your router closer to the garage door opener
tominimize interference from walls and other objects
• Buy a Wi-Fi range extender
To prevent possible SERIOUS INJURY or DEATH:
l ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An
unbalanced garage door may NOT reverse when required.
l NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware,
ALL of which are under EXTREME tension.
l Disable ALL locks and remove ALL ropes connected to garage door BEFORE installation and operating
garage door opener to avoid entanglement.
l DO NOT install on a one-piece door if using devices or features providing unattended close.
Unattended devices and features are to be used ONLY with sectional doors.
To prevent damage to garage door and opener:
l ALWAYS disable locks BEFORE installing and operating the opener.
l ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage.
6
Hardware x2 (each)
Wood Blocks
Extension Brackets – 041A5281-1
Preparation

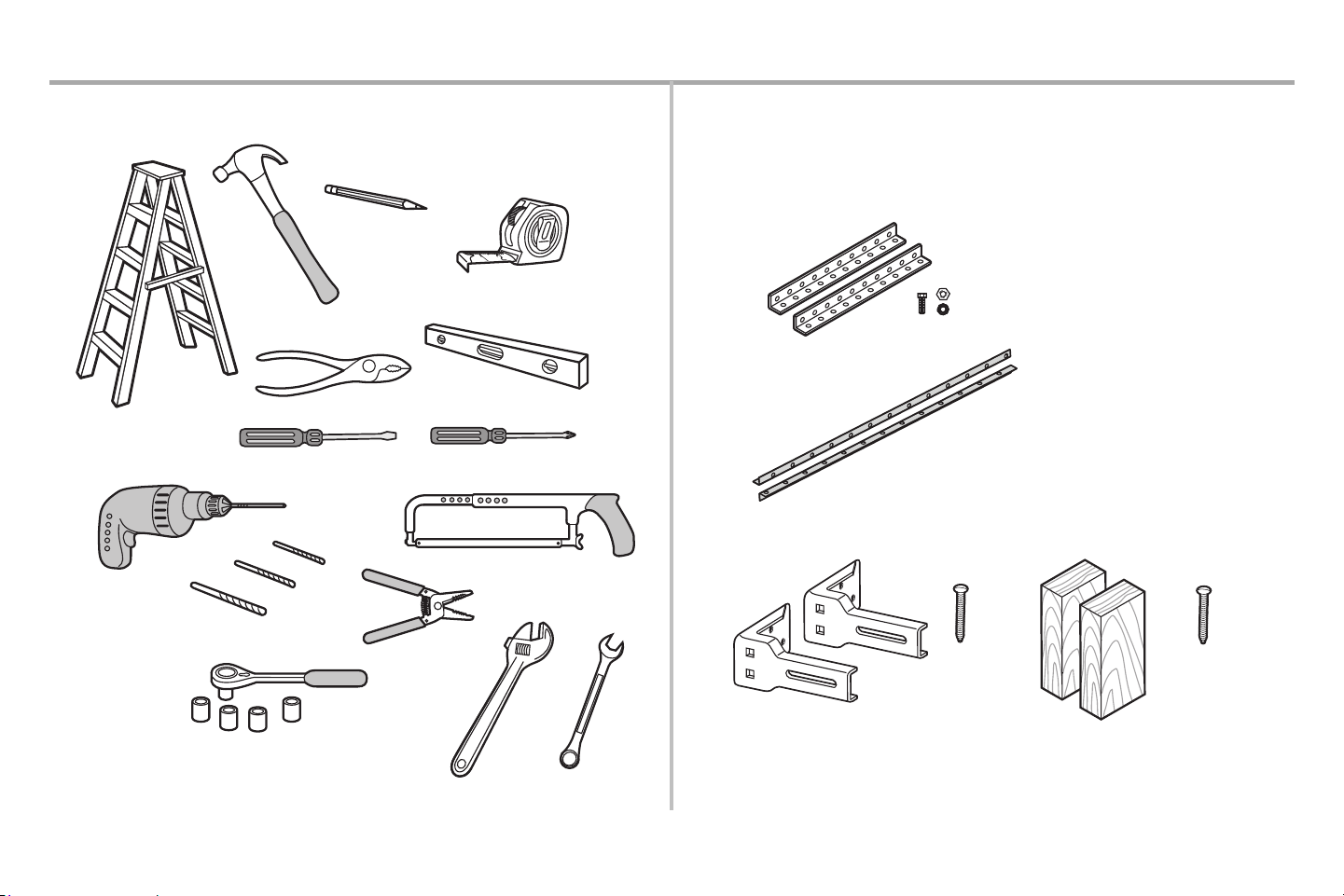

Tools Needed Additional Items You May Need:
Survey your garage area to see if you will need any of the following items:
l (2) 2X4 Pieces of wood : May be used to fasten the header bracket to the structural supports.
Also used to position the garage door opener during installation and for testing the safety
reversing sensors.
l Support bracket and fastening hardware: Must be used if you have a nished ceiling in your
garage.
l Extensionbrackets(Model041A5281-1)orwoodblocks: Depending upon garage construction,
extension brackets or wood blocks may beneeded toinstall the safety reversing sensor.
Lag screws x4 Lag screws x12
l Fastening hardware: Alternate oor mounting of the safety reversing sensor will require hardware not
provided.
l Door reinforcement: Required if you have a light weight steel, aluminum, berglass or glass panel door.
l Railextensionkit: Required if your garage door is more than 7 feet (2.13 m) high.
3/16
7/16
1/2
5/32
5/16
9/16
1/4
7/16
l Hangingbrackets
l Supportbrackets
Preparation

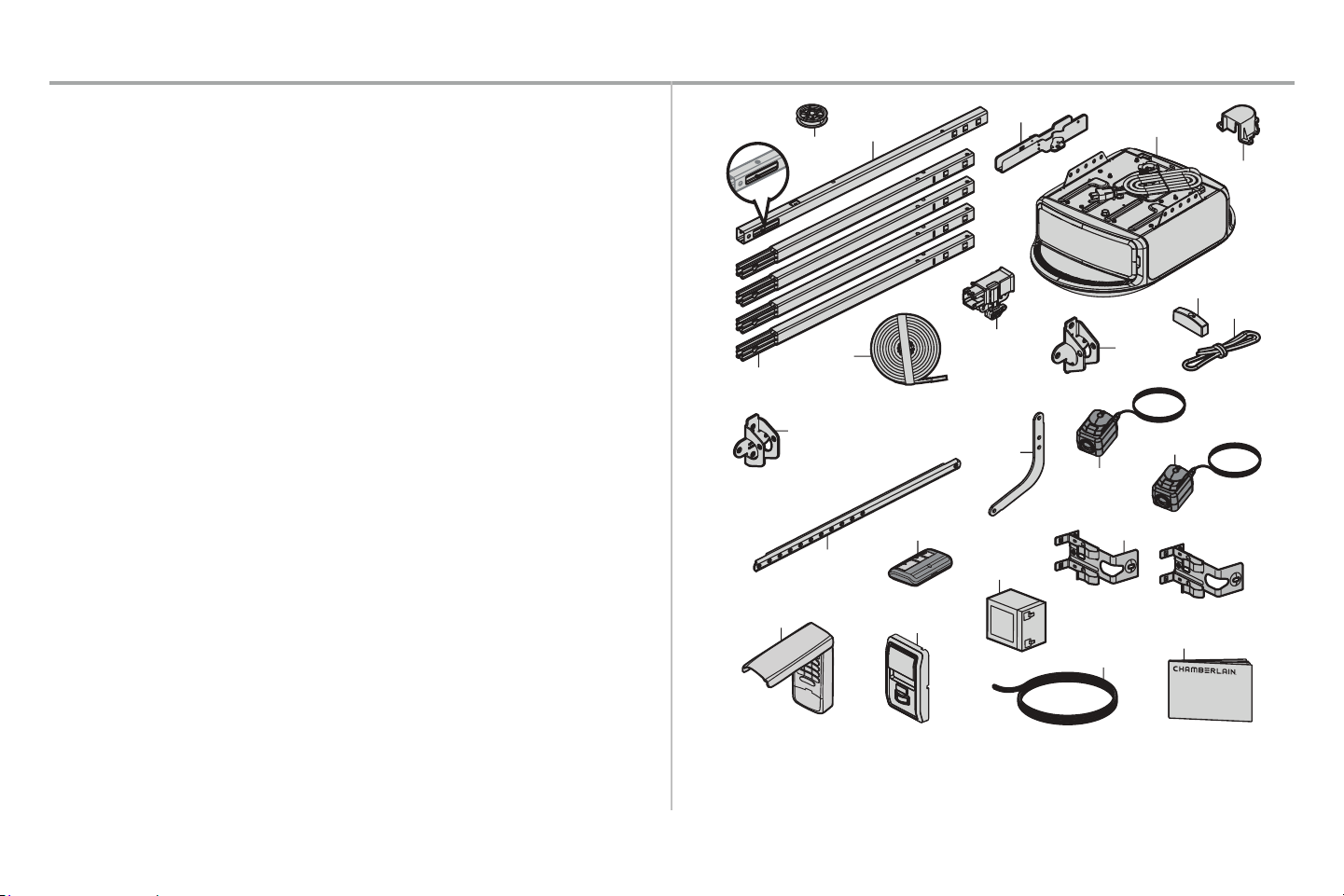

Carton Inventory
Save the carton and packing material until the installation and adjustment is complete. Instructions for the
accessories will be attached to the accessory and are not included in this manual. The images throughout this
manual are for reference only and your product may look dierent.
1. Header bracket
2. Pulley
3. Door bracket
4. Curved door arm
5. Straight door arm
(Packaged inside front rail section)
6. Trolley
7. Emergency release rope and handle
8. Rail (1 front and 4 center sections)
9. Garage door opener (motor unit)
10. Sprocket cover and screws
11. “U” bracket
12. Belt
13. The Protector System®
Safety reversing sensors with 2 conductor white and white/black wire attached: sending sensor (1), receiving
sensor (1), and safety sensor brackets (2)
14. Battery Backup - Models B4613T, B4655T, B6713T, B6753T, and B6755T
15. Remote control (2)
16. Wireless keypad - Models B4603T, B4613T, B4655T, and B6755T
17. Motion-Detecting Control Panel
18. White and red/white wire
19. Installation manual and all warning labels
See Hardware page 8.
Go to chamberlain.com for replacement or additional accessories:
3-button remote control model 953EV-P2
Wirelesskeypad model 940EV-P2
7
13 x2
2
8 x1
7
7
17
11
8 x4
13 x1
13 x1
10
6
9
3
5
1
15
18
19
12
4
14
16
Threaded
Shaft with
Spring
Trolley Nut
ASSEMBLY
Bolt
1/4”-20x1-3/4”
Lock Washer 3/8”
Bolt
Master Link
Hex Screw #8x3/8" (3)
(packed with the
sprocket cover)
Nut 3/8”
Lock Nut
1/4"-20
INSTALLATION
Lag Screw 5/16”-9x1-5/8” (4)
Clevis Pin 5/16”x1-1/2”
Self-Threading Screw
1/4"-14x5/8" (2)
Hex Bolt 5/16”-18x7/8” (4)
Clevis Pin 5/16”x1” Clevis Pin 5/16”x1-1/4”
Hex Screw 10-24 (2)
Nut
5/16”-18 (4)
Lock Washer
5/16”-18 (4)
Wing Nut (2)
Ring
Fastener(3)
DOOR CONTROL
Drywall Anchors (2)
Screw 6-32x1" (2)
Screw 6ABx1" (2)
Insulated Staples
(Not Shown)
Preparation

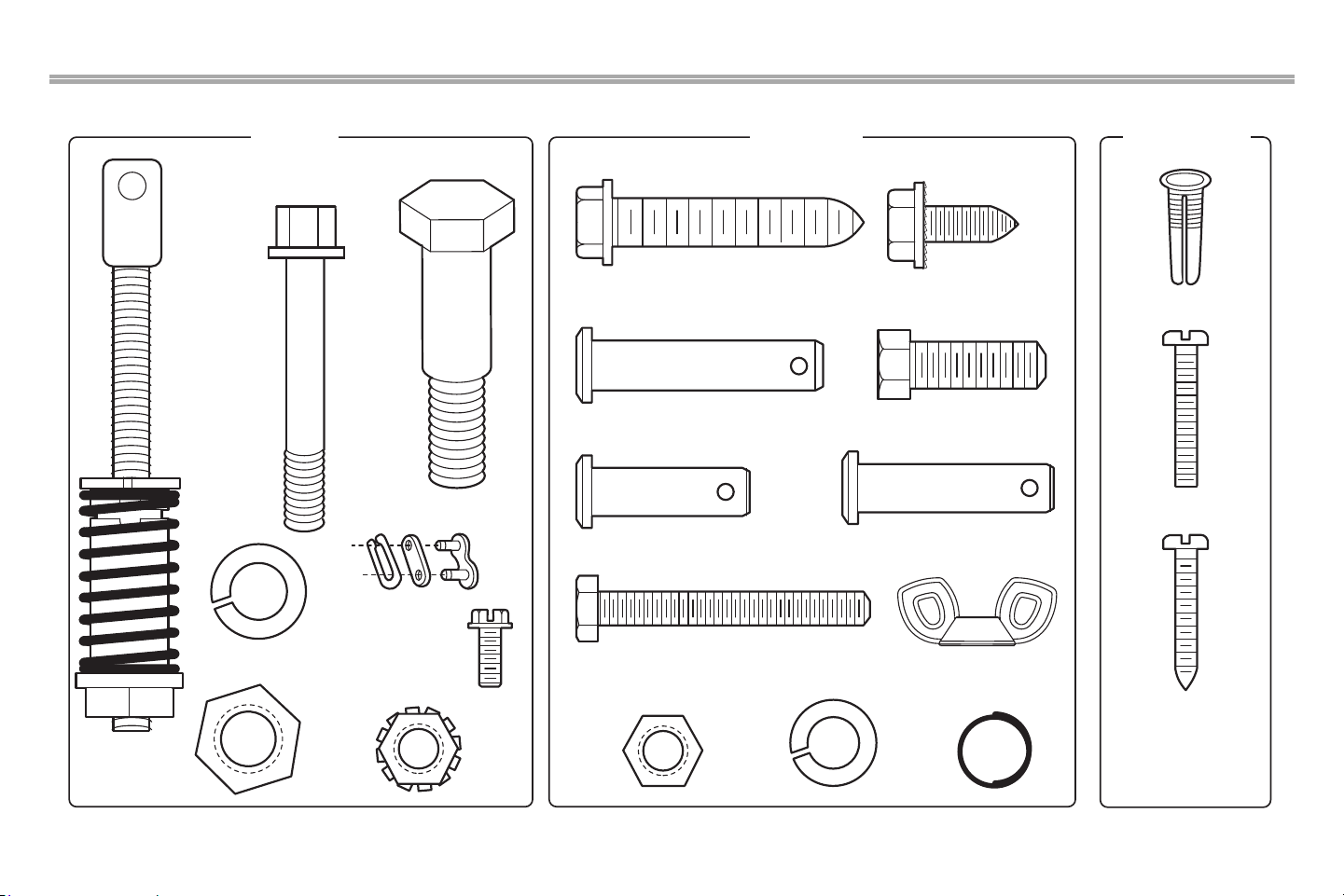

Hardware
8

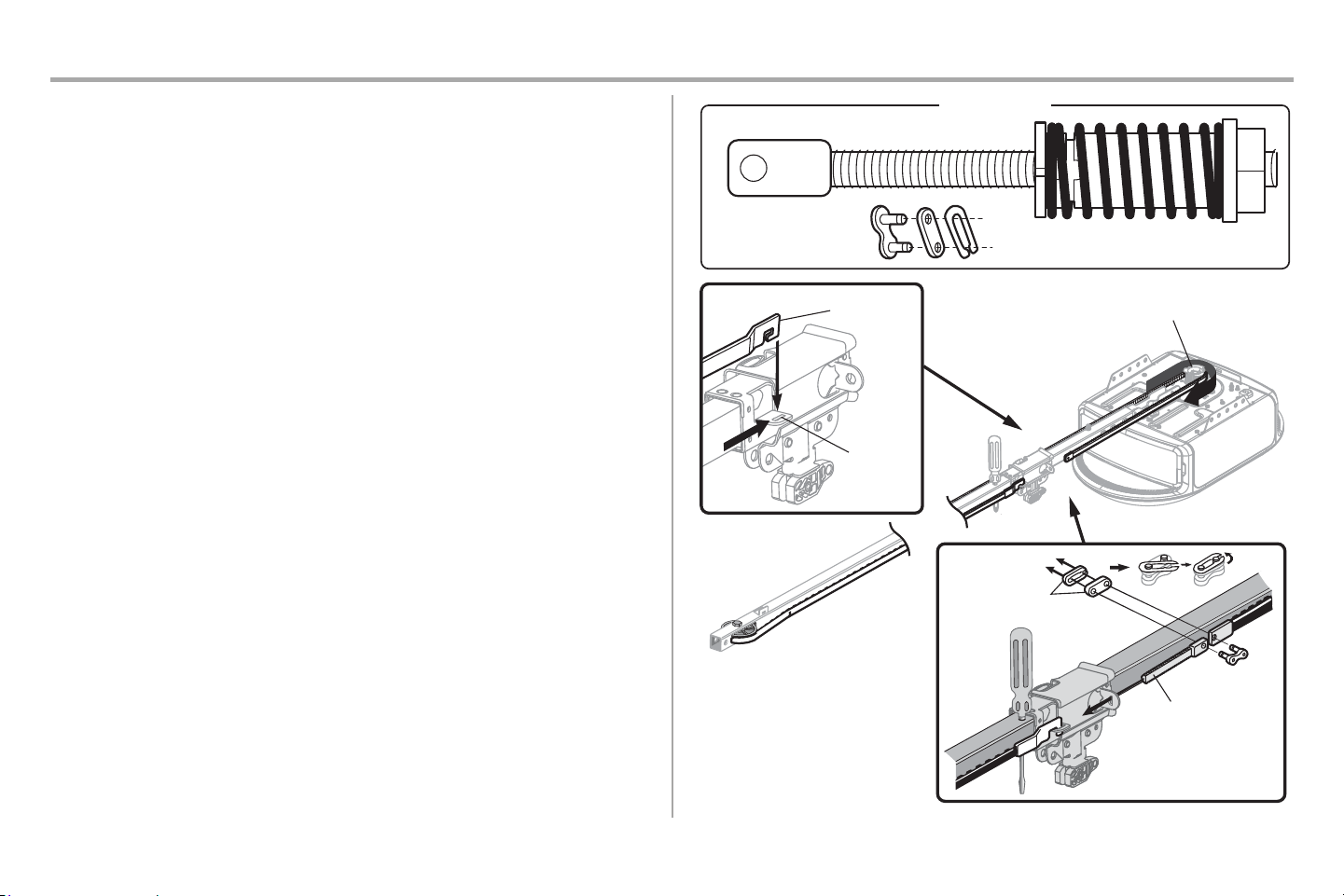

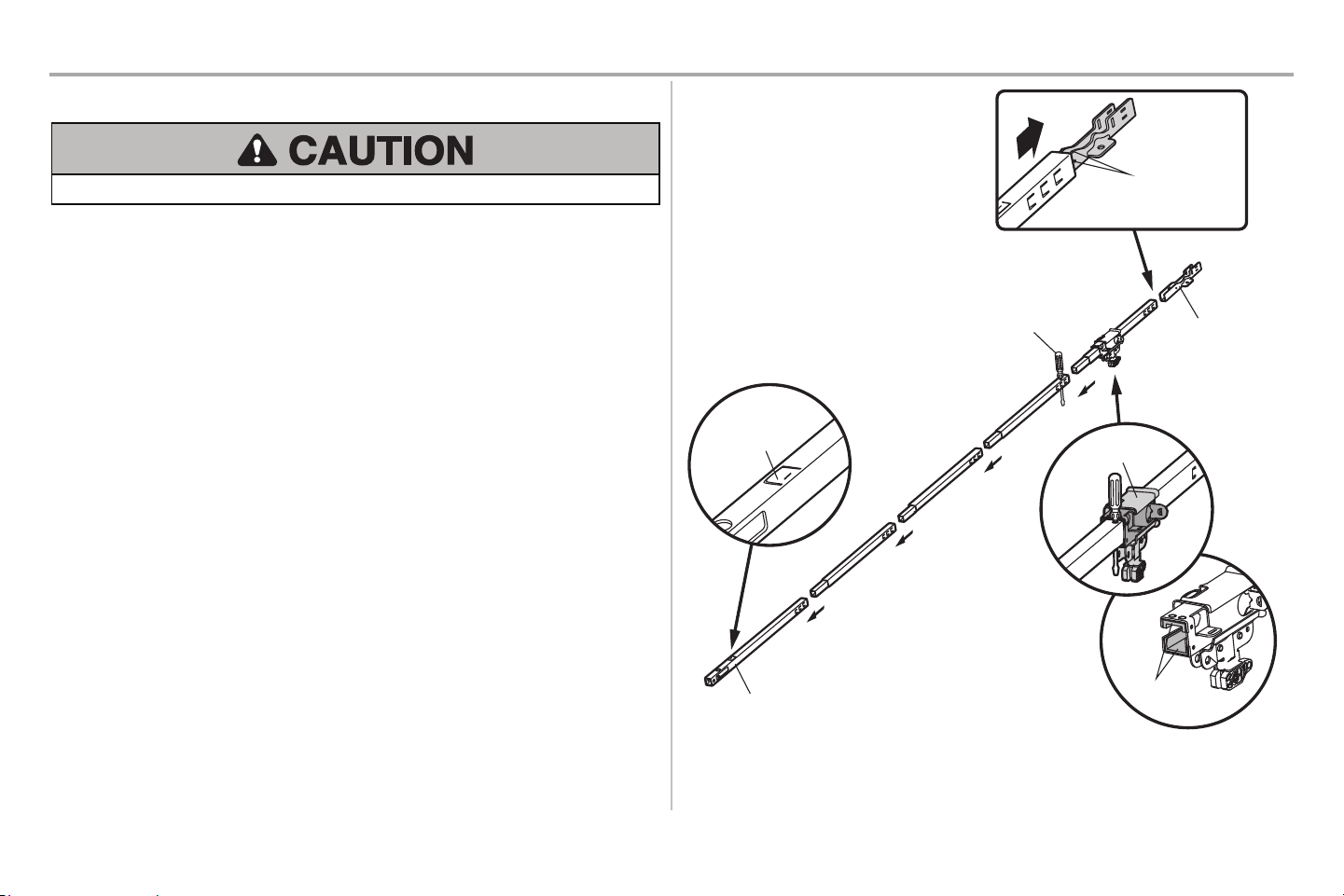

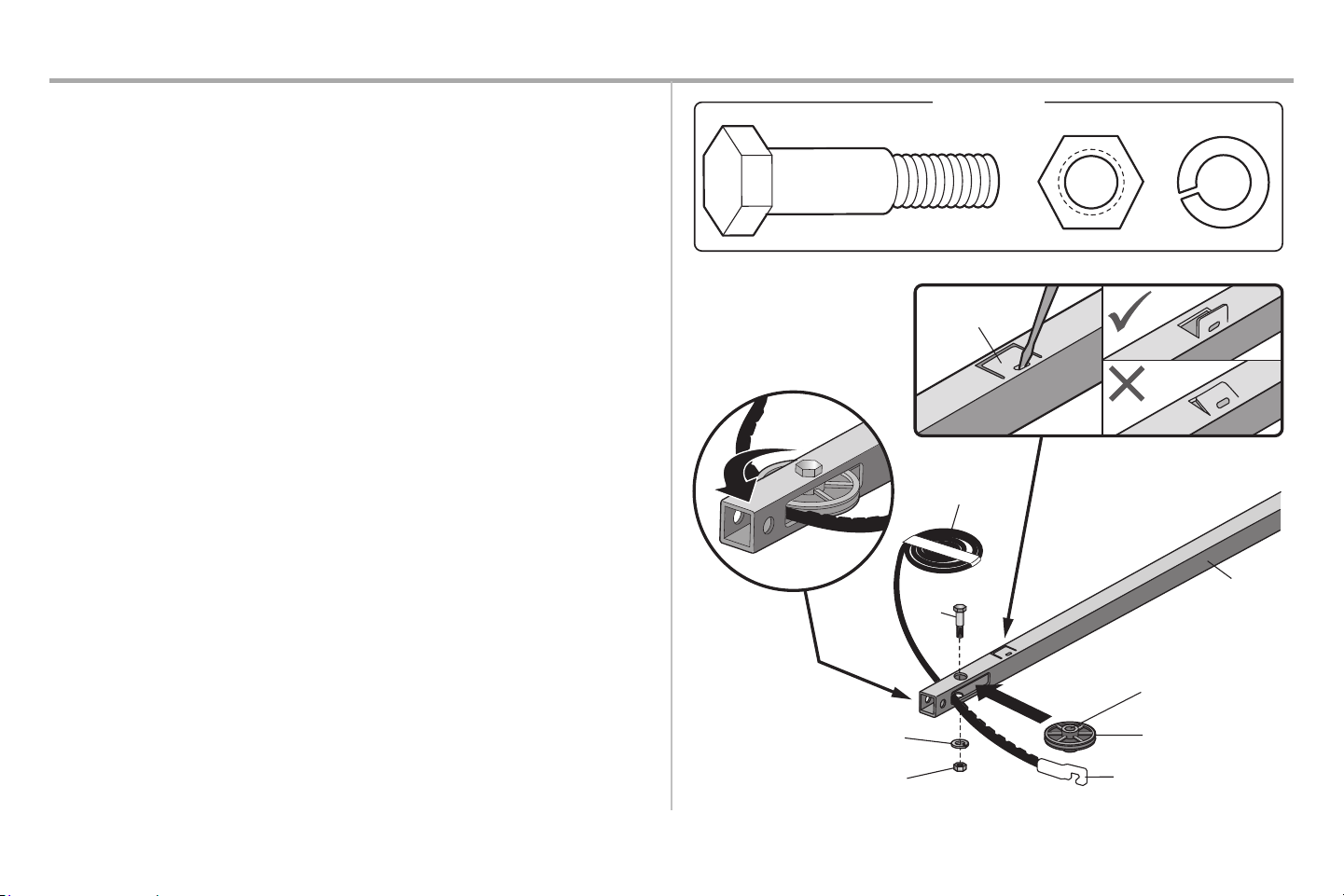

STEP 1 Assemble the Rail and Install the Trolley
To prevent INJURY from pinching, keep hands and ngers away from the joints while assembling the rail.
Toavoidinstallationdiculties,donotrunthegaragedooropeneruntilinstructedtodoso.
The front rail has a cut out “window” at the door end. The rail tab MUST be on top of the rail when assembled.
1. Remove the straight door arm and hanging bracket packaged inside the front rail and set aside for
Installation Step 5 and 9. NOTE: To prevent INJURY while unpacking the rail carefully remove
the straight door arm stored within the rail section.
2. Align the rail sections on a at surface as shown and slide the tapered ends into the larger ones. Tabs
along the side will lock into place.
3. Place the motor unit on packing material to protect the cover, and rest the back end of the rail on top.
Forconvenience, put a support under the front end of the rail.
4. As a temporary stop, insert a screwdriver into the hole in the second rail section from the motor unit,
asshown.
5. Check to be sure there are 4 plastic wear pads inside the inner trolley. If they became loose during
shipping, check all packing material. Snap them back into position as shown.
6. Slide the trolley assembly toward the screwdriver as shown.
7. Slide the rail onto the “U” bracket, until it reaches all the stops on the top and sides of the “U” bracket.
9
Rail Tab
On Top
Front Rail Section
(TO DOOR)
Screwdriver
Slide to stops on
top and sides of
“U” bracket
Trolley
“U” Bracket
(TOMOTOR UNIT)
Wear Pads
Assembly
10

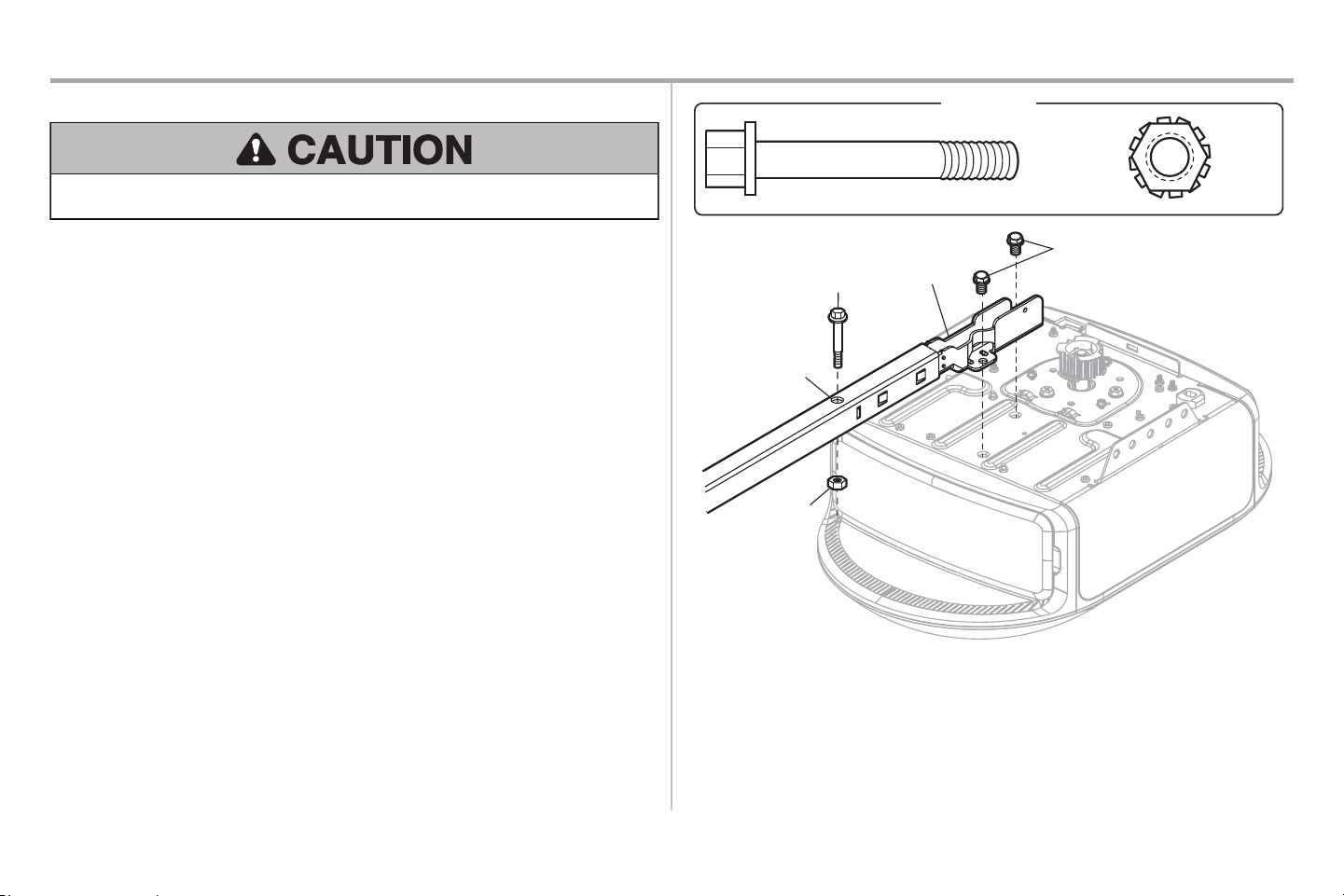

To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of the
opener.
1. Insert a 1/4”-20 x 1-3/4” bolt into the cover protection bolt hole on the back end of the rail as shown.
Tighten securely with a1/4”-20 lock nut. DO NOT overtighten.
2. Remove the bolts from the top of the motor unit.
3. Use the carton to support the front end of the rail.
4. Place the “U” bracket, at side down onto the motor unit and align the bracket holes with the bolt holes.
5. Fasten the “U” bracket with the previously removed bolts; DO NOT use any power tools. The use of power
tools may permanently damage the garage door opener.
Bolt
Cover Protection
Bolt Hole
Lock Nut
“U” Bracket
Bolts (Mounted in the
garage door opener)
HARDWARE
Bolt
1/4”-20x1-3/4”
Lock Nut
1/4”-20
Assembly
STEP 2 Fasten the Rail to the Motor Unit
11
Bolt
Lock Washer
HARDWARE
Rail Tab
Bolt
Nut
Belt
Nut 3/8" Lock Washer 3/8"
Rail
Grease Inside
Pulley
Idler Pulley
Trolley Connector
Assembly
STEP 3 Install the Idler Pulley
1. Lay the belt beside the rail, as shown. Grasp the end with the hooked trolley connector and pass
approximately 12” (30 cm) of belt through the window. Keep the ribbed side toward the rail, and allow it to
hang until Assembly Step 4.
2. Remove the tape from the idler pulley. The inside center should be pre-greased. If dry, regrease to ensure
proper operation.
3. Place the idler pulley into the window as shown.
4. Insert the idler bolt from the top through the rail and pulley. Tighten with a 3/8” lock washer and nut
underneath the rail until the lock washer is compressed.
5. Rotate the pulley to be sure it spins freely.
6. Locate the rail tab. The rail tab is between the idler bolt and the trolley in the front rail section. Use a
athead screwdriver and lift the rail tab until the tab is vertical (90º).
12
HARDWARE
Threaded Shaft with Spring Trolley Nut
Master Link
Figure 1
Trolley
Connector
Retaining
Slot
Master Link
Figure 2
Sprocket
Threaded Shaft
Figure 3
Assembly
STEP 4 Install the Belt
1. Pull the belt around the idler pulley and toward the trolley. The ribbed side must contact the
pulley.
2. Hook the trolley connector into the retaining slot on the trolley as shown (Figure 1).
3. With the trolley against the screwdriver, dispense the remainder of the belt along the rail length
toward the motor unit and around the sprocket (Figure 2). The sprocket teeth must engage the
belt.
4. Check to make sure the belt is not twisted. Connect the trolley threaded shaft with the master link
(Figure 3).
a. Push pins of master link bar through holes in end of belt and trolley threaded shaft.
b. Push master link cap over pins and past pin notches.
c. Slide the closed end of the clip-on spring over one of the pins. Push the open end of the clip-on
spring onto the other pin.
5. Remove the spring trolley nut from the threaded shaft.
6. Insert the trolley threaded shaft through the hole in the trolley.

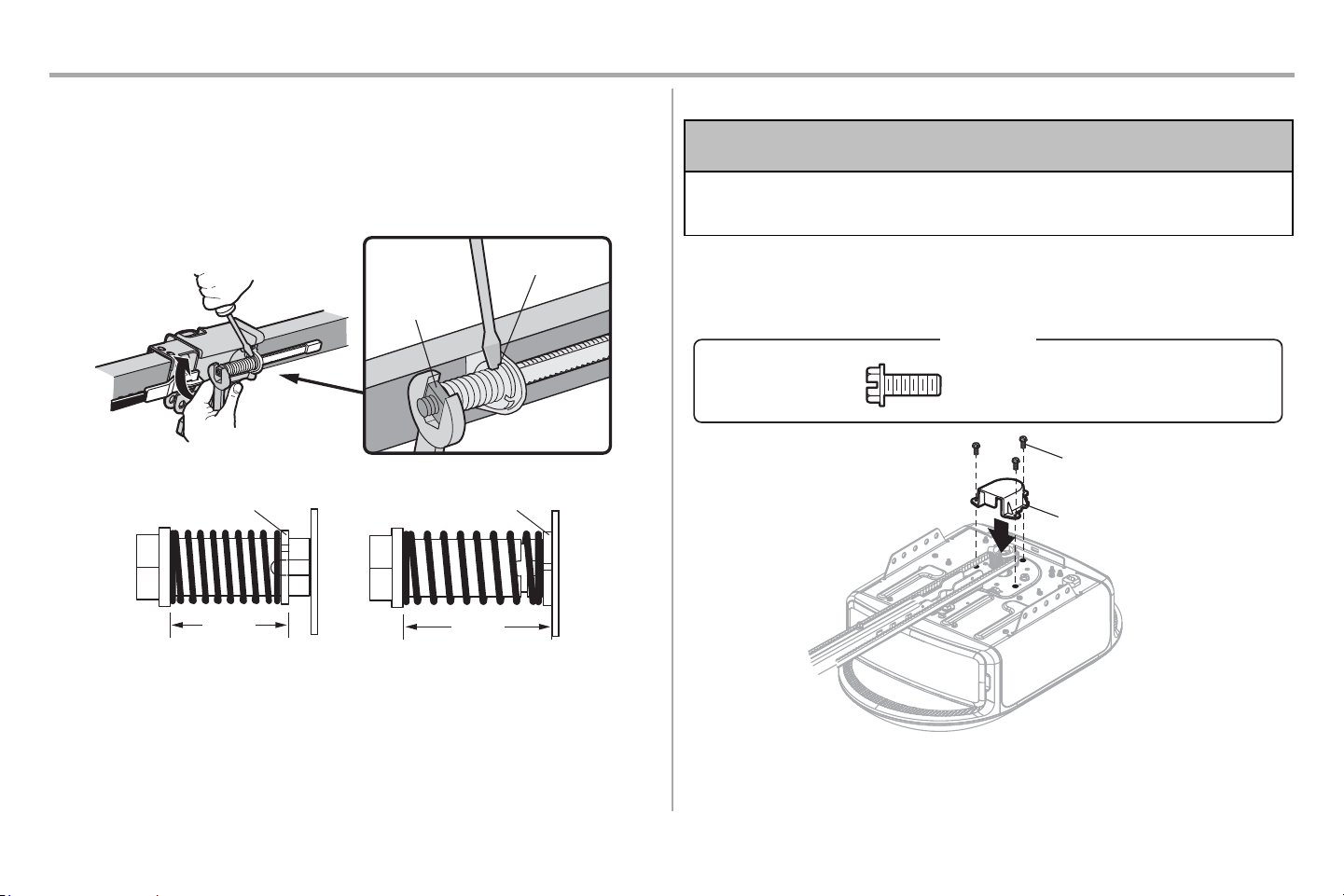

STEP 5 Tighten the Belt
1. By hand, thread the spring trolley nut on the threaded shaft until it is nger tight against the trolley.
Do not use any tools. Remove the screwdriver.
2. Insert a athead screwdriver tip into one of the nut ring slots and brace it rmly against the trolley.
3. Tighten the spring trolley nut with an adjustable wrench or a 7/16" open end wrench about a quarter
turn until the spring releases and snaps the nut ring against the trolley. This sets the spring to
optimum belt tension.
BEFORE
1” (2.5 cm)
Nut Ring
Spring
Trolley Nut
Nut Ring Slot
Nut Ring
AFTER
1-1/4” (3.18 cm)
13
To avoid possible SERIOUS INJURY to nger from moving garage door opener:
l ALWAYS keep hand clear of sprocket while operating opener.
l Securely attach sprocket cover BEFORE operating.
1. Position the sprocket cover over the sprocket as shown and fasten to the mounting plate with #8x3/8"
hexscrews provided.
Youhavenownishedassemblingyourgaragedooropener.Pleasereadthefollowingwarningsbefore
proceeding to the installation section.
Hex Screw #8x3/8”
(Mounted in the garage door opener) (3)
HARDWARE
Sprocket Cover
Hex Screw
Assembly
STEP 6 Install the Sprocket Cover
IMPORTANT INSTALLATION INSTRUCTIONS
ToreducetheriskofSEVEREINJURYorDEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properly balanced and lubricated garage door. An improperly
balanced door may NOT reverse when required and could result in SEVERE INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained door systems
technician BEFORE installing opener.
4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing opener to avoid
entanglement.
5. Where possible, install the door opener 7 feet (2.13 m) or more above the oor.
6. Mount the emergency release within reach, but at least 6 feet (1.83 m) above the oor and avoiding
contact with vehicles to avoid accidental release.
7. NEVER connect garage door opener to power source until instructed to do so.
8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garage door control:
l within sight of the garage door.
l out of reach of small children at a minimum height of 5 feet (1.5 m) above oors, landings, steps or
any other adjacent walking surface.
l away from ALL moving parts of the door.
10. Place entrapment warning label on wall next to garage door control in a prominent location.
11. Place emergency release/safety reverse test label in plain view on inside of garage door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a 1-1/2”
(3.8 cm) high object (or a 2x4 laid at) on the oor.
13. DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended
devices and features are to be used ONLY with sectional doors.
14.SAVETHESEINSTRUCTIONS.
Installation
14
15
To prevent possible SERIOUS INJURY or DEATH:
l Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise
garage door might NOT reverse when required. DO NOT install header bracket over drywall.
l Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.
l NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their hardware,
ALL of which are under EXTREME tension.
l ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An
unbalanced garage door might NOT reverse when required.
Header Wall
Vertical Centerline of Garage Door
Level
(Optional)
2x4
Track
Track
Sectional door with curved track
Header Wall
2” (5 cm)
Highest
Point of
Trave l
Door
8” (20 cm)
Header Wall
One-piece door without track:
jamb hardware
Door
Jamb
Hardware
Highest
Point of
Trave l
Structural
Supports
OPTIONAL CEILING MOUNT
FOR HEADER BRACKET
Unnished
Ceiling
2x4
Header Wall
2” (5 cm)
One-piece door with horizontal track
Door
Header Wall
One-piece door without track:
pivot hardware
Door
Highest
Point of
Trave l
Highest
Point of
Trave l
8” (20 cm)
Pivot
Installation
STEP 1 Determine the Header Bracket Location
Installation procedures vary according to garage door types. Follow the instructions which apply to your door.
1. Close the door and mark the inside vertical centerline of the garage door.
2. Extend the line onto the header wall above the door. You can fasten the header bracket within 4 feet
(1.22m) of the left or right of the door center only if a torsion spring or center bearing plate is in the
way; or you can attach it to the ceiling (see page 16) when clearance is minimal. (It may be mounted
on the wall upside down, if necessary, to gain approximately 1/2” (1 cm). If you need to install the
header bracket on a 2x4 (on wall or ceiling), use lag screws (not provided) to securely fasten the 2x4 to
structural supports as shown here and on page 16.
3. Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the
header wall 2” (5 cm) above the high point:
l 2” (5 cm) above the high point for sectional door and one-piece door with track.
l 8” (20 cm) above the high point for one-piece door without track.
This height will provide travel clearance for the top edge of the door. NOTE: If the total number of
inches exceeds the height available in your garage, use the maximum height possible, or refer
to page 16 for ceiling installation.
Lag Screw 5/16”-9x1-5/8”
HARDWARE
16
Wall Mounting
Holes
UP
Optional Mounting
Holes
Ceiling Mounting
Holes
UP
Highest Point
of Garage
DoorTravel
6” (15 cm)
Maximum
Door Spring
Horizontal
Line
Header Wall
2x4
Structural
Support
Header
Bracket
Garage Door
Vertical
Centerline of
Garage Door
Header
Bracket
Garage Door
Lag
Screw
Door
Spring
Finished Ceiling
Vertical
Centerline of
Garage Door
Header Wall
Lag Screw
Installation

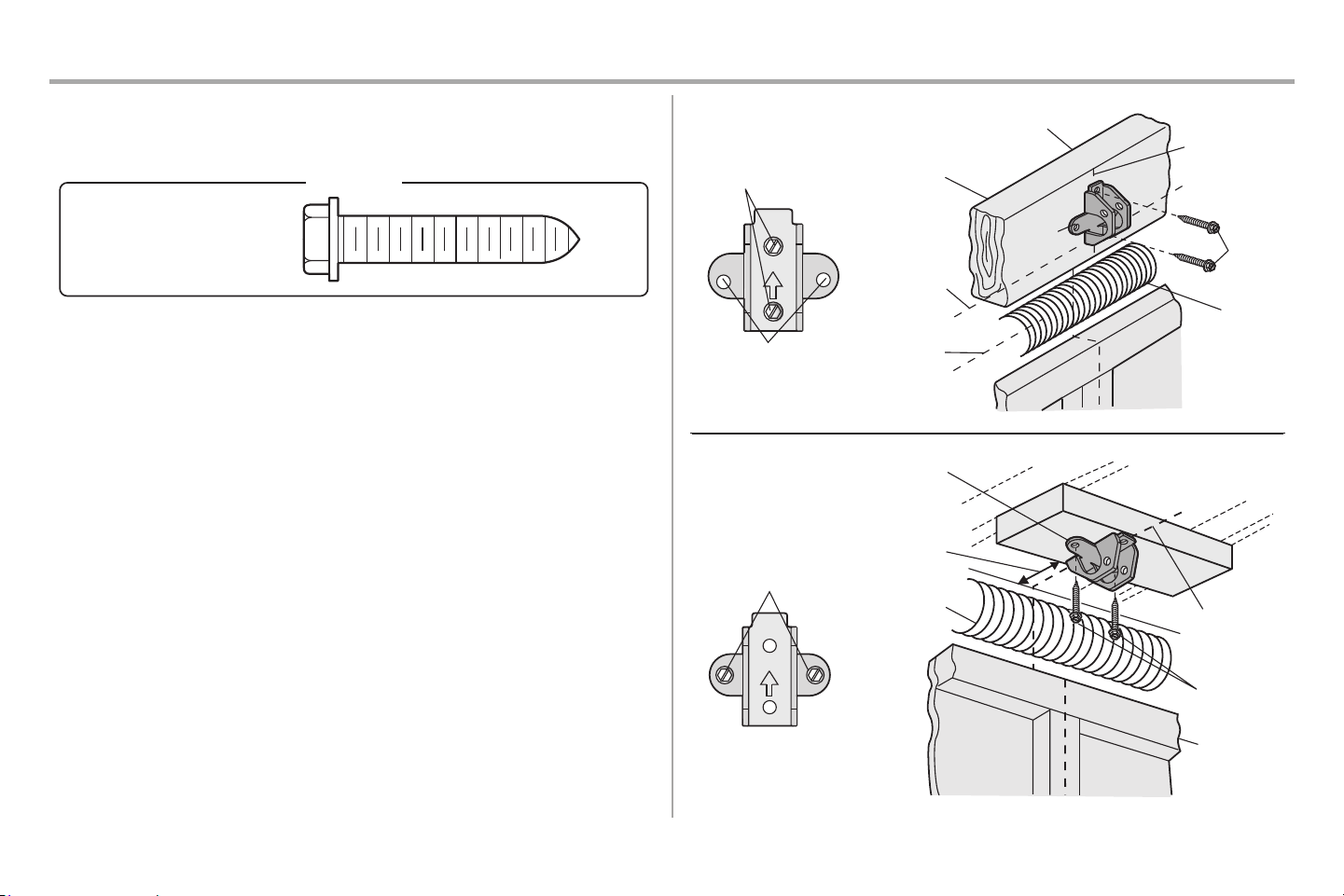

STEP 2 Install the Header Bracket
You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular requirements. Do not install the header bracket over
drywall.Ifinstallingintomasonry,useconcreteanchors(notprovided).
OPTION A - WALL INSTALLATION
1. Center the bracket on the vertical center line with the bottom edge of the bracket on the horizontal
line as shown (with the arrow pointing toward the ceiling).
2. Mark the vertical set of bracket holes. Drill 3/16” pilot holes and fasten the bracket securely to a
structuralsupport with the hardware provided.
OPTION B - CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracket on the vertical mark, no more than 6” (15 cm) from the wall. Make sure the
arrow is pointing away from the wall. The bracket can be mounted ush against the ceiling when
clearance is minimal.
3. Mark the side holes. Drill 3/16” pilot holes and fasten bracket securely to a structural support with
the hardware provided.
WALL INSTALLATION
CEILING INSTALLATION
Clevis Pin
Ring Fastener
HARDWARE
Clevis Pin
5/16”x1-1/2”
Ring Fastener
17

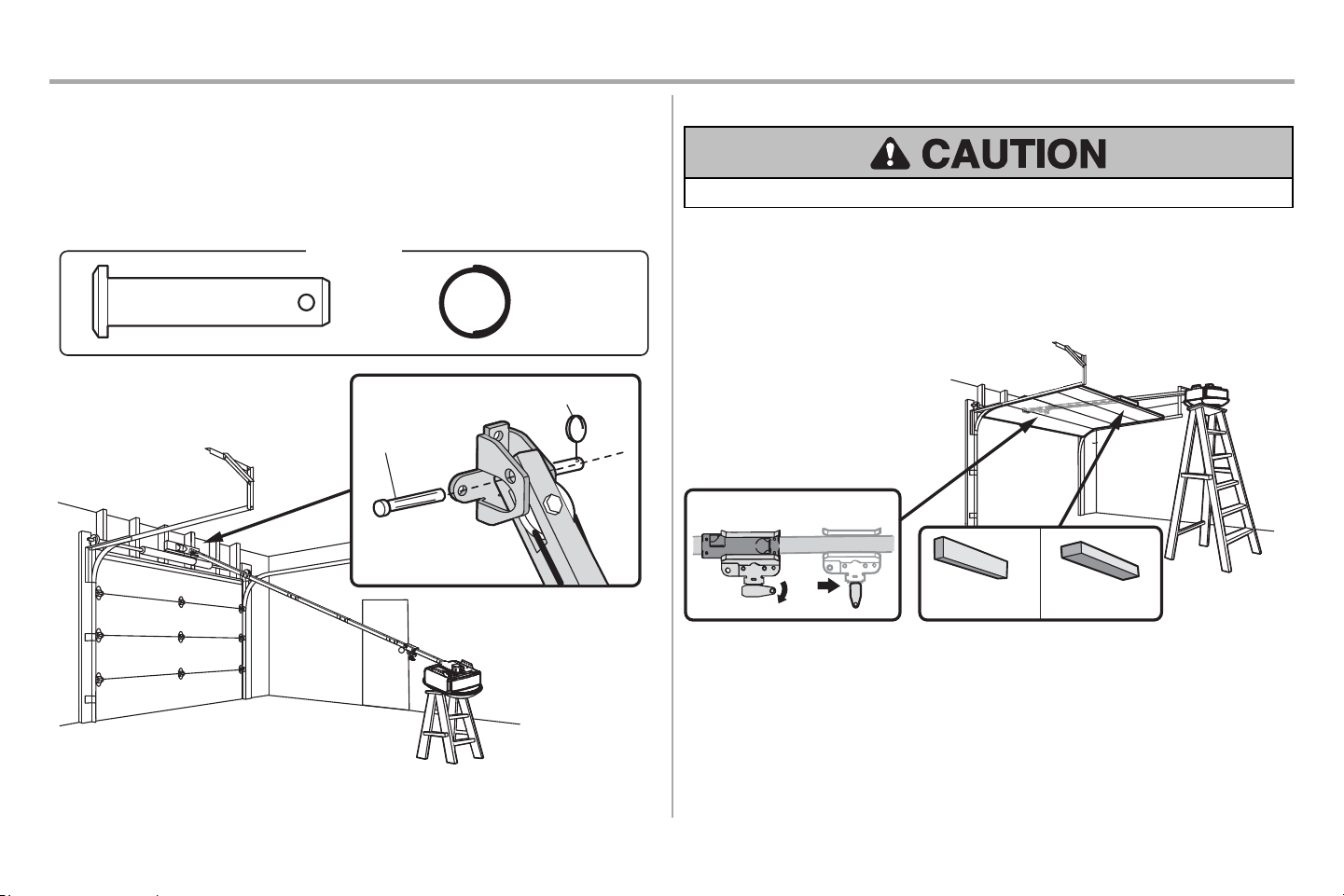

To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door.
Connected Disconnected
2x4
One-piece door
without tracks
All other
door types
2x4
Installation
STEP 3 Attach the Rail to the Header Bracket
1. Position the opener on the garage oor below the header bracket. Use packing material as a
protective base.
NOTE: If the door spring is in the way, you will need help. Have someone hold the
opener securely on a temporary support to allow the rail to clear the spring.
2. Position the rail bracket against the header bracket.
3. Align the bracket holes and join with a clevis pin as shown.
4. Insert a ring fastener to secure.
STEP 4 Position the Garage Door Opener
1. Remove the packing material and lift the garage door opener onto a ladder.
2. Fully open the door and place a 2x4 (laid at) under the rail. For one-piece doors without tracks, lay the
2x4on its side.
NOTE: A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not
tall enough you will need help at this point. If the door hits the trolley when it is raised, pull the
trolley release arm down to disconnect the inner and outer trolley. Slide the outer trolley toward
the garage door opener. The trolley can remain disconnected until instructed.
To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural
supports of the garage. Concrete anchors MUST be used if installing ANY brackets into masonry.
18
EXAMPLES
1
Finished Ceiling
Lag Screw
4
Not Provided
Finished Ceiling
Not Provided
Lag Screw
5
Hex Bolt
Lock
Washer
Nut
HARDWARE
Lag Screw
5/16”-9x1-5/8”
Hex Bolt
5/16”- 18x7/8”
2
Not Provided
6
Nut
5/16”-18
Lock Washer
5/16”-18
3
Installation

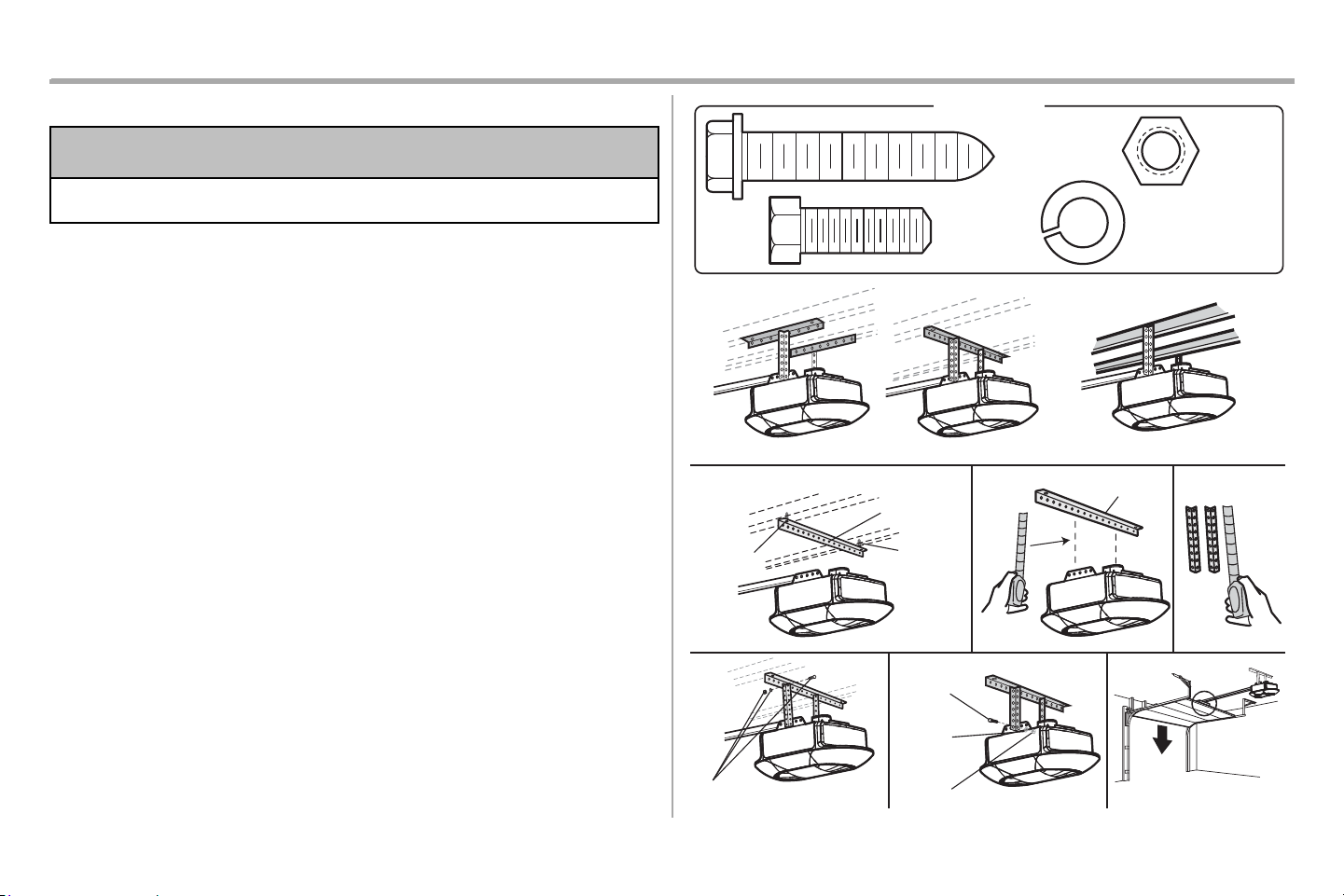

STEP 5 Hang the Garage Door Opener
Hanging the garage door opener will vary depending on your garage. Below are three example installations.
Your installation may be dierent. For ALL installations the garage door opener MUST be connected to structural
supports. The instructions illustrate one of the examples below.
1. On nished ceilings, use the lag screws to attach a support bracket (not provided) to the structural supports
before installing the garage door opener.
2. Make sure the garage door opener is aligned with the header bracket. Measure the distance from each side
of the garage door opener to the support bracket.
3. Cut both pieces of the hanging bracket (not provided) to required lengths.
4. A ttach the end of each hanging bracket to the support bracket with appropriate hardware (not provided).
5. Attach the garage door opener to the hanging brackets with the hex bolts, lock washers, and nuts.
6. Remove the 2x4 and manually close the door. If the door hits the rail, raise the header bracket.
Unnished Ceiling
19
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
l If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak
or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.
l NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.
l NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.
1. Insert one end of the emergency release rope through the handle. Make sure that “NOTICE” is right side
up. Secure with an overhand knot at least 1” (2.5 cm) from the end of the rope to prevent slipping.
2. Insert the other end of the emergency release rope through the hole in the trolley release arm. Mount the
emergency release within reach, but at least 6 feet (1.83 m) above oor, avoiding contact with vehicles to
prevent accidental release and secure with an overhand knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or
lighter to prevent unraveling. Ensure the emergency release rope and handle are above the top of
all vehicles to avoid entanglement.
Installation
STEP 6 Attach the Emergency Release Rope and Handle
Fiberglass, aluminum or light weight steel garage doors WILL REQUIRE reinforcement BEFORE installation of
door bracket. Contact the garage door manufacturer or installing dealer for opener reinforcement instructions
or reinforcement kit. Failure to reinforce the top section as required according to the door manufacturer may
void the door warranty.
20
FIGURE 1
Door Bracket
Self-Threading Screw
FIGURE 3
HARDWARE
Vertical
Reinforcement
Vertical
Centerline of
Garage Door
UP
Vertical
Centerline of
Garage Door
UP
Self-Threading
Screw
Self-Threading Screw
1/4”-14x5/8”
FIGURE 2
Hardware
(not provided)
FIGURE 4
Hardware
(not provided)
Vertical Reinforcement
Vertical Centerline
of Garage Door
Door Bracket
UP
Inside Edge of Door or
Reinforcement Board
Vertical Centerline of
Garage Door
UP
Installation

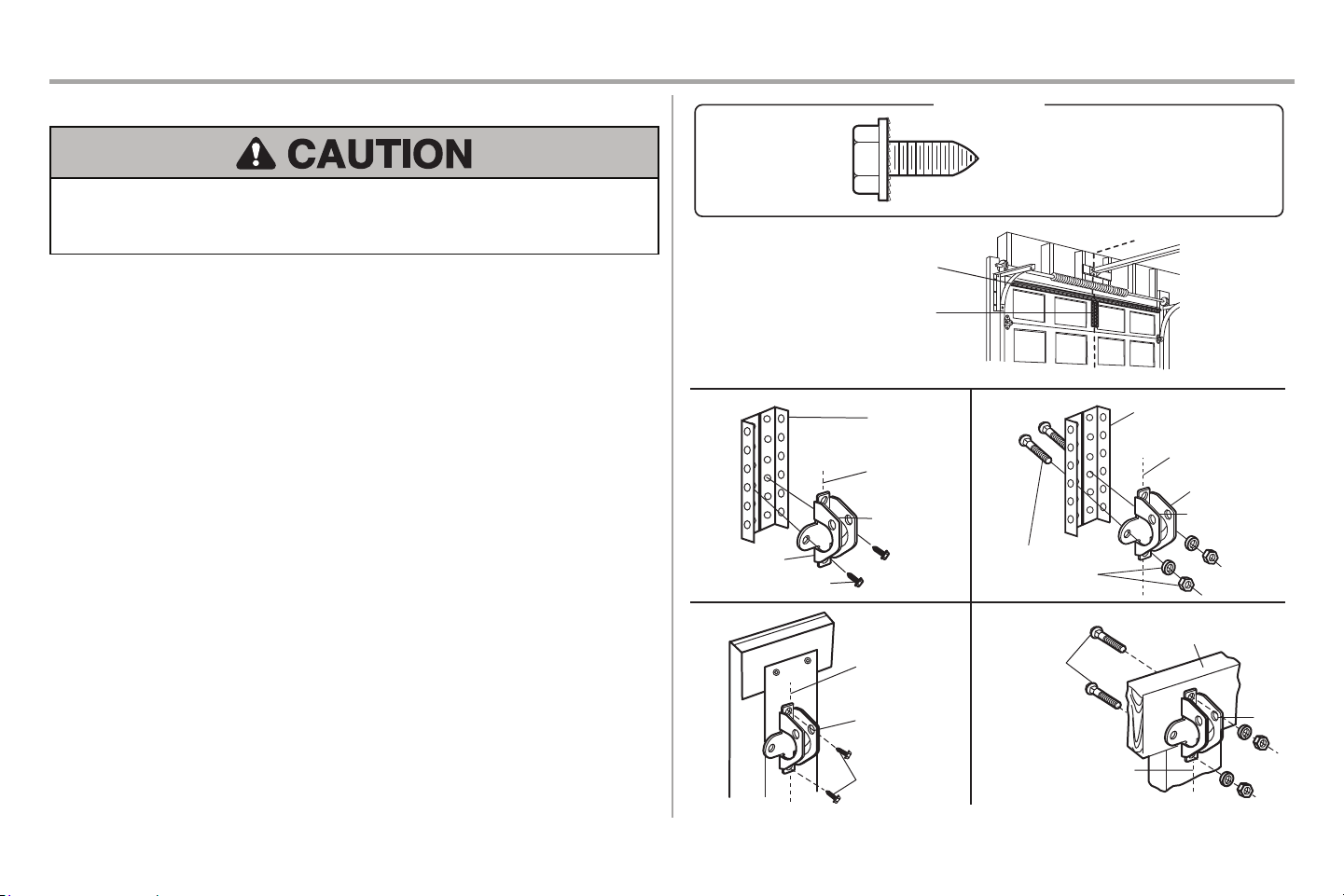

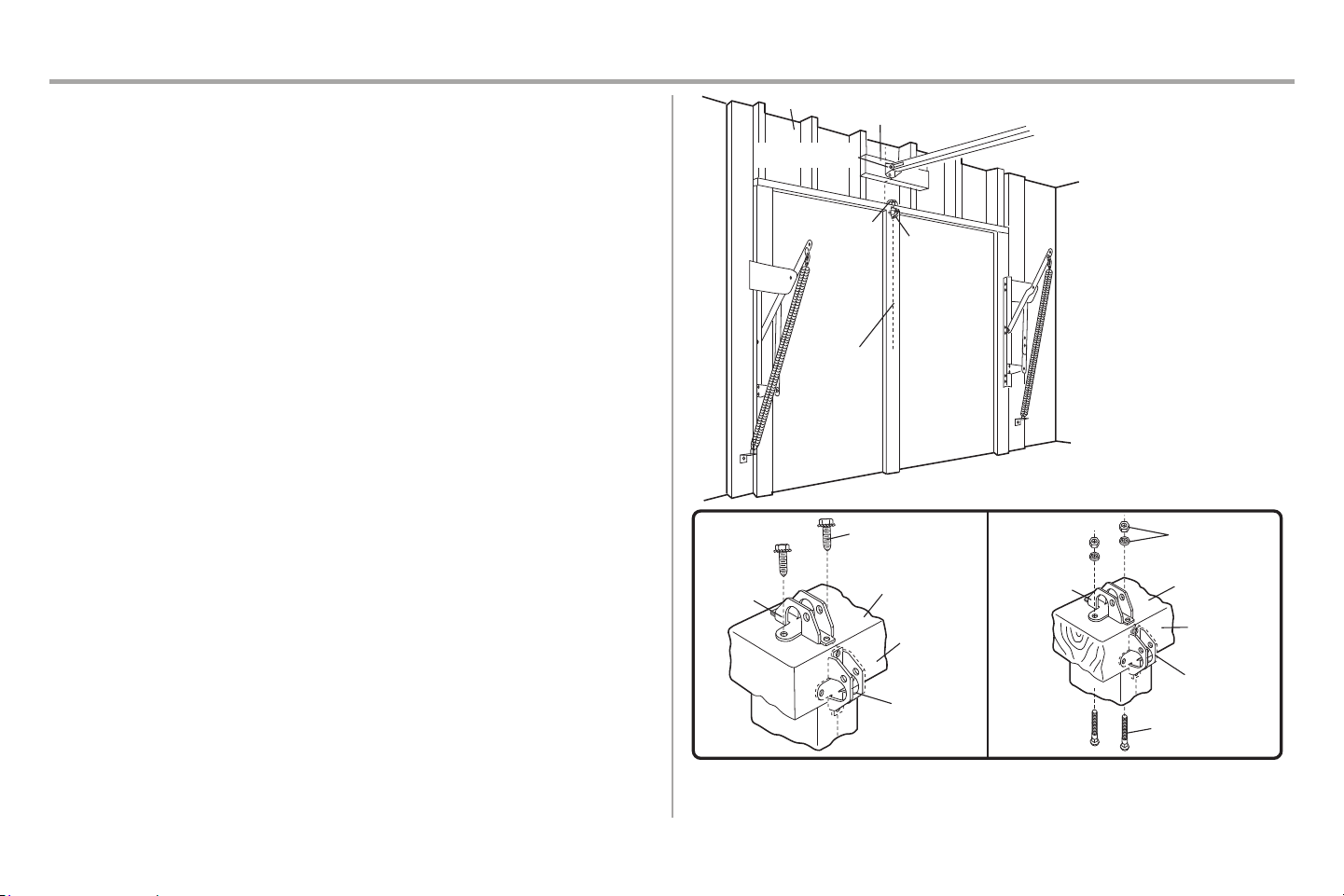

STEP 7 Install the Door Bracket
A horizontal and vertical reinforcement is needed for light weight garage doors (berglass, aluminum, steel, doors
with glass panel, etc.) (not provided). A horizontal reinforcement brace should be long enough to be secured to
two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel. Contact the
garage door manufacturer or installing dealer for opener reinforcement instructions or reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm.
In this case you will not need the door bracket; proceed to the next step.
OPTIONA- SECTIONALDOORS
1. Center the door bracket on the previously marked vertical centerline used for the header bracket
installation. Note correct UP placement, as stamped inside bracket.
2. Position the top edge of the bracket 2”-4” (5-10 cm) below the top edge of the door, OR directly below any
structural support across the top of the door.
3. Mark, drill holes and install as follows, depending on your door’s construction.
Metal or light weight doors using a vertical angle iron brace in the door panel support and the door bracket:
l Drill 3/16” fastening holes. Secure the door bracket using the two 1/4”-14x5/8” self-threading screws.
(Figure1)
l Alternately, use two 5/16”-18x2” bolts, lock washers and nuts (not provided). (Figure 2)
Metal,insulatedorlightweightfactoryreinforceddoors:
l Drill 3/16” fastening holes. Secure the door bracket using the self-threading screws. (Figure 3)
Wood doors:
l Use top and bottom or side to side door bracket holes. Drill 5/16” holes through the door and secure bracket
with 5/16”-18x2” carriage bolts, lock washers and nuts (not provided). (Figure 4)
NOTE: The 1/4”-14x5/8” self-threading screws are not intended for use on wood doors.
Horizontal Reinforcement
Vertical Reinforcement
21
Header Wall
Header Bracket
Metal Door
Door
Bracket
2x4 Support
(Finished Ceiling)
Door Bracket
Vertical
Centerline
of Garage
Door
Optional
Placement
of Door
Bracket
Self-Threading Screw
Top of Door
(Inside Garage)
Top Edge of
Door
Optional
Placement
For a door with no exposed
framing, or for the optional
installation, use lag screws
5/16”x1-1/2” (not provided) to
fasten the door bracket.
Wood Door
Door
Bracket
Hardware
(not provided)
Top of Door
(Inside Garage)
Top Edge of
Door
Optional
Placement
Hardware
(not provided)
Installation
STEP 7 Install the Door Bracket (continued)
OPTION B- ONE-PIECE DOORS
1. Center the door bracket on the top of the door, in line with the header bracket as shown.
2. Mark either the left and right, or the top and bottom holes.
Metal Doors:
l Drill 3/16” pilot holes and fasten the bracket with the self-threading screws provided.
Wood Doors:
l Drill 5/16” holes and use 5/16”-18x2” carriage bolts, lock washers and nuts (not provided) or
5/16”x1-1/2”lag screws (not provided) depending on your installation needs.
NOTE: The door bracket may be installed on the top edge of the door if required for your
installation. (Refer to the dotted line optional placement drawing.)

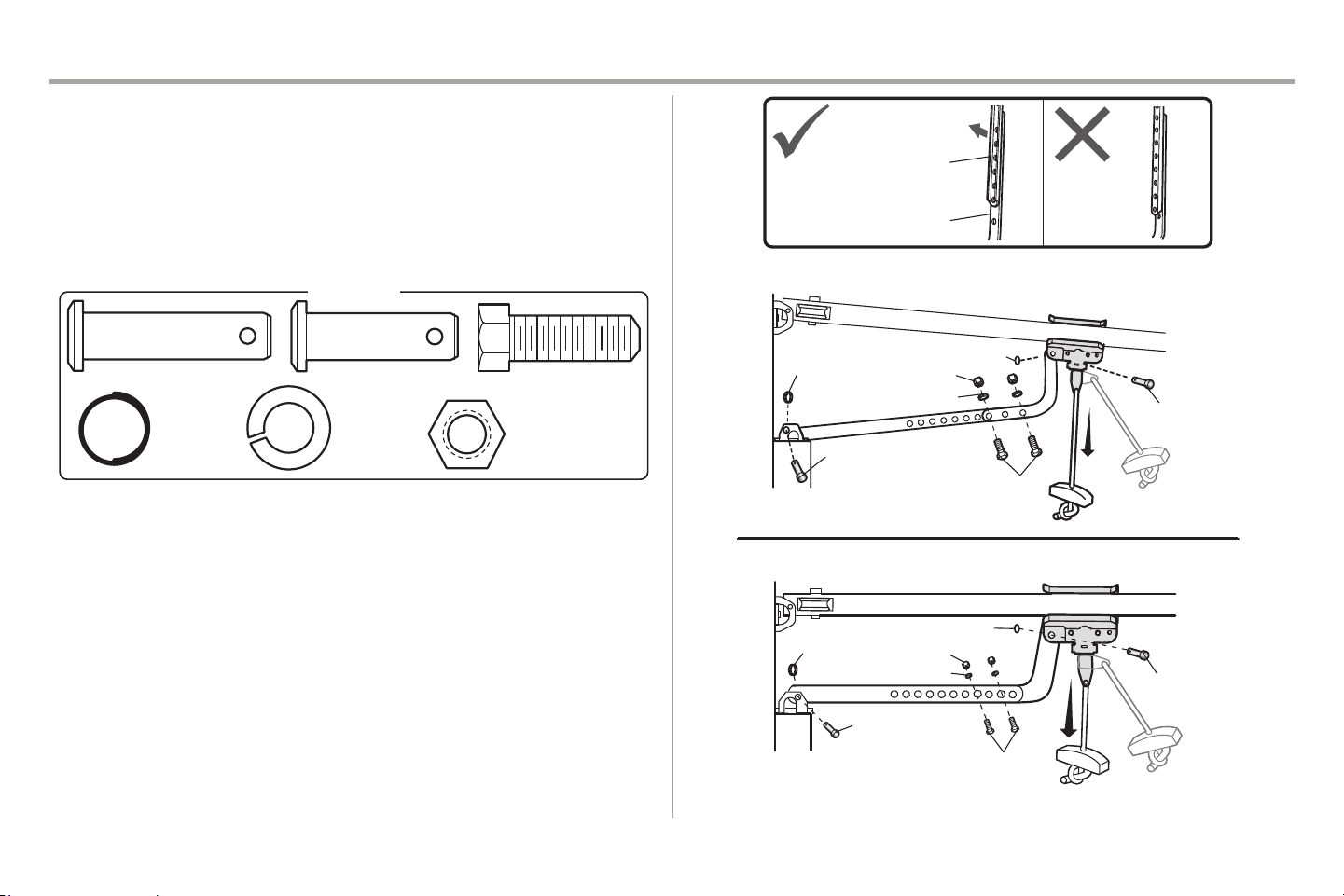

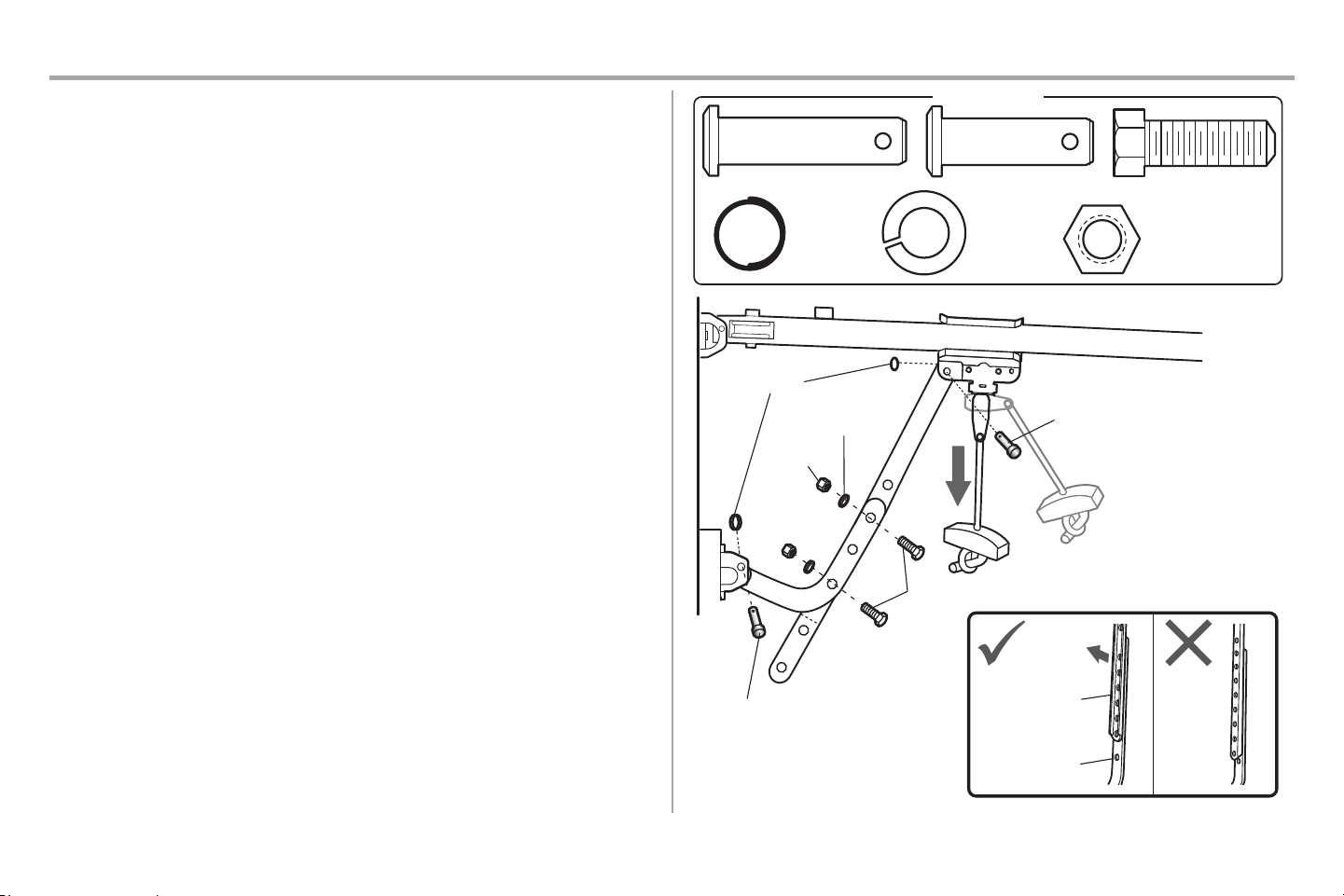

STEP 8 Connect the Door Arm to the Trolley
Installation will vary according to the garage door type. Follow the instructions which apply to your door.
OPTION A - SECTIONAL DOORS
IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.
1. Close the door. Disconnect the trolley by pulling the emergency release handle.
2. Attach the straight door arm to the outer trolley using the clevis pin. Secure with the ring fastener.
3. Attach the curved door arm to the door bracket using the clevis pin. Secure with the ring fastener.
4. Bring arm sections together. Find two pairs of holes that line up and join sections. Select holes
as far apart as possible to increase door arm rigidity and attach using the bolts, nuts, and lock
washers.
5. Pull the emergency release handle toward the garage door opener until the trolley release arm is
horizontal. The trolley will re-engage automatically when the garage door opener is activated.
NOTE: If the holes in the curved door arm and the straight door arm do not align, reverse the
straight door arm, select two holes (as far apart as possible) and attach using bolts, nuts, and
lock washers. If the straight door arm is hanging down too far, you may cut 6” (15 cm) from the
solid end.
22
Clevis Pin 5/16”x1-1/4”
Ring Fastener
Ring Fastener
Clevis Pin
5/16”x1-1/4”
Lock Washer
Nut
HARDWARE
Clevis Pin 5/16”x1”
Hex Bolt
Lock Washer
5/16”-18
Clevis Pin
5/16”x1”
Straight
Door Arm
(Groove
facing out)
Curved
Door Arm
Hex Bolt 5/16”-18x7/8”
Nut 5/16”-18
Installation
STEP 8 Connect the Door Arm to the Trolley (continued)
OPTION B- ONE-PIECE DOORS
IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.
1. Close the door. Disconnect the trolley by pulling the emergency release handle.
2. Fasten the straight door arm and the curved door arm together to the longest possible length (with a
2 or 3 hole overlap) using the bolts, nuts, and lock washers.
3. Attach the straight door arm to the door bracket using the clevis pin. Secure with the ring fastener.
4. Attach the curved door arm to the trolley using the clevis pin. Secure with the ring fastener.
5. Pull the emergency release handle toward the garage door opener until the trolley release arm is
horizontal.
Clevis Pin 5/16”x1-1/4”
Ring Fastener
Clevis Pin 5/16”x1”
HARDWARE
Lock Washer
5/16” -18
Hex Bolt 5/16”-18x7/8”
Nut 5/16”-18
23
Straight Door Arm
(Groove facing out)
Curved Door Arm
One-Piece Door without Track
Ring Fastener
Ring Fastener
Nut
Nut
Lock Washer
Clevis Pin 5/16”x1-1/4”
One-Piece Door with Track
Ring Fastener
Hex Bolts
Ring Fastener
Lock Washer
Clevis Pin
5/16”x1-1/4”
Hex Bolts
Clevis Pin
5/16”x1”
Clevis Pin
5/16”x1”
Installation
To prevent possible SERIOUS INJURY or DEATH from electrocution:
l Besure power is NOT connected BEFORE installing door control.
l Connect door control ONLY to12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
l Install door control within sight of garage door, out of reach of small children at a minimum height of
5 feet (1.5 m) above oors, landings, steps or any other adjacent walking surface, and away from ALL
moving parts of door.
l NEVER permit children to operate or play with door control push buttons or remote control
transmitters.
l Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to
door travel.
l ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path of
closing garage door.
INTRODUCTION
Older Chamberlain door controls and third party products are not compatible. Install door control within
sight of garage door, out of reach of small children at a minimum height of 5 feet (1.5 m) above oors,
landings, steps or any other adjacent walking surface, and away from ALL moving parts of door. For gang
box installations it is not necessary to drill holes or install the drywall anchors. Use the existing holes in the
gang box.
NOTE: Your product may look different than the illustrations.
Screw
6-32x1” (2)
Drywall
Anchors (2)
HARDWARE
Screw
6ABx1” (2)
24
1
4-5
7
7/16” (11 mm)
DRYWALL
Drywall Anchor
6ABx1”
2
GANG BOX
6-32x1”
8
3
6
DRYWALL
Drywall Anchor
6ABx1”
Wall
GANG BOX
6-32x1”
Installation
STEP 9 Install the Door Control
1. Strip 7/16” (11 mm) of insulation from one end of the wire and separate the wires.
2. Connect one wire to each of the two screws on the back of the door control. The wires can be connected
to either screw. If your garage is pre-wired for the door control choose any two wires to connect, note
which wires are used so the correct wires are connected to the garage door opener in a later step.
3. Mark the location of the bottom mounting hole and drill a 5/32” hole.
4. Install the bottom screw, allowing 1/8” (3 mm) to protrude from the wall.
5. Position the bottom hole of the door control over the screw and slide down into place.
6. Lift the push bar up and mark the top hole.
7. Remove the door control from the wall and drill a5/32” hole for the top screw.
8. Position the bottom hole of the door control over the screw and slide down into place. Attach the top
screw.
25
1
3
Staple
Wire channel
2
7/16” (11 mm)
HARDWARE
Insulated Staple (Not Shown)
Installation
STEP 10 Wire the Door Control to the Garage Door Opener
1. Run the white and red/white wire from the door control to the garage door opener. Attach the wire to
thewall and ceiling with the staple (not applicable for gang box or pre-wired installations). Do not
pierce the wire with the staple as this may cause a short or an open circuit.
2. Strip 7/16” (11 mm) of insulation from the end of the wire near the garage door opener.
3. Connect the wire to the red and white terminals on the garage door opener. If your garage is pre-wired
make sure you use the same wires that are connected to the door control. To insert or release wires from
the terminal, push in the tab with screwdriver tip.

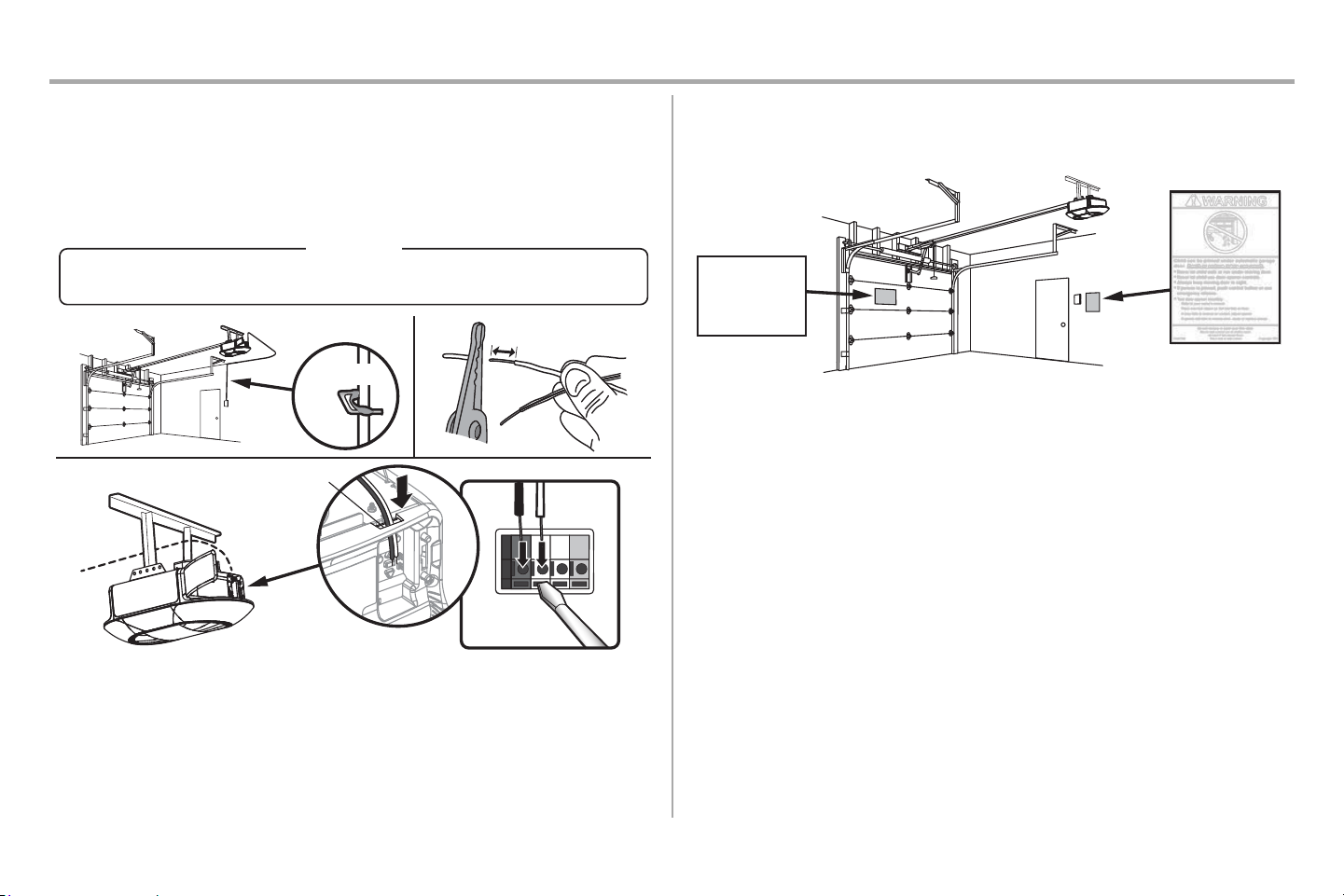

STEP 11 Attach the Warning Labels
1. Attach the entrapment warning label on the wall near the door control with tacks or staples.
2. Attach the manual release/safety reverse test label in a visible location on the inside of the garage
door.
WHITE
RED
Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing sensor.
To prevent SERIOUS INJURY or DEATH from closing garage door:
l Correctly connect and align the safety reversing sensor. This required safety device MUST NOT be
disabled.
l Install the safety reversing sensor so beam is NO HIGHER than 6” (15 cm) above garage oor.
Safety Reversing Sensor Light Beam Protection Area Safety Reversing Sensor
26
1
2
Hex Screw 10-24 (2)
Garage door
HARDWARE
3
Door track
Wing Nut (2)
Wing nut
6” (15 cm) max.
Installation

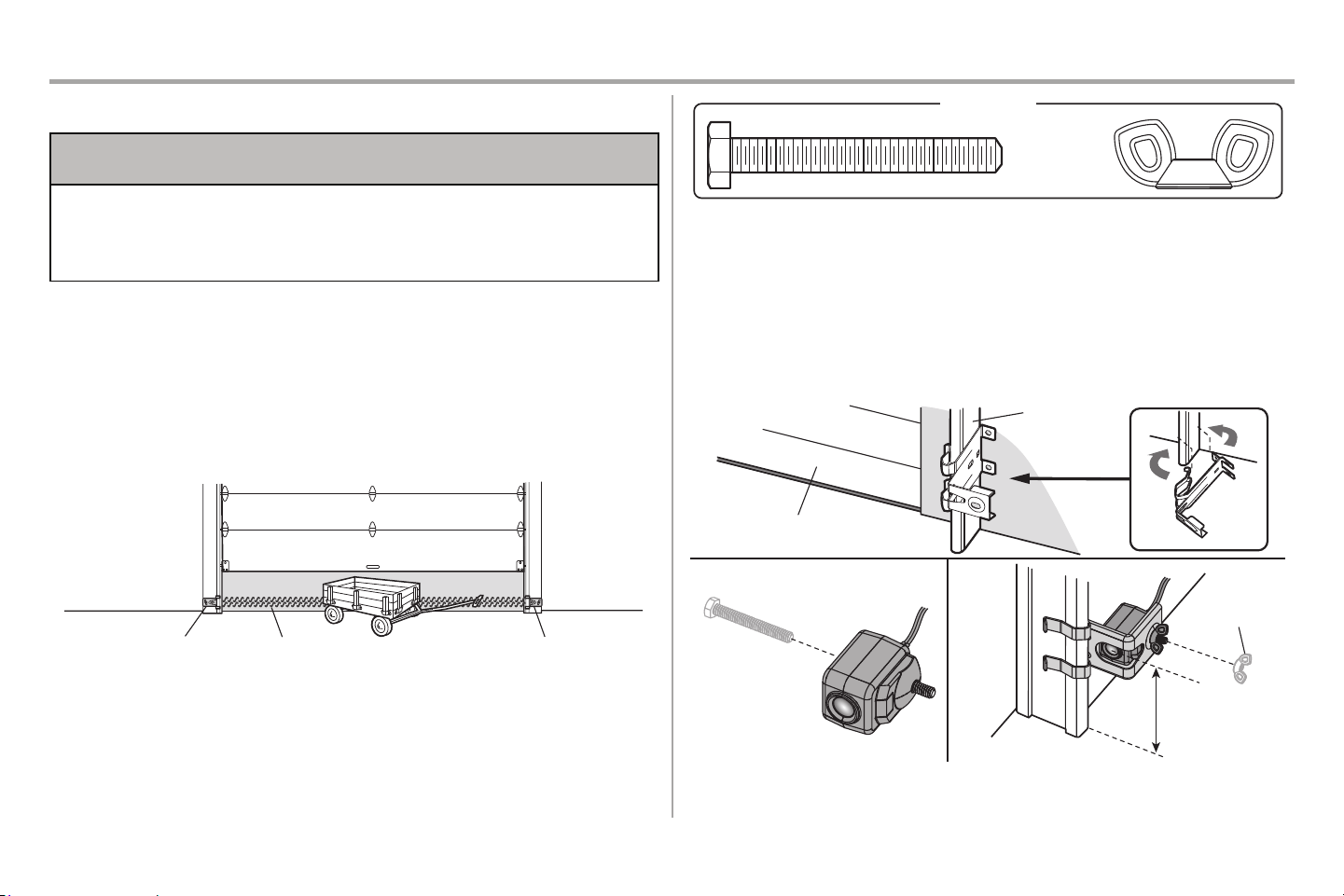

STEP 12 Install the Protector System®

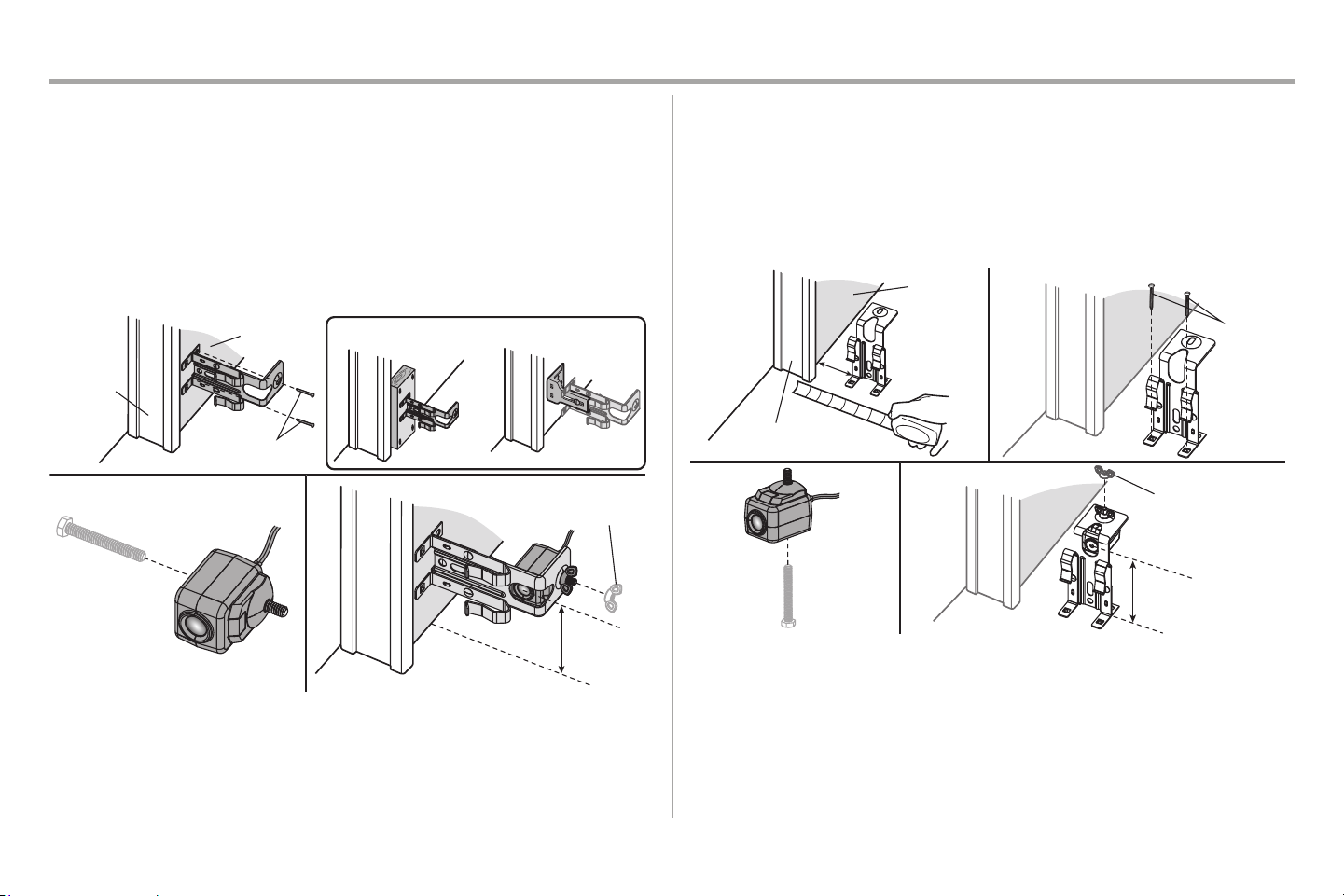

IMPORTANT: The safety reversing sensors MUST be connected and aligned correctly
before the garage door opener will move in the down direction.
The Protector System® includes two safety reversing sensors which use a light beam to prevent the garage door
from closing. The sending sensor (amber LED) transmits the beam to the receiving sensor (green LED) when both
are powered and aligned. If an obstruction breaks the light beam while the door is closing, the door will stop, and
reverse to the full open position.
Wheninstallingthesafetyreversingsensors,check:
l Sensors are installed INSIDE the garage.
l Sensor lenses are facing each other. IMPORTANT: Do not allow direct sunlight to the
receiving sensor (green LED).
l Sensor beam is NO HIGHER than 6” (15 cm) above the oor and the light beam is unobstructed.
The safety reversing sensors are designed to clip onto the door track with the provided sensor brackets. If the
door track will not support the sensor bracket a wall installation is recommended. The sensor beam should be NO
HIGHER than 6” (15 cm) above the oor.
DOOR TRACK INSTALLATION
1. Slide the curved arms of the sensor bracket around the edge of the door track. Snap into place so that
the sensor bracket is ush against the track.
2. Slide the hex screw through the sensor.
3. Attach the sensor to the bracket with the wing nut. Make sure the lens is not obstructed by the bracket.
Repeat the steps with the other sensor on the opposite door track. Both lenses must face each other.
1
Door track
2
Inside
garage wall
Not provided
3
OPTIONAL
OR
Wing Nut
6” (15 cm)
max.
27
1
3
Door track
Inside
garage wall
4
2
Wingnut
6” (15 cm) max.
Not
provided
Installation
STEP 12 Install the Protector System (continued)

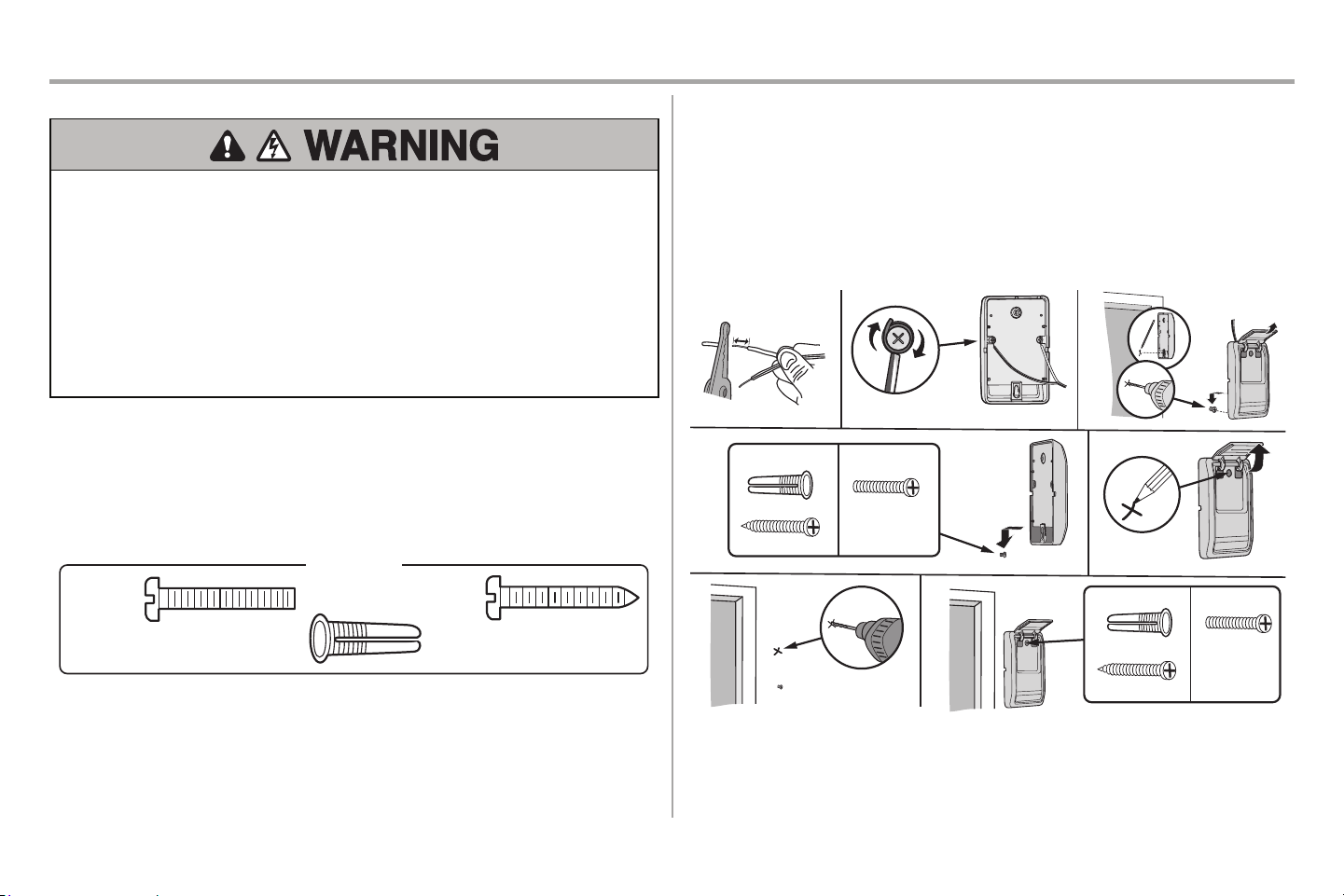

WALL OPTION
Make sure the brackets on each side are clear of the door track and have the same amount of clearance so
the sensors will align correctly. If additional clearance is needed, use extension brackets 041A5281-1 (not
provided) or wood blocks.
1. Attach the sensor bracket against the wall with two lag screws (not provided).
2. Slide the hex screw through the sensor.
3. Attach the sensor to the bracket with the wing nut. Make sure the lens is not obstructed by
the bracket.
Repeat the steps with the other sensor on the opposite side of the garage door. Both lenses must face each
other.
FLOOR OPTION
1. Measure the position of both sensor brackets so they will be the same distance from the wall
and unobstructed.
2. Attach the bracket to the oor with concrete anchors (not provided).
3. Slide the hex screw through the sensor.
4. Attach the sensor to the bracket with the wing nut. Make sure the lens is not obstructed by
the bracket.
Repeat the steps with the other sensor on the opposite side of the garage door. Both lenses must face each
other.
28
1
3
Staple
HARDWARE
Insulated Staple (Not Shown)
2
7/16” (11 mm)
Wire channel
Installation

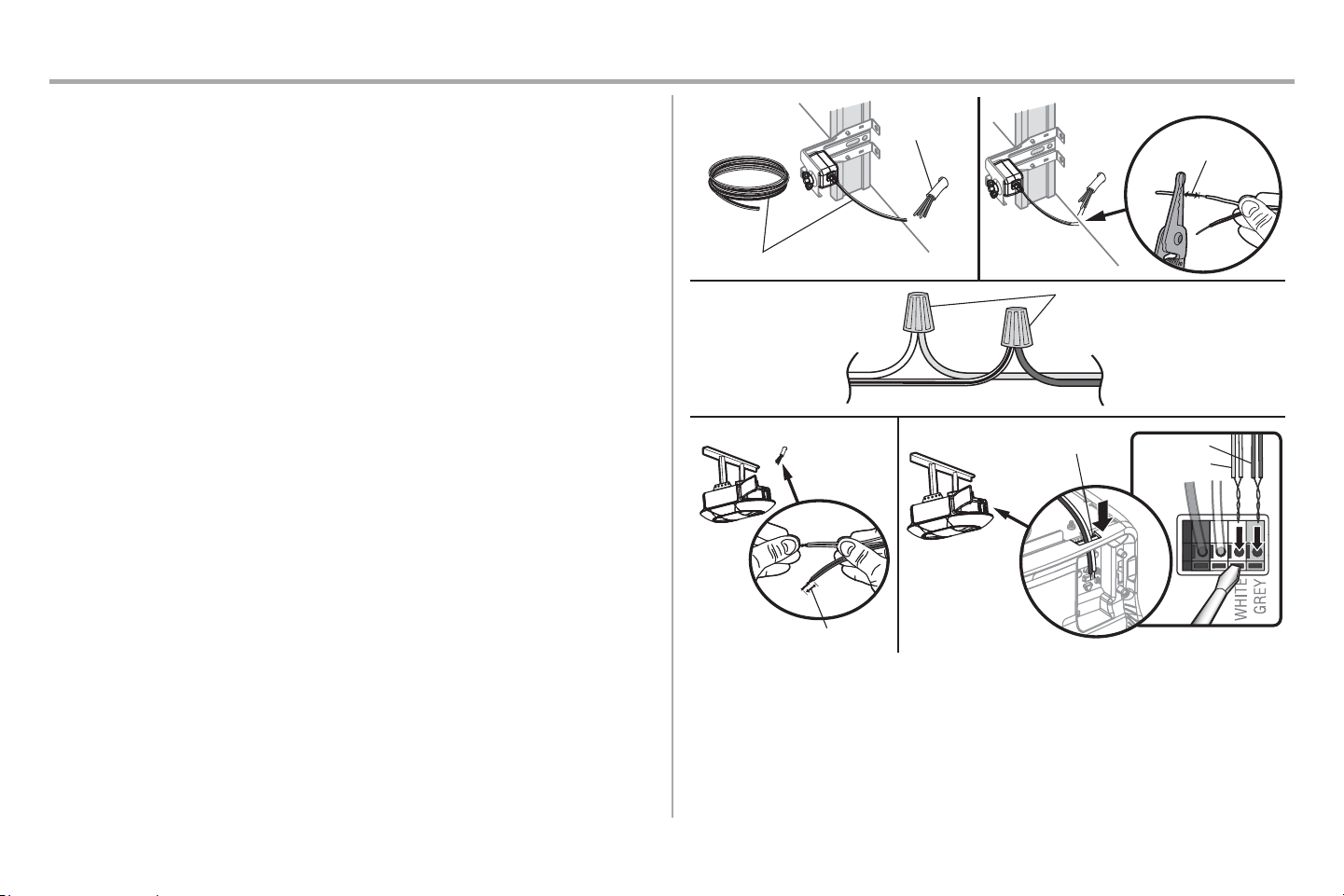

STEP 13 Wire the Safety Reversing Sensors
If your garage has pre-installed wiring for the safety reversing sensors, see OPTION B- PRE-WIRED
INSTALLATION page 27.

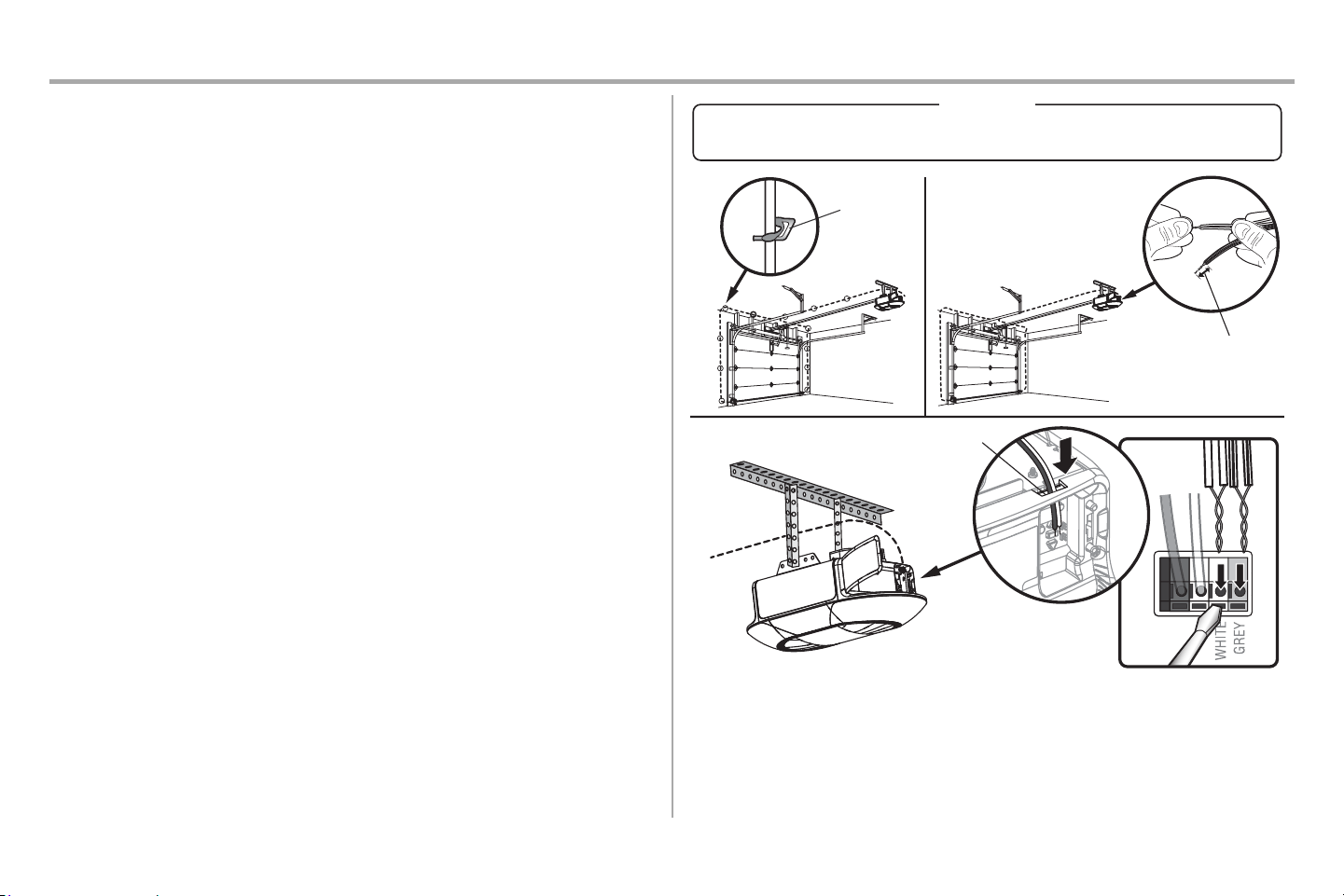

OPTION A- INSTALLATION WITH NO PRE-WIRING
1. Run the wire from both sensors to the garage door opener. Attach with staples, but DO NOT
puncture the wire.
2. Separate the sensor wires and strip insulation from each end. Twist the two white wires together.
Then twist the two white/black wires together.
3. Using a screwdriver, push in the terminal tabs, and insert the white wires into the white terminal.
Insert the white/black wires into the grey terminal.
29
1
3
4
Pre-installed
wires
Safety reversing sensor wires
Safety reversing
sensor wires
White
White/Black
Pre-installed wires
Yellow
Purple
7/16” (11 mm)
5
2
7/16” (11 mm)
Wire nuts (not provided)
Pre-installed wires
Yellow (for example)
Purple (for example)
Purple
Yellow
Installation
STEP 13 Wire the Safety Reversing Sensors (continued)
OPTION B- PRE-WIRED INSTALLATION
1. Cut the sensor wires, making sure there is enough wire to reach the pre-installed wires from the
wall.
2. Separate the sensor wires and strip insulation from each end. Choose two of the pre-installed
wires and strip insulation from each end. Choose the same color pre-installed wires for each
sensor.
3. Connect the pre-installed wires to the sensor wires with wire nuts making sure the colors
correspond for each sensor.
4. At the garage door opener, strip the end of the wires previously connected to the sensors. Twist
the like-colored wires together.
5. Using a screwdriver, push in the terminal tabs, and insert the wire color connected to the sensor’s
white wire into the white terminal. Insert the other wire color connected to the sensor’s white/
black wire into the grey terminal.
30
To prevent possible SERIOUS INJURY or DEATH from electrocution or re:
l Be sure power is NOT connected to the opener, and disconnect power to circuit BEFORE removing cover
to establish permanent wiring connection.
l Garage door installation and wiring MUST be in compliance with ALL local electrical and building
codes.
l NEVER use an extension cord, 2-wire adapter, or change plug in ANY way to make it t outlet. Be sure
the opener is grounded.
Toavoidinstallationdiculties,donotruntheopeneratthistime.
To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding
pin. This plug will only t into a grounding type outlet. If the plug doesn’t t into the outlet you have, contact
aqualied electrician to install the proper outlet.
White Wire
Black Wire
Installation
STEP 14 Connect Power

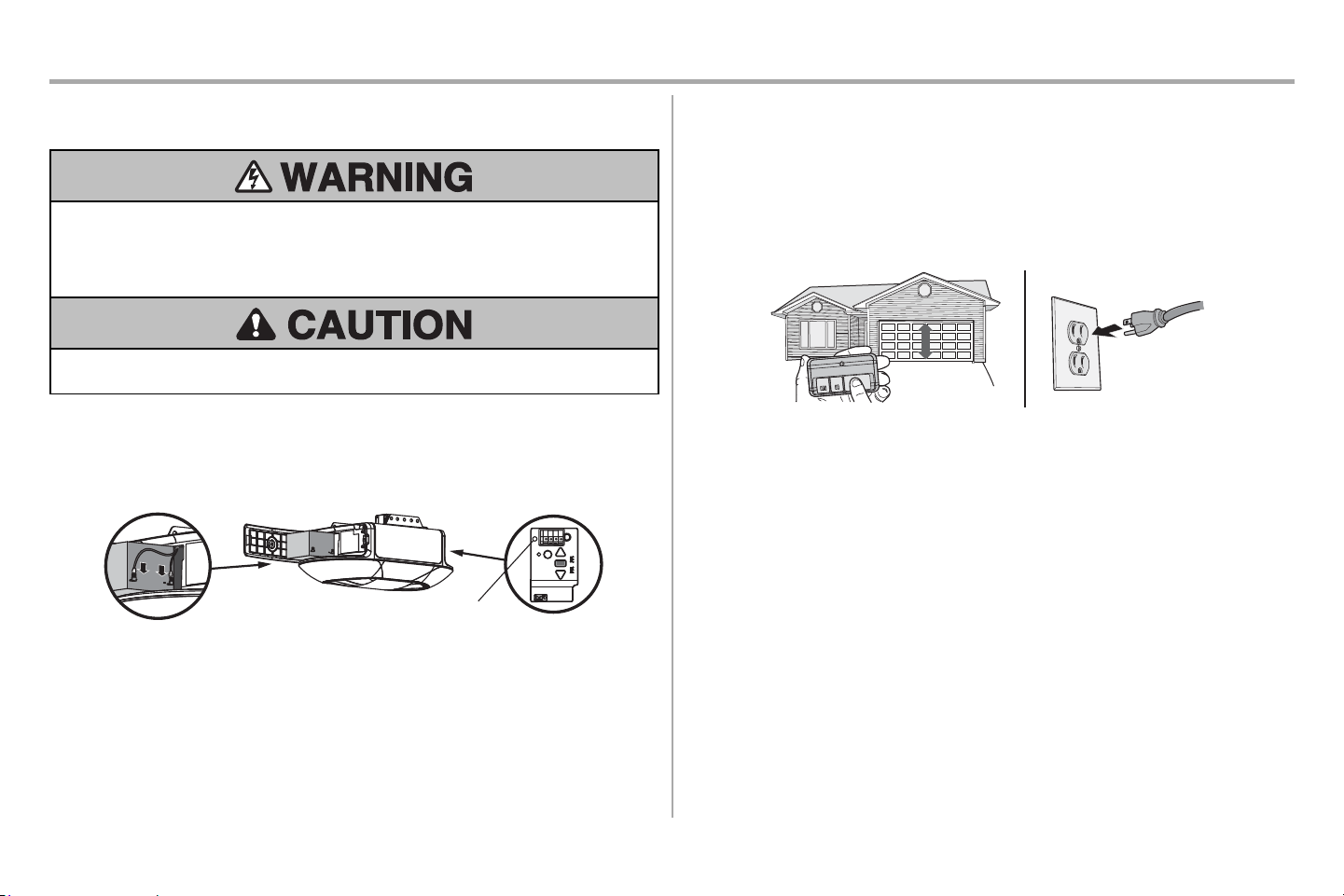

THEREARETWOOPTIONSFORCONNECTINGPOWER:
OPTIONA - TYPICAL WIRING
1. Plug in the garage door opener into a grounded outlet.
2. DO NOT run garage door opener at this time.

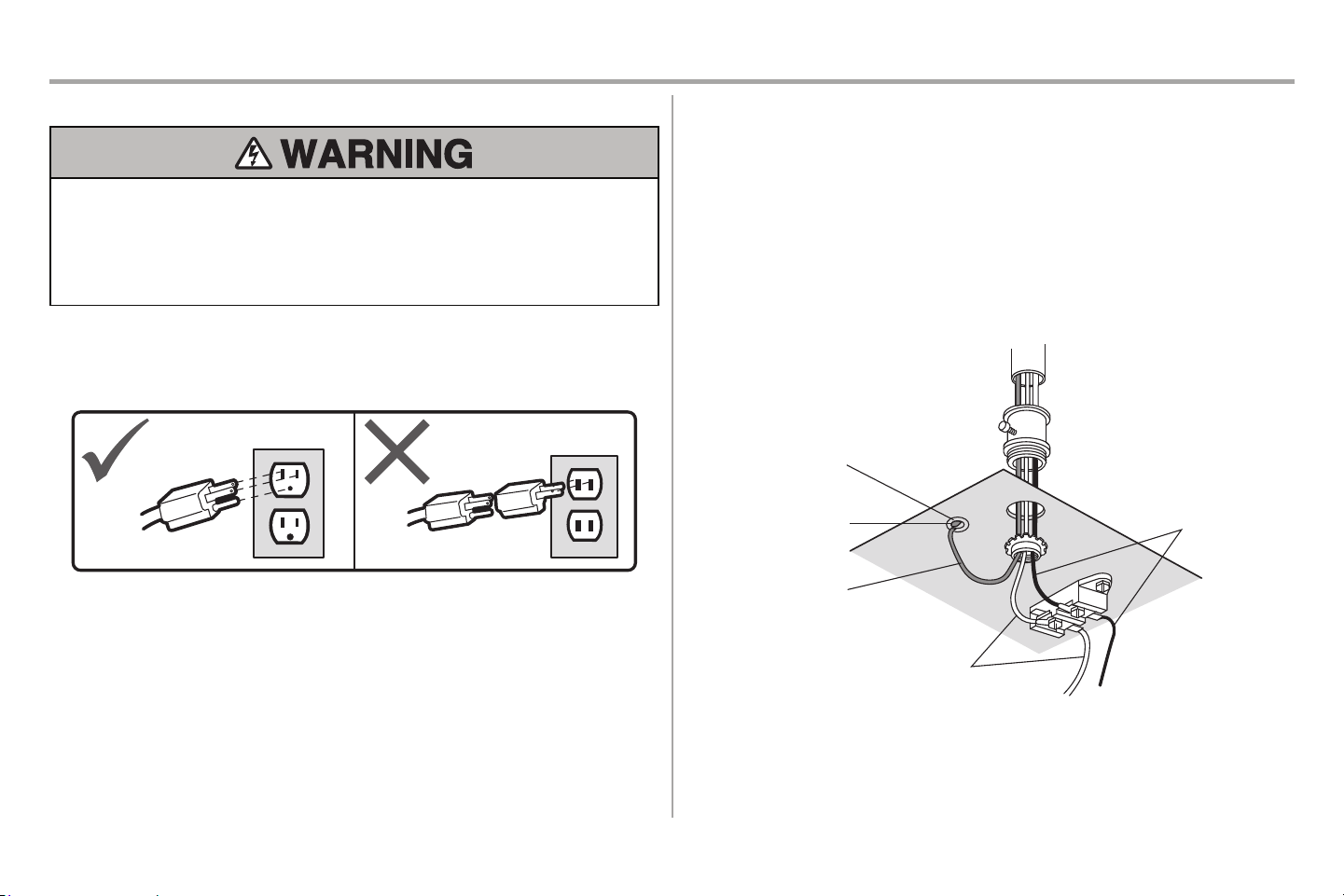

OPTION B - PERMANENT WIRING
Ifpermanentwiringisrequiredbyyourlocalcode,refertothefollowingprocedure.Tomakeapermanent
connectionthroughthe7/8-inchholeinthetopofthemotorunit(accordingtolocalcode):
1. Remove the motor unit cover screws and set the cover aside.
2. Remove the attached 3-prong cord.
3. Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the
screw on the silver terminal; and the ground wire to the green ground screw. The opener must be
grounded.
4. Reinstall the cover.
Ground Tab
Green Ground Screw
Ground Wire
31
Light Beam Protection Area
Wing nut
1
2
3
Installation

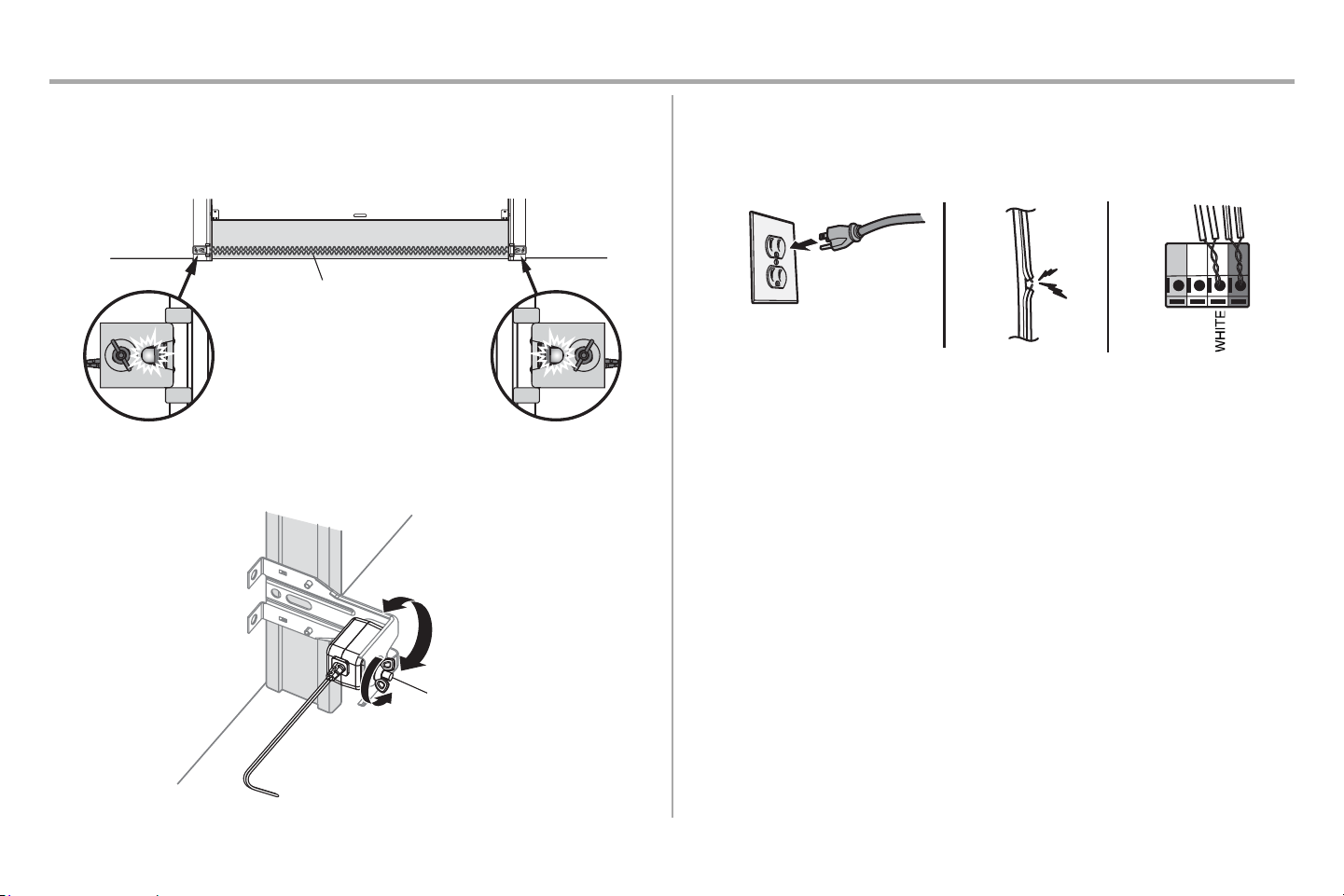

STEP 15 Align the Safety Reversing Sensors
IMPORTANT: The safety reversing sensors MUST be connected and aligned correctly before
the garage door opener will move in the down direction.
When the garaged door opener has power, check the safety reversing sensors. If the sensors are aligned and wired
correctly, both LEDs will glow steadily.
Sending sensor - amber LED Receiving sensor - green LED
To align the safety reversing sensors:
1. Loosen the wing nuts.
2. Adjust the sensors up or down until both LEDs glow steady indicating alignment.
3. Tighten the wing nut to secure the sensor.
SAFETY SENSOR TROUBLESHOOTING
IfeitherofthesensorLEDsareo,thereisnopowertothesensor:
1. Check that you have power to the garage door opener.
2. Check the sensor wire is not shorted or broken.
3. Check that the sensors is wired correctly; white wires to white terminal and white/black wires to
grey terminal.
RED
IfthegreenreceivingsensorLEDisblinking,thesensorsareobstructedormisaligned:
1. Check for obstructions in the sensor light beam.
2. Align the sensors.
3. If the receiving sensor (green LED) faces direct sunlight, switch the receiving sensor with the
sending sensor and repeat STEP 12 Install the Protector System® page 26 to assure proper
operation.
WHITE
GREY

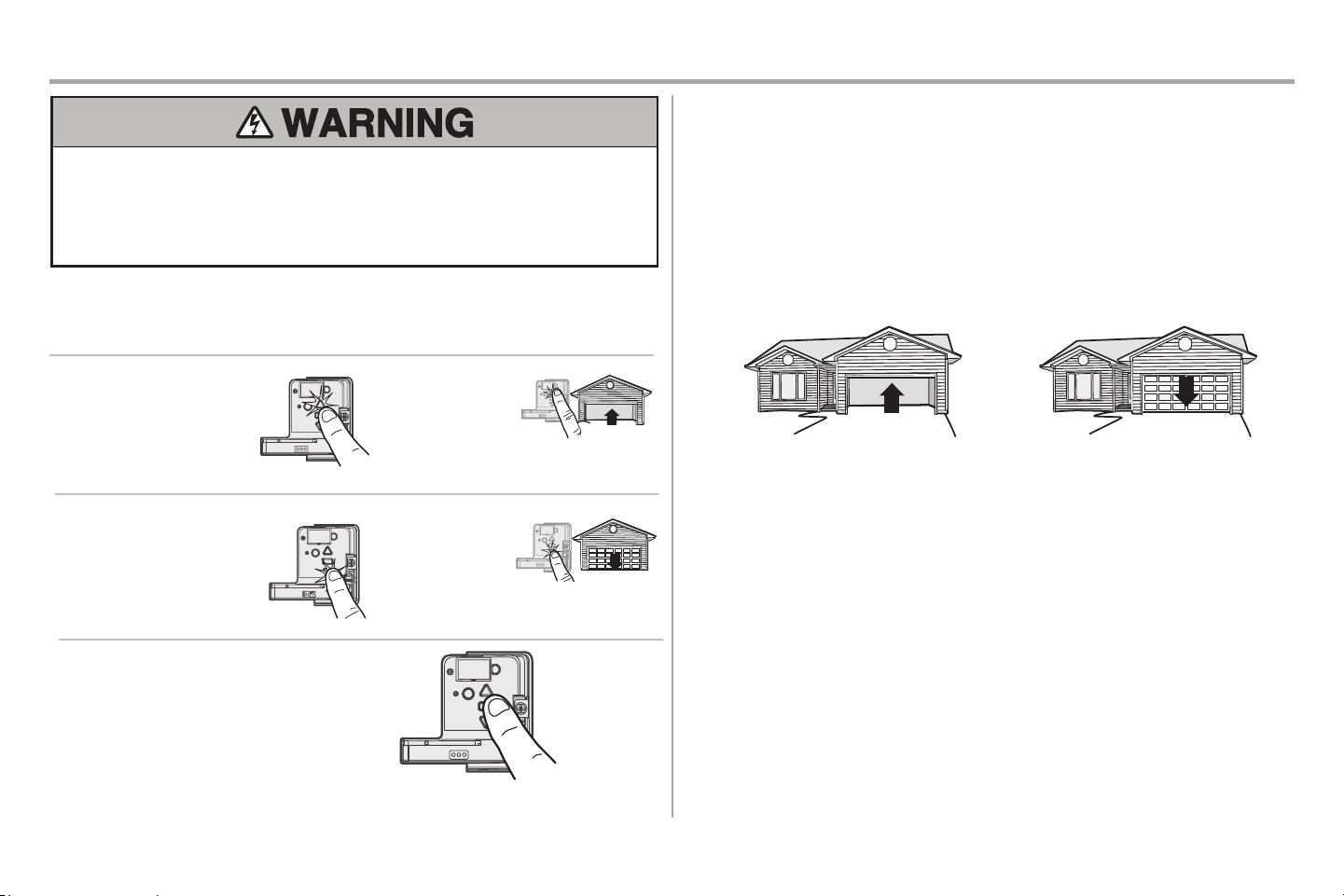

STEP 16 Ensure the Door Control is Wired Correctly
If the door control has been installed and wired correctly, the command LED on the Motion-Detecting Control
Panel will blink.
UP (Open)
DOWN (Close)
PROGRAMMING BUTTONS
The programming buttons are located on the left side panel of the garage door opener and are used to program the
travel. While programming, the UP and DOWN buttons can be used to move the door as needed.
32
Correct
UP Button
Adjustment Button
DOWN Button
PROGRAMMING BUTTONS
Incorrect
Adjustments
Introduction
Your garage door opener is designed with electronic controls to make setup and adjustments easy. While
programming the travel, the UP and DOWN buttons can be used to move the door as needed. During the
Automatic Force Setup, the door will automatically open and close.

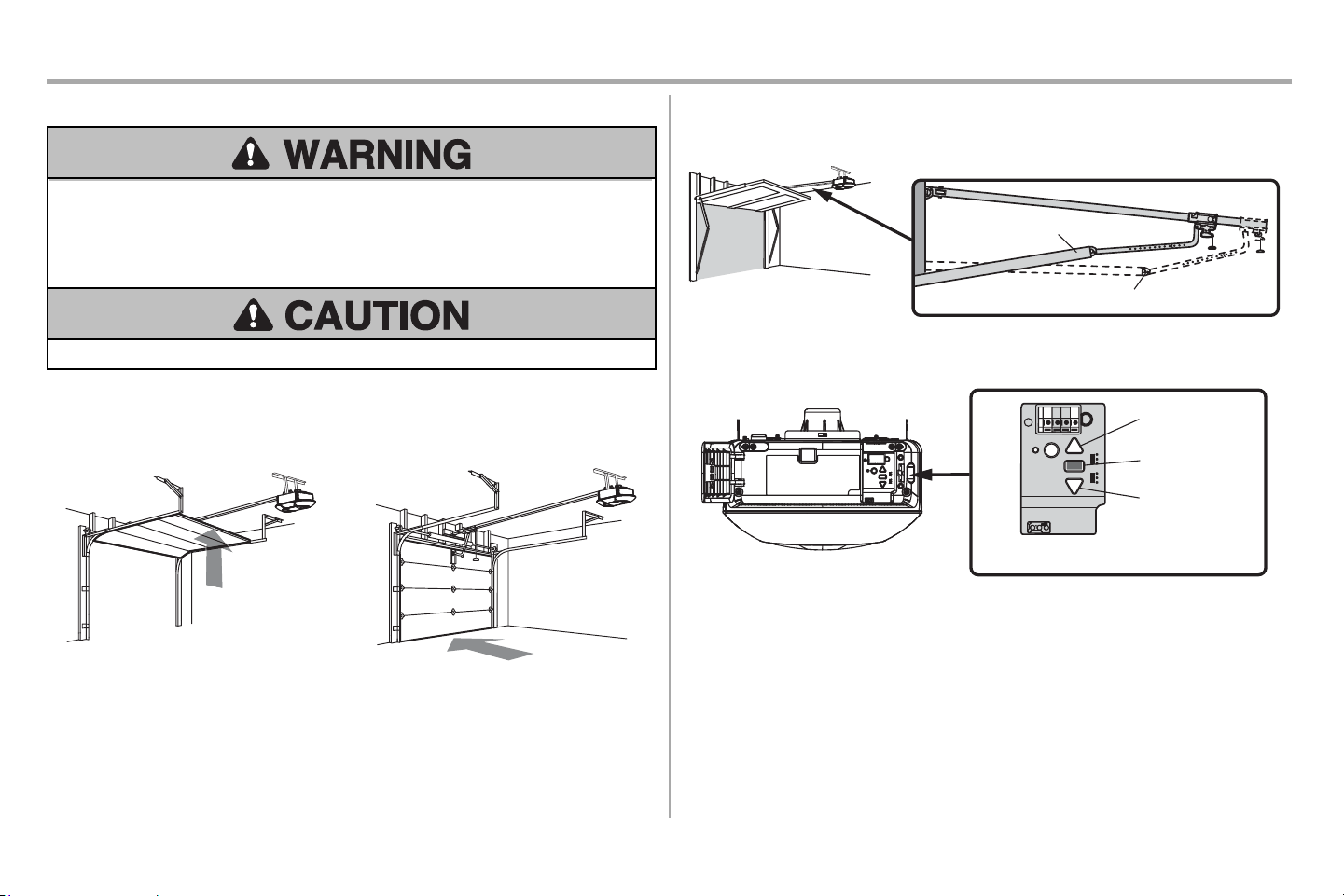

ONE-PIECE DOORS ONLY
When setting the UP travel for a one-piece door ensure that the door does not slant backwards when fully open (UP).
If the door is slanted backwards this will cause unnecessary bucking and/or jerking when the door is opening or
closing.
Without a properly installed safety reversal system, persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage door.
l Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal
system.
l After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on
contact with 1-1/2” (3.8 cm) high object (or 2x4 laid at) on oor.
To prevent damage to vehicles, be sure fully open door provides adequate clearance.
Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY
INJURED or KILLED by a closing garage door.
l Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal
system.
l After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on
contact with 1-1/2” (3.8 cm) high object (or 2x4 laid at) on oor.
While programming the travel, the UP and DOWN buttons can be used to move the door as needed. The Safety
Reversing Sensors will be disconnected during the Program the Travel process. During the Automatic Force
Setup the door will automatically open and close.
1 Press and hold the Adjustment
Button until the UP Button begins to
ash and/or a beep is heard.
The Safety Reversing Sensors will be
disconnected during the Program the
Travel process.
3 Once the door is in the desired
UP position press and release the
Adjustment Button. The garage door
opener lights will ash twice and the
DOWN Button will begin to ash.
2 Press and hold the UP
Button until the door is in
the desired UP position.
5 Once the door is in the desired DOWN position press and
release the Adjustment Button. The garage door opener
lights will ash twice. Program the Travel is now complete.
If the garage door opener lights ash 5 times, then
programming has timed out and the Travel Limits have not
been set. Please restart the Program the Travel process.
4 Press and hold the
DOWN button until the
door is in the desired
DOWN position.
33
Adjustment
1- Program the Travel
2 - Automatic Force Set Up
Once both the up and down positions have been manually set, the Safety Reversing Sensors will reconnect and
become operational. Then, the opener will enter a force-sensing operation by automatically moving the door
open and close. The garage door opener will sound an audible and visual alert before automatically opening
and closing the door. The garage door opener will beep three times, conrming that the Automatic Force Setup
completed successfully. Adjustment is complete.
If you hear one long beep after the door attempts to move, then the Automatic Force Set Up has not completed
successfully. Please start over at step 1 of Program the Travel.
34
Without a properly installed safety reversal system, persons
(particularly small children) could be SERIOUSLY INJURED or
KILLED by a closing garage door.
• Safety reversal system MUST be tested every month.
• After ANY adjustments are made, the safety reversal system
MUST be tested. Door MUST reverse on contact with 1-1/2”
(3.8 cm) high object (or 2x4 laid at) on the oor.
If the door stops but does not reverse:
1. Repeat Program the Travel (see Adjustment Step 1);
2. Repeat the Safety Reversal test.
If the test continues to fail, call a trained door systems technician.
Without a properly installed safety reversing sensor, persons
(particularly small children) could be SERIOUSLY INJURED or
KILLED by a closing garage door.

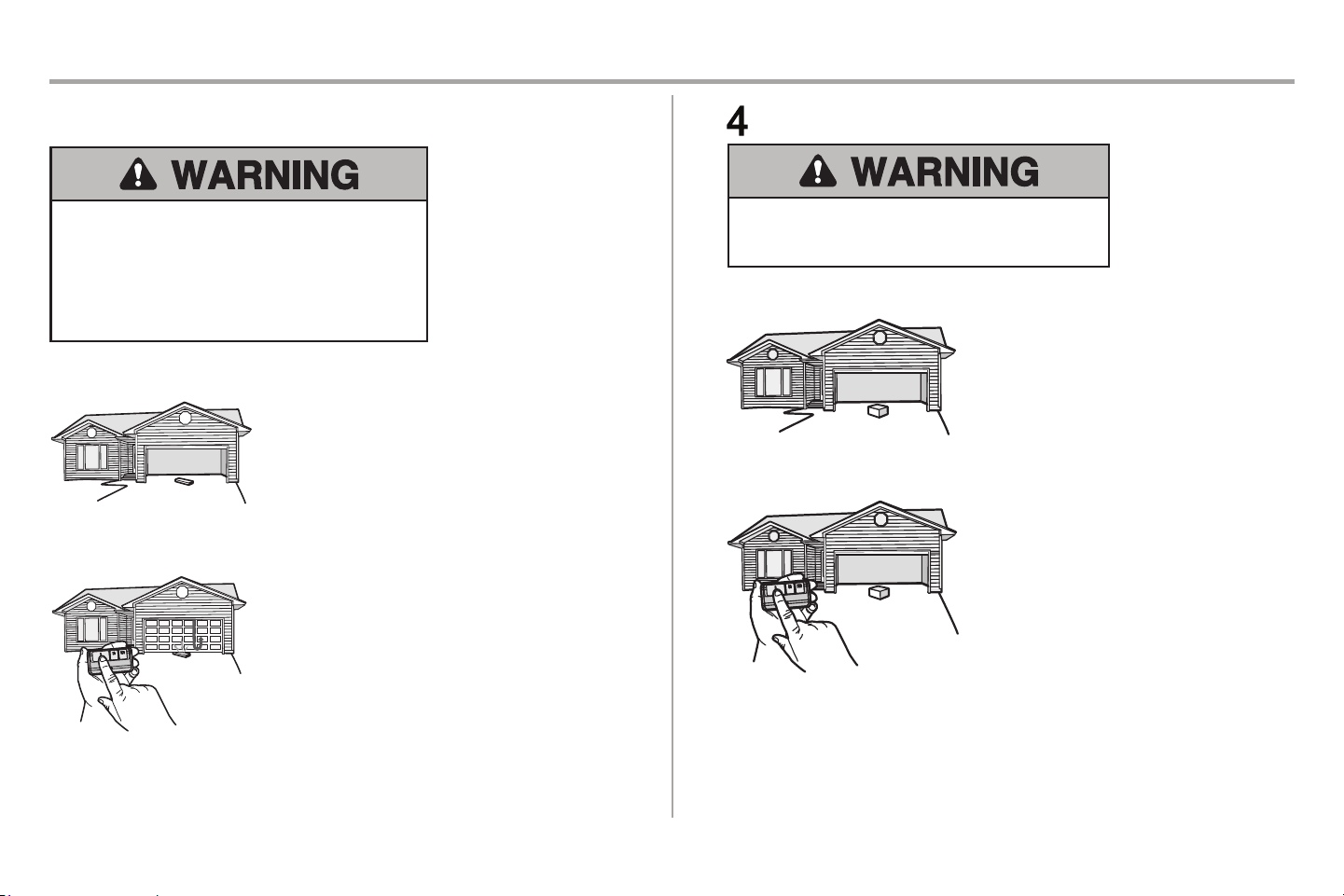

1 Open the door. Place an obstruction in the path of the door.
2 Press the remote control push button to close the door. The door will
not move more than an inch (2.5 cm).
Adjustments
3 - Test the Safety Reversal System
1 With the door fully open, place a 1-1/2 inch (3.8 cm) board (or a 2x4
laid at) on the oor, centered under the garage door.
2 Press the remote control push button to close the door. The door
MUST reverse when it makes contact with the board.
4 - Test the Protector System®
The garage door opener will not close from a remote control if the LED in
either safety reversing sensor is o (alerting you to the fact that the sensor
is misaligned or obstructed).
If the garage door opener closes the door when the safety reversing sensor
is obstructed (and the sensors are no more than 6 inches [15 cm] above
theoor), call for a trained door systems technician.
35
To reduce the risk of FIRE or INJURY to persons:
l Disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.
l Use ONLY Chamberlain part # G4228 for replacement battery.
l DO NOT dispose of battery in re. Battery may explode. Check with local codes for disposal
instructions.
ALWAYS wear protective gloves and eye protection when changing the battery or working around the
battery compartment.
Battery Status LED
1. Unplug the garage door opener.
2. Open the control door panel on the front of the garage door opener
3. Partially insert the battery into the battery compartment with the terminals facing to the right as shown.
4. Connect red (+) and black (-) wires from the garage door opener to the corresponding terminals on the
battery.
5. Fully insert the battery and close the control door panel.
Battery Backup
STEP 1 Install the Battery
MODELS B4613T, B4655T, B6713T, B6753T, AND B6755T
The battery backup allows access in and out of your garage, even when the power is out. The battery does
not have to be fully charged to operate the garage door opener. When the garage door opener is operating on
battery power, it may run slower and the battery status LED will glow solid orange while the motor is on. The
following features are unavailable when operating on battery power:
l Garage door opener lights
l Unattended close devices and features such as myQ® App and Timer-to-Close
STEP 2 Test the Battery
Depending on the power level, the battery may need to charge before performing the test. The garage door opener
must be unplugged to test the battery.
1. Open and close the door using the remote control or door control. While the motor is on, the battery status
LED will either glow solid orange indicating opener is operating on battery power or will ash indicating
low battery power. NOTE: The garage door opener may run slower if the battery is not fully
charged.
2. Plug in the garage door opener. Verify the battery status LED is ashing green, indicating the battery
is charging.
Charge the Battery
The battery charges when the garage door opener is plugged into a 120Vac electrical outlet that has power and
requires 24 hours to fully charge. A fully charged battery supplies 12Vdc to the garage door opener for up to 24
hours during an electrical power outage. After the electrical power has been restored, the battery will recharge
within 24 hours. The battery will last approximately 1 to 2 years with normal usage. Instructions for replacement
are provided with the battery. To obtain maximum battery life and prevent damage, disconnect the battery when
the garage door opener is unplugged for an extended period of time, such as a summer or winter home.
1
2
36
An LED on the garage door
opener will indicate Wi-Fi
®
status. See table below.
LED

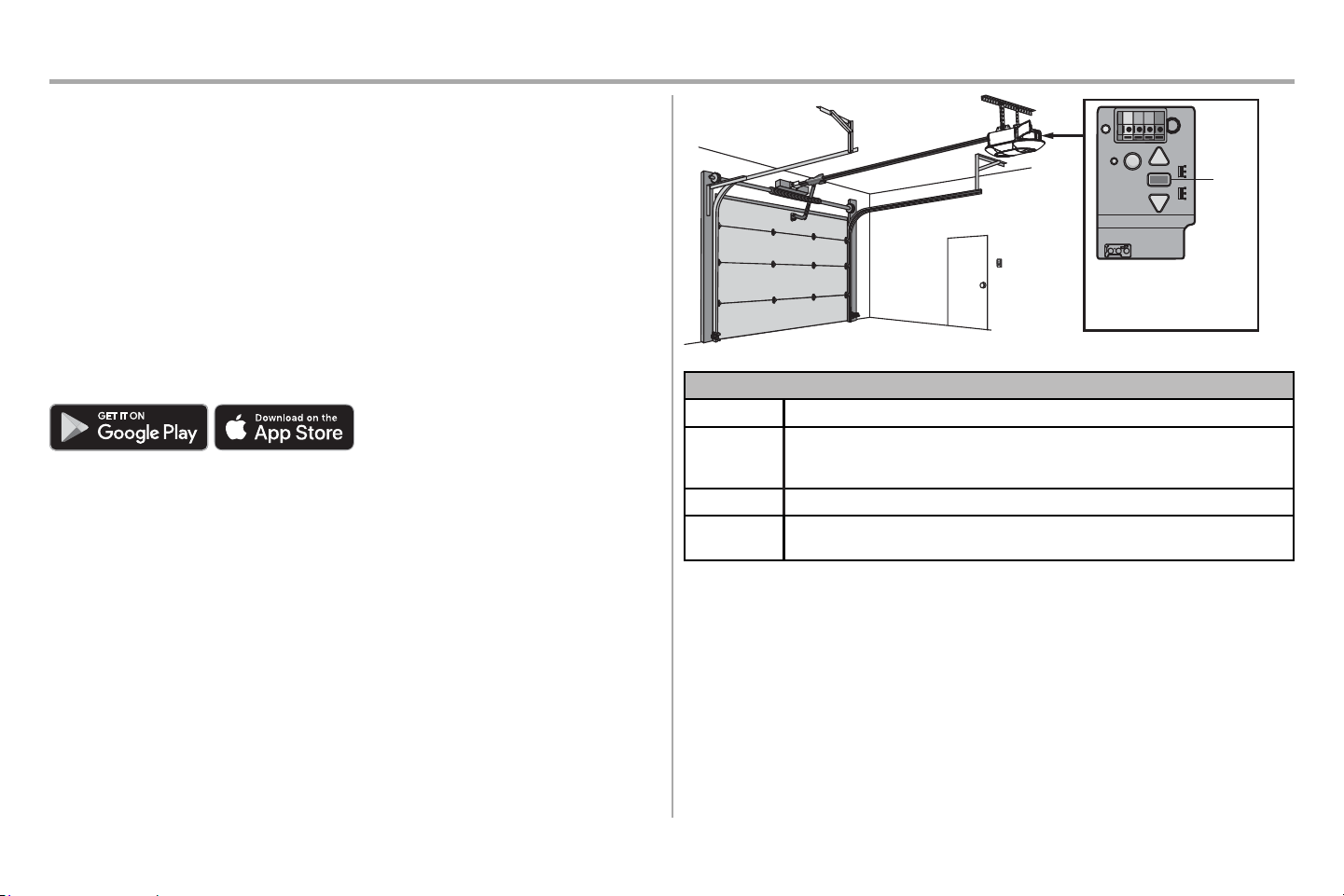

myQ® App Control
Connect With Your Smartphone
YOU WILL NEED:
l Wi-Fi enabled smartphone, tablet or laptop
l Broadband Internet connection
l Wi-Fi signal in the garage (2.4GHz,802.11b/g/nrequired), see page 5
l Password for your home network (router’s main account, not guest network)
l myQ® serial number located on the garage door opener
DOWNLOAD THE myQ® APP TO SET UP AN ACCOUNT AND CONNECT
Open and close your door, get alerts and set schedules from anywhere. Connected smart garage door
openers also receive software updates to ensure the opener has the latest operational features.
1. Download the myQ® App.
2. Set up an account and connect.
If you already have the myQ® App installed:
1. Check that your mobile device has the latest software.
2. Download the latest version of the myQ® App.
For more information on connecting your garage door opener, visit support.chamberlaingroup.com.
NOTES:
myQ
®
App control WILL NOT work if the garage door opener is operating on battery
power. To erase the Wi-Fi settings from the opener, see page 39.
Google Play and the Google Play logo are trademarks of Google LLC.
App Store and the Apple and App Store logos are trademarks of Apple Inc.
Wi-Fi®Status
LED Denition
Blue O - Wi-Fi®is not turned on.
Blinking - Garage door opener is in Wi-Fi® learn mode.
Solid - Mobile device connected to the garage door opener.
Blue and Green Blinking - Attempting to connect to router.
Green Blinking - Attempting to connect to the Internet server.
Solid - Wi-Fi® has been set up and garage door opener is connected to the Internet.
Camera Status
LED Denition
Flashing Blue Camera is attempting to connect to the mobile device.
Solid Blue Camera is connected to the mobile device.
Flashing Blue and Green Camera is attempting to connect to the router.
Flashing Green Camera is connected to the router and attempting to connect to myQ® server.
Solid Green Camera is connected and working normally.
Solid White Camera is powering up.
Flashing Red Camera is overheating.
Flashing Purple Camera rmware is updating.

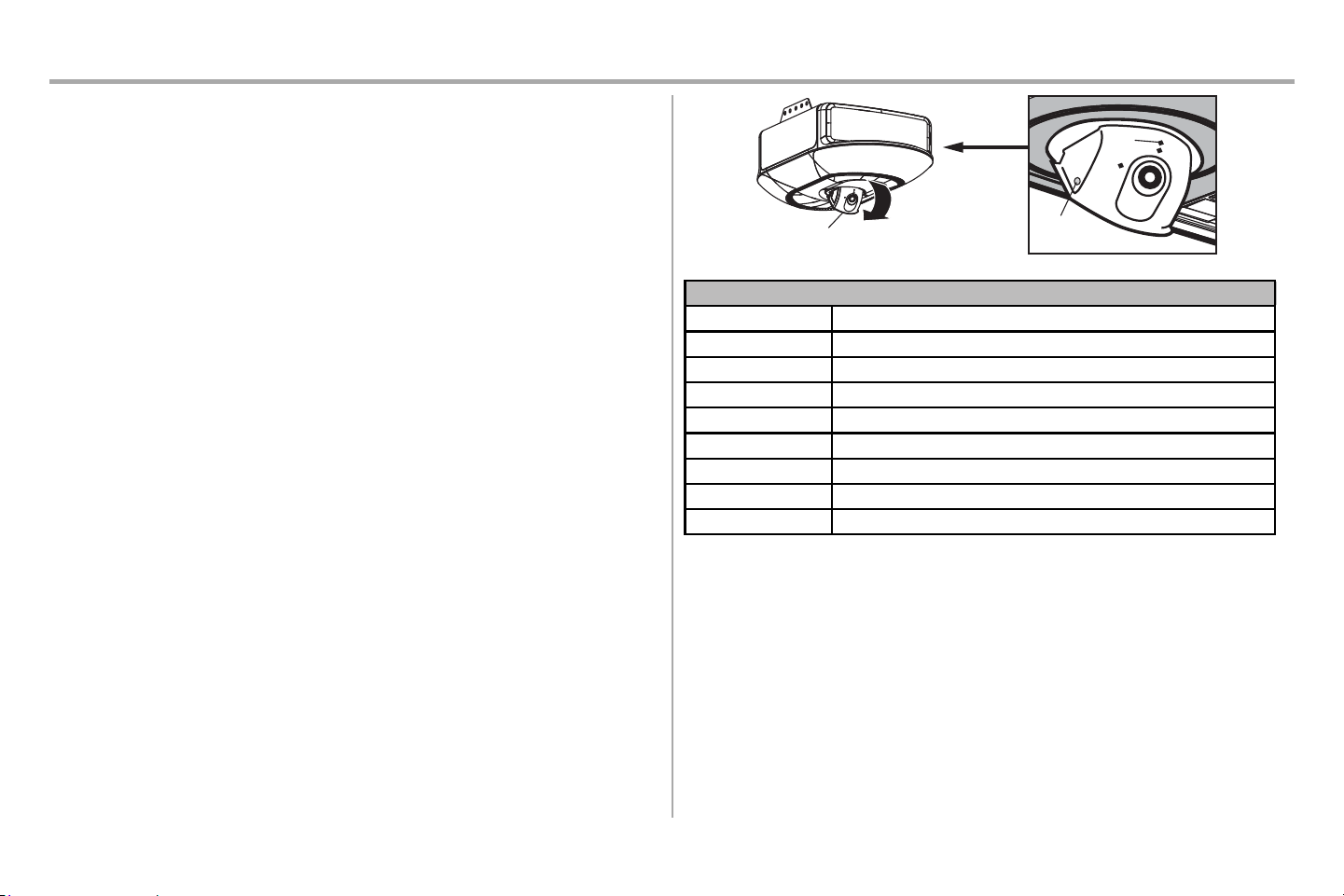

Set Up the Camera
MODELS B4643T, B4655T, B6753T, AND B6755T
1. Download the myQ® App, setup an account, and connect. See page 36.
2. Follow the instructions in the app to setup and use the camera.
The camera powers up when it is opened and powers down when closed. An LED on the camera indicates
the status. See the camera status table.
For more information on using the camera, visit support.chamberlaingroup.com.
NOTES:
myQ® App control and camera WILL NOT work if the garage door opener is operating on battery power.
To erase the camera settings from the opener, see page 41.
37
Camera
LED
Camera
Reset
Button
IMPORTANT SAFETY INSTRUCTIONS
ToreducetheriskofSEVEREINJURYorDEATH:
1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.
2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with
garage door control push buttons or remote controls.
3. ONLY activate garage door when it can be seen clearly, it is properly adjusted, and there are no
obstructions to door travel.
4. ALWAYS keep garage door in sight and away from people and objects until completely closed. NO ONE
SHOULD CROSS THE PATH OF THE MOVING DOOR.
5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPENED DOOR.
6. If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Use
caution when using this release with the door open. Weak or broken springs or unbalanced door could
result in an open door falling rapidly and/or unexpectedly and increasing the risk of SEVERE INJURY or
DEATH.
7. NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.
8. NEVER use handle to pull garage door open or closed. If rope knot becomes untied, you could fall.
9. After ANY adjustments are made, the safety reversal system MUST be tested.
10. Safety reversal system MUST be tested every month. Garage door MUST reverse on contact with 1-1/2”
(3.8 cm) high object (or a 2x4 laid at) on the oor. Failure to adjust the garage door opener properly
increases the risk of SEVERE INJURY or DEATH.
11. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 5). An improperly balanced door may
NOT reverse when required and could result in SEVERE INJURY or DEATH.
12. ALL repairs to cables, spring assemblies and other hardware, ALL of which are under EXTREME tension,
MUST be made by a trained door systems technician.
13. ALWAYS disconnect electric and battery power to garage door opener BEFORE making ANY repairs or
removing covers.
14. This operator system is equipped with an unattended operation feature. The door could move
unexpectedly. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
15. DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended
devices and features are to be used ONLY with sectional doors.
16. SAVETHESEINSTRUCTIONS.
Using your Garage Door Opener
The garage door opener can be activated through a wall-mounted door control, remote control, wireless keyless
entry or myQ® App.
When the door is closed and the garage door opener is activated the door will open. If the door makes contact with
an obstruction while opening, the door will stop, opener beeps and lights ash 5 times. When the door is in any
position other than closed and the garage door opener is activated, the door will close. If the garage door makes
contact with an obstruction while closing, the door will reverse, opener beeps and lights ash 5 times. However, you
can close the door if you hold the button on the door control or keyless entry until the door is fully closed.
The safety reversing sensors do not aect the opening cycle. The safety reversing sensor must be connected and
aligned correctly before the garage door opener will move in the down direction.
The garage door opener lights will turn on when the opener is initially plugged in; power is restored after
interruption, or when the garage door opener is activated. The lights will turn o automatically after 4-1/2
minutes.
38
Operation
39
Motion Sensor
Switch
LEARN Button
LOCK Button
LIGHT Button
Motion Sensor
Push Bar
Operation
Motion Detecting Control Panel
Command
LED
SYNCHRONIZETHEDOORCONTROL: To synchronize the door control to the garage door opener, press the push
bar until the garage door opener activates (it may take up to 3 presses). Test the door control by pressing the push
bar; each press of the push bar will activate the garage door opener.
PUSHBAR: Press the push bar to open or close the door.
LEARN BUTTON: Use to program compatible remote controls, wireless keyless entries and myQ® devices to the
garage door opener.
MOTION SENSOR: Turns the garage door opener lights on when motion is detected. Lights stay on for 4-1/2 minutes
(factory setting), then turn o. Set the motion sensor switch ON or OFF to control this feature.
LOCK: Prevents remote controls from working, while still allowing activation from the door control and keyless
entry. (Factory setting is OFF.)
Turn ON: Press and hold the LOCK button for 2 seconds. The command LED will ash as long as the lock feature
is on.
Turn OFF: Press and hold the LOCK button for 2 seconds. The command LED will stop ashing and normal
operation will resume.
LIGHTBUTTON:Turns the garage door opener lights on or o when pressed. Lights stay on for 4-1/2 minutes
(factory setting). The LIGHT button will not control the lights when the door is in motion.
To change the amount of time the lights stay on:
Press and hold the LOCK button (approximately 10 seconds) until the garage door opener lights ash. The time
interval is indicated by the number of times the garage door opener lights ash:
l 1 ash is 1-1/2 minutes
l 2 ashes is 2-1/2 minutes
l 3 ashes is 3-1/2 minutes
l 4 ashes is 4-1/2 minutes
To cycle through the time intervals repeat the step above. If the push bar LED is continuously blinking, the LOCK
feature needs to be turned o.
To turn the light feature ON (Factory default is On):
1. Close the garage door.
2. Start with the garage door opener lights "ON".
3. Press and hold the LIGHT button (approximately 10 seconds) until the garage door opener lights turn
o, then on again.
To turn the light feature OFF:
1. Close the garage door.
2. Start with the garage door opener lights "OFF".
3. Press and hold the LIGHT button (approximately 10 seconds) until the garage door opener lights turn
o, then on again.
40
1-2
1-2
3
3
OR
OR
PIN
PIN
? ? ? ?
LEARN LED
LEARN
Button
“click”
“click”
Operation

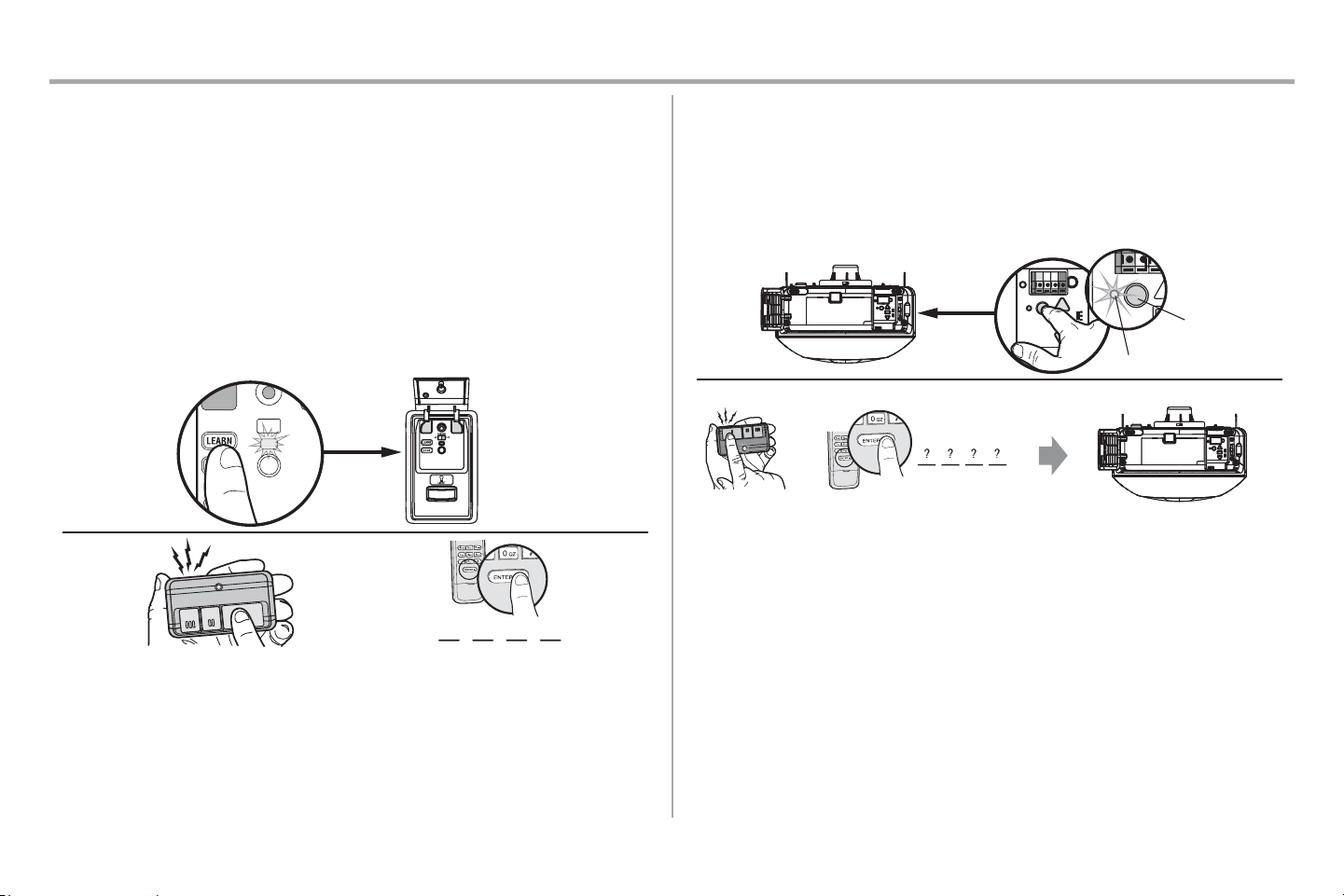

Remote Control and Keyless Entry
PRE-PROGRAMMED REMOTE CONTROL INCLUDED, NO NEED TO PROGRAM THE
REMOTE.
To add or reprogram a remote control, follow the instructions below. Older Chamberlain remote controls are
NOTcompatible.
PROGRAM MOTION DETECTING CONTROL PANEL
1. Press the LEARN button on the door control to enter programming mode. The command LED will ash
once.
2. Press the LEARN button again, the command LED will ash once again.
3. Remote control: Press the button on the remote control that you wish to operate your garage door.
Keyless entry: Enter a 4-digit personal identication number (PIN) of your choice on the keyless entry
keypad. Then press the ENTER button.
The garage door opener lights will ash (or two clicks will be heard) when the code has been programmed.
Repeat the steps for programming additional remote controls or keyless entry devices. If programming is
unsuccessful, repeat the steps using the LEARN button on the garage door opener.
PROGRAM USING THE GARAGE DOOR OPENER LEARN BUTTON
1. Locate the LEARN Button.
2. Press and immediately release the LEARN button. The LEARN LED will glow steady for 30 seconds. Within
30 seconds...
3. Remote Control: Press and hold the button on the remote control that you wish to use.
Keyless Entry: Enter a 4-digit personal identication number (PIN) of your choice on the keyless entry
keypad. Then press and hold the ENTER button.
Release the button when the garage door opener lights blink or two clicks are heard.
HomeLink®
If your vehicle is equipped with HomeLink®, a Compatibility Bridge™ (not included) may be necessary for
certain vehicles. Visit bridge.chamberlain.com to nd out if a Bridge is needed.
LEARN
Button
Adjustment
Button
Reset
Button
41
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
l If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED.
Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or
unexpectedly.
l NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.
l NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.
Operation

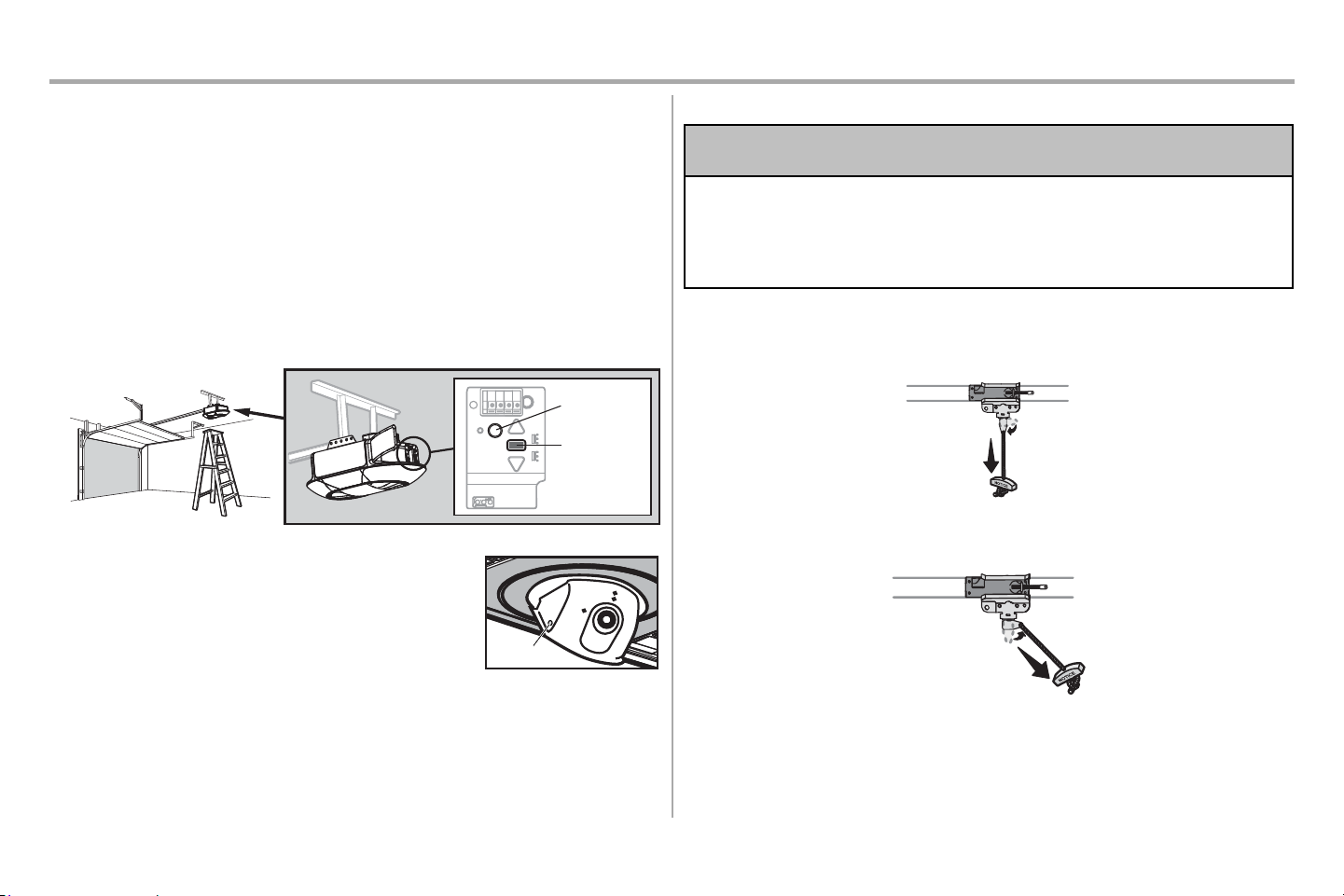

Erase the Memory
ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES
1. Press and hold the LEARN button on garage door opener until the learn LED goes out (approximately
6seconds). All remote control and keyless entry codes are now erased. Reprogram any accessory you
wish to use.
ERASE ALL REMOTE CONTROLS, KEYLESS ENTRIES, AND myQ® DEVICES FROM
GARAGE DOOR OPENER
1. Press and hold the LEARN button on garage door opener until the learn LED goes out (approximately 6
seconds).
2. Immediately press and hold the LEARN button again until the learn LED goes out. All codes are now
erased. Reprogram any accessory you wish to use.
ERASE THE CONNECTION FROM GARAGE DOOR OPENER TO HOME Wi-Fi® NETWORK
1. Press and hold the black adjustment button on the garage door opener until 3 beeps are heard
(Approximately 6 seconds).
To Open the Door Manually
DISCONNECT THE TROLLEY
1. The door should be fully closed if possible.
2. Pull down on the emergency release handle so the trolley release arm snaps to the vertical position.
The door can now be raised and lowered as often as necessary.
TO RE-CONNECT THE TROLLEY
1. Pull the emergency release handle toward the garage door opener so the trolley release arm snaps to the
horizontal position. The trolley will reconnect on the next UP or DOWN operation, either manually or by
using the door control or remote control.
ERASE THE CAMERA SETTINGS
1. Press and hold the reset button on the side of the camera for 10
seconds. The LED light will turn o, then ash red.
You will need to set up your camera again after resetting it.
To prevent possible SERIOUS INJURY or DEATH:
l NEVER allow small children near batteries.
l If battery is swallowed, immediately notify doctor.
To reduce risk of re, explosion or chemical burn:
l Replace ONLY with 3V CR2032 coin batteries.
l DO NOT recharge, disassemble, heat above 212°F (100°C) or incinerate.
42
NOTICE: This device complies with part 15 of the FCC rules and Innovation, Science and Economic Development
Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This device must be installed to ensure a minimum 20 cm (8 in.) distance is maintained between users/bystanders and
device.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC rules and Industry Canada ICES standard. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
l Reorient or relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
l Consult the dealer or an experienced radio/TV technician for help.
Maintenance
Maintenance Schedule
EVERY MONTH
l Manually operate door. If it is unbalanced or binding, call a trained door systems technician.
l Check to be sure door opens and closes fully. Adjust if necessary, see page 30.
l Test the safety reversal system. Adjust if necessary, see page 32.
EVERY YEAR
l Oil door rollers, bearings and hinges. The garage door opener does not require additional lubrication. Do
not grease the door tracks.
l Test the battery backup and consider replacing the battery to ensure the garage door opener will operate
during an electrical power outage, see page 33 to test the battery backup.

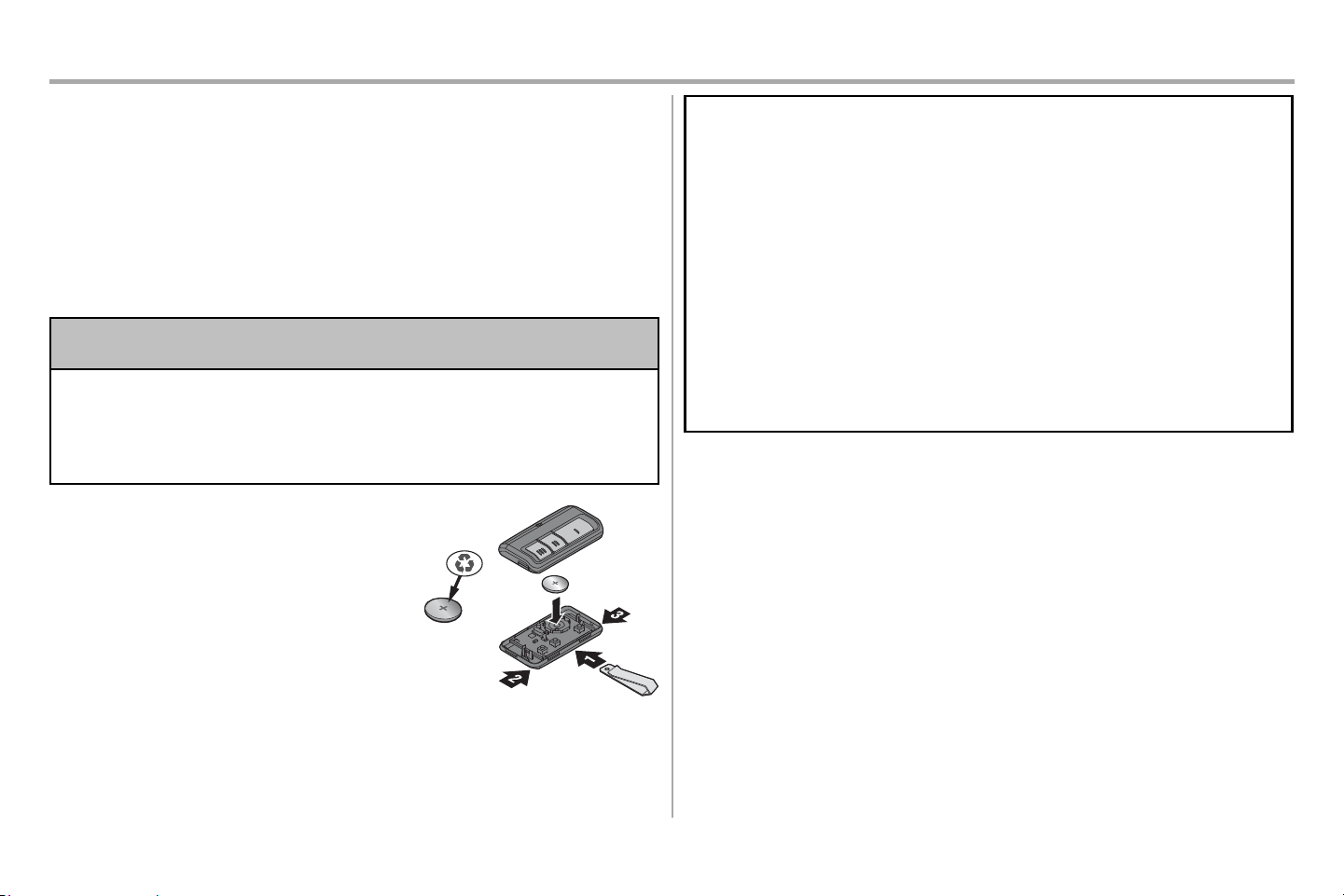

The Remote Control Battery
The 3V CR2032 Lithium battery should produce power for up to 3
years. If the battery is low, the remote control’s LED will not ash
when the button is pressed.
To replace battery, pry open the case rst in the middle (1), then at
each side (2 and 3) with the visor clip. Replace the batteries with
only 3V CR2032 coin cell batteries. Insert battery positive side up.
Dispose of old batteries properly.
Troubleshooting
43
Diagnostic Chart
Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener ash the diagnostic codes.
DIAGNOSTIC
CODE
Flashes Flashes
SYMPTOM SOLUTION
1 1
The garage door opener will not close. Safety reversing sensors are not installed, connected, or wires may be cut. Inspect sensor wires for a disconnected or cut wire.
1 2
The garage door opener will not close.
There is a shortor reversed wire for the safety reversing sensors. Inspect safety sensor wire at all staple and connection points, replace wire or
correct as needed.
1 3
The door control will not function. The wires for the door control are shorted or the door control is faulty. Inspect door control wires at all staple and connection points, replace
wire or correct as needed.
1 4
The garage door opener will not close.
Safety reversing sensors are misaligned or were momentarily obstructed. Realign both sensors until both LEDs are glowing steady. Make sure
nothing is hanging or mounted on the door that would interrupt the sensor’s path while closing.
1 5
Door moves 6-8” (15-20 cm) stops or reverses. Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. Check wiring
connections at travel module and at the logic board. Replace travel module if necessary.
No movement, only a single click. Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. Replace logic
board if necessary.
Opener hums for 1-2 seconds no movement. Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. Replace motor
if necessary.
1 6
Door coasts after it has come to a complete stop. Program travel to coasting position or have door balanced by a trained door systems technician.
2 1-5
No movement, or sound. Replace logic board.
3 2
Unable to set the travel or retain position. Check travel module for proper assembly, replace if necessary.
3 3
The battery status LED is constantly ashing green. Battery backup charging circuit error, replace the logic board.
4 1-4
Door is moving, stops or reverses. Opener beeps and lights
ash.
Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. If the door is
binding or sticking contact a trained door systems technician. If door is not binding or sticking attempt to reprogram travel, see
Program the Travel page 33.
4 5
Opener runs approximately 6-8” (15-20 cm), stops and
reverses.
Communication error to travel module. Check travel module connections, replace travel module if necessary.
4 6
The garage door opener will not close. Safety reversing sensors are misaligned or were momentarily obstructed. Realign both sensors to ensure both LEDs are steady and not
ickering. Make sure nothing is hanging or mounted on the door that would interrupt the sensor’s path while closing.
44
Additional Troubleshooting
Mygaragedooropenerstops,reverses,beepsandashesitslights:
l Garage door opener has been activated through a device or feature such as Timer-to-Close or garage
door monitor.
l Check for binding or obstructions anywhere along the track to garage oor.
My remote control will not activate the garage door:
l Verify the lock feature is not activated on the door control.
l Reprogram the remote control.
l If the remote control will still not activate the door check the diagnostic codes to ensure the garage door
opener is working properly.
My door will not close:
The safety reversing sensor must be connected and aligned correctly before the garage door opener will move
in the down direction.
l Check for binding or obstructions anywhere along the track to garage oor.
l The safety reversing sensor must be connected and aligned correctly before the garage door opener will
move in the down direction.
o Verify the safety reversing sensors are properly installed, aligned and free of any obstructions.
o If the receiving sensor (green LED) faces direct sunlight, switch the receiving sensor with the sending
sensor so the receiving sensor is not in direct sunlight.
Wi-Fi®troubleshooting
The garage door opener will NOT enter Wi-Fi® learn mode:
l After the initial installation of the garage door opener, the garage door opener must complete a full cycle
(open and closed) before the Wi-Fi® learn mode can be activated.
l If there has been a recent power outage, the garage door opener must complete a full cycle before the
Wi-Fi® learn mode can be activated.
See page 36 to activate Wi-Fi LEARN mode.
If your black adjustment button is not solid green go to support.chamberlaingroup.com.
Myvehicle’sHomelink®isnotprogrammingtomygaragedooropener:
Compatibility Bridge (not included) may be necessary for certain vehicles. Visit bridge.chamberlain.com to nd
out if a Bridge is needed.
My neighbor’s remote control opens my garage door:
Erase the memory from your garage door opener and reprogram the remote control(s).
Garage door opener LED lights not working:
Unplug the garage door opener. Remove the cover and make sure the LED wiring is connected.
Safety sensor LED lights are not lit:
If the sensor LEDs do not glow steadily, see SAFETY SENSOR TROUBLESHOOTING page 29.
Green battery status LED: All systems are normal.
l A solid green LED light indicates the battery is fully charged.
l A ashing green LED indicates the battery is being charged.
Orange battery status LED: The garage door opener has lost power and is in battery backup mode.
l Solid orange LED while the motor is on, indicates the garage door opener is operating on battery power.
l A ashing orange LED while the motor is on, indicates the battery is low.
Red battery status LED: The garage door opener's 12V battery needs to be replaced.
l A solid red LED indicates the 12V battery will no longer hold a charge. Go to chamberlain.com to
purchase a replacement battery to allow your system to operate during a power outage.
Troubleshooting
Battery
Status LED
Warranty
Contact Information
STOP!
This garage door opener WILL NOT work until the safety reversing sensors are
properly installed and aligned.
Visit us online at:
support.chamberlaingroup.com
CHAMBERLAIN®LIMITED WARRANTY
The Chamberlain Group, Inc.®(“Seller”) warrants to the rst retail purchaser of this product, for the residence in which this product is originally
installed, that it is free from defects in materials and/or workmanship for a specic period of time as dened below (the “Warranty Period”). The
warranty period commences from the date of purchase.
The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, and maintenance and testing. Failure to comply strictly with those instructions will void this limited
warranty in its entirety.
If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, visit chamberlain.com, before dismantling this product. You will be advised of disassembly and shipping instructions when
you call. Then send the product or component, pre-paid and insured, as directed to our service center for warranty repair. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned
for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are conrmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and
returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option. [You are responsible for any costs incurred in removing and/or reinstalling the product or any component].
ALLIMPLIEDWARRANTIESFORTHEPRODUCT,INCLUDINGBUTNOTLIMITEDTOANYIMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE,ARELIMITEDINDURATIONTOTHE
APPLICABLELIMITEDWARRANTYPERIODSETFORTHABOVEFORTHERELATEDCOMPONENT(S),ANDNOIMPLIEDWARRANTIESWILLEXISTORAPPLYAFTERSUCHPERIOD.SomeStatesandProvincesdonotallow
limitationsonhowlonganimpliedwarrantylasts,sotheabovelimitationmaynotapplytoyou.THISLIMITEDWARRANTYDOESNOTCOVERNON-DEFECTDAMAGE,DAMAGECAUSEDBYIMPROPERINSTALLATION,
OPERATIONORCARE(INCLUDING,BUTNOTLIMITEDTOABUSE,MISUSE,FAILURETOPROVIDEREASONABLEANDNECESSARYMAINTENANCE,UNAUTHORIZEDREPAIRSORANYALTERATIONSTOTHISPRODUCT),
LABORCHARGESFORREINSTALLINGAREPAIREDORREPLACEDUNIT,REPLACEMENTOFCONSUMABLEITEMS(E.G.,BATTERIESINREMOTECONTROLTRANSMITTERS),ORUNITSINSTALLEDFORNON-RESIDENTIAL
USE.THISLIMITEDWARRANTYDOESNOTCOVERANYPROBLEMSWITH,ORRELATINGTO,THEGARAGEDOORORGARAGEDOORHARDWARE,INCLUDINGBUTNOTLIMITEDTOTHEDOORSPRINGS,DOORROLLERS,
DOORALIGNMENTORHINGES.THISLIMITEDWARRANTYALSODOESNOTCOVERANYPROBLEMSCAUSEDBYINTERFERENCE.UNDERNOCIRCUMSTANCESSHALLSELLERBELIABLEFORCONSEQUENTIAL,INCIDENTAL
ORSPECIALDAMAGESARISINGINCONNECTIONWITHUSE,ORINABILITYTOUSE,THISPRODUCT.INNOEVENTSHALLSELLER’SLIABILITYFORBREACHOFWARRANTY,BREACHOFCONTRACT,NEGLIGENCEORSTRICT
LIABILITYEXCEEDTHECOSTOFTHEPRODUCTCOVEREDHEREBY.NOPERSONISAUTHORIZEDTOASSUMEFORUSANYOTHERLIABILITYINCONNECTIONWITHTHESALEOFTHISPRODUCT.
Some states and provinces do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specic legal rights, and you
may also have other rights, which vary from state to state and province to province.
45
WARRANTY PERIOD
Model Parts Motor Accessories Belt Battery Backup Integrated LED Camera
B4603T 5 years Lifetime 1 year Lifetime - 5 years -
B4613T 5 years Lifetime 1 year Lifetime 1 year 5 years -
B4643T 5 years Lifetime 1 year Lifetime - 5 years
1 year
B6713T 5 years Lifetime 1 year Lifetime
1 year
5 years -
B6753T 5 years Lifetime 1 year Lifetime
1 year
5 years
1 year
B6755T 5 years Lifetime 1 year Lifetime 1 year 5 years
1 year
B4655T 5 years Lifetime 1 year Lifetime 1 year 5 years
1 year
Automatic Garage Door Opener Safety & Maintenance Guide
Garage Door Opener Safety–An Automatic Decision
Agaragedooristhelargestmovingobjectinthehome.Animproperlyadjustedgaragedoorandopenercanexertdeadlyforcewhenthedoorcloses–whichcouldleadtoentrapmentofchildrenoradultsandsubsequent
injury or death.
Proper installation, operation, maintenance, and testing of the garage door and automatic opener are necessary to provide a safe, trouble-free system. Careless operation or allowing children to play with or use garage door opener
controls are also dangerous situations that can lead to tragic results. A few simple precautions can protect your family and friends from potential harm. Please review the safety and maintenance tips in this guide carefully and
keep it for reference. Check the operation of your garage door and opener to ensure they function in a safe and trouble-free manner. Be sure to read all Important Safety Information found in your garage door opener’s manual as it
provides more details and safety considerations than can be supplied with this guide.
Garage Door Openers are Not Toys
Discuss garage door and opener safety with your children. Explain the danger of being trapped under the door.
Stay away from a moving door.
Keep transmitters and remote controls out of reach of children.
Do not let children play with or use transmitters or other remote
control devices.
46
Thewall-mountedpushbuttonshouldbeoutofreachofchildren,
at least 5 feet from the nearest standing surface and away from all
moving parts. Mount and use the button where you can clearly see
the closing garage door.
Keep the door in sight until it completely closes when using the
wall-mounted push button or transmitter.
2
1

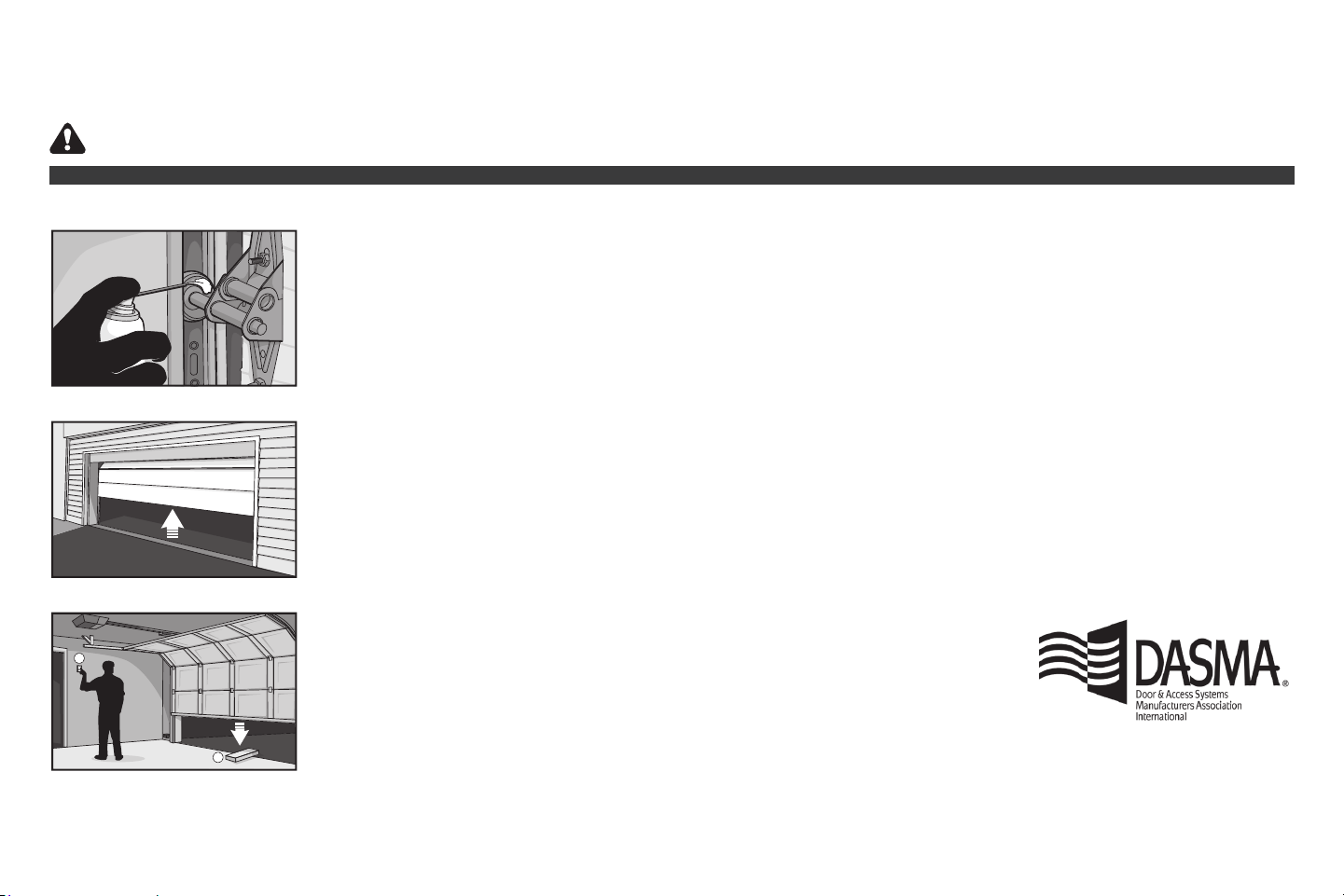

Routine Maintenance Can Prevent Tragedies
Make monthly inspection and testing of your garage door and opener system a part of your regular routine. Review your owner’s manual for both the door and door opener. If you don’t have the owner’s manuals, contact the
manufacturer(s) and request a copy for your specic model(s). Look for the opener model number on the back of the power unit.
WARNING–SPRINGS ARE UNDER HIGH TENSION. ONLY QUALIFIED INDIVIDUALS SHOULD ADJUST THEM.
Visually check the door and installation:
• Starting with the door in the closed position, use the manual disconnect on the opener to disconnect the door.
• Look for signs of wear or damage on hinges, rollers, springs, and door panels.
• These parts may require periodic lubrication. Check the owner’s manual for suggested maintenance.
• If any signs of damage are evident, contact a trained door systems technician for assistance.
• Verify the photoeye height is no higher than 6” from the garage oor.
Test the door for proper operation:
• Open and close the door manually using handles or suitable gripping points.
• The door should move freely and without diculty.
• Thedoorshouldbalanceandstaypartiallyopen3–4feetabovetheoor.
• If you detect any signs of improper operation, contact a trained door systems technician for assistance.
Test the opener safety features:
• Reconnect the opener to the door using the manual disconnect and open the door.
• Place a 2x4 board at in the path of the door (1) and try to close it (2). The door should stop when it comes in contact with the 2x4
and then reverse direction.
• Block the photoelectric sensor by waving an object in front of the sensor and attempt to close the door. The door should not close
unless the wall-mounted push button is manually held during operation.
• If the opener does not perform as described, contact a trained door systems technician for assistance.
47
8
1
2
4
3
6
7
5
48
4
1
2
7
6
8
9
3
5
10

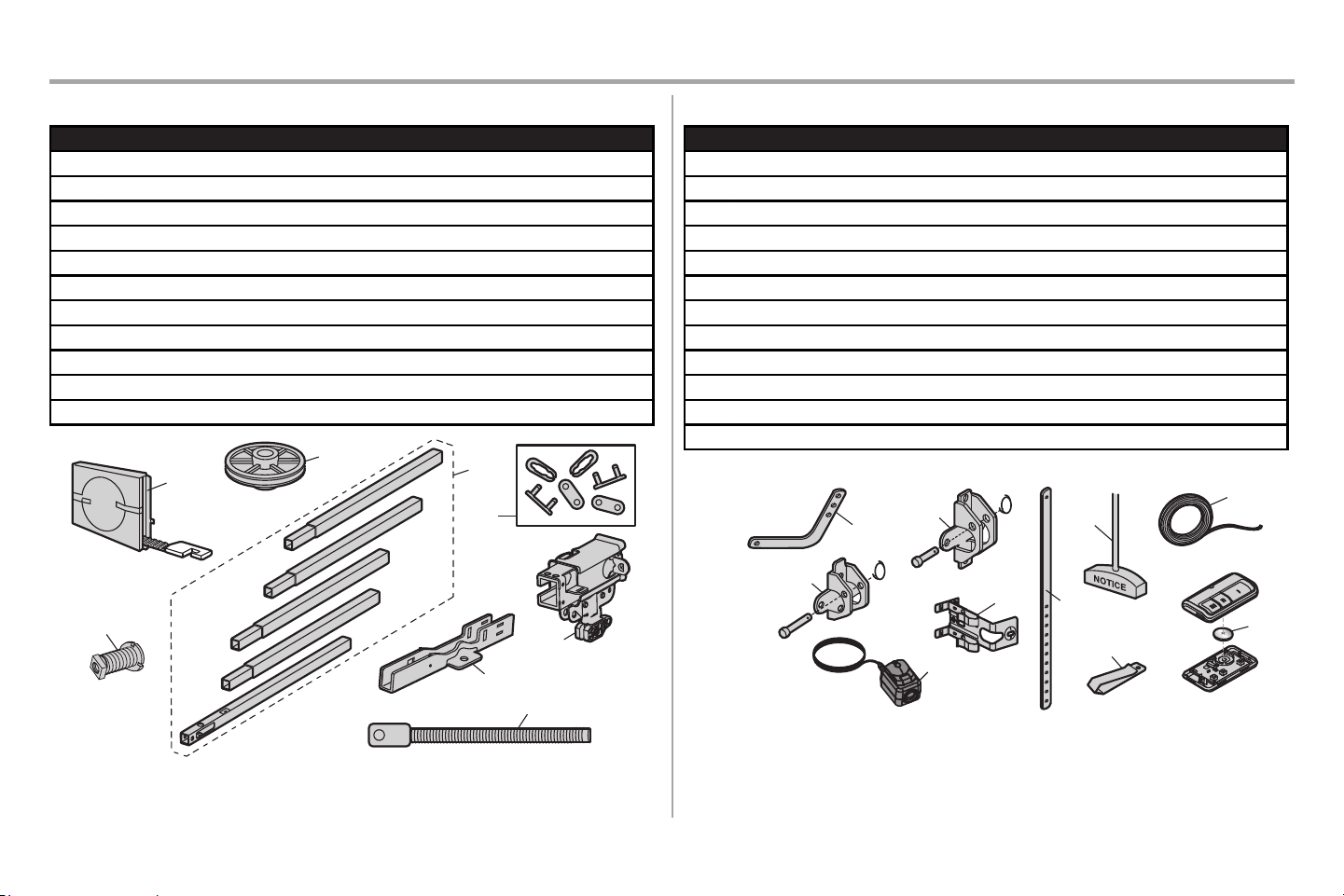

Repair Parts
Rail Assembly Parts
Installation Parts
Description Part Number
1 Curved door arm 041B0035B
2 Door bracket with clevis pin and fastener 041A5047-1
3 Emergency release rope and handle 041A2828
4 Header bracket with clevis pin and fastener 041A5047-2
5 Remote control visor clip K029B0137
6 Safety sensor bracket 041-0155
78 Safety sensor kit: receiving and sending sensors with 2-conductor wire 041-0136
8 Straight door arm 4178B0034B
9 White and red/white wire 041B4494-1
10 3V CR2032 lithium battery K010A0020
Not shown
Installation Manual 114-5822-000
Description Part Number
1 Belt 041A5250
2 Pulley 144C0054M
3 Master link 004A1008
4 Rail 041A5665
5 Trolley assembly: threaded shaft (1), clevis pin (1), and ring (1) 041C5141-2
6 “U” bracket 041D0598-1
7 D-shape threaded shaft 041A6689
8 Spring trolley nut 041B4103
Not shown
Wear pads 041A7276
Hardware bag 041A7920-2
Description Part Number
Repair Parts

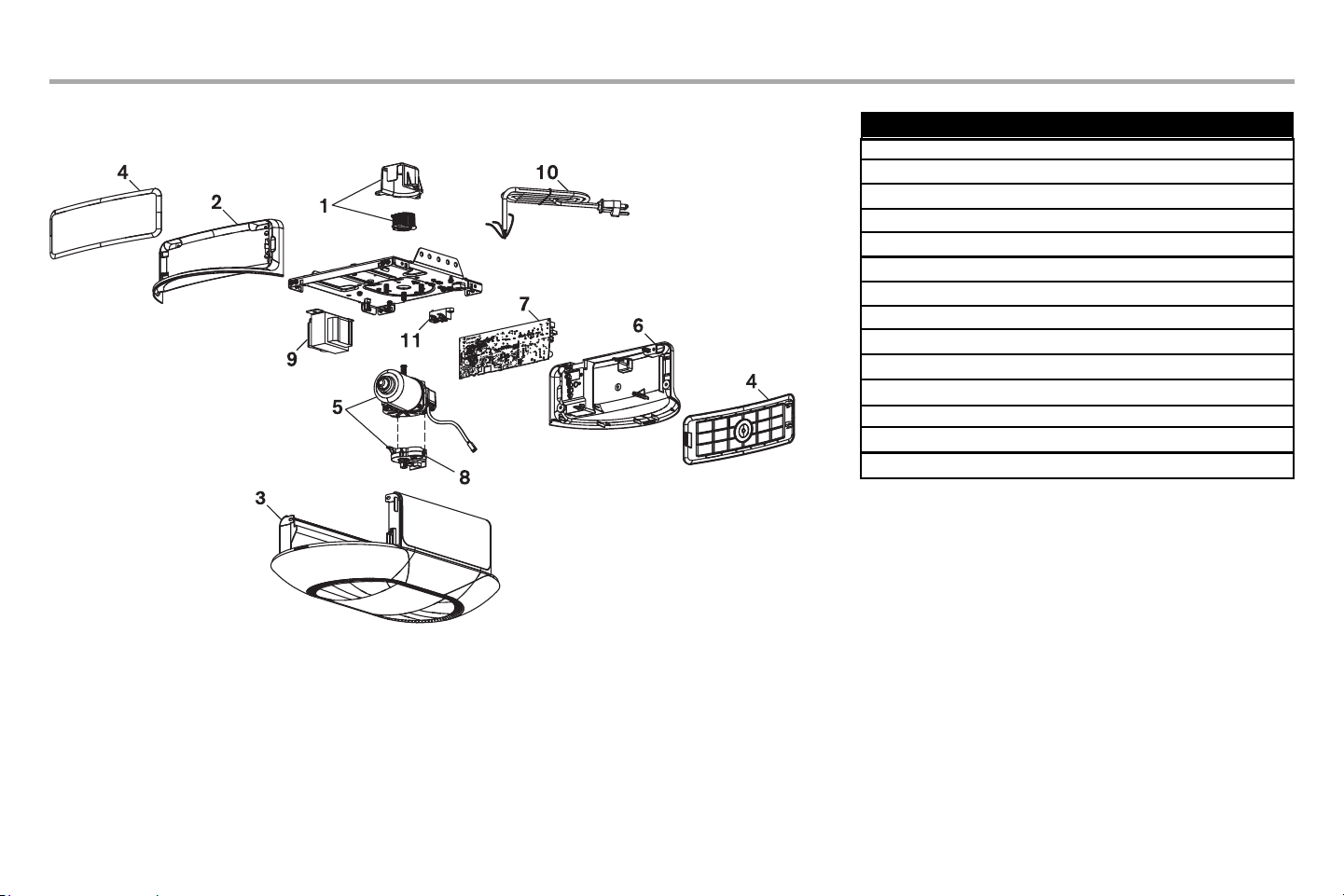

Garage Door Opener Parts - Model B4603T
49
1 Sprocket and sprocket cover 041C1751
2 End panel 041-0198
3 Cover and light pod 041-0203
4 Control door panel 041-0204
5 Motor with travel module 041-0236
6 Logic board end panel 041-0197
7 Logic board 050DCTBMC
8 Travel Module 041D8071-4
9 Transformer 041D0227-2
10 Line cord 041B4245
11 Terminal block 041A3150
Not shown
Badge 041-0206
Wire harness 041-0181
Description
Part Number
Repair Parts

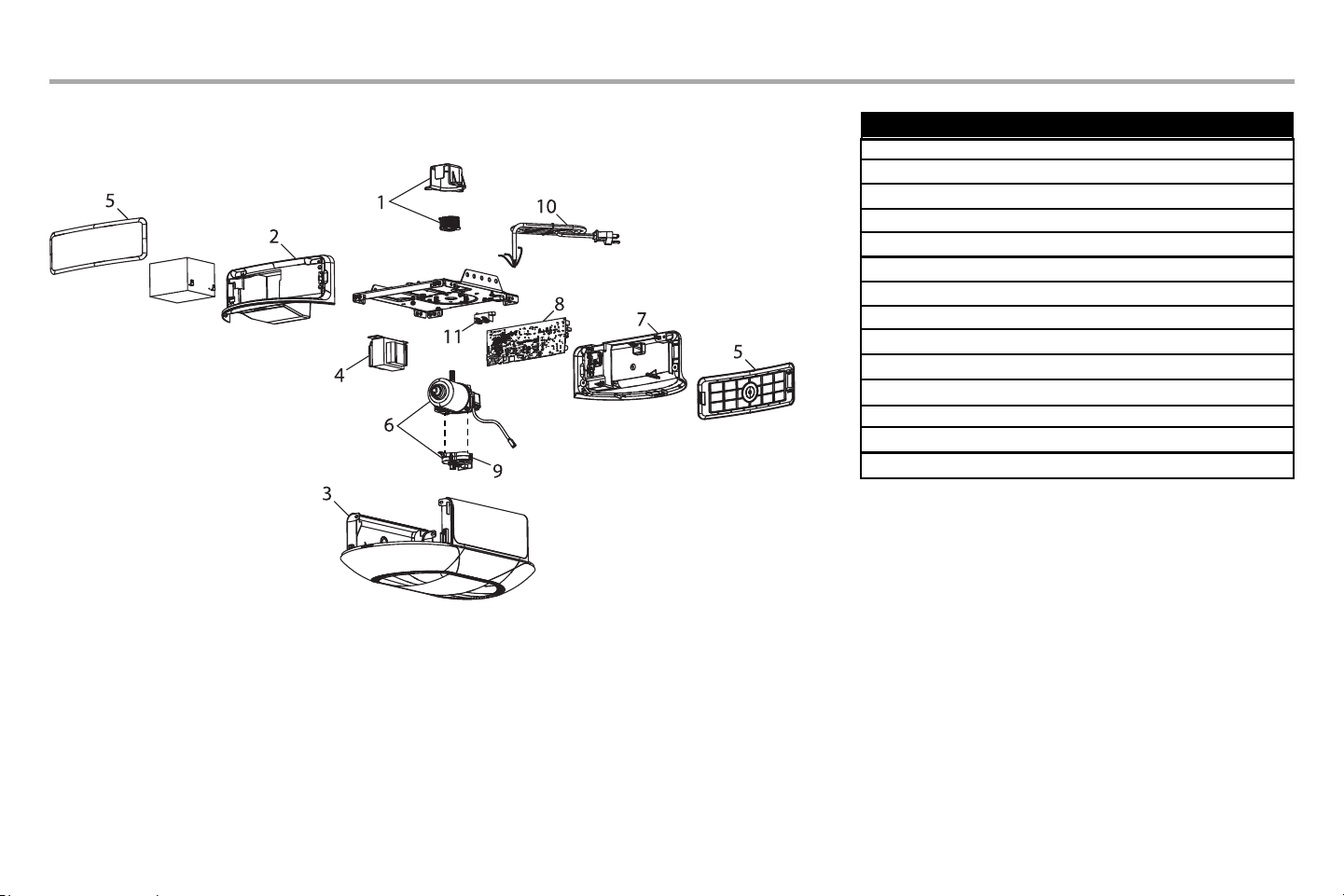

Garage Door Opener Parts - Model B4613T
50
1 Sprocket and sprocket cover 041C1751
2 End panel 041-0199
3 Cover and light pod 041-0203
4 Transformer 041D0277-1
5 Control door panel 041-0204
6 Motor with travel module 041-0236
7 Logic board end panel 041-0197
8 Logic board 050DCTBFMC
9 Travel module 041D8071-4
10 Line cord 041B4245
11 Terminal block 041A3150
Not shown
Badge 041-0206
Wire harness 041-0181
51
Description
Part Number

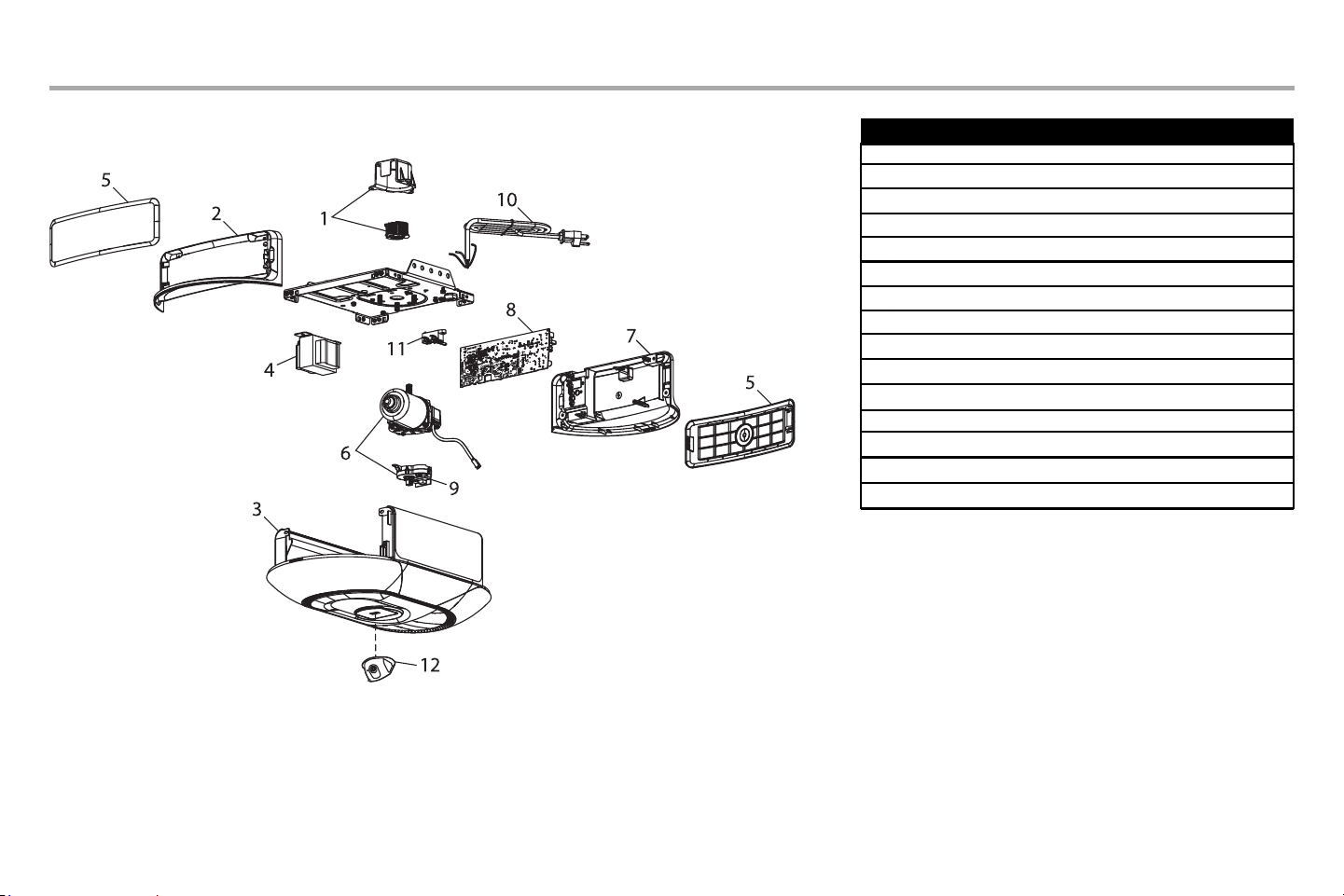

1 Sprocket and sprocket cover 041C1751
2 End panel 041-0198
3 Cover and light pod 041-0201
4 Transformer 041D0277-2
5 Control door panel 041-0204
6 Motor with travel module 041-0236
7 Logic board end panel 041-0197
8 Logic board 050DCTBFMC
9 Travel module 041D8071-4
10 Line cord 041B4245
11 Terminal block 041A3150
12 Camera 041-0041
Not shown
Badge 041-0205
Wire harness 041-0181
Repair Parts
Garage Door Opener Parts - Model B4643T and B4655T
Description
Part Number

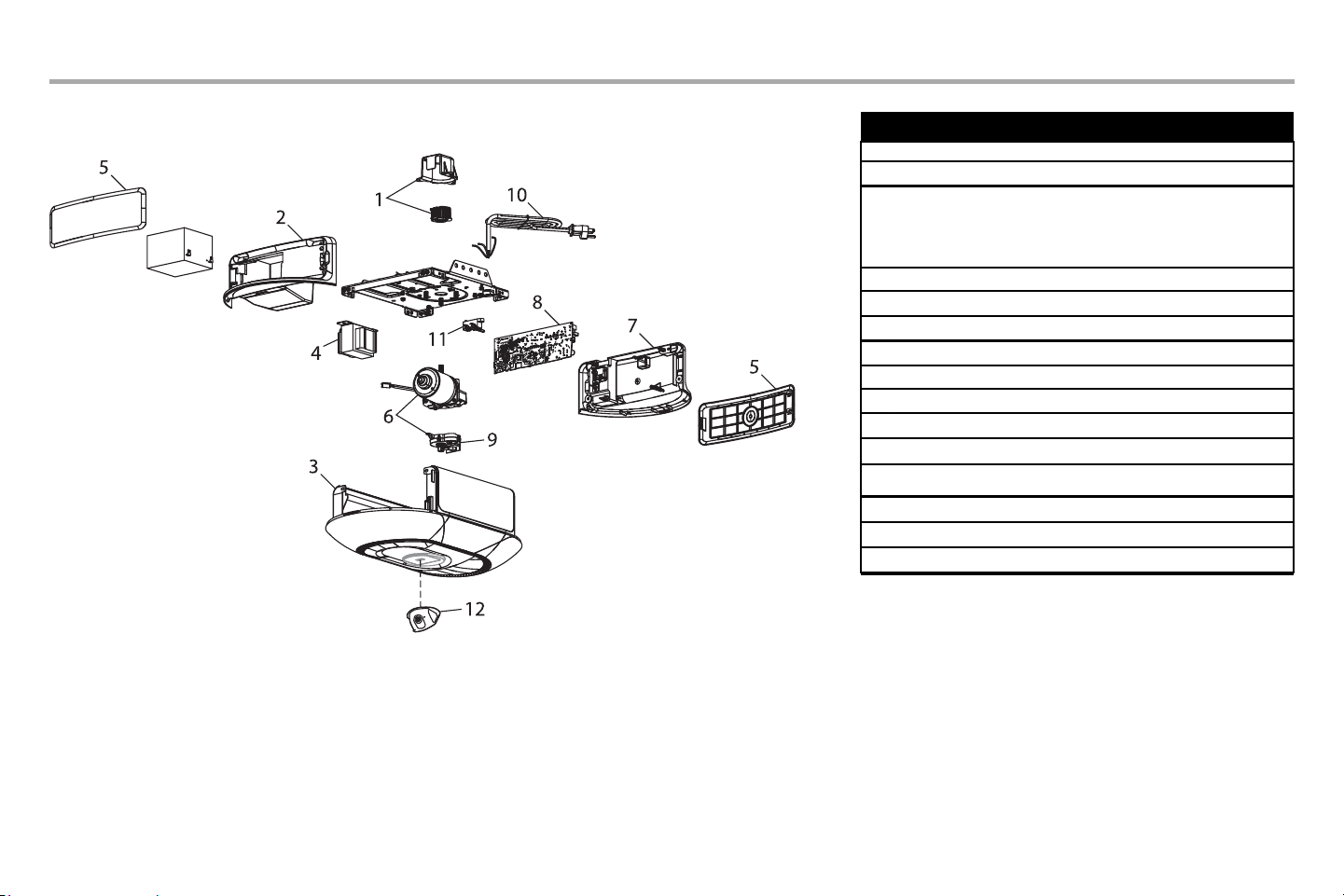

1 Sprocket and sprocket cover 041C1751
2 End panel 041-0198
3
Model B6713T
Cover and light pod 041-0202
Model B6753T
Cover and light pod 041-0200
4 Transformer 041D0277-1
5 Control door panel 041-0204
6 Motor with travel module 041-0236
7 Logic board end panel 041-0197
8 Logic board 050DCTBFMC
9 Travel module 041D8071-4
10 Line cord 041B4245
11 Terminal block 041A3150
12
Model B6753T
Camera 041-0041
Not shown
Badge 041-0205
Wire harness 041-0180
Repair Parts
Garage Door Opener Parts - Models B6713T, B6753T, and B6755T
© 2023 The Chamberlain Group LLC
All Rights Reserved
Wi-Fi® is a registered trademark of Wi-Fi Alliance
Home Link® is a registered trademark of Gentex Corporation
The Chamberlain Group LLC
300 Windsor Drive
Oak Brook, IL 60523
114-5822-010
