Introduction
The BG-PSC8X2-REC HDMI Receiver is a tool which can extend your HDMI signal over
328ft/100 meters to a compatible display. It is designed to accept a HDBaseT signal which
can be transmitted by category cable. It also supports bi-directional IR and RS232.
Features
● PoE (Power Over Ethernet) power consumption less than 10W.
● Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long
distance transmission.
● UTP cable termination follows the standard of IEEE-568A or IEEE-568B.
● Transmission distance:
100 meters: 1080P@60Hz36bit; 3D 1080P@30Hz36bit;
70 meters: 1080P@60Hz@48bit; 1080P@120Hz@24bit; 3D 1080P@60Hz@36bit;
4K2K@30Hz@24bit.
● Display resolutions up to 4K2K@60Hz
● Transfer Bidirectional Infrared control signal together with the HDMI signal.
● Transfer Bidirectional RS232 control signal together with the HDMI signal.
Packing List
● 1x HDMI Extender Receiver
● 2x Wideband IR Tx
● 2x Wideband IR Rx
● 1x 24V1A DC Power Supply
● 2x Phoenix Connector
● 4x Mounting ears
● 1x User Manual
● 1х Quick Start Guide
Technical Specifications
General
Frequency Bandwidth
2.97Gbps
Receiver Input/Output Ports
1x HDMI Female port/2x CAT6; 1x IR Tx/1x IR Rx/1x Phoenix
Power Supply
DC 12V
ESD Protection
Human Body Model:
± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm)
100(W) x 100 (D) x 25 (H)
Weight
320g x 2
Operating Temperature
32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature
-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity
20~90% RH (Non-condensing)
Power Consumption (Max)
10W
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-PSC8X2-REC PRODUCT MANUAL
Operation Controls and Functions

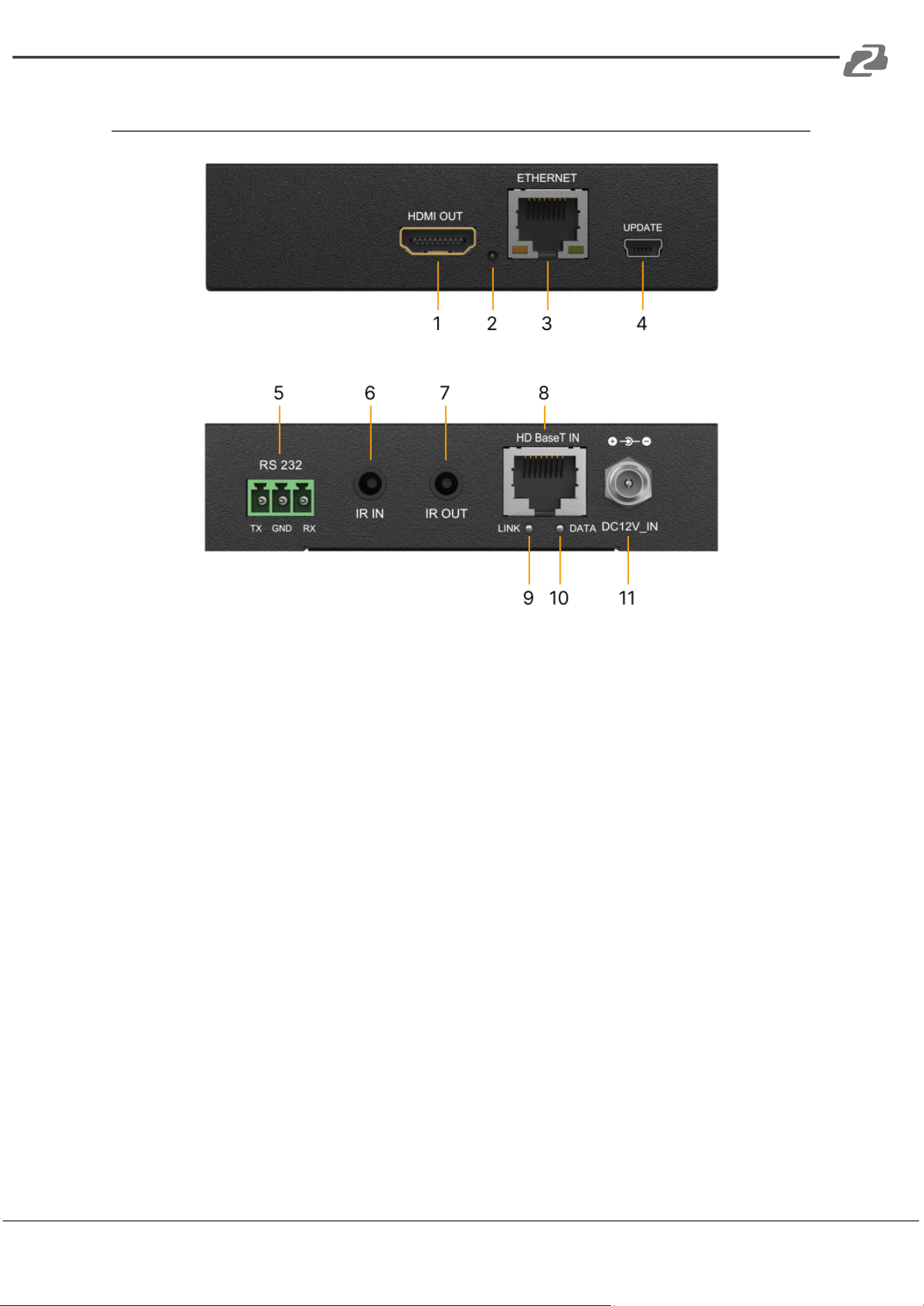

1. HDMI OUT: HDMI output port. Connect to a display with an HDMI cable.
2. OUTPUT LED: The LED will illuminate red when a display is connected with an
HDMI cable.
3. ETHERNET: Provides internet connection from transmitter or to transmitter.
4. UPDATE: Upgrade the software.
5. RS232: Phoenix jack provides a serial port control signal from transmitter or to
transmitter.
6. IR IN: Channel 1 IR Transmitter. Connect with Wideband IR Tx.
7. IR OUT: Channel 2 IR Receiver. Connect with Wideband IR Rx.
8. HDBaseT IN: RJ45 female HDBaseT signal input port.
9. LINK LED: Light will illuminate indicating a link with the base unit.
10. DATA LED: LED will flicker when data is being transmitted.
11. DC IN: Plug the 12V DC power supply into the unit.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-PSC8X2-REC PRODUCT MANUAL

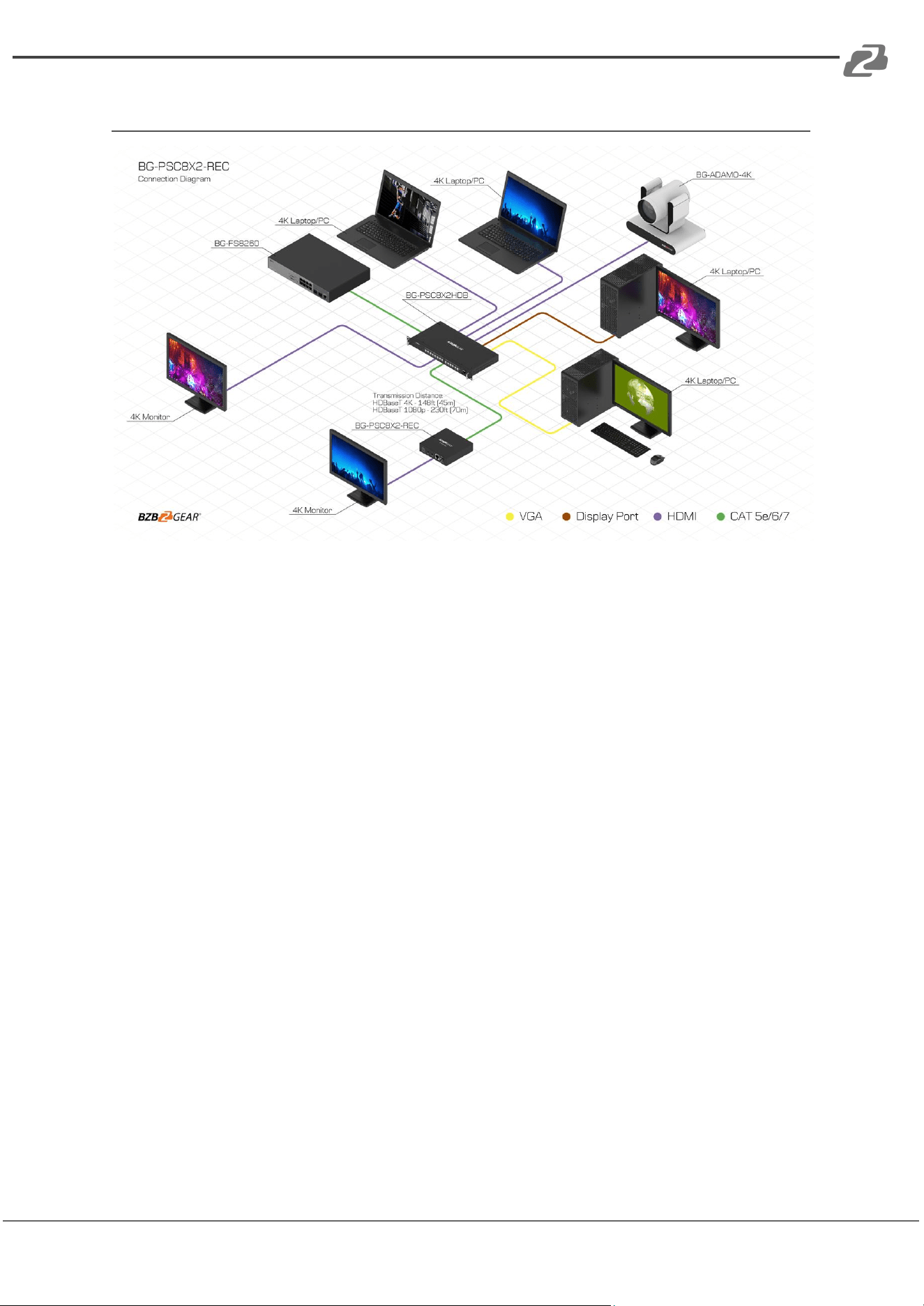

Application Example
