TurboFry® Touch
5.5-Litre
Easy-View
Air Fryer
RJ38-6TW-CA-SERIES
2
Get to Know Your Air Fryer
1. Control panel
2. Basket rack
3. Basket
4. Basket window
5. Basket handle
1
2
3
54
3
3
2
1
54
11 710 9 8
6
Control Panel
1. Shake indicator
2. HI-FRY button
3. Temperature/time display
4. Dash display
5. LIGHT button
6. Cooking preset buttons
7. START button
8. Plus sign button (+)
9. TIME-TEMP button
(press and hold for 3 seconds to switch between °C and °F)
10. Minus sign button (-)
11. STOP-CANCEL button
READ ALL INSTRUCTIONS BEFORE USE
For your safety and continued enjoyment of this product,
always read the instruction manual before using.
4
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed including the following:
1. Read all instructions.
2. Do NOT touch hot surfaces. Use handle or knobs.
3. To protect against electric shock, do not immerse cord, plugs or unit body
in water or other liquids.
4. Close supervision is necessary when any appliance is used by or
near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do NOT operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Contact
Chefman® Customer Support for examination, repair or adjustment.
7. The use of accessory attachments not recommended by Chefman®
may cause injuries.
8. Do NOT use outdoors.
9. Do NOT let cord hang over edge of table or counter, or touch hot surfaces.
10. Do NOT place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot
oil or other hot liquids.
12. To disconnect, turn any control to off, then remove plug from wall outlet.
13. Do NOT use the appliance for anything other than its intended use.
14. Place the unit on a flat, sturdy, heat-resistant surface. Do NOT place the
unit near or on any type of heat source, such as a gas or electric burner,
stove or oven, even if not on. Do NOT use near an open flame or
flammable materials.
15. The unit will emit some heat. Allow sufficient space around the unit when in
use, and do NOT place near other items or appliances.
16. Check that your home power supply corresponds with the intended
voltage of the air fryer.
5
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
17. Never wrap the cord tightly around the appliance during use or storage;
this may cause the wire to fray and break.
18. This product is not a deep fryer. It is NOT meant to be filled with oil. Never fill
any parts of the air fryer with oil. If you choose to use oil, toss food with oil
in a separate bowl and then transfer food to the removable rack or basket.
19. Do NOT leave uncooked ingredients in the air fryer for more than a short
period of time before cooking; raw meat, poultry, fish, fruits and vegetables
can spoil.
20. Do NOT move the air fryer while it is full of food.
21. Do NOT move the unit during use. During initial use, you may notice some
smoke and/or a slight odour. This is normal and should quickly dissipate. It
should not happen after the appliance has been used a few more times.
22. Do NOT leave the air fryer unattended during use.
23. Some areas do get HOT during use, and the touch screen may get warm.
Do NOT touch the heating elements. Do NOT place hands or other body
parts near the air vents while the air fryer is in use; burns may result. Take
caution when handling the hot air fryer rack and all removable parts.
24. Use protective mitts and/or tongs to remove hot food from the air fryer.
6
Do not place the appliance on a
stovetop or any other heatable surface,
even if stovetop is not on.
Doing so is a fire hazard.
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
WARNING: This appliance has a polarised plug (one blade is wider than the
other). This plug is intended to fit into a polarised outlet only one way. If the plug
does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a
qualified electrician. Do not attempt to modify the plug in any way or force it
into the outlet. This could result in injury or electric shock.
Short Cord Instructions
A short power-supply cord is provided to reduce the hazards of entanglement
or tripping over a longer cord. Longer detachable power-supply cords or
extension cords are available and may be used if care is exercised in their use.
If a longer detachable power-supply extension cord is used:
1. The marked electrical rating of the extension cord should be at least
as great as the electrical rating of the appliance.
2. The longer cord should be arranged so that it will not drape over
the countertop or tabletop where it can be pulled on by children or
tripped over.
7
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
Power Cord Safety Tips
1. Never pull or yank on the cord or the appliance.
2. To insert the plug, grasp it firmly and guide it into the outlet.
3. To disconnect the appliance, grasp the plug and remove it from the outlet.
4. Never use the product if the power cord shows signs of abrasion or
excessive wear. Contact Chefman® Customer Support for additional
guidance and support.
5. Never wrap the cord tightly around the appliance, as this could place
undue stress on the cord where it enters the appliance and cause it to
fray and break.
DO NOT OPERATE THE APPLIANCE IF THE POWER CORD SHOWS ANY DAMAGE
OR IF THE APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.
8
How to Use the Air Fryer
Before First Use
1. Remove all packaging materials, such as plastic bags and foam inserts.
Check to ensure that all parts and accessories are accounted for.
2. Read and remove any stickers on the unit except for the rating label, which
should remain on the unit.
3. Wipe down the interior and exterior with a damp cloth.
4. Wash the basket and rack with warm, soapy water. Dry thoroughly.
9
Quick Start:
How to Cook in the Air Fryer
The air fryer’s high-speed fan cooks your favourite foods quickly for perfect
results each time. The rack in the basket allows air to circulate around foods
for even cooking and crisping, and lets excess fat drip down and away from
foods for healthier eating.
CAUTION: Never fill the basket with oil. Unlike deep fryers, air fryers require little
to no oil to produce a crisp texture. If you choose to use oil, toss foods with just
a little in a separate bowl before cooking in the air fryer.

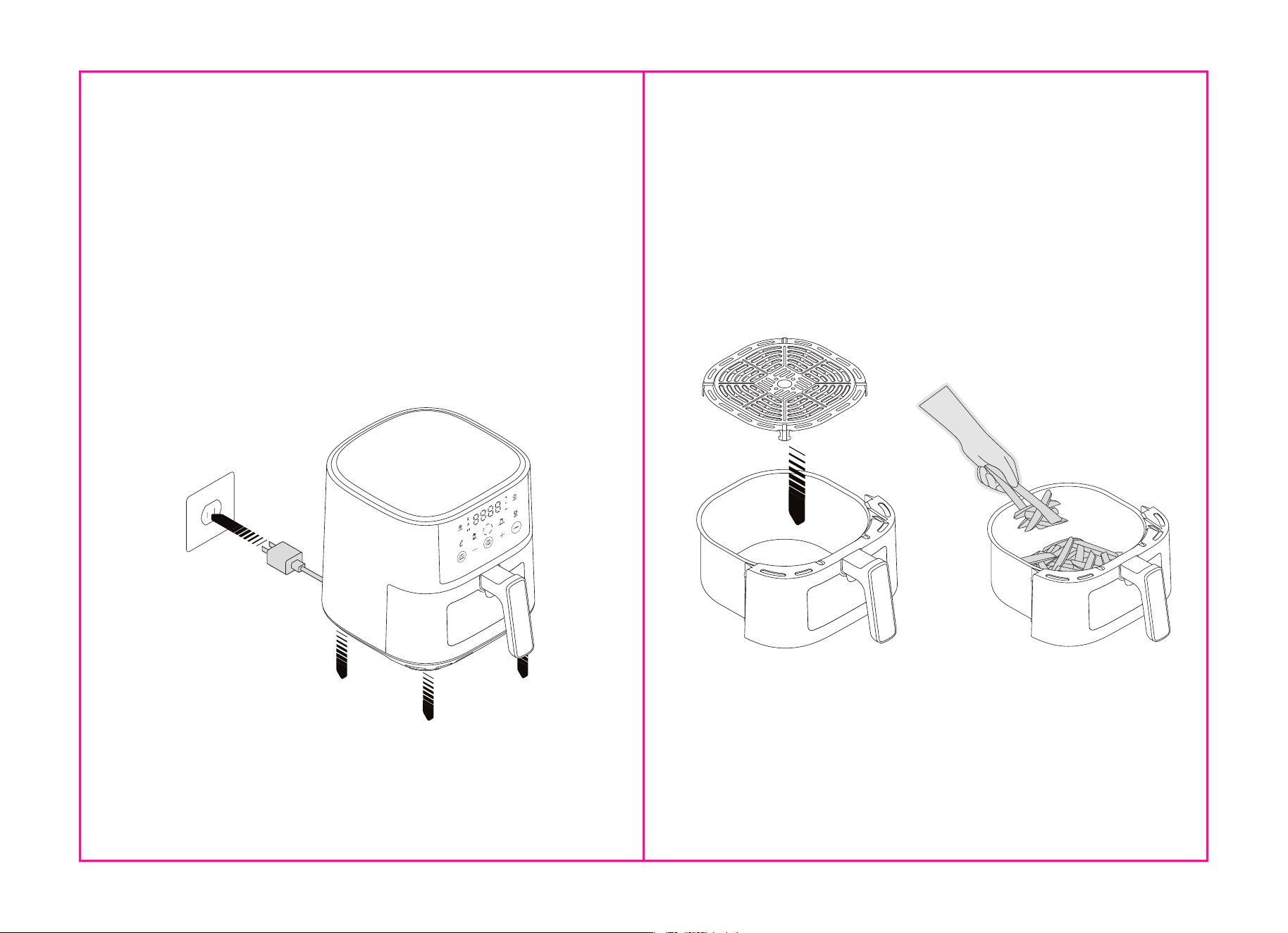

1. Place the unit on a hard, flat surface with at least 15 cm (6 inches) of
clearance on top and in the back for proper airflow; then plug in the
air fryer.
10
Quick Start: How to Cook in the Air Fryer
2. Lower the rack into the basket,
lining up the arrows on the floor of
the basket with the arrows on the
rack for proper fitting. Press down
on the rack to ensure it is secure
and level. There should be a small
amount of space between the
rack and the bottom of the basket.
CAUTION: Never use aerosol
cooking spray on the air fryer’s
nonstick parts, as it can cause
the coating to chip.
3. Place the food on the rack and
slide the basket into the air fryer.
To allow for good air circulation, do
not fill the basket past the MAX line.
11
Quick Start: How to Cook in the Air Fryer
4. Set the time and temperature as
desired. To set the temperature,
press the TIME-TEMP button until
the temperature displays, then
press the plus or minus sign. To
set the time, press the TIME-TEMP
button until the time displays,
then press the plus or minus
sign. Alternatively, press one of
the preset buttons. This will set
the preprogrammed time and
temperature (see chart on
p. 12 for details). Press START
to begin cooking
5. During cooking, the Shake light on
the control panel will turn on as
a reminder to shake (or fl ip) food.
Remove the basket and shake
food, then return the basket to the
unit to continue cooking. If your
food does not need to be shaken,
fl ipped or turned, simply ignore the
warning and it will turn off after
60 seconds. NOTE: You can remove
the basket at any time during
cooking to check on foods. When
you return the basket to the unit,
cooking will resume where it left off.
6. When the timer is done, the air fryer will beep and cooking will stop.
Remove the basket, check food for doneness, and serve.
Special Function: HI-FRY The HI-FRY button raises the temperature to 235˚C
(450˚F) for 2 minutes to give foods a little additional browning and an extra-
crispy fi nish. You can press it either toward the end of the cooking cycle or just
after it ends.
12
Tips & Cooking Presets Chart
For a crisp exterior, oil foods lightly. Some foods, especially if fresh, benefit
from being tossed with a little oil in a separate bowl before air frying. However,
high-fat foods, like a well-marbled steak, or prepared foods usually require no
additional oil.
Avoid wet batters. Loose batters, such as tempura or beer batter, should not be
used in the air fryer, as the batter does not set quickly and will drip off the food.
Instead, stick to thick, pasty batters or breaded foods like chicken nuggets.
Don’t overcrowd the basket. Too much food, especially if tightly packed, can
inhibit browning and crisping. A better bet is to fry food in batches.
Shake the basket mid-cycle for even cooking. A good shake is especially
beneficial for smaller foods like french fries, onion rings and chicken wings. For
larger or more fragile foods, consider gently tossing or flipping for even results.
Check on foods early. Check foods on the earlier side of the cooking time to
avoid overcooking. You can always slide the basket back in to continue cooking.
Follow food-safety guidelines for doneness. Because air fryer temperatures and
food sizes can vary, do not rely exclusively on recipe timing when cooking food.
Check foods for doneness against current safety guidelines before serving.
Cooking Presets Chart
The cooking presets let you quickly and conveniently program the unit.
They represent average times and temperatures, so always check foods for
doneness before serving.
Food Default Time Default Temp Shake Indicator
Meat 18 min 190°C (375°F) Comes on halfway through
cook time.
Chicken 22 min 205°C (400°F) Comes on halfway through
cook time.
Fish 10 min 190°C (375°F) Comes on halfway through
cook time. Flip, don't shake
delicate fillets.
Fries 18 min 205°C (400°F) Comes on halfway through
cook time.
13
Keep It Clean
With its nonstick coating and dishwasher-safe parts, the air fryer is super easy
to clean.
1. Unplug the air fryer and let it cool completely before cleaning.
2. To remove the cooled rack from the basket, pull the rack straight up and out,
using the center hole for easier handling. CAUTION: Do NOT lift the rack out
of the basket when hot.
3. Wash the basket and rack with warm, soapy water, then rinse and dry well.
The basket and rack are also top-rack dishwasher safe. Do NOT use window
cleaner on the basket window.
4. Wipe down the interior and exterior with a damp cloth. Do NOT put the unit
in the dishwasher or submerge in water or any other liquid. Do NOT use
abrasive cleansers, or you could damage the finishes.
5. Dry the unit and all accessories completely before storing.
14
Having Trouble?
Problem Likely Cause Solution
Food isn’t golden
brown and crisp.
Food wasn’t tossed in oil. While you can air fry with no added oil,
coating foods very lightly with oil (usually just
½ teaspoon per batch) helps guarantee crisp
results. Preheating the air fryer also helps.
Food cooked
unevenly.
Food was overcrowded
in the basket; food was
not shaken or flipped
during cooking.
Fill the air fryer basket loosely with food to let
air circulate. Shake, toss or flip foods at least
once during cooking for more even results.
Smoke is coming
from the unit.
There is too much fat in
the oven.
Avoid cooking very fatty foods, such as
sausages, in the oven, and be sure the
basket, rack and interior of the unit are
clean before cooking. Otherwise, contact
Chefman® Customer Support for assistance.
An error code
displayed on the
control panel.
If E3 displays, it means the
air fryer has shut off due to
overheat protection. If E1 or
E2 displays, it means there
is a malfunction that can’t
be fixed.
E3: Allow the air fryer to cool fully and it will
operate normally.
E1 or E2: Please contact Chefman® Customer
Support.
15
N otes
16
Terms & Conditions
Limited Warranty
RJ Brands, LLC d/b/a Chefman® offers a limited 1-year Warranty (the “Warranty”)
available on sales through authorised distributors and retailers only. Please
note that this Warranty becomes valid from the date of initial retail purchase
and that the Warranty is nontransferable and applies only to the
original purchaser.
This Warranty is void without proof of purchase within the United States and
Canada. Please be aware that this Warranty supersedes all other warranties
and constitutes the entire agreement between the consumer and Chefman®.
Any changes to the Terms and Conditions of this Warranty must be in writing,
signed by a representative of Chefman®. No other party has the right or ability
to alter or change the Terms and Conditions of this Warranty.
We may ask you to please submit, via email, photos and/or video of the issue
you are experiencing. This is to help us better assess the matter and possibly
offer a quick fix. Photos and/or video may also be required to determine
Warranty eligibility.
We encourage you to register your product. Registering can make the Warranty
process easier and can keep you informed of any updates or recalls on
your product. To register, follow the directions on the Chefman® Warranty
Registration page in the Chefman® User Guide. Please retain your proof of
purchase even after registering. In the event that you do not have proof of
your purchase date, we may declare your Warranty void or we may, at our sole
discretion, apply the date of manufacture as the purchase date for purposes of
this Warranty.
17
Terms & Conditions
What the Warranty Covers
• Manufacturer Defects - Chefman® products are warranted against defects
in material and workmanship, under normal household use, for a period of
1 year from the date of purchase when used in accordance with the
directions listed in the Chefman® User Guide. If your product does not work
as it should, please contact Customer Support at support@chefman.com so
that we may assist you.
This Warranty Does Not Cover
• Misuse
Damage that occurs from neglectful or improper use of products, including,
but not limited to, damage that occurs as a result of usage with incompatible
voltage, regardless of whether the product was used with a converter or
adapter. See Safety Instructions in the Chefman® User Guide for information
on proper use of product;
• Poor Maintenance
General lack of proper care. We encourage you to take care of your
Chefman® products so that you may continue to enjoy them. Please see
Keep it Clean directions in this Chefman® User Guide for information on
proper maintenance;
• Commercial Use
Damage that occurs from commercial use;
• Normal Wear and Tear
Damage or degradation expected to occur due to normal use over time;
• Altered Products
Damage that occurs from alterations or modifications by any entity
other than Chefman® such as the removal of the rating label affixed to
the product;
• Catastrophic Events - Damage that occurs from fire, floods, or natural
disasters; or
• Loss of Interest - Claims of loss of interest or enjoyment.
18
Terms & Conditions
For product information, please visit us at Chefman.com.
EXCEPT WHERE SUCH LIABILITY IS REQUIRED BY LAW, THIS WARRANTY DOES NOT
COVER, AND CHEFMAN® SHALL NOT BE LIABLE FOR, INCIDENTAL, INDIRECT, SPECIAL,
OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, DAMAGE TO, OR
LOSS OF USE OF THE PRODUCT, OR LOST SALES OR PROFITS OR DELAY OR FAILURE TO
PERFORM THIS WARRANTY OBLIGATION. THE REMEDIES PROVIDED HEREIN ARE THE
EXCLUSIVE REMEDIES UNDER THIS WARRANTY, WHETHER BASED ON CONTRACT, TORT
OR OTHERWISE.
19

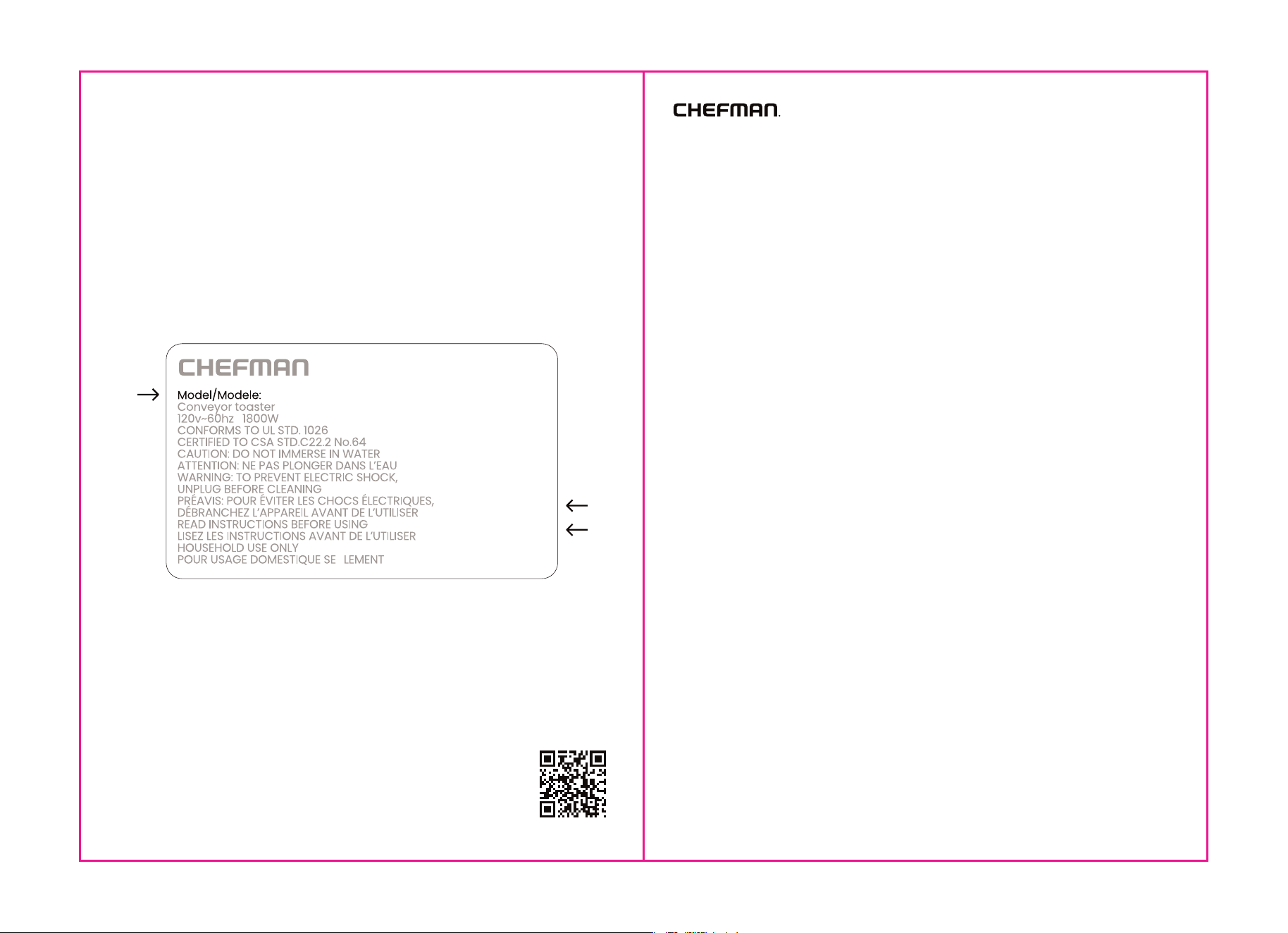

How do I register my product?
All you need to do is fill out a simple Chefman® registration form.
You can easily access the form in one of the two ways listed below:
• Visit Chefman.com/register.
• Scan the QR code to the right to access site.
NOTE: Label depicted here is an example.
Please see label on your product for actual model/date code/access code.
Warranty Registration
What do I need to register my product?
• Contact Information
• Model Number (see example below)
• Proof of Purchase (online confirmation, receipt, gift receipt)
• Date Code (see example below)
• Access Code (see example below)
Date Code:
0000
Access Code:
Xxxxxxxx
Made in China/Fabrique en Chine
AC Only/ AC Seulement
XXXXX
RJ386TWCASERIESUG041724
TurboFry® Touch
5.5-Litre Easy-View Air Fryer
Chefman® is a registered trademark of RJ Brands, LLC.
TurboFry® is a registered trademark of RJ Brands, LLC.
