RF NODE ZHAGA DC
LLC745x/00
Installation instructions
4422 945 46109, 16 March 2026
LLC7450, LLC7452, LLC7454,
LLC7456, LLC7458
LLC7451, LLC7453, LLC7455
LLC7458
LLC7456
LLC7458
Instructions d’installation Istruzioni per l’installazione Installationsanweisungen
安装指示书
Instrucciones de instalación Installatie-instructies
インスト ー ル 手 順
بﯾﻛرﺗﻟا تادﺎﺷرإ
LLC7450, LLC7451,
LLC7452, LLC7453,
LLC7454, LLC7455
Asset data log book
1x
1x
RF Node ID
RF Node ID RF Node ID
C
l
e
a
n
i
n
g
a
g
e
n
t
88.8 mm (3.50 in)
41.8 mm
(1.65 in)
41.0 mm
(1.61 in)
1 B Warning
2
Installation
Guide
RF node ID
RF node ID
3
4422 945 46109, 16 March 2026
© 2019-2026 Signify Holding. All rights reserved. The information provided
herein is subject to change, without notice. Signify does not give any
representation or warranty as to the accuracy or completeness of the
information included herein and shall not be liable for any action in reliance
thereon. The information presented in this document is not intended as
any commercial offer and does not form part of any quotation or contract,
unless otherwise agreed by Signify. All trademarks are owned by Signify
Holding or their respective owners.
UK importer address:
Signify Commercial UK Limited
2 Guildford Business Park
GU2 8XG, UK
www.signify.com/products
FCC statement
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Any changes
or modifications not expressly approved by Signify could void the user’s
authority to operate this equipment. This product is intended for
commercial use only.
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment must be installed and operated
with a minimum distance 20cm between the radiator and your body.
“ISED Radiation Exposure Statement
This equipment complies with ISED radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator and your
body. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.”
Cet équipement respecte les limites d’exposition aux rayonnements
ionisants fixées pour un environnement non contrôlé. Cet équipement
doit être installé et utilisé avec une distance minimale de 20cm entre
le radiateur et votre corps. Cet émetteur ne doit pas être localisé ou
fonctionner en conjonction avec une autre antenne ou un autre émetteur.
Push
20~50N
Zhaga book 18 LEX-R
1
2
3
4

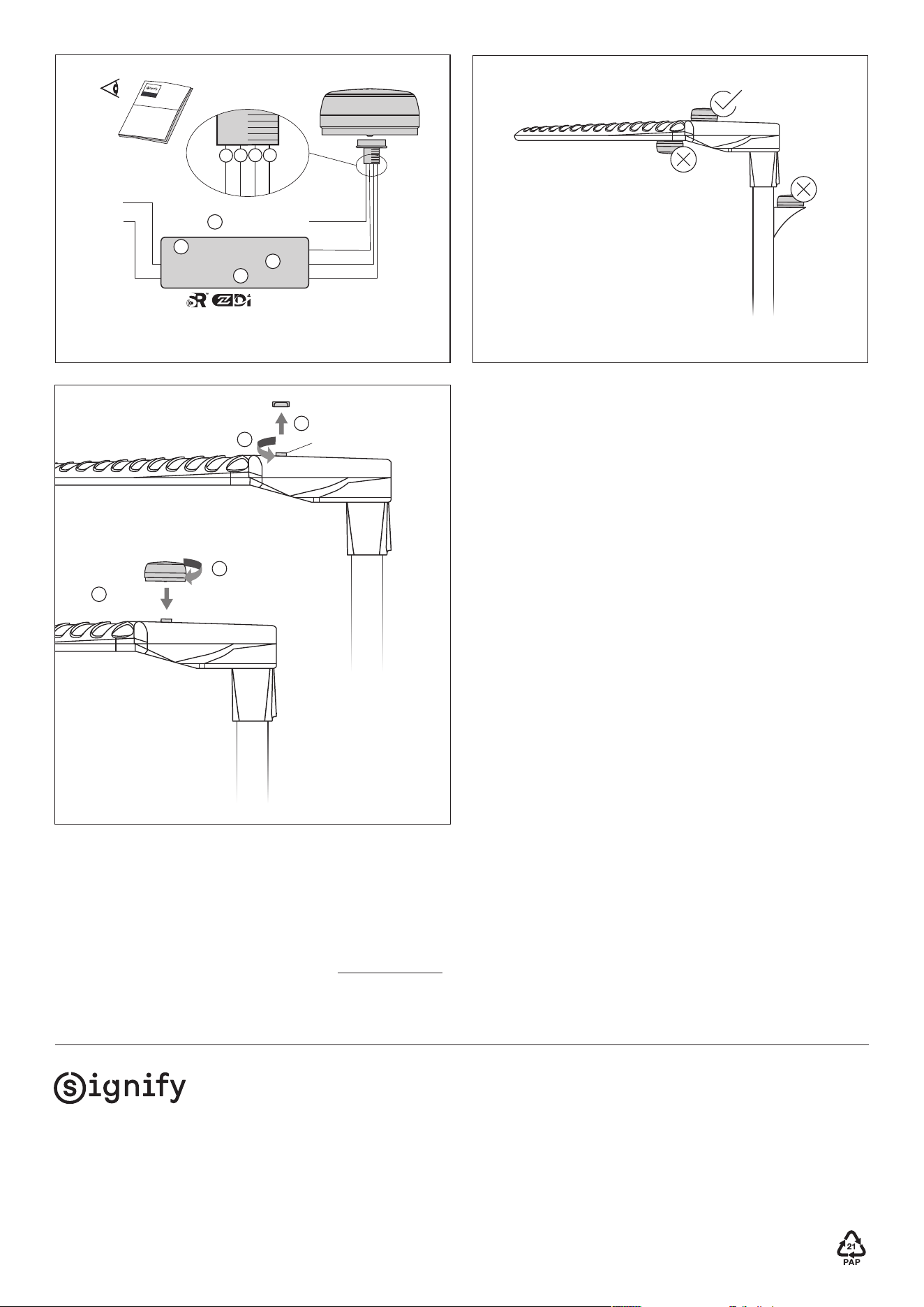

Installation
Guide
Line
Neutral
AUX (24 Vdc, Iout ≤ IA)
DA+
DA-/SGND
L
N
Driver
Not connected
The driver needs to have short protection,
and at least basic insulation circuit from mains power supply.
1
1
2
2
3
3
4
4
4 5
6
B Warning
Control terminals marked ‘Caution’ are considered to be hazardous/
live parts and are not safe to touch. Circuits connected to these
terminals shall be insulated according to the mains supply voltage of
the controlgear and any terminals connect to these circuits shall be
protected against accidental contact.
Hereby, Signify declares that the radio equipment type LLC745x/00 are in
compliance with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following Internet address: www.signify.com/red
B Warning
Do not use any chemical cleaning agents on the LLC745x/00.
