1665mm
1687.2mm
1348.1mm
12.3mm
1125.2mm
512.5mm
1687.2mm
Top Mount Refrigerator
Height Overall Overall Cab Height (Including
Rollers )
Refrigerator Door Overall Top Door Freezer to
Rollers) Height
Freezer Door Height
Model Size
BR1460HW
BR1460HS
BR1460HB
(1687.2mm)
(1665mm) (1665 mm) (1125.2 mm)
Note: Millimeter dimensions are actual.
(512.5 mm)
Middle of the Freezer
(1348.1mm)
Fractional inch dimensions are derived by rounding off to the nearest 1/10 inch.
Cabinet Width
(708 mm)
37.2mm
35mm
Top Mount Refrigerator

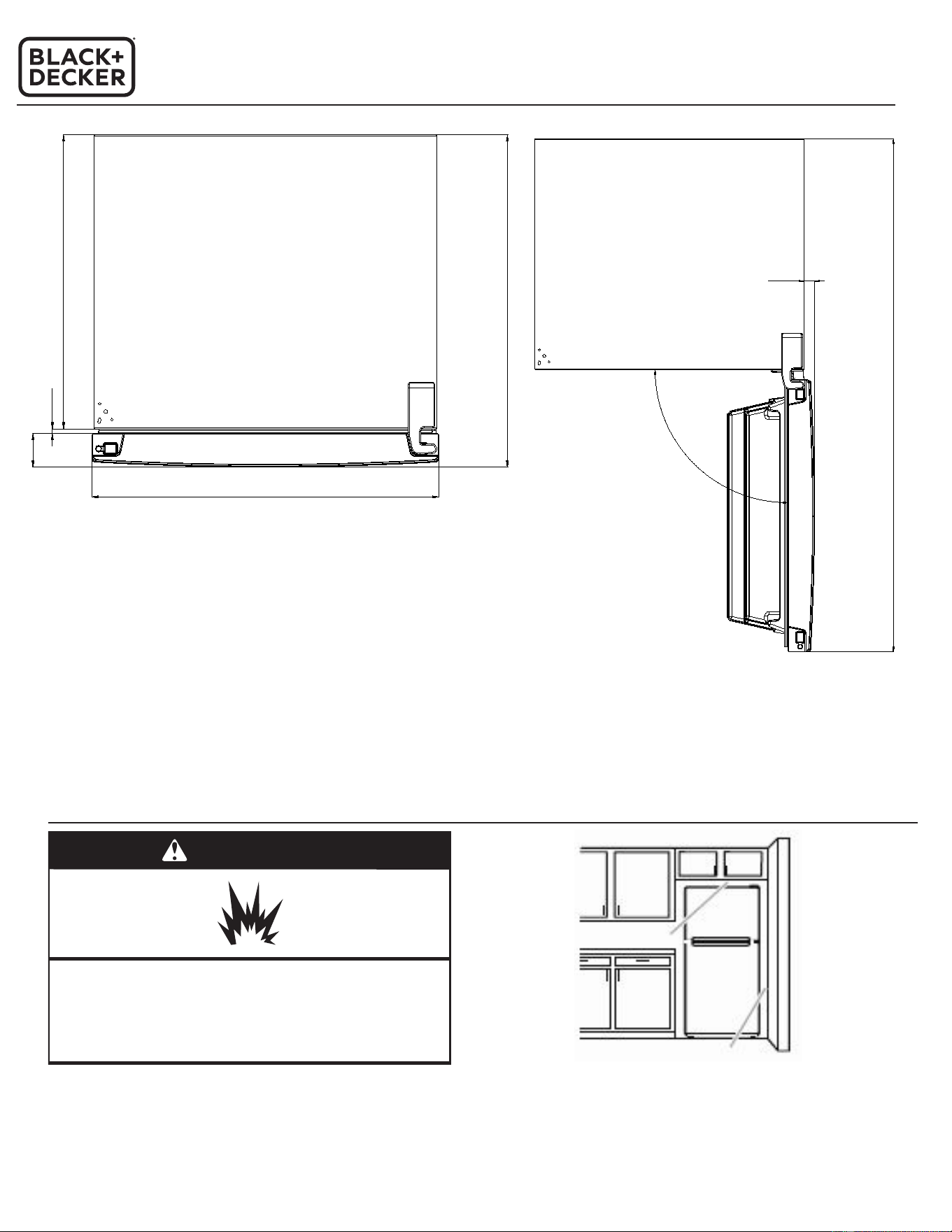

To ensure proper ventilation for your refrigerator, it is recommended to allow a 1/2" (1.27 cm) space on each side. Allow 1½" (3.81 cm) of space between overhead
cabinets and refrigerator top. Allow at least 1" (2.54 cm) between back of cabinet and the wall (consider the condenser as back in case is present). If your
refrigerator has an ice maker, make sure you leave extra space at the back for the water line connections.

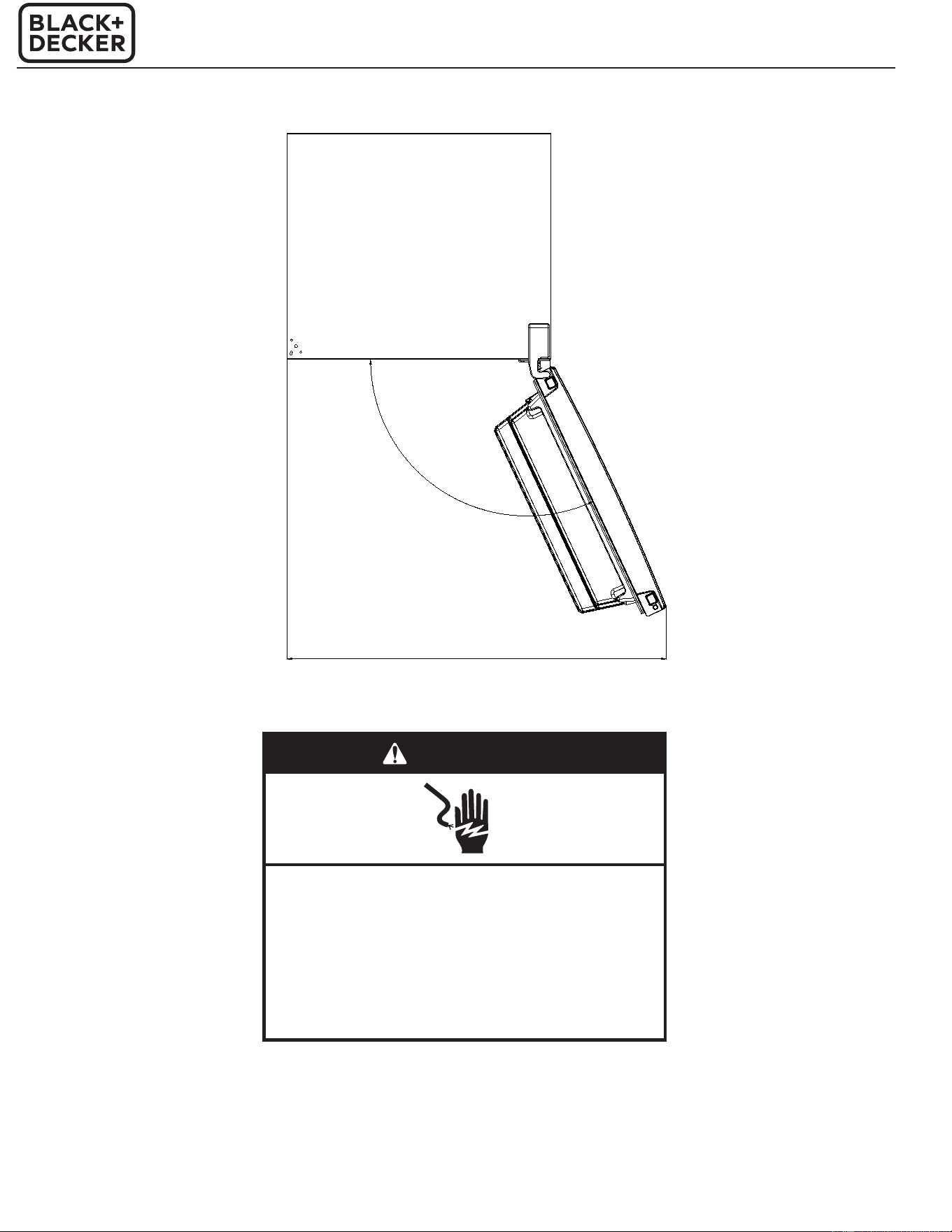

If you are installing your refrigerator next to a xed wall, leave 2
1
/
4
" (5.7 cm) on the hinge side to allow the door to swing open.
This space on the hinge side also allows for crisper removal when the door is fully swung open.
NOTE: This refrigerator is intended for use in a location where the temperature ranges from a minimum of 55°F (13°C) to a maximum of 110°F (43°C). The preferred
room temperature range for optimum performance, which reduces electricity usage and provides superior cooling, is between 60°F (15°C) and 90°F (32°C). It is
recommended that you do not install the refrigerator near a heat source, such as an oven or radiator.
LOCATION REQUIREMENTS
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
68.4mm
9.4mm
600mm
708mm
677.8mm
27.1mm
90°
1334.4mm
Top Mount Refrigerator
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
Electrical: A 115 V, 60 Hz., AC only, 15 A or 20 A fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be
provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.
NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the control (Thermostat, Refrigerator or Freezer Control depending on the
model) to OFF and then disconnect the refrigerator from the electrical source. When you are nished, reconnect the refrigerator to the electrical source and reset the
control (Thermostat, Refrigerator or Freezer Control depending on the model) to the desired setting. See “Using the Controls.”
Water: A cold water supply with water pressure between 30 and 120 psi (207 and 827 kPa) is required to operate ice maker and water dispenser. If you have questions
about your water pressure, call a licensed, qualied plumber.
IMPORTANT: The pressure of the water coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi
(207 and 827 kPa). Reverse Osmosis Water Supply: If a reverse osmosis water ltration system is connected to your cold water supply, the water pressure to the reverse
osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
1
2
5°
1006.1mm
（CTQ）281.5
+
-
0
0.5
Top Mount Refrigerator
Models: BR1460HW BR1460HS BR1460HB
Freezer Shelves
Refrigerator Compartment Features
Description Width "A" Depth "B" Height "C"
FREEZER GLASS SHELF TM CHROME (550mm) (281.5 mm) N/A
（CTQ）550
+
-
0
0.5
5
Top Mount Refrigerator
Models: BR1460HW BR1460HS BR1460HB
Refrigerator Shelves
Refrigerator Compartment Features
Description Width "A" Depth "B" Height "C"
REFRIGERATOR GLASS SHELF STANDARD (603mm) (330mm) N/A
（
CTQ
）385
-0
0
.5
3
4
1
0
（
CTQ
）603
-0.5
2
BOTTOM GLASS SHELF STANDARD
(603mm)
(385mm)
N/A
7
Top Mount Refrigerator
Models: BR1460HW BR1460HS BR1460HB
Refrigerator Compartment Features

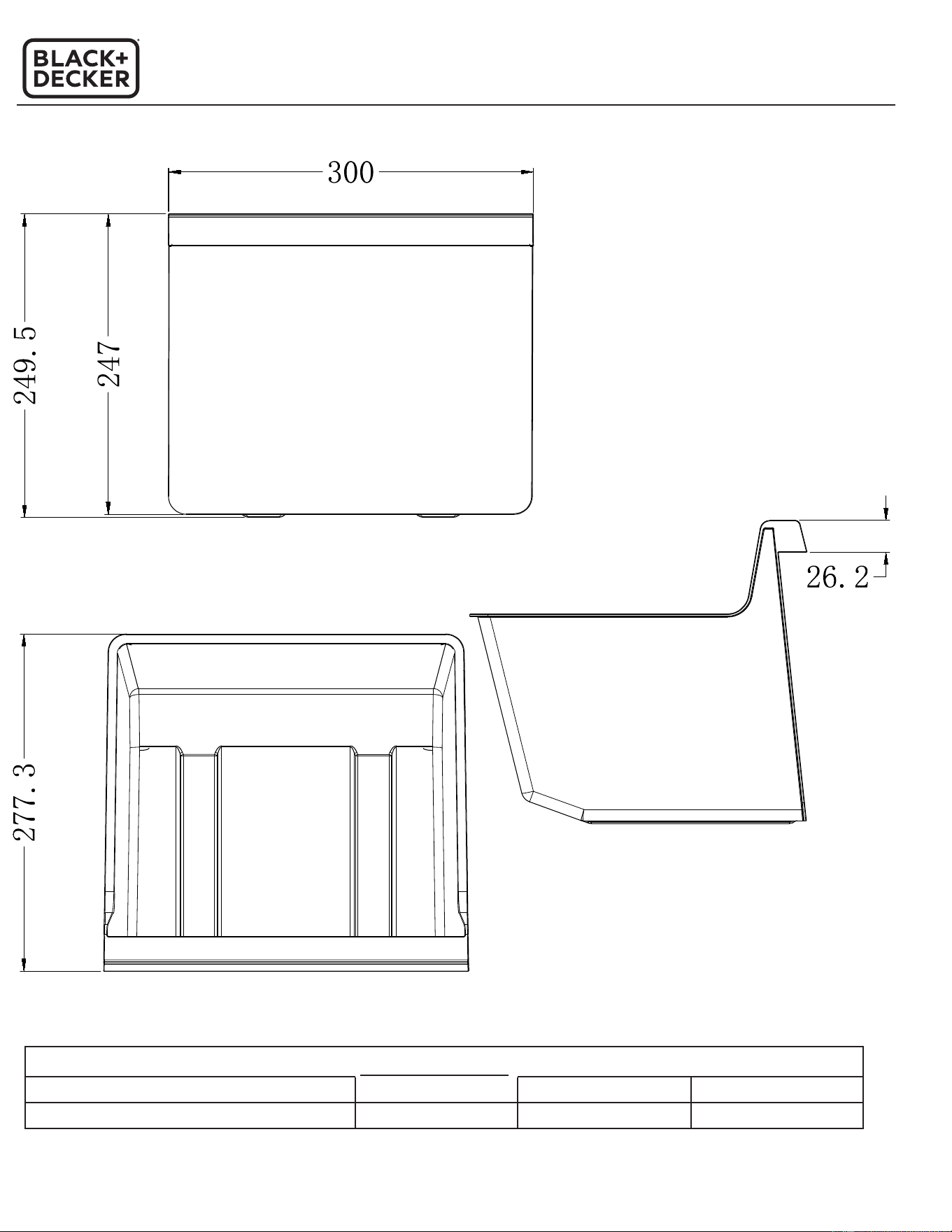

Description Width "A" Depth "B" Height "C"
CRISPER PAN (300mm) (277.3 mm) (247mm)
