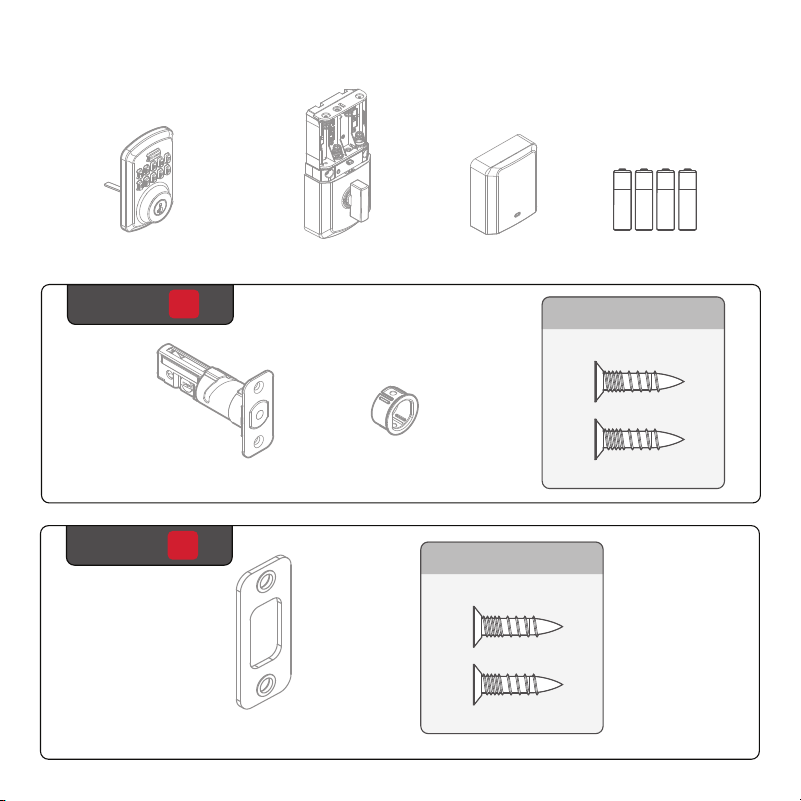

Parts in the box
Exterior Assembly
Interior Assembly
Interior Cover
Latch
Collar
Strike
1
Step
53648
53648
Batteries
2Step
3

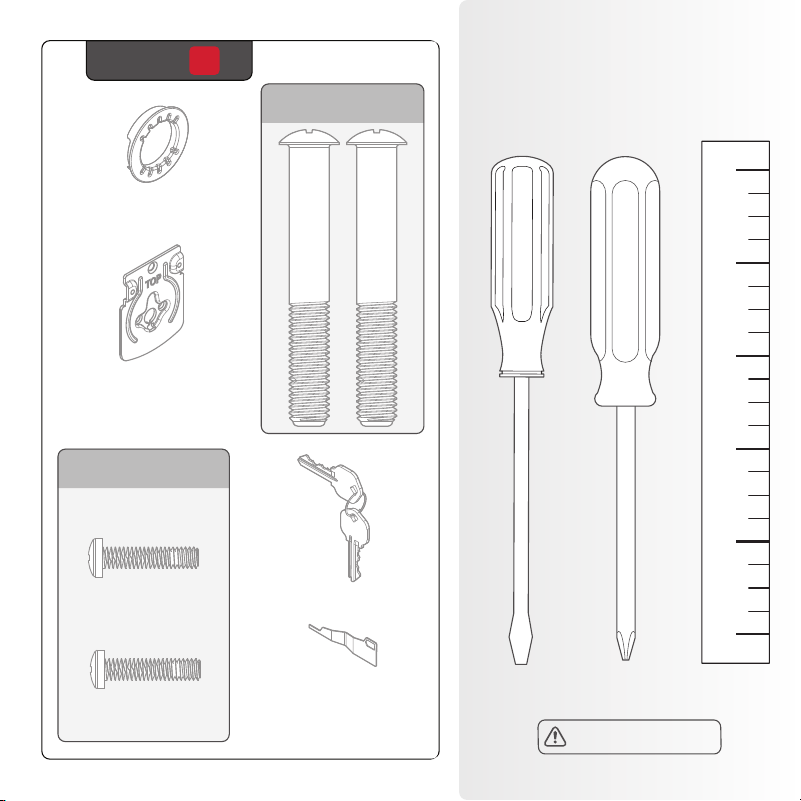

Required
tools
Phillips head
screwdriver
No electric drills
Ruler
Flat head
screwdriver
Mounting
plate

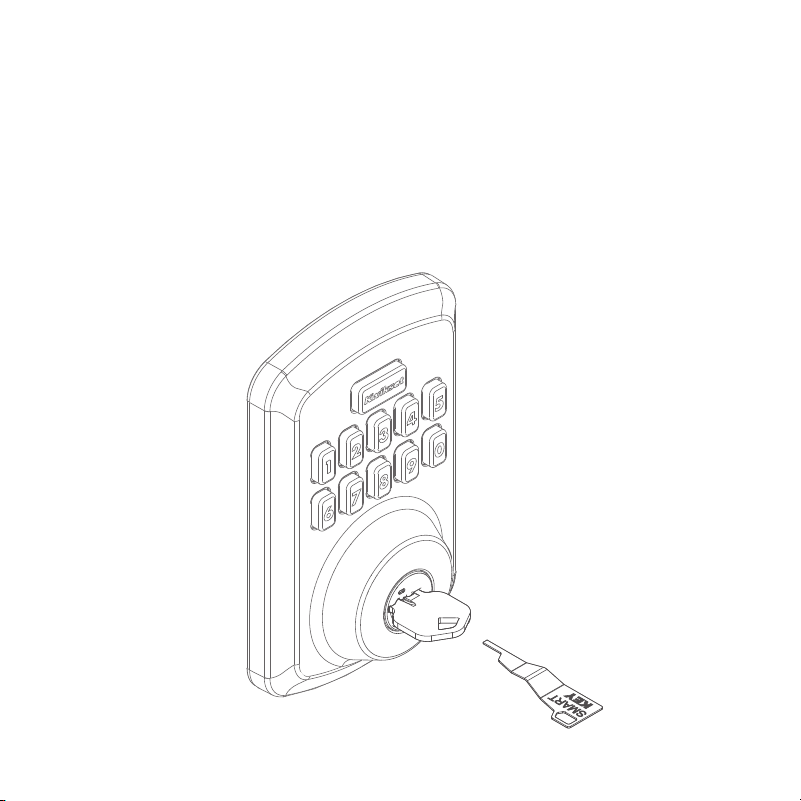

Keys
3
Step
52367
SmartKey™
tool
52502
Adapter ring
4
Installation
1

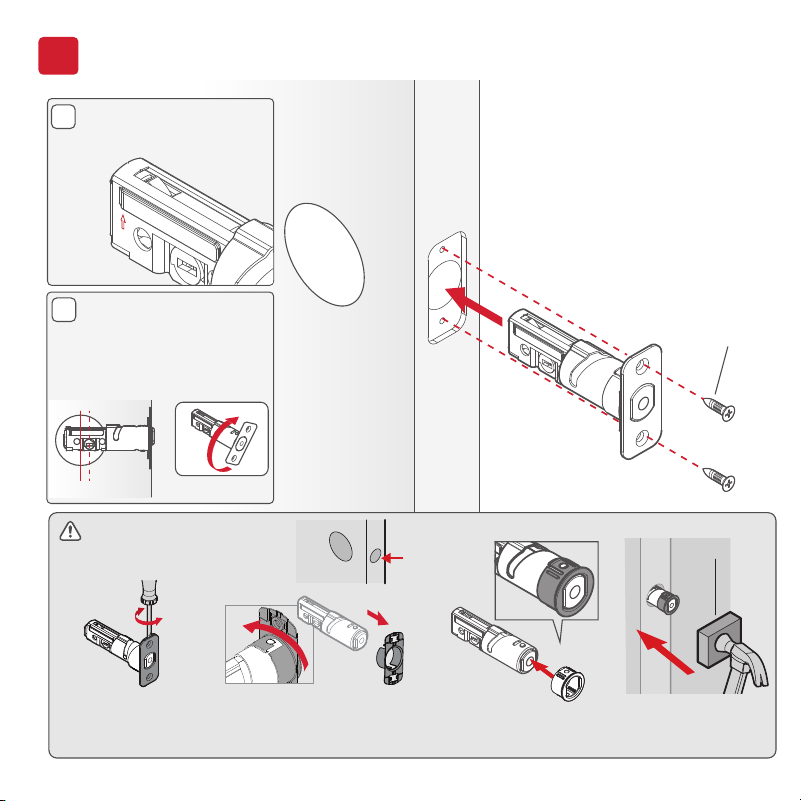

Install the latch
B
UP
A
If the rectangle shaped
hole is not centered in
the door hole, rotate
the latch face to extend
the latch.
53648
(2X)

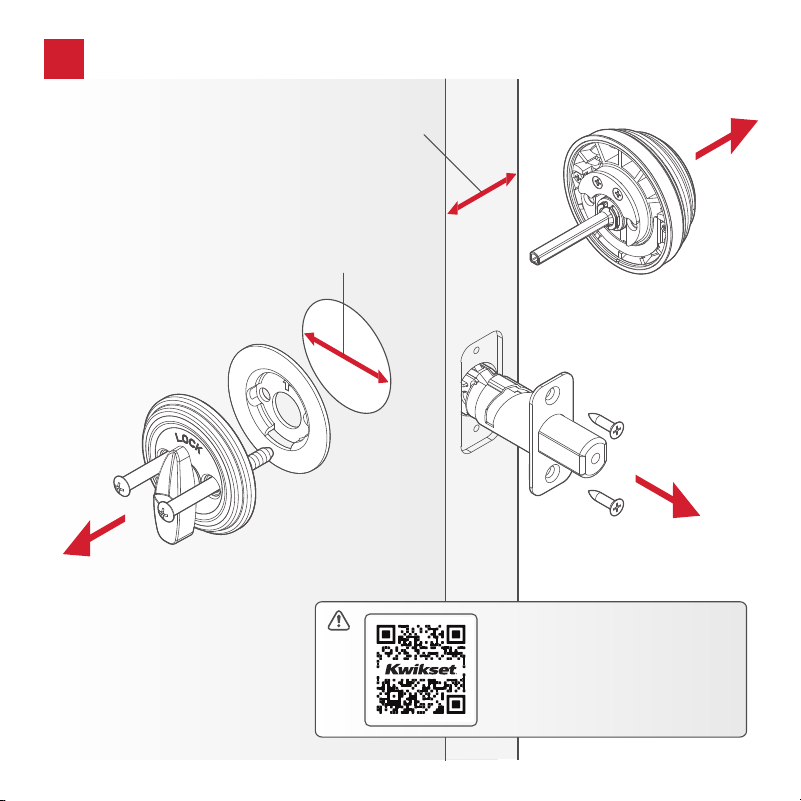

If your door is not chiseled,
install the drive-in collar.
[OUTSIDE]
UP is on top.
Wood Block
1.Use a flathead
screwdriver to
remove latch face.
3. Install the
drive-in collar to
the latch.
4. Install latch to the
door.
2. Twist and pull
the collar off.
7
DOOR
JAMB
53648
(2X)
2

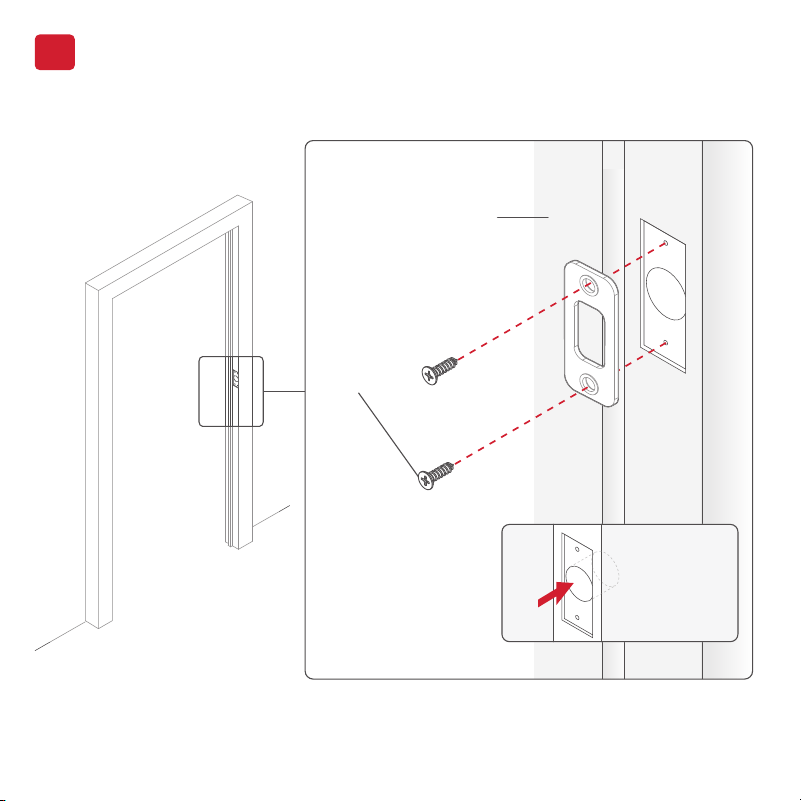

Install the strike
1" (25mm)
hole depth
8

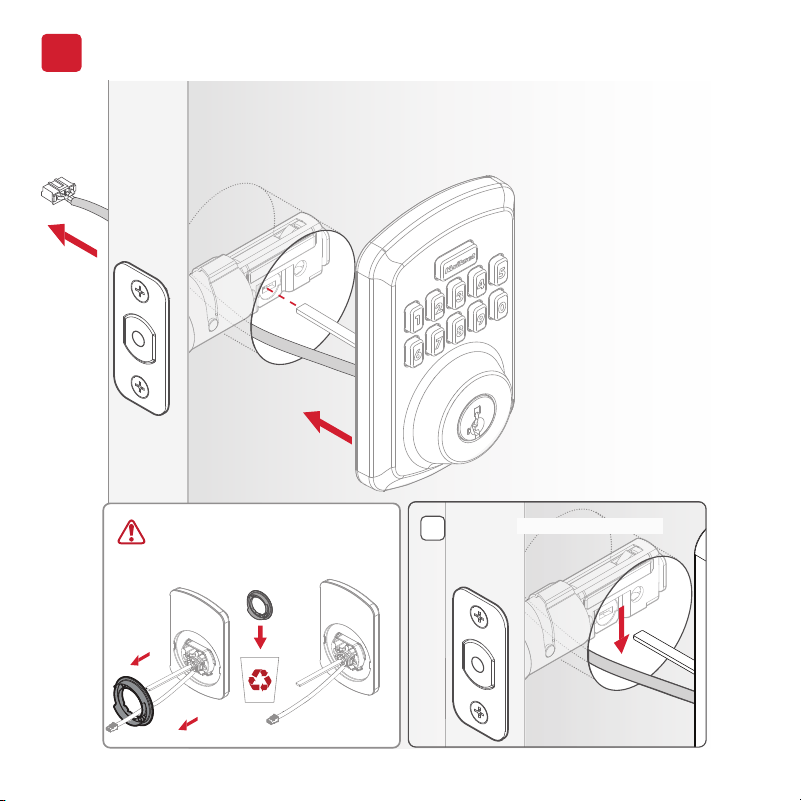

Install the exterior assembly
3
[OUTSIDE]
Cable goes under the latch.
A
Remove adapter ring if bore
hole measures 1-1/2” (38mm)
diameter.
9
[INSIDE]
Tighten the screws evenly.
(2X)
[INSIDE]
Tighten the screws evenly.
DO NOT over-tighten.
Keep parallel to
the door edge

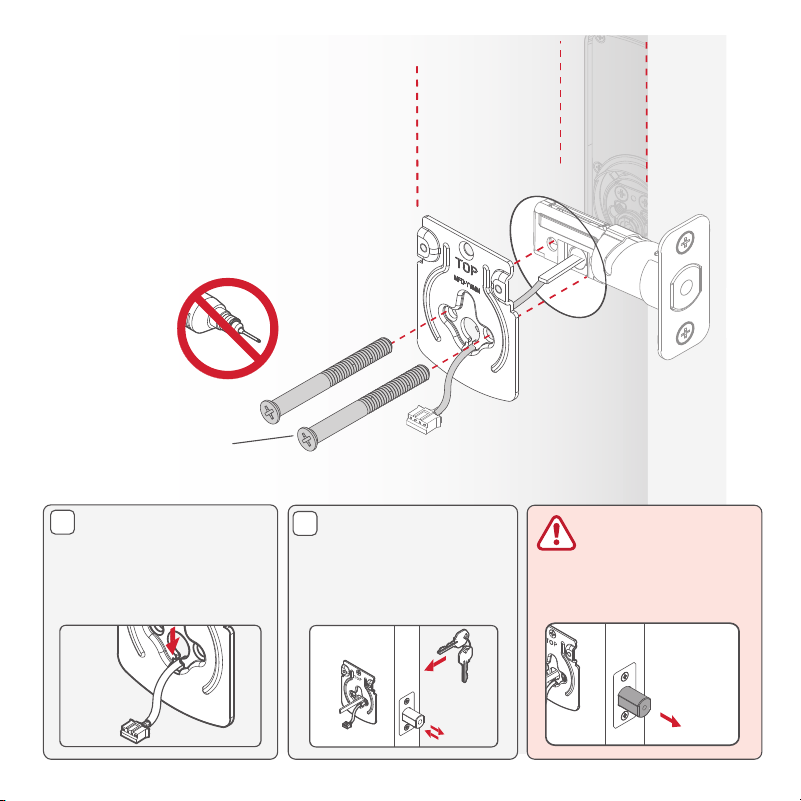

52367
B
C
Route the cable through
the center hole of the
mounting plate, then
push the cable down
into the bottom hole.
Insert the key and test
the latch. If the bolt does
not extend or retract
smoothly, adjust the
screws. Leave the bolt
LOCKED/EXTENDED.
Before You
Continue
Ensure the latch bolt is
in the extended position.
10
Install the interior assembly
4

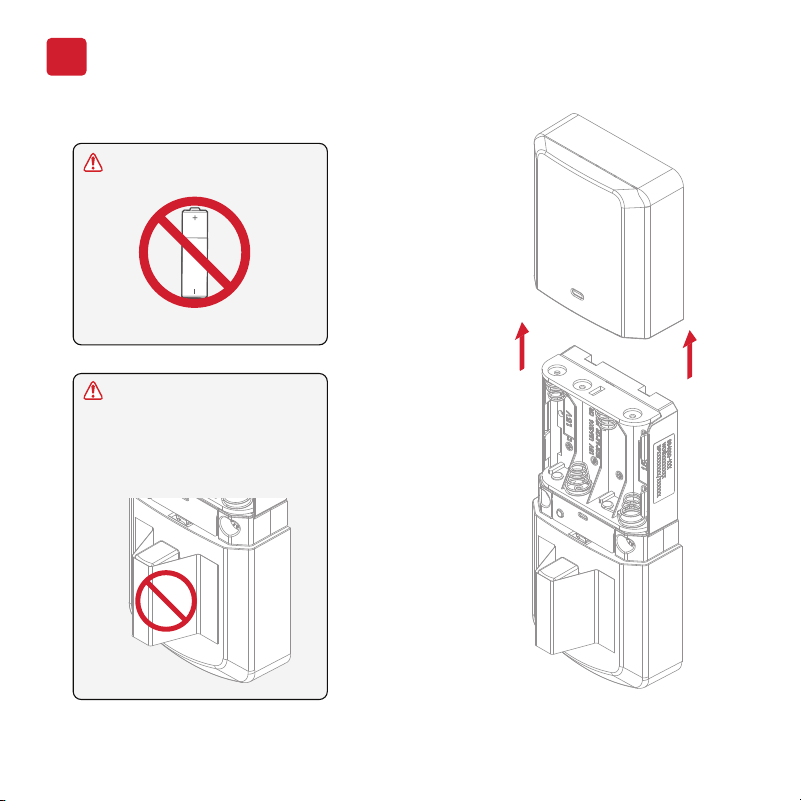

Remove the interior
cover from the
interior assembly.
DO NOT install the
batteries. Wait until Step
5.
DO NOT remove the sticker
from the turnpiece. Ensure
the turnpiece remains
in a vertical position.
11
Secure the interior
assembly onto the
mounting plate.
Ensure latch bolt
is extended.
[INSIDE]
D
Ensure the flat blade
fully engages with the
turnpiece shaft.
C
B

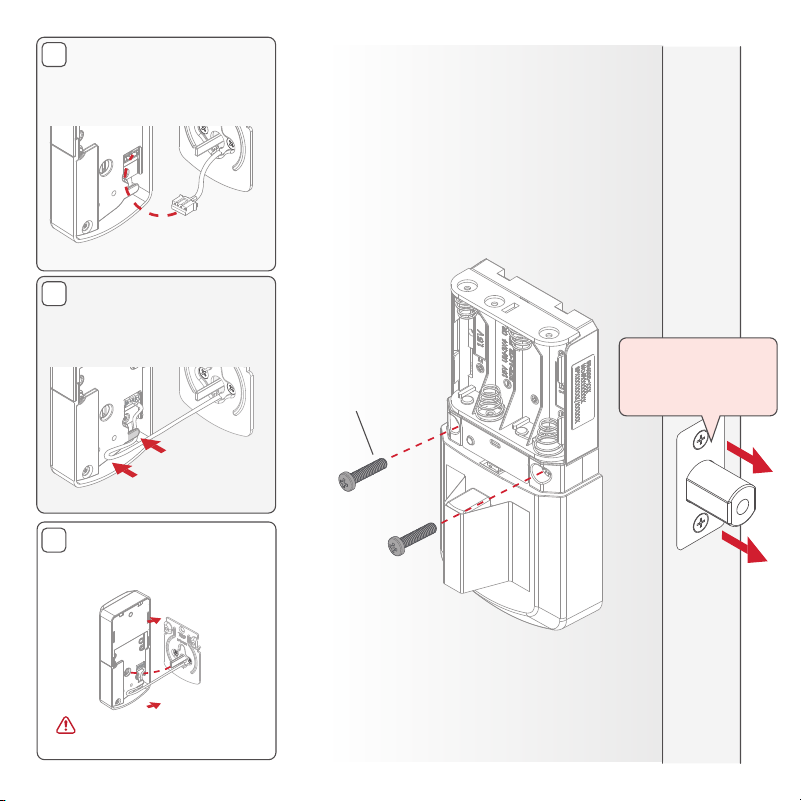

Connect the cable.
Ensure a tight cable
connection.
Excess cable will sit
inside the bottom of the
interior housing.
(2X)
52502
Ensure cable remains
connected.
Ensure the bolt is
in the extended
position.
12

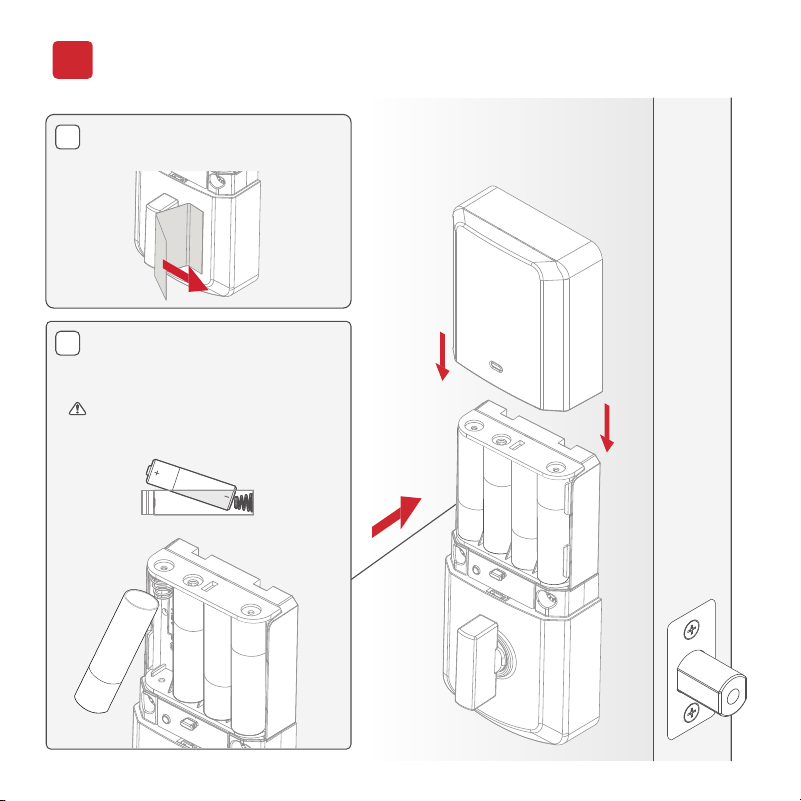

Install batteries
5
With the door open, install
the batteries.
NOTE: Lock
must be installed on the door
before inserting the batteries.
[INSIDE]
Insert (4) AA batteries (included)
into the battery pack.
Ensure correct polarity. Use new,
non-rechargeable alkaline
batteries only.
B
Remove sticker from the turnpiece.
A
13
Download the Kwikset
app & create an account
to complete set up
Reference Guide

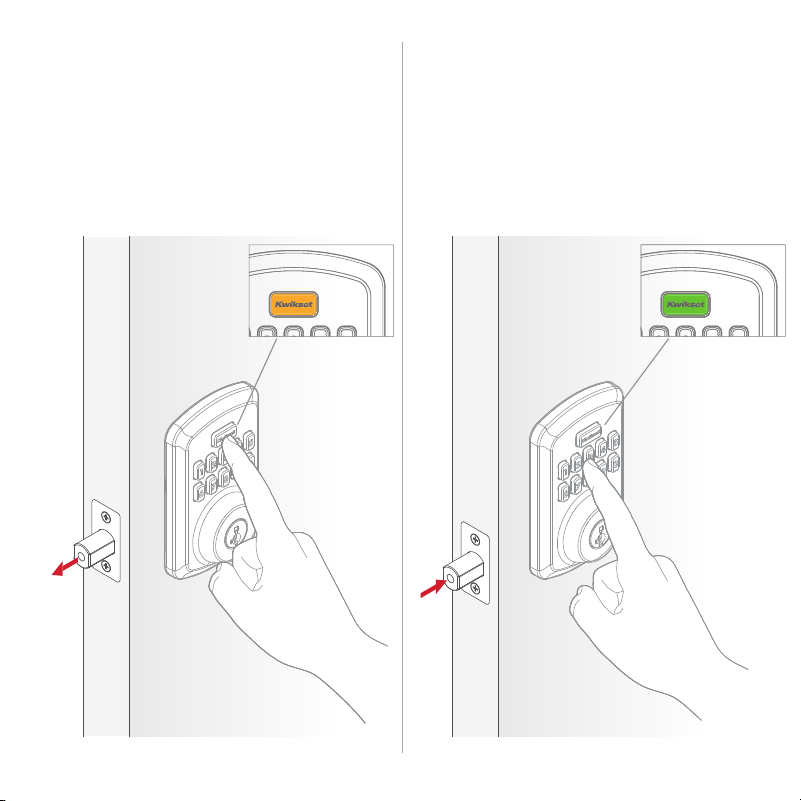

To lock your door, press the
Kwikset logo button. The lock will
play a tune, and the button will flash
amber as the deadbolt extends.
To unlock your door, enter the user
code. The lock will play a tune, and
the Kwikset logo button will flash
green as the deadbolt retracts.
Locking Unlocking
17
Amber:
Locked
Flashes
Red 2x:
Low Battery
Flashes
Red once:
Invalid Credentials
Green:
Unlocked

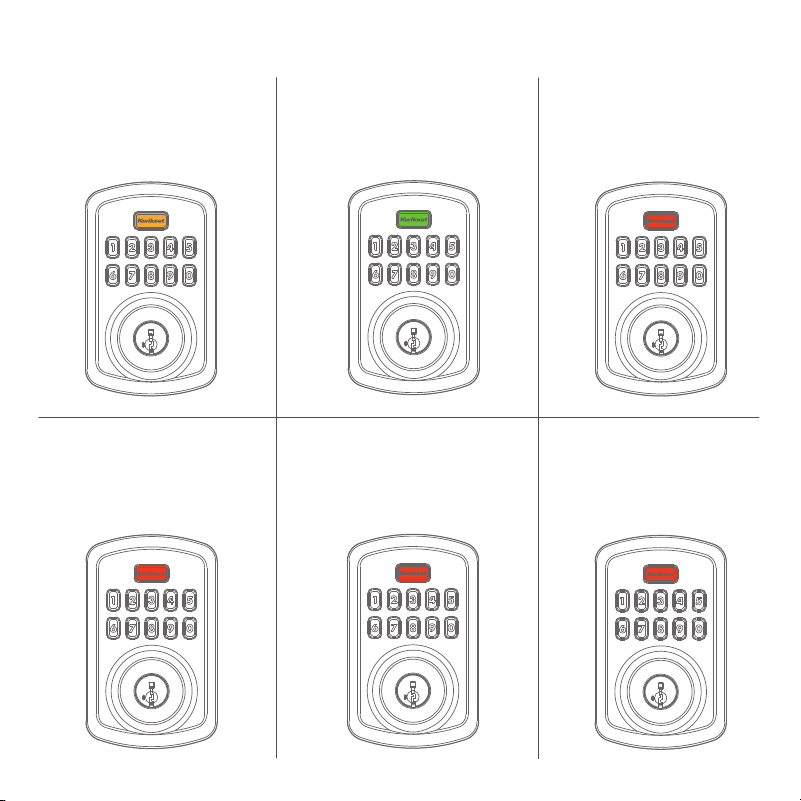

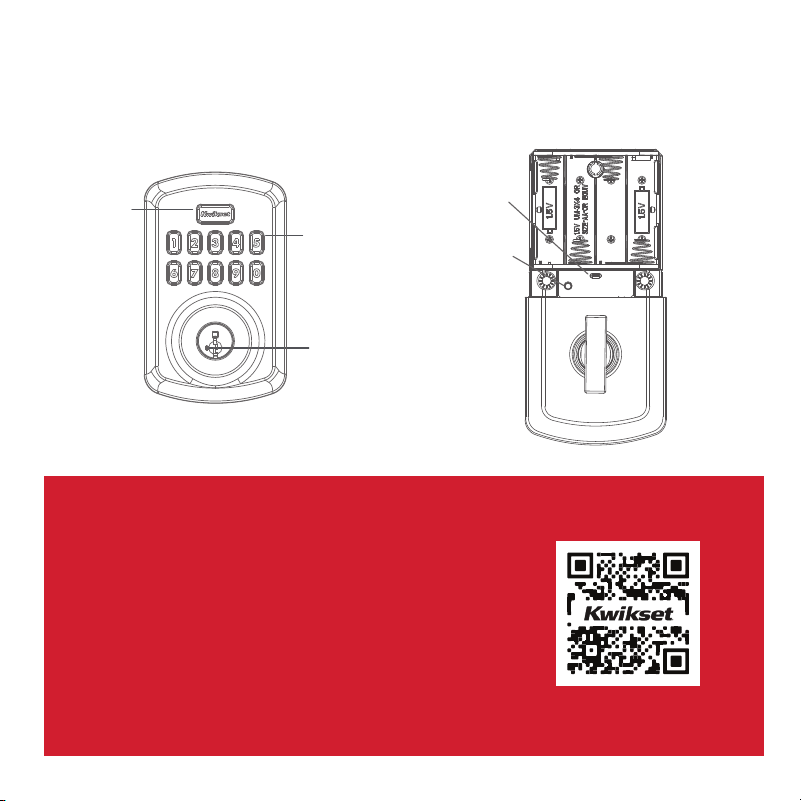

Exterior LED Indicators
Flashes
Red 15x:
Lockout
Red and
Keypad flashes
alternatively:
Lock Jammed
19
Green
Amber
Slow Blinking:
Unlocked
Blinking:
Low Battery
Slow Blinking:
Locked
Red
Interior Status LED Indicators
20
Factory Reset will:
• delete all access codes and
associated schedule
• reset lock settings to default
• lock will show as offline in the
Kwikset App
• lock will be deactivated and
will need to be set up as new
Factory Reset should be
used when:
• you want to change the
lock owner
• you have lost your phone
• you are troubleshooting the
lock
Factory Reset

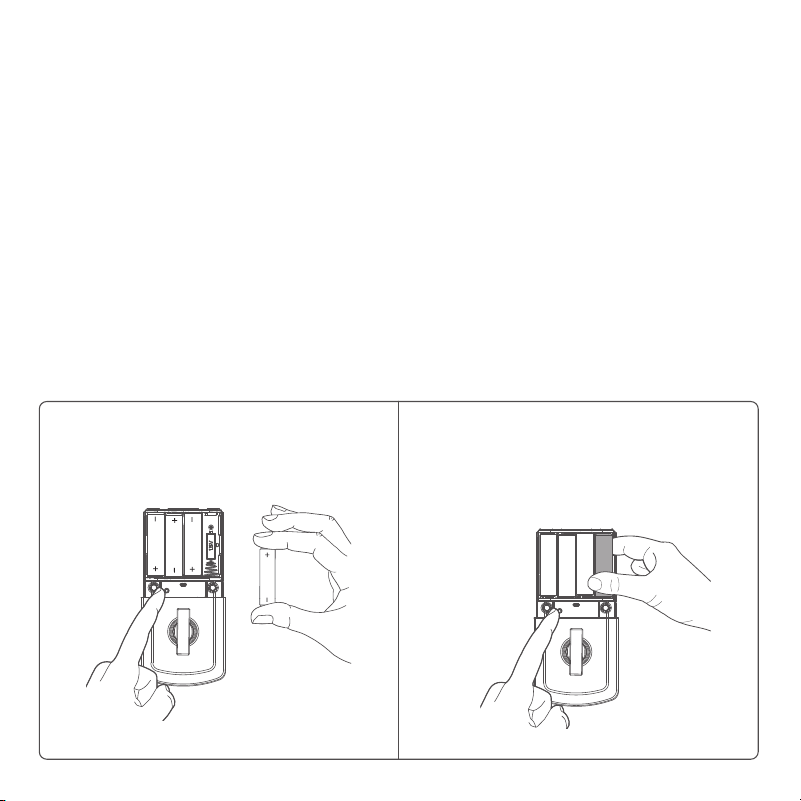

1. Press and hold the Programming
Button.
2. While still holding the Programming
Button, insert the batteries.
Continue holding the Programming
Button for 30 seconds.
Continue to the next page for additional steps.
21
3. After 30 seconds, the Status LED
light will flash RED and lock will
beep. Release the Programming
Button.
5. SUCCESS: Lock will play a series of
beeps, Status LED will flash GREEN,
then pulsing BLUE.
UNSUCCESSFUL: Lock will play a
single-tone sound, Status LED light
will flash RED.
4. Press the Programming Button
again within 5 seconds.
Status
LED
22
Important Safeguards
Regulatory Compliance
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and
caution statements.
3. Remind all family members of
safety precautions.
4. Always have access to your lock’s
standard key.
5. If using the Auto-Lock features, make sure you
have your smartphone or standard key with you
to prevent locking yourself out.
6. Familiarize yourself with all light bar error
notifications.
7. Replace low batteries immediately.
8. Dispose of used batteries according to local
laws and regulations.
WARNING: This Manufacturer advises that no lock can provide complete security by itself. This lock may be defeated by
forcible or technical means, or evaded by entry elsewhere on the property. No lock can substitute for caution, awareness of
your environment, and common sense. Builder’s hardware is available in multiple performance grades to suit the application. In
order to enhance security and reduce risk, you should consult a qualified locksmith or other security professional.
