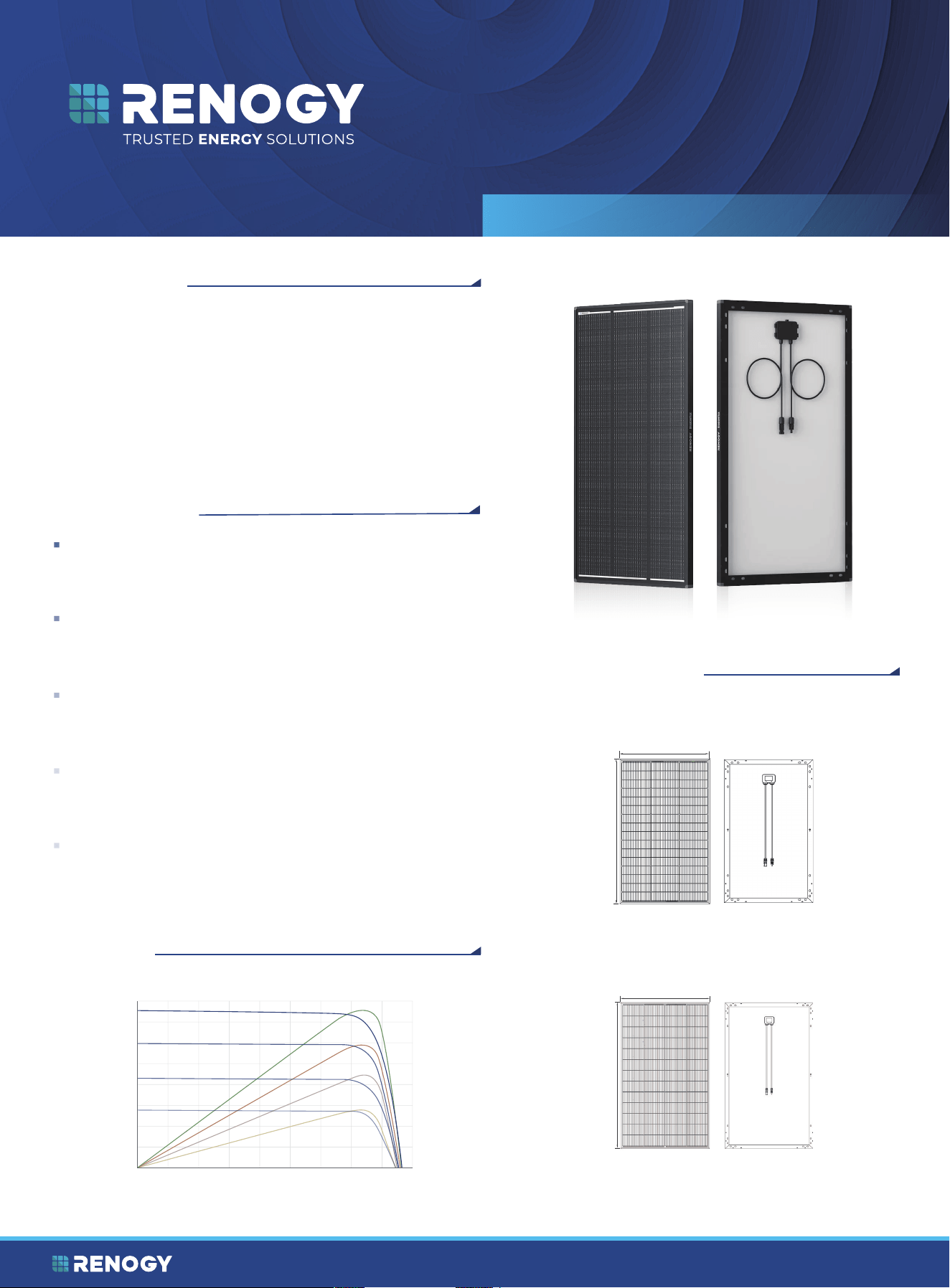

ShadowFlux 120W/200W
Anti-Shading Solar Panel
RSP120DC-ASR/RSP200DC-ASR
Description
www.renogy.com | 5050 S. Archibald Ave, Ontario, CA 91762
Key Features
IV-Curve
Module Diagram
ShadowFlux Anti-Shading Technology
Advanced cell-level bypass technology reduces power loss and prevents
hot-spot formation under partial shading.
25% N-Type High Efficiency
N-Type solar cells with 16BB structure provide high conversion
efficiency with reduced micro-crack risk and maintain stable output.
Compact and Lightweight
Smaller and lighter than conventional PERC panels, ShadowFlux fits
space-constrained rooftop layouts.
IP67-Rated Environmental Protection
Sealed junction box and advanced encapsulation materials provide
resistance to water, dust, snow, and rain in outdoor conditions.
Designed for Long-Term Operation
Engineered for durability and supported by a 5-year materials warranty
and 25-year performance guarantee.
(764mm)
30.38in
(1262mm)
49.69in
(1052mm)
22.76in
(578mm)
41.42in
RSP200DC-ASR
RSP120DC-ASR
Current (A)
Power (w)
Voltage (V)
Irradiance Dependent Output at 25°C
1000 W/m²
800 W/m²
600 W/m²
400 W/m²
ShadowFlux is engineered to minimize power loss under partial shading
and obscured conditions, making it ideal for rooftops with limited space
and complex lighting conditions.
Featuring N-type solar cells with up to 25% conversion efficiency and
advanced cell-level bypass technology, ShadowFlux maintains more
consistent output under partial shade. More stable and durable than
standard solar panels, Shadowflux provides a long-term, dependable,
and secure source of energy.
www.renogy.com | 5050 S. Archibald Ave, Ontario, CA 91762
ShadowFlux 120W/200W Anti-Shading Solar Panel
Technical Specifications
Electrical Data
RSP200DC-ASR
Model
RSP120DC-ASR
Maximum Power at STC
Optimum Operating Voltage (Vmp)
Optimum Operating Current (Imp)
Open-Circuit Voltage (Voc)
Short-Circuit Current (Isc)
Module Efficiency
Maximum System Voltage
Maximum Series Fuse Rating
200W
31.3V
6.38A
36.5V
6.86A
20.70%
1,000VDC
15A
120W
28.9V
4.21A
33.7V
4.57 A
20.70%
1,000VDC
15A
Mechanical Data
Mono N-Type
48 (3 x 16)
41.42 x 22.76 x 1.18in / 1,052 x 578 x 30mm
15.87 lbs / 6.81kg
Tempered Glass
Solar Connectors
Anodized Aluminium Alloy
Type I
Solar Cell Type
Number of Cells
Dimensions
Weight
Front Film
Connectors
Frame
Fire Performance
Mono N-Type
52 (4 x 13)
49.69 x 30.08 x 1.18in / 1,262 x 764 x 30mm
23.83 lbs / 10.81kg
Tempered Glass
Solar Connectors
Anodized Aluminium Alloy
Type I
Certification
Power Output Warranty
Material and Workmanship Warranty
CE, UKCA, RCM
25-Year
5-Year
CE, UKCA, RCM
25-Year
5-Year
Thermal Characteristics
Operating Temp. Range
Nominal Operating Cell Temperature (NOCT)
Temperature Coefficient of Pmax
Temperature Coefficient of Voc
Temperature Coefficient of Isc
-40°F to 185°F / -40ºC to 85ºC
45±2ºC
-0.29%/°C
-0.25%/°C
0.05%/°C
-40°F to 185°F / -40ºC to 85ºC
45±2ºC
-0.29%/°C
-0.25%/°C
0.05%/°C
MC4 Connectors
Maximum Voltage
Rated Current
Maximum AWG Size Range
IP Rating
1,000VDC
30A
12 AWG
IP68
1,000VDC
30A
12 AWG
IP68
Junction
IP Rating
Output Cables
IP67
14 AWG 23.6in / 600mm
IP67
14 AWG 23.6in / 600mm
Package Contents
Package Contents 1x Renogy ShadowFlux 200W Rigid Solar Panel 1x Renogy ShadowFlux 120W Rigid Solar Panel
