CENTURION LED CEILING FAN
Español p. 22
1
2
Safety Information ...................................................................................................................................
.
. 2
Package Contents .................................................................................................................................... 5
Hardware Contents
.................................................................................................................................................
6
Preparation ............................................................................................................................................... 6
Initial Installation ....................................................................................................................................... 6
Downrod-Style Fan Mounting ................................................................................................................... 9
Closemount-Style Fan Mounting .........................................................................................................
.
.. 10
Wiring ..................................................................................................................................................... 12
Final Installation ..................................................................................................................................... 15
Operating Instructions ............................................................................................................................ 16
Blade Replacement ................................................................................................................................ 18
Care and Maintenance ......................................................................................................................
.
.... 20
Troubleshooting ...................................................................................................................................... 20
Limited Lifetime Warranty ....................................................................................................................... 21
Replacement Parts List .......................................................................................................................... 21
TABLE OF CONTENTS
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 18.7 lbs.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and one lead wire from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
4
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing
them or when cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
WARNING
L
K
A
D
B
F
C
J
I
E
H
G

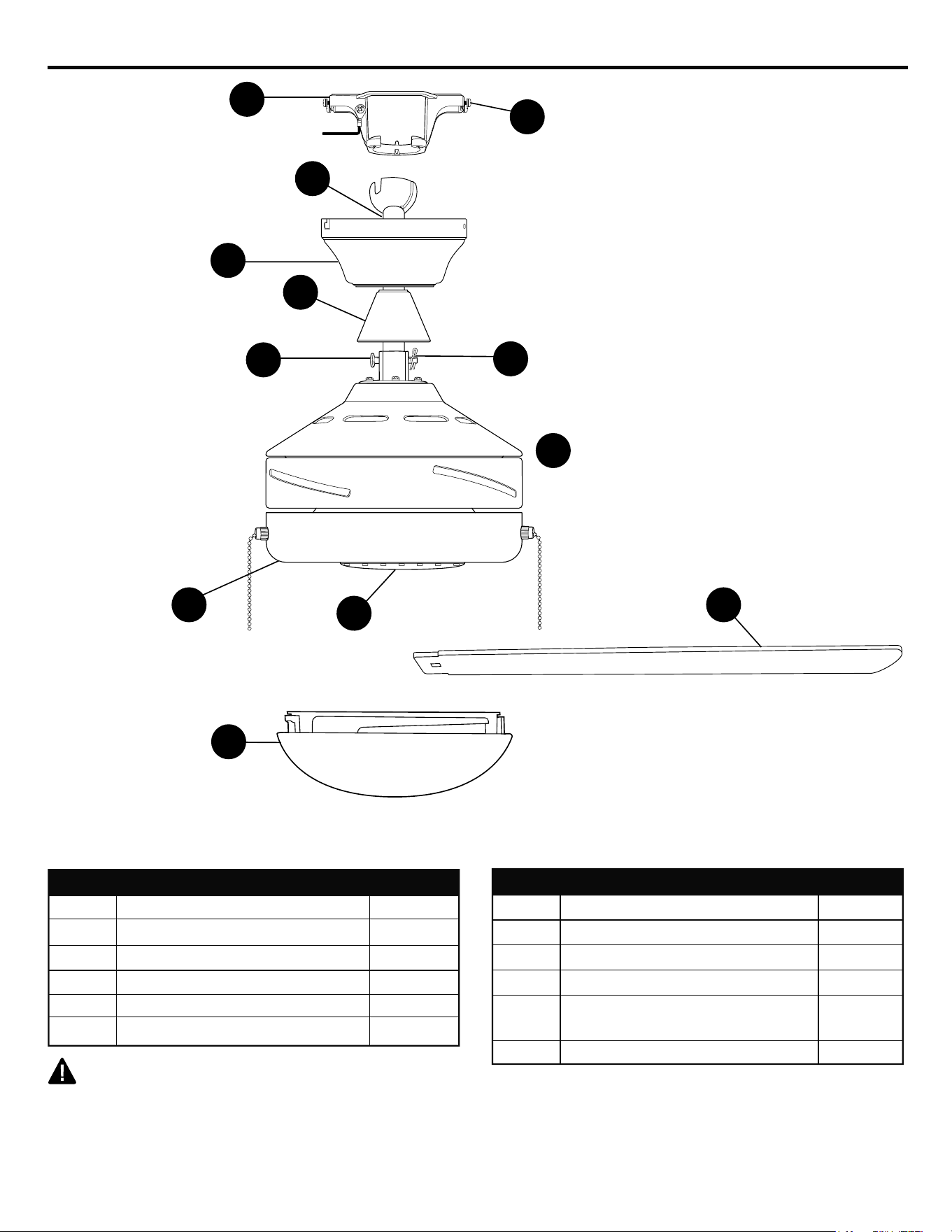

PACKAGE CONTENTS
5
A Mounting Bracket 1
B Downrod (preassembled) 1
C Clip (preassembled) 1
D Pin (preassembled) 1
E Canopy (preassembled) 1
F Motor Housing 1
DESCRIPTIONPART
QUANTITY
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
DESCRIPTIONPART
QUANTITY
G Blade 4
H Yoke Cover (preassembled) 1
I LED Light Kit (preassembled) 1
J Fitter Plate (preassembled) 1
K Canopy Mounting Screw/ 4
Lock Washer (preassembled)
L Shade 1
6
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Flathead Screwdriver,
Pliers, Safety Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
PREPARATION
AA
BB

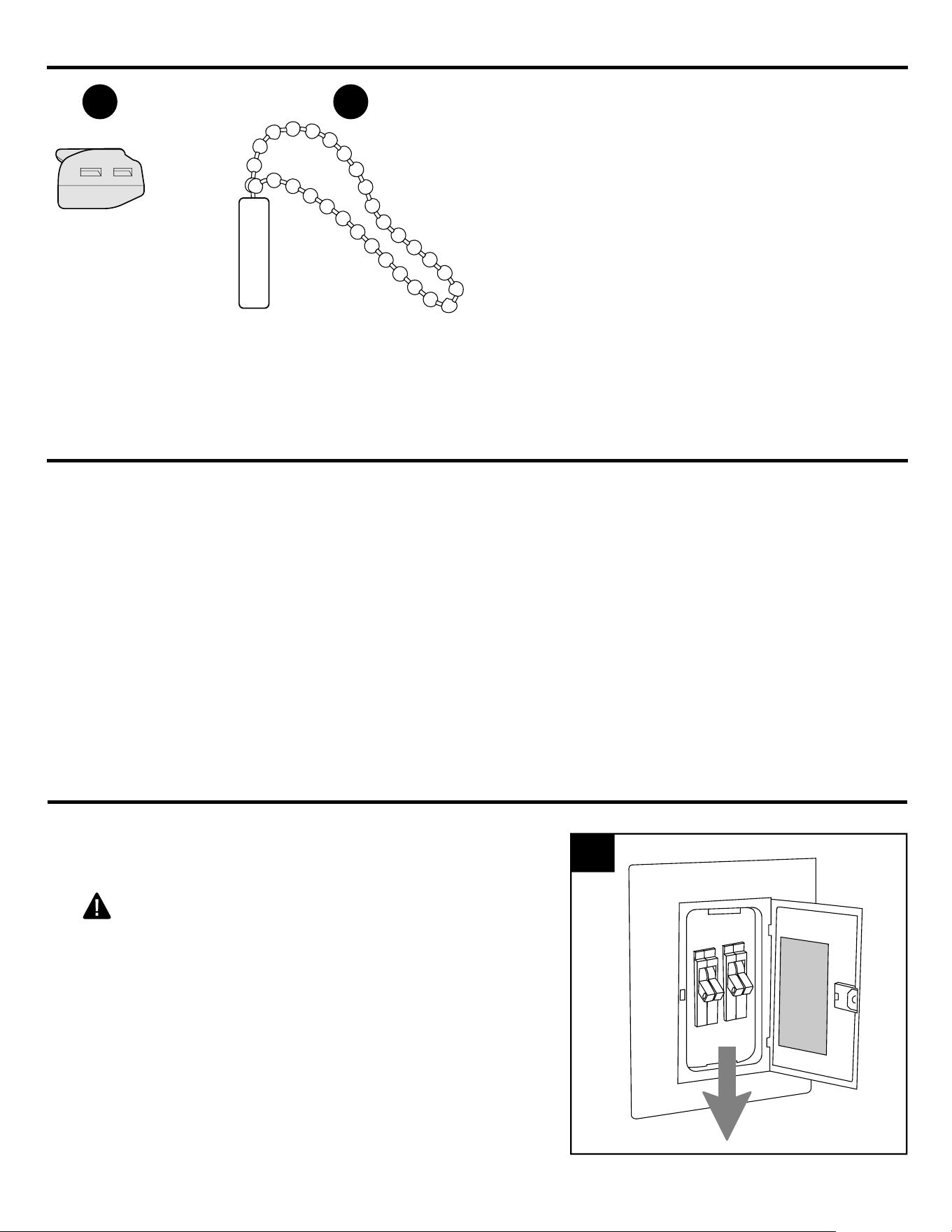

Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Lever Wire
Connector
Qty. 4
Pull Chain
Extension
Qty. 2
3.

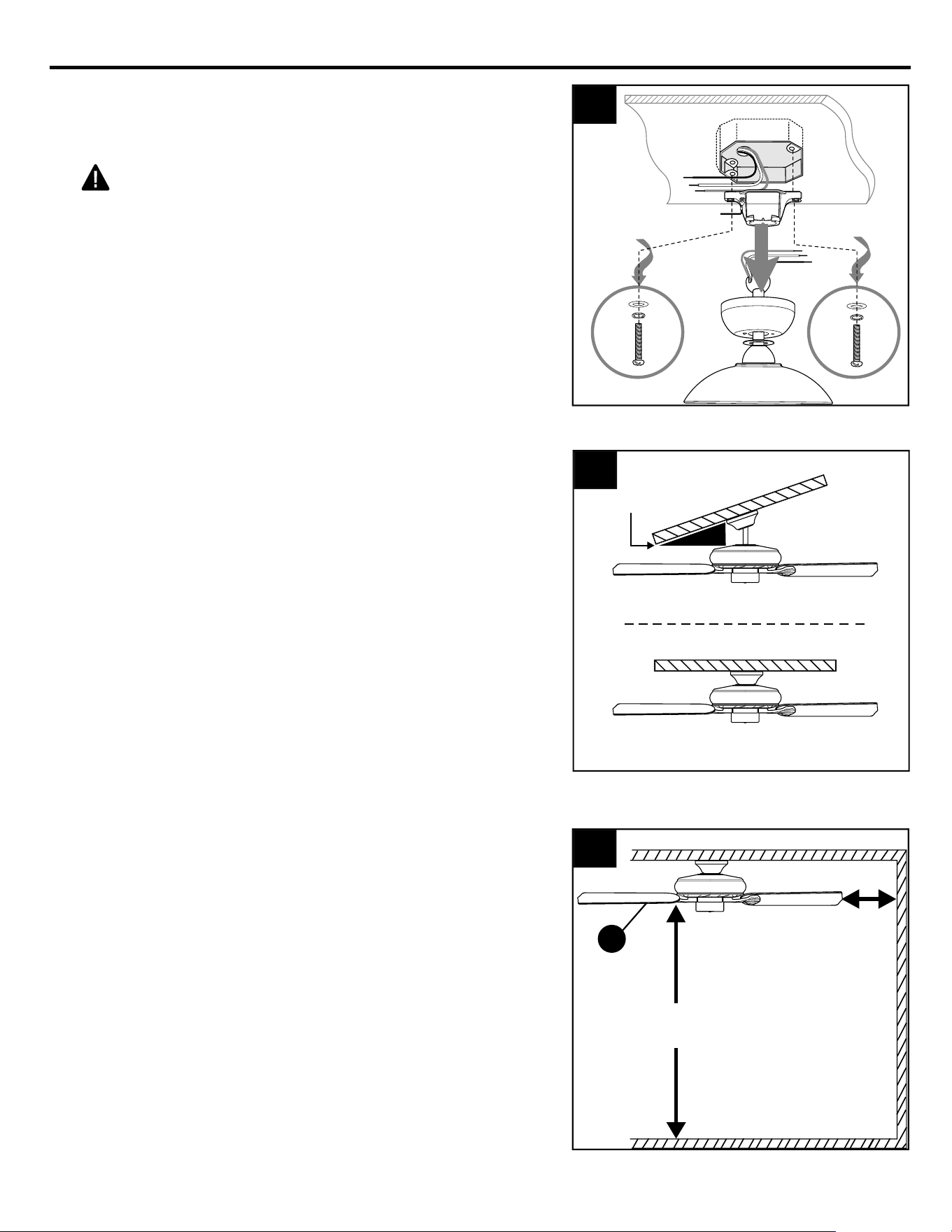

Determine mounting method to use.
A. Downrod mount (standard or angled ceiling).
B. Closemount (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (G) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
4.
2.
2
If applicable, remove existing fan and fan parts,
including the mounting bracket, from outlet box
and disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers provided with the outlet box for fan
installation.
INITIAL INSTALLATION
7
A
B
3
19° max.
7 ft.
min.
30 in.
min.
G
4
INITIAL INSTALLATION
8
STANDARD MOUNT
Outlet Box
Screws
Wall
CORRECT Screw Position
VS
INCORRECT Screw Position
5
5a
A
Wall
5b
(underside)
A
(view from underside)
Screw
Screw
Screw
Position
Screw
Position
(view from underside)

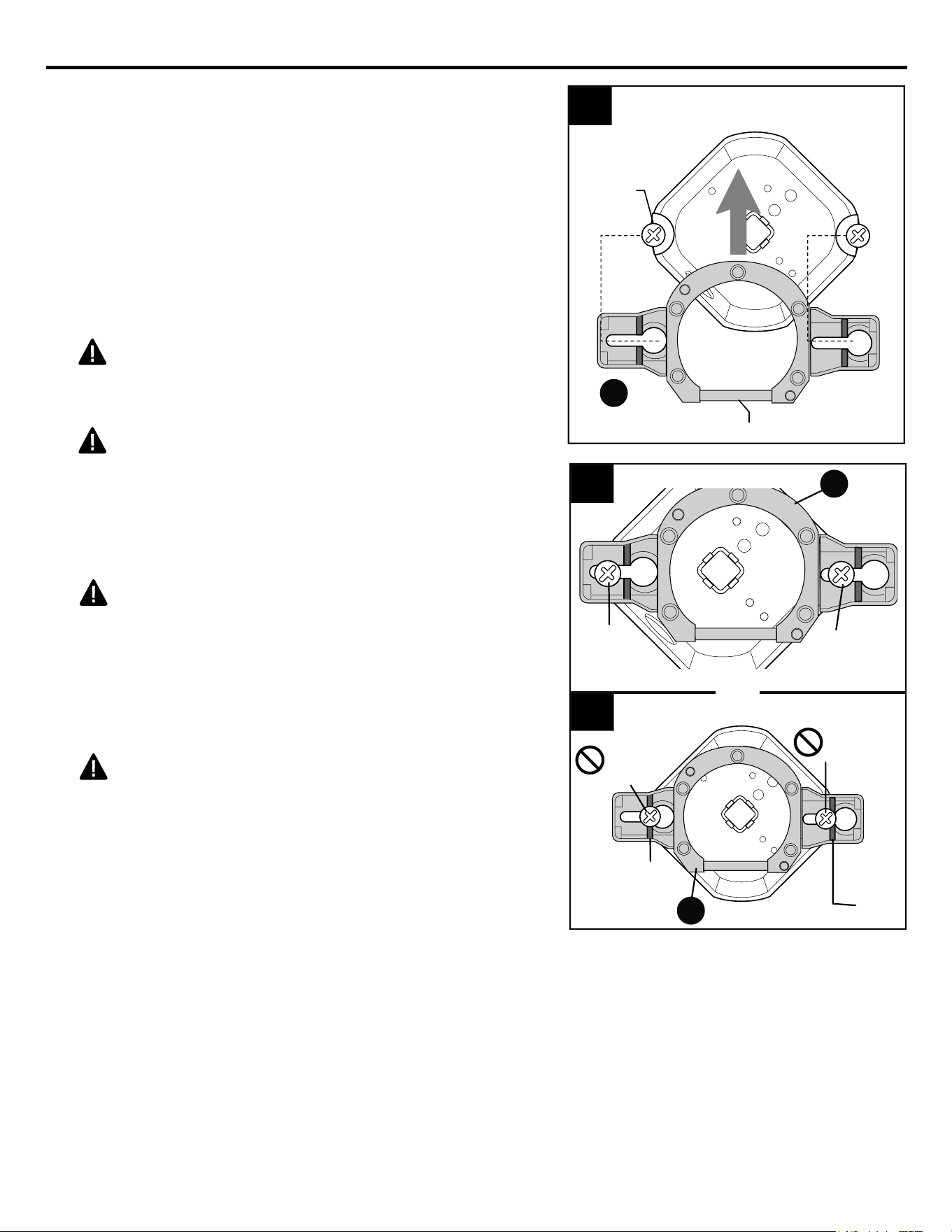

If attaching mounting bracket (A) to an
existing outlet box (not included) with
pre-installed screws, spring washers and
flat washers, slide mounting bracket (A) over
the screws. Then proceed to the following
paragraph. If attaching mounting bracket
(A) to outlet box where screws/washers
were removed, secure mounting bracket (A)
to outlet box using the screws, spring
washers and flat washers previously removed
in (Step 2, page 7).
WARNING: It is very important you use
the proper hardware when installing the
mounting bracket as this will support the fan.
DANGER: To reduce the risk of serious
injury or death, the outlet box screws MUST
be installed somewhere within the long slots
of the mounting bracket and then
TIGHTENED DOWN COMPLETELY. [Refer
to Fig. 5a.]
DANGER: To reduce the risk of fire,
electrical shock, serious personal injury or
damage to the fan, make sure outlet box
screws DO NOT get installed on or near the
wall that separates the keyhole and the long,
narrow slot on each side of the mounting
bracket. [Refer to Fig. 5b.]
WARNING: If using the angle mount,
make sure open end of mounting bracket (A)
is installed facing the higher point of the
ceiling, and ensure the ceiling angle is not
steeper than 19°.
For DOWNROD-STYLE FAN MOUNTING,
proceed to Step 1 on the following page.
For CLOSEMOUNT-STYLE FAN
MOUNTING, skip to page 10.
5.
5a.
5b.
A
Open End
9

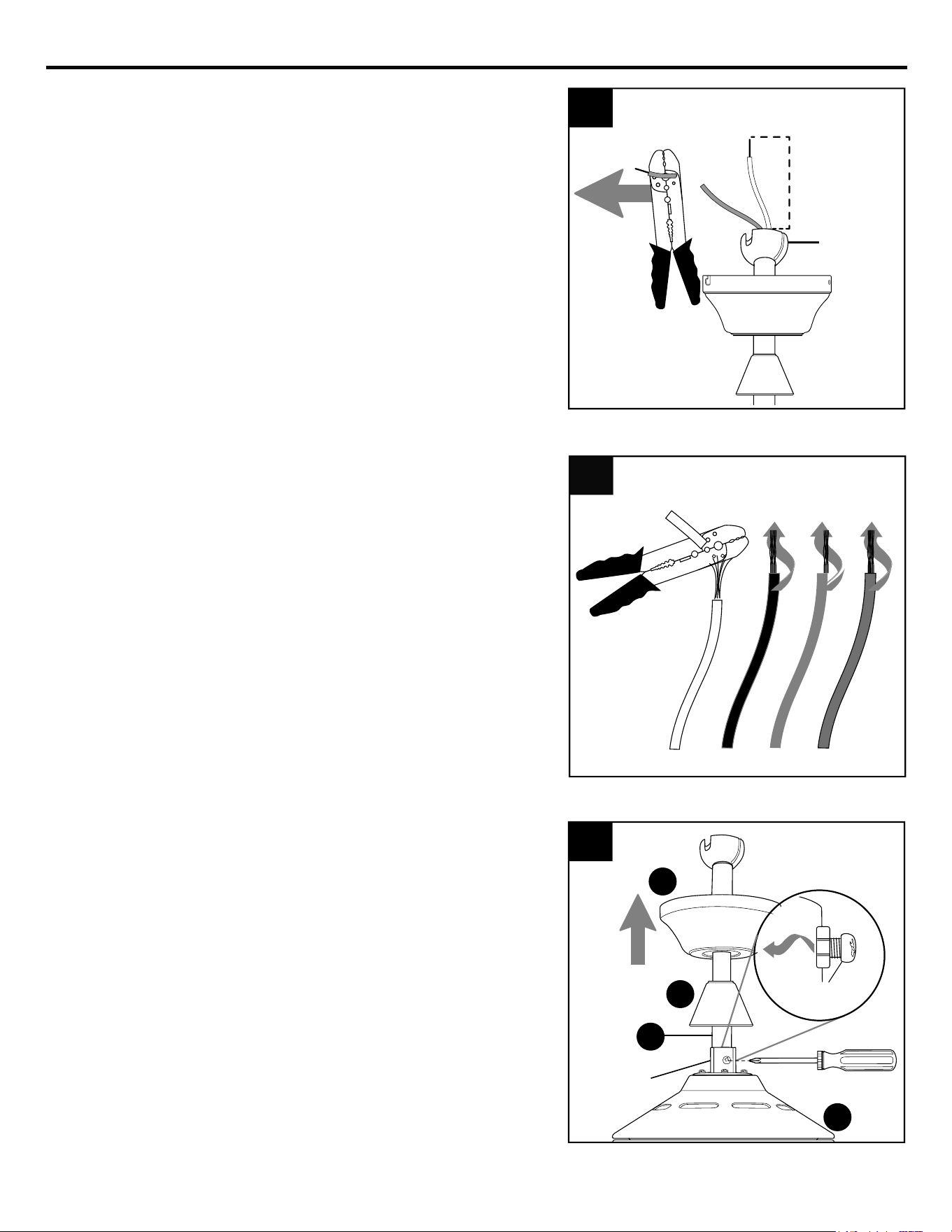

DOWNROD-STYLE FAN MOUNTING
Lift canopy (E) and yoke cover (H) on downrod
(B). Securely tighten yoke set screws and nut on
yoke on top of motor housing (F).
3.
3
Remove and discard plastic wrapping from
downrod (B) and wiring.
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it
is suggested you do so in the following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 1 and 2 are not necessary and you may
proceed to Step 3 instead.
1.
If you decided to cut back the lead wires in Step 1,
strip 3/8 in. of insulation from end of each wire --
WHITE, BLACK, GREEN and BLUE (if
applicable). Twist stripped ends of each strand of
wire within the insulation with pliers (not included).
2.
2
Hanging
Ball
1
8 in.
Yoke
Set Screw
& Nut
Sideview
B
E
H
F
B
10
2.
2
E
DOWNROD-STYLE FAN MOUNTING
4.
Remove downrod (B), canopy (E), and yoke
cover (H) from yoke at top of motor housing (F)
Lift motor housing (F) to mounting bracket (A) and

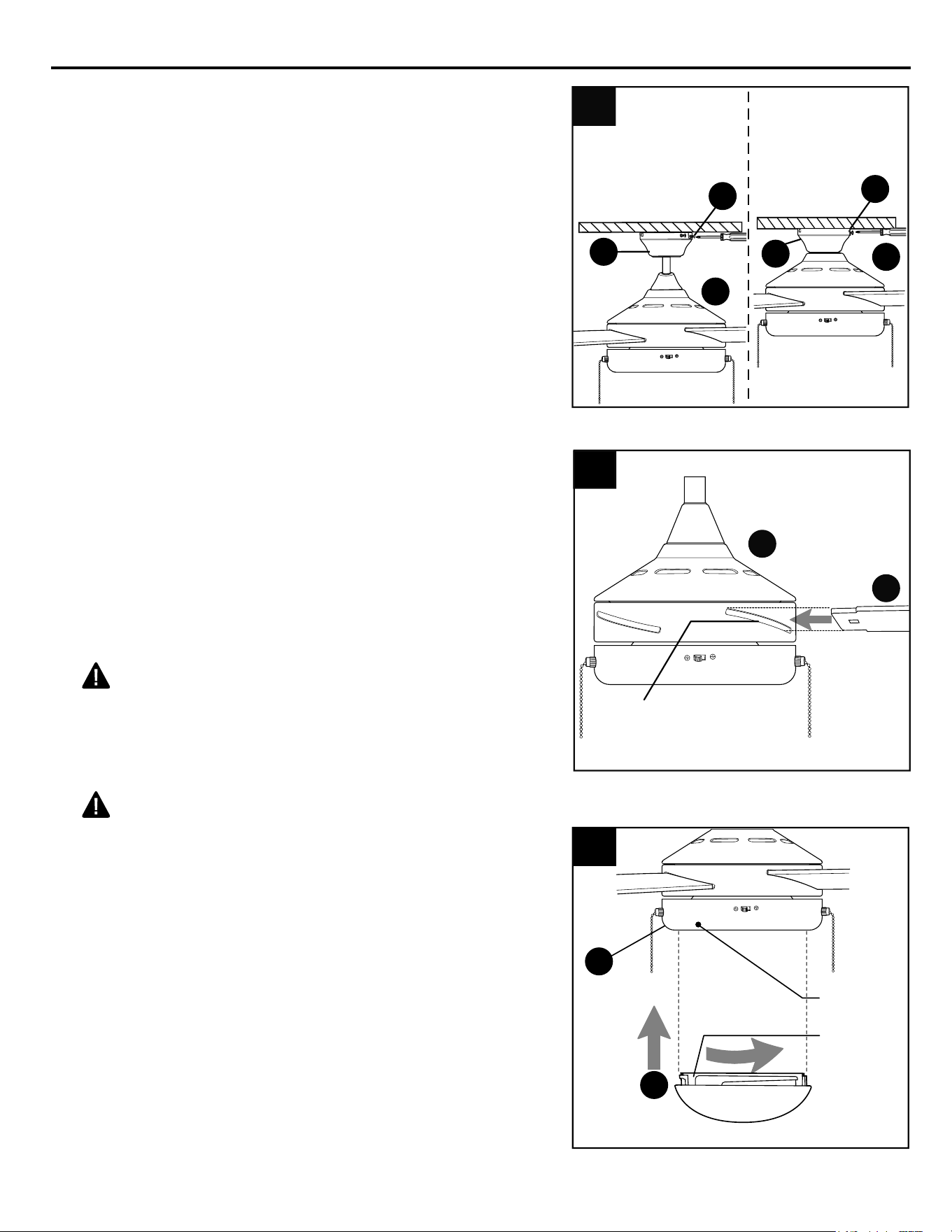

install hanging ball of downrod (B) into opening of
mounting bracket (A). Align the slot in hanging ball
with the tab in mounting bracket (A).
DANGER: Failure to align slot in hanging ball
with the tab in mounting bracket (A) may result in
serious injury or death.
Continue to WIRING on page 12.

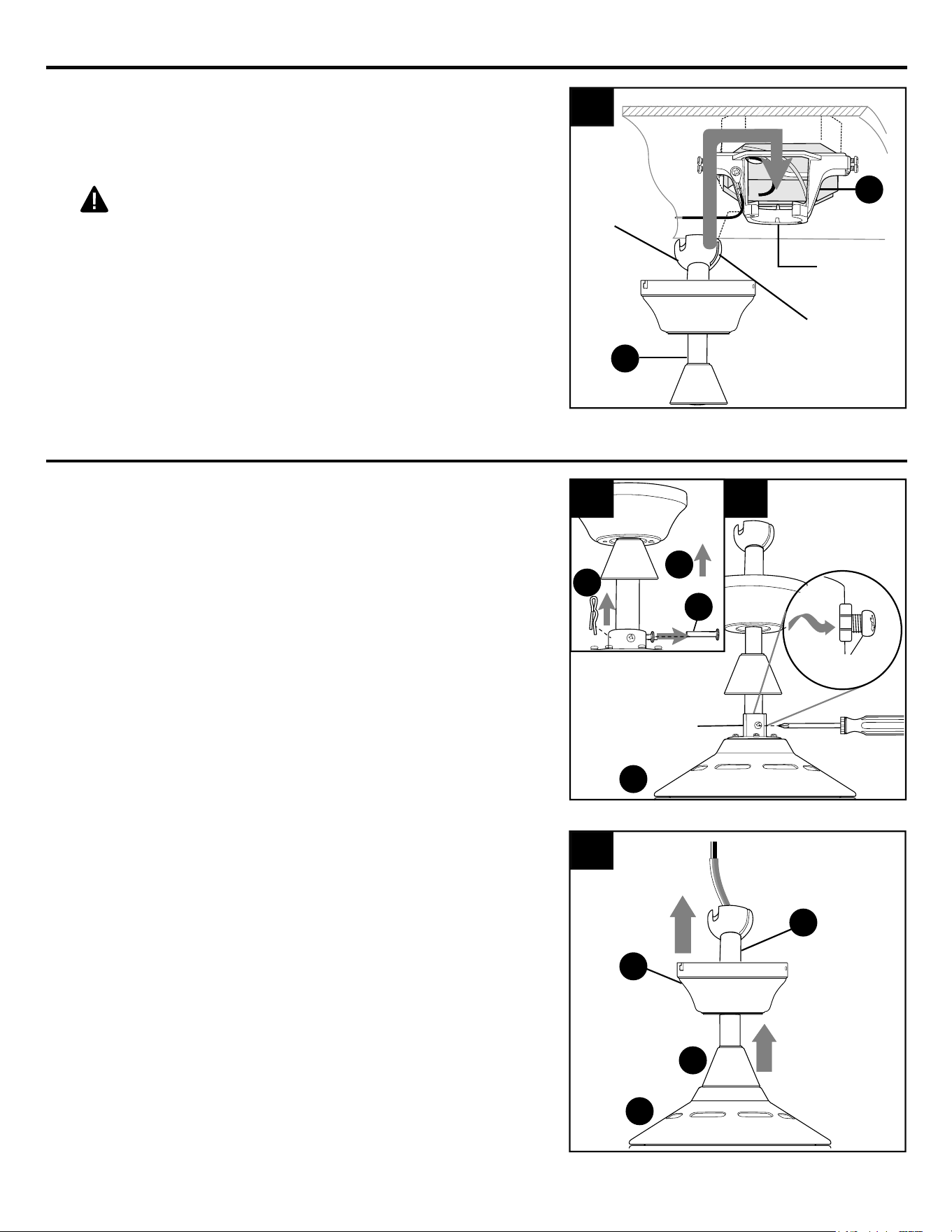

Lift yoke cover (H) on downrod (B). Remove pin
(D) and clip (C) from yoke on motor housing (F).
Partially loosen preassembled set screws and nut
in yoke at top of motor housing (F).
1a.
1b.
H
F
1b
Yoke
Set Screw
& Nut
Sideview
D
H
A
Tab
4
B
Slot
1a
C
F

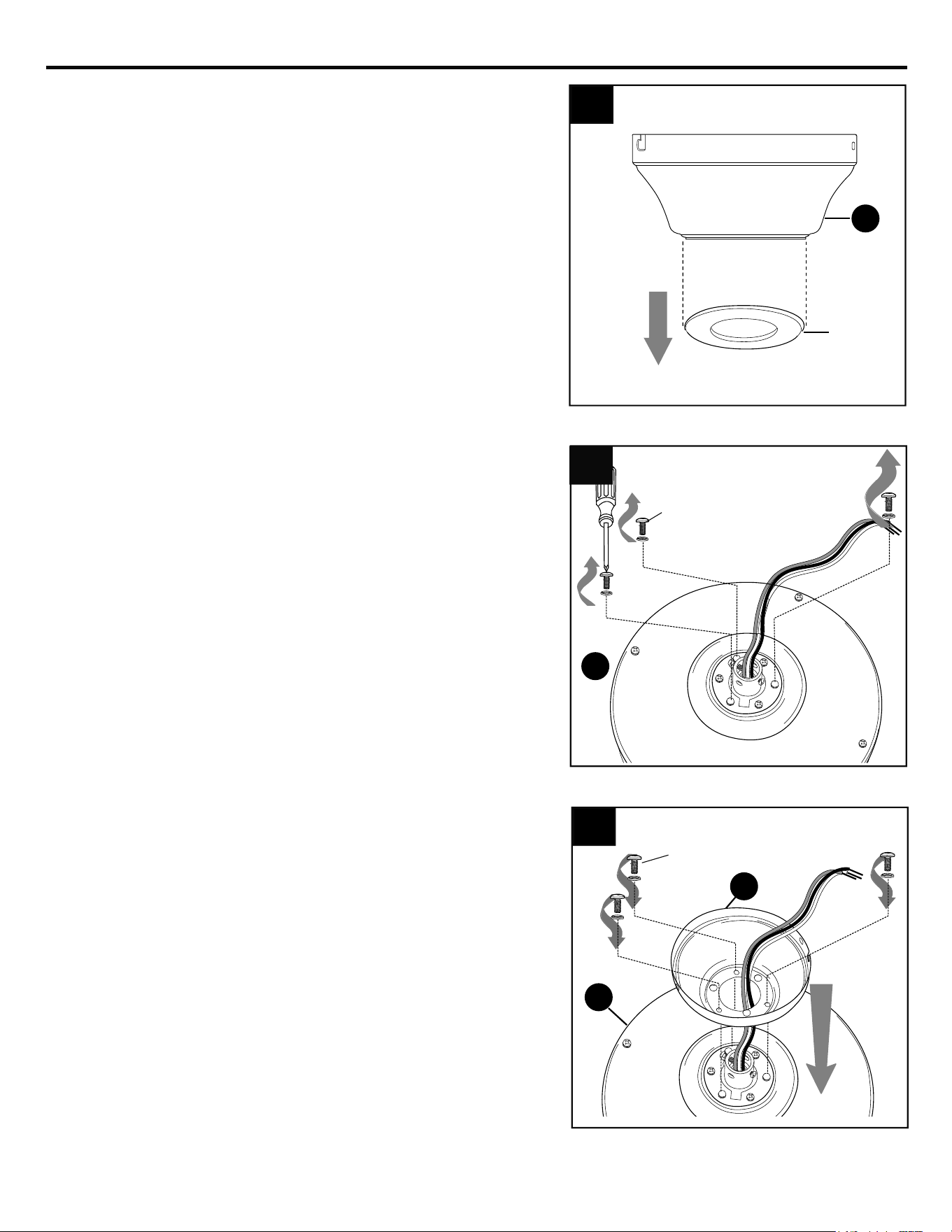

CLOSEMOUNT-STYLE FAN MOUNTING
Hanging
Ball
Remove preassembled canopy cover from
bottom of canopy (E). NOTE: Turn canopy
cover to the left (counterclockwise) to remove
from canopy (E).
NOTE: The downrod (B), yoke cover (H) and
canopy cover are not used in this type of
installation.
3.
Canopy
Cover
3
E
11
5.
Remove every other motor screw and lock
washer from top of motor housing (F).
4.
Pull wires up through hole in the middle of the
canopy (E). Align larger holes in canopy (E)
with 3 screws in top of motor housing (F).
Attach canopy (E) to motor housing (F) using
the three motor screws and lock washers
previously removed.
4
F
5
E
F
CLOSEMOUNT-STYLE FAN MOUNTING
Motor Screw/
Lock Washer
Motor Screw/
Lock Washer
WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and one lead wire from the
fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.

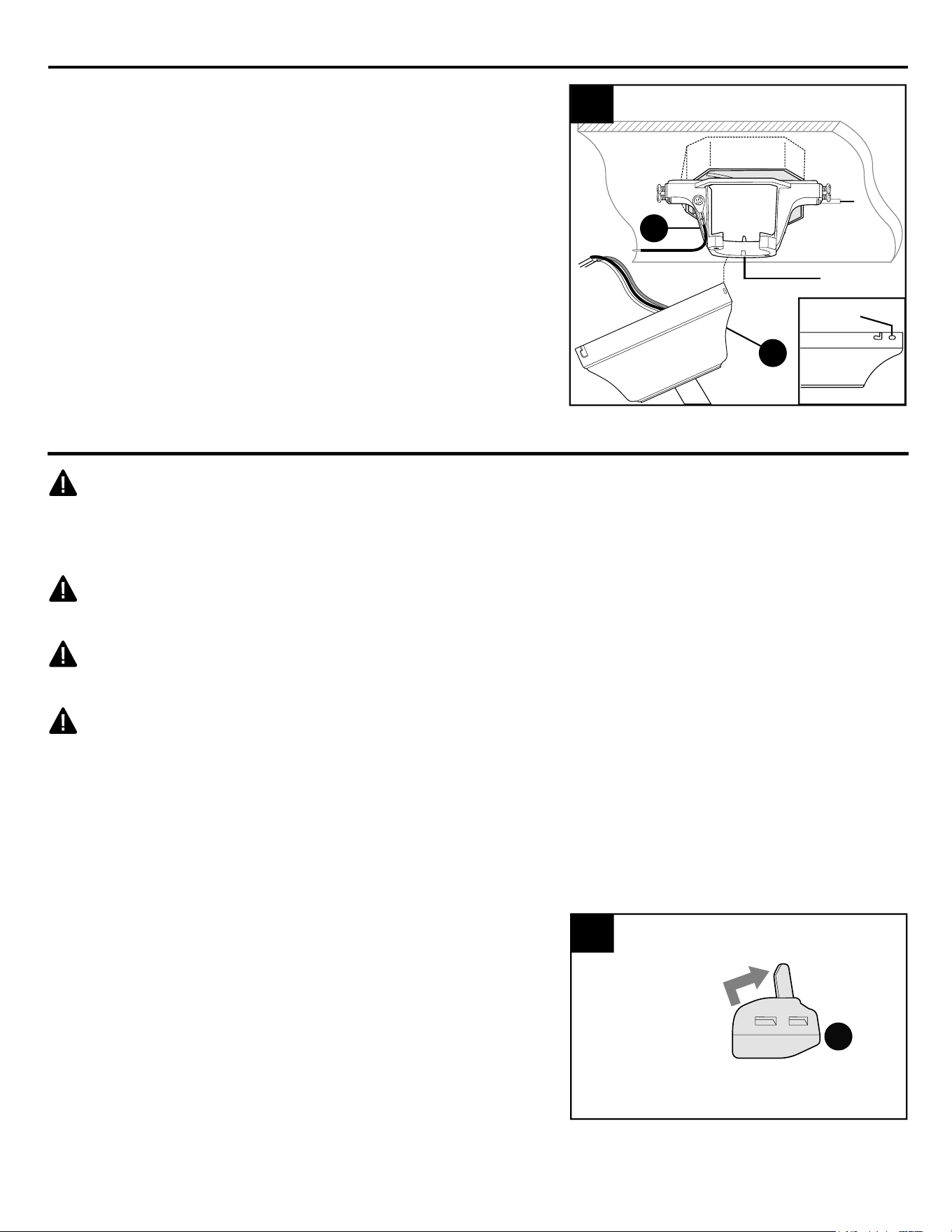

1.
IMPORTANT: Each wire connection is made by
firmly raising the levers on each lever wire connector
(AA), as shown. Then, ONE wire is inserted into
each opening.
1
AA
12
Temporarily hang canopy (E) on the tab on the
mounting bracket (A) using one of the
non-slotted holes in the canopy (E).
6.
Tab
A
6
E
Non-Slotted
CLOSEMOUNT-STYLE FAN MOUNTING
WIRING
WIRING

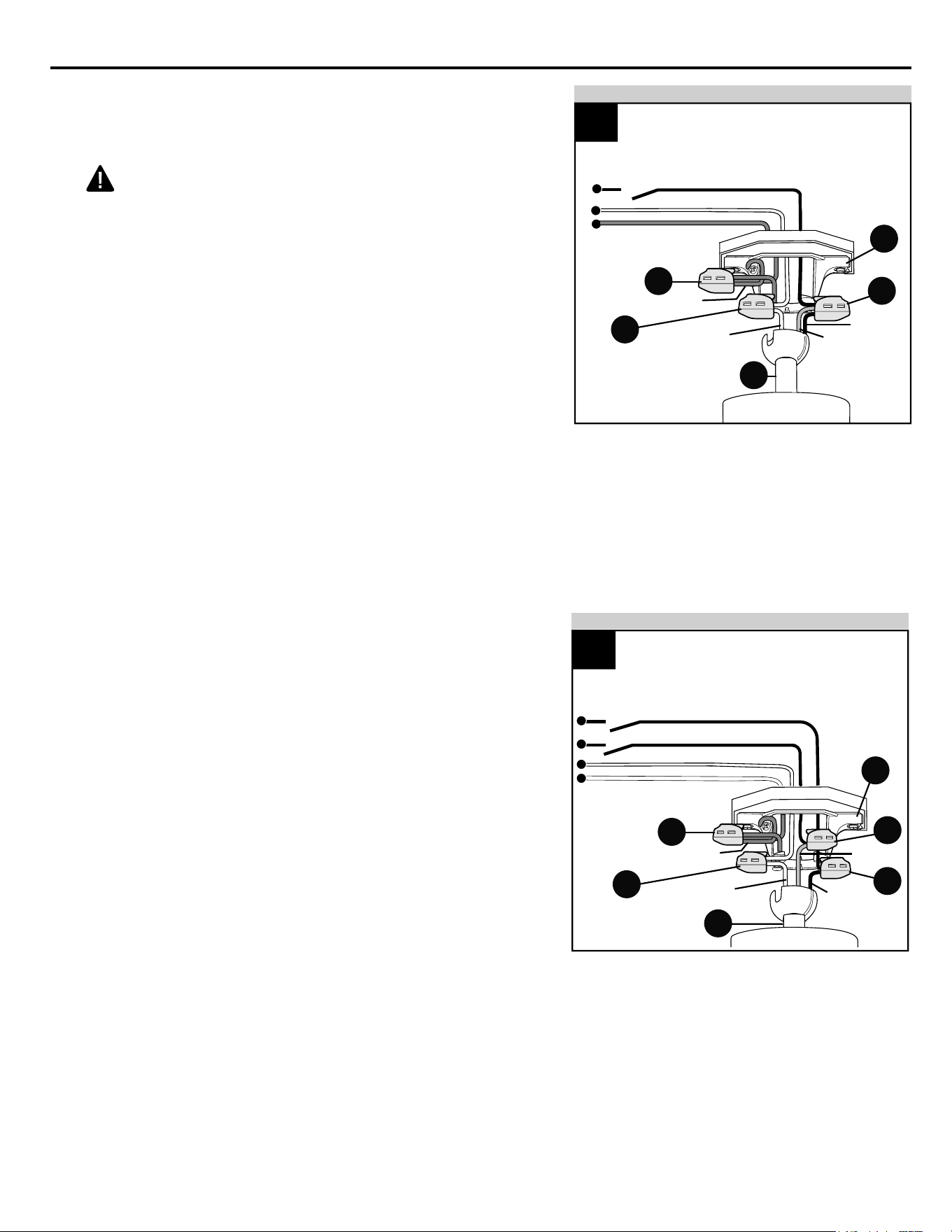

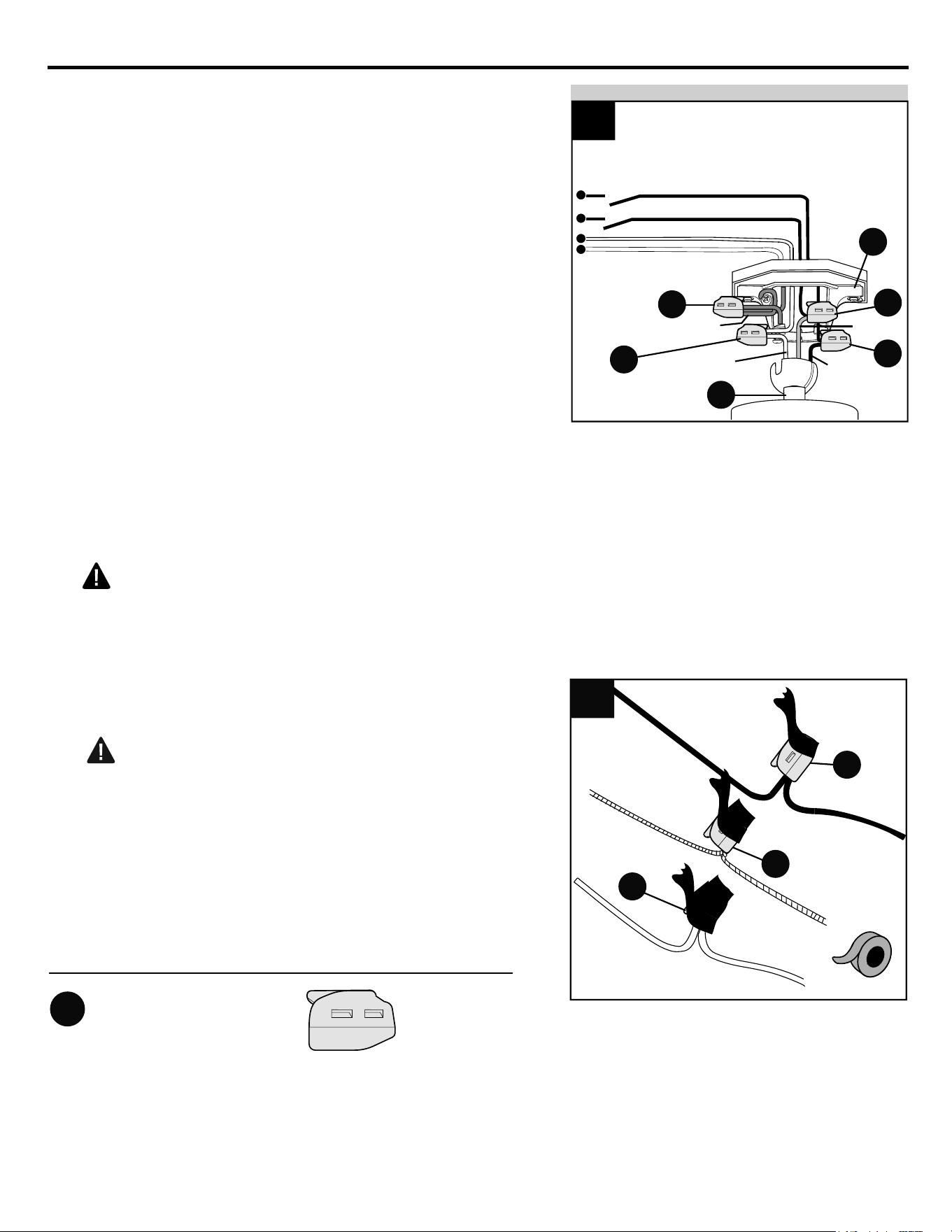

Choose wiring diagram (Fig. 2a, Fig. 2b or Fig. 2c)
that fits your situation and make appropriate wiring
connections per your selection in Step 2.
WARNING: In order for wire connections to be
secure, all levers on the lever wire connectors (AA)
must be completely returned to their original position
as shown in the wiring diagram, option 2a, 2b or 2c,
which corresponds to your wiring needs.
2.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
2a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
GREEN
WHITE
BLACK
BLUE
AA
AA
AA
2a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Insert each GROUND (GREEN) wire
from fan (on downrod (B), if applicable, and
mounting bracket (A)) and the BARE/GREEN wire
from ceiling into openings in lever wire connector
(AA) with three levers.
Insert BLACK wire and BLUE wire from fan and
BLACK wire from ceiling into openings in lever
wire connector (AA) with three levers.
Insert WHITE wire from fan and WHITE wire from
ceiling into openings in lever wire connector (AA)
with two levers.
B
A
2b. FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: Insert each GROUND
(GREEN) wire from fan (on downrod (B), if
applicable, and mounting bracket (A)) and the
BARE/GREEN wire from ceiling into openings in
lever wire connector (AA) with three levers.
Insert BLACK wire from fan and BLACK wire from
ceiling into openings in lever wire connector (AA)
with three levers.
Insert WHITE wire from fan and WHITE wire from
ceiling into openings in lever wire connector (AA)
with two levers.
Insert BLUE wire and BLACK (or RED) wire from
the independent wall switch for the light into
openings in lever wire connector (AA) with two
levers.
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
2b
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
WHITE
BLACK
BLUE
GREEN
AA
AA
AA
AA
B
A
13
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit. WHITE wire is common for
fan and light kit. GREEN or BARE wire is GROUND.
WIRING
WARNING: GENTLY pull on wire in each lever
wire connector (CC) to confirm the lock is engaged
and that all wires are secure.
Wrap electrical tape around each individual lever
wire connector (AA) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side
of box from the BLACK and BLUE (if applicable)
connections.
Turn spliced/taped wires upward and gently push
wires and lever wire connectors (AA) into outlet
box.
3.
3
AA
AA
Lever Wire
Connector
x 4
Hardware Used
AA
AA
2c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: Insert each GROUND
(GREEN) wire from fan (on downrod (B), if
applicable, and mounting bracket (A)) and the
BARE/GREEN wire from ceiling into openings in
lever wire connector (AA) with three levers.
Insert BLACK wire from fan and BLACK (or RED)
wire from the independent wall switch for the fan
into openings in lever wire connector (AA) with
three levers.
Insert BLUE wire from fan and BLACK (or RED)
wire from the other independent wall switch for
the light into openings in lever wire connector
(AA) with two levers.
Insert WHITE wire from fan and WHITE wire from
ceiling into openings in lever wire connector (AA)
with two levers.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
2c
120V POWER
FROM CEILING
BLACK (WALL SWITCH)
BLACK (WALL SWITCH FOR LIGHT)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
WHITE
BLACK
BLUE
GREEN
AA
AA
AA
AA
B
A
14
FINAL INSTALLATION
15
2.
NOTE: Blades (G) are reversible; however, once
installed, they become securely attached. Should you
wish to change the blades, refer to instructions on
pages 18-19. It is recommended to decide the blade
finish to be displayed from the floor BEFORE
installing the blades (G).
Insert one blade (G) through a slot on the band of the
motor housing (F). This may require some force.
CAUTION: Make sure blade (G) is
COMPLETELY inserted into motor housing (F) until
an audible pop confirms it is properly secured.
Repeat for remaining blades (G).
WARNING: Failure to properly secure the
blades (G) can result in personal injury or death as
well as damage to personal property and/or the
product itself.
2
Downrod
Option
Closemount
Option
E
K
F
K
F
E
3.
Align slots on shade (L) with protrusions on the inside
border of preassembled fitter plate (J). Turn shade (L)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (L) to make sure
it is completely secured.
3
Slot
Protrusion
L
G
Temporarily lift canopy (E) to mounting bracket (A)
to determine which two canopy mounting
screws/lock washers (K) in mounting bracket (A)
align with slotted holes in canopy (E) and partially
loosen these two canopy mounting screws/lock
washers (K). Remove the other two canopy
mounting screws/lock washers (K).
Now, lift canopy (E) to mounting bracket (A) again,
aligning slotted holes in canopy (E) with loosened
canopy mounting screws/lock washers (K) in
mounting bracket (A). Twist canopy (E) clockwise to
lock. Re-insert the two canopy mounting screws/lock
washers (K) that were just removed and tighten all
canopy mounting screws/lock washers (K) securely.
1.
3
1
Band
F
J
16

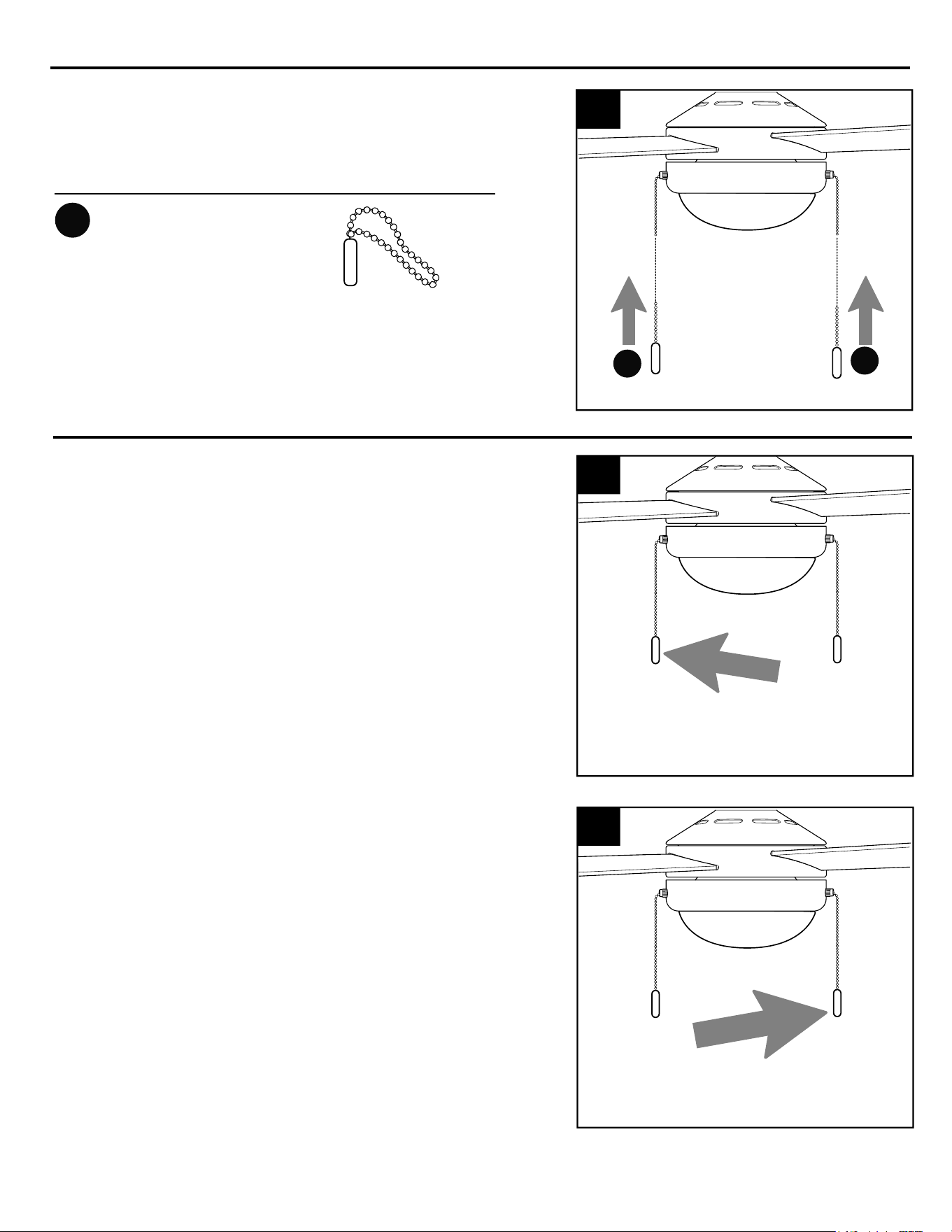

The pull chain labeled FAN has four positions to
control fan speed. One pull is HIGH, two is
MEDIUM, three is LOW and four turns the fan
OFF.
The pull chain labeled FAN has four positions to
control fan speed. One pull is HIGH, two is
MEDIUM, three is LOW and four turns the fan
OFF.
1.
1
OPERATING INSTRUCTIONS
FINAL INSTALLATION
4.
Attach pull chain extensions (BB) or custom pull
chain extensions (not included) to corresponding
fan and light pull chains.
4
2.
The pull chain labeled LIGHT is used to control
the light.
To turn the light ON or OFF, simply pull down on
and then let go of the light pull chain.
2
Pull Chain Extension x 2
Hardware Used
BB
BB
BB
17
OPERATING INSTRUCTIONS

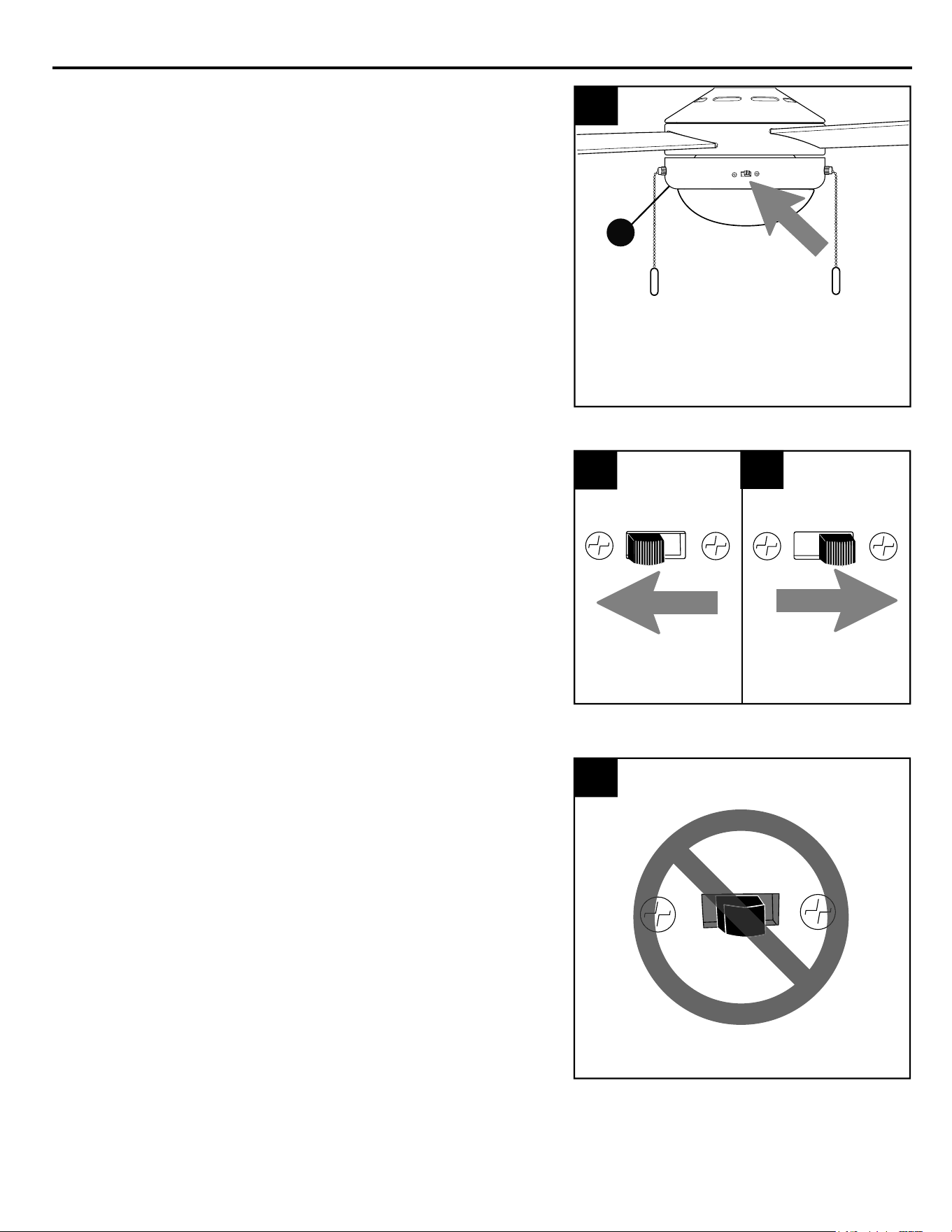

3c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT
for fan to function. If the reverse switch is set in
the middle position, fan will not operate.
3c
3a. In warmer weather, setting the reverse
switch in the LEFT position will result in
downward airflow creating a wind chill effect.
3b. In cooler weather, setting the reverse
switch in the RIGHT position will result in
upward airflow that can help move stagnant,
hot air off the ceiling area.
3a
3b
3.
Use the fan reverse switch, located on fitter plate
(J), to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower
your thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3
J
18
G
G
G

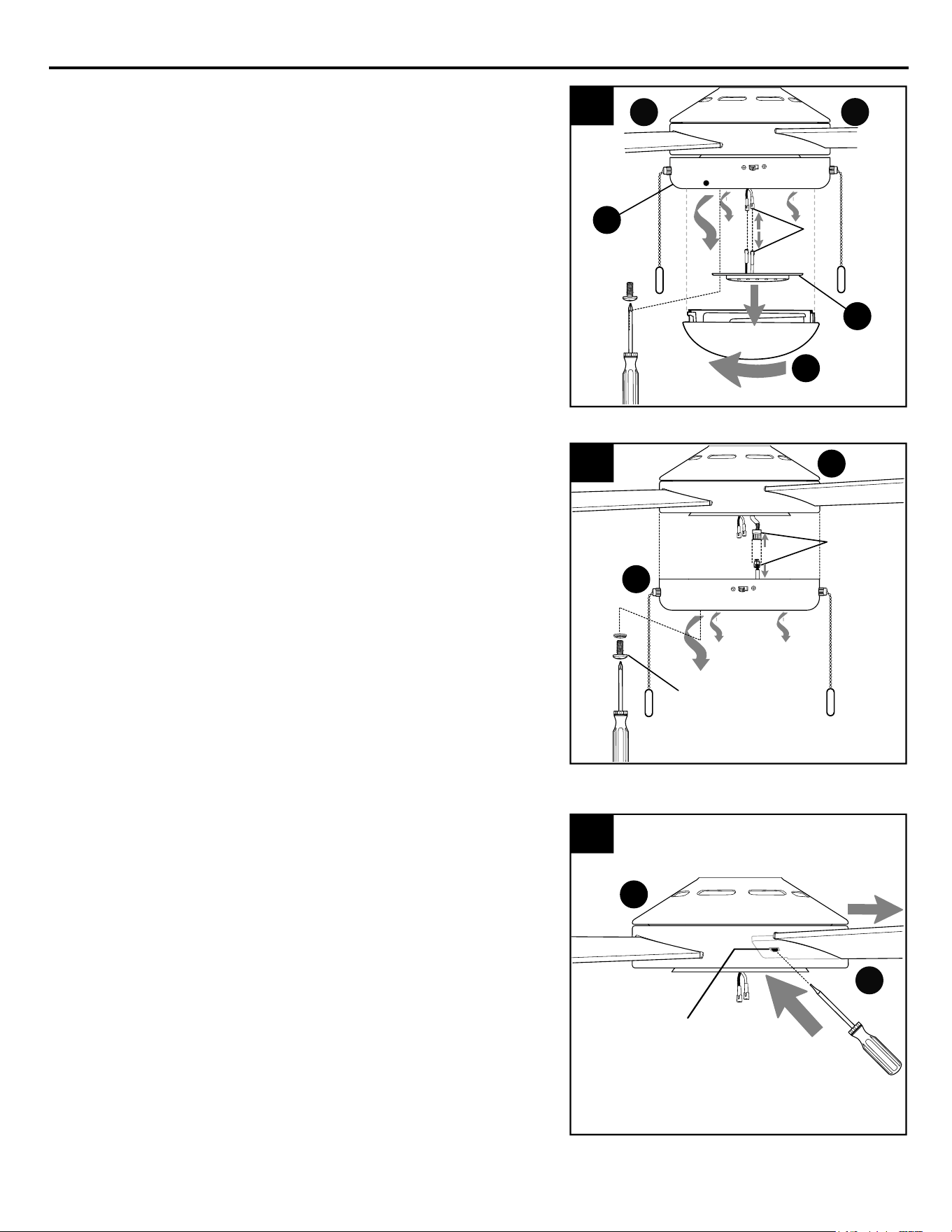

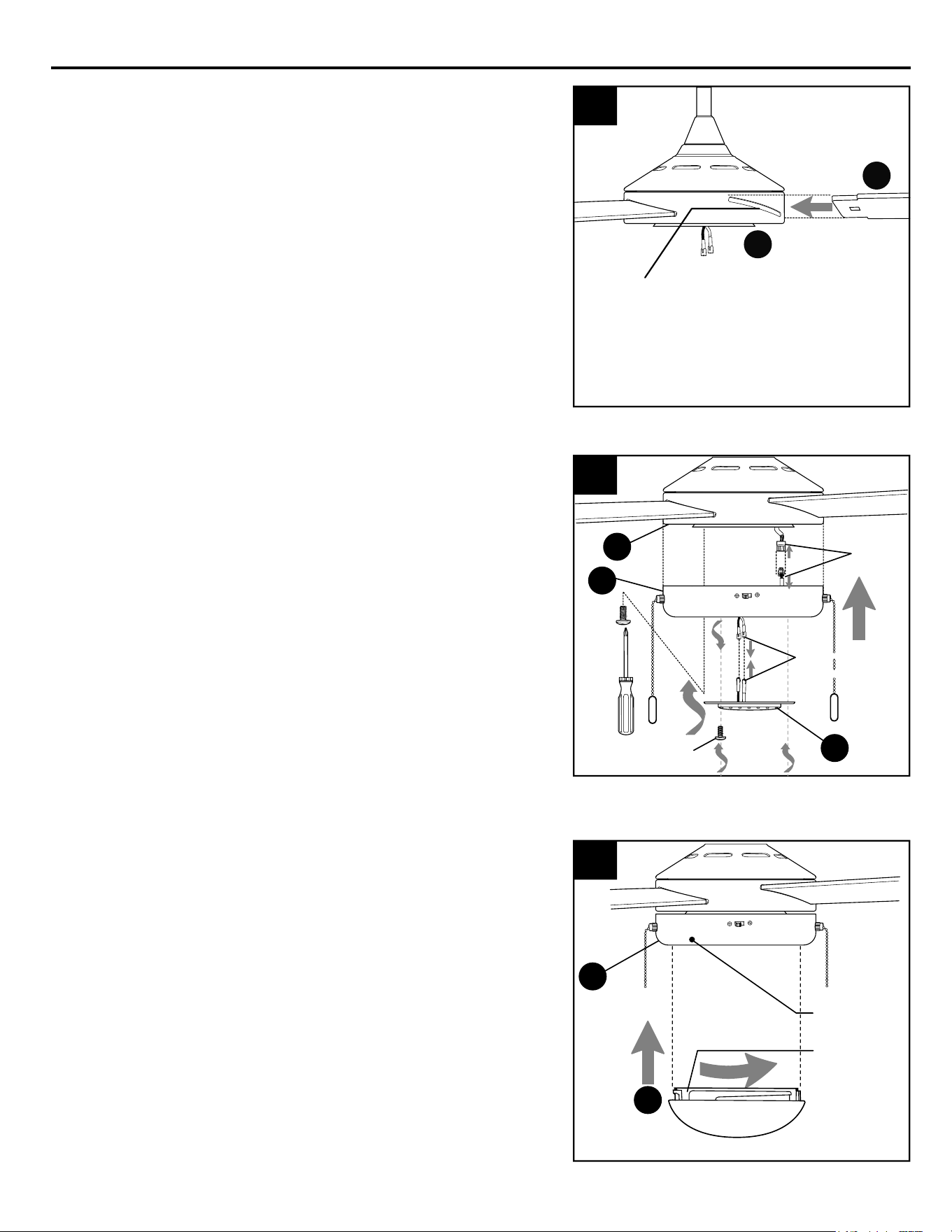

BLADE REPLACEMENT
3.
From underside of motor housing (F), locate
center tab holding the blade (G). With a flathead
screwdriver (not included), carefully and gently lift
center tab and pull blade (G) out to remove.
Repeat for any other blades (G) you wish to
remove.
3
2.
Locate and partially loosen two motor plate
screws in slotted holes inside of fitter plate (J).
Remove the other motor plate screw on fitter
plate (J) and save for later use.
Twist fitter plate (J) counterclockwise and
carefully disconnect male and female plugs to
remove fitter plate (J) from motor housing (F).
2
1.
If blade (G) needs to be removed, first remove
shade (L) turning it counterclockwise and gently
pull down.
Locate and partially loosen two fitter plate screws
in slotted holes on LED light kit (I). Remove the
other fitter plate screw on LED light kit (I) and
save for later use. Twist LED light kit
counterclockwise to remove from fitter plate (J).
Disconnect BLUE and WHITE molex
connections.
IMPORTANT: Do NOT remove larger screws on
underside of fitter plate (J).
1
L
J
Molex
Connections
Male/
Female
Plugs
WHITE
BLUE
WHITE
BLUE
Tab
I
J
F
Fitter
Plate
Screw
Motor
Plate
Screw
F
BLADE REPLACEMENT
19
6.
Replace shade (L) according to instructions in
Step 3, page 15.
6
5.
Reconnect male and female plugs from motor
housing (F) and fitter plate (J), matching up the
colors on the plugs for correct fit. Make sure plugs
connect tightly. Replace fitter plate (J) aligning
slotted holes in fitter plate (J) with loosened motor
plate screws. Twist fitter plate (J) to lock.
Re-insert the motor plate screw that was removed
and securely tighten all three motor plate screws.
Reconnect WHITE wire from LED light kit (I) to
WHITE wire from motor housing (F). Reconnect
BLUE wire from LED light kit (I) to BLUE wire from
motor housing (F). Make sure molex connections
are secure.
Replace LED light kit (I), aligning slotted holes in
LED light kit (I) with loosened fitter plate screws.
Twist LED light kit (I) to lock. Re-insert the fitter
plate screw that was removed and securely
tighten all three fitter plate screws.
5
4.
Install blade(s) (G) according to instructions in
Step 2, page 15.
4
J
F
F
Slot
Protrusion
L
J
G
Band
Molex
Connections
WHITE
BLUE
WHITE
BLUE
I
Male/
Female
Plugs
Motor
Plate
Screw
Fitter Plate
Screw
20
Excessive wobbling.
1. Blades are loose.
2. Fan not securely mounted.
3. Fan too close to vaulted ceiling.
4. Set screw(s) on motor housing
yoke is (are) not tightened properly.
5. Set screw on hanging ball is not
tightened properly.
1. Make sure blades are completely
inserted and secured with a “pop”.
2. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
3. Use a longer downrod or move fan to
another location.
4. Tighten yoke set screw(s) securely.
5. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
CARE AND MAINTENANCE
At least twice each year, lower canopy to check downrod assembly (if applicable), and then tighten all
screws on the fan. Clean motor housing with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to
wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for the light kit for this fan is 18 watts; do not attempt to replace the LEDs.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either left or right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy and
check all connections.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Make sure blades have been
securely attached according to
instructions on page 15. If necessary,
refer to "Blade Replacement" section
on page 18.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a few
days, especially when running the fan
at Medium and High speeds.
TROUBLESHOOTING
Fan operates but
light fails.
1. Wires in canopy not wired properly.
2. Wall switch to light is off.
1.Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 12- 14.
2. Make sure that wall switch to light is
on.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
21
GGLI2507
REPLACEMENT PARTS LIST
A Mounting Bracket
B Downrod
E Canopy
G Blade
6838216-A
6838216-B
6838216-E
6838216-G
PART DESCRIPTION PART #
Printed in Cambodia
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer
warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with
glass) to be free from defects in workmanship and material for a period of one year after the date of
purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through
a store or contractor. Ceiling fan part defects must be reported within the first year from the date of
purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are not
warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part
caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including any
incidental or consequential damages resulting directly or indirectly, from any breach of warranty, express or
implied, or any other failure of this product. Some states do not allow the exclusion or limitation of incidental
or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
fitness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
All parts are replaceable (see parts list in “Package Contents” on Page 5), however, only the parts listed
below are under warranty. For replacement parts, call our customer service department at
800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
A
B
G
E
