Crumb Tray
Oven foot
Control panel
Glass door
Door Handle
Tray handle
Toast function, upper heating +
lower heating.
Air fryer function
Toast+ Convection function, upper
heating +lower heating+ Convection
Dehydrate function
Broil function, upper heating
Bake function, lower heating
could select desired temperature
according to the practical situation.
02 03
The temperature from low to high. You
Temperature Knob
Any time must keep at “OFF” when
cooker not in use. Clockwise turn to
choose desired time and it will count
down automatically.
Time Knob
Crumb Tray
Oven foot
Control panel
Glass door
Door Handle
Tray handle
Toast function, upper heating +
lower heating.
Air fryer function
Toast+ Convection function, upper
heating +lower heating+ Convection
Dehydrate function
Broil function, upper heating
Bake function, lower heating
could select desired temperature
according to the practical situation.
02 03
The temperature from low to high. You
Temperature Knob
Any time must keep at “OFF” when
cooker not in use. Clockwise turn to
choose desired time and it will count
down automatically.
Time Knob

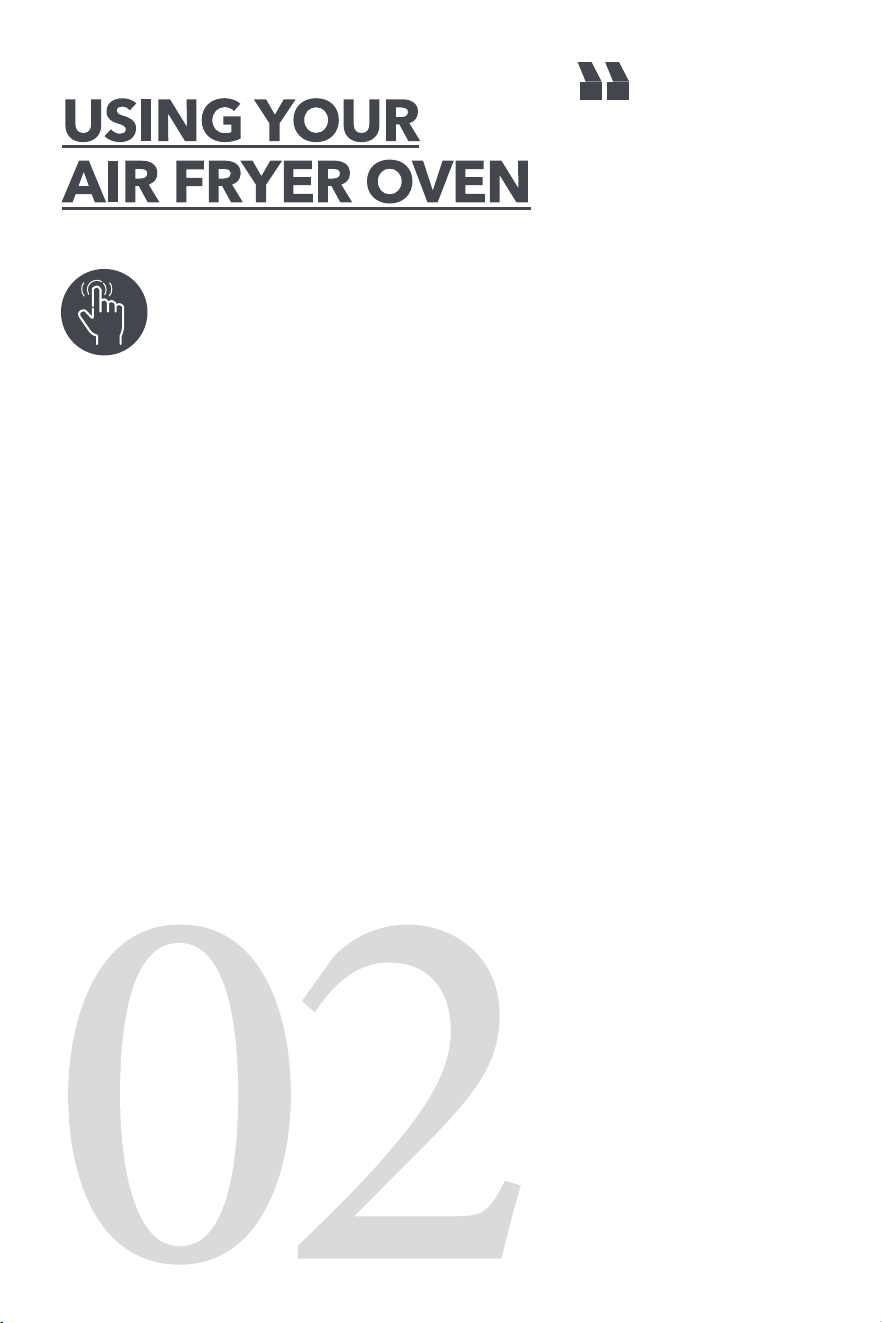

HOW TO OPERATE
BEFORE FIRST USE:
1.Place your Airfryer oven on a flat, level surface.
2.When operating the oven, keep at least four inches (ten centimeters) of space on all sides of
the oven to allow for adequate air circulation. Do not use on heat-sensitive surfaces.
NOTE: OBJECTS SHOULD NOT BE STORED ON THE TOP OF THE OVEN.
IF THEY ARE,REMOVE ALL OBJECTS BEFORE YOU TURN ON YOUR OVEN.
THE EXTERIOR WALLS GET VERY HOT WHEN IN USE. KEEP OUT OF REACH
OF CHILDREN.
3.Check that the Crumb Tray is in place and that there is nothing in the oven.
4.Plug power cord into the wall outlet.
5. Set the temperature, time and heating stage, preheat the oven for 10 minutes. Then insert
the baking tray or basket with food.
6. Use either the tray or basket at a time to ensure the food to be cooked better.
7. During cooking, watch the food through the glass door. For thick food, it is better to turn
it over once or twice. Use oven mitts to open the oven door. Carefully turn the food and
close the oven door immediately.
8. Once cooking is finished, the timer will shut off automatically with bell ring. If the cooking
is finished earlier than the set time, please turn back the timer to OFF to power off the oven.
9.Take out of the food carefully.
CAUTION: The surfaces of the appliance get hot. To avoid accidental burns, scalping or steam
being released while cooking, always open and close the lid by using an oven mitt.
AIR FRY
This function is ideal for cooking a variety of food, including french fries and chicken wings.
Use intense heat and maximized airflow.
1.Place food in the airfryer basket.
2.Insert at top position.
3.Turn the Function knob to .
4.Turn the Temperature knob to 450℉.
5.Turn the Timer knob to the desired cooking time.
6. When AIRFRY is completed, open door fully and remove food carefully.
05
HOW TO OPERATE
BEFORE FIRST USE:
1.Place your Airfryer oven on a flat, level surface.
2.When operating the oven, keep at least four inches (ten centimeters) of space on all sides of
the oven to allow for adequate air circulation. Do not use on heat-sensitive surfaces.
NOTE: OBJECTS SHOULD NOT BE STORED ON THE TOP OF THE OVEN.
IF THEY ARE,REMOVE ALL OBJECTS BEFORE YOU TURN ON YOUR OVEN.
THE EXTERIOR WALLS GET VERY HOT WHEN IN USE. KEEP OUT OF REACH
OF CHILDREN.
3.Check that the Crumb Tray is in place and that there is nothing in the oven.
4.Plug power cord into the wall outlet.
5. Set the temperature, time and heating stage, preheat the oven for 10 minutes. Then insert
the baking tray or basket with food.
6. Use either the tray or basket at a time to ensure the food to be cooked better.
7. During cooking, watch the food through the glass door. For thick food, it is better to turn
it over once or twice. Use oven mitts to open the oven door. Carefully turn the food and
close the oven door immediately.
8. Once cooking is finished, the timer will shut off automatically with bell ring. If the cooking
is finished earlier than the set time, please turn back the timer to OFF to power off the oven.
9.Take out of the food carefully.
CAUTION: The surfaces of the appliance get hot. To avoid accidental burns, scalping or steam
being released while cooking, always open and close the lid by using an oven mitt.
AIR FRY
This function is ideal for cooking a variety of food, including french fries and chicken wings.
Use intense heat and maximized airflow.
1.Place food in the airfryer basket.
2.Insert at top position.
3.Turn the Function knob to .
4.Turn the Temperature knob to 450℉.
5.Turn the Timer knob to the desired cooking time.
6. When AIRFRY is completed, open door fully and remove food carefully.
05
DEHYDRATE
This function combines low and stable heat with steady airflow to evenly dry out foods without
cooking. Ideal for drying fruit or vegetable chips.
1.Place the food on the airfryer basket .
2.Insert airfryer basket at mid position, Close the oven door.
3.Turn the Function knob to
4.Turn the Temperature knob to 180°F.
5.Turn the Timer knob to the desired cooking time. The dehydrate require a longer time,
you can trun the TIMER to “STAY ON” position, close supervision is necessary.
6. When dehydrating is completed, open door fully and remove food carefully.
BAKE
1.Insert the baking tray loaded with food , then close the oven door.
2.Turn the Function knob to
3.Set baking time and temperature, then baking starts.
BROIL
1.Insert the basket with food.
2.Keep the door half-open.
3.Turn the Function knob to
4.Set cooking time and temperature, then cooking starts.
TOAST
1.Set the temperature to maximum.
2.Insert the basket with food.
3.Turn the Function knob to
4.Set cooking time and temperature, then cooking starts.
06 07
TOAST+CONVECTION
1.Set the temperature to maximum.
2.Insert the basket with food.
3.Turn the Function knob to
4.Set cooking time and temperature, then cooking starts.
DEHYDRATE
This function combines low and stable heat with steady airflow to evenly dry out foods without
cooking. Ideal for drying fruit or vegetable chips.
1.Place the food on the airfryer basket .
2.Insert airfryer basket at mid position, Close the oven door.
3.Turn the Function knob to
4.Turn the Temperature knob to 180°F.
5.Turn the Timer knob to the desired cooking time. The dehydrate require a longer time,
you can trun the TIMER to “STAY ON” position, close supervision is necessary.
6. When dehydrating is completed, open door fully and remove food carefully.
BAKE
1.Insert the baking tray loaded with food , then close the oven door.
2.Turn the Function knob to
3.Set baking time and temperature, then baking starts.
BROIL
1.Insert the basket with food.
2.Keep the door half-open.
3.Turn the Function knob to
4.Set cooking time and temperature, then cooking starts.
TOAST
1.Set the temperature to maximum.
2.Insert the basket with food.
3.Turn the Function knob to
4.Set cooking time and temperature, then cooking starts.
06 07
TOAST+CONVECTION
1.Set the temperature to maximum.
2.Insert the basket with food.
3.Turn the Function knob to
4.Set cooking time and temperature, then cooking starts.

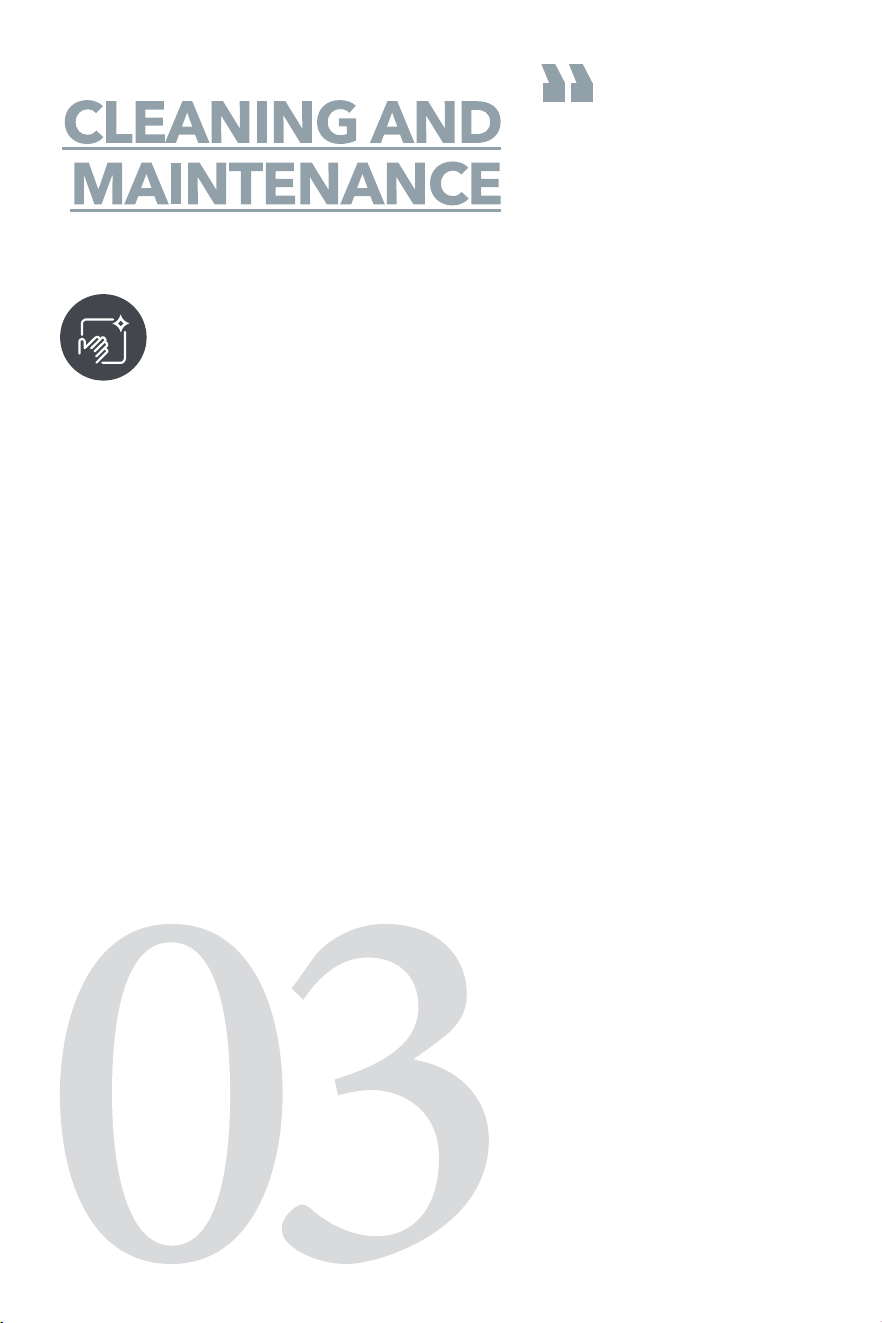

Proper maintenance will ensure years of service of your product. Clean the product after every
use following these steps. This product contains no user serviceable parts and requires little
maintenance.
WARNING: Unplug the product and allow cooling before cleaning. Clean the interior and
exterior surfaces of the appliance with a damp cloth or sponge. Wipe dry with a soft cloth. Do
not use abrasive or metallic materials.
1. Unplug the appliance and allow it to cool before cleaning.
2. Do not immerse the appliance in water. All surfaces can be cleaned with a clean damp cloth.
3. If stains still appear, it is recommended to use soap.
4. Do not use abrasive cleaners or sharp utensils to clean the appliance.
5. Clean the interior chamber with a clean damp cloth.
1200W
09
17
Proper maintenance will ensure years of service of your product. Clean the product after every
use following these steps. This product contains no user serviceable parts and requires little
maintenance.
WARNING: Unplug the product and allow cooling before cleaning. Clean the interior and
exterior surfaces of the appliance with a damp cloth or sponge. Wipe dry with a soft cloth. Do
not use abrasive or metallic materials.
1. Unplug the appliance and allow it to cool before cleaning.
2. Do not immerse the appliance in water. All surfaces can be cleaned with a clean damp cloth.
3. If stains still appear, it is recommended to use soap.
4. Do not use abrasive cleaners or sharp utensils to clean the appliance.
5. Clean the interior chamber with a clean damp cloth.
1200W
09
17
Heating elements
Make sure the function selector is positioned
to the desired cooking setting
are not heating up
Overcooked/
Incorrect timer setting. You may have to adjust
the timer to desired position.
Rack placement. Rack may need to be adjusted
to accommodate different foods.
undercooked Foods
Burnt smell
Food build-up inside appliance, on heating
elements or in drip/baking pan. Refer to “
Cleaning and Maintenance”
Manufacturer: shenzhen Aspiron Technology Company Limited.
Address: Room 2803B,Building C,Galaxy World Phase Ⅱ,Minle Community,
Minzhi Street,Longhua District,Shenzhen,Guangdong,China
10
Heating elements
Make sure the function selector is positioned
to the desired cooking setting
are not heating up
Overcooked/
Incorrect timer setting. You may have to adjust
the timer to desired position.
Rack placement. Rack may need to be adjusted
to accommodate different foods.
undercooked Foods
Burnt smell
Food build-up inside appliance, on heating
elements or in drip/baking pan. Refer to “
Cleaning and Maintenance”
Manufacturer: shenzhen Aspiron Technology Company Limited.
Address: Room 2803B,Building C,Galaxy World Phase Ⅱ,Minle Community,
Minzhi Street,Longhua District,Shenzhen,Guangdong,China
