Tables manufactured by ADVANCE TABCO are designed and constructed for applications
including Food Preparation, Cooking, Manufacturing, Material Handling, Laboratory Service
and the like. ADVANCE TABCO does not recommend product use for activities employing
harsh and active chemicals. Consult factory regarding unusual applications.
Installation Instructions for
ENCLOSED BASE TABLE AND
WALL CABINET DOORS
(Hinged & Sliding)
Figure 1
Edgewood, New York 11717-8380
www.advancetabco.com
800-645-3166
®
© ADVANCE TABCO MAY 2017

Installation Instructions For
SLIDING DOOR UNITS
Installation Instructions For
HINGED DOOR UNITS

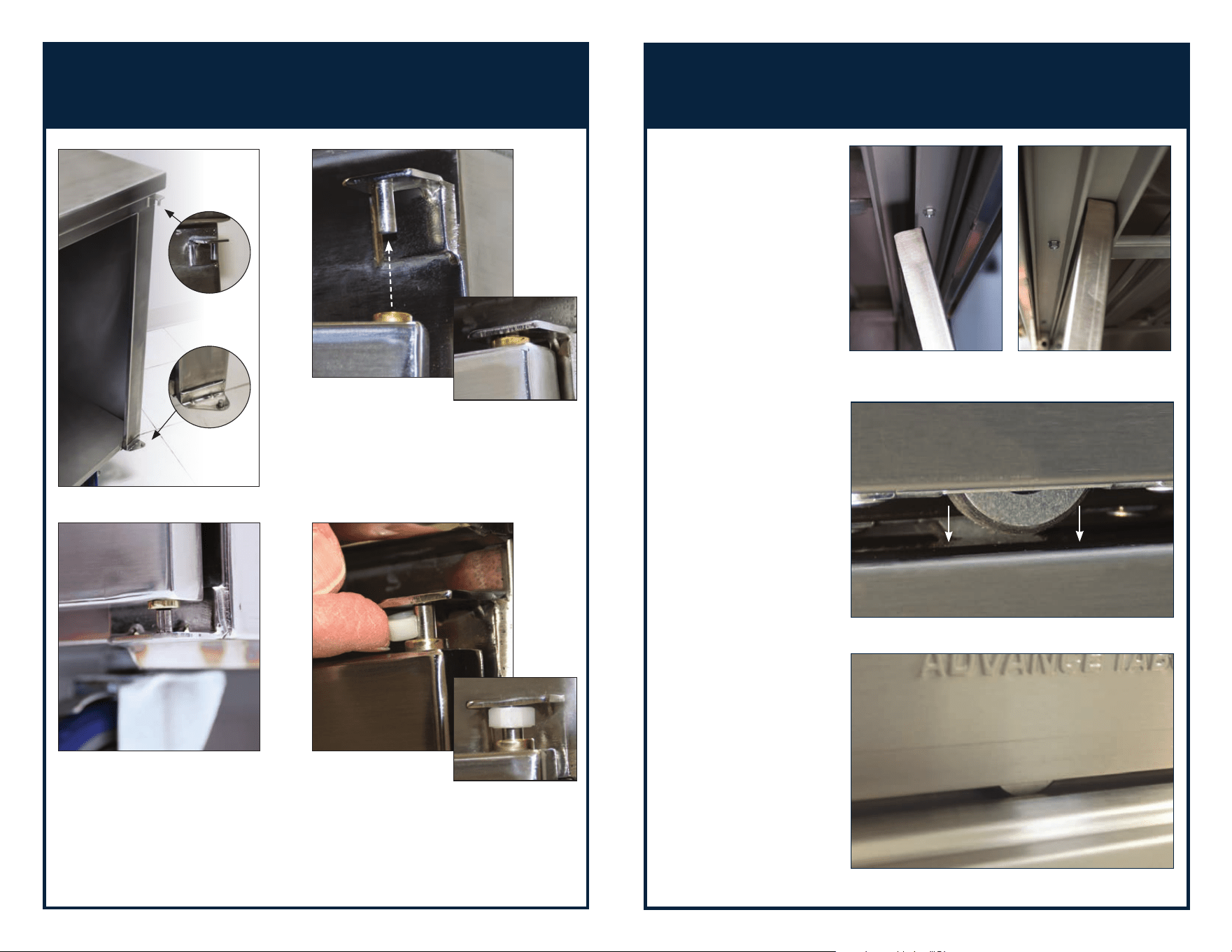

Step 1:
Align brass bushing (top of door)
with upper hinge pin. Slide bushing
onto pin. (Figure 1).
Step 2:
With upper bushing engaged
onto upper hinge pin, align
bottom bushing with lower
hinge pin and lower door
onto bottom hinge pin.
Step 3:
Secure door by pushing white clip
onto upper hinge pin. (Figure 2).
Top Hinge
Bottom Hinge
Step 1:
Align top of rear door
with upper (rear) guide
track located under table
top along front edge.
Position top of door into
track. (Figure 1).
Step 2:
Align bottom of door with
die-formed bottom track
in undershelf. (Figure 2).
Step 3:
Ensure door rolls
properly in guide track.
Repeat for front door.
(Figure 3).
Figure 1
Figure 1
Figure 2
Figure 2
Figure 3
