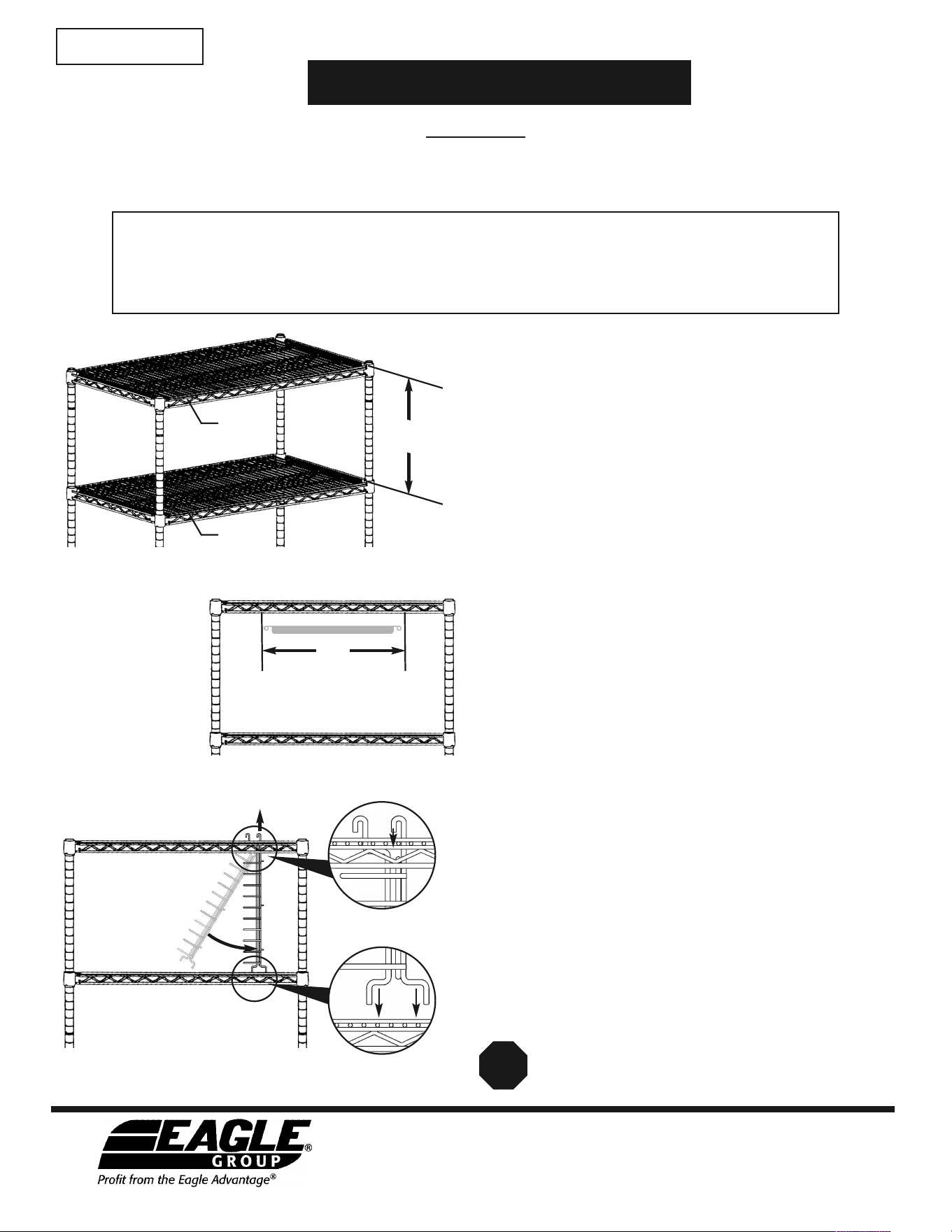

Step 3 - Mount tray slides.
bottom
shelf
(FRONT END)
• If there is less than 20˝, either raise the top shelf or lower the
bottom shelf.
• If there is more than 20˝, either lower the top shelf or raise the
bottom shelf.
• Accommodate for width of trays to be used. See fig. 2.
• Position left or right tray slide between top and bottom shelves
by tilting tray slide, then while straightening tray slide vertically,
lift tray slide upward so that the hooks protrude through truss
mat of top shelf. See fig. 3.
• Lower tray slide, securing hooks to truss mat of top shelf (see
fig. 3a). Press bottom of tray slide downward behind front of
bottom shelf (see fig. 3b). Make sure front and rear of tray
slide are secured.
• Accommodate for width of trays to be used, then repeat Step 3
on remaining tray slide.
To adjust shelf height, refer to shelf instructions.
Step 1 - Make sure there is a 20-inch space between
the truss mat of each adjacent shelf. Adjust shelf
height, if required.
Step 2 - Determine location of tray slides along
shelves.
INSTALLATION INSTRUCTIONS
Tray Slides
eagle Foodservice equipment, eagle Mhc, specFAB
®
, and retail Display are divisions of eagle Group. ©2013 by the eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
eG9968 revised 09/13
CAUTION
i
nsPect contents iMMeDiAteLY AnD FiLe cLAiM With DeLiVerinG cArrier For AnY DAMAGe.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
You Are resPonsiBLe For DAMAGe to Your unit iF returneD iMProPerLY PAcKeD.
• These tray slides are for Eagle Group WIRE Shelves only.
• Front-to-back dimension of tray slides must match front-to-back dimension of shelves.
• IMPORTANT: Allow 20˝ between truss mat of top shelf and truss mat of bottom shelf—see Step 1.
BEFORE INSTALLATION, PLEASE READ:
20˝
width
of tray
top
shelf
(End)
fig. 1
fig. 2
fig. 3
fig. 3a
fig. 3b
instruction sheet
#A229197
