1.
TO SET UP THE OPINION PLUS YOU WILL NEED:
Item
Description
1
Power Adaptor
5V, 3A - Supplied with the Opinion Plus
2
Ethernet Cable (optional)
For a wired LAN based Opinion Plus
GETTING STARTED WITH THE
OP INION PLUS
Before starting make sure that you have all the
components listed above.
1. If using the Opinion Plus with a wired
LAN, plug in the Ethernet cable into
the Ethernet port of the Opinion Plus.
2. Plug in the power supply into port 1,
power it on and allow the Opinion Plus
to boot.
2.
TO SET UP THE OP INION PLUS AS A KIOSK YOU WILL NEED:
Item
Description
1
Power Adaptor
5V, 3A - Supplied with the Opinion Plus
2
Ethernet Cable (optional)
For a wired LAN based Opinion Plus
3
Printer
Bixolon
4
Power Adaptor for the Printer
Supplied with the printer
5
USB Cable
USB Type - B to USB Type - A
2
GETTING STARTED WITH THE OPINION PLUS AS A KIOSK
Before starting make sure that you have all the components listed above
1. If using the Opinion Plus Kiosk with a Wired LAN, plug in an Ethernet cable
into the Ethernet port of the OP.
2. Plug in the USB cable supplied with the Bixolon Printer into the USB port of
the Opinion Plus.
3. Plug in power adaptor supplied with the Opinion Plus into the power port of the
Opinion Plus.
4. Plug in the power adaptor supplied with the Bixolon Printer into its power port.
5. Power both on and wait for the Kiosk application to boot up.
SAFETY INSTRUCTI ONS:
Please retain this information for future reference
• This product can only be used with a 5V power supply rated at 3A. Please
only use the supply provided with the Opinion Plus
• Only attach peripherals that have been approved for operation with the
Opinion Plus.
• Where peripherals are used that have not been provided directly by Wavetec
(such as mice), please ensure that the cables or connectors used offer
adequate insulation in order to meet safety requirements.
• Do not expose the Opinion Plus to water or place it in an area with high levels
of moisture.
• Take care while handling the Opinion Plus to avoid mechanical damage to the
unit
• For normal operation in a desktop or wall mounted configuration ensure that
the Opinion Plus is held securely in place with the mounting holes in its base.
• Do not pierce the plastic casing for any reason
3
1
2
5

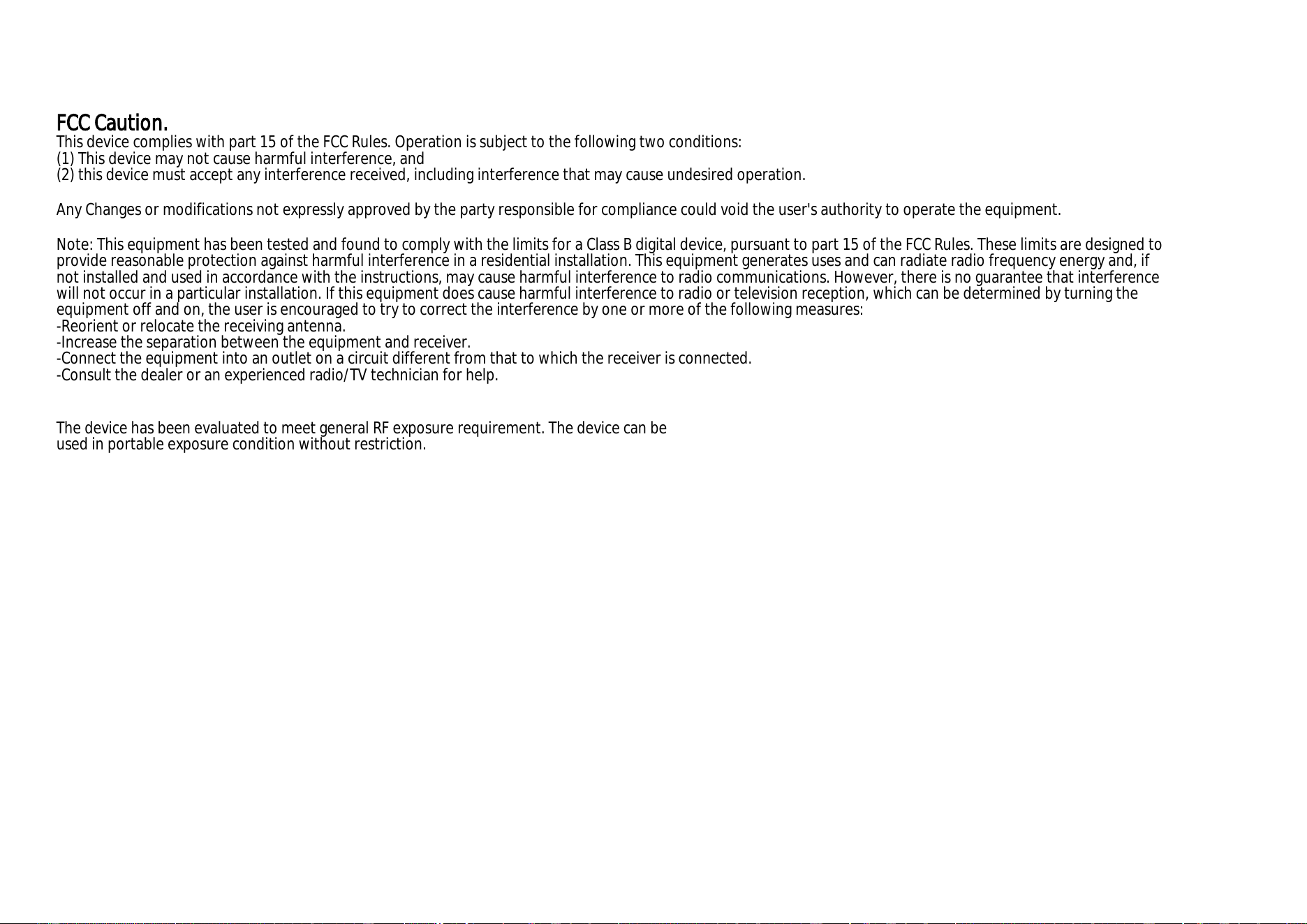

FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction.
