USER MANUAL
TUMBLE DRYER
Life is complicated today. Let's make at least laundry care simple! Your new dryer uses
innovative technology and the latest achievements in laundry care to help you simplify
your daily household chores.
The technology offers the gentlest care for any garment, with minimum creasing.
Moreover, your new dryer is also friendly to the environment as it uses power in the
most economical way possible.
This dryer is intended solely for household use. Please do not use it to dry clothes that
are not suitable for machine drying.
The following symbols are used throughout the manual and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning – general danger
ELECTRIC SHOCK!
Warning – danger of electric shock
HOT SURFACE!
Warning – danger of hot surface
DANGER OF FIRE!
Warning – danger of fire
It is important that you carefully read the instructions.
Contents
5SAFETY PRECAUTIONS .........................................................................................................
11Danger of hot surface ...............................................................................................................
12Safety ........................................................................................................................................
13DESCRIPTION OF THE DRYER ..............................................................................................
14Technical data ...........................................................................................................................
15Compliance information .........................................................................................................
16Control unit ..............................................................................................................................
18INSTALLATION AND CONNECTION ......................................................................................
18Selecting the room ....................................................................................................................
19Dryer placement ........................................................................................................................
20Opening the dryer door (top view) ............................................................................................
21Adjusting the dryer feet .............................................................................................................
22Draining the condensate ...........................................................................................................
23Connecting to the power mains ................................................................................................
24Moving and transport after installation .....................................................................................
25BEFORE USING THE APPLIANCE FOR THE FIRST TIME ...................................................
26Connecting the appliance to the ConnectLife application .......................................................
29DRYING PROCESS, STEP BY STEP (1–6) .............................................................................
29Step 1: Heed the labels on the laundry .....................................................................................
30Step 2: Preparing for the laundry drying process .....................................................................
33Step 3: Choosing the drying programme .................................................................................
34Program chart ...........................................................................................................................
36Remote control of your dryer using the App .............................................................................
37Step 4: Selecting extra functions ..............................................................................................
42Extra function table ...................................................................................................................
43Step 5: Starting the drying programme ....................................................................................
43Step 6: End of the drying programme ......................................................................................
44INTERRUPTIONS AND CHANGING THE PROGRAMME .....................................................
44Interruptions ..............................................................................................................................
44Changing the program/functions ..............................................................................................
44Adding laundry after the start of the program ..........................................................................
45Saving personal settings ...........................................................................................................
45AdaptTech ................................................................................................................................
45Personal settings menu ............................................................................................................
45Overview of the number of drying cycles performed ................................................................
46CLEANING AND MAINTENANCE ...........................................................................................
47Cleaning the door net filter in the door .....................................................................................
48Cleaning the heat pump filter ....................................................................................................
49Cleaning of the heat exchanger ................................................................................................
50Emptying the condensate tank .................................................................................................
51Cleaning the dryer .....................................................................................................................
52TROUBLE-SHOOTING ............................................................................................................
52What to do ...? ..........................................................................................................................
52Troubleshooting and error table ...............................................................................................
55Sounds ......................................................................................................................................
3
56Service ......................................................................................................................................
57TIPS FOR DRYING AND ECONOMIC USE YOUR DRYER ...................................................
57Low standby mode ...................................................................................................................
58TYPICAL CONSUMPTION TABLE ..........................................................................................
60LABEL ......................................................................................................................................
61PRODUCT INFORMATION SHEET .........................................................................................
63DISPOSAL ................................................................................................................................
4
SAFETY PRECAUTIONS
Carefully read the instructions for use before using
the dryer.
Please, do not use the dryer without reading and
understanding these instructions for use first.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
These instructions for use of a dryer are supplied with
different types or models of dryers. Therefore, they may
include descriptions of settings or equipment that are not
available in your dryer.
The maximum mass of dry textile material in kilograms to be
used in the appliance.
Failure to observe the instructions for use or inappropriate
use of the dryer may result in damage to the laundry or the
appliance, or injury to the user. Keep the instruction manual
handy, near the dryer.
Instructions for use are available on our website at
www.gorenje.com.
5
Your dryer is intended solely for household use. If the dryer
is used for professional, for-profit purpose or purpose
exceeding normal use in a household, or if the dryer is used by
a person who is not a consumer, the warranty period shall be
equal to the shortest warranty period required by relevant
legislation.
Follow the instructions for correct installation of the Gorenje
dryer and connection to the power mains (see chapter
»INSTALLATION AND CONNECTION«).
All and any repairs or maintenance tasks on the dryer should
only be done by trained experts. Unprofessional repair may
result in an accident or major malfunction.
ELECTRIC SHOCK!
To avoid danger, a damaged power cord may only be
replaced by the manufacturer, a service technician, or an
authorized person.
After installation, the dryer should stand still for two hours
before it is connected to the power mains.
WARNING!
Do not connect the dryer to power mains using an external
switching device such as a programme timer, or connect it
to power mains that is regularly switched on and off by the
power supply provider.
The dryer shall not be connected to the power mains using an
extension cord.
Do not connect the tumble dryer to an electrical outlet intended
for an electric shaver or a hair dryer.
6
In case of a defect, only use approved spare parts by authorized
manufacturers.
In case of incorrect dryer connection, incorrect use, or servicing
by an unauthorized person, the user shall bear the cost of any
damage as such damage shall not be covered by warranty.
Always use the hoses supplied with the dryer.
Install the dryer in a room with adequate ventilation and a
temperature between 15°C and 25°C.
At least two persons are required to install the tumble dryer on
top of a washing machine.
Place the dryer on a level and stable solid (concrete) base.
The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that
of the tumble dryer, in such a way that a full opening of the
tumble dryer door is restricted.
Never block the air exhaust (evacuation opening).
For appliances with ventilation openings in the base, a carpet
must not obstruct the openings.
The air in the room where the dryer is installed may not
contain dust particles.
Adequate ventilation has to be provided to avoid the back
flow of gases into the room from appliances burning other fuels,
including open fires.
7
The fibre must not to be allowed to accumulate around the
tumble dryer.
In the appliance enclosure or in the built-in structure, keep
ventilation openings clear of obstruction.
The appliance may not be in contact with a wall or adjacent
furniture.
After installation, let the dryer rest still for 24 hours before using
it. If the dryer has to be laid down on one of the sides during
transport or servicing, place it with its left side, viewing from
the appliance front, downwards.
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers should be washed in hot
water with an extra amount of detergent before being dried in
the tumble dryer.
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in the
tumble dryer.
Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
DANGER OF FIRE!
Remove all objects from pockets such as lighters and
matches.
8
If the condensate tube is blocked or clogged, then tumble dryer
operation is stopped (see chapter »PAUSING AND CHANGING
THE PROGRAMME/Full condensate tank«).
Before moving the dryer or before storing it in a non-heated
room during the winter, the condensate tank has to be emptied.
That the lint filter has to be cleaned frequently, if applicable.
Clean the dryer filters after each drying cycle. If you have
removed the filters, replace them before the next drying cycle.
Do not use any solvents or cleaning agents that could
damage the dryer (please observe the recommendations and
warnings provided by the manufacturers of the cleaning agents).
Never add chemicals or fragrances into the condensate
tank (see chapter »DESCRIPTION OF THE DRYER and
EMPTYING THE CONDENSATE TANK«).
After the drying process, unplug the dryer power cord from
the power outlet.
The dryer uses a heat pump system to heat the air.
The system consists of a compressor and a heat exchanger.
When the dryer is started, compressor operation (the sound of
flowing liquid) or flow of refrigerant may be louder as long as
the compressor operates. This is not a sign of malfunction and
it will not affect useful life of the dryer. In time and with use of
the dryer this noise will become quieter.
9
The warranty does not cover consumables, minor deviations
in colour, increased noise that results from appliance age and
which does not affect the functionality of the dryer, and
aesthetic defects on components, which do not affect the
dryer's functionality and safety.
WARNING!
Child safety
Children should be supervised to ensure that they do
not play with the appliance.
Children of less than 3 years should be kept away unless
continuously supervised.
Prevent your children and pets from entering the dryer drum.
Before closing the dryer door and running the programme,
make sure there is nothing except laundry in the drum (e.g.
if a child climbed into the dryer drum and closed the door
from the inside).
Activate the Child lock. See chapter »STEP 4: SETTING
THE EXTRA FUNCTIONS/Child lock«.
The dryer is made in compliance with all relevant safety
standards.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
10
Cleaning and user maintenance shall not be made by children
without supervision.
Danger of hot surface
HOT SURFACE!
At higher drying temperatures, the door glass will heat up.
Be careful to avoid burns. Make sure children do not play
near the door glass.
The back of the dryer may get very hot during operation.
Wait for the dryer to cool down completely before
touching its back side.
If you open the dryer door during the drying process, the
clothes may be very hot and there is a risk of burning.
Never stop the drying process before it is completed; if you
do interrupt the cycle for any reason, be careful when
removing the laundry from the drum as it is very hot. Quickly
remove the laundry from the drum and spread it to allow it
to cool down as quickly as possible.
11
Safety
DANGER OF FIRE!
Only use the dryer to dry laundry that was washed with
water. Do not dry any laundry that was washed or cleaned
with flammable cleaners or substances (such as gasoline,
trichloroethylene etc.) as this may result in an explosion.
The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
The dryer is protected with an automatic switch-off system
in case of overheating. This system will switch off the dryer
if the temperature is too high.
If the net filter is clogged, the overheating automatic
switch-off system may be activated. Clean the filter, wait
for the dryer to cool down, and try running it again. If the
dryer still fails to start, call a service technician.
Do not damage the refrigerant circuit.
The refrigerant R290 in this appliance is environmentally
friendly yet combustible and may ignite if it comes into
contact with open flames or ignition sources. Keep naked
flames and ignition sources away from the appliance.
12
DESCRIPTION OF THE DRYER
BACKFRONT
1. Power cord1. Condense water tank
2. On/off and program selector knob 2. Condensate discharge hose
3.3. Touch control unit Adjustable feet
4. Door
5. Lint filter
6. Air vent
7. Heat pump filter
8. Rating plate
13
Technical data
(depending on the model)
Rating plate with basic information about the dryer is located on the inner side of the dryer door (see
chapter »DESCRIPTION OF THE DRYER«).
600 mmWidth
850 mmHeight
625 mmDryer depth (a)
653 mmDepth with door closed
1134 mmDepth with door open (b)
XX/YY kg (depending on the model)Weight
See rating plateRated voltage
See rating plateFuse
See rating plateNominal power
See rating plateQuantity of refrigerant
R290Type of refrigerant
See rating plateMaximum load
Rating plate
Link to the EU EPREL database
From 1 March 2021, information on energy labelling and ecodesign requirements is available in the
EU EPREL product database.
The QR code on the energy label supplied with the appliance contains a web link through which you
can find your registered appliance in the EU EPREL database.
Information regarding the performance of the product can also be found in the EU EPREL database,
which is accessible via the link https://eprel.ec.europa.eu, where you have to enter the model and
product number; both are indicated on the rating plate on the appliance. On the website
www.theenergylabel.eu you can find more detailed information about the energy label.
Keep the energy label in case it is needed in the future, together with the user manual and other
documents supplied with this appliance.
14
Compliance information
HL3215STGRadio equipment type
HLW3215-TG(depending on the model)
HLW3215-TG01
Wi-Fi
2.4000 GHz – 2.4835 GHzOperating frequency range
≤10 dBm/MHz (EIRP) (Antenna gain <10 dBi)Maximum output power
Gain: 0 dBiMaximum antenna gain
Bluetooth
2.400 GHz – 2.4835 GHzOperating frequency range
6 dBm (≤ 10 dBm)Carrier output
F1DEmission type
Declaration of conformity
The company declares that the device with the function ConnectLife complies with the essential
requirements and other relevant provisions of Directive 2014/53/EU. The detailed Declaration of
Conformity can be found at the web address https://auid.connectlife.io on the page of your device
among the additional documents.
15
Control unit

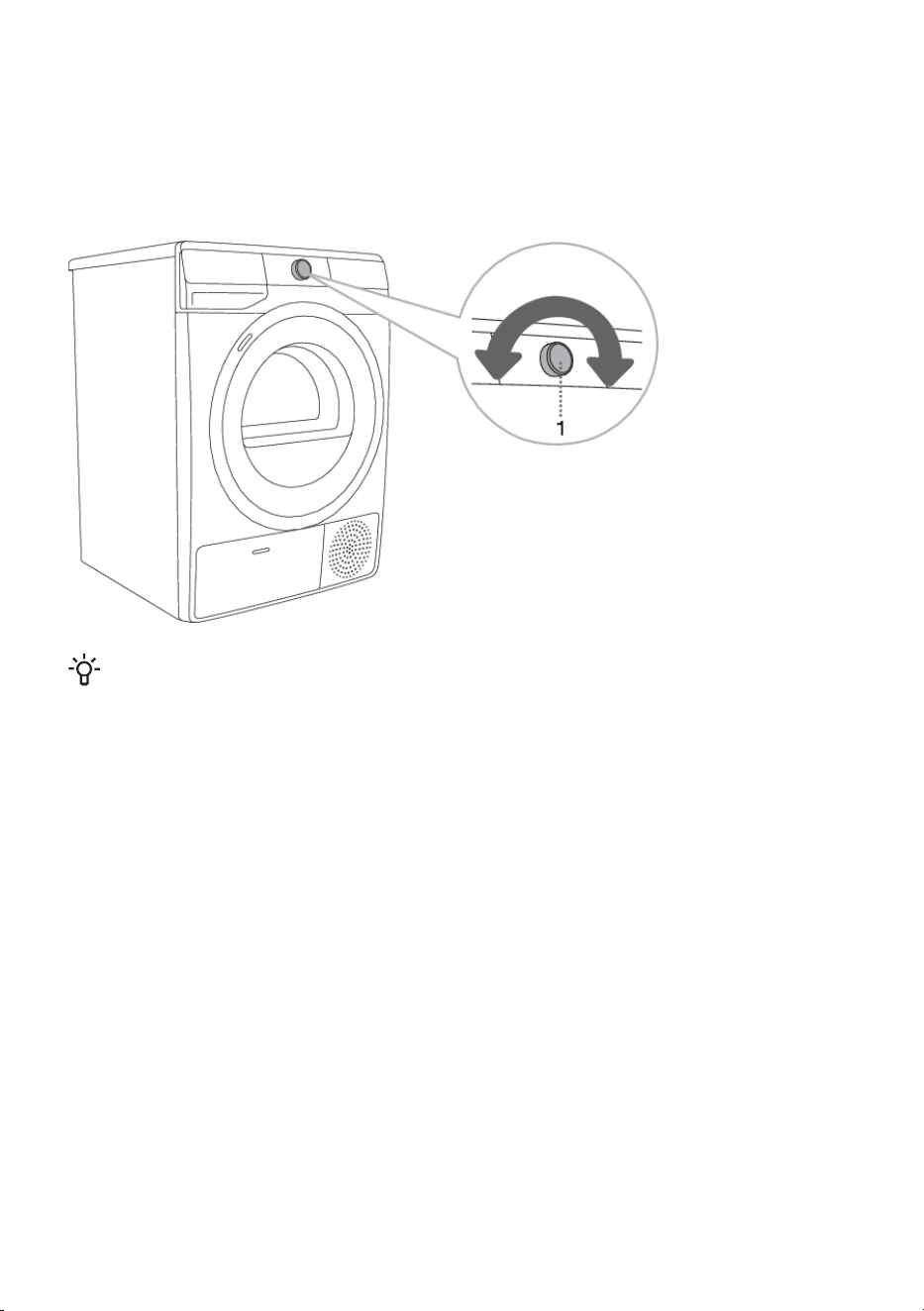

Dryer ON/OFF and PROGRAM SELECTOR KNOB.

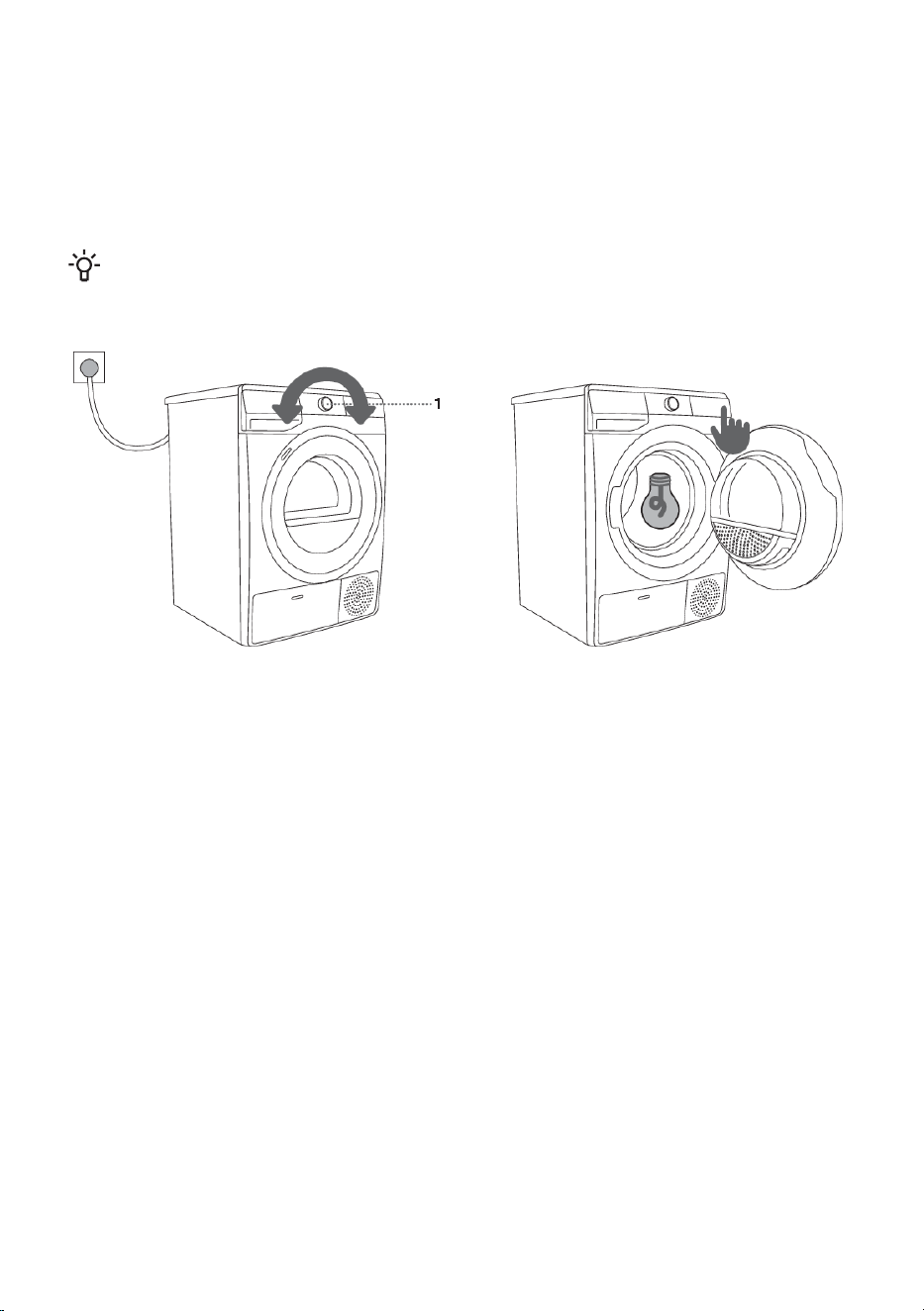

To TURN ON the dryer, rotate the program selector knob in either direction.
To TURN OFF the dryer, rotate the program selector knob to position OFF .
To SELECT a drying program, rotate the knob in either direction.
The indicator light next to the selected program lights up.
1
EXTRA DRY (DRYNESS LEVEL)
The symbol is lit when the function is selected.
Extra functions 2a (1, 2, 3) allow selecting a higher dryness level and extend the drying time.
2
ANTI CREASE (CREASE PREVENTION)
The selected operating time of the function will light up.
3
Child lock ON/OFF
Press the positions 3+5 and hold them for 3 seconds.
3+5
CHILD LOCK symbol lighting4
TIME DRY (TIMED DRYING)
Option to set the drying time.
5
Illumination of the SOUND OFF symbol
6
DELAY END (DELAYING THE END OF THE DRYING PROGRAM)
Option to set the time when the drying will end.
7
Sound ON/OFF
Press the positions 5+7 and hold them for 3 seconds.
5+7
EXTRAS (ADDITIONAL FUNCTIONS)
•
NATURE DRY (LOWER TEMPERATURE)
Option to dry at a lower temperature.
8
SWITCHING ON/OFF the Wi-Fi connection
Press the positions 7+8 and hold them for 3 seconds.
7+8
16
START/PAUSE BUTTON
The button has 4 functions:
9
• START – starting the drying programme (start the programme with a brief press on the
button);
• PAUSE – pause the drying programme (briefly press the button again to temporarily stop
appliance operation);
• SAVING PERSONAL SETTINGS (hold the key for 3 seconds).
• Activating REMOTE START
When the appliance is turned on, the indicator on the button lights up.
Lighting of the symbol REMOTE START
10
Lighting of the symbol CONNECT (CONNECTION)
11
Lighting of the symbol
CLEAN THE FILTER
12
The following is displayed on the DISPLAY UNIT:
• Available functions;
• Time remaining to programme completion;
• Information for the user.
13
Lighting of the symbol
EMPTY THE CONDENSATE TANK
14
17
INSTALLATION AND CONNECTION
INFORMATION!
Remove all packaging. When removing the packaging, make sure not to damage the dryer with
a sharp object.
Selecting the room
INFORMATION!

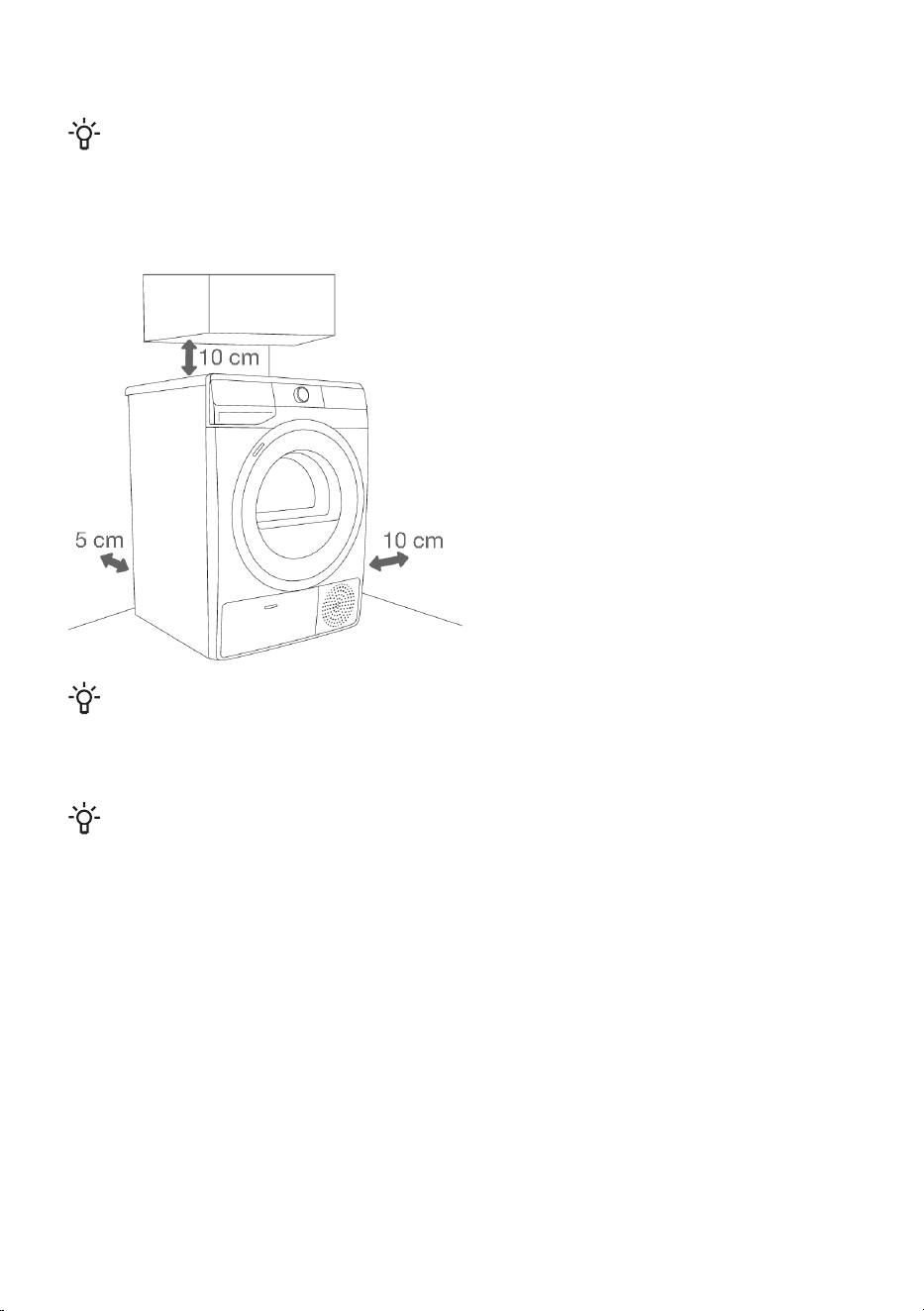

The dryer may not be in contact with a wall or adjacent furniture. For optimum dryer operation,
we recommend observing the clearance from the walls as indicated in the figure. In case of failure
to heed the required minimum clearance, the dryer may overheat.
INFORMATION!
Vents on the back wall and the air exhaust opening on the front side of the dryer should never
be obstructed.
The room in which you will install the dryer should be sufficiently ventilated, with a temperature between
15°C and 25°C. Dryer operation at a lower environment temperature may result in condensate
accumulation in the dryer interior. Do not place the dryer into a place where there is danger of freezing.
Frozen water in the condensate tank and pump may damage the dryer.
The dryer emits heat. Therefore, do not place it in a very small room, as the drying process may take
longer due to limited amount of available air.
Lighting in the room should be sufficient to allow reading the information on the display unit on the
control panel.
18
Dryer placement
If you also have a Gorenje dryer of corresponding (same) dimensions, it can be placed on top of the
Gorenje washing machine; in this case, vacuum feet must be used and wall fixing bracket. Alternatively,
the dryer can be placed next to the washing machine (figures 1 and 3).
If your Gorenje washing machine is smaller (minimum depth 545 mm), than your Gorenje dryer, then
the dryer support has to be purchased extra (figure 2). The supplied vacuum feet must be used; they
are designed to prevent the dryer from slipping.
Additional equipment: tumble dryer bracket (a), vacuum feet (b) (if not supplied) and wall fixing bracket
(c), can be purchased at the service centre.
The surface on which the appliance is placed should be clean and level.
Gorenje washing machine onto which you intend to place the Gorenje dryer should hold the weight
of the Gorenje dryer (see chapter »WASHING MACHINE DESCRIPTION/Technical information«).
321
INFORMATION!
At least two persons are required to install the tumble dryer on top of a washing machine.
19
Opening the dryer door (top view)
See chapter »DESCRIPTION OF THE
DRYER/Technical information«.
a = 625 mm
b = 1134 mm
WARNING!
The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge
on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble
dryer door is restricted.
WARNING!
For appliances with ventilation openings in the base, a carpet must not obstruct the openings.
20
INFORMATION!
After installation, wait for 24 hours without moving the appliance before using it for the first time.
If the dryer has to be laid down on one of the sides during transport or servicing, place it with its
left side, viewing from the appliance front, downwards.
Adjusting the dryer feet
Level the dryer in longitudinal and traverse direction by rotating the adjustable feet which allow levelling
by +/- 1 cm. Use a spirit level and spanner No. 22.
INFORMATION!
Floor on which the dryer is placed must have a concrete base. It should be clean and dry;
otherwise, the dryer may slide. Also clean the adjustable feet.
INFORMATION!
The dryer must stand level and stable on a solid base.
INFORMATION!
Incorrect levelling of the dryer with the adjustable legs may cause vibration, appliance sliding
across the room, and loud operation. Incorrect levelling of the dryer shall not be subject to
warranty.
INFORMATION!
Sometimes, unusual or louder noise may appear during appliance operation; these are mostly
the result of improper installation.
21
Draining the condensate
Moisture from the laundry is extracted as humid air passes through the heat exchanger and collects
in the condensate container.
During the drying process, an indicator light (symbol ), is lit on the display unit) warns when the
condensate tank is full and needs to be emptied.
To avoid emptying the condensate tank, run the condensate discharge hose located at the back of
the appliance directly into a drain.
1 Release the hose from
the holder on the back wall
of the dryer (left hand side,
below the top cover).
2 Run the hose into a drain
at a height of no more than
80 cm from the floor.
INFORMATION!
If you decide to run the condensate drain hose into a drain, make sure the hose is securely
fastened. This will prevent any water spillage which could result in unexpected damage.
WARNING!
Always use the hoses supplied with the dryer.
22
Connecting to the power mains
ELECTRIC SHOCK!
After installation, the dryer should stand still for two hours before it is connected to the
power mains; this allows the dryer to stabilize.
Connect the dryer to a grounded power outlet. After installation, the wall outlet should be freely
accessible. The outlet should be fitted with an earth contact (in compliance with the relevant regulations).
Information on your dryer is indicated on the rating plate (see chapter »DESCRIPTION OF THE
DRYER/Technical information«).
ELECTRIC SHOCK!
We recommend using over-voltage protection to protect the appliance in case of a lightning
strike.
WARNING!
The dryer shall not be connected to the power mains using an extension cord.
INFORMATION!
Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or a hair
dryer.
INFORMATION!
Any repair and maintenance pertaining to safety or performance should be done by trained
experts.
INFORMATION!
A damaged power cord may only be replaced by a person authorized by the manufacturer.
23
Moving and transport after installation
After every drying cycle, a small amount of condensed water will remain in the dryer. Switch on the
dryer and choose one of the programmes, then let the appliance operate for approximately half a
minute. This will pump out the remaining water and prevent damage to the dryer during transport.
If the dryer cannot be transported in the upright position, tilt it to the left side.
ELECTRIC SHOCK!
After transport, the dryer should be left to stand still for at least two hours before it is
connected to the power mains. The appliance should be installed and connected by a
trained technician.
INFORMATION!
If the appliance was not transported in compliance with the instructions, the dryer should be left
to stand still at least 24 hours before it is reconnected to the power mains.
Failure to do so may result in a heat pump failure which shall not be covered by the warranty.

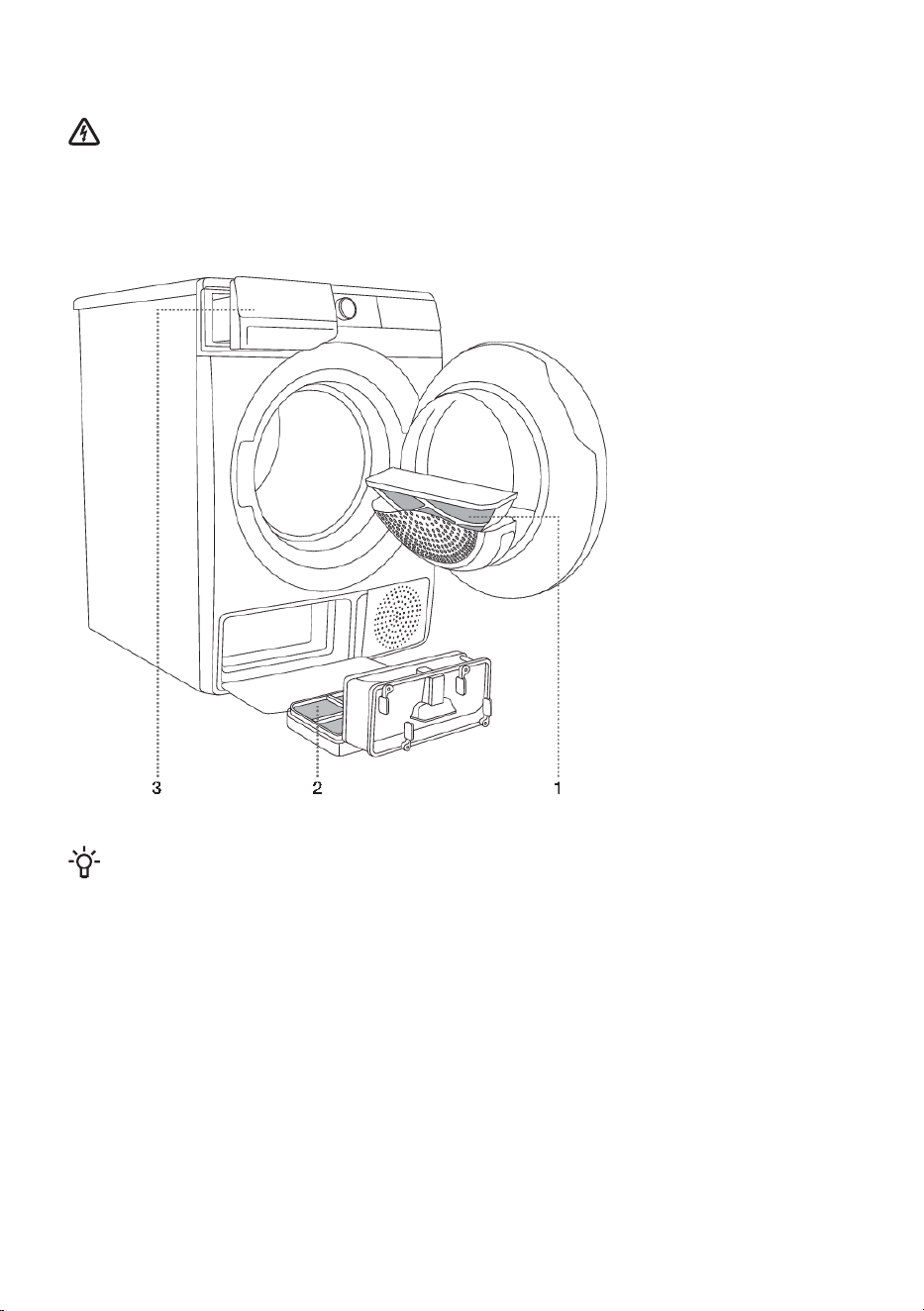

Be careful not to damage the cooling system (see chapter »INSTALLATION AND
CONNECTION/Dryer placement«).
ELECTRIC SHOCK!
Carefully read the instructions for use before connecting the dryer. Repair or any warranty
claim resulting from incorrect connection or use of the dryer shall not be covered by the
warranty.
INFORMATION!
The belt may only be replaced by a service technician authorized by the manufacturer, who can
supply the original spare part with the code 907722 BELT POLY-V 7PH 1971 HUTCHINSON;
883647 BELT POLY-V 7PHE 1942 HUTCHINSON (depending on the model).
24
BEFORE USING THE APPLIANCE FOR THE
FIRST TIME

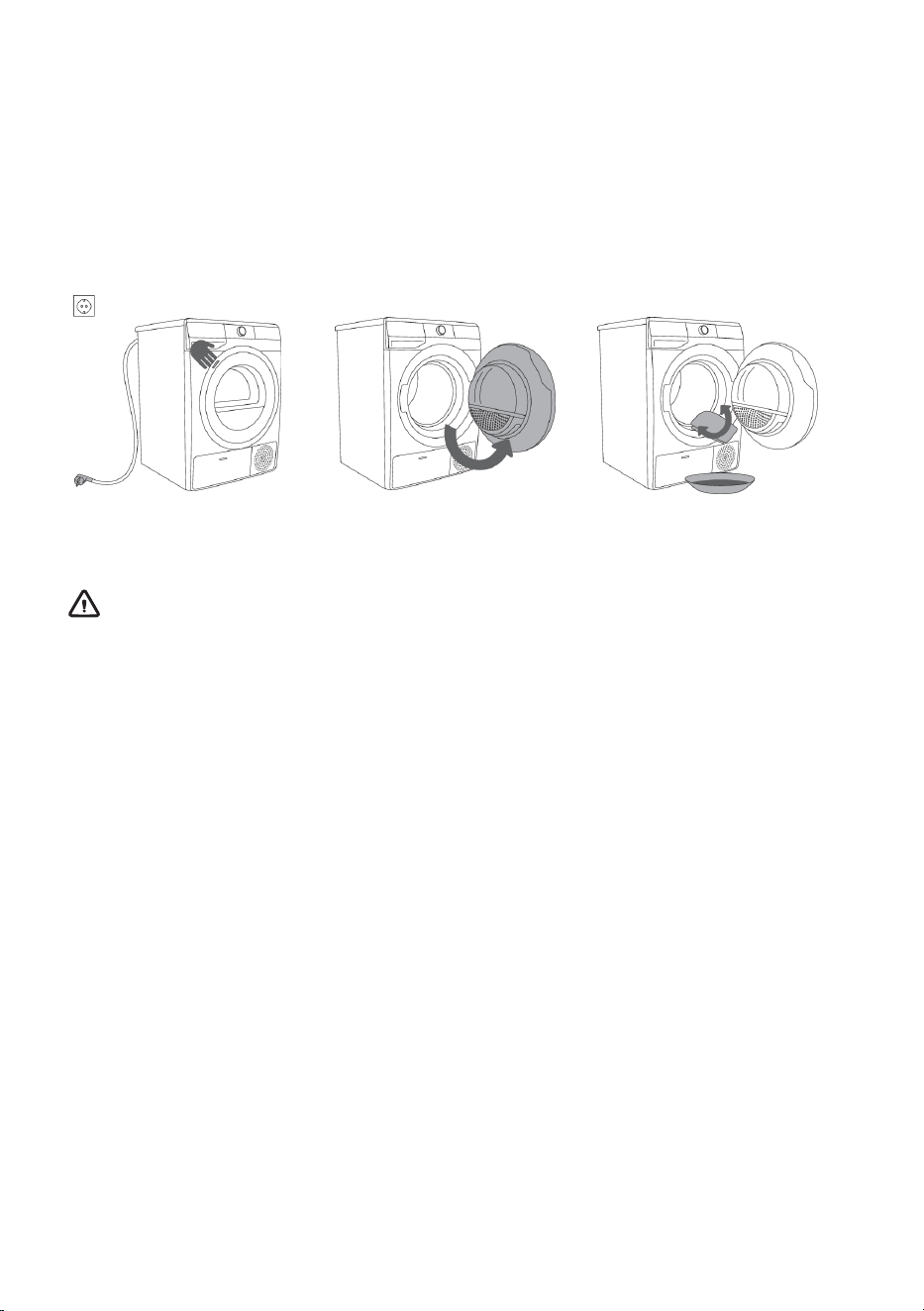

Make sure the dryer is disconnected from the power mains; then, open the door by pulling the left
side of the door towards you (figures 1 and 2).
Before using the dryer for the first time, clean the dryer drum using a soft damp cotton cloth and water
(figure 3).
321
WARNING!
Do not use any solvents or cleaning agents that could damage the dryer (please observe the
recommendations and warnings provided by the manufacturers of the cleaning agents).
25
Connecting the appliance to the ConnectLife application
ConnectLife is a smart home platform that connects people, devices and services. The ConnectLife
application includes advanced digital services and carefree solutions that allow users to monitor and
control appliances, receive notifications from a smartphone, and update software (supported features
may vary depending on your appliance and the region/country in which you are located).
To connect your smart device, you need a home Wi-Fi network (only 2.4 GHz networks are supported)
and a smartphone equipped with the application ConnectLife.
To download the ConnectLife application, scan the QR code or search
for ConnectLife in your favourite app store.
1. Install the ConnectLife application and create an account.
2. In the ConnectLife application, go to the »Add device« menu and select the appropriate type of
device. Then scan the QR code (it can be found on the nameplate of the appliance; you can also
enter the AUID/SN number manually).
3. The application then guides you through the entire process of connecting the appliance to your
smartphone.
4. After a successful connection, the appliance can be operated remotely via the mobile application.
Useful tips for your smart device
Where to find the QR code for the devices required by the App during the installation
process?
The QR code can be found on the warranty card or on the rating plate of the appliance.
How to enable Wi-Fi on the device?
Check that the appliance is switched on; the programme selection button
can be in any position. Then do the following:
• In the ConnectLife app, open the add device menu.
• Follow the instructions in the application ConnectLife, where you
will pair your phone and appliance and add the appliance to your
home Wi-Fi network.
- Select the type of appliance.
- Scan the QR code (it can be found on the warranty card or on
the rating plate of the appliance).
• On the appliance:
- Simultaneously press the positions (7+8). A countdown will start
3-2-1 and will appear on the appliance.
- Press the button (8) to switch on Wi-Fi; the display will show
.
-
Press the button (9) START/PAUSE . The display will show
.
26
-
Press again the button (9) START/PAUSE . A 5-minute
countdown will begin on the appliance.
• In the ConnectLife app, instructions will guide you through the
process of entering the appropriate data for your appliance to connect
to your home network.
How to enable remote start of the appliance?
Move the programme selection button to ConnectLife/REMOTE CONTROL (remote control).
Press the (9) START/PAUSE button (the door must be closed).
How to add a user?
Check that the appliance is switched on; the programme selection button can be in any position. Then
do the following:
• In the ConnectLife app, open the add device menu.
• Follow the instructions in the application ConnectLife where you will pair the phone and the
appliance.
- Select the type of appliance.
- Scan the QR code (it can be found on the warranty card or on the rating plate of the appliance).
• On the appliance:
•
Simultaneously press the positions (7+8). A countdown will start 3-2-1 and will appear
on the appliance.
-
-
Press the button (8); the display will show .
-
Press the button (9) START/PAUSE . A 3-minute countdown will start on the appliance.
• You can then complete and confirm the setting in the app.
How to remove the users (UnPair)?
Check that the appliance is switched on; the programme selection button can be in any position. Then
do the following:
On the appliance:
•
Simultaneously press the positions (7+8). A countdown will start 3-2-1 and will appear on the
appliance.
•
Repeatedly press (8); until the display shows .
•
Press the button (9) START/PAUSE . A 1-minute countdown will start on the appliance.
INFORMATION!
This step will remove all active users of the appliance. If you want to operate the appliance
remotely again, you will need to repeat the process of adding a user .
Which Wi-Fi router can be used?
Only 2,4 GHz networks are supported. If the ConnectLife app cannot find your local network during
the connection set-up process, check the following:
• your router is operating at the frequency of 2.4 GHz,
• your network is hidden, and
• your signal is strong enough.
27
Do you have more questions?
Remotely upgrading the software
Check the software update options in the app ConnectLife.
28
DRYING PROCESS, STEP BY STEP (1–6)
Step 1: Heed the labels on the laundry
Normal wash;
Sensitive laundry
Hand wash only
Max. washing temp.
40°C
Max. washing temp.
95°C
Do not wash
Max. washing temp.
30°C
Max. washing temp.
60°C
Bleaching
Bleaching not allowedBleaching in cool water
Dry cleaning
Petroleum solvent R11, R113Dry cleaning with all agents
Dry cleaning not allowed
Dry cleaning in kerosene, pure alcohol,
and R113
Ironing
Hot ironing, max. 110°CHot ironing, max. 200°C
Ironing not allowedHot ironing, max. 150°C
Drying
High temperatureDry flat (place on a flat surface)
Low temperatureDrip dry
Tumble drying not allowedLine dry
29

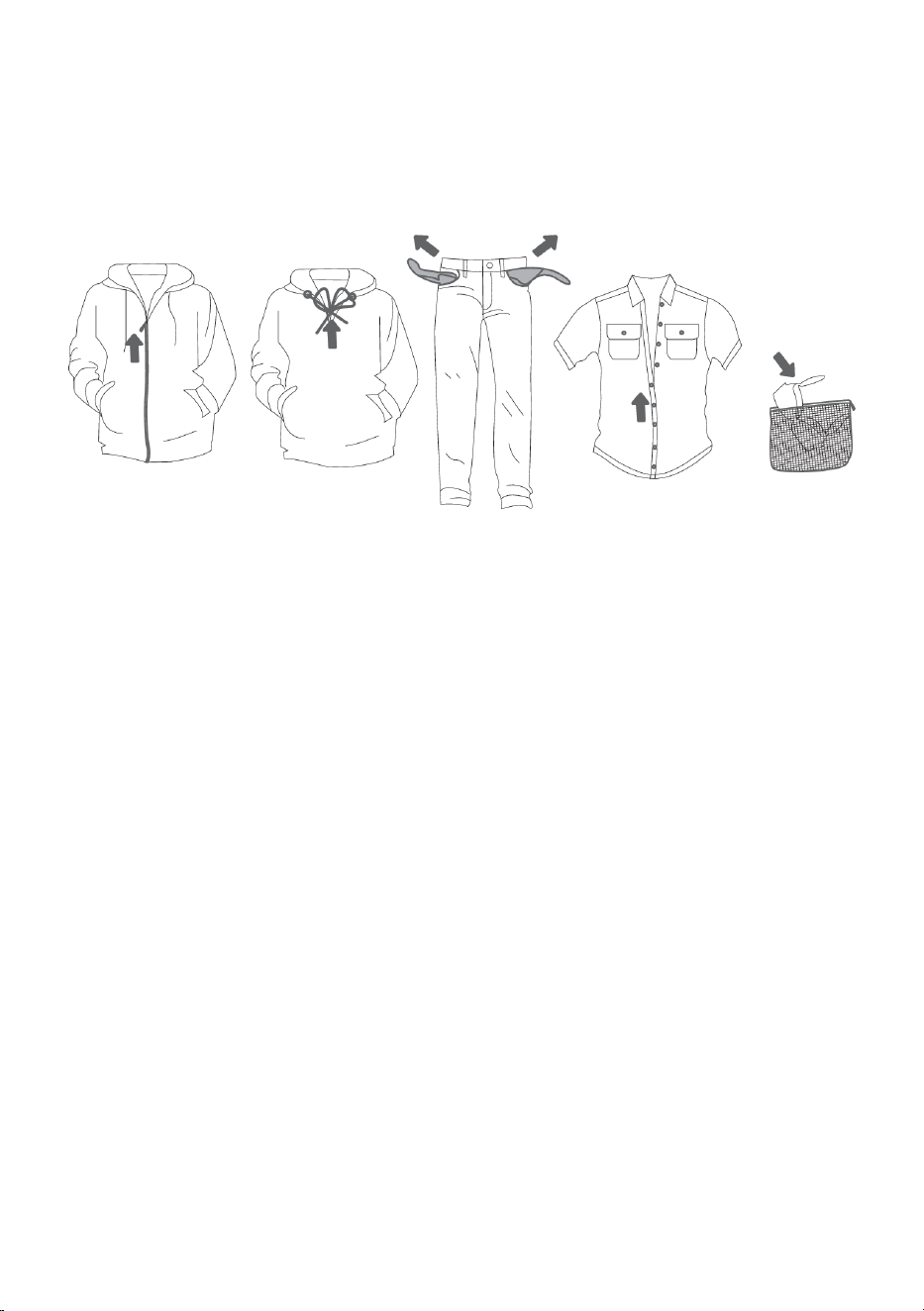

Step 2: Preparing for the laundry drying process
1. Sort the laundry by type and thickness of the fabric (see PROGRAMME TABLE).
2. Close the buttons and zips, tie any ribbons, and turn the pockets inside out.
3. Place very sensitive clothes in a special-purpose laundry bag.
(The special-purpose laundry bag is available as an optional accessory.)
Drying laundry made of particularly delicate fabrics that may be deformed is not recommended.
The following types of laundry may not be dried in the dryer as this may cause your garments
to deform:
• leather garments and other leather products,
• garments that are waxed or treated in any other way,
• garments with major wooden, plastic, or metal parts;
• garments with spangles;
• garments with metal parts subject to rusting.
30
Switching on the dryer
Connect the dryer to the power mains by plugging in the power cord.
To turn on the dryer, rotate the program selector knob (1) to any position (figure 1).
With some models, the dryer drum is lit as well (figure 2).
(The light in the dryer drum is not suitable for any other use.)
INFORMATION!
The light in the dryer drum may only be replaced by the manufacturer, a service technician or an
authorized person.
21
31

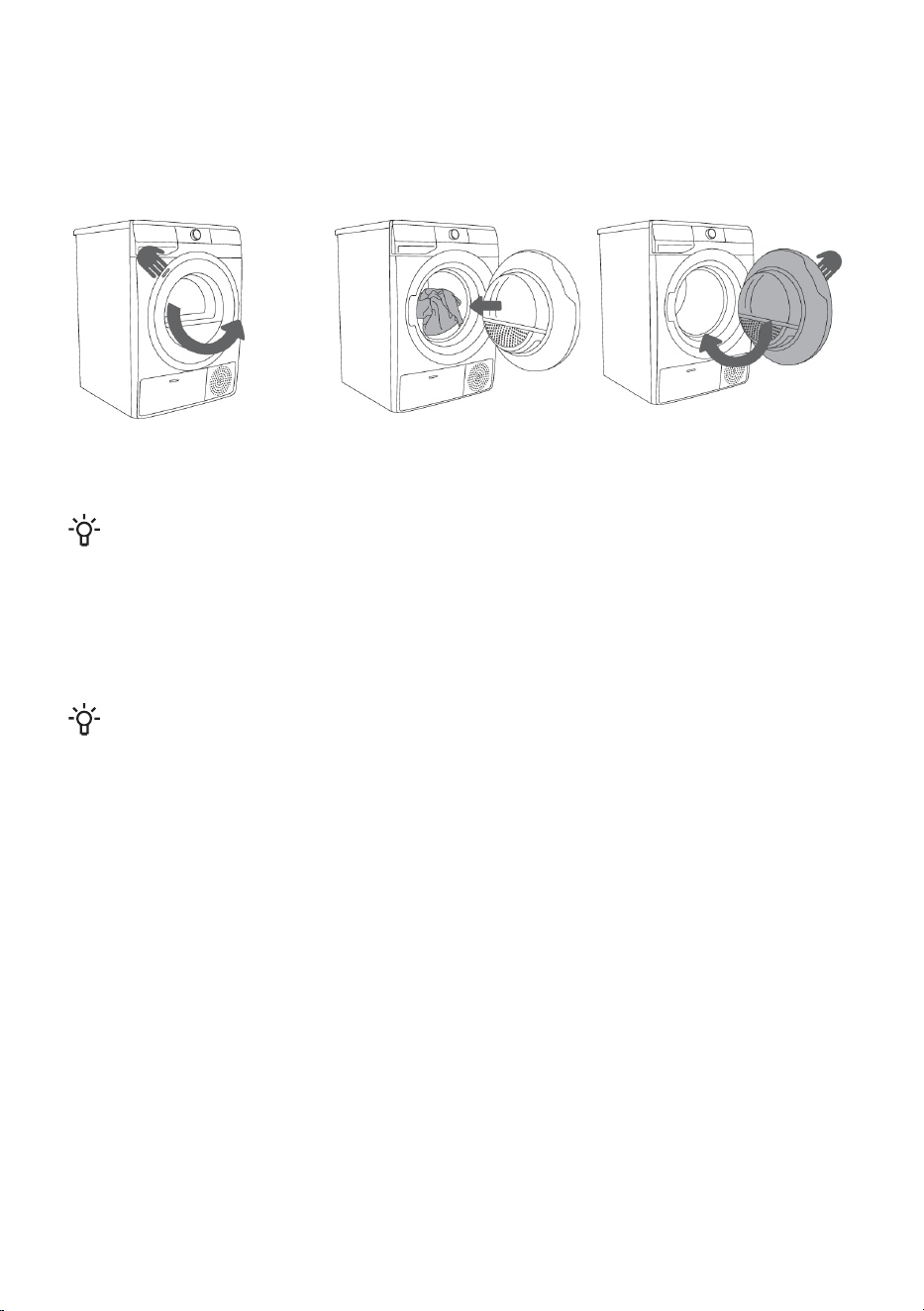

Loading the dryer
Open the dryer door by pulling the left side of the door towards you (figure 1).
Insert the laundry into the drum (after making sure the drum is empty) (figure 2).
Close the dryer door (figure 3).
321
INFORMATION!
Do not insert laundry into the dryer if it has not been wrung or spun (recommended minimum
spinning cycle: 800 rpm).
Do not overload the drum! See PROGRAMME TABLE and observe your nominal load as indicated on
the rating plate.
If the dryer drum is overloaded, the laundry will be more wrinkled and perhaps unevenly dried.
INFORMATION!
When drying larger items (bedding, towels, tablecloths etc.), loosen them and then insert them
into the dryer drum.
32
Step 3: Choosing the drying programme
Select the programme by rotating the programme selector knob (1) in either direction (depending on
the type of laundry and the desired level of dryness). See PROGRAMME TABLE.
The signal light next to the selected program lights up.
INFORMATION!
The programme selector knob (1) will not rotate automatically during operation.
33
Program chart
Programme descriptionMax.
load
Program
Dryness levels
Use this programme for thicker non-sensitive cotton
laundry. After drying, it will be dry and ready to be stored
in the cupboard.
8 kg
9 kg
Cotton (Cotton)
Storage
(Cupboard dry)
The Eco programme is suitable to dry wet cotton
laundry, and is the most efficient programme in terms
of energy consumption for drying wet cotton laundry.
8 kg
9 kg
Cotton Eco*
(Cotton Eco)
Use this program for non-sensitive cotton laundry. After
drying, it will be ready for ironing.
8 kg
9 kg
Cotton (Cotton)
Iron
(Moist for ironing)
The program is used for drying cotton and synthetic
laundry at the same time.
3,5 kg
Mix
(Mixed laundry)
1)
NATUREDRY drying at a lower temperature that
is friendlier to your laundry.
The program is used for drying synthetic and blended
textiles.
3,5 kgSynthetic
(Synthetics)
This short program is intended for softening or fluffing
of clothes made of wool and silk, which have to be dried
thoroughly according to manufacturer's instructions.
2 kgWool
(Wool)
Use this programme for larger items. When the
programme is complete, they will be dry. Adjusted drum
rotation prevents the laundry from tangling.
5 kgBedding
(Bedding)
Use this programme for non-sensitive laundry that is still
slightly moist and has to be thoroughly dried. In the time
programme, remaining moisture is not detected
automatically. If the laundry is still damp after the
programme is complete, repeat the programme; if it is
too dry and therefore creased and rough to touch, the
drying time you selected was too long.
4 kgTime
(Timed program)
Use this programme to dry baby clothes. Clothes dried
with this programme are usually normally dry.
4 kg
Baby
(Baby clothes)
1)
NATUREDRY drying at a lower temperature that
is friendlier to your laundry.
Use this programme to dry highly delicate laundry made
of synthetic fibres, which may be slightly moist after the
drying process. We recommend using a special-purpose
laundry bag.
1 kg
Sensitive
(Delicate)
1)
NATUREDRY drying at a lower temperature that
is friendlier to your laundry.
Use this program to dry shirts and blouses. Adjusted
drum rotation prevents the laundry from creasing.
2 kg
Shirts
(Shirts)
1)
NATUREDRY drying at a lower temperature that
is friendlier to your laundry.
34
Programme descriptionMax.
load
Program
Dryness levels
Use this programme for clothing with a membrane, for
sportswear made of mixed materials, and breathable
fabrics.
3 kg
Sports
(Sportswear)
1)
NATUREDRY drying at a lower temperature that
is friendlier to your laundry.
The program is suitable for smaller amounts of laundry
that you wish to dry quickly and efficiently.
4 kgFast 89´
(Fast 89')
Longer drying program duration and overheating of the
fabric results in higher drying temperature (above 60 °C),
which reduces the amount of microbes and allergens
on the garments. This drying program should not be
used for delicate items and items that are not suitable
for machine drying.
4 kgExtra Hygiene
Use the Remote control programme to remotely control
your appliance (using your phone). You can select all
programs available of your appliance (see chapters
»BEFORE FIRST USE/Connecting the appliance to the
ConnectLife application« and »DRYING PROCESS, STEP
BY STEP (1 - 6)/ Step 3: Remote control of your dryer
using the App«).
Remote control
(Remote control)
The Cotton Eco programme is used to assess compliance with EU legislation on eco-design.*
NATUREDRY Drying laundry at a lower temperature than normal in order to reduce the possibility
of shrinkage. During the drying process, the temperature is decreased by means of accurate
control of heat pump operation and an additional temperature sensor. Therefore, shrinkage of
clothes with this program can be up to 50%*) lower than with normal drying at a normal drying
temperature (depending on the garments and type of fabric).
The program is intended for garments that may be dried in a dryer.
1)
If your laundry is not dried to the desired dryness level, use extra functions or use a more suitable
programme.
DrySync function
The DrySync function allows communication between the washing machine and the dryer. When the
washing machine completes the washing cycle, the suggested drying program appears automatically
on the dryer, based on the washing program that was used. This function can only be activated or
deactivated in the ConnectLife mobile app. Animation on the knob will indicate that the function is
activated, and will appear simultaneously on the appliance. The DrySync function can only operate
between two connectible appliances of the same brand.
35
Remote control of your dryer using the App
INFORMATION!
See chapter DRYING PROCESS, STEP BY STEP (1–6) and observe steps 1 and 2.
On the appliance:
1. Close the dryer door.
2. Rotate the program selector knob to position ConnectLife/REMOTE
CONTROL (Remote control)
3. Press the position (9) START/PAUSE. Remote control indicator
REMOTE START will be activated.
Remote control is available for the next 24 hours (the appliance goes into standby mode).
Opening the door will cancel REMOTE CONTROL.
Continue operating the appliance in the App, where you can choose from several options (selection,
launch, and monitoring and stopping of the programme, amongst other additional settings).
INFORMATION!
The drying process can be controlled/monitored from the App.
INFORMATION!
Dryer operation can be interrupted or stopped via the application by selecting STOP/PAUSE or
by opening the dryer door.
INFORMATION!
You can also control your appliance from your phone if you are not connected to the same Wi-Fi
network as your appliance (the phone only needs an active internet connection). This means you
can also control your appliance when you are away from home.
INFORMATION!
You can operate the appliance with multiple devices. You can control and monitor the operation
of the appliance with any phone connected to the appliance, regardless of which user has initiated
the drying process. The appliance can be connected to/controlled simultaneously with several
ConnectLife user accounts.
INFORMATION!
After you have started the appliance from your phone, a person located next to the appliance
can take over and manually turn off or control the appliance; the app will notify you in such case.
In such case, controlling the appliance remotely from your phone is no longer possible. If you
wish to control the appliance from your phone again, all required steps must be repeated.
36
Step 4: Selecting extra functions
Settings using a single button press
INFORMATION!
Activate/deactivate the functions by pressing the desired function (before pressing the (9)
START/PAUSE button).
Adjust the settings by pressing the relevant function button (just before pressing the (9) START/PAUSE
button).
Functions that can be changed or adjusted with the selected drying programme are partly lit (dimmed).
Certain settings cannot be selected with some programmes. Such settings will not be lit, and the
button will flash when pressed (see FUNCTION TABLE).
Description of function indicators for the selected drying programme:
• Lit (Basic/preset setting);
• Dimmed (Functions that can be adjusted) and
• Unlit (Functions that cannot be selected).
EXTRA DRY (DRYNESS LEVEL)
Press the (2) EXTRA DRY (DRYNESS LEVEL) position to adjust (increase)
the dryness level and drying duration. This setting can be adjusted before
the start of the drying process. After the drying programme is completed,
this function is not stored unless the same program with the same settings
has been used 3 times in a row (in such case, the ADAPTTECH function
is activated).
Three higher dryness levels and drying times are available. The extra
functions (2a) (1, 2, 3) allow selecting a higher dryness level while
extending the drying time. The light on the selected drying mode will be
lit up.
37
ANTI CREASE (CREASE PREVENTION)
If you do not remove the laundry from the dryer immediately after the
completion of the drying programme, we recommend using the (3) ANTI
CREASE (CREASE PREVENTION) function. This function has to be
selected before the start of the drying process.
Press on the position (3) ANTI CREASE (CREASE PREVENTION) to
choose between 1h, 2h, and 3h duration (3a) or deactivating this function.
When you open the dryer door after the completion of the drying
programme, the function is automatically deactivated. The function is
also deactivated if you press the (9) START/PAUSE key after the
completion of the programme.
TIME DRY (TIMED DRYING)
In the program Time (Timed program), you can press the position (5)
TIME DRY (TIMED DRYING) to set the drying time. The light under the
selected function's icon will light up. Initial time is 0:30; with every press,
the drying time is increased by 15 minutes. The longest possible drying
time is 4:00 h.
To reset (stop) the set drying time, press the position (5) TIME DRY
(TIMED DRYING) and hold it for three seconds.
DELAY END (DELAYING THE END OF THE DRYING PROGRAM)
(depending on the model)
By pressing or holding position (7) DELAY END (DELAYING THE END
OF THE DRYING PROGRAM), it is possible to set the end of the drying
period to be up to 24h.
If you press any key (except DELAY END and START/PAUSE) while
setting the DELAY END (DELAYING THE END OF THE DRYING
PROGRAMME) function, then DELAY END will be reset. Therefore, before
setting the DELAY END, all other desired functions have to be set first.
Settings procedure:
• Select the desired programme and extra functions.
• Press or hold position (7) DELAY END (DELAYING THE END OF THE
DRYING PROGRAM) to set the desired drying end delay period. It
can be selected in 30-minute increments up to 6 hours, and then in
1 hour increments up to 24 hours.
•
The function is activated when the (9) START/PAUSE .
The dryer starts counting down the time. When the countdown reaches
the drying programme duration (e.g. 2:30), the drying programme starts
automatically.
To stop or change the drying end delay, rotate the drying programme
selector knob (1) to position OFF for at least 1 second.
When the dryer is turned on the next time, you can set a new drying
completion delay time.
38
To quickly cancel the programme completion delay, press the position
(7) DELAY END (DELAYING THE END OF THE DRYING PROGRAM) and
hold it for 3 seconds. The drying program will resume.
Example of function setting:
If you wish the drying programme end at 6:00 in the morning and it is
now 21:00, then set the DELAY END (DELAYING THE END OF THE
DRYING PROGRAM) to 9 hours.
NATURE DRY (LOWER TEMPERATURE)
Press on the (8) NATURE DRY (LOWER TEMPERATURE) position to
choose drying at a lower temperature that is friendlier to your laundry.
Drying laundry at a lower temperature than normal in order to reduce the
possibility of shrinkage. During the drying process, the temperature is
decreased by means of accurate control of heat pump operation and an
additional temperature sensor. Therefore, shrinkage of clothes with this
program can be up to 50% lower than with normal drying at a normal
drying temperature (depending on the garments and type of fabric).
The program is intended for garments that may be dried in a dryer.
39
Settings using a combination of two buttons pressed simultaneously
CHILD LOCK
To activate or deactivate the child lock, simultaneously press the positions
(3) ANTI CREASE (CREASE PREVENTION) and (5) TIME DRY (TIMED
DRYING) and hold them for at least 3 seconds until the symbol (4)
lights up or goes off, respectively.
If the child lock is activated, programme or additional functions cannot
be changed. The child lock remains active after the dryer is switched off.
Therefore, it has to be deactivated before a new programme can be
selected. It can also be switched on or off during the drying process.
SOUND ON/OFF
To switch off, or mute, the appliance sounds, simultaneously press the
positions (5) TIME DRY (TIMED DRYING) and (7) DELAY END (DELAYING
THE END OF THE DRYING PROGRAM) and hold them for at least 3
seconds until the symbol (6) lights up or goes off, respectively.
To reactivate the sound, simultaneously press the positions (5) and (7)
and hold them for at least 3 seconds. If you turn off the sound, then there
is no audible signal at the end of a drying programme.
Wi-Fi MENU
The Wi-Fi menu is used for connecting the appliance and for remote
control.
Rotate the programme selector knob (1) to any position, except position
OFF .
For 3 seconds, simultaneously press the positions (7) DELAY END
(DELAYING THE END OF THE DRYING CYCLE) and (8) EXTRAS
(ADDITIONAL FUNCTIONS). You have now entered the setup menu for
Wi-Fi.
40
INFORMATION!
While either the TIME DRY or the DELAY END functions are
activated, the Wi-Fi menu cannot be controlled.
You can take one step back by simultaneously pressing the positions
(7) and (8) and holding them for 3 seconds.
By pressing (8) EXTRAS (ADDITIONAL FUNCTIONS) you can select the
possible functions, and by pressing (9) START/PAUSE you confirm
your selection.
Available settings:
•
OFF/On / – turning appliance connectivity off or on.
•
Con – the appliance is ready for connecting to a Wi-Fi network
for 5 minutes.
•
PAr – appliance is ready for 3 minutes for connecting with the
ConnectLife app. The function will only be active if the appliance
has already been connected to your Wi-Fi network (Connection
Setup).
•
UnP – Remove (unpair) all users.
INFORMATION!
The functions CHILD LOCK and SOUNDS OFF cannot be activated or deactivated 10 seconds
after turning on.
INFORMATION!
Some functions are not available and cannot be selected with certain programmes; an acoustic
signal and a flashing light will indicate such cases (see EXTRA FUNCTION TABLE).
INFORMATION!
After disconnecting the dryer from the power mains, all settings will be reset to their default
factory values, except for the acoustic signal loudness, anti-crease, and child lock setting.
41
Extra function table
NATURE DRY
(LOWER TEMPERATURE)
DELAY END
(DELAYING THE END OF
THE DRYING PROGRAM)
TIME DRY
(TIMED DRYING)
ANTI CREASE
(CREASE PREVENTION)
EXTRA DRY
(DRYNESS LEVEL)
Programmes
•••
Cotton (Cotton)
Storage
(Cupboard dry)
•••
Cotton Eco
(Cotton Eco)
•••
Cotton (Cotton)
Iron
(Moist for ironing)
••••
Mix
(Mixed laundry)
•••
Synthetic
(Synthetics)
Wool
(Wool)
•••
Bedding
(Bedding)
••
Time
(Timed program)
••••
Baby
(Baby clothes)
••••
Sensitive
(Delicate)
••••
Shirts
(Shirts)
••••
Sports
(Sportswear)
••
Fast 89´
(Fast 89')
••
Extra Hygiene
Additional functions can be used•
42
Step 5: Starting the drying programme
Press the button (9) START/PAUSE.
TIME REMAINING TO PROGRAMME COMPLETION or DELAY END (DELAYING THE END OF THE
DRYING PROGRAM) time (if set) will appear on the display. Symbols will be lit on the selected functions.
If the TIME REMAINING UNTIL PROGRAMME COMPLETION flashes three times on the display unit,
and there is an audible signal, this means that the dryer door is open or not closed tightly. Close the
dryer door and press the button (9) START/PAUSE again to resume the drying programme.
Step 6: End of the drying programme
At the end of the drying programme, "(End) will appear on the display
unit, the two red indicator lights will light up, the (9) START/PAUSE button
indicator light will flash, and the light for selected time display ANTI
CREASE (CREASE PREVENTION) (3a), if activated or selected, will flash.
1. Open the dryer door.
2. Clean the filters (see section »CLEANING« ...).
3. Take the laundry from the drum.
4. Close the door!
5. Switch off the dryer (rotate the program selector knob (1) to the OFF
position).
6. Empty the condensate tank.
7. Unplug the power cord from the outlet.
INFORMATION!
After the end of the drying programme, immediately remove the laundry from the dryer to prevent
it from creasing again.
WARNING!
The final drying cycle includes a cooling down stage without heater operation. It makes sure the
laundry is of suitable temperature at the end of the program and that it can be taken from the
dryer without risk of touch hot clothes.
43
INTERRUPTIONS AND CHANGING THE
PROGRAMME
Interruptions
Interrupting the programme process
Press the (9) START/PAUSE button to pause/resume a programme.
To stop and cancel the drying programme, press the (9) START/PAUSE button and hold it for 3
seconds. The selected programme will stop, and the dryer will start to cool down. Cooling down time
depends on the selected programme. After this process, the drying programme can be selected again.
Open door
If the dryer door is opened during the drying process, the drying cycle will be interrupted.
When the door is closed and the (9) START/PAUSE button is pressed, the drying will resume from the
point at which it was interrupted.
HOT SURFACE!
The dryer door will heat up during the drying process. Make sure you do not burn yourself
when opening the dryer door.
Full condensate tank
When the condensate tank is full, the drying programme will pause (the sign will be lit).
Empty the condensate tank (see chapter »CLEANING AND MAINTENANCE/Emptying the condensate
tank«).
Press the (9) START/PAUSE button to resume the drying programme from the point at which it was
interrupted.
Power supply failure
When power supply is resumed, will appear on the display unit; the signal light on the (9)
START/PAUSE button will flash.
To resume the drying process, press the (9) START/PAUSE button.
Changing the program/functions
Turn off the dryer by rotating the program selector knob (1) to position OFF . Turn it back on again
by rotating the program selector knob (1) to any program.
Select another program/function and press the (9) START/PAUSE button again.
Adding laundry after the start of the program
Open the dryer door and press the (9) START/PAUSE button. Insert the laundry and press the button
(9) START/PAUSE.
Drying time may be extended.
HOT SURFACE!
When loading the laundry, make sure you do not burn yourself when you open the dryer
door.
44
Saving personal settings
Initial settings may be changed.
When the program and additional functions are selected, you may store such combination by pressing
the (9) START/PAUSE button and holding it for 3 seconds. A signal light on the (9) START/PAUSE
button and an acoustic signal will confirm your selection. Indication »saved« »(saved)« will be appear
briefly on the display unit (13).
Press the (9) START/PAUSE button to start the drying process
The changed combination will appear every time you switch on the dryer.
Follow the same procedure to change a previously saved combination.
AdaptTech
When a drying programme setting is used three times in a row, this setting is stored as default and
will always be suggested when you select that drying programme – this is called the ADAPTTECH
function. If you manually store the settings of a drying programme, the ADAPTTECH function on this
programme is deactivated.
Personal settings menu
To turn on the dryer, rotate the program selector knob (1) to any position. To open the personal settings
menu, simultaneously press on the positions (2) EXTRA DRY (DRYNESS LEVEL) and (5) TIME DRY
(TIMED DRYING), and hold them for 3 seconds. The symbols (3) ANTI CREASE (CREASE
PREVENTION), (12) CLEAN THE FILTER , and (14) CONDENSATE TANK will light up on the
display unit.
Number 1 will appear on the display unit, indicating the settings function. Rotate the programme
selector knob (1) to in either direction to choose the function to change. Number 1 indicates sound
settings and number 2 indicates resetting of Personal programme settings to factory defaults. If the
desired settings are not selected in 20 seconds, the programme will automatically return to main menu.
Press on the position (3) ANTI CREASE (CREASE PREVENTION) to confirm the desired functions and
their relevant settings. Press on the position (2) EXTRA DRY (DRYNESS LEVEL) to go back one step.
Acoustic signal volume can be set at four levels (0 means the sound is off; 1 means that the button
sound is activated; 2 means low volume, and 3 means high volume). Choose the volume level by
rotating the programme selector knob (2) to the left or to the right. The lowest setting means that the
acoustic signal is switched off.
Overview of the number of drying cycles performed
The number of drying cycles performed will appear on the display for 3 seconds if you unplug the
power cord, wait 10 seconds and then plug the power cord back in. After 3 seconds, the appliance
enters standby mode.
45
CLEANING AND MAINTENANCE
ELECTRIC SHOCK!
Before cleaning, make sure to switch off the dryer and disconnect it from the power mains
(unplug the power cord from the outlet).
The dryer is fitted with a filtering system consisting of several filters that prevent any impurities from
entering the heat exchanger system.
1 Lint filter
2 Heat pump filter
3 Condense water tank
INFORMATION!
The dryer may never be operated without the filters in place or with damaged filters, as excessive
amount of accumulated fibres from the fabric could cause malfunction or failure of the dryer.
46
Cleaning the door net filter in the door
INFORMATION!
Clean the lint filter after each drying cycle.
1 Open the filter housing.
2 Pull out the lint filter.
3 Gently scrape the filter
to remove the lint, i.e. the
lining of fibres and threads,
with your hand or with a
cloth.
4 If necessary, clean the
filter housing and door
gasket as well.
5 Insert the net filter and
close the filter housing.
INFORMATION!
Make sure you do not pinch your fingers with the filter cover.
47
Cleaning the heat pump filter
INFORMATION!
During cleaning, some water may be spilled. It is therefore recommended to place an absorbent
cloth on the floor.
1 Open the outside cover. Hold
the levers on the inside cover
and rotate them as indicated by
the arrows.
2 Remove the inside cover
along with the heat pump filter.
3 Detach the front filter part
from the heat pump filter housing
and open it. Push the foam
part of the filter out from the
housing. Use a damp cloth to
clean the heat pump filter mesh.
4,5 Pull the foam filter from
the housing. Clean it with a
vacuum cleaner and a soft brush
attachment. Reinstall the clean
foam filter into the filter housing.
INFORMATION!
Do not rinse the foam filter under water to avoid micro-plastic effluent into the groundwater!
INFORMATION!
Insert the heat pump foam filter into the housing and close the outer cover (push it upwards
toward the machine until it latches into place).
INFORMATION!
The heat pump filter has to be correctly inserted into its slot. Otherwise, the heat exchanger
installed inside the dryer may be clogged or damaged.
INFORMATION!
Clean the foam filter at least after every five drying cycles.
48
Cleaning of the heat exchanger
WARNING!
Do not touch the inner metal parts of the heat exchanger with bare hands. Danger of injury on
sharp parts. Use appropriate protection gloves when cleaning the heat exchanger.
WARNING!
Incorrect cleaning of the metal fins of the heat exchanger can permanently damage the tumble
dryer. Do not press on the metal fins with hard objects like for example the plastic tube of a
vacuum cleaner.
The dust and dirt in the metal fins of the heat exchanger can be cleaned with a vacuum cleaner and
a soft brush attachment.
Access to the heat exchanger is possible, when the heat pump filter is removed as is described in the
chapter »Cleaning the heat pump filter«.
Without pressing, gently move the brush attachment only in the direction of the metal fins from top
to bottom. Too much pressure can damage or bend the metal fins of the heat exchanger.
INFORMATION!
We recommend you clean the heat exchanger at least every twelve months.
49
Emptying the condensate tank
INFORMATION!
Empty the condensate tank after each drying cycle.
If the condensate tank is full, the drying programme will be paused automatically.
Symbol (14) will light up on the display unit, indicating that the condensate tank should be emptied.
1 Pull out the condensate
tank from the dryer (using
both hands as shown in the
figure), then turn it upside
down over a washbasin,
sink, or any suitable vessel.
2,3 Empty the
condensate tank. Pull out
the spout at the opening for
easier emptying.
Replace the condensate
tank.
INFORMATION!
Water from the condensate tank is not drinkable. If thoroughly filtered, it can be used for ironing.
WARNING!
Never add chemicals or fragrances into the condensate tank.
It is not necessary to empty the condensate tank if the drain hose is connected directly to a drain (see
chapter »INSTALLATION AND CONNECTION/Draining the condensate«).
50
Cleaning the dryer
ELECTRIC SHOCK!
Always disconnect the dryer from the power mains before cleaning.
Clean the dryer exterior using a soft damp cotton cloth.
WARNING!
Do not use any solvents or cleaning agents that could damage the dryer (please observe the
recommendations and warnings provided by the manufacturers of the cleaning agents).
Wipe all parts of the dryer with a soft cloth until dry.
INFORMATION!
Do not clean the dryer with a jet of water!
51
TROUBLE-SHOOTING
What to do ...?
Disturbances from the environment (e.g. the power grid) may result in various error reports (see
TROUBLESHOOTING TABLE). In such case:
• Switch off the dryer and wait at least one minute.
• Switch on the dryer and repeat the drying programme.
• Most errors during operation can be resolved by the user (see TROUBLESHOOTING TABLE).
• If the error occurs again, call an authorized service unit.
• Repairs may only be carried out by an adequately trained person.
• Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be
covered by the warranty. In such cases, the costs of repair shall be charged to the user.
Troubleshooting and error table
What to do?CauseProblem/Error
The machine will
not start.
•• Check whether the main switch is on.The main switch is not
switched on.
• Check the fuse.• There is no voltage in the
power outlet. • Check if the power cord plug is correctly
inserted into the power outlet.
There is voltage
in the outlet, but
the drum does
not spin and the
appliance does
not work.
•• Check if the door is closed properly.Open door.
•• Empty the condensate tank (see chapter
»CLEANING AND
MAINTENANCE/Emptying the
condensate tank«).
The condensate tank is full.
• To cancel the delayed start function,
press DELAY END (DELAYING THE END
OF THE DRYING CYCLE) and hold for
3 seconds.
• Perhaps the DELAY END
(DELAYING THE END OF
THE DRYING PROGRAM)
function was set.
• •Program was not started in
accordance with the
instructions.
Re-read the instructions for use again.
The appliance
stops heating
completely
during a
programme.
• Clean the net filter (see chapter
»CLEANING AND
MAINTENANCE/Cleaning the net filter
in the door«).
• The net filter may be
clogged. As a result, the
temperature in the dryer
rises, which in turn causes
overheating, and therefore
heating is switched off.
• Wait for the appliance to cool down, and
try running it again. If the dryer still fails
to start, call a service technician.
52
What to do?CauseProblem/Error
A slight hitting
noise appears.
•• The noise will subside without any
intervention.
If the dryer is out of use for a
long period of time, the
support elements are under
stress at the same point.
The door opens
during drying.
•• Reduce the amount of laundry.Excessive load on the door
(too much laundry in the
drum).
Unevenly dried
laundry.
•• Make sure you have sorted the laundry
by type and thickness, whether you have
added a suitable amount of laundry to
the drum, and whether you have
selected a suitable programme (see
PROGRAMME TABLE).
Laundry of varying types and
thickness, or excessive
amount of laundry.
Laundry not
dried or drying
takes too long
•• Clean the filters (see chapter
»CLEANING AND MAINTENANCE«).
Filters are not clean.
• Make sure there is adequate supply of
fresh air to the dryer; for example, open
the door and/or window.
• Dryer is placed in a closed
room; room that is too cold;
or room that is too small and
the air overheats as a result. • Check if the temperature in the room
where the dryer is installed is too high
or too low.
•• If the load is still wet after completed
drying cycle, an appropriate drying
program should be run again (after
cleaning filters).
Laundry was not sufficiently
wrung or spun.
•• Use a suitable program or extra
functions.
Amount of laundry dried in
the appliance is too large or
insufficient.
• Close the buttons or zippers on the
laundry before drying. Select a suitable
programme (e.g. the program Bedding).
• Laundry (such as bedding)
gets tangled into large balls.
• After the drying process, loosen the
laundry and select an additional drying
programme (e.g. Time (Timed drying
program)).
Drum lighting
error
•• Disconnect the dryer from the power
mains and call an authorized service unit.
There is no lighting when the
dryer door is opened.
(depending on the
model)
53
What to do?CauseProblem/Error
The appliance
cannot be
controlled
remotely
•• Check if the Wi-Fi symbol on the
appliance is lit, and set the program
selector knob (1) to position REMOTE
CONTROL (ConnectLife).
Appliance remote control is
not activated or enabled.
The appliance
will not connect
to the Wi-Fi
network
•• Check whether 2.4 GHz network is
activated on your router and whether the
Wi-Fi signal at the appliance is strong
enough.
The appliance cannot find
your Wi-Fi network.
The following lists all the errors that the user can see on the user interface.
What to do?Indication on the display unit
and description of error
Problem/Error
Call service centre.Control unit failure
Call service centre.Temperature sensor failure
Call service centre.Communication error
Call service centre.Pump error
Clean the filters. See chapter »CLEANING
AND MAINTENANCE/Cleaning the net filter
in the door« or call a service technician.
System overheating
Disconnect the tumble dryer from the power
supply.
Control unit failure
Call service centre.
No connection between the motor and the
control unit.
Motor error
Call service centre.
The error only affects the option to remotely
control your drying programme (remote
control). It does not affect the drying process
on other programmes.
The appliance cannot be
connected to the Wi-Fi
network
Call a service technician.
54
Warnings/information for the user, which can be indicated on the display unit, may include the following:
What to do?Indication on the display unit
and description of warning
Warning
Empty the condensate tank before resuming
the programme (see chapter »CLEANING AND
MAINTENANCE/Emptying the condensate
tank«).
Condensate tank warning
Drying interrupted due to power supply failure.Power supply failure warning
Press the (9) START/PAUSE button to restart
or resume the drying programme.
Clean the filters and empty the condensate
tank.
At the end of the drying
programme, (End) will
appear on the display unit.
Two red symbols and will
light up.
This is not a fault; it is just a
warning that the filters need to
be cleaned after drying.
Write down the error code (e.g. E0, E1), switch off the dryer, and call the nearest authorized service
(call centre).
Sounds
INFORMATION!
In the initial drying stage or during drying, the compressor and the heat pump cause noise; this,
however, does not affect the tumble dryer operation.
Humming sound: compressor noise; the noise level depends on the program and the drying stage.
Buzzing sound: the compressor is occasionally ventilated.
Pumping or liquid flowing sound: the pump is pumping the condensate into the condensate tank.
Clicking sound: start of automatic cleaning of the heat exchanger (compressor).
Rumbling or rattling noise: during drying when the laundry also includes hard parts (such as buttons,
zippers etc.)
55
Service
Before calling a service center
When you contact a service centre, please state your dryer's type (1), code/ID (2), model number (3),
and serial number (4).
Dryer type, code, model, and serial number can be found on the rating (type) plate on the inner side
of the dryer door.
WARNING!
In case of a failure, only use approved spare parts by authorized manufacturers.
WARNING!
Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be
covered by the warranty. In such cases, the costs of repair shall be charged to the user.
INFORMATION!
The warranty does not cover the errors or failures resulting from disturbances from the environment
(lightning strike, power grid failures, natural disasters etc.).
INFORMATION!
Report any malfunction to your local call centre or web address; all information can be found in
the enclosed warranty statement. Contact details of your authorised service centre are available
in the warranty statement supplied with the appliance and on the website by scanning the QR
code on the rating plate.
INFORMATION!
Some simple faults described in the chapter »TROUBLESHOOTING/Troubleshooting and error
table« can be fixed by the user himself by taking into account the instructions without risk to
their own safety and without affecting the warranty conditions.
INFORMATION!
Functional spare parts for the dryer you purchased will be available for 10 years. During this time,
original spare parts will be available to ensure the correct operation of your appliance.
A list of spare parts and repair tips in accordance with the current Ecodesign Directive can be
found by scanning the QR code located on the inside of the door of the dryer. Or on the following
link: https://auid.connectlife.io.
56
TIPS FOR DRYING AND ECONOMIC USE YOUR
DRYER
INFORMATION!
The most economical way of drying is to dry the recommended amount of laundry in each batch
(see PROGRAMME TABLE).
Drying laundry made of particularly delicate fabrics that may be deformed is not recommended.
Use of conditioner in the washing cycle is not necessary as the laundry is soft and smooth after drying
in the dryer. Drying time will be shorter and power consumption will be lower if the garments are
thoroughly wrung or spun before drying. By selecting the appropriate drying programme, you will
avoid over-drying your laundry and problems with ironing or shrinkage of fabric.
Regular cleaning of the filters will lead to optimum drying time and minimum power consumption.
When drying smaller amounts of laundry or individual garments, the sensor may not perceive the
actual level of moisture in the laundry. In such cases, it is recommended to dry smaller items or
amounts with programmes for dryer laundry or with the timed programme.
Low standby mode
If you do not run a programme or do anything else after switching on the dryer, the dryer will switch
off automatically after 5 minutes to save energy. Indicator light on the (3) START/PAUSE button will
flash.
The display will be reactivated if you rotate the programme selector knob or press the (1) ON/OFF
button or open the dryer door. If you do not do anything for 5 minutes after the end of the programme,
the display unit will be switched off as well. Indicator light on the (3) START/PAUSE button will flash.
< 0,5P o = weighted power when off [W]
< 0,5P I = weighted power when in standby [W]
5,00T I = standby time [min]
INFORMATION!
Low mains voltage and different drying loads may affect the drying time; the remaining time
displayed is adjusted accordingly during the drying process.
57
TYPICAL CONSUMPTION TABLE
(depending on the model)
The table lists the values for drying time and power consumption for drying of a test batch of laundry
with various spinning rpm in the washing machine.
Explanation of symbols used below:
Rated capacity (kg)
Final moisture content (%)
Programme duration (h:min)
Energy consumption (kWh per cycle)
Airborne acoustic noise emissions (dB)
Energy efficiency class: C (8 kg)
Program
62
1,422:55
0 ± 3
8
Cotton Eco*
(Cotton Eco)
0,821:474
1,713:15
-2
8Cotton (Cotton)
Storage
0,981:584
(Cupboard dry)
1,132:20
12 ± 4
8Cotton (Cotton)
Iron
0,661:264
(Moist for ironing)
0,200:3001
Sensitive
(Delicate)
0,501:002 ± 33,5
Synthetics
(Synthetics)
0,921:40-23,5
Mix
(Mixed laundry)
Energy efficiency class: C (9 kg)
Program
64
1,663:35
0 ± 3
9
Cotton Eco*
(Cotton Eco)
0,831:574,5
1,794:00
-2
9Cotton (Cotton)
Storage
1,042:124,5
(Cupboard dry)
1,222:4012 ± 49Cotton (Cotton)
58
Energy efficiency class: C (9 kg)
Program
Iron
0,711:374,5
(Moist for ironing)
0,200:3001
Sensitive
(Delicate)
0,451:002 ± 33,5
Synthetics
(Synthetics)
0,761:40-23,5
Mix
(Mixed laundry)
The Cotton Eco programme is suitable for drying wet cotton laundry and is used to assess compliance
with EU legislation on eco-design.
*
The Cotton Eco programme is the most efficient programme in terms of energy consumption for
drying wet cotton laundry.
All values in the table are provided per drying cycle.
The values provided for all programmes, except for the Cotton Eco programme, are for information
only.
INFORMATION!
You can save energy by filling up the household tumble dryer to the maximum capacity specified
for each programme.
INFORMATION!
Due to deviations in terms of type and amount of laundry, power supply oscillation, and
environment temperature and humidity, the values measured at the end user may differ from the
one stated in the table.
59
LABEL
(according to EU-Regulation No. 2023/2534)
QR code;–I
trademark;–II
model identifier;–III
scale of energy efficiency classes from A to G;–IV
the energy efficiency class determined in accordance with Annex II;–V
weighted average energy consumption per 100 drying cycles in kWh, rounded to the nearest integer and
calculated in accordance with Annex IV; in case of gas-fired tumble dryers, the weighted average energy
consumption (gas and electricity) per 100 drying cycles in kWh, rounded to the nearest integer and calculated
in accordance with Annex IV;
–VI
condensation efficiency class determined in accordance with Annex II, with relevant logo and value rounded
to the nearest integer and calculated in accordance with Annex IV;
–VII
acoustic airborne noise emission class of the drying cycle of the eco programme, with relevant logo and
value in dB(A), determined in accordance with Section 4 of Annex IV;
–VIII
rated capacity, in kg, for the eco programme at full load;–IX
duration of the eco programme at full load in hours and minutes [h:min] rounded to the nearest minute;–X
the number of this Regulation, which is ‘2023/2534’.–XI
60
PRODUCT INFORMATION SHEET
(according to EU-Regulation No. 2023/2534)
Supplier’s name or trade mark (
a
),(
c
):
Supplier’s address (
a
),(
c
):
Model identifier (
a
):
[electric air-vented, electric condenser, gas-fired]Technology of tumble dryer:
General product parameters:
ValueParameterValueParameter
xHeight
Dimensions (
a
), (
c
) in cm
x,x
Rated capacity (
b
) (kg)
xWidth
xDepth
[A/B/C/D/E/F/G] (
d
)Energy efficiency class (
b
)
x,x
Energy Efficiency Index
(EEI) (
b
)
[A/B/C/D] (
d
)
Condensation efficiency
class (if applicable) (
b
)
xx
Condensation efficiency
(%) (
b
) (if applicable)
x,xx
Weighted energy
consumption in kWh per
drying cycle (
h
). Actual
energy consumption will
depend on how the
appliance is used.
[built-in/ free
standing]
Type
x:xx
Rated
capacity
Programme duration (
b
)
(hours:minutes)
x:xxHalf
[A/B/C/D] (
d
)
Acoustic airborne noise
emission class (
b
)
x
Acoustic airborne noise
emission (
b
) (dB(A) re 1 pW)
x,xx
Standby mode (if
applicable) (W)
x,xx
Off-mode
(if applicable) (W)
x,xx
Networked standby (W)
(if applicable)
x,xx
Delay start (W)
(if applicable)
For household tumble dryers equipped with a heat pump, the chemical name
or the accepted industry designation of the refrigerant gas used, without
prejudice to Regulation (EU) No 517/2014 on fluorinated greenhouse gases
(
1
) (
a
), (
c
).
https://xxx
Weblink to information on spare parts availability for professional repairers
and end users (
a
) (
c
) (
e
)
https://xxx
Weblink to repair instructions for end-users (
a
) (
c
) (
f
)
https://xxx
Weblink to indicative pre-tax prices (
a
) (
c
) (
g
)
Minimum duration of the guarantee offered by the supplier (
1
) (
c
)
Additional information (
1
) (
c
):
Link to the supplier’s website, where the information in point 6 of Annex II to Commission Regulation
(EU) 2023/2533 (
c
) (
2
) is found:
61
Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on
fluorinated greenhouse gases and repealing Regulation (EC) No 842/2006 (OJ L 150, 20.5.2014, p.
195).
(1)
Commission Regulation (EU) 2023/2533 implementing Directive 2009/125/EC of the European
Parliament and of the Council with regard to ecodesign requirements for household tumble dryers,
amending Commission Regulation (EU) 2023/826, and repealing Commission Regulation (EU) No
932/2012 (OJ L, 2023/2533, 22.11.2023, ELI: http://data.europa.eu/eli/reg/2023/2533/oj).
(2)
This item shall not be considered relevant for the purpose of Article 2 (6) of Regulation (EU)
2017/1369.
(a)
For the eco programme.
(b)
Changes to those items shall not be considered relevant for the purpose of Article 4 (4) of Regulation
(EU) 2017/1369.
(c)
If the product database automatically generates the definitive content of that cell the supplier shall
not enter those data.
(d)
The suppliers’ obligation is to include the weblink to the website where the relevant information will
be available. Effective access to the website is nevertheless to be granted in accordance with the
timeline and provisions laid down in Annex II, point 5 (1) (b) of Regulation (EU) 2023/2533.
(e)
The suppliers’ obligation is to include the weblink to the website where the relevant information will
be available. Effective access to the website is nevertheless to be granted in accordance with the
timeline and provisions laid down in Annex II, point 5 (1) (d) of Regulation (EU) 2023/2533.
(f)
The suppliers’ obligation is to include the weblink to the website where the relevant information will
be available. Effective access to the website is nevertheless to be granted in accordance with the
timeline and provisions laid down in Annex II, point 5 (1) (f) of Commission Regulation (EU) 2023/2533.
(g)
For gas-fired tumble dryers calculated as the weighted average energy consumption per 100 drying
cycles according to Annex IV point 1(f), divided by 100.
(h)
62
DISPOSAL
Packaging is made of environmentally friendly materials that can be recycled, disposed
of, or destroyed without any hazard to the environment. To this end, packaging materials
are labelled appropriately.
The symbol on the product or its packaging indicates that the product should not be treated as
normal household waste. Take the product to an authorized collection centre for waste electric and
electronic equipment processing.
When disposing of the appliance at the end of its useful life, remove all power cords, and destroy
the door latch and switch to prevent the door from locking or latching (child safety).
Correct disposal of the product will help prevent any negative effects on the environment and health
of people, which could occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal body in charge of
waste management, your waste disposal service, or the store where you bought the product.
63
We reserve the right to any changes and errors in the instructions for use.
SP22 E HP-ND NAT A3+R290 WF GOR
GORENJE gospodinjski aparati, d.o.o. Address: Partizanska 12, 3320 Velenje, Slovenia
Phone: +386 (0)3 899 10 00 Fax: +386 (0)3 899 28 00 www.gorenje.com
897266-a16
