Opera ng Instruc ons
VERTO RFID MIFARE
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
2
GENERAL DESCRIPTION
The VERTO RFID MIFARE lock is a ba ery-operated electronic furniture lock based on RFID technology, which is
intended for the inside of buildings. These opera ng instruc ons provide you with informa on on how to operate
the locking system without errors. Keep the opera ng instruc ons in an easily accessible place. Improper use can
destroy the locking system and lead to the loss of any warranty claims.
Please be sure to observe all warnings and read the opera ng instruc ons completely before proceeding with
installa on, commissioning and programming. It may be possible to use our locks and locking systems together with
mechanisms made by other manufacturers, but their compa bility must be checked in each individual case. We
cannot accept any liability for damage or loss due to incompa bility.
Wording and graphics have been prepared with care. However, no liability will be assumed for any mistakes that
mayhave occurred. Technical specifi ca ons as well as the scope of items in the system are subject to change without
no ce.
CAUTION: The lock can be confi gured with master and programming cards or with the LEHMANN Management
So ware LMS. These opera ng instruc ons describe how to use the locking system with master and
programming cards. The so ware LMS and the corresponding documents can be found at h ps://
lms.lehmann-locks.com.
TECHNICAL SPECIFICATIONS
Frequency
13,56 MHz
Na onal legisla on about permissible radio frequencies must be observed.
RFID technologie
MIFARE® Classic, MIFARE® DESFire® EV1, EV2
Supported
transponders
Compa ble with the following RFID transponders:
• MIFARE® Classic / • MIFARE® DESFire® / • ISO 14443A / • ISO 15693
Exis ng transponders must be checked for compa bility. „Shared Use“ mode is generally not
supported for MIFARE Classic transponders.
MIFARE Classic transponders are only processed to a limited extent in the LMS via the UID.
To use the LEHMANN Transponder App via NFC technology on smartphones, please note the
requirements:
- Master card or LMS release 2.3 or higher
- Lock fi rmware 2.3 or higher
- iPhone XS with iOS 17.4 or higher, and iPhones only within the European Economic Area
- Reading distance depends on the smartphone and the installa on situa on and must be
checked in advance.
Energy supply
Ba erietyp: 1 x CR2
Opera ng temperature
-5 °C to +60 °C
Storage temparature
-25 °C to +70 °C
Type designa on
L7NF13VX
SAFETY PRECAUTIONS
→ Pack the ba ery for the transport of the lock so that no short circuit can occur (risk of explosion and fi re).
→ When replacing the ba ery, make sure that the polarity and posi on of the ba ery is correct!
→ Dispose of used ba eries properly!
!
Con nue on page 3
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
3
CARE AND MAINTENANCE
→ Do not spill any liquid over or into the individual components of the lock, and never immerse the components in
any liquid.
→ Clean the lock and the components with a clean, so , damp cloth only.
→ Do not use any cleaning agents containing abrasives or solvents, as these may damage the housing.
→ Trea ng any of the electronic and mechanical components improperly or in any way other than described in
these opera ng instruc ons may lead to malfunc ons and the loss of warranty.
→ Change the ba ery in good me. At the latest, when the lock issues corresponding ba ery warnings.
FACTORY SETTINGS
The lock can be closed and opened at this point of me with one or more installa on cards. A er a Master card has
been programmed, the lock is in the opera ng mode “assigned use“ and the installa on card cannot be used any more.
→ Do not heat ba eries, take them apart or short-circuit them!
→ Never throw ba eries into open fi re!
→ The ba ery must not be charged!
→ Keep the product away from children, as small parts may be swallowed!
→ Any persons swallowing ba eries must seek immediate medical advice!
→ Damaged and/or leaking ba eries may cause acid burns and/or poisoning!
FUNCTIONAL DESCRIPTION
With the VERTO RFID MIFARE lock, you can conveniently lock and unlock your furniture. Non-contact RFID technology
based on 13.56 MHz is used as the “key“. Two opera ng modes are available:
Opera ng mode
Descrip on
Assigned use
There is a fi xed assignment between the transponder cards and the locks. The user cards are
programmed or deac vated at the lock by means of a master card. The system thus allows
the gran ng of selec ve access authority for an item of furniture (e.g. cabinet), so that
only authorised persons with a transponder card have access. A transponder card can be
programmed simultaneously on mul ple locks with “Assigned use“ opera ng mode. Up to 250
diff erent transponder cards can be programmed per lock.
Shared use
With the user card, a user can use a free lock / storage of his choice. It is not possible to
program the user card by using the master card. If a lock is closed with the user card, the user
card
and the lock are coupled to each other. The card cannot be used at any other lock in “shared
use“ mode, and the lock will not accept any other user card. This coupling is only deac vated
when the user opens the lock again with his user card. The card can now be used for another
lock.
In conjunc on with the programming card P6: Unlimited Shared Use, it is possible for an RFID
transponder to close several locks at the same me (note: even up to all locks!), instead of just
one lock per transponder in this opera ng mode.

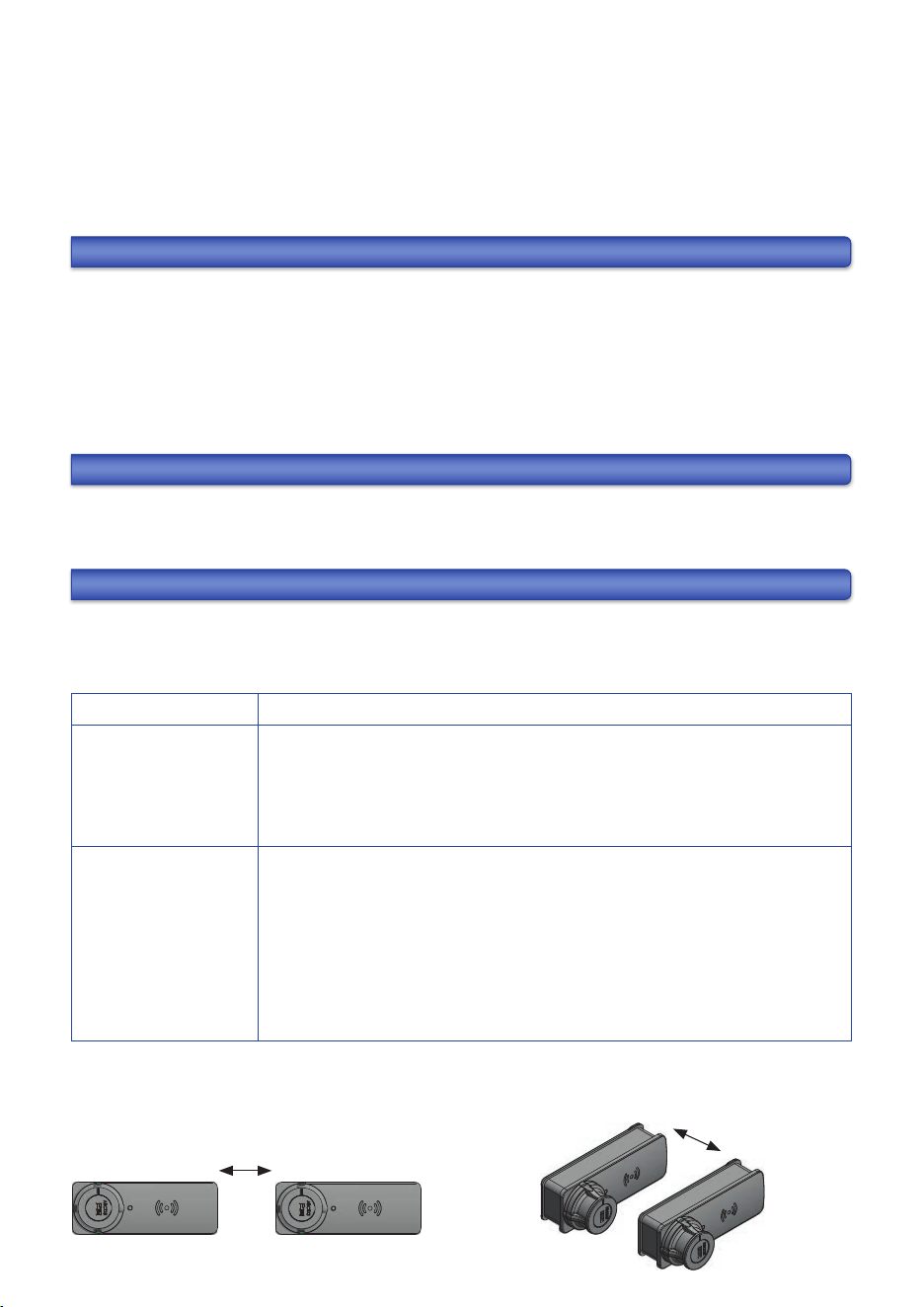

Please note that the distance between two or more locks with an inserted ba ery must be at least 10 cm
(lateral distance) and 15 cm (frontal distance) during storage, transport and opera on.
10 cm
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. /Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016beachten
Refer to protec tio n notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
2 / 7
Datum
Nr.
Änderungen
Gez.
Gepr.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. /Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016beachten
Refer to protec tio n notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
2 / 7
Datum
Nr.
Änderungen
Gez.
Gepr.
15 cm
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. /Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016beachten
Refer to protec tio n notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
2 / 7
Datum
Nr.
Änderungen
Gez.
Gepr.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. /Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016beachten
Refer to protec tio n notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
2 / 7
Datum
Nr.
Änderungen
Gez.
Gepr.
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
4
OVERVIEW OF TRANSPONDER CARDS
Card type
Descrip on
Installa on card
(only for assembly
and tes ng pur-
poses)
The installa on card can be used specially for assembly and tes ng purposes in order to perform
basic func ons on the lock (opening and closing). Furthermore, the lock can be closed using the
installa on card for transpor ng the furniture to its des na on. This card is for universal use. Any
number of installa on cards can be used at any lock. Prior programming of a master card is not
necessary. A er a master card has been programmed for the fi rst me, the lock is disabled for the
installa on card. The use of an installa on card is op onal.
Master card
For complete commissioning, a master card must be programmed for both opera ng modes. The
master card is required for star ng and termina ng programming opera ons. This also includes the
programming of user cards in “Assigned use“ mode. The master card also enables the so-called Facili-
ty Manager func on and the emergency opening of the lock. A maximum of one master card can be
programmed per lock. You can use one master card for several locks.
User card
User cards are used to open and close the lock. In “Assigned use“ mode, up to 250 user cards can be
programmed on one lock. In “Shared use“ mode, one user card can be used temporarily on one lock.
It is possible to program one user card on several locks in “Assigned use“ mode, and at the same me
on one lock in “Shared use“ mode.
Programming
card set
For certain programming func ons, programming cards are required in conjunc on with the master
card. The programming card set consists of 3 universal programming cards:
• P1: Mode (change of mode)
• P2: Sound (ac va ng or deac va ng acous c signals)
• P3: Reset (reset to factory se ngs)
Programming card
“P4: Auto Locking”
The universal programming card “P4: Auto Locking“ can only be used in the opera ng mode “assi-
gned use“. The func on can be ac vated together with the master card. A er opening the lock with a
programmed transponder in the opera ng mode “assigned use“, the lock closes automa cally a er 5
seconds once this func on has been ac vated.
Programming card
„P6: Unlimited
Shared Use“
The programming card „P6: Unlimited Shared Use“ can be used in the „shared use“ mode. A er ac-
va on, an RFID transponder can lock several locks at the same me (cau on: even up to all locks!),
instead of just one lock per transponder in this opera ng mode.
Update card
In addi on to the master card, you will receive an update card. In conjunc on with the master card,
the update card allows fi rmware updates to be loaded into this lock.
Service key
In addi on to the master card, you will receive a card with an individual service key. Please keep the
card with the service key carefully and securely. The printed service key allows you to reorder master
cards. It is not possible to reorder a master card without a service key! This card has no electronic
func on!
As user cards, you can either use LEHMANN user cards or cards of a third-party provider complying with ISO 14443A.
Please note the following possible restric ons when using user cards of third-party providers:
• The comprehensive security concept, which was specially designed for this locking system in conjunc on with the
user cards of LEHMANN Vertriebsgesellscha mbH & Co. KG, may be aff ected by the use of user cards of a third-
party provider.
• The “Shared use“ opera ng mode is only possible with user cards from third-party providers if they have the
appropriate write permission for the user card.
• Transponder cards with a so-called “Random-UID“ are not supported.
For the highest possible level of safety, transponder cards based on MIFARE® DESFire are recommended.
MIFARE® Classic transponders are of limited use.
Please note that installa on cards, master cards, user cards and programming cards must be ordered separately.
Please keep the master card as well as the card with the individual service key carefully and securely!
CAUTION: Transponders from third-party providers must be checked for compa bility in advance.
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
5
Con nue on page 6
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A4
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
1 / 7
Entwurf / Proposal
Datum
Nr.
Änderungen
Gez.
Gepr.
➊
➋
➌
➍
➎/➏
➑
➐
➒
➓

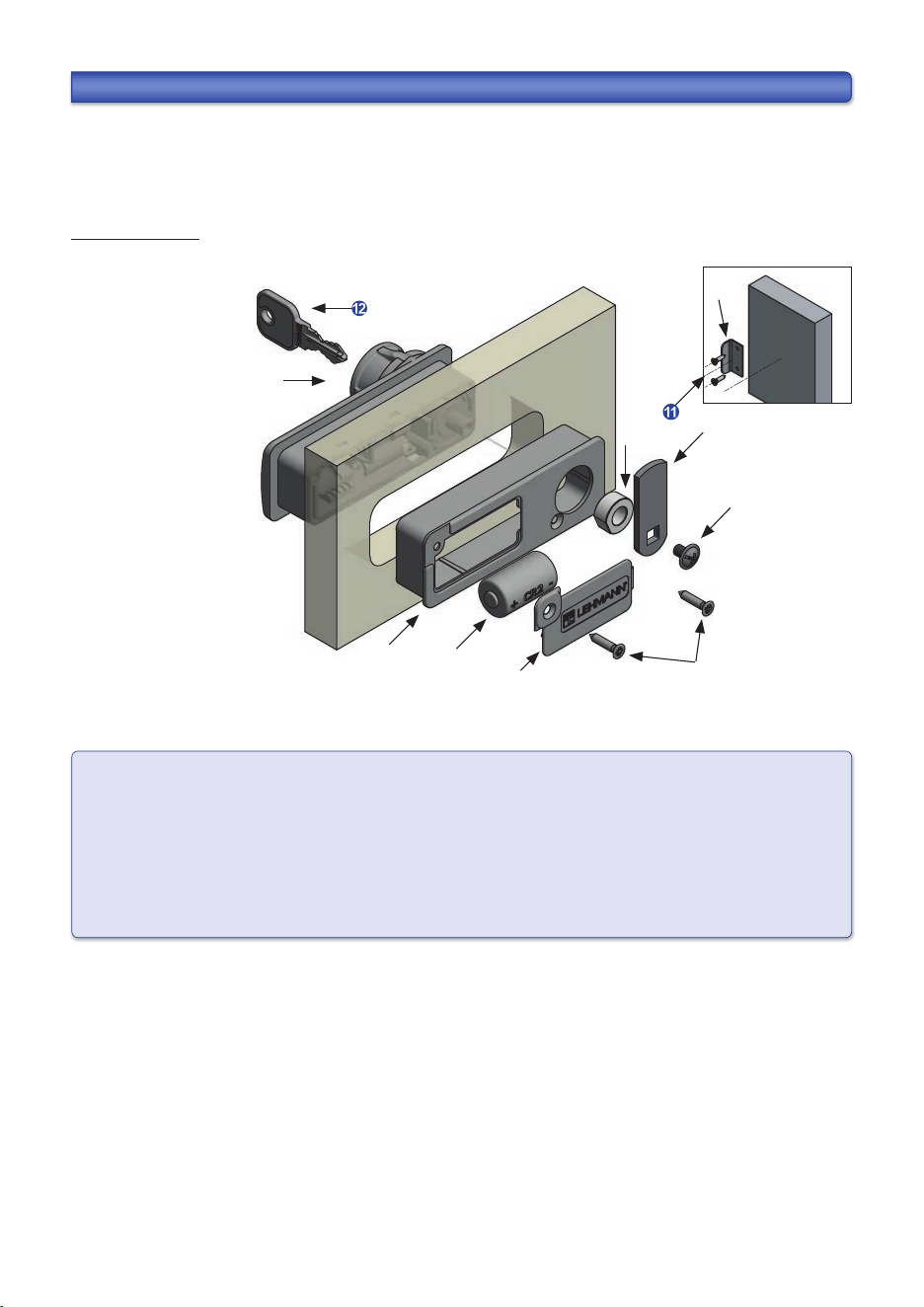

Components:
1. VERTO RFID MIFARE
2. Rear cover
3. 1x ba ery CR2
4. Cover for ba ery compartment
5. 2x countersunk chipboard screw 3x20
for material thicknesses 3 - 6 mm and 16 - 21 mm
6. 2x countersunk chipboard screw 3x15
for material thicknesses 0.8 - 3 mm and 16 - 18 mm
7. Washer
8. Bolt 477 (op onal)
9. Screw for fastening the bolt
10. Striker plate 3077 (op onal)
11. 2x countersunk chipboard screw 3x15
for angle bracket 3077 (op onal)
12. Service key (op onal)
SYSTEM COMPONENTS AND PACKAGE CONTENTS
Please note that these opera ng instruc ons apply to diff erent product versions. The package content therefore
depends on the respec ve product variant. The product variants and moun ng recommenda ons shown here are
intended for wooden furniture with a thickness of 16-21 mm. In the case of devia ng thicknesses and materials,
the screws for moun ng the lock and the fi xing element must be adapted.
Moun ng on wood
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
6
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A4
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
3 / 7
3
3
91,5
0,8-3
3-6
16-18
18-21
21,85
2
6
9
0
°
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Eins at z Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr .
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
7 / 7
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Eins at z Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr .
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
7 / 7

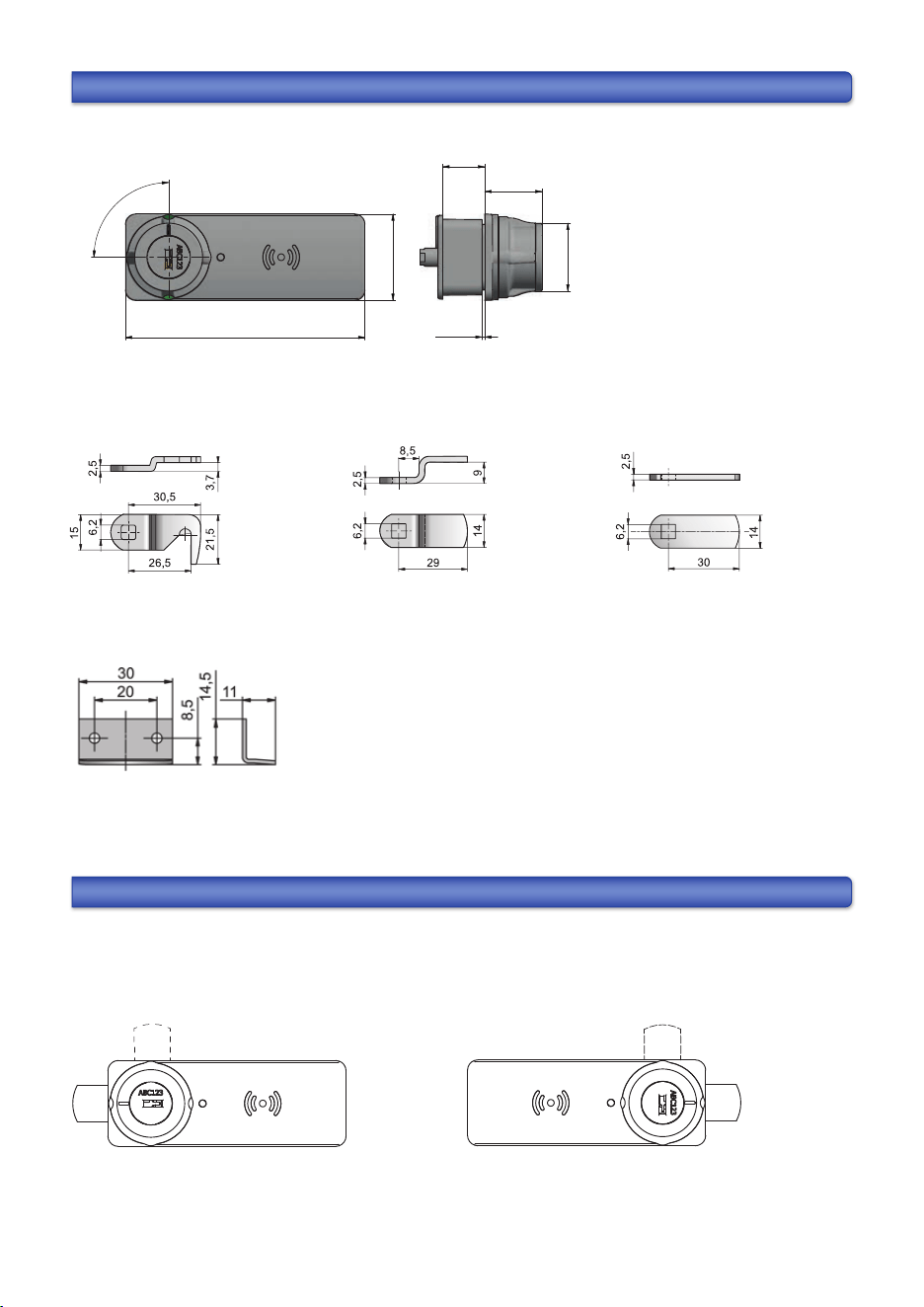

DIRECTION OF ROTATING
The lock can be used for right hand doors and le hand doors.
For right hand doors: For le hand doors:
Bolt 2-027 right Bolt 460 Bolt 477
DIMENSIONS
Lock VERTO RFID MIFARE
All dimensions in mm.
Striker plate 3011
19
Dial Lock
Technical details subject to modicaons • all data without guarantee
© by LEHMANN-V. 0182-04/2019
Technische Änderungen vorbehalten • alle Angaben ohne Gewähr
83,5
33
21
42
Ø
81-61
12-81
3-8,0
6-3
19
Dial Lock
Technical details subject to modicaons • all data without guarantee
© by LEHMANN-V. 0182-04/2019
Technische Änderungen vorbehalten • alle Angaben ohne Gewähr
83,5
33
21
42
Ø
81-61
12-81
3-8,0
6-3
19
Dial Lock
Technical details subject to modicaons • all data without guarantee
© by LEHMANN-V. 0182-04/2019
Technische Änderungen vorbehalten • alle Angaben ohne Gewähr
83,5
33
21
42
Ø
81-61
12-81
3-8,0
6-3
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
7
123456
A
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LE HMANN GmbH & Co KG
Postfach 262 0 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
g
Blatt
4 / 7
87,5
2
9
,
5
2
5
,
5
84
2
5
,
5
84
14
12,5
12,5
34
34
34
3
8
3
8
2
9
Holz
Glas / HPL
Blech
Axis of rotation
Drehachse
Axis of rotation
Drehachse
Axis of rotation
Drehachse
R4
R4
R4
123456
A
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LE HMANN GmbH & Co KG
Postfach 262 0 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
g
Blatt
4 / 7
87,5
2
9
,
5
2
5
,
5
84
2
5
,
5
84
14
12,5
12,5
34
34
34
3
8
3
8
2
9
Holz
Glas / HPL
Blech
Axis of rotation
Drehachse
Axis of rotation
Drehachse
Axis of rotation
Drehachse
R4
R4
R4

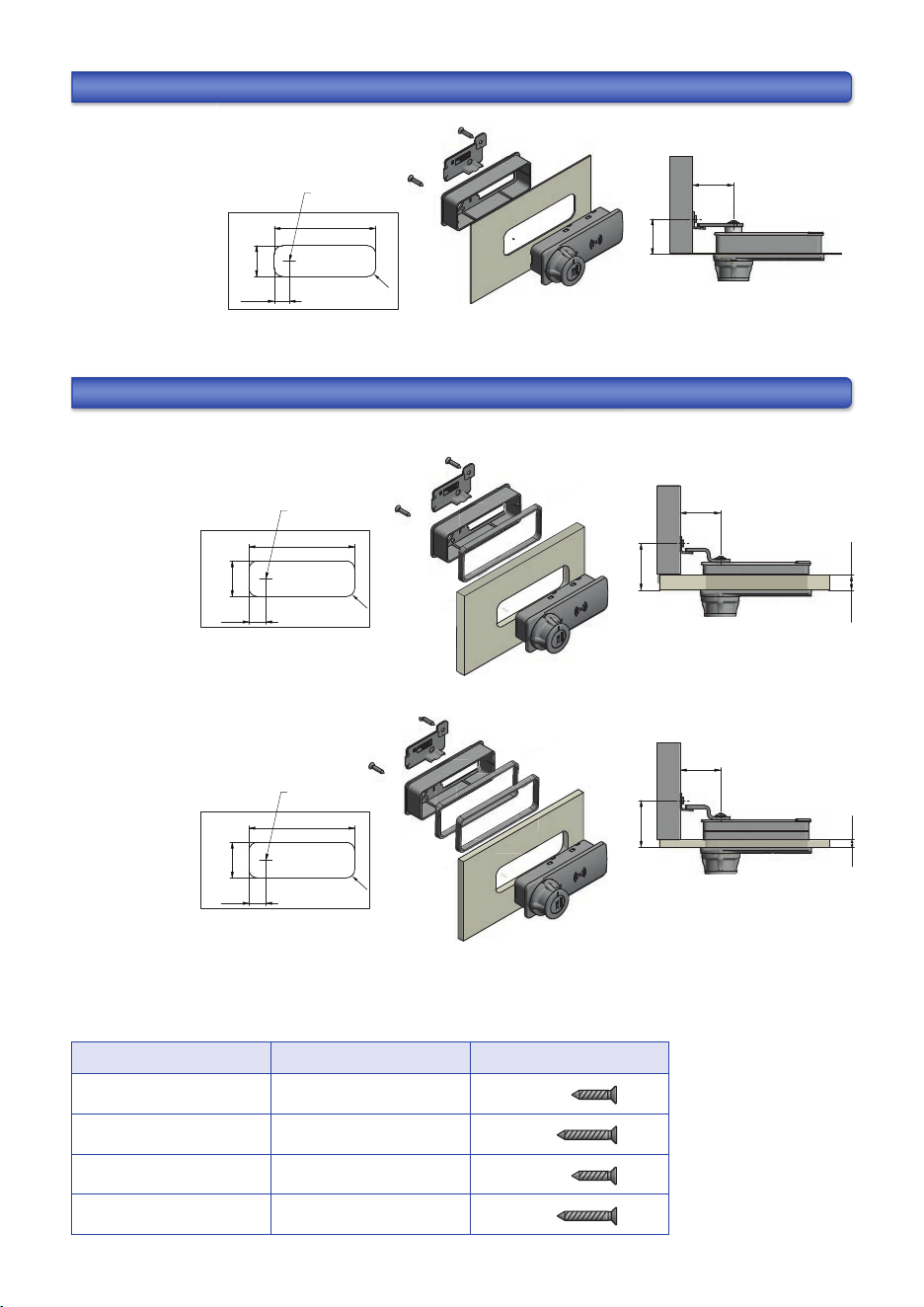

All dimensions in mm.

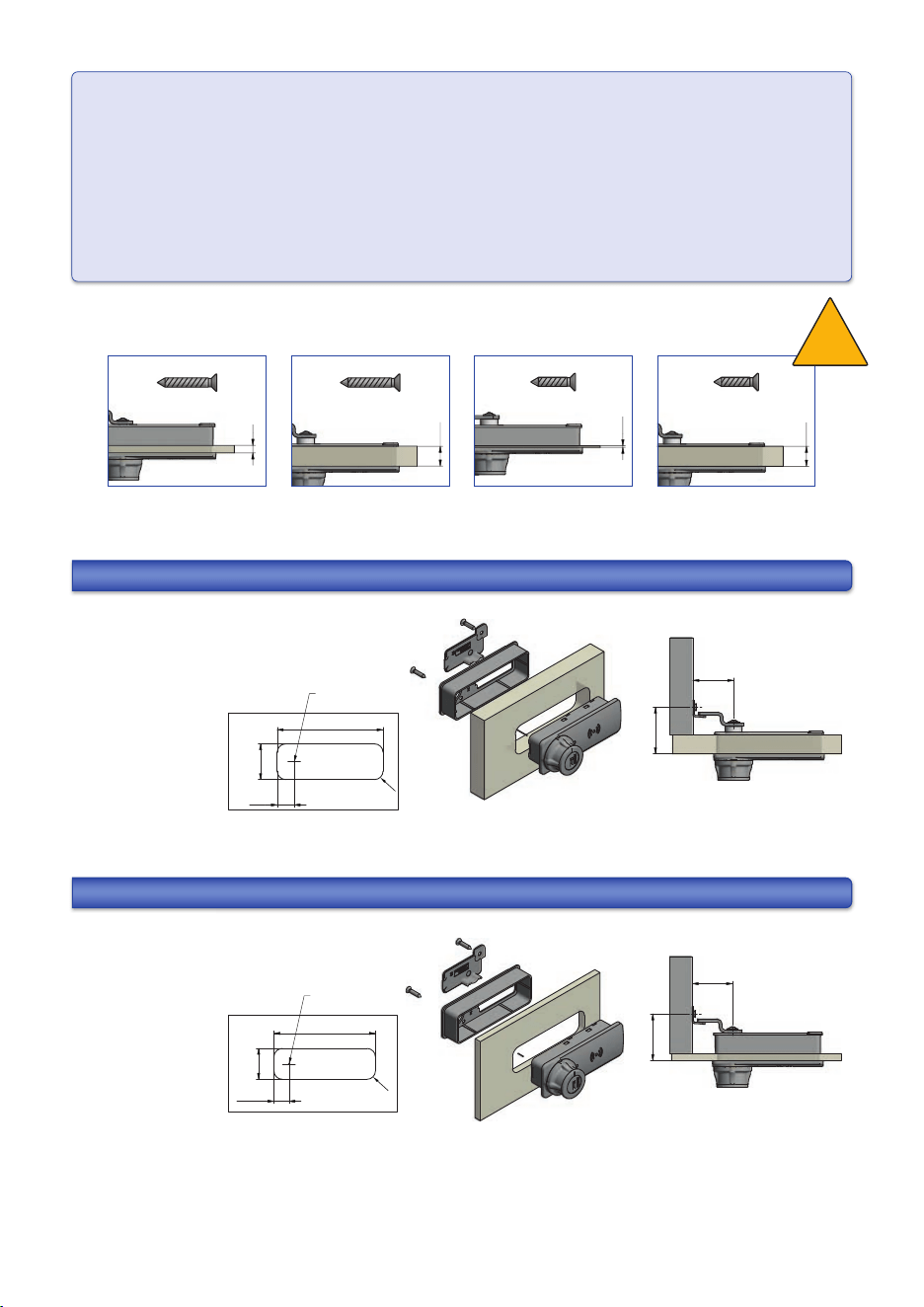

MOUNTING ON WOOD (16 - 21 mm)
Dimensions refer to bolt type 460.
MOUNTING ON GLAS (3 - 6 mm)
Dimensions refer to bolt type 460.
ATTENTION: Determine the appropriate screw length (see items 5 and 6 in the component overview)
based on the material thickness:
- 3x20 screws (component 5) for material thicknesses of 3 – 6mm and 18 – 21 mm.
- 3x15 screws (component 6) for material thicknesses of 0.8 – 3mm and 16 – 18 mm.
- The required screw type for material thicknesses of 6 – 16 mm in combina on with spacers can
be found in the table on p. 8 under „Moun ng on HPL”.
Please also note the diff erent milling pa erns for diff erent material thicknesses.
Tighten screws by hand only, max. 0.5 Nm.
Con nue on page 8
3
8
1
6 - 18 mm
3x15
3
8
1
8 - 21 mm
3x20
3
8
3 - 6 mm
3x20
2
9
0
,
8 - 3 mm
3x15
!
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
8
123456
A
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LE HMANN GmbH & Co KG
Postfach 262 0 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
g
Blatt
4 / 7
87,5
2
9
,
5
2
5
,
5
84
2
5
,
5
84
14
12,5
12,5
34
34
34
3
8
3
8
2
9
Holz
Glas / HPL
Blech
Axis of rotation
Drehachse
Axis of rotation
Drehachse
Axis of rotation
Drehachse
R4
R4
R4
MOUNTING ON STEEL (0.8 - 3 mm)
Dimensions refer to bolt type 477.
Material thickness Spacer Screw type
6 - 8 mm 2 pieces 3x15
8 - 11 mm 2 pieces 3x20
11 - 13 mm 1 piece 3x15
13 - 16 mm 1 piece 3x20
34
3
8
34
34
3
8
3
8
11-13
13-16
6-8
8-11
123456
A
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LE HMANN GmbH & Co KG
Postfach 262 0 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
g
Blatt
4 / 7
87,5
2
9
,
5
2
5
,
5
84
2
5
,
5
84
14
12,5
12,5
34
34
34
3
8
3
8
2
9
Holz
Glas / HPL
Blech
Axis of rotation
Drehachse
Axis of rotation
Drehachse
Axis of rotation
Drehachse
R4
R4
R4
MOUNTING ON HPL (6 - 16 mm)
Dimensions refer to bolt type 460 in combina on with spacer 062.
123456
A
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LE HMANN GmbH & Co KG
Postfach 262 0 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
g
Blatt
4 / 7
87,5
2
9
,
5
2
5
,
5
84
2
5
,
5
84
14
12,5
12,5
34
34
34
3
8
3
8
2
9
Holz
Glas / HPL
Blech
Axis of rotation
Drehachse
Axis of rotation
Drehachse
Axis of rotation
Drehachse
R4
R4
R4
34
3
8
34
34
3
8
3
8
11-13
13-16
6-8
8-11
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
9
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
6 / 7
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
6 / 7
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
5 / 7
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil - Teile Nr.Huwil - Z. Nr.
g
Blatt
5 / 7
EMERGENCY OPENING WITH SERVICE KEY
GETTING STARTED AND CHANGING BATTERIES
IMPORTANT: Use only a CR2 primary-ba ery.
Inser ng the ba ery
Ba ery is inserted correctly in the ba ery
compartment
1. Turn the key 180°
to clockwise
3. Turn the key 180°
to an -clockwise
2. Turn the turn
knob by 90°
4. Lock is open
1. 2.
IMPORTANT: A er emergency opening with the service key, the lock remains electronically locked. If the knob
is turned back a er the emergency opening with the service key, the lock is s ll locked. In the
case of electronic emergency opening with a master card, the lock remains unlocked
(see p. 13, Emergency Opening).
34
3
8
34
34
3
8
3
8
11-13
13-16
6-8
8-11
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
10

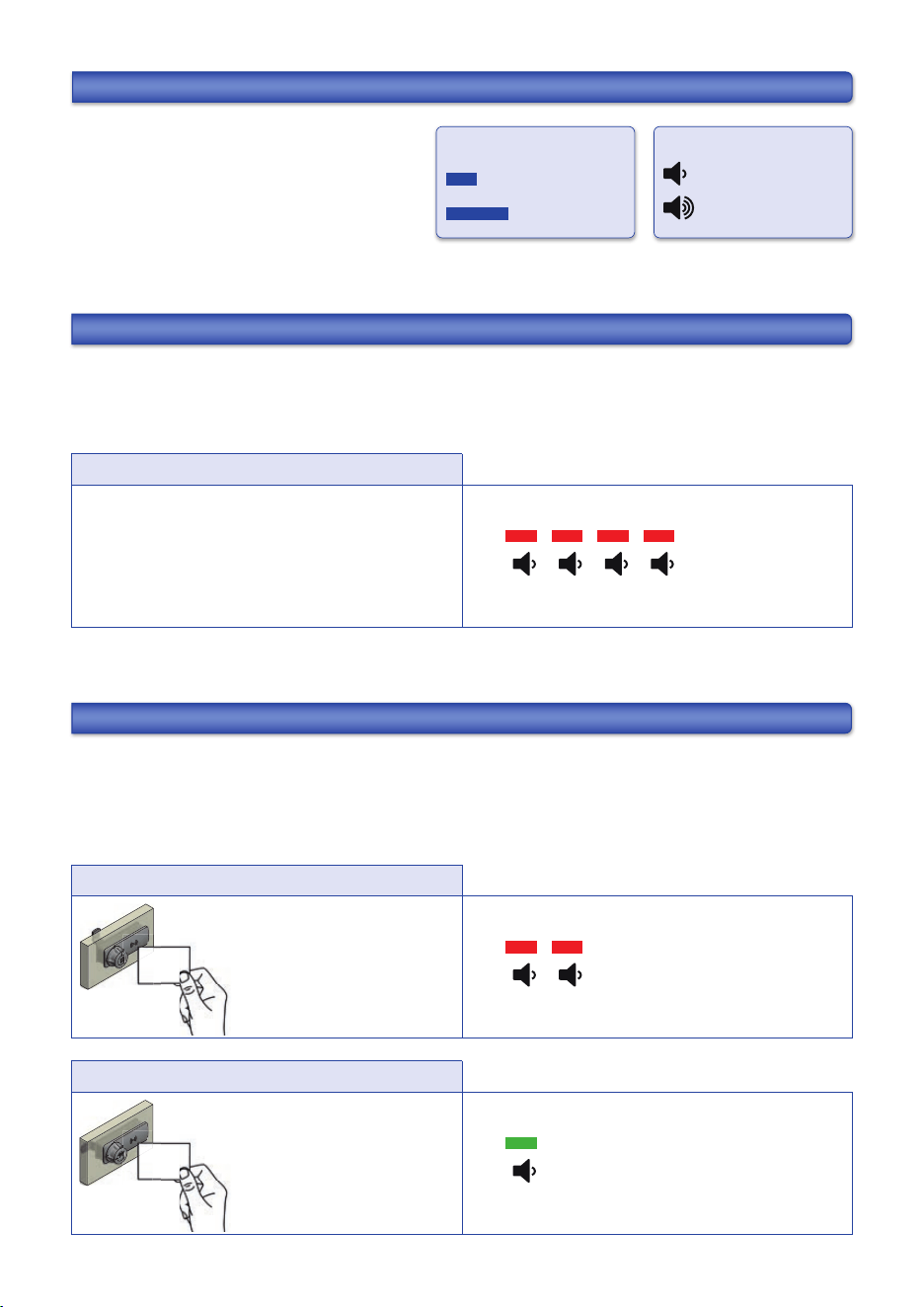

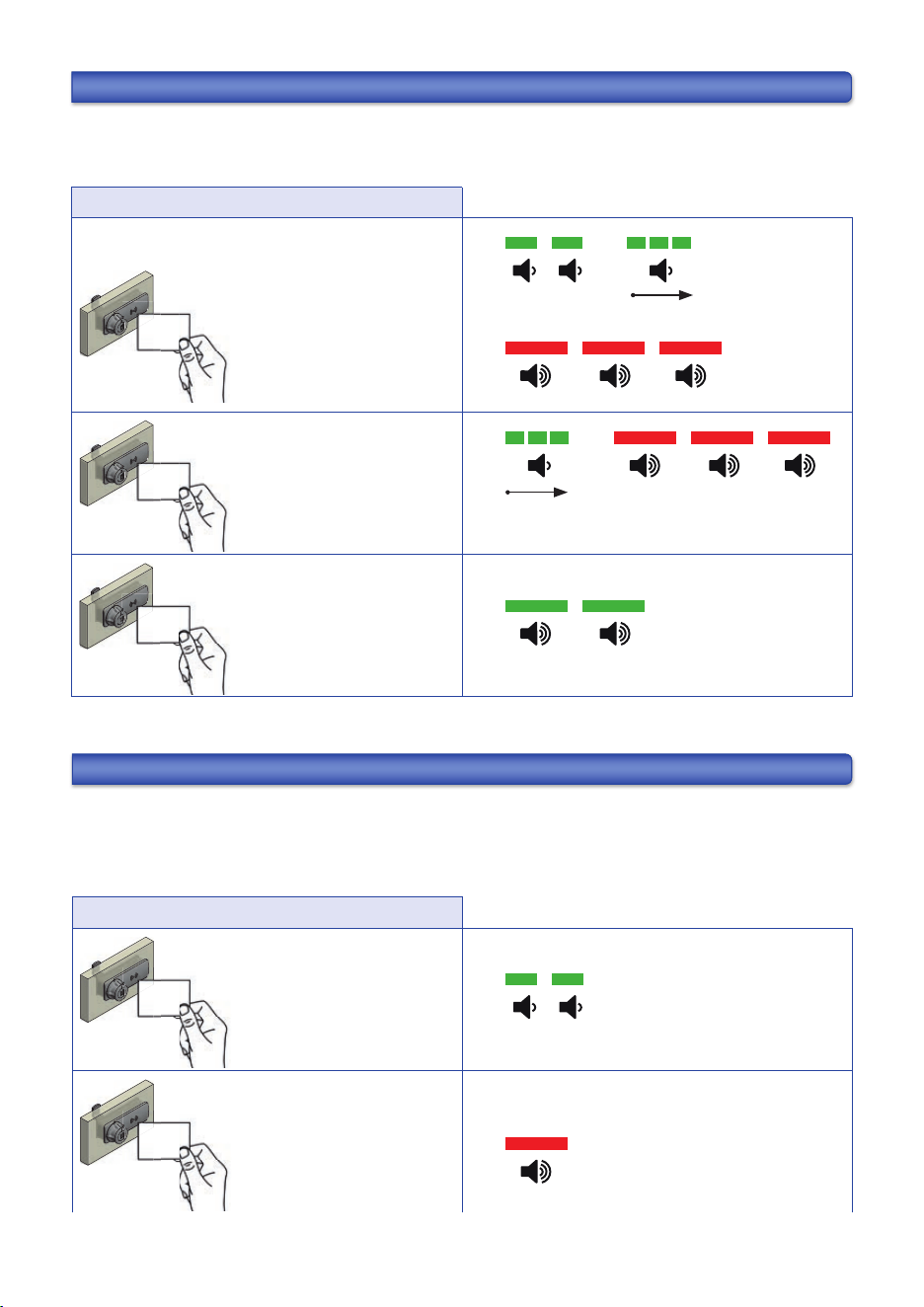

TIPS FOR THE FOLLOWING PROGRAMMING STEPS
The last 5 seconds before the shutdown of the
programming process are announced by the
fl ashing of a yellow lamp and acous c signals.
The visual and acous c signals are
diff eren ated as follows.
Carry out all programming steps and func onal checks with the cabinet door open.
Acous c signals
Short
Long
Op cal signals
rapid fl ashing
fl ashing
USING THE INSTALLATION CARD (op nal)
During installa on, one or more installa on cards can be used. The installa on cards are ready for immediate use
and do not have to be programmed. With the installa on cards, the basic func ons (opening and closing) can be
carried out on the lock. It is not possible to program user cards with the installa on card. The installa on card can no
longer be used on a lock as soon as the master card has been programmed.

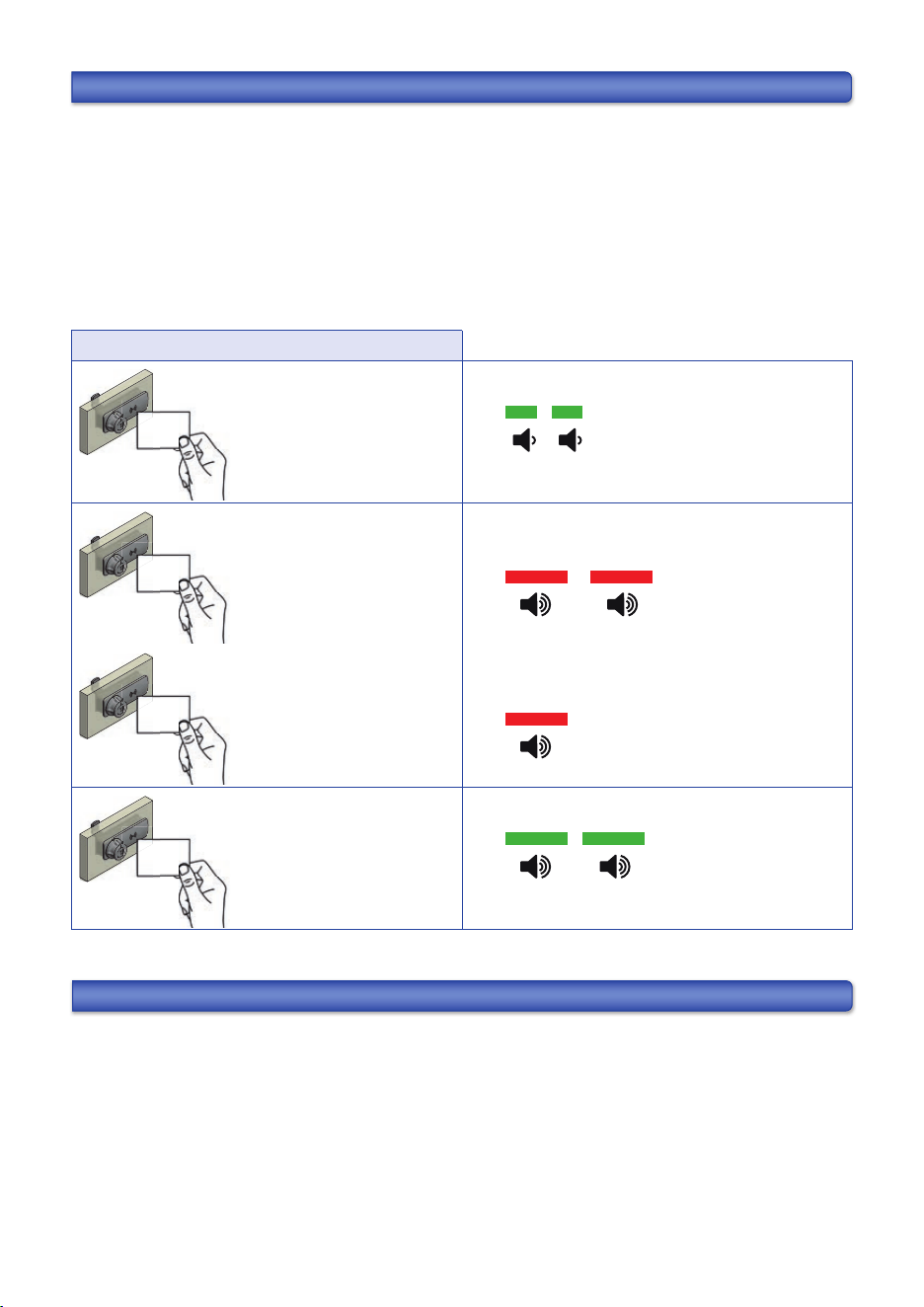

Closing
Hold the installa on card
in front of the lock.
Then turn the knob to the
closed posi on.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Installation
Opening
Hold the installa on card
in front of the lock.
Then turn the knob to the
open posi on.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Installation

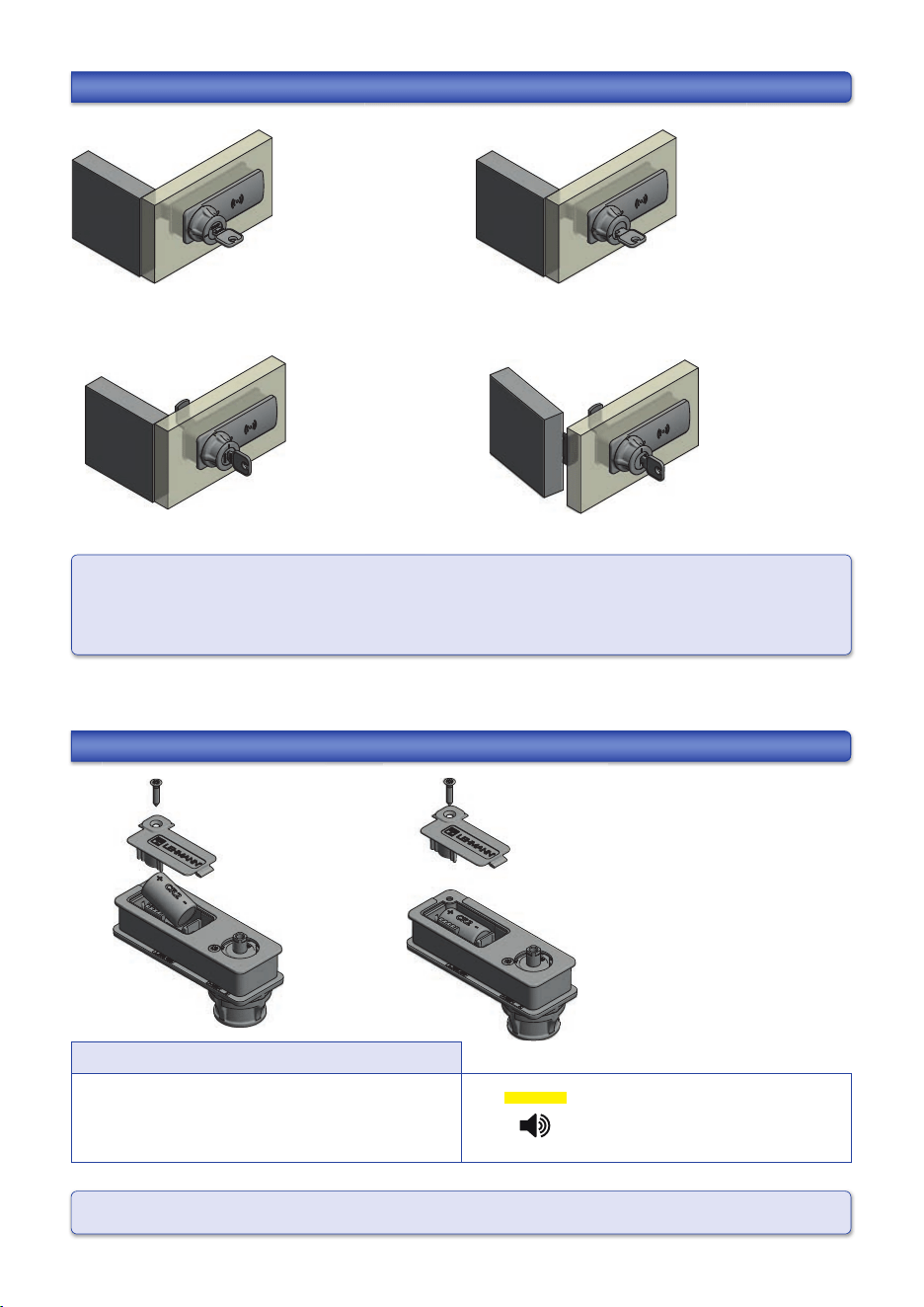

BOLTING END POSITION MONITORING
The lock is equipped with a bolt end posi on monitoring system. If the turn knob is not in one of the two end posi ons,
a warning is issued when locking with a transponder. The lock is not locked! If the Auto-Locking func on is ac vated,
this warning is repeated permanently.
Bolt warning
The transponder is held in front of the lock. The rotary
knob is not in one of the two end posi ons. A bolt
warning is issued
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
11
The locking system is in “assigned use“ mode a er the master card has been programmed. If you would like to use
the lock in “shared use“ mode, the next thing to do is to change the opera ng mode. To do this, please follow the
instruc ons on page 13 and then con nue with the sec on “Closing and Opening“ on page 11.
PROGRAMMING THE MASTER CARD
Irrespec ve of the desired opera ng mode, a master card must always be programmed before further programming
and opera on. Only one master card can be programmed per lock! The programming of the master card can be
carried out when the lock is closed as well as when it is open. If the lock is closed a er the master card has been
programmed, the next step must be an emergency opening (see Emergency opening, P. 13).
Programming the master card for the fi rst me
Hold the master card
in front of the lock.

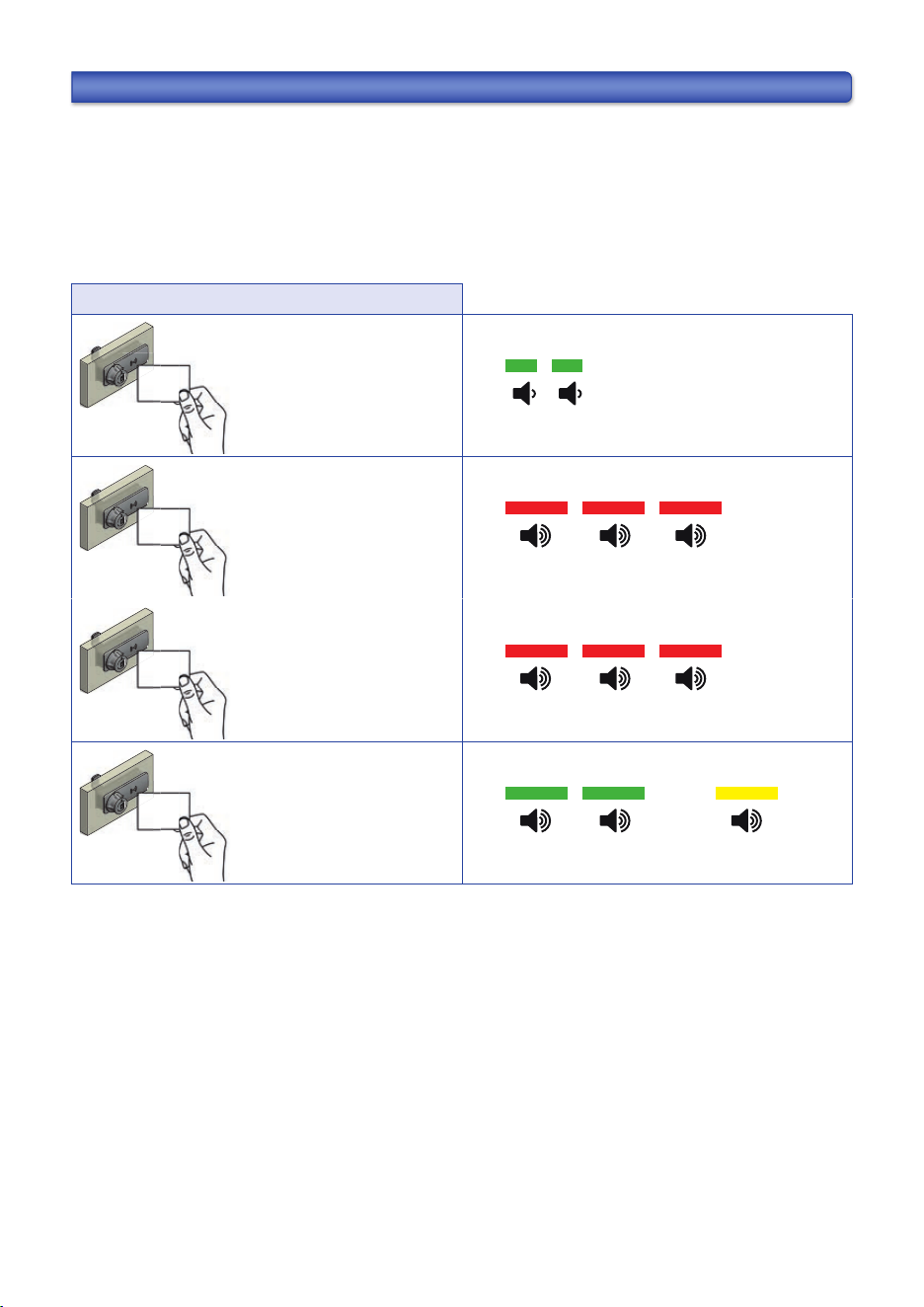

PROGRAMMING THE USER CARDS (only for assigned use mode)
In “assigned use“ mode, a maximum of 250 diff erent user cards can be programmed per lock. The lock must be in the
open posi on. It is not possible to program user cards in “shared use“ mode. In “shared use“ mode, the lock can be
opened and closed without fi rst programming the user cards (see Closing and Opening, see below).
Programming user cards
Hold the master card
in front of the lock.
A er programming, the user cards can open and close the lock.
Hold the user card in
front of the lock.
The card is accepted and
programmed. This process
can be repeated to program
mul ple user cards.
Card is not accepted.
Hold the master card
in front of the lock.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
User
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
12

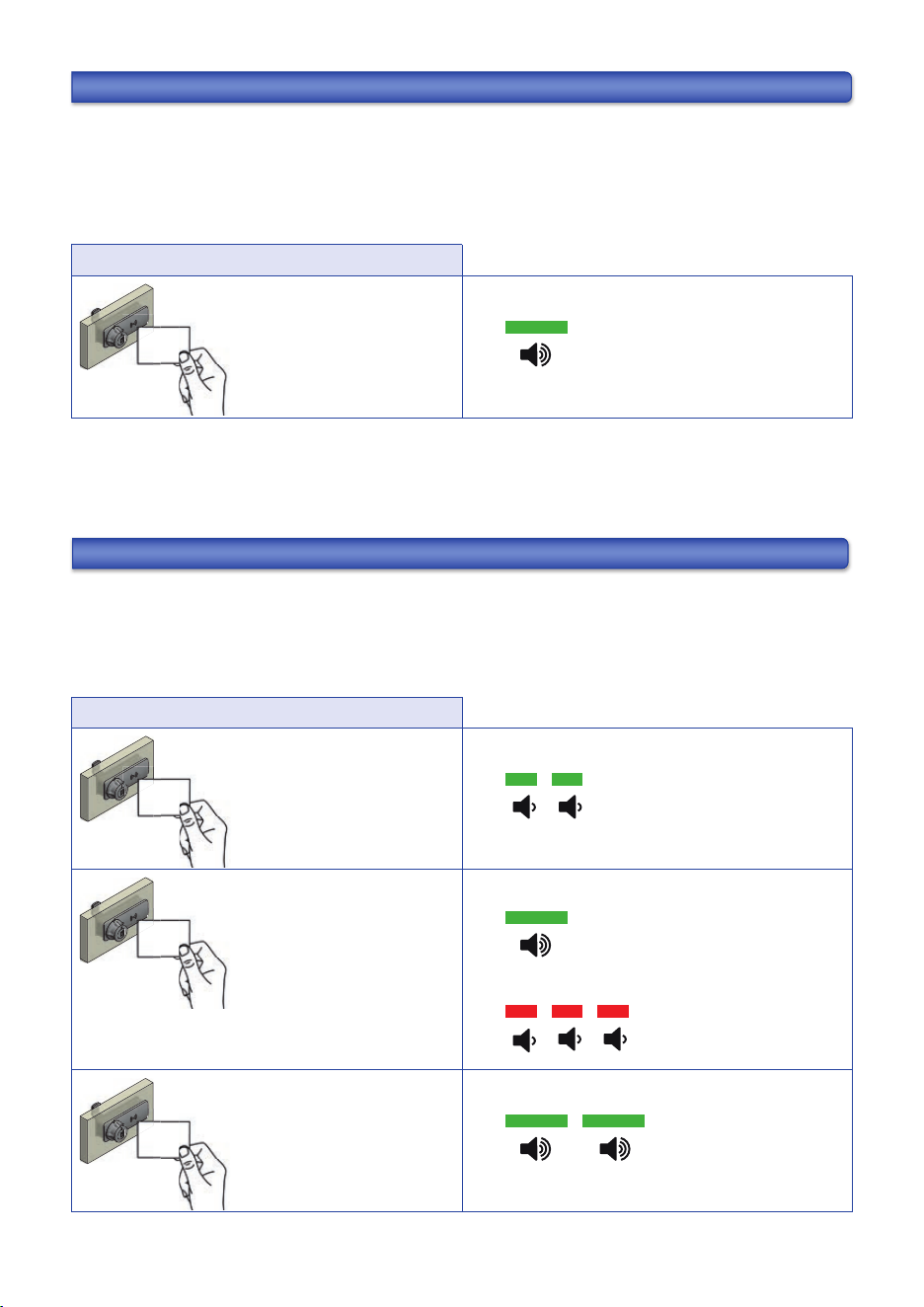

CLOSING AND OPENING
Closing
Hold the user card
in front of the lock.
Then turn the knob to the
closed posi on.
Opening
Hold the user card
in front of the lock.
Then turn the knob to the
open posi on.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
User
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
User
UNAUTHORISED TRANSPONDER CARDS
Rejec on of an unauthorised user card
Unauthorised user card is
held in front of the lock.
The card is rejected.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
User

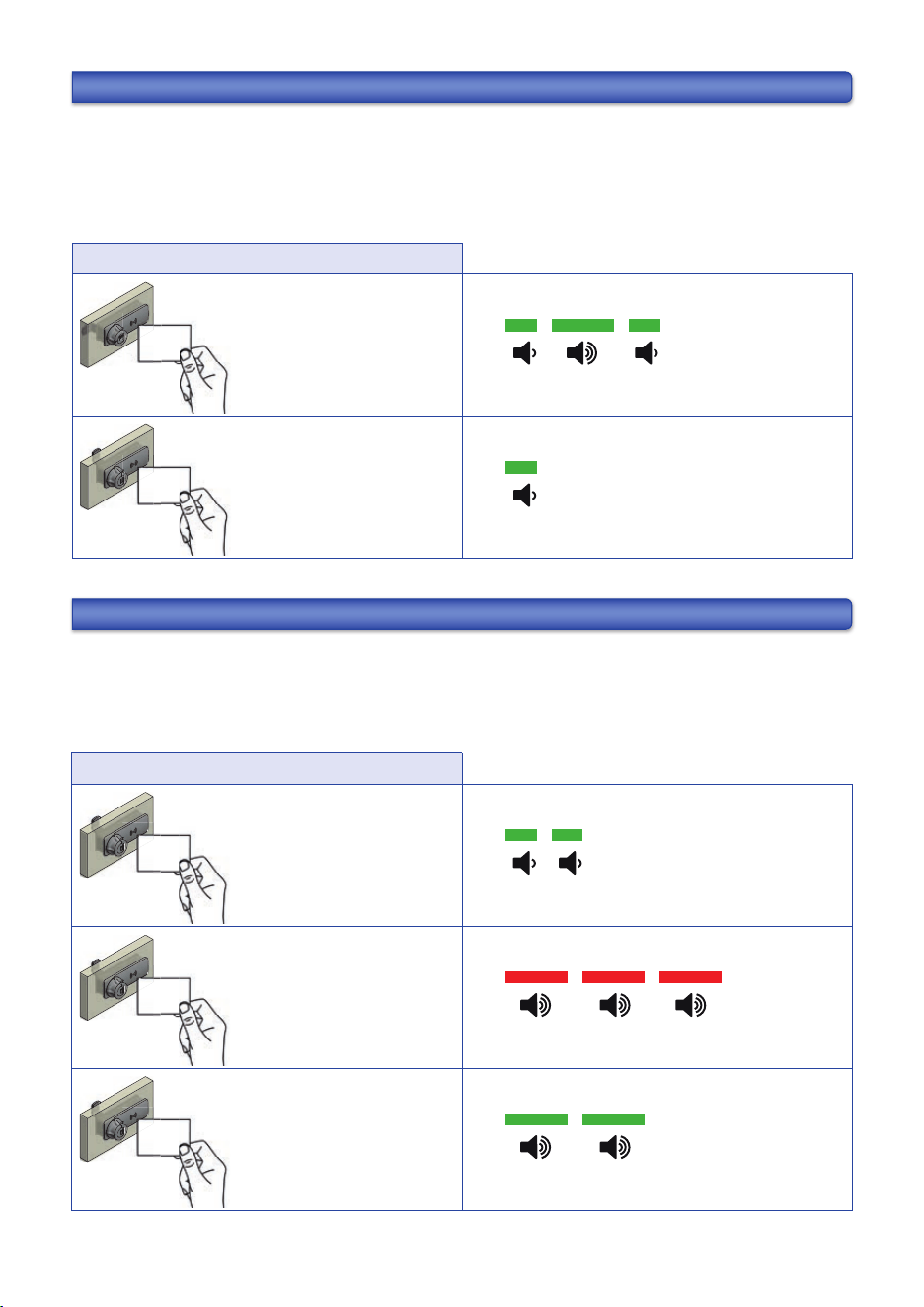

Facility Manager Func on
(lock closes automa cally a er 30 seconds)
Hold the master card
in front of the lock.
Then turn the knob to the
open posi on.
FACILITY MANAGER FUNCTION
In the event that an authorised person only briefl y wants to check whether for example a cabinet is actually
occupied, the lock can be opened with the master card. With this func on, the lock opens for 30 seconds and
then closes automa cally. The knob must be manually turned to the closed posi on. A er this automa c closure,
authorised user cards can con nue to be used in “shared use“ mode as well as in “assigned use“ mode.
The last 5 seconds before closing are indicated by op cal and acous c signals.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
13

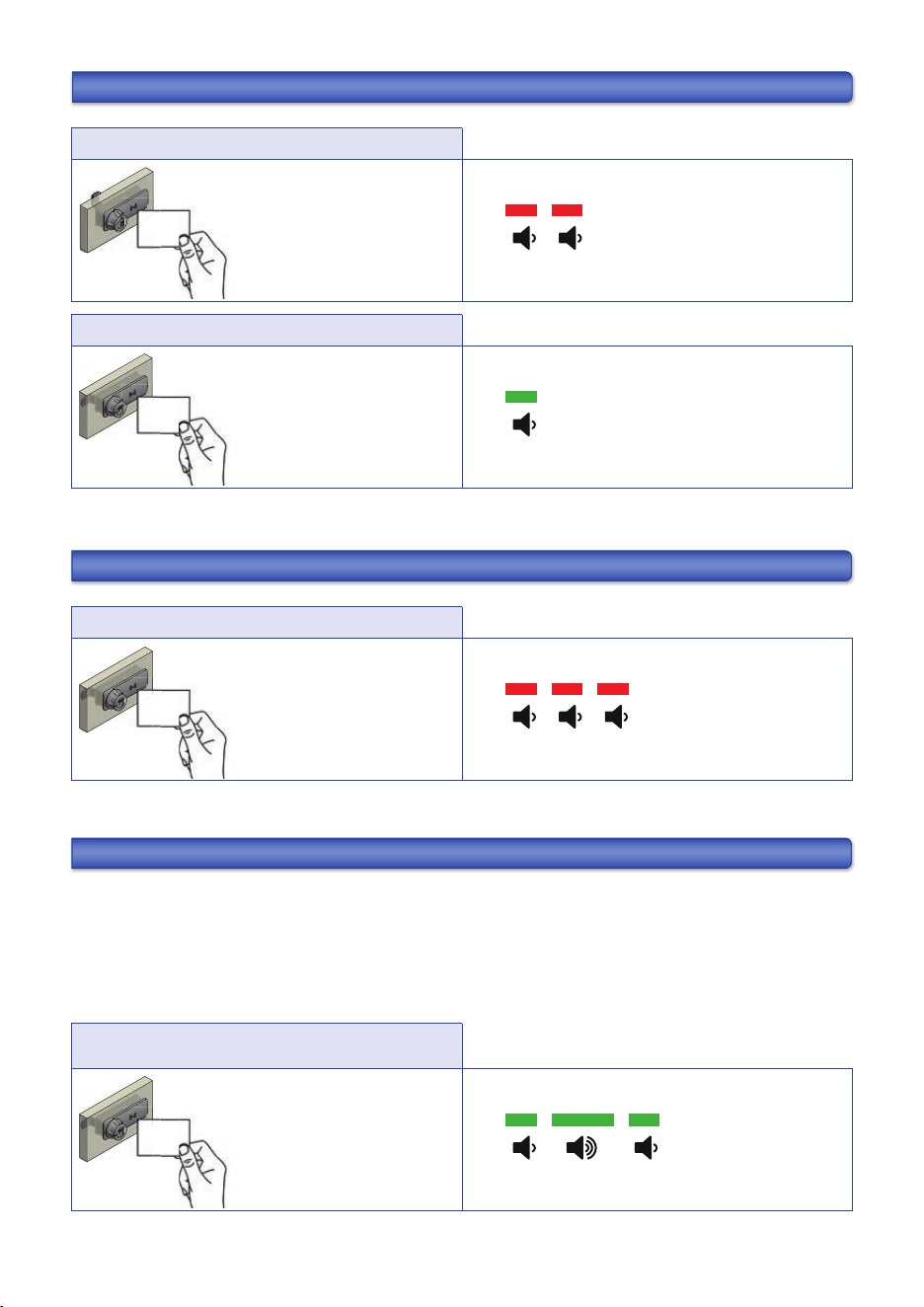

EMERGENCY OPENING
In the event that one or all authorised user cards are currently not available, an emergency opening can be eff ected
with the master card. Please note that the lock remains open a er emergency opening. In the “shared use“ mode, the
previously used user card is blocked a er emergency opening, and can no longer be used. In “assigned use“ mode, user
cards can con nue to be used normally.
Notöff nung
Hold the master card
in front of the lock.
Then turn the knob to the
open posi on.
Hold the master card
again in front of the lock.
DELETING INDIVIDUAL TRANSPONDER CARDS (only for “assigned use” mode)
Insofar as further user cards were programmed on the lock, these can con nue to be used on this lock a er an
individual user card has been deleted. For the dele ng process, the lock must be open. To do this, fi rst carry out an
emergency opening with the master card if necessary (see Emergency opening).
Dele ng individual user cards
Hold the master card
in front of the lock.
Hold the user card to
be deleted in front of
the lock.
Hold the master card
in front of the lock.
Should the user card be lost, then please proceed as follows.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
User
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
14

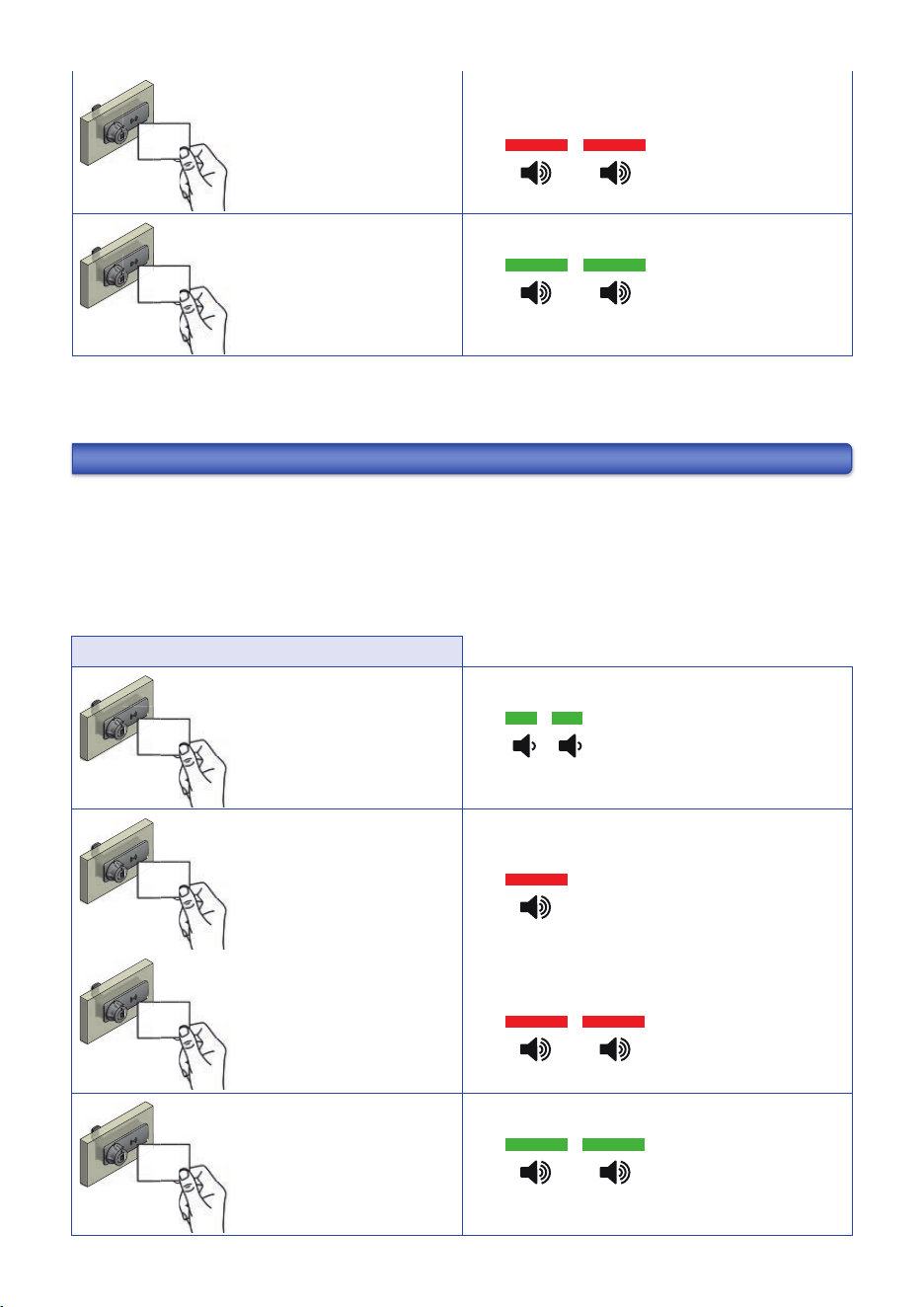

DELETING ALL TRANSPONDER CARDS (only for “assigned use” mode)
The dele ng process can only be carried out when the lock is open. Should there be no authorised user card to hand,
fi rst perform an emergency opening using the master card.
Dele ng all user cards
IMPORTANT: Hold the
master card in front of the
lock un l all the following
op cal and acous c signals
have been received.
5 seconds
IMPORTANT: Hold the
master card in front of the
lock un l all the following
op cal and acous c signals
have been received.
5 seconds
Hold the master card
in front of the lock.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
CHANGING THE OPERATING MODE
The lock has two modes: “assigned use“ and “shared use“. When the lock is open, you have the op on of changing
the mode. To do this, the master card and the programming card “P1: Mode“ are required. The programming card
set must be bought separately from LEHMANN Vertriebsgesellscha mbH & Co. KG. The cards are for universal use.
Changing the opera ng mode
Hold the master card
in front of the lock.
Hold the programming
card “P1: Mode“
in front of the lock.
“Shared use“ mode is
selected.
Shared use
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
P1: Mode
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
15
Deac va ng and ac va ng acous c signals
Hold the master card
in front of the lock.
Hold the programming
card “P2: Sound“
in front of the lock.
The acous c signals are
deac vated.
Acous c signals are deac vated
Hold the programming
card “P2: Sound“
in front of the lock again.
The acous c signals are
ac vated again.
Acous c signals are ac vated
Hold the master card
in front of the lock.
DEACTIVATING AND ACTIVATING ACOUSTIC SIGNALS
Acous c signalling is ac vated when the system is delivered. You have the op on of deac va ng the acous c signals
with the master card and the programming card “P2: Sound“. The lock must be open.
Please note that the acous c signals for the ba ery warning and for changing the opera ng mode cannot be deac-
vated. The programming card set must be bought separately from LEHMANN Vertriebsgesellscha mbH & Co. KG.
The cards are for universal use.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
P2: Sound
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
P2: Sound
Hold the programming
card “P1: Mode“
in front of the lock again.
“Assigned use“ mode is
selected.
Assigned use
Hold the master card
in front of the lock.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
P1: Mode
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
16
RESETTING TO FACTORY SETTING (Reset)
If a reset to factory se ngs is required, all master and user cards are deleted. With an installa on card the basic
func ons (close and open) can be carried out. The bolt is retracted, and the lock must be reprogrammed with a
master card.
The reset func on can be used with the master card and programming card “P3: Reset“. For this, the lock must be
open. The programming card set must be bought separately from LEHMANN Vertriebsgesellscha mbH & Co. KG.
The cards are for universal use.
Rese ng to factory se ngs
Hold the master card
in front of the lock.
Hold the programming
card “P3: Reset“
in front of the lock.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
P3: Reset
Hold the programming
card “P3: Reset“
in front of the lock again.
Hold the master card
in front of the lock.
a er about 10 seconds
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
P3: Reset
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
17
ACTIVATION AND DEACTIVATION OF AUTOMATIC LOCKING
With the programming card “P4: Auto Locking”, the func on “automa c locking“ can be ac vated and deac vated in the
opera ng mode “assigned use“. Once the func on is ac vated, the lock closes automa cally a er 5 seconds a er opening the
lock with an authorized transponder. A er the automa c electronic locking, the knob must be manually turned to the closed
posi on. It is recommended to ac vate “automa c locking“ a er programming the transponders.
The func on can be carried out by using the master card and the programming card “P4: Auto Locking”. To do this, the lock
must be in the mode “assigned use“ and in an open posi on. If the opera ng mode changes, this func on is automa cally
deac vated. The programming card must be purchased separately from LEHMANN Vertriebsgesellscha mbH & Co. KG.
The card can be used universally.
Ac vate or deac vate the feature automa c locking
Hold the master card
in front of the lock.
Hold the programming
card “P4: Auto Locking“
in front of the lock again.
Automa c locking is
ac vated.
Automa c locking is ac vated.
Hold the programming
card “P4: Auto Locking“
in front of the lock again.
Automa c locking is
deac vated.
Automa c locking is deac vated.
Hold the master card
in front of the lock.
ACTIVATION AND DEACTIVATION OF UNLIMITED SHARED USE
With the master card and the „P6: Unlimited Shared Use“ programming card, the func on can be ac vated and
deac vated in the „shared use“ mode. A er ac va on, an RFID transponder can lock several locks at the same me
(cau on: even up to all locks!), instead of just one lock per transponder in this opera ng mode. To ac vate and
deac vate the func on, the lock must be in an open posi on. The confi gura on process is the same process as the
ac va on and deac va on of the auto locking func on.
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
P4: Auto
Locking
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
P4: Auto
Locking
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Datum Name
Gez.
Kontr.
Konstr.
Ma
ßstab
Originalgröße
Allgemeintoleranz
european
projektion
Bezeichnung
Zeichnung Nr.
Entwicklungs Z. Nr.
Material
Werkzeug Nr. / Einsatz Nr.
MARTIN LEHMANN GmbH & Co KG
Postfach 2620 , D-32383 MINDEN
Schutzvermerk ISO 16016 beachten
Refer to protection notice ISO 16016
R
Werkzeugauslegung
LEHMANN
Abmessung
theor. Rohteilgewicht
Kunde
Klassifikation erfasst: Datum / Name
25-2129-004_Schrank_Schloss_Holz_ISO_Bild1
29.07.2025
Cwicklinski
A3
Cwicklinski
Sachb. Vertrieb
Art. Nr.
Huwil -TeileNr.Huwil -Z.Nr.
g
Blatt
5 / 7
Master
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
18
BATTERY WARNING
The locking system is equipped with a ba ery management system which uses visual and acous c signals to indicate the
need for ba ery replacement in the event of reduced ba ery power. The ba ery warning takes place in two phases:
The se ngs are saved even without a power supply (e.g. in case of ba ery replacement, or in case the ba ery
should be completely empty). Ba ery replacement should be carried out within 2 minutes.
Ba ery warning Phase 1
Before an ac on can be carried out (closing /
opening / programming), a ba ery warning is given.
The ba eries should be replaced.
The ba ery warning is also given every 60 minutes
Ba ery warning Phase 2
The lock can only be opened. Before the lock opens,
a ba ery warning is given. The ba eries must be
replaced without delay.
The ba ery warning is also given every 60 minutes.
REORDERING MASTER CARDS
With this locking system, you have the op on of ordering replacements for your master cards at your own expense.
For this you obtained a service key together with the master cards. Please keep the service key carefully and securely.
The service key makes it possible to reorder the master card specifi ed there. To reorder these cards, please contact
LEHMANN Vertriebsgesellscha mbH & Co. KG at the following email address: [email protected]
In your email, please give us your contact data and the service key. In your email, please also state the number of
replacement cards you require.
REGULATORY INFORMATION FOR USA AND CANADA:
FCC ID: W2Y-L7NF13VX
This device complies with Part 15 of the FCC Rules. Opera on is subject to the following two condi ons:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired opera on.
Changes or modifi ca ons not expressly approved by the party responsible for compliance could void the user‘s
authority to operate the equipment.
IC: 8141A-L7NF13VX
HVIN: L7NF13VX
This device contains licence-exempt transmi er(s)/receiver(s) that comply with Innova on, Science and Economic
Development Canada’s licence-exempt RSS(s). Opera on is subject to the following two condi ons:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired opera on of the device.
L’éme eur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innova on,
Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
L’exploita on est autorisée aux deux condi ons suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscep ble d’en
comprome re le fonc onnement.
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
19
Transponder card
cannot be
programmed.
Possible reasons:
• Storage space is used up
• Card is not compa ble
• Master card has not yet been programmed
• The lock is in “shared use” mode.
Ba ery warning
Phase 1
It is recommended that you replace the
ba ery.
Ba ery warning
Phase 2
The ba ery must be replaced without delay.
TROUBLE SHOUTING
In the following overview you can see the acous c and visual signals that indicate faults:
FIRMWARE UPDATE
You have the op on of upda ng the fi rmware of the lock. A special adapter is required for this. Firmware updates
for this lock are only made available on the website www.lehmann-locks.com if required (e.g. for technical reasons).
You will receive further informa on on the implementa on and installa on together with the fi rmware update.
DISPOSAL
Dispose the locking system in accordance with local regula ons and guidelines. Remove the ba ery and dispose
them separately in accordance with the na onal regula ons. When disposing of par ally discharged ba eries, make
sure that there are no short circuits between the ba ery poles (risk of explosion and fi re).
!
BDA VERTO RFID MIFARE® / 2026-07-13 (GB)
20
LEHMANN Vertriebsgesellschaft mbH & Co. KG
Postfach 26 20 • D-32383 Minden
Fon +49 571 / 50 599-0 • Fax +49 571 / 50 599-822
info@lehmann-locks.com • www.lehmann-locks.com
DIN EN ISO 9001:2015 zertifiziert
