LoRaWAN Type III Indoor Gateway
Quick Start Guide
1. Packing List
1
Rubber Antenna 3
4G/WIFI/LORA
Power Adapter 1
Micro USB Cable 1 Fixing Screws 1 set
Certificate of Conformity
Quick Installation Manual
* If any of the above items are damaged, missing, or if you have other accessory
requirements, please contact your agent or sales representative promptly.
LoRaWAN Type III
Indoor Gateway
2. Device Installation
2
Step 1: As shown in the figure, screw the antennas on clockwise.
Step 2: Insert the SIM card or connect the Ethernet network cable.
Step 3: Fix the mounting ears on the left and right sides of the device using
screws (if required).
Step 4: Connect the DC 12V power supply.
The gateway does not support hot-swapping. Please power off the
device before inserting or removing the SIM card.
3
3. Accessing the Gateway Configuration Page
3.1. Connect to the gateway device using USB
First, ensure the gateway device is operating normally.
There is a reserved Micro USB port on the enclosure. Use the provided
Micro USB cable to connect one end to the gateway device and the other
end to a computer. Enter the default gateway address 192.168.0.100:8088
in your computer's web browser to access the web configuration page login
interface.
3.2. Connect to the gateway device using an Ethernet cable
Correctly connect the network cable as shown in Chapter 2. Log in to the
device via ADB or use IPCONFIG to obtain the gateway device's IP address.
Append the port number “:8088” to the IP address to access the gateway's
web configuration page login interface.
3.3. Access the login page
After correctly connecting to the gateway device, use the corresponding IP
address to access the gateway web page via a computer browser.
Example for USB access: “http://192.168.0.100:8088/default/login.html”
4

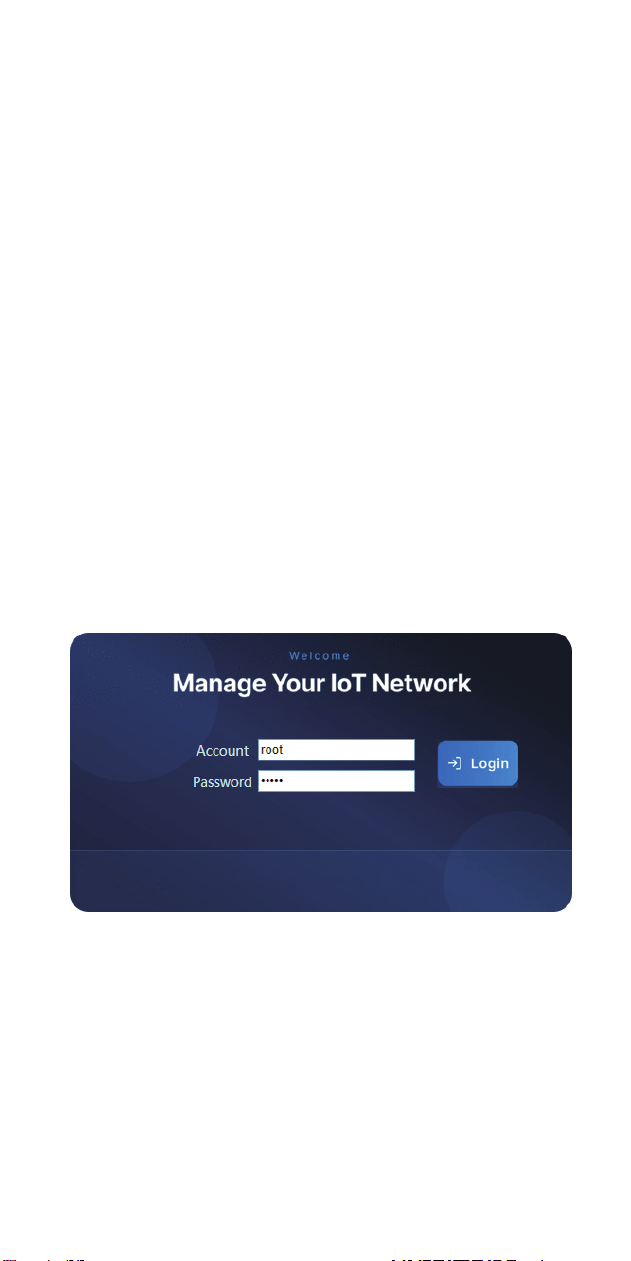

3.4. Log in to the gateway using the default credentials
The default username is: root
The default password is: admin
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.
