EN
www.gorenje.comwww.gorenje.com
DETAILED
INSTRUCTIONS FOR USE
OF REFRIGERATOR AND
FREEZER
2
We thank you for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
http://www.gorenje.com
Important safety warning
General information and tips
ii
Protecting the environment
!
Do not wash in the dishwasher
Link to the EU EPREL database
The QR code on the energy label supplied with the appliance provides a web
link to the registration of this appliance in the EU EPREL database. Keep
the energy label for reference together with the user manual and all other
documents provided with this appliance.
It is possible to find information related to the performance of the product
in the EU EPREL database using the link https://eprel.ec.europa.eu and the
model name and product number that you can find on the rating plate of the
appliance.
For more detailed information about the energy label, visit www.theenergylabel.eu.
3
CONTENTS
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
5 IMPORTANT SAFETY INSTRUCTIONS
8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE
9 ENVIRONMENT PROTECTION
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
11 INSTALLATION AND CONNECTION
13 APPLIANCE DESCRIPTION
14 OPERATING THE APPLIANCE
17 APPLIANCE INTERIOR EQUIPMENT
20 RECOMMENDED DISTRIBUTION OF FOOD IN THE
APPLIANCE
21 STORING FOOD IN THE REFRIGERATOR
22 DEFROSTING THE APPLIANCE
23 CLEANING THE APPLIANCE
24 TROUBLESHOOTING
26 INFORMATION ABOUT APPLIANCE NOISE
MISCELLANEOUS
STORING FOOD
4
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains, please
read carefully the instructions for use which describe the
appliance and its correct and safe use. The instructions
apply to several appliance types/models; thus, settings or
equipment may be described herein which is not available
in your appliance. We recommend saving this instruction
manual for future reference and attach it to the appliance if
it is sold in the future.
Check for any damage or irregularities on your appliance. If
you find your appliance is damaged, notify the retailer from
which you have purchased the appliance.
Before connecting the appliance to the power mains, let
the appliance rest in a vertical position for a minimum of 2
hours. This will reduce the possibility of operation faults due
to the effect of transport on the cooling system.
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
ii
5
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING! Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.
6
Danger of frostbite
Never put frozen food in your mouth and avoid touching
frozen food as this may cause frostnip or frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children.
It presents danger of injury or suffocation.
When removing a used appliance, disconnect the
power cord, remove the door, and leave the shelves in
the appliance. This will prevent children from locking
themselves in the appliance.
For European markets only
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.
7
Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.
8
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it
from the power mains. Empty the appliance, defrost it, clean
it, and leave the door ajar.
In case of an error or power supply failure, do not open the
freezer compartment unless the freezer has not operated
for over 16 hours. After this period, use the frozen food or
provide sufficient cooling (e.g. a replacement appliance).
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING! This appliance is intended to be used in
household and similar applications such as:
– staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
ii
9
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. The product should be
taken to an authorized collection centre for waste electric and electronic
equipment processing. Correct disposal of the product will help prevent
any negative effects on the environment and health of people which could
occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal
body in charge of waste management, your waste disposal service, or the
store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
!
Removing an obsolete appliance
To protect the environment, take the obsolete appliance to
an authorized home appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the climate
classes.
If the language on the rating plate is not the language of
your choice or the language of your country, replace it with
the one supplied.
ii
10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is
unobstructed.
• Condenser unit on the rear wall should be kept clean (see chapter Cleaning the
appliance).
• If the gasket is damaged or does not provide a perfect seal for any reason,
have it replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room
temperature.
• Defrost frozen food in the refrigerator compartment.
• To make use of the entire freezer compartment interior volume, remove
some of the drawers as described in the instruction manual.
• Defrost your conventional freezer when an approximately 3–5 millimetre
layer of frost or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that
the food is placed so that the air can freely circulate in the appliance
interior (observe the recommended placement of food as described in the
instructions).
• In appliances with a fan, do not block the fan slots or vents.
• If you do not need the fan or the ionizer, switch them off to reduce power
consumption.
11
INSTALLATION AND CONNECTION
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will operate
correctly if the environment temperature is in the interval specified in the table. The
appliance class is indicated on the rating plate / label with the basic information on
the appliance.
Description Class Ambient temperature
range °C
Relative humidity
Extended temperate SN +10 to +32
≤ 75%
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43
• Do not place an appliance in a room where temperature can drop to
below 5 °C as this may cause abnormal appliance operation or failure!
ii
• After the installation, the appliance mains plug should be accessible!
• Do not place the appliance near appliances or devices radiating heat, such as a
cooker, a stove, a radiator, water heater etc., and do not expose it to direct sunlight.
The appliance should stand at least 3 cm away from an electric or gas cooker or
at least 30 cm away from an oil or solid fuel stove. If the distance between such
source of heat and the appliance is smaller, use an insulating panel.
Note: Place the appliance in a suciently large room. There should be at least
1 m
3
of space per 8 grams of refrigerant. Amount of refrigerant is indicated on
the rating plate in the appliance interior.
• At the base of the kitchen unit intended for building in the integrated
appliance, there should be at least 200 cm
2
free space, for adequate air
circulation.
On the upper part of the appliance the air is coming out, so try not to cover
the opening for the outflow air.
Ignoring this caution may result in damage to the appliance.
12
The process of changing the appliance door opening and integrating the
appliance into a cabinet is described on the separate installation instructions
supplied in the bag with the instruction manual.
CONNECTING THE APPLIANCE
• Connect the appliance to the power
mains using the power cord. The wall
outlet should be fitted with a ground
contact (safety socket). Nominal
voltage and frequency are indicated
on the rating plate/label with basic
information on the appliance.
• The appliance must be connected
to the power mains and grounded
in compliance with the eective
standards and regulations. The
appliance will withstand short-term
deviations from the nominal voltage,
but not more than +/- 6%.
CHANGING THE DOOR OPENING DIRECTION AND
INTEGRATING THE APPLIANCE INTO A CABINET
13
APPLIANCE DESCRIPTION
1
2
3
4
5
6
7
1 Control unit
2 LED lighting
3 Glass shelves
4 Fruit and vegetable bin
5 MultiBox bin
6 Low door shelves
7 Bottle shelve
Appliance interior equipment may change according to the appliance model.
Note:
Due to unceasing modification of our products, your appliance may be slightly
different from this instruction manual, but its functions and using methods
remain the same.
To get the best energy efficiency of this product, please place all shelves,
drawers and baskets on their original position as the illustration above.
14
OPERATING THE APPLIANCE
SWITCHING THE APPLIANCE ON/OFF
Switching the appliance on: Press the
A key and hold it for 3 seconds.
Switching off the appliance: Again
press the A key and hold it for 3
seconds. The appliance will be off, but
there is still voltage in it as it is still
connected to the power mains.
A
B DC E F G
A Appliance on/o key
B Intensive cooling (cooling boost) function key
C Open door alarm indicator
D Intensive cooling function indicator
E Refrigerator temperature display
F Temperature settings key
G Open door alarm key
• When appliance is connected to the power supply, the display will show
“- -”. If you will not press any key within 1 min, the display will turn o.
ii
• If demo mode is activated, please contact the after sales service.
ii
15
ADJUSTING THE TEMPERATURE IN THE APPLIANCE
• Press the F key (several times) until
the desired temperature indicator
lights up.
• If the temperature of the room where
the appliance is installed is below
16 °C, we recommend setting a
temperature lower than 4 °C.
• The numbers 2, 3, 4, 5, 6, 7 and 8 indicate the degrees Celsius (°C) in the
appliance refrigerator compartment.
• The factory default setting is the recommended temperature of 4 °C.
• After the appliance is switched on, it may take several hours for the set
temperature to be reached. Do not place any food into the refrigerator
before the temperature drops to the selected setting.
ii
16
INTENSIVE COOLING (COOLING BOOST) FUNCTION
To activate the intensive cooling
(cooling boost) function, press the B
key. Symbol D lights up.
• Use this setting after switching on the appliance for the first time, before
cleaning, or 24 hours before adding a large amount of food.
• If any other function is selected while the intensive cooling function is active,
the intensive cooling function will be deactivated immediately.
• To switch o the intensive cooling function, press the F key to select the
desired temperature (E). If the intensive cooling function is not deactivated
manually, it will be automatically switched o (after approximately 6 hours),
and the temperature will return to the most recently set value.
OPEN DOOR ALARM
If the refrigerator compartment door is
open for more than 1 minute, acoustic
alarm will be activated
(intermittent tone) and the C symbol
will flash.. If the acoustic alarm is
not switched off, it will switch off
automatically after 10 minutes. The
appliance will continue to operate as if
the door was closed.
Switching off the alarm: To switch off the alarm, close the door.
To acknowledge and switch off the acoustic alarm, press the G key. If
the alarm is not switched off , it will be sounded every 60 seconds for
approximately 10 minutes.
• When the intensive freezing function is activated, the appliance will
operate with maximum power. During this time, operation may be
somewhat louder.
ii
17
APPLIANCE INTERIOR
EQUIPMENT
(* EQUIPMENT DEPENDS ON THE MODEL)
SHELF
• Empty shelves can be distributed
as you see fit across the guides in
the refrigerator interior without
having to remove the shelf from the
refrigerator.
To only move the shelf to a dierent
height/guide, lift it at the front, hold
it at the back, and move it higher
or lower. To take the shelf from the
refrigerator, first lift it at the front
part, hold it at the back part, and pull
it out from the appliance.
Store quickly perishable food at
the back of the shelf where the
temperature is the lowest.
FRUIT AND VEGETABLE BIN WITH
• The bin is located on the bottom of
the refrigerator compartment, below
the serving tray. This ensures
adequate humidity that has a benefi
cial e ect on the stored fruit and
vegetables (slower drying out).
18
Interior side of the refrigerator door is
fitted with shelves intended for storing
cheese, butter, eggs, yoghurt, and
other smaller packages, tubes, cans
etc.
Maximum load on each door shelf is 5
kg.Remove door rack
Install door rack
INTERIOR SIDE OF THE REFRIGERATOR DOOR
The shelves mounted on the interior side of the refrigerator door are intended
for storing cheese, butter, eggs, yoghurt and other smaller packages, tubes,
cans, etc. There is a bottle shelf at the lower end of the door.
ADJUSTABLE DOOR SHELVES
19

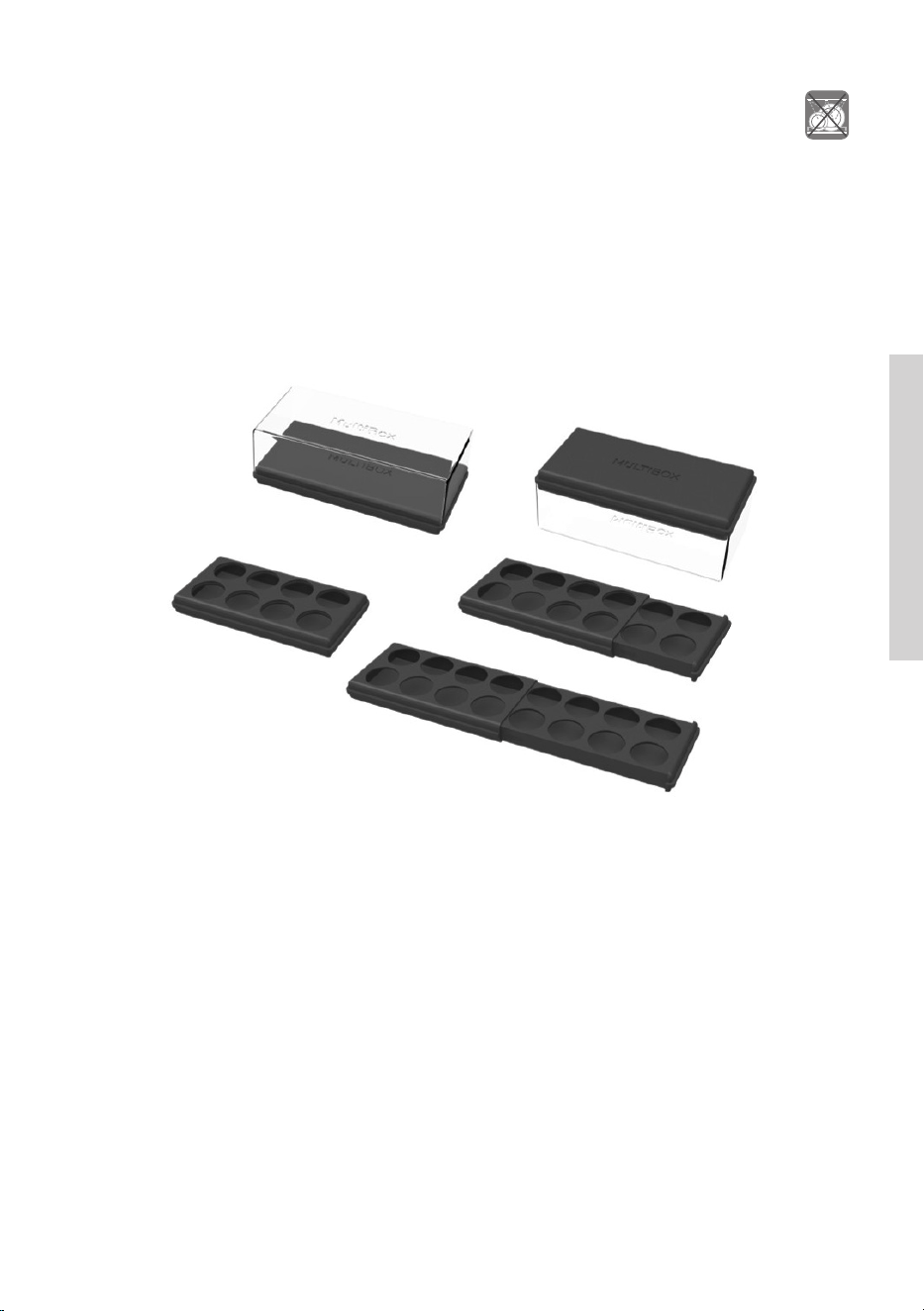

• MultiBox bin oers a convenient way for storing food with a strong or pungent
smell, e.g. ripened or blue-vein cheese, sausages, onions, butter etc.
• The silicone lid provides an air-tight seal that prevents the food from drying
out and the odour to spread throughout the refrigerator compartment.
• The silicone lid can also be used as an egg or ice tray.
• If the flexible lid is used as an egg tray, place it directly on the bottom of the
door bin and use the open lower part of the MultiBox bin to store food in
smaller packages – pâté, jams, smaller tubes etc.
MultiBox STORAGE BIN*
20
RECOMMENDED DISTRIBUTION
OF FOOD IN THE APPLIANCE
Sections in the refrigerator compartment:
- upper part: canned food, bread, wine, pastry etc.
- middle part: dairy products, ready-made meals, desserts, soft drinks, beer,
cooked food, etc.
- Fruit and vegetable bin: fresh fruit, vegetables, salads, root vegetables,
potatoes, onions, garlic, tomatoes, sauerkraut, turnips etc.
Sections in the refrigerator compartment door:
- upper/middle door bins: eggs, butter, cheese etc.
- lower door bins: beverages, cans, bottles
Do not store fruit (bananas, pineapples, papaya, citruses) and vegetables
(zucchini, eggplant, cucumbers, bell peppers, tomatoes, and potatoes)
sensitive to low temperatures in the refrigerator.
ii
21
STORING FOOD IN THE
REFRIGERATOR
IMPORTANT WARNINGS REGARDING FOOD STORAGE
ii
Correct use of the appliance, appropriate packaging,
maintaining the right temperature, and observing the food
hygiene standards have a decisive impact on the quality
of food storage.
Observe the expiry dates for the food, indicated on the
packaging.
Food stored in the refrigerator should be kept in closed
containers or in appropriate packaging to prevent it from
emitting or receiving odours and humidity.
Do not store inflammable, volatile, and explosive
substances in the refrigerator.
Bottles with high alcohol content should be tightly sealed
and stored in an upright position.
Some organic solutions, essential oils in lemon and orange
peel, butter acid, etc. may damage the plastic surfaces
in case of a prolonged contact, causing damage and
premature ageing of these materials.
Unpleasant odour warns of lacking cleanliness of the
appliance or perished contents (see chapter Cleaning the
Appliance).
If you are leaving home for a longer period of time,
remove perishables from the refrigerator.
22
DEFROSTING THE APPLIANCE
AVOID CONTAMINATION OF FOOD
To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
• Regularly clean surfaces that can come in contact with food and accessible
drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is
not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch o, defrost,
clean, dry, and leave the door open to prevent mould developing within the
appliance.
Refrigerator does not need defrosting because the ice on the back interior wall
is thawed automatically.
Any accumulated ice will melt when the compressor unit is inactive. Drops will
flow through an opening in the refrigerator rear wall into a tray fitted above the
compressor, from where they will evaporate.
Make sure the opening in the back wall in the refrigerator interior is never
blocked by food or any other object.
If an excessive layer of ice is formed on the rear wall of refrigerator interior (3–5
mm), switch off the appliance and defrost the appliance manually.
AUTOMATIC REFRIGERATOR DEFROSTING
23
CLEANING THE APPLIANCE
• Use a soft cloth to clean all surfaces. Cleaners that contain abrasive
substances, acids, or solvents are not suitable for cleaning as they may
damage the surface.
Clean the appliance exterior with water or a mild solution of suds.
Lacquer-coated and aluminium surfaces may be cleaned with lukewarm water
to which you have added a mild detergent. Use of cleaners with low alcohol
content is allowed (e.g. window cleaners). Do not use cleaners containing
alcohol for cleaning plastic materials.
• A gutter and an opening for discharging
the water from thawed frost deposits are
located underneath the cooling panel
that cools the refrigerator interior. The
gutter and the opening may not be
clogged. Inspect them often and clean if
necessary (e.g. with a plastic straw).
• Frost or ice build-up, 3–5 mm thick,
will increase power consumption.
Therefore, it should be regularly
removed (does not apply to NO
FROST freezers). Do not use any sharp
objects, solvents, or sprays.
Appliance interior can be cleaned with lukewarm water to which you can
add some vinegar.
Before cleaning, unplug the appliance from the power mains – switch off the
appliance (see chapter Switching the Appliance On/Off) and unplug the power
cord from the wall outlet.
!
• Do not wash the parts of appliance interior equipment in a dishwasher as
they may be damaged.
24
TROUBLESHOOTING
Problem: Cause or remedy:
Appliance is connected
to the power mains but
it does not work.
• Make sure there is voltage in the power outlet and
that the appliance is switched on.
Cooling system
operates continuously
for a long period of
time:
• Too high environment temperature.
• Door opened too frequently or too long.
• Door not closed correctly (possible impurities on
the seal, misaligned door, damaged seal etc.).
• Too much fresh food inserted at once.
• Insufficient compressor and condenser unit
cooling. Check for sufficient air circulation behind
the appliance and clean the condenser unit.
Excessive build-up of
ice on the back wall
of refrigerator interior
can be a result of the
following:
• Door opened too frequently or too long.
• Warm food placed in the refrigerator.
• Food or containers in contact with the back
interior wall of the refrigerator.
• Poor door sealing.
• If the seal is dirty or damaged, clean or replace it.
Condensate (dew) on
the shelf above the
drawers:
• This is transient phenomenon which cannot be
entirely avoided in periods of high environment
temperature and humidity. It subsides when
temperature and humidity are normalized. We
recommend cleaning the drawers more frequently
and wiping the droplets occasionally.
• Open the humidity control slider.
• Put food in bags or other packaging with a good
seal.
25
Problem: Cause or remedy:
Water is dripping/
leaking from the
refrigerator:
• Clogged water discharge opening or water
dripping past the water gutter.
• Clean the blocked opening, e.g. using a plastic
straw.
• If a thick layer of ice builds up, defrost the
appliance manually (see Defrosting the Appliance).
Door is difficult to open:
• If you are trying to open the door after just having
closed it, this could be difficult to do. As you
open the door, some cool air escapes from the
appliance and it is replaced by warm air from the
environment. When this air is cooled, negative
pressure is generated which results in problems as
you try to open the door. After a few minutes, the
condition is normalized and the door can be easily
opened again.
LED lighting does not
work:
• If LED lighting does not work, call a service
technician.
• Do not attempt a repair of the LED lighting
yourself, as there is danger of contact with high
voltage!
• This product contains a light source of energy
efficiency class G.
E1 will appear on the
display unit
• Temperature sensor of fridge fails. Call a service
centre for repair.
E2 will appear on the
display unit
• Evaporator sensor of fridge fails. Call a service
centre for repair.
If the above tips do not resolve your problem, call the nearest authorized service
centre and state the type, model, and serial number indicated on the appliance
rating plate or label located in the appliance interior.
26
INFORMATION ABOUT
APPLIANCE NOISE
Cooling in refrigerator freezers is made possible by a cooling system that also
includes a compressor (and a fan with some appliances), which generates some
noise. The level of noise depends on installation, proper use, and age of the
appliance.
• After connecting the appliance to the power mains, compressor operation,
or the sound of flowing liquid, may be somewhat louder. This is not a sign
of malfunction and it will not aect the useful life of the appliance. In time,
appliance operation and this noise will become quieter.
• Sometimes, unusual or loud noises may appear during appliance operation;
these are mostly the result of improper installation:
- The appliance must stand level and stable on a solid base.
- The appliance may not be in contact with a wall or adjacent furniture.
- Make sure the interior equipment sits firmly in its place and that the noise is
not caused by rattling cans, bottles or other containers placed next to each
other.
• Due to the higher workload on the cooling system when the door is opened
more frequently or for a longer time, when a large amount of fresh food is
introduced or when intensive freezing or cooling functions are activated, the
appliance can temporarily generate more noise.
WE RESERVE THE RIGHT TO CHANGES THAT DO NOT AFFECT THE
APPLIANCE FUNCTIONALITY.
Gorenje, d.o.o
Partizanska 12
SI - 3320 Velenje, Slovenija
www.gorenje.com
