EN User Manual | Fridge Freezer
CONTENTS
1. IMPORTANT SAFETY INFORMATION................................................. 2
2. FEATURES............................................................................................ 5
3. INSTALLATION......................................................................................5
4. CONTROLS AND SETTINGS..............................................................12
5. STORING FOOD AND SAVING ENERGY.......................................... 13
6. NORMAL OPERATING SOUNDS....................................................... 13
7. CARE AND CLEANING....................................................................... 14
8. TROUBLESHOOTING......................................................................... 15
9. LIMITED WARRANTY..........................................................................15
10. QUEBEC RIGHT TO REPAIR............................................................17
1. IMPORTANT SAFETY
INFORMATION
1.1 Keep a record for
quick reference
Model number
..........................................................
Serial number
..........................................................
Purchase date
..........................................................
1.2 Serial number
location
WARNING!
You must follow these guidelines to
ensure that your appliance’s safety
mechanisms are operating correctly.
1.3 Safety definitions
This is the safety alert symbol. It is
used to alert of potential personal
injury hazards. Obey all safety
messages that follow this symbol to
avoid possible injury or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
WARNING!
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
2 ENGLISH
CAUTION!
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
IMPORTANT
IMPORTANT indicates installation,
operation or maintenance information
which is important but not hazard-
related.
1.4 Child safety
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by a person responsible
for their safety.
Destroy or recycle the carton,
plastic bags, and any exterior
wrapping material immediately after
the appliance is unpacked. Children
should never use these items to
play. Cartons covered with rugs,
bedspreads, plastic sheets or
stretch wrap may become airtight
chambers, and can quickly cause
suffocation.
1.5 Important safety
instructions
DANGER
Risk of fire or explosion.
Flammable refrigerant used.
Do not use mechanical devices
to defrost the appliance. Do
not puncture refrigerant tubing.
Risk of fire or explosion.
Flammable refrigerant used.
To be repaired only by trained
service personnel. Use only
manufacturer-authorized
service parts. Any repair
equipment used must be
designed for flammable
refrigerants. Follow all
manufacturer repair
instructions. Do not puncture
refrigerant tubing.
WARNING!
Do not use the appliance before
installing it in the built-in structure.
CAUTION!
Risk of fire or explosion due to
puncture of refrigerant tubing.
Follow handling instructions
carefully. Flammable
refrigerant used.
This appliance is for storage only
and should not be used for any
other purpose.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
Do not store explosive substances
such as aerosol cans with a
flammable propellant in this
appliance.
Do not operate the appliance in the
presence of explosive fumes
Avoid contact with any moving parts
of automatic ice maker.
Remove all staples from the carton.
Staples can cause severe cuts, and
ENGLISH 3
also destroy finishes if they come in
contact with other appliances or
furniture.
WARNING!
Do not use electrical appliances inside
the food storage compartments of the
appliance unless they are of the type
recommended by the manufacturer.
WARNING!
CALIFORNIA RESIDENTS ONLY
WARNING! Cancer and Reproductive
Harm http://www.P65Warnings.ca.gov
1.6 Proper disposal of
your appliance
CAUTION!
Risk of fire or explosion.
Dispose of the appliance
properly in accordance with the
applicable federal or local
regulations. Flammable
refrigerant used.
Risk of child entrapment
Child entrapment and suffocation
are not problems of the past.
Junked or abandoned appliances
are still dangerous – even if they will
sit for “just a few days”. If you are
getting rid of your old appliance,
follow the instructions below to help
prevent accidents.
We strongly encourage responsible
appliance recycling/disposal
methods. Check with your utility
company or visit http://
www.energystar.gov/recycle for
more information on recycling your
old appliance.
Before you throw away your old
appliance:
• Remove doors.
• Leave shelves in place so children may
not easily climb inside.
• Have it removed by a qualified service
technician.
1.7 Electrical
information
• The appliance must be plugged into its
own dedicated 115 Volt, 60 Hz., 15
Amp, AC only electrical outlet. The
power cord of the appliance is
equipped with a three-prong grounding
plug for your protection against
electrical shock hazards. It must be
plugged directly into a properly
grounded three-prong receptacle. The
receptacle must be installed in
accordance with local codes and
ordinances. Consult a qualified
electrician. Do not use an extension
cord or adapter plug.
WARNING!
Avoid fire hazard or electric shock.
• If the power cord is damaged, it should
be replaced by an authorized service
technician to prevent any risk.
• Never unplug the appliance by pulling
on the power cord. Always grip the plug
firmly, and pull straight out from the
receptacle to prevent damaging the
power cord.
• Unplug the appliance before cleaning
and before replacing the light bulb to
avoid electrical shock. Use only a 5-
watt or less AC LED light bulb.
• Performance may be affected if the
voltage varies by 10% or more.
Operating the appliance with
insufficient power can damage the
compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an electrical
outlet controlled by a wall switch or pull
cord to prevent the appliance from
being turned off accidentally.
4 ENGLISH
• Do not pinch, knot, or bend the power
cord in any manner.
WARNING!
When positioning the appliance,
ensure the supply cord is not trapped
or damaged.
Do not locate multiple portable socket-
outlets or portable power supplies at
the rear of the appliance.
WARNING!
Do not, under any circumstances, cut,
remove, or bypass the grounding
prong (A). Always use the power cord
with a three-prong grounded plug and
grounding type wall receptacle.
2. FEATURES
Table title
.
IMPORTANT
Features may vary by model.
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling toll-free 1-800-374-4432 or from an authorized seller.
2.1 Product overview
2
3
1
4
5
1
Freezer drawers
2
Crisper
3
Fruit and vegetables drawer
4
Glass shelves
5
Bins
3. INSTALLATION
This User Manual provides general
installation and operating instructions for
your model. We recommend using a
service or kitchen contracting professional
to install your appliance. Use the
appliance only as instructed in this User
Manual. Before starting the appliance,
follow these important first steps.
3.1 Location
• If possible, place the appliance out of
direct sunlight and away from the
range, dishwasher, or other heat
sources.
• The appliance must be installed on a
floor that is level and strong enough to
support a fully loaded appliance.
WARNING!
This appliance is intended for use in
residential household and similar
interior applications such as:
• Kitchen / kitchenette
• Pantry room
• Basement
• Enclosed garage
• Other interior residential type
environments
ENGLISH 5
CAUTION!
Do not install the appliance where the
temperature will drop below 55°F
(13°C) or rise above 110 °F (43 °C).
The compressor will not be able to
maintain proper temperatures inside
the appliance.
NOTE
Do not block the lower front of the
appliance.
Sufficient air circulation is essential for
the proper operation of the appliance.
WARNING!
Risk of damage or injury due to the
appliance tipping over. This appliance
is very heavy and may tip forward
when the door is open. Keep the
door(s) closed until the appliance is
fully installed. Secure the appliance in
its installation niche in accordance
with the operating and installation
instructions.
WARNING!
Fire hazard and risk of damage from
heat-emitting appliances and from
open flames. Heat-emitting appliances
can ignite and cause the appliance to
catch fire. Open flames can set fire to
the appliance. Keep open flames
(such as a candle) away from the
appliance.
3.2 Ventilation
CAUTION!
Fire hazard and risk of damage due to
insufficient ventilation.
NOTE
If the appliance is not ventilated
sufficiently, the compressor runs more
frequently and for longer periods. This
causes increased energy consumption
and increased compressor operating
temperature, which can result in
damage to the compressor.
Ensure there is adequate ventilation
around the appliance. It is essential to
observe the required ventilation gaps.
Do not obstruct them and clean them
on a regular basis to remove dust.
Keep a gap of at least 1/2inch (13mm)
between the back of the appliance and the
rear wall. Not maintaining the gap results
in increased energy consumption.
Air at the back of the appliance gets warm.
To provide sufficient space for ventilation
refer to Installation Dimensions and the
Installation Instructions.
• To ensure ventilation provide an air
channel of a minimum 1 1/2inch
(40mm) depth at the back of the
appliance.
• The ventilation openings in the toe-kick,
inside the cabinet, and beneath the
cabinet top must provide a combined
airflow area of at least 31 in² (200 cm²)
to ensure unobstructed heat
dissipation.
• To fit a grille in the ventilation openings,
the ventilation openings must be larger
than 31"2 (200 cm²). The passage
volume of 31"2 (200 cm²) is the total
area of the opening slits in the grille.
IMPORTANT
The larger the ventilation slits, the
more economically the appliance
works.
3.3 Leveling
When positioning the appliance, ensure
that it is level, with all bottom corners
resting firmly on a solid floor. You can
adjust this using the two leveling feet
located at the front bottom of the
appliance.
3.4 Dimensions
Dimensions below are for reference only
and should not be used to order or make
6 ENGLISH
wood panels. Use them only to help
calculate the panel size.
30 in²
30 in²
21 11/16”
22 1/16”
70 - 70 3/32”
21 5/8”
21 1,4”
26 1/32”
40 1/32”
9/16”
69 15/16”
1 15/32”

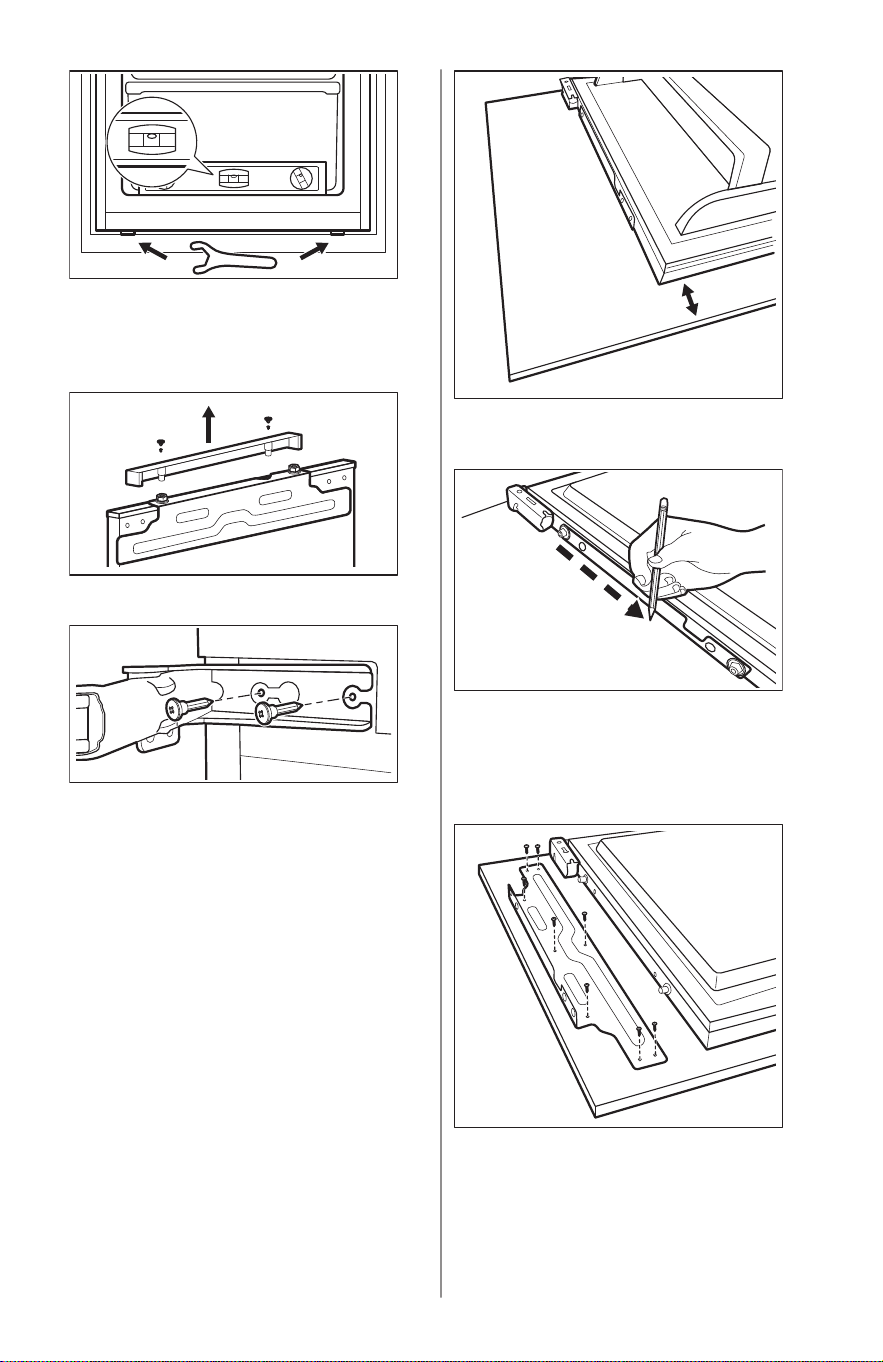

3.5 Cabinet Door Panels
Built-in installation of the appliance
requires refrigerator and freezer cabinet
door panels.
The cabinet door panel must be between
5/8" and 7/8" thick.
Cabinet Door Panel Weight
CAUTION!
If the door panel is too heavy, damage
can occur.
A door panel that is heavier than the
maximum permitted weight can
damage the hinges, causing functional
problems.
IMPORTANT
Before you install the door panel,
make sure that its weight does not
exceed the maximum permitted
weight.
The maximum permitted weights of the
door panels are:
• Refrigerator door panel: 39.7 lb (18 kg)
• Freezer door panel: 26.5 lb (12 kg)
Cabinet Door Panel Size
The size of the cabinet door panel
depends on your kitchen design and on
the gap between the cabinet doors. When
you choose the height of the door panel,
make sure the top edge aligns with the
doors of the surrounding cabinets. The
door panel must fit correctly and must not
be under tension.
Horizontal and Vertical Gaps
The required gaps around the door panel
depend on the kitchen style, the thickness
of the door panel, and the edge radius.
Consider this when planning your kitchen
or replacing the appliance to meet
installation requirements.
• Horizontal gap
The gap between the door panel and
the unit door above or below must be at
least 1/8" (3 mm).
• Vertical gap
If the gap between the refrigeration
appliance door panel and the adjacent
unit door or wall on the hinge side is
too small, the appliance door can hit
the adjacent unit or wall when opened.
You may need to adjust this gap to
match the thickness and edge radius of
the door panel.
Cabinet door panel installed next to the
unit door
1 5/8”
(42 mm)
1/16”
(2 mm)
A
B
C
ENGLISH 7
Cabinet door panel installed next to the
wall
1 5/8”
(42 mm)
1/16”
(2 mm)
A
B
C
Dimensions (DIM):
A. Cabinet door panel thickness
B. Edge radius
C. Gap
Table title
Door
panel
thick
ness
"DIM A"
"DIM C" for different edge radii
"B"
R 0 R 1.2 R 2 R 3
5/8" - 3/4"
16 - 19
mm
min. 1/8"
min. 3 mm
13/16"
20 mm
3/16"
5 mm
3/16"
4 mm
3/16"
4 mm
1/8"
3.5 mm
13/16"
21 mm
3/16"
5.5
mm
3/16"
5 mm
3/16"
4.5 mm
3/16"
4 mm
7/8"
22 mm
1/4"
6.5
mm
1/4"
6 mm
3/16"
5.5 mm
3/16"
5 mm
Door Panels
Appliance dimensions
ರ
~ರ
ರ
{ೢ೧ರ
ರ
ರ
ರ
Custom Door Panel Dimensions
%
%
$$
&
'
PLQರ
PLQ
%
PD[
%
PLQ
ರ
$
PLQ
ರ
$
PD[
A. Distance measured by the customer
B. Distance measured by the customer
C. Front panel overhang
D. Lower edge of front panel
The specified appliance door dimensions
are valid for a door gap of 1/8" (4mm).
3.6 Built-in Installation
Required tools:
• 13mm wrench
• T20 Screwdriver
• Screwdriver
• Level
To install the appliance:
1. Position the appliance in front of
kitchen cabinet opening. Connect
power cord. With doors still attached
tilt the appliance forward and push into
the cabinet opening..
2. To level the appliance use a level and
the provided hex wrench. Adjust the
front 2 hex feet as needed.
8 ENGLISH

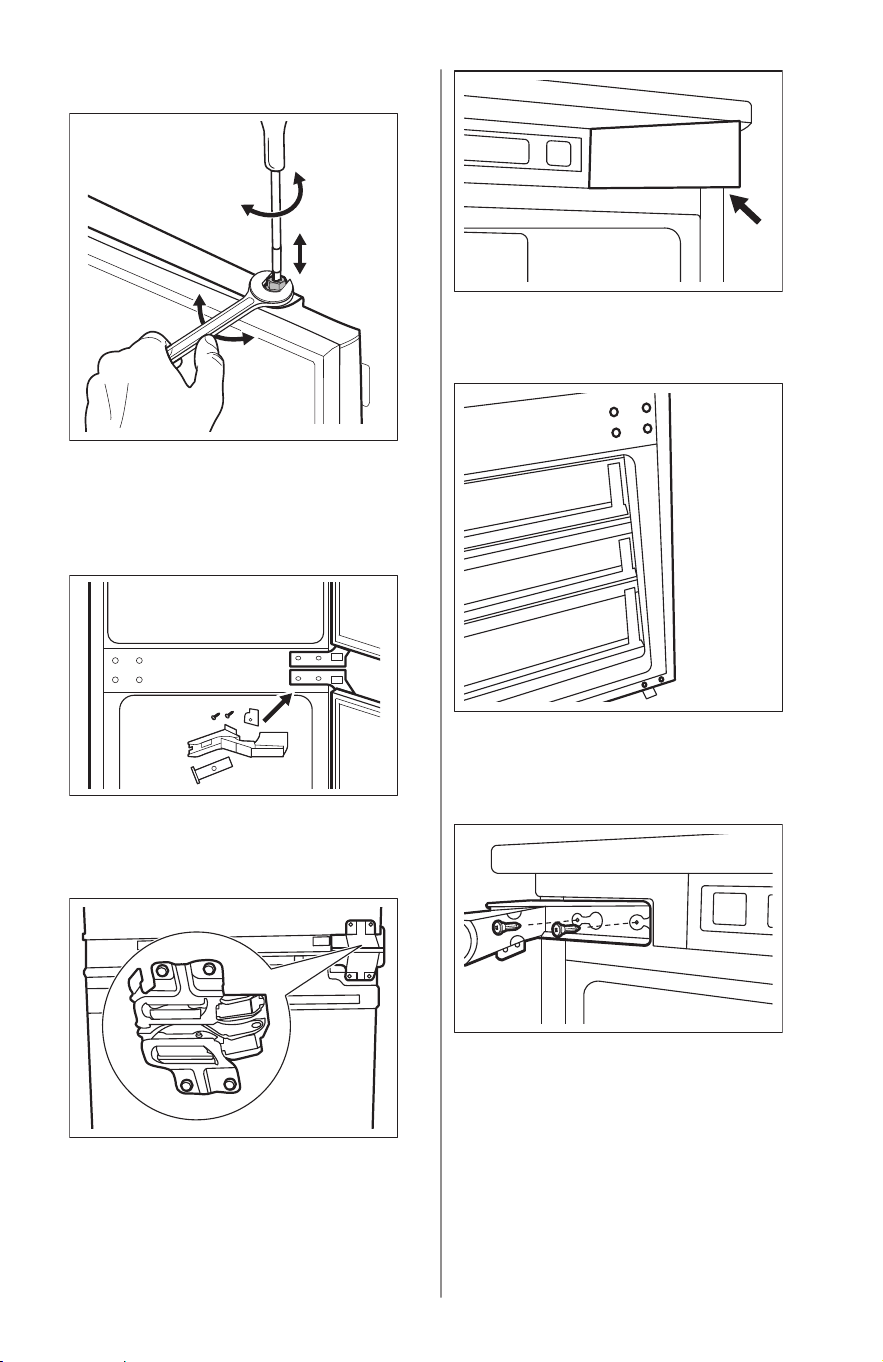

3. Loosely set the depth of the appliance.
Use the doors to align the depth of
appliance.
4. Remove top cover from both doors
and set aside.
5. Remove lower freezer door and the
hinges..
6. Using a clean flat surface place the
wood freezer panel face down. Place
the removed freezer door face down
onto the wood panel.
7. Center the door onto wood panel right
to left. Then align the door vertically
where it needs to be in relation to
adjoining kitchen cabinetry
8. Mark a pencil line on the door using
the top door mounting bracket as a
template.
9. Remove the metal bracket from the
door and align it to the pencil mark on
the wood panel. Attach the bracket on
the wood panel using screws..
10. Reattach the wood panel with metal
bracket back onto the door.
11. Put the appliance's doors onto the
metal brackets on the cabinet's doors.
12. Attach the bottom of the door to the
wood panel using the "L" brackets
ENGLISH 9

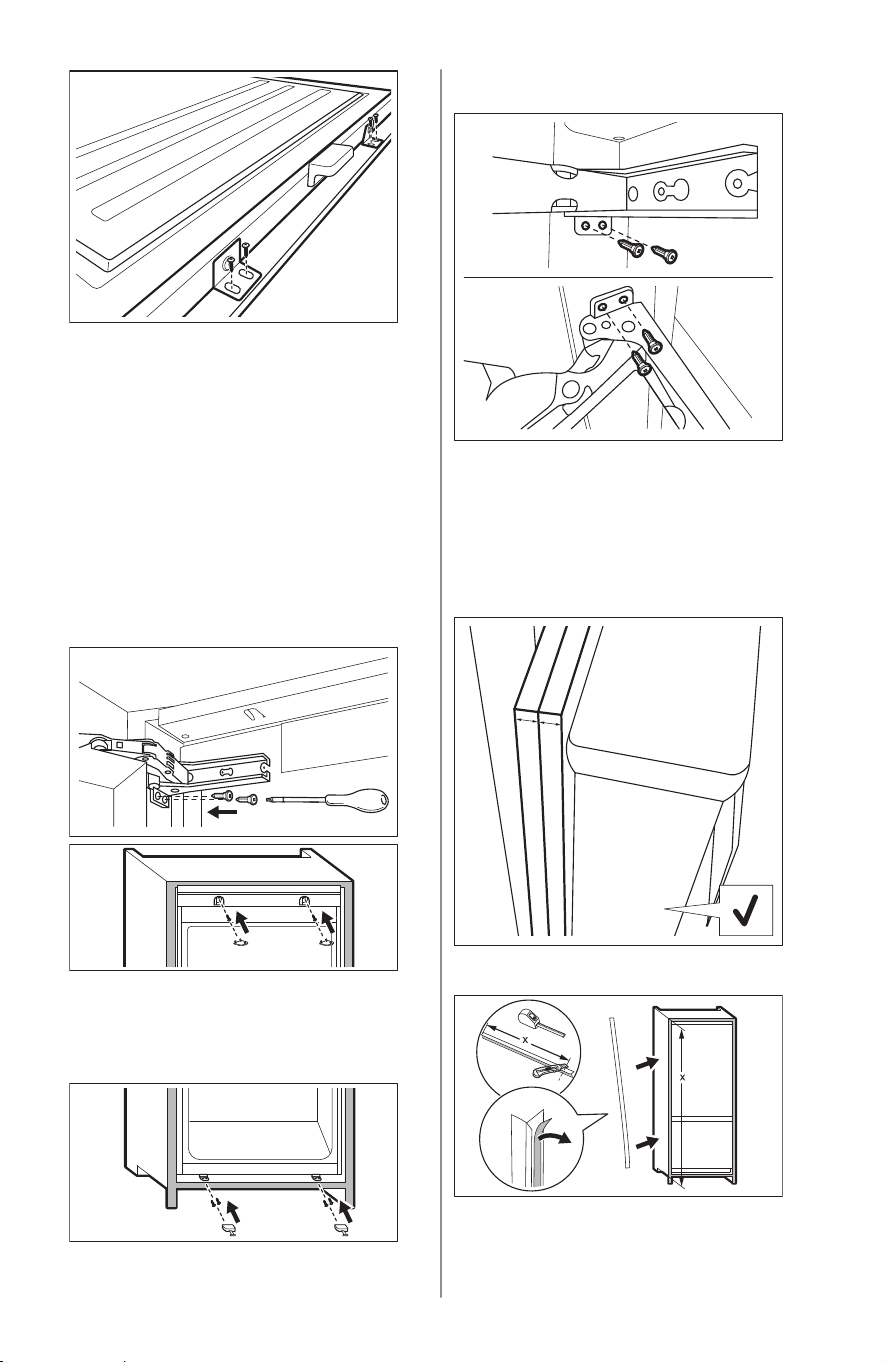

13. Reattach door and hinges to the
appliance (step 5).
14. Reattach the top cover (step 4).
15. Repeat the steps for the refrigerator
door.
16. With doors and panels installed on the
appliance ensure the cabinet depth is
positioned so doors close and door
gaskets seal properly.
17. Secure the top flanged bracket against
fixed shelf in the kitchen cabinet to set
the depth of the appliance. Insert 2
screws through metal bracket into the
kitchen cabinet. Install the screw
covers provided in the installation kit.
18. Insert screws through the 2 bottom
braces to secure the appliance to the
bottom of the kitchen cabinet. Snap
the provided plastic covers from the
installation kit.
19. Secure sides of hinges to the side wall
of the kitchen cabinet (8 screws).
20. With the refrigerator door open,
visually inspect the freezer gasket to
ensure it is sealing on all sides
21. Open the freezer door and inspect the
refrigerator door to make sure the
gasket is sealing on all sides. Adjust
as needed to ensure gaskets seal
properly.
[
[
22. Install the cabinet seal on the opposite
side of the door hinges.
23. Use the #13 wrench to adjust the
height of doors withe the nuts. Use
T20 screwdriver to tighten the bolts
10 ENGLISH
and adjust the gaps between the
wooden door and the cabinet.
24. If further adjustments are required, use
the hinge shims provided in the
installation bag. Use these shims
placed behind hinges to adjust doors
forward and away from cabinet. Adjust
as needed.
3.7 Door reversal
1. Remove both doors by removing the 8
screws, Set them aside.
2. Remove the cover on the opposite
side of the hinge next to user interface.
3.
Remove the 6 plastic hole plug covers
using a small flathead screwdriver. Set
aside the hole plugs for the opposite
side.
4. Remove the 4 hinges by removing the
8 mounting screws. Use hand force
only. Criss-cross the hinges and install
them on the opposite side of the
appliance.
ENGLISH 11
5. Remove the "L" shaped cover and
replace it with a new rectangular trim
supplied in the door reversal bag.
6. On the refrigerator door top hinge
install the new "L" trim provided in the
door reversal bag.
7. Reinstall the plastic plugs on the
opposite side of the appliance.
8. Reattach the doors. Tighten the 8
mounting screws by hand.
4. CONTROLS AND SETTINGS
4.1 Appliance Control
1 2 3 4 7 8 9 1065
1
Chiller Zone
Press to adjust the temperature in the
crisper. The temperature range varies
between 37°F (3°C) and 27°F (-3°C).
2
Fast Cooling
Press to activate the function, the
button lights up. The function sets the
temperature in the refrigerator
compartment to 36°F (2°C). It stops
after 24h.
3
Holiday
Press to activate the function, the
button lights up. The function sets the
temperature in the refrigerator
compartment to 63°F (17°C) and in the
freezer compartment to 0°F (-18°C).
4
Refrigerator temperature
adjustment
Press to adjust the refrigerator
compartment temperature. The
temperature range varies between
34°F (1°C) and 43°F (6°C).
5
Refrigerator temperature display
6
Freezer temperature display
7
Freezer temperature adjustment
Press to adjust the freezer
compartment temperature. The
temperature range varies between 5°F
(-15°C) and -9°F (-23°C).
8
Eco
Press to activate the function, the
button lights up. The function sets the
temperature in the refrigerator
compartment to 41°F (5°C) and in the
freezer compartment to 0°F (-18°C).
The temperature in the Chiller Zone is
set to 37°F (3°C).
9
Fast Freezing
Press to activate the function, the
button lights up. The function sets the
temperature in the freezer
compartment to -13°F (-25°C). It stops
after 24h.
10
On/Off
Press the button for 3sec to turn the
power on/off. The button lights up
when turned on.
NOTE
No frost models are equipped with
automatic defrosting function. Press
Freezer temperature adjustment
and On/Off for 5sec to activate/
deactivate.
12 ENGLISH
5. STORING FOOD AND SAVING ENERGY
5.1 Ideas for storing food
Fresh food storage
• Keep the fresh food compartment
between 34°F and 40°F, with an
optimum temperature of 37°F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.
• Avoid placing food in front of air ports.
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture helps
preserve food quality for longer time
periods.
• Wash items and remove excess water.
• Wrap any items that have strong odors
or high moisture content.
Meat
• Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or
surfaces.
Frozen foods storage
• Keep the freezer compartment at 0°F
or lower.
• A freezer operates most efficiently
when it is at least 2/3 full.
Packaging foods for freezing
• To minimize food dehydration and
quality deterioration, use aluminum foil,
freezer wrap, freezer bags, or airtight
containers. Force as much air out of
the packages as possible and seal
them tightly. Trapped air can cause
food to dry out, change color, and
develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze meat that has
completely thawed.
Loading the freezer
• Avoid adding too much warm food to
the freezer at one time. This overloads
the freezer, slows the rate of freezing,
and can raise the temperature of frozen
foods.
• Leave a space between packages, so
cold air can circulate freely, allowing
food to freeze as quickly as possible.
5.2 Ideas for energy saving
Installation
• Locate the refrigerator in the coolest
part of the room, out of direct sunlight,
and away from heating ducts or
registers.
• Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is
not possible, a section of cabinetry or
an added layer of insulation between
the two appliances will help the
refrigerator operate more efficiently.
• Level the refrigerator so that the doors
close tightly.
Temperature setting
• Refer to Controls and Settings for
procedures on temperature settings.
Food storage
• Avoid overcrowding the refrigerator or
blocking cold air vents. Doing so
causes the refrigerator to run longer
and use more energy.
• Cover foods and wipe containers dry
before placing them in the refrigerator.
This cuts down on moisture build-up
inside the unit.
• Organize the refrigerator to reduce
door openings. Remove as many items
as needed at one time and close the
door as soon as possible.
• Do not place a hot container directly on
a cold shelf. Remember, such an
extreme temperature change may
damage the glass.
6. NORMAL OPERATING SOUNDS
NOTE
The appliance can make various
sounds. This is normal.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents fo your
freezer compartment is normal.
ENGLISH 13
IMPORTANT
Ice maker models only: If the ice
maker is not connected to the water
supply, you may hear a chattering
noise. Turn off the ice maker by
pressing the green On/Off power
switch until you install the water
supply line.
6.1 Understanding the sounds
you may hear
• Evaporator: Refrigerant flows through
the evaporator, making a boiling or
gurgling sound.
• Evaporator fan: Moves air through the
appliance, creating a blowing sound.
• Defrost heater: During defrost cycles,
water dripping onto the defrost heater
causes a hissing or sizzling sound.
After defrosting, a popping sound
occurs.
• Ice maker: Ice cubes drop into the bin,
making a sound during each cycle.
• Compressor: Runs with a humming or
pulsating sound.
• Water valve: Opens to fill the ice
maker, making a brief buzzing sound.
• Drain pan (not removable): Water
drips into the drain pan during defrost,
making a sound.
• Condenser: Air moves across the
condenser, making an airflow sound.
7. CARE AND CLEANING
7.1 Vacation and moving tips
Short vacations
• Leave the appliance operating during
vacations of three weeks or less.
• Use all perishable items from the
appliance compartment.
Long vacation
• Remove all food and ice if you will be
gone one month or more.
• Unplug the appliance.
• Clean interior thoroughly.
• Leave both doors open to prevent
odors and mold build-up. Block doors
open if necessary.
Moving
• Unplug the appliance
• Remove all food and ice.
• Recommend use of a handcart, load
from the side.
• Adjust rollers all the way up to protect
them during sliding or moving.
• Pad cabinet to avoid scratching
surface.
7.2 Care & Cleaning Tips
Table title
Part What to use Tips and precautions
Interior and door liners
• Soap and water
• Baking soda and water
Use 2 tablespoons of baking soda in 1 quart of
warm water. Be sure to wring excess water out of
sponge or cloth before cleaning around controls,
light bulb or any electrical part.
Door gaskets Soap and water Wipe gaskets with a clean soft cloth.
Glass shelves
• Soap and water
• Glass cleaner
• Mild liquid sprays
Allow glass to warm to room temperature before
immersing in warm water.
Exterior
• Soap and water
Never use chloride or cleaners with bleach to
clean stainless steel.
Always clean, wipe and dry with the grain to pre
vent scratching. Wash the rest of the cabinet with
warm water and mild liquid detergent. Rinse well,
and wipe dry with a clean soft cloth.
14 ENGLISH
8. TROUBLESHOOTING
Table title
.
Let us help you troubleshoot your concern! This section will help you with common issues. If
you need us, visit our website, chat with an agent, or call us. We may be able to help you
avoid a service visit. If you do need service, we can get that started for you!
Visit Frigidaire.com or call toll-free 1-800-374-4432.
8.1 Common occurrences
Table title
.
The appliance does not run.
• Ensure the plug is tightly pushed into an electri
cal outlet.
• Check/replace the fuse with a 15amp time-delay
fuse. Reset the circuit breaker.
• The appliance may be in defrost cycle.
Wait 20 minutes and check again.
The appliance temperature is unsatisfactory.
• Set the appliance control to a warmer or colder
setting until the temperature is satisfactory. Al
low 24 hours for the temperature to stabilize.
The appliance is noisy or vibrates.
• The cabinet is not level.
• Floor is weak.
Odors in the appliance.
• The interior needs to be cleaned.
• Cover or wrap the foods that produce odors.
Cabinet light is not working.
• Ensure the plug is tightly pushed into an electri
cal outlet.
8.2 Errors
The following error codes might appear on
the display indicating the malfunction of
the appliance. The refrigerator may
operate despite the following errors.
Table title
Error Code Description
F2 Issue in the chiller zone.
F3 Issue in the refrigerator compart
ment.
F4 Issue in the freezer compartment.
F5 Defrosting issue.
Error Code Description
2E Fan/motor malfunction in the
freezer compartment.
CE Appliance control issue.
NOTE
When the freezer compartment
temperature rises above 77°F (-1°C),
the alarm sounds and temperature
digit flashes. Press any button to stop
the alarm. The digit flashes until the
freezer cools down.
9. LIMITED WARRANTY
Your appliance is covered by a one-year
limited warranty. For one year from your
date of delivery, Electrolux will pay all
costs for repairing or replacing any parts of
this appliance that prove to be defective in
materials or workmanship when such
appliance is installed, used and
maintained in accordance with the
provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers
that have been removed, altered or
cannot be readily determined.
ENGLISH 15
2. Product that has been transferred from
its original owner to another party or
removed outside the USA, Puerto
Rico, or Canada.
3. Rust on the interior or exterior of the
unit.
4. Products purchased “as-is” are not
covered by this warranty.
5. Food loss due to any refrigerator or
freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve
malfunction or defects in materials or
workmanship, or for appliances not in
ordinary household use or used other
than in accordance with the provided
instructions.
8. Service calls to correct the installation
of your appliance or to instruct you
how to use your appliance.
9. Expenses for making the appliance
accessible for servicing, such as
removal of trim, cupboards, shelves,
etc., which are not a part of the
appliance when it is shipped from the
factory.
10. Service calls to repair or replace
appliance light bulbs, air filters, water
filters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited
to, any after hour, weekend, or holiday
service calls, tolls, ferry trip charges,
or mileage expense for service calls to
remote areas, including the state of
Alaska.
12. Damages to the finish of appliance or
home incurred during transportation or
installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services
performed by unauthorized service
companies; use of parts other than
genuine Electrolux parts or parts
obtained from persons other than
authorized service companies; or
external causes such as abuse,
misuse, inadequate power supply,
accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED
WARRANTIES; LIMITATION OF
REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE
REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS
PROVIDED HEREIN. CLAIMS BASED
ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR
OR THE SHORTEST PERIOD ALLOWED
BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE
LIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY
BREACH OF THIS WRITTEN LIMITED
WARRANTY OR ANY IMPLIED
WARRANTY. SOME STATES AND
PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES,
SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS.
YOU MAY ALSO HAVE OTHER RIGHTS
THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some
other appropriate payment record to
establish the warranty period should
service be required. If service is
performed, it is in your best interest to
obtain and keep all receipts. Service under
this warranty must be obtained by
contacting Electrolux at the addresses or
phone numbers below.
This warranty only applies in the USA,
Puerto Rico and Canada. In the USA and
Puerto Rico, your appliance is warranted
by Electrolux Consumer Products, Inc. In
Canada, your appliance is warranted by
Electrolux Canada Corp. Electrolux
authorizes no person to change or add to
any obligations under this warranty.
Obligations for service and parts under
this warranty must be performed by
Electrolux or an authorized service
company. Product features or
specifications as described or illustrated
are subject to change without notice.
USA
1-877-435-3287
Electrolux Consumer Products, Inc.
16 ENGLISH
North America
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
10. QUEBEC RIGHT TO REPAIR
Though Electrolux makes every effort to
make replacement parts, repair services
and information necessary to maintain or
repair our products available to
consumers, parts, service and information
are not guaranteed, pursuant to section 39
of the Consumer Protection Act, CQLR, c.
P-40.1 and sections 79.18 to 79.20 of the
Regulation respecting the application of
the Consumer Protection Act, CQLR, c
P-40.1, r. 3. If you need replacement
parts, you may call us at 1 (800) 265-8352
for service in French or English.
You may book repair services online at
information | Book a service | Electrolux.
Alternatively, our resource library is
available at Resource Library |
Electrolux to help you diagnose and
resolve issues which may arise during the
lifetime of your appliance.
Though most parts are available for
purchase, subject to short-term availability
constraints, the following appliances and
parts are not serviceable.
Legend
Availability of replacement parts, repair
services, and information for mainte
nance or repair.
Partially Available
Not Available
Available
Table title
.
Refrigerators Cabinet, 14cu ft and
less no sealed sys
tem parts
Freezer 9 cu. ft and less no
sealed system parts.
Beverage
Centers
Only cosmetic parts
available
ENGLISH 17
*
A30521401 (December 2025)
