Pan Racks manufactured by ADVANCE TABCO
®
are designed and constructed for the use of pan
storage and transport and the like. ADVANCE TABCO
®
does not recommend product use for
activities employing harsh and active chemicals. Please consult factory regarding unusual applications.
Installation Instructions for
REACH-IN RACKS
CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
®

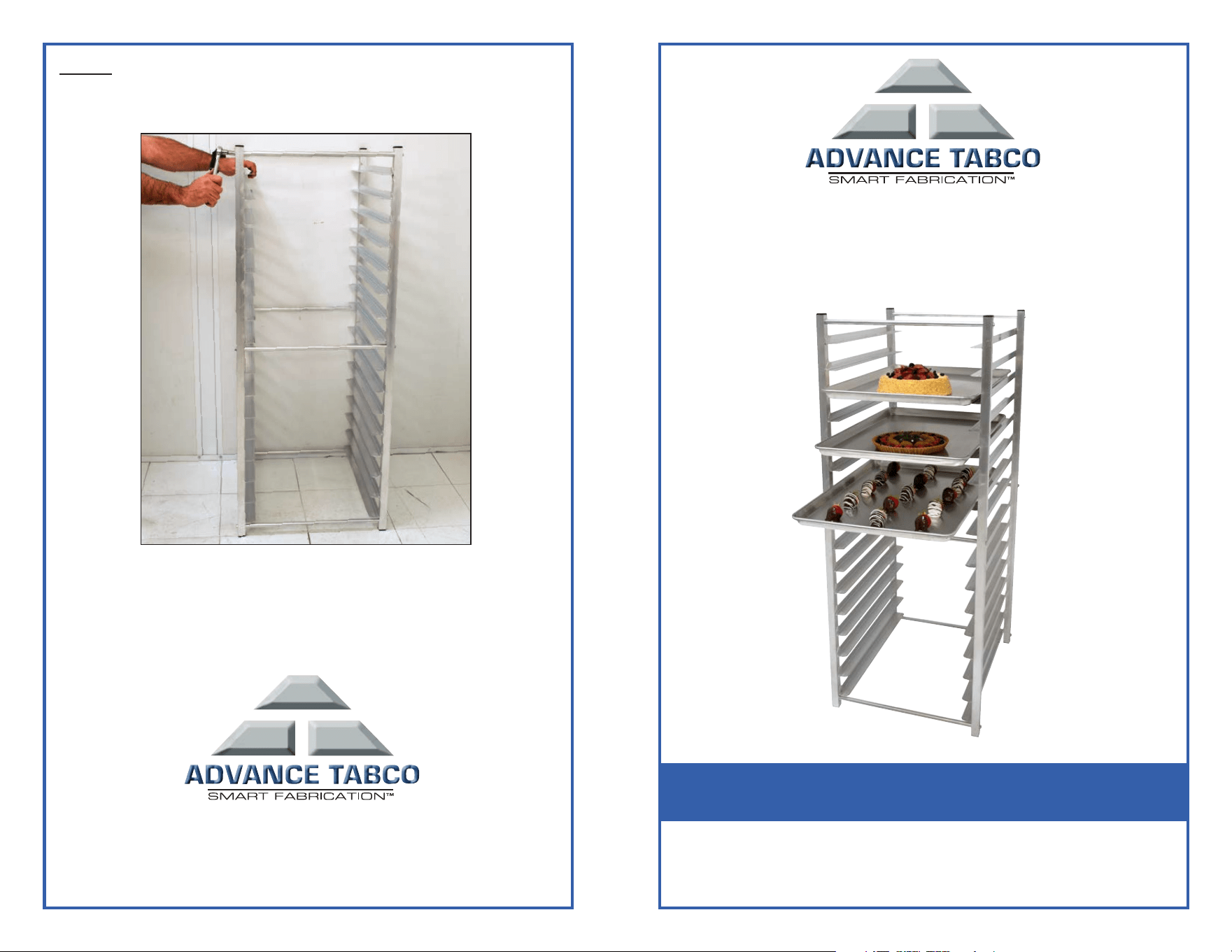

STEP 4:
a. Stand rack up right on a flat and level surface (Figure 5).
b. Firmly tighten all bolts. Do not over tighten bolts to avoid stripped threads.
Figure 5
Edgewood, New York 11717-8380
www.advancetabco.com
800-645-3166
®
© ADVANCE TABCO JANUARY 2016
Qty. Description
6 5/8” Diameter Round Cross Braces
2 Side Frames
12 1/4” -20 x 1” Long Hex Bolts
CARTON CONTENTS:
TOOLS REQUIRED:
3/32” Rachet Wrench

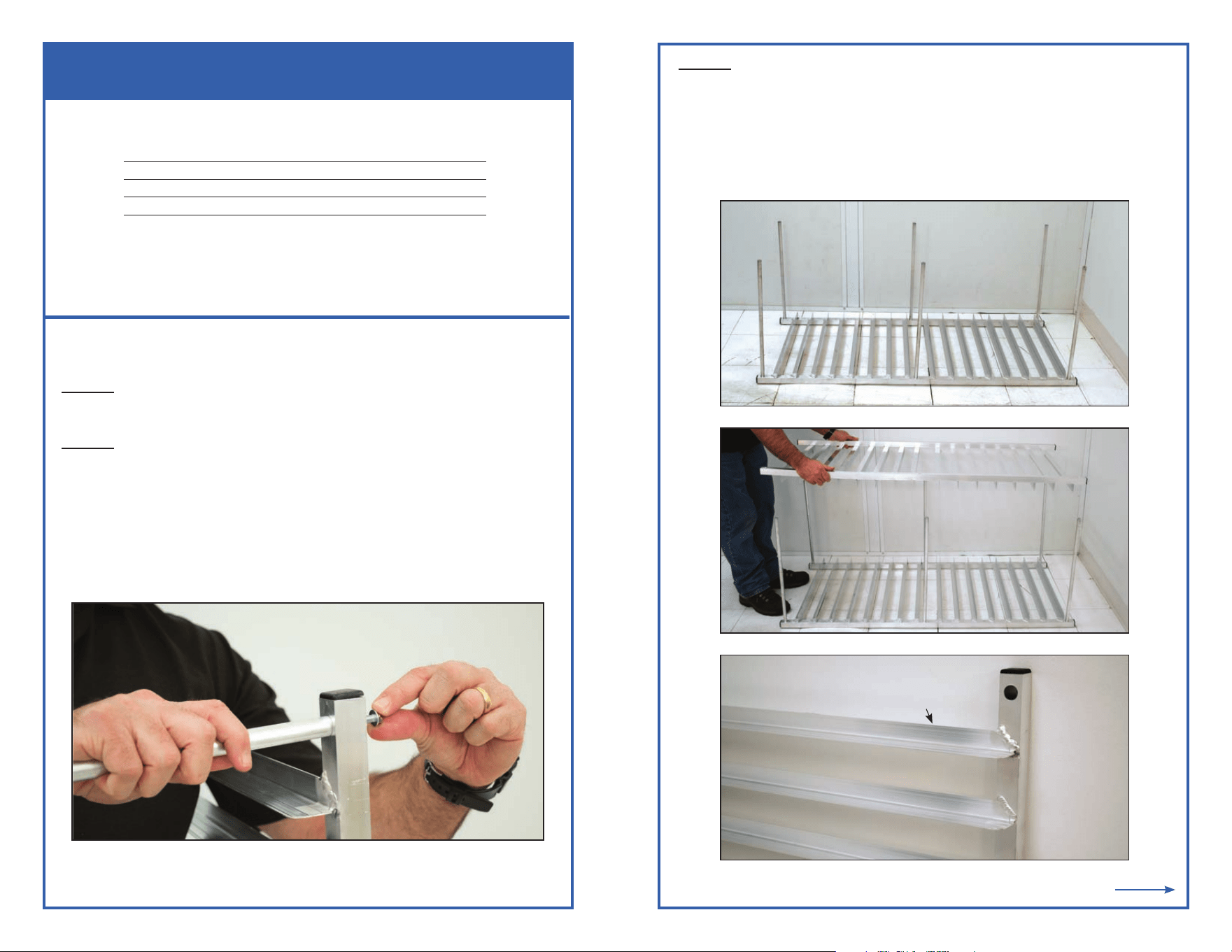

REACH-IN RACK INSTALLATION INSTRUCTIONS
ASSEMBLY:
STEP 1:
Check to ensure all parts are accounted for.
STEP 2:
a. Insert the (6) 5/8” diameter cross braces into the holes on the inner side
of one frame.
b. Insert the 1/4”-20 x 1” hex bolts into the holes on outer side of frame and
thread into the end of 5/8” cross braces (Figure 1).
Do not fully tighten at this point.
STEP 3:
a. Lay frame on the floor with (6) cross braces facing up (Figure 2).
b. Position the opposing side frame onto cross braces, aligning holes
(Figure 3).
Be sure to check the frame angles face the same way as shown (Figure 4).
c. Insert the 1/4”-20 x 1” hex bolts into the holes on outer side of frame and
thread into the end of 5/8” cross braces. Do not fully tighten at this point.
Figure 1
WWW.ADVANCETABCO.COM • 800-645-3166 WWW.ADVANCETABCO.COM • 800-645-3166
Figure 2
Figure 3
Figure 4
Continue To Step 4
Top of Angle Shown
