06/15/2023
TEC_TM 204 | REV. A | EN
INSTALLATION MANUAL
GDIM
True Manufacturing Co., Inc.
GDIM-26-NT GDIM-49-NT
INSTALLATION MANUAL
GDIM
Original Instructions
True Manufacturing Co., Inc.
2001 East Terra Lane • O’Fallon, Missouri 63366-4434
(636) 240-2400 • FAX: (636)-272-2408
International FAX: (636)-272-7546 • (800)-325-6152
Parts Department: (800)-424-TRUE (424-8783)
Parts Department FAX: (636)-272-9471
North America – Canada and Caribbean
Warranty Phone +1 855 -878-9277
Warranty Fax +1 636-980-8510
Warranty Email warrantyinquiries@truemfg.com
Technical Phone +1 855-372-1368
Technical Email service@truemfg.com
7:00 am–6:00 pm CST Monday–Friday,
8:00 am–12:00 pm Saturday
UK, Ireland, Middle East,
Africa & India
Phone: +44 (0) 800-783-2049
Service-[email protected]
8:30 am–5:00 pm M–F
European Union & Commonwealth
of Independent States
Phone: +49 (0) 7622-6883-0
service-[email protected]
8:00 am–5:00 pm M–F
Australia
Phone: +61 2-9618-9999
8:30 am–5:00 pm M–F
Mexico
Phone +52 555-804-6343/44
service-mex[email protected]
9:00 am–5:30 pm M–F
Latin America
Phone: +52 555-804-6343/44
9:00 am–5:30 pm M–F
USER ACTION!
TRUE tracks the history of your appliance by its serial number.
For easy reference, record your appliances full model name and
serial number below. This information is on your serial label.
Serial label location varies by appliance.
Model Name:
Serial Number:
WARNING!
Be sure to read and fully understand this document
before installing, operating, maintaining or servicing
this appliance. Failure to do so can result in appliance
failure, property damage, serious injury or death.
Appliance failure, injury or property damage due to
improper installation is not covered by warranty.
*975541*
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 2 of 28
Preface
Signal & Symbol Definitions .............................................................. 3
Important Safety Information
Basic Safety & Operation Warnings ............................................... 4
Personal Injury Warnings ..................................................................... 5
Hydrocarbon Refrigerant Warnings .............................................. 6
Appliance Disposal Warnings ........................................................... 6
Electrical Safety Warnings ................................................................... 7
About Your Appliance & Installation Requirements
Appliance Specifications .....................................................................8
Clearances .....................................................................................................8
Electrical Requirements ........................................................................9
Electrical Installation & Safety ...........................................................9
Installation & Setup

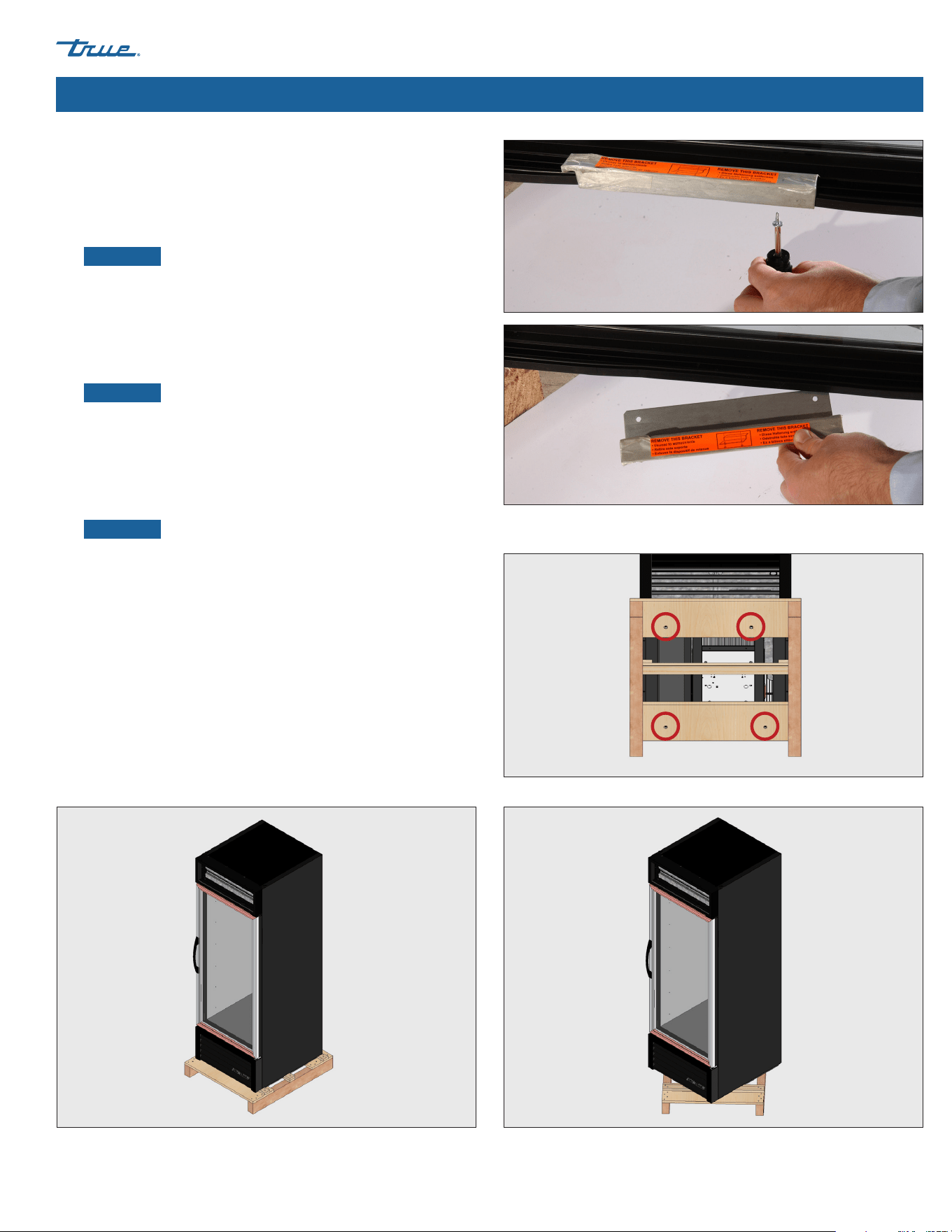

Uncrating .................................................................................................... 10
Appliance Location .............................................................................. 12

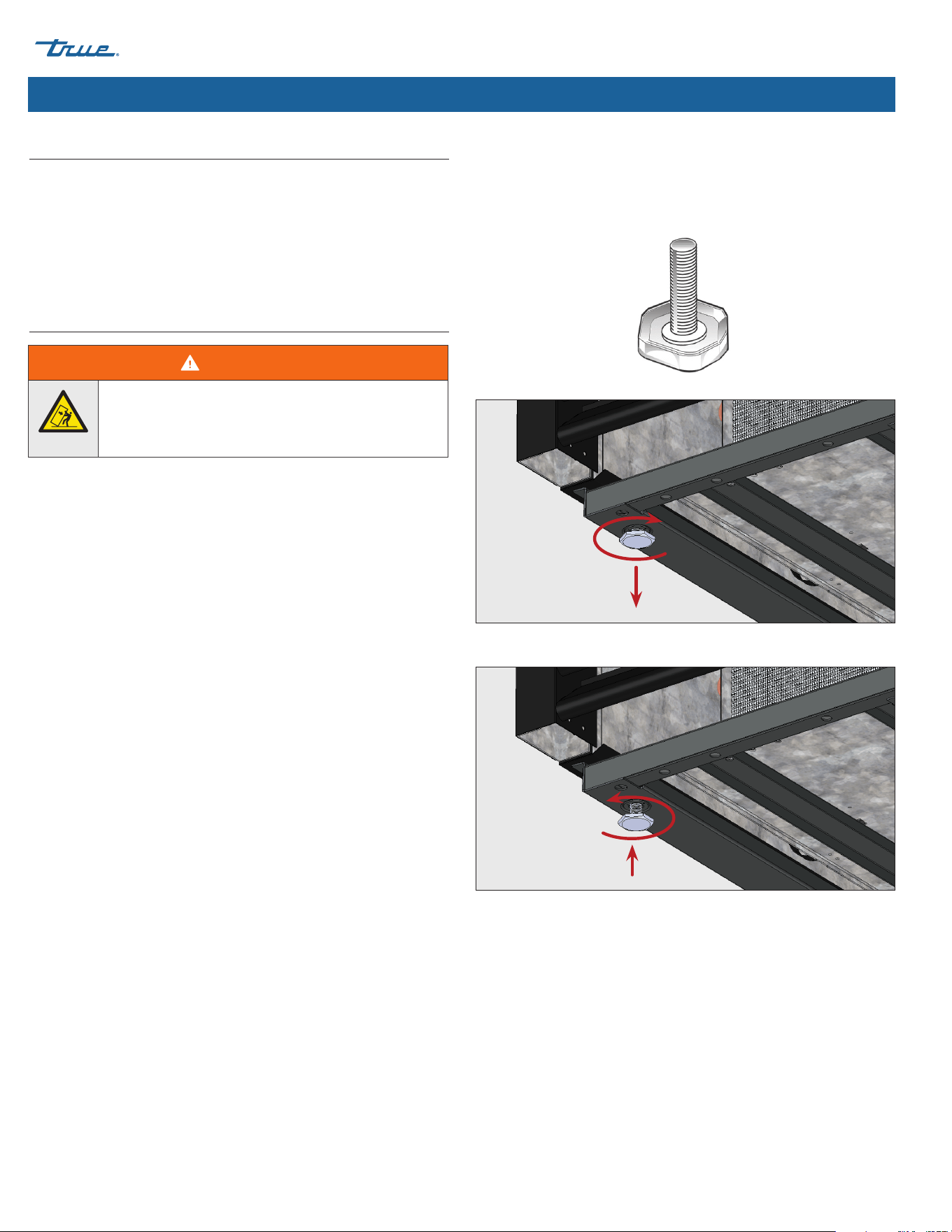

Leveling Screw, Leg or Castor Installation ............................. 12
Level the Appliance ............................................................................. 14
Seal the Appliance to the Floor ...................................................14
Appliance Operation
Startup .......................................................................................................... 15

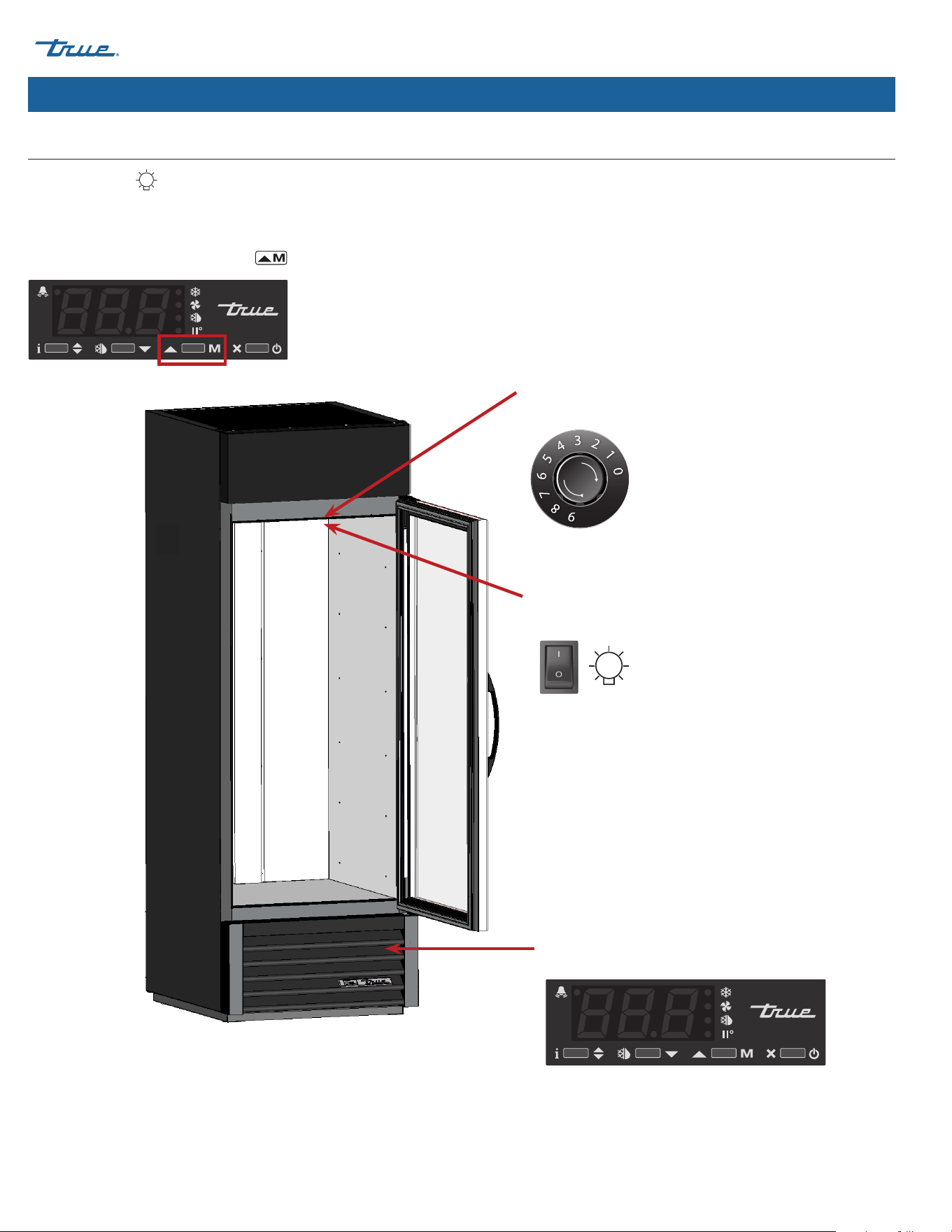

Temperature Control & Light Switch Location ................... 16
General Sequence of Operation .................................................. 17
Maintenance & Servicing
Component Replacement ............................................................... 19
Recommended Maintenance ....................................................... 20

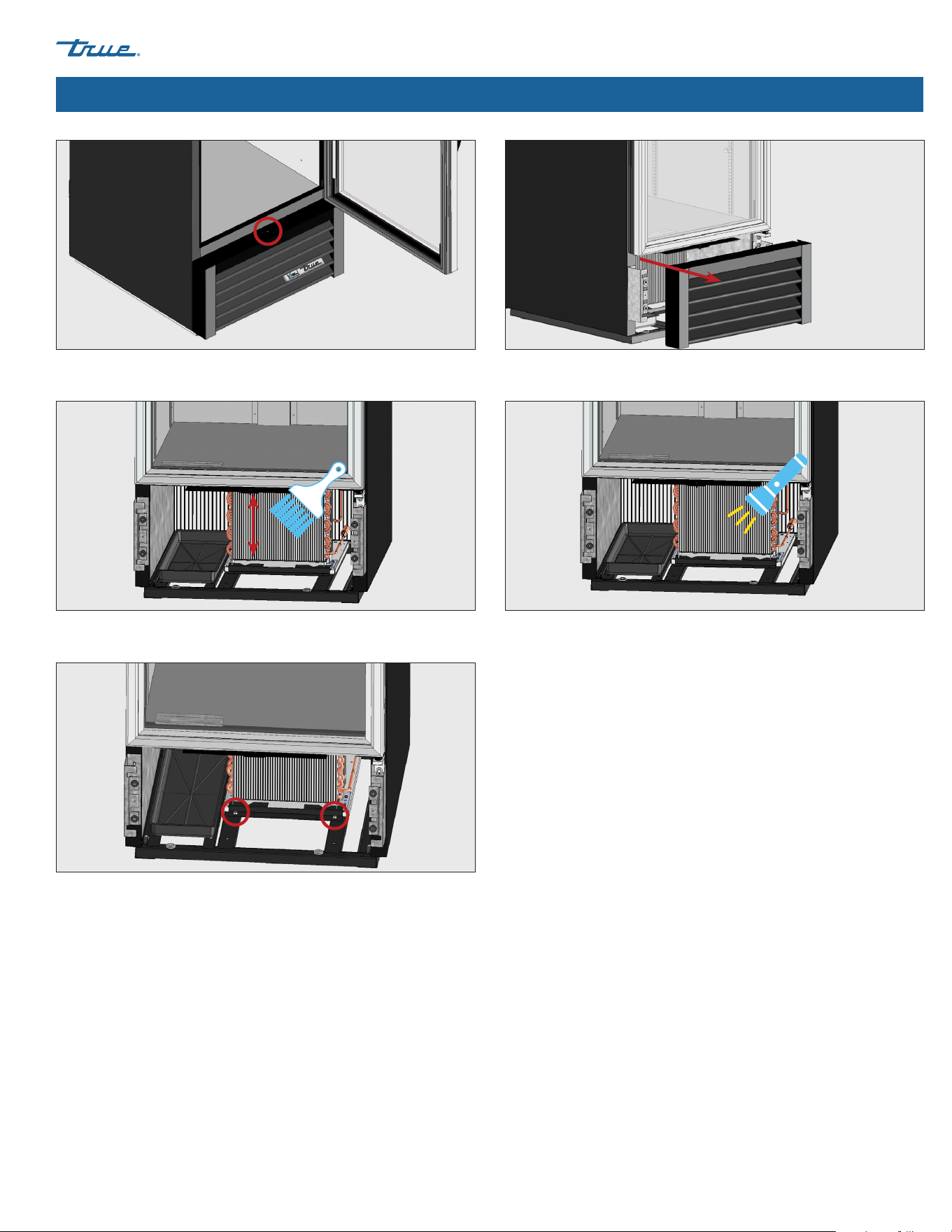

Condenser Coil Cleaning ..................................................................22
General Surface Care & Cleaning ................................................ 24
Stainless Steel Care & Cleaning ....................................................25
8 Tips to Help Prevent Rust on Stainless Steel .................... 26
Warranty
Warranty Information..........................................................................27
THANK YOU
FOR YOUR PURCHASE
Congratulations!
The primary purpose of this document is to assist the installation, maintenance, and servicing of your TRUE appliance.
This document contains information important to safety, operation, maintenance, and servicing. DO NOT discard this
document. TRUE is solely the appliance manufacturer. For assistance finding a qualified technician, please visit our
Service Company Locator at https://www.truemfg.com/support/service-locator/.
Contents
NOTICE!
Your appliance may not exactly match the figures shown in this manual.
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 3 of 28
truemfg.com
Preface
The warning, guidelines, and recommendations within this document are meant to prevent appliance damage, injury, or death. Please
carefully read all warnings, guidelines, and recommendations before proceeding to ensure the continued safe use and maintenance of
your TRUE appliance.
Signal & Symbol Definitions
Below are symbols you may see in this document. Some symbols may not appear.
Signal Word Definitions
DANGER!
An imminently hazardous situation which, if not avoided, will result in serious injury or death.
WARNING!
A potentially hazardous situation which, if not avoided, can result in serious injury or death.
CAUTION!
A potentially hazardous situation which, if not avoided, may result in minor or moderate injury;
an unsafe practice.
USER ACTION!
User action alert, follow all recommendations to avoid appliance or product damage.
NOTICE!
Important information not related to hazards or risk of personal injury.
Safety Symbols
Safety alert; alerts reader to potential physical
injury hazards. Obey all safety messages following
this symbol to avoid possible injury or death.
Flammable material; fire hazard.
Electrical shock hazard.
Tipping hazard; tip-over hazard.
Sharp element; cut or sever hazard.
Eye hazard; risk of eye injury.
Exploding pressurized cylinder hazard.
Slippery surface hazard.
Crush or cut hazard.
Additional Symbols
Mandatory action alert symbol; alerts reader
to required or recommended actions. Obey all
messages and recommendations following this
symbol to avoid appliance or product damage.
NOTICE ›
Important information not related to hazards or
risk of personal injury.
Review and understand the installation manual
before installing, operating, or servicing.
Wear eye protection.
Wear protective gloves.
Secure gas cylinders to prevent falling cylinders.
DO NOT use extension cord.
DO NOT use adaptor plugs.
DO NOT dispose of with other household waste.
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 4 of 28
Important Safety Information
WARNING!
`
Be sure to read and fully understand this document before installing, operating, maintaining, or servicing this appliance.
Failure to do so can result in appliance failure, property damage, serious injury, or death. Appliance failure, personal
injury, or property damage due to improper installation is not covered by warranty.
• Failure to install, operate, and maintain the appliance as detailed in this document will negatively affect safety, appliance
performance, component life, and warranty coverage.
• The appliance must be installed in accordance with all applicable laws, codes, and regulations.
• The manufacturer cannot be held responsible for injury or damage resulting from improper, incorrect, and unreasonable
use.
• This appliance is not to be used, cleaned, or maintained by persons (including children) with reduced physical, sensory, or
mental capabilities or lack of experience and knowledge, without proper supervision or instruction.
• DO NOT install or operate equipment that has been misused, abused, neglected, damaged, or altered/modified from
original manufactured specifications.
• DO NOT modify or alter the appliance. Improper alterations can result in electric shock, personal injury, fire, or death.
• DO NOT use electrical appliances inside the food storage compartments of the appliance unless the appliances are
approved by the manufacturer.
• The appliance owner is responsible for performing a Personal Protective Equipment (PPE) Hazard Assessment and to ensure
adequate protection during maintenance and cleaning procedures.
• Use appropriate tools, safety equipment, and PPE during installation and servicing.
• Only use the appliance for its intended purpose as described in this document. Failure to do so may result in equipment
damage, personal injury, or death.
• Overloading, incorrectly installing, or improperly loading shelves can cause shelf failure (as well as negatively affect the
appliance's operation), resulting in appliance damage, product damage, or personal injury.
• Keep the area surrounding the appliance clean to avoid appliance damage from debris or pests.
Important Safety Information
Basic Safety & Operation Warnings
Follow basic safety precautions, including the following, to reduce risk of personal injury, electric shock, fire, or death.
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 5 of 28
truemfg.com

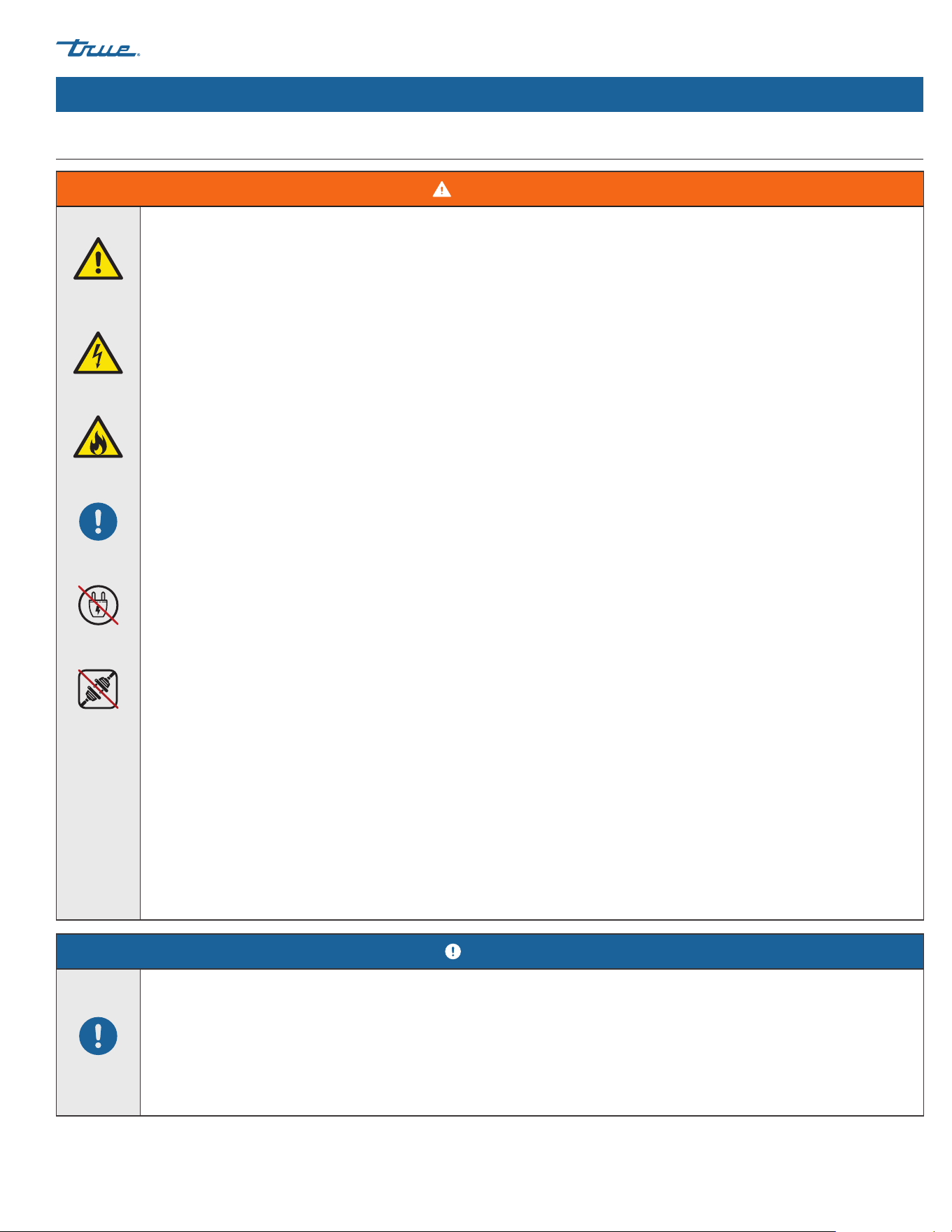

Important Safety Information (cont.)
DANGER!
DO NOT allow children to play with or in the appliance. Child entrapment or personal injury can occur.
DO NOT store or use the following in the vicinity of this or any other appliance:
• Gasoline or other flammable vapors and liquids
• Combustible or explosive substances, such as aerosol cans with a flammable propellant
• Other volatile or flammable substances
Contact TRUE Manufacturing to locate refrigerant lines and electrical wiring before drilling, cutting or puncturing interior
or exterior walls. Failure to do so could result in damage, personal injury, or death.
WARNING!
Only qualified technicians should install and service the appliance.
• Use appropriate tools, safety equipment, and personal protective equipment (PPE) during installation and servicing.
• DO NOT touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may stick to extremely cold
surfaces.
This product can expose you to chemicals including Di-(2-Ethyl hexyl) Phthalate (DEHP), which is known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information go to P65warnings.ca.gov.
Slippery Surfaces! Moisture from improper drainage can create slippery surfaces near the appliance. It is your duty to
immediately warn your customers of, and dry, the slippery surface. All wet floor areas must be marked with a wet floor sign.
Sharp edges! Take care when moving, installing, cleaning, servicing, and maintaining the appliance to avoid cuts. Be sure to
take care when reaching under the appliance or handling metal components.
• Keep fingers out of pinch point areas, such as the space between appliance doors and surrounding cabinetry. Take care
closing doors with children nearby.
Tip over hazard! Appliance may pose a tipping hazard when uncrating, installing, or moving the appliance. Take appropriate
safety precautions. Use of tip over restraints may only reduce (not eliminate) the tipping hazard. Never allow children to climb
or hang on drawers, doors, or shelves.
Crush or cut hazard! Keep clear when uncrating, installing, moving, or servicing the appliance.
Risk of electric shock or burn! See "Electrical Safety Warnings" for more information.
Personal Injury Warnings
Only qualified technicians should install and service the appliance. For assistance finding a qualified technician, please visit our Service
Company Locator at https://www.truemfg.com/support/service-locator/. TRUE is solely the appliance manufacturer and is not
responsible for installation.
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 6 of 28
Important Safety Information (cont.)
DANGER!
Risk of fire or explosion! Flammable refrigerant used.
• All servicing and maintenance must be performed by qualified technicians. This is to minimize the risk of fire or personal
injury due to incorrect parts or improper service.
• Check the serial label to identify the appliance's refrigerant. Serial label location varies by model.
• DO NOT damage the refrigeration system during transportation and installation.
• If the appliance is damaged, verify the refrigeration system's integrity is not compromised before proceeding.
• Never use sharp objects or tools to remove ice or frost. DO NOT use mechanical devices to accelerate defrost.
• Dispose of in accordance with all applicable laws, codes, and regulations. Follow all safety precautions associated with
handling flammable refrigerant.
• DO NOT use electrical appliances inside the food storage compartments of the appliances unless the appliances are of the
type recommended by the manufacturer.
DANGER!
Risk of child entrapment!
Children can get trapped inside discarded appliances and suffocate. Never dispose
of your appliance without taking precautions to prevent child entrapment, even
if the appliance only sits unattended for a short period of time.
Child entrapment precautions include the following:
• Remove all doors (or drawers for drawer appliances).
• Leave all interior drawers and shelving in place to make climbing (and fitting)
inside the appliance more difficult.
Risk of fire or explosion! Flammable refrigerant and insulation used. Dispose of in accordance with all applicable laws, codes,
and regulations. Follow all safety precautions associated with handling flammable refrigerant and insulation.
DO NOT dispose of your appliance with household waste.
Hydrocarbon Refrigerant Warnings
TRUE appliances use hydrocarbon refrigerant (R-290/513A/600a). Check the serial label to identify the appliance's refrigerant. Serial label
location varies by model.
Appliance Disposal Warnings
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 7 of 28
truemfg.com
Important Safety Information (cont.)
WARNING!
Risk of electric shock, burn, or fire!
• It is the appliance owner's responsibility to ensure the electrical connection meets all applicable building codes. Failure
to meet these code requirements can result in appliance damage, fire, electric shock or burns, serious personal injury, or
death.
• Before connecting your appliance to the power supply, verify the supply voltage and circuit rating match the appliance.
Correct improper supply voltage or circuit size immediately.
• Before connecting your appliance to the power supply, verify the power supply is correctly grounded. If the power supply
is not grounded, correct immediately. TRUE recommends hiring a qualified electrician to inspect your wall outlet and circuit
to ensure they are properly grounded
• DO NOT clean appliance with a pressure washer or hose. DO NOT immerse power cord in water.
• Powering off an electronic control or setting temperature controls to 0 (off position) does not remove power from all
components. Unplug the appliance or turn off the power supply before installation or servicing.
• The appliance should receive power from its own individual dedicated electrical circuit. This provides the best performance
and prevents overloading the power supply.
• The original equipment manufacturer (OEM) power cord has a grounding plug to minimize the possibility of electrical
shock.
• Never remove the ground prong from the power cord! For personal safety, this appliance must be properly grounded.
• Never use an extension cord! An extension cord is any component that adds length to the OEM power cord when
connecting the cord to a power source.
• Never use an adapter plug! An adapter plug alters the OEM plug configuration when connecting the plug to a power
source.
• Never use a power cord that shows cracks or abrasion damage along its length or at either end.
• Immediately have a qualified technician replace damaged OEM power cords with OEM components.
• Never unplug your appliance by pulling on the power cord. Always grip the plug and pull the plug straight out of the
outlet.
• Take care to prevent rolling over or damaging the power cord when moving the appliance.
• Never use the power cord to prevent appliance movement. Always use adequate means to keep the appliance in place
without transmitting stress to the power cord.
• Keep power cord away from heated surfaces.
• DO NOT let power cord hang over edge of table or counter.
• DO NOT excessively bend or place heavy articles on the power cord.
NOTICE!
TRUE will not warranty the following:
• Compressor failures due to improper incoming voltage.
• Appliance with tampered OEM power cords.
• Appliance connected to adapters or extension cords.
For more details, see TRUE's full warranty statement.
Electrical Safety Warnings
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 8 of 28
Thank you for choosing TRUE Manufacturing to meet your
refrigeration needs. TRUE highly recommends a qualified
technician and electrician install your appliance to ensure correct
installation. The cost of professional installation is money well
spent. Only qualified technicians should install and service the
appliance.
For assistance finding a qualified technician, please visit our Service
Company Locator at https://www.truemfg.com/support/
service-locator/.
TRUE is solely the appliance manufacturer and is not responsible
for installation.
The appliance owner is responsible for proper installation and
maintaining the appliance as described in this document. Routine
care and maintenance procedures are not covered by TRUE's
warranty.
CLEARANCES
MODEL TOP SIDES BACK
GDIM
1"
(25.4 mm)
0"
(0 mm)
3"
(76.2 mm)
About Your Appliance & Installation Requirements
About Your Appliance & Installation Requirements
USER ACTION!
TRUE is not responsible for damage incurred during
shipment. Always carefully inspect for freight damage
before receiving and installing your appliance. If
there is damage, note all damage on the delivery
receipt, immediately file a claim with the delivery
freight carrier, and contact TRUE. Do not install the
appliance or put it in service.
Appliance Specifications
Some things to know about your appliance are as follows:
• Appliance is not for the storage and/or display of potentially
hazardous foods when the temperature control is set above
41˚F (5˚C).
• Appliance is not suitable for outdoor use, unless otherwise
stated on the serial label.
• Appliance is not suitable for an area where a pressure washer
or hose may be used.
• Always plug the appliance into its own individual dedicated
electrical circuit!
• DO NOT use extension cords or adapter plugs.
Be sure your appliance has the required surrounding clearances for
ventilation purposes. Keep all ventilation openings in the appliance
enclosure or structure housing the appliance clear of obstruction.
NOTICE!
Warranty is void if ventilation is insufficient.
• Before connecting your appliance to the power supply,
verify the incoming voltage (±5%) and the amps match the
operation ratings on the appliance's serial label. Correct
improper incoming voltage or amps immediately. Serial label
location varies by model.
• Before connecting your appliance to the power supply, verify
the power supply is correctly grounded. If the power supply
is not grounded, correct immediately.
• Ensure the installation location will provide adequate
clearances and sufficient airflow for the appliance.
See "Clearances".
• Read and follow all warnings and maintenance instructions.
Failure to do so may result in damage and void the warranty
on your appliance.
Clearances
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 9 of 28
truemfg.com

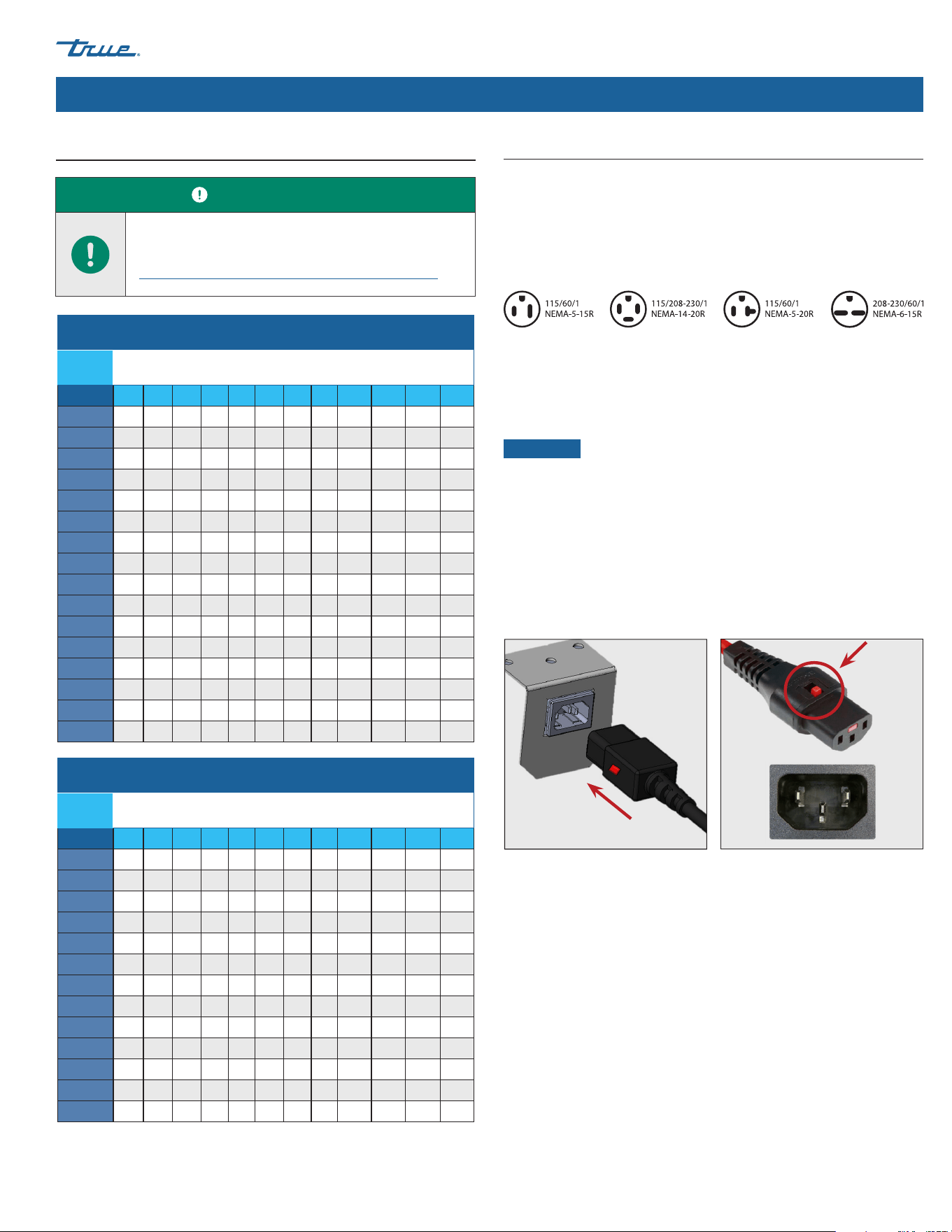

About Your Appliance & Installation Requirements (cont.)
Wire gauge chart (115V)
115
Volts
Distance in Feet to Center of Load
AMPS 20 30 40 50 60 70 80 90 100 120 140 160
2 14 14 14 14 14 14 14 14 14 14 14 14
3 14 14 14 14 14 14 14 14 14 14 14 12
4 14 14 14 14 14 14 14 14 14 12 12 12
5 14 14 14 14 14 14 14 12 12 12 10 10
6 14 14 14 14 14 14 12 12 12 10 10 10
7 14 14 14 14 14 12 12 12 10 10 10 8
8 14 14 14 14 12 12 12 10 10 10 8 8
9 14 14 14 12 12 12 10 10 10 8 8 8
10 14 14 14 12 12 10 10 10 10 8 8 8
12 14 14 12 12 10 10 10 8 8 8 8 6
14 12 12 12 10 10 10 8 8 8 6 6 6
16 12 12 12 10 10 8 8 8 8 6 6 6
18 12 12 10 10 8 8 8 8 8 8 8 5
20 12 12 10 10 8 8 8 6 6 6 5 5
25 10 10 10 8 8 6 6 6 6 5 4 4
30 10 10 8 8 6 6 6 6 5 4 4 3
Wire gauge chart (230V)
230
Volts
Distance in Feet to Center of Load
AMPS 20 30 40 50 60 70 80 90 100 120 140 160
5 14 14 14 14 14 14 14 14 14 14 14 14
6 14 14 14 14 14 14 14 14 14 14 14 12
7 14 14 14 14 14 14 14 14 14 14 12 12
8 14 14 14 14 14 14 14 14 14 12 12 12
9 14 14 14 14 14 14 14 14 12 12 12 10
10 14 14 14 14 14 14 14 12 12 12 10 10
12 14 14 14 14 14 14 12 12 12 10 10 10
14 12 12 12 12 12 12 12 12 10 10 10 8
16 12 12 12 12 12 12 12 10 10 10 8 8
18 12 12 12 12 12 12 10 10 10 8 8 8
20 12 12 12 12 10 10 10 10 10 8 8 8
25 10 10 10 10 10 10 10 10 8 8 6 6
30 10 10 10 10 10 10 8 8 8 6 6 6
Fig. 1. Fully insert the power cord into
the receptacle.
Fig. 2. Push the red button to remove
the plug.
Electrical Installation & Safety
NEMA Plug Configurations
60 HZ USE ONLY!
TRUE uses these types of NEMA plugs shown. If you DO NOT have
the proper outlet, have a licensed electrician verify and install the
correct power source.
International (IEC) Plugs Only
International appliances may be supplied with a power cord that
will require installation. Install this cord before connecting the
appliance to a power source.
NOTICE ›
International plug configurations will vary by country
and voltage.
Installation
Fully seat the power cord into the appliance receptacle until it
locks in position. See fig. 1.
Removal
Depress the red button. See fig. 2.
Electrical Requirements
USER ACTION!
Find a copy of the wiring diagram with our serial number
lookup at
truemfg.com/support/serial-number-lookup.
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 10 of 28
Installation & Setup
Uncrating
Required Tools
Required tools include (but may not be limited to) the following:
• Adjustable wrench
• Phillips screwdriver
Installation & Setup
WARNING!
The appliance owner is responsible for performing
a Personal Protective Equipment (PPE) hazard
Assessment and to ensure adequate protection during
maintenance and cleaning procedures.
Use appropriate tools, safety equipment, and PPE
during installation and servicing.
Sharp edges! Take care when moving, installing,
cleaning, servicing and maintaining the appliance to
avoid cuts. Be sure to take care when reaching under
the appliance or handling metal components. Keep
fingers out of pinch point areas, such as the space
between appliance doors and surrounding appliances.
Take care closing doors with children nearby.
Risk of electrical shock or burn! Powering off an
electronic control or setting temperature controls to
the 0 (off) position does not remove power from all
components. Unplug the appliance or turn off the
power supply before installation or servicing.
Tip over hazard! Appliance may pose a tipping hazard
when uncrating, installing or moving the appliance.
Take appropriate safety precautions. Use of tip over
restraints may only reduce (not eliminate) the tipping
hazard. Never allow children to climb or hand on
drawers, doors or shelves.
Crush or cut hazard! Keep clear when uncrating,
installing, moving, or servicing the appliance.
USER ACTION!
• If the appliance is damaged, note all damage on
the delivery receipt, immediately file a claim with
he delivery freight carrier, and contact TRUE. DO
NOT install the appliance or put it in service.
• If the appliance is laid on its back or side, be sure
to leave the appliance upright twice the time it
has been laying down (up to four (4) hours) before
plugging the appliance into a power source. If
this time exceeds four (4) hours, let the appliance
sit upright for 24 hours before powering the
appliance.
NOTICE!
Keys for appliances with door locks are located in the
warranty packet.
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 11 of 28
truemfg.com
Installation & Setup (cont.)

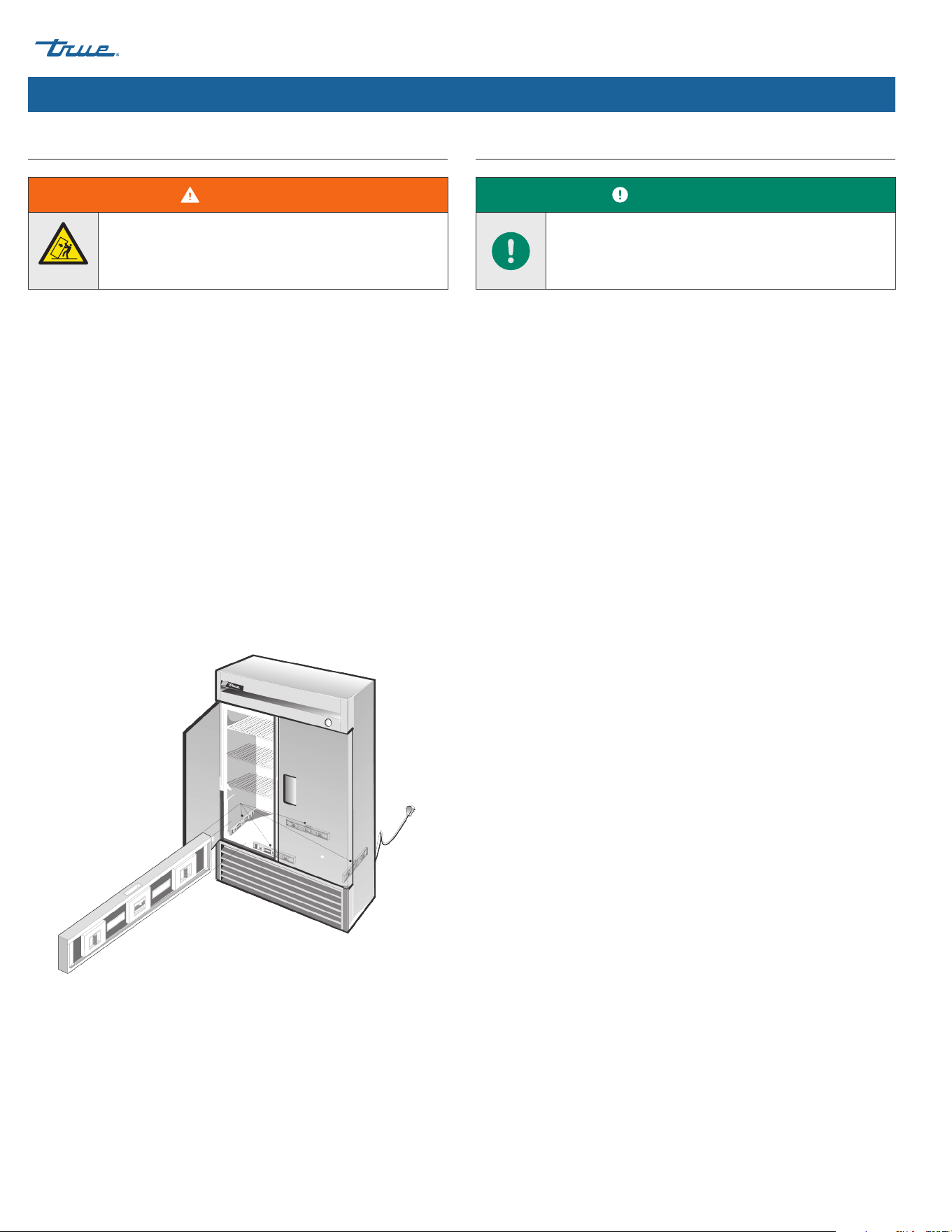

Fig. 1. Remove the existing packaging.
Fig. 2. Remove the glass swing door shipping bracket, if so equipped.
Do not discard.
Fig. 4. . When lifting the appliance, do not use countertops, doors/drawers, or grills
as a lifting point.
Procedure
1. Remove the outer packaging (cardboard and bubble wrap
or Styrofoam corner and clear plastic). See fig. 1. Inspect for
concealed damage. Again, immediately file a claim with the
freight carrier if there is damage.
NOTICE ›
DO NOT remove the shipping bracket (glass
swing doors; fig. 2) until the appliance is installed in its final
location. Do not discard; use the bracket when next moving
the appliance.
2. With an adjustable wrench, remove all shipping bolts securing
the wood skid to the bottom of the appliance. See fig. 4.
NOTICE ›
Move the appliance as close as possible to the
final location before removing the wooden skid. Some models
may require removing the front and/or rear grill/cover to access
the shipping bolts.
3. If leveling legs or castors will not be used, remove the
appliance from the wood skid and set the skid aside.
NOTICE ›
DO NOT lift the appliance by the counter tops,
doors, drawers, or grills.
If leveling legs or castors will be used, rotate the appliance
on the skid (see fig. 5) and see the installation instructions on
page 12.
Fig. 3. Shipping bolt locations.
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 12 of 28

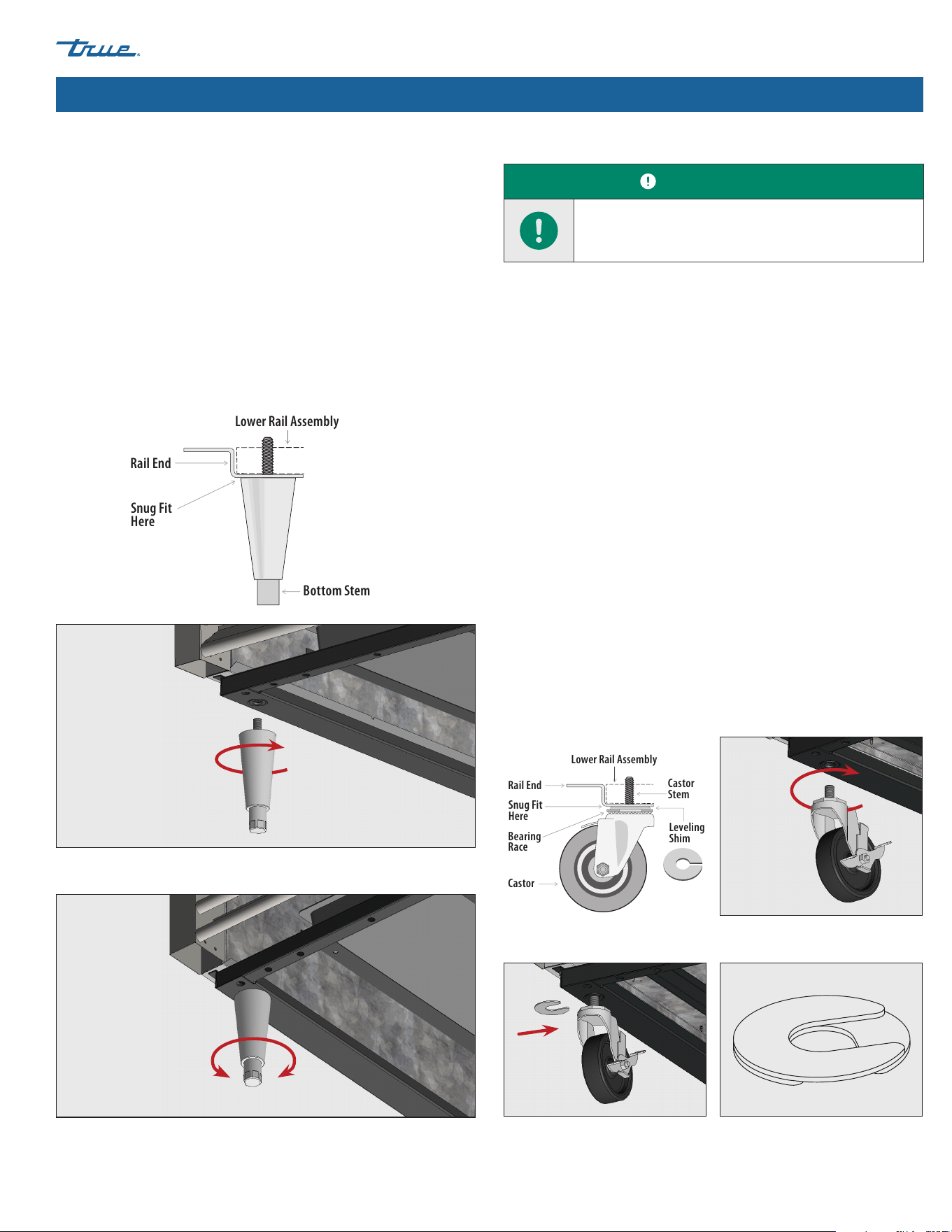

Leveling legs are provided to assist with leveling the appliance.
Adjustable legs provide 6" (152 mm) of clearance under the
appliance. Castors provide appliance mobility.
Required Tools
Required tools include (but may not be limited to) the following:
• Adjustable Wrench
Appliance Location
• Ensure that the drain hose or hoses are positioned in the pan.
• Free the plug and cord from inside the lower rear of the
cooler (DO NOT plug in).
• Place the appliance close enough to the electrical supply so
that extension cords are never used.
Leveling Screw, Leg, or Castor Installation
Installation & Setup (cont.)
Fig. 1. Leveling screw.
Fig. 2. Turn the leveling screws clockwise to lower the appliance.
Fig. 3. Turn the leveling screws counterclockwise to raise the appliance.
Procedure – Leveling Screws
If leveling screws are not factory installed, then, with access to the
appliance bottom, install the leveling screws into the threaded
holes in the frame rail or appliance bottom. See figs. 1–3.
WARNING!
Tipping hazard! ALWAYS verify center leveling screws
fully contact the floor after leveling the appliance.
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 13 of 28
truemfg.com
Fig. 5. Screw the leveling legs into the threaded holes.
Fig. 4. Leveling leg diagram.
Fig. 7. Castor diagram.
Fig. 6. Turn the bottom stem to level the appliance.
Lower Rail Assembly
Snug Fit
Here
Rail End
Bottom Stem
Installation & Setup (cont.)
Fig. 8. Screw the castors into the
threaded holes.
Fig. 10. Install multiple shims with offset
slots.
Fig. 9. Insert the castor shim(s). be sure
to tighten the castor stem.
Leveling
Shim
Lower Rail Assembly
Bearing
Race
Snug Fit
Here
Rail End
Castor
Castor
Stem
1. Access the appliance bottom.
2. If present, remove the leveling screws.
3. Thread the castors into the frame rail or appliance bottom.
See figs. 7 and 8.
4. Verify the appliance is level. See “Level the Appliance” (pg. 14).
5. On the low end of the appliance, loosen the castor bolt
enough to slide provided castor shims between the castor
bearing and the bottom rail of the appliance. See fig. 9.
6. Install the desired number of shims. See fig. 9.
• If more than one shim is used, be sure shim slots are offset.
See fig. 10.
• DO NOT use more than four (4) shims on a castor.
• Be sure each shim touches the castor stem.
7. Tighten and secure the shims and castors.
8. Verify the appliance is level.
9. If the appliance is not level, repeat the steps 3 – 6 until the
appliance is level and supported.
Procedure — CastorsProcedure – 6" (152 mm) Leveling Legs
1. Access the appliance bottom.
2. If present, remove the leveling screws.
3. Thread the leveling legs into the frame rail or appliance
bottom. See figs. 4 and 5.
4. Verify that the appliance is level. See “Level the Appliance”
(pg. 12).
5. If the appliance is not level, gently lift and support the low end
of the appliance. Then, with an adjustable wrench, screw the
leveling leg bottom stems in or out to level and support the
appliance. See fig. 4 and 6.
USER ACTION!
Install castors with brakes in the front.
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 14 of 28
Installation & Setup (cont.)
Proper leveling of your TRUE appliance is critical to operating
success (for non-mobile appliances). Leveling impacts effective
condensate removal and door operation.
See "Leveling Screw, Leg or Castor Installation" (pg. 12) for level
adjustment and shimming information.
Procedure
Position the appliance in its final installation location. Then, level
the appliance front-to-back and side-to-side. See fig. 1.
1. Position the level on the inside floor of the appliance near the
doors (level parallel to appliance front). Level the appliance.
2. Position the level at the inside rear of the appliance (level
parallel to appliance back). Level the appliance.
3. Position the level on the left and right inside floor (level parallel
to appliance sides). Level the appliance.
Level the Appliance Seal the Appliance to the Floor
The following procedure describes sealing a non-mobile appliance
to the floor for NSF standards. This may not be required for your
application.
Procedure
1. Position the appliance in its final installation location. Be sure
to leave adequate clearance between the back and sides per
"Clearances" (pg. 8) to ensure proper ventilation.
2. Level the appliance front-to-back and side-to-side. See
“Level the Appliance” (pg. 14).
3. Draw an outline of the appliance base on the floor.
4. Raise and block the front side of the appliance.
5. Apply a bead of NSF-approved sealant (see list below) to the
floor, 1/2" (13 mm) inside the front part of the outline drawn in
step 4. The bead of sealant must be heavy enough to seal the
entire appliance surface when the appliance is lowered on top
of the sealant.
6. Raise and block the rear of the appliance.
7. Apply sealant to the floor on the other three sides, as outlined
in step 5.
8. Examine the appliance to ensure that it is sealed to the floor
around the entire perimeter.
NSF-Approved Sealants
• 3M #ECU800 Caulk
• 3M #ECU2185 Caulk
• 3M #ECU1055 Bead
• 3M #ECU1202 Bead
• Armstrong Cork – Rubber Caulk
• Products Research Co. #5000 Rubber Caulk
• G.E. Silicone Sealer
• Dow Corning Silicone Sealer
USER ACTION!
Asphalt floors are susceptible to chemicals. TRUE
recommends installing a layer of tape between the
asphalt and the sealant to protect the floor.
Fig. 1. Measure the level along the perimeter of the interior floor.
WARNING!
Tipping hazard! ALWAYS verify center leveling screws
fully contact the floor after leveling the appliance.
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 15 of 28
truemfg.com
Appliance Operation
• The compressor is ready to operate when the appliance is
purchased. All you need to do is plug in the cooler.
• Good air flow inside your TRUE appliance is critical. Take care
to prevent product from pressing against the sides or back
wall and coming within 4" (101.6 mm) of the evaporator
housing. Refrigerated air off the evaporator coil must circulate
throughout the appliance for even product temperatures.
• Excessive tampering with the control could lead to service
difficulties. If replacing the temperature control is ever
needed, be sure to order the replacement from your TRUE
dealer or recommended service agent.
• All covers and access panels must be in place and properly
secured before operating this appliance.
Startup
Appliance Operation
USER ACTION!
Before loading product, run your TRUE appliance
empty for 24 hours to verify proper operation.
Remember, our factory warranty DOES NOT cover
product loss!
WARNING – SPOILAGE!
The owner is solely responsible for
ensuring safe holding temperature
levels for all food items. Failure to do so
may result in unsafe food products. Loss or spoilage
of products in your appliance is not covered by
warranty. In addition to following recommended
installation procedures, run the appliance for 24 hours
prior to usage to verify operation.
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 16 of 28
Light Switch on Glass Door Models
Inside the top ceiling.
Mechanical Temperature Control
Inside the top ceiling.
Temperature Control & Light Switch Location
Appliance Operation (cont.)
Electronic Temperature Control
Behind the front bottom grill.
The light symbol
shows the approximate location of the light
switch.
The electronic temperature control can act as a light switch. To
control the light, press the up arrow .
C
O
L
D
E
R
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 17 of 28
truemfg.com
Appliance Operation (cont.)
General Sequence of Operation — Refrigerator and Freezer Appliances
When the appliance is plugged in:
• Interior lights will illuminate on glass door models (see Temperature Control & Light Switch Location, pg. 16).
• An electronic control with digital display will illuminate (if installed).
• There may be a short delay before the compressor and/or evaporator fan(s) start. This delay may be determined by time or by
temperature, which could be the result of an initial defrost event that will last at least 6 minutes.
• The temperature control/thermostat may cycle the compressor and evaporator fan(s) on and off together. Every appliance will
require a defrost event to ensure the evaporator coil remains clear of frost and ice buildup. Defrost is initiated by a defrost timer
or by the electronic control.
EXCEPTION – Models TSID, TDBD, TCGG, and TMW do not have an evaporator fan(s).
• The temperature control/thermostat senses either an evaporator coil temperature or air temperature, NOT product temperature.
• An analog thermometer, digital thermometer, or electronic control display may reflect the refrigeration cycle swings of up and
down temperatures, NOT product temperature. The most accurate method to determine a appliance's operation is to
verify the product temperature.
• Refrigerators with mechanical temperature controls will defrost during every compressor off-cycle.
• Freezers with mechanical temperature controls will defrost by time initiation as determined by a defrost timer.
EXCEPTION – Models TFM, TDC, THDC and TMW require a manual defrost. The frequency of this manual defrost will depend on
the appliance's usage and ambient conditions.
• An electronic control with a digital display (if installed) will show dEF during defrost.
NOTICE ›
The display may have a short delay before showing a temperature after a defrost event has expired and instead
show dEF during a refrigeration cycle.
• Models with an analog or digital thermometer may show higher than normal temperatures during defrost.
• A refrigerator will use the evaporator fans to clear the coil during defrost.
EXCEPTION – Models TSID, TDBD, and TCGG do not have an evaporator fan(s).
• A freezer will use heaters to clear the evaporator coil during defrost.
NOTICE ›
The evaporator coil heater and drain tube heater are only energized during defrost. Defrost is terminated when a
specific evaporator coil temperature is reached or by a time duration.
USER ACTION!
For more information regarding a appliance's temperature control adjustment or general sequence of operation,
please see our Temperature Control Adjustment—Sequence of Operation Manual in our resource library at
truemfg.com/service-manuals/sequence-of-operation or scan the QR code.
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 18 of 28
Maintenance & Servicing
WARNING!
• Only qualified technicians should install and
service the appliance. For assistance finding
a qualified technician, please visit our Service
Company Locator at https://www.truemfg.com/
support/service-locator/.
• Turn off and lockout all utilities (gas, electric,
water) according to approved practices during
maintenance or servicing.
The appliance owner is responsible for performing
a Personal Protective Equipment (PPE) Hazard
Assessment and ensuring adequate protection during
maintenance and cleaning procedures.
Use appropriate tools, safety equipment, and PPE
during installation and servicing.
Sharp Edges!
• Take care when moving, installing, cleaning,
servicing, and maintaining the ice machine to avoid
cuts. Be sure to take care when reaching under the
ice machine or handling metal components.
• Stay clear of pinch point areas, such as the space
between appliance doors and surrounding
cabinetry. Take care closing doors with children
nearby.
WARNING!
Risk of electric shock or burn!
• Powering off an electronic control or setting
temperature controls to the 0 (off) position DOES
NOT remove power from all components. Unplug
the appliance or turn off the power supply before
installation or servicing.
• DO NOT clean appliance with a pressure washer or
hose.
Flammable refrigerant/insulation used! Have a
licensed service provider service your appliance to
minimize the risk of possible ignition due to incorrect
parts or improper service and to ensure the operator's
health and safety.
Crush or cut hazard! Keep clear when uncrating,
installing, moving, or servicing the appliance.
Slippery Surfaces! Moisture from improper drainage
can create slippery surfaces near the appliance. It is
your duty to immediately warn your customers of, and
dry, the slippery surface. All wet floor areas must be
marked with a wet floor sign.
Maintenance & Servicing
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 19 of 28
truemfg.com
Maintenance & Servicing (cont.)
USER ACTION!
• For additional maintenance instruction, please visit
the media center at truemfg.com.
• Any appliance adjustments are to be made AFTER
the appliance has been verified level and properly
supported.
NOTICE!
The appliance owner is responsible for maintaining
the appliance as described in the installation manual.
Routine care and maintenance procedures are not
covered by TRUE's warranty.
Component Replacement
• Replace components with original equipment manufacturer
(OEM) components such as those shown in fig. 1. OEM parts
minimize the risk of possible ignition due to incorrect parts.
Use of non-OEM components may void TRUE's warranty.
• Have a licensed service provider service your appliance to
minimize the risk of possible ignition due to incorrect parts
or improper service and to ensure the operator's health
and safety.

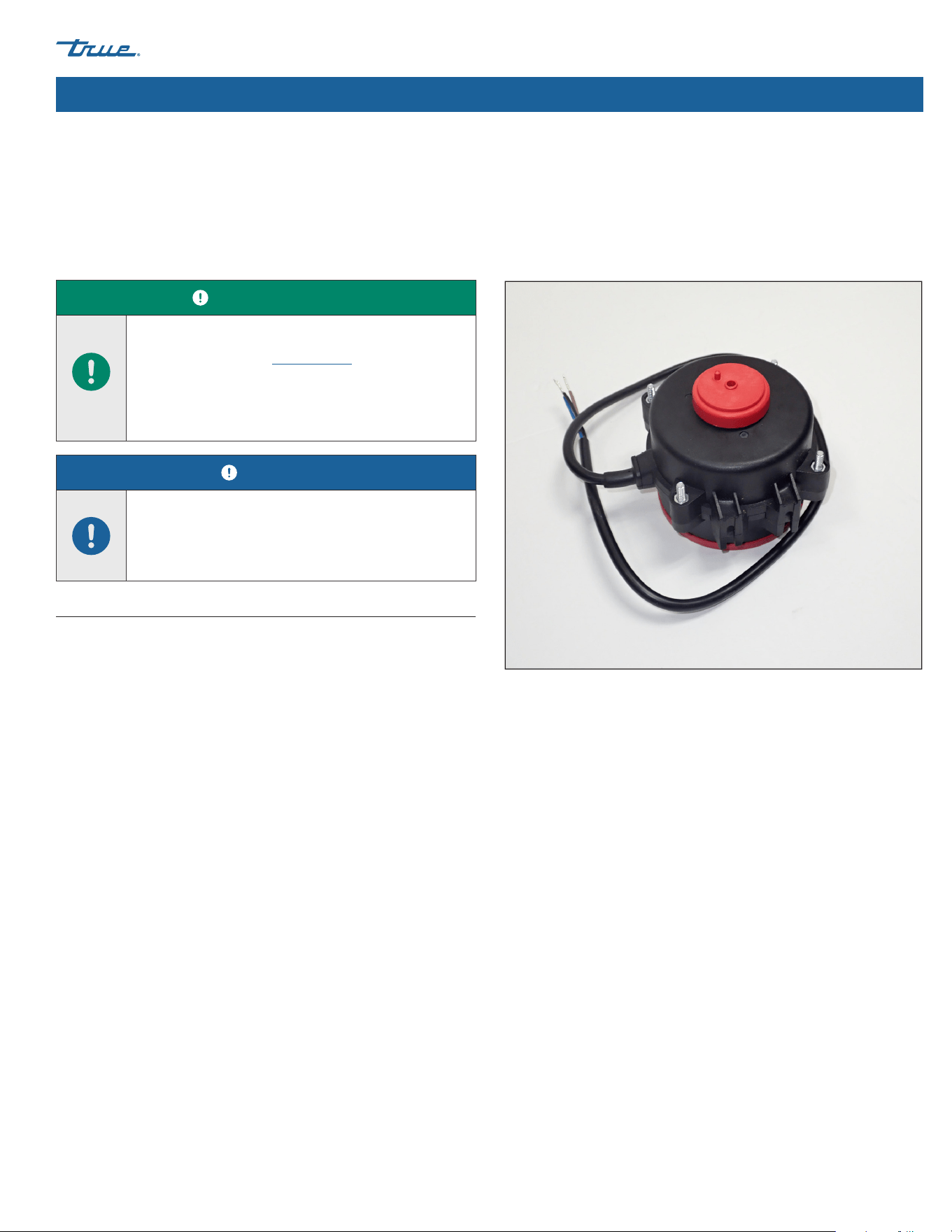

Fig. 1. Example of OEM parts.
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 20 of 28
Maintenance & Servicing (cont.)
Maintenance Tasks Monthly Quarterly Annually
Verify the appliance maintains product temperature. X X X
Inspect power cord for damage; if damaged, replace immediately. X X X
Verify the power cord is fully plugged into the wall receptacle X
Inspect the overall condition of the appliance and its components
(such as castors, doors, and hinges).
X X X
Verify operation of all moving parts (such as fan motors, doors and
door cords).
X
Check physical condition of all gaskets; verify gaskets seal correctly. X X
Inspect any lamps, lamp holder connections, LED modules, and LED
module connections.
X X X
Check all condenser coils (fronts and backs)for dust and debris; if
present, clear the debris.
X X X
Check physical condition of all condenser coils and evaporator coils;
straighten coil fins as needed.
X X
Check all evaporator coils for dust and debris; if present, clear the
debris.
X X
Verify the drain line is clear of debris.
X X
Recommended Maintenance
See recommended maintenance tasks and frequencies below. Some tasks may be required more frequently based on your installation.
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 21 of 28
truemfg.com
Maintenance & Servicing (cont.)
Jan. Feb. Mar. Apr. May Jun. Jul. Aug. Sep. Oct. Nov. Dec.
Model: Serial Number:
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 22 of 28
Maintenance & Servicing (cont.)
Required Tools
Required tools include (but may not be limited to) the following:
• Phillips screwdriver or bit driver
• 1/4" nut driver
• 3/8" nut driver
• Stiff bristle brush
• Tank of compressed air
• Vacuum cleaner
• Flashlight
• Eye protection
• Gloves
Procedure
1. Disconnect power to appliance.
2. Remove the front louvered grill from the appliance. See fig. 1
and 2.
3. With a stiff bristle brush, carefully clean accumulated dirt from
the front condenser coil fins See fig. 3.
4. With dirt removed from the surface of the coil, use a flashlight
to verify that you can see through the coil and observe the
condenser fan blade spinning. See fig. 4.
If the view is clear, reinstall louvered grill, connect appliance to
power and verify operation. If the view is still blocked with dirt,
proceed to step 6.
5. Remove the condenser base bolts. See fig. 5.
6. Remove the condenser coil brackets (if applicable).
7. Carefully slide the condensing appliance out (tubing
connections are flexible). Gently blow compressed air or CO₂
through the coil until it is clean.
8. Carefully vacuum any dirt around and behind the condensing
appliance area.
9. Reinstall the coil brackets (if applicable). Then carefully slide the
compressor assembly back into position and bolt it in place.
10. Reinstall the louvered grill, connect power to the appliance,
and verify operation.
Condenser Coil Cleaning
WARNING!
The appliance owner is responsible for performing
a Personal Protective Equipment (PPE) Hazard
Assessment and ensuring adequate protection during
maintenance and cleaning procedures.
Use appropriate tools, safety equipment, and PPE
during installation and servicing.
Risk of electric shock or burn!
• Unplug the appliance or turn off the power supply
before installation or servicing.
• DO NOT clean appliance with a pressure washer or
hose.
Sharp edges! Coil fins are sharp and metal
components can have sharp edges. Take care
when moving, installing, cleaning, servicing, and
maintaining the appliance to avoid cuts.
Risk of eye injury! Airborne dust and debris can cause
eye injury. Eye protection recommended.
NOTICE!
The cleaning of the condenser coil is not covered by
warranty!
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 23 of 28
truemfg.com
Maintenance & Servicing (cont.)
Fig. 1. Front louver grill screw location.
Fig. 3. Never brush across coil fins.
Fig. 5. Remove condenser base bolts.
Fig. 2. Carefully remove the grill.
Fig. 4. Verify all blockages have been removed.
MODEL SERIES truemfg.com
TEC_TM 204 | REV. A | ENP#97554106/15/2023 Page 24 of 28
Maintenance & Servicing (cont.)
General Surface Care & Cleaning
Important Warranty Information
If you have any questions, please contact your local TRUE
Manufacturing Service Department. See the front cover for
locations and contact information.
• Condenser coils accumulate dirt and require checking every
30 days or as needed.
• A dirty condenser coil can result in appliance failure.
• Proper cleaning involves removing dust from the condenser
by using a soft brush, vacuuming the condenser with a shop
vac, or using CO₂, nitrogen or pressurized air.
• DO NOT place any filter material in front of the condensing
coil.
• On most appliances, the condenser is accessible by removing
the appliance's outer grill cover.
• If you cannot remove the dirt adequately, please contact your
licensed refrigeration service provider.
WARNING!
Risk of electrical shock or fire!
DO NOT clean appliance with a pressure washer
or hose.
Slippery Surfaces! Moisture from improper drainage
can create slippery surfaces near the appliance. It is
your duty to immediately warn your customers of, and
dry, the slippery surface. All wet floor areas must be
marked with a wet floor sign.
The appliance owner is responsible for performing
a Personal Protective Equipment (PPE) Hazard
Assessment and to ensure adequate protection during
maintenance and cleaning procedures.
Use appropriate tools, safety equipment, and PPE
during installation and servicing.
Gaskets
• Clean gaskets with warm soapy water.
• DO NOT use sharp tools or knives to scrape a gasket.
• Avoid full-strength cleaning products.
Interior
• Clean interior surfaces with a mild solution of baking soda
and water to help reduce odor; DO NOT use harsh or
abrasive cleaners.
• For plastic or powder-coated parts, use warm soapy water to
clean DO NOT use stainless steel cleaners or similar solvents.
Exterior
• For plastic or powder-coated parts, use warm soapy water to
clean DO NOT use stainless steel cleaners or similar solvents.
• DO NOT clean stainless steel with steel wool or abrasive
products. DO NOT use detergents or degreasers with
chlorides or phosphates. See model-specific manual for more
information.
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 25 of 28
truemfg.com
Maintenance & Servicing (cont.)
Stainless Steel Opponents
There are three basic things which can break down your stainless
steel’s passivity layer and allow corrosion to form.
• Scratches from wire brushes, scrapers, steel pads, and other
items that can be abrasive to stainless steel’s surface.
• Deposits left on your stainless steel can leave spots. You
may have hard or soft water depending on what part of the
country you live in. Hard water can leave spots. Hard water
that is heated can leave deposits if left to sit too long. These
deposits can cause the passive layer to break down and rust
your stainless steel. All deposits left from food prep or service
should be removed as soon as possible.
• Chlorides which are present in table salt, food and water, as
well as in household and industrial cleaners. These are the
worst type of chlorides to use on stainless steel.
Stainless Steel Care & Cleaning
USER ACTION
DO NOT use any steel wool, abrasive, or chlorine-
based products to clean stainless steel surfaces.
NOTICE!
The use of proprietary names is intended for
example only and does not constitute or imply an
endorsement. Omission of proprietary cleansers from
this list does not imply inadequacy.
Stainless Steel Cleaning and Restoration
• For routine cleaning and removal of grease and oil, apply
white vinegar, ammonia, or any good commercial detergent*
with a soft cloth or sponge.
• Stainless steel polish (e.g., Zep® Stainless Steel Polish,
Weiman® Stainless Steel Cleaner & Polish, Nyco® Stainless
Steel Cleaner & Polish, or Ecolab® Ecoshine®) and olive oil can
act as a barrier against fingerprints and smears.
• Degreasers* (e.g., Easy-Off® Specialty Kitchen Degreaser or
Simple Green® Industrial Cleaner & Degreaser) are excellent
for removal of grease, fatty acids, blood and burnt-on foods
on all surfaces.
* DO NOT use detergents or degreasers with chlorides or
phosphates.
• For restoration/passivation or removing stubborn stains
and discoloration, Brillo® Cameo®, Zud® Cleanser, Ecolab®
Specifax™ First Impression® Metal Polish, Sheila Shine, or talc
can be applied by rubbing in the direction of the polish lines.
MODEL SERIES truemfg.com
P#97554106/15/2023 Page 26 of 28 TEC_TM 204 | REV. A | EN
Maintenance & Servicing (cont.)
Maintain the Cleanliness of Your Equipment
Avoid build-up of hard stains by cleaning frequently. Use
cleaners at the recommended strength (alkaline chlorinated or
non-chloride).
Use the Correct Cleaning Tools
Use non-abrasive tools when cleaning your stainless steel products.
The stainless steel’s passive layer will not be harmed by soft cloths
and plastic scouring pads.
Clean Along Polishing Lines
Polishing lines ("grain") are visible on some stainless steels. Always
scrub parallel to polishing lines when visible. Use a plastic scouring
pad or soft cloth when you cannot see the grain.
Use Alkaline, Alkaline-Chlorinated or Non-Chloride Cleaners
While many traditional cleaners are loaded with chlorides, the
industry is providing an ever increasing choice of non-chloride
cleaners. If you are not sure of your cleaner’s chloride content,
contact your cleaner supplier. If they tell you that your present
cleaner contains chlorides, ask if they have an alternative.
Avoid cleaners containing quaternary salts, as they can attack
stainless steel, causing pitting and rusting.
Rinse
When using chlorinated cleaners, you must rinse and wipe dry
immediately. It is better to wipe standing cleaning agents and
water as soon as possible. Allow the stainless steel equipment to
air dry. Oxygen helps maintain the passivity film on stainless steel.
Never Use Hydrochloric Acid (Muriatic Acid) on Stainless Steel
Even diluted, hydrochloric acid can cause corrosion, pitting and
stress corrosion cracking of stainless steel.
Water Treatment
To reduce deposits, soften hard water when possible. Installation
of certain filters can remove corrosive and distasteful elements.
Salts in a properly maintained water softener can also be to your
advantage. Contact a treatment specialist if you are not sure of the
proper water treatment.
Regularly Restore & Passivate Stainless Steel
Stainless steel gets its stainless properties from the protective
chromium oxides on its surface. If these oxides are removed by
scouring, or by reaction with harmful chemicals, then the iron in
the steel is exposed and can begin to oxidize, or rust. Passivation is
a chemical process that removes free iron and other contaminants
from the surface of stainless steel, allowing the protective
chromium oxides to re-form.
8 Tips to Help Prevent Rust on Stainless Steel
MODEL SERIES
TEC_TM 204 | REV. A | EN
06/15/2023 Page 27 of 28
truemfg.com
Warranty Information (USA & Canada Only)
To view and download the
Warranty Information for USA & Canada,
please scan the QR code below.
Warranty Information
