FINAL SUBMISSION SPECIFICATION
Model: ZBY-78S
Product Name
Bluetooth module
Model
ZBY-78S
FCC ID
2A4PQ-ZBY-78S-1303
IC
29293-ZBY78S
HVIN
ZBY-78S
Bluetooth module ZBY-78S | Page of 1 12
Revision History
Version
Date
Description
Prepared By
V1.0
2026-04-24
Formal lab
submission
version.
Wei
Bluetooth module ZBY-78S | Page of 2 12
Contents
•
1. Document Description
•
2. Mechanical Structure
•
3. Electrical Characteristics
•
4. Pin Definition
•
5. Operation Instructions
•
6. AT Command Overview
•
7. Regulatory and Safety Statements
Bluetooth module ZBY-78S | Page of 3 12
1. Document Description
This specification describes the Bluetooth module ZBY-78S. The module is designed for UART
transparent transmission applications and is based on the ST17H78S low-power 32-bit controller with
BLE 5.0 capability.
The module supports BLE 5.0 RF PHY at 1 Mbps and 2 Mbps. It provides low power consumption,
compact size, UART communication, configurable RF power, and AT command control for product
customization.
1.1 Main Features
•
Main controller: ST17H78S with SWD support.
•
Memory: 96 KB ROM and 32 KB SRAM.
•
Programmable retention in sleep mode and 16 KB OTP support.
•
Operating voltage range: 1.8 V to 3.6 V.
•
Integrated LDO and battery monitoring support.
•
BLE 5.0 operation in the 2.4 GHz ISM band.
•
Single antenna design without additional RF matching or RX/TX switching.
•
AES-128 hardware encryption and RSSI reporting.
1.2 Default Application Requirements
•
Standard firmware baud rate: 115200 bps.
•
Custom firmware baud rate: 9600 bps or 115200 bps.
•
The module supports AT+MESHLOG=1 to enable log output.
•
The module supports AT+MESHNAME=<name> to modify the Bluetooth name.
•
The MAC address shall be included in advertising packets.
•
For custom firmware, device information must be obtained after power-on before advertising starts.
2. Mechanical Structure
2.1 Basic Information
•
PCB size: 10.03 mm x 16.26 mm x 1.0 mm PCBA.
•
Number of pins: 5 pins.
•
Antenna: onboard PCB antenna.

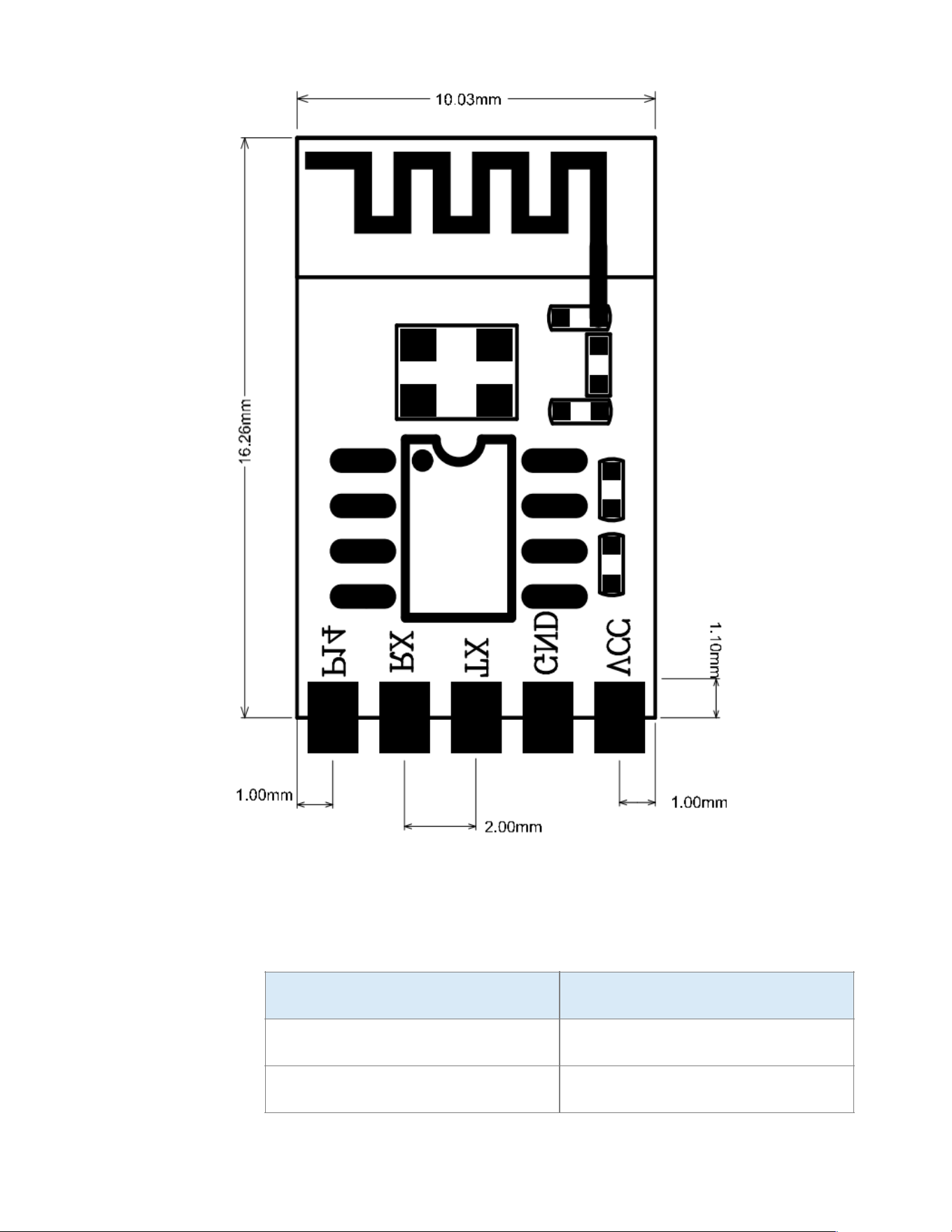

Figure 1. Module Outline and Package Dimensions
Bluetooth module ZBY-78S | Page of 4 12
3. Electrical Characteristics
Standard measurement conditions: Ta = 25°C, VDD = 3.3 V, BLE low energy mode, 1 Mbps, GFSK
modulation with 250 kHz deviation.
Item
Specification
Modulation
GFSK
Frequency Range
2400 MHz to 2483.5 MHz
Bluetooth module ZBY-78S | Page of 5 12
Transmit Power
-23 dBm to 0 dBm, programmable by
software
Operating Temperature
-20°C to +60°C
Storage Temperature
-40°C to +85°C
Supply Voltage
1.8 VDC to 3.6 VDC
Receive Sensitivity
-94 dBm typical
RX Current
9.1 mA typical at high gain setting
TX Current
9.5 mA typical at 0 dBm output
MCU Active Current
6.7 mA typical with 32 MHz crystal
oscillator only
Power Mode 1 Current
270 uA typical, MCU standby, wake-up
time 4 us
Power Mode 2 Current
0.9 uA typical, sleep timer active
Power Mode 3 Current
0.5 uA typical, deep sleep with hardware
wake-up
Average Operating Current
Less than 500 uA
Standby Current
Less than 100 uA
Sleep Current
Less than 1 uA
Bluetooth module ZBY-78S | Page of 6 12
4. Pin Definition
Pin No.
Pin Name
Type
Description
1
P14
Bluetooth
connection status
indication
Port P14
2
RX
Programming
RX / UART RX
Receive data
input
3
TX
Programming TX /
UART TX
Transmit data
output
4
GND
Power ground
Ground
5
VCC
Power input
1.8 V to 3.6 V
Bluetooth module ZBY-78S | Page of 7 12
5. Operation Instructions
5.1 Default UART Parameters
•
UART baud rate for standard firmware: 115200 bps.
•
Data bits: 8 bit.
•
Stop bits: 1 bit.
•
Parity: none.
•
Power ripple on the VCC pin shall not exceed 30 mV.
•
VCC shall not exceed 3.6 V.
6. AT Command Overview
After power-on and successful startup, the module can be configured through UART by using AT
commands. The following commands are supported in the standard command set.
Command
Function
AT+NAME
Query or set the module name.
AT+MAC
Query or set the module MAC
address.
AT+CIVER
Query the firmware version.
AT+UART
Query or set the UART baud rate.
AT+AUTO+++
Enable or disable auto transparent mode
after BLE connection.
AT+LINK
Query BLE connection status.
AT+ADVINT
Query or set the advertising interval.
AT+POWER
Query or set RF transmit power.
AT+UUID
Query the transparent service UUID
information.
AT+DISCONN
Disconnect the current BLE
connection.
AT++++
Enter transparent transmission mode.
Bluetooth module ZBY-78S | Page of 8 12
7. Regulatory and Safety Statements
Certification identifiers for this product are listed below:
AT+Z
Restart the module.
AT+RESET
Restore factory settings.
AT+FLASH
Save parameters to flash memory.
AT+RESE
Query or set custom advertising data.
AT+OFF
Enter power-off mode.
AT+MESHLOG=1
Enable log output.
AT+MESHNAME=<name>
Modify the Bluetooth device name.
FCC ID
2A4PQ-ZBY-78S-1303
IC
29293-ZBY78S
HVIN
ZBY-78S
Bluetooth module ZBY-78S | Page of 9 12
7.1 FCC Statement
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna
or transmitter.
To maintain compliance with FCC RF exposure guidelines, this equipment should be installed and
operated with a minimum distance of 20 cm between the radiator and the user's body. Use only the
supplied antenna.
Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
FCC Part 15.105 Class B Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
This equipment generates, uses and can radiate radio frequency energy.
If not installed and used in accordance with the instructions, it may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, the user is encouraged
to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
OEM Integration Instructions (FCC KDB 996369 D03)
This module is authorized under Single Modular Approval for integration into host products by qualified
OEM integrators.
Bluetooth module ZBY-78S | Page of 10 12
Bluetooth module ZBY-78S | Page of 11
The OEM integrator is responsible for ensuring the final host product complies with all applicable FCC
rules, including Part 15 Subpart B where applicable.
End-user documentation must not include instructions to install or remove the RF module; such
information is intended for OEM integrators only.
The host product label must display: Contains FCC ID: 2A4PQ-ZBY-78S-1303
Requirement per KDB 996369 D03
2.2 List of applicable FCC rules
This module complies with FCC Part 15.247 for DTS operation in the 2.4 GHz band.
2.3 Summarize the specific operational use conditions
This module is approved under Single Modular Approval for integration by qualified OEM
integrators. It uses an onboard PCB antenna, operates in the 2400 MHz to 2483.5 MHz band, and
must be installed with a minimum separation distance of 20 cm from the user. End-user
documentation must not include instructions for module installation or removal.
2.4 Limited module procedures
Not applicable. This module is approved as a Single Modular Approval module and is not a limited
modular approval.
2.5 Trace antenna designs
Not applicable. The module uses a permanently integrated onboard PCB antenna and does not
support alternative trace antenna designs for host installation.
2.6 RF exposure considerations
This module complies with FCC RF exposure requirements for an uncontrolled environment. The
host product must be installed and operated with a minimum distance of 20 cm between the radiator
and the user.This module is designed to comply with the FCC statement, FCC ID:2A4PQ-ZBY-78S-1303
2.7 Antennas
The module uses a fixed onboard PCB antenna with a maximum gain of 0.18 dBi. No antenna
substitution is permitted unless approved through a permissive change or new FCC certification
filing.
2.8 Label and compliance information
The host product label must display the following text: Contains FCC ID: 2A4PQ-ZBY-78S-1303
2.9 Information on test modes and additional testing requirements
The host product manufacturer is responsible for additional compliance verification of the final host
configuration. The OEM integrator must confirm that the final product continues to comply with all
applicable FCC requirements in the installed configuration.
2.10 Additional testing, Part 15 Subpart B disclaimer
12
The modular transmitter is only authorized for the transmitter function. The final host product must
comply with FCC Part 15 Subpart B requirements for unintentional radiators, where applicable.
2.11 Note EMI considerations
The host product should be designed so that module integration does not introduce additional EMI
issues. Appropriate grounding, layout control, power supply filtering, and enclosure design must be
used in the final host product as required.
2.12 How to make changes
Any changes or modifications to the module, antenna, or integration conditions that are not
expressly approved by the grantee may void the authority to operate the equipment and may
require a permissive change or a new FCC certification filing.
7.2 IC Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two
conditions: (1) this device may not cause interference; and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
RF exposure statement: The equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a minimum distance of
20 cm between the radiator and your body.
French statement: Cet appareil contient des émetteurs/récepteurs exemptés de licence conformes aux
CNR d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux
deux conditions suivantes: (1) Cet appareil ne doit pas produire de brouillage; (2) Cet appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Déclaration d'exposition RF: Cet équipement est conforme aux limites d'exposition aux rayonnements de
l'IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une
distance minimale de 20 cm entre le radiateur et votre corps.
Bluetooth module ZBY-78S | Page of 12 12
