ASSEMBLY INSTRUCTIONS
Pass-Thru Shelves
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG10000 Revised 06/23
Before assembly…
Please note the different style wall brackets that come with your pass-thru shelf.
For Pass-Thru Shelves with Overshelf, see back page.
If your Pass-Thru Shelf does not have an overshelf, assembly is complete.
If your Pass-Thru Shelf comes with an overshelf, go to back page.

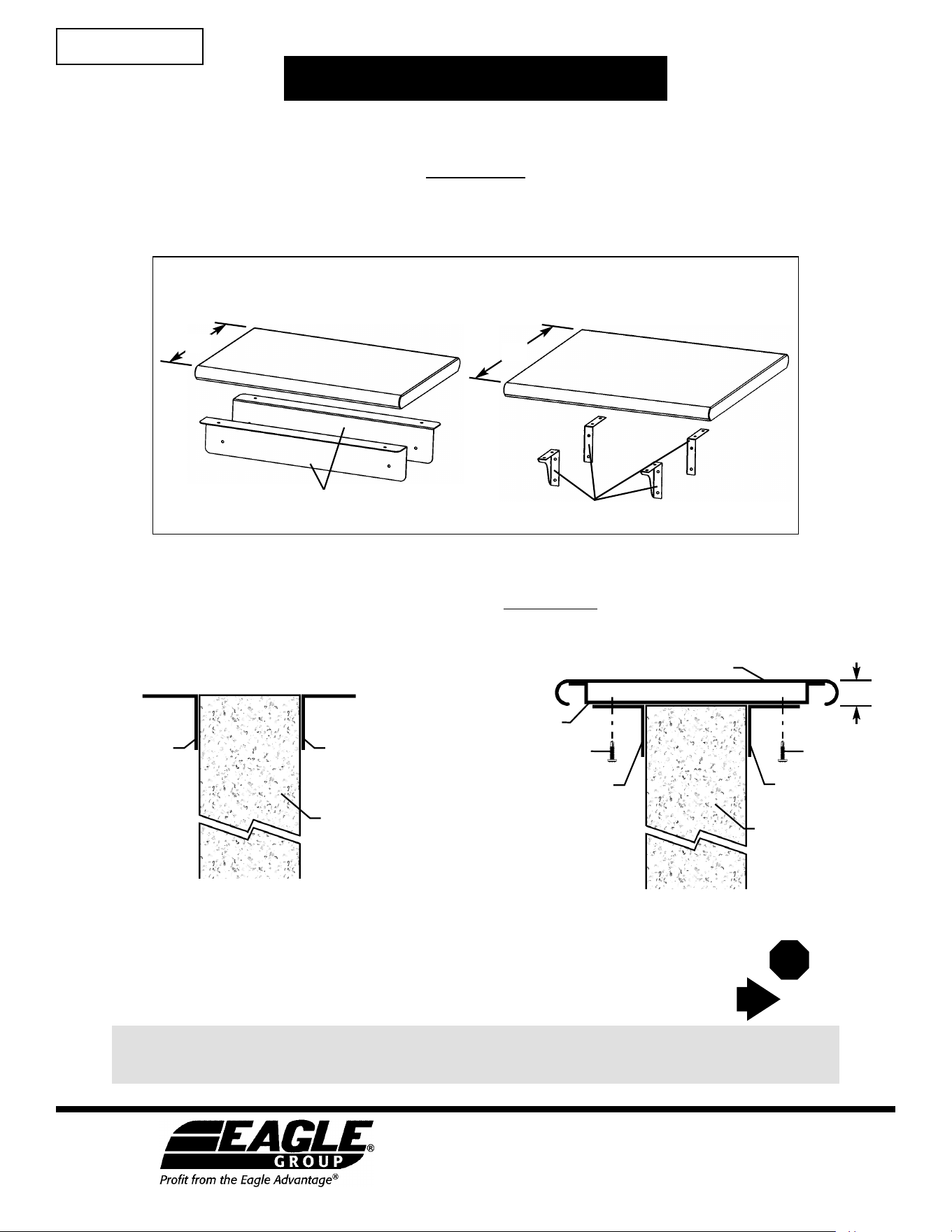

Step 1 - Attach brackets to each side of
pass-thru wall.
Bracket style varies, based on shelf width—see illustration
above (hardware for mounting brackets to wall not included).
IMPORTANT: Make sure brackets will make contact with bottom
channel of shelf to be mounted.
Step 2 - Attach shelf to brackets.
Center the shelf over the pass-thru wall. Attach brackets to
bottom channel of shelf, using #10 self-drilling screws provided.
IMPORTANT NOTE: PASS-THRU SHELF IS 1-1/2˝ HIGHER
THAN THE BRACKETS.
Note: The wall brackets must be fastened securely prior to mounting shelf. Eagle Group will not be held accountable for wall
brackets pullling away from the wall.
“L”-style
brackets
bracket bracket
pass-thru
wall
(SIDE VIEW)
bracket
bracket
bottom
channel
screw
1
1
⁄2˝
screw
shelf
pass-thru
wall
(SIDE VIEW)
cantilever-style
brackets
18˝
24˝
(End)
INSTRUCTION SHEET
#362524
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
Follow Steps 1 & 2 (front page), assembling Pass-Thru Shelf to pass-thru wall.
ASSEMBLY INSTRUCTIONS
Pass-Thru Shelves with Overshelf
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com

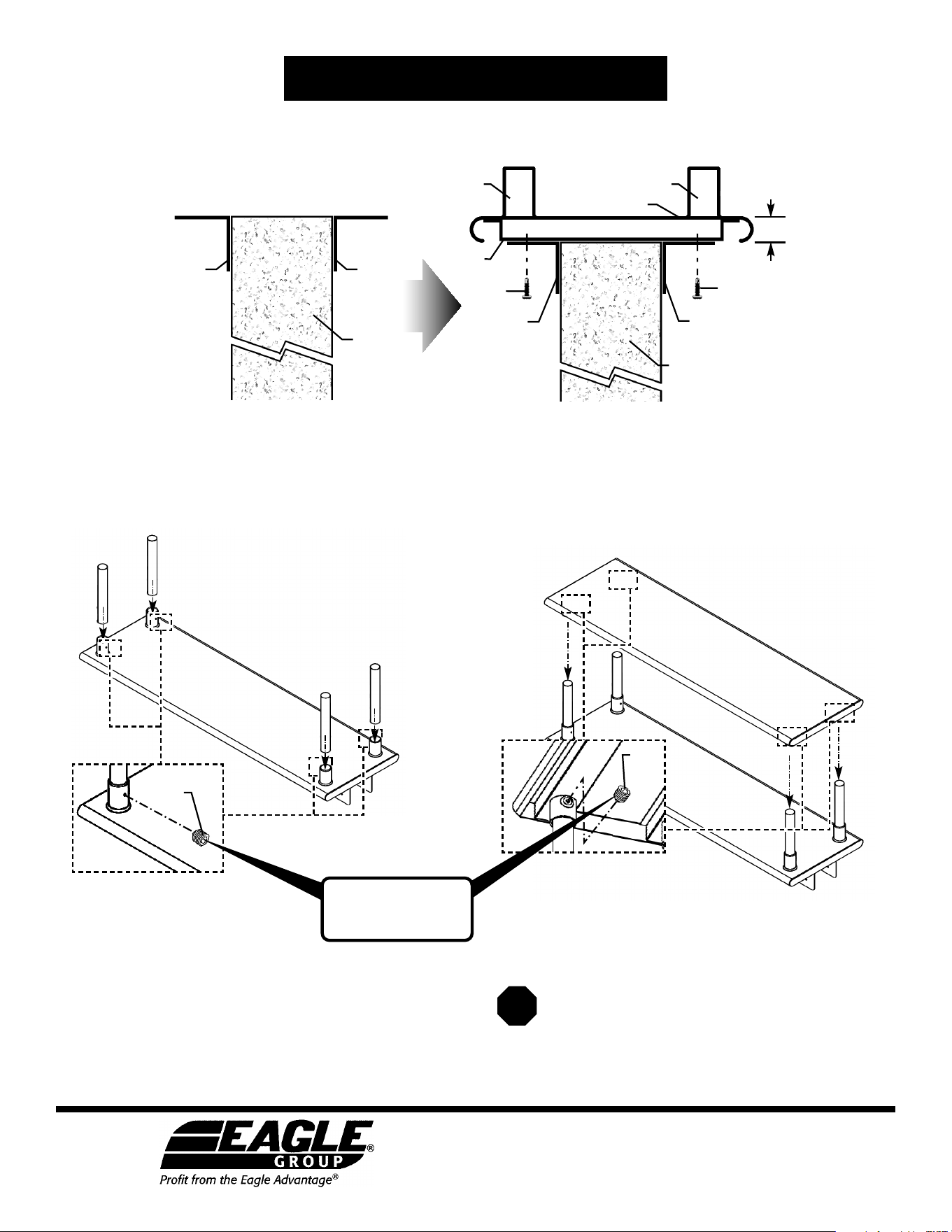

Step 3 - Attach legs to pass-thru shelf.
• Seat legs into gussets of pass-thru shelf.
• Snug set screw* into each gusset/leg.
Step 4 - Attach overshelf to legs.
• Align legs to gussets located on underside of overshelf.
• Carefully lower overshelf, inserting legs into overshelf gussets.
• Snug set screw* into each gusset/leg. Tighten all screws.
Assembly is complete.
(End)
bracket
bracket
bottom
channel
screw
1
1
⁄2˝
screw
shelf
gussetgusset
pass-thru
wall
(SIDE VIEW)
(UNDERSIDE OF OVERSHELF)
bracket bracket
pass-thru
wall
(SIDE VIEW)
set *
screw
set *
screw
* To meet NSF standards:
Set screws must be filled
with NSF-approved sealant.
