Assembly Instructions
OWNER’S MANUAL
V. GFID225-20210810
GFID225
Warning, Safety & Maintenance
2
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in death or
serious injury.
It is imperative that you retain this Owner’s Manual and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and warning labels are available from your
local Body-Solid dealer.
If you have any questions about the operation, set up or
maintenance of this machine please call our customer service
department at 1 (800) 556-3113.
Adjust
Cable
Here
ALWAYS make sure pop
pin plunger is in place
and lock it by turning
clockwise until tight.
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF EQUIPMENT.
TO MINIMIZE RISK, YOU MUST FOLLOW THESE RULES:
Inspect equipment before each workout. Check that all nuts, bolts, screws and pop pins
are in place and fully tightened. Also, before use, check cables for sign of wear. Replace all
worn parts immediately. Never use machine if any parts are damaged or missing.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
Keep clear of the cables and all moving parts when machine is in use.
Always make sure all Snap Links are closed when doing cable/pulley/strap exercises.
Exercise with care. Perform your exercises at a smooth moderate pace; never perform jerky
or uncoordinated movements that may cause injury.
It is recommended that you workout with a training partner.
Do not allow children or minors to play on or around this equipment.
If unsure of proper use of equipment, call your local Body-Solid distributor or the
Body-Solid customer service center at 1-800-556-3113.
WARNING: Consult your physician before starting your exercise program. For your own
safety, do not begin any exercise program without proper instruction.
WARNING!
PINCH POINTS
Be alert! Keep hands
and fingers clear of
moving parts.
WARNING!
SafetyÊandÊMaintenance
ofÊCables
IMPORTANT:ÊCables are
wear items. It is your
responsibility to prevent
unexpected breakage.
Cable inspection
should be performed
daily.
Inspect all cables, the
nylon coating on all
cables, and the area near
fitting at each end of
each cable.
Replace and damaged
or worn cable
immediately.
Do not allow the
machine to be used until
damaged or worn cables
are replaced. Using or
allowing a machine to be
used with a suspect
cable can result in
serious injury. See
Owner’s Manual for more
information.
For Steelflex Customer Service
CallÊ1-800-556-3113
WARNING!
SafetyÊandÊMaintenance
ofÊCables
IMPORTANT:ÊCables are
wear items. It is your
responsibility to prevent
unexpected breakage.
Cable inspection
should be performed
daily.
Inspect all cables, the
nylon coating on all
cables, and the area near
fitting at each end of
each cable.
Replace and damaged
or worn cable
immediately.
Do not allow the
machine to be used until
damaged or worn cables
are replaced. Using or
allowing a machine to be
used with a suspect
cable can result in
serious injury. See
Owner’s Manual for more
information.
For Body-Solid Customer Service
CallÊ1-800-556-3113

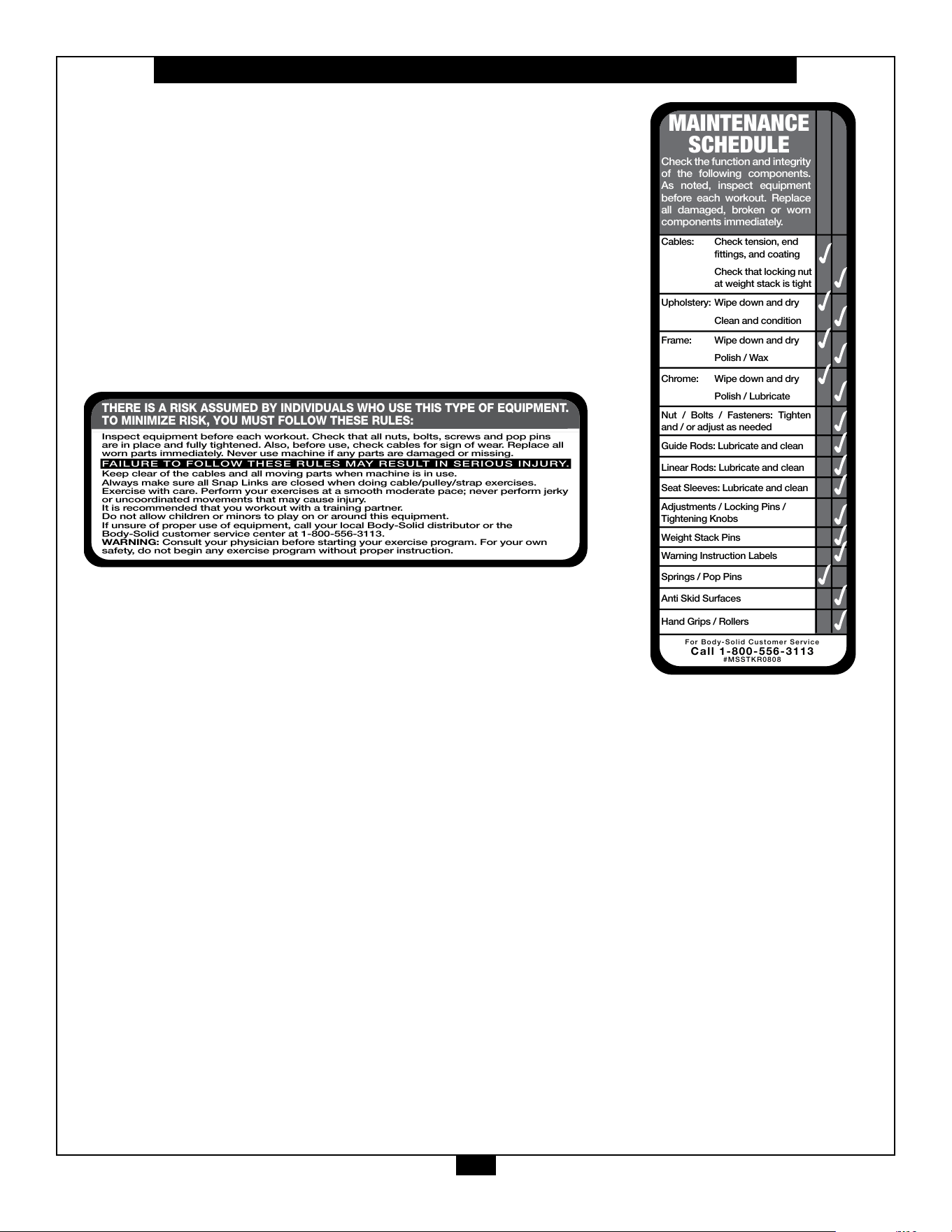

MAINTENANCE
SCHEDULE
Check the function and integrity
of the following components.
As noted, inspect equipment
before each workout. Replace
all damaged, broken or worn
components immediately.
Cables: Check tension, end
fittings, and coating
Check that locking nut
at weight stack is tight
Upholstery: Wipe down and dry
Clean and condition
Frame: Wipe down and dry
Polish / Wax
Chrome: Wipe down and dry
Polish / Lubricate
Nut / Bolts / Fasteners: Tighten
and / or adjust as needed
Guide Rods: Lubricate and clean
Linear Rods: Lubricate and clean
Seat Sleeves: Lubricate and clean
Weight Stack Pins
Warning Instruction Labels
Springs / Pop Pins
Anti Skid Surfaces
Hand Grips / Rollers
For Body-Solid Customer Service
CallÊ1-800-556-3113
#MSSTKR0808
Adjustments / Locking Pins /
Tightening Knobs
Adjust
Cable
Here
ALWAYS make sure pop
pin plunger is in place
and lock it by turning
clockwise until tight.
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF EQUIPMENT.
TO MINIMIZE RISK, YOU MUST FOLLOW THESE RULES:
Inspect equipment before each workout. Check that all nuts, bolts, screws and pop pins
are in place and fully tightened. Also, before use, check cables for sign of wear. Replace all
worn parts immediately. Never use machine if any parts are damaged or missing.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
Keep clear of the cables and all moving parts when machine is in use.
Always make sure all Snap Links are closed when doing cable/pulley/strap exercises.
Exercise with care. Perform your exercises at a smooth moderate pace; never perform jerky
or uncoordinated movements that may cause injury.
It is recommended that you workout with a training partner.
Do not allow children or minors to play on or around this equipment.
If unsure of proper use of equipment, call your local Body-Solid distributor or the
Body-Solid customer service center at 1-800-556-3113.
WARNING: Consult your physician before starting your exercise program. For your own
safety, do not begin any exercise program without proper instruction.
WARNING!
PINCH POINTS
Be alert! Keep hands
and fingers clear of
moving parts.
WARNING!
SafetyÊandÊMaintenance
ofÊCables
IMPORTANT:ÊCables are
wear items. It is your
responsibility to prevent
unexpected breakage.
Cable inspection
should be performed
daily.
Inspect all cables, the
nylon coating on all
cables, and the area near
fitting at each end of
each cable.
Replace and damaged
or worn cable
immediately.
Do not allow the
machine to be used until
damaged or worn cables
are replaced. Using or
allowing a machine to be
used with a suspect
cable can result in
serious injury. See
Owner’s Manual for more
information.
For Steelflex Customer Service
CallÊ1-800-556-3113
WARNING!
SafetyÊandÊMaintenance
ofÊCables
IMPORTANT:ÊCables are
wear items. It is your
responsibility to prevent
unexpected breakage.
Cable inspection
should be performed
daily.
Inspect all cables, the
nylon coating on all
cables, and the area near
fitting at each end of
each cable.
Replace and damaged
or worn cable
immediately.
Do not allow the
machine to be used until
damaged or worn cables
are replaced. Using or
allowing a machine to be
used with a suspect
cable can result in
serious injury. See
Owner’s Manual for more
information.
For Body-Solid Customer Service
CallÊ1-800-556-3113
MAINTENANCE
SCHEDULE
Check the function and integrity
of the following components.
As noted, inspect equipment
before each workout. Replace
all damaged, broken or worn
components immediately.
Cables: Check tension, end
fittings, and coating
Check that locking nut
at weight stack is tight
Upholstery: Wipe down and dry
Clean and condition
Frame: Wipe down and dry
Polish / Wax
Chrome: Wipe down and dry
Polish / Lubricate
Nut / Bolts / Fasteners: Tighten
and / or adjust as needed
Guide Rods: Lubricate and clean
Linear Rods: Lubricate and clean
Seat Sleeves: Lubricate and clean
Weight Stack Pins
Warning Instruction Labels
Springs / Pop Pins
Anti Skid Surfaces
Hand Grips / Rollers
For Body-Solid Customer Service
CallÊ1-800-556-3113
#MSSTKR0808
Adjustments / Locking Pins /
Tightening Knobs
Important Safety Instructions
3
Before beginning any tness program, you should obtain a complete physical examination from your physician.
Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.
Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.
When using exercise equipment, you
should always take basic precautions,
including the following:
m Read all instructions before using the GFID225.
These instructions are written to ensure your safety
and to protect the unit.
m Do not remove any safety labels from the
machine.
m Do not allow children on or near the equipment.
m Use the equipment only for its intended purpose
as described in this guide. Do not use accessory
attachments that are not recommended by the
manufacturer. Such attachments might cause
injuries.
m Wear proper exercise clothing and shoes for your
workout, no loose clothing.
m Keep hands, limbs, loose clothing, and long hair well
out of the way of all moving parts.
m Use care when getting on or o the unit.
m Do not overexert yourself or work to exhaustion.
m If you feel any pain or abnormal symptoms, stop
your workout immediately and consult your
physician.
m Never operate unit when it has been dropped or
damaged. Return the equipment to a service
center for examination and repair.
m Never drop or insert objects into any opening in
the equipment.
m Always check the unit and its cables before each
use. Make sure that all fasteners and cables are
secure and in good working condition.
m Do not use the equipment outdoors or near water.
Personal Safety During Assembly
m Before beginning assembly, please take the time
to read the instructions thoroughly.
m Read each step in the assembly instructions and
follow the steps in sequence. Do not skip ahead.
If you skip ahead, you may learn later that you
have to disassemble components and that you
may have damaged the equipment.
m Assemble and operate the GFID225 on a solid, level
surface. Locate the unit a few feet from the walls
or furniture to provide easy access.
The GFID225 is designed for your enjoyment. By
following these precautions and using common sense,
you will have many safe and pleasurable hours of
healthful exercise with your Body-Solid Flat Incline/De-
cline Bench.
After assembly, you should check all functions to
ensure correct operation. If you experience problems,
rst recheck the assembly instructions to locate any
possible errors made during assembly. If you are unable
to correct the problem, call the dealer from whom you
purchased the machine or call 1-800-556-3113 for the
dealer nearest you.
Obtaining Service
Please use this Owner’s Manual to make sure that all
parts have been included in your shipment. When
ordering parts, you must use the part number and
description from this Owner’s Manual. Use only
Body-Solid replacement parts when servicing this
machine. Failure to do so will void your warranty and
could result in personal injury.
For information about product operation or service,
check out the ocial Body-Solid website at
www.bodysolid.com or contact an authorized
Body-Solid dealer or a Body-Solid factory-authorized
service company or contact Body-Solid customer
service at one of the following:
Toll Free: 1-800-556-3113
Phone: 1-708-427-3555
Fax: 1-708-427-3556
Hours: M-F 8:30-5:00 CST
E-Mail: [email protected]
Or write to: Body-Solid, Inc.
Service Department
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Retain this Owner’s Manual for future
reference. If you need to order replacement
parts please be prepared to provide the
following information when contacting us so
that we can assist you better.
1. Model Number
2. Place of Purchase
3. Serial Number (S/N)
4. Part # and Description
Preparation
4
Thank you for purchasing the GFID225. This bench is part of the Body-Solid line of quality strength training
machines, which lets you target specic muscle groups to achieve better muscle tone and overall body
conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly.
Body-Solid continually seeks ways to improve the performance, specications and product manuals in order to ensure that only
superior products are released from our factories. Please take the time to carefully read through this manual thoroughly. Instructions
contained in this document are not intended to cover all details or variations possible with Body-Solid equipment, or to cover every
contingency that may be met in conjunction with installation, operation, maintenance or troubleshooting of the equipment. Even
though we have prepared this manual with extreme care, neither the publisher nor the author can accept responsibility for any errors
in, or omission from, the information given. Should additional information be required, or should situations arise that are not covered
by this manual, the matter should be directed to your local Body-Solid representative, or the Service Department at Body-Solid Inc.
in Forest Park, Illinois.
Required Tools
The basic tools that you must obtain before assembling
the GFID225 include but are not limited to:
m Metric Allen Key Set
m Standard Allen Key Set
m Standard Wrench Set
m Metric Wrench Set
m Adjustable Wrench
m Screwdriver (standard and/or phillips)
Installation Requirements
Follow these installation requirements when assembling
the GFID225:
Set up the GFID225 on a solid, at surface. A smooth,
at
surface under the machine helps keep it level. A
level machine has fewer malfunctions.
Provide ample space around the machine. Open
space around the machine allows for easier access.
For aesthetic purposes, insert all bolts in the same
direction unless specied (in text or illustrations) to do
otherwise.
Leave room for adjustments. Tighten fasteners such as
bolts, nuts, and screws so the unit is stable, but leave
room for adjustments. Do not fully tighten fasteners
until instructed in the assembly steps to do so.
Fill out and mail the warranty card.
Assembly Tips
Read all “Notes” on each page before beginning each
step.
While you may be able to assemble the GFID225 using
the illustrations only, important safety notes and other
tips are included in the text.
Some pieces may have extra holes that you will not use.
Use only those holes indicated in the instructions and
illustrations.
NOTE: With so many assembled parts, proper
alignment and adjustment is critical. While
tightening the nuts and bolts, be sure to leave
room for adjustments.
NOTE: The bottles that are marked “Poison” is your
touch up paint. Keep away from children.
CAUTION: Obtain assistance! If you feel like you can’t
assemble the GFID225 by yourself then do
not attempt to do so as this could result in
injury. Review the installation requirements
before proceeding with the following steps.
Your S/N# can
be found here
5
GFID225 Parts List/Illustration
PART# DESCRIPTION
1 FOLDING LEG
2 MAIN FRAME
3 BACK PAD ADJUSTER
4 LEFT BACK PAD FRAME
5 RIGHT BACK PAD FRAME
6 BACK PAD
7 SEAT PAD
8 NYLON SPACER
9 SUPPORT TUBE
10 M8 X 20 HEX HEAD BOLT
11 M8 X 50 HEX HEAD BOLT
12 M8 X 60 HEX HEAD BOLT
13 M10 X 130 HEX HEAD BOLT
14 M10 X 172 SHAFT
15 M12 X 180 HEX HEAD BOLT
16 M8 NYLOCK NUT
17 M10 NYLOCK NUT
18 M12 NYLOCK NUT
19 M8 LOCK WASHER
20 M8 WASHER
21 M10 WASHER
22 M12 WASHER
23 POP PIN ASSEMBLY M10 X 55
24 FOAM 38 OD X 160
25 FOOT CAP 50 X 100 OVAL
26 M20 X 40 ENDCAP
27 HANDLE BAR
28 PM BUSHING 12ID X 21.6OD X 14
29 M72 OD RUBBER WHEEL
6
GFID225 Exploded View
17
45
7
Notes
1900 S. Des Plaines Ave.
Forest Park, IL 60130
Phone:(708)427-3555
Fax:(708)427-3556
Hours: M-F 8:30 - 5:00 CST
www.bodysolid.com
Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specications when we feel it will improve the product.
Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW
S/N # 001855-��-��-����-����
GFID225
