  3. BRANO GXEA-T05-30-HYF User Manual

Brano GXEA-T05 Under Cabinet Range Hood 30 Inch 900 CFM Voice Gesture Control Ducted Ductless Convertible

Product's Documents

Below are documents related to this product, you can read online or download:
User Manual Installation Instruction Specification
Main documentSpecificationQuestions and answersRelateds Products
GXEA-T05-30-HYF photo

Use and Care Manual

This is the main product document for model GXEA-T05-30-HYF.

The file format is pdf, 31 pages, you can download this manual here .

background
BRANO
Range hoods
Professional Under Cabinet Range Hood
INSTALLATION GUIDE
AND USERS MANUAL
NOTICE:
For residential use only.
Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for
future reference.
Visit: www.branohome.com for most updated information.
Email :[email protected]
ModelName:GXEA-T06-30"/36"
ModelName:GXEA-T05-30"/36"
background
THANK YOU FOR YOUR PURCHASE
2
CONTACT US
service@branohome.com
service@branohome.com
background
3

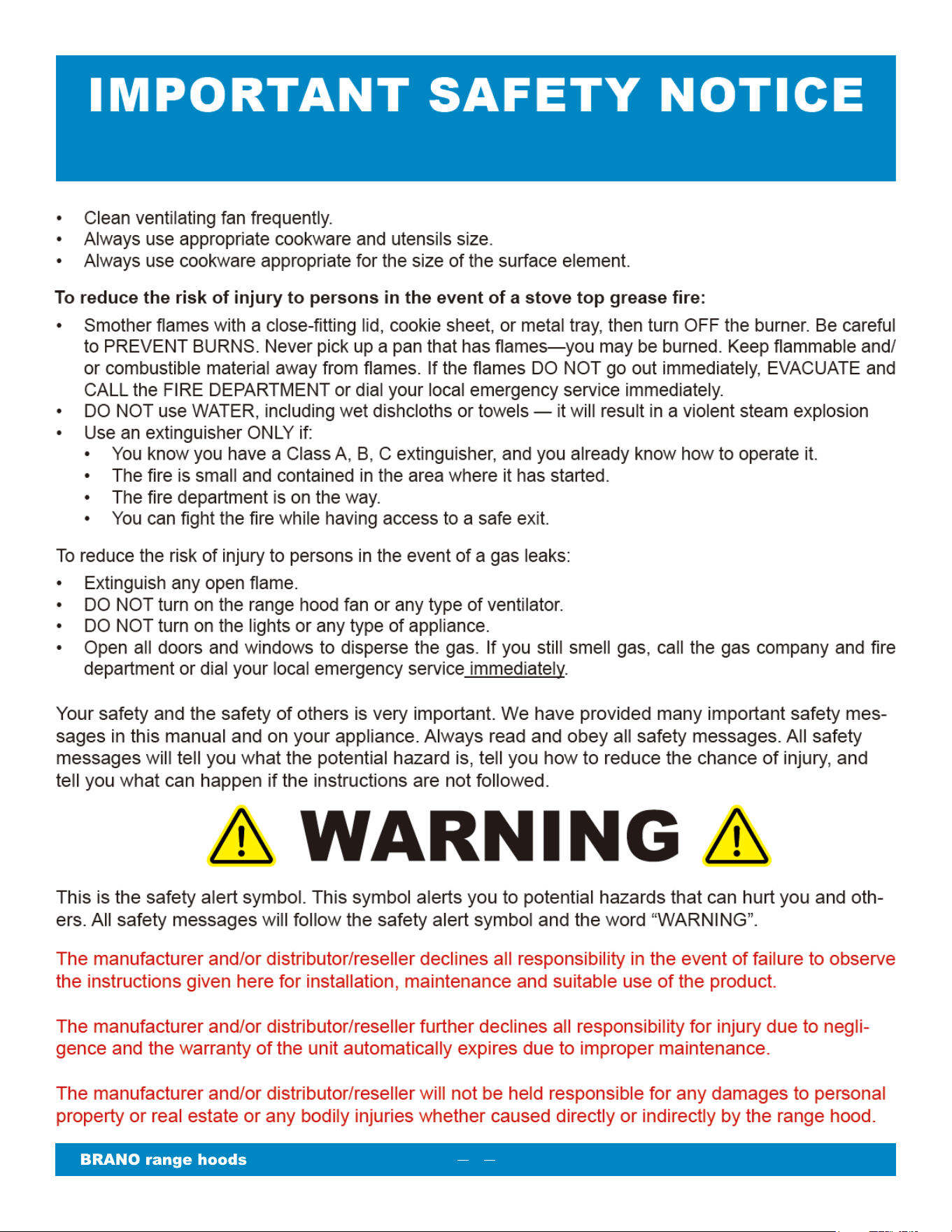

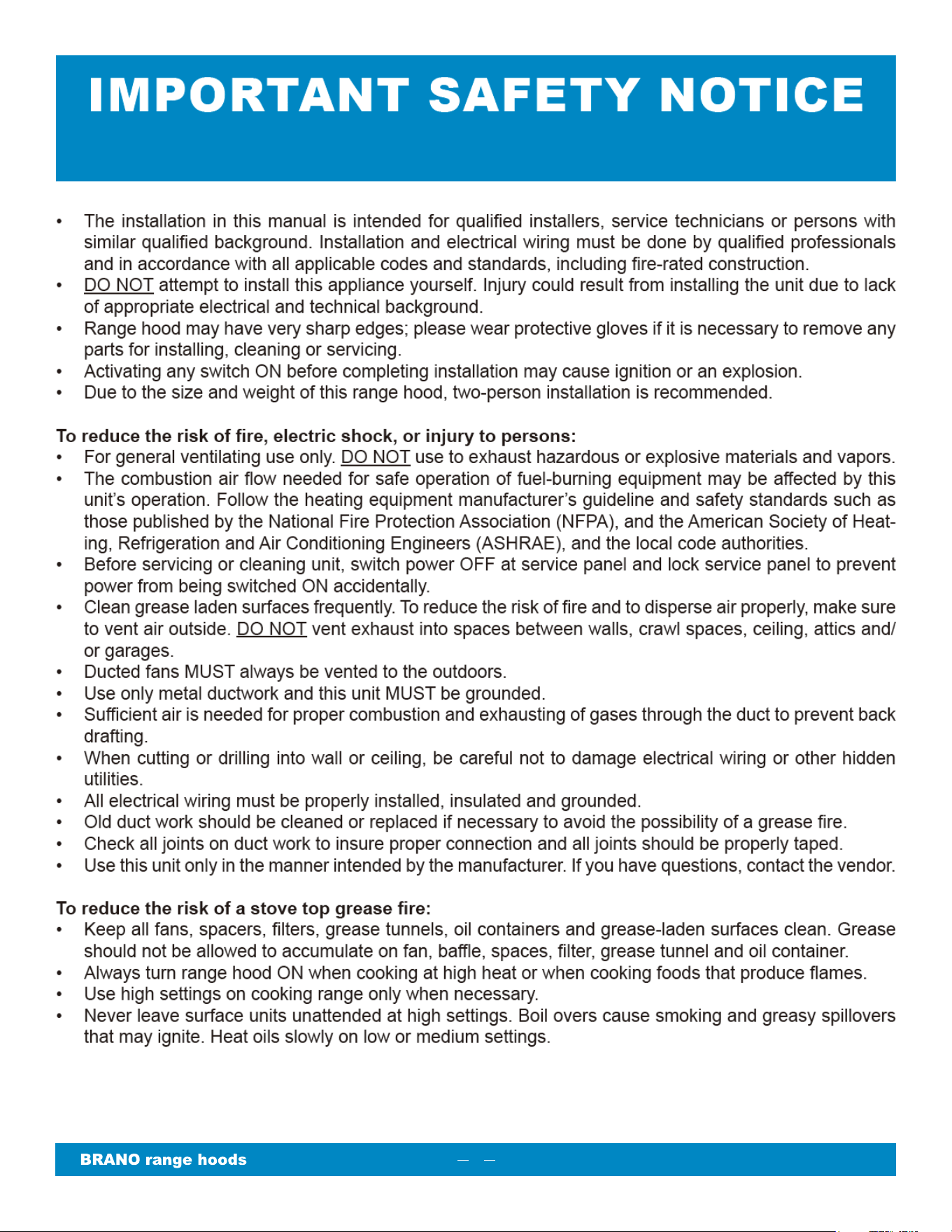

Important Safety Notice........................................................................ 4

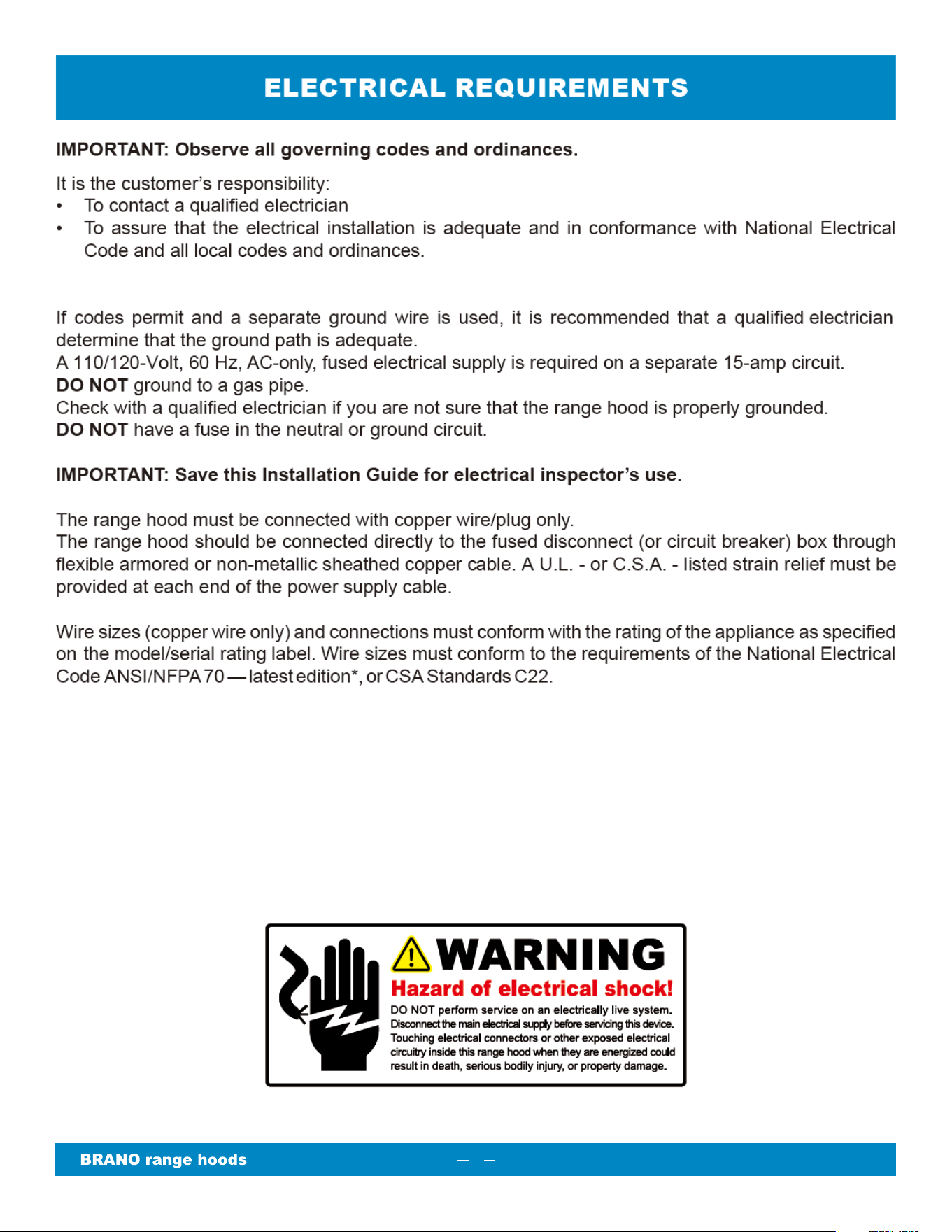

Electrical Requirements....................................................................... 6
Venting Requirements.......................................................................... 7

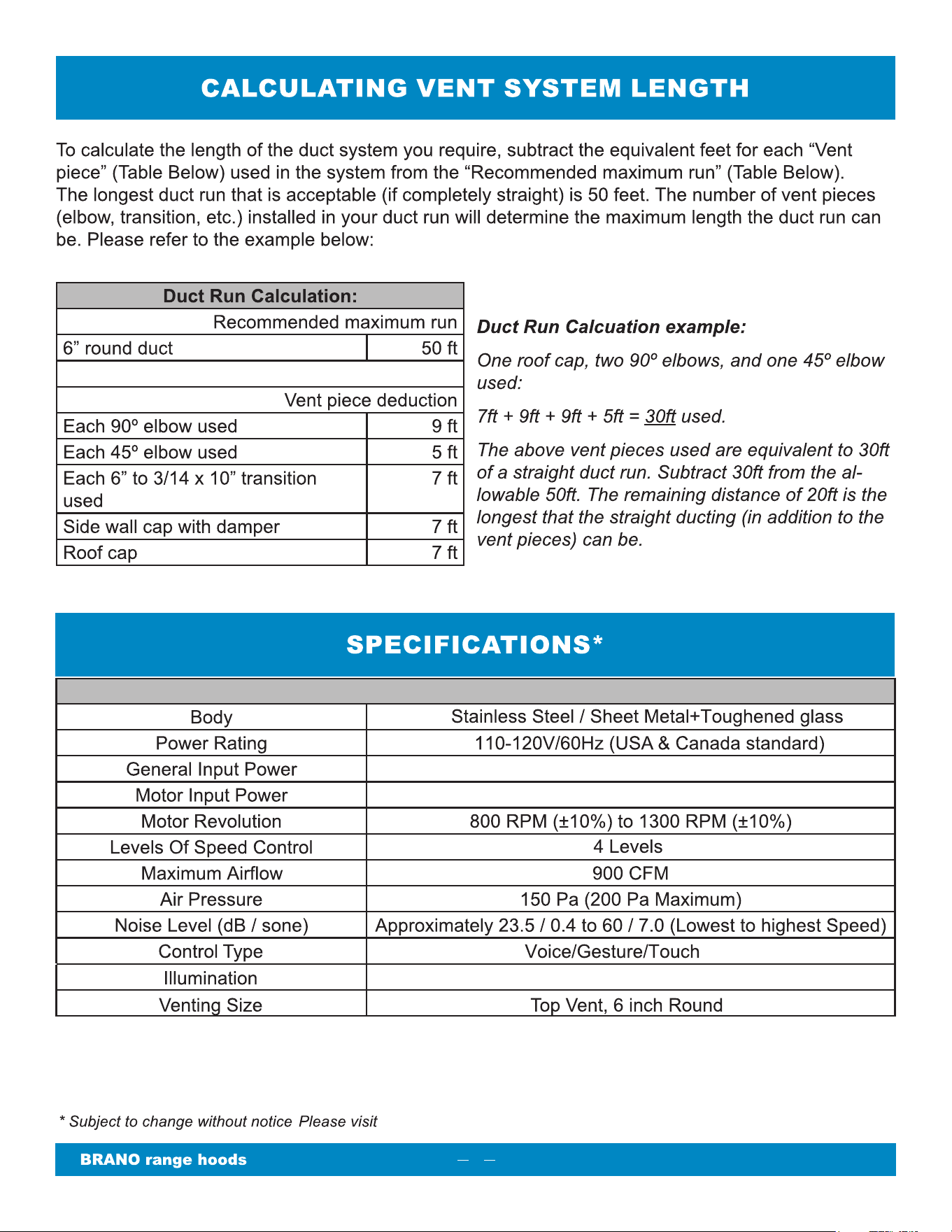

Calculating Vent System Length......................................................... 8
Specifications......................................................................................... 8

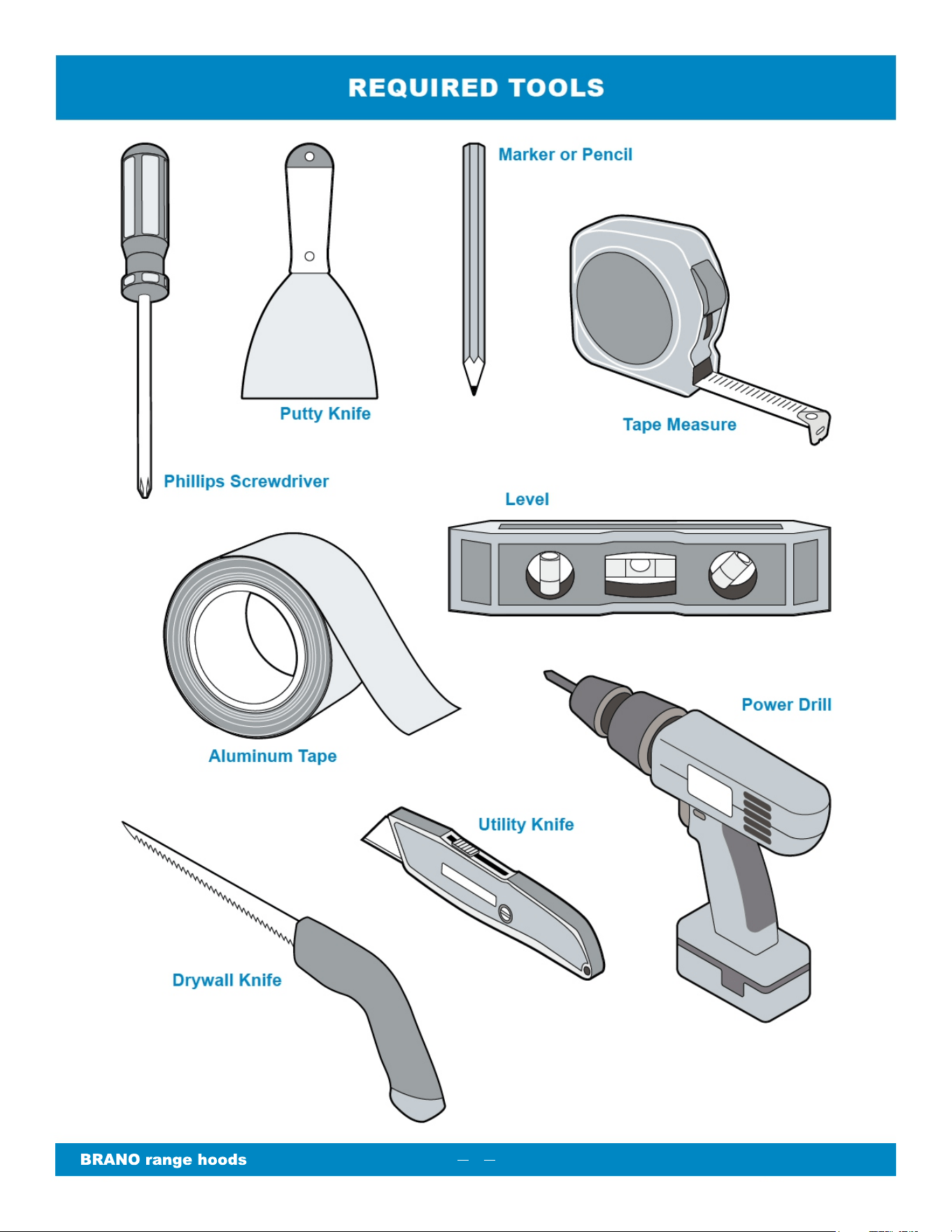

Required Tools........................................................................................ 9

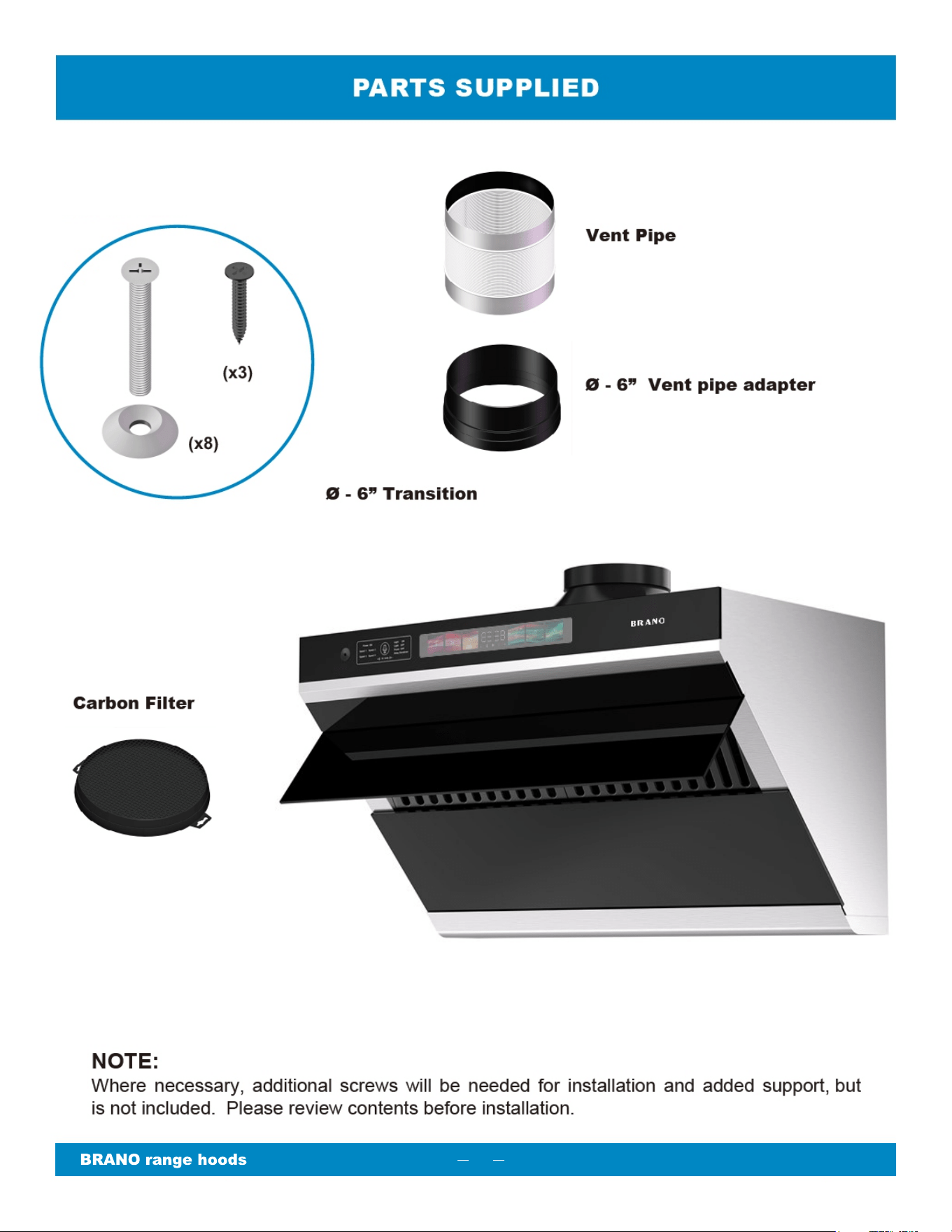

Parts Supplied........................................................................................ 10
Hole Dimension Drawing...................................................................... 12
Product Dimensions.............................................................................. 13

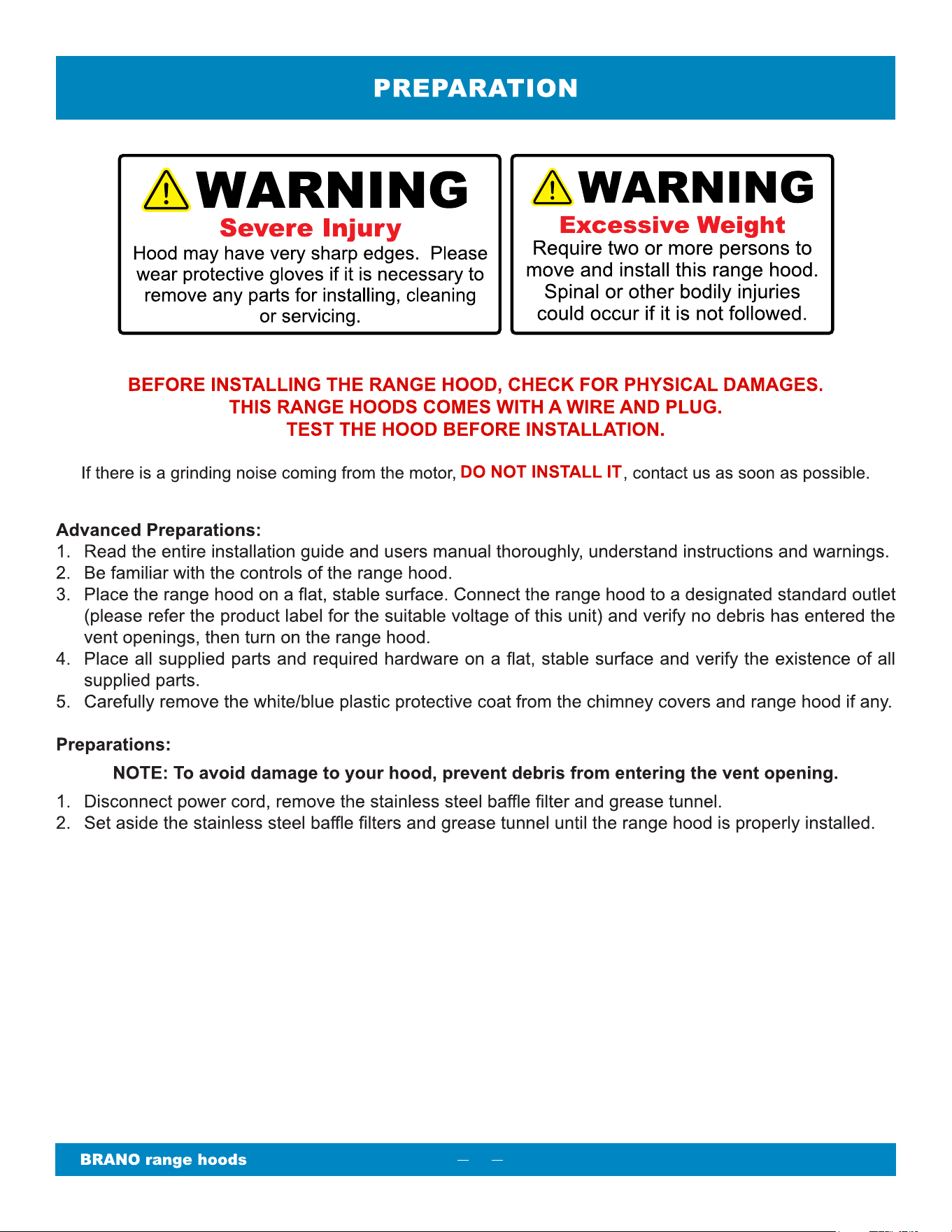

Preparation.............................................................................................. 14

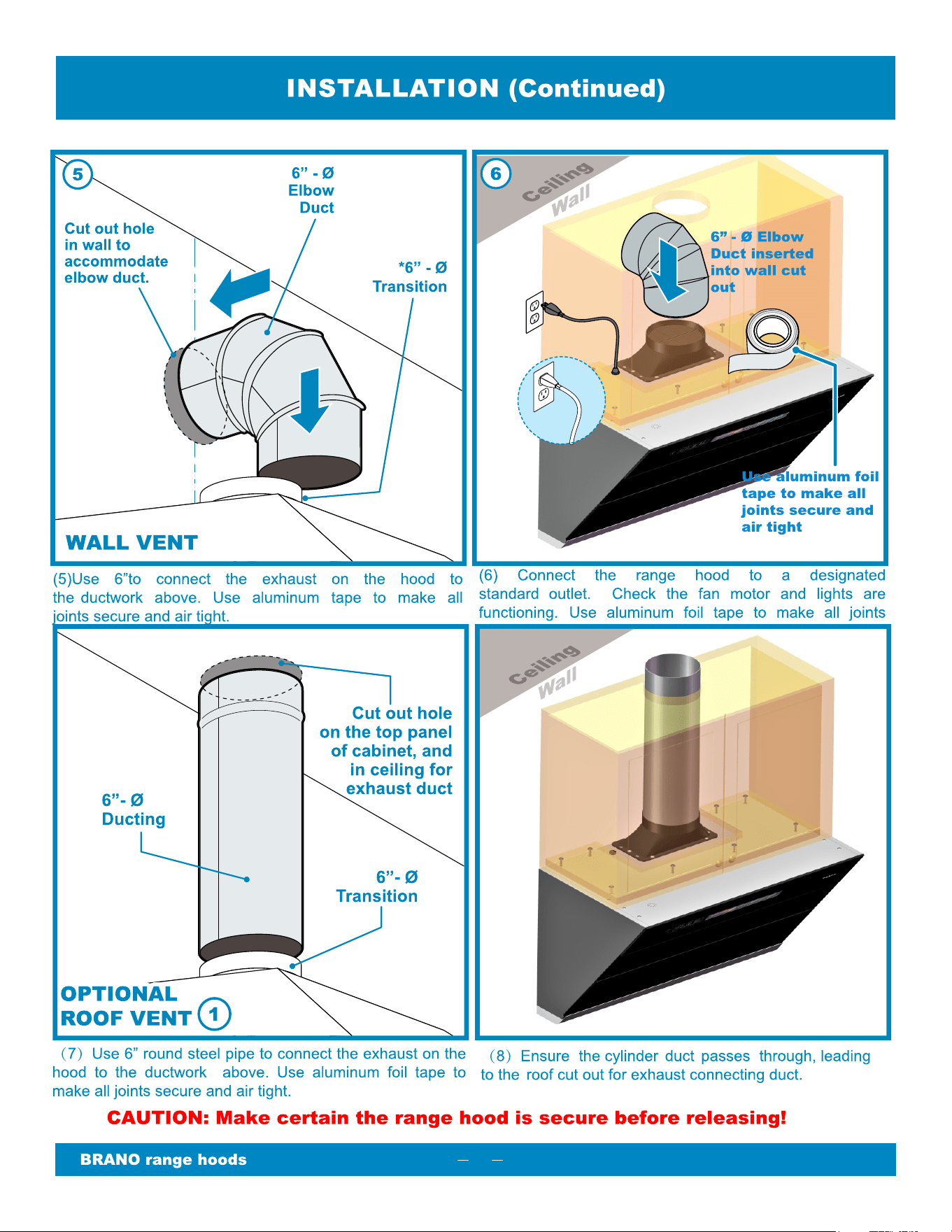

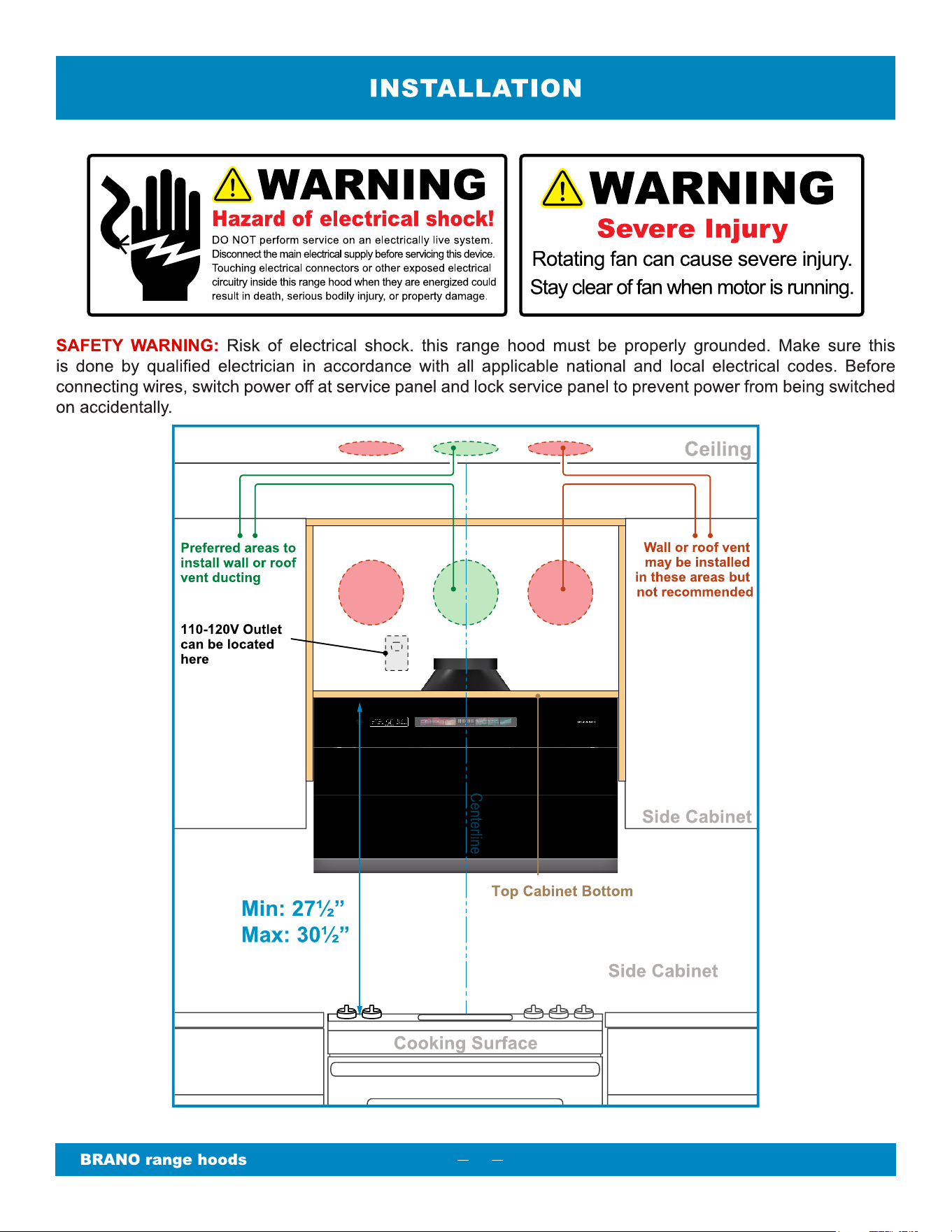

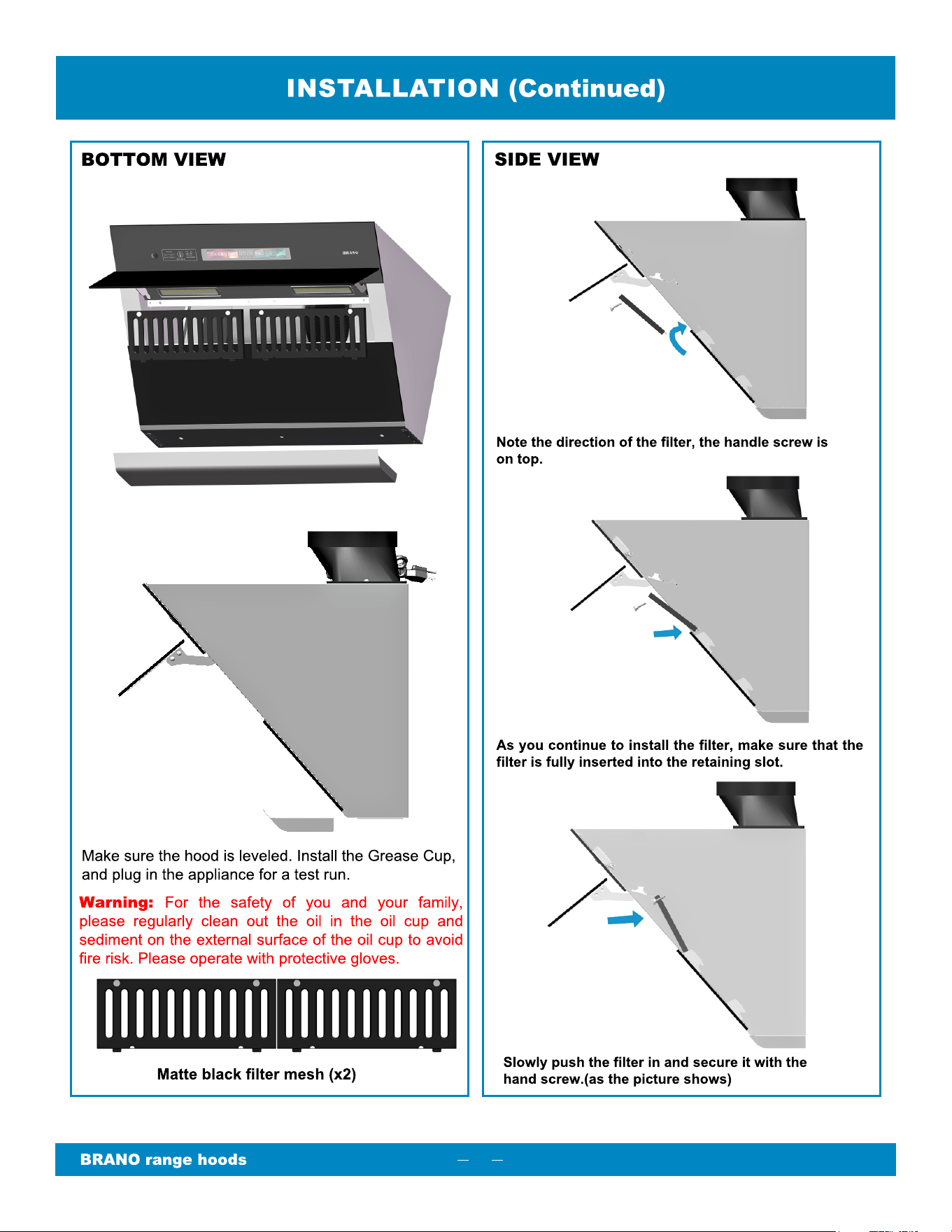

Installation............................................................................................... 15
Install a circulating charcoal filter....................................................... 20

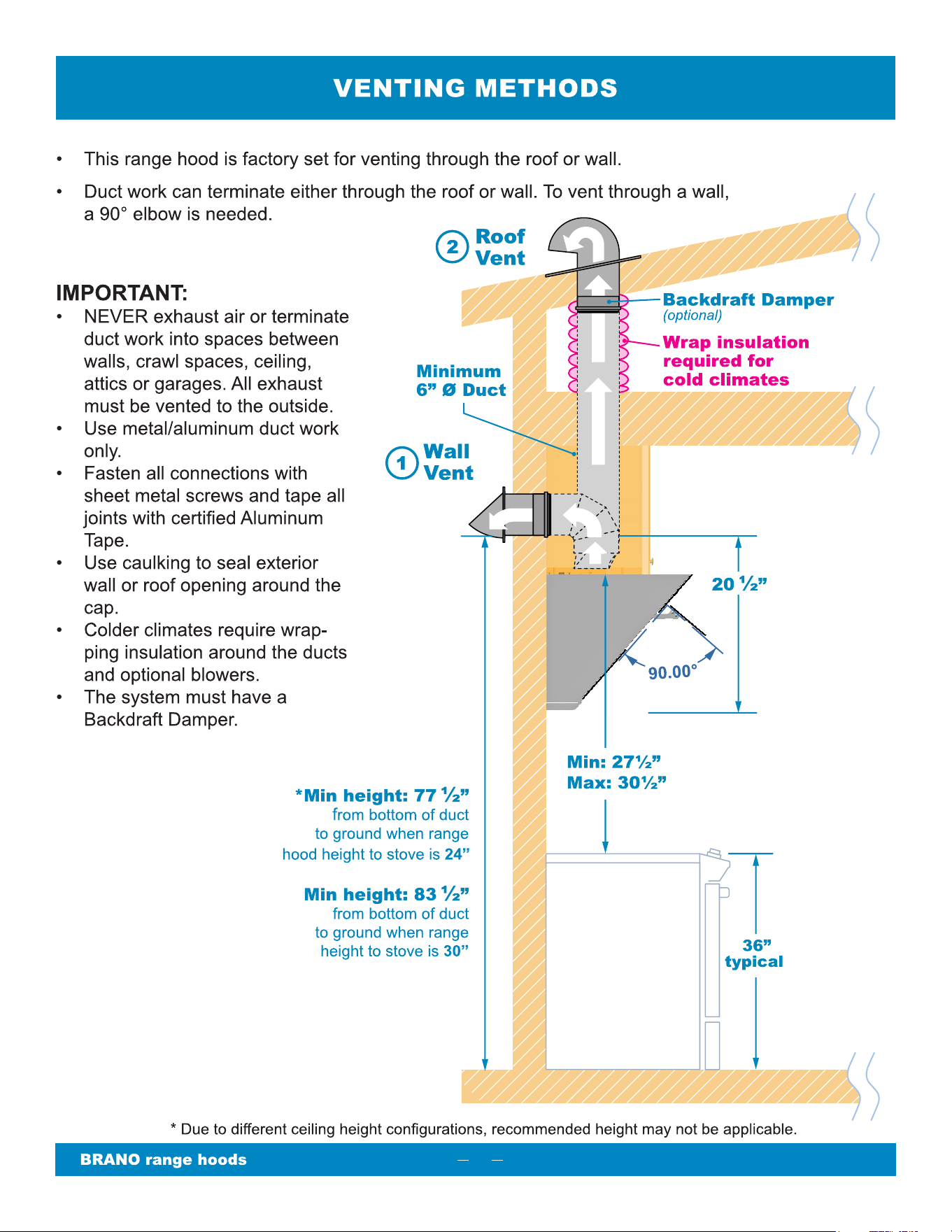

Venting Methods.................................................................................... 21

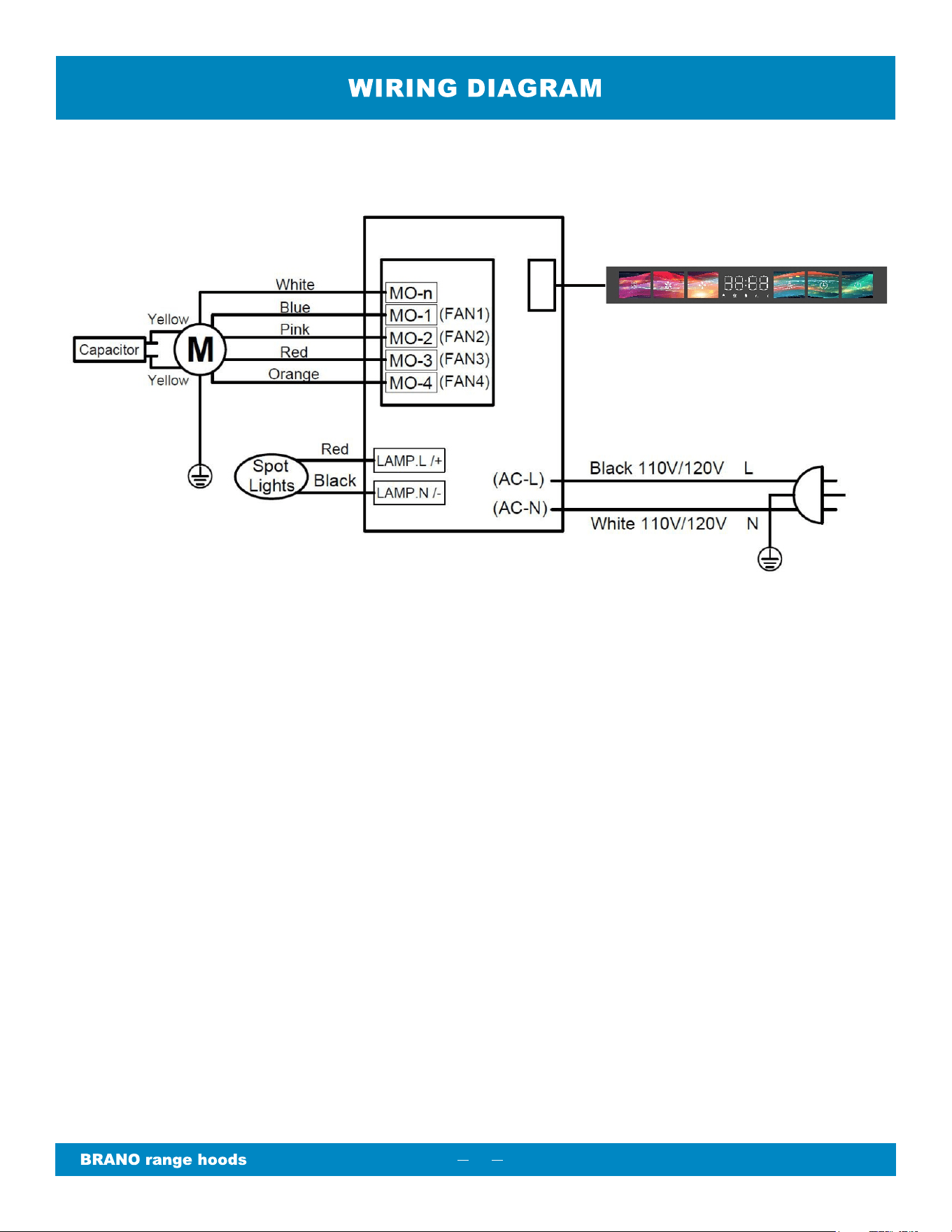

Wiring Diagram....................................................................................... 22

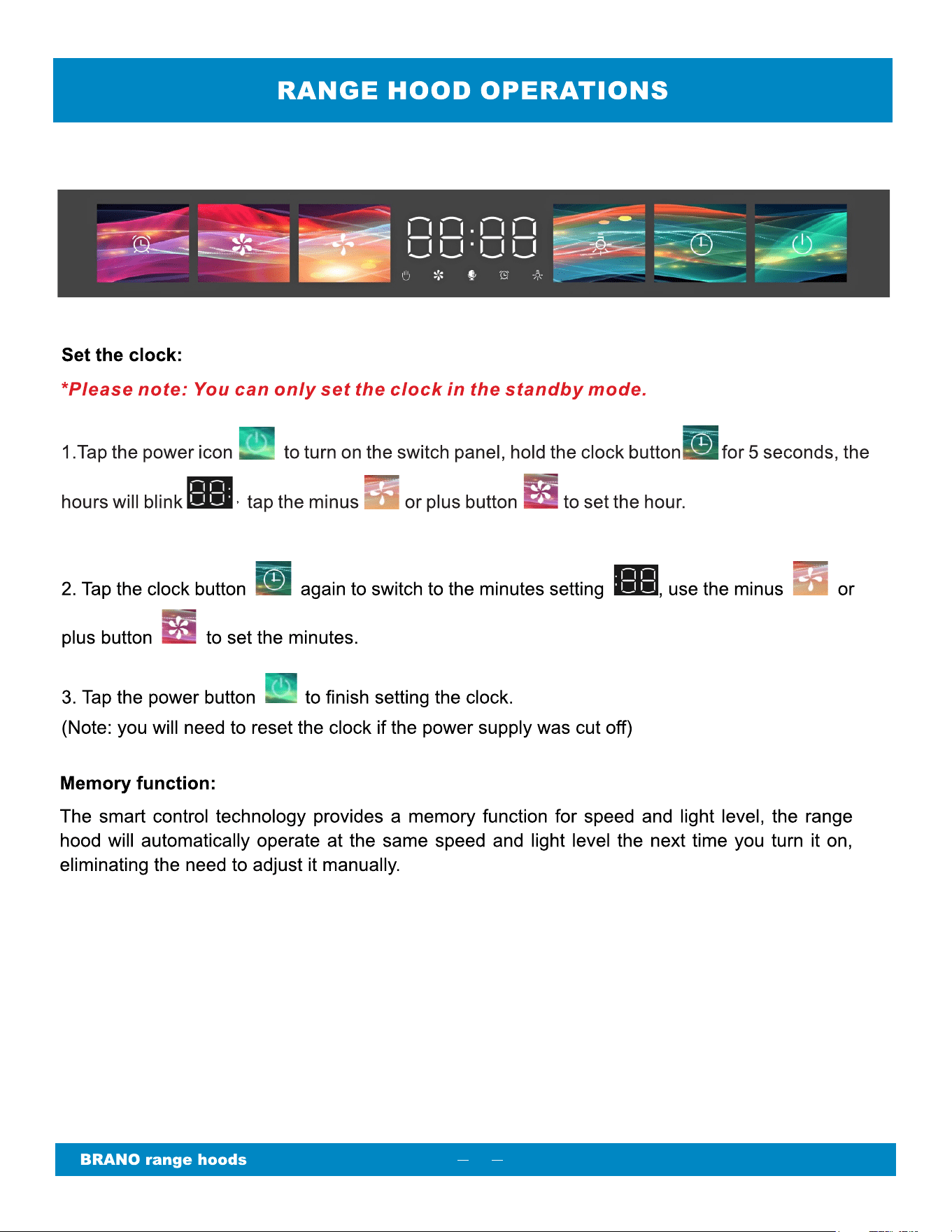

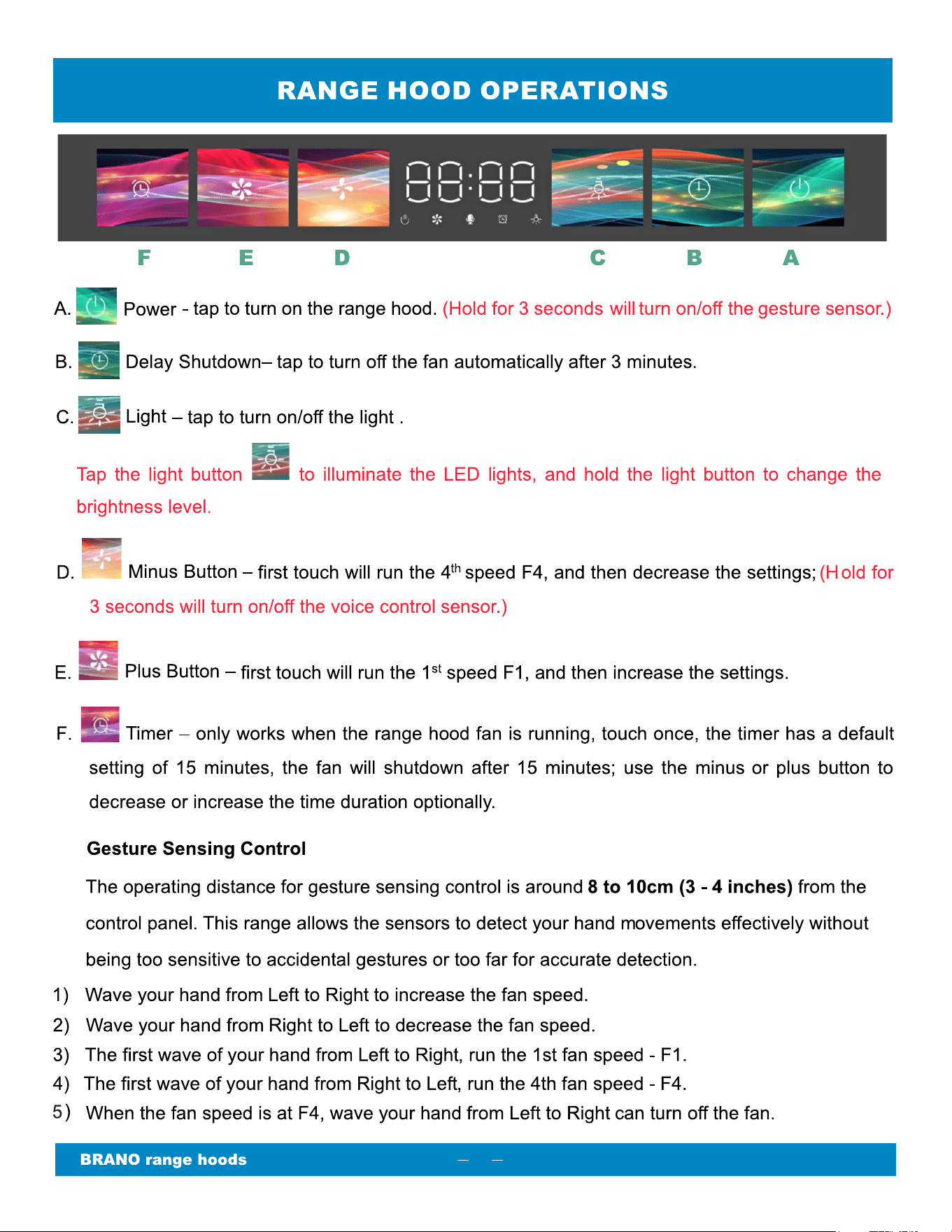

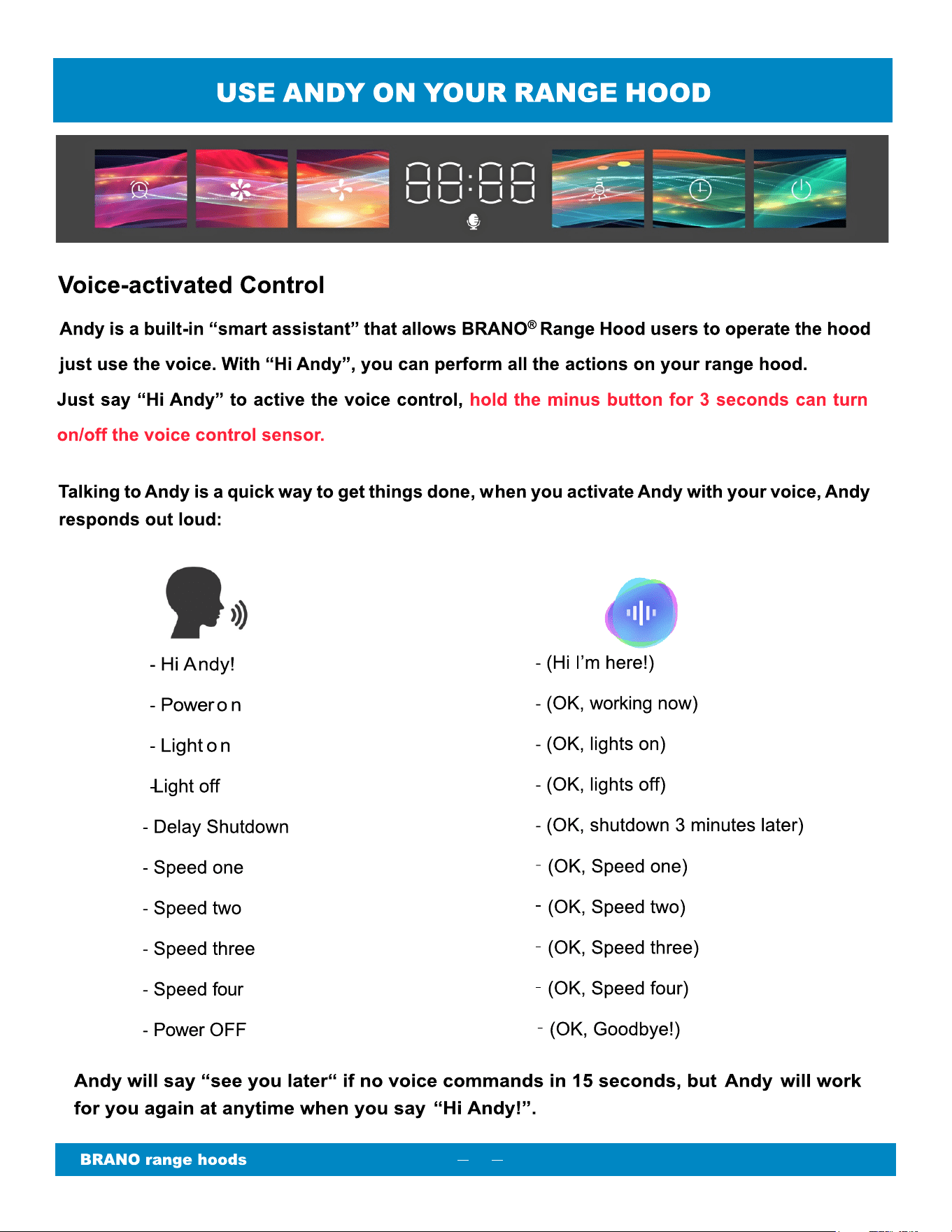

Range Hood Operations....................................................................... 23

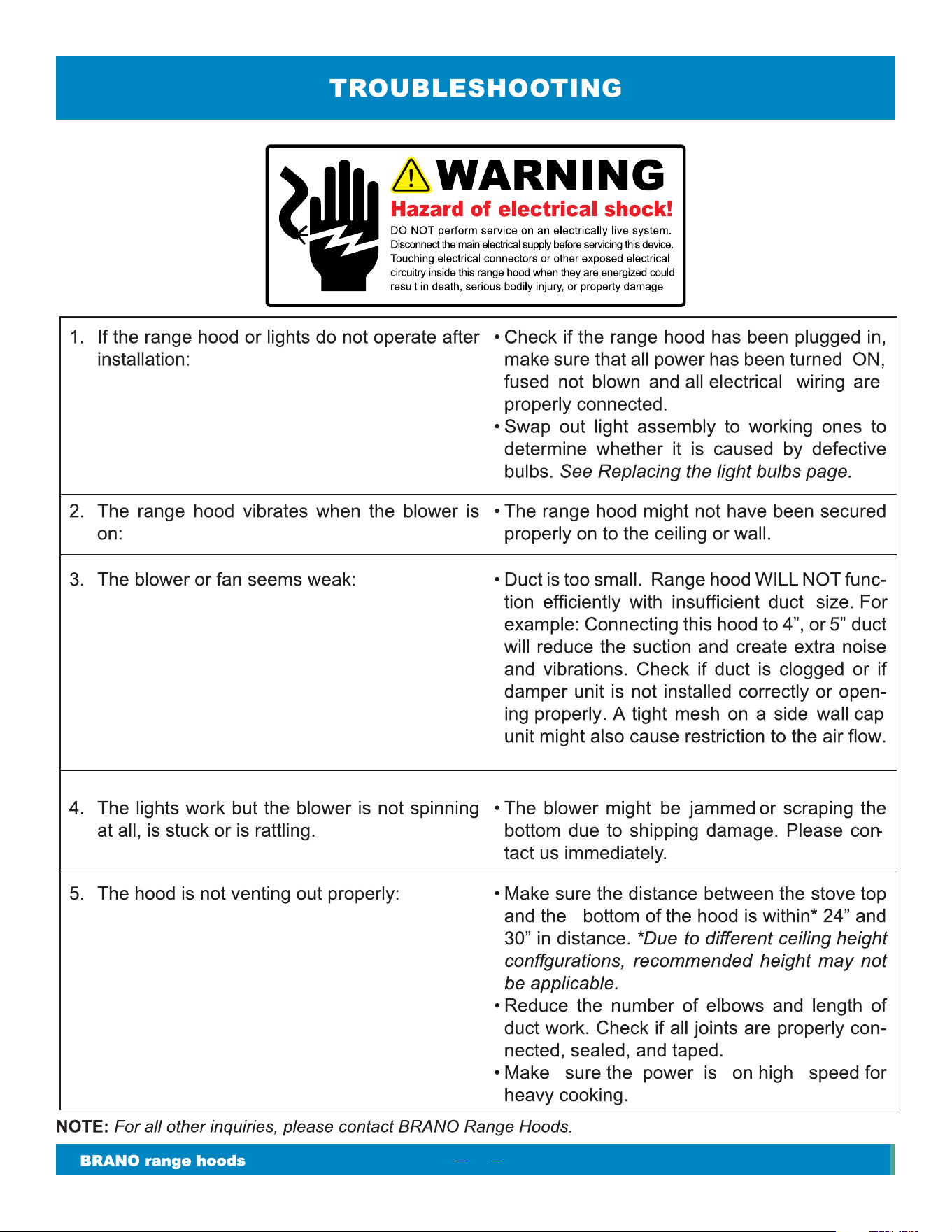

Troubleshooting..................................................................................... 26

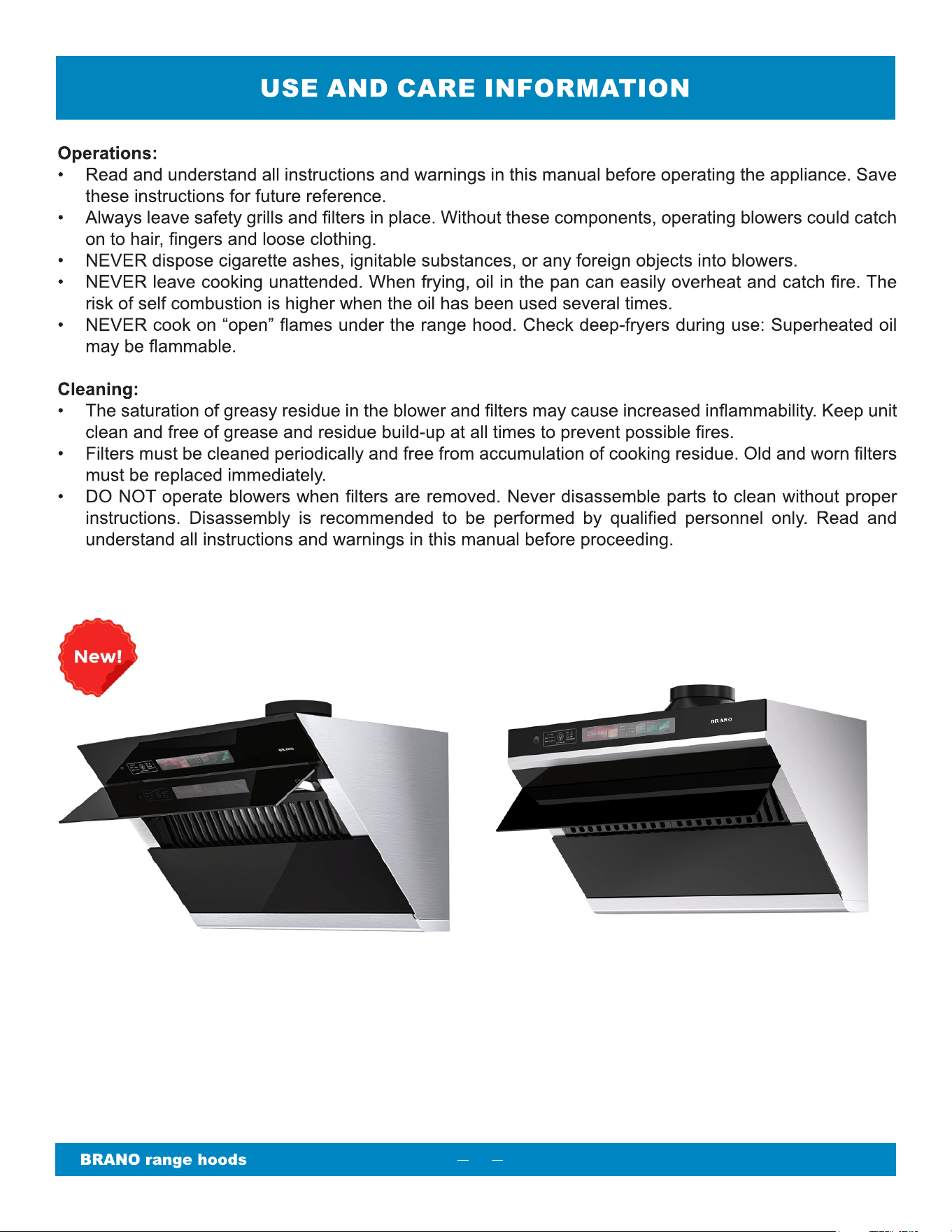

Use and Care Information..................................................................... 27

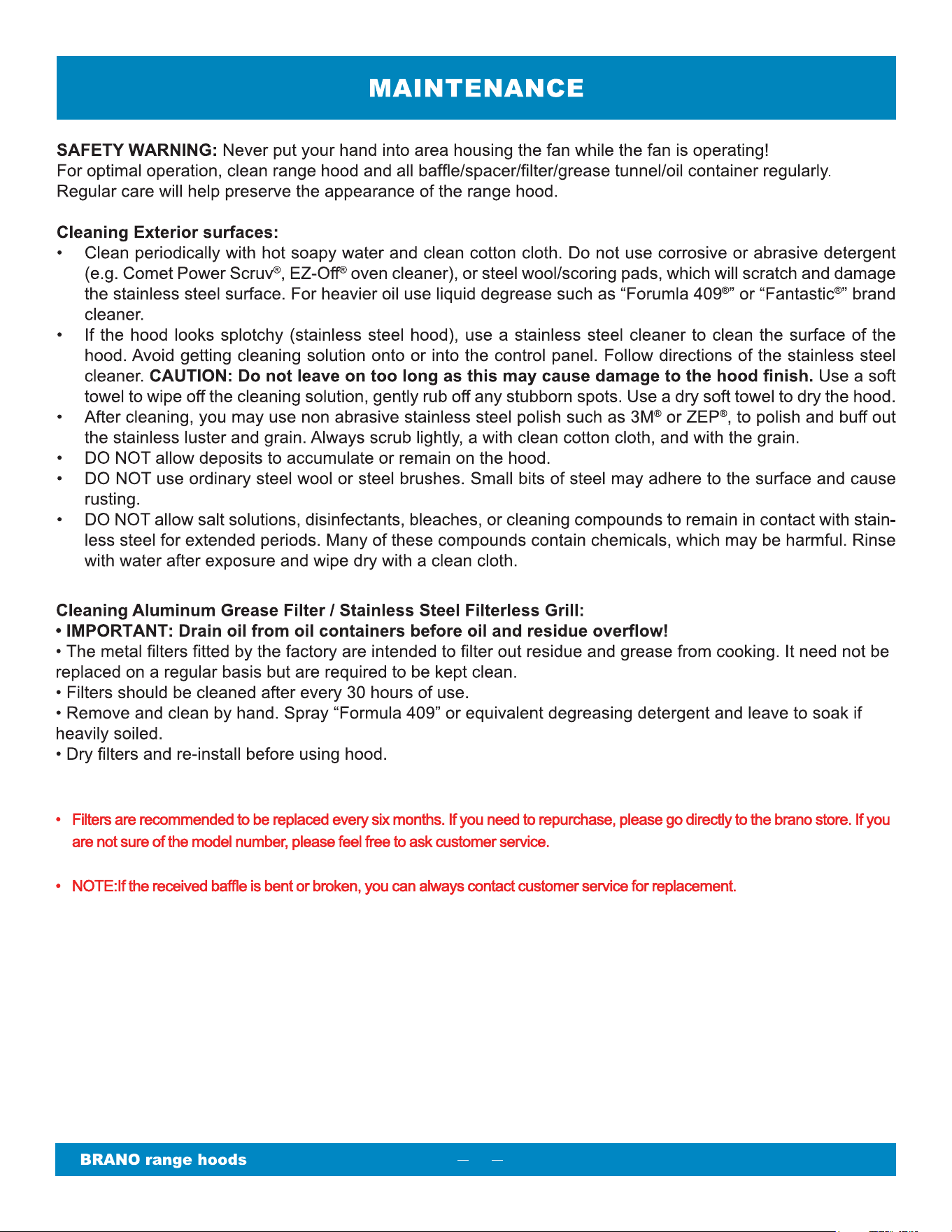

Maintenance............................................................................................ 28
Bulb Replacement.................................................................................. 29

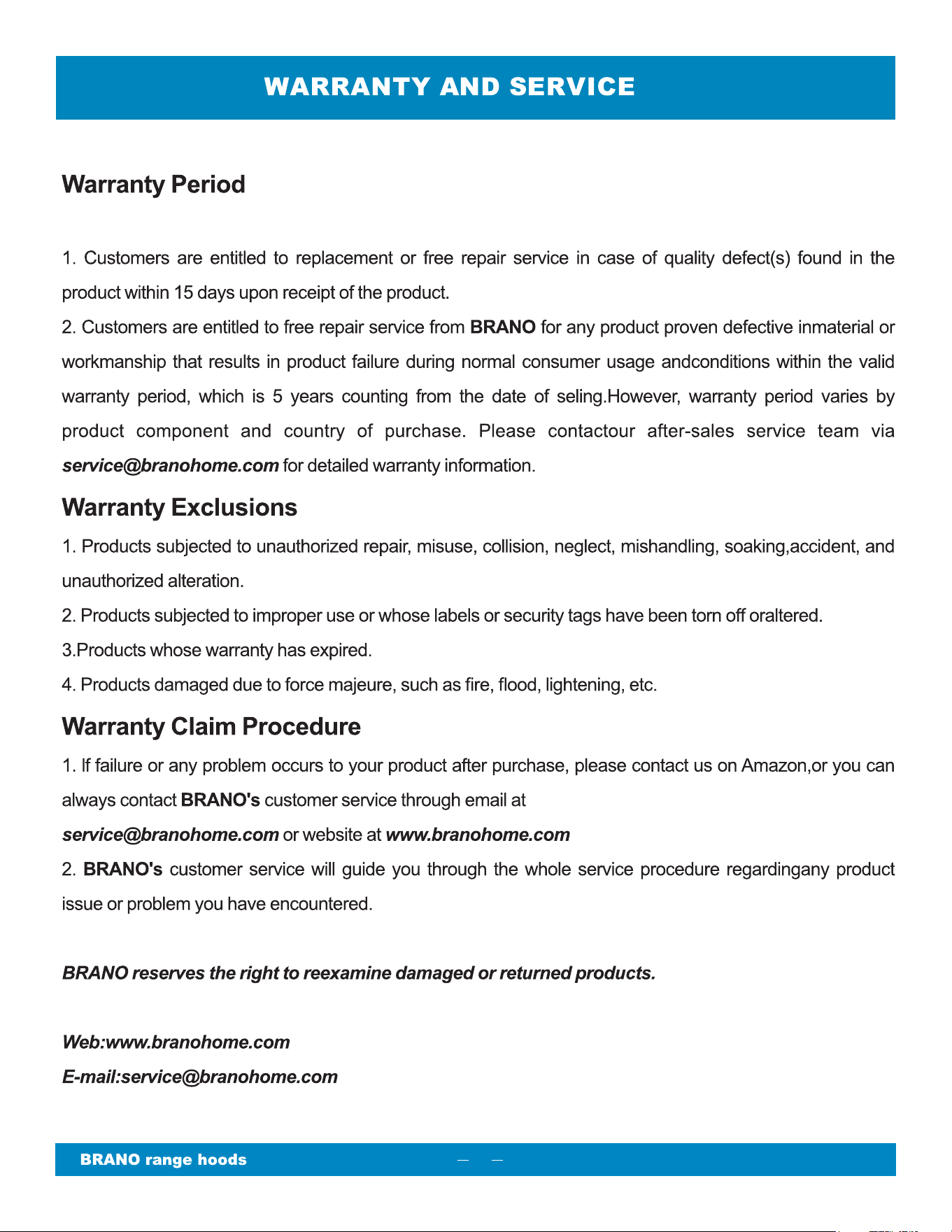

Warranty and Service............................................................................. 30
background
4
Read all instructions before installing and operating this appliance
background
5
Read all instructions before installing and operating this appliance
background
6
background
7

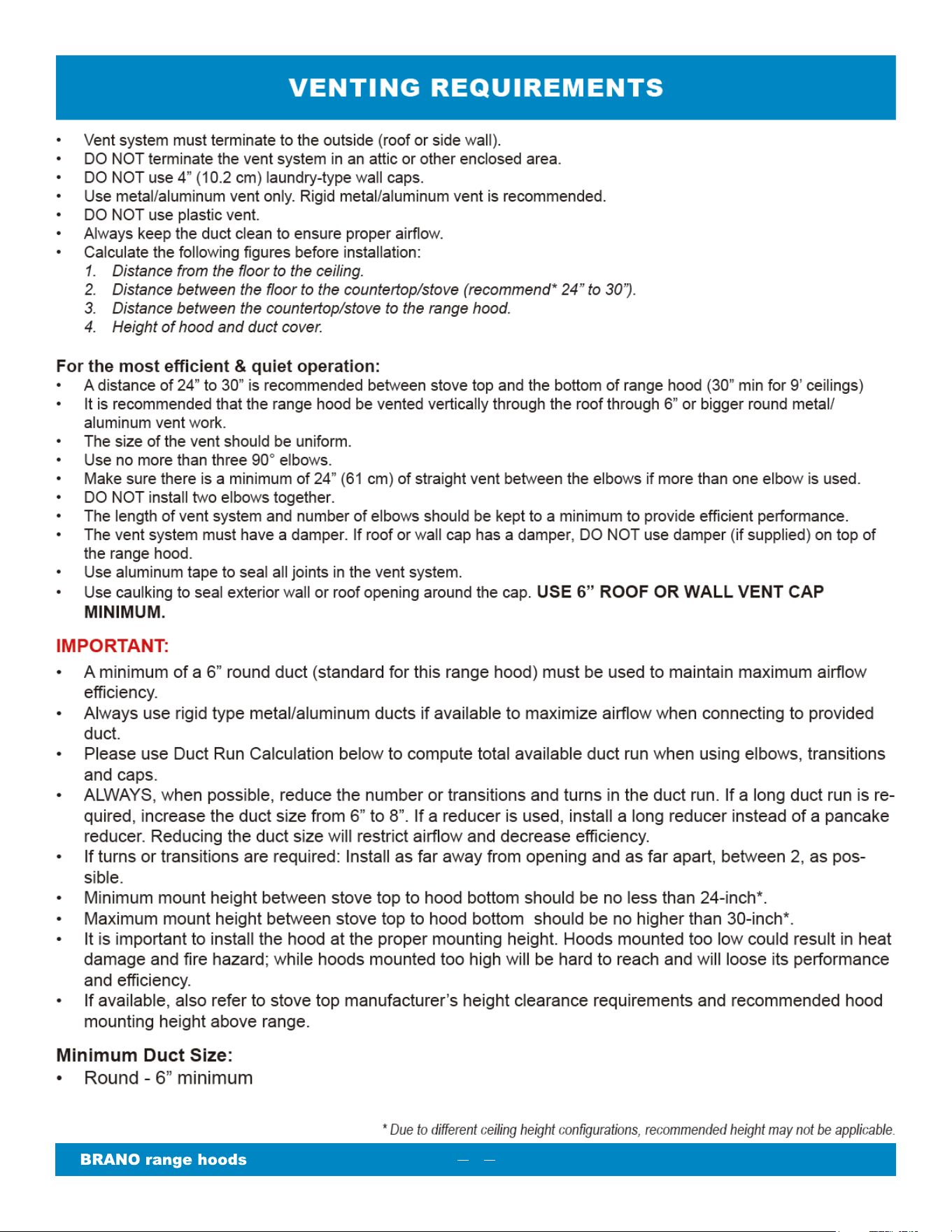

background
236W+# of Light x Votage of Light
230W
8
LED 3W 12V
8
www.branohome.com
background
9
background

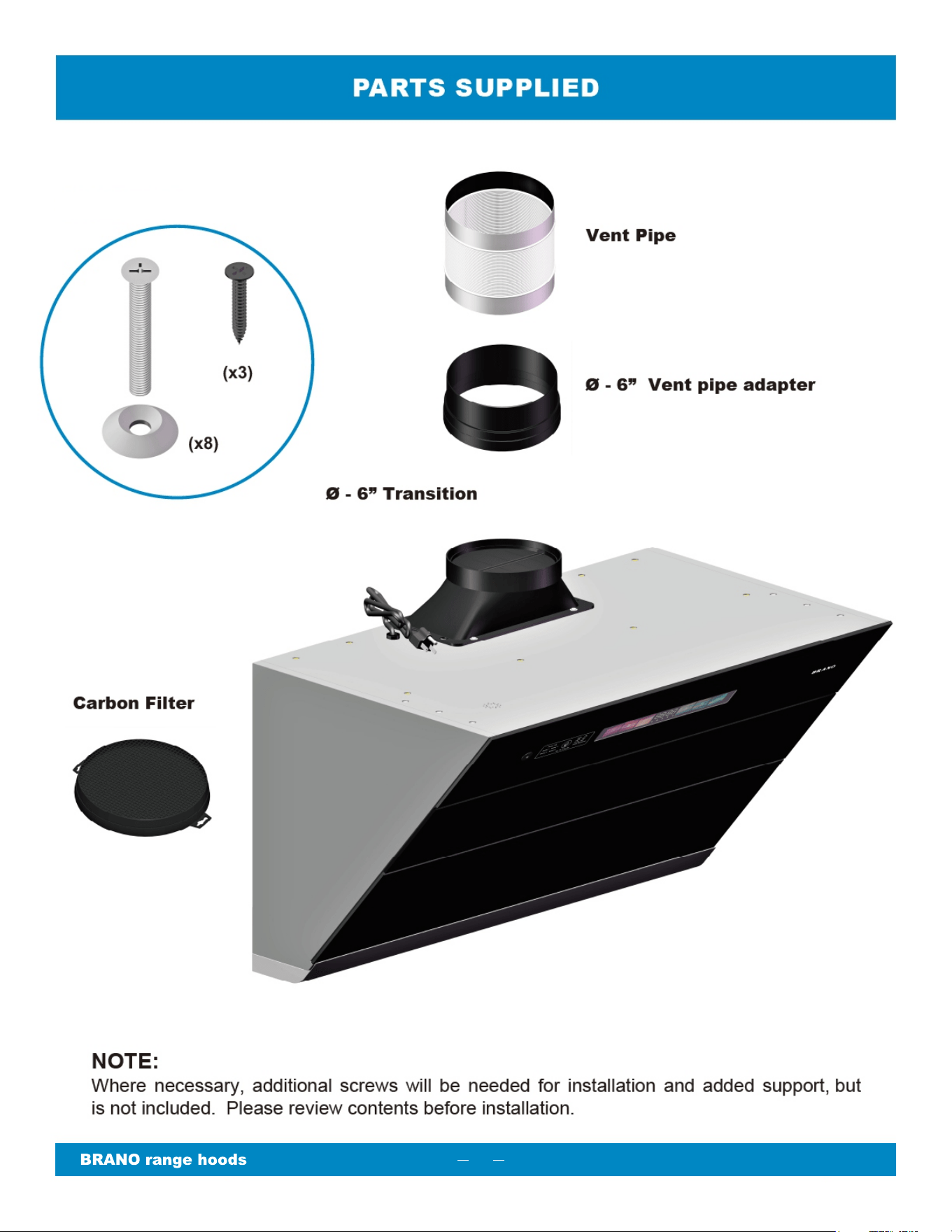

GXEA-T05-30"/36"
10
background
GXEA-T06-30"/36"
11
background
Back Wall
Drilling template
GXEA-T05-30"/GXEA-T06-30"：
Drilling template
Back Wall
GXEA-T05-36"/GXEA-T06-36"：

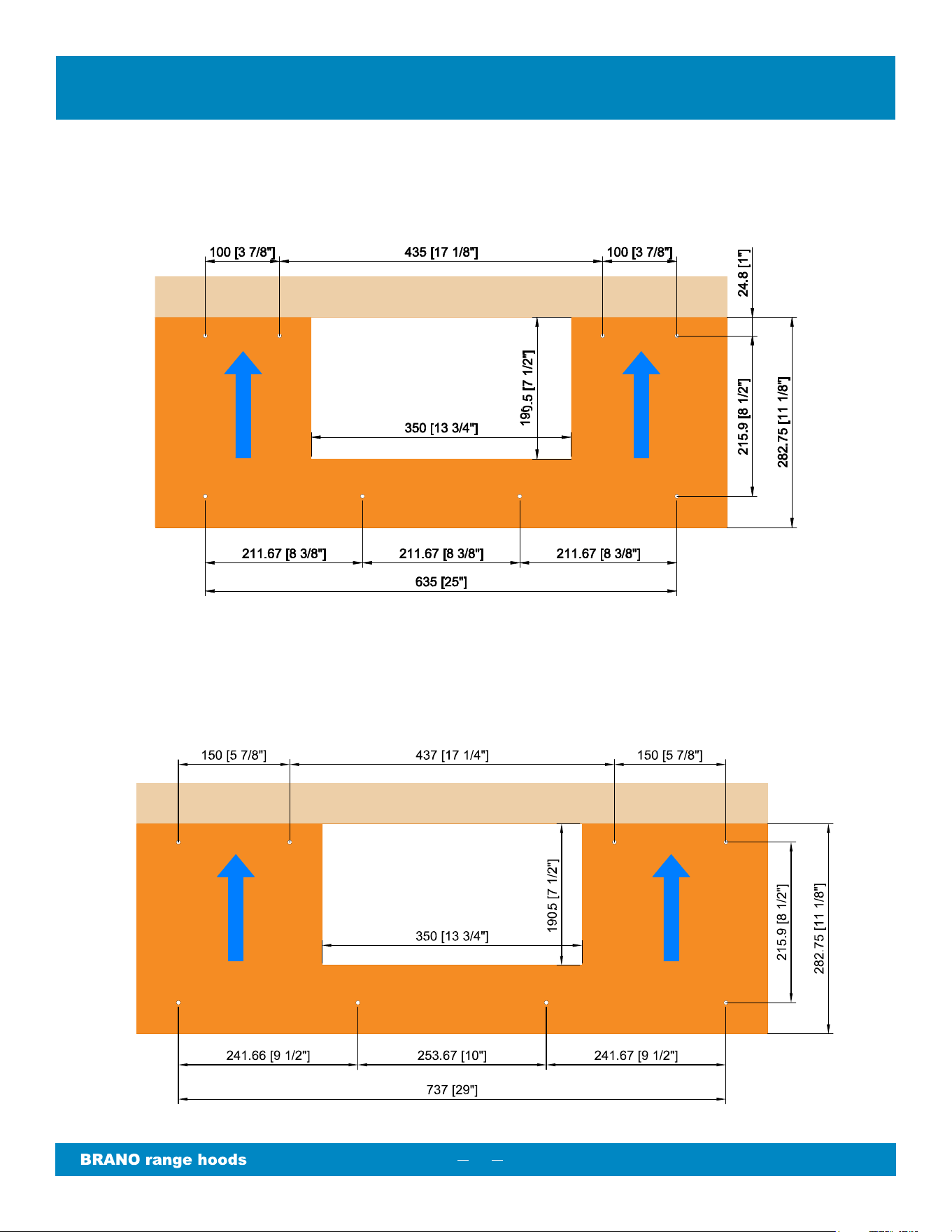

HOLE DIMENSION DRAWING
12
background

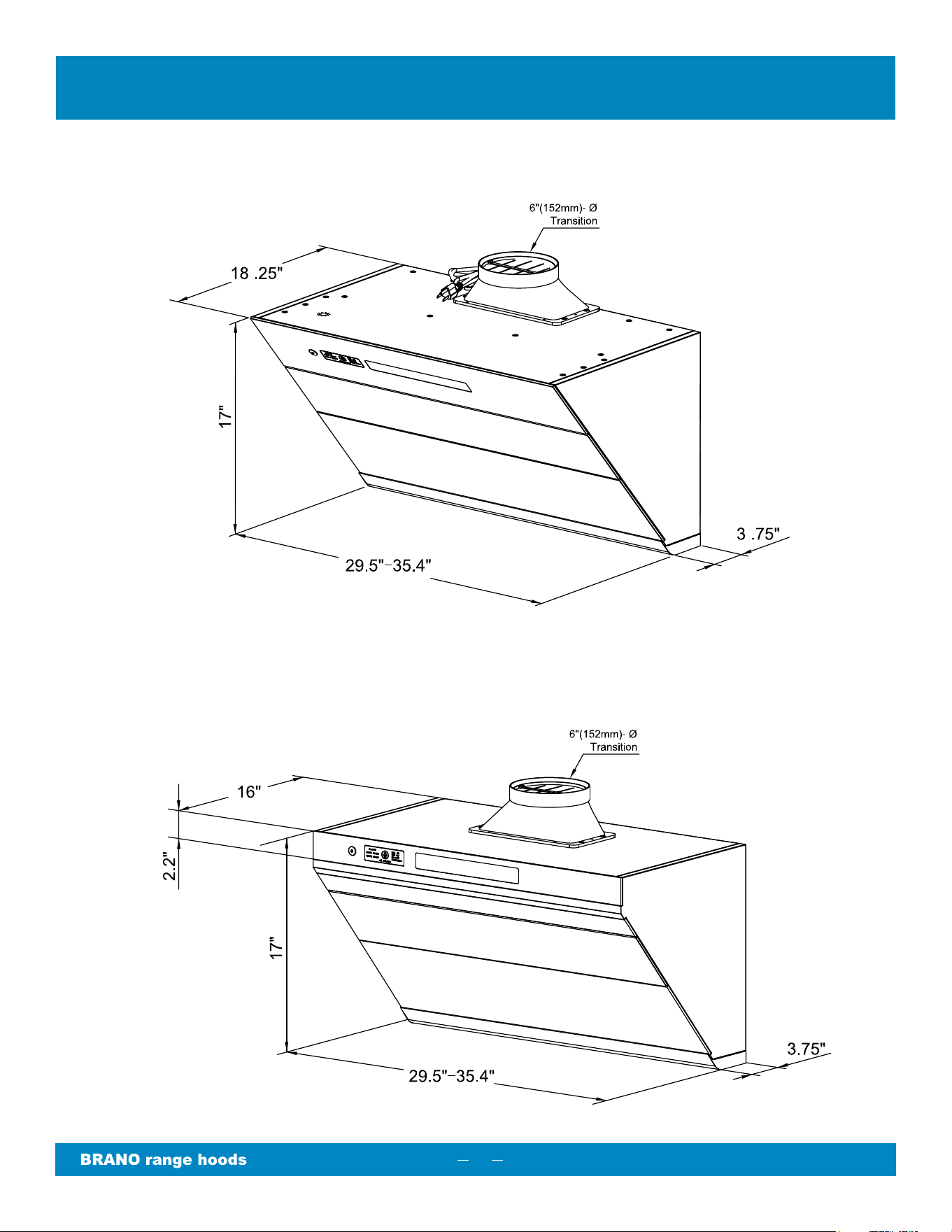

PRODUCT DIMENSIONS
GXEA-T05-30"/36":
GXEA-T06-30"/36":
13
background
14
background
15
background
16
background
17
background

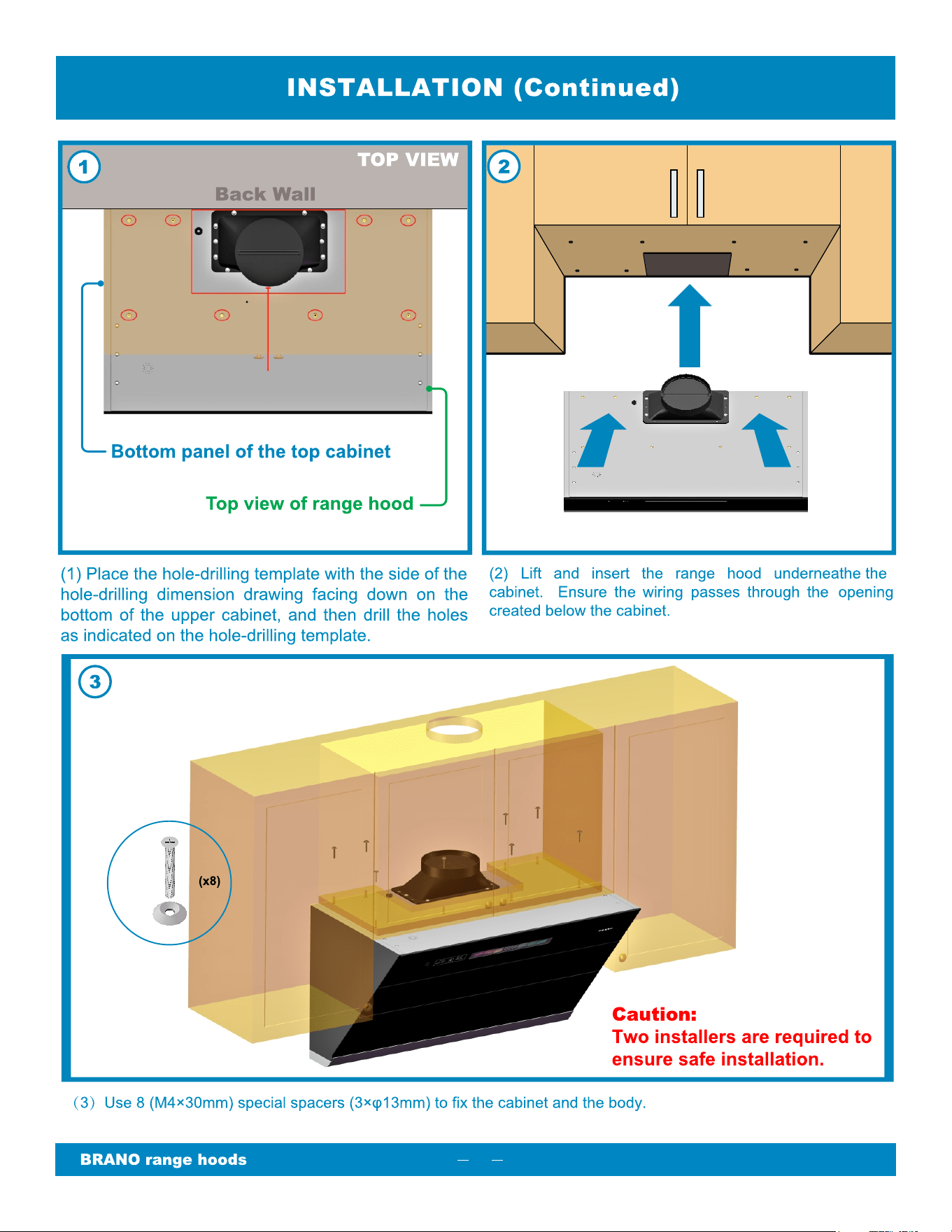

18
background
GXEA-T05/T06:

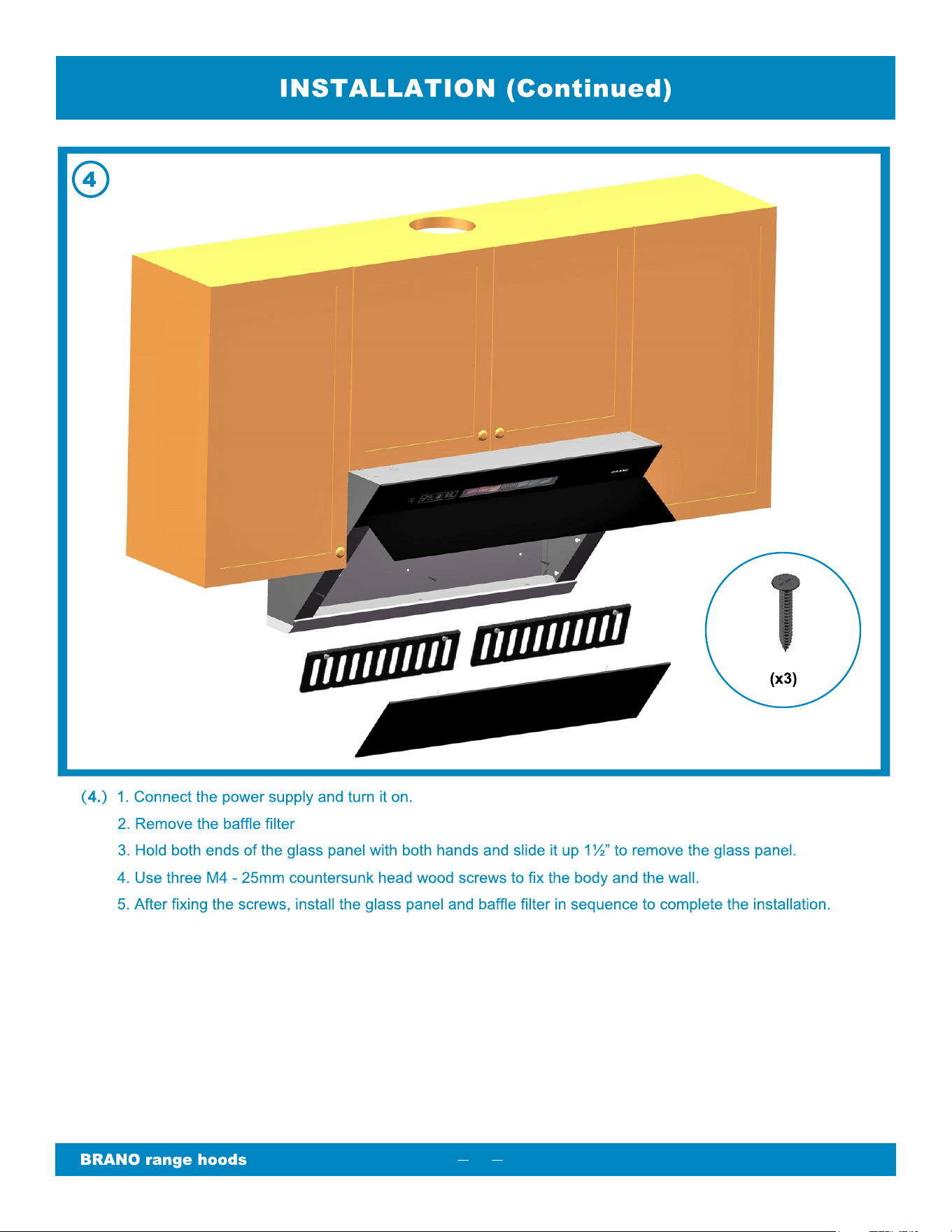

19
background
20

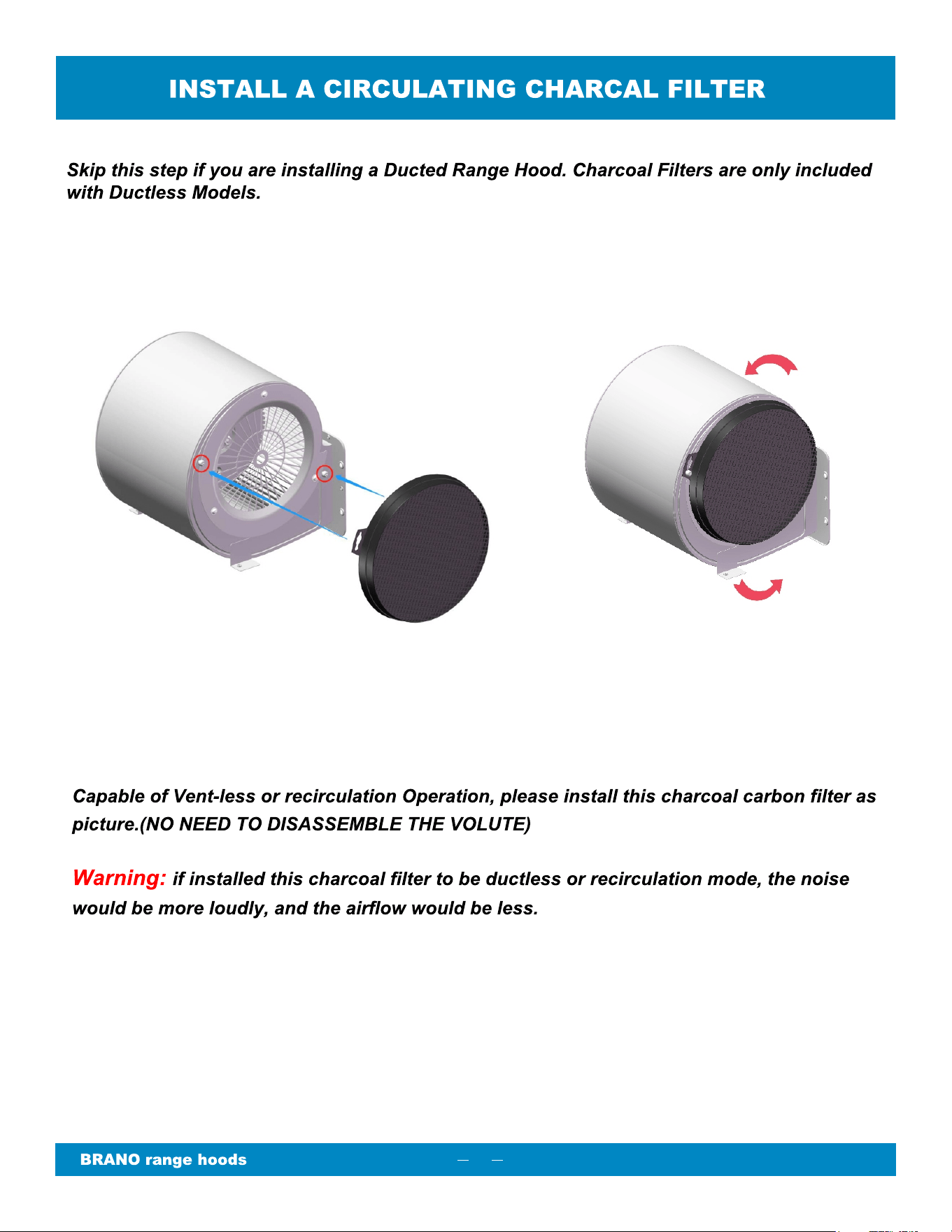

background
21
background
GXEA-T05/06：
22
background
32
23
background
33
24
background
34
25
background
26
background
ModelName:GXEA-T06-30"/36"
ModelName:GXEA-T05-30"/36"
27
background
28
background

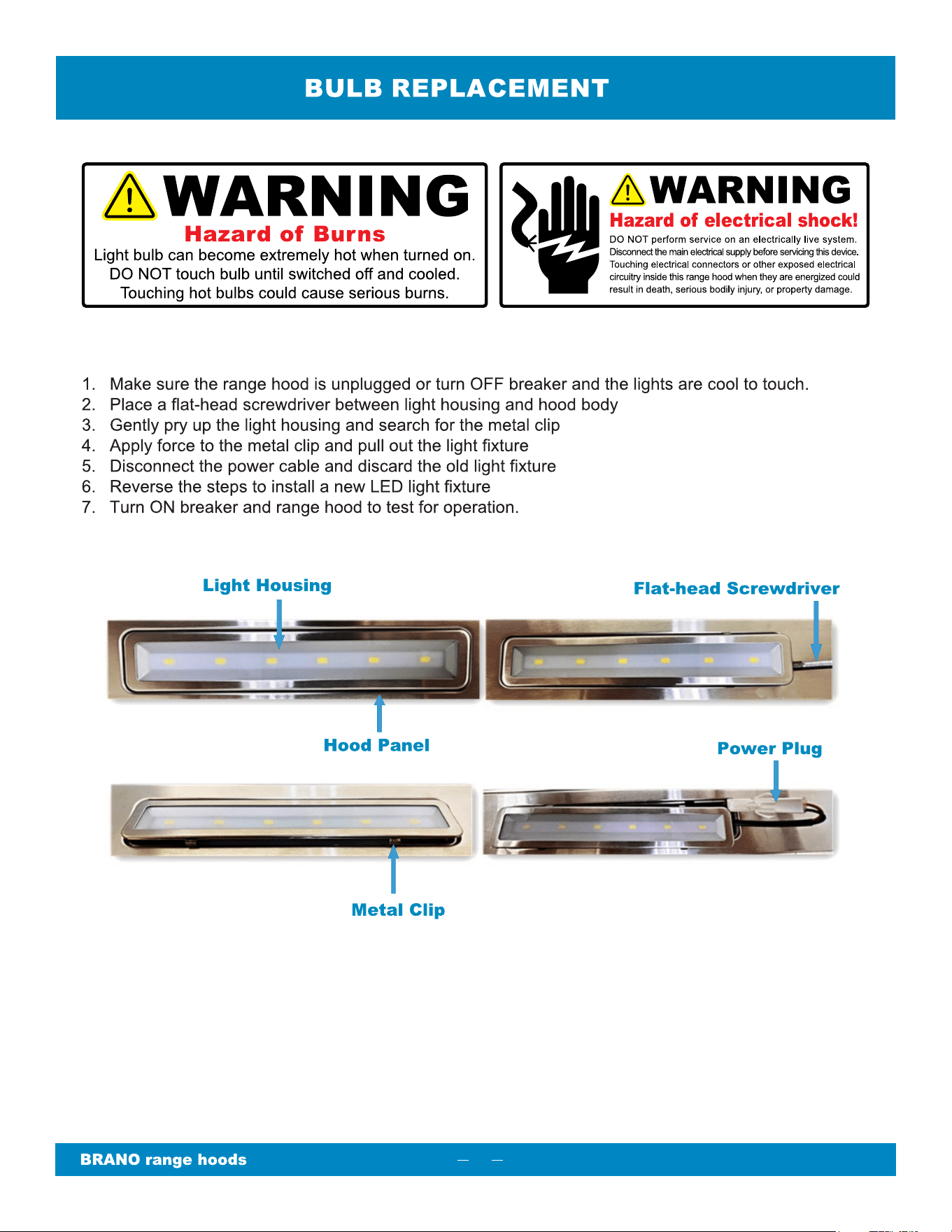

Replacing LED 3W 12V Light Fixture:
29
background
30
background
Dispose of this product properly:
To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please recycle this product responsibly to promote sustainable
reuse of material resources.

Specifications

Indexed Terms: Under Cabinet Range Hood

BRANO GXEA-T05-30-HYF Questions and Answers
