ULOP Smart Electric Baby Swing – User Manual (IB808)
Manufacturer Information
Manufacturer: TJ (fujian) Industrial Co., Ltd
Address: No. 518, Yintai Road, Xingtai Development Zone, Changtai County, Zhangzhou City,
Fujian Province
Customer Service: 18060996861 (09:00–20:00)
Please read this manual carefully before using the product and keep it for future
reference.This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe w
ay and understand the hazards involved children shall not play with the appliance
cleaning and user maintenance shall not be made by children without supervision
the appliance is only to be used with the unit provided
Caution: The user is cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.

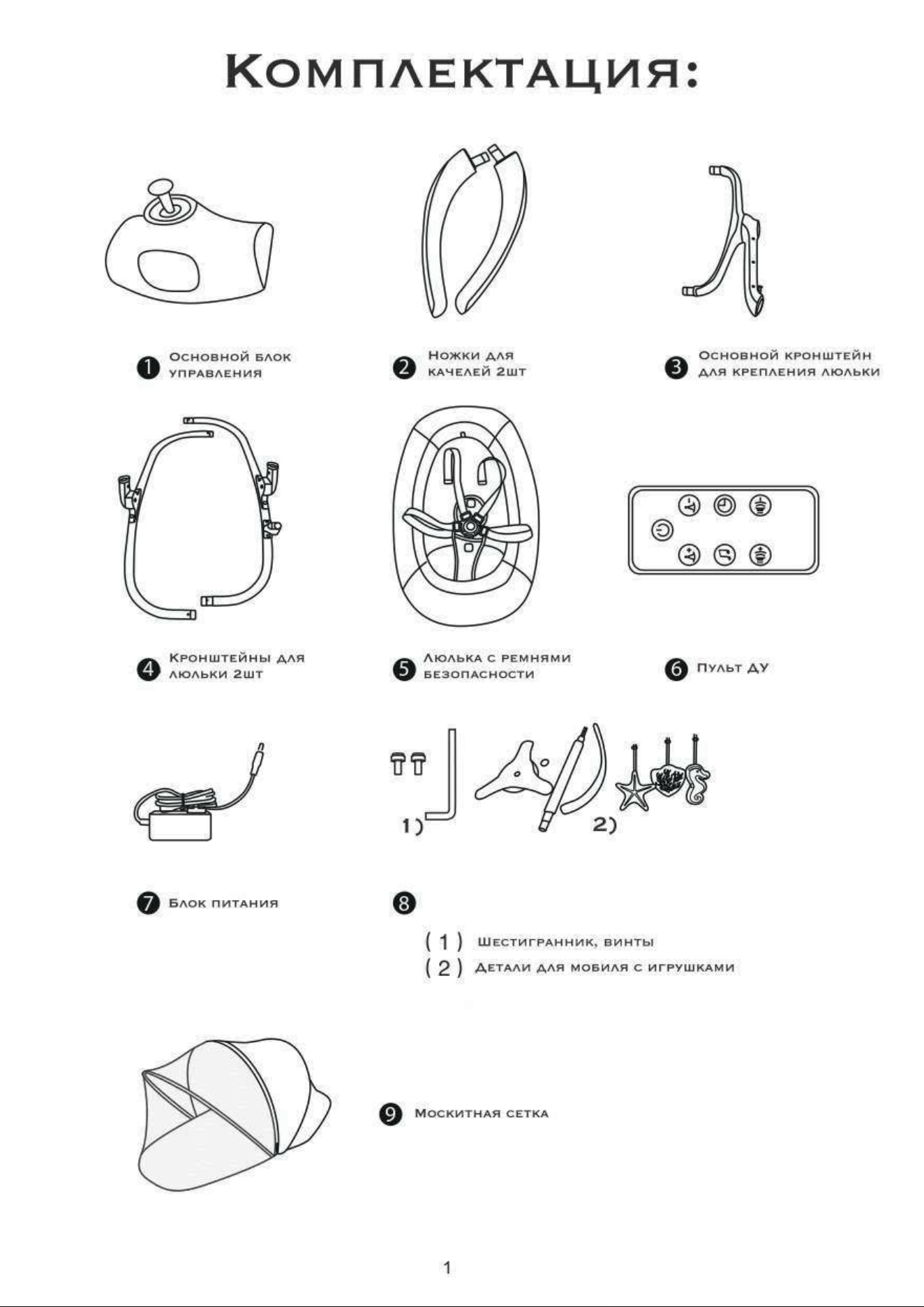

Packing List
1. Base unit
2. Base legs
3. Swing main frame
4. Cradle assembly
5. Fabric seat
6. Remote control
7. Power adapter
8. Accessories:
- Screwdriver, screws
- Toy arm, toy hanger, toy axle & plush toys (3 pieces)
Product Assembly Instructions

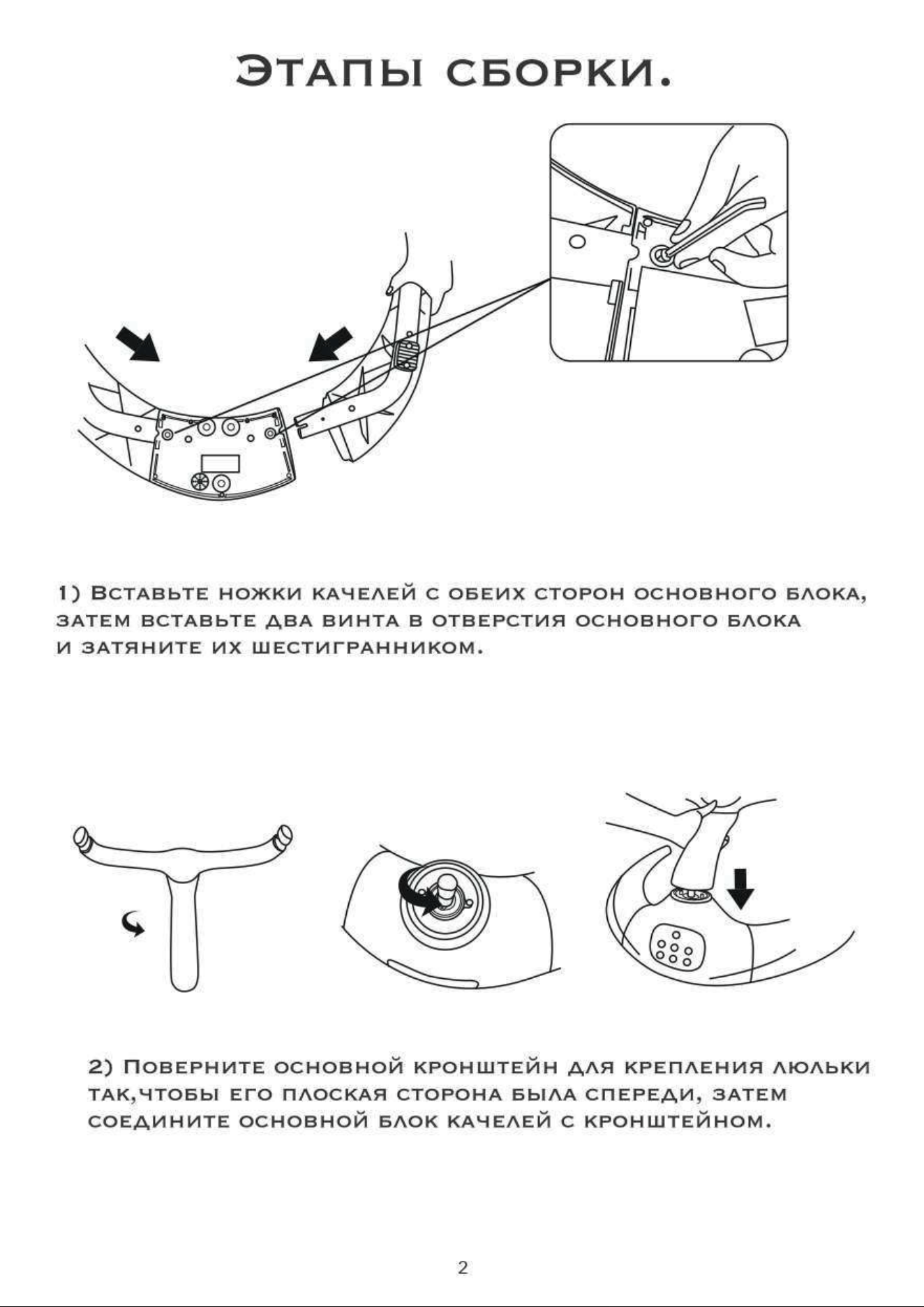

Step 1 – Install Base Legs
Insert the base legs into both sides of the base unit. Insert 2 screws and tighten with the
screwdriver.
Step 2 – Install Main Frame
Rotate the swing main frame 90°. Ensure the flat side of the spindle faces forward. Attach
the frame to the base unit.

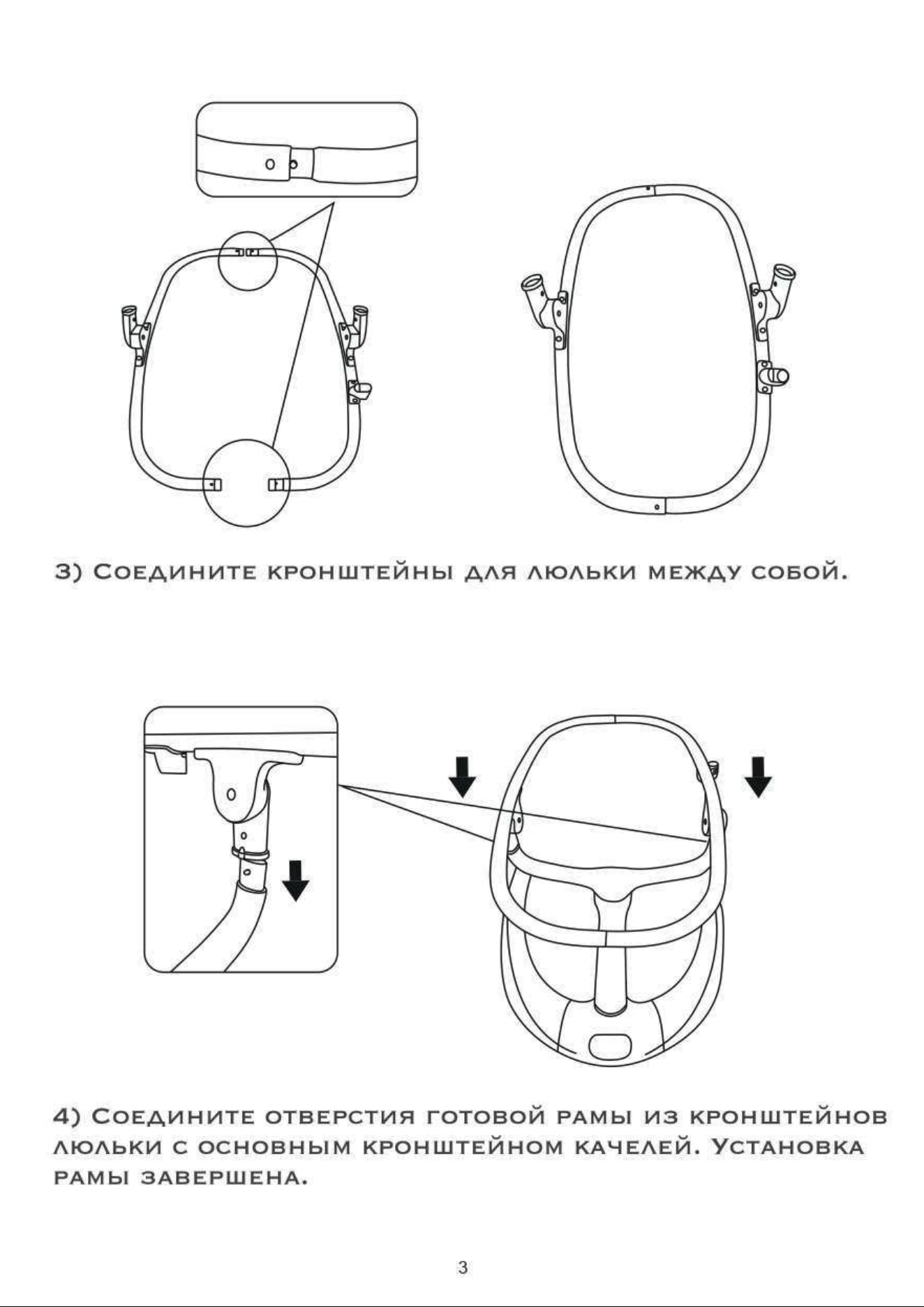

Step 3 – Install Cradle Components
Align and press the spring-ball connectors into place.

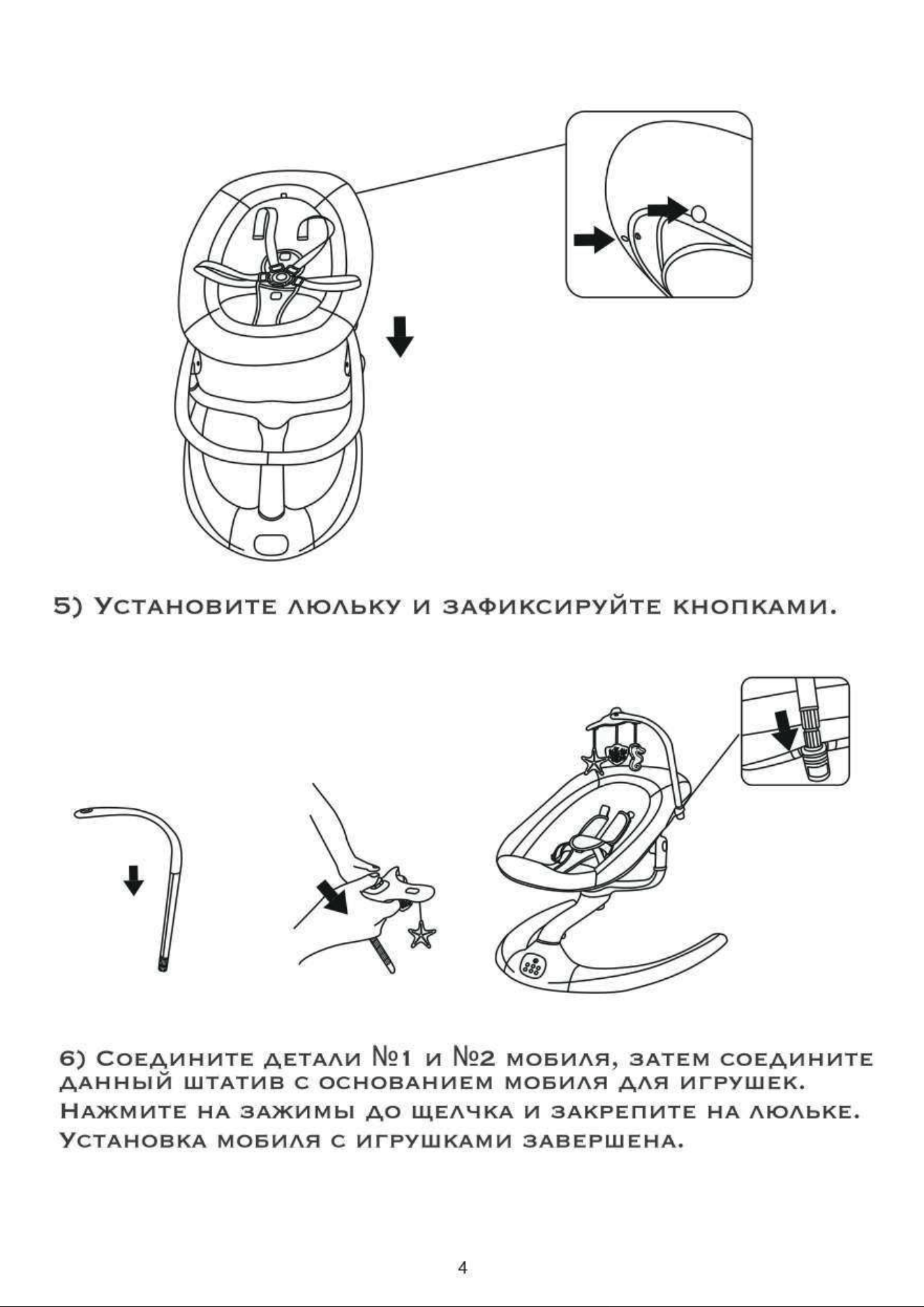

Step 4 – Attach Cradle Assembly
Align the plastic holes with the clips on the main frame and press down.
Step 5 – Install Fabric Seat
Place the fabric cover onto the cradle assembly and close all snap buttons.
Step 6 – Install Toy Arm
Assemble Toy Arm Parts 1 and 2, attach triangle holder, then insert into toy slot on the
fabric.
Operation Instructions
Power Supply:
Use only the supplied 12V DC / 2A or 2.5A power adapter.

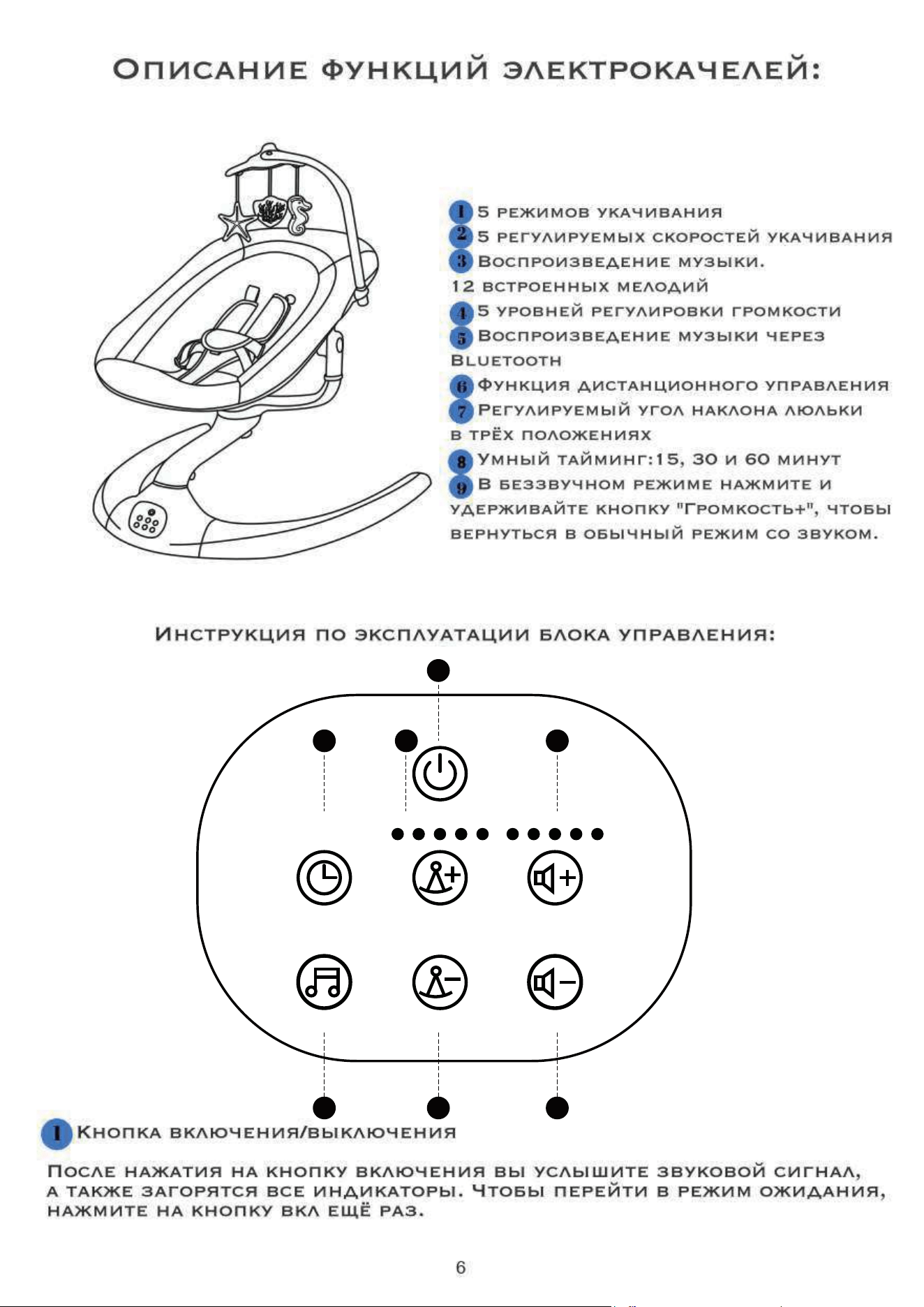

Product Features:
1. 5 swing modes
2. 5 swing speeds
3. 12 built-in music tracks
4. 5 volume levels
5. Bluetooth music playback
6. Remote-control operation
7. Adjustable recline angle (15° EU standard, max 18°)
8. Timer: 12 / 30 / 60 minutes
9. Silent mode activation via long-pressing Volume +

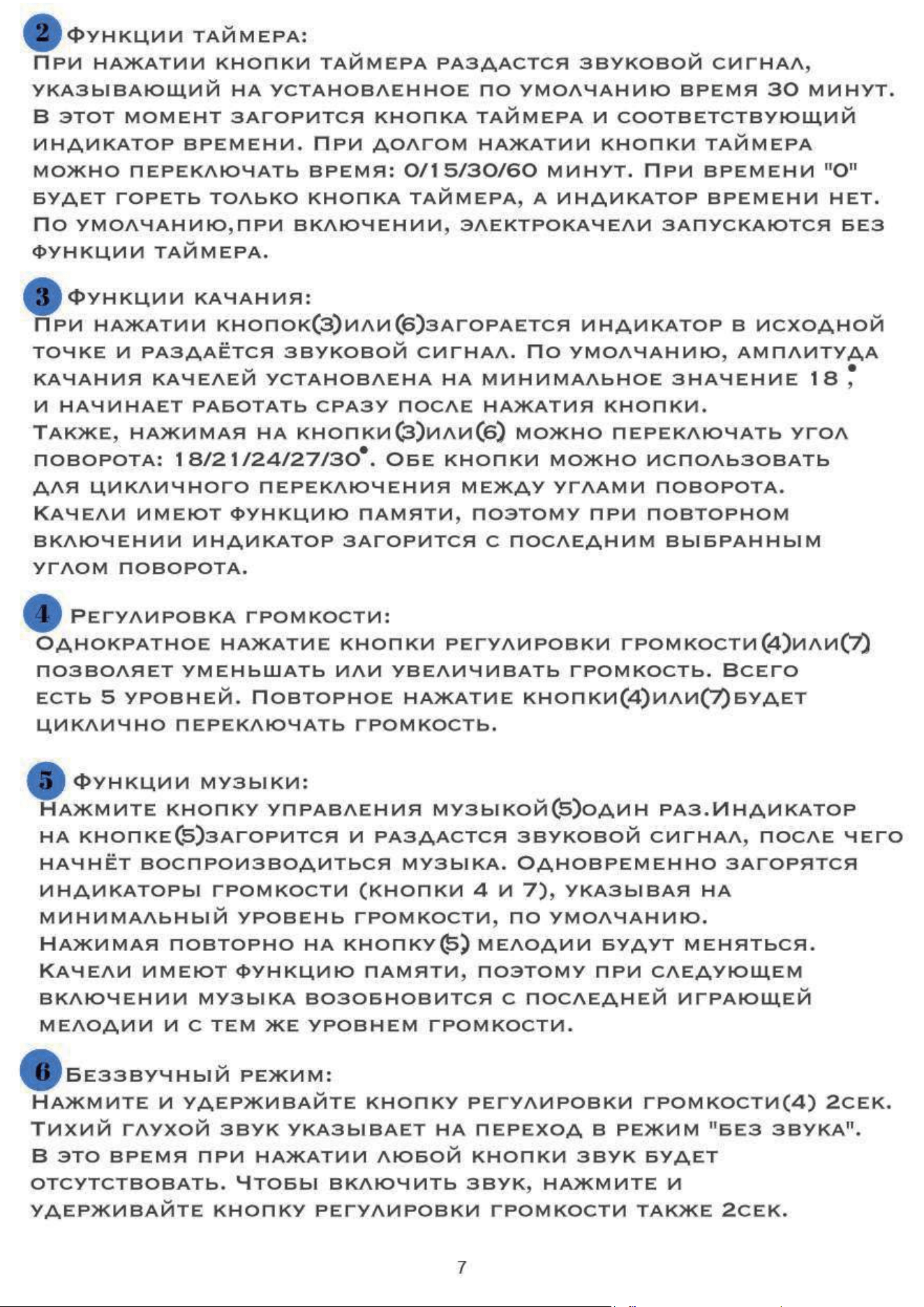

Control Panel Details
Power Button:
Press to turn on/off. Indicator lights activate with a beep.
Timer Button:
Cycles between 0 / 15 / 30 / 60 minutes. Default = 30 minutes.
Swing Amplitude Adjustment:
Switch among 18° / 21° / 24° / 27° / 30°. Memory function enabled.
Music Button:
Start/stop music playback; cycles through 12 tracks. Memory function enabled.
Volume Control:
5 levels. Operates via Volume + / – buttons.
Silent Mode:
Long-press Volume + for 2 seconds to enable/disable.

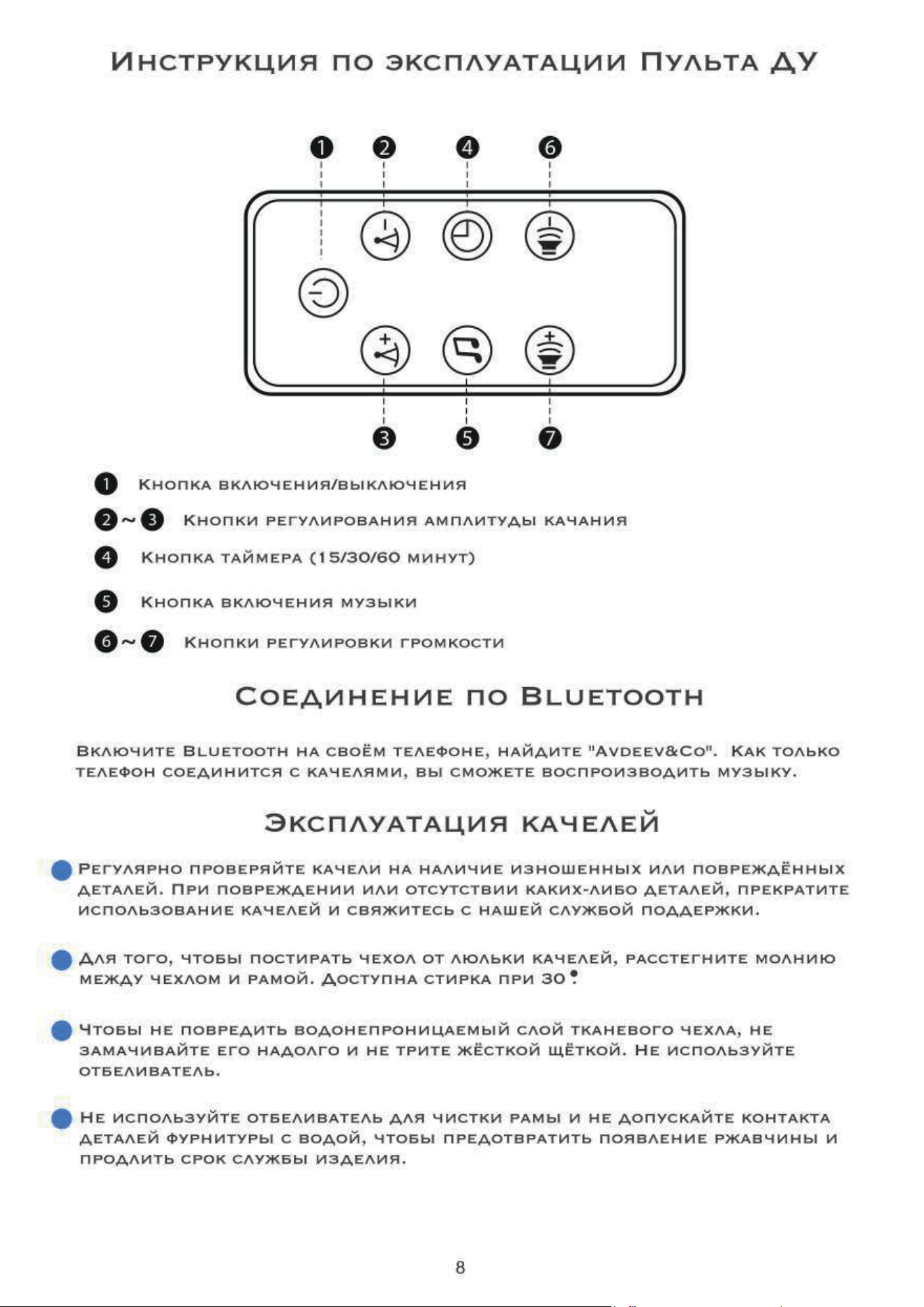

Remote Control Instructions
Functions include:
- Power
- Swing amplitude +/–
- Timer (15/30/60 minutes)
- Music selection
- Volume +/–
Bluetooth Music:
Enable Bluetooth on your phone → search “ULOP” → pair → play music.
Bluetooth frequency band: 2.4–2.480 GHz.
Cleaning & Maintenance
1. Regularly check for damaged or worn parts.
2. Fabric cover:
- Remove via zipper, wash below 30°C, air dry.
- Do not soak long-term, do not use bleach or softener.
3. Avoid water contact with metal parts to prevent rust.
4. Do not modify or disassemble structural components.
5. Store in a cool, dry place away from heat and sunlight.
6. Do not apply sticky mechanical grease to moving parts.

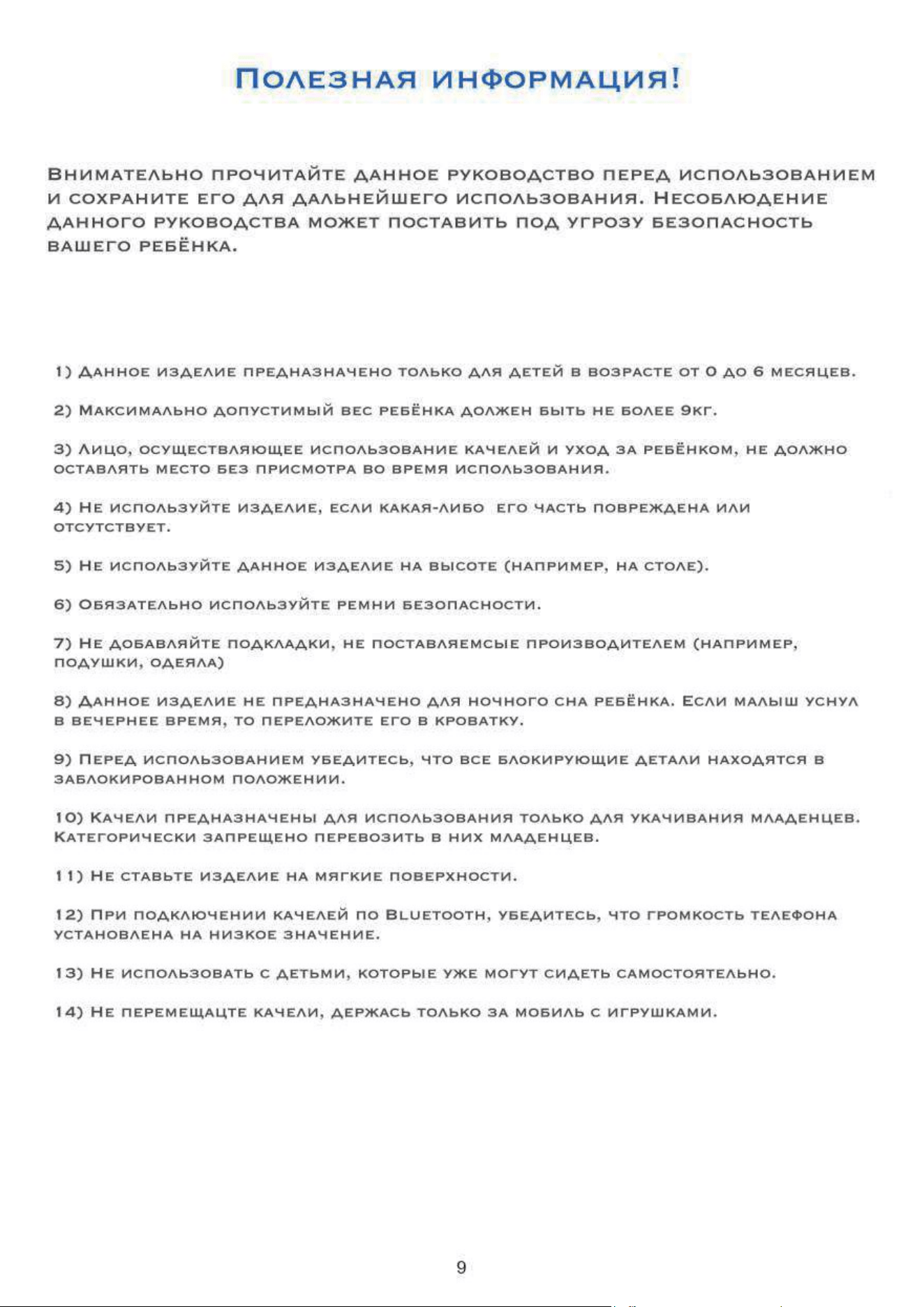

Warnings
1. For infants aged 0–6 months only.
2. Maximum load: 9 kg.
3. Standard: GB/T 42804-2023.
4. Always supervise the infant.
5. Use only manufacturer-provided adapters.
6. Do not use if any parts are damaged or missing.
7. Do not place the swing on elevated surfaces.
8. Always use the safety harness.
9. Keep ropes/straps away from infants.
10. Do not add unauthorized cushions, pillows, or pads.
11. Not intended for sleep. Transfer infant to a flat surface if asleep.
12. Ensure all locking devices are secured before use.
13. Not for transporting the baby.
14. Do not place on soft surfaces.
15. Keep seat reclined until infant is 4 months and lifts head independently.
16. Keep music player volume low.
17. Not for infants who sit up unassisted.
18. Not for infants who can climb out.
19. Do not leave baby unattended.
20. Do not move or adjust recline with baby inside.
21. Do not lift using the toy arm.
22. Only install manufacturer-provided plush toys.
Warranty Information
Warranty Period: 1 year from purchase date.
Not Covered Under Warranty:
- Damage from improper use, storage, or unauthorized repair.
- Damage not caused by product quality issues.
- Missing warranty card or proof of purchase.
- Altered or mismatched warranty information.
- Damage caused by force majeure.
