HIGH PRESSURE 650W AIRLESS PAINT SPRAY GUN
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 65157
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
GENERAL SAFETY WARNINGS
Read and thoroughly understand all instructions and safety information before assembling or
operating this log splitter. Failure to do so may cause serious injury or death. DO NOT allow anyone
to operate this device who has not read and understood this manual. DO NOT operate this device if
you have doubts or questions concerning safe operation.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator.
1
Keep the work area clean and well lighted. Cluttered benches and dark areas increase the risks of
electric shock, re, and injury to persons.
Operate only in a well-ventilated area. Paint thinners and solvents may be harmful if inhaled.
DO NOT operate the sprayer in explosive atmospheres, such as in the presence of ammable liquids,
gases, or dust. The sprayer is able to create sparks resulting in the ignition of the dust or fumes.
When operating a sprayer outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
If operating a sprayer in a damp location is unavoidable, use a Ground Fault Circuit Interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of electric shock.
Stay alert. Watch what you are doing and use common sense when operating the tool. Do not use the
tool while tired or under the inuence of drugs, alcohol, or medication. A moment of inattention while
operating the tool increases the risk of injury to persons.
Dress properly. DO NOT wear loose clothing or jewelry. Contain long hair. Keep hair, clothing, and
gloves away from moving parts. Loose clothes, jewelry, or long hair increases the risk of injury to persons
as a result of being caught in moving parts.
Avoid unintentional starting. Be sure the trigger is off before connecting to the power supply. DO NOT
carry the sprayer with your nger on the trigger or connect the sprayer to the power supply with the trigger
on.
DO NOT overreach. Keep proper footing and balance at all times. Proper footing and balance enables
better control of the tool in unexpected situations.
Use safety equipment. Wear protective paint spraying gloves and a NIOSH-approved
respirator during use. Non-skid safety shoes and a hard hat must be used for the
applicable conditions.
DO NOT force the tool. Use the correct tool for the application. The correct tool will
do the job better and safer at the rate for which it was designed.
DO NOT use the sprayer if the switch does not turn it on and off. Any sprayer that cannot be
controlled with the switch is dangerous and must be repaired.
Disconnect the tool from the power source before making any adjustments, changing accessories, or
storing the tool.Such preventive safety measures reduce the risk of starting the tool unintentionally.
ALWAYS wear eye protection.Wear ANSI-approved safety goggles.
IMPORTANT SAFETY INFORMATION
2
Store the tool when it is idle out of reach of children and other untrained persons. A tool is dangerous in
the hands of untrained users.
Check for misalignment or binding of moving parts, breakage of parts, and any other condition that affects
the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by
poorly maintained tools. There is a risk of bursting if the tool is damaged.
Use only accessories that are identied by the manufacturer for the specic tool model. Use of an accessory
not intended for use with the specic tool model, increases the risk of injury to persons.
Tool service must be performed only by qualied repair personnel.
When servicing a tool, use only identical replacement parts. Use only authorized parts.
INJECTION HAZARD! Although this paint gun is airless, it still puts out paint at a very high pressure.
Through improper use, paint can be injected through a person’s skin, leading to serious injury, possibly
amputation. If paint is accidentally injected into someone’s skin, contact a doctor immediately. DO NOT
treat an injection injury as a simple cut. Injection can lead to amputation and requires immediate surgical
treatment.
Use only lubricants supplied with the tool or specied by the manufacturer.
DO NOT direct spray at people or animals. DO NOT place your hand in front of Spray Gun’s nozzle
or attempt to deect paint spray with your hand during use. Gloves and clothing don’t offer adequate
protection from toxic paints, sealers, water-proofers, or stains.
DO NOT spray ammable materials in vicinity of open ame or near ignition sources.Motors, electrical
equipment, and controls can cause electrical arcs that will ignite a ammable gas or vapor. DO NOTstore
ammable liquids or gases in vicinity of this unit.
DO NOT leave Paint Sprayer pressurized while unattended.
DO NOT clean Spray Gun tip while it is still connected to paint hose.
Keep the trigger and the electrical cord plug clean and paint-free.
DO NOT run Paint Sprayer while empty. Damage to the unit may occur.
DO NOT use Paint Sprayer to spray asbestos, metallic paints, glazes, red lead, cement, ground chalk,
abrasive grainy paints containing lime, or bleach. These will damage the spray gun and void the warranty.
Read all of the information concerning coating products and cleaning solvents. DO NOT use bleach, low-
ash naphthalene, acetone, alcohol or toluene when cleaning Paint Sprayer equipment. DO NOT use
chlorinated solvents (e.g. 1,1,1-trichloroethane and dichloromethane, also known as methylene chloride)
to clean spray guns. Many spray guns contain aluminum, which reacts strongly to chlorinated solvents.
Contact the solvent or coating manufacturer as needed regarding potential chemical reactions.
IMPORTANT SAFETY INFORMATION
DO NOT use solvents with ash points less than 70° F (21° C) to clean equipment. These may cause
an explosion. Examples of acceptable cleaning solvents are water, mineral spirits and lacquer thinner.
Note that some of these solvents may be inappropriate for certain kinds of paint; follow the paint supplier’s
recommendations.
Industrial applications must follow OSHA requirements.
Spraying hazardous materials may result in serious injury or death. Do not spray pesticide, acid,
corrosive material, fertilizer, or toxic chemicals.
People with pacemakers should consult their physician(s) before use. Electromagnetic elds in close
proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.
3
Paints and solvents may be harmful or fatal if swallowed or inhaled. Avoid prolonged skin contact with
solvents or paints as they will irritate skin. After any contact, immediately wash off exposed area with
hot, soapy water.
Maintain labels and nameplates on the sprayer. These carry important safety information.
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction ac-
tivities, contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Some examples of these chemicals are:• Lead from lead-based paints• Crystalline
silica from bricks and cement or other masonry products• Arsenic and chromium from chemically treat-
ed lumberYour risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to lter out microscopic particles.
(California Health & Safety Code § 25249.5, et seq.)
WARNING: The brass components of this product contain lead, a chemical known to the State of
California to cause cancer and birth defects or other reproductive harm. (California Health & Safety
Code § 25249.5, et seq.)
WARNING: The cord of this product contains lead and/or di (2-ethylhexyl) phthalate (DEHP), chemicals
known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash
hands after handling. (California Health & Safety Code § 25249.5, et seq.)
WARNING: This product contains di (2-ethylhexyl) phthalate (DEHP), a chemical known to the State
of California to cause cancer and birth defects or other reproductive harm. (California Health & Safety
Code § 25249.5, et seq.)
IMPORTANT SAFETY INFORMATION
WARNING: TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING
WIRE CONNECTION: Check with a qualied electrician if you are in doubt as to whether the outlet is
properly grounded. DO NOT modify the power cord plug provided with the tool. Never remove the
grounding prong from the plug. DO NOT use the tool if the power cord or plug is damaged. If damaged,
have it repaired by a service facility before use. If the plug will not t the outlet, have a proper outlet
installed by a qualied electrician.

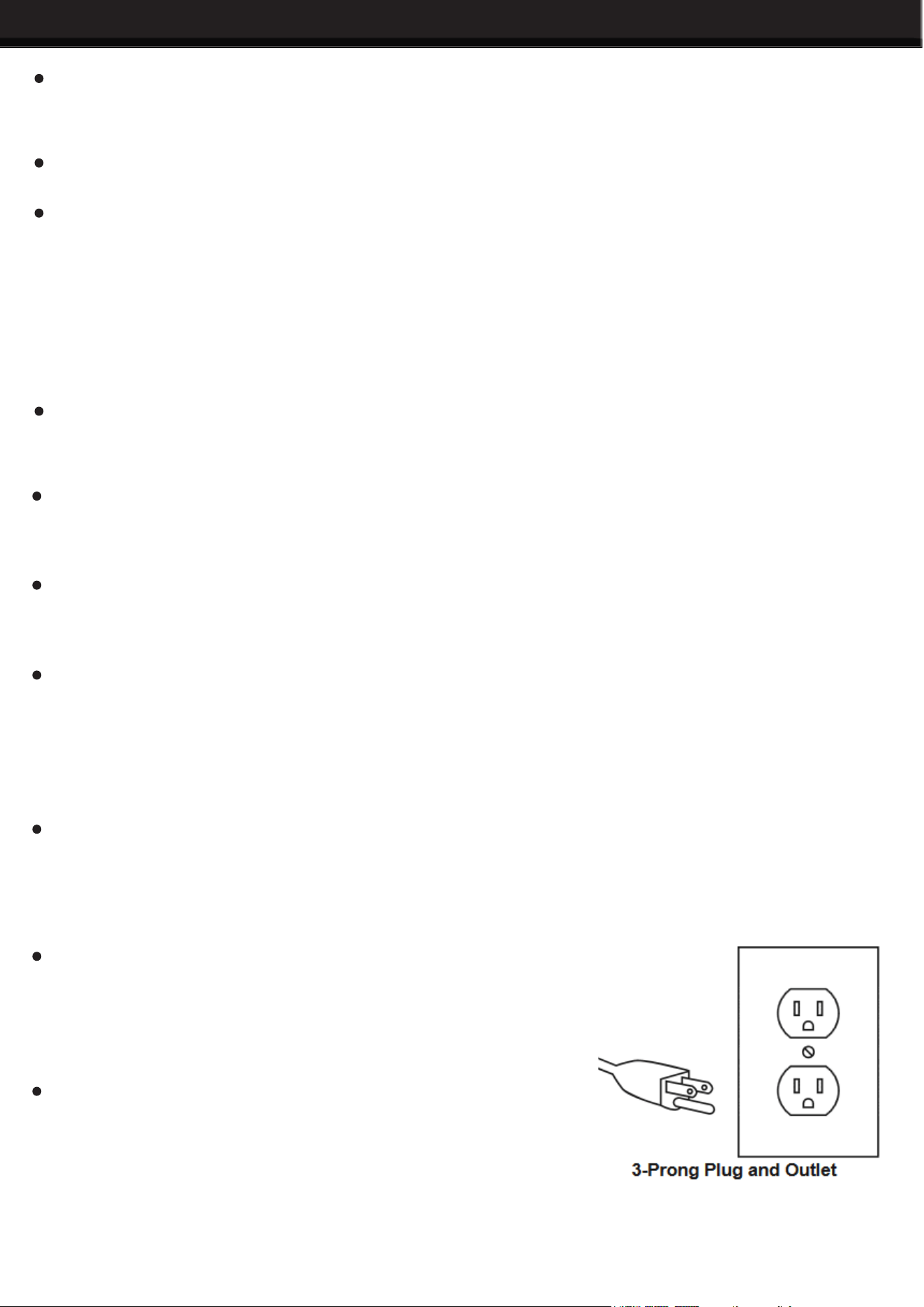

Sprayers marked with “Grounding Required” have a three wire cord and three prong grounding plug.
The plug must be connected to a properly grounded outlet. If the sprayer should electrically malfunc-
tion or break down, grounding provides a low resistance path to carry electricity away from the user,
reducing the risk of electric shock. (See 3-Prong Plug and Outlet.)
The grounding prong in the plug is connected through the
green wire inside the cord to the grounding system in the
sprayer. The green wire in the cord must be the only wire
connected to the sprayer’s grounding system and must never
be attached to an electrically “live” terminal.
The sprayer must be plugged into an appropriate outlet,
properly installed and grounded in accordance with all codes
and ordinances. The plug and outlet should look like those in
the preceding illustration.
4
SAVE THESE WARNINGS
IMPORTANT SAFETY INFORMATION

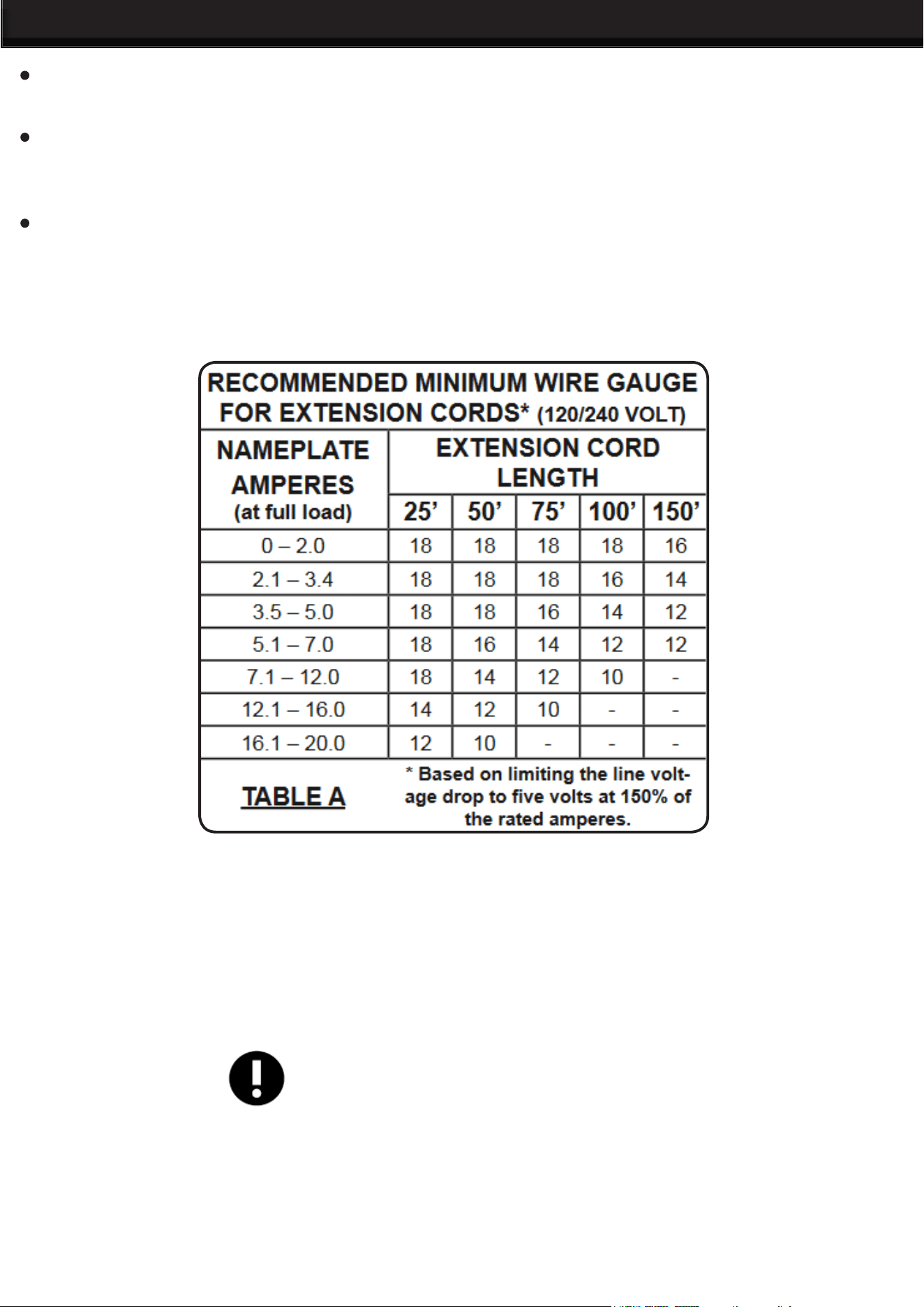

Grounded sprayers require a three wire extension cord. Double Insulated sprayers can use either a two
or three wire extension cord.
As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using
extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power
and possible sprayer damage.
As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using
extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power
and possible sprayer damage.
5

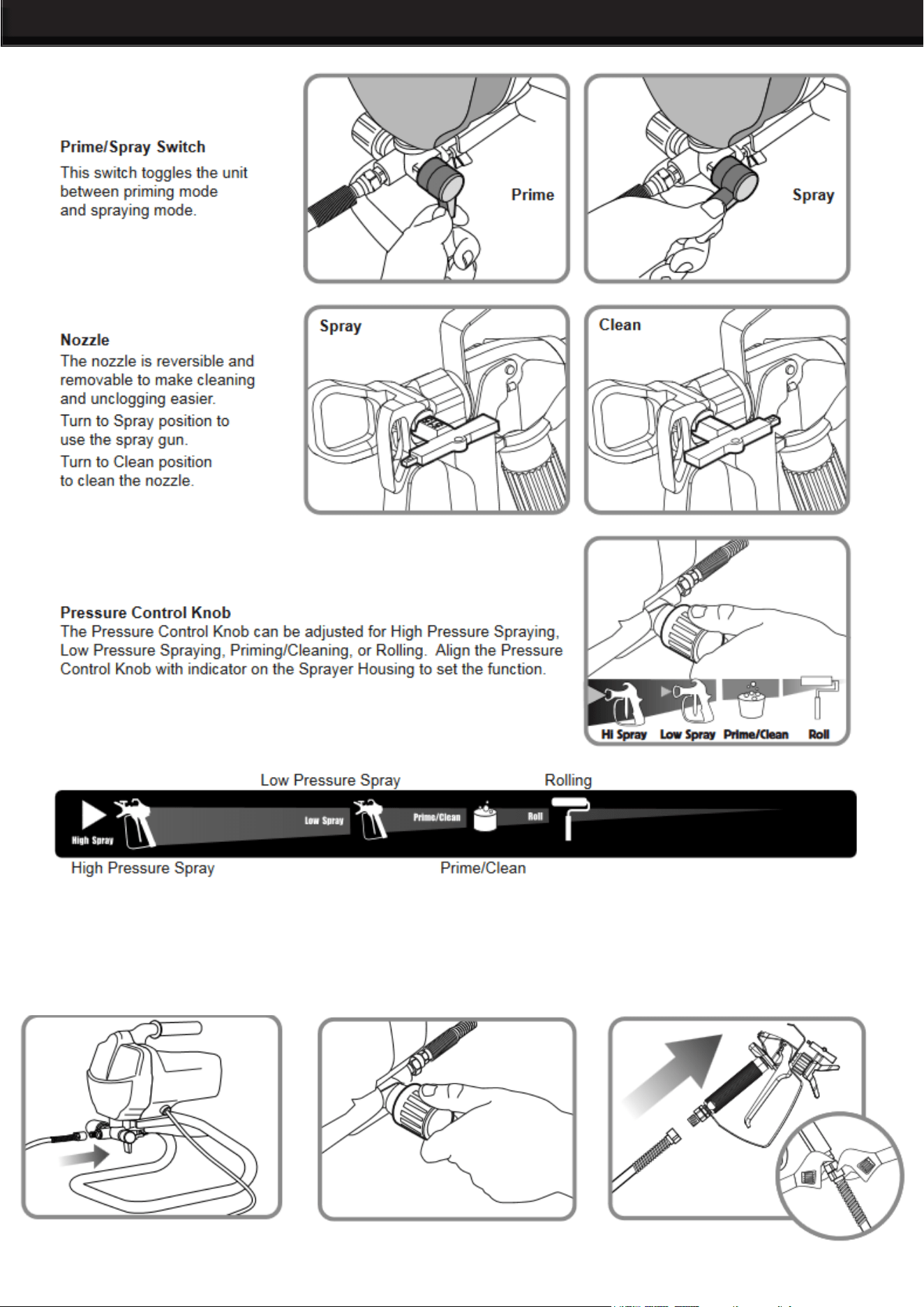

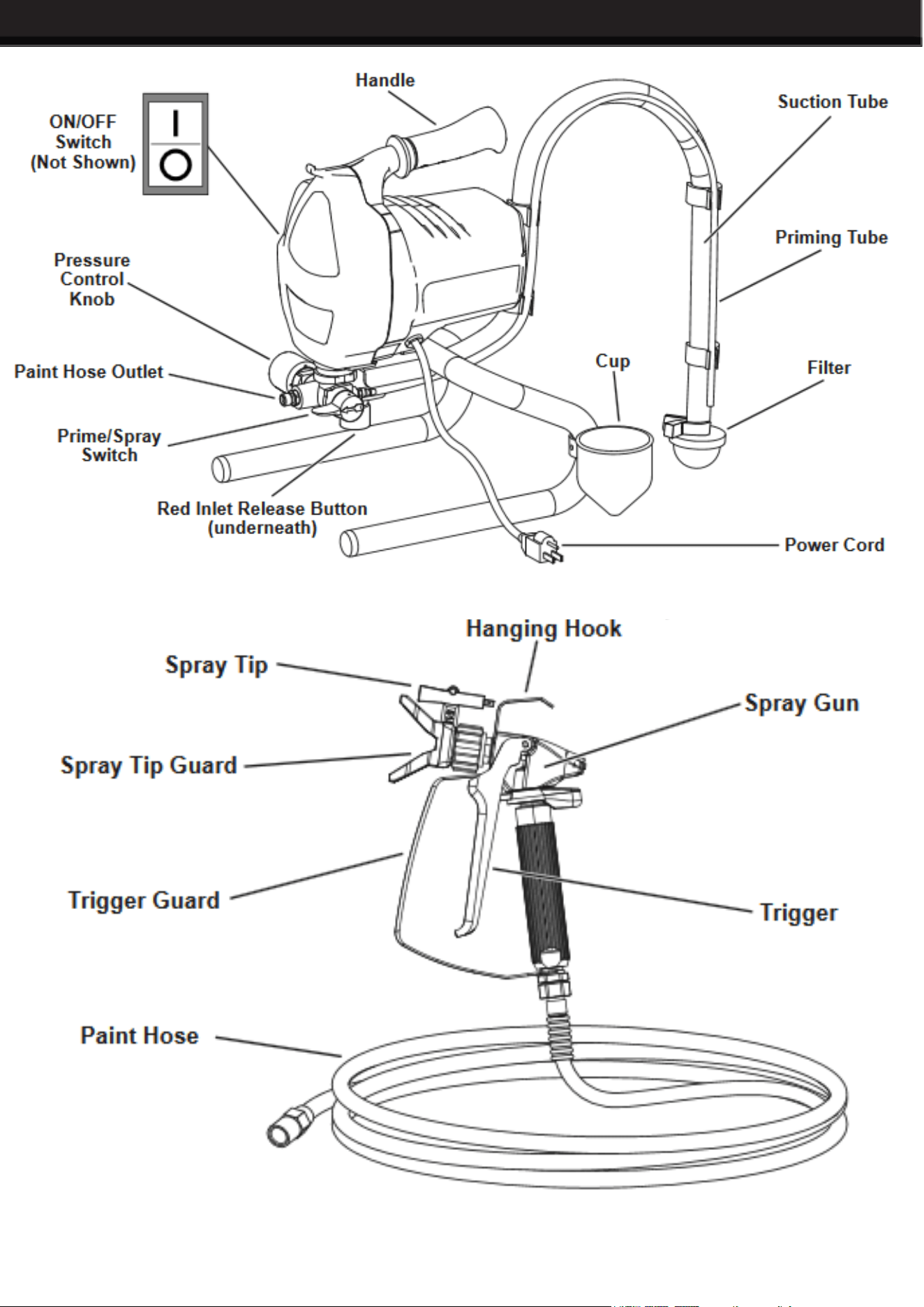

PRODUCT INFORMATION
6
IMPORTANT SAFETY INFORMATION
NOTE: Remove or cover objects that you want to protect from overspray (paint mist).
1. Attach Paint Hose to Paint
Hose Outlet and tighten with
wrench.
2. Turn Pressure Control Knob
to Low Pressure Spray setting.
3. Attach Paint Hose to Paint
Gun and tighten with two
wrenches.
7
OPERATION

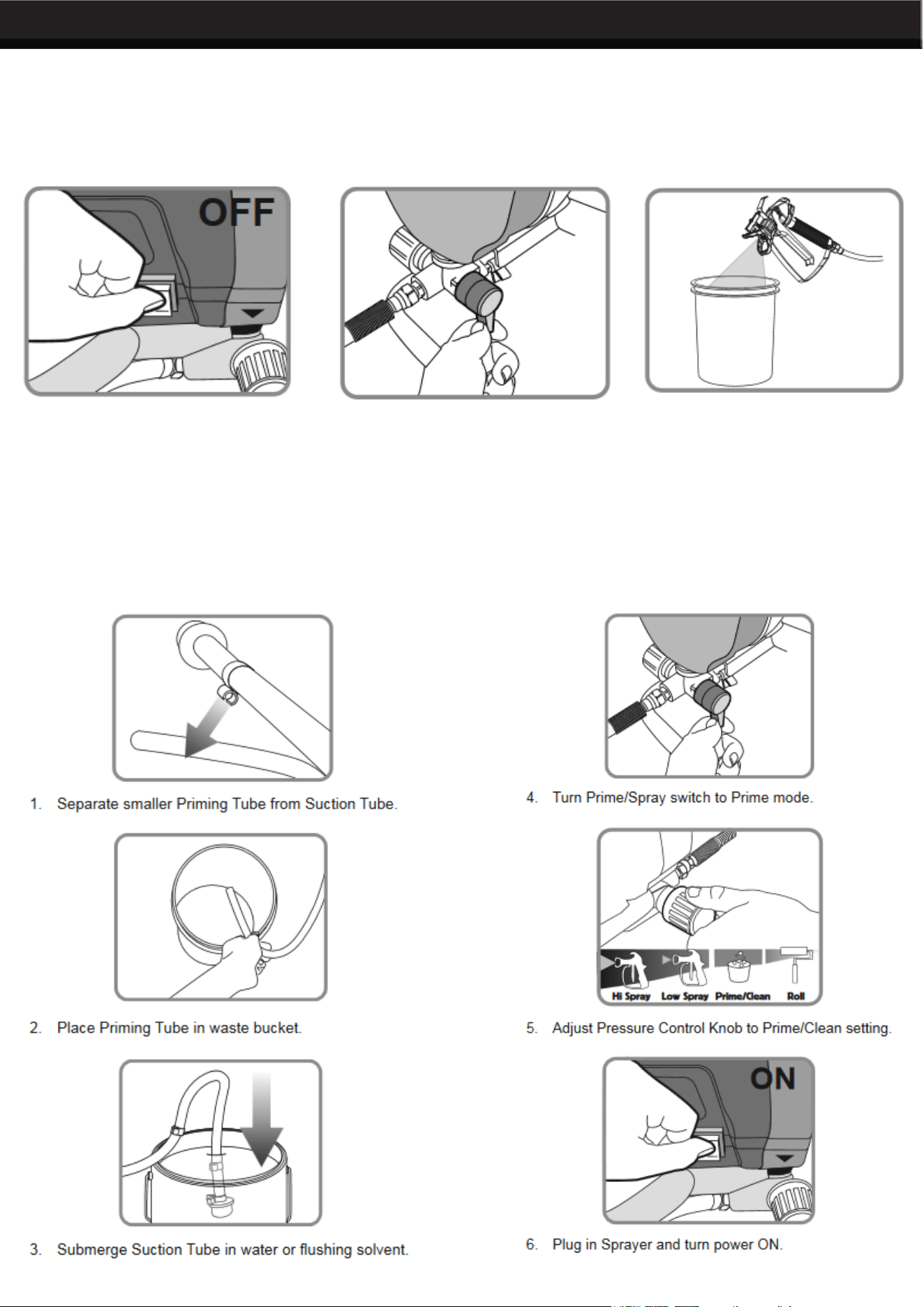

RELIEVE SPRAYER PRESSURE
1. Turn Power Switch OFF and
unplug unit from outlet
2. Switch Prime/Spray switch to
Prime mode to safely release
most pressure.
3. Point gun into paint pail and
activate Sprayer Trigger to
relieve any remaining pressure.

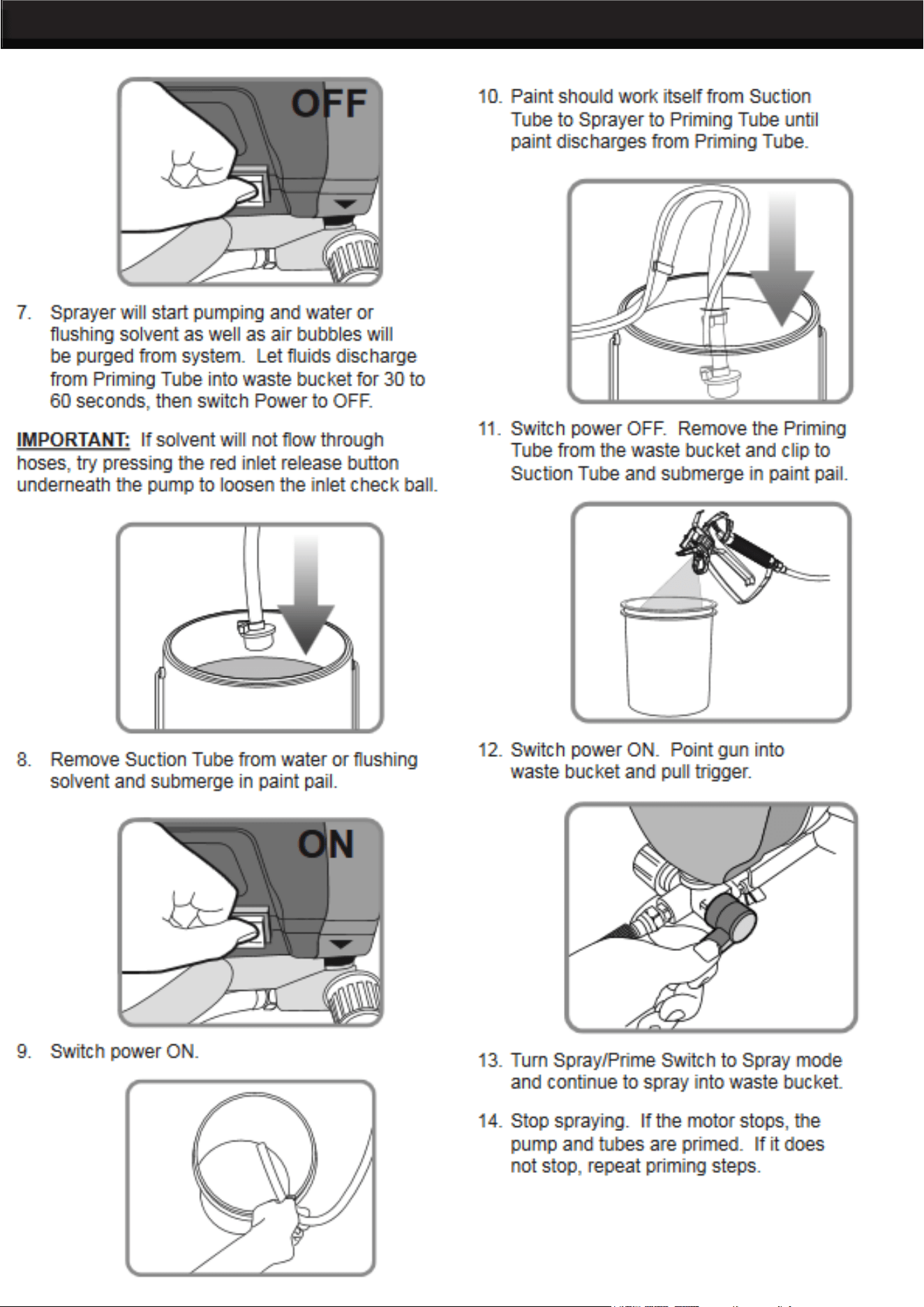

PRIMING SPRAY GUN
For Oil-based Paint: Flush with mineral spirits followed by warm, clean water.
For Water-based (Latex) Paint: Flush with warm, clean water.
WARNING! TO PREVENT FIRE: When using mineral spirits, ground gun by holding it against a metal
container while ushing.
8
OPERATION
9
OPERATION
INJECTION HAZARD! Although this paint gun is airless, it still puts out paint at a very high pressure. Through
improper use, paint can be injected through a person’s skin, leading to serious injury, possibly amputation. If
paint is accidentally injected into someone’s skin, contact a doctor immediately. Do not treat an injection injury
as a simple cut. Injection can lead to amputation and requires immediate surgical treatment.

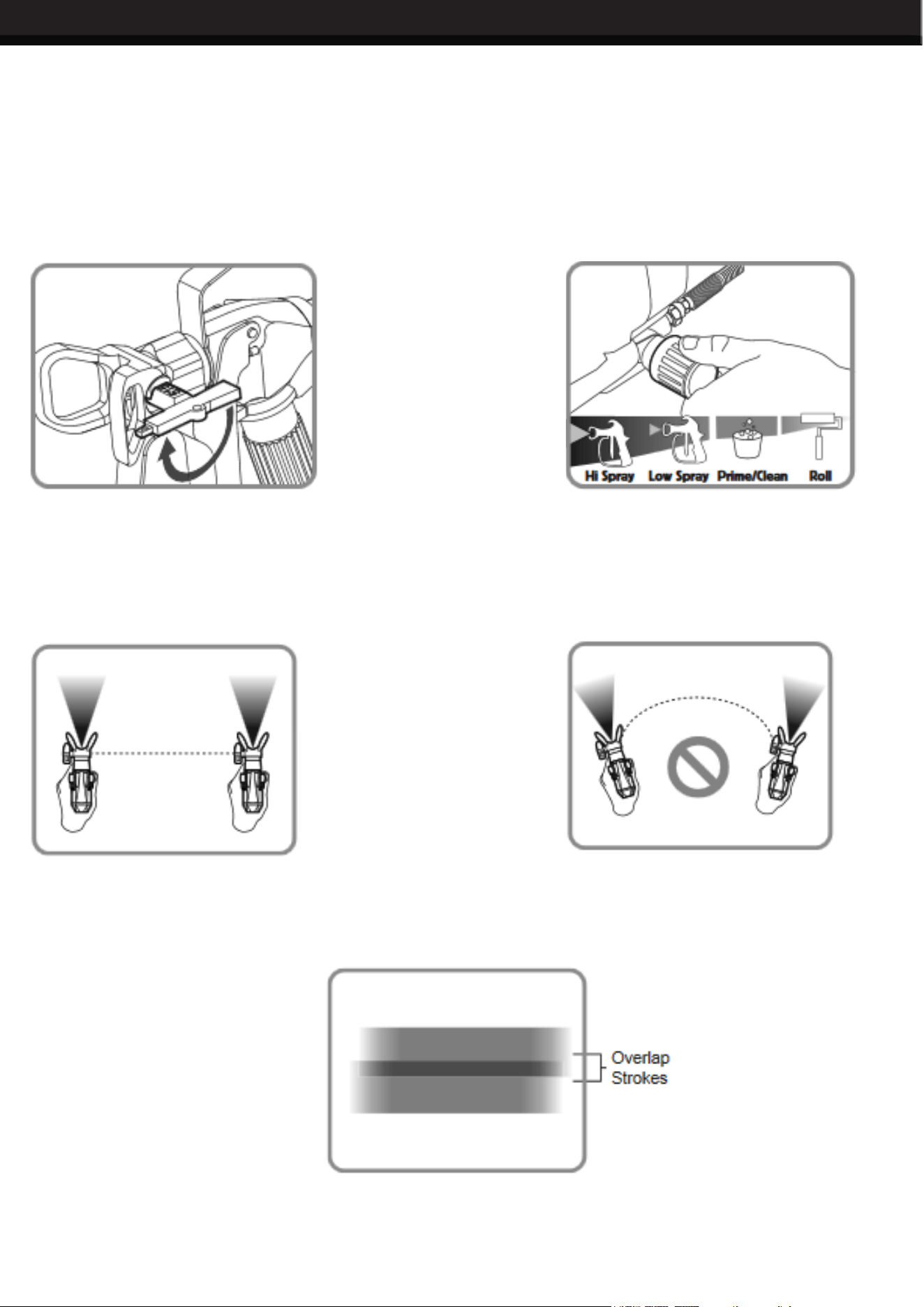

Before painting, ensure the Sprayer has been primed and verify that Nozzle Tip is aligned properly. Practice
painting techniques on a scrap workpiece before painting your workpiece.
NOTE: Remove or cover objects that you want to protect from overspray and paint mist.
1. Once primed, adjust nozzle to
Spray setting
2. Start spraying at the lowest setting
on the Pressure Control Knob and
increase pressure as needed by
turning clockwise to create a good
spray pattern.
3. Keep gun straight and move
arm across at a steady rate while
staying one foot from the surface.
4. Do not fan the gun or paint
will be uneven.
5. Overlap strokes by half.
Always aim stroke at bottom
edge of last stroke.
10
OPERATION

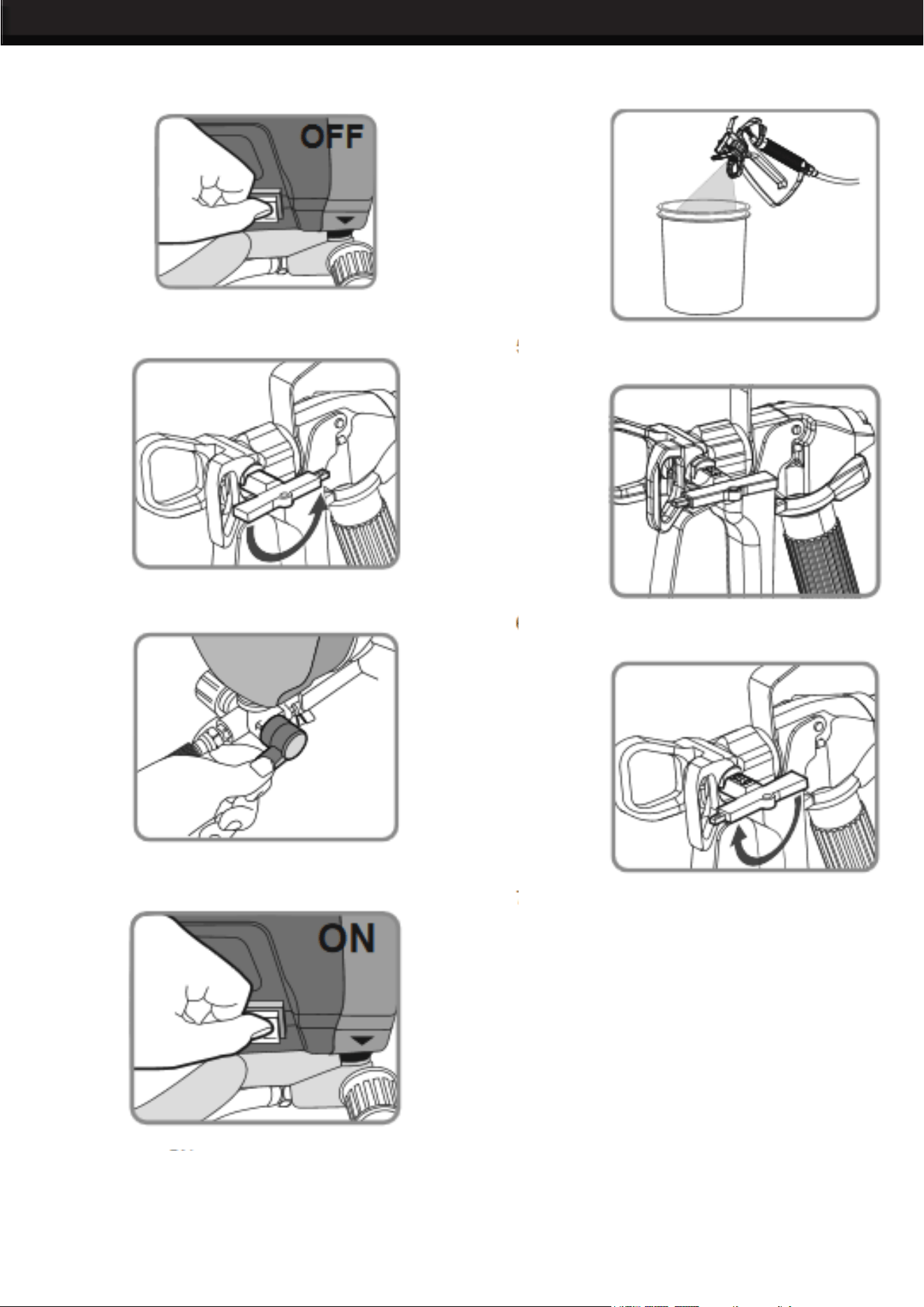

CLEARING SPRAY TIP
1. Switch Power to OFF
2. Adjust nozzle to clean setting
3. Turn spray/prime switch to spray mode
4. Turn power ON
5. Spray into waste bucket until clog clears.
6. Release the trigger.
7. Adjust nozzle to Spray setting
11

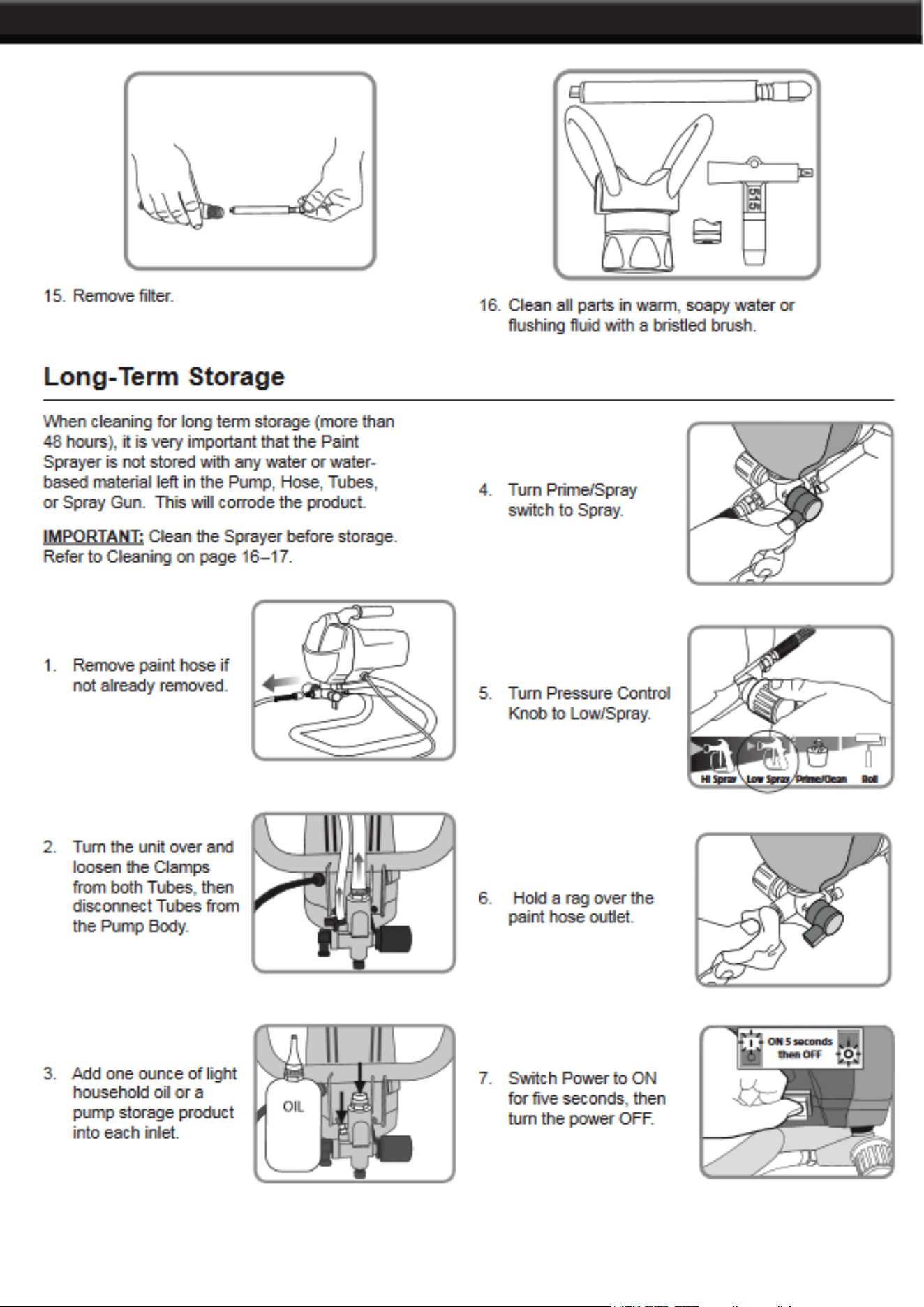

MAINTENANCE

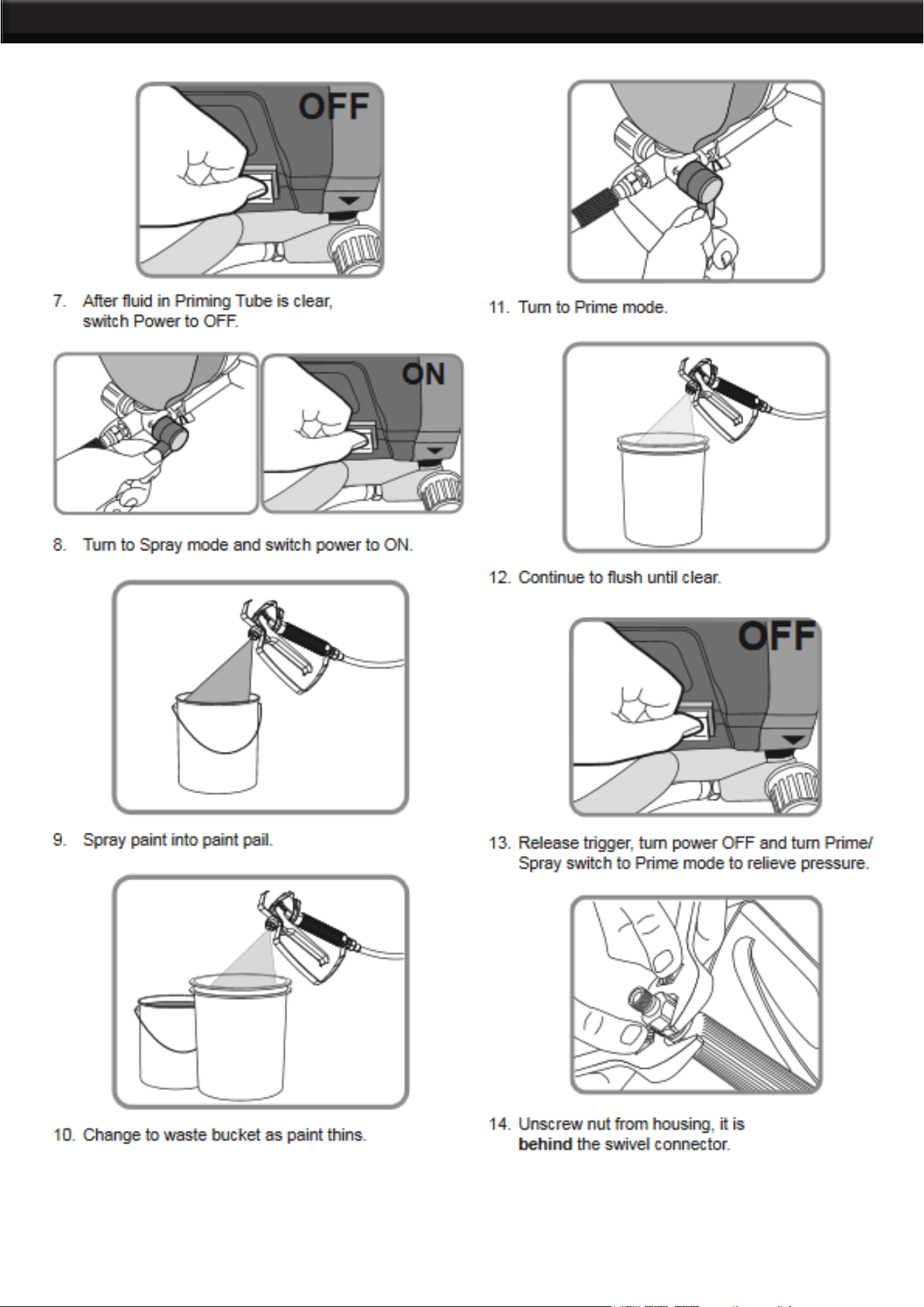

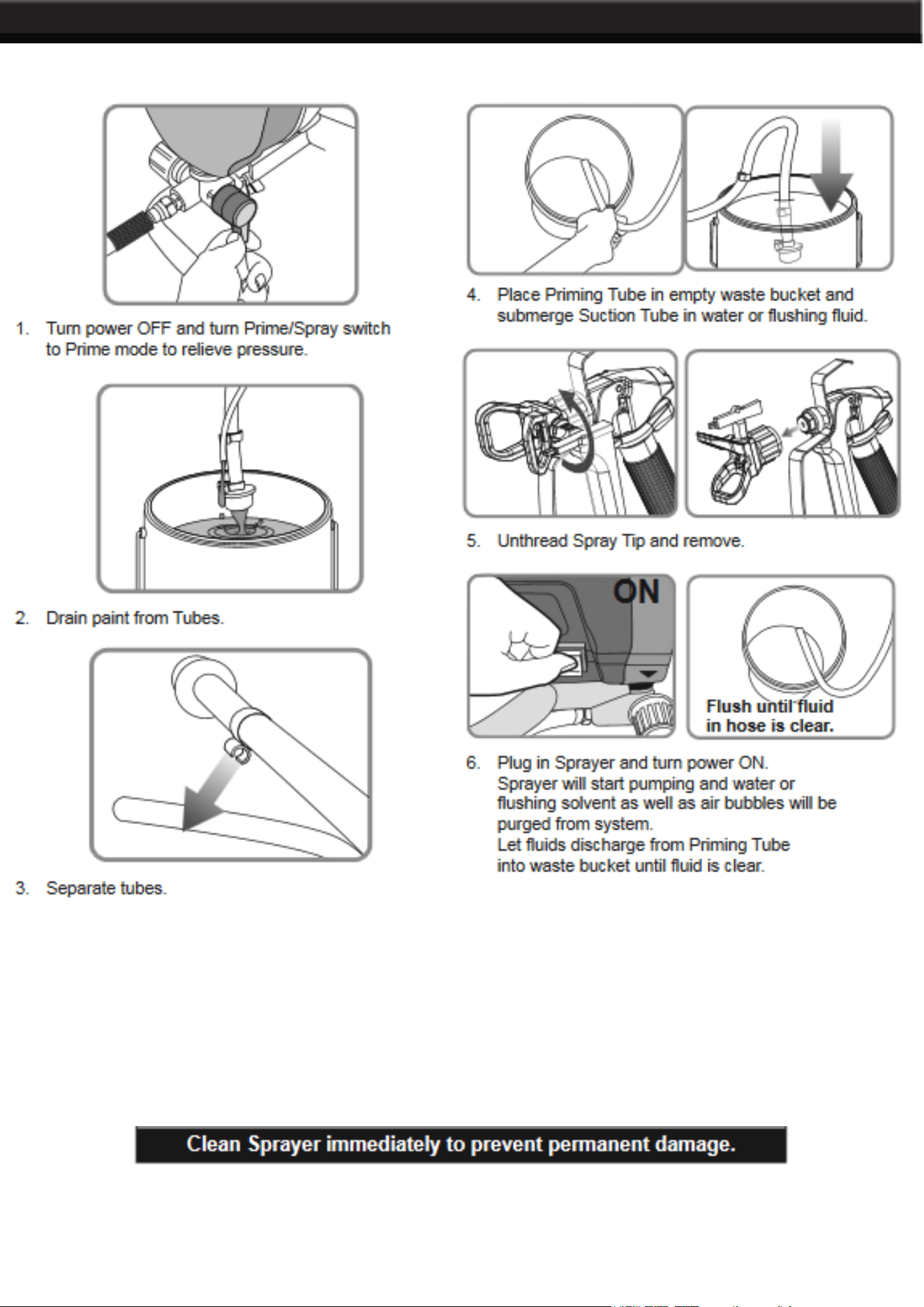

CLEANING
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Unplug the Sprayer from its electrical
outlet before performing any inspection, maintenance, or cleaning procedures.requires immediate surgical
treatment.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: DO NOT use damaged equipment. If abnormal
noise, vibration, or leaking air occurs, have the problem corrected before further use.
12

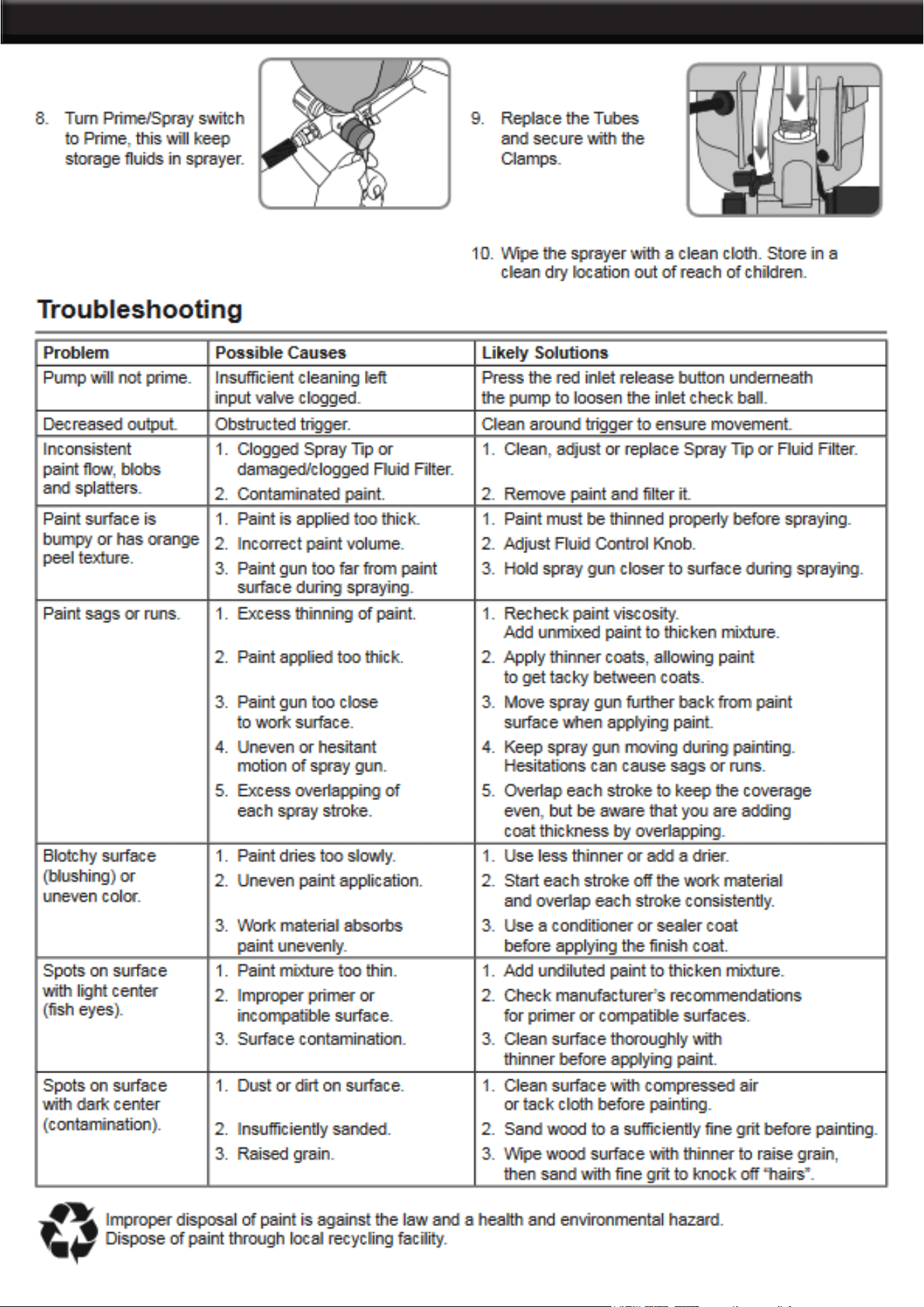

MAINTENANCE
13
MAINTENANCE
14
MAINTENANCE
15

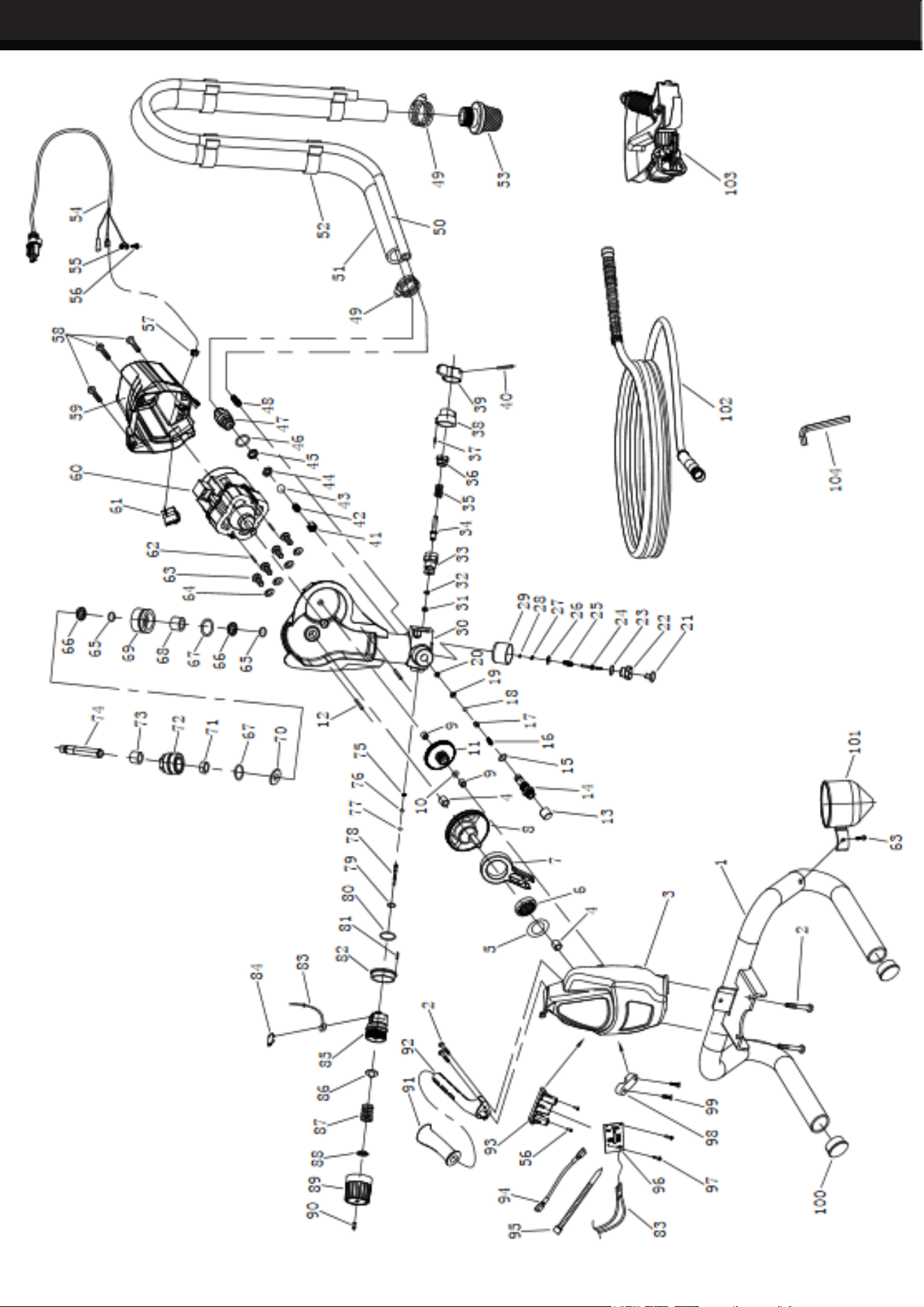

PARTS DIAGRAM
16

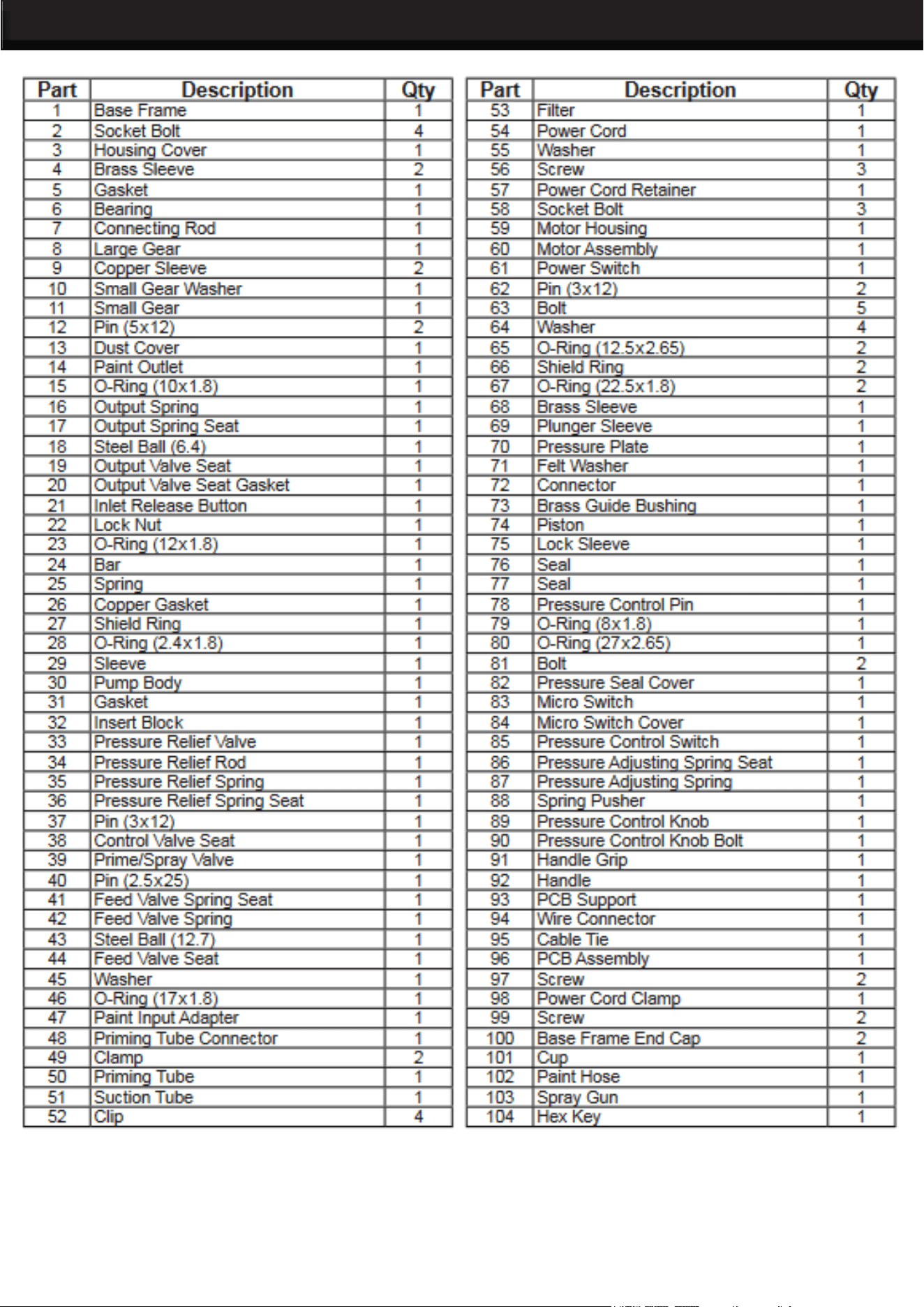

PARTS LIST
17
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
OF NOTE
PRODUCT MADE IN CHINA
