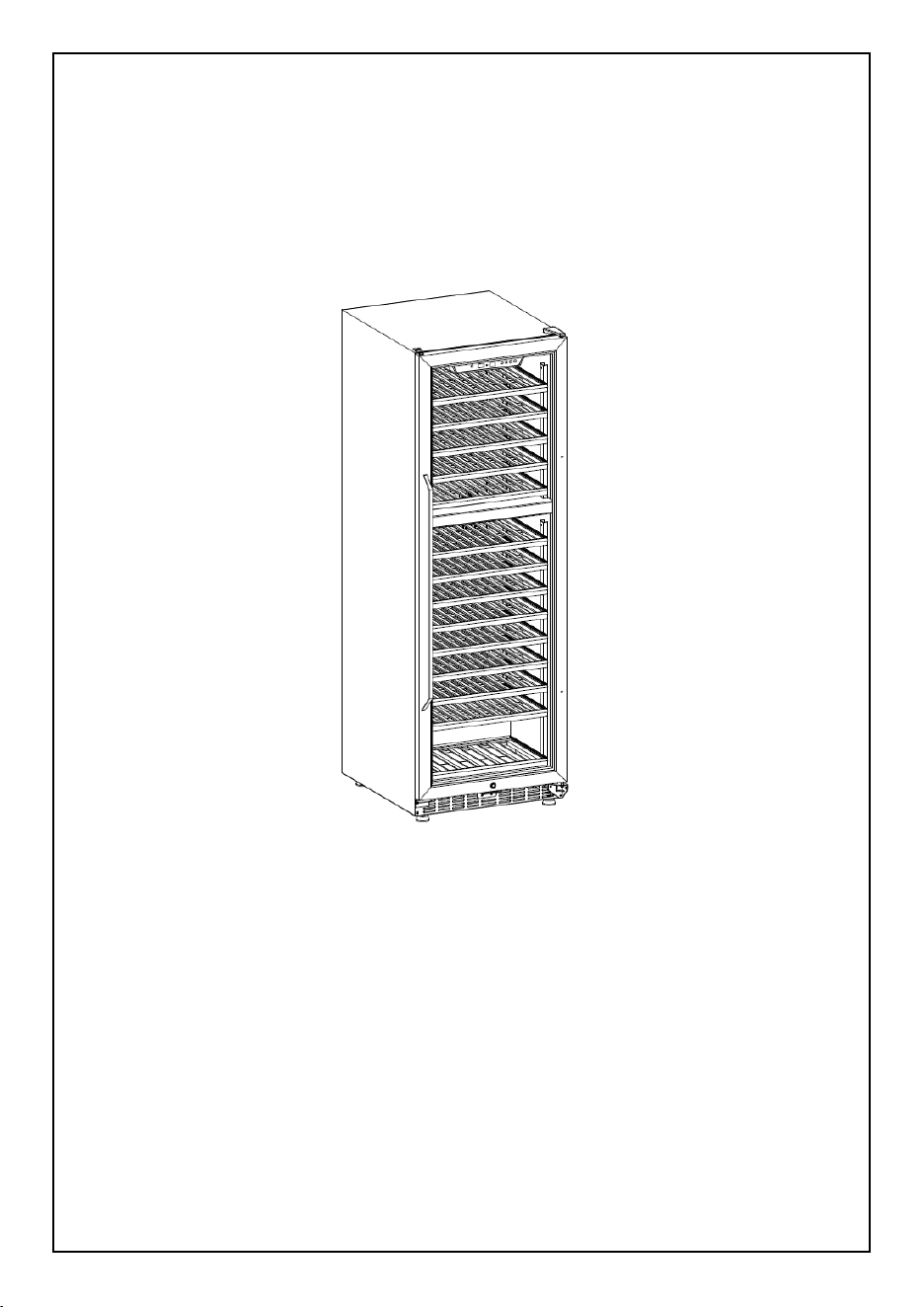

1
LANBO
USER MANUAL
FOR MODEL:
LW28D/LBUS33D/LW46D/LBUS54D/LW72D/LW142D/LW165D
LW306D/LW328DD
LB36BD/LBUS36B/LW3370B/LBUS66B
LW33S/LBUS33S/LW52S/LW155S/LW177S/LW321S/LW328SD
LW133DD/LW162DD/LW144T
LB80BC/LBUS33BC/LB148BC/LBUS54BC
2
CONGRATULATIONS
Congratulations, and thank you for purchasing your new Lanbo Appliances
product. We are confident you will be pleasantly surprised with the simplicity
of use. Before installing and operating your new appliance, please thoroughly
read through this manual for product description and functions.
To avoid any risks associated with using an electric appliance, it is important
that you read the safety instructions and that the appliance is installed
properly in accordance with the instructions to avoid potential hazards. Please
keep this instruction manual for future reference if needed.
After unpacking the appliance, please inspect it to verify it is not damaged. If
in doubt, do not use the appliance and contact Lanbo Appliances customer
service center.
Important Tips for Product Use.
BEFORE USE:
1. After unpacking and inspecting your new Lanbo appliance, allow to sit and
stabilize for 24 hours before connecting to a power source. This will reduce
the possibility of a malfunction in the cooling system from handling during
transportation
2. Set temperature for select wines:
a. Merlot, Shiraz and Cabernet Sauvignon – Temp. Range from 64-66℉
b. Chardonnay and Chablis – Temp. Range 48-52℉
c. Pinot Noir – Temp Range 60-64℉
d. Dessert Wines, Sparkling wine or Champagne - Temp 40℉
e. Pinot Grigio and Sauvignon Blanc – Temp Range 45-48℉
3
USAGE:
1. Doors must be closed properly at all times. Open door only when necessary
in order to maintain optimum cabinet temperature and environment to
preserve integrity of wine.
2. Place bottles on racks and avoid unnecessary movement until you are ready
to enjoy your favorite bottle of wine. Maintaining minimal movement and
vibration is essential in allowing wines to age to their fullest potential for
maximum flavor.
CUSTOMER SERVICE:
For assistance or questions regarding your product, please contact our
customer service team at [email protected] or call us on (833)
600-8766.
Thank you for your trust and support in Lanbo Appliances!
LANBO INTERNATIONAL INC.
Website: www.lanboappliances.com
Email: service@lanboappliances.com
TEL: (833) 600-8766

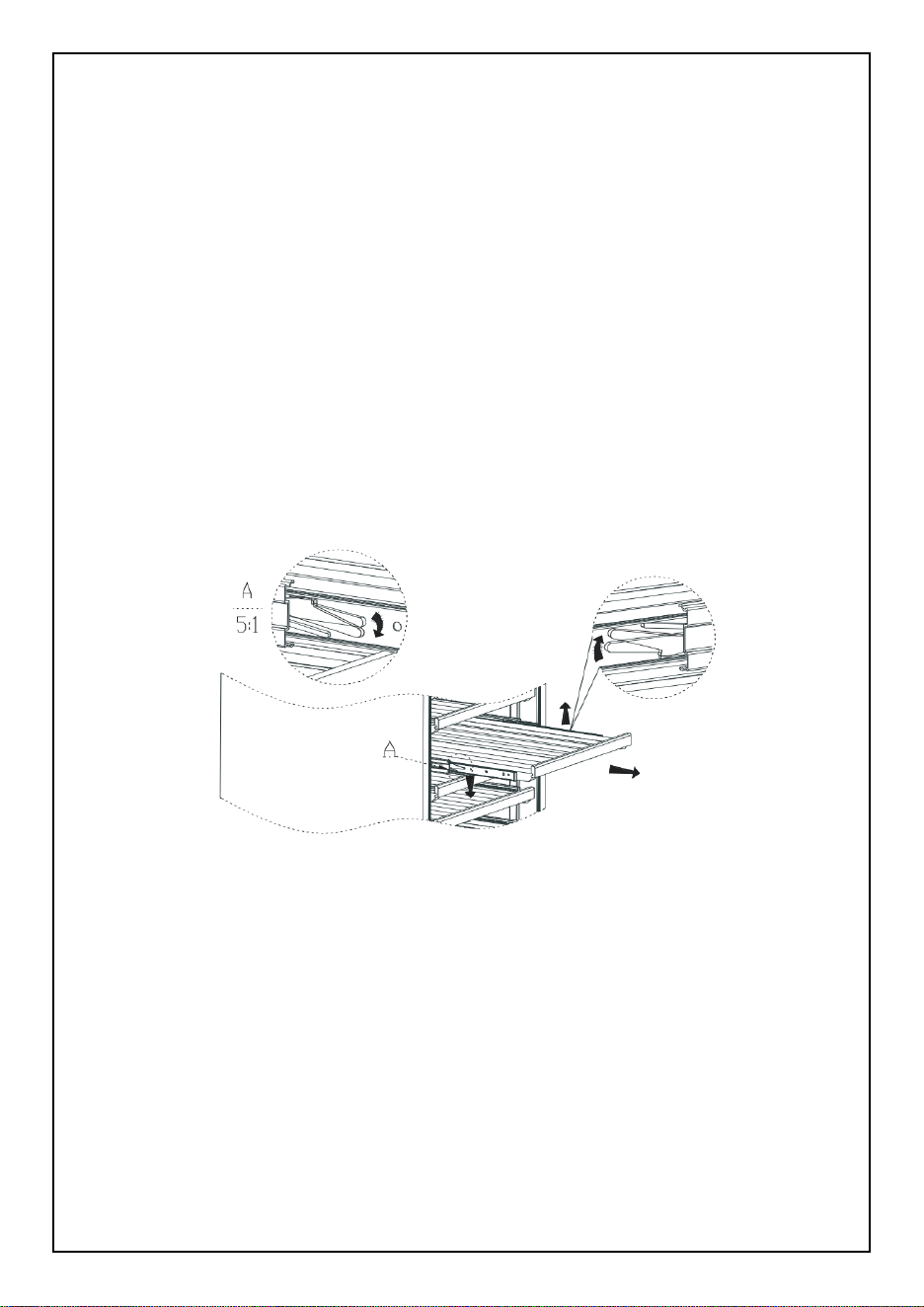

Warning: We do not recommend our customer remove or install shelves at
will. If you need to remove and install the shelves, please contact our
customer service team first. We will provide professional guideline. We will
not be responsible for any property damage caused by removing and
installing shelves unauthorized.
4
CONTENTS
Important Safety Instructions ---------------------------------------- 5
Diagram of Product ---------------------------------------------------- 7
Installation Instructions ----------------------------------------------- 15
Operation Instructions ------------------------------------------------ 16
Care and Maintenance ----------------------------------------------- 29
Troubleshooting -------------------------------------------------------- 31
Product Specifications ------------------------------------------------ 32
Warranty ------------------------------------------------------------------ 35
5
1. Important Safety Instructions:
Warnings
To reduce the risk of fire, electrical shock, or injury when
using your appliance, follow these basic precautions:
Carefully read all instructions before operating appliance.
Keep children away from the wine cooler. Never allow children to operate,
play with, or crawl inside the appliance.
Never clean appliance parts with flammable liquids. Fumes can create a fire
hazard or explosion.
If wine cooler stops working, please contact LANBO customer service
department or certified repair technician to inspect the appliance. Avoid
injury or accident, and never attempt to repair yourself.
If power cord becomes worn or damaged, contact a certified repair
technician to replace the faulty power cord. Avoid injury, Do Not attempt to
replace power cord by yourself.
Make sure to unplug cord before cleaning, moving or repairing. Never
unplug the cooler by pulling the electrical cord as this may damage it. Grip
the plug firmly and pull straight out.
Keep ventilation openings in the appliance enclosure clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting
process other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of
the appliance unless they are of the type recommended by the
manufacturer.
-Save these instructions-
Notes
In order to avoid damage to door seal, make sure the door is completely opened when
removing the adjustable shelves.
Place the cooler close to a direct power source or outlet.
6
• Once wines have been stored inside the cooler, avoid moving.
• Choose a location for your cooler that isn’t too cold . The ambient room temperature should
be above 50°F . Stand your cooler in a dry place – avoid areas of high moisture or
humidity. Don’t put the cooler in frosty or unprotected areas like a garage or patio. Keep
the cooler out of direct sunlight. Have adequate space at the back and sides for air
circulation
.
• Do not power on the wine cooler repeatedly. Power on in 5 minute intervals.
• DANGER or WARNING: Risk of child entrapment and suffocation. Before disposing your
old wine cooler: Remove the door/s, Leave the shelves in original place so children may
not easily climb inside.
• This appliance uses R600a refrigerant. Keep all flammable and explosive articles away
from appliance to avoid fire or explosion.
• Under supervision or guidance, this appliance may be operated by children ages 8 years
and above, or any persons with reduced physical, sensory or mental capabilities, provided
proper operating and safety instructions have been administered.
• Do not allow children to play with appliance. Cleaning and maintenance shall not be
performed by children without adult supervision.
• If supply cord is damaged, it must be replaced by the manufacturer, its service agent or
certified repair technician, in order to avoid a hazard.
• Please keep this user manual for future reference, if you misplace or
lose the user manual, please contact us at
[email protected] or call us on (833) 600-8766.
• or call us on (833) 600-8766.This appliance is intended to be used in household and similar
applications such as:
Residential: houses, apartments, townhomes, condos
– Work Environment: kitchen areas, lunch rooms, cafeterias, offices
and other working environments;
– Hospitality: hotels, motels, bed and breakfast
– Commercial: restaurants, catering and similar applications
Appearance and structure of the product may be different from the manual, however, this
does not affect the normal use of the product.
7
2. Diagram of Product

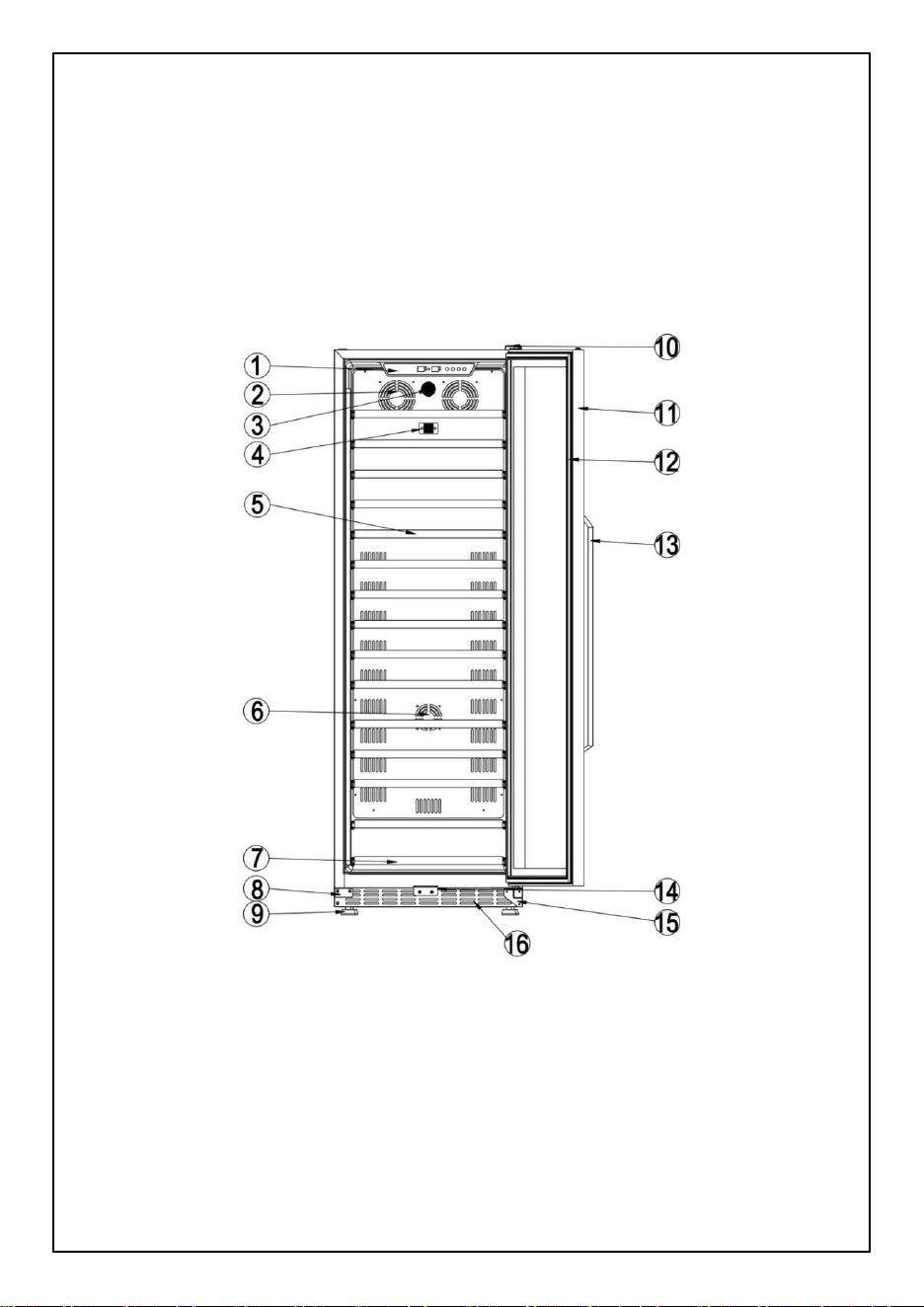

1.LW33S/LBUS33S/LW52S/LW155S/LW177S/LW321S
structure diagram：
(1) Control Panel (2) Evaporator Fan (3) Carbon Filter (4) Sensor
(5) Full Wooden Shelf (6) Heating Fan (7) Small Wooden Shelf (8) Door
Support Bracket (9) Adjustable Feet (10) Upper Door Hinge (11) Glass
Door With Lock (12) Door Seal (13) Handle (14) Lock Hook (15) Lower
Door Hinge (16) Front Vent
8

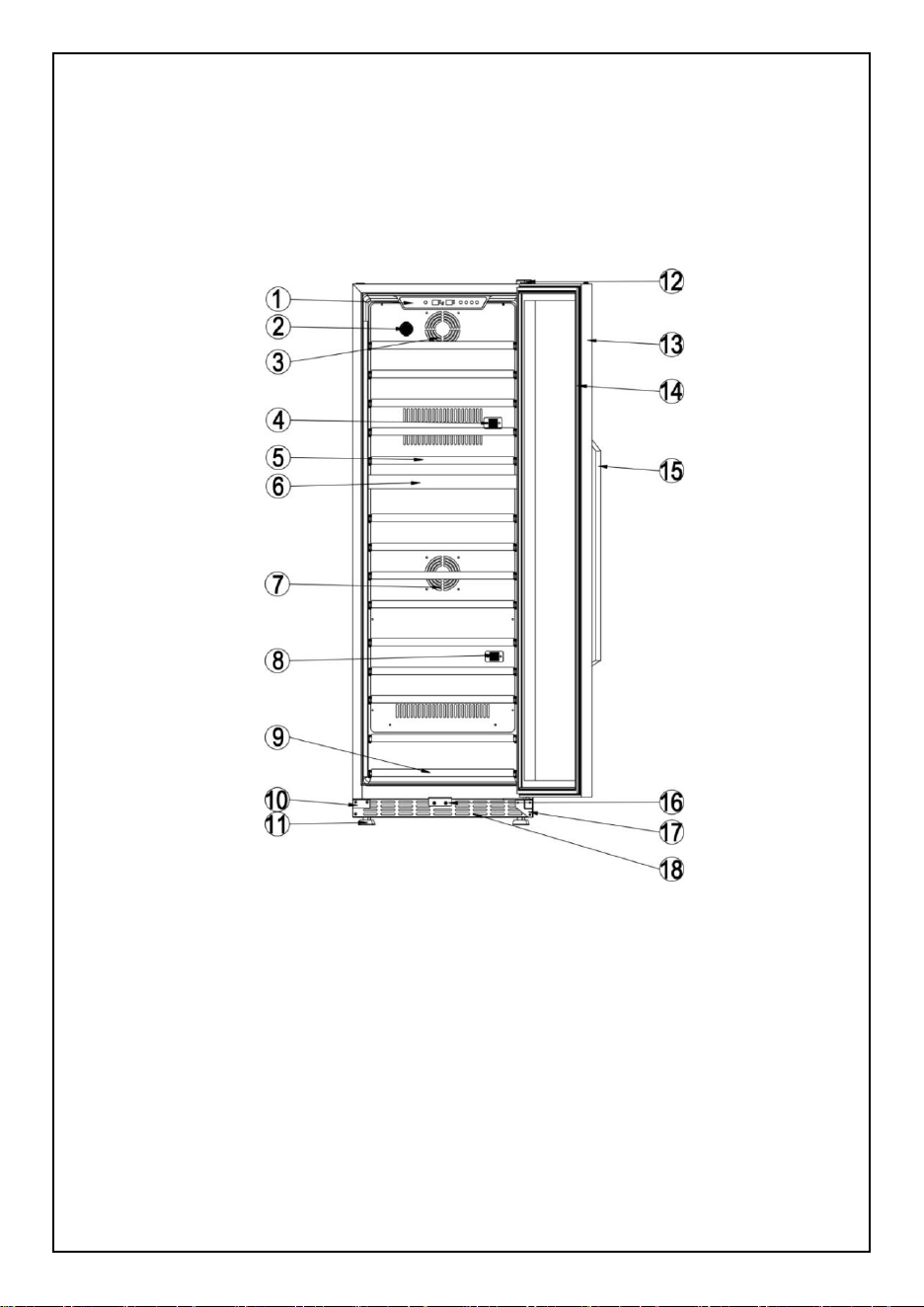

2. LW28D/LBUS33D/LW46D/LBUS54D/LW72D/LW142D/LW165D/
LW306D structure diagram:
(1) Control Panel (2) Carbon Filter (3) Evaporator Fan (4) Upper Sensor
(5) Full Wooden Shelf (6) Baffle Plate (7) Heating Fan (8) Lower Sensor
(9) Small Wooden Shelf (10) Door Support Bracket (11) Adjustable Feet
(12) Upper Door Hinge (13) Glass Door With Lock (14) Door Seal (15)
Handle (16) Lock Hook (17) Lower Door Hinge (18) Front Vent
9

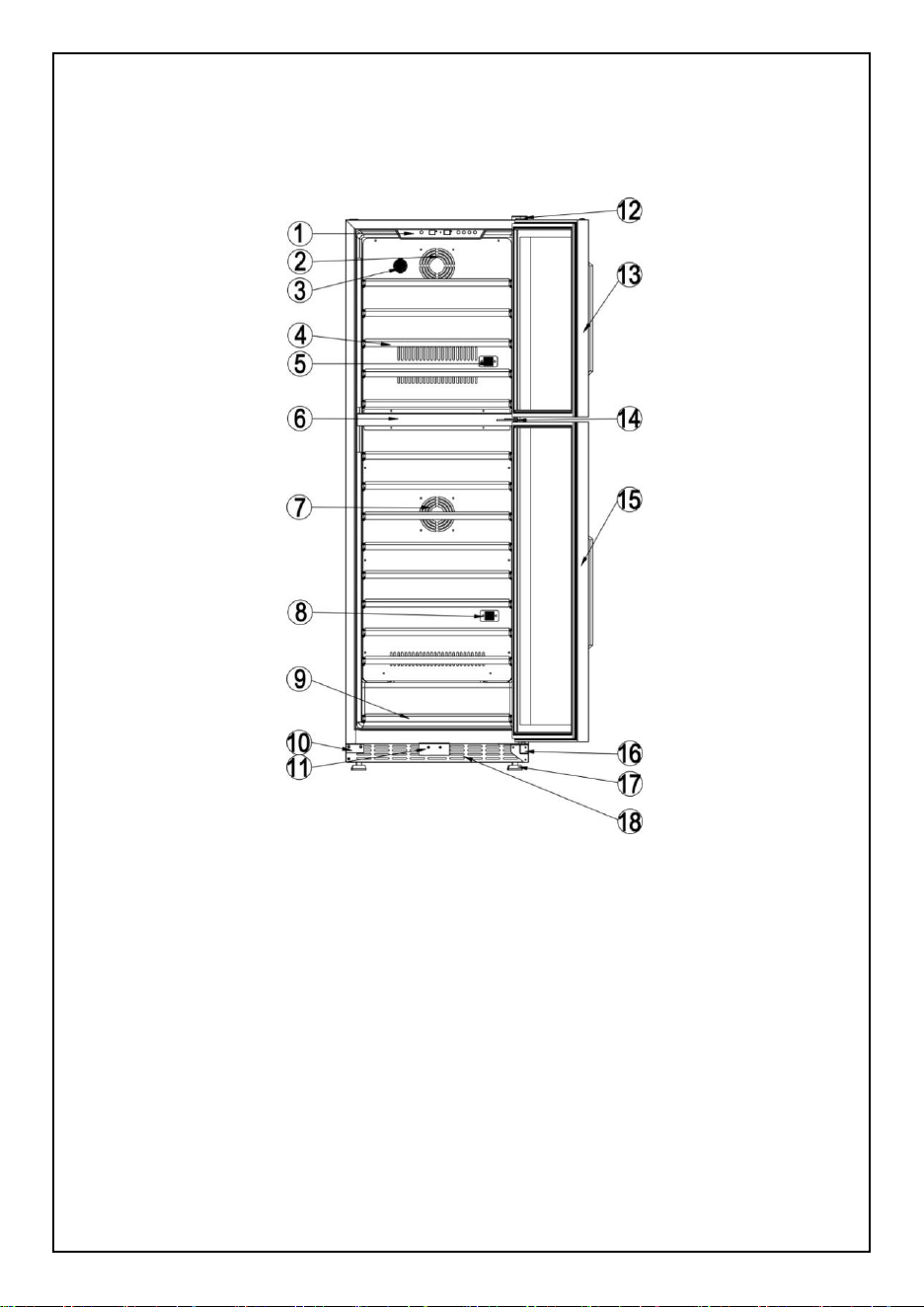

3. LW133DD/LW162DD structure diagram：
(1) Control Panel (2) Evaporator Fan (3) Carbon Filter (4) Full Wooden
Shelf (5) Upper Sensor (6) Baffle Plate (7) Dan Heater (8) Lower Sensor
(9) Small Wooden Shelf (10) Door Support Bracket (11) Lock Hook (12)
Upper Door Hinge (13) Glass door with handle/gasket (14) Middle Door
Hinge (15) Glass door with handle/gasket (16) Lower Door Hinge (17)
Adjustable Feet (18) Front Vent
10

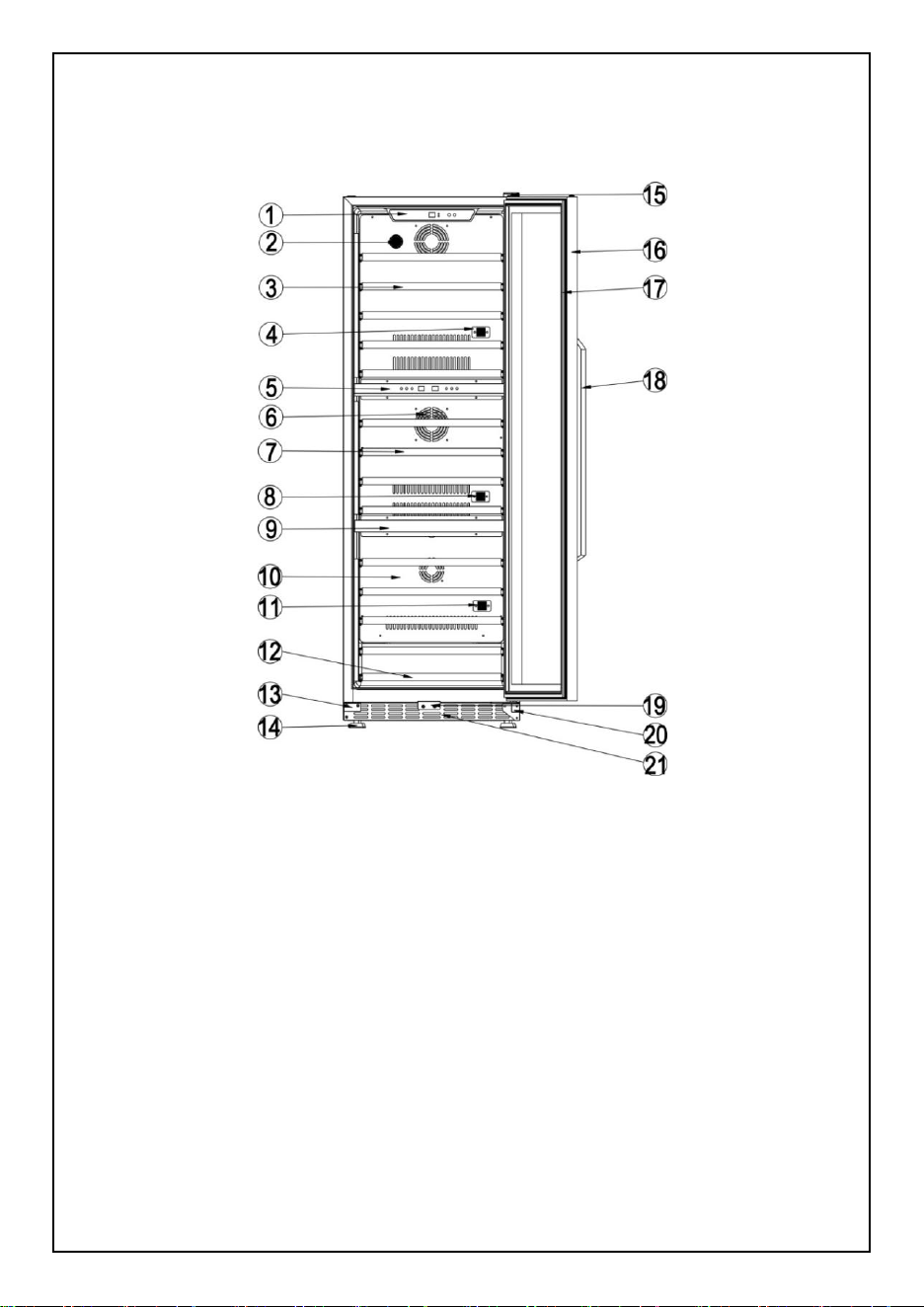

4. LW144T structure diagram：
(1) Upper Control Panel (2) Carbon Filter (3) Full Wooden Shelf (4)
Upper Sensor (5) Middle Control Panel (6) Middle Fan (7) Full Wooden
Shelf (8) Middle Sensor (9) Baffle Plate (10) Rear Air-Duct Board (11)
Lower Sensor (12) Small Wooden Shelf (13) Door Support Bracket
(14) Adjustable Feet (15) Upper Door Hinge (16) Glass Door With Lock
(17) Door Seal (18) Handle (19) Lock Hook (20) Lower Door Hinge (21)
Front Vent
11

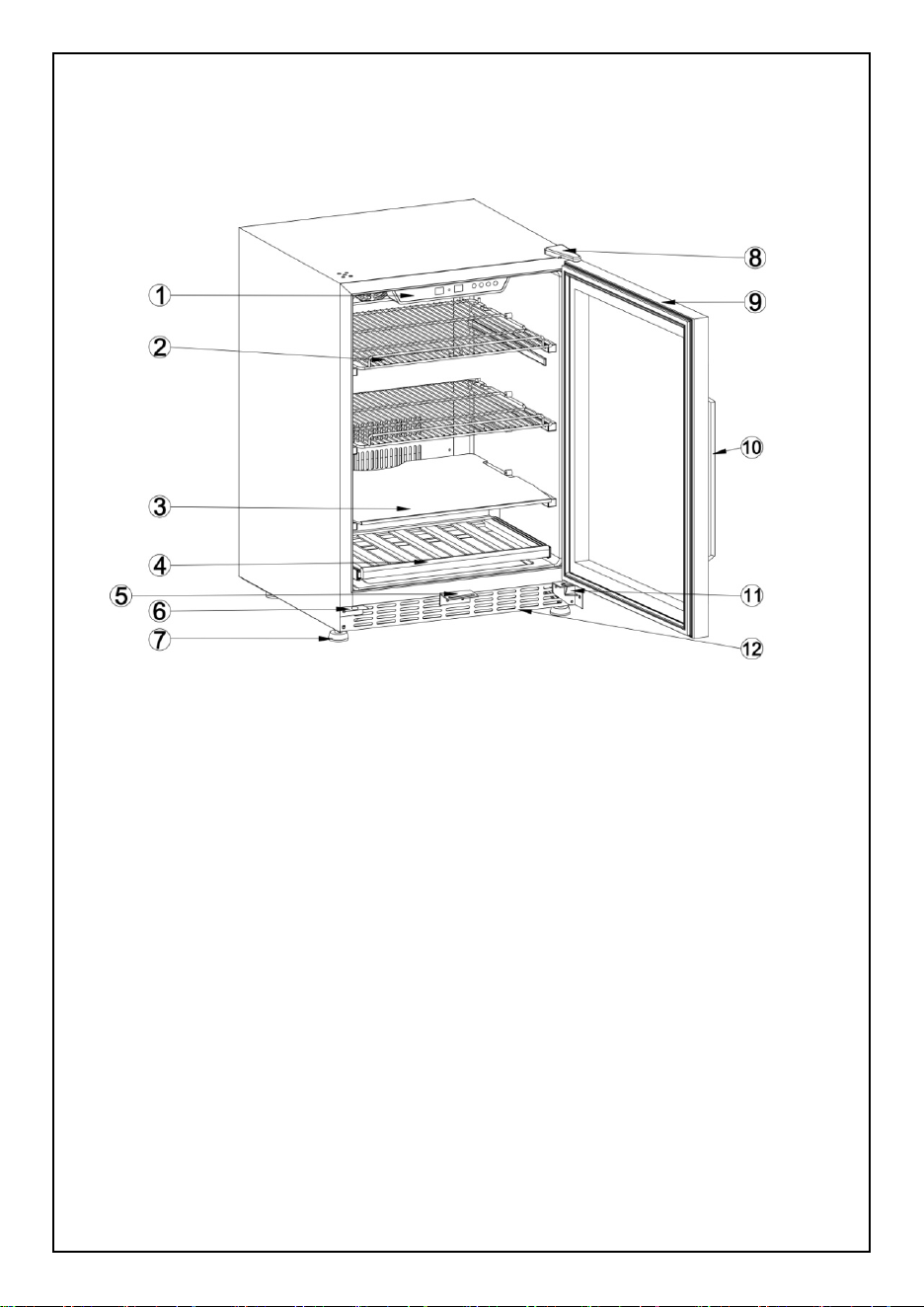

5. LB80BC/LBUS33BC/LB148BC/LBUS54BC structure diagram：
(1) Control Panel (2) Wire Shelf (3) Glass Shelf (4) Small Wooden Shelf
(5) Lock Hook (6) Door Support Bracket (7) Adjustable Feet (8) Upper
Door Hinge (9) Glass Door With Lock/Gasket (10) Handle (11) Lower Door
Hinge (12) Front Vent
12

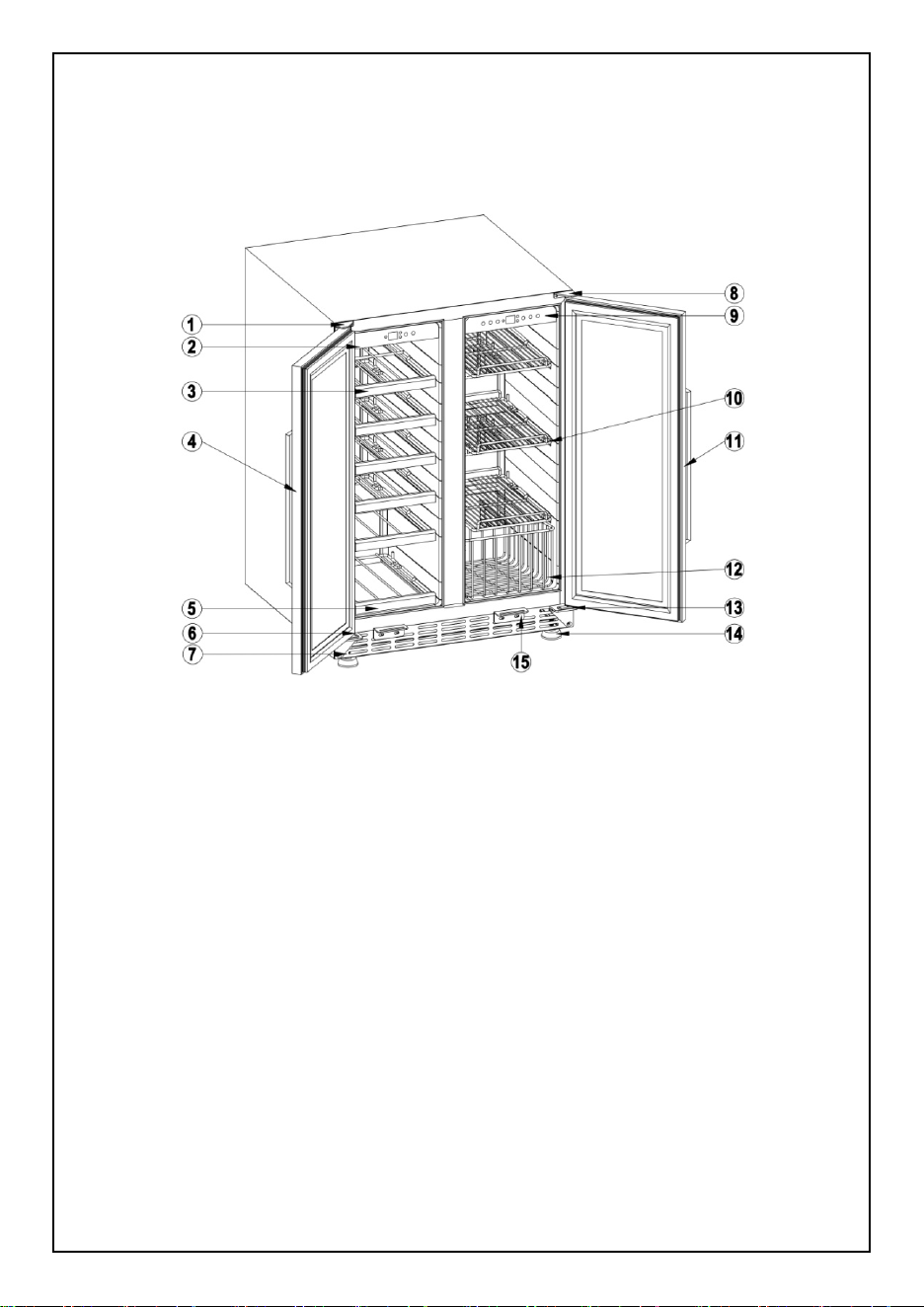

6.LB36BD/LBUS36B/LW3370B/LBUS66B structure diagram:
(1) Left Upper Door Hinge (2) Left Control Panel (3) Large Wire Shelf with
Wooden Front (4) Left Glass Door with Lock/Gasket & Handle (5) Small
Wire Shelf with Wooden Front (6) Left Lower Door Support (7) Front Vent
(8) Right Upper Door Hinge (9) Right Control Panel (10) Wire Shelf (11)
Left Glass Door with Lock/Gasket & Handle (12) Wire Basket (13) Right
Lower Door Support Bracket (14) Adjustable Feet (15) Lock Hook
13

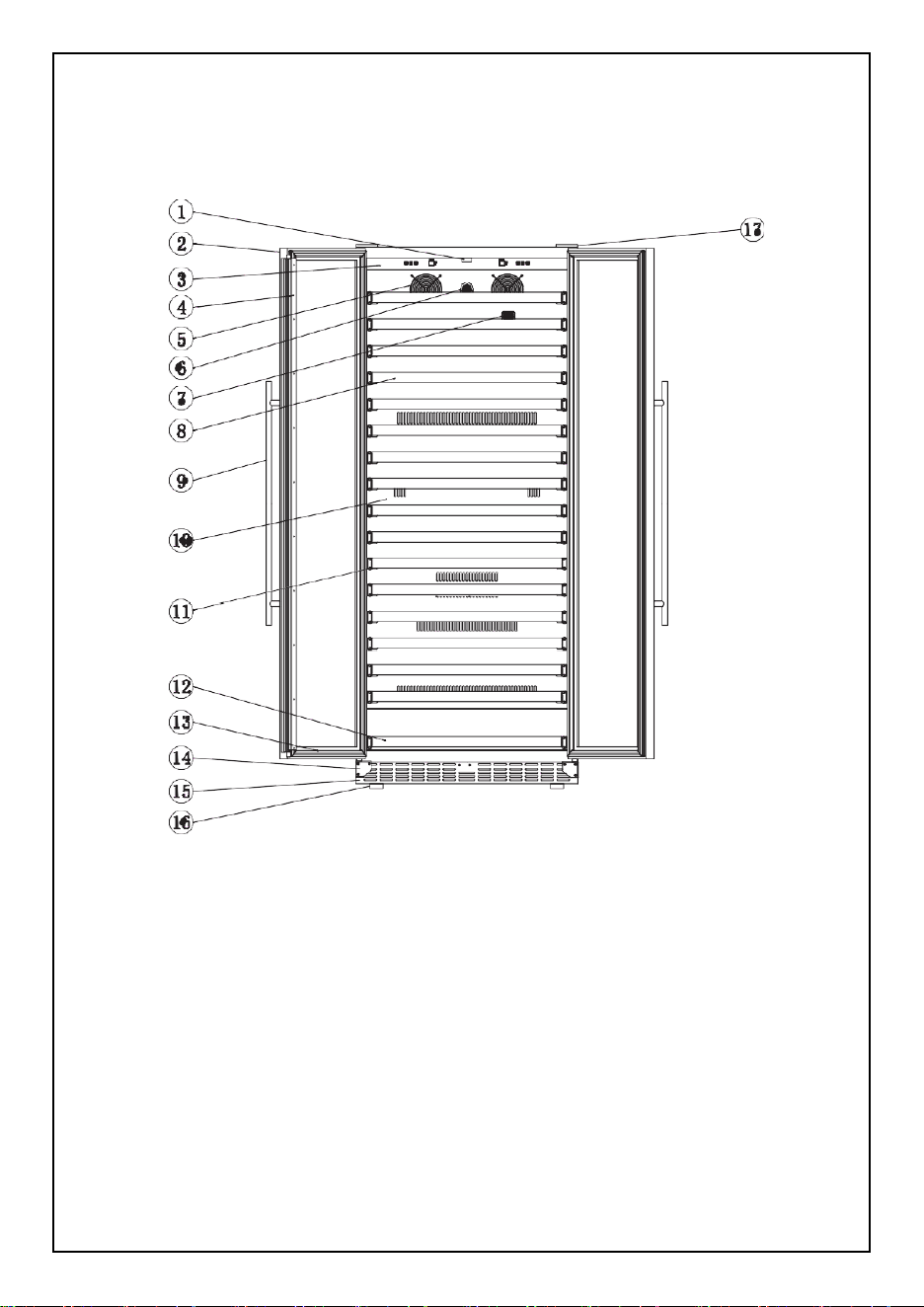

7.LW328SD structure diagram:
(1) Door Lock Device (2) Glass Door (3) Control Panel (4) Middle Crosser
(5) The Fan of Evaporator (6) Carbon Filter (7) Sensor (8) Full Wooden Shelf (9)
Handle (10) Air-duct Board (11) The Rolling Guide (12) Half Wooden Shelf (13)
Door Gasket (14) Prevent Fall Device of The Door (15) The Front Vent (16)
Adjustable Feet (17) Upper Hinge
14

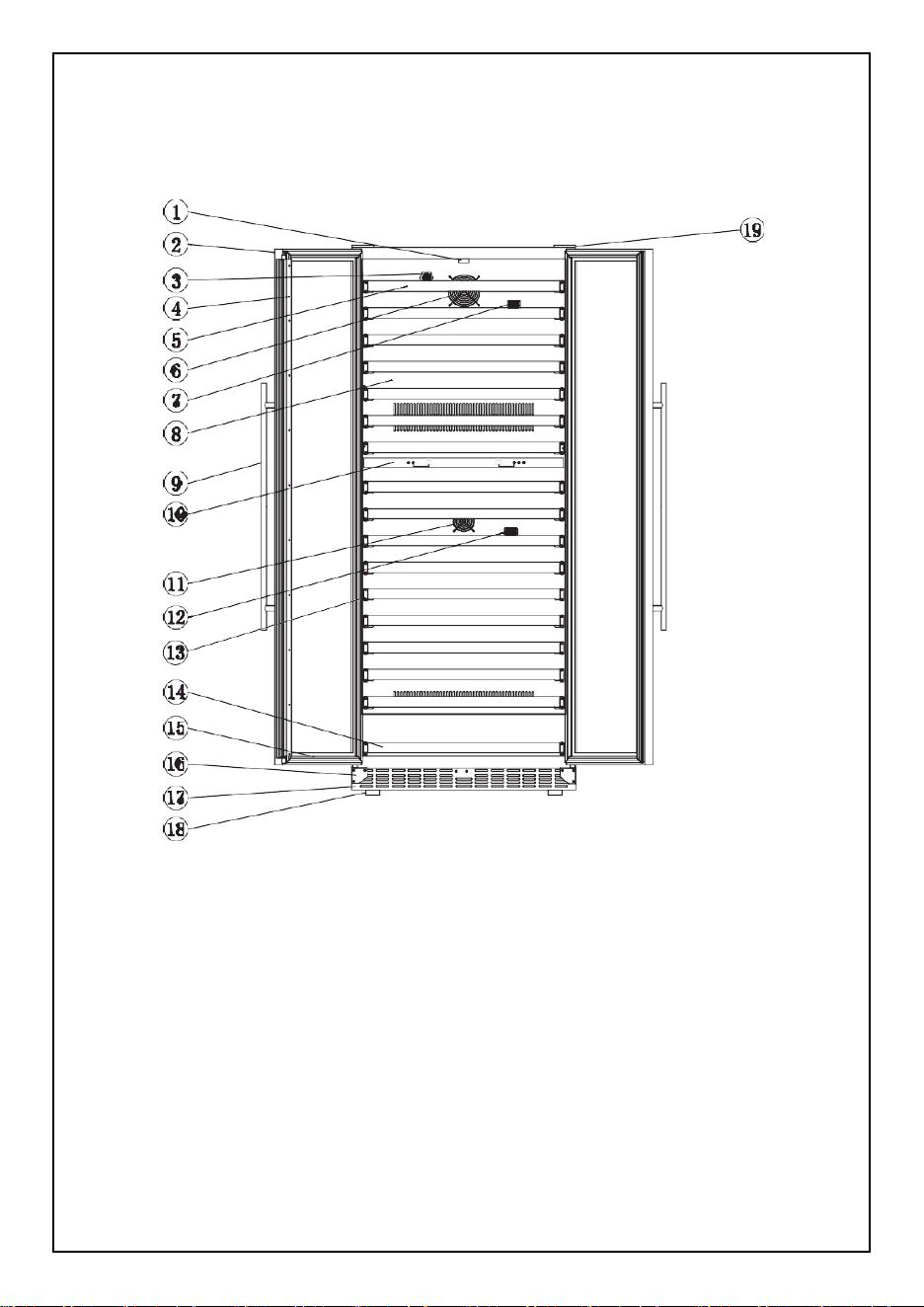

8.LW328DD structure diagram:
(1) Door Lock Device (2) Glass Door (3) Control Panel (4) Middle Crosser
(5) Full Wooden Shelf (6) The Fan of Evaporator (7) The Upper Sensor (8)
Air-duct Board (9) Handle (10) Control Panel (11) Heating Fan (12) The
Lower Sensor (13) The Rolling Guide (14) Half Wooden Shelf (15) Door
Gasket (16) Prevent Fall Device of The Door (17) The Front Vent (18)
Adjustable Feet (19) Upper Hinge
15
3.Installation Instructions
Before Using Your Wine Cooler / Beverage Cooler
Remove the exterior and interior packing.
Before connecting the wine cooler / beverage cooler to the power source,
let it stand upright for approximately 24 hours. This will reduce the
possibility of a malfunction in the cooling system from handling during
transportation.
Clean the interior surface with lukewarm water with a soft cloth.
The cooler is specially designed for wine storage, please do not put in
other goods.
Installation:
The cooler should be placed independently so as to make sure good heat
dissipation. The back of the cooler should be away from the wall 10cm at
minimum.
Place your wine cooler / beverage cooler on a floor that is strong enough to
support it when it is fully loaded. To level your wine cooler, adjust the front
leveling leg at the bottom of the wine cooler.
Locate the wine cooler / beverage cooler away from direct sunlight and sources
of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic
coating and heat sources may increase electrical consumption. Extreme cold
ambient temperatures may also cause the unit not to perform properly.
Avoid locating the unit in moist areas.
Plug in the proper power socket. Make sure that the shape and voltage of the
socket is consistent with the nameplate on the back of the cooler.
16
4. Operation Instruction
4.1 Control Panel Below (LW33S/LBUS33S/LW52S/LW155S/
LW177S/LW321S/LB80BC/LBUS33BC/LB148BC/
LBUS54BC)：
◎ Display Windows
· RUN light：Indicator light of compressor working. While the compressor operating,
the red light is on. While it stops operating, the red light is off.
·SETTING：Display of the temperature you set. The range of temperature setting is
0℃~37℃ or 32℉~99℉.
·CHAMBER： Display of the actual temperature inside the cabinet; The range is
0℃~37℃ or 32℉~99℉.
·℃/℉ light：When the ℃ light is on, it indicates Celsius temperature; When the ℉
light is on, it indicates Fahrenheit temperature.
◎ Button Operation
·SET Button ： Temperature setting button; Once you press the button, the
temperature increased 1℃ or 1℉. Detail temperature setting range as
following:
For LB80BC/LBUS33BC is between: 3℃~18℃ or 37℉~64℉;
For LB148BC/LBUS54BC is between: 3℃~18℃ or 37℉~64℉;
For LW33S/LBUS33S/LW52S/LW155S/LW177S/LW321S is between:5℃~18℃ or
41℉~64℉.
·LIGHT Button：Cabinet light control button; Note: Once the light is turned on, it will
automatically shut off after 10 minutes in order to protect the wines inside.
·℃/℉ Button：Celsius and Fahrenheit conversion button;
·ON/OFF button：Power on and off button; Press the button for 3 seconds, to start;
press it 3 seconds again, to stop.
17
4.2 Control Panel Below(LB36BD/LBUS36B)：
◎ Display Windows
· RUN light ： Indicator light of compressor working. While the compressor is
operating, the red light is on. When it stops operating, the red light is off.
·CHAMBER： Display of the setting and actual temperature inside the cabinet; The
range is 0℃~37℃ or 32℉~99℉.
·℃/℉ light：When the ℃ light is on, it indicates Celsius temperature; When the ℉
light is on, it indicates Fahrenheit temperature.
◎ Button Operation
·“ ＋ ” “–” Button： Temperature setting button; Once you press “＋ ” button, the
temperature increase 1℃ or 1℉; if you want to decrease the temperature, press
the “-” button, the temperature decreased 1℃ or 1℉ each time.
Detail temperature setting range as following:
5℃~18℃ or 41℉~64℉ for the left zone, 4℃~10℃ or 39℉~50℉ for the right zone;
·LIGHT Button：Cabinet light control button; Note: Once the light is turned on,
·℃/℉ Button：Celsius and Fahrenheit conversion button;
·ON/OFF button：Power on and off button; Press the button for 3 seconds, to start;
press it 3 seconds again, to stop.
18
4.3 Control Panel Below(LW3370B/LBUS66B/LW133DD
/LW162DD)：
◎ Display Windows
·CHAMBER： Display of the setting and actual temperature inside the cabinet; The
range is 0℃~37℃ or 32℉~99℉.
·℃/℉ light：When the ℃ light is on, it indicates Celsius temperature; When the ℉
light is on, it indicates Fahrenheit temperature.
◎ Button Operation
·“ ＋ ” “–” Button： Temperature setting button; Once you press “＋ ” button, the
temperature increase 1℃ or 1℉; if you want to decrease the temperature, press
the “-” button, the temperature decreased 1℃ or 1℉ each time.
Detail temperature setting range as following:
For LW3370B/LBUS66B is between: 5℃~18℃ or 41℉~64℉ for the left zone, 4℃
~10℃ or 39℉~50℉ for the right zone.
For LW133DD/LW162DD is between: 5℃~18℃ or 41℉~64℉ both for upper and
lower zone.
·LIGHT Button：Cabinet light control button; Note: Once the light is turned on, it will
automatically shut off after 10 minutes in order to protect the wines inside.
·℃/℉ Button：Celsius and Fahrenheit conversion button;
·ON/OFF button：Power on and off button; Press the button for 3 seconds, to start;
press it 3 seconds again, to stop.
19
4.4 Control Panel Below ( only for model LW144T):
(Upper Control Panel)
◎ Display Windows
•CHAMBER: Display of the actual temperature of the upper chamber. The range is
0℃~37℃ or 32℉~99℉.
◎ Button Operation
“+” “–” Button: Temperature setting button. Each time you press the button “+”
button the temperature increased 1℃ or 1℉. Or press “-” button the
temperature decreased 1℃ or 1℉; Setting range is between 5℃~18℃ or
41℉~64℉ of upper zone.
(Middle and Lower Control Panel)
◎ Display Windows
• MIDDLE CHAMBER：Display of the actual temperature of the middle chamber.
The range is 0℃~37℃ or 32℉~99℉.
• LOWER CHAMBER： Display of the actual temperature of the lower chamber;
The range is 0℃~37℃ or 32℉~99℉.
· ℃/℉ light：When the ℃ light is on, it indicates Celsius temperature; When the ℉
light is on, it indicates Fahrenheit temperature.
20
◎ Button Operation
• “+” “–” Button: Temperature setting button; If you need setting the temperature
of middle chamber, press the button one time, the screen of middle chamber
will be flashing, then press “+” or “-” to set the temperature of middle chamber,
setting range is between 5℃~12 ℃ or 41 ℉ ~54 ℉ . If you need setting the
temperature of lower chamber, press the button two times, the screen of
lower chamber will be flashing, press “+” or “-” to set the temperature of lower
chamber, setting range is between 12℃~18℃ or 54℉~64℉.
· LIGHT Button：Cabinet light control button; Note: Once the light is turned on, it will
automatically shut off after 10 minutes in order to protect the wines inside.
· ON/OFF button：Power on and off button; Press the button for 3 seconds, to start;
press it 3 seconds again, to stop.
21
4.5 Control Panel Below (LW28D/LBUS33D/LW46D/
LBUS54D/LW72D/LW142D/LW165D/LW306D):
◎ Display Windows
· RUN light：Indicator light of compressor working. While the compressor operating,
the red light is on. While it stops operating, the red light is off.
· UPPER CHAMBER：Display of the actual temperature of the upper chamber. The
range is 0℃~37℃ or 32℉~99℉.
· LOWER CHAMBER： Display of the actual temperature of the lower chamber; The
range is 0℃~37℃ or 32℉~99℉.
· ℃/℉ light：When the ℃ light is on, it indicates Celsius temperature; When the ℉
light is on, it indicates Fahrenheit temperature.
◎ Button Operation
· SET Button：Temperature setting button; Once you press the button, the
temperature increased 1℃ or 1℉. Detail temperature setting range as
following:
For LW28D/LBUS33D/LW46D/LBUS54D/LW72D/LW142D/LW165D/LW306D is
between:
5℃~12℃ or 41℉~54℉for upper zone, 12℃~18℃ or 54℉~64℉ for lower zone;
· LIGHT Button：Cabinet light control button; Note: Once the light is turned on, it will
automatically shut off after 10 minutes in order to protect the wines inside.
· ℃/℉ Button：Celsius and Fahrenheit conversion button;
· ON/OFF button：Power on and off button; Press the button for 3 seconds, to start;
press it 3 seconds again, to stop.
22
23
24
Note: This series of wine coolers has its delay protection function. The compressor
will start to work about 3 to 5 minutes after it is power has been connected or
powered on. Please use the wine cooler under the T type of climate. The
temperature inside the cabinet will fluctuate and influence the refrigerating effect if
the surrounding temperature is too high or too cold.
◎ Shelf Change LW46D, LBUS54D,LW72D,LW142D,LW165D,
LW306D,LW133DD,LW162DD,LW52S,LW155S,LW177S,LW321S,
LW144T,LW328SD,LW328DD
Follow the diagram below to remove or change the adjustable shelves
First, remove all wines from the shelves and pull shelf out to the limit. Then press up
the left plastic bracket of sliding rail while pressing down on the the right one, pull the
shelves out at this time. It could be easily pulled out if doing the three steps (Press
up left bracket, press down on the right one and pull out) all at the same time.
25
◎ Shelf Change LB80BC, LBUS33BC, LB148BC, LBUS54BC, LB36BD,
LBUS36B, LW3370B, LBUS66B
Pull out the wire shelf, make the cove position toward to the pillar at two sides of the
cabinet, then lift up and pull out the wire shelf.
Pull out the glass shelf, make the cove position toward to the pillar at two sides of
the cabinet, then lift up and pull out the glass shelf.
26
Placement and storage of wines Several common layouts of wines:
Your cabinet was designed to store a maximum number of bottles adequately.
The shelves are designed to accommodate wines uniformly.
The best temperature for red wines is 52-64℉；For white wines is 43-54℉；
The temperature range of our wine coolers can be set between 41-64℉.
27
◎ Reversing the door swing of your appliance (only suitable for model
LW46D,LBUS54D,LB148BC,LBUS54BC,LW72D,LW142D,LW165D,LW
52S,LW155S, LW177S, LW144T)
The unit is delivered to you with the door opening from the left side (hinge on right
side). The door of this appliance is capable of opening from either the left or right
side. To reverse the door swing of your cooler and open from the right side, please
follow the instructions and diagram as follows.
28
NOTE: All parts removed must be saved to allow the door swing to be reversed

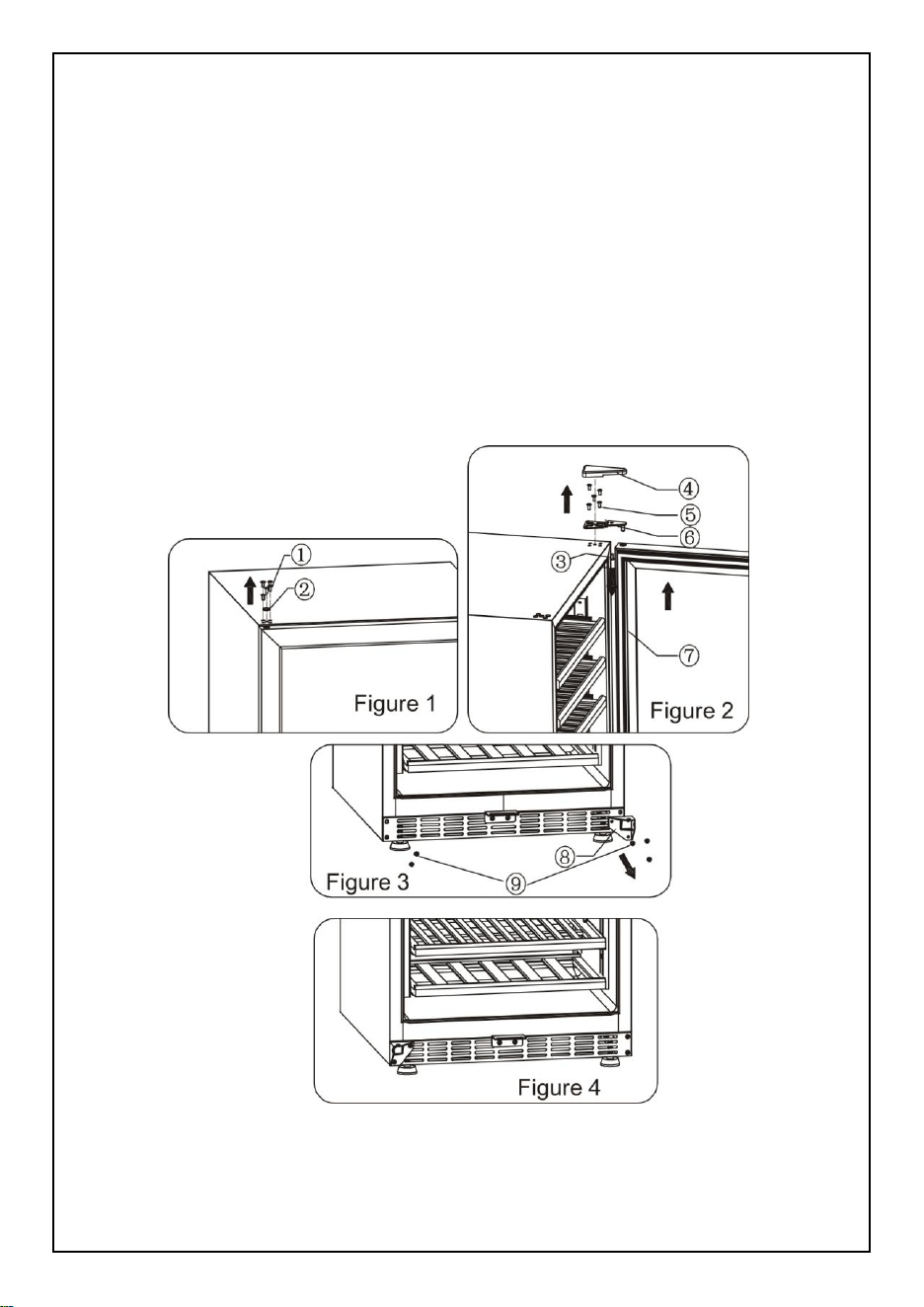

1.Use the sharp tools to pry the decoration nail on the top of the cabinet and the cap
of door spindle carefully. (Fig 1)
2. Open the door to an angle, unscrew the screw of the door hinges cover, remove
the cover of the upper door hinge; then unscrew all the screws on the upper door
hinge. Be careful to hold the glass door firmly after removing the screw and take off
the door. (Fig 2)
29
3.Remove the screw of lower door hinge and the left side screw of the front vent (Fig
3); and then install the lower door hinge at the designated position on the opposite
side.(Fig 4)

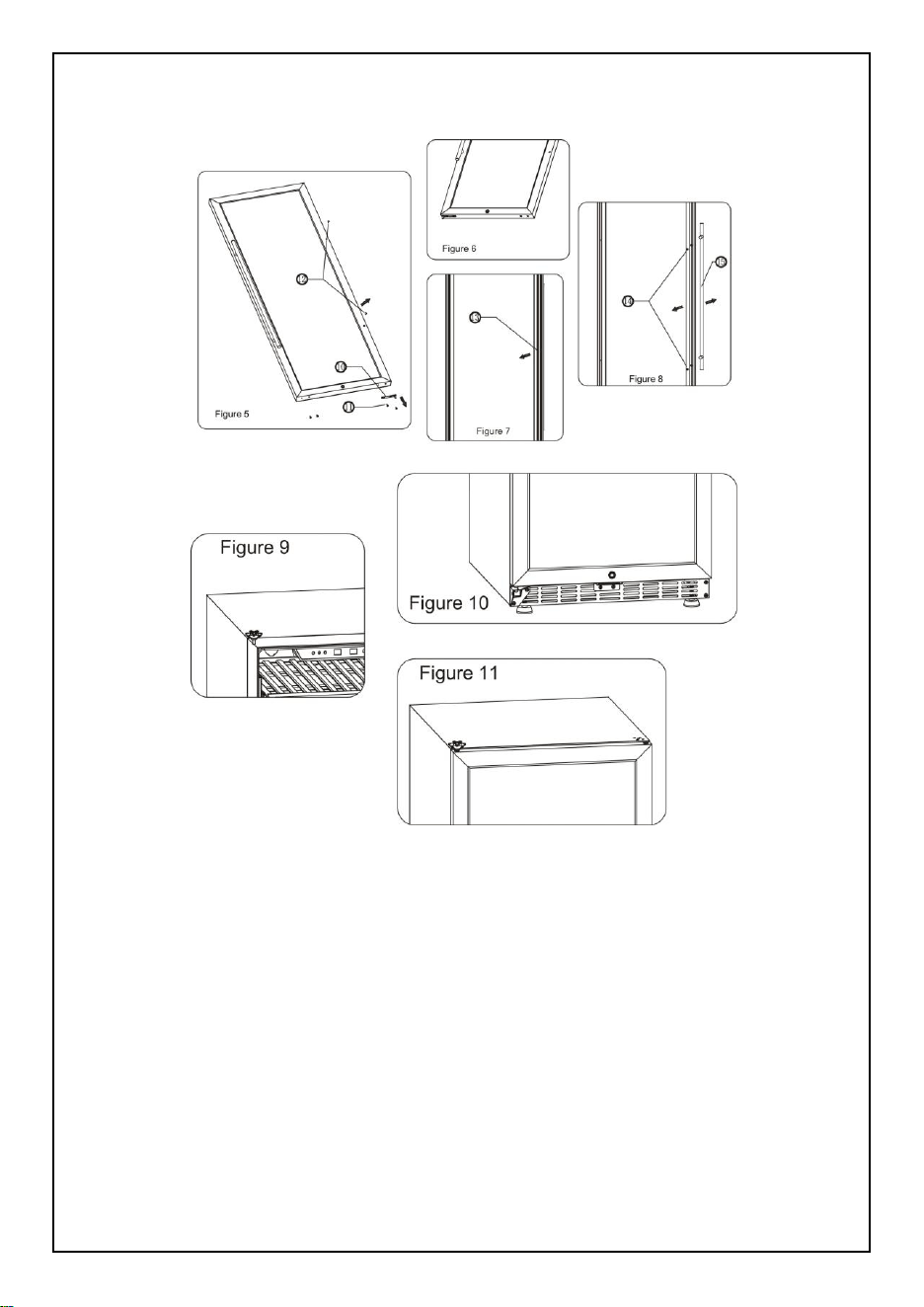

4.Remove the screw of door handle, then remove the bottom screw of left side of the
door and remove the lower supporter of the door(Fig 5); Install the lower support of
the door to the opposite side.(Fig 6)
5.Pull open middle section of the door gasket, then it will come out the handle screw
hole(Fig 7); remove the handle and install it on the opposite side.(Fig 8)
6.Install the upper door hinge to the opposite side and tighten the screws. (Fig 9)
7.Set glass door shaft to aim the shaft of lower door hinge (Fig 10);and then aim the
upper door hinge (Fig 11); adjust the door and the cabinet is aligned and leveled,
then tighten all the lock screws.
You also can call customer service for reversal instructions if it is necessary.
5. Care and Maintenance
Cleaning Your Wine Cooler
Wash the inside surfaces with warm water and baking soda solution. The
solution should be about 2 tablespoons of baking soda with a quart of water.
Wash the shelves with a mild detergent solution.
Turn off the power, unplug the appliance, and remove all items including
shelves and rack.
Wring excess water out of the sponge or cloth when cleaning area of the
controls, or any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well
and wipe dry with a clean soft cloth.
Power Failure
Most power failures are corrected within a few hours and will not affect the
temperature of your appliance if you minimize the number of times the door is
30
opened. If the power is going to be off for a longer period of time, you need to
take the proper steps to protect your contents.
Vacancy time
Short vacancy: Leave the Wine Cooler off for around three weeks.
Long vacancy: If the appliance will not be used for several months, remove all
items and turn off the appliance. Clean and dry the interior thoroughly so as to
restraint odors and mold. Leave the door open slightly all the time if necessary.
Moving Your Wine Cooler
Remove all items.
Securely tape down all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Shut door/s.
Be sure the appliance stays secure in the upright position during
transportation.
● Also protect outside of appliance with a blanket, or similar item.
Energy saving Tips
The Wine Cooler should be located in the coolest area of the room, away from
heat producing appliances, out of the direct sunlight
31
6. Troubleshooting
You can solve many common wine cooler problems easily, saving you the cost of a
possible service call. Try the suggestions below to see if you can solve the problem
before calling the service.
PROBLEM
POSSIBLE CAUSE
SOLUTION
Refrigerator does not
operate
Not plugged in
The appliance is turned OFF at the control
panel
The circuit breaker has tripped or a fuse has
blown out
Press ON/OFF
Check and make sure the power plug is well connected
Ask an engineer for help
Refrigerator is not cold
enough; can not cool
down to the preset temp.
Compressor does not start
Ask an engineer for help / check the connection of the
compressor
Compressor self-protected and has stopped
operating
The ambient temperature is too high ( over 38C degree
Celsius) The air venting is not smooth, check that the air
duct is not blocked Fan operates slowly or is faulty and
has stopped operating.
The door is not closed completely, or the door opened
too long The compressor, or its components are faulty
Fans stop working or operate at low speed
Ask an engineer for help. Power the refrigerator ON and
OFF. Check the fan and whether the voltage is normal.
If the voltage is normal, then the fan should be damaged
Evaporator ices up
Turn OFF the refrigerator for one hour and open the
door. The ice on the evaporator will melt. Check the
door seal for any air gaps.
Door is not closed properly
Check the door lock, shelves, or other objects, make
sure door is well closed.
Check the rubber seal for any air gaps.
Check the door hinges, make sure they are not loose
Condenser is dusty
Wash and clean the condenser
Cooling system faulty (Gas leakage or
blockage)
Ask an engineer for help
Compressor starts and
stops frequently
The door gasket does not seal properly.
Use low heat on a hair dryer to make the door seal take
shape.
The sensor connection is wrong.
Read the wiring diagram to make the correct connection
of sensor
The sensor is faulty.
Replace with a new sensor
The door is opened too often.
Reduce the times / frequency of door openings.
The light does not work.
Not plugged in, or the light button is “OFF”.
Light itself faulty.
Check and make sure the light button is ON, or ask an
engineer for help.
The Refrigerator seems
to make too much noise.
The stand feet is not leveling, vibrations lead to
noise
Adjust the stand feet and ensure they are level.
Copper pipe hits other objects and makes noise
Gently adjust the position of the pipe.
When the compressor shuts down or starts, it is
normal for noise from the vibrations generated
by the internal moving parts due to inertia.
Take no action
A liquid plumbing noise may come from the
flow of the refrigerators gases, which is normal.
As each cycle ends, you may hear gurgling
sounds
Take no action
The door will not close
properly.
Door is blocked by the door lock, shelves, or
other objects.
Remove the barrier
32
Door sealing rubber is deformed
Repair or replace the rubber seal
Door hinges are not loose.
Adjust and fasten the hinges.
Ice up
Outlet / suction outlet blockage
Remove the barrier
Fans stop working or operate at low speed.
Ask an engineer for help. Power the refrigerator ON and
OFF. Check the fan and the voltage. If the voltage is
normal, the fan may be damaged.
The door gasket does not seal properly; or door
is opened too often
Use low heat on a hair dryer to make the door seal take
shape.
Gas leakage or cooling system blockage
Ask an engineer for help
External
cabinet seems too hot
Ambient temperature is too high, or direct
sunshine
Operating conditions need to be improved
Front grill outlet / suction outlet blockage
Remove the barrier
Fans stop working or low speed operating
Ask engineer for help, power on the refrigerator, check
the fan whether the voltage is normal or not. If the
voltage is normal, the fan should be damage
Water drop on glass
door
Ambient humidity is high
Use a soft cloth to clean the water
Door is opened too often
Reduce the times / frequency of door opening.
The door gasket does not seal properly
Use low heat on a hair dryer to make the door seal take
shape.
7. Product Specifications
MODEL NO.
LB80BC
LW28D
LB148BC
LW46D
LB36BD
VOLUME
2.83 CF ( 80 Liter )
2.83 CF ( 80 Liter )
5.79 CF ( 164 Liter )
5.44 CF ( 154 Liter )
4.59 CF (130 Liter)
TYPE OF COOLING
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
REFRIGERANT
R600A MASS(G)
25g
25g
30g
30g
28g
NOMINAL
VOLTAGE/FREQUE
NCY
110-120V/60HZ
RATED POWER(W)
90W / 1.3A
90W / 1.3A
100W / 1.3A
100W / 1.3A
90W / 1.3A
AMBIENT
TEMPERATURE
32 - 100 °F
32 - 100 °F
32 - 100 °F
32 - 100 °F
32 - 100 °F
TEMPERATURE
RANGE
3℃~18℃ or
37℉~64℉
5℃~12℃ or
41℉~54℉
12℃~18℃ or
54℉~64℉
3℃~18℃ or 37
℉~64℉
5℃~12℃ or
41℉~54℉
12℃~18℃ or
54℉~64℉
5℃~18℃ or 41℉
~64℉ for the left
zone
4℃~10℃ or 39℉
~50℉ for the right
zone
33
NET WEIGHT
82 lbs (37 KGS)
86 lbs (39 KGS)
106 lbs (48 KGS)
117 lbs (53 KGS)
123 lbs (56 KGS)
PRODUCT
DIMENSION
14.96”W x 23.62”D
x 34.45”H
14.96”W x 23.62”D
x 34.45”H
23.43”W x 23.62”D x
34.45”H
23.43”W x 23.62”D x
34.45”H
23.43’’Wx23.62’’Dx3
3.86’’H
MODEL NO.
LW33S
LW52S
LW155S
LW177S
LW321S
VOLUME
2.83 CF ( 80 Liter )
5.44 CF ( 154 Liter )
13.42 CF ( 380 Liter )
15.89 CF ( 450 Liter )
26.84CF (760 Liter)
TYPE OF COOLING
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
REFRIGERANT
R600A MASS(G)
25g
30g
48g
50g
75g
NOMINAL
VOLTAGE/FREQUE
NCY
110-120V/60HZ
RATED POWER(W)
90W / 1.3A
100W / 1.3A
130W / 1.8A
140W / 1.9A
220W / 2.5A
AMBIENT
TEMPERATURE
32 - 100 °F
32 - 100 °F
32 - 100 °F
32 - 100 °F
32 - 100 °F
TEMPERATURE
RANGE
5℃~18℃ or
41℉~64℉
5℃~18℃ or
41℉~64℉
5℃~18℃ or
41℉~64℉
5℃~18℃ or
41℉~64℉
5℃~18℃ or
41℉~64℉
NET WEIGHT
82 lbs (37 KGS)
112lbs (51 KGS)
196 lbs (89 KGS)
216 lbs (98 KGS)
309 lbs (140 KGS)
PRODUCT
DIMENSION
14.96”W x 23.62”D
x 34.45”H
23.43”W x 23.62”D
x 34.45”H
23.42”W x 26.77”D x
63.98”H
23.42”W x 26.77”D x
71.26”H
32.28”W x29.33”D x
79.21”H
MODEL NO.
LW72D
LW142D
LW165D
LW306D
LW3370B
VOLUME
8.48 CF ( 240 Liter )
13.42 CF ( 380
Liter )
15.89 CF ( 450 Liter )
26.84CF (760 Liter)
5.93 CF (168 Liter)
TYPE OF COOLING
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
REFRIGERANT
R600A MASS(G)
38g
48g
50g
75g
28g
NOMINAL
VOLTAGE/FREQUE
NCY
110-120V/60HZ
RATED POWER(W)
110W / 1.4A
130W / 1.8A
140W / 1.9A
220W / 2.5A
90W / 1.3A
AMBIENT
TEMPERATURE
32 - 100 °F
32 - 100 °F
32 - 100 °F
32 - 100 °F
32 - 100 °F
TEMPERATURE
RANGE
5℃~12℃ or
41℉~54℉
12℃~18℃ or
54℉~64℉
5℃~12℃ or
41℉~54℉
12℃~18℃ or
54℉~64℉
5℃~12℃ or
41℉~54℉
12℃~18℃ or
54℉~64℉
5℃~12℃ or
41℉~54℉
12℃~18℃ or
54℉~64℉
5℃~18℃ or 41℉
~64℉ for the left
zone
4℃~10℃ or 39℉
~50℉ for the right
zone
NET WEIGHT
143lbs (65 KGS)
201 lbs (91 KGS)
220 lbs (100KGS)
320lbs (145KGS)
137 lbs (62 KGS)
34
PRODUCT
DIMENSION
23.43”W x 23.62”D
x 48.23”H
23.42”W x 26.77”D
x 63.98”H
23.42”W x 26.77”D x
71.26”H
32.28”W x29.33”D x
79.21”H
29.53”W x23.62”D x
34.45”H
MODEL NO.
LW144T
LW133DD
LW162DD
LW328DD
LW328SD
VOLUME
15.89 CF ( 450 Liter )
13.42 CF ( 380 Liter )
15.89 CF ( 450 Liter )
26.84CF (760 Liter)
26.84CF (760 Liter)
TYPE OF COOLING
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
compressor with
air-circulated fan
cooling
REFRIGERANT
R600A MASS(G)
50g
48g
50g
75g
75g
NOMINAL
VOLTAGE/FREQUE
NCY
110-120V/60HZ
RATED POWER(W)
140W / 1.9A
130W / 1.8A
140W / 1.9A
220W / 2.5A
220W / 2.5A
AMBIENT
TEMPERATURE
32 - 100 °F
32 - 100 °F
32 - 100 °F
32 - 100 °F
32 - 100 °F
TEMPERATURE
RANGE
5℃~18℃ or 41℉
~64℉ for the upper
zone
5℃~12℃ or
41℉~54℉for the
middle zone
12℃~18℃ or
54℉~64℉ for the
lower zone
5℃~18℃ or
41℉~64℉
5℃~18℃ or
41℉~64℉
8℃~12℃ or
46℉~54℉
12℃~18℃ or
54℉~64℉
8℃~18℃ or
46℉~64℉
NET WEIGHT
220 lbs (100KGS)
201 lbs (91 KGS)
220 lbs (100KGS)
320lbs (145KGS)
309 lbs (140 KGS)
PRODUCT
DIMENSION
23.42”W x 26.77”D x
71.26”H
23.42”W x 26.77”D x
63.98”H
23.42”W x 26.77”D x
71.26”H
32.28”W x29.33”D
x 79.21”H
32.28”W x29.33”D x
79.21”H
35
WARRANTY INFORMATION
Please speak to your retailer before calling Lanbo International Inc. if you did not
purchase your refrigerator directly from LANBO.
Limited warranty – If your refrigerator is not operating properly, LANBO reserves
the right to repair or replace the refrigerator. LANBO may request the consumer to
contact a local refrigeration company to service the refrigerator. All cost for labor and
materials are covered for 12 months whole parts and compressor covered for 36
months warranty. If LANBO deems the unit not repairable. LANBO will use the value
of your original order toward a replacement. For customer service, please contact
600-8766
The limited warranty does not cover: Damage due to such things as accident,
misuse, abuse, mishandling, neglect, unauthorized repair or any other cause
beyond the control of the seller whether similar or dissimilar to the foregoing.
Purchaser understands and acknowledges that the goods sold here are WINE /
BEVERAGE COOLERS. Purchaser assumes all the risk of using these units,
including risk of spoilage, humidity variations, temperature variations, leaks, fires,
water damage, mold, mildew, dryness and similar perils that may occur.
SPECIAL NOTE: Warranty is only honored for the unit which is purchased and used
in United States of America. And, if your product was purchased at any 3rd party
retailer and not directly from LANBO, we do not offer an extended warranty policy.
You must contact the retailer of purchase directly. In the event your retailer does not
offer an extended warranty plan, we recommend you contact a third party warranty
provider. However, regardless of point of purchase, all LANBO coolers are backed
by a 12 months manufacturer's warranty from date of sale.
