(12.6V/10A,126W Max)
Car Socket:
12.6V/8A,100.8W(Input）
12.6V/10A,126W(Output）

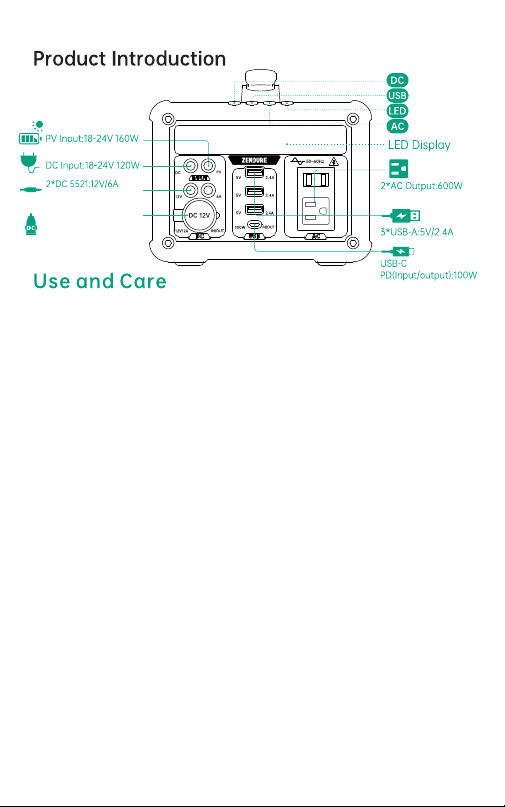

Using AC, DC, Car, and USB Outputs
Press and hold the button corresponding to the output you would like to use. After
2 seconds, the output’s respective icon will appear on the screen. Press and hold
again for only 2 seconds to turn off the corresponding output.
Charging a Car Battery
Activate the DC outputs, then press the DC button twice. “Car-Start” will appear
on the screen. Connect your SuperBase to the car’s battery. After some time,
“Failed” or “Completed” will appear on the display in indicate whether charging
was successful.
Using the LED Flashlight
Press and hold the “LED” button for 2 seconds to turn on the LED. Press the button
again to change between normal, bright, SOS, and flashing mode. Press and hold
the “LED” button for 2 seconds to turn off the LED.
Quick Shutdown
Press and hold any illuminated button. After a few seconds, all outputs will turn
off.
Conserving Energy
When the AC outputs are active, there will be a 10-20W loss of power. We
recommend turning off the AC outputs when you are not using them.
Changing the AC Output Frequency
With the AC output activated, quickly press the “AC” button three times to toggle

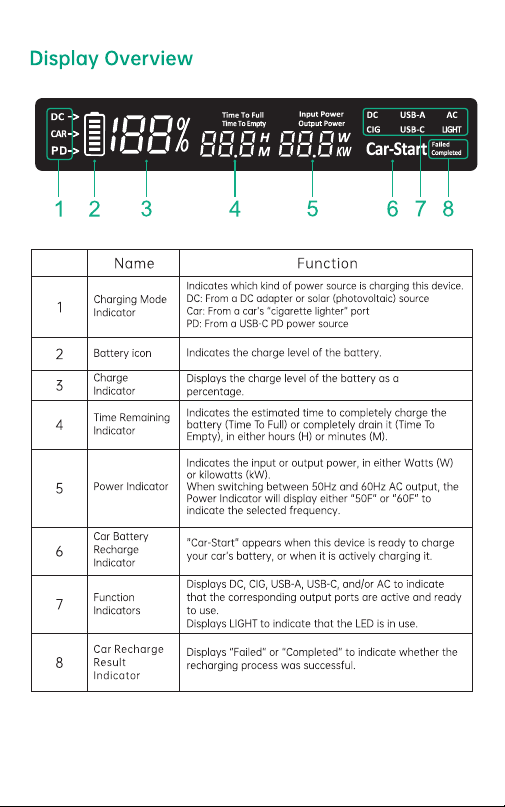

the AC output frequency between 50Hz and 60Hz. The Power Indicator will briefly
display either “F50” or “F60” to indicate the selected frequency.
Transporting This Product
This product must be protected from rain, flooding, collision, and vibration during
transport.
Storage
Do not place this product in a high temperature environment (above 45°C/113°F)
or near a flame.
For long-term storage (more than three months), this device should be kept at or
above 50% charge to maximize the service life of the internal battery.
Please charge and discharge this product twice every six months to maximize the
service life of the internal battery.
Operating Temperature
Please use this product in a temperature range of 0-45°C/32-113°F for safe
operation and maximum service life.
How does this product dissipate heat safely without a fan?
The product uses high-frequency circuitry that generates less heat overall, and
the aluminum enclosure helps dissipate heat into the air, for quiet operation.
How long can the product be stored?
If you are storing this product for more than three months, make sure the battery
is at least 50% charged. Every six months, fully drain and recharge the battery to
prolong the service life of the internal battery.
How long does it take to fully charge this product?
When using mains/solar panels,and the car charging port, and USB Type-C
charging simultaneously, it takes about 2.9 hours to charge at full speed.
When charging with mains power, it takes about 5.5 hours to fully charge.
When using the car charging port, it takes about 5.1 hours.
When charging with USB Type-C, it takes about 6.4 hours to fully charge.
When charging with solar panels, it can vary. As a baseline, a 150W solar array
receiving 750W/m² would take about 4.2 hours.
Note: the above figures are reference approximations from laboratory testing.
Can I charge this product with solar power and the car charging port
together?
You can charge this product with both at the same time, to reduce charging time.
Can the product be discharged (outputs used) while charging?
This product supports discharging while charging. When the output power is
greater than the charging power, the charge level will decrease over time. When
the charge level is very low, the output ports will be deactivated.
Can this product handle extreme temperatures?
This product can be charged at up to 45°C/113°F and discharged at up to
40°C/104°F.
Will this product shut down automatically?
This product will only shut down automatically if the charge level is very low or
one of the safety mechanisms has been triggered.
How much displacement of the product car can start when starting?
The product starting principle is to charge the car battery, 12V system can be
used, the displacement is not limited
What does it mean when the screen shows “SUS”?
The screen will display “SUS” to indicate that the temperature is too high or too
low to charge safely, so the product will not accept a charge.
12.6V 8A, 100.8W Max
-10°C~40°C
20V 3A,20V 5A,
100W Max
12.6V 6A,
(12.6V 10A, 126W Max)
18-24V, 160W Max
18-24V, 120W Max
5V 2.4A,
9V/12V/15V/20V 3A,
20V 5A, 100W Max
0°C~45°C
