MODEL: SCH60SS
V 1.0 | 1224
60cm Chimney
Extractor Hood
Stainless Steel
Welcome Congratulations on purchasing
your new extractor hood!
The Sôlt brand is now also proudly
distributed within the UK.
Please refer to the warranty card at the rear of this manual
for information regarding your product’s parts and labour
warranty, or visit us online at
wwwwww..solt.house
At Sôlt Brand, we are customer obsessed and our Support
Team are there to ensure you get the most out of your
appliance. Should you want to learn more about your
cooker's features, and importantly taking care of your
appliance when cleaning, our Support Team are here to
help.
You can use our online job booking service anytime, by
visiting www.appliancesupport.co.uk/solt or by emailing
It is important that you read through the following use and
care manual thoroughly to familiarise yourself with the
installation and operation requirements of your appliance to
ensure optimum performance.
Again, thank you for choosing an Sôlt appliance and we look
forward to being of service to you.
Kind Regards,
The Solt Team
Sôlt
—
Online Job Booking.
www.appliancesupport.co.uk/solt
_
Instagram.
/solt.house
—
Facebook.
/solt.appliances
1 Introduction
Congratulations on the purchase of your new product. You have bought a high
quality product. These instructions are part of this product. They contain
important information regarding safety, use and disposal for the installer and
user of the product. Please familiarise yourself with all information prior to using
your product. Use the product only as described and for the specified
applications. When transferring the product to a third party make sure to also
supply all instructions and other relevant documents.
If you have any questions, require further information or wish to order more
copies of these installation and operating instructions, please contact:
1.1 Intended use
This product is intended to be used as a domestic appliance to extract vapours
and remove odours from cooking environments. This product is intended for
private, non-commercial use. The product may only be used in domestic or
similar working and residential environments. This product is not intended for
outdoor use. The product must be used in accordance with the instructions
provided in this manual. All uses other than those described in this manual shall
be considered inappropriate uses.
In these user instructions the cooker hood is also called the ‘appliance’.
1.2 Safety symbols used in this manual
DANGER!
This symbol is used to indicate an
imminently hazardous situation
which, if not avoided, will result in
death or serious injury.
WARNING!
This symbol is used to indicate a
potentially hazardous situation
which, if not avoided, could result
in death or serious injury.
CAUTION!
This symbol is used to indicate a
potentially hazardous situation
which, if not avoided, could result
in minor or moderate injury.
NOTICE
This symbol is used to indicate a
situation which, if not avoided,
could result in damage to the
appliance.
1
• Always check the power level selected on the cooker hood before
turning on the appliance. If possible, always use the cooker hood with
the switch in the “I” position. This setting is generally sufficient in the
majority of cooking situations.
• Make sure you switch off the cooker hood after use.
• Clean the mesh filters frequently and according to the instructions.
Replace the active carbon filters frequently and according to the
instructions. Heavily soiled filters have a negative impact on
performance and efficiency.
• Make sure the ducting has no bends sharper than 90 degrees as this
will reduce the efficiency of the cooker hood.
• Switch on the cooker before you start the cooking, so the air flow has
time to establish itself.
• When the cooker hood is used in recirculation mode (with active carbon
filter), keep the hood switched on until the filter is dry.
2
3 Safety instructions
Please take the time and read these general safety instructions carefully. Follow
all the instructions. This will help you avoid the risk of fire, explosions, electric
shocks or other hazards that may result in damage to property and/or severe or
fatal injuries. Please ensure that everyone who uses the appliance has read and
followed these warnings and instructions.
• Please read all the safety information and the instructions. The
manufacturer accepts no liability for any material damage or personal
injury caused by incorrect handling or non-compliance with the safety
instructions. In such
cases, the warranty will be voided.
• Keep all safety information and instructions for future reference and pass
them on to subsequent users of the appliance.
• The appliance is intended for domestic and indoor use only. Never use
outdoors.
• Keep the appliance away from moisture.
• Use the appliance within the specified performance limits.
• Be vigilant at all times, and always be aware of what you are doing. Do
not use electrical equipment whenever your concentration or awareness
is poor or you are under the influence of drugs, alcohol or medication.
Even a moment of inattentiveness can lead to serious accidents and
injuries when using electrical equipment.
• This appliance is not intended for use by persons (including children)
with restricted physical, sensory or intellectual capabilities or a lack of
experience and/or knowledge, unless they are supervised by a person who
is responsible for their safety or provides them with instructions on how to
use the appliance. Children should be supervised in order to ensure that
they do not play with the appliance.
• Never leave children unattended with the packaging material. The
packaging material represents a danger of suffocation. Children
frequently underestimate the dangers. Always keep children away from
the packaging material.
3
• Protect the mains adapter from use by third parties (particularly children).
Keep the mains adapter in a dry, elevated or locked location away from
children.
• The appliance may only be installed by a qualified and trained electrician.
• Check the appliance and cable for any damage before installation. If
there is any visible damage, a strong odour or excessive
overheating of components, unplug all the connections immediately
and stop using the appliance.
• Connect the appliance to a suitable, properly installed and easily
accessible mains power socket. Make sure the appliance can be
disconnected from the mains at all times.
• Prior to connecting to the mains, make sure your local mains voltage
matches the rating indicated on the appliance.
• The appliance must be connected to a permanent and earthed AC wall
socket.
• Protect the mains cord from being damaged, pinched or buckled and
position it in a way that people cannot trip over the cord. It is
particularly important to ensure that damage is avoided to the plug and
at the point where the cord exits from the appliance.
• Unplug all connections before installing the appliance.
• The appliance has sharp edges. Pay attention to these, especially during
installation and cleaning.
• Do not install the appliance above a cooker with
a high level grill.
• When the appliance is installed above a cooking
appliance, the minimum distance between the
supporting surface of the cooking appliance and
the lowest part of the cooker hood should be:
65 cm
o
Gas cookers:
o
Electric cookers:
60 cm
o
Coal or oil cookers: 60 cm
• Use only original screws. Failure to do so may
be associated with a risk of electrocution.
60-65 cm
4
• Never leave naked flames under the cooker hood to avoid
overheating.
• Always put lids on pots and pans when cooking on a gas
cooker.
70-80 cm
• Do not use the cooker hood without the filters or when the filters are
excessively greasy.
• When the appliance is in extraction mode, air in the room will be removed by
the cooker hood. Make sure that proper ventilation measures are taken.
• Make sure there is sufficient ventilation in the room for the cooker hood, but
also for other appliances that need ventilation, such as appliances burning
gas or other fuels.
• The air may not be discharged into a flue that is used for exhaust fumes from
appliances burning gas or other fuels. Ensure compliance with local
regulations on the discharge of air.
70-80 cm
• Do not leave frying pans unattended during use because overheated fats
or oils could catch fire.
• The appliance and its accessible parts can become hot during operation.
Be careful and avoid touching hot surfaces.
• Do not flambé under the cooker hood.
5
• Make sure the ducting has no bends sharper than 90 degrees as this will
reduce the efficiency of the cooker hood.
• When the cooker hood and other appliances supplied with energy other
than electricity are simultaneously in operation, the negative pressure in the
room may not exceed 4 Pa (4 x 10-5 bar).
• After each use the appliance should be disconnected from the mains to
ensure that it does not represent a risk to humans and domestic animals.
• Always grasp the plug, not the cord itself. Never touch a mains plug with
wet hands.
• Unplug all power connections before cleaning the appliance or before
replacing a lamp.
• Do not use wipes or chemicals as these could damage the surface. Wipe the
housing with a damp cloth. Electrical/electronic parts should not be cleaned.
• Maintenance and inspection should be undertaken on a frequent basis. If
there is any visible damage, a strong odour or excessive overheating of
components, stop using the appliance.
• Clean the appliance in accordance with instructions. Failure to do so may
result in a risk of fire.
• Do not attempt to open, modify or repair the appliance. Do not drop,
puncture, break or expose to high pressure.
• Before obtaining access to terminals, all power circuits must be
disconnected.
• Alterations to the appliance and technical modifications are not permitted.
• If the power cord is damaged, the repair must be undertaken by a qualified
electrician. All local regulations must be followed.
6
4 Installation
• The appliance may only be installed by a qualified and trained
electrician.
• Before you install the appliance, you should check it for damage. If
damage has occurred during transport, please inform the
manufacturer immediately. The appliance has been tested to ensure
proper functioning before delivery.
• Use only original screws. Failure to do so may be associated with a risk
of electrocution.
4.1 How to install the product
Tools required:
• Pencil
• Drill (8mm)
• Crosshead screwdriver
• Self-retracting metal tape
measure
• Spirit level
Must to check before install
1. Make sure that the power cable is disconnected from the wall socket.
2. Attach the two air flaps to the one-way valve on the cooker hood.
3. Place the hanging board against the ceiling. Determine the position of the
twelve holes for the plugs and the hole for the expansion pipe. WARNING!
Make sure that the ceiling can bear at least 120kg and that the thickness of
the ceiling is at least 30mm.
4. If you have an outlet, drill or saw a hole with a diameter of 160mm in the
ceiling.
7

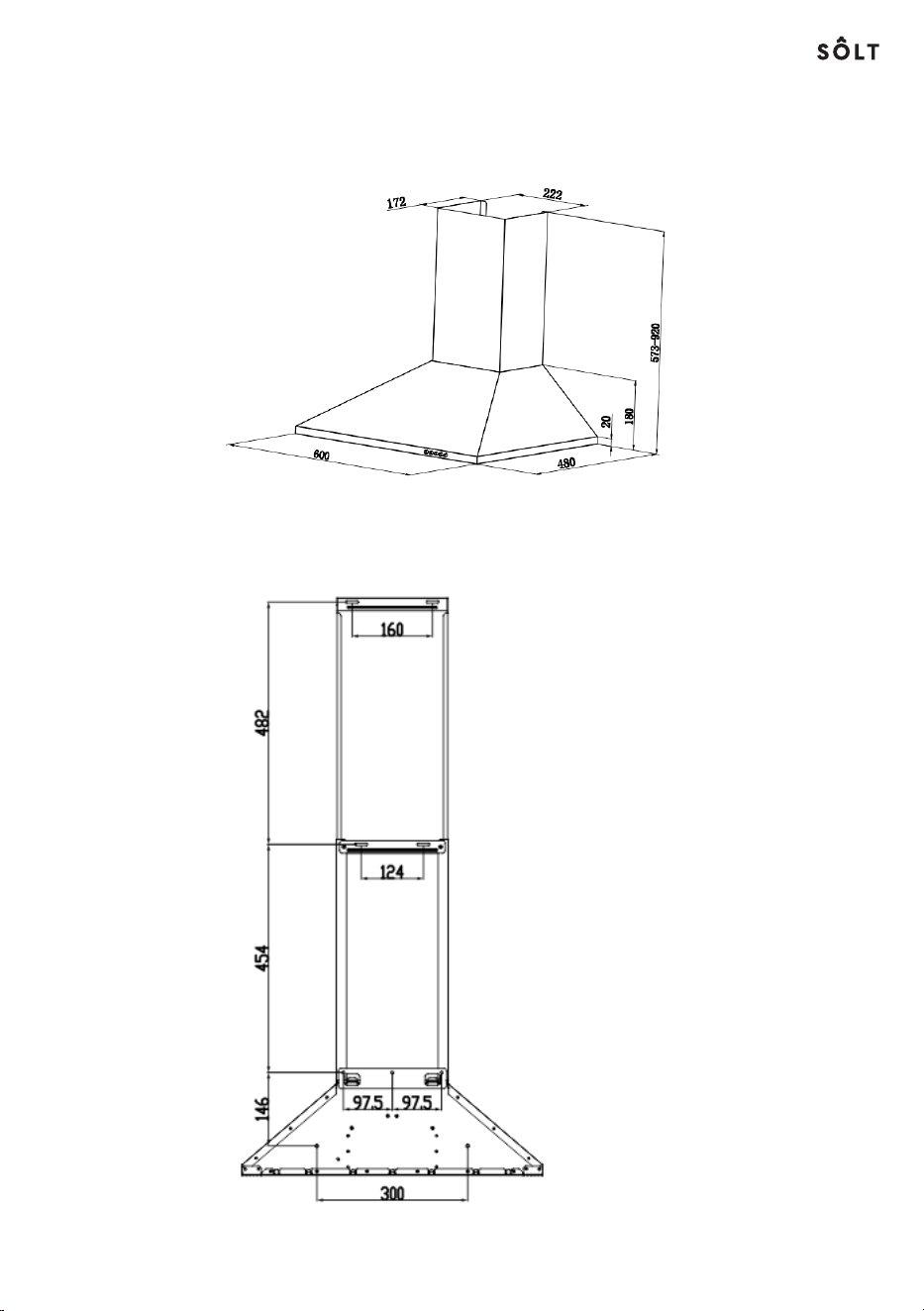

Drawing for the hood
Installtion drawing
8
INSTALLATION
1.
Wall mounted
9

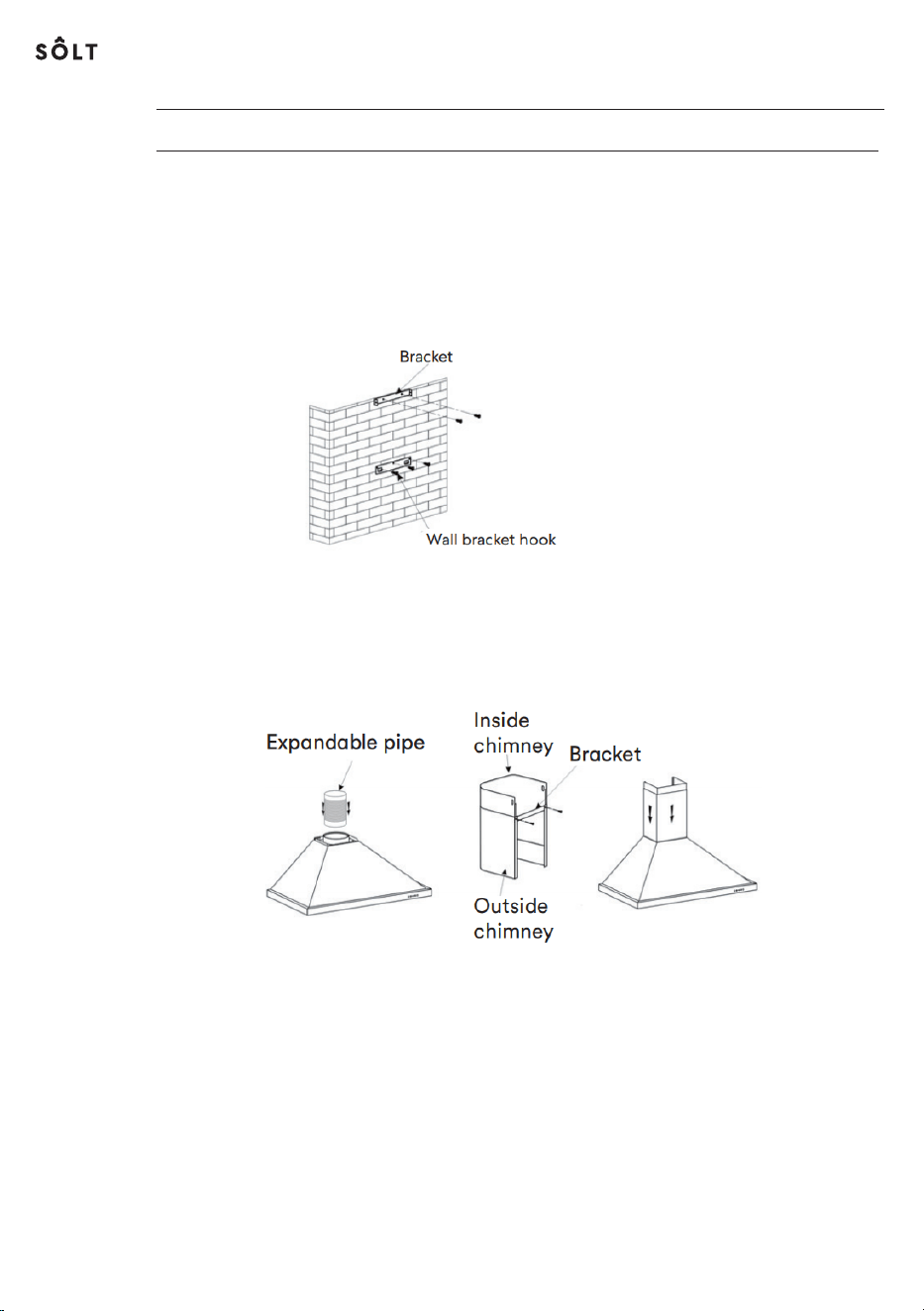

Fix the outside chimney bracket on the outside chimney, and be sure
that the inside chimney can be adjusted the height in it freely as
well as fixing the extensible pipe and chimney on the hood.
Remark:
Place the shaft on the hood body an mark the mounting holes on the
wall. Remove the shaft and drill the holes at the marked points.

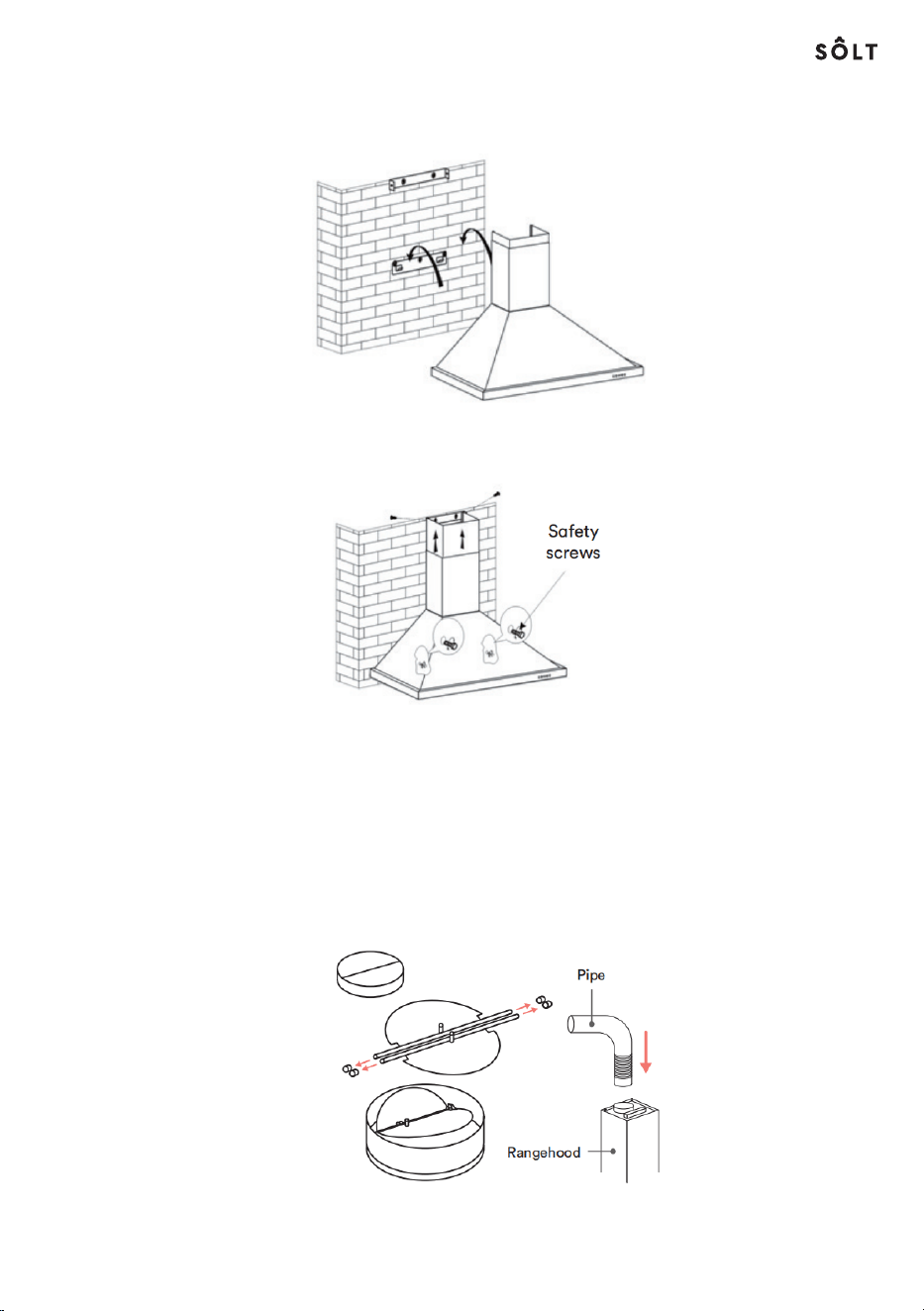

1.1
1.2
Install the wall bracket hook in a suitable place. Once the installation
height is fixed and level, the fixed position of the inside chimney
bracket is the place of chimney.
10
1.3. Lift up the hood and hang onto the wall bracket hook.
1.4. Lift up the hood and hang onto the wall bracket hook.
1.5 Fix the one-way valve to the air outlet of the hood. Then attached the exhaust
pipe onto the one-way-valve as shown below.
Remark: The pipe is not included.
The hood with inside recycle, just install the one-way-valve & charcoal filter is
okay
The how if with outer recycle, it need to buy an extra exhaust pipe, after install
the one-way-valve, you need to install the exhaust pipe on it, as below pic.
5 Using the cooker hood
• Do not touch the light within 30 minutes after using the
appliance.
• Do not cover the lamp with thermal insulation or other
materials.
1. Make sure that the power plug is connected to an earthed wall socket.
2. Press the symbol. The light will turn on. NOTICE Only switch on the
lights when operating the appliance. Do not switch on the lights to
lighten up the room.

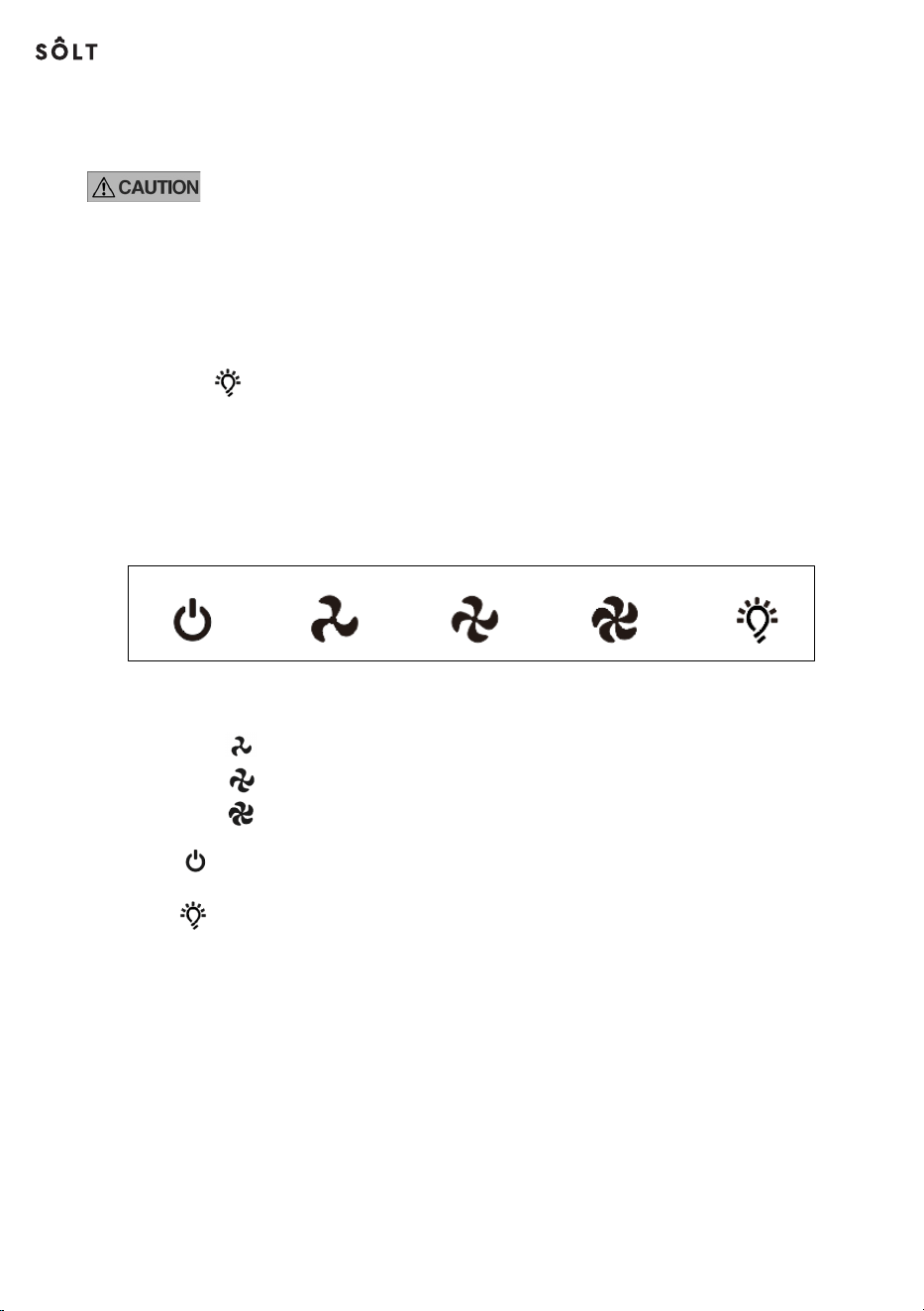

1. To start the cooker hood.
•
•
•
Pres s
Pres s
Pres s
for low speed. for m
edium speed. for
high speed.
2. Press to turn off the cooker hood.
3. Press to turn on/off the light.
Control for SCH60SS
11
PRODUCT FICHE
Symbol Value Unit
Model identification
SCH60SS
Annual Energy Consumption
AEC
hood
29.8 kWh/a
Time increase factor f
1.5
Fluid Dynamic Efficiency FDE
hood
14.1
Fluid Dynamic Efficiency class
Class D
Energy Efficiency Index EEI
hood
66.4
Energy Efficiency class
Class B
Measured airflow rate at the best
efficiency
Q
BEP
159.6
m
3
/h
Measured air pressure at the best
efficiency point
P
BEP
167 Pa
Maximum airflow boost setting -
m
3
/h
Maximum airflow Q
max
297.2
m
3
/h
Minimum airflow Q
min
182.3
m
3
/h
Maximum airflow in normal use - 292.3
Measured electric power input at the
best efficiency point
W
BEP
52.4 W
Nominal power of the lighting system
W
L
0.5 (x2) W
Average illumination of the lighting
system on the cooking surface
E
middle
60 lux
Lighting Efficiency LE
hood
40 lux/W
Lighting efficiency class - Class A -
Grease Filtering Efficiency GFE
hood
66.7
-
Grease Filtering Efficiency
Class
- Class D -
Measured power consumption on
off mode
P
O
0.00 W
Measured power consumption on
standby mode
P
S
- W
Sound power level L
WA
Highest Normal setting: 58
Lowest setting: 49
dB
N/A
12
6 Maintenance and cleaning
6.1 Cleaning the appliance
• Make sure you switch off the appliance.
• Unplug the power supply before cleaning the appliance.
• Always let the appliance and its components cool down before
cleaning them.
• Do not use wipes, chemicals or alcohol as these could damage the
surface. Electrical/electronic parts may not be cleaned.
• Do not use any acrid or corrosive detergents. Do not use any abrasive
detergents or any alkaline dishwasher detergents! (ph more than 7).
• Maintenance and inspection should be undertaken on a frequent basis.
If there is any visible damage, a strong odour or excessive overheating
of components, stop using the appliance.
• Clean the appliance in accordance with instructions. Failure to do so
may result in a risk of fire.
• Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!
Task Frequency
Clean the stainless steel surface with a soft
cloth and lukewarm water. A cleaning fluid
suitable for stainless steel should be used.
NOTICE Ensure that you wipe along the grain
of the stainless steel to prevent any unsightly
criss-cross scratch damage.
Weekly
Clean the control panel with a soft cloth and
warm water Make sure that the cloth is clean
and not too wet before cleaning. Use a dry
soft cloth to remove any excess moisture.
Weekly
13
Clean the mesh filters.
Monthly (see Cleaning
the mesh filters)
Clean the active carbon filter.
Every 3 to 6 months
(see Replacing the
active carbon filter)
6.2 Cleaning the mesh filter
To clean the mesh filters:
1. Remove a mesh filter.
2. To clean the filter, do one of the following:
• Cleaning manually (max. 30 °C):
a. Soak the filter for about 3 minutes in water with a mild non-
corrosive grease-removing detergent. NOTICE It is advisable not to
use rinse aids. Wash the filter separately from crockery and kitchen
utensils. Brush the filter gently with a soft brush. NOTICE Do not
apply too much pressure to avoid damaging the filter. The filter
might fade grey. This is normal and is not included in the warranty.
• Cleaning in the dishwasher (max. 30 °C):
a. Place the filter in the dishwasher and run a program with a mild
non-corrosive grease-removing detergent. NOTICE It is advisable
not to use rinse aids. Wash the filter separately from crockery and
kitchen utensils. The filter might fade grey. This is normal and is not
included in the warranty.
6.3 Replacing the active carbon filter
An active carbon filter is used to remove odours when the connection of the
cooker hood to an exhaust pipe is not possible. NOTICE Carbon filters should not
be washed or cleaned. Replace the carbon filter every 3 to 6 months.
14

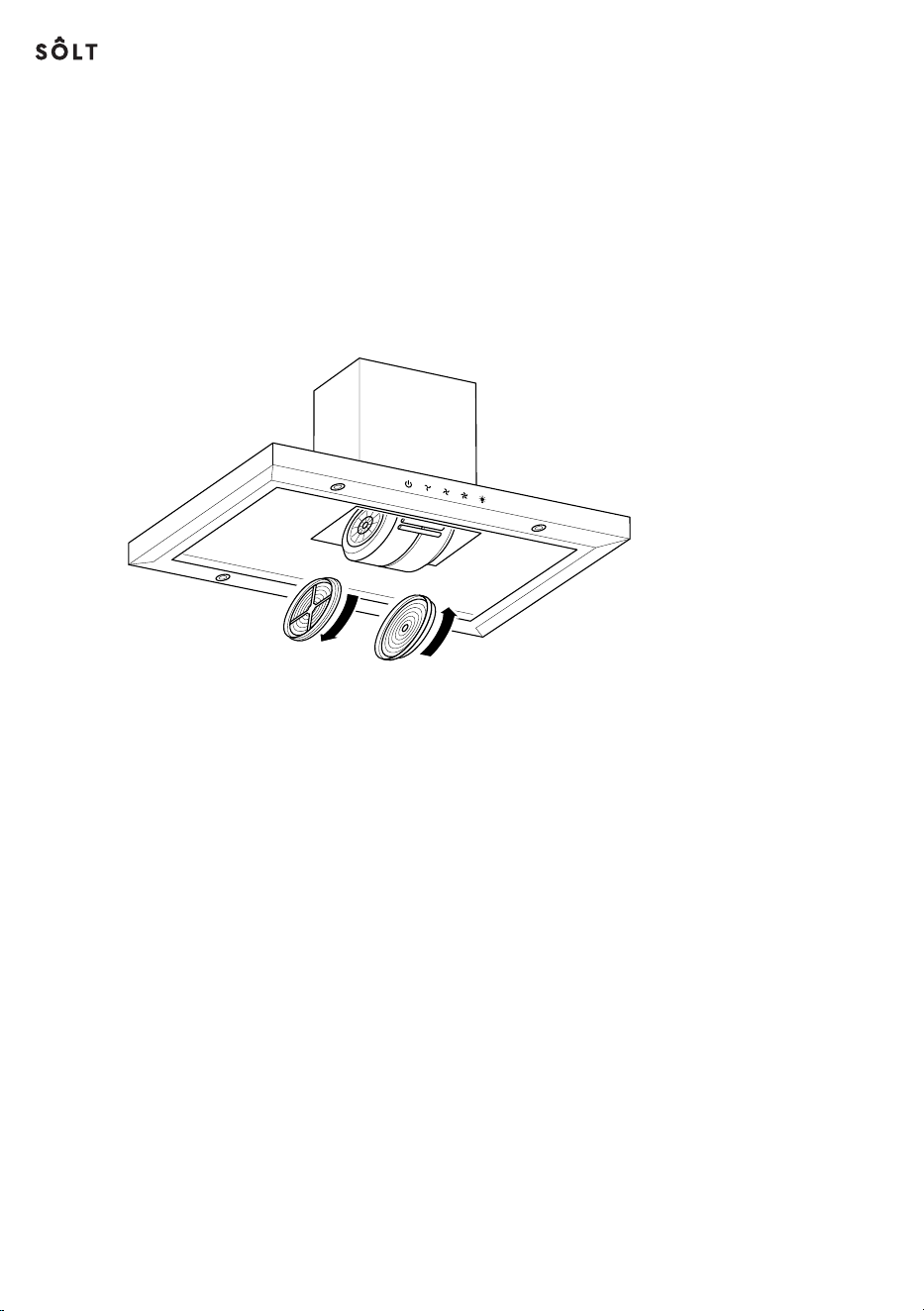

To replace the active carbon filter:
1. Disconnect the power supply from the wall socket.
2. Remove the mesh filter(s).
3. Replace the active carbon filters on both sides of the motor. NOTICE Turn
left to remove a previously installed carbon filter. Turn right to place a
carbon filter on the motor. Turn the filter slightly to the left or pull it carefully
until the filter is installed properly.
4. Match the brackets of the filter with the holding mechanism of the motor
and pull carefully until the filter locks.
5. Place the mesh filter.
6. Connect the power supply to the wall socket.
15
7 Troubleshooting
7.1 Problem finding
• Only a qualified electrician may carry out any electrical repairs. All
local regulations must be followed. Contact the manufacturer in case
of any doubts.
• Unplug all power connections before opening the appliance.
Error
Cause
Solution
The light can be
switched on but the
motor does not
work
Fan switch turned off
Put the on/off switch in
the “I” or “II” position
Fan switch broken Contact service centre
Motor broken Contact service centre
Litght and/or motor do
not work
Fuse is broken Reset/Replace fuse
Power supply loose
or disconnected
Connect power supply
to wall socket
Oil is leaking
The one-way valve and
the exhaust pipe are
not tightly sealed
Disassemble the one-way
valve and seal with
sealant
There is leakage between
section and cover
Disassemble the section
and seal with sealant
The light is not working The lamp is broken
Replace the lamp (see 7.2
Replacing the lamp)
There is insufficient
suction power/air is
not taken up
adequately
The distance between
the cooker hood and
the cooking appliance
is too large
Make sure the distance
between the cooker hood
and the cooking appliance
does not exceed 70 - 80cm
The cooker hood is
no longer in a
horizontal position
The screws or not
tight enough
Tighten the screws and
level the cooker in a
horizontal position
16
7.2 Replacing the lamp
• Only a qualified electrician may replace the lamp.
• Unplug all power connections before opening the appliance.
• Risk of burning! Always let the lamp cool down before replacing it.
• Always use gloves or a cloth to avoid direct contact with your hands.
Direct contact may reduce the lifespan of the lamp.
To replace the lamp:
1. Make sure to switch off the appliance.
2. Disconnect the power supply from the wall socket.
3. Press the filter lock and remove the filter.
4. Remote the screws of the light panel on two sides.
5. Take out the light panel.
6. Disconnect the light panel from the hood.
7. Remove the screws and support kit.
8. Remove the light.
9. Replace the light.
10. Attach the support kit with the screws.
11. Connect the light panel to the hood.
12. Mount the light panel into the hood.
13. Attach the light panel with the screws.
14. Attach the filter.
17
8 NOTES ON ENVIRONMENTAL PROTECTION
-During cooking, make sure that there is sufficient air supply so that the
cooker hood can operate efficiently and with low operating noise.
-Adjust the fan speed to the amount of steam produced during cooking.
Use the intensive mode only when necessary. The lower the fan speed,
the less energy is consumed.
-If large amounts steam are produced during cooking, select a higher fan
speed in good time. If the cooking steam has already dispersed in the
kitchen, the cooker hood must be operated longer.
-Switch off the cooker hood when you no longer need it.
-Switch off the lighting when you no longer need it.
-Clean the filter at regular intervals and replace it if necessary to increase
the effectiveness of the ventilation system and prevent fire hazards.
-Always put the lid on when cooking to reduce cooking steam and
condensation.
18
9 DISPOSAL CONSIDERATIONS
If there is a legal regulaation for the disposal of
electrical and electronic devices in your country, this
symbol on the product or onn the packaging indicates
that this product must not be disposed of with
household waste. Instead, it must be taken to a
collection point for the recycling of electrical and
electronic equipment. By disposing of it in accordance
with the rules, you are protecting the environment and
the health of your fellow human beings from negative
consequences. For information about the recycling and
disposal of this product, please contact your local
authority or your household waste disposal service.
Product support
If you still require further assistance, call one of our service experts on 01759 48 78 26. To help give us fast
and efficient service, please have the following information ready:
Model Ref
Serial Number
Date of purchase
You can find these on
the
rating plate - a
small information panel
(usually a sticker or metal
plate) on
the
rear of your
appliance
This will be shown on
your receipt
Help and assistance
If you require any technical guidance or find that your tumble dryer is not operating as intended, a simple
solution can often be found in
the
Troubleshooting section of these instructions.
19
Declaration of conformance to
product standards
This appliance conforms to all relavant standards
applicable to domestic appliances sold in the UK
Disposal
This appliance/fitting is marked
according to the European directive
2012/19/EU on Waste Electrical
and Electronic Equipment (WEEE).
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise be
caused by inappropriate waste handling of
this product.
The symbol on the product, or on the
documents accompanying the product, the
crossed out wheelie bin symbol, indicates
that this appliance/tting may not be treated
as household waste. Instead it shall be
handed over to the applicable collection point
for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance
with local environmental regulations for waste
disposal.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local authority,
your household waste disposal service or the
retailer where you purchased the product.
20
16
T. 01759 48 78 26
E. admin@appliancesupport.co.uk
Online. www.appliancesupport.co.uk/solt
ESSENTIALS FOR LIFE
Solt Service:
www.solt.house
