Manual de instrucciones
Instruction manual
Manuel d’instructions
Bedienungsanleitung
Manuale di istruzioni
Manual de instruções
Handleiding
Instrukcja obsługi
Návod k použití
PROCLEAN 5110 RETRO BLUE
PROCLEAN 5110 RETRO GREEN
PROCLEAN 5110 RETRO YELLOW
PROCLEAN 5110 RETRO BEIGE
PROCLEAN 5110 RETRO RED
Microondas digital con grill / Digital microwave with grill
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED 51
ENGLISH

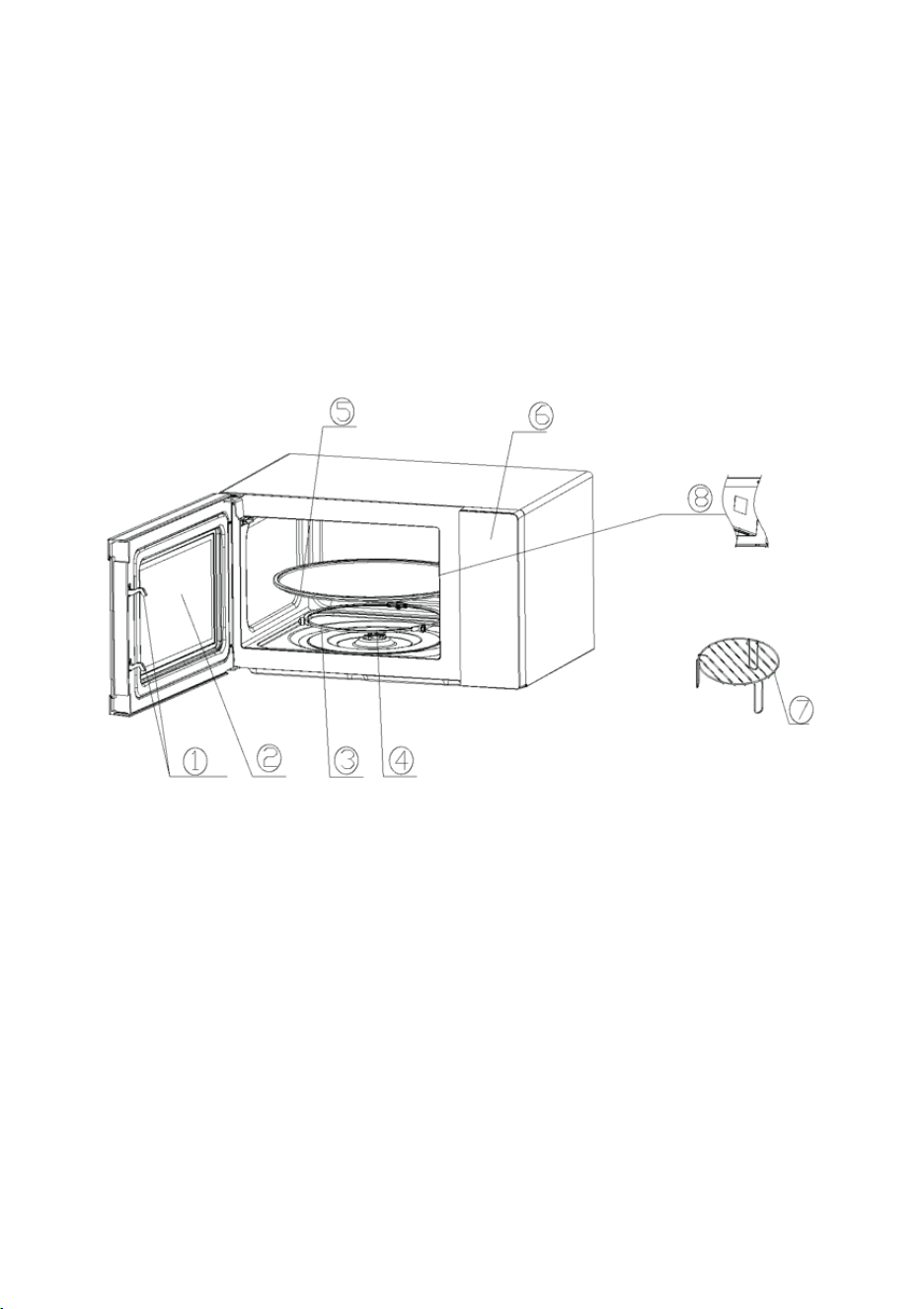

1. PARTS AND COMPONENTS
FIG. 1
1. Door Lock
The microwave door must be properly closed in order to operate.
2. Display window
Window that allows the user to see the cooking status.
3. Turntable ring
The glass turntable settles on its wheels. The ring supports the turntable and helps to
balance it when turning.
4. Rotating shaft
The glass turntable settles on the shaft; the motor underneath drives the turntable to rotate.
5. Turntable
The food settles on the turntable, its rotation during operation helps to cook food evenly.
Place the rotating ring rst. Fit the turntable onto the rotating shaft and make sure that it is
properly engaged.
6. Control panel
See details below (control panel is subject to change without notice).
7. Grill
It is used to place the food to be grilled.
8. Waveguide cover
It is inside the microwave, next to the control panel wall.
Do not remove the waveguide cover.
FIG. 2
1. Display
2. Power button
3. Defrost
4. Pause/Cancel button
5. Grill/Combi
6. Presetting/clock
7. Beginning
8. Self-cooking
9. Time/weight
10. Self-cooking/Time-Weight Selector
NOTE:
The graphics in this manual are schematic representations and may not exactly match the
device.
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED52
ENGLISH
2. BEFORE USE
- This device is packaged in a way as to protect it during transport. Take the device out
of its box and remove all packaging materials. You can keep the original box and other
packaging elements in a safe place. This will help you prevent damage to the device when
transporting it in the future. In case the original packaging is disposed of, make sure all
packaging materials are recycled accordingly.
- Make sure all parts and components are included and in good conditions. If there is any
piece missing or in bad conditions, contact the ocial Cecotec Technical Support Service
immediately.
3. OPERATION
Before cooking
The LED ashes 3 times when plugged into the mains. The “:” symbol then ashes on the
display, prompting you to enter the cooking menu and time.
Self-cooking / Time-Weight Selector
You can increase or decrease the cooking time, weight or select the automatic cooking menu
during operation by turning the selector.
Pause/Cancel
In the initial or entry stage: press once to cancel the entry programmes and resume the initial
stage.
During cooking: press once to stop microwave operation, press twice to cancel cooking
programmes.
Auto reminder
When the preset cooking procedure has been completed, the display will show “END” and
three beeps will sound to prompt you to remove the food. If you do not press the Pause/
Cancel button once or do not open the door, a beep will sound at an interval of 3 minutes.
Instant cooking
In the standby state, press the Start button, the microwave will start cooking at high power;
the default cooking time of the system is 1 minute. You can increase or decrease the cooking
time by turning the knob.
Note: The instant cooking function applies to one of the following situations:
a. Activate the instant cooking function in 2 minutes when the microwave door is closed.
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED 53
ENGLISH
b. Activate the instant cooking function within 2 minutes by pressing Pause/Cancel.
c. Activate the instant cooking function within 2 minutes of the end of the pre-set cooking
programme.
Clock settings
The Clock button allows you to enter the current time, when the “:” symbol ashes on the
display after plugging it in.
Example: set at 12:30
Steps Symbol
1 After switching on, the : ash
:
2 Press the Pre-setting/Clock button once. 00:00
3
Turn the Self-cooking/Time-Weight selector to set the
exact hours.
12:00
4 Press the Pre-setting/Clock button again. 12:00
5
Turn the Self-cooking/Time-Weight selector to set the
exact minutes.
12:30
6
Press the Presetting/Clock button again or wait 5 seconds,
and the numbers will be xed.
Microwave cooking
Use this function in order to cook or heat food. Press the power button, the display will show
100P-80P-60P - 40P- 20P.
High power
100% microwave power. Applicable for fast and thorough
cooking.
Medium-high
power
80% microwave power. Applicable for medium express
cooking.
Medium power 60% microwave power. For steam cooking.
Medium-low power 40% microwave power. Applicable for defrosting food.
Low power 20% microwave power. Applicable for heat preservation.
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED54
ENGLISH
a. The maximum programmable time is 60 minutes.
b. Never run the microwave at idle.
c. When the microwave is operating at full power, power will automatically decrease after a
while to extend lifespan.
d. If you turn the food during operation, press the Start button once, and the preset cooking
procedure will continue.
e. If you intend to remove the food before the preset time, you must press the Pause/Cancel
button once to clear the preset procedure and prevent unintended operation of the next use.
Example: to cook at P80 for 10 minutes.
Steps Symbol
1 After switching on, the : ash :
2
Select the desired microwave power by pressing the power
button consecutively.
P80
3
Turn the Self-Cooking/Time/Weight selector to set the cooking
time.
10:00
4
Press the Start button to start and the display will show the
running time.
Grill or Grill/Microwave combination
This function is used for grilling food, press this button. The display will show G-C1-C2.
G
Grill: the heating element will be hot during operating time. It is used to
grill thin meat or pork, sausage or chicken wings.
C.1
Combination of grill and microwave. 30% of microwave time and 70% of
grill time.
C.2
Combination of grill and microwave. 55% of microwave time and 45% of
grill time.
Note: In grill mode, all parts of the microwave may become very hot, including the rack and
containers. Be careful when removing any objects from the microwave. To avoid burns, use
thick cloths or oven oven mitts. Please note that the introduction of non-heat resistant
containers may damage those containers.
Example: for grilling food with cooking menu C.2 for 10 minutes.
Steps Symbol
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED 55
ENGLISH
1 After switching on, the : ash :
2 Press the Combi/Grill button to select the grill mode. C.2
3
Turn the Self-Cooking/Time-Weight selector to set the cooking
time.
10:00
4 Press the Start button to start cooking.
Defrost
This function is used for defrosting food. Press the Defrost button and the display will cycle
through d.1-d.2-d.3.
d.1 For defrosting meat, the weight ranges from 0.1 to 2.0 kg.
d.2 For defrosting poultry meat, the weight ranges from 0.2 to 3.0 kg.
d.3 For defrosting sh, the weight ranges from 0.1 to 0.9 kg.
a. It is necessary to turn the food over during operation to obtain a uniform eect.
b. Defrosting normally takes longer than cooking food.
c. If the food can be cut by knife, the defrosting process is complete.
d. Microwaves penetrate about 4 cm into most foods.
e. Defrosted food should be consumed as soon as possible. It is not advisable to put it back
in the refrigerator or to refreeze it.
Example: for defrosting 0,4 kg of poultry meat
Steps Symbol
1 After switching on, the : ash :
2 Press the Defrost button to select the type of food. d.2
3
Adjust the amount of food by turning the Self-Cooking/Time-
Weight selector.
0.4
4 Press the Start button to start defrosting.
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED56
ENGLISH
5
During defrosting, two beeps will sound to prompt you to turn
the food over. Open the door and turn the food over. Close the
door. Next, press the Start/Pause button again to continue
defrosting.
Auto-cooking
- The microwave has a pre-set cooking menu for easy operation. When the display ashes
:, turn the selector to self-cooking, the display will change to show A.1, A.2. A.8
- Choose the appropriate menu according to the type and weight of the food and strictly
follow the instructions in the table below. Otherwise, the cooking eect will be greatly
aected.
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED 57
ENGLISH
Symbol Type Method
A.1 Popcorn
Suitable for making a bag of corn with
a weight of 85g. If the popcorn opening
speed has been reduced to 1x for 1-2
seconds, you must press Pause / Cancel
to stop the opening process.
A.2 Popcorn Same as A.1 but the weight is 100 g.
A.3 Pizza Heat a refrigerated pizza slice of 0.15 kg.
A.4 Drinks
Heat a 250 ml glass of liquid. The liquid
temperature is about 5-10 ℃. Use a glass
and do not cover it.
A.5 Drinks
Heat a 500 ml glass of liquid. The liquid
temperature is about 5-10 ℃. Use a glass
and do not cover it.
A.6 Potato
Boil the potato strips, cut into 5 mm
width, height and length. The total weight
is about 0.45 kg. Place the strips in a large
bowl and cover the bowl with a thin lm
to prevent water loss.
A.7 Potato
Same as A.6 except that the weight of the
potato strips is about 0.65 kg.
A.8 Fish
Perfect steaming 0.45 kg of sh. After
washing the sh and removing the scales,
cut a slit in the skin of the sh and place
it in a shallow dish of 22-27-cm diameter,
covering it with a thin lm to prevent
water loss. After cooking, leave to stand
for 2 minutes.
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED58
ENGLISH
a. The temperature of the food before cooking would be 20-25 ℃. A higher or lower
temperature of the food before cooking would require an increase or decrease of the
cooking time.
b. The temperature, weight, and shape of the food will strongly inuence the microwave
eect on the cooking process. If any deviation from the factor indicated in the above
menu is detected, you can adjust the cooking time to obtain the best result.
Example: Steaming 0.45 kg of sh
Steps Symbol
1 After switching on, the : ash :
2
Turn the Self-Cooking/Time-Weight selector to set the
cooking time.
A.8
3
Start cooking by pressing the Start button. The LED will
count down to show the operating time.
Delayed start
- If you do not want the menu to start immediately, you can preset the menu and cooking
time and the preset menu will start automatically at the set time. The adjustment will
consist of 2 steps:
- Setting the current clock.
- Setting the menu and cooking time.
- Example: now it is 12:30 on the clock. If you want the microwave to start cooking
automatically with a microwave power of 100P for 9 minutes and 30 seconds at 14:20.
Example: now it is 12:30 on the clock. If you want the microwave to start cooking
automatically with a microwave power of 100P for 9 minutes and 30 seconds at 14:20.
Steps Symbol
1 After switching on, the : ash
:
1.1 Press the Pre-setting/Clock button. 00:00
1.2 Set the hours by turning the Self-cooking/Time-Weight selector. 12:00
1.3 Press the Presetting/Clock button again to conrm the hours. 12:00
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED 59
ENGLISH
1.4 Set the minutes by turning the Self-cooking/Time-Weight selector. 12:30
1.5
Press the Presetting/Clock button again or wait 5 seconds, and the
numbers will be xed.
12:30
2 Setting the menu and cooking time.
2,1
Select the desired microwave power by pressing the power button
consecutively.
100 P
2.2
Turn the Self-cooking/Time-Weight selector to set the cooking
time.
9:30
2.3
Press and hold the Presetting/Clock button for 3 seconds to return
to the current clock.
3 Set the time you expect to start. Repeat the steps of 1.2, 1.3, 1.4. 14:20
4
Press the Presetting/Clock button to conrm the delayed menu.
The programme is activated. The menu will start at 14:20.
5
You can check the preset start time by pressing the Pre-setting/
Clock button.
Multi-sequence cooking
For best cooking results, some recipes require a dierent cooking mode and time. You can
programme your personalised menu as follows:
Example: You want to microwave food with 100P for 3 minutes and then 20P for 9
minutes. It is the conguration of 2 sequences.
Steps Symbol
1 100P microwave for 3min
1.1
Select the desired microwave power by pressing the
power button consecutively.
100 P
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED60
ENGLISH
1.2
Turn the Self-cooking/Time-Weight selector to set the
cooking time.
3:00
2 20P for 9 minutes.
2,1
Select the desired microwave power by pressing the
power button consecutively.
20P
2.2
Select the desired microwave power by pressing the
power button consecutively.
9:00
3 Start cooking by pressing Start.
a. When cooking in 100P mode is nished, the microwave will start the next operation
automatically.
b. A maximum of 4 sequences can be set at a time. Repeat the steps explained in the
example above.
Child lock function
Use this function to lock the control panel when cleaning or to prevent children from using
the microwave without supervision. All buttons are inoperative in this mode.
1. Activating the child lock: Hold down the Start/Pause button for 3 seconds.
2. Deactivate the lock: Hold down the Start/Pause button for 3 seconds.
4. UTENSILS GUIDE
It is strongly recommended to use suitable and safe containers for microwave cooking.
In general, heat-resistant ceramic, glass or plastic containers are suitable for microwave
cooking. Never use metal containers for microwave and combination cooking, as sparks are
likely to occur. Please, refer to the following table.
Container
material
Microwave Grill Combi Notes
Heatproof ceramics Yes Yes Yes
Never use ceramics
decorated with metallic or
glazed edges.
Heatproof plastic Yes No No
Not suitable for prolonged
cooking in microwave.
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED 61
ENGLISH
Heatproof glass Yes Yes Yes
Plastic lm Yes No No
It should not be used for
cooking meat or chops, as
excessive heat can damage
the lm.
Grill No Yes Yes
The grill grid can only be
used in grill and combination
modes.
Metal container No No No
Not to be used in the
microwave. Microwaves
cannot penetrate through
metal.
Lacquered No No No
Poor heat-resistance.
Not suitable for high
temperature cooking.
Bamboo or paper No No No
Poor heat-resistance.
Not suitable for high
temperature cooking.
5. CLEANING AND MAINTENANCE
The microwave should be cleaned regularly, and any food remainder removed.
a. Unplug the appliance and allow it to cool down before cleaning. Never immerse the
device in water or other liquids.
b. Failure to maintain the microwave in a clean condition could lead to deterioration of the
surface that could adversely aect the lifespan of the appliance and possibly result in
hazards.
c. Never use strong detergent, petrol, abrasive powder or metal brush to clean any part of
the appliance.
d. Do not remove the mica plate cover.
e. When the product is not in use, it should be placed in dry and ventilated places if possible.
- Details on how to clean food contact surfaces:
- After use, wipe the waveguide cover with a damp cloth, followed by a dry cloth to remove any
food splashes and grease. Accumulated grease can overheat and start to smoke or catch re.
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED62
ENGLISH
Cleaning tips
- Details for cleaning of door seals, cavity and adjacent parts.
- Exterior: use a soft, damp cloth to clean the surface of the appliance.
- Door: clean the door and window with a soft damp cloth.
- Clean the door seals and adjacent parts to remove any spills or splashes. Clean the
control panel with a soft and slightly damp cloth.
- Inner walls: clean the inner surfaces with a soft, damp cloth.
- Clean the waveguide cover to remove any food splashes.
- Turntable / Turntable ring / Rotating shaft: Wash with mild soapy water.
- Rinse with clean water and allow to dry thoroughly.
6. TECHNICAL SPECIFICATIONS
Product reference: 01711 / 01712 / 01713 / 01714 / 01715
Product: Proclean 5110 Retro Blue/Green/Yellow/Beige/Red
Power inlet: 1150 W
Power output: 700 W
Grill power: 800 W
Voltage: 230 V
Frequency: 50 Hz
Microwave frequency: 2450 MHz
Technical specications may change without prior notication to improve product quality.
Made in China | Designed in Spain
7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES
This symbol indicates that, according to the applicable regulations, the
product and/or batteries must be disposed of separately from household
waste. When this product reaches the end of its shelf life, you should
dispose of the cells/batteries/accumulators and take them to a collection
point designated by the local authorities.
Consumers must contact their local authorities or retailer for information
concerning the correct disposal of old appliances and/or their batteries.
Compliance with the above guidelines will help protecting the environment.
PROCLEAN 5110 RETRO BLUE / GREEN / YELLOW / BEIGE / RED 63
ENGLISH
8. TECHNICAL SUPPORT AND WARRANTY
Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at
the time of delivery of the product under the terms, conditions, and deadlines established by
the applicable regulations.
It is recommended that repairs be carried out by qualied personnel.
If at any moment you detect any problem with your product or have any doubt, do not
hesitate to contact the ocial Cecotec Technical Support Service at +34 963 210 728.
9. COPYRIGHT
The intellectual property rights over the texts in this manual belong to CECOTEC
INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or
in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means
(electronic, mechanical, photocopying, recording or similar) without the prior authorization of
CECOTEC INNOVACIONES, S.L.
Fig./Img./Abb./Afb./ Rys. 1
1
2 5
3 6
4
8 9
10
7
Fig./Img./Abb./Afb./ Rys. 2
www.cecotec.es
Cecotec Innovaciones S.L.
Av. Reyes Católicos, 60
46910, Alfafar (Valencia), Spain
SF01230615
