ICE MAKER
IMPORTANT INSTRUCTIONS
AND OPERATING MANUAL
Model No.: ICM-1588L
Item No.: Z3915-BLACK
Z3915-SILVER
Thank you for purchasing this product! If you have questions about the prod-
uct such as missing parts, damaged products, product assembling and opera-
tion etc., please contact us via Amazon Message or customer service phone:
213-4467172 or 661-4358826.
When using an electrical appliance, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and/or injury, including the
following:
1. Read all instructions before using.
2. Remove all packing material and carefully check your ice maker to ensure it is
in good condition and that there is no damage to the ice maker or power cord
and plug.
3. If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
4. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of experi-
ence and knowledge if they have been given supervision or instruction concern-
ing use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
5. This appliance is intended to be used in household and similar applications
such as
–staff kitchen areas in shops, offices and other working environments;
–farm houses and by clients in hotels, motels and other residential type environ-
ments;
–bed and breakfast type environments.
6. –Warning: Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
–Warning: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
–Warning: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
–Warning: Do not damage the refrigerant circuit.
–Warning: Do not use electrical appliances inside the food storage compart-
ments of the appliance, unless they are of the type recommended by the manu-
facturer.
–Warning: When positioning the appliance, ensure the supply cord is not trapped
or damaged.
–Warning: Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
–Warning: When disposing of the appliance, do so only at an authorized waste
disposal centre. Do not expose to flame.
–Warning: fill with potable water only.
IMPORTANT NOTICES
1
7. The refrigerant (R600a) is flammable.
Caution: risk of fire / Flammable materials
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level of environmental compatibility, which is
nevertheless flammable. During transportation and installation of the appliance,
ensure that none of the components of the refrigerant circuit becomes dam-
aged.
If the refrigerant circuit should be damaged:
● Avoid opening flames and sources of ignition.
● Thoroughly ventilate the room in which the appliance is situated.
8. Before using the Ice maker for the first time, please wait 2 hours after position-
ing it, and keep the transparent lid open for at least 2 hours
9. Ice making must use potable water, and water must not contain particulate
additives.
10. Ensure the voltage is compliant with the voltage range stated on the rating
label, and ensure the earthing of the socket is in good condition.
11. Do not upend this product or incline it over a 45° angle.
12. To protect against risk of electric shock, do not pour water on cord, plug and
ventilation, immerse the appliance in water or any other liquid.
13. Unplug the appliance after using or before cleaning.
14. Keep the appliance 8cm from other objects to ensure the good heat releasing.
15. Do not use the accessories which are not recommended by Manufacturer.
16. Do not use the appliance close by flames, hot plates or stoves.
17. Do not switch on the power button frequently (ensure 5min. interval at least)
to avoid the damage of compressor.
18. Do not use outdoors.
19. Never clean with scouring powders or hard implements.
20. Please keep the instruction manual.
21. To avoid contamination of food, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the tem-
perature in the compartments of the appliance.
– Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water supply if water has not been drawn for 5 days.
– If the refrigerating appliance is left empty for long periods, switch off, defrost,
clean, dry, and leave the door open to prevent mould from developing within the
appliance.
22. Regarding the information pertaining to the use of the appliance, please refer
to the paragraphs below.
2
23. Component parts shall be replaced with like components and that servicing
shall be done by factory authorized service personnel, so as to minimize the risk
of possible ignition due to incorrect parts or improper service.
24. When service personnel during service operations, if it is possible to touch the
motor metal enclosure/electrical control box cover, please power off for service
operations.
23. Component parts shall be replaced with like components and that servicing
shall be done by factory authorized service personnel, so as to minimize the risk
of possible ignition due to incorrect parts or improper service.
24. When service personnel during service operations, if it is possible to touch the
motor metal enclosure/electrical control box cover, please power off for service
operations.
Model Number: ICM-1588L
Voltage: 120V/60Hz
Power Consumption: 150 W
Ice Making Rate: 24pcs ice cubes one cycle
Daily Ice Output: 33lbs/24 hours
Ice Sizes：Small（Speedy）、large （Regular）
Ice Storage Capacity: 1.3lbs
Refrigerant: R600a (30g)
Water Reservoir Capacity：2.5 L
N.W. / G.W.: 25.35lbs / 28.44lbs
Max Overall Dimensions (W×D×H): 11.1 × 11.4 × 13.9 inch
Packing Dimensions (L×W×H): 17.3 × 14.2 × 17.2 inch
SPECIFICATIONS

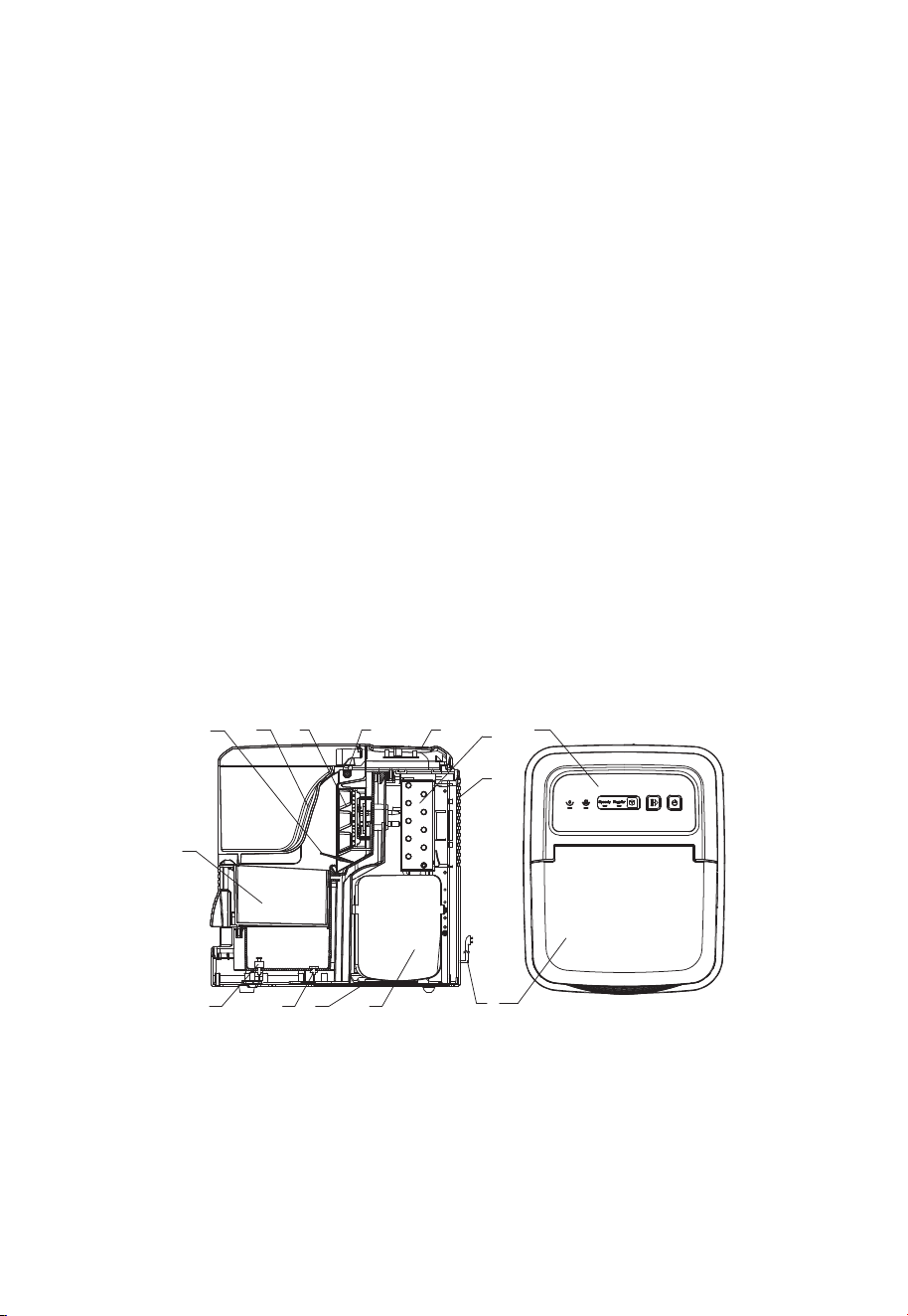

1. Rear Cover
2. Condenser
3. Top Cover
4. Water Drain
5. Evaporator
6. Transparent Water Box
7. Ice board
8. Ice Basket
9. Floater switch
10. Water Temperature Sensor
11. Baseboard
12. Compressor
13. Power Cord
14. Transparent Water Box Cover
15. Control Panel
DESCRIPTION
3
34
1
11 12
15
2
8
5
6
14
10
7
13
9
1. During transportation, do not tilt the machine more than 45 degrees, do not
reverse the machine. This may damage the compressor and the sealing system.
2. Remove all packing materials, check the machine carefully and make sure that
the machine, power cord and plug are normal.

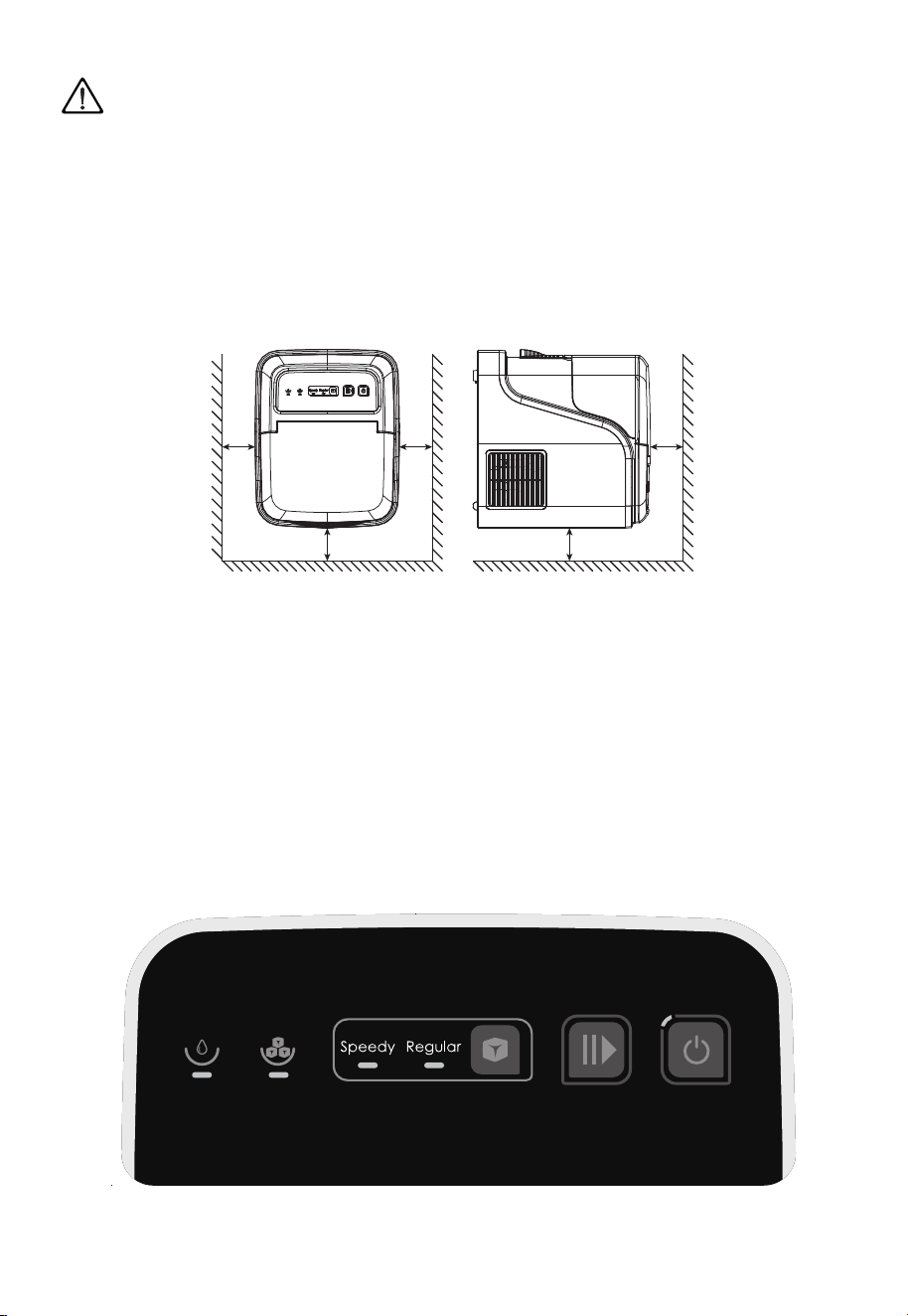

3. The machine should be upright to place on the horizontal plane. To ensure the
machine ventilate normally, it is important to set 150mm room on top, sides and
back. Do not place the machine next to the roast oven, radiate or other heat
objects.
4. Before using the machine for the first time, place the machine and leave the
transparent cover open for at least two hours.
5. Make sure that the home voltage is consistent with the voltage indicated by the
machine.
6. When the ambient temperature is lower than 59°F, please choose small ice.
When the ambient temperature is higher than 77°F, it is recommended to choose
large ice.
7. Do not use chemicals, acidic or alkaline liquids to make ice.
CONTROL PANEL OPERATION
WARNING
4
150 150
150
150 150
The indicator of POWER will flash after plugged in, press POWER and then
the machine enters standby state accompanying indicator lighting. During
operation, pressing this button, the machine will return to standby state.
(Pause & start)After choosing the menu, press this key, and start to work.
This button is for selecting the size of ice. When you select the desired size,
corresponding indicator of Speedy or Regular will be on.
When the indicator of this button turns to red, it means insufficient water to
water reservoir, you need to add enough water and press POWER button to
restart the machine.
When the ice reaches to the max storage capacity, the indicator of this
button will light on, and the machine will stop working. What you need to do
is pouring out the ice, if the position of ice is lower than the position of ice
board, the machine will restart automatically.
Step 1. Open the cover, and add water to reservoir,
Note: There is a MAX position above the water tank, and water cannot be added
beyond this position. If the water exceed, it will drain out.
Step 2. Connect the power, press the , and then the machine enters standby
state.
Step 3. Select the mode which you want to make ice, there are 2 sizes for your
choosen: Speedy and Regular, and default to regular ice.
Step 4. Press key to start work.
Note: The water poured into water reservoir should be lower than the water reser-
voir’s MAX position. When water volume goes beyond the max, please open the
bottom water drain plug to drain the spare water out. Then close the transparent
lid.
Note: Before making ice, do put the ice basket in the ice maker.
Note: Please select the small（speedy) ice when ambient temperature is below
59°F. When the ambient temperature is higher than 77°F, Large (regular) ice cube
size is recommended.
Note: When the ice basket is full please remove the ice immediately, Do not allow
the ice Basket to overfill.
Note: When the ice basket is full enough, you can take out the up water box, and
take out a part of ice, you can take out the ice basket.
OPERATING INSTRUCTIONS
5
1. Clean the inner liner, ice collecting tray, water box, ice shovel and evaporator
frequently. When cleaning, unplug the unit and remove the ice cubes. Use a dilut-
ed solution of water and vinegar to clean the inside and the outside surface of
the Ice maker. Do not spray Ice maker with chemicals or diluted agents such as
acids, gasoline or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure, or in the built-in struc-
ture, clear of obstruction. Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by the manu-
facturer.
3. To ensure the cleanness of ice, please change water for water reservoir at least
once a day. If do not use it for a long time, please drain the water out and clean
it up.
4. If the compressor takes a strike action for shortage water, fully water or inter-
ruption of power supply, it will delay for 3mins to start up after restarting.
5. Always use fresh water before starting ice production either at initial installa-
tion or after a long shut-off period.
6. According to the actual use of the machine, the filter screen in the water tank
shall be regularly cleaned after disassembly to prevent the water inlet from being

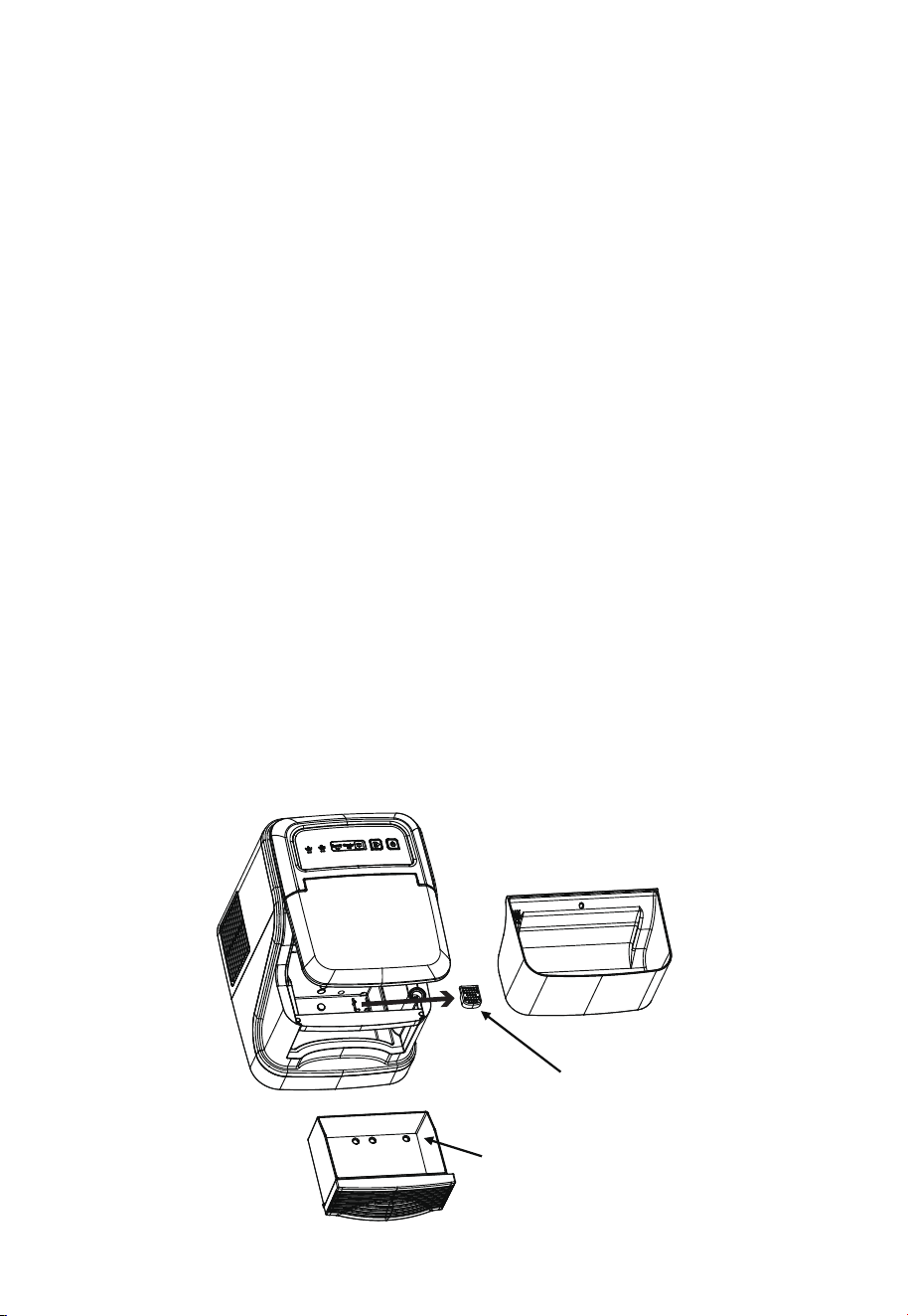

blocked by incrustation scale. As shown in the figure below. Take out the ice
collecting tray and filter cover from the water tank in turn, clean the filter cover
with clean water with a brush, and then put it back in place.
7. According to the actual use of the machine, the filter screen in the water tank
shall be regularly cleaned after disassembly to prevent the water inlet from being
blocked by scale. As shown in the figure below.
Take out the ice collecting tray, filter cover from the water tank in turn, clean the
filter cover with clean water with a brush, and then put them back in place.
CLEANING & USE GUIDANCE
Ice collecting tray
Filter cover
6
Please note, if a power failure occurs due to disconnection of the power cord, or
the power button has been pushed off during an ice making cycle, small ice
chips may form and lodge in the automatic shovel causing it to jam. If this
occurs, press and hold the key for 2 sec, when the ice falls, then restart the
machine.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS
The compressor works
abnormally with a
Buzzing Noise
The voltage is lower than
recommended
Stop the Ice maker and do
not restart until the voltage is
normal.
Indicator lights on
display are not on
Blown fuse/ No power Replace fuse / Turn power on
Indicator light of lack
of water on
1. Water of Water box is not much
enough.
2. The ice in water box is full, but
the floater switch is blocked.
3. The floater is not installed right.
4. The floater switch is broken.
1. Add enough water to the
water box
2.Take out the ice
3.Take down the E circle on
floater switch, reinstall the
floater
4.Change the floater switch
The Ice made is too
large and with pieces
sticking together.
1. Water temperature is too low.
2. Ice of previous cycles left in the
water tray.
1.Select small size
2.Take out the ice under the
standby state
The program of
making ice is correct,
but no ice come out
1.No coolant in compressor
2. Compressor is damaged.
3. Fan motor is damaged.
Call the service centre.
All indicators twinkle
simultaneously
1. The ice does not have access
to ice board.
2. The movable detect device the
ice board is damaged.
Unplug the power and plug
again to restart the machine.
The machine is on
working but the water
is warm
Electromagnetic valve is hitch Change the electromagnetic
valve
The ice is full to reach
the ice board, but no
full indicate
1. The movable detection device
on the ice board is damaged.
2. The indicate light is damaged.
1. Change The movable
detect device or display
board.
2. Call the service centre.
7
If the power cord is damaged; it must be replaced by the manufacturer, its
service agent or a similarly qualified person in order to avoid a hazard.
Fill with potable water only.
It is normal for the compressor and condenser surface to reach temperatures
between 158°F and 194°F during operation and surrounding areas may be very
hot.
Due to fast freezing, ice cubes may appear “Cloudy”. This is air trapped in the
water and will not affect quality or taste of ice.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not immerse in water
1) Warning – Ice making must use potable water, and water must not contain
particulate additives.
2) Warning – keep ventilation openings, in the appliance enclosure or in the
built-in structure clear of obstruction.
3) Warning – do not use mechanical devices or other means to accelerate to
defrosting process, other than those recommended by the manufacturer.
4) Warning – do not damage the refrigerant circuit.
5) Warning – do not use electrical appliance inside the food storage compart-
ments of the appliance, unless they are of the type recommended by the manu-
facture.
Correct Disposal of this product
This marking indicates that this product should not be disposed of with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collec-
tion systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
WARNING
8
Thank you for purchasing this product! If you have any questions about the
product, such as missing parts, damaged products, product assembling, and
operation, please contact us via Amazon Message or customer service
number: 213-4467172 or 661-4358826
