ALKALINE M-SPECTOR™ INSPECTION SCOPE
Oct. 2019
54-07-2370
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
H30A

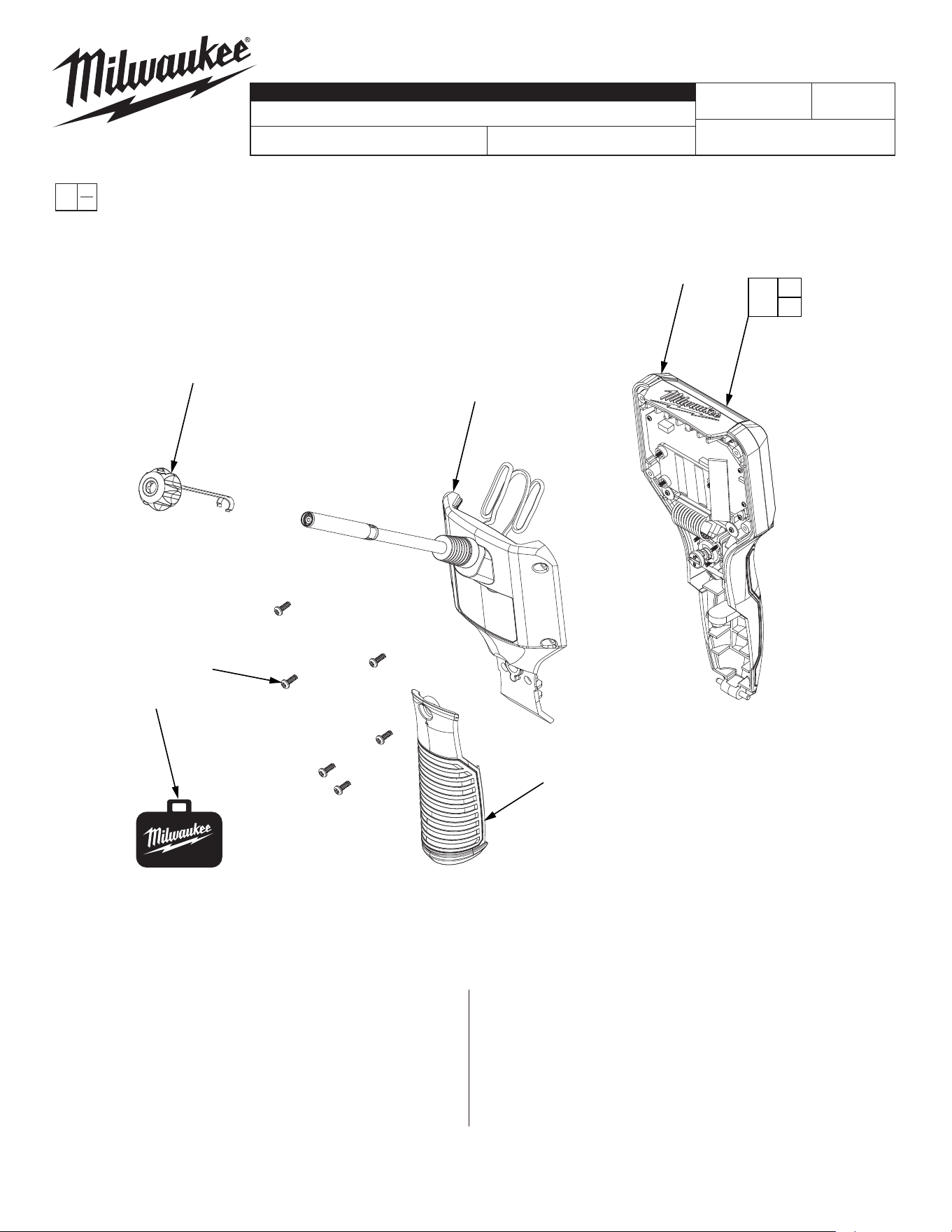

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-38-0017 Front Housing/Battery Door Assy. (1)
2 --------------- Front Housing (1)
3 --------------- Battery Door (1)
4 14-38-0021 Rear Housing w/ 3' Inspection Cable (1)
5 43-56-0029 Pipe Guide (1)
6 05-87-0010 3 x 8 ST Phillips Head Screw (6)
7 42-55-6148 Contractor Bag (1)
8 12-20-0074 Service Nameplate (Not Shown) (1)
FIG. NOTES
8 A clean, dry surface is essential for proper performance for
any adhesive system. The area intended for application of
any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
2
1
3
2
3
4
5
6
7
