Crescent Ice maker
INSTRUCTION MANUAL
Free Standing / Built-in
For AUTHORIZED PARTS or TECHNICAL SERVICE, please contact:
1-877-368-2797 or visit [email protected]
3355 Enterprise Avenue, Suite 160, Fort Lauderdale, FL 33331 USA
101122a
IMPORTANT SAFETY INSTRUCTIONS
WARNING
California Proposition 65
Certain components in this product and its related accessories contain chemicals known to
the state of California to cause cancer, birth defects or other reproductive harm.
DANGER – Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used. Do
Not Use
Mechanical Devices To Defrost Refrigerator. Do Not Puncture Refrigerant
Tubing. DANGER – Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used. To
Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
CAUTION – Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used.
Consult Repair
Manual/Owner’s Guide Before Attempting To Service This Product. All Safety Precautions Must be Followed.
CAUTION – Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With The Applicable Federal
Or Local Regulations. FLAMMABLE REFRIGERANT Used.
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling
Instructions Carefully. FLAMMABLE REFRIGERANT Used.
– WA
RNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
– WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
– WARNING: Do not damage the refrigerant circuit.
– WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
POWER CORD PRECAUTIONS
• Do not use the appliance if the power cord is damaged. If the power cord is damaged, have a qualified electrician
replace the power cord.
• Never lift, carry or drag the appliance by the power cord.
• Do not connect or disconnect the electric plug when your hands are wet.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the
outlet.
MOVING PRECAUTIONS
• When moving the appliance, do not turn it upside-down and do not unlevel it more than 45 degrees.
• Do not move the appliance without emptying it and securing the door in the closed position.
INSTALLING PRECAUTION
• Connect to potable water supply only.
OTHER PRECAUTIONS
• To ensure proper ventilation for the appliance, keep obstructions away from the front of the unit.
• Keep fingers out of the “pinch point” areas. Clearance between the door and cabinet are necessarily small. Be careful
closing the door when children are in the area.
• Do not touch the evaporator with your hand when the appliance is operating.
• Do not attempt to repair or replace any part of your appliance unless this manual specifically recommends it. Have a
qualified technician perform all other service on the unit.
• Children 8 years of age and older and people with reduced physical, sensory or mental capabilities or lack of
experience and knowledge can use this appliance if they have been given supervision or instruction concerning use of
the appliance in a safe way and they understand the hazards involved.
• Never allow children to operate, play with or crawl inside the appliance.
• Never allow children to clean and maintain the machine without supervision.
• Do not use the appliance other than for its intended purpose.
• Do not touch the condenser surfaces. They are sharp and can be easily damaged.
CLEANING AND MAINTENANCE PRECAUTIONS
• Never clean the appliance parts with flammable fluids. Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this appliance or any other appliances. The fumes can create a fire hazard or explosion.
•
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may transmit taste to the i
ce
c
ubes, or damage or discolor the interior.
• If the appliance will not be used for a long time, thoroughly clean it before the next use. Carefully follow any
instructions provided for cleaning or the use of sanitizing solution. Do not leave any solution inside the appliance after
cleaning.
D
ISPOSAL
the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling
electric and electronic appliances. Your contribution to the correct disposal of this product protects the environment.
Further information about the recycling of this product can be obtained from your local municipal authority.
This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE
INSTRUCTIONS ARE NOT FOLLOWED.
TABLE OF CONTENTS
Product Overview and Specs ………………………………………………………..1 - 2
Installation
Before Using Your Ice Maker ……………………………………………………………….3
Installing the Handle ………………………………………………………………….......…3
Installation the Ice Maker …………………………………………………………………...4
Reversing the Door Swing …………………………………………………………………..5
Electrical Connection ……………………………………………………………………...5 - 6
Extension Cord ……………………………………………………………………………...6
Connecting the Water Supply …………………………………………………………….....6
Operating
Initial Start-Up Operation ………………………………………………………………….......7
Maintenance
Cleaning Your Ice Maker ………………………………………………....……………….....7
Power Failure ………………………………………………………………………………...8
Vacation Time/Storage …………………………………………………………………….....8
Moving Your Ice Maker ……………………………………………………………………...8
Energy-Saving Tips ………………………………………………………………………..…8
T
roubleshooting
……………………………………………………………………….9 - 10
1
Product Overview and Specs
* Within limited outdoor environment: the unit must be under the awning or the canopy and shall
not be exposed directly to rain.
**The actual quantity of ice produced per day will vary with ambient room and water conditions.
No
te:Technical data and performance information are provided for reference only and subject to
change.
Model
MIMB25C
MIM25C
MIM25CO
MIMB25CADA
MIM25CADA
Voltage/Frequency AC 115V 60Hz
Rated Ice making current 1.9A
Rated Ice harvest current 1.5A
Refrigerant R600A, 1.58Oz.
Indoor/Outdoor Indoor Indoor or Outdoor* Indoor
IP Rating - IPX4 -
ADA - - Yes
Installation Type Free standing / Built-in
Working temperature
Working water pressure
20～120 Psi
Ice Storage Capacity 22 lbs. maximum
Ice-making Capability at 50°F
25 lbs./day**
Ice Shape Crescent
Ice Cube Dimensions
(Approximate)
1/2" × 3/4" × 2-3/8"
Unit Dimension (W×D×H)
1
4-7/8''×18
-1/2''
×
33
-1/2''
14
-7/8''×18
-3/4''
×
3
3-1/2''
14
-7/8''×18
-1/2''
×
3
1-3/4''
Net Weight 62lb 64lbs 59lbs
50 F - 90 F
50 F - 90 F
50 F -100 F
2

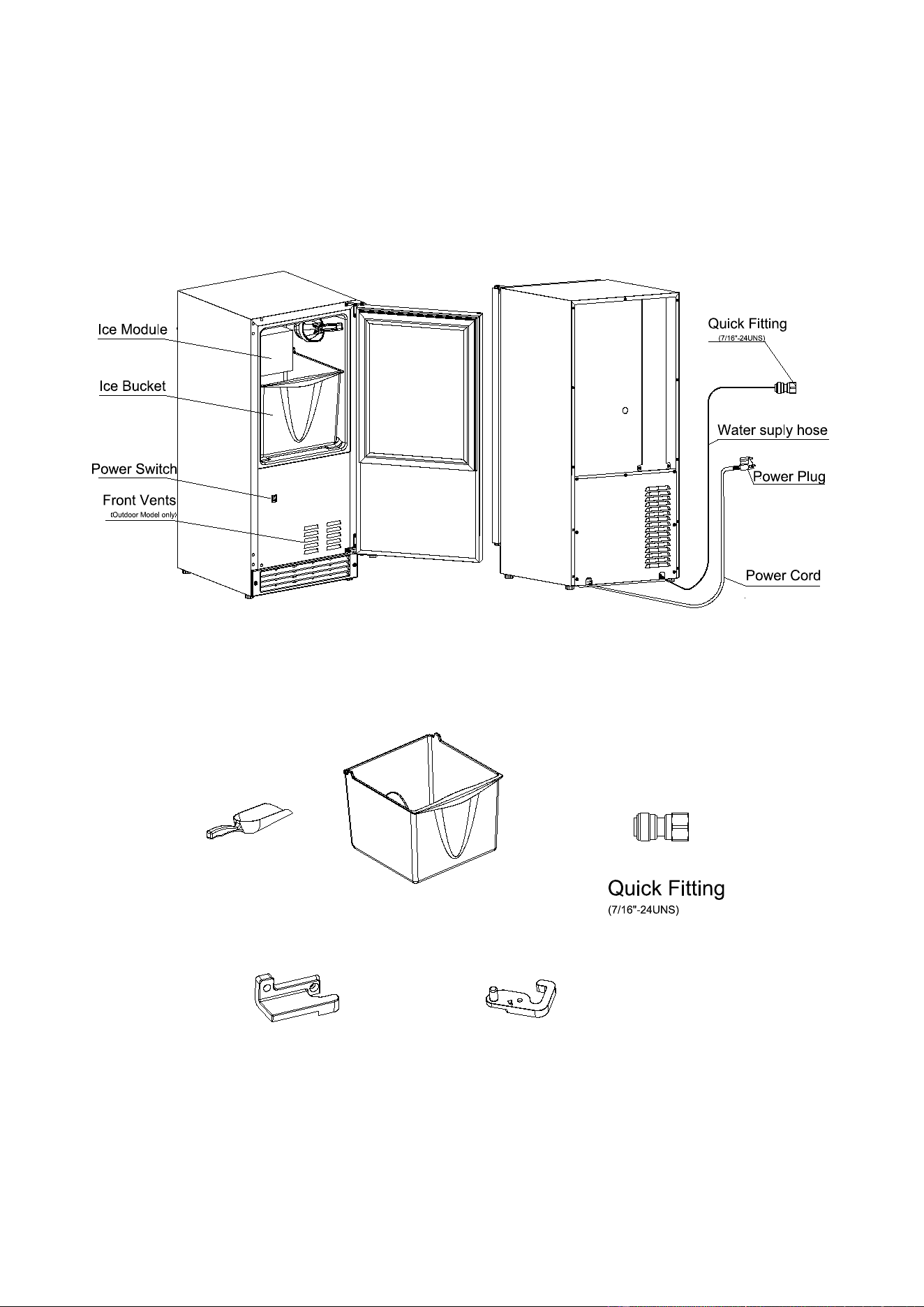

Product
Accessories
Ice Bucket
Ice Scoop
Left Latch Block
Left L
atch Hook
3
INSTALLATION
BEFORE USING YOUR ICE MAKER
• REMOVE THE EXTERIOR AND INTERIOR PACKAGING MATERIAL.
• CHE
CK TO BE SURE YOU HAVE ALL OF THE FOLLOWING PARTS:
• 1 ICE BUCKET
• 1 ICE SCOOP
• 1 QUICK FITTING [for connecting water supply]
• 1 DOOR LATCH HOOK
• 1 DOOR LATCH BLOCK
• 1 DOOR HANDLE
• 1 INSTRUCTION MANUAL
• BE
FORE CONNECTING THE ICE MAKER TO THE POWER SOURCE, LET IT STAND UPRIGHT FOR
APPROXIMATELY 4 HOURS. THIS WILL REDUCE THE POSSIBILITY OF A MALFUNCTION IN THE
COOLING SYSTEM FROM HANDLING DURING TRANSPORTATION.
• CLEAN THE INTERIOR SURFACE WITH LUKEWARM WATER USING A SOFT CLOTH.
INSTALLING THE HANDLE
This appliance includes a stainless steel handle. To install the handle please follow the below
instructions:
1. Put away the door gasket from the behind, there are two
mounting holes coverer by two caps, take away
the caps, the mounting screws are in the mounting holes.
2. Align the handle with the screws installed. Tighten the screws using a Phillips head screwdriver until
the handle sets both flush and secured tightly against the door frame. (DO NOT over tighten as this will
cause damage to the handle assembly).
3. Recap the mounting holes, and then replace the door gasket to its original position.
4. If you choose not to use the handle supplied, simply follow step 1 to access the installation screws and
remove them and then place the two decorative plugs into the two holes separately. Continue on to step 3 to
replace the door gasket to its original position.
4
INSTALLATION THE ICE MAKER
• THE APPLICANCE SHALL NOT EXPOSED TO RAIN EVEN FOR THE MODEL WITH IPX3.
• THIS APPLIANCE IS DESIGNED TO VENT HOT AIR THROUGH THE FRONT VENT. THIS ALLOWS FOR
INSTALLATION IN A RECESSED OR BUILT-IN APPLICATION, IF DESIRED.

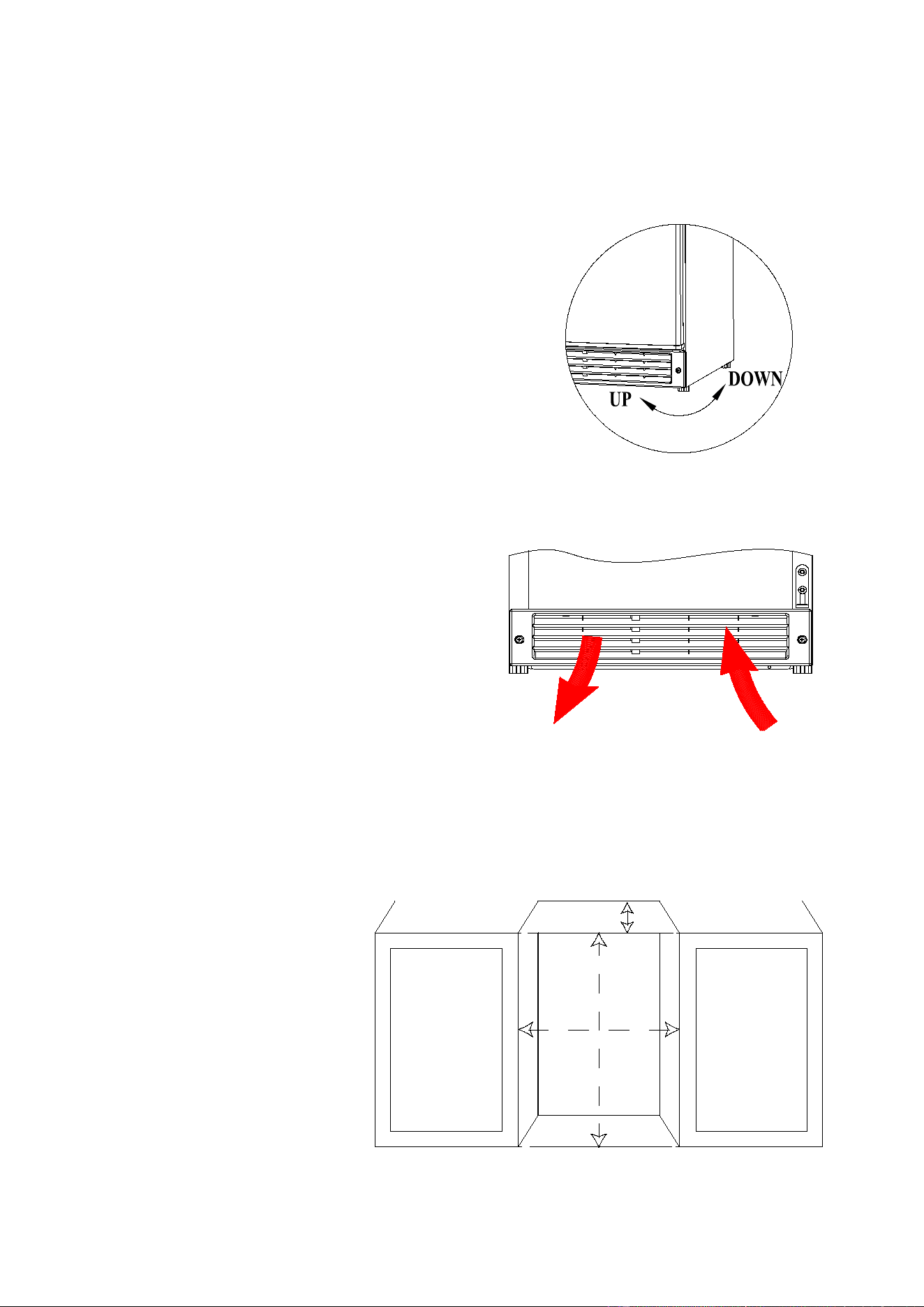

• PLACE YOUR ICE MAKER ON A LEVEL SURFACE THAT IS
STRONG ENOUGH TO SUPPORT THE ICE MAKER WHEN IT IS
FULLY LOADED. REMEMBER THAT THE UNIT WILL BE
SIGNIFICANTLY HEAVIER ONCE IT IS OPERATIONAL AND
FULLY LOADED. LEVEL YOUR ICE MAKER BY ADJUSTING THE
LEGS AT THE FRONT OF THE ICE MAKER.
• LOCATE THE ICE MAKER AWAY FROM DIRECT SUNLIGHT
AND SOURCES OF HEAT (STOVE, HEATER, RADIATOR, ETC.).
DIRECT SUNLIGHT MAY AFFECT THE FINISH AND HEAT
SOURCES MAY INCREASE ELECTRICAL CONSUMPTION. EXTREME COLD AMBIENT TEMPERATURES
MAY ALSO CAUSE THE ICE MAKER MALFUNCTION. THIS ICE MAKER IS DESIGNED FOR
INSTALLATION INDOORS IN “ROOM TEMPERATURE” AMBIENT CONDITIONS OR OUTDOORS IN
COVERED AREAS NOT EXPOSED TO DIRECT SUNLIGHT
OR RAIN (OUTDOOR MODEL ONLY).
•
POSITION UNIT TO ALLOW FREE AIRFLOW THROUGH
THE FRONT GRILLE , AVOID LOCATING THE ICE
MAKER IN MOIST/HUMID AREAS. TOO MUCH
MOISTURE IN THE AIR WILL CAUSE FROST TO FORM
QUICKLY ON THE EVAPORATOR REQUIRING
FREQUENT DEFROSTING.
• PLUG THE ICE MAKER INTO AN EXCLUSIVE PROPERLY INSTALLED GROUNDED WALL OUTLET. DO
NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE
POWER CORD. ANY QUESTIONS CONCERNING POWER AND/OR GROUNDING SHOULD BE DIRECTED
TOWARD A CERTIFIED ELECTRICIAN.
•
The product is designed and
manufactured for seamless integration
in the specified cutout opening shown,
which requires precise measurements.
The opening must be square and
plumb front to back. Although not
required, you may choose to increase
the overall cutout width for ease of
installation.
D
H
W
5
We recommend to leave at least 2’’ for the back, ¼’’ for the top and the sides.

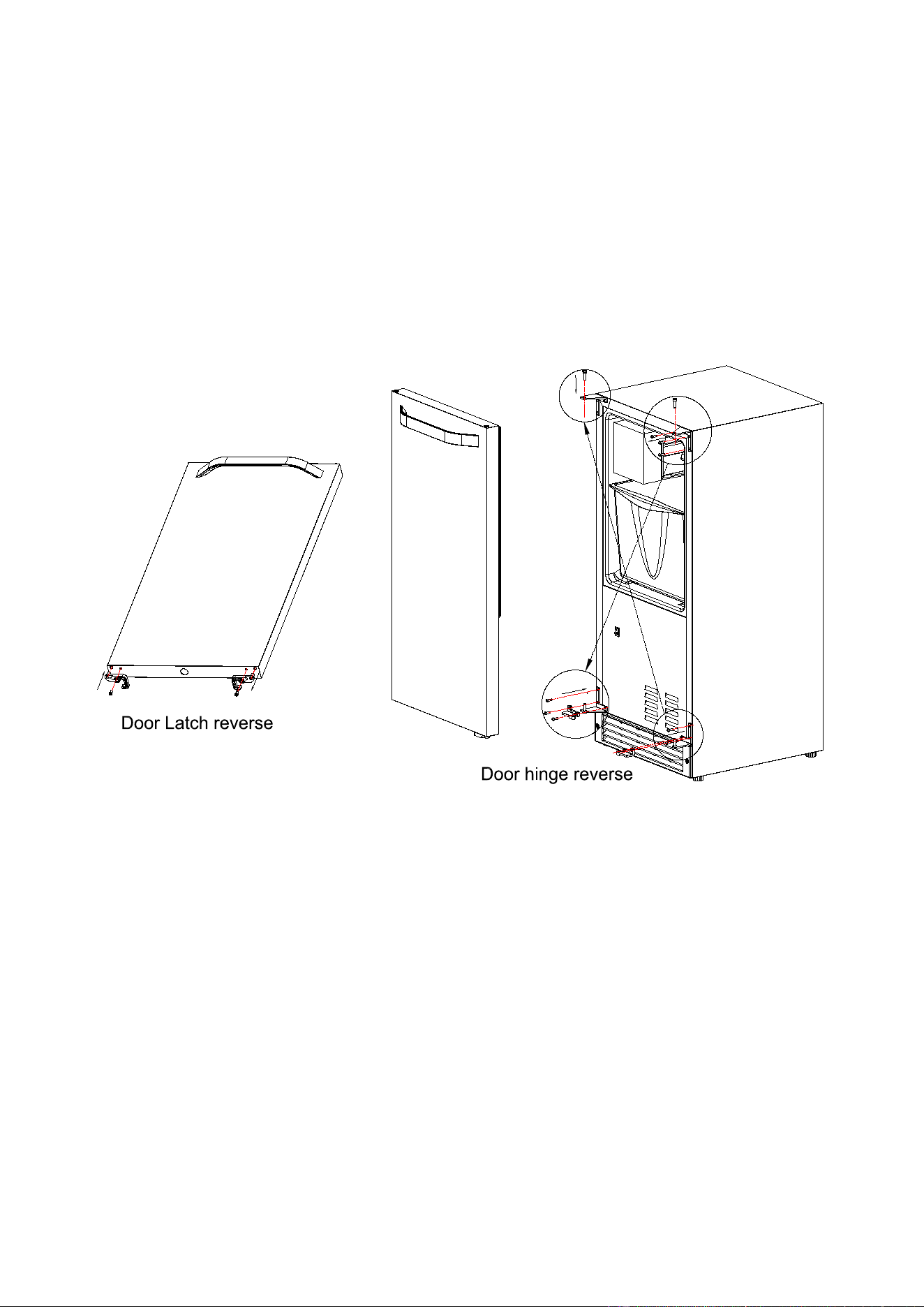

REVERSING THE DOOR SWING
THIS APPLIANCE HAS THE CAPABILITY OF THE DOOR OPENING FROM EITHER THE LEFT OR RIGHT
SIDE. THE UNIT IS DELIVERED TO YOU WITH THE DOOR OPENING FROM THE LEFT SIDE (HINGED ON
THE RIGHT).
Tools needed: flathead screwdriver, Phillips screwdriver
IM
PORTANT: Before you begin, make sure the ice maker is unplugged.
1. Ope
n the screw cap on the top hinge and unscrew 3 bolts to take away the top hinge and then lift out the
door.
2. Unscrew the right door latch hook and install the left door latch hook on the opposite side, cover the hinge
holes with the caps, finish the door latch reverse, and put aside.
3. Unscrew to take away the bottom hinge, and then remove the caps in the left of the cabinet and install the
bottom hinge at the left.
4. Install the door on the bottom hinge, and then install the top hinge on the left. Tighten firmly.
ELECT
RICAL CONNECTION
• THIS ICE MAKER SHOULD BE PROPERLY GROUNDED FOR YOUR SAFETY. THE POWER CORD OF THIS
ICE MAKER IS EQUIPPED WITH A THREE-PRONG PLUG WHICH MATES WITH STANDARD THREE PRONG
WALL OUTLETS TO MINIMIZE THE POSSIBILITY OF ELECTRICAL SHOCK.
• DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE THIRD GROUND PRONG FROM THE
POWER CORD SUPPLIED.
6
• DO NOT USE AN EXTENSION CORD TO CONNECT POWER TO THE UNIT.
• DO NOT USE A TWO-PRONG GROUNDING ADAPTER.
• IF YOU ONLY HAVE A TWO-PRONG WALL RECEPTACLE, CONTACT A QUALIFIED ELECTRICIAN TO
HAVE IT REPLACED WITH A 3-PRONG RECEPTACLE IN ACCORDANCE WITH APPLICABLE ELECTRICAL
CODES.
• THIS ICE MAKER REQUIRES A STANDARD 115 VOLTS A.C. 60HZ ELECTRICAL OUTLET WITH
THREE-PRONG GROUND.
• THE CORD SHOULD BE SECURED BEHIND THE ICE MAKER AND NOT LEFT EXPOSED OR LOOSE
EXTENSION CORD
BECAUSE OF POTENTIAL SAFETY HAZARDS, THIS APPLIANCE IS NOT RECOMMENDED FOR USE WITH
AN EXTENSION CORD. HOWEVER, IF YOU MUST USE AN EXTENSION CORD, USE ONLY A
UL/CUL-LISTED, 3-WIRE GROUNDING TYPE APPLIANCE EXTENSION CORD WITH A GROUNDING TYPE
PLUG AND OUTLET. THE ELECTRICAL RATING OF THE CORD MUST BE 115 VOLTS AND AT LEAST 10
AMPS.
CONNECTING THE WATER SUPPLY
WARNING: Connect to potable water supply only.
A
LL THE NECESSARY HARDWARE IS NOT PROVIDED (AS THE PLUMBING FIXTURES AT THE
INSTALLATION POINT MAY DIFFER) FOR INSTALLATION SO IT IS NECESSARY TO HIRE A
PROFESSIONAL LICENSED PLUMBER TO COMPLETE THE INSTALLATION.
•
CONNECT THE WATER SUPPLY TUBE TO THE NEAREST COLD WATER SOURCE. CONNECT SUFFICIENT
TUBING TO THE UNIT TO ALLOW THE APPLIANCE TO BE MOVED FREELY FOR CLEANING AND
SERVICE. ALSO MAKE SURE THAT THE TUBING IS NOT PINCHED OR DAMAGED DURING
TRANSPORTATION/INSTALLATION.
•
WIPE OUT INSIDE OF UNIT AND ICE BUCKET WITH A DAMP CLOTH.
7
OPERATING
INITIAL START-UP OPERATION
1
. PLUG THE APPLIANCE INTO A 115/120V POLARIZED AND GROUNDED WALL
ELECTRICAL OUTLET.
2. PLACE THE ON-OFF SWITCH IN THE “I” POSITION.
3. MAKE SURE THE WATER SUPPLY IS ON. AS SOON AS THE INNER MECHANISM
REACHES THE PROPER TEMPERATURE, THE ICEMAKER MECHANISM WILL FILL
THE MOLD WITH WATER.
4. THE FIRST CUBES MAY BE SMALL BECAUSE OF AIR IN THE WATER LINE.
LATER CUBES WILL BE OF STANDARD CRESCENT TYPE SIZE.
5. APPROXIMATE TIME FOR THE FIRST CYCLE IS BETWEEN 30-40 MINUTES.
6. EACH CYCLE APPROXIMATELY WILL TAKE 5 OZS OF WATER SO YOU SHOULD HAVE A FULL TRAY,
AFTER 11 HOURS.
IMPORTANT: THROW AWAY ALL ICE CUBES MADE DURING THE FIRST 3 HOURS OF OPERATION.
• WHEN THE ICE BUCKET IS FULL, THE ICE MAKING MECHANISM WILL AUTOMATICALLY SHUT OFF.
WHEN ICE CUBES ARE MELTED, THE ICE MAKING MECHANISM WILL START AGAIN.
• ICE DELIVERY MAY BE INTERRUPTED BY RAISING THE METAL ARM INTO AN UPRIGHT POSITION
• IF THE ICEMAKER IS NOT USED REGULARLY, IT IS RECOMMENDED THAT THE ICE BUCKET BE
EMPTIED PERIODICALLY TO ENSURE FRESH ICE.
• SOMETIMES THE CUBES MAY APPEAR CLOUDY. THIS IS DUE TO THE RAPID FREEZING OF THE ICE
CUBE. THIS IS TRAPPED AIR IN THE WATER AND DOES NOT AFFECT THE TASTE AND QUALITY OF THE
ICE.
• THE FRONT GRILLE SHOULD BE KEPT FREE OF DUST AND LINT TO ALLOW FREE AIRFLOW.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance!
IMPORTANT: THIS UNIT SHOULD BE DEFROSTED APPROXIMATELY EVERY 4-6 WEEKS OR
WHEN FROST ON THE ICE MAKER WALLS IS EXCESSIVE OR ¼” THICK. TO DEFROST, TURN THE
UNIT OFF, REMOVE CUBES AND KEEP DOOR OPEN AT LEAST TWO INCHES.
MAINTENANCE
CLEANING YOUR ICE MAKER
• TURN THE SWITCH CONTROL TO "OFF", UNPLUG THE ICE MAKER AND REMOVE THE BUCKET.
• WASH THE
INSIDE WITH A WARM WATER AND BAKING SODA SOLUTION. THE SOLUTION SHOULD
BE ABOUT 2 TABLESPOONS OF BAKING SODA TO A QUART OF WATER.
• WASH THE BUCKET WITH A MILD DETERGENT SOLUTION.
• THE OUTSIDE OF THE ICE MAKER SHOULD BE CLEANED WITH MILD DETERGENT AND WARM
WATER.
• THE STAINLESS STEEL COMPONENTS OF
THE DOOR SHOULD BE CLEANED WITH
STAINLESS STEEL CLEANER
• THE CONDENSER COILS SHOULD BE
VACUUMED WHEN THEY ARE DUSTY OR
DIRTY
Condenser
8
CAUTION
FAILURE TO UNPLUG THE ICE MAKER WHEN CLEANING, MOVING, OR SERVICING IT COULD
RESULT IN ELECTRICAL SHOCK OR PERSONAL INJURY.
POWER FAILURE
MOST POWER FAILURES ARE CORRECTED WITHIN A FEW HOURS AND SHOULD NOT AFFECT THE
TEMPERATURE OF YOUR ICE MAKER IF YOU MINIMIZE THE NUMBER OF TIMES THE DOOR IS
OPENED. IF THE POWER IS GOING TO BE OFF FOR A LONGER PERIOD OF TIME, YOU SHOULD
TAKE THE PROPER STEPS TO DISCONNECT YOUR APPLIANCE.
VACATION TIME/STORAGE
1. S
HUT OFF THE WATER SUPPLY AT THE MAIN WATER VALVE.
2. DISCONNECT THE WATER SUPPLY LINE FROM THE VALVE.
3. POUR AWAY THE WATER AND ICE THAT IN THE ICE BUCKET.
4. ALLOW THE UNIT TO RUN FOR AN HOUR OR TWO UNTIL ALL REMAINING ICE CUBES HAVE BEEN
EJECTED AND ALL WATER HAS CYCLED THROUGH THE SYSTEM AND HAS BEEN MADE INTO ICE
CUBES.
5. DISCONNECT THE UNIT FROM THE MAIN POWER SOURCE.
6. DRY OUT EXCESS WATER FROM THE ICE MAKER ASSEMBLY
7. LEAVE THE DOOR OPEN AT LEAST TWO INCHES.
MOVING YOUR ICE MAKER
•
SECURELY TAPE DOWN ALL LOOSE ITEMS INSIDE YOUR ICE MAKER.
• TURN THE LEVELING SCREWS UP TO THE BASE (THEIR SHORTEST LENGTH POSSIBLE) TO AVOID
DAMAGE.
• TAPE THE DOOR SHUT.
• MAKE SURE THE ICE MAKER STAYS IN THE UPRIGHT POSITION DURING TRANSPORTATION.
ENERGY SAVING TIPS
• THE ICE MAKER SHOULD BE LOCATED IN THE COOLEST AREA OF THE ROOM, AWAY FROM HEAT
SOURCES, AND OUT OF THE DIRECT SUNLIGHT.
9
TROUBLESHOOTING GUIDE
Before Calling for Service:
If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the issue
persists, check the Troubleshooting Guide below. Some of the problems mentioned in the Troubleshooting
Guide can be solved easily without a service call.
Problem
Possible Cause
Probable Correction
The ice maker doesn’t
operate.
The ice maker is unplugged.
Plug in the ice maker.
The breaker is tripped.
Check the breaker. If the problem occurs
again, call for service to check for a
short circuit in the unit.
The ice maker’s power button is set to
OFF.
Switch the ice maker’s power button to
ON.
If the ambient temperature is over 110
℉, the ice maker may overheat and
initiate a protective stop to prevent
damage.
If the protective stop occurs, do not
restart the unit until the ambient
temperature is lower than 86℉.
The ice storage bin is full of ice or
wire shut-off arm is locked in the up
position.
Remove some of the ice. Be sure the
wire shut-off arm is lowered.
The water doesn’t
feed in after the ice
maker starts.
The water su
pply tap is turned off. Turn on the water supply tap.
Water inlet valve malfunction Call Service.
The water supply pipe is not properly
connected.
Reconnect the water supply pipe.
Water is leaking out
of the unit.
The water supply connection is
leaking.
Tighten the fitting.
A small amount of
water in the ice bin
First initial cycle may add extra water
and cause the ice module to overflow.
This is normal, wipe up excess water
and check next cycle.
No ice is produced.
The wire shut-off arm is locked in the
upright position.
Lower the wire shut-off arm.
Refrigerant leak. Call Service.
Ice Module malfunction. Call Service.
No water is being supplied to the unit. Turn on the water or contact a plumber.
The machine makes
ice, but at a very slow
rate.
The condenser is dirty. Clean the condenser.
The air flow to the ice maker is
obstructed.
Check the installation to ensure the air
flow to the ice maker is not blocked.
The ambient temperature is high, or
the unit is near a heat source.
Check the installation to ensure the
ambient temperature is in the proper
range.
The ice cubes are
partially formed.
There is not enough water in the water
trough.
Check if the water supply pressure is
below 20 psig. The water supply or filter
may be restricted.
10
The thermostat may have been
adjusted to the highest temperature
setting.
Adjust thermostat towards the
COLDEST.
Abnormal Ice,
melting or formed
together
The ambient temperature is high, or
the unit is near a heat source.
Adjust thermostat towards the
COLDEST.
The door gasket does not seal
properly.
Check the door is properly closed.
Power Off.
Check power supply.
Refrigerant leak.
Call Service.
The unit accumulates
frost and has to be
defrosted often.
Door isn't properly closed door left
open for too long when retrieving ice.
Defrost the ice maker as needed. Keep
the door closed as much as possible.
High humidity environment Increase the defrost frequency
There is noise
during operation.
The unit may not be leveled and
secure.
Level and secure the unit.
PN:
1866834700
