INSTALLATION GUIDE
for the
SB-GM-C7CP1/10TW3
SKU# 94605
2014-2019 Corvette C7 Stingray
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your
authorized JL Audio dealer. The installation professionals employed by your
dealer have the necessary tools and experience to disassemble and reassemble
your vehicle properly. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital
that the Stealthbox
®
be properly mounted to the vehicle according to
these instructions. Failure to mount the enclosure properly presents two
problems:
1) The sub-bass performance will suffer due to the movement of the
enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a
collision or sudden deceleration.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
1/2 HOUR
Enclosure Type: Sealed
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
Continued on Next Page
1
5
OUT
OF
SB-GM-C7CP1/10TW3 INSTR_SKU# 011384

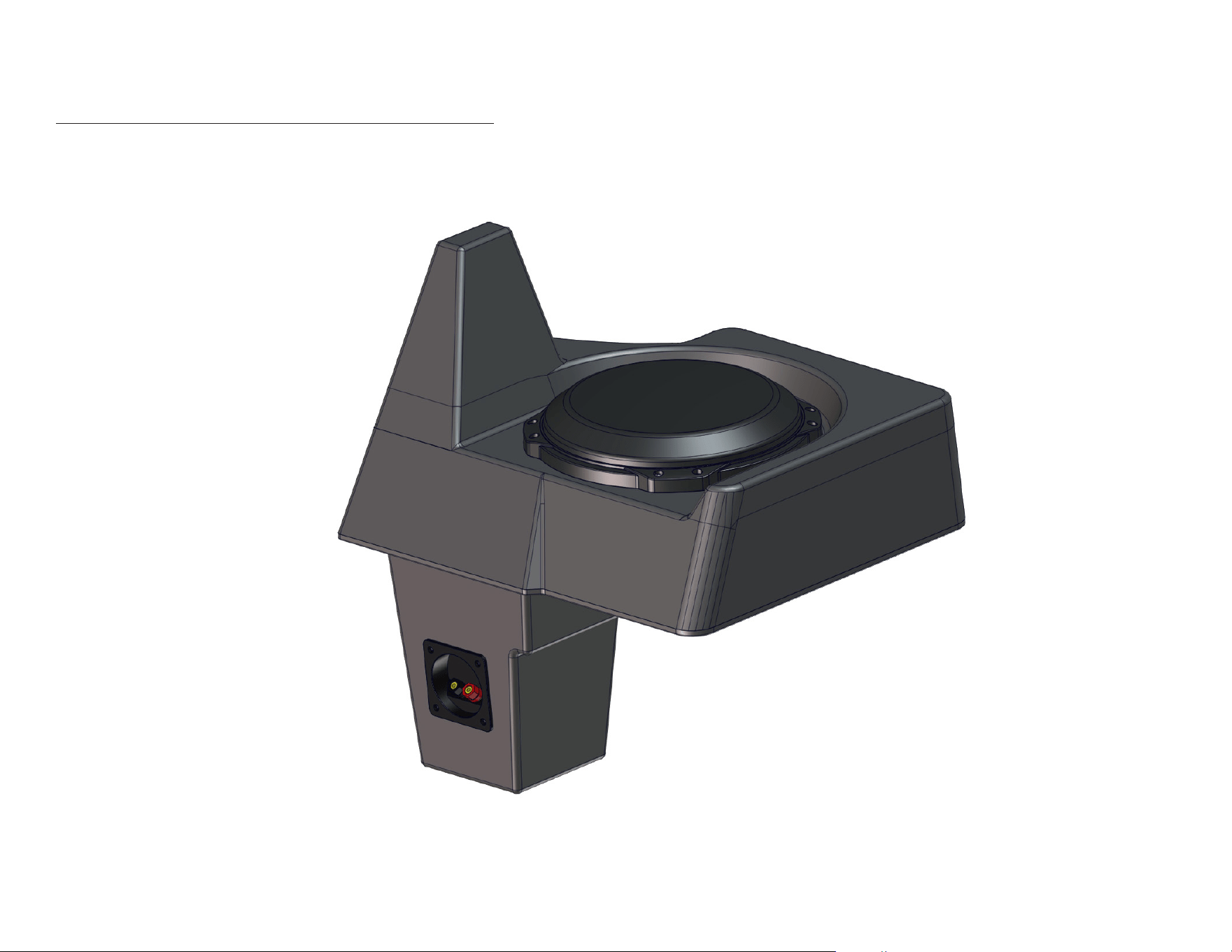

INCLUDED HARDWARE
Continued on Next Page
Page 2 • JL Audio, Inc., 2019
SB-GM-C7CP1/10TW3 INSTR_SKU# 011384
No additional hardware required.

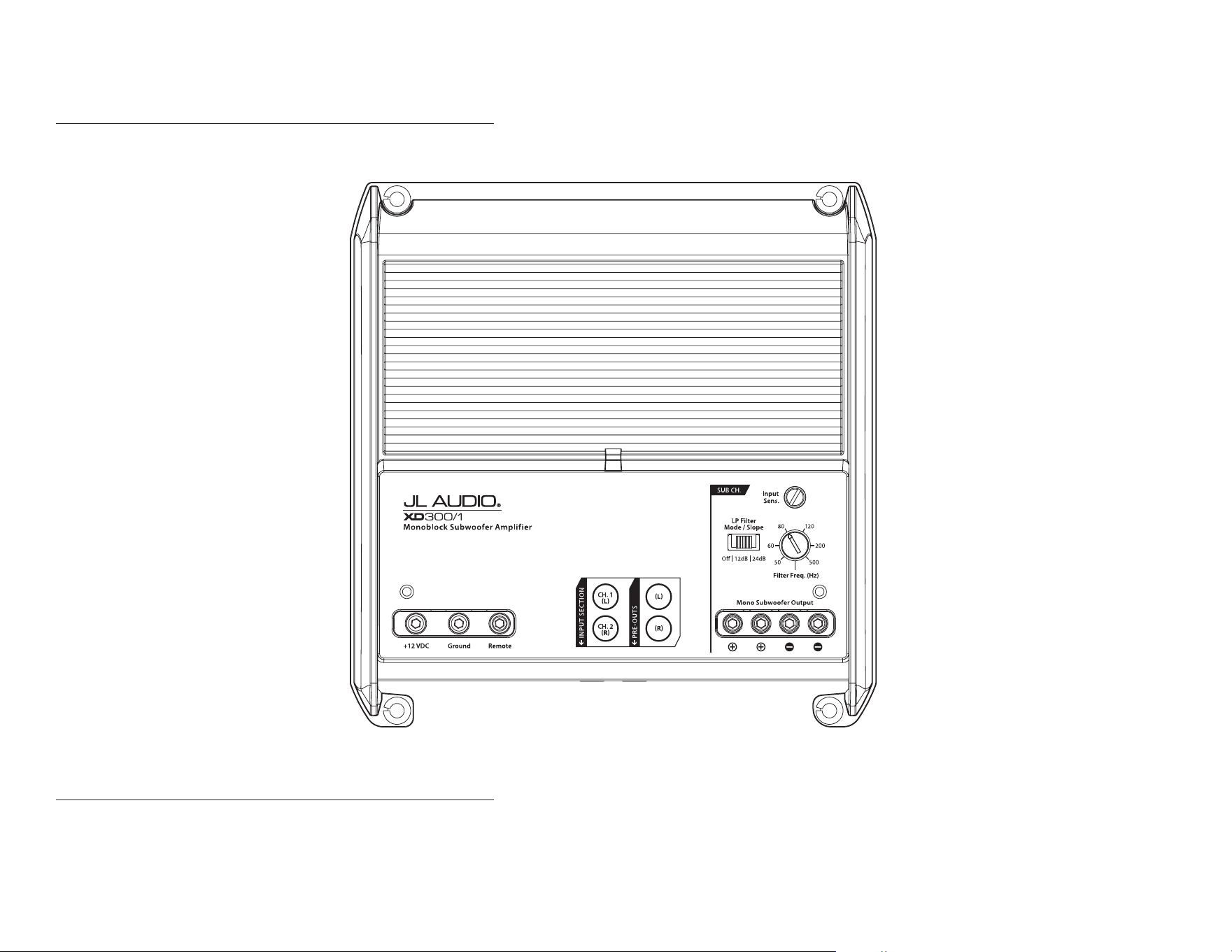

POWER RECOMMENDATION
JL Audio recommends high quality ampliers such as the JL Audio XD300/1v2. The diagram below shows the recommended crossover settings for the XD300/1v2. For a detailed description of the
amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your
Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for
both channels of the amplier. JL Audio recommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.
Continued on Next Page
Page 3 • JL Audio, Inc., 2019
SB-GM-C7CP1/10TW3 INSTR_SKU# 011384
Page 4 • JL Audio, Inc., 2019
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 10”- Front Doors
Fits JL Audio Models: C1-650, C1-650x, C2-650, C2-650x,
C3-650, C5-650, C5-650x, & C7-650cw
Rear Speaker Size / Location: 6-1/2”- Side Panels
Fits JL Audio Models: C1-650, C1-650x, C2-650, C2-650x,
C3-650, C5-650, C5-650x, & C7-650cw
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, and “Stealthbox” and the Stealthbox logo are registered trademarks of JL Audio, Inc. “Ahead of the
Curve”, its respective logo, and “How we play” are trademarks of JL Audio, Inc.
Printed in USA • ©2019 JL Audio, Inc. • For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
JLA-SKU# 011384 • ver. 09.30.2019 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
How we play.
™
SB-GM-C7CP1/10TW3 INSTR_SKU# 011384

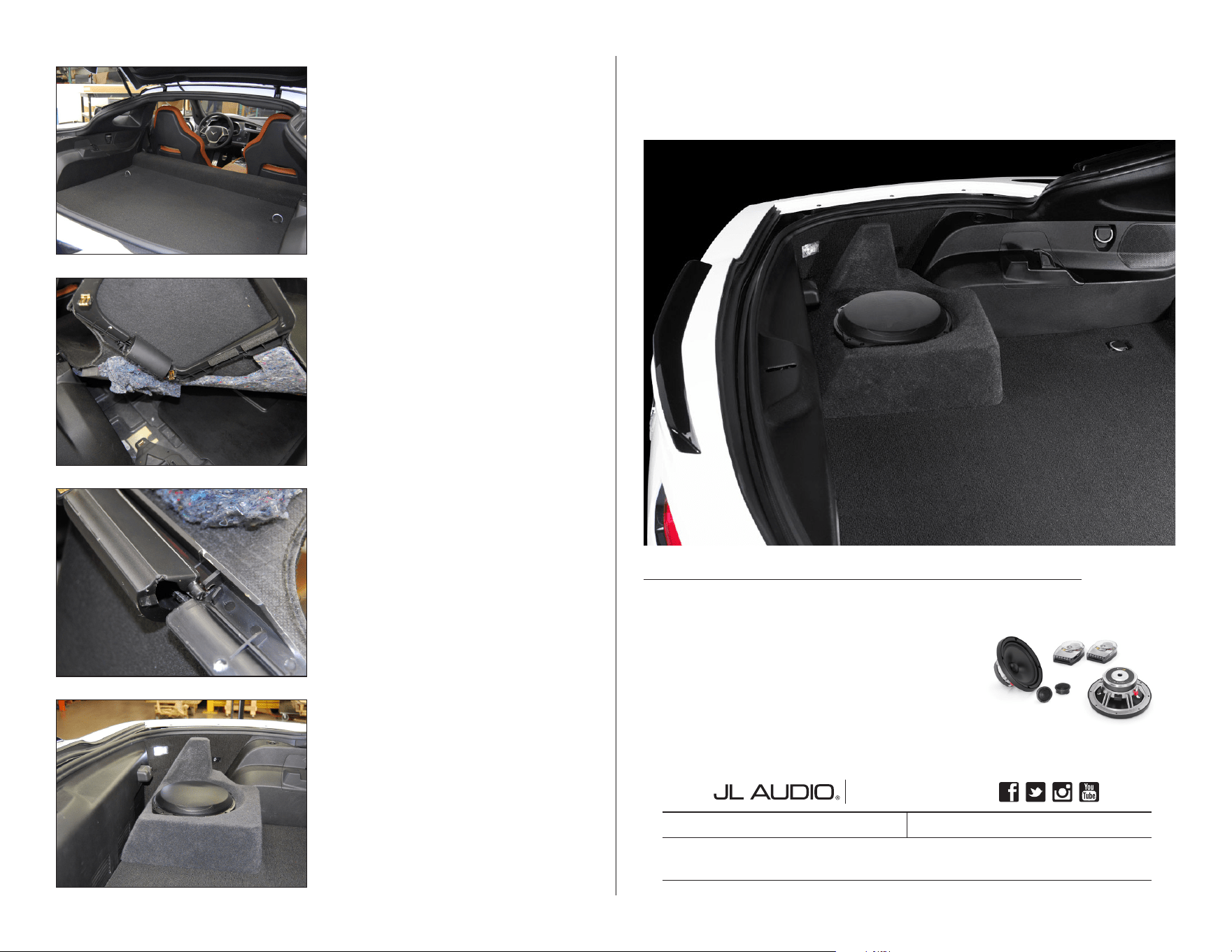

STEP 4
Reinstall the cargo floor. Connect speaker
cable to the terminal cup on the enclosure, and
place the Stealthbox® into position as shown.
Route the speaker cable as necessary.
Closing the cargo hatch will lock the
Stealthbox® into position.
STEP 3
From the underside of the cargo floor, carefully
unclip and remove the storage compartment
door.
STEP 2
Lift up the cargo floor on the driver’s side.
STEP 1
Empty out the trunk of the vehicle.
