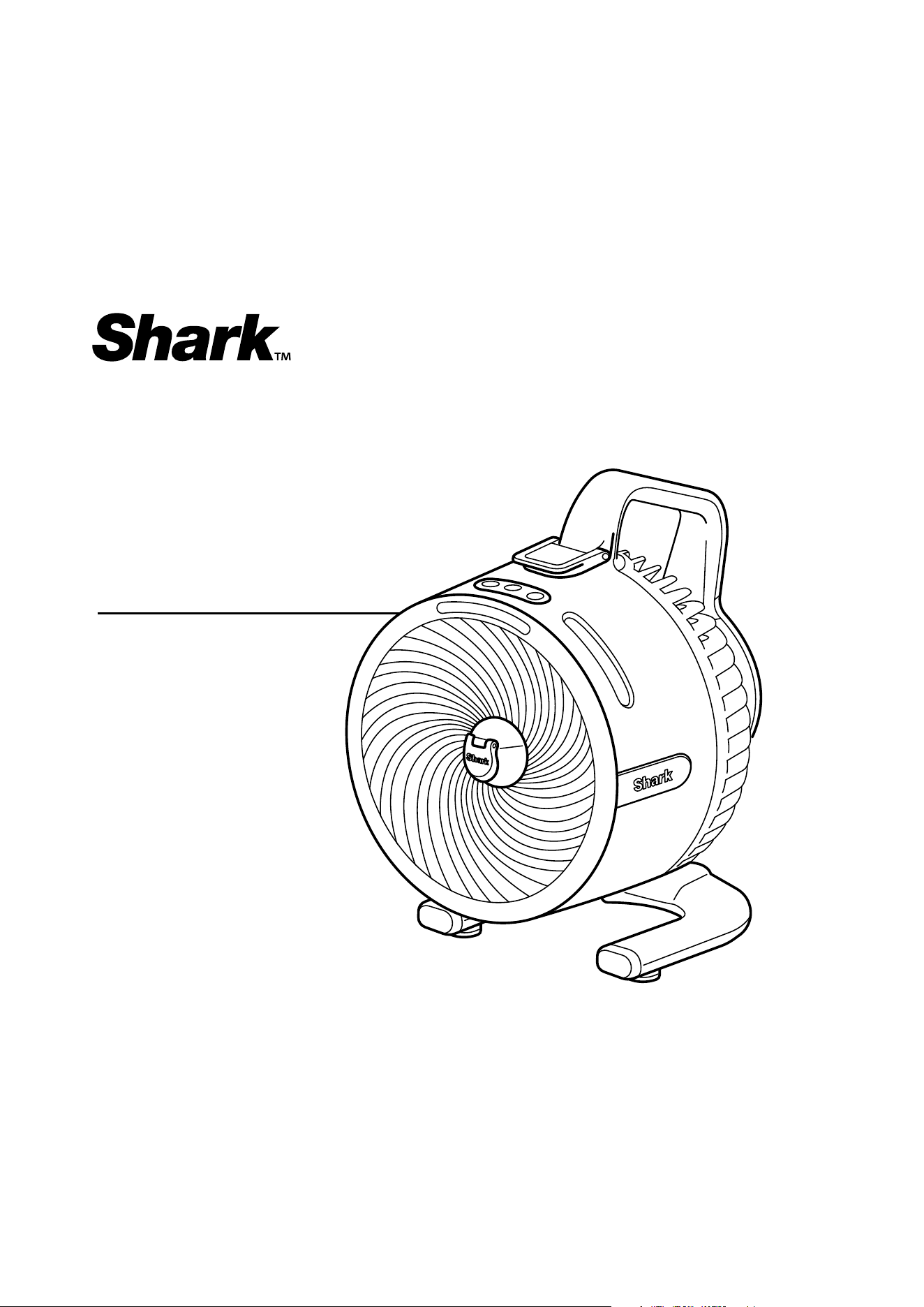

FA052 Series
OWNER’S GUIDE
FlexBreeze
™
HydroGo
™
Fan
IMPORTANT SAFETY INSTRUCTIONS
SUITABLE FOR OUTDOOR USE & HOUSEHOLD USE ONLY.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY: READ ALL THESE INSTRUCTIONS BEFORE USE.
1. This appliance is operated by a rechargeable battery. ONLY
recharge the battery with the charger supplied with the unit,
battery charger for use only with model GQ36-120300-AUO
power supply from Dongguan Gangqi Electronics Co., Ltd. or
with model ZD036T120300US from E-TEK, or with model AJJ3-1
from Anlian. A charger that may be suitable for one type of
battery may create a risk of fire when used with another battery.
2. Do not attempt to destroy, remove, or disassemble the battery
pack from the machine. Do not incinerate battery cells. Consult
your local waste authority for information regarding available
recycling and/or disposal options.
3. To reduce the risk of electric shock, connect only to an outlet
provided with a ground fault circuit interrupting (GFCI) device.
4. The fan should be used on a stable and level surface.
5. Never use this fan near pools, bathtubs, showers, basins, or
other vessels containing water.
6. Do not operate any unit with a damaged power supply wire
or battery charger. Discard the unit or return to an authorized
service facility for examination and/or repair.
7. Do not run cord under carpeting. Do not cover charge cord
with throw rugs, runners, or similar coverings. Do not route
charger cord under furniture or appliances. Keep charger cord
away from high-trac areas. Place charger in an area where
the cord will not be tripped over.
8. If the charger cord is damaged, it should be replaced.
9. This appliance is not intended for use by anyone (including
children) with reduced physical, sensory, or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
10. Children should be supervised to ensure that they DO NOT play
with
the appliance.
11. Cleaning and user maintenance shall not be made by children
without supervision.
12. Prior to cleaning or other maintenance, the appliance must be
unplugged from the electrical outlet.
13. Only use Shark branded accessories.
14. Do not use if appliance is not working as it should, has been
damaged, or dropped into water.
15. Turn o all controls before plugging in or unplugging
the appliance.
16. Unplug from electrical outlet when not in use and before any
maintenance or cleaning.
17. Hand wash exterior/hard plastic/non-electronic parts with
damp cloth and water only.
18. Do not attempt to repair or adjust any electrical or mechanical
functions of this appliance, as this may cause danger and void
the warranty.
19. Do not force discharge, recharge, disassemble, heat above
140°F (60°C), or incinerate. Doing so may result in injury due
to venting, leakage, or explosion resulting in chemical burns.
20. The misting feature is suitable for indoor and outdoor use. This
product is NOT a humidifier.
21. Never attempt to mist substances other than filtered or clean
tap water. DO NOT use warm or hot water. Only use cold or
room temperature water.
22. DO NOT handle live electrical products while in range of the
misting stream.
23. Keep non-waterproof electronic equipment and appliances out
of the misting stream.
24. To avoid accidental damage or injury DO NOT touch the metal
misting plate while the unit is on.
25. DO NOT attempt to operate the misting feature with an
empty water tank. The metal misting plate may reach high
temperatures if operated without water.
26. WARNING: CHOKING HAZARD. Always keep nozzles and any
other small parts out of the reach of children.
27. DO NOT use any scented products (fragrances, oils, etc.) in the
water tank or on any part of the fan.
WARNING: Not suitable for use with solid-state
speed controls.
LITHIUM BATTERY SAFETY WARNINGS
LITHIUM BATTERIES STORE A LARGE AMOUNT OF ENERGY
AND WILL VENT FIRE OR EXPLODE IF MISTREATED.
1. DO NOT DO ANY OF THE FOLLOWING TO THE BATTERY PACK:
a. Open d. Puncture
b. Drop e. Incinerate
c. Short-circuit f. Expose to temperatures
2. Keep battery pack dry.
3. Charge battery pack only according to its charger's instructions.
4. Inspect battery pack before every use: do not use or charge
if damaged.
BATTERY REMOVAL AND DISPOSAL
This product contains an integral lithium battery (not replaceable).
DO NOT incinerate or compost the product with its integral battery.
In some areas, it is illegal to place spent lithium batteries in the trash
or in a municipal solid waste stream. Return spent battery to an
authorized recycling center or to retailer for recycling. Contact your
local recycling center for information on where to drop o the spent
battery.
POWER SUPPLY SAFETY
1. Read and follow all instructions that are on the product
or provided with the product.
2. Do not use an extension cord.
3. Do not use within 10 feet of pool and do not use in
a bathroom.
4. WARNING: Risk of Electric Shock. When used outdoors, install
only to a covered Class A GFCI protected receptacle that is
weatherproof with the power unit connected to the receptacle.
If one is not provided, contact a qualified electrician for proper
installation. Ensure that the power unit and cord do not interfere
with closing the receptacle cover.
FCC WARNINGS
Note: This equipment has been tested and complies with the limits for a
Class B digital device - pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
To see if this equipment interferes with radio or television reception, try
turning the equipment o and on.
To correct any interference:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to a dierent outlet than the receiver.
• Consult the dealer or an experienced technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference
that may cause undesired operation.
Caution: Any changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
IC Statement:
This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
READ AND SAVE THESE INSTRUCTIONS
NOTE: After every use, empty the water tank
and let it dry completely to prevent stagnant
water from being misted.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
1. SAVE THESE INSTRUCTIONS.
This manual contains important safety and operating
instructions for battery charger model FAX5XCAR from
Ningbo Junlai Electrical Appliance Co., Ltd.
2. Before using this battery charger, read all instructions and
cautionary markings on the battery charger, battery, and
product using battery.
3. CAUTION: To reduce risk of injury, charge only the
provided rechargeable battery. Other types of batteries
may burst, causing injury to persons and damage.
4. DO NOT expose charger to rain, moisture, or snow.
5. Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of fire,
electric shock, or injury to persons.
6. To reduce damage to car charger and cord, do not
attempt to remove the charger from the outlet by pulling
the cord. Pull the entire car charger connection from
the outlet.
7. To reduce risk of electric shock, unplug charger before
attempting any maintenance or cleaning. Turning off
controls will not reduce this risk.
8. DO NOT operate the car charger if any components
are damaged.
9. To clean the charger, first unplug it, then gently wipe
it with a damp cloth. Allow the charger to air-dry
completely before using it.
10. The charger uses a replaceable 5-amp fuse. To remove
the fuse, unscrew the chrome knob at the tip of the
charging plug. Use only 5-amp fuses for replacement.
READ AND SAVE THESE INSTRUCTIONS
CAR CHARGER CAR CHARGER
IMPORTANT SAFETY INSTRUCTIONS
SUITABLE FOR OUTDOOR USE & HOUSEHOLD USE ONLY.
INSTRUCTIONS FOR USE:
1. Firmly insert the car charger plug into a 12-volt outlet in
your vehicle.
2. Insert the charger connector into the charging port on
the back of the fan head.
WHAT'S INCLUDED
FEATURES
CORDLESS OUTDOORS BREEZEBOOST
™
MODE
This is a 2-in-1 fan that
can be used with or
without the cord.
This fan can be enjoyed
indoors or outdoors.
DO NOT CHARGE OR
USE IN THE RAIN.
MISTING
Integrated misting
suitable for both indoor
and outdoor usage.
Activate the extra-
powerful BreezeBoost
Mode for maximum-
strength air flow.
VERTICAL TILT
Direct the airflow by
manually adjusting the
vertical tilt up to 45°
degrees.
Fan
(Already assembled)
Charger
(Reference image only)
Includes:
• Fan
• Charger
HOW TO CHARGE YOUR FANVERTICAL TILT
To charge the fan,
insert the charger
into the charging
port on the
back of the fan
head. DO NOT
CHARGE OR USE
IN THE RAIN.
Fan head
tilted UP
Fan head
tilted DOWN
After every use, empty the water tank and let it dry completely to prevent stagnant water from being misted.
HOW TO DRY YOUR FAN
NOTE: Leave the water fill port open for 24 hours
before closing and storing the unit.
1. First, empty all the water out of the tank:
Hold the fan over a drain, open the water
tank cap, then turn the fan upside down and
allow all water to drain out.
2. Place the fan upright on a level, stable
surface. Open the misting cap on the
front grill of the fan, then turn on the
misting function for 5 seconds to clear any
remaining water from the system.
3. Place the fan in a well-ventilated space and
allow it to air-dry completely.
1.
2.
HOW TO USE YOUR FAN
Fan Speed Power Misting Modes
Press
on the fan head to
cycle between fan settings:
Fan speeds 1-5 | BreezeBoost™
LED lights will indicate selected
fan setting.
Press
on the fan head to turn the fan on.
The battery LED will indicate how much
power your fan has:
70%-100%: green light
30%-69%: amber light
6%-29%: red light steady
5% and below: red light blinking
Press
on the fan head to
cycle between mist settings:
Consistent | Interval | OFF
LED lights will indicate selected
mist setting.
Tip: Try adjusting the fan speed while misting
to customize your cooling experience.
Fan
ONLY
Runtime
MAXIMUM CORDLESS RUNTIME: 12 hours on fan speed 1.
AVERAGE CORDLESS RUNTIME: 4 hours on fan speed 3.
MAXIMUM CORDLESS PERFORMANCE: 1.5 hours on fan speed 5.
PLUGGED IN: Indefinite runtime; fan will charge while operating.
Mist
Runtime
MAXIMUM MISTING RUNTIME: Up to 60 minutes
of Interval misting per tank at any fan speed.
MAXIMUM MISTING PERFORMANCE: Up to
30 minutes of Consistent misting per tank at any
fan speed.
Note: The mister will automatically turn o after 1 hour
in Consistent mode or 2 hours in Interval mode. This
prevents dry running and system damage. See Owner's
Guide for more information.
Charge
Time
FROM 0% TO FULLY CHARGED BATTERY: 3 hours
1. To remove the base, gently press
the release button and pull the base
downward o the fan head post.
2. To reinstall the base, slide it onto
the fan head post, over the button,
until it clicks into place.
BATTERY LIFE
SWAPPABLE BASE
Settings Runtime
Fan Speed 112.0 hours
Fan Speed 1
+ Mist
3.5 hours
Fan Speed 2 7.0 hours
Fan Speed 2
+ Mist
3.0 hours
Fan Speed 3 4.0 hours
Fan Speed 3
+ Mist
2.0 hours
Settings Runtime
Fan Speed 4 2.0 hours
Fan Speed 4
+ Mist
1.5 hours
Fan Speed 5 1.0 hours
Fan Speed 5
+ Mist
1.0 hour
BreezeBoost Mode 1.0 hour
BreezeBoost Mode
+ Mist
45 minutes
The base is removable, so you can swap in dierent bases or add accessories that suit your needs.
STORAGE
STORAGE TYPE INSTRUCTIONS
Short-term storage
(less than 24 hours).
Carefully place the fan in the desired storage location. Ensure it is out
of reach of children and pets. Bring the fan indoors if inclement weather
is predicted.
Long-term storage
(more than 24 hours).
Carefully place the fan in the desired storage location. Store the fan
indoors when not in use for long periods. Always make sure to keep
the fan out of reach of children and pets.
SETTINGS
• Before first cordless use, make sure to fully charge the fan.
• For information on how to activate or deactivate LOCK MODE for fan maintenance or travel, please see the Maintenance section.
POWER ON/OFF
5-SPEED MODELS DISPLAY
ON
LED animations will play once
(LEDs will turn on from left to right, then turn o from right to left)
OFF
LED animation will play once
(LEDs will turn o from right to left)
To turn the fan on or o, press the POWER button on the fan head.
FAN SPEEDS
Changing the FAN SPEED will increase or decrease the airflow of the fan. There are 5 fan speed settings.
To change the speed, press the fan speed
icon on the fan head to cycle though the dierent speeds.
SPEED DISPLAY
(5-SPEED MODELS)
BEST FOR
1
Quiet operation
2
Moderate cooling
3
Balance of noise level
and fan power
4
Air circulation
5
High-power cooling
BREEZEBOOST™ MODE
Turn on BreezeBoost for maximum-power airflow. When operating cordlessly, BreezeBoost will automatically turn o after 20
minutes to save battery. BreezeBoost will run indefinitely when the fan is plugged in.
To activate BreezeBoost, press fan icon until you see the LED pattern described below.
To deactivate BreezeBoost, press the fan speed
icon on the on the fan head until you reach your desired fan speed setting.
DISPLAY SPEED BEST FOR
LED animation will repeat 5 times
(LEDs will turn on from left to right)
BreezeBoost
Maximizing
fan power
MISTING
The misting feature is suitable for both indoor and outdoor use.
Choose between 2 misting settings to best suit your needs. To change the misting settings, press the Misting
icon on the
fan head to cycle through the settings.
To turn o misting, press and hold the Misting
icon on the fan head until no LEDs are illuminated.
To enable misting, OPEN the misting cap
in the center of the fan grill.
When done misting, CLOSE the cap
to prevent dripping.
DISPLAY SETTING BEST FOR
Consistent
Maximum
cooling power
Interval
Longest
misting duration
Note: Misting will automatically shut o after 1 hour in
Consistent mode and 2 hours in Interval mode to prevent
dry running and damaging the system.
If you refill the water tank during use, the timer may turn o misting.
To reactivate mist, press the Misting
icon on top of the fan head.
Repeat as needed. DO NOT attempt to mist with an empty water tank.
TROUBLESHOOTING AND FREQUENTLY ASKED QUESTIONS
GENERAL USE
Why are the UI buttons on
the fan head not working?
Make sure the fan has battery power by pressing the Power
button. If the Battery LED indicator blinks red, then the fan
needs to be charged. When the fan is charging, the battery
LED will blink green. See the Battery Life and How To Use
Your Fan sections for more detailed information on runtimes
and battery indicators.
If all the LEDs are flashing, the fan may be in Lock mode,
which deactivates the fan to allow you to safely maintain or
travel with it. To turn o Lock mode, press the Power
icon
on the fan and hold it down for 8 seconds. When Lock mode
is successfully deactivated, the LEDs will display the Power On
pattern. See the Maintenance section for more information.
Why is the battery light flashing
red when I am trying to turn on
BreezeBoost™ mode?
If the battery level is low, BreezeBoost mode cannot be
activated. Charge the fan battery to use BreezeBoost.
Why are the misting and battery
lights flashing when I try to activate
the misting feature?
If the battery level is low, the misting feature cannot be
activated. Charge the fan battery to use misting.
Why did misting shut o?
Misting will automatically shut o after 1 hour in Consistent
mode and 2 hours in Interval mode to prevent dry running
and damaging the system.
If you refill the water tank during use, the timer may turn o
misting. To reactivate mist, press the Misting
icon on top of
the fan head. Repeat as needed.
DO NOT attempt to mist with an empty water tank.
Can I leave the fan outdoors?
This fan is rain-resistant and will not be damaged by light rain.
However, it is not suitable to withstand heavy rain or water
submersion. Do not charge or use your fan in the rain.
The second LED indicator and the
Battery LED (in amber) are flashing.
What is wrong?
This error state indicates an issue with the voltage of the
charger. Please be sure to only use the provided Shark™
charging cable and power supply.
MAINTENANCE
Why do I have to activate Lock
mode before maintenance?
The fan must be in Lock mode when any maintenance is
performed. Lock mode prevents the fan from accidentally
powering on.
It is also recommended to activate Lock mode when traveling
with the fan. See the Maintenance section for more information.
How often should I clean the fan? We recommend cleaning the fan every 6 months or as needed
How do I maintain the fan head?
Every 12 months or as needed, use a damp cloth to wipe
down the external surfaces of the fan to prevent buildup.
How often should I clean
the misting system?
Clean the misting system every week or as needed.
Using harder water will require more frequent cleaning.
See Maintenance section for more information on cleaning
the misting system.
Why isn’t my fan
misting eectively?
Ensure the misting cap located in the center of the fan gill
is fully open. See the Misting section for more information.
The misting system may clog if not maintained properly. See
the Maintenance section for details on cleaning instructions.
MAINTENANCE
CLEAN SOAK
It is recommended to perform a clean soak every week or as needed. Ensure you empty and dry the water tank completely
after every use. To perform a clean soak:
1. Activate LOCK MODE by holding down the power button for 8 seconds until the lights flash. This will temporarily
disable all fan functions to prevent the fan from accidentally turning on during maintenance.
2. Fill the water tank with 5 ounces of undiluted distilled white vinegar (5% acetic acid by volume) and let sit for
5–7 minutes. DO NOT let the vinegar sit for more than 15 minutes.
3. Carefully dump the vinegar out of the tank.
4. Refill the tank with clean tap or filtered water.
5. Ensure the water tank and misting cap are fully sealed, then shake the unit for 10 seconds.
6. Carefully dump the water out of the tank.
7. Repeat steps 4, 5 and 6 once more to thoroughly rinse the water tank.
8. Deactivate LOCK MODE by holding down the power button for 8 seconds until the lights show the startup pattern.
Please allow the water tank to dry completely before using the unit again.
LOCK MODE
• Lock mode temporarily blocks all fan functions for 24 hours to prevent the fan from accidentally powering on during fan
head maintenance or travel.
1. Activate Lock mode before
traveling to prevent the fan from
accidentally powering on during
transport. To activate, hold down
the POWER icon on the fan head
for 8 seconds until the LEDs flash
three times.
Lights will blink three times when
Lock mode has been activated
Lights will show the Power On
pattern when Lock mode has
been deactivated
Hold for 8 seconds Hold for 8 seconds
2. Lock mode will automatically
deactivate after 24 hours.
3. If you wish to deactivate Lock
mode before 24 hours, hold down
the POWER icon on the fan head
for 8 seconds until the LEDs show
the Power On pattern.
1. 2. 3.
24h
TWO (2) YEAR LIMITED WARRANTY
The Two (2) Year Limited Warranty applies to purchases made from
authorized retailers of SharkNinja Operating LLC. Warranty coverage
applies to the original owner and to the original product only and is
not transferable.
SharkNinja warrants that the unit shall be free from defects in material and
workmanship for a period of two (2) years from the date of purchase when
it is used under normal household conditions and maintained according to
the requirements outlined in the Owner’s Guide, subject to the following
conditions and exclusions:
CA RESIDENTS ONLY:
The Two (2) Year Limited Warranty period begins on the original date of
delivery or pick-up.
What is covered by this warranty?
1. The original unit and/or non-wearable parts deemed defective, in
SharkNinja’s sole discretion, will be repaired or replaced up to two (2)
years from the original purchase date.
2. In the event a replacement unit is issued, the warranty coverage ends
six (6) months following the receipt date of the replacement unit or
the remainder of the existing warranty, whichever is later. SharkNinja
reserves the right to replace the unit with one of equal or greater value.
What is not covered by this warranty?
1. Normal wear and tear of wearable parts (such as batteries, etc.), which
require regular maintenance and/or replacement to ensure the proper
functioning of your unit, are not covered by this warranty. Replacement
parts are available for purchase at sharkaccessories.com.
2. Any unit that has been tampered with or used for commercial purposes.
3. Damage caused by misuse, abuse, negligent handling, failure to perform
required maintenance (e.g., not replacing the filters), or damage due to
mishandling in transit.
4. Consequential and incidental damages.
5. Defects caused by repair persons not authorized by SharkNinja. These
defects include damages caused in the process of shipping, altering, or
repairing the SharkNinja product (or any of its parts) when the repair is
performed by a repair person not authorized by SharkNinja.
6. Products purchased, used, or operated outside North America.
How to get service
If your appliance fails to operate properly while in use under normal
household conditions within the warranty period, visit sharkclean.com/
support for product care and maintenance self-help. Our Customer
Service Specialists are also available at 1-855-427-5127 to assist with product
support and warranty service options, including the possibility of upgrading
to our VIP warranty service options for select product categories. So we may
better assist you, please register your product online at registeryourshark.
com and have the product on hand when you call.
SharkNinja will cover the cost for the customer to send in the unit to us for
repair or replacement. A fee of $25.95 (subject to change) will be charged
when SharkNinja ships the repaired or replacement unit.
How to initiate a warranty claim
You must call 1-855-427-5127 to initiate a warranty claim. You will need the
receipt as proof of purchase. We also ask that you register your product
online at registeryourshark.com and have the product on hand when you
call, so we may better assist you. A Customer Service Specialist will provide
you with return and packing instruction information.
How state law applies
This warranty gives you specific legal rights, and you also may have other
rights that vary from state to state. Some states do not permit the exclusion
or limitation of incidental or consequential damages, so the above may not
apply to you.
IMPORTANT INFORMATION
REGISTER YOUR PURCHASE
registeryourshark.com
Scan QR code using
mobile device
RECORD THIS INFORMATION
Model Number:
�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������
Serial Number:
���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������
Date of Purchase:
�����������������������������������������������������������������������������������������������������������������������������������������������������������������������
(Keep receipt)
Store of Purchase:
���������������������������������������������������������������������������������������������������������������������������������������������������������������������
TECHNICAL SPECIFICATIONS
Voltage: 120V 60Hz / 3A
Watts: 36W
4000 mAh
Benefits of registering your product and creating an account:
• Get easier, faster product support and access to
warranty information
• Access troubleshooting and product care instructions
• Be among the first to know about exclusive product promotions
TIP: You can find the model and serial numbers on the QR code label
on the underside of the fan head.
BATTERY REMOVAL AND DISPOSAL
This product contains an integral lithium battery (non-replaceable). DO NOT
incinerate or compost the product with its integral battery. When the fan
battery can no longer hold a charge, dispose of it or recycle it (with integral
battery) in accordance with local ordinances or regulations. In some areas, it is
illegal to place spent lithium batteries in the trash or in a municipal solid waste
stream. Return spent battery to an authorized recycling center or to retailer for
recycling. Contact your local recycling center for information on where to drop
o the spent battery.
FCC WARNINGS
Note: This unit has been tested and found to comply with FCC limits for Class
B digital devices. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This unit generates,
uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
To see if this unit interferes with radio or television reception, try turning it
o and on.
To correct any interference:
■ Reorient or relocate the receiving antenna.
■ Increase the distance between the unit and the receiver.
■ Connect the unit to a dierent outlet than the receiver.
■ Consult the dealer or an experienced technician for help.
Caution: Any changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority to
operate it.
PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
This Owner’s Guide is designed to help you get a complete understanding of your new Shark™ fan.
SharkNinja Operating LLC
US: Needham, MA 02494
CAN: Ville St-Laurent, QC H4S 1A7
1-800-798-7398
sharkclean.com
Illustrations may dier from actual product. We are constantly striving to improve our products; therefore the specifications contained herein
are subject to change without notice.
This product may be covered by one or more U.S. patents. See sharkninja.com/patents for more information.
© 2025 SharkNinja Operating LLC. BREEZEBOOST, FLEXBREEZE, HYDROGO and SHARK are trademarks of SharkNinja Operating LLC.
FA052�Series�IB�A4-Online�MP�Mv5
