1-Body frame
2- Base plate
3- Buttery nut(2pcs)
4- Tip-over safety switch rod
5- Power cord guide
6- Power cord
WL42002
AC Voltage: 220-240V~ 50Hz
Power consumption: 1600W
(400W+400W+400W+400W)
Dimensions: 350 x 165 x 570mm
Weight: 3.5kg
Remove the packing and make sure that the appliance is intact.
Do not leave packaging materials like bags and staples within reach of children.
Before switching on appliance check if the main electrical supply correspond to those
indicated on the appliance rate plate.
Ensure that the appliance is compatible with the mains supply
Use the appliance only for domestic use Only.
Only use for the intended purpose
Never touch the appliance with wet or damp hands.
Never expose the appliance to atmospheric conditions. regular
e appliance must be always placed on a at and stable surface.
Switch the appliance o and unplug before cleaning.
When the appliance is not in use switch it o and unplug it.
Do not use this heater in wet or damp conditions.
Do not put the cable on the appliance when it still warm.
e appliance will not operate unless it is on its base in the vertical position.
Do not use the fan heater near pieces of furniture, curtains, shelves, etc.
Do not use the appliance near ammable liquids or combustible materials
e appliance must not be located immediately below a socket outlet.
Do not cover the heater
In cases where the power cord is damaged, and this has to be replaced, this need
to be completed by a qualied electrician.
is appliance is not intended use by children or the inrm, unless they have been
given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Do not leave the appliance unattended
Children should be supervised at all times to ensure that they do not play
with the appliance.
Do not connect the appliance to extension cords or multiple outlets.
Do not damage and do not kink the power cord.
Before cleaning the appliance or carrying out any maintenance switch
o and disconnect from the main electricity supply.
If the appliance malfunctions switch it o and unplug at the wall socket and have the
appliance inspected by a qualied electrician.
Do not use this heater with a programmer, timer or any other device that switches
the heater on automatically, since a re risk exists if the heater is covered
or positioned incorrectly.
Imported & Distributed throughout the U.K.
By PFD. ST4 2NL www.warmlite.co
PARTS IDENTIFICATION
TECHNICAL DATA
IMPORTANT INFORMATION
21
Sutton House,
Berryhill Road,
Fenton,
Stoke on Trent,
Staordshire,
ST4 2NL.
RETAIN FOR FUTURE USE
www.warmlite.co
Product Helpline.
0871 221 3618 For all your product needs.
Downloaded from www.ManualsFile.com manuals search engine
1-Body frame
2- Base plate
3- Buttery nut(2pcs)
4- Tip-over safety switch rod
5- Power cord guide
6- Power cord
WL42002
AC Voltage: 220-240V~ 50Hz
Power consumption: 1600W
(400W+400W+400W+400W)
Dimensions: 350 x 165 x 570mm
Weight: 3.5kg
Remove the packing and make sure that the appliance is intact.
Do not leave packaging materials like bags and staples within reach of children.
Before switching on appliance check if the main electrical supply correspond to those
indicated on the appliance rate plate.
Ensure that the appliance is compatible with the mains supply
Use the appliance only for domestic use Only.
Only use for the intended purpose
Never touch the appliance with wet or damp hands.
Never expose the appliance to atmospheric conditions. regular
e appliance must be always placed on a at and stable surface.
Switch the appliance o and unplug before cleaning.
When the appliance is not in use switch it o and unplug it.
Do not use this heater in wet or damp conditions.
Do not put the cable on the appliance when it still warm.
e appliance will not operate unless it is on its base in the vertical position.
Do not use the fan heater near pieces of furniture, curtains, shelves, etc.
Do not use the appliance near ammable liquids or combustible materials
e appliance must not be located immediately below a socket outlet.
Do not cover the heater
In cases where the power cord is damaged, and this has to be replaced, this need
to be completed by a qualied electrician.
is appliance is not intended use by children or the inrm, unless they have been
given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Do not leave the appliance unattended
Children should be supervised at all times to ensure that they do not play
with the appliance.
Do not connect the appliance to extension cords or multiple outlets.
Do not damage and do not kink the power cord.
Before cleaning the appliance or carrying out any maintenance switch
o and disconnect from the main electricity supply.
If the appliance malfunctions switch it o and unplug at the wall socket and have the
appliance inspected by a qualied electrician.
Do not use this heater with a programmer, timer or any other device that switches
the heater on automatically, since a re risk exists if the heater is covered
or positioned incorrectly.
Imported & Distributed throughout the U.K.
By PFD. ST4 2NL www.warmlite.co
PARTS IDENTIFICATION
TECHNICAL DATA
IMPORTANT INFORMATION
21
Sutton House,
Berryhill Road,
Fenton,
Stoke on Trent,
Staordshire,
ST4 2NL.
RETAIN FOR FUTURE USE
www.warmlite.co
Product Helpline.
0871 221 3618 For all your product needs.
Downloaded from www.ManualsFile.com manuals search engine
SAFETY CUTOUT DEVICES
ASSEMBLY
Assemble the body frame and the base plate together as the following sequences
Remove the buttery nuts from the lower part of the body frame.
Insert the power cord through the slot placed in the middle part of the basement and
then assemble the body frame to the base plate.
Secure the body frame to the base plate by means of the two buttery nuts previously
removed. Insert the power cord through the suitable slots and then x it by the clamp.
is appliance is provided with safety devices disconnects the appliance when the
radiator is tilted or when is tipped by means of a switch situated in the lower part
of the radiator.
e appliance needs only an regular external cleaning.
Unplug the appliance aer use and before cleaning always and wait till the item is
completely cool.
Clean the dust from the grilles.
Do not clean the painted parts with abrasives or solvents and use only a moistened
damp cloth.
CLEANING
Class 1 Conguration
e wires in the mains lead are coloured in accordance with the following code:
GREEN/YELLOW: EARTH (E)
BLUE: NEUTRAL (N)
BROWN: LIVE (L)
Class 1 Conguration
As the colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
e wire which is coloured GREEN & YELLOW (or coloured GREEN) must be con-
nected to the terminal in the plug which is marked with the letter “E” or by the earth
symbol.
e wire which is coloured BLUE (or coloured BLACK) must be connected to the
NEUTRAL terminal which is marked with the letter “N”.
e wire which is coloured BROWN (or coloured RED) must be connected to the
LIVE terminal which is marked with the letter “L”.

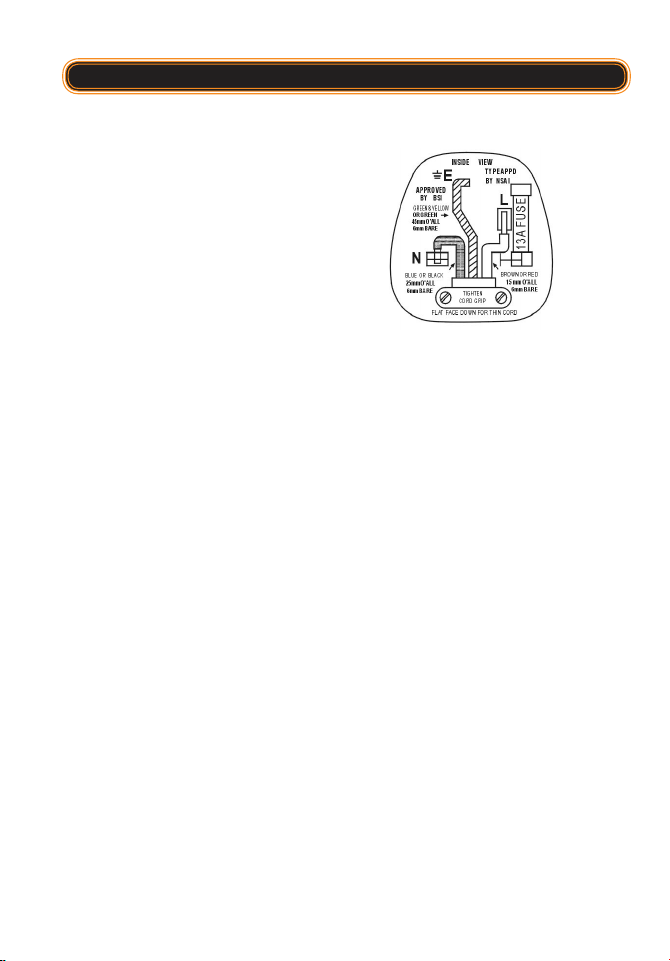

Always ensure that the Mains Cord is xed into the plug through the Cord Guard
or Cable Clamp, (plug wiring diagram above), and that the Cord Guard screws are
tightened to clamp the cord (outer sheath and inner coloured wires) into position in
the plug.
Make sure that the plug top is also tted securely.
is appliance must be protected by a 13 Amp fuse in a 13 Amp type (BS1363) plug.
Should you need to replace the fuse, use only a 13Amp ASTA approved BS1362 fuse
(13A).
OPERATIONAL GUIDELINES
It is important to ensure the correct Plug Adaptor is used when operating in a country
not using the UK 13 Amp socket system. If in doubt, consult a qualied electrician.
ELECTRICAL SAFETY
43
Downloaded from www.ManualsFile.com manuals search engine
SAFETY CUTOUT DEVICES
ASSEMBLY
Assemble the body frame and the base plate together as the following sequences
Remove the buttery nuts from the lower part of the body frame.
Insert the power cord through the slot placed in the middle part of the basement and
then assemble the body frame to the base plate.
Secure the body frame to the base plate by means of the two buttery nuts previously
removed. Insert the power cord through the suitable slots and then x it by the clamp.
is appliance is provided with safety devices disconnects the appliance when the
radiator is tilted or when is tipped by means of a switch situated in the lower part
of the radiator.
e appliance needs only an regular external cleaning.
Unplug the appliance aer use and before cleaning always and wait till the item is
completely cool.
Clean the dust from the grilles.
Do not clean the painted parts with abrasives or solvents and use only a moistened
damp cloth.
CLEANING
Class 1 Conguration
e wires in the mains lead are coloured in accordance with the following code:
GREEN/YELLOW: EARTH (E)
BLUE: NEUTRAL (N)
BROWN: LIVE (L)
Class 1 Conguration
As the colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
e wire which is coloured GREEN & YELLOW (or coloured GREEN) must be con-
nected to the terminal in the plug which is marked with the letter “E” or by the earth
symbol.
e wire which is coloured BLUE (or coloured BLACK) must be connected to the
NEUTRAL terminal which is marked with the letter “N”.
e wire which is coloured BROWN (or coloured RED) must be connected to the
LIVE terminal which is marked with the letter “L”.
Always ensure that the Mains Cord is xed into the plug through the Cord Guard
or Cable Clamp, (plug wiring diagram above), and that the Cord Guard screws are
tightened to clamp the cord (outer sheath and inner coloured wires) into position in
the plug.
Make sure that the plug top is also tted securely.
is appliance must be protected by a 13 Amp fuse in a 13 Amp type (BS1363) plug.
Should you need to replace the fuse, use only a 13Amp ASTA approved BS1362 fuse
(13A).
OPERATIONAL GUIDELINES
It is important to ensure the correct Plug Adaptor is used when operating in a country
not using the UK 13 Amp socket system. If in doubt, consult a qualied electrician.
ELECTRICAL SAFETY
43
Downloaded from www.ManualsFile.com manuals search engine
Declaration of Conformity
We PFD Ltd Declare that this product conforms to all the following
product legislation :
2006/95/EC: e Low Voltage Directive.
2004/108/EC: e Electromagnetic compatibility Directive.
2002/95/EC: Restriction of Hazardous Substances.
Peter Bowden . Quality Assurance Manager
Stoke on Trent
Staordshire,
ST4 2NL.
GUARANTEE.
is product is guaranteed for 12 months from the date of the original purchase.
If any defect arises due to faulty materials or workmanship the faulty products must
be returned to the place of purchase. Refunds or replacement is at the discretion
of the store.
e following conditions apply:
e product must be returned to the retailer with the original proof of purchase.
e product must be installed and used in accordance with the instructions
contained in this instruction guide.
It must be used only for domestic purposes.
It does not cover wear and tear, damage, misuse or consumable parts.
PFD has no responsibility for incidental or consequential loss or damage.
Valid in the UK and Eire only.
Disposal instructions for Warmlite items in accordance with the WEEE directive.
Appliances bearing the symbol shown here may not be disposed of in domestic
rubbish. You are required to dispose of old electrical and electronic appliances
like this separately.
Please visit www.recyclemore.co.uk, or www.recyclenow.co.uk for access to information
about the recycling of electrical items. e WEEE directive, introduced in August 2006,
states that all electrical items must be recycled, rather than taken to landll.
Please arrange to take this appliance to your local refuse collection point.
DISPOSAL
65
Downloaded from www.ManualsFile.com manuals search engine
Declaration of Conformity
We PFD Ltd Declare that this product conforms to all the following
product legislation :
2006/95/EC: e Low Voltage Directive.
2004/108/EC: e Electromagnetic compatibility Directive.
2002/95/EC: Restriction of Hazardous Substances.
Peter Bowden . Quality Assurance Manager
Stoke on Trent
Staordshire,
ST4 2NL.
GUARANTEE.
is product is guaranteed for 12 months from the date of the original purchase.
If any defect arises due to faulty materials or workmanship the faulty products must
be returned to the place of purchase. Refunds or replacement is at the discretion
of the store.
e following conditions apply:
e product must be returned to the retailer with the original proof of purchase.
e product must be installed and used in accordance with the instructions
contained in this instruction guide.
It must be used only for domestic purposes.
It does not cover wear and tear, damage, misuse or consumable parts.
PFD has no responsibility for incidental or consequential loss or damage.
Valid in the UK and Eire only.
Disposal instructions for Warmlite items in accordance with the WEEE directive.
Appliances bearing the symbol shown here may not be disposed of in domestic
rubbish. You are required to dispose of old electrical and electronic appliances
like this separately.
Please visit www.recyclemore.co.uk, or www.recyclenow.co.uk for access to information
about the recycling of electrical items. e WEEE directive, introduced in August 2006,
states that all electrical items must be recycled, rather than taken to landll.
Please arrange to take this appliance to your local refuse collection point.
DISPOSAL
65
Downloaded from www.ManualsFile.com manuals search engine
