Little Giant PWM908LW 24 Inch Front Load Washer User Manual

Operating and Installation

Instructions

Washing Machine

Always read the operating instructions before setting up, installing,

and commissioning the machine. This prevents both personal injury

and damage to the appliance.

en-US M.-Nr. 12 182 950

Contents

Caring for the environment .............................................................................. 7

IMPORTANT SAFETY INSTRUCTIONS ............................................................ 8

Operating the washing machine ...................................................................... 13

Control panel....................................................................................................... 13

Sensor controls and touch display with sensor controls .................................... 14

Main menu........................................................................................................... 14

Examples of how to operate the appliance......................................................... 15

Operating a laundromat machine........................................................................ 17

Initial commissioning ........................................................................................ 18

Setting the display brightness............................................................................. 19

Setting the date................................................................................................... 19

Selecting program packages .............................................................................. 20

1. Preparing the laundry.................................................................................... 24

2. Loading the washing machine ..................................................................... 25

3. Selecting a program...................................................................................... 26

4. Selecting program settings .......................................................................... 27

5. Adding detergent........................................................................................... 28

Adding fabric softener or liquid starch separately ......................................... 29

Adding starch separately................................................................................ 29

6. Starting a program – end of a program ....................................................... 32

Timer................................................................................................................... 33

Program chart.................................................................................................... 34

Extra options...................................................................................................... 50

Pre-wash ....................................................................................................... 50

Pre-rinse........................................................................................................ 50

Rinse plus ..................................................................................................... 50

Soak .............................................................................................................. 50

Intensive ......................................................................................................... 50

Water plus ..................................................................................................... 50

SoftSteam ...................................................................................................... 50

Rinse hold ..................................................................................................... 50

Starch stop.................................................................................................... 50

Contents

Special features in the program sequence ..................................................... 51

Spinning .............................................................................................................. 51

Anti-crease .......................................................................................................... 51

Changing the program sequence .................................................................... 52

Changing a program............................................................................................ 52

Canceling a program ........................................................................................... 52

Adding or removing laundry ................................................................................ 52

Cleaning and care ............................................................................................. 53

Cleaning the housing and control panel.............................................................. 53

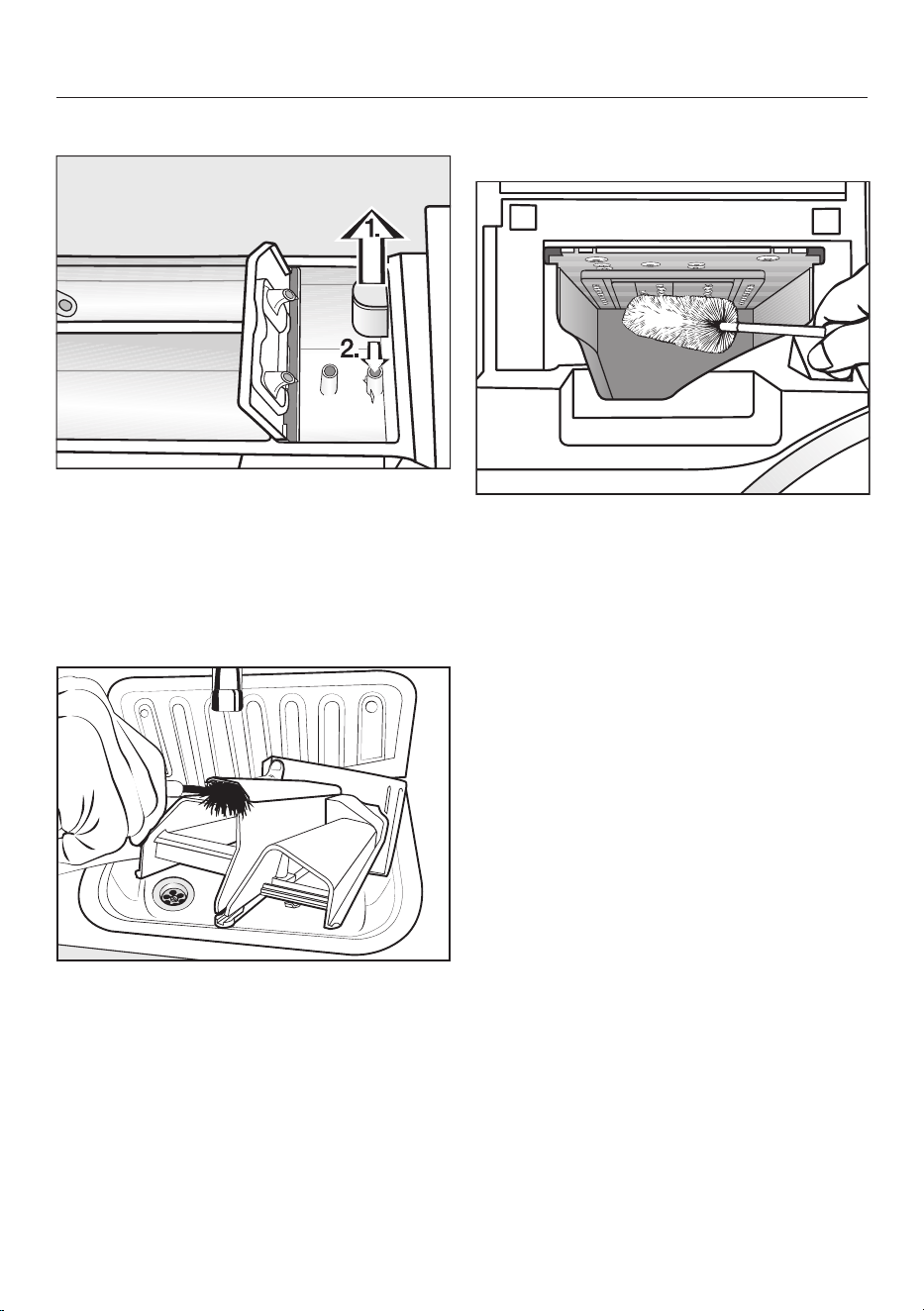

Cleaning the detergent dispenser drawer ........................................................... 53

Cleaning the drum, suds container, and drainage system.................................. 55

Cleaning the sealing ring..................................................................................... 55

Cleaning the water intake filters .......................................................................... 56

Frequently asked questions ............................................................................ 57

The wash program will not start. ......................................................................... 57

Program cancellation and error message............................................................ 58

A fault message appears in the display .............................................................. 59

Unsatisfactory wash results ................................................................................ 60

General problems with the washing machine ..................................................... 61

The door will not open......................................................................................... 63

Opening the door in the event of a blocked drain outlet and/or power outage .. 64

Technical Service............................................................................................... 66

Contact in the event of a fault ............................................................................. 66

Optional accessories........................................................................................... 66

Installation and connection .............................................................................. 68

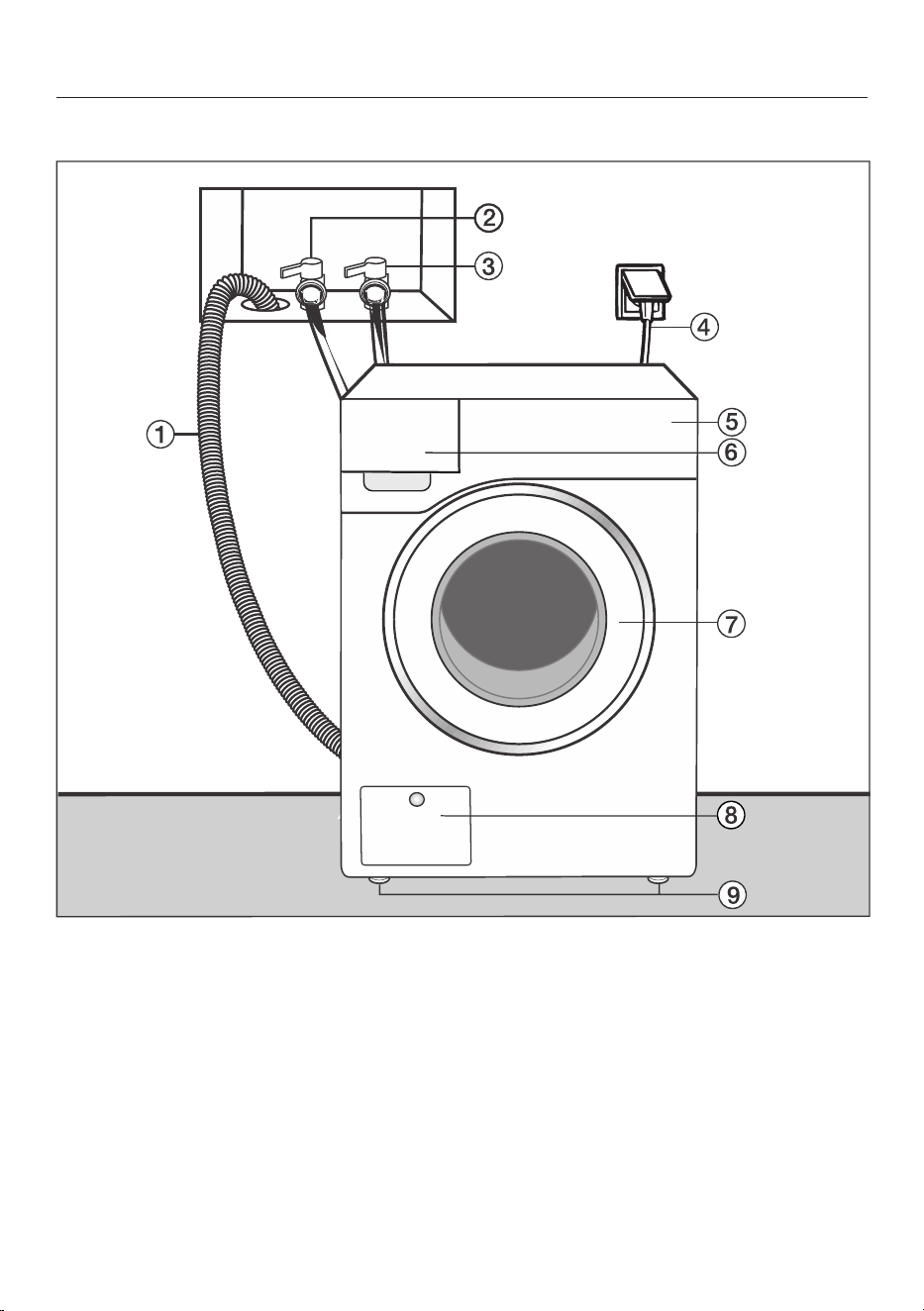

Front view............................................................................................................ 68

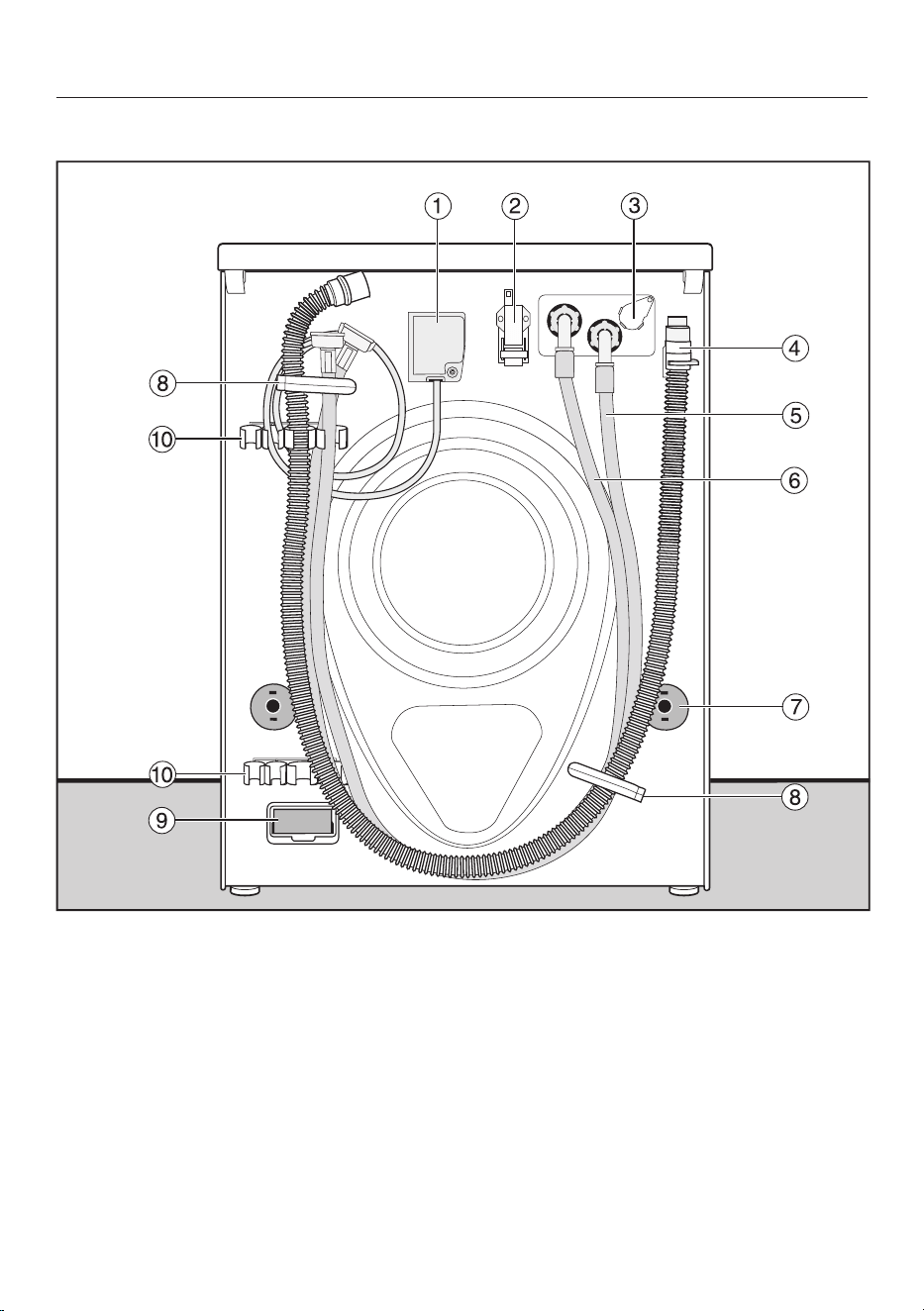

Rear view............................................................................................................. 69

Installation locations............................................................................................ 70

Installation notes ................................................................................................. 70

Transporting the washing machine to its installation site.................................... 71

Installation surface .............................................................................................. 72

Removing the shipping struts ............................................................................. 72

Installing the shipping struts ............................................................................... 74

Leveling the washing machine ............................................................................ 75

Holding bracket for toe-kick .......................................................................... 76

External control equipment ................................................................................. 78

Payment system............................................................................................. 78

Contents

Water connection ................................................................................................ 79

Cold water connection .................................................................................. 79

Hot-water connection* ................................................................................... 80

Water drainage .................................................................................................... 81

Drain pump..................................................................................................... 81

Electrical connection ........................................................................................... 82

Technical data.................................................................................................... 83

Supervisor level ................................................................................................. 84

Opening the Supervisor level .............................................................................. 84

Code-based access ............................................................................................ 84

Changing the PIN code ....................................................................................... 84

Closing the settings menu................................................................................... 84

Operation/display ................................................................................................ 85

Language ....................................................................................................... 85

Language menu ............................................................................................. 85

Set languages ................................................................................................ 85

Display brightness.......................................................................................... 85

Clock display.................................................................................................. 86

Date ................................................................................................................. 86

Volume ........................................................................................................... 86

Visibility parameters ....................................................................................... 86

Display off status............................................................................................ 87

Machine off status.......................................................................................... 87

Delay start ...................................................................................................... 87

Memory .......................................................................................................... 87

Temperature unit ............................................................................................ 88

Weight unit ..................................................................................................... 88

Logo ............................................................................................................... 88

Supervisor code ............................................................................................. 88

Program selection ............................................................................................... 88

Controls.......................................................................................................... 88

Program packages ......................................................................................... 89

Favorite programs .......................................................................................... 89

Special programs ........................................................................................... 90

Sort programs ................................................................................................ 90

Program color allocation ................................................................................ 91

Hygiene .......................................................................................................... 91

Expert code.................................................................................................... 91

Contents

Process technology............................................................................................. 91

Anti-crease ..................................................................................................... 91

Water level Min. iron....................................................................................... 91

Water level Cottons ........................................................................................ 91

Pre-wash temp Cottons ................................................................................. 92

Wash time ...................................................................................................... 92

Pre-rinse Cottons ........................................................................................... 92

Pre-rinse Minimum iron .................................................................................. 92

Pre-wash Cotton/M-iron................................................................................. 92

Cottons rinses ................................................................................................ 93

Minimum iron rinses....................................................................................... 93

Disinfection rinse............................................................................................ 93

Auto load control............................................................................................ 93

Controlled energy cons. ................................................................................. 93

Service................................................................................................................. 93

Clean drain pump (LP).................................................................................... 93

Service interval............................................................................................... 94

External applications ........................................................................................... 94

Empty sensor ................................................................................................. 94

Early warning counter..................................................................................... 94

Automatic dispensing..................................................................................... 95

Adjustment value dispensing 1–6 .................................................................. 95

Peak load signal ............................................................................................. 95

Peak load prevention...................................................................................... 95

Availability of Miele digital products............................................................... 96

Select KOM module ....................................................................................... 96

WiFi ................................................................................................................ 96

Network time .................................................................................................. 97

Remote........................................................................................................... 97

RemoteUpdate............................................................................................... 98

SmartGrid....................................................................................................... 99

Machine parameters............................................................................................ 99

Suds cooling .................................................................................................. 99

Water intake ................................................................................................... 99

Low water pressure........................................................................................ 100

CapDosing...................................................................................................... 100

Legal Information ........................................................................................... 101

Contents

Payment device................................................................................................... 101

Settings for payment systems........................................................................ 101

External program lock .................................................................................... 102

Payment system lock ..................................................................................... 102

Program abort ................................................................................................ 102

Feedback sig. to pay system ......................................................................... 102

FOC programs................................................................................................ 103

Clear paid signal............................................................................................. 103

Debounce time............................................................................................... 103

Caring for the environment

Disposal of the packing mate-

rial

The cardboard box and packing materi-

als protect the appliance during ship-

ping. They have been designed to be

biodegradable and recyclable.

Ensure that any plastic wrappings,

bags, etc. are disposed of safely and

kept out of the reach of children. Dan-

ger of suffocation!

Disposal of your old appliance

Electrical and electronic appliances

contain valuable materials. They also

contain certain substances, compounds

and components which were essential

for the proper functioning and safe use

of the equipment. Handling these mate-

rials improperly by disposing of them in

your household waste can be harmful to

your health and the environment. There-

fore, please do not dispose of your old

appliance with regular household waste

and follow local regulations on proper

disposal.

Consult with local authorities, dealers or

Miele in order to dispose of and recycle

electrical and electronic appliances.

Miele assumes no responsibility for

deleting any personal data left on the

appliance being disposed. Please en-

sure that your old appliance is kept

away from children until removal. Ob-

serve safety requirements for appli-

ances that may tip over or pose an en-

trapment hazard.

IMPORTANT SAFETY INSTRUCTIONS

 WARNING

To reduce the risk of fire, electric shock or injury to persons while

using your appliance follow basic safety precautions, including the

following:

 Read all instructions before using the appliance.

 GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or

breakdown, grounding will reduce the risk of electric shock by pro-

viding a path of least resistance for electric current. This appliance is

equipped with a cord having an equipmentgrounding conductor and

a grounding plug. The plug must be plugged into an appropriate out-

let that is properly installed and grounded in accordance with all lo-

cal codes and ordinances.

 WARNING - Improper connection of the equipment-grounding

conductor may result in a risk of electric shock. Check with a quali-

fied electrician if you are in doubt as to whether the appliance is

properly grounded.

 Do not modify the plug provided with the appliance - if it will not

fit the outlet, have a proper outlet installed by a qualified electrician.

 Do not install or use a washer with visible damage.

 Do not install or store this appliance where it will be exposed to

the weather.

 Do not install your washing machine where temperatures below

freezing may occur. Frozen hoses may burst under pressure. The reli-

ability of the electronic control unit may be impaired at temperatures

below freezing.

IMPORTANT SAFETY INSTRUCTIONS

 Before connecting the machine, ensure that the connection data

on the data plate (fusing, voltage and frequency) match the mains

electrical supply. If in doubt contact an electrician.

 Do not use an extension cord to connect this appliance to the

power supply. Extension cords do not guarantee the required safety

of the appliance (e.g. danger of overheating).

 This appliance is not designed for maritime use or for use in mo-

bile installations such as recreational vehicles or aircraft. However,

under certain conditions it may be possible for an installation in

these applications. Please contact the Miele Technical Service Dept.

with specific requirements.

 Do not repair or replace any part of the appliance or attempt any

servicing unless specifically recommended in these operating in-

structions.

 If the power cord is damaged it must only be replaced by a Miele

Service technician with a genuine Miele power cord.

 Under certain conditions, hydrogen gas may be produced in a hot

water system that has not been used for 2 weeks or more. HYDRO-

GEN GAS IS EXPLOSIVE. If the hot water system has not been used

for such a period, turn on all hot water faucets and let the water flow

from each for several minutes before using the washing machine.

This will release any built-up hydrogen gas. Do not smoke or use an

open flame during this time, the gas is flammable.

 Before the appliance is removed for service or discarded, remove

the door.

IMPORTANT SAFETY INSTRUCTIONS

Use

 Do not allow children to play on or in the appliance. Close super-

vision is necessary when the appliance is used near children.

 The drum door glass will be hot when washing at very high tem-

peratures. Do not touch the glass. Danger of burns! Keep children

away from the washer when in use.

 Only use the washing machine to wash items which are specified

by the manufacturer to be machine washable on the fabric care la-

bel. Any other applications may be dangerous.

 Do not wash articles that have been previously cleaned, washed,

soaked or spotted with gasoline, dry-cleaning solvents or other

flammable substances. These articles give off vapors that could ig-

nite or explode. Do not add these items to the wash load.

 Do not add gasoline, dry-cleaning solvents, or other flammable or

explosive substances to the wash water. These substances give off

vapors which could ignite or explode.

 Do not use cleaning solvents on or near the machine or the con-

trols. Contact with cleaning solvents will damage the surface..

 Do not reach into the appliance if the drum is moving.

 Do not tamper with the controls.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

 Miele Tumble Dryers and Miele Washing Machines can be in-

stalled as a washer-dryer stack. This requires a Miele Washer-Dryer

Stacking Kit which can be purchased separately. Please ensure that

the washer-dryer stacking kit is suitable for the Miele Tumble Dryer

and the Miele Washing Machine.

 If installing the machine on a Miele Plinth (available as an optional

accessory), please make sure you order the correct one for this

washing machine.

 If detergent has come into contact with the eyes, rinse out imme-

diately with plenty of lukewarm water. If detergent has accidentally

been ingested, seek medical advice immediately. People with dam-

aged or sensitive skin should avoid contact with detergent.

 When adding or removing laundry during the main wash, your skin

may come into contact with detergent, particularly if the detergent is

dispensed externally. Take care when placing your hands inside the

drum. If suds have come into contact with the skin, rinse off immedi-

ately with lukewarm water.

 This washing machine is supplied with a special lamp to cope

with particular conditions (e.g., temperature, moisture, chemical re-

sistance, abrasion resistance, and vibration). This special lamp must

only be used for the purpose for which it is intended. It is not suit-

able for room lighting. Replacement lamps should only be installed

by a Miele authorized technician or by Miele Technical Service.

 The maximum dry laundry weight is 19.8lb (9kg). See the “Pro-

gram chart” for the maximum recommended loads for individual pro-

grams.

IMPORTANT SAFETY INSTRUCTIONS

FCC Declaration of Conformity

 These devices comply with FCC Rules Part15. This equipment

has been tested and found to be in compliance with the limits for a

ClassB digital device, pursuant to Part15 of the FCC Rules of Oper-

ation and is subject to the following conditions:

These devices may not cause harmful interference.

These devices must accept any interference received, including in-

terference that may cause undesired operation.

FCC Radiation Exposure Statement

 This equipment complies with FCC radiation exposure limits set

forth for an uncontrolled environment. This equipment should be in-

stalled and operated with minimum distance 8“ (20cm) between the

radiator and your body.

Industry Canada Statement

 This digital apparatus does not exceed the ClassB limits for Ra-

dio Noise Emissions from digital apparatus set out in the Radio Inter-

ference Regulations of the Canadian Department of Communica-

tions.

Complies with Canadian ICES-003 ClassB specifications.

Operating the washing machine

Control panel

Language sensor control

For selecting the current user lan-

guage.

The operating language is displayed

again at the end of the program.

Back sensor control

Takes you back one level in a menu.

Touch display

Sensor control Start/Stop

For starting the program selected and

canceling a program once it has

started. The program selected can be

started as soon as the sensor control

starts flashing.

Optical interface

For Technical Service.

button

For switching the washing machine

on and off. To save energy, the wash-

ing machine will switch off automati-

cally. It is switched off 15minutes af-

ter the end of the program/anti-

crease phase, or after being switched

on if no further selection is made.

Operating the washing machine

Sensor controls and touch dis-

play with sensor controls

The,, andStart/Stopsensor

controls and the sensor controls in the

display react to finger-tip contact. Every

touch of a sensor control is confirmed

with an audible keypad tone. You can

adjust the volume of the keypad tone or

switch it off (see “Supervisor level”).

The control panel with sensor con-

trols and the touch display can be

scratched by pointed or sharp ob-

jects, e.g., pens.

Only touch the display with your fin-

gers.

Main menu

After switching on the washing ma-

chine, the main menu will appear in the

display.

You can access all the important sub-

menus from the main menu.

Touch the sensor control at any

time to return to the main menu. Val-

ues set previously are not saved.

 11:02

  

Programs Favorites Supervisor

Help

Programs

For selecting the wash program.

Favorites

For selecting one of 12 favorite wash

programs which can be set up and

saved by the supervisor (see “Favorite

programs” under “Supervisor level”).

Supervisor

You can alter the washing machine’s

electronics to suit changing require-

ments in the Supervisor level (see “Su-

pervisor level”).

Operating the washing machine

Examples of how to operate

the appliance

Option lists

Program menu (single-option list)

 11:02

Whites

Minimum Iron

ExpressNormal

Delicates

Programs

Cottons Plus

You can scroll to the right or the left by

swiping your finger across the screen.

To do this, place your finger on the

touch display and swipe it in the direc-

tion you want.

The orange bar under the pictures

shows that there are further options to

choose from.

Touch a program name to select the

wash program.

The display will change to the standard

menu for that program.

Extras menu (multiple selection)

 11:02

Pre-wash

Soak

Rinse plus

Intensive









Extras

Touch one or several extra options to

select it/them.

Currently selected extra options are

highlighted in orange.

To deselect an extra option, simply

touch the extra option again.

Use the OKsensor control to activate

all selected extra options.

Setting numerical values

You can set numerical values in some

menus.

Time of Day

12 00

11 59

10 58

01 01

02 02

Enter the numbers by swiping upward

or downward. Place your finger on the

number that you want to change and

move your finger in the direction you

want. Use the OKsensor control to ac-

cept the set numerical value.

Tip: A numerical keypad may also ap-

pear to adjust the value for some set-

tings.

Operating the washing machine

Time of Day



12 00

11 59

10 58

01 01

02 02

Briefly touching a number between the

two lines will bring up the numerical

keypad.

12:00

Time of Day

5 6



Once a valid number has been entered,

the OKsensor control will be high-

lighted in green.

Pull-down menu

The pull-down menu can be used to

display information, e.g., about a wash

program.

 11:02



Denim

Status

Time left

h0:27



Main wash

Add laundry



If an orange bar appears at the top of

the screen in the middle of the display,

you can open the pull-down menu.

Touch the bar and drag down with your

finger.

Exiting a menu

 Tap the sensor button to return to

the previous screen.

Entries made before this which have not

been confirmed withOK will not be

saved.

Help display

With some menus, Helpappears along

the bottom line of the display.

 Touch the Helpsensor control to dis-

play the text.

 Touch the Closesensor control to re-

turn to the previous screen.

Operating the washing machine

Operating a laundromat ma-

chine

The main menu will vary depending on

the programming status (see “Supervi-

sor level – Controls”).

Shortcuts are the easiest way to oper-

ate the machine. Operating staff are un-

able to change pre-set programs.

Laundromat, basic

 11:02





Whites

WoolensWhites

Normal

Help





195°F

170°F

105°F

140°F

A maximum of 12 programs can be se-

lected.

Depending on the setting at Supervisor

level, the programs can be displayed

with or without a border.

Laundromat Logo

 11:02

 

Whites NormalWhites

Help 



The first 3programs can be selected di-

rectly. Up to 9 more programs can be

selected from the list.

Initial commissioning

 Damage resulting from incorrect

installation and connection.

Installing and connecting the wash-

ing machine incorrectly will cause

serious property damage.

See “Installation and connection”.

Emptying the drum

A swivel elbow for the drain hose and/

or assembly material may be stored in

the drum.

 Pull open the door.

 Remove the swivel elbow and assem-

bly material.

 Shut the door gently.

Switching on the washing ma-

chine

 Press the button.

The welcome screen will light up.

When commissioning the washing

machine for the first time, you will

have to define settings for daily use

of the appliance. Some settings can

only be configured during the initial

commissioning process. After that,

they should be changed by Miele

Technical Service.

Complete the initial commissioning

process.

These settings are also described under

“Supervisor level”.

Setting the display language

You will be asked to select the display

language. You can change the language

at any time (see “Language” under “Su-

pervisor level”).

deutsch

Language

english

(AU)

english

(CA)

english

(GB)

english (US)

español

 Scroll to the left or the right until the

language you want appears.

 Touch the sensor control for the lan-

guage you want.

The selected language will be high-

lighted in orange and the display will

change to the next setting.

Initial commissioning

Reference to external appli-

ances

A reference to external hardware ap-

pears.

 Confirm with the OKsensor control.

Before initial commissioning, connect

the XCI box or adapter or slide a com-

munication module into the slot on the

back of the machine. The washing

machine must be disconnected from

the power supply. Then start the com-

missioning process.

Setting the display brightness

You will be asked to select the bright-

ness of the display.

Display brightness

Darker

Brighter

 Touch the segment bars until you

reach the required level of brightness.

The selected brightness level will be

highlighted in orange.

 Confirm with OK.

The display will change to the next set-

ting.

Setting the date

Date

2021

2020

2019

23July

August

September

June

May

2018

2017

 Place your finger on the value that

you want to change and move your

finger in the direction you want.

 Once all values have been selected,

confirm with the OKsensor control.

The display will change to the next set-

ting.

Confirming the time request

The following question appears in the

display:

Remove the clock display?

 Touch the Yes or Nosensor control.

If you select Yes, the system will skip

the Clock displaysetting.

If you select No, the display will switch

to the Clock displaysetting.

Initial commissioning

Setting the time

Time of Day

12 00

11 59

10 58

01 01

02 02

 Place your finger on the number that

you want to change and move your

finger in the direction you want.

 Confirm with the OKsensor control.

The display will change to the next set-

ting.

Selecting program packages

You can select various programs from

the program packages. Any programs

already active are highlighted in orange.

11:02

Normal Sportswear Sneakers

Sport-

Microfiber

Hard Items

Program packages

Label Sport

 Scroll right until you reach a program

that is not highlighted in orange.

 Touch the sensor control for the re-

quired program.

The selected program is highlighted in

orange.

 You can select further programs.

Tip: You can disable a selected pro-

gram by touching the program’s sensor

control again.

 If you do not want to select any more

programs, confirm with the sensor

controlOK.

The display will change to the next set-

ting.

Initial commissioning

Switching on automatic dis-

pensing

11:02

Off

Automatic dispensing

XCI box

KOM module

 Touch the COM module or XCI box sen-

sor control if you want to dispense

detergent externally.

 Confirm with the OKsensor control.

The display will change to the next set-

ting.

Setting up a payment system

If you wish to set up a payment system,

read the “Payment system” section of

the “Supervisor level” chapter.

These settings can only be changed

during the initial commissioning

process. If you wish to change the set-

tings after the commissioning process,

please contact Miele Technical Service.

If you do not wish to set up a payment

system, you can skip this stage.

11:02

No payment

system

Payment system

Program

control

Timed

operation

KOM module

 Touch the No payment systemsensor

control.

The display will change to the next set-

ting.

Initial commissioning

Selecting pre-wash water

11:02

Cold

Pre-wash

Hot

 Touch the coldsensor control if the

washing machine is only connected

to a cold water supply, or touch hotif

the washing machine is connected to

cold and hot water.

The display will change to the next set-

ting.

Selecting main wash water

11:02

Cold

Main wash

Hot

 Touch the coldsensor control if the

washing machine is only connected

to a cold water supply, or touch hotif

the washing machine is connected to

cold and hot water.

Further information will appear on the

display.

Removing the shipping struts

The display will remind you to remove

the shipping struts.

 Risk of damage due to failure to

remove the shipping struts.

Failure to remove the shipping struts

can result in damage to the washing

machine and to adjacent cabinetry or

appliances.

Remove the shipping struts as de-

scribed in “Installation and connec-

tion”.

 Confirm that the shipping struts have

been removed with the OKsensor

control.

Continue setting up as described in the Op-

erating instructionsappears in the display.

 Confirm the message with the

OKsensor control.

Initial commissioning

Completing the commissioning

process

To complete the commissioning

process, the Normal program must be

run without laundry and without deter-

gent.

If the power is interrupted prior to the

start of the first wash program (e.g., if

the machine is switched off with the

sensor control), the initial commis-

sioning process can be completed

again.

Once a wash program has been run-

ning for over 20minutes, the initial

commissioning process does not have

to be performed again.

 Turn on the faucets.

 Touch the Programssensor control.

 11:02

Whites

Minimum Iron

ExpressNormal

Delicates

Programs

Cottons Plus

 Touch the Cottons Plussensor control.

 11:02

60 °C 1500



1:07

Normal

Overview

Temperature Spin speed

Extras

not selected

 Timer

CapDosing

rpm

not selected

 Touch the Start/Stopsensor control.

When the program has finished, your

machine is ready for use.

If you have activated disinfection

programs, you must complete the

Thermal disinfectionprogram as the

first program; make sure you use a

suitable detergent but do not load

the machine.

1. Preparing the laundry

Emptying pockets

 Empty all pockets.

 Damage due to foreign objects.

Nails, coins, paper clips, and so on

can cause damage to garments and

components in the machine.

Check the laundry before washing

and remove any such foreign ob-

jects.

Sorting the laundry

 Sort the laundry according to color

and the garment care label.

Pre-treating stains

 Badly soiled areas and stains should

be cleaned as soon as possible.

Stains should be carefully dabbed off

using a soft, colorfast cloth.

 Damage due to solvent-based

cleaning agents.

Cleaning agents containing benzine,

stain remover, etc., can damage

plastic parts.

When pre-treating a stain, make sure

that plastic parts do not come into

contact with cleaning agents.

 Risk of explosion due to solvent-

based cleaning agents.

When using solvent-based cleaning

agents, an explosive mixture may

develop.

Never use solvent-based cleaning

agents in the washing machine.

General tips

- Do not machine wash items which

are specified by the manufacturer as

not washable on the care label().

- Curtains: Remove rollers and lead

weights or place in a laundry bag.

- Sew in or remove any loose under-

wiring in bras.

- Turn garments inside out, if recom-

mended by the manufacturer.

- Zip up or close any jackets with Vel-

cro or hook and eye fastenings before

washing.

- Fasten duvet covers and pillow cases

to prevent small items from becoming

rolled up inside them.

- Please refer to the “Program chart”

for more tips and tricks.

2. Loading the washing machine

Opening the door

 Reach under the door grip and pull

the door open.

Check the drum for foreign objects

before loading it with laundry.

 Unfold the laundry and load loosely

into the drum.

Mixing both large and small items gives

better wash results and also helps dis-

tribute the load evenly during spinning.

The most efficient use of energy and

water is achieved when a full load is

washed. However, do not overload as

this reduces cleaning efficiency and

causes creasing.

Closing the door

 Make sure that no items are caught

between the door and the seal.

 Shut the door gently.

3. Selecting a program

Switching on the washing ma-

chine

 Press the button.

The drum lighting will come on.

The drum lighting will go out automati-

cally after 5minutes or when the pro-

gram starts.

Selecting a program

 11:02

  

Programs Favorites Supervisor

Help

There are different ways to select a pro-

gram.

You can select a program from the Pro-

gramsmenu.

 Touch the Programssensor control.

 11:02

Whites

Minimum Iron

ExpressNormal

Delicates

Programs

Cottons Plus

 Scroll to the right in the display until

the program you want appears.

 Touch the sensor control for that pro-

gram.

The display will change to the standard

menu for that wash program.

Alternatively, you can select a program

from the Favoritesmenu.

The programs under Favorites can be

changed by the supervisor (see “Fa-

vorite programs” under “Supervisor

level”).

 Touch the Favoritessensor control.

 11:02









Whites

Normal

Woolens

Favorites

 Scroll to the right in the display until

the program you want appears.

 Touch the sensor control for that pro-

gram.

The display will change to the standard

menu for that wash program.

In the case of Favorite programs, the

majority of the program settings are

already fixed and cannot be changed.

4. Selecting program settings

Selecting a load

To enable load-specific dispensing,

you can specify the load for some pro-

grams.

 Touch the Weightsensor control.

 Enter a valid value for the load quan-

tity.

The display will switch to the Over-

viewmenu.

Selecting a temperature

You can alter the preset temperature

of a wash program.

 Touch the Temperaturesensor control.

 Select the desired temperature.

The display will switch to the Over-

viewmenu.

Selecting a spin speed

You can alter the preset spin speed of

a wash program.

 Touch the Spin speedsensor control.

 Select the spin speed you want.

The display will switch to the Over-

viewmenu.

Selecting extra options

You can select extra options for some

wash programs.

 Touch the Extrassensor control.

 Select one or more extra options.

 Confirm with the OKsensor control.

The display will switch to the Over-

viewmenu.

See “Extras” for further information.

Activating CapDosing

You can use CapDosing for some

wash programs.

 Touch the CapDosingsensor control.

The types of caps which can be used

with the program will appear in the dis-

play.

 Select the type of cap you want.

CapDosing is now active.

The display will switch to the Over-

viewmenu.

See “CapDosing” under “5.Adding

detergent” for more information.

5. Adding detergent

There are several options for adding de-

tergent to the washing machine.

Detergent dispenser drawer

You can use any detergent that is suit-

able for washing machines.

Detergent dispensing

Please follow the detergent manufac-

turer’s instructions in relation to dosage.

Adding too much detergent will lead

to excessive foaming.

Avoid adding excess detergent.

The amount to dispense will depend on:

- the amount of laundry

- how dirty the laundry is

- the water hardness

Hardness

range

Hardness

inmmol/l

Degree of

German hardness

°dH

Soft (I) 0–1.5 0–8.4

Medium (II) 1.5–2.5 8.4–14

Hard (III) Above 2.5 Above 14

Check with your local water supplier if

you do not know the water hardness in

your area.

Filling with detergent

 Pull out the detergent dispenser

drawer and add detergent to the

compartments.

 Detergent for the pre-wash (di-

vide the total recommended

amount as follows: ⅓ to com-

partment and ⅔ to compart-

ment)

 Detergent for the main wash

/



Fabric softener, liquid starch, or

caps

For disinfection programs, the

andcompartments can be

filled with detergent for the main wash

if you have not selected Pre-wash.

5. Adding detergent

Adding fabric softener or liquid

starch separately

 Select the Separate Rinseprogram.

 Change the spin speed if necessary.

 Add the fabric softener or the liquid

starch to the compartment. Do not

exceed the maximum level mark.

 Touch the Start/Stopsensor control.

This will be automatically dispensed in

the final rinse. At the end of the pro-

gram, a small amount of water remains

in the compartment.

Adding starch separately

 Prepare the starch solution in accor-

dance with the manufacturer’s in-

structions on the packaging.

 Select the Starchprogram.

 Add the prepared starch to the

compartment.

 Touch the Start/Stopsensor control.

Tip: If starching separately or automati-

cally, thoroughly clean the detergent

dispenser drawer, especially the siphon,

regularly.

Dye removers and dyes

 Damage due to color run/dye re-

movers.

Color run and dye removers can

cause corrosion in the washing ma-

chine.

Do not use color run or dye removers

in the washing machine.

Only use dyes suitable for use in a

washing machine. The manufacturer’s

instructions on the packaging must be

observed.

5. Adding detergent

CapDosing

3 different types of cap are available:

 = Fabric care (e.g., fabric soft-

ener, proofing agent)

 = Additives (e.g., detergent en-

hancers)

 = Detergent (for the main wash

only)

Only one cap can be selected per wash

program.

Depending on the setting selected, the

detergent, additive, or fabric care agent

will be dispensed via the cap for this

wash program.

Each cap contains the correct amount

for one wash cycle.

Caps are available to order from Miele’s

online store, Miele Technical Service, or

from your Miele dealer.

 Caps pose a health risk.

The ingredients of caps can be haz-

ardous to health if they are swal-

lowed or come into contact with

skin.

Keep caps out of the reach of chil-

dren.

Activating CapDosing

 Touch the CapDosingsensor control.

The types of caps which can be used

with the program will appear in the dis-

play.

 Select the type of cap you want.

CapDosing is now active.

The display switches to the default dis-

play and shows the selected cap.

Inserting a cap

 Open the detergent dispenser drawer.

 Open the lid of the /compart-

ment.

 Press the cap in firmly.

5. Adding detergent

 Close the lid and press it firmly shut.

 Close the detergent dispenser

drawer.

The cap is opened by the act of in-

serting it in the detergent dispenser

drawer. The contents can run out of

the cap if you then remove it from

the drawer before it is used.

Dispose of opened caps.

The wash program will dispense the

contents of the cap at the correct time.

When using CapDosing, water intake

to the compartment takes place

solely via the cap.

When using caps, do not add extra

fabric softener to the compart-

ment.

 Remove the empty cap at the end of

the program.

For technical reasons, a small amount

of water will remain in the cap.

Deactivating or changing CapDosing

CapDosing can only be deactivated or

changed prior to the program start.

 Touch the CapDosingsensor control

and disable the selected cap option.

External dispensing

The washing machine is pre-equipped

for connecting to external detergent

dispensing systems. A separate conver-

sion kit for external dispensing systems

is required. This must be installed by

Miele Technical Service or by a Miele

Service dealer.

6. Starting a program – end of a program

Payment system

If your machine is connected to a pay-

ment system, the amount of payment

required will appear in the display.

Do not cancel the program once it has

started. Depending on the settings,

money may be lost in the payment

system.

Starting a program

The program can be started as soon as

the Start/Stopsensor control is flashing

on and off.

 Touch the Start/Stopsensor control.

The door will lock (symbol) and the

program will start.

If a delay-start period has been se-

lected, this will appear in the display.

The program duration will appear in the

display either straight away or once the

delay-start period has elapsed. The

program sequence is also shown in the

display.

Tip: You can use the pull-down menu to

display the selected temperature, spin

speed, and any selected extra options.

End of program

The door remains locked during the

anti-crease phase. However, the wash-

ing machine door can be unlocked at

any time by touching the Start/

Stopsensor.

Removing the laundry

 Pull open the door.

 Remove the laundry.

Items left in the drum could discolor

other items in the next wash or be-

come discolored themselves.

Remove all items from the drum.

 Check the folds in the door seal for

any foreign objects.

Tip: Leave the door slightly open to al-

low the drum to dry.

 Switch the washing machine off with

the button.

 If applicable, remove the used cap

from the detergent dispenser drawer.

Tip: Leave the detergent dispenser

drawer slightly open to allow it to dry.

Timer

Before the program starts, the timer can

be used to select a program start time

or program end time.

Setting the timer

 Touch the  Timersensor control.

 Select theFinish at, Start in, orStart

atoption.

 Set the hours and the minutes and

confirm your entry with the OKsensor

control.

Changing the timer

The selected delay-start period can be

changed before the program starts.

 Touch the,, or sensor con-

trol.

 If required, change the specified time

and confirm with the OKsensor con-

trol.

Deleting the timer

The selected delay-start period can be

canceled before the program starts.

 Touch the,, or sensor con-

trol.

The selected delay-start period will ap-

pear in the display.

 Touch the Deletesensor control.

 Confirm with the OKsensor control.

The selected delay-start period is

deleted.

Starting the timer

 Touch the Start/Stopsensor control.

The door will lock and the time until the

program starts will appear in the dis-

play.

After the program start, the selected

delay-start period can only be

changed or canceled by interrupting

the program.

The program can be started immedi-

ately at any time.

 Touch the Start immediatelysensor

control.

Program chart

Program packages

You can select various programs from the program packages. The programs will

appear in the program list.

Label

Normal Cold to 140°F (60°C) Max. load 17.6lb (8kg)

Items Cotton, linen, and mixed fiber textiles made of both cotton and linen

1,500rpm Extra options: Pre-wash, Rinse hold Rinses: 2

USA test program in accordance with: DOE Federal Register 10 CFR Part 430

Appendix J2 to subpart B

Canada test program in accordance with: CAN/CSA-C360-13

Program chart

Standard programs

Cottons Plus 120°F to 140°F (50°C to 60°C) Max. load 19.8 lb (9kg)

Items Heavily soiled textiles made from cotton and linen, e.g. bed linen,

baby clothes, underwear

Tip An additional Pre-rinse can be programmed in.*

1,600rpm Extra options: Pre-wash, Intensive, Wa-

ter plus, Rinse hold, Starch stop

Rinses: 2–5*

Whites 165°F to 195°F (75°C to 90°C) Max. load 17.6lb (8kg)

Items Textiles made from cotton and linen, e.g., bed linen, baby clothes,

underwear

Tip An additional Pre-rinse can be programmed in.*

1,500rpm Extra options: Pre-wash, Intensive, Wa-

ter plus, Rinse hold, Starch stop

Rinses: 1–5*

Colored items

sensitive

Cold to 195°F (90°C) Max. load 17.6lb (8kg)

Items Cotton or mixed fiber textiles

Tip Colors program for all temperature ranges with particularly good

rinsing efficiency.

1,600rpm Extra options: Pre-wash, Intensive, Wa-

ter plus, Rinse hold, Rinse plus, Starch

stop

Rinses: 2

Minimum iron Cold to 140°F (60°C) Max. load 8.8lb (4kg)

Items Synthetic and mixed fiber textiles and easy care cotton

Tip - Reduce the spin speed for fabric which creases easily.

- An additional Pre-rinse can be programmed in.*

1,200rpm Extra options: Pre-wash, Intensive, Wa-

ter plus, SoftSteam, Rinse hold

Rinses: 2–4*

* Settings can be altered in the Supervisor level.

Program chart

Delicates Cold to 140°F (60°C) Max. load 6.6lb (3kg)

Items Delicate garments made from synthetic fiber, mixed fiber, and vis-

cose

Tip - Deselect the final spin speed for fabric that creases easily.

600rpm Extra options: Pre-wash, Rinse plus,

SoftSteam, Rinse hold

Rinses: 2

Express 85°F (30°C) Max. load 8.8lb (4 kg)

Items Cotton garments that have hardly been worn or are only very lightly

soiled

1,400rpm Rinses: 2

Woolens Cold to 105°F (40°C) Max. load 6.6lb (3 kg)

Items Machine-washable woolens and woolen blends

Tip Use detergent formulated for woolens.

1,200rpm Extra options: Rinse hold Rinses: 2

Toweling 104°F to 140°F (40°C to 60°C) Max. load 17.6lb (8 kg)

Items Towels and bathrobes made from terrycloth

Tip Use a color detergent for dark textiles.

1,400rpm Extra options: Pre-wash, Rinse hold Rinses: 2

Dress Shirts Cold to 140°F (60°C) Max. load 6.6lb (3 kg)

Items Shirts and blouses

Tip - Pre-treat collars and cuffs depending on the level of soiling.

- Wash silk shirts and blouses in the Silks program.

- Reduce the maximum load quantity by half if you have selected

the SoftSteamextra option.

800rpm Extra options: Soak, Rinse plus, Soft-

Steam, Rinse hold, Starch stop

Rinses: 2

Dark Garments 85°F to 140°F (30°C to 60°C) Max. load 8.8lb (4 kg)

Items Black and dark items made of cotton or mixed fibers

Tip Wash inside out.

1,000rpm Extra options: Soak, Rinse plus, Soft-

Steam, Rinse hold

Rinses: 3

Program chart

Denim 85°F to 140°F (30°C to 60°C) Max. load 8.8lb (4 kg)

Items Denim shirts, blouses, trousers, and jackets

Tip - Wash denim inside-out.

- Denim often contains excess dye and may run during the first few

washes. Wash light and dark colored items separately.

1,000rpm Extra options: Rinse hold Rinses: 3

Silks Cold to 85°F (30°C) Max. load 6.6lb (3 kg)

Items Silks and all hand-washable textiles which do not contain wool

Tip - Observe the instructions on the wash care label.

- Place tights, bras, etc., in a laundry bag.

600rpm Extra options: Rinse plus, Rinse hold Rinses: 2

Separate rinse Max. load 17.6lb (8kg)

Items Items which only need to be rinsed and spun

Tip - Observe the spin speed for items which crease easily.

1,400rpm Extra options: Rinse hold Rinses: 2

Starch Cold to 105°F (40°C) Max. load 8.8lb (4 kg)

Items Table cloths, serviettes, and workwear that need starching

Tip - Laundry that is to be starched should be washed but not treated

with fabric softener.

- Observe the spin speed for items which crease easily.

1,200rpm Rinses: 1

Clean Machine 160°F (70°C) No load

For cleaning the suds container and the drainage system.

- Add universal detergent to the compartment.

- Use the Clean Machineprogram regularly if you frequently use

disinfection programs.

Drain/Spin Max. load 17.6lb (8 kg)

Tip - Make sure you select the appropriate spin speed.

- Drain only: Select 0rpm for the spin speed.

- Select the Rinse plus extra option for one rinse.

1,500rpm Extra options: Rinse plus

Program chart

Maintenance wash hygiene No load

- If a program at a temperature below 140°F (60°C) has been used,

a request to start the Maintenance Wash Hygieneprogram appears

in the display. The Hygienesetting must be switched on for this

purpose (see “Supervisor level”).

- Add universal detergent to the compartment.

Sport

Sportswear 85°F to 140°F (30°C to 60°C) Max. load 7.7lb (3.5 kg)

Items Sports and leisure wear, such as shirts and trousers made from syn-

thetic fibers or mixed blends

Tip - If you wish to proof the items at the same time, add the proofing

agent to the compartment in the detergent dispenser drawer.

- Do not use fabric softener.

- Observe the manufacturer’s care label.

1,000rpm Extra options: Pre-wash, Soak, Rinse

hold

Rinses: 2

SportMicrofiber 85°F to 140°F (30°C to 60°C) Max. load 7.7lb (3.5 kg)

Items Sportswear such as jerseys and leggings, as well as microfiber and

fleece garments

Tip - Do not use fabric softener.

- Observe the manufacturer’s care label.

800rpm Extra options: Rinse plus, Rinse hold Rinses: 2

Sneakers 85°F to 140°F (30°C to 60°C) Max. 2 pairs

Items Sneakers (no leather shoes), shin pads, elbow protectors, and simi-

lar items

Tip - Do not use fabric softener.

- Coarse soiling should be brushed off first.

- Observe the manufacturer’s care label.

- Use the dryer basket for tumble drying.

- Close Velcro fasteners.

400rpm Extra options: Pre-wash, Pre-rinse Rinses: 3

Program chart

Hard items Cold to 105°F (40°C) Max. load 7.7lb (3.5 kg)

Items Washable plastic items, e.g., toy building blocks or casino chips, or

even chain link safety gloves, etc.

Tip - Use the Soak extra option to loosen dirt.

- Use detergent for delicates.

– Extra options: Pre-rinse, Pre-wash,

Rinse plus

Rinses: 2

Outdoor

Downs 85°F to 140°F (30°C to 60°C) Maximum of 1 article

Items Outdoor jackets, sleeping bags, and other down-filled items

Tip - Observe the manufacturer’s care label.

- Do not use fabric softener.

- Remove any air before washing. To do this, either push the items

into a narrow laundry bag to compress them or tie the items to-

gether with a washable strap.

- The items are spun after wetting to remove any air.

1,000rpm Extra options: Pre-rinse, Rinse plus,

Rinse hold

Rinses: 2

Outdoor Cold to 105°F (40°C) Max. load 7.7lb (3.5 kg)

Items Performance outerwear (e.g., outdoor jackets and trousers) made

from membrane fabrics such as Gore-Tex

, SYMPATEX

, WIND-

STOPPER

, etc.

Tip - Zip up or close any Velcro fasteners before washing.

- Do not use fabric softener.

- Use the Proofingprogram to treat outdoor textiles at regular inter-

vals. Reproofing after each wash cycle is not recommended.

- Wash down-filled items with the Downsprogram.

1,000rpm Extra options: Pre-wash, Soak, Rinse

plus, Rinse hold

Rinses: 2

Program chart

Proofing Cold to 105°F (40°C) Max. load 7.7lb (3.5kg)

Items Treating microfiber fabric, skiwear, and table linens/drapes made

from mainly synthetic fibers

Tip - Add proofing agent to the compartment.

- The items should be freshly laundered and spun or dried before

proofing.

- For best results, apply a thermal treatment to the items by drying

in a tumble dryer or ironing.

1,000rpm Extra options: Rinse hold Rinses: 1

Wellness/Hair salons

Towels Cold to 105°F (40°C) Max. load 13.2lb (6 kg)

Items Lightly soiled cotton toweling

Tip Use a color detergent for dark textiles.

1,400rpm Rinses: 2

Towels plus 105°F to 175°F (40°C to 80°C) Max. load 13.2lb (6 kg)

Items Heavily soiled cotton toweling

Tip Use a color detergent for dark textiles.

1,400rpm Extra options: Pre-wash Rinses: 2

Capes Cold to 85°F (30°C) Max. load 5.5lb (2.5 kg)

Items Lightly soiled hairdressers’ capes made from synthetic fibers

Tip Select the Rinse plusextra option for particularly good wash results

600rpm Extra options: Rinse plus Rinses: 2

Program chart

Hotel

Bed linens 105°F to 195°F (40°C to 90°C) Max. load 17.6lb (8kg)

Items Cotton or mixed fiber bed linens

Tip - The items are always soaked after the start.

- Use a color detergent for colored textiles.

1,400rpm Extra options: Pre-wash, Soak, Rinse

plus, SoftSteam

Rinses: 2

Table linens/

drapes

105°F to 165°F (40°C to 75°C) Max. load 8.8lb (4kg)

Items Tablecloths and serviettes made from cotton, linen, and mixed

fibers

Tip - Select Pre-wash for stubborn stains. Use detergent with enzymes

for the pre-wash.

- The items are always soaked after the start.

1,000rpm Extra options: Pre-wash, Soak, Inten-

sive, SoftSteam, Rinse hold, Starch stop

Rinses: 2

Kitchen laundry 140°F to 185°F (60°C to 85°C) Max. load 17.6lb (8kg)

Items Cotton or linen kitchen laundry, e.g., chef’s jackets and trousers,

chef’s hats, cleaning cloths

Tip - Select Pre-wash for stubborn stains. Use detergent with enzymes

for the pre-wash.

- A Pre-rinse cycle is carried out before the main wash.

1,200rpm Extra options: Pre-wash, Soak, Intensive Rinses: 3

Home textiles

Lightweight cur-

tains

Cold to 105°F (40°C) Max. load 6.6lb (3 kg)

Items Curtains specified as machine-washable by the manufacturer

Tip For curtains which crease easily, deselect the spin speed function.

600rpm Optional extras: Pre-wash, Rinse plus,

Rinse hold

Rinses: 3

Program chart

Curtains Cold to 105°F (40°C) Max. load 6.6lb (3 kg)

Items Curtains specified as machine-washable by the manufacturer

Tip For curtains which crease easily, reduce the spin speed or deselect

the spin.

800rpm Extra options: Pre-wash, Pre-rinse,

Rinse hold

Rinses: 3

Down bedding 105°F to 165°F (40°C to 75°C) 1 duvet

Items Down-filled duvets

Tip - Observe the instructions on the wash care label.

- Remove any air before washing. To do this, either push the items

into a narrow laundry bag to compress them or tie the items to-

gether with a washable strap.

- The items are spun after wetting to remove any air.

1,400rpm Extra options: Rinse hold Rinses: 3

Synthetic bedding 105°F to 170°F (40°C to 75°C) Max. 17.6lbs (8 kg)

or 1 duvet

Items Bed linen made from microfiber and duvets with a synthetic filling

Tip - Observe the instructions on the wash care label.

- Use liquid detergent.

800rpm Extra options: Pre-wash, Soak, Rinse

plus, Rinse hold

Rinses: 2

Pillows Cold to 140°F (60°C) 1–2 pillows*

Items Washable pillows with a down or synthetic filling

Tip - Observe the instructions on the wash care label.

- Remove any air before washing. To do this, either push the items

into a narrow laundry bag to compress them or tie the items to-

gether with a washable strap.

- The items are spun after wetting to remove any air.

1,400rpm Extra options: Pre-wash Rinses: 3

Bedspreads 105°F to 170°F (40°C to 75°C) Max. load 8.8lb (4 kg)

Items Synthetic or woollen bedspreads, e.g., day blankets

Tip Gentle wash program for covers with delicate fillings.

800rpm Extra options: Pre-rinse, Rinse hold Rinses: 3

* 1 pillow (80x80cm) or 2 pillows (40x80cm)

Program chart

Workwear

Oil/fat special 140°F to 195°F (60°C to 90°C) Max. load 17.6lb (8 kg)

Items Work coats, jackets, hats, cleaning cloths made from cotton or

mixed fibers

Tip - Activate Pre-wash for heavy contamination.

- Use special detergent to improve the wash results.

1,400rpm Extra options: Pre-wash, Soak, Inten-

sive, Rinse plus, Rinse hold

Rinses: 3

Dust/flour special 105°F to 195°F (40°C to 90°C) Max. load 17.6lb (8 kg)

Items Cotton or mixed fiber workwear, table cloths, or cleaning cloths

soiled with dust or flour

Tip - Select Pre-rinse for very heavy levels of soiling.

- Activate pre-wash for stubborn soiling.

1,400rpm Extra options: Pre-wash, Pre-rinse,

Soak, Intensive, Rinse plus, Rinse hold

Rinses: 2

Intensive wash 105°F to 195°F (40°C to 90°C) Max. load 17.6lb (8 kg)

Items Heavily soiled workwear made from cotton, linen, and mixed fibers

Tip You can achieve particularly good wash and rinse results with a high

water level.

1,400rpm Extra options: Pre-wash, Soak, Rinse

plus, Rinse hold

Rinses: 2

Disinfection/Robert Koch Institute

Dis. RKI 185°F (85°C)/15min Max. load 17.6lb (8 kg)

Items Cotton, linen, and mixed fiber textiles

Tip - Thermal disinfection with a 15-minute holding time at 185°F

(85°C).

- Single-bath disinfection process.

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Soak Rinses: 2

Program chart

Dis. RKI 160°F (70°C)/10min Max. load 17.6lb (8 kg)

Items Cotton or mixed fiber textiles, sorted by color, provided they are

suitable for disinfection

Tip - Chemo-thermal disinfection with a 10-minute holding time at

160°F (70°C).

- Single-bath disinfection process.

- Use a detergent approved by the Robert Koch Institute.

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Soak Rinses: 3

Dis. RKI 140°F (60°C)/20min Max. load 17.6lb (8 kg)

Items Cotton or mixed fiber textiles, sorted by color, provided they are

suitable for disinfection

Tip - Chemo-thermal disinfection with a 20-minute holding time at

140°F (60°C).

- Single-bath disinfection process.

- Use a detergent approved by the Robert Koch Institute.

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Soak Rinses: 3

Dis. RKI 105°F (40°C)/20min Max. load 17.6lb (8 kg)

Items Cotton or mixed fiber textiles, sorted by color, provided they are

suitable for disinfection

Tip - Chemo-thermal disinfection with a 20-minute holding time at

105°F (40°C).

- Single-bath disinfection process.

- Use a detergent approved by the Robert Koch Institute.

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Soak Rinses: 3

Program chart

Laundry (CFPP01-04)

Disinfection 71°C 161°F (71°C) Max. load 9.9lb (4.5 kg)

Items Cotton or mixed fiber textiles, sorted by color, provided they are

suitable for disinfection

Tip - Disinfection with a 3-minute holding time at 161°F (71°C).

- The spin speed cannot be modified.

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Pre-wash, Pre-rinse Rinses: 3

Disinfection 65°C 150°F (65°C) Max. load 9.9lb (4.5 kg)

Items Cotton or mixed fiber textiles, sorted by color, provided they are

suitable for disinfection

Tip - Disinfection with a 10-minute holding time at 150°F (65°C).

- The spin speed cannot be modified.

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Pre-wash, Pre-rinse Rinses: 3

MRSA 105°F (40°C) Max. load 9.9lb (4.5 kg)

Items Minimum-iron textiles, sorted by color, provided they are suitable for

disinfection

Tip - Add MRSA disinfectants to the fabric softener compartment.

- The spin speed cannot be modified.

1,000rpm Rinses: 3

Disinfection

Disinfection 185°F (85°C)/15min Max. load 17.6lb (8 kg)

Items Cotton, linen, and mixed fiber textiles

Tip - Thermal disinfection with a 15-minute holding time at 185°F

(85°C).

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Pre-wash, Pre-rinse,

Rinse plus

Rinses: 2

Program chart

Disinfection 160°F (70°C)/10min Max. load 17.6lb (8 kg)

Items Cotton or mixed fiber textiles, sorted by color, provided they are

suitable for disinfection

Tip - Chemo-thermal disinfection with a 10-minute holding time at

160°F (70°C).

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Pre-wash, Pre-rinse,

Rinse plus

Rinses: 2

Disinfection 140°F (60°C)/20min Max. load 17.6lb (8 kg)

Items Cotton or mixed fiber textiles, sorted by color, provided they are

suitable for disinfection

Tip - Chemo-thermal disinfection with a 20-minute holding time at

140°F (60°C).

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Pre-wash, Pre-rinse,

Rinse plus

Rinses: 2

Disinfection 105°F (40°C)/20min Max. load 17.6lb (8 kg)

Items Cotton or mixed fiber textiles, sorted by color, provided they are

suitable for disinfection

Tip - Chemo-thermal disinfection with a 20-minute holding time at

105°F (40°C).

- No water intake via the fabric softener compartment.

- An extra gentle wash rhythm allows you to wash even more sensi-

tive textiles.

1,400rpm Extra options: Pre-wash, Pre-rinse,

Rinse plus

Rinses: 2

Further programs

Disinfection 175°F (80°C)/10min Max. load 17.6lb (8 kg)

Items Cotton, linen, and mixed fiber textiles

Tip - Thermal disinfection with a 10-minute holding time at 175°F

(80°C).

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Pre-wash, Pre-rinse Rinses: 2

Program chart

Disinfection 165°F (75°C)/10min Max. load 17.6lb (8kg)

Items Cotton, linen, and mixed fiber textiles

Tip - Thermal disinfection with a 10-minute holding time at 165°F

(75°C).

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Pre-wash, Pre-rinse,

Rinse plus

Rinses: 2

Disinfection 160°F (70°C)/17min Max. load 17.6lb (8kg)

Items Cotton or mixed fiber textiles

Tip - Thermal disinfection with a 17-minute holding time at 160°F

(70°C).

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Pre-wash, Pre-rinse,

Rinse plus

Rinses: 2

Dental surgery

garments

140°F (60°C)/60min Max. load 17.6lb (8 kg)

Items Cotton or mixed fiber textiles, sorted by color, provided they are

suitable for disinfection

Tip - Chemo-thermal disinfection with a 60-minute holding time at

140°F (60°C).

- No water intake via the fabric softener compartment.

1,400rpm Extra options: Pre-wash, Pre-rinse,

Rinse plus

Rinses: 2

WetCare

WetCare sensitive Cold to 85°F (30°C) Max. load 9.9lb (4.5 kg)

Items Outerwear that cannot be washed, e.g., suits, smart dresses

marked with the care symbol

Tip - A finishing bath is applied after washing.

- Use a liquid finishing agent for impregnation; add the detergent to

the fabric softener compartment.

1,100rpm Extra options: Rinse hold Rinses: 1

Program chart

WetCare Silks Cold to 85°F (30°C) Max. load 7.7lb (3.5 kg)

Items Textiles or silk items that cannot be washed and are prone to creas-

ing

Tip - A finishing bath is applied after washing.

- Use a liquid finishing agent for impregnation; add the detergent to

the fabric softener compartment.

600rpm Extra options: Rinse hold Rinses: 1

WetCare Intensive 85°F to 105°F (30°C to 40°C) Max. load 9.9lb (4.5 kg)

Items Heavily soiled outerwear that cannot be washed

Tip - A finishing bath is applied after washing.

- Use a liquid finishing agent for impregnation; add the detergent to

the fabric softener compartment.

1,100rpm Extra options: Pre-wash, Rinse hold Rinses: 2

WetCare Disinfec-

tion

105°F (40°C) Max. load 9.9lb (4.5 kg)

Items Outerwear that cannot be washed and that is marked with the care

symbol

Tip - Textiles are washed and disinfected (105°F/40°C for 20 minutes).

1,100rpm Extra options: Pre-wash Rinses: 2

WetCare Hygiene 65°F to 85°F (20°C to 30°C) Max. load 9.9lb (4.5 kg)

Items Sensitive textiles, e.g., outerwear

Tip - Textiles are washed and disinfected following the addition of a

disinfectant during the rinse phase.

1,100rpm Extra options: Rinse hold Rinses: 2

Program chart

Special programs

You can put together 5 special pro-

grams and assign your own program

names. Enter these into the tables.

Load: max. 17.6lb (8kg)

Example: Intensive Plus

- Pre-wash intensive

- Intensive wash, 195°F (90°C)

- Rinse 1

- Rinse 2

- Rinse 3

- Pre-treat

- Spin, 1,400rpm

(1)

(2)

(3)

(4)

(5)

The 5 special programs are pre-pro-

grammed at the factory; see “Supervi-

sor level”.

Extra options

You can add extra options to the wash

programs.

Not all extra options can be selected

with every program. If an extra option is

not listed, it is not permitted for use

with the wash program in question.

Selecting extra options

 Touch the Extrassensor control.

 Select one or more of the extra op-

tions available.

 Confirm with the OKsensor control if

several extra options are available.

Pre-wash

A pre-wash can be added for heavily

soiled laundry. Coarse soiling is loos-

ened and removed before the main

wash.

Pre-rinse

The laundry is rinsed before the main

wash to remove larger quantities of soil-

ing, e.g., dust, sand.

Rinse plus

An extra rinse can be activated to

achieve a more thorough wash result.

Soak

For heavily soiled and stained items

with protein stains. The soak duration is

10minutes.

Intensive

For hard-wearing laundry that is very

heavily soiled. Cleaning efficiency is in-

creased through more intense mechani-

cal action and the application of more

heat energy.

Water plus

The water level in the main wash and

the rinses will be increased.

SoftSteam

In order to reduce creasing, the laundry

undergoes a smoothing process at the

end of the program. Reducing the maxi-

mum load by 50% will achieve a better

result. Small loads achieve a better re-

sult.

The textiles must be suitable for drying

in a tumble dryerand suitable for

ironing.

Rinse hold

The laundry is not spun after the final

rinse and remains in the rinse water.

This helps prevent creasing if the laun-

dry is not going to be removed from the

drum immediately after the end of the

program.

Starch stop

Water is drained out of the machine be-

fore the last rinse and the program

stops. The prepared starch is added di-

rectly to the drum. The program is con-

tinued with the Start/Stopsensor con-

trol.

Special features in the program sequence

Spinning

Final spin speed

When a program is selected, the maxi-

mum spin speed for this wash program

is shown in the display.

You can reduce the final spin speed.

However, you cannot select a final spin

speed higher than that shown in the

chart.

Rinse-spin

There is a spin cycle after the main

wash and between the rinse cycles. A

reduction in the final spin speed will

also reduce the rinse-spin speed as ap-

propriate.

Deselecting the rinse-spin and final

spin

 Select the program setting Spin

speed 0.

After the last rinse cycle, the water will

be pumped away and the anti-crease

phase will switch on.

Anti-crease

At the end of the program, the drum

continues to turn at intervals for up to

30minutes to help prevent creasing.

The washing machine can be opened at

any time.

There is no anti-crease phase at the

end of some programs.

Changing the program sequence

A program cannot be canceled or

changed when operating a payment

system.

Changing a program

After a program has started, it is no

longer possible to select a different pro-

gram.

You will need to cancel the current pro-

gram before you can select a new one.

Canceling a program

You can cancel a wash program at any

time after it has started.

 Touch the Start/Stopsensor control.

The following will appear in the display:

Cancel the program?

 Selectyes.

The following will appear in the display:

Program cancelled.

The suds are pumped away.

 Wait until the door unlocks.

 Pull open the door.

 Remove the laundry.

Adding or removing laundry

You can add or remove items during the

first few minutes after the program has

started.

 11:02



Denim

Status

Time left

h0:37



Main wash

Add laundry

 Touch the Add laundrysensor control.

If the messageAdd laundry is not visi-

ble in the display then it is no longer

possible to add items of laundry.

The program will stop and the door will

unlock.

 Risk of chemical burns from de-

tergent.

When adding or removing laundry,

your skin may come into contact

with detergent, particularly if the de-

tergent is dispensed externally.

Take care when placing your hands

inside the drum.

If suds have come into contact with

the skin, rinse off immediately with

plenty of lukewarm water.

 Pull open the door.

 Add laundry or remove individual

items.

 Close the door.

 Touch the Start/Stopsensor control.

The wash program will continue.

The safety lock will remain activated if

the temperature in the drum is above

131°F (55°C). The lock will not deacti-

vate until the temperature has

dropped to below 131°F (55°C).

Cleaning and care

 Risk of electric shock.

Only ever perform cleaning and

maintenance work when the appli-

ance is disconnected from the

power.

Disconnect the washing machine

from the power supply.

Cleaning the housing and con-

trol panel

 Damage caused by cleaning

agents.

Solvent-based cleaning agents,

abrasive cleaners, glass cleaners, or

multi-purpose cleaning agents can

cause damage to plastic surfaces

and other parts.

Do not use any of these cleaning

agents.

 Risk of damage due to ingress of

water.

The pressure of a water jet can

cause water to get into the washing

machine, resulting in damage to

components.

Do not spray the washing machine

with a water jet when hosing down.

 Clean the housing and control panel

with a mild cleaning agent or soap

and water and dry both with a soft

cloth.

 The drum and any other stainless

steel components can be cleaned us-

ing a suitable stainless-steel cleaning

agent.

Cleaning the detergent dis-

penser drawer

Washing at low temperatures and the

use of liquid detergent can lead to a

build-up of bacteria in the detergent

dispenser drawer.

 For hygiene reasons, clean the entire

drawer at regular intervals.

 Pull out the detergent dispenser

drawer until a resistance is felt. Press

down the release button and at the

same time pull the drawer right out of

the machine.

 Clean the detergent dispenser drawer

with warm water.

Cleaning and care

Cleaning the siphon and the channel

 Pull the siphon out of the compart-

ment.

Clean the siphon under warm running

water. Clean the siphon tube in the

same way.

 Re-install the siphon.

 Clean the fabric softener channel with

a brush and warm water.

Cleaning the detergent dispenser

drawer housing

 Use a bottle brush to remove deter-

gent residues and limescale from the

jets inside the detergent dispenser

drawer.

 Replace the detergent dispenser

drawer.

Tip: Leave the detergent dispenser

drawer slightly open to allow it to dry.

Cleaning and care

Cleaning the drum, suds con-

tainer, and drainage system

By using wash programs with temper-

atures of 140°F (60°C) or higher on a

regular basis and using a multi-pur-

pose detergent, you can avoid a build-

up of bacteria in the washing machine.

Use the Clean Machine program regu-

larly, especially if you frequently use

wash programs with low temperatures.

Optimum results can be achieved by

using a machine cleaner. Alternatively, a

multi-purpose powder detergent can be

used.

 Start the Clean machine program.

 Dispense the machine cleaner or

multi-purpose detergent directly into

the drum.

 Do not load any laundry. The drum

must be empty for the Clean Machine

program.

 At the end of the program, check the

inner drum and remove any coarse

residues.

Use the Clean Machineprogram reg-

ularly if you frequently use disinfec-

tion programs.

Cleaning the sealing ring

 Check the fold in the sealing ring for

foreign objects.

 Clean the sealing ring and the inner

fold of the sealing ring with a damp

cloth.

Tip: Leave the door slightly open to al-

low the drum to dry.

Cleaning and care

Cleaning the water intake fil-

ters

The washing machine has filters to pro-

tect the water intake valves. Check

these filters every 6 months or so.

Check the filters more often if there are

frequent interruptions to the external

water supply.

Cleaning the filters in the intake

hoses

 First turn off the faucet.

 Unscrew the intake hose from the

faucet.

 Remove the rubber seal 1 from the

connector.

 Using pointed pliers, take hold of the

plastic filter bar 2 and pull it through

the filter.

 Clean the plastic filter.

 Reassemble the appliance in reverse

order.

Make sure there is no water leaking

from the screw thread.

Tighten the screw thread.

Cleaning the filters in the water in-

take valves

 Using pliers, carefully loosen the

ribbed plastic nut on the intake valve

and unscrew.

 Use pointed pliers to grip the bar and

pull out the filter; then clean the filter.

Reassemble the appliance in reverse

order.

The filters must be put back in place

after cleaning.

Frequently asked questions

You are able to correct the majority of faults and problems that arise during day-to-

day use without external assistance. You can save time and money in many cases,

as you do not need to contact Miele Technical Service.

The following tables are designed to help you to find the cause of a malfunction or

a fault and to resolve it.

The wash program will not start.

Problem Possible cause and solution

The display remains

dark, and the Start/

Stopsensor control

does not light up or

flash.

There is no power to the machine.

 Check whether the washing machine is switched

on.

 Check whether the washing machine is connected

to the power supply.

 Check whether the circuit breaker has tripped.

The washing machine has switched off automatically

to save energy.

 Switch the washing machine back on with the

button.

The following appears

in the display:

Door will not lock. Contact

Service..

The door is not closed properly. The door lock could

not engage.

 Close the door again.

 Start the program again.

If the fault message appears again, contact Tech-

nical Service.

The program does not

start when Spin has

been selected.

You have not yet completed the initial commissioning

process.

 Perform the Initial commissioning process as de-

scribed in these instructions.

The display is dark and

the Start/Stopsensor

control is flashing

slowly.

The display has switched off automatically to save

energy.

 Touch any of the controls. The display switches

back on.

Frequently asked questions

Program cancellation and error message

Problem Possible cause and solution

 Drainage fault. Clean

drain filter and pump.

Check the drain

hose.

The drain is blocked or restricted.

The drain hose has been fixed too high.

 Clean the drain filter and the drain pump.

 The maximum drain height is 3' 3 3/8" (1m).

 Water intake fault.

Open the water sup-

ply.

The water intake is blocked or restricted.

 Check whether the water supply is turned on prop-

erly.

 Check whether the intake hose is kinked.

The water pressure is too low.

 Switch on the Low water pressuresetting (see “Low

water pressure” under “Supervisor level”).

The filters in the water intake are blocked.

 Clean the filters (see “Cleaning the filters” under

“Cleaning and care”).

 Waterproof system

activated.

The water protection system has reacted.

 Turn off the water supply.

 Contact Technical Service.

 Disinfection temper-

ature not reached

The required temperature was not reached during the

disinfection program.

 The washing machine has not carried out the dis-

infection cycle correctly.

 Start the program again.

 Fault F. If restart

fails, contact Ser-

vice.

There is a fault.

 Disconnect the washing machine from the power

supply.

 Wait at least 2minutes before reconnecting the

washing machine to the power supply.

 Switch the washing machine on again.

 Start the program again.

If the fault message appears again, contact Tech-

nical Service.

Frequently asked questions

A fault message appears in the display

Problem Possible cause and solution

 Container empty

One of the external detergent containers is empty.

 Refill the detergent container.

 Hygiene info: run the

Maintenance hy-

giene program, or a

program of at least

60°C

During the last wash, a wash program with a temper-

ature below 140°F (60°C) or the Drain/Spinprogram

was selected.

 Start a program with a minimum temperature of

140°F (60°C) or the Maintenance Wash Hygienepro-

gram.

 Check hot water in-

take

The hot water supply is blocked or restricted.

 Check whether the hot water supply has been

turned on properly.

 Check whether the intake hose is kinked.

 Align the machine.

Laundry not properly

spun

The selected spin speed was not reached during the

final spin due to excessive imbalance.

 Check that the washing machine is level.

 Start the spin cycle again.

 Machine is leaking

The washing machine or drain valve is leaking.

 Turn off the water supply.

 Contact Technical Service.

The messages will appear at the end of the program and when the washing ma-

chine is switched on and needs to be confirmed with the OKsensor control.

Frequently asked questions

Unsatisfactory wash results

Problem Possible cause and solution

Liquid detergent is not

achieving the required

results.

Liquid detergents do not usually contain bleaching

agents. They do not remove fruit, coffee, and tea

stains.

 Use powder detergent containing a bleaching

agent.

 Pour stain removers into the drawer in the dis-

penser compartment and liquid detergent into a

dispenser ball.

 Never put stain removers and liquid detergent to-

gether in the detergent dispenser drawer.

White residues which

look like powder deter-

gent are seen on dark

textiles after washing.

The detergent contained compounds (zeolites) to aid

water softening which are not soluble in water. These

have ended up on the laundry.

 Try and brush off the residues with a soft brush

once the laundry is dry.

 In the future, wash dark textiles using a detergent

which contains no zeolites. Liquid detergents do

not usually contain zeolites.

Textiles that were very

greasy are not properly

clean.

 Select a program with pre-wash. Use liquid deter-

gent for the pre-wash.

 Use an industrially available powder detergent for

the main wash.

The use of heavy-duty detergent is recommended in

the main wash for very heavily soiled work clothing.

Please seek advice from the detergent and cleaning

agent manufacturer.

There are gray, oily par-

ticles clinging to

washed laundry.

Insufficient amounts of detergent were used. The

laundry was heavily soiled with grease (oils, oint-

ments).

 Use more detergent or use liquid detergent with

this type of soiled laundry.

 Before washing the next load, run a 140°F (60°C)

program with liquid detergent and no load.

Frequently asked questions

General problems with the washing machine

Problem Possible cause and solution

The machine shakes

during the spin cycle.

The machine feet are not level and not secured.

 Level the machine and adjust the feet correctly.

Strange pump noises

can be heard.

This is not a fault. These slurping noises occur at

the start and end of a pump sequence as a normal

part of the operation.

Large amounts of deter-

gent residue remain in

the detergent dispenser

drawer.

The water pressure is too low.

 Clean the filters in the water intake.

Powder detergent used in conjunction with water

softeners tends to become sticky.

 Clean the detergent dispenser drawer and in fu-

ture, add detergent first and then the water soft-

ener.

Fabric softener is not

completely dispensed

or too much water re-

mains in the com-

partment.

The siphon is not correctly positioned or is clogged

up.

 Clean the siphon (see “Cleaning the detergent dis-

penser drawer” under “Cleaning and care”).

The display is in a dif-

ferent language.

A different language has been selected.

 Switch the washing machine off and on again.

The selected supervisor language appears in the dis-

play.

The supervisor language has been changed.

 Select the language you require (see “Language”

under “Supervisor level”).

The laundry has not

been spun properly. The

laundry is still wet.

The machine detected a high level of imbalance dur-

ing the final spin and reduced the spin speed auto-

matically.

 Include both large and small items in the load as

this will achieve better distribution.

At the end of the pro-

gram there is still liquid

in the cap.

The small pipe in the detergent dispenser drawer

onto which the cap is placed is blocked.

 Clean the small pipe.

This is not a fault. For technical reasons, a small

amount of water will remain in the cap.

Frequently asked questions

Problem Possible cause and solution

There is water next to

the capsule in the fabric

softener compartment.

The CapDosingsensor control was not activated or

an empty capsule was not removed at the end of the

last wash program.

 Activate the CapDosingsensor control when a

capsule is next used.

 Remove and then dispose of the empty capsule at

the end of each wash cycle.

The small pipe in the detergent drawer onto which

the capsule is placed is blocked.

 Clean the small pipe.

The drum remains sta-

tionary but the program

keeps running.

 Switch the washing machine off and then back on

with the button.

 Note the message in the display.

 Touch the Start/Stopsensor control.

The drum continues to spin and the program contin-

ues.

Frequently asked questions

The door will not open

Problem Possible cause and solution

The door cannot be

pulled open during a

program.

The door is locked during the wash program.

 Touch the Start/Stopsensor control.

 Select Cancel programor Add laundry.

The door will unlock and you will be able to pull it

open.

There is still water in the drum and the machine is un-

able to drain.

 Clean the drainage system as described under

“Opening the door in the event of a blocked drain

outlet and/or power outage”.

At the end of a program

or when a program is

canceled, the following

appears in the display:

Cooling down or Comfort

cooling.

To protect the user against scalding, the door cannot

be opened if the suds temperature is higher than

130°F (55°C).

 Wait until the temperature in the drum has de-

creased and the message has gone out in the dis-

play.

The following appears

in the display:

The door lock is jammed.

Contact Service.

The door lock has jammed.

 Contact Technical Service.

Frequently asked questions

Opening the door in the event

of a blocked drain outlet and/

or power outage

 Risk of electric shock.

Only ever perform cleaning and

maintenance work when the appli-

ance is disconnected from the

power.

Disconnect the washing machine

from the power supply.

 Open the access flap to the drain

system.

Blocked drain outlet

If the drain outlet is blocked, there may

be a large quantity of water (max. 30l)

left behind in the washing machine.

 Risk of scalding due to hot suds.

Escaping suds will be hot if laundry

has been washed at high tempera-

tures.

Carefully allow all suds to drain off.

Emptying the drum

...For machines with a drain filter

 Place a suitable container under the

access flap.

Remove the drain filter, though not

completely.

 Slowly unscrew the drain filter to let

the water out.

 Tighten the drain filter back up again

if you need to interrupt the flow of

water.

Frequently asked questions

Cleaning the drain filter

Once the flow of water ceases:

 Remove the drain filter completely.

 Clean the drain filter thoroughly.

 Check the drain pump impellers to

make sure they can rotate freely.

 Remove any foreign objects (e.g.,

buttons, coins, etc.) and clean the in-

terior.

 Put the drain filter back in place and

secure it.

 Risk of damage from leaking wa-

ter.

Water will escape from the machine

if you forget to replace the drain filter.

Replace the drain filter correctly and

tighten it securely.

Opening the door

 Danger of injury due to rotating

drum.

Reaching into a rotating drum is ex-

tremely dangerous and may result in

injury.

Always make sure that the drum is

stationary before reaching in to re-

move laundry.

 Use a screwdriver to unlock the door.

 Pull open the door.

Technical Service

Contact in the event of a fault

In the event of a fault which you cannot

remedy yourself, please contact your

Miele dealer or Miele Technical Service.

Contact information for Miele Techni-

cal Service can be found at the end of

this document.

Please quote the model and serial num-

ber of your appliance when contacting

Miele. Both pieces of information can

be found on the data tag.

The data tag is found above the port-

hole glass when the washing machine

door is opened:

Optional accessories

Optional spare parts and accessories

for this washing machine are available

from your Miele dealer or Miele Techni-

cal Service.

Installation instructions

Alteration rights reserved.

Visit our website for all the current product specifications, technical appliance

information, and warranty information.

To avoid accidents or damage to the appliance, please read these instructions

before installing and/or using it.

Installation and connection

*INSTALLATION*

Front view

Drain hose

Intake hose (cold water)

Intake hose (hot water), if attached

Electrical connection

Control panel

Detergent dispenser drawer

Door

Access flap to drain filter and drain

pump

Height-adjustable feet

Installation and connection

*INSTALLATION*

Rear view

Electrical connection

Interface for communicating with ex-

ternal appliances

Socket for external dispensing

Drain hose

Intake hose (cold water)

Intake hose (hot water), if attached

Safety caps for shipping struts

Transport clips for hoses

Module slot (for external communi-

cation module)

Holder for removed shipping struts

Installation and connection

*INSTALLATION*

Installation locations

Side view

44 9/16" (1,132 mm)

33 7/16" (850 mm)

43 1/3" (1,000 mm)

28 1/8" (714 mm)

Washer-dryer stack

The washing machine can be installed

as a washer-dryer stack together with a

Miele Tumble Dryer. This requires a

washer-dryer stacking kit which can be

purchased separately.

 Installing the washer-dryer stack

on a Miele Plinth is not permitted.

Installation on a plinth

The washing machine can be installed

on a steel plinth (open or closed, e.g.

APCL 002, APCL 003, APCL 005, APCL

007, APCL 011 or APCL 012, available

as an optional Miele accessory) or on a

concrete plinth.

 Injury can occur if the washing

machine has not been adequately

secured.

When installing the machine on a

plinth, there is the danger of the

washing machine falling off the plinth

during spinning.

Secure the washing machine using

the clamps supplied.

Installation notes

The distances between the machine

and the wall are recommendations to

help make it easier to carry out service

work. If installation space is limited,

the washing machine can also be

pushed up against the wall.

This washing machine is not suitable

for building under.

 Risk of damage due to moisture

ingress.

Moisture can damage electrical com-

ponents.

Do not install the machine near or di-

rectly above an open gully or floor

drain.

Installation and connection

*INSTALLATION*

Transporting the washing ma-

chine to its installation site

 Danger of injury from incorrect

transport.

If the washing machine tips up there

is a danger of injury to people and

damage to property.

Make sure the washing machine is

stable during transportation.

Transporting the washing machine

with a sack truck

 If transporting the washing machine

with a sack truck, make sure its left or

right side is resting on the truck.

 Risk of damage from incorrect

transport.

The front or back of the washing ma-

chine may be damaged if the ma-

chine is transported with a sack

truck.

Always insert the sack truck under

one of the sides of the washing ma-

chine.

Transporting the washing machine to

its installation site

The protruding lid at the back can be

used to hold the machine when trans-

porting.

 Danger of injury due to insecure

lid.

The fixings at the back of the lid may

become brittle due to external cir-

cumstances. There is a danger of the

lid being pulled off when carrying the

appliance.

Before carrying the appliance, check

that the lid is secure where it pro-

trudes at the back of the appliance.

 Carry the washing machine by the

front feet and by the lid where it pro-

trudes at the back of the appliance.

Installation and connection

*INSTALLATION*

Installation surface

A concrete floor is the most suitable in-

stallation surface for this machine. It is

far less prone to vibration during the

spin cycle than wooden floorboards or

a carpeted surface.

 The machine must be level and se-

curely positioned.

 To avoid vibrations during spinning,

the machine should not be installed

on soft floor coverings.

If installing on a wooden joist floor:

 Install the machine on a plywood

base (at least 2' 3 9/16" x 1' 11 5/8" x

1 3/16" (70x60x3cm)). The base

should span several joists and be

bolted to the joists and not only to the

floorboards.

Tip: If possible, install the machine in a

corner of the room. This is usually the

most stable part of the floor.

Removing the shipping struts

Removing the left-hand shipping

strut

 Open out the cover and use the

wrench supplied with the washing

machine to turn the shipping strut

90°.

 Pull out the shipping strut.

Installation and connection

*INSTALLATION*

Removing the right-hand shipping

strut

 Open out the cover and use the

wrench supplied with the washing

machine to turn the shipping strut

90°.

 Pull out the shipping strut.

Covering the holes

 Risk of injury from sharp edges.

There is a risk of injury from reaching

into holes that are not covered.

Cover the holes for the shipping

struts after they have been removed.

 Press the covers firmly shut until they

click into place.

Installation and connection

*INSTALLATION*

Securing the shipping struts

 Secure the shipping struts to the

back of the washing machine.

Tip: Make sure that the holes are

placed over the retainers.

 Risk of damage from incorrect

transport.

The washing machine may become

damaged if moved without the ship-

ping struts in place.

Keep the struts in a safe place. In-

stall them again if the washing ma-

chine is to be moved (e.g., when

moving to a new house).

Installing the shipping struts

Opening the covers

 Press against the catch with a thin

object (a narrow screwdriver, for ex-

ample).

The cover opens.

Installing the shipping struts

 Install the shipping struts by following

the instructions for their removal in

reverse order.

Tip: The struts will slide in more easily if

you lift the drum slightly.

Installation and connection

*INSTALLATION*

Leveling the washing machine

The washing machine must stand per-

fectly level on all four feet to ensure

safe and proper operation.

Incorrect installation may increase elec-

tric and water consumption and may

cause the machine to move about.

Unscrewing and adjusting the feet

The 4 adjustable screw feet are used to

level the washing machine. All four feet

are screwed in when the machine is de-

livered.

 Using the wrench supplied, turn

counter nut 2 in a clockwise direction.

Then turn counter nut 2 together with

foot 1 to unscrew.

 Use a spirit level to check that the

washing machine is standing level.

 Hold foot 1 securely with a pipe

wrench. Turn counter nut 2 again us-

ing the wrench supplied until it sits

firmly up against the housing.

 Risk of damage due to incor-

rectly aligned washing machine.

There is a danger of the washing ma-

chine moving about if the feet are not

secured.

Turn all 4 counter nuts for the feet

until they sit firmly up against the

housing. Please also check this for

the feet which did not need adjust-

ment.

Installation and connection

*INSTALLATION*

Holding bracket for toe-kick

The holding bracket prevents the wash-

ing machine from falling off the toe-kick

during operation.

Fastening with the holding bracket is

only intended for toe-kicks made from

concrete. The toe-kick must be flat and

level. The surface below the toe-kick

must be able to withstand the physical

loads.

Prior to installation, check whether the

toe-kick complies with the minimum di-

mensions.

Height: 2 3/8" (6cm)

Width: 23 5/8" (60cm)

Depth: 25 9/16" (65cm)

Positioning the holding bracket

 Risk of injury from sharp edges.

The holding bracket has sharp

edges. You could cut yourself on the

edges.

Take care when handling the holding

bracket.

Wear gloves while installing the hold-

ing bracket.

The front appliance feet must protrude

by at least 1/8" (3mm). The washing

machine must already be aligned (see

“Installation – Aligning the washing

machine”)

 Place the holding bracket on the front

appliance feet.

 Mark the position of the front edge of

the holding bracket with a pencil.

 Remove the holding bracket from the

feet.

 Carefully move the washing machine

until you have enough space to install

the holding bracket.

Installation and connection

*INSTALLATION*

Installing the holding bracket

 Place the holding bracket on the

marking on the toe-kick.

 In the middle of the two outer slotted

holes, mark a point for each drill hole.

 Drill 2holes 5/16" (8mm) with a

depth of approx. 2 3/16" (55mm).

 Insert the plugs in the holes.

 Install the holding bracket with the

hex screws and the washers.

Do not tighten the screws yet – this

will allow the holding bracket to be

moved sideways.

Securing the washing machine with

the holding bracket

 Push the washing machine back on

to the installed holding bracket.

 Insert the appliance feet (the part be-

tween the foot and the locknut) into

the openings in the holding bracket.

 Push the holding bracket to the right

as far as it will go.

 Tighten the hex screws using a

wrench.

The washing machine is secured in the

holding bracket.

Installation and connection

*INSTALLATION*

External control equipment

The XCI box accessory is needed to

connect external control equipment,

such as payment systems, dispensing

systems or peak load control units.

Payment system

This washing machine can be fitted with

a payment system (optional accessory).

The necessary reprogramming must al-

ways be carried out by Miele Technical

Service or a Miele Service Dealer.

Coins/tokens must be removed from

the coin box regularly. Otherwise, the

payment system will become blocked.

Installation and connection

*INSTALLATION*

Water connection

Cold water connection

The washing machine should be con-

nected to a domestic water supply in

accordance with current local and na-

tional safety regulations. The German

authorities do not require it to have a

non-return valve as the washing ma-

chine has been designed to comply

with DIN regulations.

The flow pressure must amount to a

minimum of 14.5 psi (100kPa) and

must not exceed 145 psi (1,000kPa). If

the pressure exceeds 145 psi

(1,000kPa), a pressure reducing valve

must be installed.

For the connection, a faucet with a ¾

inch screw thread is required. If this

type of faucet is not available, only a

qualified installer may connect the

washing machine to the domestic water

supply.

The connection point is subject to

domestic water pressure.

You should therefore open the faucet

slowly and check for leaks. Correct

the position of the washer and screw

thread if appropriate.

The intake hose for cold water is not

suitable for connection to a hot water

supply.

Switching to cold water operation

If the washing machine is not con-

nected to a hot water point, you will

have to configure the settings Main

wash water, Pre-wash water, and Rinse

water to cold (see “Supervisor level”).

 Unscrew the hot water hose.

 Screw on the stopper provided.

Maintenance

Only use genuine Miele hoses that have

been tested to withstand pressure of at

least 1,015 psi (7,000kPa) should you

ever need a replacement.

A filter is located in the open end of

the intake hose and another in the in-

take point to protect the water intake

valves.

Neither filter may be removed.

Hose extension

Longer hoses of 8' 2 7/16" or 13' 1 1/2"

(2.5m or 4.0m) in length are available

from Miele Technical Service or from

your Miele dealer as accessories.

Installation and connection

*INSTALLATION*

Hot-water connection*

The hot water temperature must not ex-

ceed 158°F (70°C).

To minimize energy consumption during

operation with hot water, the washing

machine should be connected to a suit-

able hot water ring circuit. So-called

“transmission pipes” (single pipes to

hot water generators) can result in any

water remaining in the pipes cooling

down if not in constant use. More en-

ergy would then be consumed to heat

the liquid up again.

The same connection requirements as

for cold water also apply to hot water.

The intake hose (hot = red stripes) is

connected to the faucet.

The washing machine cannot only be

connected to a hot water connection.

* Some machine versions do not come

with a hot water hose.

Switching to hot water operation

If the washing machine is due to be

connected to a hot water point, you can

configure the settings Main wash water,

Pre-wash water, and Rinse water to hot

(see “Supervisor level”).

 Unscrew the stopper from the hot

water valve.

 Screw on the hot water hose.

Installation and connection

*INSTALLATION*

Water drainage

Drain pump

The suds are drained through a drain

pump with a 1m delivery head. For the

water to drain freely, the hose must be

installed free of kinks. The swivel elbow

(accessory) can be hooked onto the

end of the hose.

Drainage options

1. Connected securely to a plastic drain

pipe with a rubber nipple (there is no

need to use a non-return valve).

2. Connected securely to a sink with a

plastic nipple.

3. Connected securely to a floor drain.

If required, the hose can be extended to

a length of up to 16.4ft (5m). Acces-

sories are available from your Miele

dealer or Miele Technical Service.

Installation and connection

*INSTALLATION*

Electrical connection

This description applies to washing

machines both with and without a

power plug.

The following applies to washing ma-

chines with a power plug:

- The washing machine is ready to be

connected.

- The power plug must be easily ac-

cessible after installation so that the

machine can be disconnected from

the power supply if necessary.

 Damage caused by incorrect

supply voltage.

The data tag indicates the nominal

power consumption and the appro-

priate fuse rating.

Compare the specifications on the

data tag with those of the domestic

electrical supply and make sure that

they match.

The washing machine may only be con-

nected to a permanent electrical system

that conforms to the national and local

codes and regulations.

Do not connect the machine to an ex-

tension lead or multi-socket adapter as

they do not guarantee the required

safety of the appliance (e.g., danger of

overheating).

If the machine is hard-wired, a dual cir-

cuit breaker must be provided on-site.

When switched off there must be an all-

pole contact gap of at least 3mm in the

isolator switch (including circuit break-

ers, breakers, and relays according to

IEC/EN60947). This connection

process must be performed by a quali-

fied electrician.

The plug connector or isolator switch

should be easily accessible at all times.

 Risk of electric shock.

If the washing machine is discon-

nected from the power supply, pro-

tective measures should be taken to

ensure that the point of disconnec-

tion cannot accidentally be switched

on again.

Make sure the isolator is lockable or

the point of disconnection is moni-

tored at all times.

New connections, modifications to the

system, or servicing of the ground con-

ductor, including determining the cor-

rect fuse rating, must be carried out by

a qualified electrician, as they are famil-

iar with the pertinent regulations and

the specific requirements of the electric

utility company.

If converting the washing machine to

an alternative voltage, observe the

instructions in the wiring diagram.

Conversion must be performed by

Miele Technical Service or by an au-

thorized Miele dealer.

Technical data

Height 33 7/16" (850mm)

Width 23 7/16" (596mm)

Width (for machines with a stainless steel

lid)

23 13/16" (605mm)

Depth 28 1/8" (714mm)

Depth with door open 44 9/16" (1,132mm)

Weight Approx. 220 lb (100kg)

Maximum floor load in operation 3,000Newton

Capacity 19.8lb (9kg) dry laundry

Connection voltage See data tag on back of machine

Rated load See data tag on back of machine

Fuse rating See data tag on back of machine

A-rated sound emissions L

in accordance

with ENISO11204/11203

<70dB re 20µPa

Minimum water flow pressure 14.5 psi (100kPa /1bar)

Maximum water flow pressure 145 psi (1,000kPa /10bar)

Water intake hose length 5' 1" (1.55m)

Power cord length 5' 10 7/8" (1.80m)

Maximum delivery head (drain pump) 3' 3 3/8" (1.00m)

LEDs Class 1

Test certificates awarded See data tag

Frequency range of the WiFi module 2.4000–2.4835GHz

Maximum transmission power of the WiFi

module

< 100mW

Supervisor level

Opening the Supervisor level

 Switch on the washing machine.

 11:02

  

Programs Favorites Supervisor

Help

 Touch the Supervisorsensor con-

trol.

The display will switch to the Supervisor

levelmenu.

Code-based access

The Supervisor level is accessed using

a code.

The code is 000(factory default).

Changing the PIN code

You can alter the Supervisor level ac-

cess code to protect the washing ma-

chine from unauthorized access.

Please inform Miele Technical Ser-

vice if you have forgotten your new

code. Technical Service will have to

reset the code.

Make a note of your new code and

store it in a safe place.

Closing the settings menu

 Touch the sensor control.

The display will then go back to the pre-

vious menu level.

 Touch the sensor control.

The display will change to the main

menu.

Supervisor level

Operation/display

Language

The display can be set to appear in

one of several different languages. To

select the permanent supervisor lan-

guage you want, go to the Languages

sub-menu.

When a program is running, you can

change the user language using the

sensor.

Language menu

The display can be set to one of sev-

eral different user languages. This set-

ting allows you to determine how lan-

guages can be selected.

International

6 languages are available. The

sensor control is not active. Note

the settingSet languages.

Language setting

The sensor control can be used

to select a language. All languages are

available (factory default).

You can change the order of the first 4

languages. These slots are allocated to

the most commonly used languages.

Standard language

The user language cannot be changed.

The user language is the same as the

supervisor language. The sensor

control is not active.

Set languages

The languages for the setting Language

entry International can be changed.

32 languages are available. 6 languages

can be selected to appear in the lan-

guage menu display at one time.

If you wish to add a new language to

the language menu:

 First select the language you want to

replace.

All available languages are displayed.

 Select and confirm the language to

replace the previous language.

The new language appears instead of

the old one.

Display brightness

The brightness of the display can be

altered. The setting depends on the

various lighting conditions in the place

of installation.

It can be set to one of 10 different lev-

els.

Supervisor level

Clock display

After selecting the clock format, you

can set the time of day.

Clock format

- 24h clock

- 12h clock

- No clock

Set

- The time can be set.

Date

The date can be set after selecting the

date format.

Date format

- DD.MM.YYYY

- YYYY.MM.DD

- MM.DD.YYYY

Date

- The date can be set.

Volume

The volume for various sounds can be

changed.

- Finish tone

- Keypad tone

- Welcome tone

It can be set to one of 7 different lev-

els or switched off altogether.

- Fault alarm

The fault alarm can be activated or

deactivated.

Visibility parameters

Various parameters, such as the tem-

perature, spin speed, extra options,

etc., are displayed when a program is

selected. You can decide which pa-

rameters should not be displayed.

These parameters can then not be

edited during program selection.

Factory default: All parameters are visi-

ble (marked in orange)

Sort extras

Under the setting Visibility parameters,

Sort Extras appears in the bottom line.

Touch the sensor control to change

the sequence of extra options (see

“Arranging programs” under “Supervi-

sor level”).

Supervisor level

Display off status

The display switches off to save en-

ergy. The Start/Stopsensor control

flashes slowly.

Changing this setting leads to increased

energy consumption.

Off

The display does not switch off.

On (10 min.) Not curr.prog.

The display will remain on while the pro-

gram is running but will go out 10min-

utes after the end of the program.

Logo (10 min.) Not curr.prog.

The display stays switched on while the

program is running. The logo lights up

10minutes after the end of the pro-

gram.

On after 10 min.

The display will go out after 10minutes.

On (30 min.) Not curr.prog.

The display will remain on while the pro-

gram is running but will go out 30min-

utes after the end of the program.

Logo (30 min.) Not curr.prog.

The display stays switched on while the

program is running. The logo lights up

30minutes after the end of the pro-

gram.

On after 30 min.

The display will go out after 30minutes.

Machine off status

In order to save energy, the washing

machine will switch off automatically

after the end of the program or if no

further selection is made. You can

change this setting.

Changing this setting leads to increased

energy consumption.

- No switch off

- Switch off after 15minutes (factory

default)

- Switch off after 20minutes

- Switch off after 30minutes

Delay start

The delay start (timer) display can be

switched on or off.

Factory default: On

Memory

The washing machine will save the

settings (temperature, spin speed, and

some of the options) which have been

selected for a program after the pro-

gram has started.

When the program is chosen again, the

saved settings will appear on the dis-

play.

Factory default: Off

Supervisor level

Temperature unit

You can select the unit for the temper-

ature display.

Factory default: °F

Weight unit

You can decide whether load quanti-

ties are displayed in “kg” or “lbs”. You

can also switch this information off al-

together.

Factory default: lbs

Logo

You can choose whether the “Miele

Professional” logo or your own logo

appears in the display.

The option Laundromat Logomust be se-

lected for the settingControls.

Supervisor code

You can alter the access code to the

Supervisor level.

 Enter the current code.

 Enter a new code.

Program selection

Controls

You can select whether the washing

machine is operated as a laundromat

machine. Shortcuts are the easiest

way to operate the machine. Operat-

ing staff are unable to change pre-set

programs.

Tip: Start by configuring all necessary

settings and changes to the washing

machine before selecting any of the op-

tions below.

If “Laundromat, basic” or “Laundromat,

Logo” are selected, the Supervisor level

can no longer be opened from the dis-

play after the Supervisor level is closed.

Please follow the instructions below if

you wish to change any other settings.

Opening the Supervisor level (laundro-

mat version)

 Switch on the washing machine and

open the door.

 Touch the Start/Stopsensor control

and hold it down whilst carrying out

steps –.

 Close the washing machine door.

 The Start/Stop sensor control will

now be flashing quickly; wait until it

lights up constantly.

 Release the Start/Stopsensor con-

trol when the Start/Stopsensor con-

trol lights up constantly.

Supervisor level

Control options

Standard (factory default).

All functions and programs can be dis-

played.

Laundromat, basic

Up to 12programs are available. Go to

Favorite programs to select which pro-

grams are to be listed.

Laundromat Logo

Up to 12programs are available. Go to

Favorite programs to select which pro-

grams are to be listed.

External program selection

Programs are selected using a commu-

nication module, e.g., an external termi-

nal.

Program packages

The selection of programs can be ex-

panded by activating single programs

from the target group program pack-

ages.

The programs selected from the pro-

gram packages (marked in orange) are

displayed under program selection.

Favorite programs

You can save up to 12 of your own

customized wash programs as Fa-

vorites.

The saved programs will be displayed

under Favorites.

All programs from the Favorites list are

displayed with the control option Laun-

dromat, basic and Laundromat Logo.

You can specify the control option un-

der Controls.

Tip: You can assign a different color to

each program. In this case, the Program

color allocationsetting must be set to On.

Changing Favorite programs

 Select the program you wish to

change or replace.

 Touch the program icon or setting to

be changed.

Another menu opens, enabling you to

select a new program or change the pa-

rameters.

 Touch the Savesensor control.

Your selection is now active.

Reducing the number of Favorite pro-

grams

You can reduce the number of Favorite

programs by “deactivating” each one

individually.

 Select the program you wish to deac-

tivate.

 Confirm the program.

 Select <empty> from the list instead of

a program.

Supervisor level

The selection in theFavorites and the

selection in the Laundromat, basic and

Laundromat Logo control option is re-

duced.

Once a program has been deacti-

vated,<empty> is displayed in its

place. You can add a program back in

at any time.

The number of Favorite programs can

be reduced to 0 if you “deactivate” all

programs. In this case, the  Favorites

selection is no longer displayed in the

main menu.

Do not reduce the number of Fa-

vorites to 0 if you want to set the

Laundromat, basic or Laundromat Logo

control option afterward.

Changing the sequence of Favorite pro-

grams

You can change the sequence of Fa-

vorite programs by moving the pro-

grams around.

 Touch the program that you wish to

move.

An orange border appears around the

selected program.

 Touch the program with your finger

and keep your finger pressed down.

 Drag the program to the required

place.

Special programs

You can put together 5 special pro-

grams and save them as your own

wash programs with your own pro-

gram names.

You must have already activated Spe-

cial programs under Program packages.

Enter the name of your special program

and its basic settings into the “Special

programs” table under the “Program

chart”.

- Temperature: You can select a tem-

perature in multiple increments from

cold to 195°F (90°C).

- Wash block: You can select one or

more wash blocks.

- Spin speed: You can select a spin

speed in increments from 0rpm to

1,400rpm.

Sort programs

Programs can be moved within the

program list and in the Favorites list.

Factory default: Off

Moving programs

 Touch the sensor control for the pro-

gram you want to move.

 Press and hold the sensor control un-

til the frame changes.

 Drag the program to the required

place.

Supervisor level

Program color allocation

You can assign a color to a Favorite

program. In the list of Favorites, each

Favorite program is given a colored

frame, which can be adjusted.

Factory default: On

Hygiene

The Maintenance Wash Hygiene pro-

gram is shown in the list of special

programs.

If a program at a temperature below

140°F (60°C) has been used, a request

to start the Maintenance Wash Hygiene

program appears in the display.

Factory default: Off

Expert code

A code has to be entered to cancel a

disinfection program. The code can be

modified.

The code is: 000

Make a note of your new code if you

ever change it.

Process technology

Anti-crease

The Anti-crease function helps prevent

creasing after the end of the program.

At the end of the program, the drum

continues to turn for up to 30minutes.

The door can be opened at any time

during the Anti-crease phase.

Factory default: On

Water level Min. iron

You can increase the water level for

the main wash in the Minimum

ironprogram.

- + 0mmwc (factory default)

- + 10mmwc

- + 20mmwc

- + 30mmwc

Water level Cottons

You can increase the water level for

the main wash in the Cottonspro-

gram.

- + 0mmwc (factory default)

- + 10mmwc

- + 20mmwc

- + 30mmwc

Supervisor level

Pre-wash temp Cottons

You can select the temperature for the

pre-wash in the Cottonsprogram.

- 86°F (30°C) (factory default)

- 95°F (35°C)

- 104°F (40°C)

- 113°F (45°C)

Wash time

Cottons pre-wash

You can increase the duration for the

pre-wash in the Cottonsprogram.

- + 0min (factory default)

- + 6min

- + 9min

- + 12min

Cottons

You can increase the duration for the

main wash in the Cottonsprogram.

- + 0min (factory default)

- + 10min

- + 20min

- + 30min

- + 40min

Minimum iron

You can increase the duration for the

main wash in the Minimum ironpro-

gram.

- + 0min (factory default)

- + 5min

- + 10min

- + 15min

- + 20min

Pre-rinse Cottons

A pre-rinse can be activated in the

Cottonsprogram.

Factory default: Off

Pre-rinse Minimum iron

A pre-rinse can be activated in the

Minimum ironprogram.

Factory default: Off

Pre-wash Cotton/M-iron

In the programs Cottons and Minimum

iron, you can choose whether a pre-

wash is permanently activated or

whether it can be selected during pro-

gram selection.

Factory default:Menu selection

Supervisor level

Cottons rinses

You can alter the number of rinses

carried out in the Cottonsprogram.

- 1rinse

- 2 rinses (factory default)

- 3 rinses

- 4 rinses

- 5 rinses

Minimum iron rinses

You can alter the number of rinses

carried out in the Minimum ironpro-

gram.

- 2 rinses (factory default)

- 3 rinses

- 4 rinses

Disinfection rinse

Additional rinses can be activated in

disinfection programs with a tempera-

ture of at least 140°F (60°C).

Rinsing is carried out with hot water.

The program cycle time is longer.

The laundry may feel hot at the end

of the program.

Take care when removing items.

Factory default: Off

Auto load control

This washing machine comes with au-

tomatic load control. In some pro-

grams, the water levels and the pro-

gram cycle times are adapted to the

load.

If the automatic load control is deacti-

vated, the machine will always carry out

the program sequence based on a full

load.

Factory default: On

Controlled energy cons.

With this option selected, the machine

will optimize the energy it uses in the

Whites, Cottons, and Minimum iron

programs.

Factory default: On

Service

Clean drain pump (LP)

The user sees a message when the

drain pump filter has to be cleaned.

The message is displayed every 500

operating hours.

The message appears at the end of the

program.

Factory default: Off

Supervisor level

Service interval

Service information can appear in the

display. You can configure whether a

date or the number of operating hours

is displayed.

You can select up to 3 messages with

their own text.

Your message is displayed at the end of

the program and can be acknowledged

with OK. The same message appears at

the end of the next program.

Settings

This setting allows you to determine the

interval (by hours or date) at which the

message appears.

- Factory default: Off

- By time

You can then select a time interval

from 1–9999hours.

- By date

You can then enter a date.

Message text

Enter your message for your planned

maintenance work.

Resetting the display

The message appears until the display

is permanently reset. The message then

appears again once the next interval is

reached.

External applications

Empty sensor

External hardware is connected via the

Miele XCI Box.

A siphon contact can be used to de-

tect whether external detergent con-

tainers are empty. A message appears

if a container is empty.

- Off (factory default)

- Normally open contact

The siphons are equipped with a nor-

mally open contact.

- Normally closed contact

The siphons are equipped with a nor-

mally closed contact.

Early warning counter

External hardware is connected via the

Miele XCI Box.

An internal counter reports when an

external dispenser container is almost

empty. The counter in question then

has to be reset.

Supervisor level

Automatic dispensing

Automatic dispensing via an external

dispensing system can be activated

Factory default: Off

Adjustment value dispensing 1–6

To address the tolerances that occur

in the pump system over time, the dis-

pensing amount (ml/min) for the

pumps can be corrected.

The calibration value can be reduced by

3increments or increased by 3incre-

ments.

The calibration value is increased or re-

duced by 1, 2 or 3 times the adjustment

value based on the selected incremen-

tal setting.

The calibration value and the adjust-

ment value must be added to the data

for the dispenser pumps by Miele Cus-

tomer Service.

Peak load signal

External hardware is connected via the

Miele XCI Box.

The peak-load negotiation function

enables the washing machine to be

connected to an energy management

system. When a signal is registered,

the washing machine’s heater is

switched off for a short period.

The washing machine may only be op-

erated with a peak-load system if this

system is connected to the washing

machine via the Miele XCI Box.

- No function (factory default)

- Peak load with 230V

- Peak load with 0V

- Com module

Peak load prevention

The peak-load negotiation function

can be deactivated with disinfection

programs. When a signal is registered,

the washing machine’s heater is not

switched off.

Factory default: Off

Supervisor level

Availability of Miele digital products

The ability of Miele digital products de-

pends on the availability of the services

in your country.

The different services are not available

in all countries.

For information about availability,

please visit www.miele.com.

Select KOM module

This washing machine is equipped

with an integrated WiFi module. How-

ever, the washing machine can also be

equipped with an external module.

- Off

- Internal module (factory default)

The internal WiFi module is used.

- External module

An XKM module or RS232 module is

inserted into the module slot.

WiFi

For the use of WiFi/LAN additional

Miele digital products are necessary.

The ability of Miele digital products

depends on the availability of the ser-

vices in your country.

The different services are not available

in all countries.

For information about availability,

please visit www.miele.com.

Control the networking of your wash-

ing machine.

- Setup

This message only appears if the

washing machine has not yet been

connected to a WiFi network.

- Deactivate (visible when the network

is activated)

The network remains set up; the WiFi

function is switched off.

- Activate (visible if the network is de-

activated)

The WiFi function is reactivated.

- Connection status (visible when the

network is activated)

– The quality of WiFi reception

– The network name

– The IP address

- Set up again (visible if already set up)

Resets the WiFi login (network) to im-

mediately re-establish a new connec-

tion.

- Reset (visible if already set up)

Supervisor level

The network is no longer set up. A

new connection has to be estab-

lished in order to use the network

again.

– The WiFi is switched off

– The WiFi connection will be reset

to the factory default

WiFi setup

There are 2 possible connection meth-

ods.

WPS

 Activate the WPS function on your

router within 2minutes.

Tip: If the connection has not been set

up when the timeout has finished

counting down, repeat the process.

Soft AP

 Activate the function with the Miele

app on your smart device within

10minutes.

Tip: The app will guide you through the

remaining steps.

Network time

The date and time can be synchro-

nized over the network.

- Off

The date and time are not synchro-

nized over the network.

- As master

The machines are in a network but

are not connected to the Internet. A

machine is declared as the master

and sends data to the slave appli-

ances.

- As slave

The machines are in a network and

are connected to the Internet. All ma-

chines are configured as slaves. Data

is synchronized over the Internet.

Remote

Programs are selected on an external

terminal.

Factory default: On

Supervisor level

RemoteUpdate

The RemoteUpdate function updates

the software in your washing machine.

Factory default: on

If you do not install a RemoteUpdate,

you can continue to use your washing

machine in the usual way. However,

Miele recommends installing Remote-

Updates.

Activation

The RemoteUpdate menu option is

only displayed and can only be se-

lected if you have added your washing

machine to your WiFi network.

Some software updates can only be

carried out by Miele Customer Service.

Running a RemoteUpdate

If a RemoteUpdate is available for your

washing machine, it will be displayed

automatically when the Supervisor level

is open.

You can choose to start the RemoteUp-

date immediately or wait until later. If

you select “Start later”, the prompt to

run the RemoteUpdate will be displayed

again the next time you switch on your

washing machine.

The RemoteUpdate can take a few

minutes.

Please note the following information

about the RemoteUpdate function:

- You will only receive a message when

a RemoteUpdate is available.

- Once a RemoteUpdate has been in-

stalled, it cannot be undone.

- Do not switch off the washing ma-

chine during a RemoteUpdate. Other-

wise, the RemoteUpdate will be

aborted and will not be installed.

Supervisor level

SmartGrid

The SmartGridsetting is only visible if a

WiFi network has been set up and ac-

tivated. This function can be used for

starting your tumble dryer automati-

cally at a time when your energy sup-

plier’s energy costs are most econom-

ical.

Activating SmartGrid gives the timer sen-

sor control a new function. Use the

“Timer” sensor control to configure

SmartStart. The washing machine will

then start within the timeframe specified

by you when it receives a signal from

your energy supplier. If a signal has not

been received from the energy supplier

by the latest start time set, the washing

machine will start automatically.

Factory default: Off

Machine parameters

Suds cooling

Additional water flows into the drum at

the end of the main wash to cool the

suds down.

Suds cooling takes place when a pro-

gram with a temperature of 158°F

(70°C) or higher is selected.

Suds cooling should be activated:

- To prevent the danger of scalding if

the drain hose is hooked over the

edge of a sink or basin.

- Where the drainage pipes do not

comply with DIN1986.

Factory default: On

Water intake

Pre-wash

You can select the water type for the

pre-wash.

- Cold

Only cold water is used for the pre-

wash.

- Hot

Hot water is also added for the pre-

wash.

Hot water can only be added if the

wash temperature is above 86°F

(30°C).

Main wash

You can select the water type for the

main wash.

- Cold

Supervisor level

100

Only cold water is used for the main

wash.

- Hot

Hot water is also added for the main

wash.

Hot water can only be added if the

wash temperature is above 86°F

(30°C).

Program cycle times will be longer if the

machine is not connected for hot water;

this may mean that the “Time left” dis-

play is incorrect.

First rinse

You can select the water type for the

first rinse in some programs.

- Cold (factory default)

Only cold water is used for the first

rinse.

- Hot

Hot water is also added for the first

rinse.

Final rinse

You can select the water type for the

last rinse in some programs.

- Cold (factory default)

Only cold water is used for the final

rinse.

- Hot

Hot water is also added for the final

rinse (only possible for programs with

a temperature of at least 140°F/

60°C).

Low water pressure

If the water pressure is below 100kPa

(1bar), the program will be canceled

and the fault messageCheck water in-

take will appear.

If the on-site water pressure cannot be

increased, activating the settingLow wa-

ter pressure will prevent the program

from being canceled.

Factory default: No

CapDosing

You can choose whether CapDosing is

displayed in the program settings.

Factory default: On

Supervisor level

101

Legal Information

Open Source Licenses

You can view information here.

Copyrights and licenses for operator

and control software

Miele uses their own and third party

software which is not subject to any so-

called open source license for the oper-

ation and control of the machine. This

software/these software components

are protected by copyright. The copy-

right powers of Miele and third parties

have to be respected.

Furthermore, this machine contains

software components which are distrib-

uted under open source license condi-

tions. Please refer to the menu item Set-

tings| Machine parameters| Legal informa-

tion| Open source licenses in the machine

for the Open Source components con-

tained therein, together with the corre-

sponding copyright notices, copies of

the licensing conditions valid at the

time, and any further information. The li-

ability and warranty provisions of the

open source licensing conditions as

stated therein apply only in relation to

the respective rights holders.

Payment device

The XCI-AD or XCI box accessory unit

is required to connect a payment de-

vice.

If you wish to change the settings after

the commissioning process, please

contact Miele Service.

Settings for payment systems

You would like to connect a payment

system.

- No payment system

The next settings are skipped and ini-

tial commissioning can be com-

pleted.

- Program operation

The machine is operated using a coin

box. The user purchases a wash pro-

gram.

- Timed operation

The machine is operated using a coin

box. The user purchases a time-con-

trolled program.

- Timed operation with pulse counter

For payment systems where the us-

age time is increased each time a

coin is inserted.

- COM module

The machine is operated by a central

control unit.

Supervisor level

102

External program lock

The control unit has an option to block

programs. Programs are blocked by

an external system via the COM inter-

face.

Factory default: off

Payment system lock

To avoid tampering, a program lock

can be set up in program operation. If

the lock is applied, the program is in-

terrupted and payment credit is lost as

soon as the door is opened.

The time for the lock can be adjusted to

prevent laundry being added.

- Off

- As soon as the program starts

- 1minute after the start of the pro-

gram

- 2minutes after the start of the pro-

gram

- 3minutes after the start of the pro-

gram (factory default)

- 4minutes after the start of the pro-

gram

- 5minutes after the start of the pro-

gram

Program abort

A program that is currently running

can be interrupted even if it is locked.

- On, without code (factory default)

- On, with code

(Code from Expert code setting)

- Do not cancel

Feedback sig. to pay system

Setting the feedback signal for the

coin box.

- Factory default: Off

- End of program

The feedback signal is sent at the

end of the program.

- Release of the start button

The feedback signal is sent when the

start button is released.

- Start and end of program

The feedback signal is sent at the

start and end of the program.

- Program running

The feedback signal is sent con-

stantly between the start and end of

the program.

Supervisor level

103

FOC programs

In coin-box mode, you can decide

whether the Drain/Spin program can be

used for free.

Factory default: Off

Clear paid signal

The “Paid” signal in coin-box mode

can be applied until the end of the

program or discarded if the program is

not started after 5minutes.

Factory default: Off

Debounce time

The debounce time for the payment

signal can be adjusted.

- Short

For coin boxes. (Factory default)

- Long

For central control units.

Please have the model and serial number

of your machine available when

contacting Technical Service.

U.S.A.

Miele, Inc.

National Headquarters

9 Independence Way

Princeton, NJ 08540

Phone: 800-991-9380

www.mieleusa.com/professional

[email protected]

Technical Service & Support

Phone: 800-991-9380

[email protected]

Miele & Cie. KG

Carl-Miele-Straße 29, 33332 Gütersloh, Germany

M.-Nr. 12 182 950 / 02en-US

PWM 908

Little Giant PWM908LW 24 Inch Front Load Washer

Product's Documents

Owner Guide

Specifications

Little Giant PWM908LW Questions and Answers
