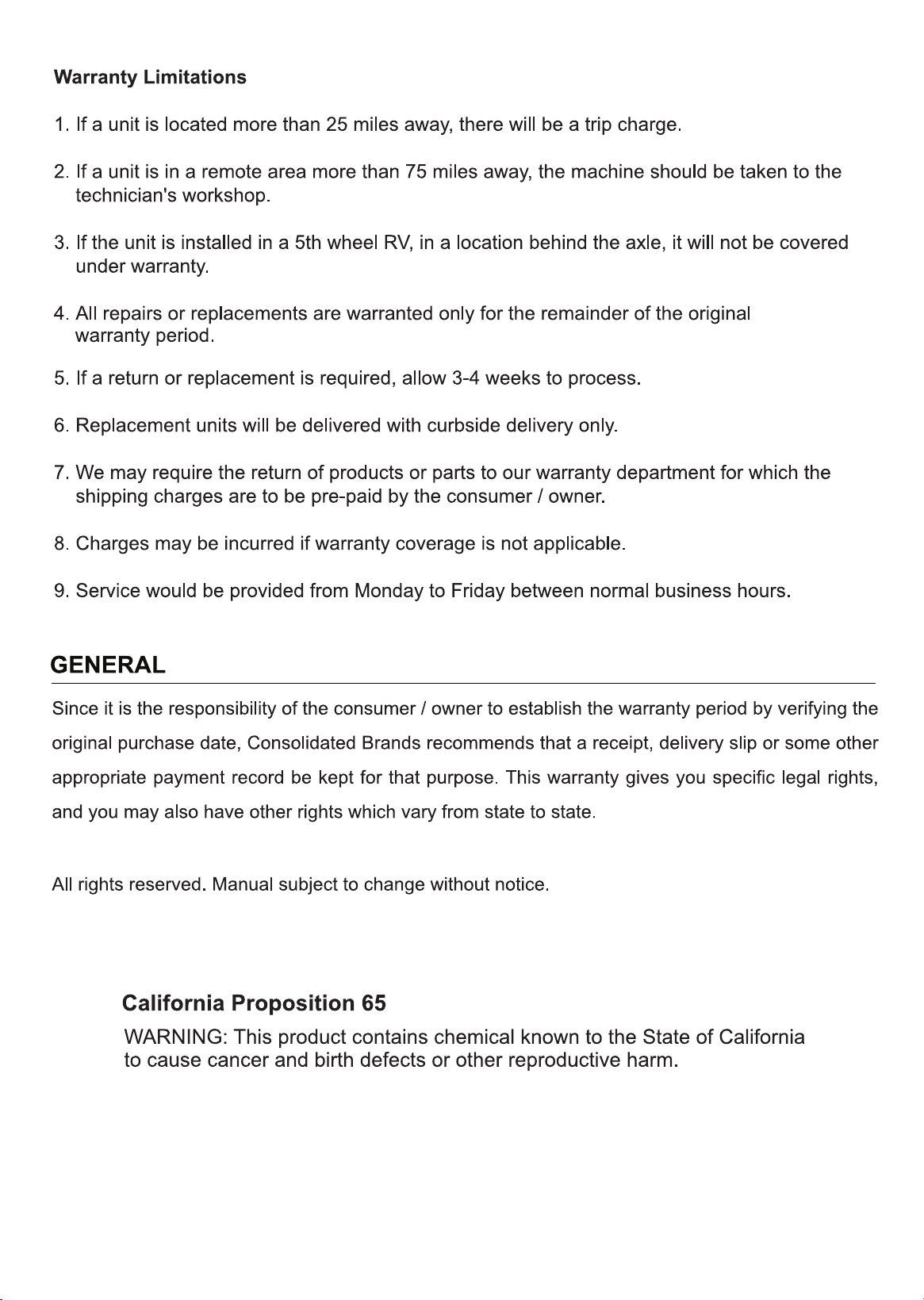

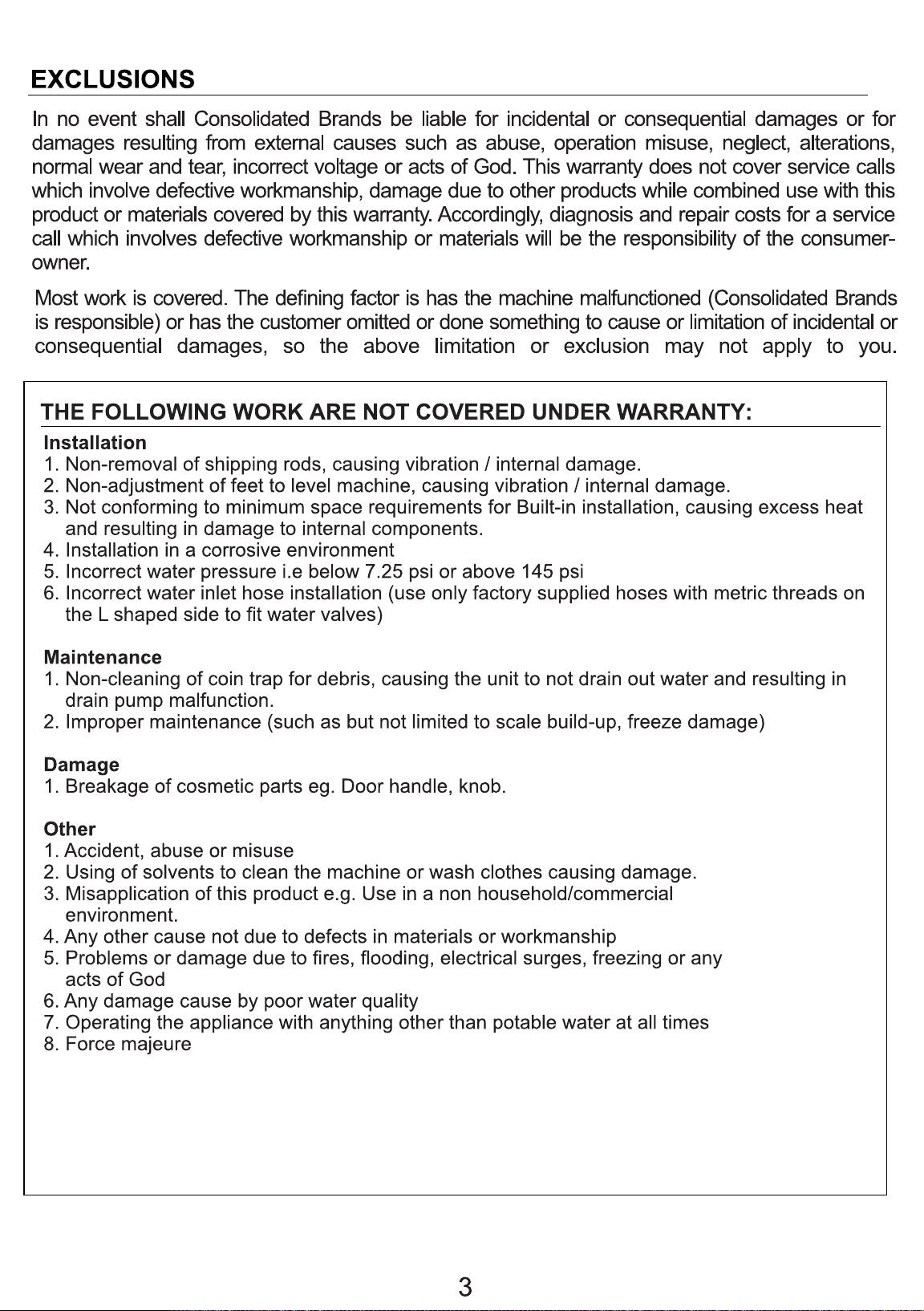

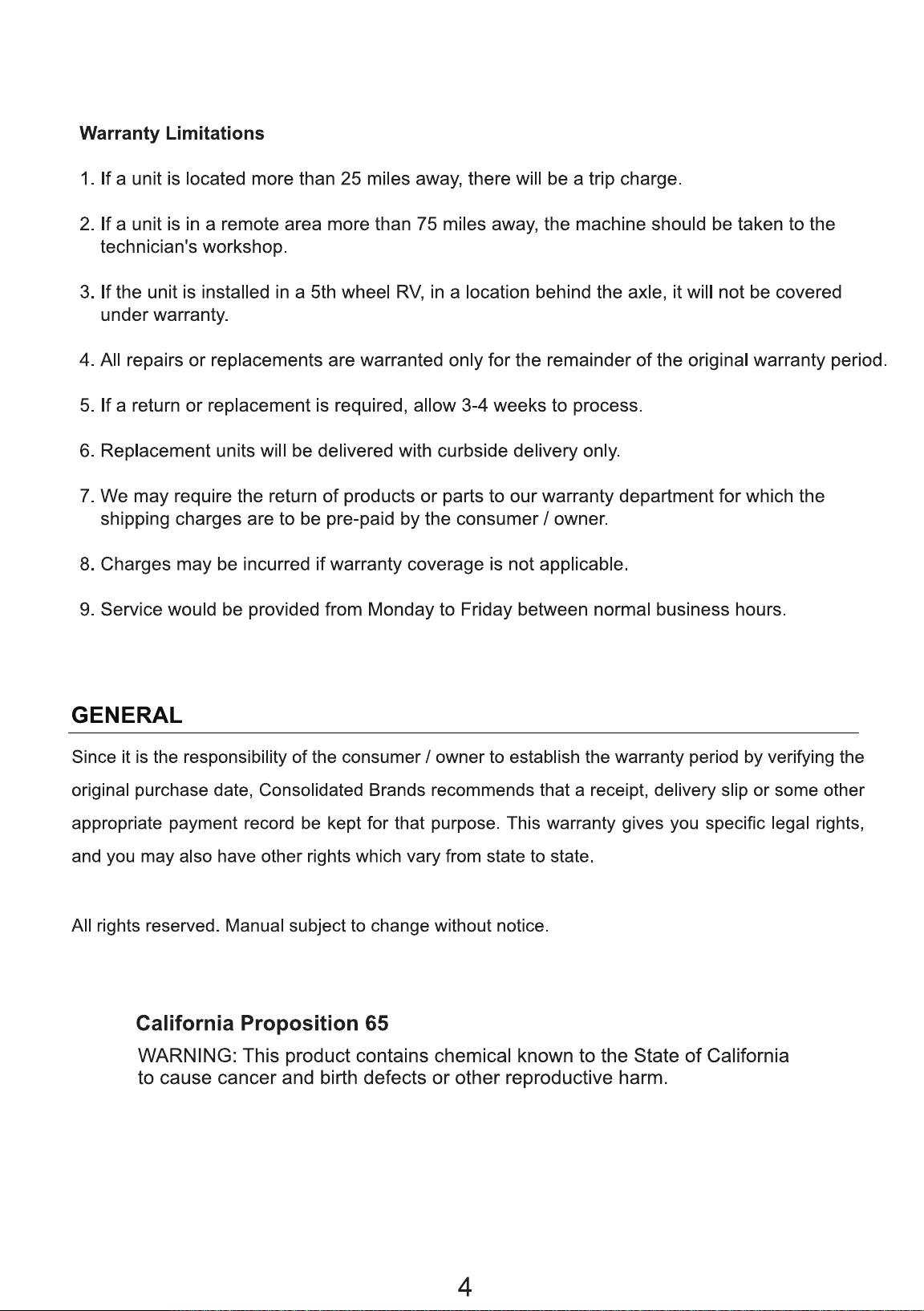

Your appliance is protected by this warranty under normal, personal,
family or household use for 1-2 Year Parts & Labor and 3-5 Year
Motor Only and limited commercial use (90 days) in USA and Canada.
family or household use in USA and Canada, for a period of 1-2 year parts & labor and 3-5 Year motor
only from the date of original purchase. For commercial use, the product is warranted for a period of
25

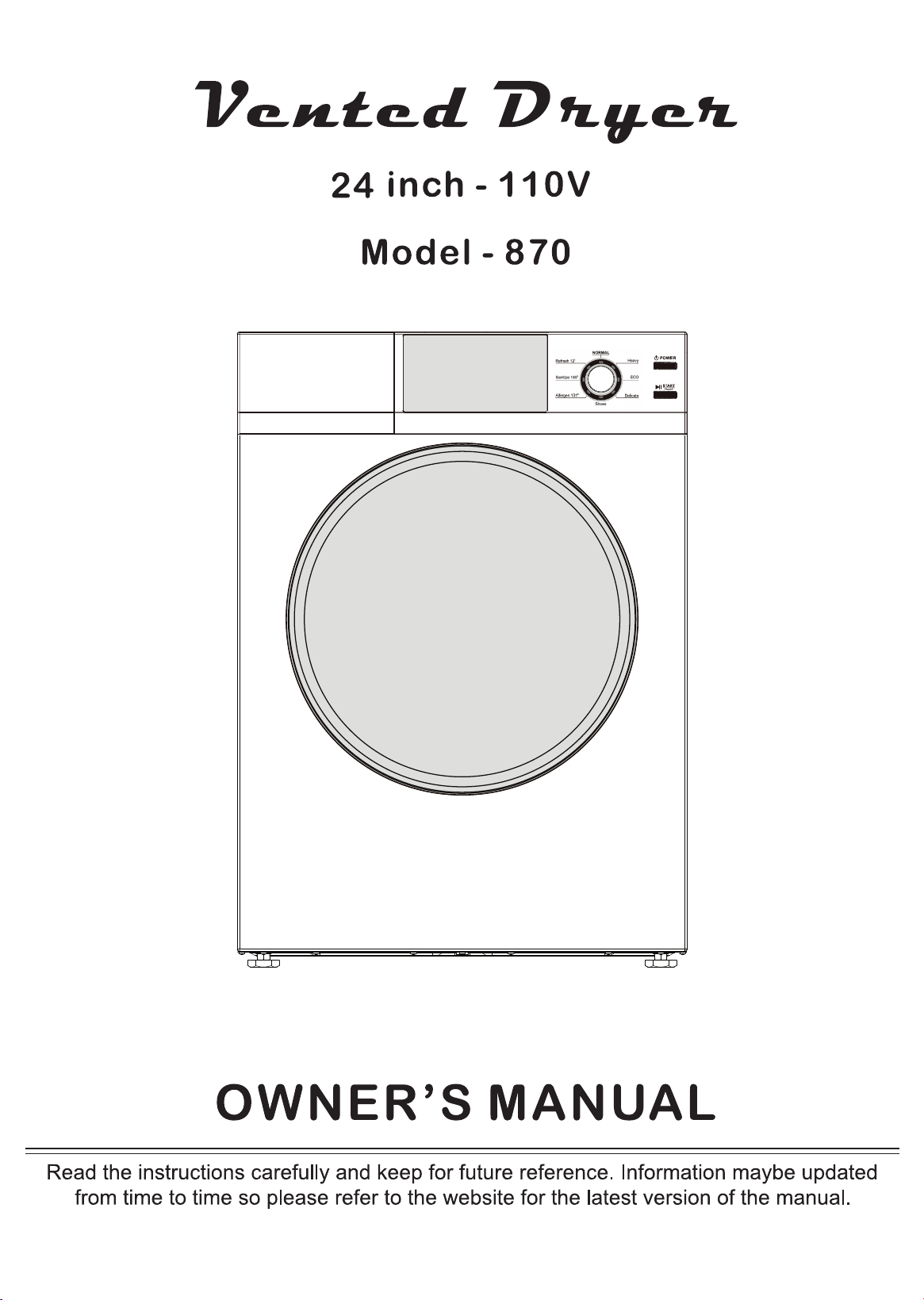

Congratulations on your new Vented Dryer!
Here are some of the best reasons for buying your Dryer:
Options for Sensor and Time Dry programs
Sanitize and Allergen programs for ultimate clean clothes
Refresh program and Auto Wrinkle Guard for perfectly dry clothes
Delay time to operate dryer at your convenience
110V lets you plug it in anywhere
Reversible door option as preferred
Safety Lock
In addition to its contemporary design, this is a highly sophisticated engineered product
that will give you many years of satisfaction.
1
Safety
Use the appliance indoors. It is not intended to be used outdoors.
Ensure that open flame sources, such as candles are not placed on top
of the dryer.
Do not place items in the dryer that are soiled with flammable liquids, oils
and other chemicals. These items should be washed thoroughly before
placing them in the dryer.
Ensure fabric softeners or products to eliminate static are not used inside
the dryer, unless recommended by manufacturers of these products.
Do not dry items containing rubber, plastic or similar materials.
Ensure the dryer and electrical cord are not placed near heat sources,
such as radiators, heaters, air ducts or in direct sunlight.
Ensure vents and ventilation openings are not blocked.
Ensure the power cord is not bent or twisted, and not exposed in an area
where is could be a tripping hazard.
Do not use the dryer if the cord is damaged.
To disconnect the dryer, press the power button to turn it off, then grasp
the plug of the power cored firmly and pull straight out of the outlet.
Do not open the dryer and reach into the drum while it is rotating.
Ensure the dryer is not overloaded.
Do not tamper with controls.
Perform regular maintenance and cleaning of lint filter after each use.
Ensure periodic cleaning of exhaust duct is done by a qualified technician.
Check that foreign objects are not in the drum.
This appliance is not intended for use by persons, including children, with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Do not allow children to play on or in the appliance. Close supervision of
children is necessary when the appliance is used near children.
In order to reduce the risk of fire, electric shock, and/or injury, please follow
safety precautions. Read all instructions carefully and save for
future reference.
2

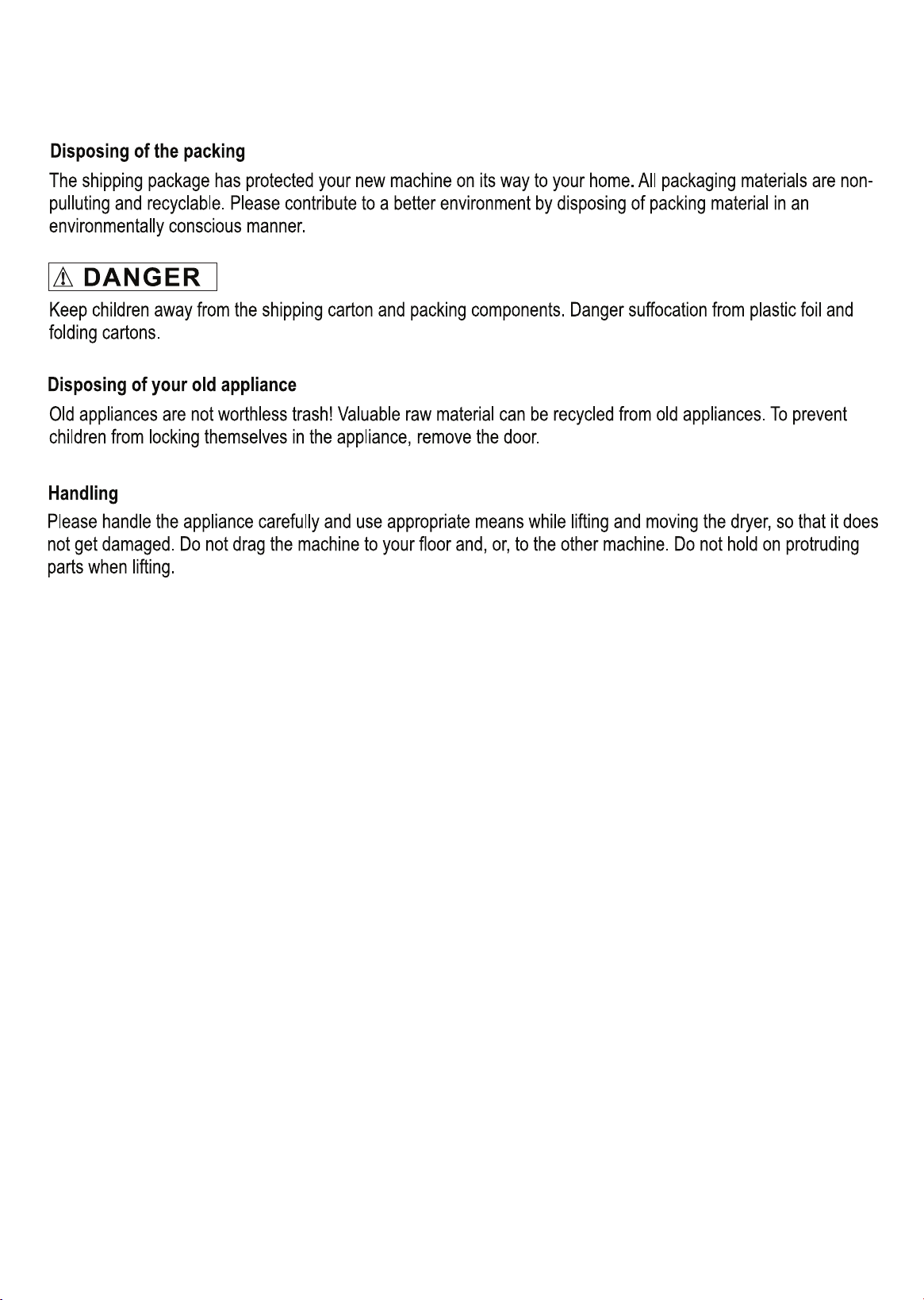

Safe Disposal
Before discarding the dryer, please remove the door to prevent child entrapment.
3

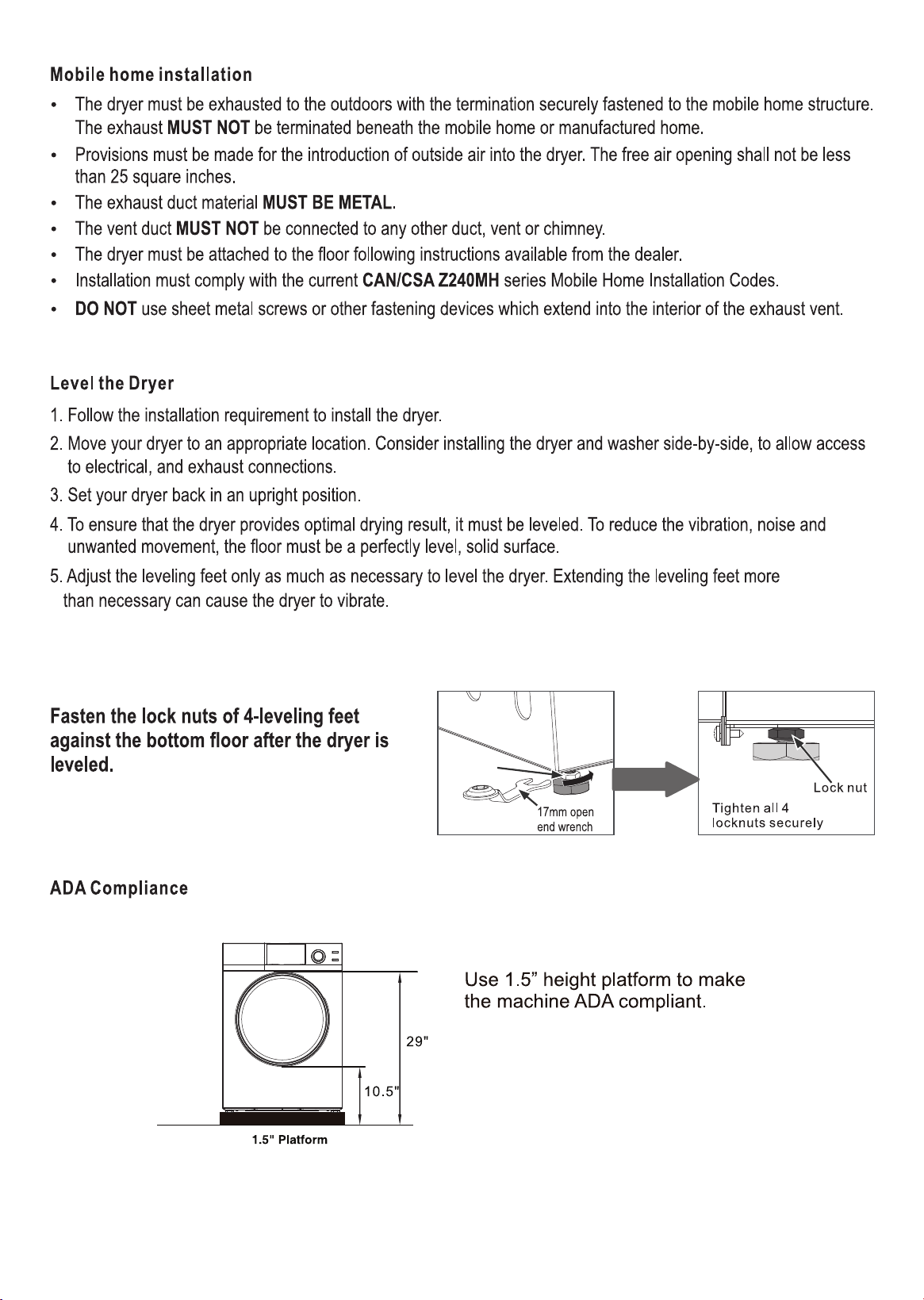

Installation
The dryer must be properly grounded. Do not modify the plug.
Do not install the dryer in a tight-fitting cabinet. Ensure there is adequate ventilation space all around the
dryer (please see detailed installation instructions).
Do not use flexible plastic venting materials which may collapse. Use only vent hoses that are approved
by the manufacturer.
In Canada and the United States, only those foil-type flexible ducts, if any, specifically identified for use
with the appliance by the manufacturer shall be used and that comply with the outline for the
Clothes Dryer Transition Duct, subject to 2158A, shall be used.
In Canada, the exhaust duct shall be 4” (10.2 cm) in diameter.
In the United States, the exhaust duct shall be 4” (10 cm) in diameter.
The total length of flexible metal duct shall not exceed 8 feet (2.4 m).
The duct shall not be assembled with screws or other fastening means that extend into the duct and
catch lint.
The appliance shall no be exhausted into a chimney, wall, ceiling, attic, crawl space, or a concealed
space of a building.
The dryer must be installed and serviced by a qualified technician.
Install the dryer according to manufacturer's instructions and local codes.
4

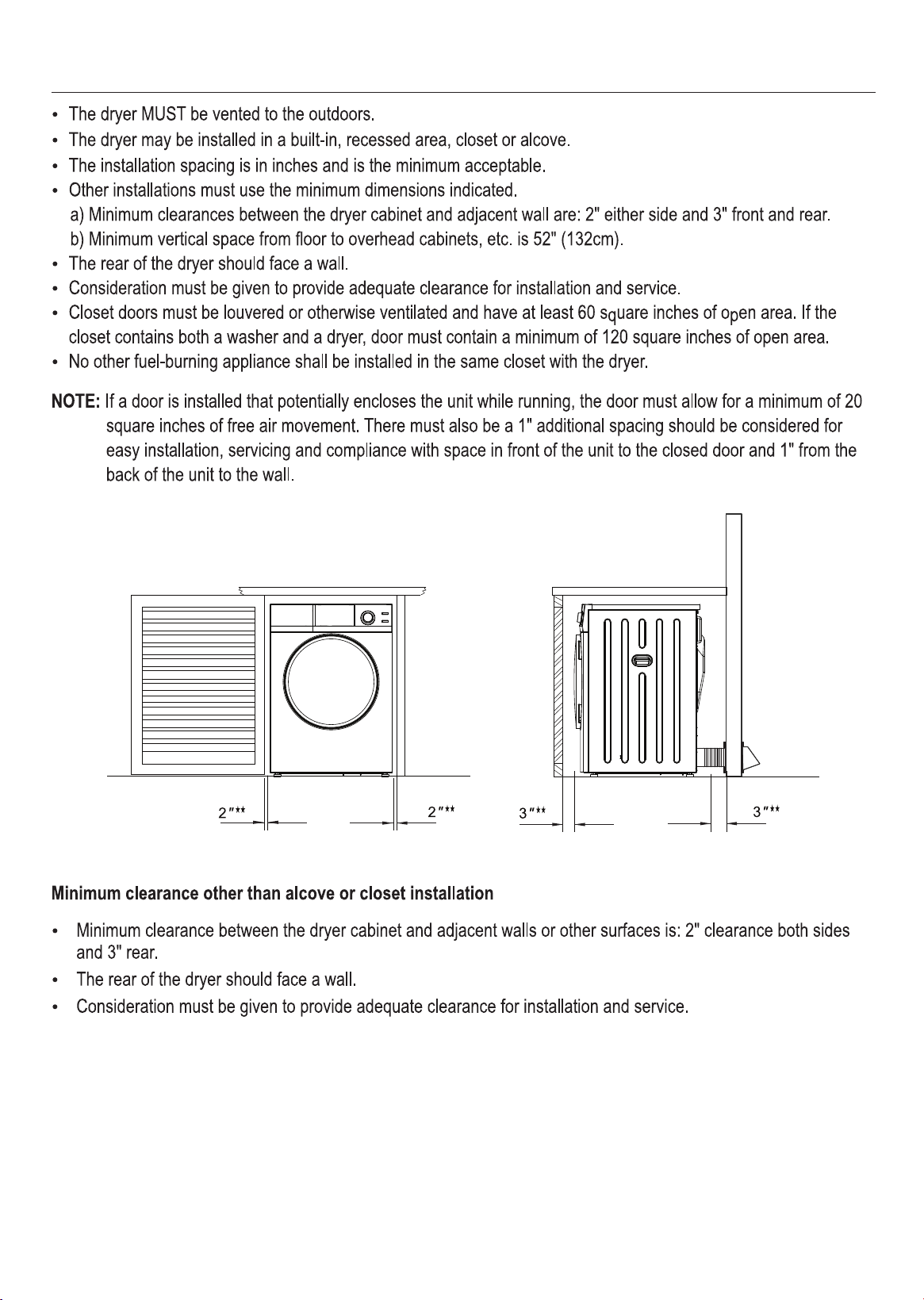

Built-In, Recessed, Closet and Alcove Installation
5
6

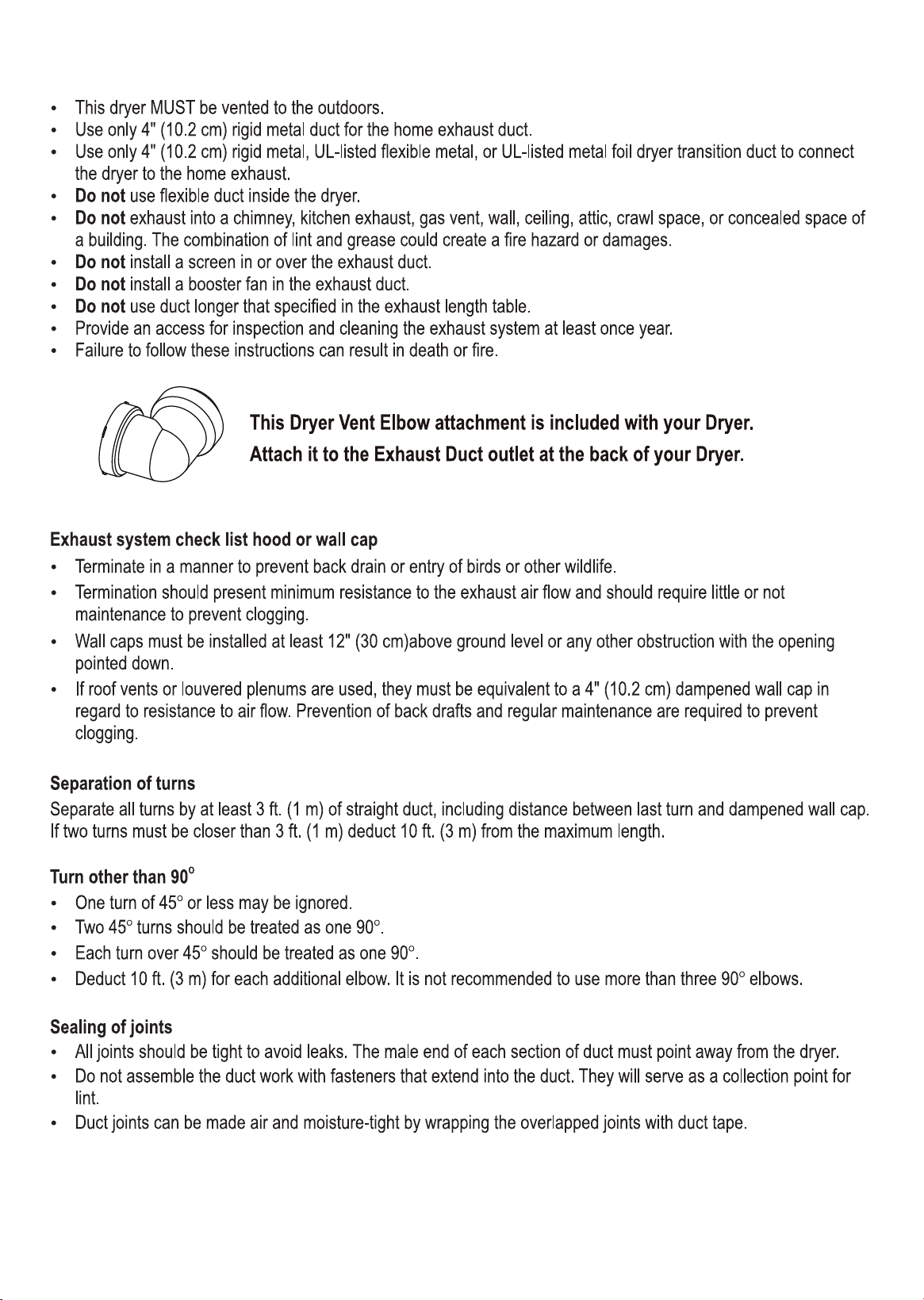

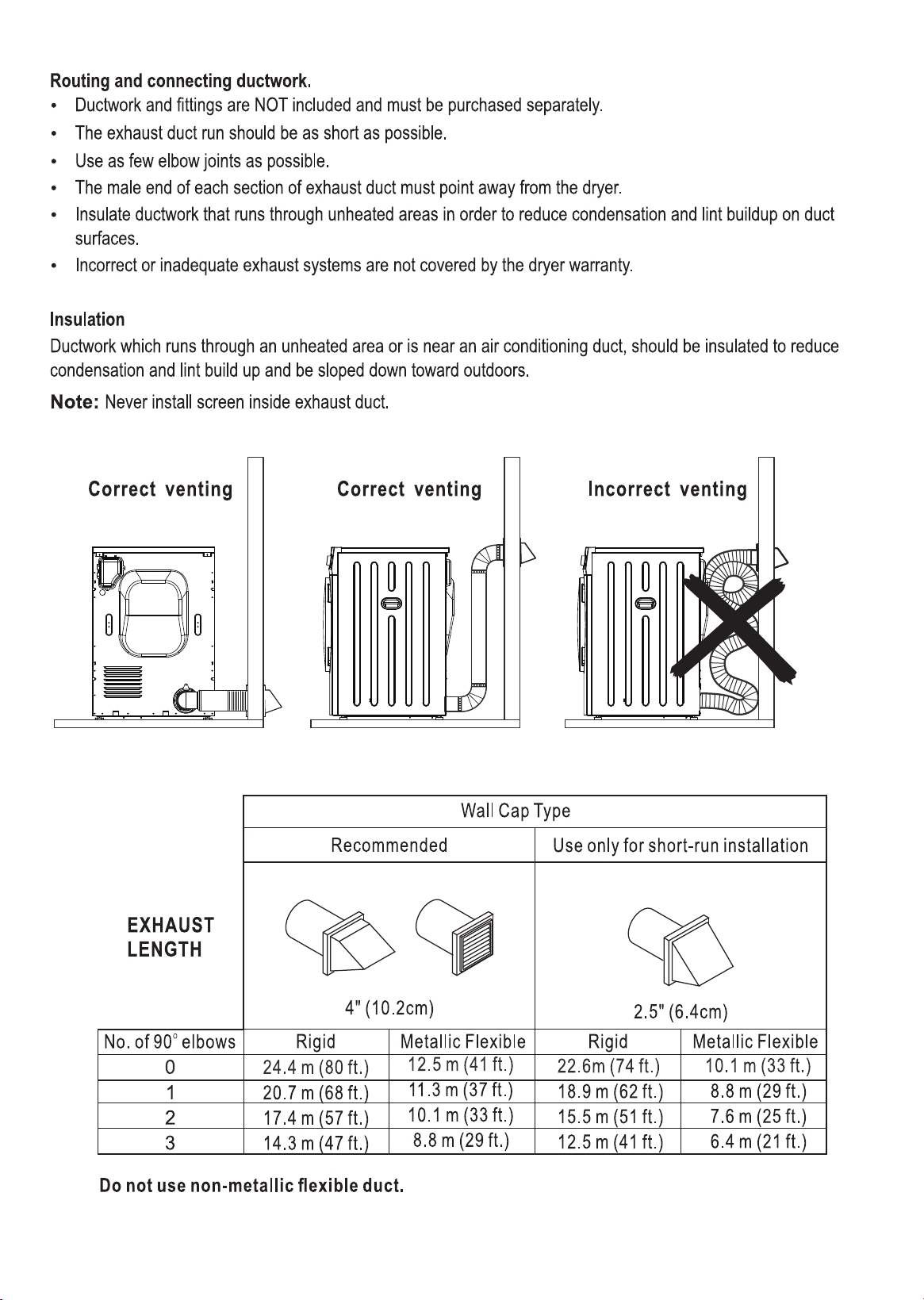

Venting Connections
7
8

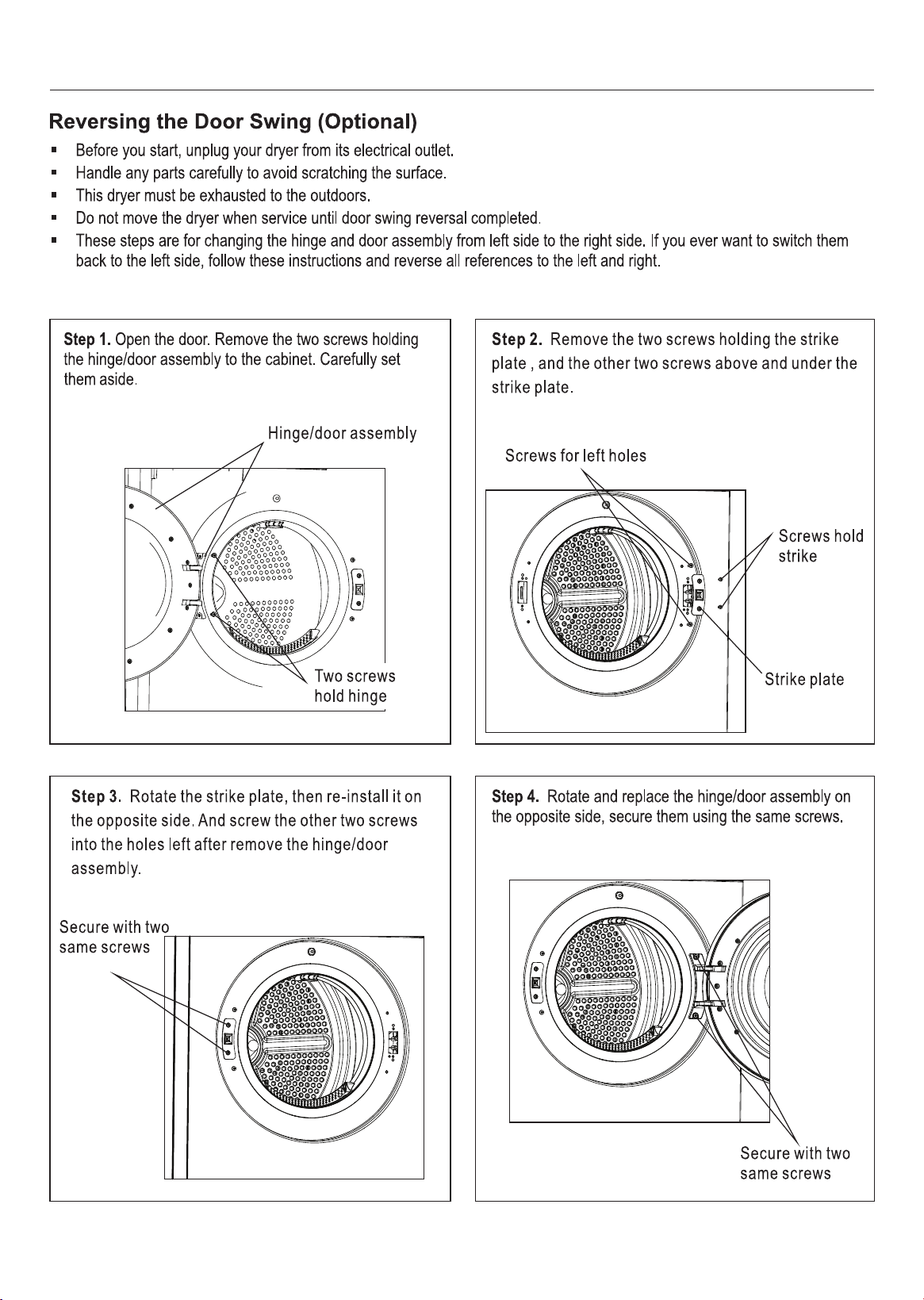

Door Reversal
9

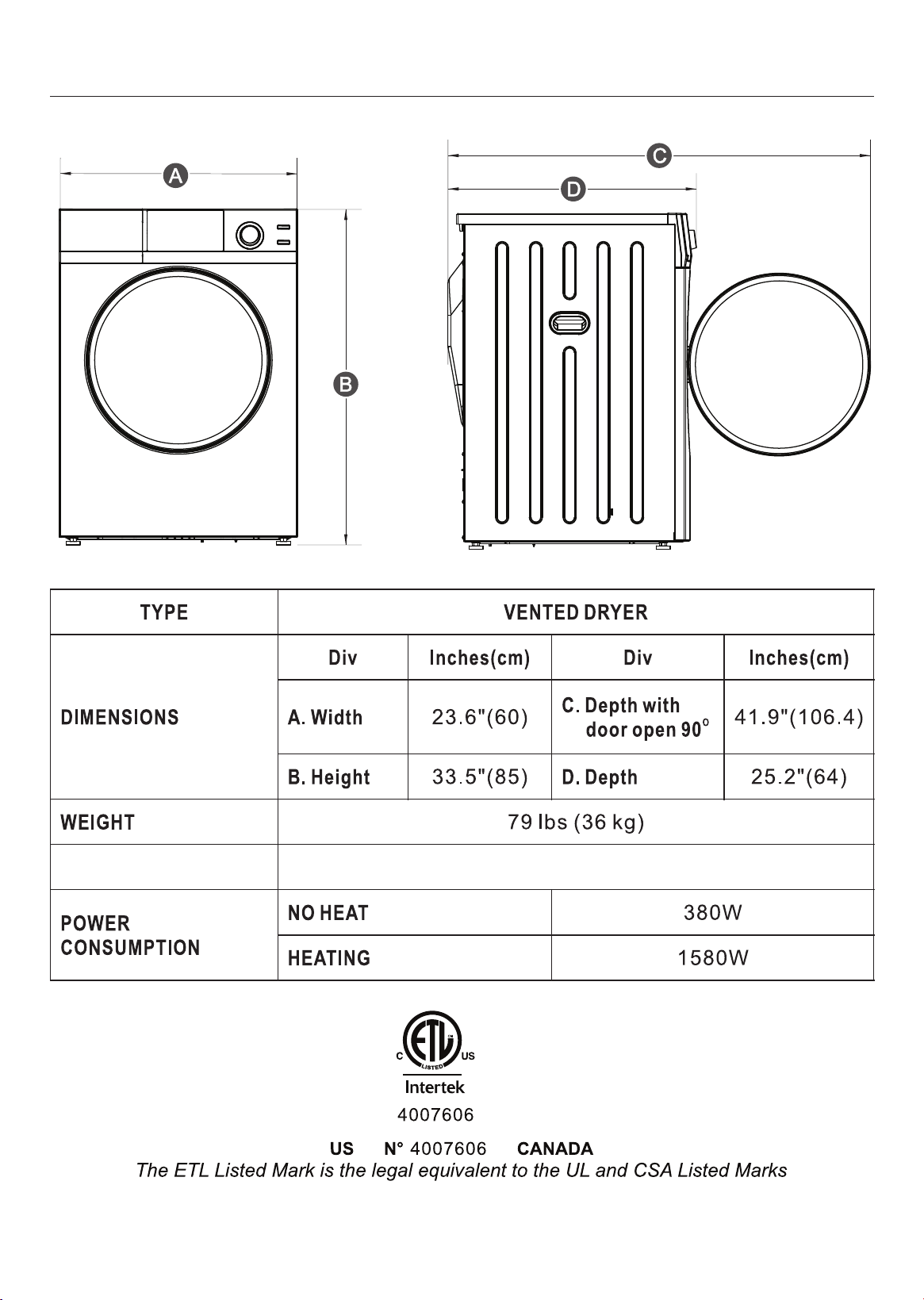

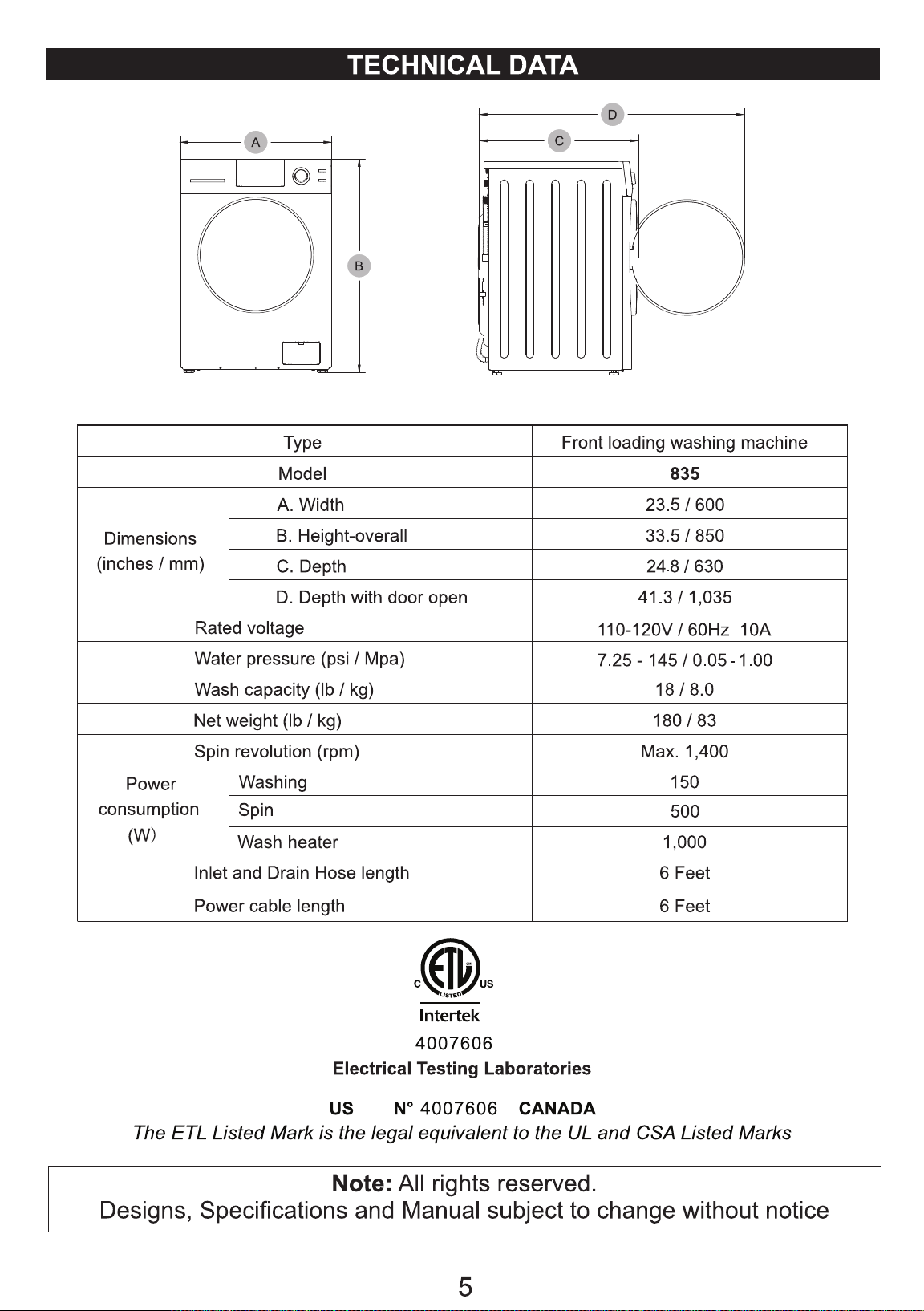

Technical Data
ELECTRICAL
1200W / 110V / 15A
10

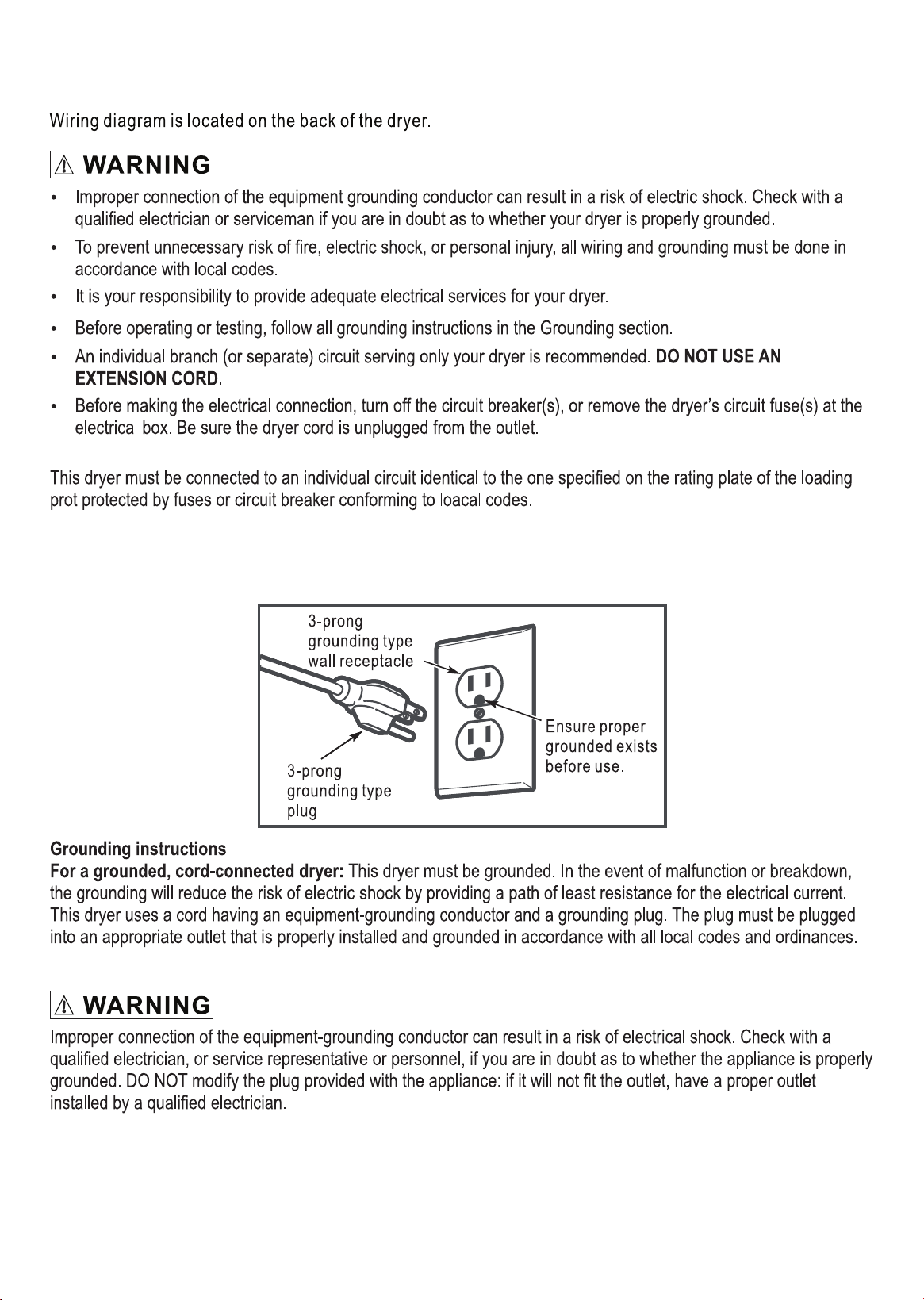

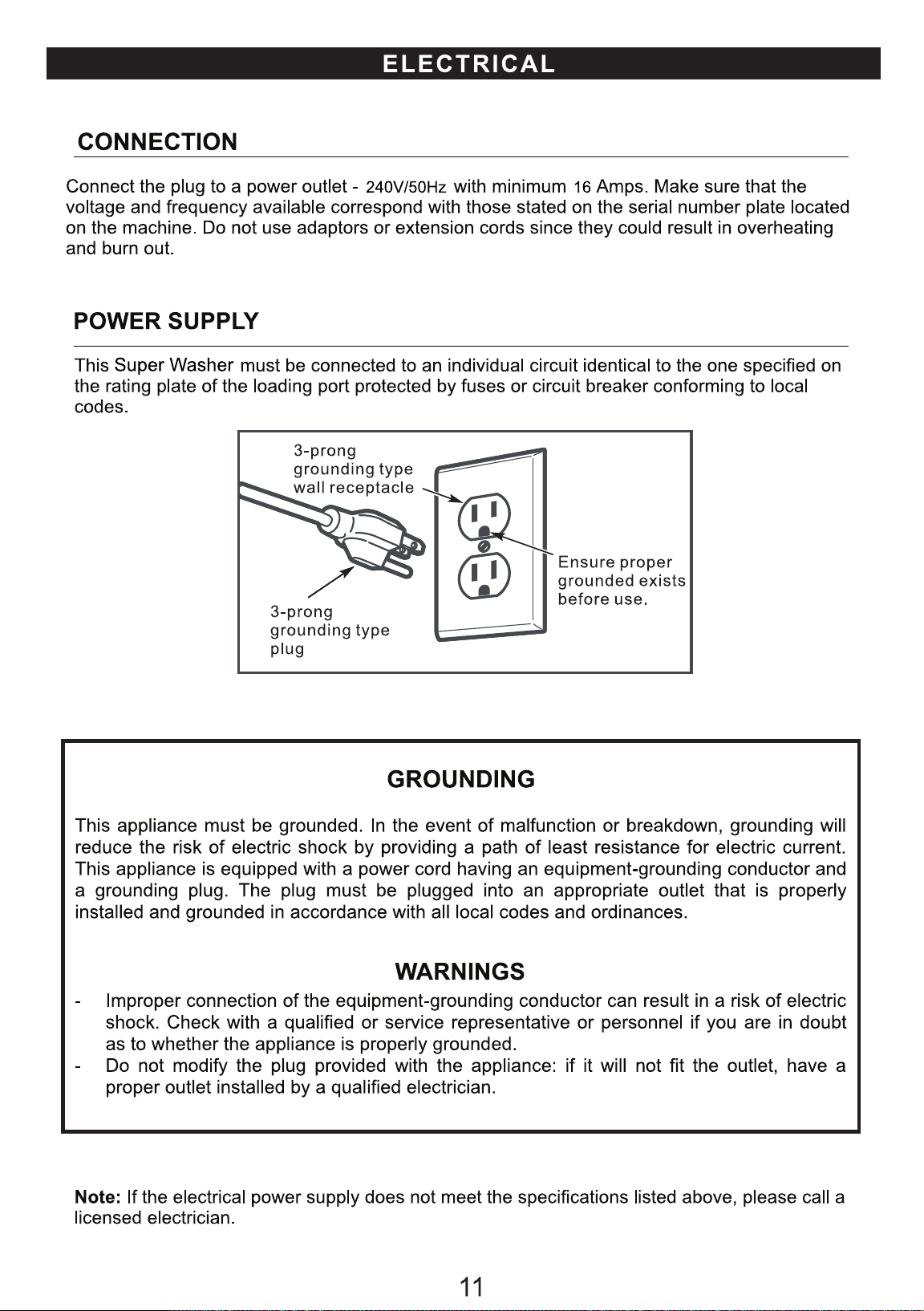

Electrical
11

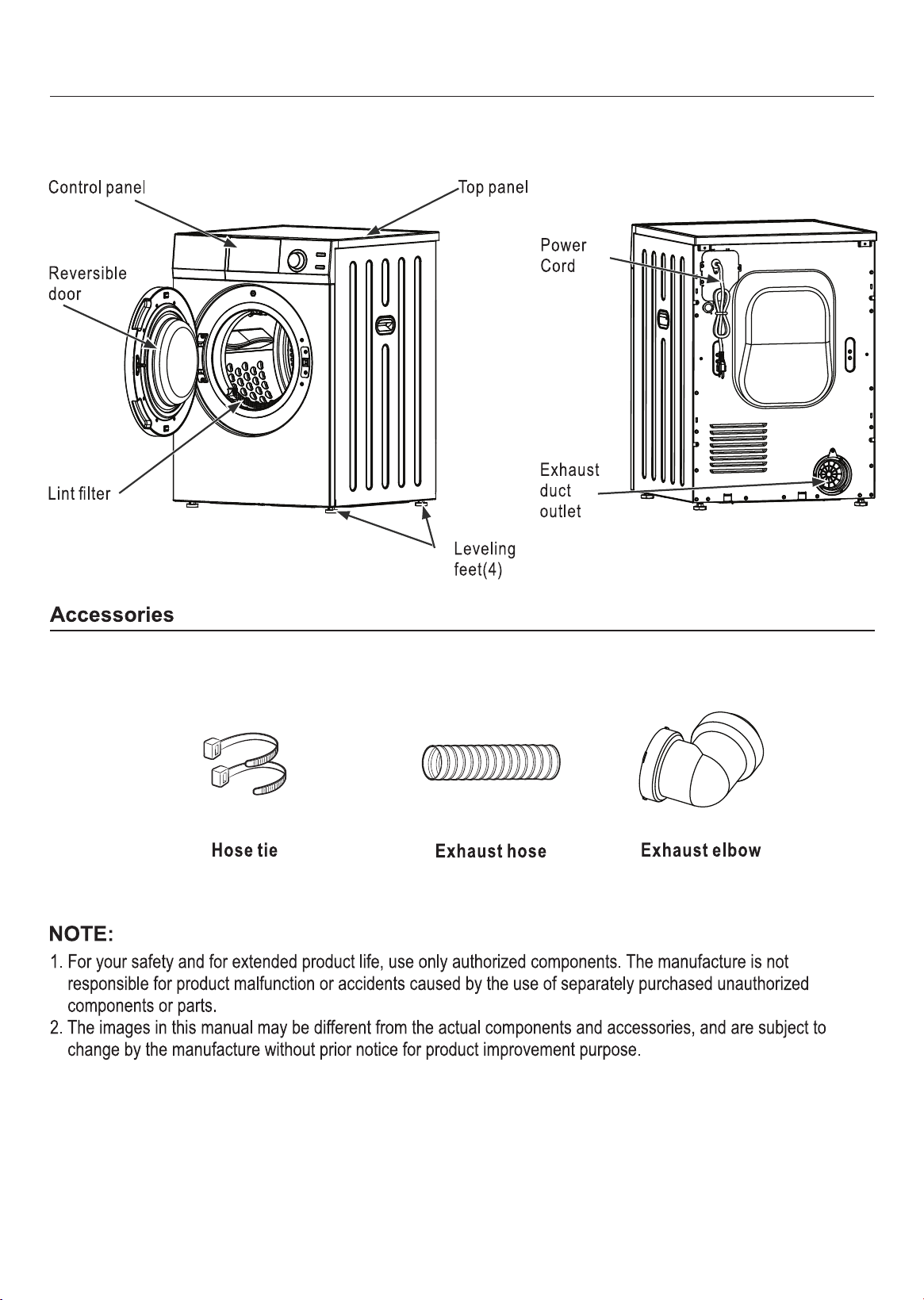

Diagram of the Dryer
12

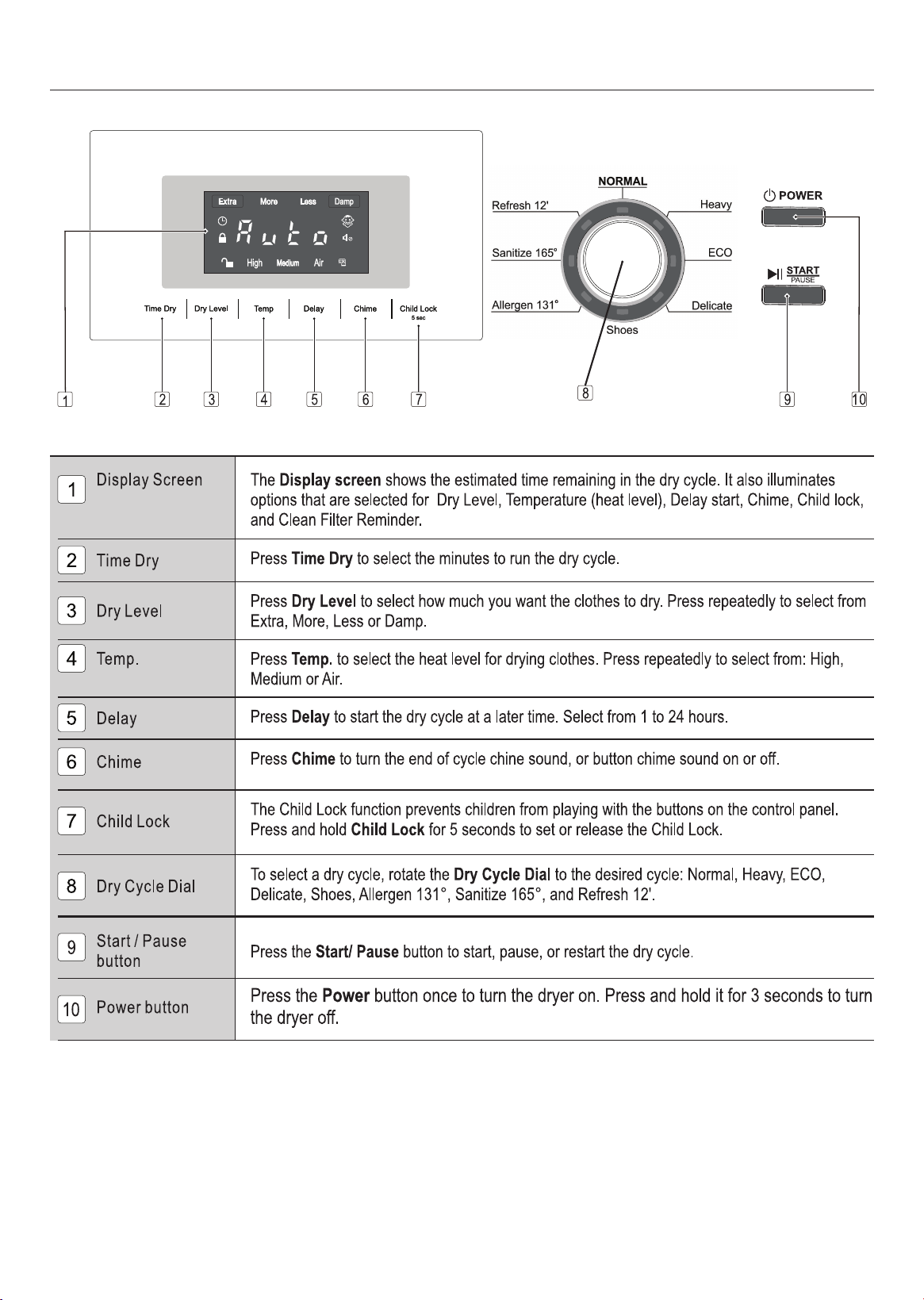

Control Panel
13

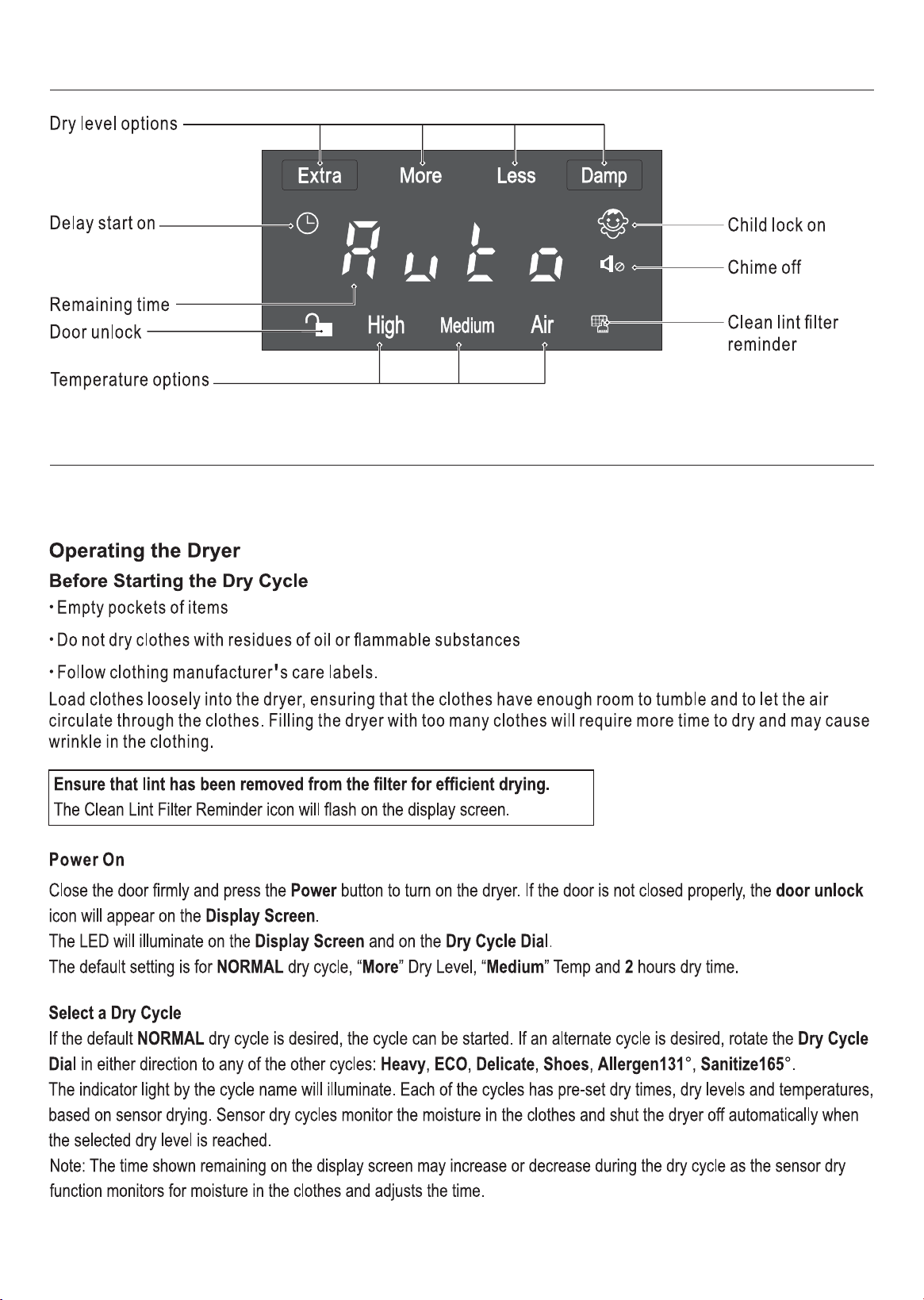

Display Panel

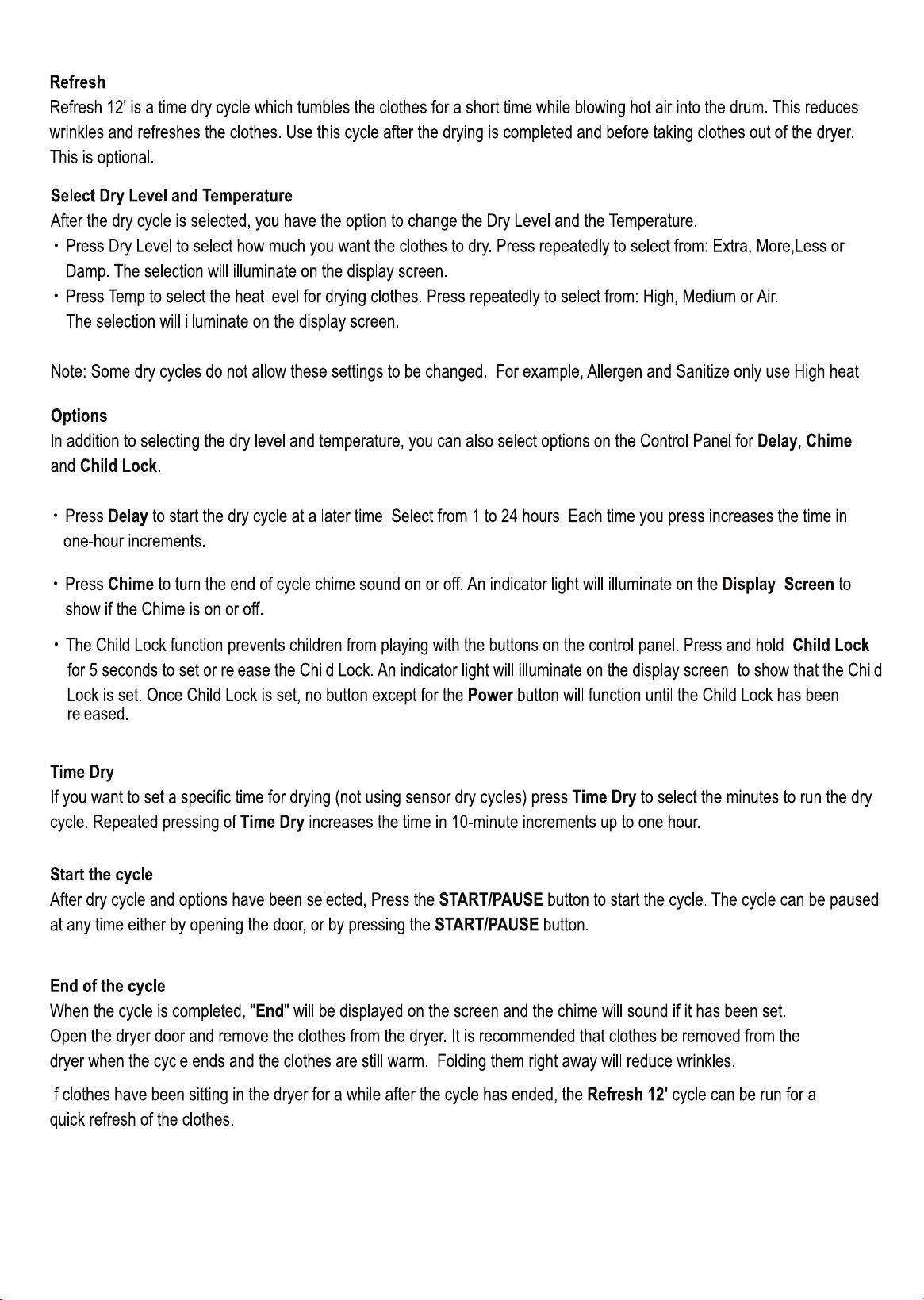

OPERATING INSTRUCTIONS
Before using the Dryer, please check the inside of the drum to ensure that children or pets have not climbed
into the appliance.
14
15

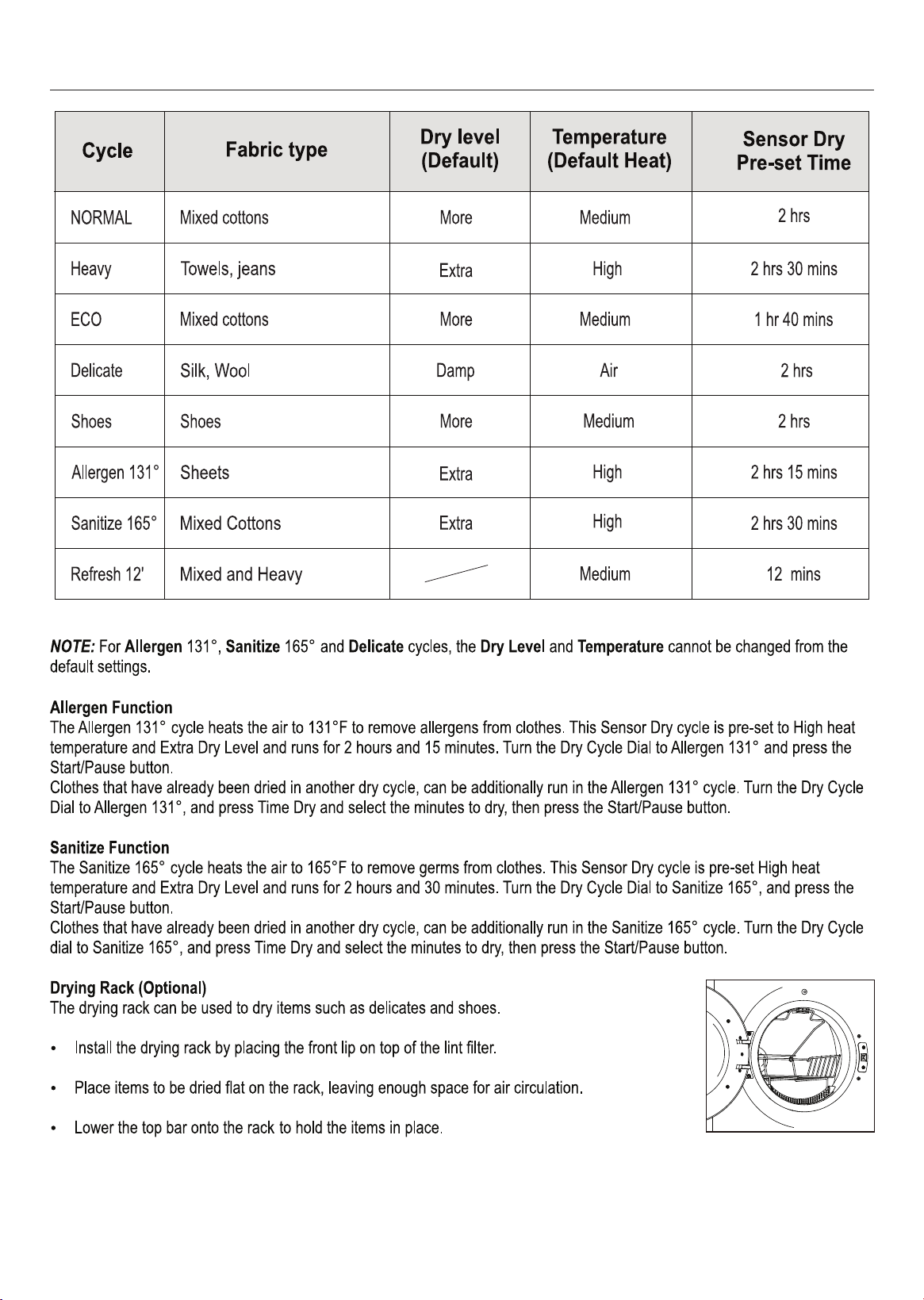

Program Selection Chart
16

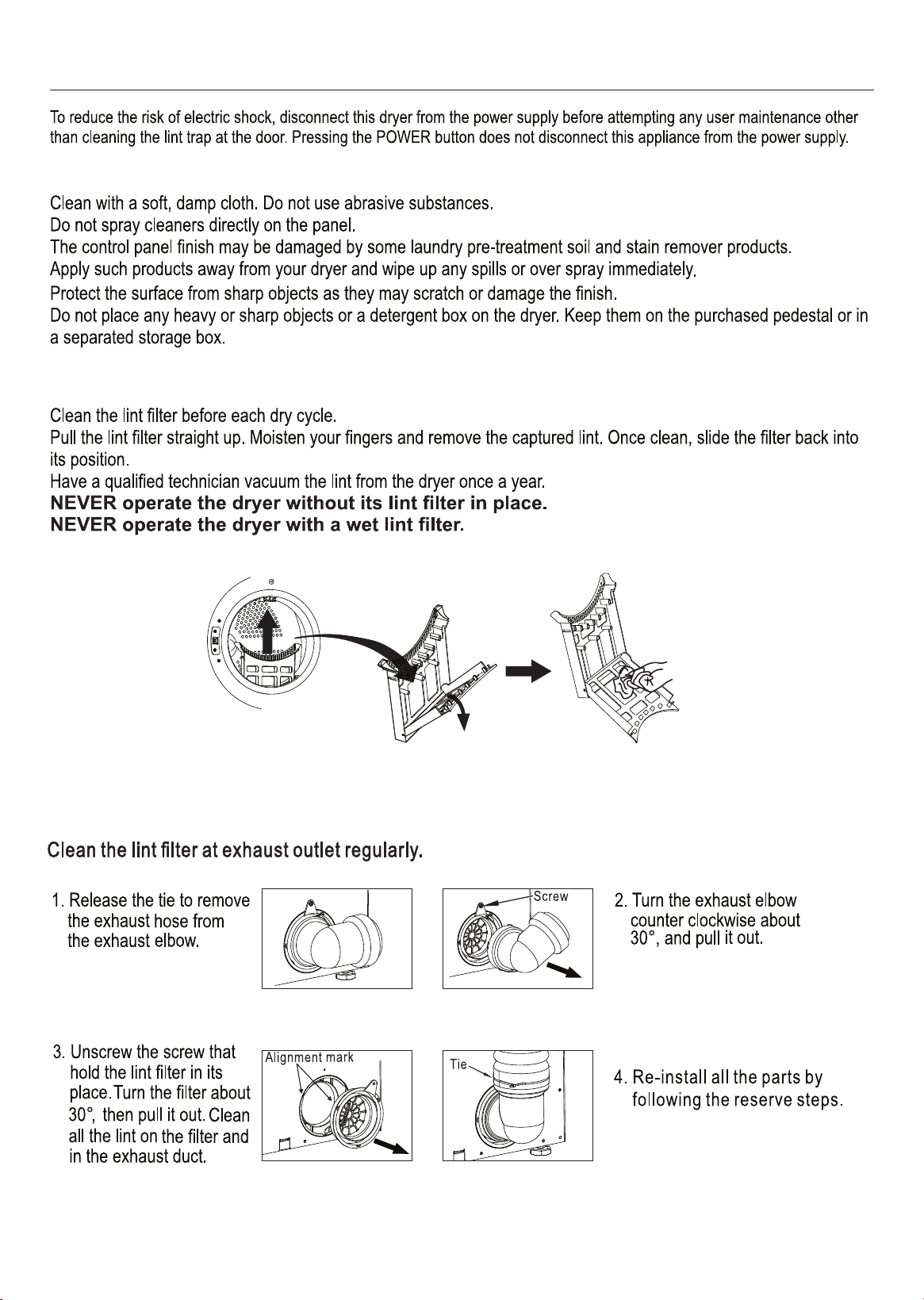

Maintenance
Cleaning
Lint Filter
17

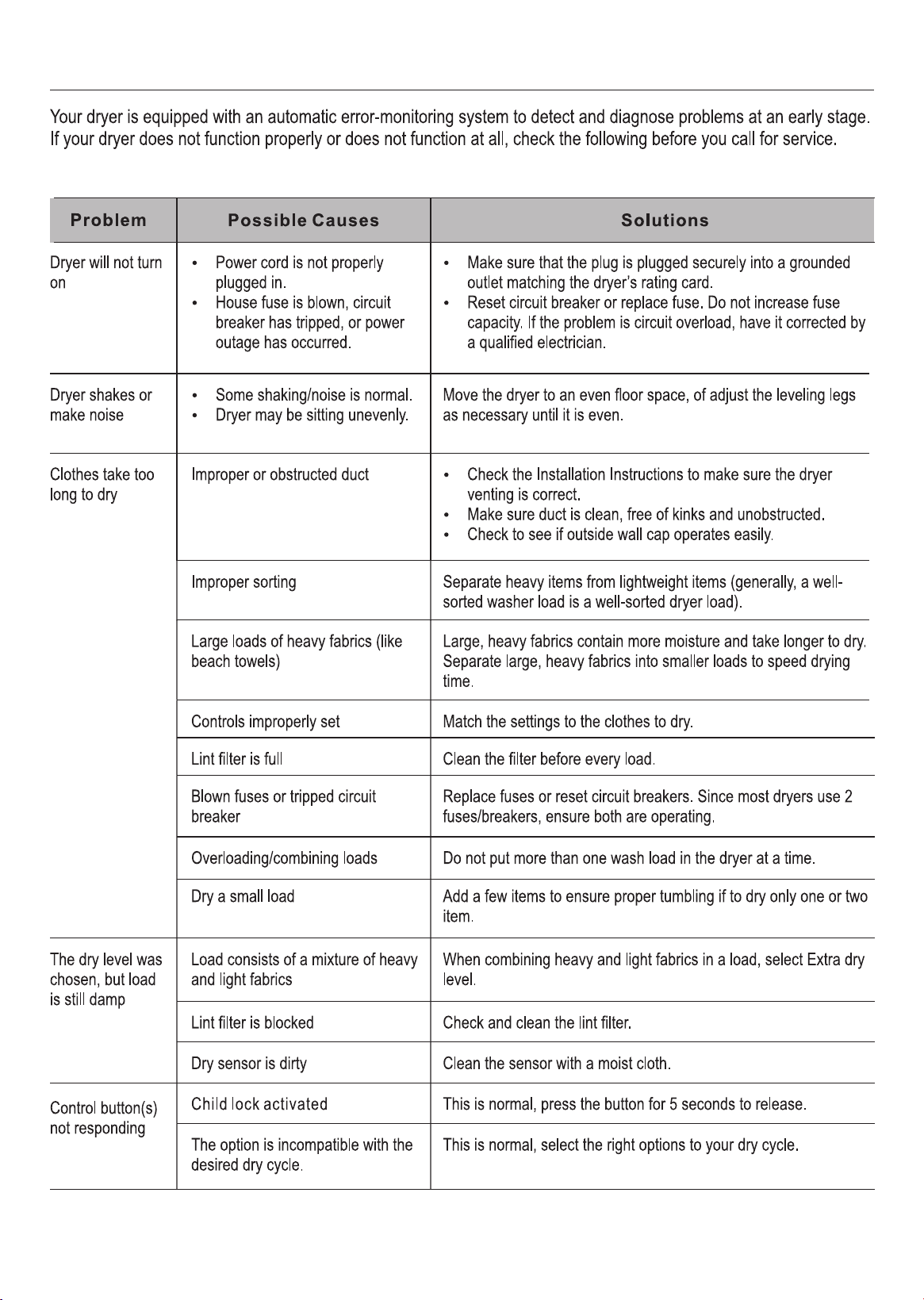

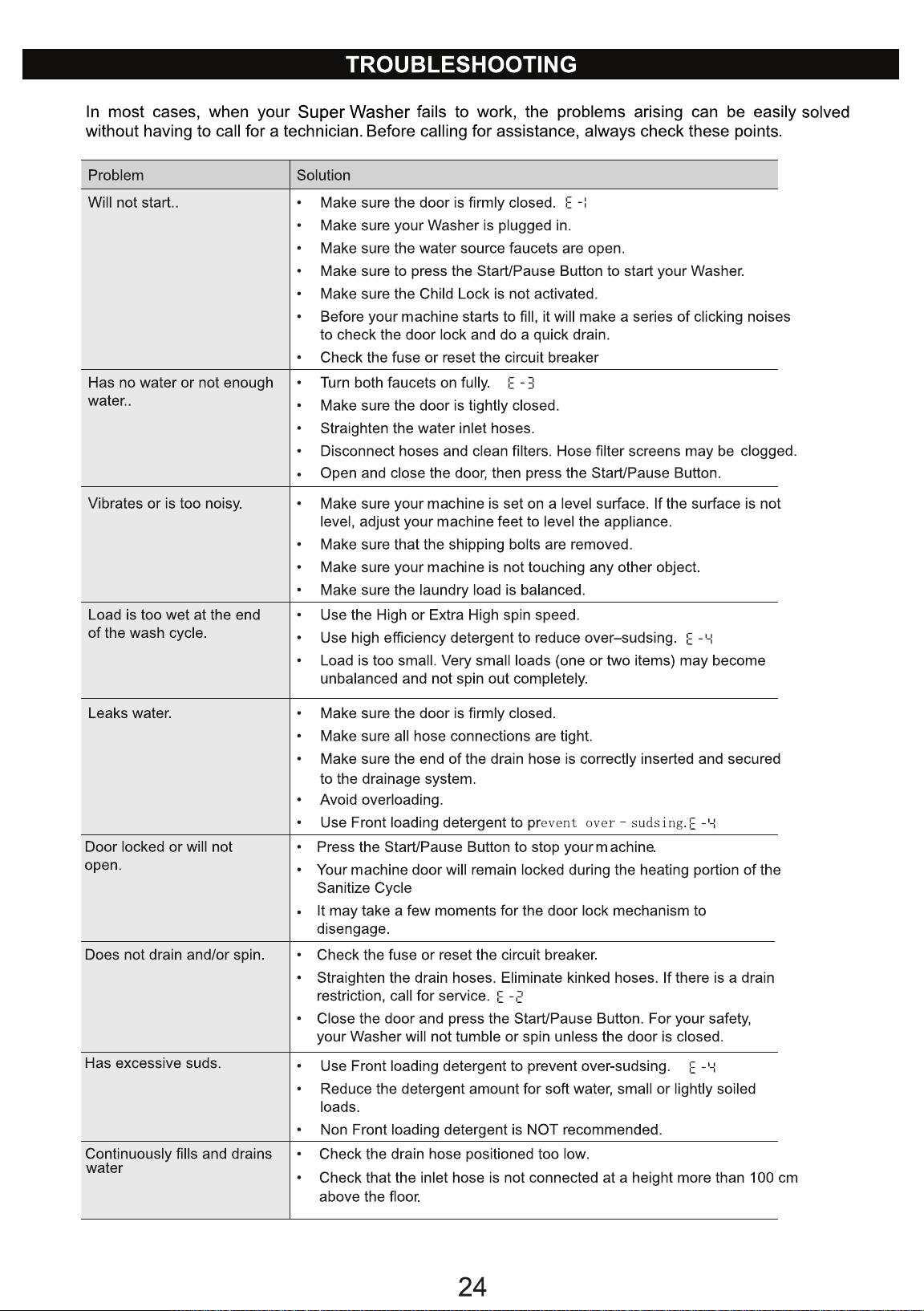

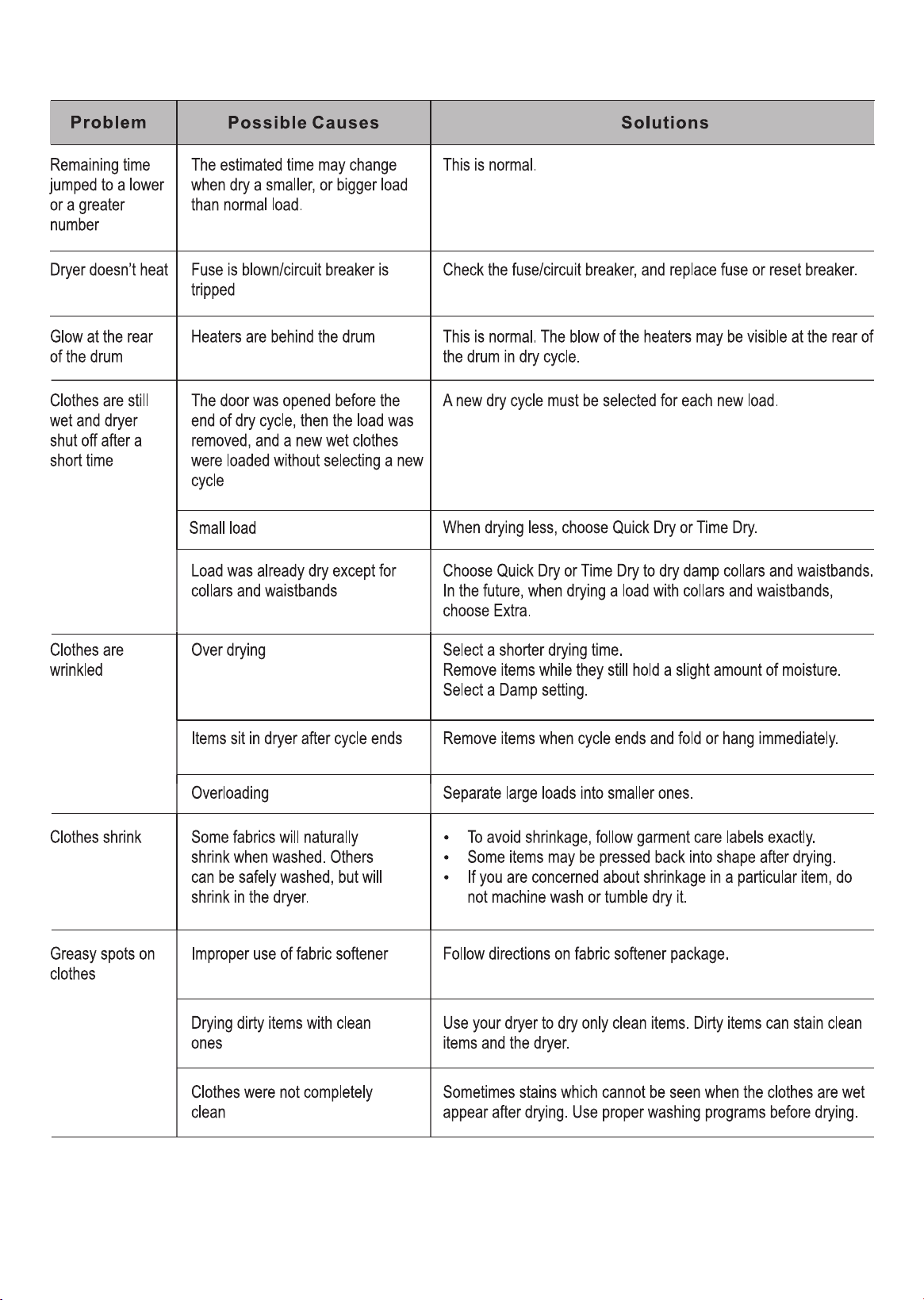

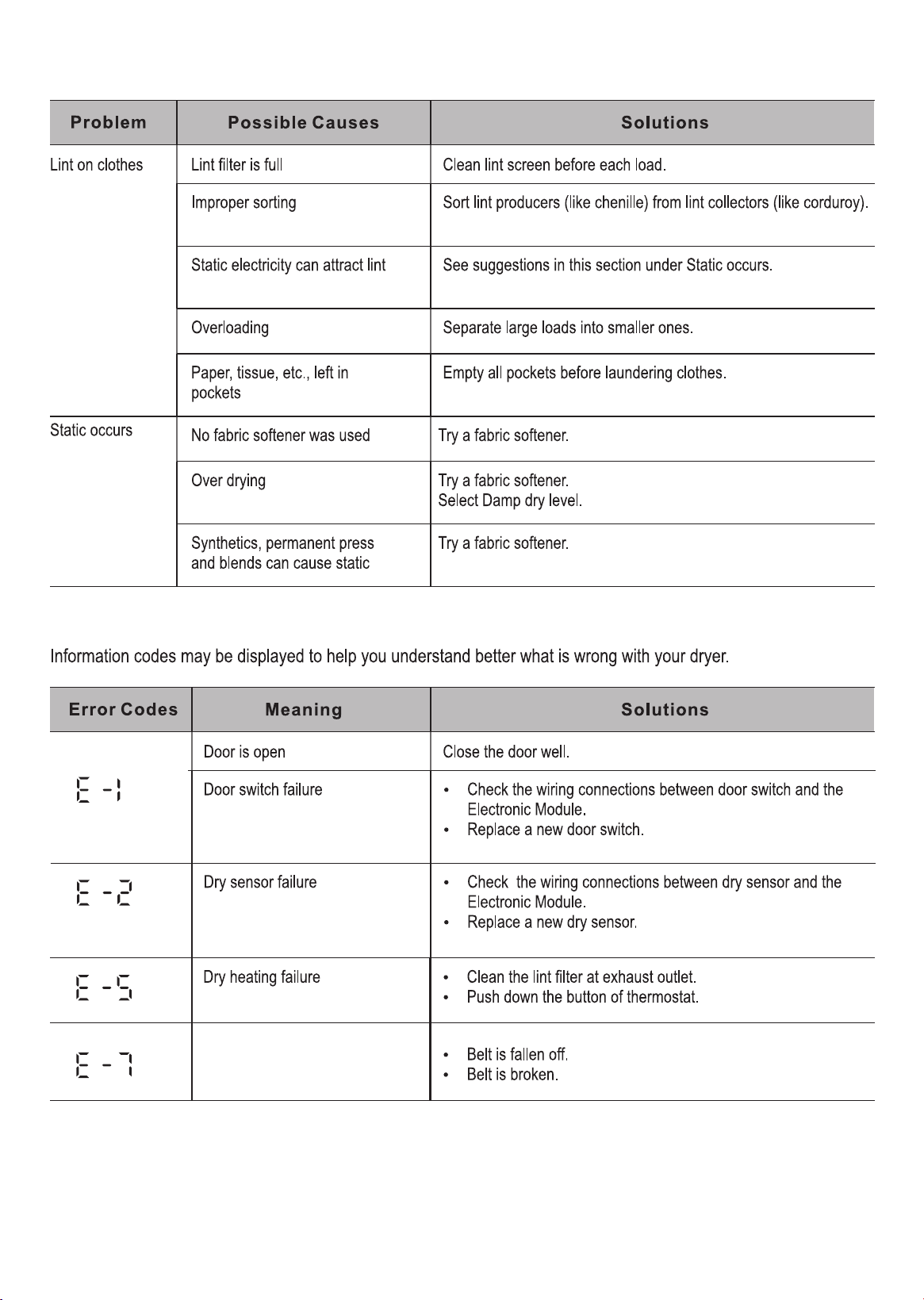

Troubleshooting
18
19

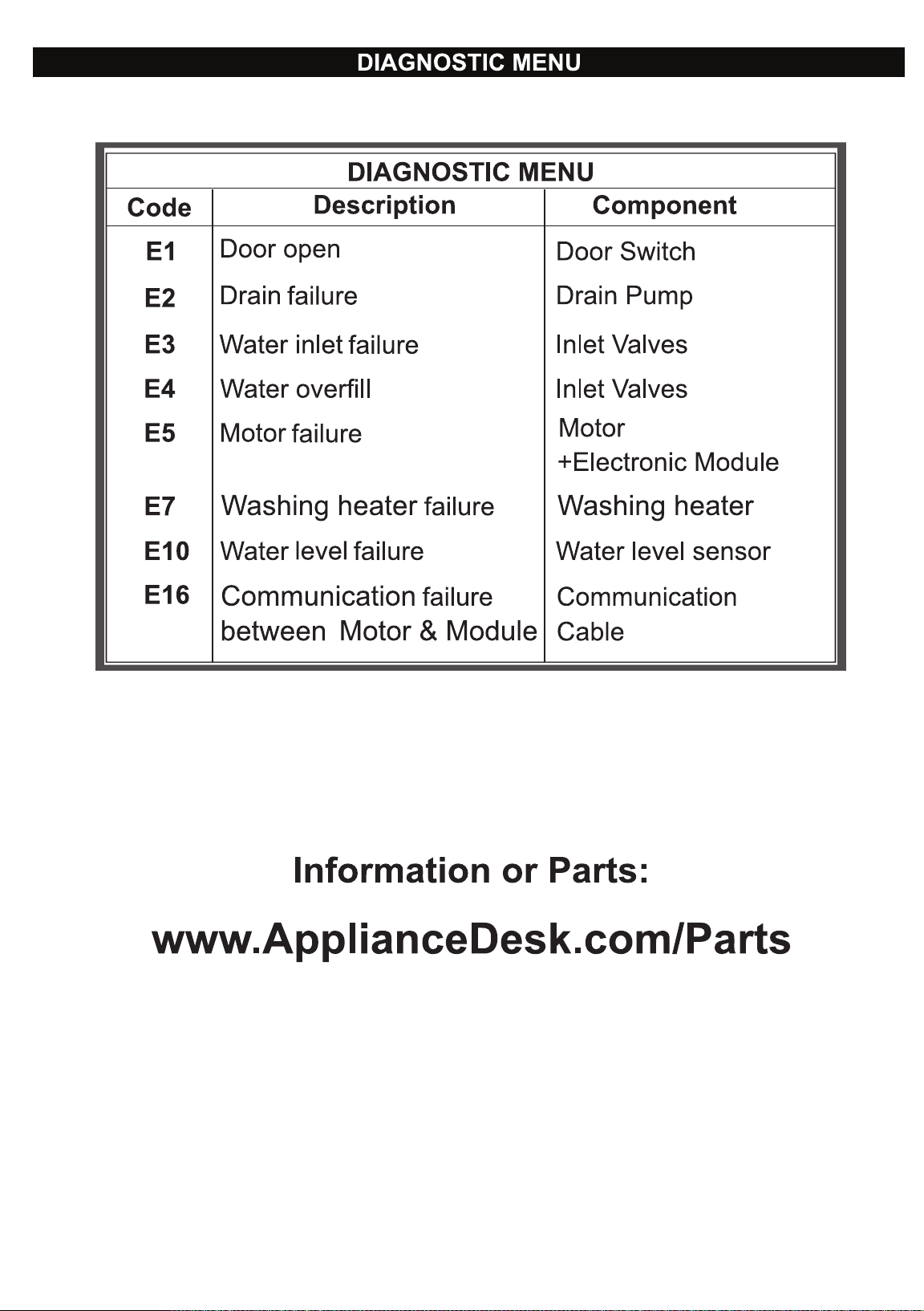

Error Codes
Drum does not rotate
