USER GUIDE
6.5'' Home In-Wall / Ceiling Speakers
Visit Our Website
SCAN ME
PyleUSA.com
PDIW67
www.PyleUSA.com
2
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
Features:
• In-Wall / In-Ceiling System
• 2-Way Stereo Sound Speakers
• 6.5'' Long Throw Woofers
• 1'' High Temperature Voice Coils
• 1'' Titanium Dome Tweeters
• 360 Watts Rated Peak Power
• Frequency Response: 65Hz-22kHz
• 4-8 Ohm Impedance
• Enclosed Speaker Housing Style
• Mounts Flush on Walls or Ceilings
• Perfect for Custom Installations & Applications
• Includes Cut-Out Template for Easy Installation
• Vented Design for High Power and Deep Bass Response
• Overall Dimensions (W x H x D): 9.52'' x 13.02'' x 4.28''
• Cut-Out Dimensions (W x H x D): 8.24'' x 11.76'' x 3.68''
California Prop 65 Warning
WARNING:
This product may expose you to chemicals, which is known to
the state of California to cause cancer, birth defects and other
reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
www.PyleUSA.com
3
40 60
0 0
WALL
Thank you for purchasing this PYLE in-wall/in-ceiling speaker system.
This state-of-the-art product has been carefully designed and manufactured
for your installation needs. It has been thoroughly tested to ensure consistent
and reliable performance. If you have any questions regarding the installa-
tion or operation of your PYLE in-wall/in-ceiling speaker system that are not
covered in this manual, please contact your dealer for assistance.
TOOLS NEEDED FOR INSTALLATION
The in-wall/in-ceiling speakers are designed for easy installation.
However, if you are unsure of your ability to properly install these speakers,
please contact your dealer or a qualied installer.
SPEAKER PLACEMENT
Front Speakers
Pencil Phillips #2 screwdriver Measuring tape
Utility knife Carpenter’s level Awl
www.PyleUSA.com
4
REAR SPEAKERS
IN-CEILING
Proper placement of the speakers is important
to achieve the most realistic soundstage
possible. These recommendations are for
optimum speaker placement. You can make
slight adjustments without diminishing the
listening experience.
Front speakers should be placed the same distance from each other as from
the listening position. They should be positioned at ear level, with tweeters
aimed toward the listener for the best sound. In a home theater setup, the
surround speakers should be placed slightly behind the listening position.
Ideally, they should face each other and be placed higher than ear level.
If that’s not possible, position them behind the listener in the wall or ceiling,
facing forward. The surround speakers should provide a diuse, ambient
sound, complementing the main program material from the front speakers.
In Dolby® Digital and DTS systems, aim the tweeters toward the listening
position at ear level.
5-6FT
WALL WALL WALL WALL
www.PyleUSA.com
5

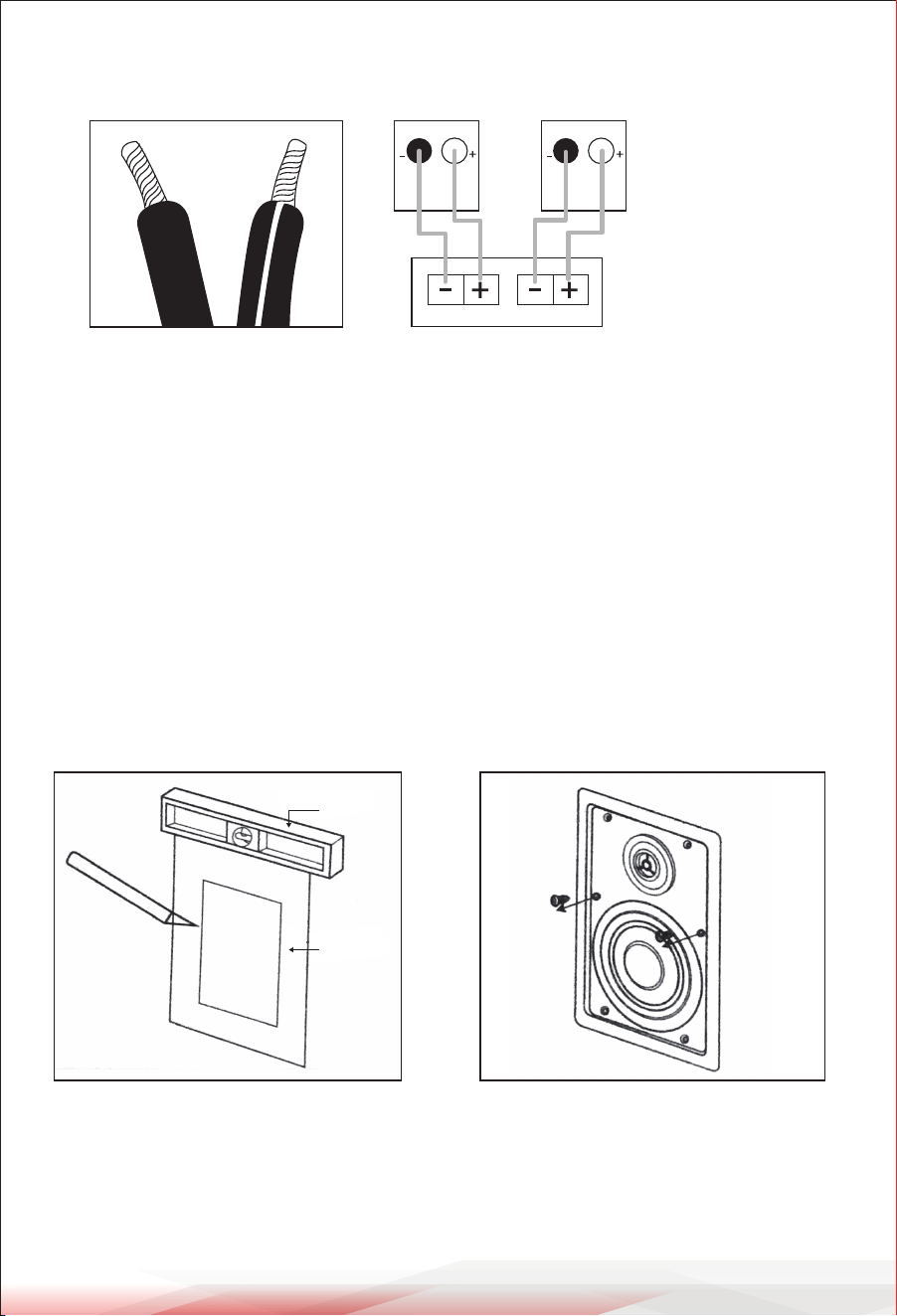

SPEAKER CONNECTIONS
Connection Tips
For optimal sound quality, ensure both speaker wires are the same length.
If one speaker is closer to the amplier than the other, hide the excess wire
behind the wall. Speaker terminals have corresponding (+) and (-) terminals.
Red denotes the (+) terminal, and black denotes the (-) terminal. It's crucial to
connect both speakers the same way: (+) on the speaker to (+) on the amplier,
and (-) on the speaker to (-) on the amplier. Connecting speakers out of phase
results in thin sound, weak bass, and poor stereo imaging. For multi-channel
surround sound systems, correct polarity is equally important to preserve the
proper ambiance and directionality of the program material.
EXISTING CONSTRUCTION
IN-WALL / IN-CEILING SPEAKERS
LEFT RIGHT
LEFT RIGHT
Front or Rear
Speaker Outputs
Cut the drywall:
Note: Always allow at least one-half
inch between a wall stud and the
speaker cutout, or the locking tabs
will not be able to swivel into place.
Screw out the two screws to separate
the frame rst.
Level
Template
www.PyleUSA.com
6
The in-wall speakers feature unique swivel mounts for the tweeters that
enable you to aim the very directional high frequencies toward the listening
position, at ear-level height.
Tweeter Adjustment:
Before installing the speaker grille, gently press on the outer edge of the
tweeter mount to adjust the position of the tweeter. The tweeter will not
swivel more than 15 degrees in any direction; do not attempt to force it to
move further.

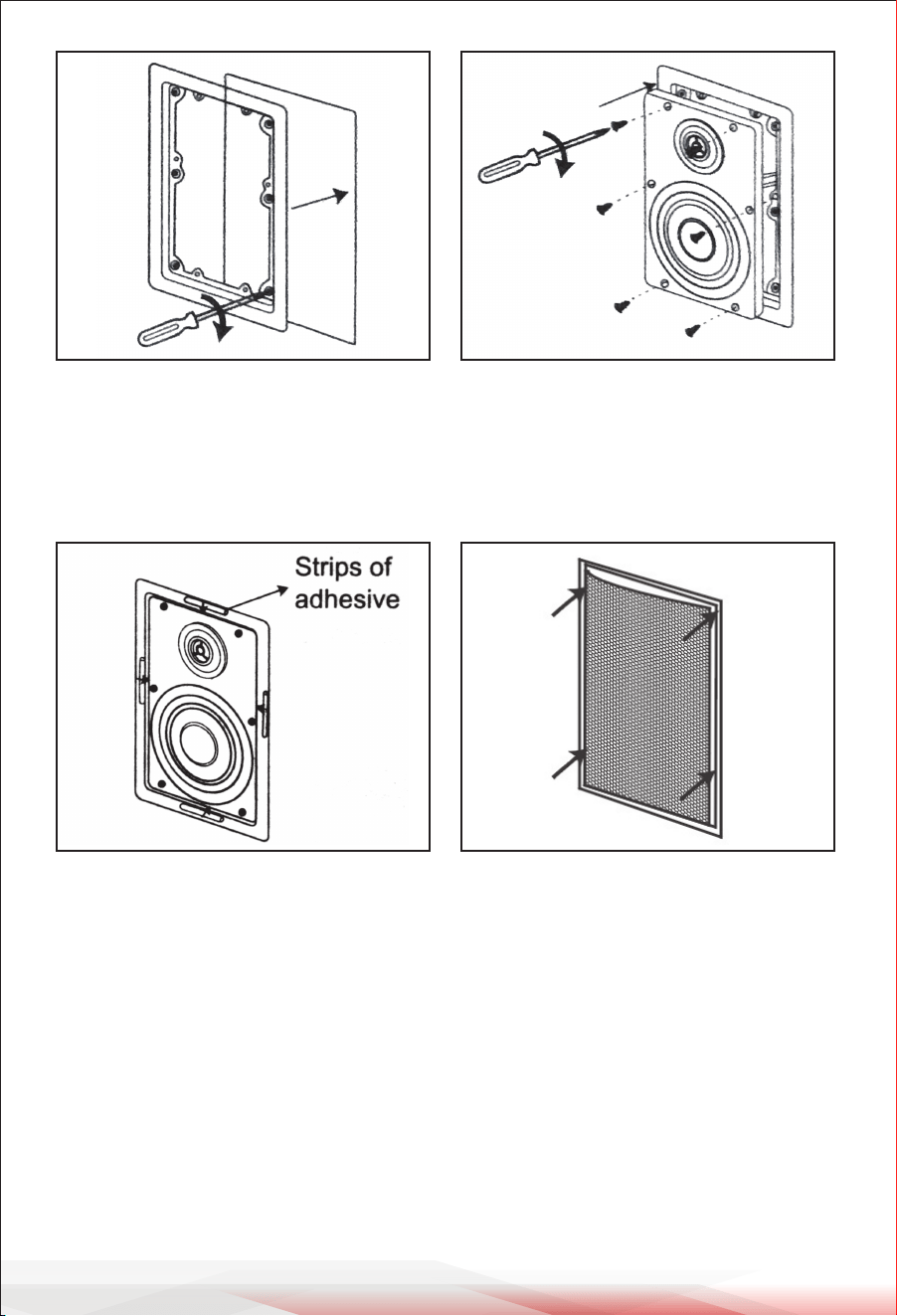

Place the frame assembly in the wall.
Screw down each of the six Phillips
head screws. The locking tabs will
swivel into place and secure the unit
to the rear surface of the drywall.
Connect the speaker wires to the
speaker. Screw down each of the six
Phillips head screws.
Put in the strips of adhesive to secure
the grille.
Replace the metal grille.
www.PyleUSA.com
7
TROUBLESHOOTING
No sound from any speakers:
• Ensure the receiver/amplier is on and a source is playing.
• Check all wires and connections between the receiver/amplier and speakers.
Ensure none of the wires are frayed, cut, punctured, or touching each other.
No sound from one speaker:
• Check the "Balance" control on your receiver/amplier.
• Inspect the wires and connections for any issues.
Low or no bass output:
• Ensure correct polarity (+ and -) connections.
• Consider adding a powered subwoofer to enhance bass output.
• For Dolby Digital or DTS systems, verify the receiver/processor is properly
congured and ensure the subwoofer output is enabled.
System shuts o at higher volumes:
• Inspect all wires and connections for frays, cuts, or other damage.
• If using more than one pair of speakers, verify the minimum impedance
requirements of your receiver/amplier.
Register Product
Thank you for choosing PyleUSA. By registering your product,
you ensure that you receive the full benets of our exclusive
warranty and personalized customer support.
Complete the form to access expert support and to keep your
PyleUSA purchase in perfect condition.
Start Here
Model Number:
PDIW67
PyleUSA.com/pages/register
After installing the speaker grille, gently press on
the mesh of the tweeter to adjust the position.
Questions or Comments?
We are here to help!
Phone: 1.718.535.1800
PyleUSA.com/ContactUs
