CONTENTS
What's in the Box
Safety Instructions
System Connection
Front Panel Functions
Rear Panel Functions
Remote Functions
System Setup
Bluetooth Operation/USB Copy
Common Operation
Radio Station/Audio Input Operation
Troubleshooting
Features and Technical Specs
WHAT'S IN THE BOX
• BT Stereo System
• Remote Control
• AV Connection Cable
• FM Antenna Cable
SAFETY INSTRUCTIONS
Read carefully and keep in a safe place for future reference. To avoid the risk
of electric shock, do not disassemble the enclosure. Refer all servicing to
qualied service personnel.
Only use in altitudes below 5,000m.
Power Supply: Operate only from the power source specied on the unit.
Ventilation: The ventilation holes in the shell of the unit are designed for heat
dissipation to prevent overheating. Do not block or cover the ventilation holes.
Avoid placing the unit on a bed or sofa.
Heat Sources: Do not place the unit near heat sources such as a boiler, electric
furnace, etc. Avoid direct sunlight.
Water and Moisture: Never use the unit in areas like the bathroom, kitchen, or
any area where it may be exposed to water. Do not place a vessel containing
liquid on the unit.
Foreign Matters: Do not insert foreign objects like metal articles into the unit.
Cleaning: Unplug the power plug before cleaning. Do not use a solution with
corrosive substances, volatile solutions, or spray cleaning agents to clean the unit.
Use a soft and damp cloth for cleaning.
Power Cable: When plugging or unplugging the power cable, please hold the
plug tightly, and do not pull the cable. If the unit is not used for a long time or in
use during a thunderstorm, please immediately unplug it from the socket.
Disc Door: When the disc door closes, keep ngers away from the door to avoid
injury or damage to the unit.
www.PyleUSA.com
1
www.PyleUSA.com
2
1
2
6
7
8
9
10
14
15
19
21
22
Loading of Weight: To avoid damage, do not place heavy objects on the unit or
step on it.
Connection with Other Equipment: When connecting other equipment, ensure
that the power plug of each unit is unplugged to prevent the risk of damage to
equipment and personal injury.
Laser: When the cover is opened and the unit is working, do not look directly at
the laser to avoid damage to one's eyesight.
Discs: Do not use broken, deformed, or amended discs, as it may cause the unit
to operate faulty and shorten the service life.
Maintenance Service for Faults: If any of the following situations arise, please
unplug the unit and contact qualied maintenance personnel:
• When the power wire or plug is damaged.
• When liquid or foreign matter has fallen into the unit.
• When the unit has been exposed to water or rain.
• When the unit doesn't work normally in accordance with the operating instructions.
• Do not adjust any control buttons not stipulated in the instructions, as it can
cause damage to the unit.
• When the unit falls from a high place or is damaged due to other reasons.
• When smoke is emitted from the unit.
Maintenance: Please do not attempt to maintain or repair the unit yourself.
Contact qualied maintenance personnel for assistance.
Replacement of Components: When a component needs replacement, ask
maintenance personnel to replace it with a component from the same model.
Using a component from a dierent model may cause further damage, electric
shock, or decrease the service life of the unit.
Safety Check: After the completion of maintenance, ask maintenance personnel
to check the unit and ensure its safety.
CAUTION
Please Note:
1. When the unit is moved, use the original paper box and packing materials,
employing the factory packing method to optimally protect the unit.
2. Do not place volatile liquids beside the unit, and avoid prolonged contact with
rubber or plastic, as these products may mark the unit's surface.
3. After the unit has been in use for a lengthy period, it may heat up on top and at
the rear plate. This is normal.
4. When the unit is not used, take out the disc, close the disc door, and turn the
power o. If the unit has not been used for a long time and certain function keys
are not working, refer to qualied service personnel for maintenance.
Location: When the unit is placed near the TV, radio, or video tape recorder, poor
image quality and sound distortion may occur. In that case, please relocate the unit
away from such equipment.
Cleaning
1. Use a soft cloth to clean the unit.
2. Use the cloth with a small amount of diluted cleaning agent to deal with dirty
spots that are not easily cleaned. Do not use solvents with corrosive substances
like diluted gasoline, abrasive solution, etc., as they may damage the surface of
the unit.
Warning: The cleaning and adjustment of internal parts should be conducted
by trained authorized personnel.

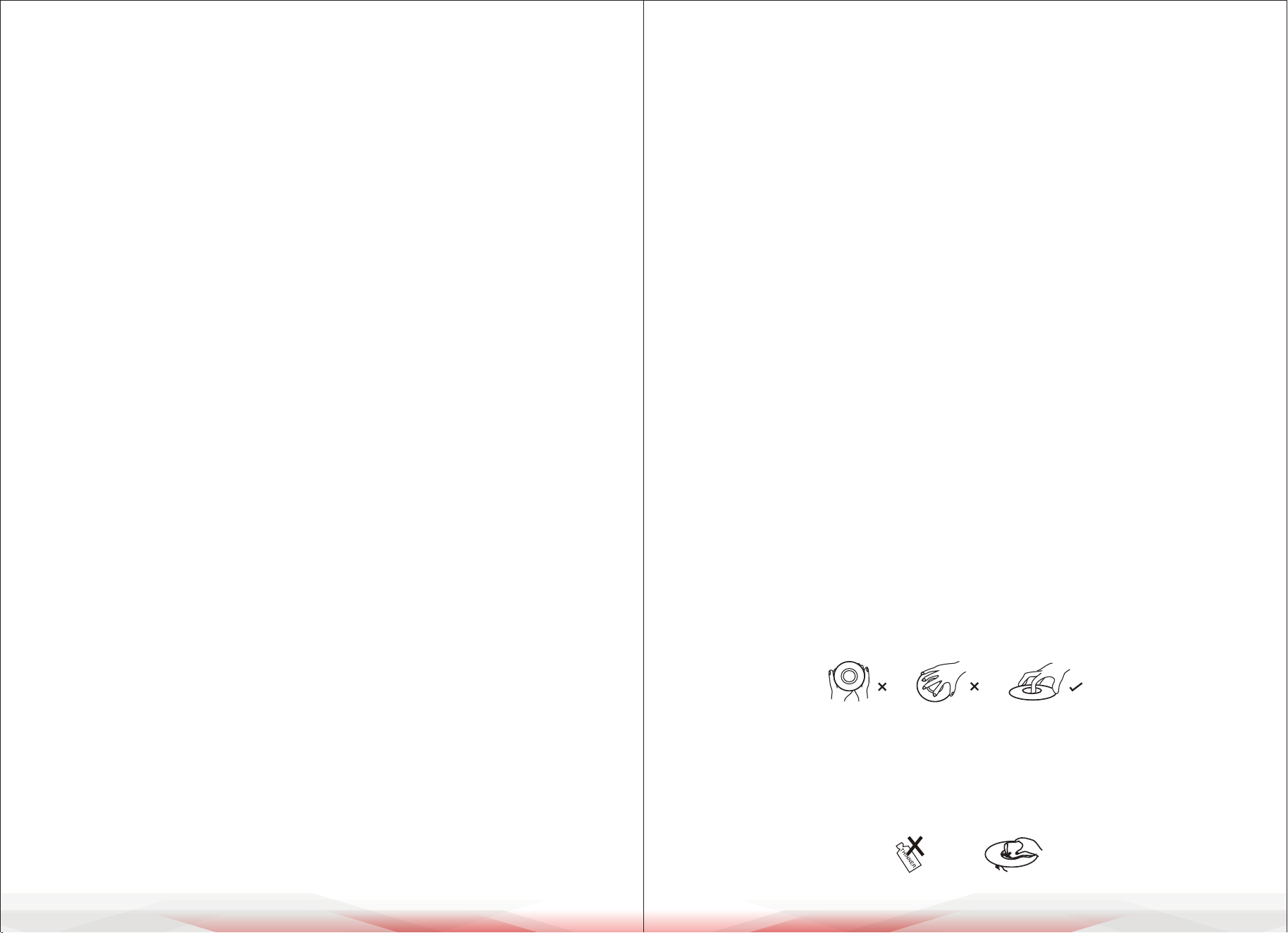

Discs
1. How to take care of your discs: Do not touch the playing side of the disc.
2. How to clean your discs: Use a soft cloth to wipe the disc from the center out.
Fingerprints and dust remaining on the disc will aect the quality of the image
and sound. When cleaning stubborn dirt, use a clean soft cloth dipped into a
little water to wipe the disc, then use a dry soft cloth to dry it.
Do not use solutions like methylbenzene, cleaning agents, or antistatic spray to
clean the disc.
www.PyleUSA.com
3
www.PyleUSA.com
4
(yellow)
(yellow)
Video connecting wire
VID E O I N
T V
3. How to store your discs: Do not place the discs in a place with heavy moisture,
dust, or direct sunlight. When the discs are not used, please place them in their
boxes.
Batteries:
Using the batteries incorrectly will cause leakage or corrosion of the battery
uid. Please use the batteries in accordance with the following instructions:
1. Do not reverse the positive and negative polarity when the batteries are inserted.
2. Do not recharge non-rechargeable batteries, disassemble the batteries, make
them short circuit, or throw them into a re.
3. Do not mix dierent types of batteries or old and new batteries.
4. Do not keep damaged batteries in the remote.
5. If the remote is not used for a long time, please remove the batteries to avoid
damage caused by the leaking of the battery uid.
6. If the remote is faulty or its eective scope is reduced, please replace with new
batteries.
7. If the batteries have leaked battery uid, please dry the battery box and replace
with new batteries.
Remote Control
Using the remote incorrectly will result in poor performance.
Please use the remote in accordance with the following instructions:
1. The emitter of the remote should not be exposed to sunlight.
2. Please aim the remote at the reception window of the unit.
3. Do not drop the remote as it may get damaged.
4. Do not allow water or any other liquids to come into contact with the remote.
5. Do not disassemble the remote.
Tips:
1. Correctly place the batteries inside the battery box of the remote.
2. The maximum reception distance between the remote and the unit is about 7m.
3. The maximum eective angle of the remote aligning at the reception window
is 30°.
SYSTEM CONNECTION

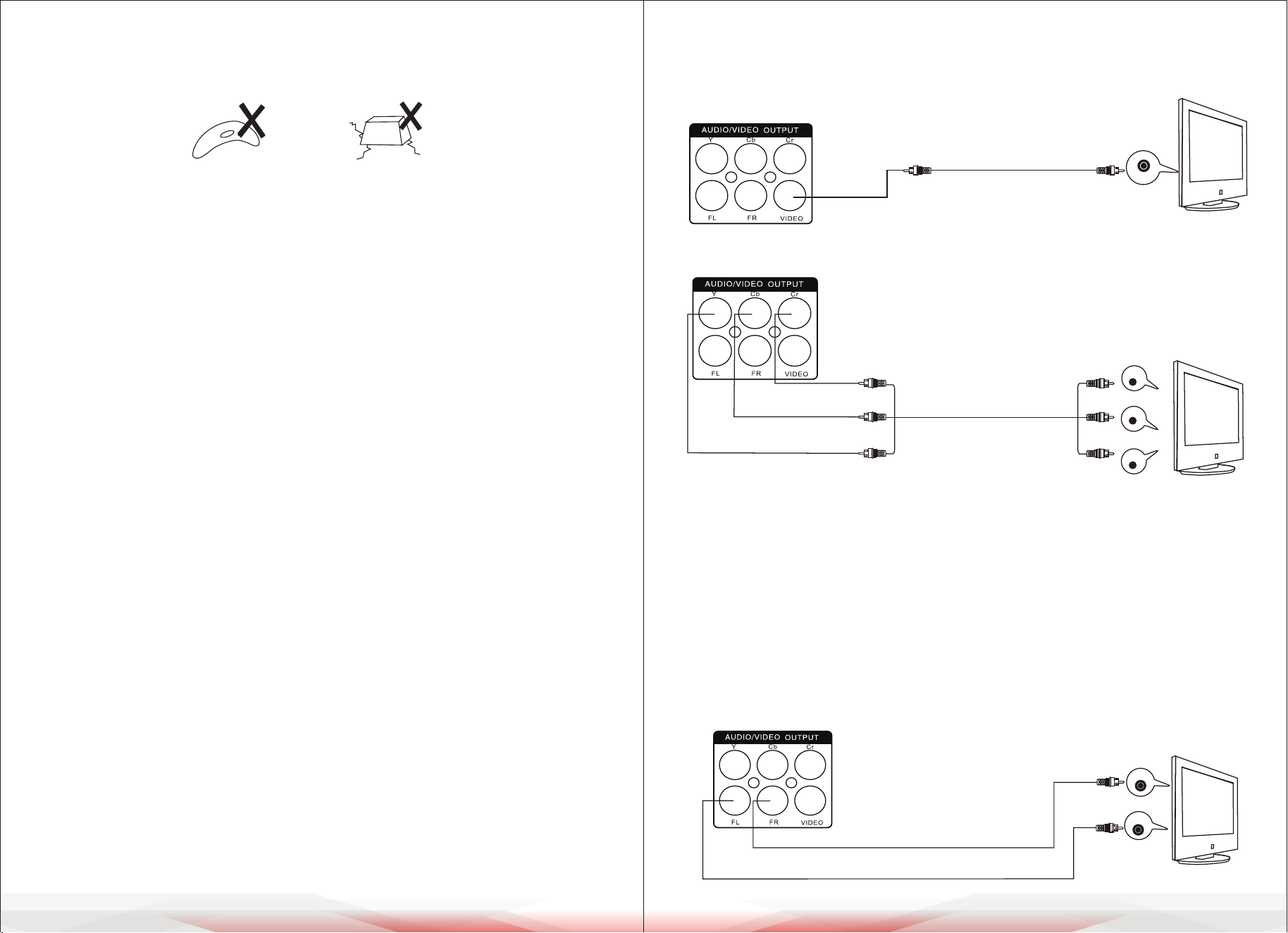

Description of Video Output Port
Video Output: Connect to the TV video terminal.
Description of Chromatic Aberration Output:
Y/g C/b C/r or R.G.B. Output
The chromatic aberration output terminals provide Y, U, and V for
corresponding connection with the Y, U, and V input terminals of the TV.
The Y, U, and V output images are clearer than the video image (set the video
output mode in the setup menu as Y, U, and V; otherwise, the image cannot
be outputted).
Please note: The chromatic aberration output terminals Y/g C/b C/r are the
same as Y, U, and V.
TV Audio Cable: Connect the audio cable to the TV's audio terminal.
www.PyleUSA.com
5
www.PyleUSA.com
6
TV
R
L
This wire is included
in the accessories
TV audio terminal
(red)
(red)
(white)
(white)
cr
cb
y
TV
(red)
(white)
(yellow)
Chromatic Aberration
connecting wire
included in the accessories
(red)
(white)
(yellow)
(red)
(cb)
(green)
Surround Speaker Connecting Guide:

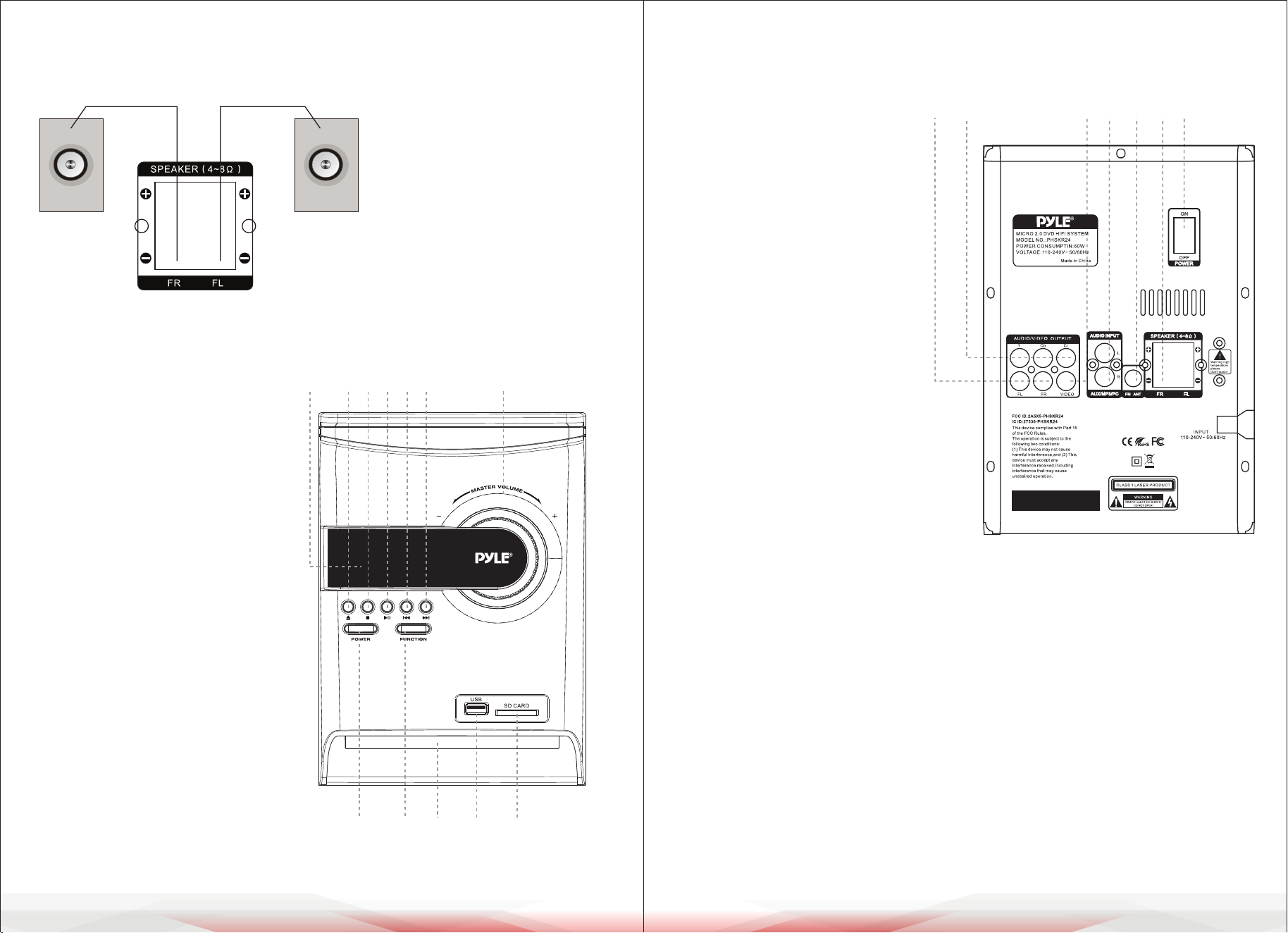

FRONT PANEL FUNCTIONS
1. Display
2. Open/Close function key
3. Play/Pause function key
4. Tone function key
5. Previous function key
6. Volume +/- function key
7. USB 1 Record
8. Power
9. Function key
10. DVD door
11. USB
12. SD card
REAR PANEL FUNCTIONS
1. Audio output
2. Y, Cb, Cr and progressive scan
output
3. Video output
4. Audio Input
5. FM ant
6. Right and Left Speaker
7. Power
www.PyleUSA.com
7
www.PyleUSA.com
8
Surround right speaker Surround left speaker
Please note:
1. Do not short-circuit the
connections, as this will cause
damage to the system.
2. To connect correctly, attach the
red wire to “+” and the black
wire to “-”.
1 2 3 4 5 6 7
8 9 10 11 12
1 2 3 4 5 6 7
REMOTE FUNCTIONS SYSTEM SETUP
www.PyleUSA.com
9
www.PyleUSA.com
10
1. Mute Button
2. Power Button
3. Numerical Keys
4. GOTO (Time Selection Button)
5. FM Button
6. Function Button
7. Play/Pause Button
8. Return Button
9. Setup Button
10. Up Button
11. Enter/Radio Auto Search Button
12. Left Button
13. Down Button
14. Bass+ Button
15. Volume- Button
16. Bass- Button
17. Angle/Delete Button
18. Copy Button
19. P/N Button
20. Repeat Button
21. USB/DISC Switch Button
22. V-Mode Button
23. Open/Close Button
24. Last/F M- Button
25. Next/FM+ Button
26. Backward/Radio Frequency
Trim- Button
27. Forward/Radio Frequency
Trim+Button
28. Title/Record Button
29. Menu Button
30. Stop Button
31. Zoom Button
32. Right Button
33. Treb+ Button
34. Volume+ Button
35. Treb- Button
36. Subtitle Selection Button
37. Language Switch Button
38. Slow Button
39. DSP Button
40. OSD Button
41. Reset Button

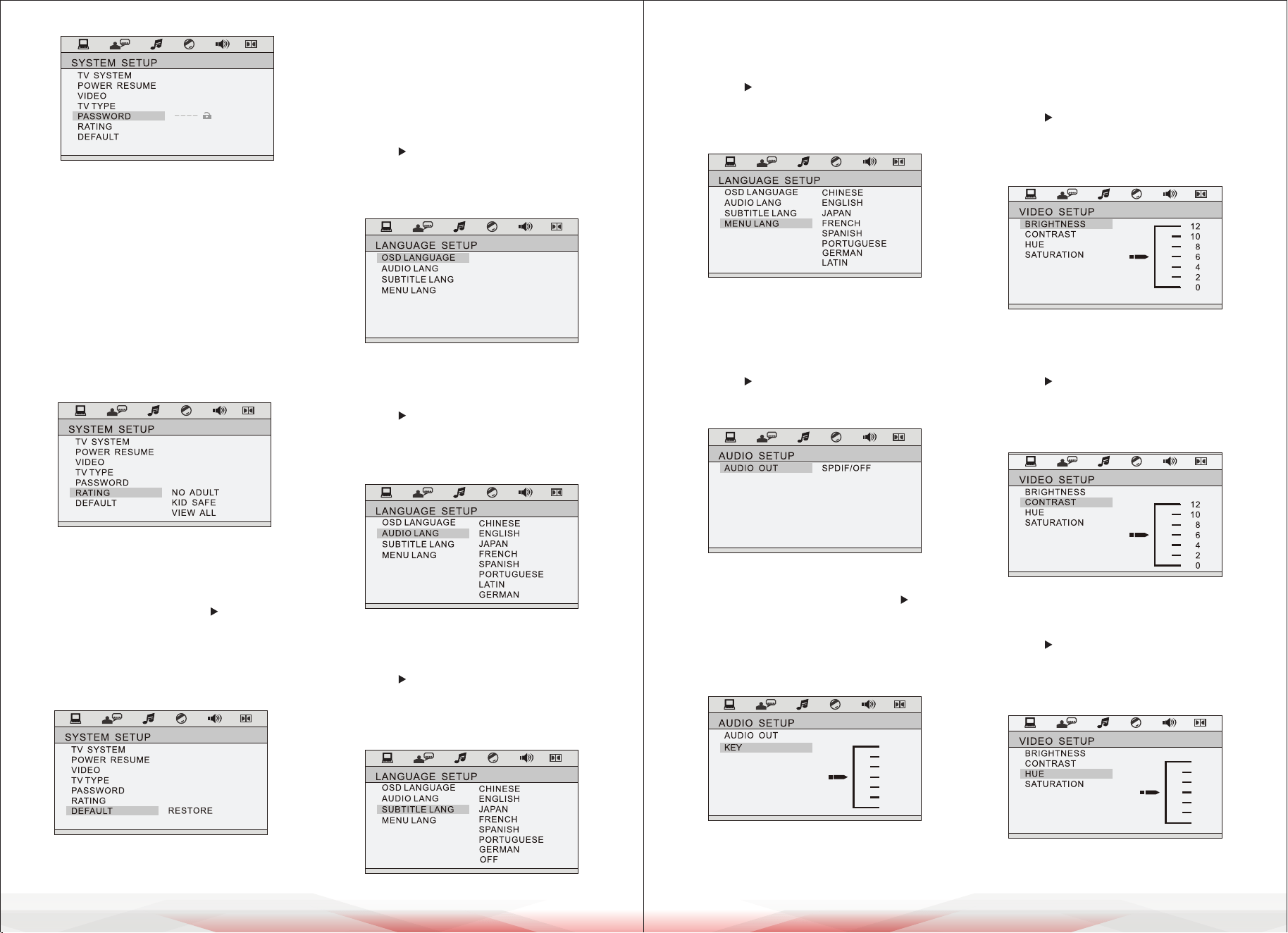

To access the System Setup menu, press
the Setup key on the remote control.
Use the Up, Down, Left, or Right keys
to highlight the option you wish to
adjust, then press Enter to enter that
option. To exit the Setup menu, press
the Setup key.
The setup operations are as follows:
1. TV System
Enter the TV System option, press Enter
key to enter the sub-menu, and select
one of the following systems: NTSC,
PAL, or AUTO.
Power Resume
Enter the Resume option, press the
key to access the sub-menu. Choose
between "ON" or "OFF." If you select
"ON," the system will continue playing
when the power resumes or the CD
door is closed again. If you choose
"OFF," it will play from the beginning.
Video
Enter the Video option, press key to
access the sub-menu, and select the
desired output mode.
TV Type
Enter the TV Type option, press key
to enter the sub-menu. Choose from
three modes: 4:3PS, 4:3LB, or 16:9.
Select the mode that is most compatible
with your TV.
Password Child Lock
To access the Password Child Lock, enter
the Password option and press the
key to enter the sub-menu. When the
initial setting is in the "Password Lock"
state, the "Rating" cannot be set, and
the password cannot be modied. If you
need to modify the "Rating" and password,
rst enter the initial password and press
the Enter key to unlock (initial password:
0000 or 1234). The new password entered
must be four digits, and then press the
Enter key to take eect.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
2. Language Setup
To set up language preferences:
OSD Language
Enter the OSD Language option.
Press the key to enter the sub-menu.
Select the interface display language
you prefer.
Audio Language
Enter the Audio Lang option.
Press the key to enter the sub-menu.
Select the audio language you need
(ensure compatibility with the disc).
Subtitle Language
Enter the Subtitle Lang option.
Press the key to enter the sub-menu.
Select the subtitle language you prefer
(ensure compatibility with the disc).
www.PyleUSA.com
11
www.PyleUSA.com
12
Rating
When playing a disc with a locking
function, select the suitable play control
rating. This setup can only be carried
out when the password lock is o.
Remember to switch the password lock
back on after you have completed the
setup so that the rating restrictions can
be applied.
Default
To restore factory settings, enter the
Default option, press the key to select
"Restore", then press the Enter key.
This will automatically restore each setup
to the factory default.
Menu Language
Enter the Menu Lang option.
Press the key to enter the sub-menu.
Select the menu language you need
(ensure compatibility with the disc).
3. Audio Setup
Audio Out
Enter the Audio Out option.
Press the key to enter the sub-menu.
Select the desired audio out mode.
Key
Enter the Key option, press the key
to enter the sub-menu, then use the
directional keys "Up" or "Down" to
adjust the key volume.
4. Video Setup
Brightness
Enter the Brightness option.
Press the key to enter the sub-menu.
Press the Up or Down key to adjust
brightness parameters.
Contrast
Enter the Contrast option.
Press the key to enter the sub-menu.
Press the Up or Down key to adjust
contrast parameters.
Hue
Enter the Hue option.
Press the key to enter the sub-menu.
Press the Up or Down key to adjust hue
parameters.
KE Y
ENGLISH
CHINESE
GERMAN
SPANISH
FRENCH
PORTUGUESE
#
+4
+2
0
-2
-4
b
+6
+4
+2
0
-2
-4
-6
Saturation
Enter the Saturation option.
Press the key to enter the sub-menu.
Use the directional keys Up or Down to
adjust saturation parameters.
V. Speaker Setup
The setup operations are as follows:
Downmix
Enter the Downmix option and press
the key to enter the sub-menu. There
are four modes to choose from: LT/RT,
STEREO, VSS, and 5.1 channel mode. Set
the 5.1 channel output to 5.1 channel.
Front
Enter the Front option and press the
key to enter the sub-menu. There are two
modes to choose from: LARGE/SMALL.
5. DOLBY DIGITAL Setup
The setup operations are as follows:
OUTPUT MODE
Enter the OUTPUT MODE option, then
press the key to enter the next menu.
There are two modes to choose from:
LINE OUT/RF REMOD.
DYNAMIC RANGE
Enter the DYNAMIC RANGE option,
then press the key to enter the next
menu. Use the direction keys “Up” and
“Down” to select your required option.
DUAL MONO
Enter the DUAL MONO option, then press
the key to enter the next menu.
There are four modes to choose from:
STEREO/MONO L/MONO R/MIX MONO.
www.PyleUSA.com
13
www.PyleUSA.com
14
BLUETOOTH OPERATION/USB COPY
Bluetooth Reception
To connect an external device to this
unit via Bluetooth:
1. Press the "Function Switch" on the
remote control or on the panel to
select the Bluetooth function.
The corresponding screen will then
display "BT," indicating that the
Bluetooth function is on.
2. Ensure the Bluetooth function is on
the external device and search for
"PYLEUSA." Once found, click on it
and pair. Some devices may need a
pin code to connect; try 0000 or 1234.
Once connected, you will hear a signal
indicating that the connection is
successful.
• Compatible with All of Today’s Latest
Bluetooth Devices (Smartphones,
Tablets, Laptops, Computers, etc.)
• Bluetooth Version: 5.0V
• Wireless Bluetooth Range:
Up to 30.0’ ft.
USB COPY
MP3 File Copy
When playing an MP3 disc, press the
Copy key on the remote to enter the
copy selection interface. The content
that can be copied includes the tracks
of the current disc being played.
MPEG4 File Copy
When playing an MPEG4 disc, press the
Stop key to return to the menu interface.
Then press the Copy key on the remote
to enter the copy selection interface.
The content that can be copied includes
the tracks of the current disc being
played.
CD File Copy
When playing a CD disc, press the REC
key on the remote to enter the copy
operation interface.
Multiple Setup
1. Move the highlight bar to the SPEED
option, press the ENTER key, and then
select the desired multiple (i.e., copy
speed).
2. In the copying process, select the
CHANGE SPEED option or press
ENTER to switch the copy speed.
Bit Rate Setup
Move the highlight bar to the BITRATE
option, and press ENTER to set up. For
les with a high bit rate, the capacity
will be enlarged, and the quality of the
le will be closer to that of the original
le. The system default is: 128KBPS.
Create ID3 Information
Move the highlight bar to the CREATE
ID3 TAG option, press the ENTER key to
select or cancel. By selecting this option
during the copying process, the le will
be created with ID3 information, which
is produced automatically by the system.
MPEG4 File Copy
When playing an MPEG4 disc, press the
Stop key to return to the menu interface.
Then press the Copy key on the remote
to enter the copy selection interface.
The content that can be copied includes
the tracks of the current disc being
played.
CD File Copy
When playing a CD disc, press the REC
key on the remote to enter the copy
operation interface.
Multiple Setup
1. Move the highlight bar to the SPEED
option, press the ENTER key, and then
select the desired multiple (i.e., copy
speed).
2. In the copying process, select the
CHANGE SPEED option or press
ENTER to switch the copy speed.
Bit Rate Setup
Move the highlight bar to the BITRATE
option, and press ENTER to set up. For
les with a high bit rate, the capacity
will be enlarged, and the quality of the
le will be closer to that of the original
le. The system default is: 128KBPS.
Create ID3 Information
Move the highlight bar to the CREATE
ID3 TAG option, press the ENTER key to
select or cancel. By selecting this option
during the copying process, the le will
be created with ID3 information, which
is produced automatically by the system.
Return from Copying Screen
Move the highlight bar to the RETURN
option and press the ENTER key to
conrm the return.
Please note: During the copy, ensure
that the available space on the USB is
enough for the size of the le(s) to be
copied, then insert the USB into the USB
interface. If you have two tracks with the
same title, rename one of the tracks;
otherwise, one track will be saved over
the other. While copying, do not pull the
USB out or shut the unit down, as this
could damage the unit or USB. If the
USB cannot be read after it has been
copied, please format the USB on your
computer. Before you format, please
save the important data from the USB.
COMMON OPERATION
Disc Playing Operation
Sequence
1. After reading the disc, the unit will
automatically go into sequence play
mode.
2. Press [PLAY/PAUSE] key in pause
mode, and play mode will be
recovered.
www.PyleUSA.com
15
www.PyleUSA.com
16

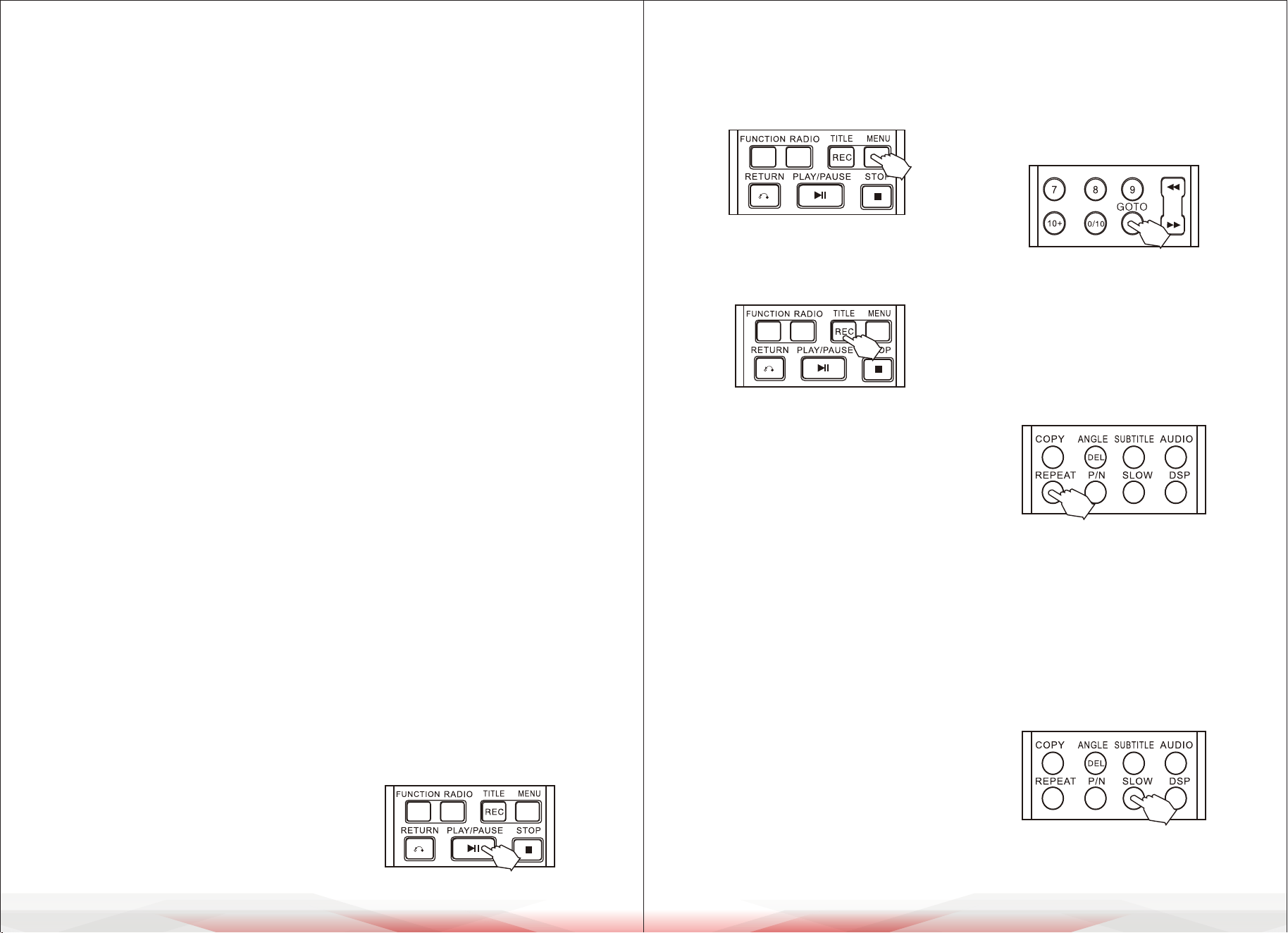

Menu
Press [MENU] when using discs with
VCD 2.0 or DVD format. Dierent
formats of discs have dierent menus.
Title
When playing a DVD, you can choose
this play mode.
Record
When playing a CD, you can press the
RECORD key to transfer audio les in
MP3 format to the USB.
Select
You can press the number keys on the
remote to directly select the required
track that you want to play. When VCD
is in MENU mode, the track cannot be
selected and can only be selected when
the MENU mode is o. Dierent formats
of discs have dierent selecting
approaches (for example, press the
number key "5" to select the 5th track.
When selecting "23", press "10+" twice,
and the screen will show "20+"; then press
the number key "3" or try to press "2"
then hold "3" and the unit will select 23).
GOTO
Press [GOTO] key on the remote and
use direction keys and number keys to
nish time or track selecting function,
then press [ENTER] key.
Repeat
While playing, press [REPEAT] key on
the remote. Dierent formats of discs
have dierent repeating approaches to
be selected: single cycle, title cycle, or
disc cycle.
Slow
During play, press [SLOW] key on the
remote control. To go back to the normal
speed, press [PLAY].
Please note: In this mode, no audio will
be heard, and it only aects the video
les.

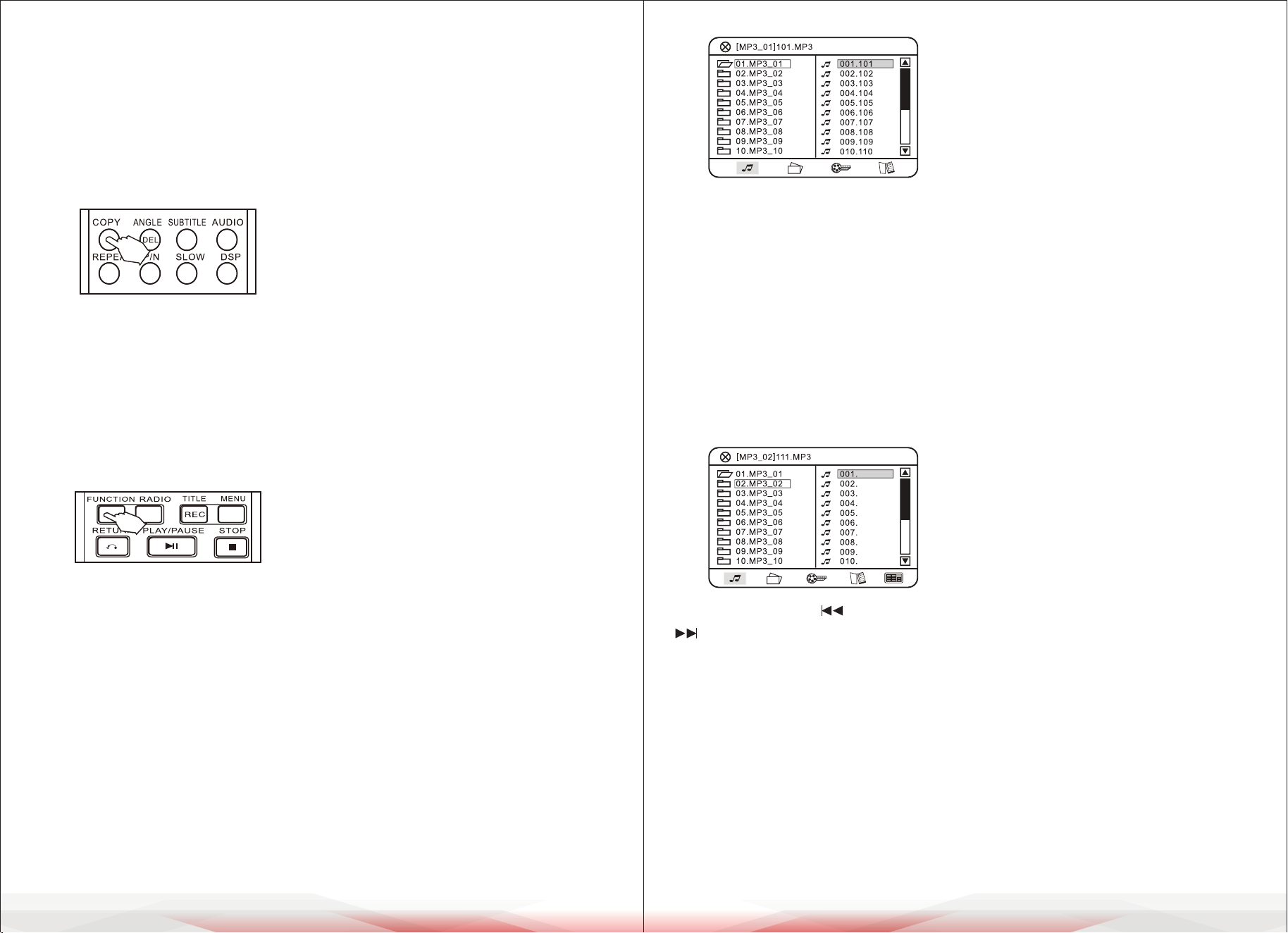

Create File List
Move the highlight bar to the CREATE
FILE LIST option, press the ENTER key
to select or cancel. By selecting this
option during the copying process, a
le list will be produced automatically.
Create Playlist
Move the highlight bar to the TRACK
option, press the right key to select the
track option, and then press the ENTER
key to select the song to be copied or
to be canceled.
Copy
Move the highlight bar to the START
option. At this time, the information
about this copy will be shown on the
right-hand side (TOTAL TRACKS, TOTAL
TIME, and TOTAL SIZE). Then press the
ENTER key to start copying, and the
system will write the CD in MP3 format
onto the designated USB. When copying
at normal speed, you can listen to the
content being copied at the same time;
when selecting 4 times speed, it will be
mute. Please note: when you press the
ENTER key to switch speed, there will
be a slight sound that continues for a
few seconds.
Cancel Copy
During the copy, you can move the
highlight bar to the CANCEL option
and press the ENTER key to conrm.
Directory Selecting
Press the Left key to return to the
directory list on the left-hand side.
Then use the Up/Down keys to select a
folder directory on the left-hand side.
After the selection process is complete,
press the ENTER key to enter the playlist
of the folder, and the tracks of the
playlist will automatically be played in
sequence. Alternatively, you can press
number keys to select a specic song.
While playing, press /PREVIOUS or
/NEXT key to select the previous or
next song.
• Press the REPEAT key to select single
cycle, directory cycle, or disc cycle
modes.
• While playing, press the PAUSE key to
enter the "Pause" state; press the PLAY
key to recover from that state.
Note: Pressing the PAUSE key twice
activates the "Pause" function.
Low Pitch
1. Press [VOLUME] key on the panel,
select “LOW PITCH BA” adjusting
state, then press “VOLUME +” or
“VOLUME -" key on the remote, or
turn the volume control knob on the
panel to adjust low pitch.
2. Press ”BASS +” or ”BASS -" key on the
remote to directly adjust low pitch.
3. Adjustable range of low pitch:
from -14 to +14.
High Pitch
1. Press [VOLUME] key on the panel,
select “HIGH PITCH TR” adjusting
state, then press “VOLUME +” or
“VOLUME -” key on the remote or
turn the volume control knob on the
panel to adjust high pitch.
2. Press ”TREB +” or ”TREB -" key on the
remote to directly adjust high pitch.
3. Adjustable range of high pitch:
from -14 to +14.
Disc Playing Operation
Play MP3 Disc
After inserting an MP3 disc, the system
will automatically search all directories
containing MP3 les. Once the search is
complete, the system will enter the rst
directory by preference and play the
rst track of this directory (cursor stops
in 01 position).
The unit will then play the tracks of this
directory in sequence. At this time, you
can press number keys to select which
song you want to play.
www.PyleUSA.com
17
www.PyleUSA.com
18
Play JPEG Disc
• After inserting a JPEG disc, the unit will
automatically search and stop at the
rst image of the rst directory found.
Use the Up/Down keys to select image
les. After nishing the selection, press
the PLAY key to play from the current
image.
• Use the Up/Down keys to select image
les. After nishing the selection, press
the ENTER key to view the image.
At this time, the image is in an idle
state. You can press the ZOOM key to
zoom in on the image or press direction
keys to move the image in dierent
directions.
• When the image is idle and not
zoomed in, press the direction keys to
rotate the image.
• Press the PLAY key to play the images
in sequence.
• After entering the le menu on the
right-hand side, press the Up/Down
keys, and image content will be shown
on the left-hand side of the screen.
You can also use this approach to
view le(s).
Play MP3-JPEG Disc
• If you want to view images while
playing MP3-JPEG mixed directory
discs, use the Left/Right keys to select
modes. Then use the direction keys to
move the cursor to the icon of the
required image and press ENTER to
view the image.
COPY
Please note: For CD and MP3 discs, the
unit will convert MP3 format onto the
USB. For MPEG4 discs, it will copy directly.
Please see the Copy Function Introduction
for specic operating instructions.
Function Switching
When you turn the unit on, you can
press FUNCTION to switch between the
dierent function modes: FM radio,
LINE external audio input, Bluetooth, or
DVD. The unit is set at the DVD function
as the default.
Please note: Please see function
introduction for specic operation of
FM and audio input.
Volume Adjustment
Master Volume
Press “VOLUME +” or “VOLUME -” on the
remote or turn the volume control knob
on the panel to adjust the volume.
111
112
113
114
115
116
117
118
119
120

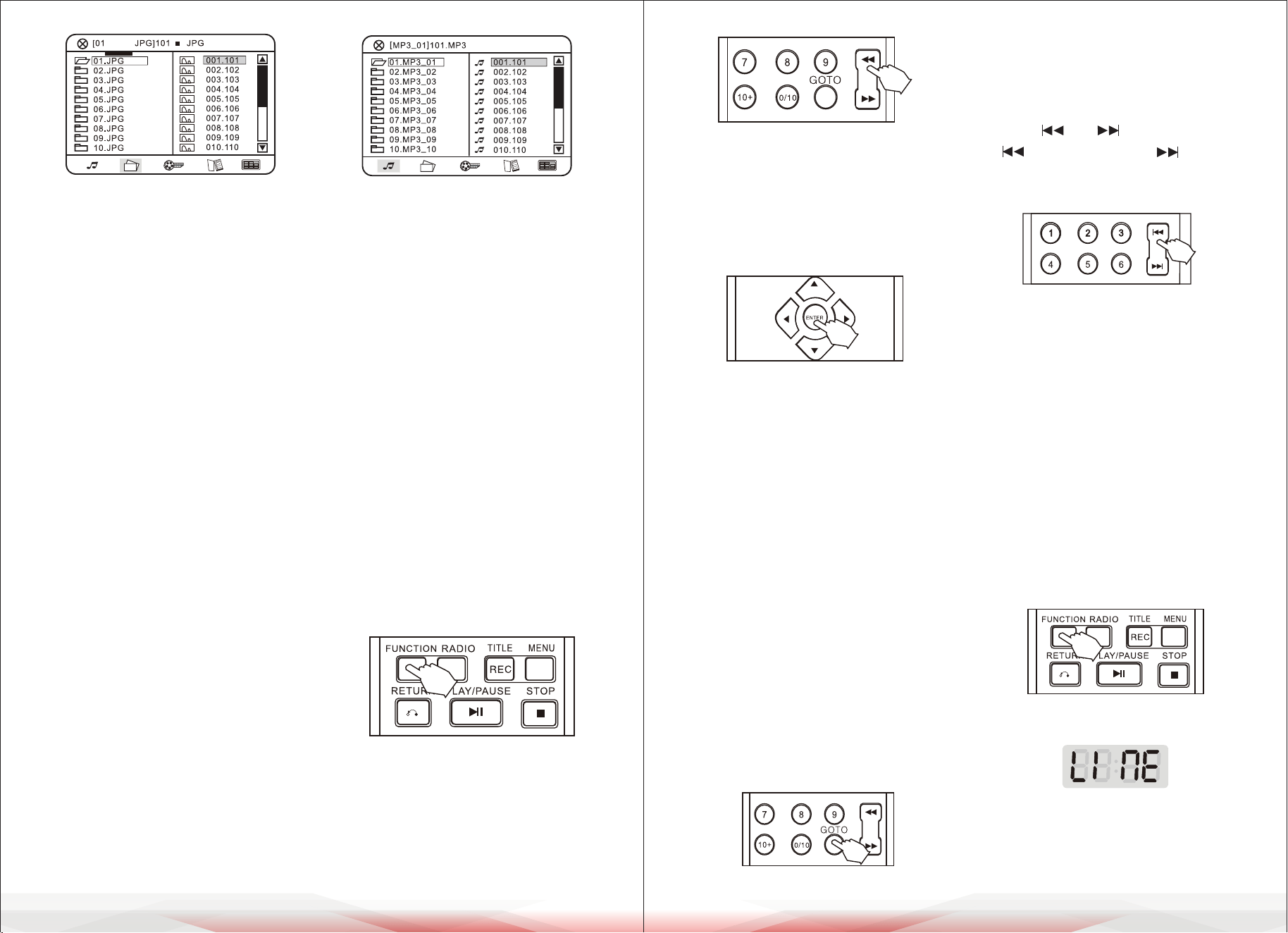

Play JPEG Disc
• After inserting a JPEG disc, the unit will
automatically search and stop at the
rst image of the rst directory found.
Use the Up/Down keys to select image
les. After nishing the selection, press
the PLAY key to play from the current
image.
• Use the Up/Down keys to select image
les. After nishing the selection, press
the ENTER key to view the image.
At this time, the image is in an idle
state. You can press the ZOOM key to
zoom in on the image or press direction
keys to move the image in dierent
directions.
• When the image is idle and not
zoomed in, press the direction keys to
rotate the image.
• Press the PLAY key to play the images
in sequence.
• After entering the le menu on the
right-hand side, press the Up/Down
keys, and image content will be shown
on the left-hand side of the screen.
You can also use this approach to
view le(s).
Play MP3-JPEG Disc
• If you want to view images while
playing MP3-JPEG mixed directory
discs, use the Left/Right keys to select
modes. Then use the direction keys to
move the cursor to the icon of the
required image and press ENTER to
view the image.
Source Switching
1. While the disc is playing, press the
SOURCE key on the remote control to
switch to USB mode.
2. An interface will appear when
switching from disc to USB.
Press direction keys to select the le,
then press ENTER key for conrmation.
3. The system will automatically load
the USB les when there is no disc
loaded.
RADIO STATION/AUDIO INPUT
OPERATION
FM Operation
FM Radio
Press FUNCTION or FM key on the panel
or remote to switch the unit to FM
operation mode.
Manual Search
Press Fast Backward or Fast Forward keys
on the panel or remote to manually tune
and search. You can search desired radio
stations backward or forwards.
www.PyleUSA.com
19
www.PyleUSA.com
20
Auto Search
Press ENTER key on the panel or press
and hold ENTER key on the remote
control. The unit will automatically
search in full band. FM frequency range:
87-108 MHz (100 kHz for each step).
Please note:
After you have found your specic
station, the unit will automatically store
it into the current program. The FM
search is aected by the radio signal
strength. If no program is found during
auto search or an oset frequency occurs,
please use manual search, frequency-
selecting search, or adjust frequency by
adjusting the antenna position.
Frequency-Selecting Search
Press the GOTO key on the remote; the
unit will display the frequency-select-
ing state. Use number keys to input
your desired radio frequency.
FM frequency range: 87-108 MHZ.
Example: Input 1060 for 106 MHZ;
input 9140 for 91.4 MHZ. The frequency
input must have 4 gures.
If there are only 3 eective gures,
please add 0 before the rst gure.
Radio Program Selection
Press the and keys on the remote
or [ /PREVIOUS] and [ /NEXT]
keys on the panel to select stored radio
programs.
Radio Storage
After operating the "Auto Search", the
unit will automatically store the found
radio programs in sequence.
After operating “manual search” or
“frequency-selecting search,” the unit
will automatically store the current
radio frequency into the current
program.
External Audio Input Setting
Press the [FUNCTION] key on the remote
or panel to switch the unit into audio
input state.
The unit will display "LINE" at this time.
Ensure that the ”AUX” or “Line in” channel
interface of the unit is connected to the
AF generator input of any machine.
• The method for viewing images is the
same as that for playing JPEG discs.
• If you want to view other types of les
while playing MP3-other mixed
directory discs, use the Left/Right keys
to select mode. Then use the direction
keys to move the cursor to the icon
you want to view and press ENTER to
play the selected le.
• While playing discs with mixed
directories, the approach to select a
le is the same as playing an MP3 disc.
• The unit will automatically load the
les to be played when a disc is
inserted. The music les will play by
default if there are also supported
photo, movie, and Ebook les on the
disc.
Play USB
• When the USB contains only one type
of le, the playing method is the same
as when you play a disc.
• When the USB contains various types
of les, the unit will play the audio
les with the MP3 or WMA formats
after it has nished its search.
The method for playing other types of
les is the same as when you play a
disc.
TROUBLESHOOTING
Before repairing, please take a look at the following problems and possible
solutions rst.
FEATURES
•
Compatible with DVD/ VCD/ CD/ CD-R/ CD-RW/ MP3
• Built-in FM Radio
• USB Input Line Input and SD Card Input
• Analog Amplier for Strong Sound
• With Bluetooth Function
• Includes Two Stereo Speakers
• Compatible with Bluetooth-Enabled Devices
• Sleek and Modern Design with LED Indicator
• Clear and Powerful Sound
• Convenient Control Unit with Remote Control
• Allows Easy Access to Volume, Bass, and Treble Controls
• Includes Audio / Video Output
• Compact Size for Easy Placement
• Two-Way Wooden Speaker Box
TECHNICAL SPECS
•
Constructional Material: Plastic Front Body + Wooden Cabinet
• Power Output: 30W (15Wx2) RMS
• Impedance: 4 Ohm
• FM Frequency Response: 87.9-107.9Mhz
• Sensitivity: 800mV
• Signal Noise Ratio: 72dB
• T.H.D.: <12%
• Remote Control Battery Operated, Requires (2) x 'AAA' Batteries (not Included)
• Maximum USB Flash Support: 32GB
• Power Supply: 110-240V~50/60Hz
• Frequency Range: 30-20KHz
• AV Connection Cable Length: 1M
• Unit Product Dimensions (L x W x H): 6.49" x 8.46" x 9.05" –inches
• Speaker Product Dimensions (L x W x H): 5.70" x 7.87" x 9.05" –inches
www.PyleUSA.com
21
www.PyleUSA.com
22
PROBLEM REASON SOLUTION
No power Plug not properly connected Plug in the appliance properly
The unit doesn't work
after the power has
been switched on
No disc or USB inserted Insert disc or USB
No image
TV isn't set to DVD output
Set TV to the current output platform
Bad video connection
or not connected well
Replace TV connection
or connect correctly
Connected TV doesn't work Ensure TV works properly
No sound
Not set to the current
connecting channel
Set to the current
connecting channel
Bad audio connection
or not connected well
Replace audio connection
or connect correctly
Connected unit doesn't work
or volume shutdown
Ensure connected unit works
properly or turn the volume up
Bad image quality
Disc is dirty Clean disc
Bad image quality of disc Replace disc with good image quality
DVD player is not
activated
No disc inserted Insert disc
Disc installed upside down Place the silk-screen side upwards
Disc installed incorrectly into it's slot Place disc into it's slot correctly
Disc is dirty Clean disc
TV displays setting screen Quit setting state
Locking level is activated Unlock or change locking level
Remote is not aimed at the
receiving window
Aim remote at the
receiving window
There is a large obstacle between
the remote and the receiving window
Please move obstacle
Remote has low batteries Please replace with new batteries
Remote
Malfunction
Unsupported le format Skip the le
Mp3 no sound or
with noise
No le on the USB or the
format is incorrect
Please store supportable le
formats or format the USB then
re-copy the les
USB is damaged Repair or replace the USB
USB les are
unavailable
