RSI30 | RSI30B | RSI36 | RSI30B
GORDON RAMSAY COLLECTION BY THOR KITCHEN
INSTALLATION INSTRUCTIONS MANUAL
PROFESSIONAL
INDUCTION RANGE
RSI30 | RSI30B
RSI36 | RSI36B
Table of Contents
Important Safety Information.....................................................................................................1
Cooking Recommendations..........................................................................................................7

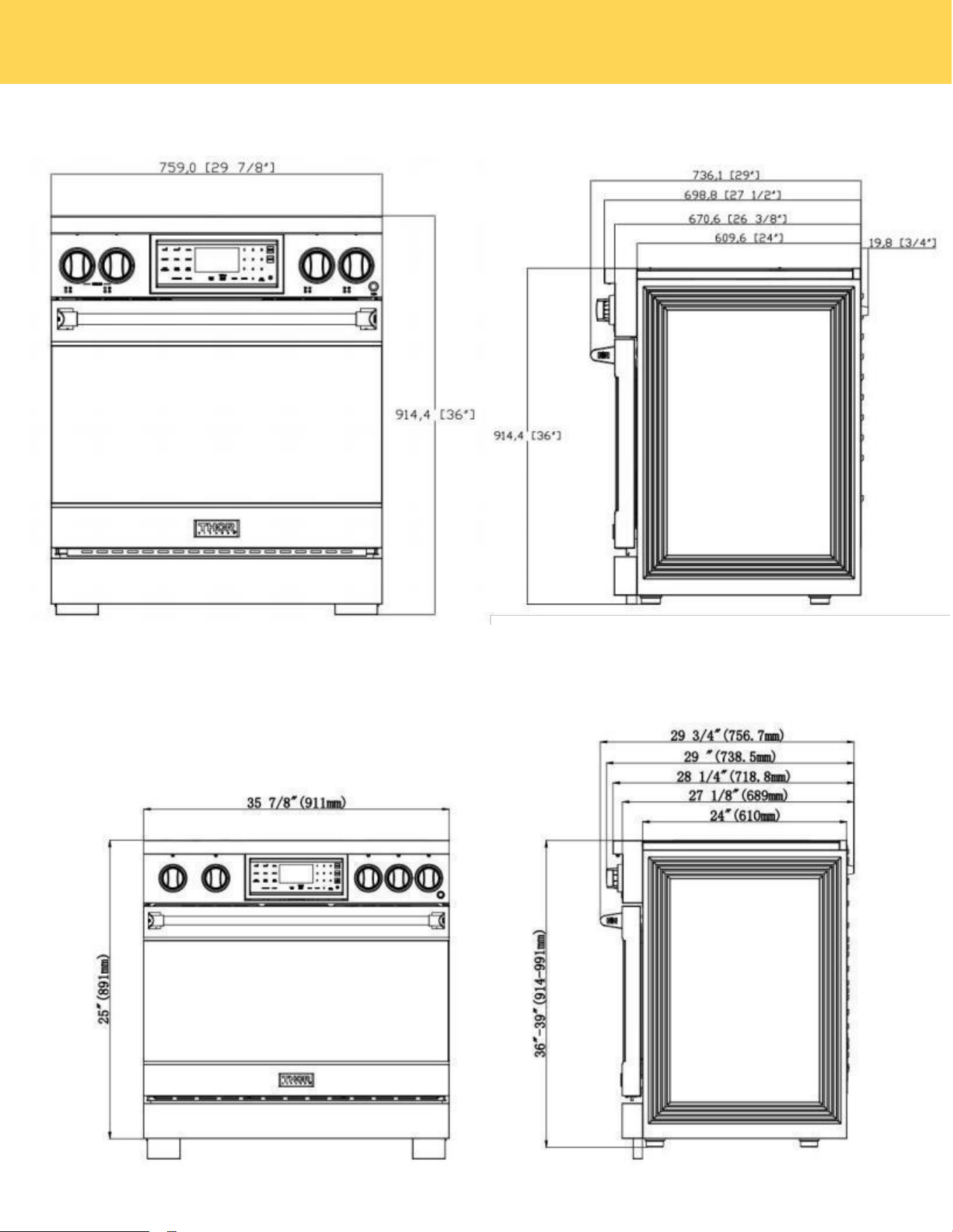

Product Dimensions....................................................................................................................10

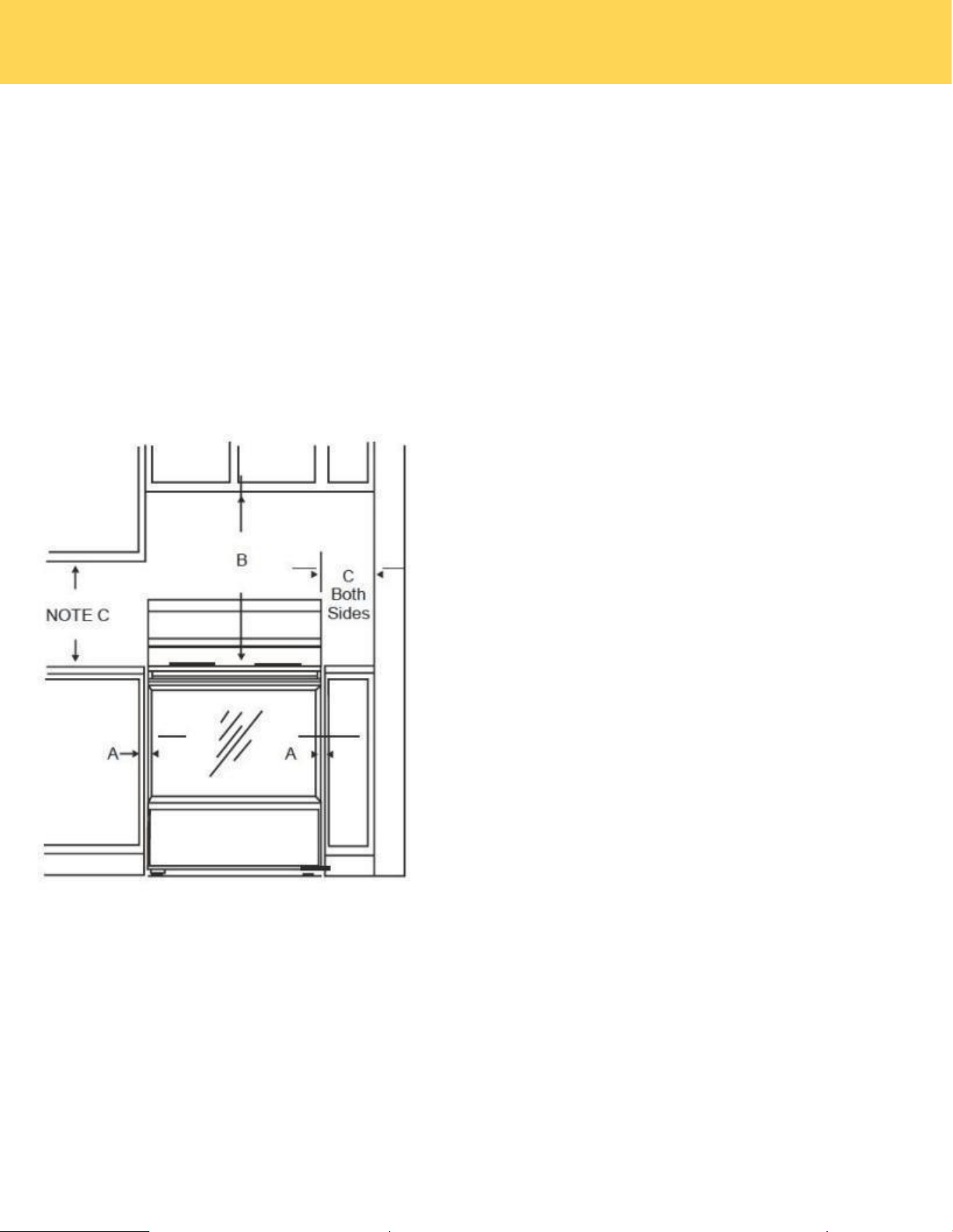

Preparing To Install The Range................................................................................. 11

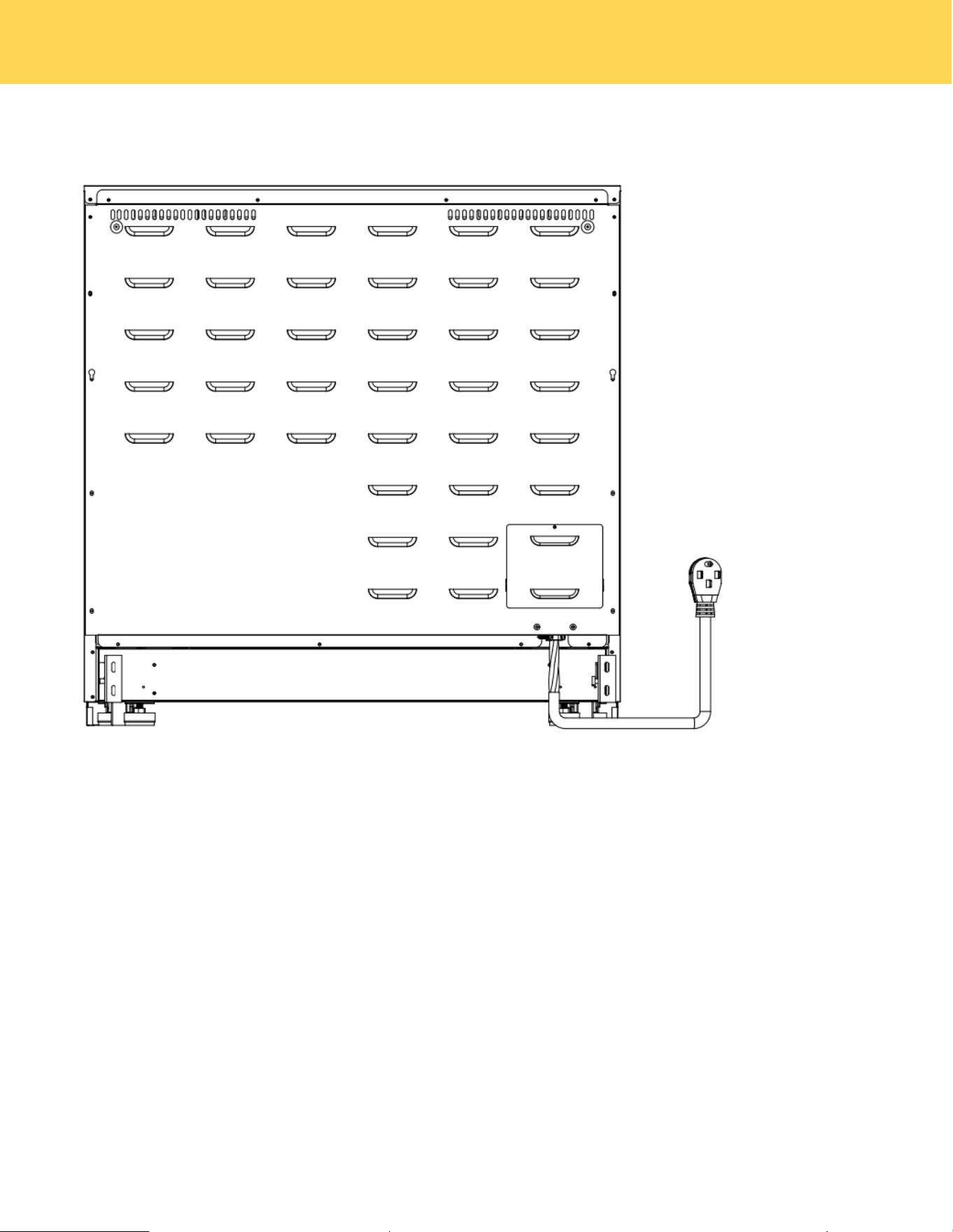

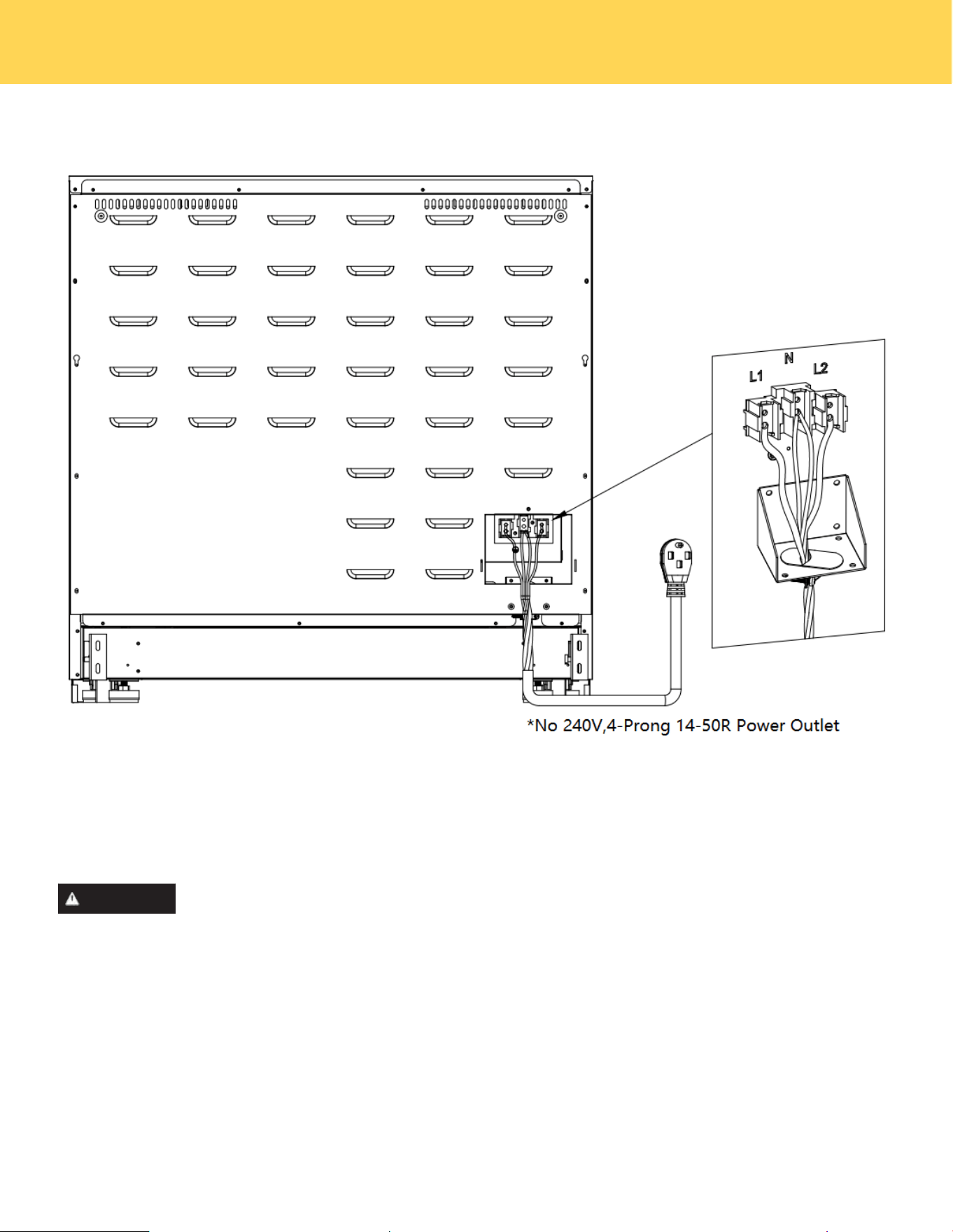

Connecting The Power............................................................................................... 12
Before Setting Surface Controls................................................................................16

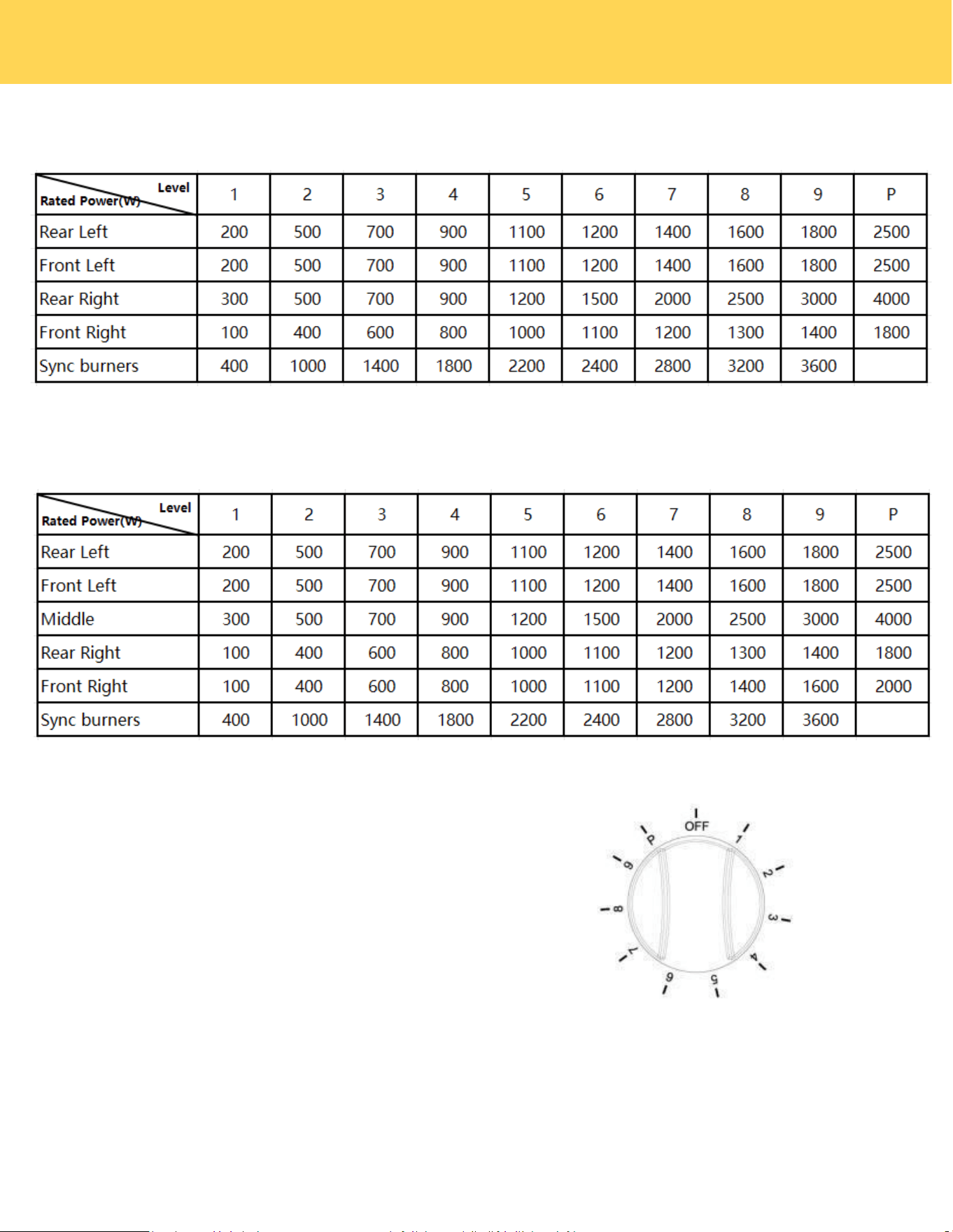

Setting Surface Controls............................................................................................ 21
Operating The Oven.................................................................................................... 25
Cleaning And Maintenance......................................................................................... 30

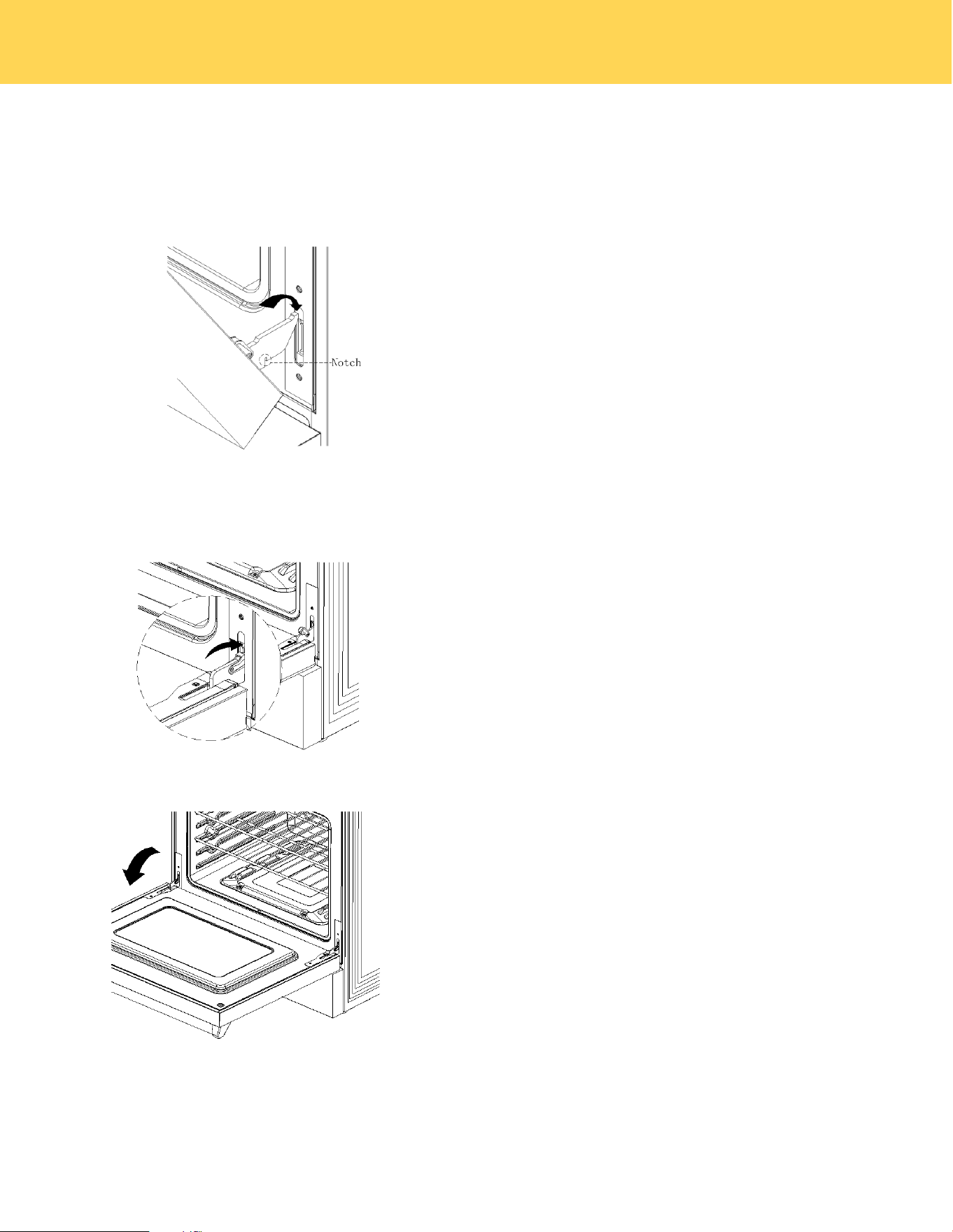

Remove And Replace The Oven Door.......................................................................................34
Troubleshooting........................................................................................................ 36
Warranty And Service...................................................................................................................40
TABLE OF CONTENTS
GENERAL
SAFETY INSTRUCTIONS
■ Before performing any service, unplug the range
or disconnect the power supply at the household
distribution panel by removing the fuse or switching
off the circuit breaker.
■ Do not leave children alone—children should not
be left alone or unattended in an area where an
appliance is in use. They should never be
allowed
to climb , sit or stand on any part of the appliance.
Do not store items of interest to
children above a range or on the backguard of a
range—children climbing on the range to reach
items could be seriously injured.
■ Use only dry pot holders—moist or damp pot
holders on hot surfaces may result in burns
from
steam. Do not let pot holders touch hot
surface
units or heating elements . Do not use a towel
or
other bulky cloth in place of pot holders.
■ Never use your appliance for warming or heating
the room .
■ Do not touch the surface units , the heating elements
or the interior surface of the oven . These surfaces
may be hot enough to burn even though they are
dark in color. During and after use, do not touch,
or let clothing or other flammable materials contact
the surface units , areas near the surface units or
any interior area of the oven; allow sufficient time
for cooling first. Other surfaces of the appliance
may become hot enough to cause burns . Potentially
hot surfaces include the cooktop , areas facing the
cooktop , oven vent opening , surfaces near the
opening and crevices around the oven door.
■ Do not heat unopened food containers .
Pressure
could build up and the container could burst ,
causing an injury.
■ Do not use any type of foil or liner to cover the
oven bottom or anywhere in the oven , except as
described in this manual. Oven liners can trap heat
or melt , resulting in damage to the product and
risk
of shock , smoke or fire .
■ Avoid scratching or impacting glass doors, cook
tops or control panels . Doing so may lead to
glass
breakage . Do not cook on a product with
broken
glass . Shock, fire or cuts may occur.
■ Cook meat and poultry thoroughly— meat to at
least
an internal temperature of 160°F and poultry to
at
least an internal temperature of 180°F. Cooking
to these temperatures usually protects against
foodborne illness .

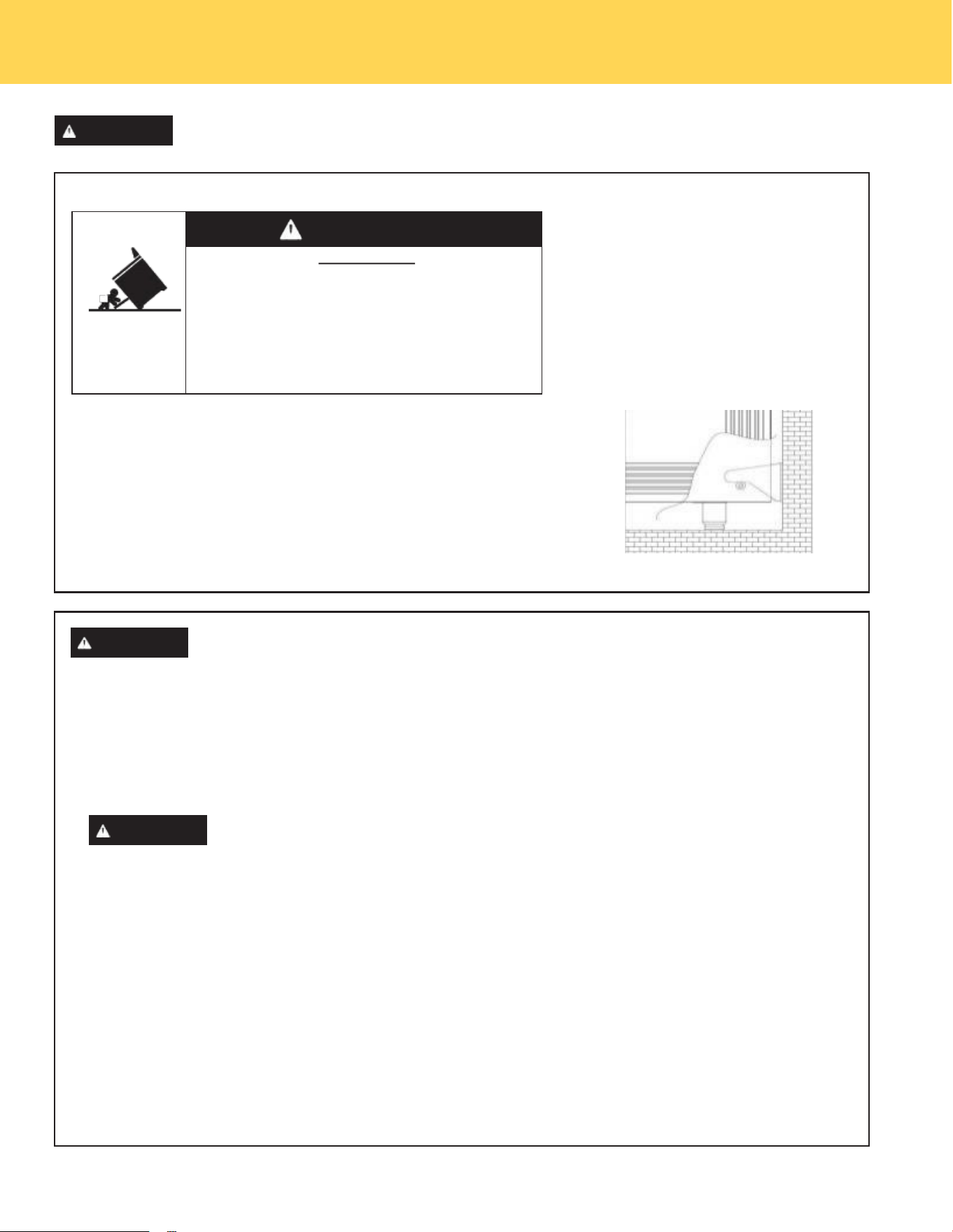

ANTI-TIP DEVICE
To reduce the risk
of tipping the range,
the
range must be secured by a properly
installed
anti-tip bracket. See installation
instructions
shipped with the bracket for
complete
details before attempting to install.
For
Free-Standing and Slide-In Ranges
To
check if the bracket is installed
and
engaged properly
, look underneath the
range
to see that the rear leveling leg is
engaged in the bracket. On some models , the storage drawer or kick panel
can be removed for easy inspection. If visual inspection is not possible,
slide the range forward , confirm the anti-tip bracket is securely attached to
the floor or wall , and slide the range back so the rear leveling leg is
under
the anti-tip bracket.
If the range is pulled from the wall for any reason, always repeat this
procedure to verify the range is properly secured by the anti-tip bracket.
Never completely remove the leveling legs or the range will not be secured
to the anti-tip device properly.
Free-Standing and Slide-In Ranges
Tip-Over Hazard
• A child or adult can tip the range and be killed.
• Install the anti-tip bracket to the wall or floor.
• Engage the range to the anti-tip bracket by sliding the
range back such that the foot is engaged.
• Re-engage the anti-tip bracket if the range is moved.
• Failure to do so can result in death or serious burns
to children or adults.
IMPORTANT SAFETY INFORMATION
Read all safety instructions before using the product. Failure to follow these instructions may result
in fire , electrical shock , serious injury or death.
WARNING
WARNING
CAUTION
WARNING
1
■
COOKTOP
SAFETY INSTRUCTIONS
■ Never leave the surface units unattended at medium
or high heat settings . Boilovers cause smoking and
greasy spillovers that may catch on fire .
■ Never leave oil unattended while frying. If allowed
to heat beyond its smoking point, oil may ignite
resulting in fire that may spread to surrounding
cabinets . Use a deep fry thermometer whenever
possible to monitor oil temperature .
■ To avoid oil spillover and fire, use a minimum
amount of oil when shallow pan-frying and avoid
cooking frozen foods with excessive amounts of ice .
■ Only certain types of glass , glass/ceramic ,
earthenware or other glazed containers are suitable
for cooktop service; others may break because of
the sudden change in temperature .
■ To minimize the possibility of burns , ignition of
flammable materials and spillage , the handle of a
container should be turned toward the center of the
range without extending over nearby surface units .
■ When preparing flaming foods under a hood, turn
the fan on .
IN
THE EVENT OF A FIRE, TAKE THE FOLLOWING
STEPS
TO PREVENT INJURY AND FIRE SPREADING
■ Do not use water on grease fires. Never pick up
a flaming pan . Turn the controls off. Smother a
flaming pan on a surface unit by covering the pan
completely with a well-fitting lid , cookie sheet or flat
tray. Use a multi-purpose dry chemical or foam-type
fire extinguisher .
■ If there is a fire in the oven during baking,
smother
the fire by closing the oven door and turning the
oven off or by using a multi-purpose dry chemical or
foam-type fire extinguisher .
■ If there is a fire in the oven during self-clean,
turn
the oven off and wait for the fire to go out. Do not
force the door open . Introduction of fresh air at self-
clean temperatures may lead to a burst of flame
from the oven . Failure to follow this instruction may
result in severe burns.
KEEP
FLAMMABLE MATERIALS AWAY FROM THE RANGE
Failure
to do so may result in fire or personal injury.
■ Do not store or use flammable materials in an
oven
or near the cooktop , including paper, plastic, pot
holders , linens , wall coverings , curtains , drapes and
gasoline or other flammable vapors and liquids .
■ Never wear loose-fitting or hanging garments while
using the appliance . These garments may ignite if
they contact hot surfaces causing severe burns .
■ Do not let cooking grease or other flammable
materials accumulate in or near the range. Grease
in the oven or on the cooktop may ignite .
■ Clean ventilating hoods frequently. Grease should
not be allowed to accumulate on the hood or filter.
IMPORTANT SAFETY INFORMATION
t
WARNING
WARNING
WARNING
2
OVEN
SAFETY INSTRUCTIONS
■ Stand away from the range when opening the oven
door. Hot air or steam which escapes can cause
burns to hands , face and/or eyes .
■ Do not use the oven if a heating element
develops
a glowing spot during use or shows other signs
of damage . A glowing spot indicates the heating
element may fail and present a potential burn, fire ,
or shock hazard. Turn the oven off immediately and
have the heating element replaced by a qualified
service technician .
■ Keep the oven vent unobstructed.
■ Keep the oven free from grease buildup. Grease in
the oven may ignite.
■ Place oven racks in desired location while oven is
cool. If rack must be moved while oven is hot,
do not
let pot holder contact hot heating element in oven .
■ When using cooking or roasting bags in the oven ,
follow the manufacturer ’s directions.
■ Pull the oven rack to the stop-lock position when
loading and unloading food from the oven . This
helps prevent burns from touching hot surfaces of
the door and oven walls .
■ Do not leave items such as paper, cooking
utensils
or food in the oven when not in use. Items stored
in
an oven can ignite.
■ Never place cooking utensils, pizza or baking stones,
or any type of foil or liner on the oven floor. These
items can trap heat or melt, resulting in damage
to
the product and risk of shock , smoke or fire.
GLASS
COOKTOP SAFETY INSTRUCTIONS
■ Use care when touching the cooktop. The glass
surface of the cooktop will retain heat after the
controls have been turned off.
■ Do not cook on a broken cooktop. If glass
cooktop
should break , cleaning solutions and spillovers
may penetrate the broken cooktop and create a
risk of electric shock. Contact a qualified technician
immediately.
■ Avoid scratching the glass cooktop. The cooktop
can be scratched with items such as knives , sharp
instruments, rings or other jewelry , and rivets on
clothing.
■ Use ceramic cooktop cleaner and a non-scratch
cleaning pad to clean the cooktop. Wait until the
cooktop cools and the indicator light goes out
before cleaning. A wet sponge or cloth on a hot
surface can cause steam burns . Some cleaners can
produce noxious fumes if applied to a hot surface.
NOTE: Sugar spills are an exception . They should
be scraped off while still hot using an oven mitt
and a scraper . See the Cleaning the glass cooktop
section for detailed instructions .
■ Read and follow all instructions and warnings on the
cleaning cream label.
■ Do not place or store items that can melt or catch
fire on the glass cooktop , even when it is not
being
used. If the cooktop is inadvertently turned on , they
may ignite . Heat from the cooktop or oven vent after
it is turned off may cause them to ignite also .
■ Do not place metallic objects such as knives, forks,
spoons and lids on the cooktop surface since they
can get hot.
IMPORTANT SAFETY INFORMATION
t
WARNING
WARNING
3
IMPORTANT INSTRUCTIONS FOR UNPACKING AND INSTALLATION
IMPORTANT
Read and follow the below instructions and precautions for unpacking , installing , and
servicing your appliance .
Remove all tape and packaging before using the appliance . Destroy the carton and
plastic bags after unpacking the appliance . Never allow children to play with pack-
aging material. Do not remove the wiring label and other literature attached to the
appliance . Do not remove model/serial number plate .
Cold temperatures can damage the electronic control . When using this appliance for
the first time , or when the appliance has not been used for an extended period of time ,
be sure the appliance has been in temperatures above 32ºF (0 ºC ) for at least 3 hours
before turning on the power to the appliance .
Make sure wall coverings, countertops and cabinets around the range can withstand the heat
(up to 194°F) generated by the range. Discoloration, delamination or melting may occur.
This range has been designed to comply with the maximum allowable wood cabinet
temperature of 194°F.
Before installing the range in an area covered with linoleum or other synthetic floor covering,make
sure the floor covering can withstand temperatures of at least 200°F(93°C).
Use an insulated pad or 1/4 in. (0.64 cm) plywood under the range if installing the range over
carpeting.
Never modify or alter the construction of the appliance by removing the leveling
legs , panels , wire covers , anti-tip brackets/screws , or any other part of the appliance .
Be sure to have an appropriate foam type fire extinguisher available , visible , and easily
accessible located near the appliance .
SELF
-CLEANING OVEN SAFETY INSTRUCTIONS
The self-cleaning feature operates the oven at temperatures high enough to burn away food soils in the oven .
Follow these instructions for safe operation.
■ Do not touch oven surfaces during self-clean ■ If the self-cleaning mode malfunctions, turn the
operation . Keep children away from the oven during oven off and disconnect the power supply. Have it
self-cleaning. Failure to follow these instructions
serviced by a qualified technician .
may cause burns.

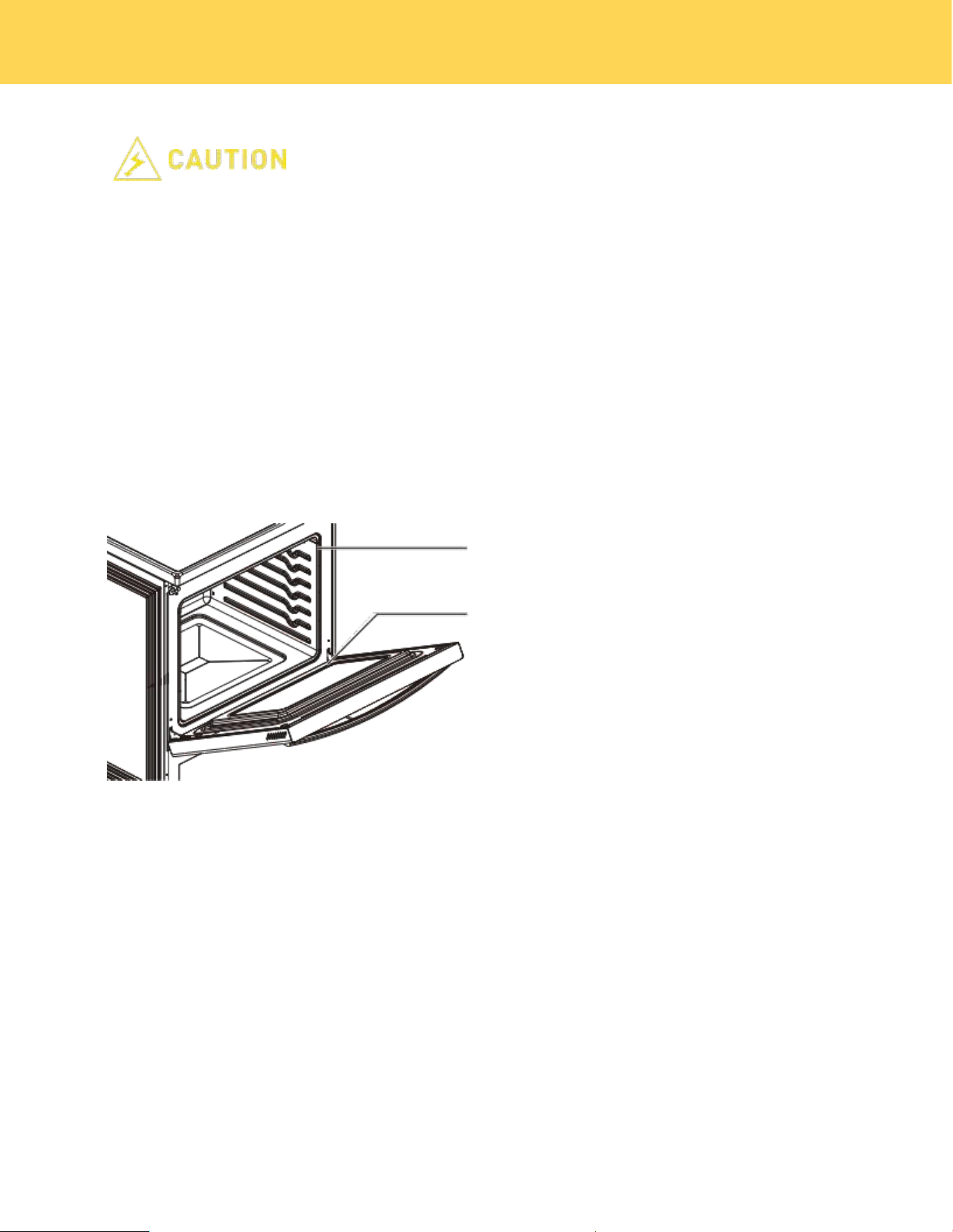

■ Do not clean the door gasket. The door gasket is
■ Before operating the self-clean cycle , remove pans ,
essential for a good seal. Care should be taken not
shiny metal oven racks and other utensils from the to rub , damage or move the gasket.
oven . Only gray porcelain-coated oven racks may
■ Do not use oven cleaners . No commercial oven
be left in the oven . Do not use self-clean to clean
cleaner or oven liner protective coating of any kind
other parts , such as drip pans or bowls .
should be used in or around any part of the oven .
■ Before operating the self-clean cycle , wipe grease
and food soils from the oven . Excessive amount
of grease may ignite leading to smoke damage to
your home .
IMPORTANT SAFETY INFORMATION
WARNING
4
• Avoid fire hazard or electrical shock. Failure to follow this warning may cause serious
injury , fire , or death.
• Avoid fi re hazard or electrical shock. Do not use an adapter plug , use an extension
cord , or remove grounding prong from the power cord. Failure to follow this warning
may cause serious injury , fire , or death.
Proper Installation—Be sure your appliance is properly installed and grounded by a
qualified technician . In the United States ,install in accordance with the National
Fuel Gas Code ANSI Z223 . 1/ NPFA No. 54, latest edition and National Electrical Code
NFPA No . 70 latest edition , and local electrical code requirements . In Canada , install in
accordance with CAN/ CGA B149 . 1 and CAN/ CGA B149 .2 and CSA Standard C22 . 1 ,
Canadian Electrical code , Part 1-latest editions and local electrical code requirements .
Install only per installation instructions provided in the literature package for this
appliance .
For personal safety , this appliance must be properly grounded. For maximum safety ,the
power cord must be securely connected to an electrical outlet or junction box that is
the correct voltage , is correctly polarized and properly grounded , and protected by a
circuit breaker in accordance with local codes .
It is the personal responsibility of the consumer to have the appropriate outlet or
junction box with the correct , properly grounded wall receptacle installed by a
qualified electrician . It is the responsibility and obligation of the consumer to
contact a qualified installer to assure that the electrical installation is adequate and
is in conformance with all local codes and ordinances .
See the installation instructions packaged with this appliance for complete installation
and grounding instructions .
IMPORTANT INSTRUCTIONS FOR SERVICE AND MAINTENANCE
Do not repair or replace any part of the appliance unless specifically recommended in the
manuals . All other servicing should be done only by a qualified technician . This reduces
the risk of personal injury and damage to the appliance .
Always contact your dealer , distributor ,service agent , or manufacturer about problems or
conditions you do not understand.
Ask your dealer to recommend a qualified technician and an authorized repair service .
Know how to disconnect the power to the appliance at the circuit breaker or fuse box in
case of an emergency.

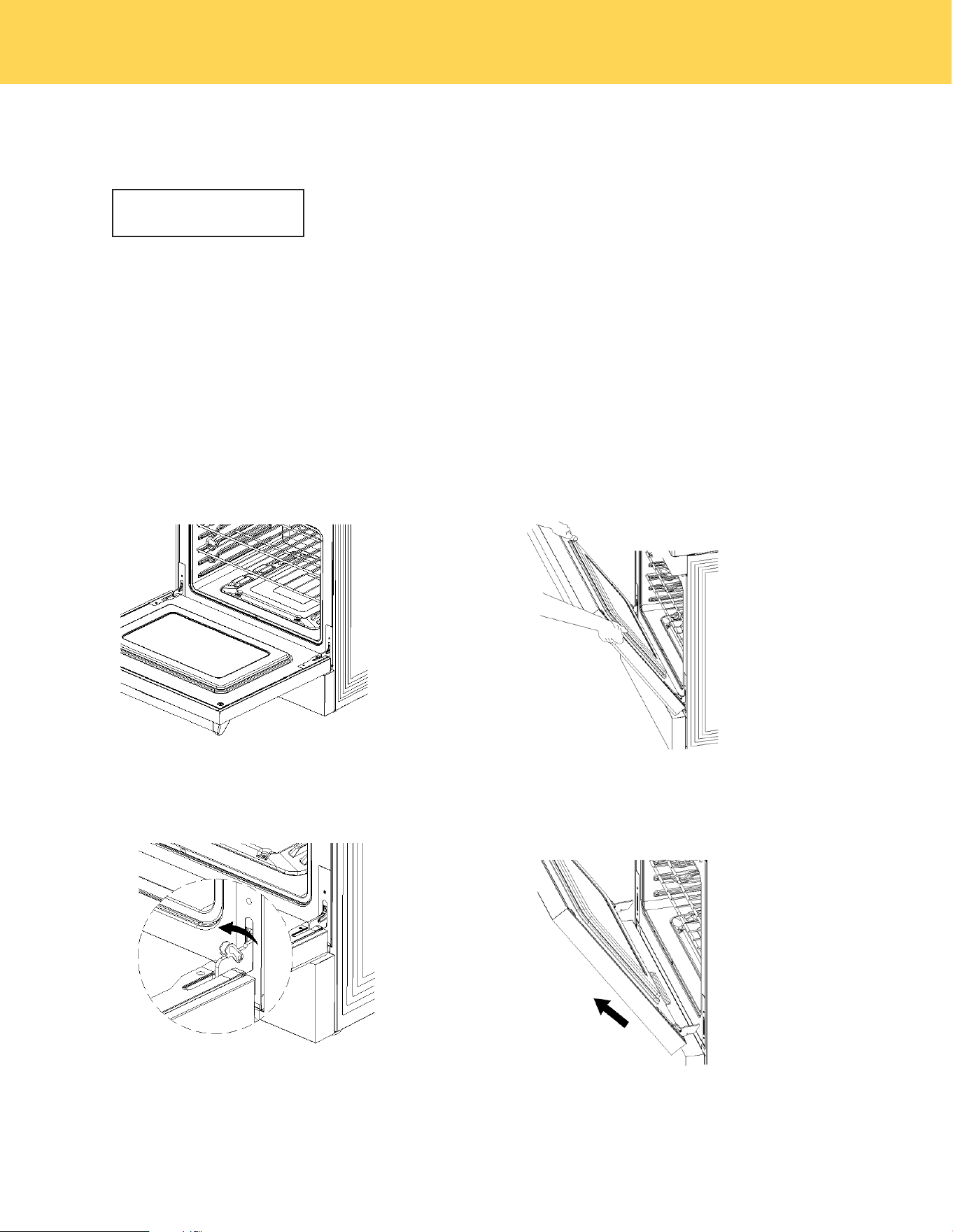

Remove the oven door from any unused oven if it is to be stored or discarded.
Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to
break. Handle halogen lights( if equipped) with paper towels or soft gloves . Disconnect
the appliance or shut off the power to the appliance before removing and replacing the
bulb.
IMPORTANT SAFETY INFORMATION
GROUNDING INSTRUCTIONS
WARNING
5
California Residents: for cancer and reproductive harm information , visit
www . P65Warnings . ca. gov
Important: This appliance has been tested and found to comply with the limits for a
class B digital device , pursuant to Part 18 of the FCC rules ( United States) and ICES- 001
(Canada) . These limits are designed to provide reasonable protection against harmful
interference in a residential installation . This unit uses and can radiate radio frequency
energy and , if not installed and used in accordance with the instructions , may cause
harmful interference to radio communications . However there is no guarantee that
interference will not occur in a particular installation . If this unit does cause harmful
interference to radio or television reception , which can be determined by turning the unit
off and on , the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antennae .
• Increase distance between unit and receiver.
• Connect the unit into an outlet or a circuit different from that to which the receiver is
connected.
IMPORTANT SAFETY INFORMATION
PROPER DISPOSAL OF YOUR APPLIANCE
Dispose of or recycle your appliance in accordance with Federal and Local Regulations . Contact your local
authorities for the environmentally safe disposal or recycling of your appliance .
WARNING
6

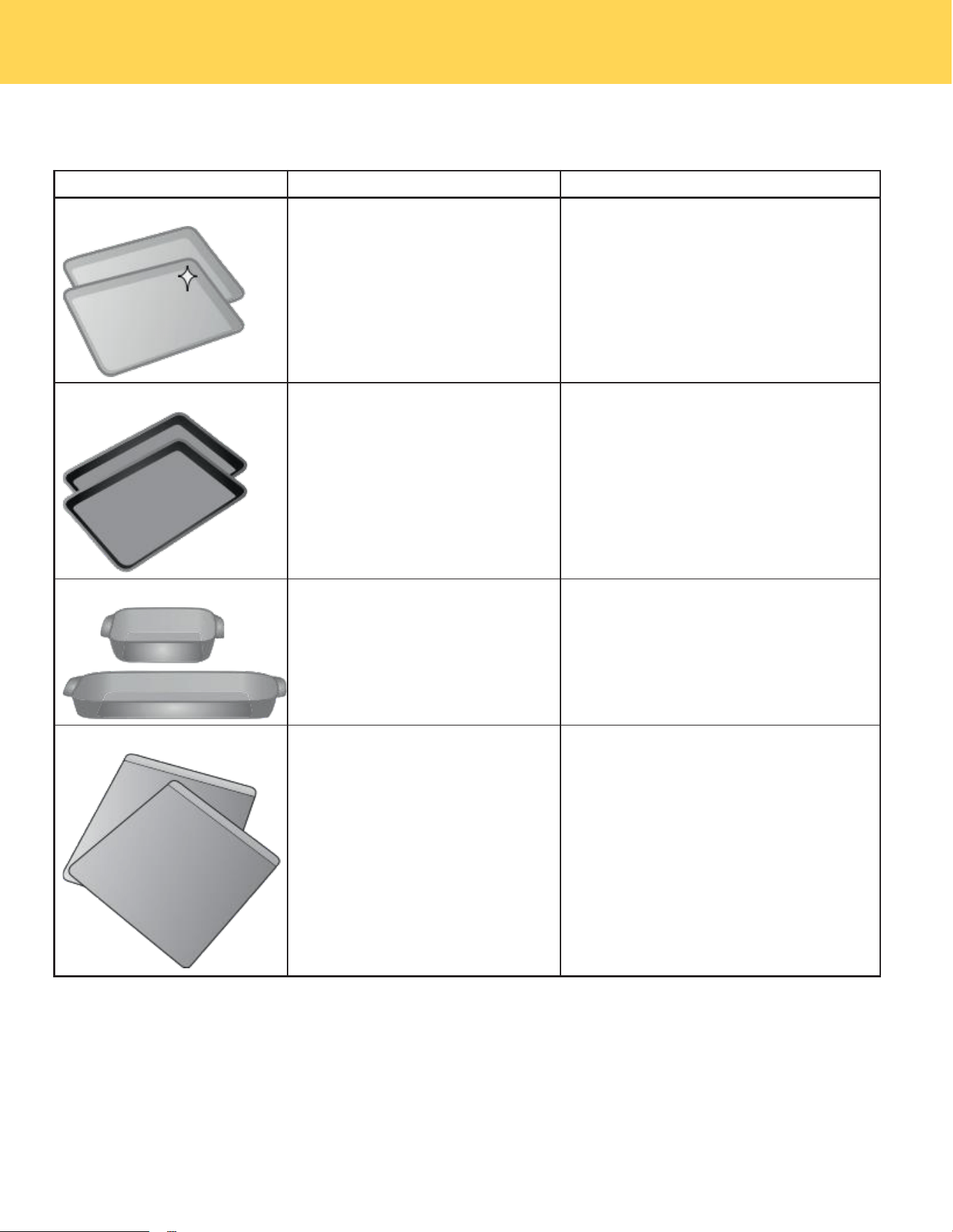

Material Attributes Recommendation
Shiny metal bakeware
Shiny, aluminum, and non-coat-
ed bakeware is the best for even
heating .It is suitable for all baked
goods.
Re commend ed co oking temperatures
and times are based on shiny metal
bakeware .
Dark metal bakeware
Dark bakeware cooks hotter than
shiny bakeware.
Reduce the cooking temperature by 25 °
F (
13
-14 °C ) when using dark bake- ware .
Glass bakeware
Glass bakeware cooks hotter
than shiny bakeware.
Glass is convenient , as the same
piece of bakeware can be used for
cooking, serving , and storing
food.
Reduce the cooking temperature by
25 °F ( 13-14 °C ) when using glass bake-
ware .
Insulated bakeware
Insulated bakeware cooks cooler
than shiny bakeware.
Insulated bakeware is designed for
baking in gas ovens .
Reduce the cooking temperature by
25 °F ( 13-14 °C ) when using insulated
bakeware
.
COOKING RECOMMENDATIONS
Bakeware
The material of bakeware affects how evenly and quickly it transfers heat from the pan to the food.
7
Condition
Attributes
Recommendation
Aging cook ware
As pans age and
become
discolored
, cooking times may
need
to be reduced slightly .
If food is too dark or overcooked , use the
minimum cook time in the recipe or packaging.
If food is too light or undercooked , use the middle
to maximum cook
time in the recipe or packaging
.
High altitude
Air is
drier and air pressure is
lower .
Water boils at a
lower
temperature,
and liquids evaporate faster .
Foods may take longer to bake.
Doughs may rise faster .
Adjust
cooking temperature, cooking time , or
recipes as needed.
Increase amount of liquid in baking recipes .
Increase
cook time on cooktop .Cover dishes to
reduce eva
poration .
Increase bake time or oven temperature .
Reduce amount of baking soda or baking
powder in recipe. Reduce rising time or
punch down dough and allow it to rise twice .
Situation Recommendation
Baking
Rack placement
When using
only one rack, place the rack so the food is in the center of the oven .
Preheat
Fully preheat the oven before baking items like cookies, cakes, biscuits and breads.
Insert food immediately after the beep .
Checking food
Use the window and oven light when checking food . Opening the door may
reduce baking performance.
Bake or Convection Bake
Convection bake is the best function to use for baking on multiple racks
Food placement
Allow
at least 2 inches ( 5cm)of space between bakeware for proper air circulation .
COOKING RECOMMENDATIONS
Result Recommendation
Food too light Use the middle to maximum cook time recommended on packaging or recipe .
Food too dark Use the minimum cook time recommended on packaging or recipe .
Cooking Results
Small adjustments may fix a problem with food not being as done as you like or more done than you like .
Cooking Conditions
Conditions in your kitchen can affect the performance of your appliance when cooking food.
Cooking Tips
Use these additional tips to get the best results from your appliance .
8
Material Recommendation
Broiling / Roasting
Broiling pan
For best results when broiling, use a broil pan with a broil pan insert de-S
igned
to drain the fat from the food, help avoid spatter, and reduce smoking
.The broiler
pan will catch grease spills, and the insert helps prevent grease splatters.
If a broiler pan and insert are not supplied with this appliance, they may be
purchased from thorkitchen .com .
Convection Cooking
Conve ction attributes Convection cooking uses a fan to circulate hot air around the oven and
food.
It browns food more evenly and reduces hot spots in the oven .
Convection saves time when using multiple racks or cooking several food
items at once .
Convection bake
Reduce cooking temperature by 2 5 °F ( 13 - 14°C ) from the recipe unless the
recipe is written for convection baking .
Preheat the oven for best results .
COOKING RECOMMENDATIONS
9
PRODUCT DIMENSIONS
Modle: RSI3 6
Modle: RSI30
10
MINIMUM DIMENSIONS BETWEEN COOKTOP,
WALLS AND ABOVE THE COOKTOP:
A:Make sure the wall covering , countertop.flooring and cabinets
around the range can withstand the heat (up to 200°F) generated
by the range .
B:Allow 30 ”minimum clearance between surface units and
bottom of unprotected wood or metal cabinet , or allow a 24"
minimum when bottom of wood or metal cabinet is protected by
no less than 1/4" thick flame retardant mill board covered with not
less than No 28MSG sheet metal , ( .015") .015" thick stainless
steel, . 024 " aluminum or . 020 " copper.
C:This appliance has been approved for 0" spacing to adjacent
surfaces above the cooktop. However, a 6" minimum spacing to
surfaces less than 15" above the cooktop and adjacent cabinet is
recommended to reduce exposure to steam , grease splatter and
heat.
To reduce the risk of burns or fire when reaching over hot surface
elements , cabinet storage space above the cooktop should be
avoided. lf cabinet storage space is to be provided above the
cooktop, the risk can be reduced by installing a range hood that
projects at least 5" beyond the front of the cabinets . Cabinets
installed above the cooktop must be no deeper than 16" .
D:Allow 3 0 " / 3 6 " ( depending on your range width) minimum
clearance between right and left cabinets .
CHECKING THE INSTALLATION SITE
Clearances and dimensions
To install the range ,refer to the following figure .
For installation in CANADA , a Free-standing range is not to be installed closer than 12mm from any adjacent surface .
Minimum dimensions
IMPORTANT
To eliminate the risk of burns or fire caused by reaching over heated surface units ,cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be provided , the risk can be reduced by installing a range hood that
projects horizontally a minimum of 5" beyond the bottom of the cabinets .
PREPARING TO INSTALL THE RANGE
11

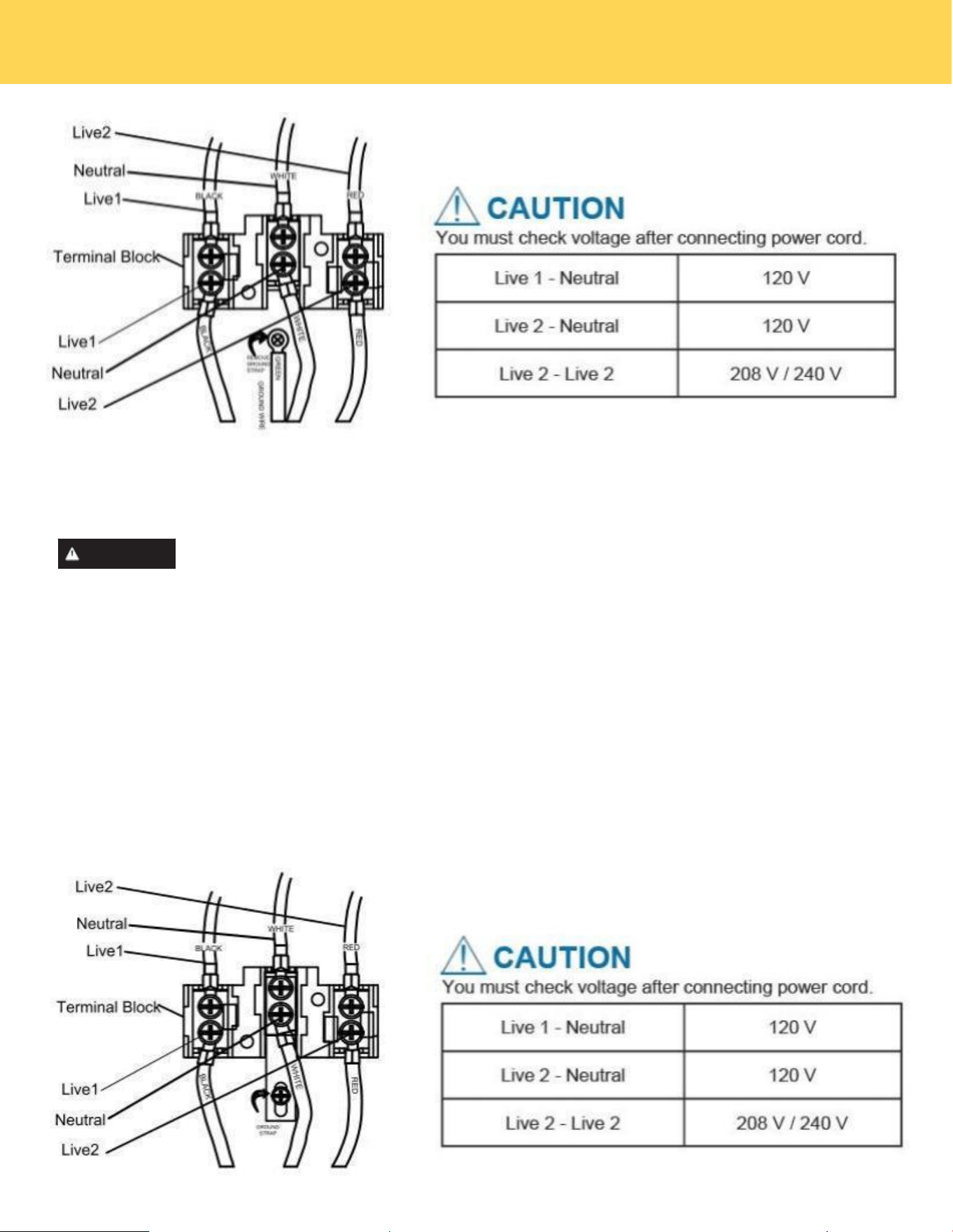

STEP 1. MEETING ELECTRICAL CONNECTION REQUIREMENTS
CAUTION
For personal safety , do not use an extension cord with this appliance .
Remove house fuse or open circuit breaker before beginning installation .
This appliance must be supplied with the proper voltage and frequency ,and connected to an individual properly
grounded branch circuit , protected by a circuit breaker or fuse having amperage as specified on the rating plate . The
rating plate is located on the right of oven door.
We recommend you have the electrical wiring and hookup of your range connected by a qualified electrician . After
installation , have the electrician show you where your main range disconnect is located.
Check with your local utilities for electrical codes which apply in your area .
Failure to wire your oven according to governing codes could result in a hazardous condition . If there are no local codes ,
your range must be wired and fused to meet the requirements of the National Electrical Code , ANSI/ NFPA No .70–Latest
Edition .
Effective January 1 , 1996 ,the National Electrical Code requires that new construction (not existing) utilize a 4-conductor
connection to an electric range .
When installing an electric range in new construction ,follow Steps for 4-wire connection .
You must use a 3-wire or 4-wire, single- phase A.C .20 8Y/ 1 2 0 Volt or2 4 0/ 1 20 Volt, 60hertz electrical system .
If the electrical service provided does not meet the above specifications , have a licensed electrician install an approved
outlet.
Use only a 3-conductor or a 4-conductor UL-listed range cord.These cords maybe provided with ring terminals on wire
and a strain relief device .
A range cord rated at 40 amps with 125/250 minimum volt range is required. a 50 amp range cord is not recommended
but if used , it should be marked for use with no minal 13⁄8" diameter connection openings. Care should be taken to
center the cable and strain relief within the knock out hole to keep the edge from damaging the cable .
NOTE
This appliance is manufactured ready to be installed with a 4-wire cord set.
STEP 2. POWERCORD
1 . Remove the rear terminal block cover and loosen the 6 screws with a screw driver . The terminal block will then be
accessible . Do not discard these screws .
CONNECTING THE POWER
12
Electrical Shock Hazard
Electrical ground is required on this appliance .
Do not connect to the electrical supply until appliance is permanently grounded.
Disconnect power to the circuit breaker or fuse box before making the electrical connection .
This appliance must be connected to a grounded , metallic, permanent wiring system , or a grounding
connector should be connected to the grounding terminal or wire lead on the appliance . Failure to do any
of the above could result in a fire , personal injury or electrical shock. See below for more information on
electrical grounding.
A . Remove the 4 lower terminal screws from the terminal block.
B. Insert the 4 terminal screws through each power cord terminal and into the lower terminals of the terminal block.
Be certain to match the wire and terminals by color.
C. Tighten screws securely into the terminal block.
CONNECTING THE POWER
• You must install the power cord with a strain relief.
• Attach the strain relief to the opening in conduit connection plate .

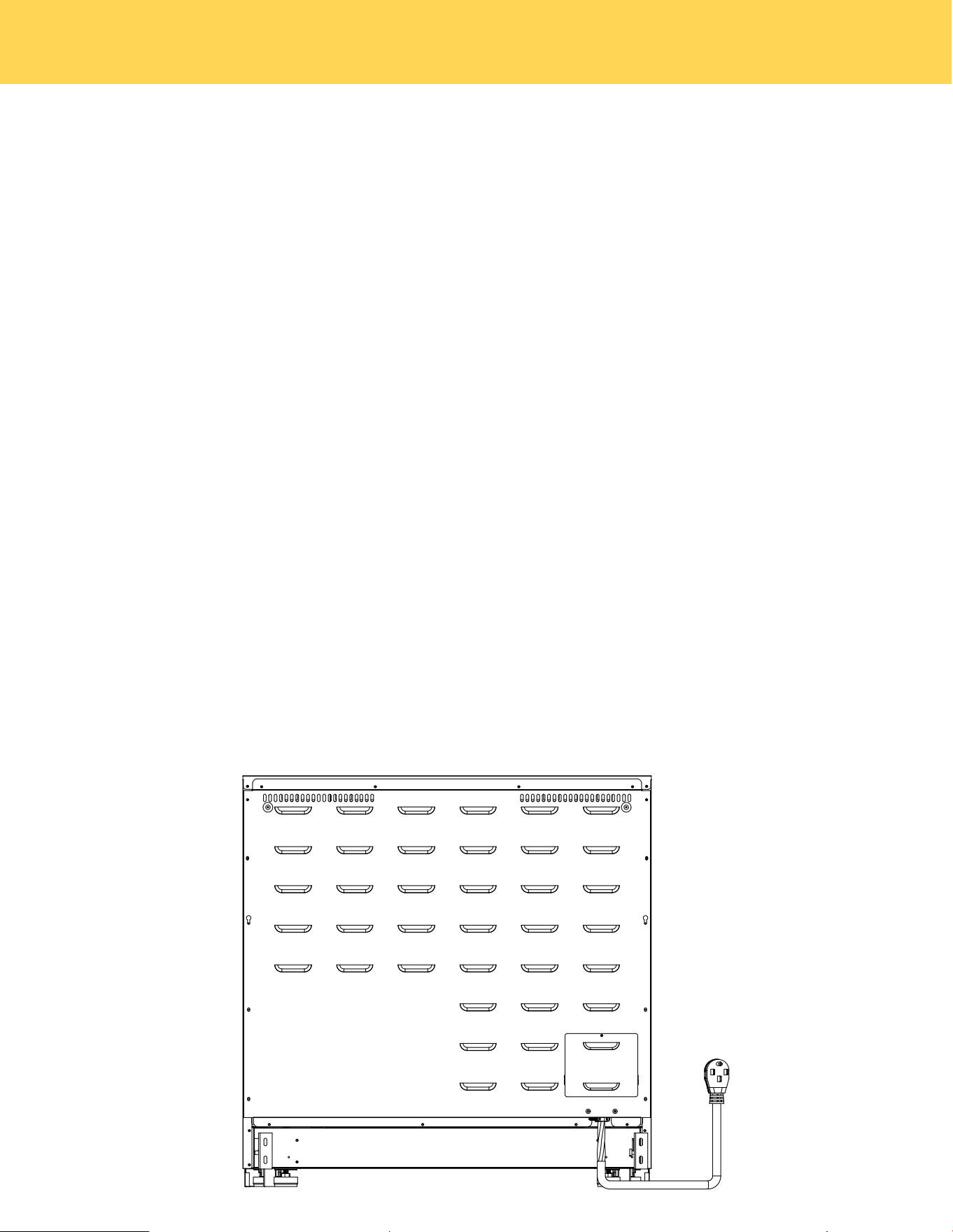

STEP 3. 4-WIRE POWER CORD INSTALLATION
2 . For power cord installations only, hook the strain relief over the power cord hole located below the rear of the drawer body.
Insert the power cord through the strain relief and tighten the device
WARNING
13
Electrical Shock Hazard
Electrical ground is required on this appliance .
Do not connect to the electrical supply until appliance is permanently grounded.
Disconnect power to the circuit breaker or fuse box before making the electrical connection .
This appliance must be connected to a grounded , metallic, permanent wiring system , or a grounding
connector should be connected to the grounding terminal or wire lead on the appliance . Failure to do any
of the above could result in a fire , personal injury or electrical shock. See below for more information on
electrical grounding.
A . Remove the 4 lower terminal screws from the terminal block.
B . Insert the Green ground terminals together with white one .
C.Insert the 3 terminal screws through each power cord terminal and into the lower terminals of the terminal block. Be
CONNECTING THE POWER
certain to match the wire and terminals by color.
D.Tighten screws securely into the terminal block.
STEP 4. 3-wire power cord
WARNING
14
CONNECTING THE POWER
STEP 5. REPLACING THE TERMINAL BLOCK COVER
Replace the terminal block cover on the range back and tighten the screw .
15
How does induction work?
Most cooking uses radiant heat that must pass through the cookware to get food hot. Induction is a
process that induces heat with an energy reac tion . When each cooking zone is turned on , power goes
to a coil under the cooktop. The powered coil creates an electromagnetic field. The electro magnetic
field reacts with compatible materials in cookware, creating heat in the cookware itself. The power
level controls the heating level , delivering precise results .
Induction Benefits
Because heat starts in the cookware instead of the cooktop , induction offers several advantages .
Cleaner cooking : Because induction works by heating the cookware and not the cooktop , spills don ’t
cook or stick to the surface .
Cooler Cooktop : An induction cooktop will be
cooler when you remove cookware than a conventional cooktop would be . The only radiant heat
produced in induction is from the cookware itself , so the kitchen stays cooler , too .
Fast Heating : Cookware will heat up faster than on a conventional electric cooktop . Pay close atten-
tion to avoid scorching food when starting to cook . You may need to use a lower setting for cooking
food than you are used to .
Precise Control : The heat going into the cookware will change immediately when you change the set -
ting of the cooking zone .
Even Heating : Cookware will typically heat more evenly on an induction cooktop , so you are less
likely to have hot or cool spots in the cookware .
Energy Efficiency: Because induction creates heat directly in the pan , it us es less electricity than a
conventional cooktop .
Before Using Your Cooktop
Before using your cooktop for the first time , apply a ceramic cooktop cleaning cream ( available in
most hardware , grocery , and department stores) to the ceramic surface . Clean and buff with a clean
paper towel . Cooktop cleaning creams leave a protective finish on the glass that will make cleaning
easier when the cooktop is soiled from cooking and help prevent scratches and abrasions .
Although induction cooking zones do not produce heat , they can become hot from contact with hot
cookware . Burns may occur if a cooking zone or the surrounding area is touched before it has cooled to a
safe temperature .
Sounds
The magnetic field over the induction cooking zo ne may cause cookware to vibrate , creating a buzzing
or humming noise . These sounds are not unusual , especially at high settings .
BEFORE SETTING SURFACE CONTROLS
Cookware that is not perfectly flat on the bottom may
vibrate slightly against the cooktop .
WARNING
16

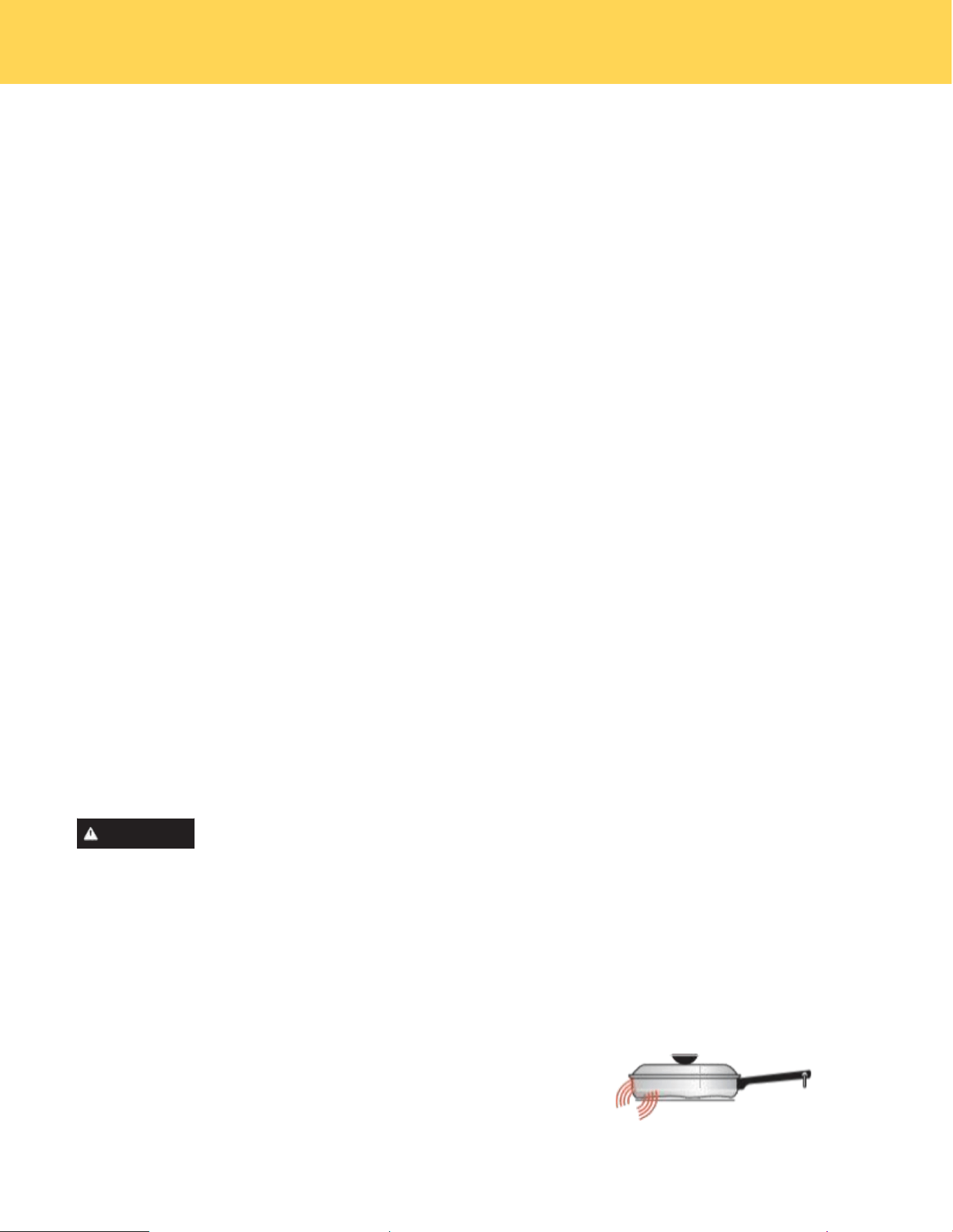

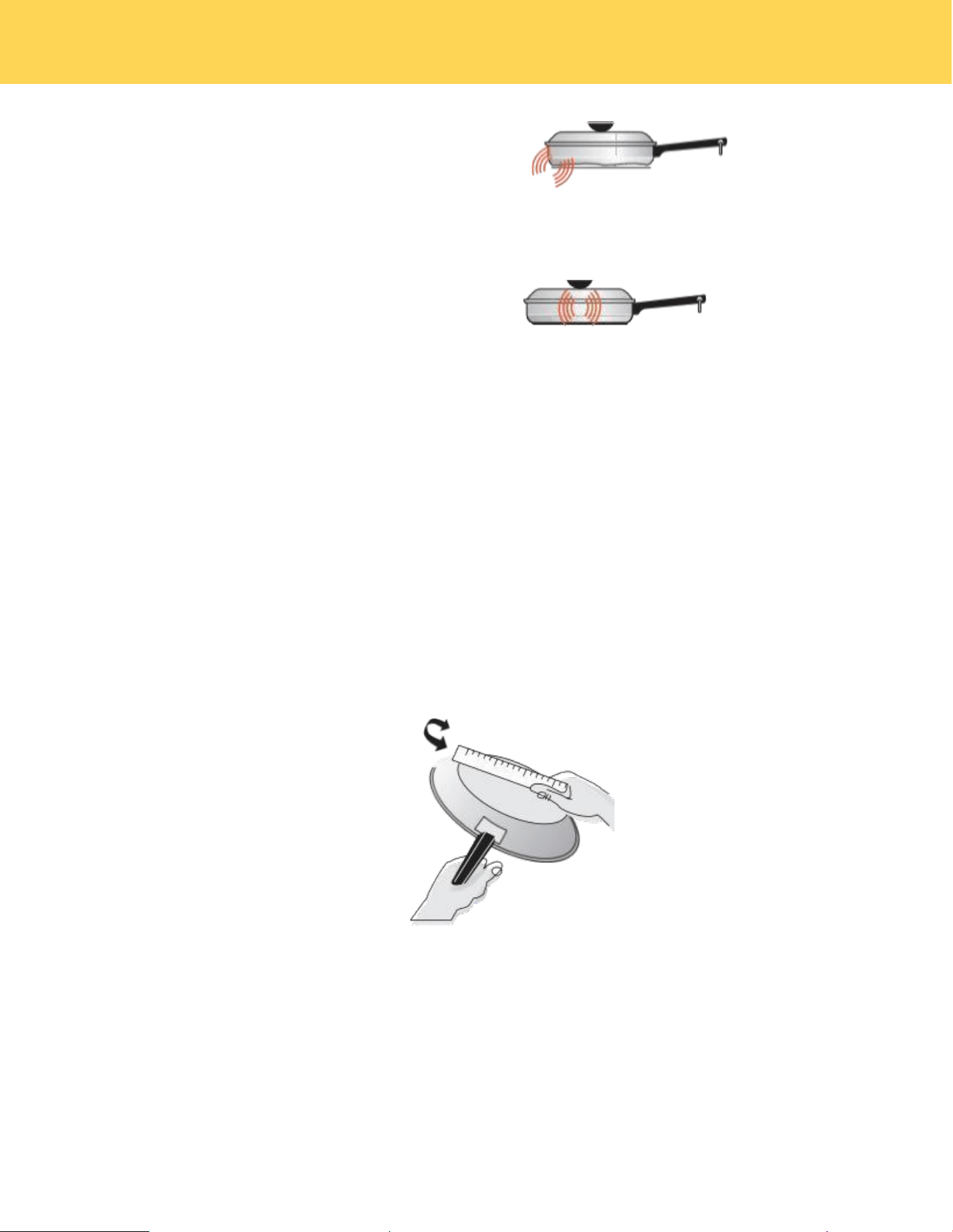

Figure 1 : Induction sounds
Sounds are less likely to occur with heavier , higher quality cookware .
An induction cooktop may also produce faint clicking sounds from the electronic switches that main -
tain the desired cooking temperature . You may also hear a fan that cools the electronics inside the
cooktop .
NOTE
Be sure to read detailed instructions for induction cooktop cleaning in the “ Care and Cleaning ”
section and “ Before You Call ” checklist section of this Use and Care Manual .
Using Proper Cookware
The size and type of cookware used will infl uence the heat setting needed for best cooking results . Be
sure to follow the recommendations for using proper cookware as illustrated in Figure 2 .
Figure 2 : Testing cookware
Cookware Material Types
Cookware material is especially important when using an induction cooktop . The cookware must
contain magnetic iron or steel to work on an induction cooktop . Common materials for induction
cookware include the following :
• Stainless Steel - Slow heat conductor . Durable , easy to clean , and resists staining . Some types of
stainless steel will not work on an induction cooktop . Use the magnet test (see “ Figure 4:Magnet
test”) to check stainless steel cookware .
BEFORE SETTING SURFACE CONTROLS
A loose handle may vibrate in its socket .
Multi-material cookware may allow small
vibrations in its structure .
Check for flat ness by
rotating a ruler across the
bottom of the cookware
(see Figure 2 ) .
Cookware should have flat
bottoms that make good
contact with the entire
surface of the
heating element (see
Figure 3) .
17
Figure 4: Magnet test
If the magnet clings firm ly to the bottom of the cookware , it will work on your induction
cooktop . If the magnet clings weakly or not at all , the cookware will not heat up on your
induction cooktop .
CAUTION
Proper cookware on an operating induction cooking zone will heat up very quickly . If an empty piece of
cookware is left on an operating induction cooking zone , the rapid change in temperature may warp or
damage the cookware .
Pan Sensing
When the cooktop is on , the cooking zones automatically detect when cookware is placed on the zone . The
control for that zone will light up , making it easy to kno w which section of the control to use for that cooking
zone .
Error message . Displayed if the cookware on an element is unsuitable , too small , or if no cookware has
been placed on the cooking zone .
• Cast Iron - A slow heat conductor that retains heat very well . Cooks evenly once cooking temperature is
reached.
• Porcelain-enamel on metal - Heating characteristics will vary depending on the base material . Porcelain-
enamel on a compatible metal will work on an induction cooktop . Use the magnet test to check
porcelain-enamel cookware .
To see if a piece of cookware will work on your induction cooktop , try to stick a magnet to it . If the magnet
clings fi rm ly to the bottom of the cookware , the cookware will work on your induction cooktop .
Cookware sold as induction-ready will often have a symbol printed on the bottom by the manufacturer .

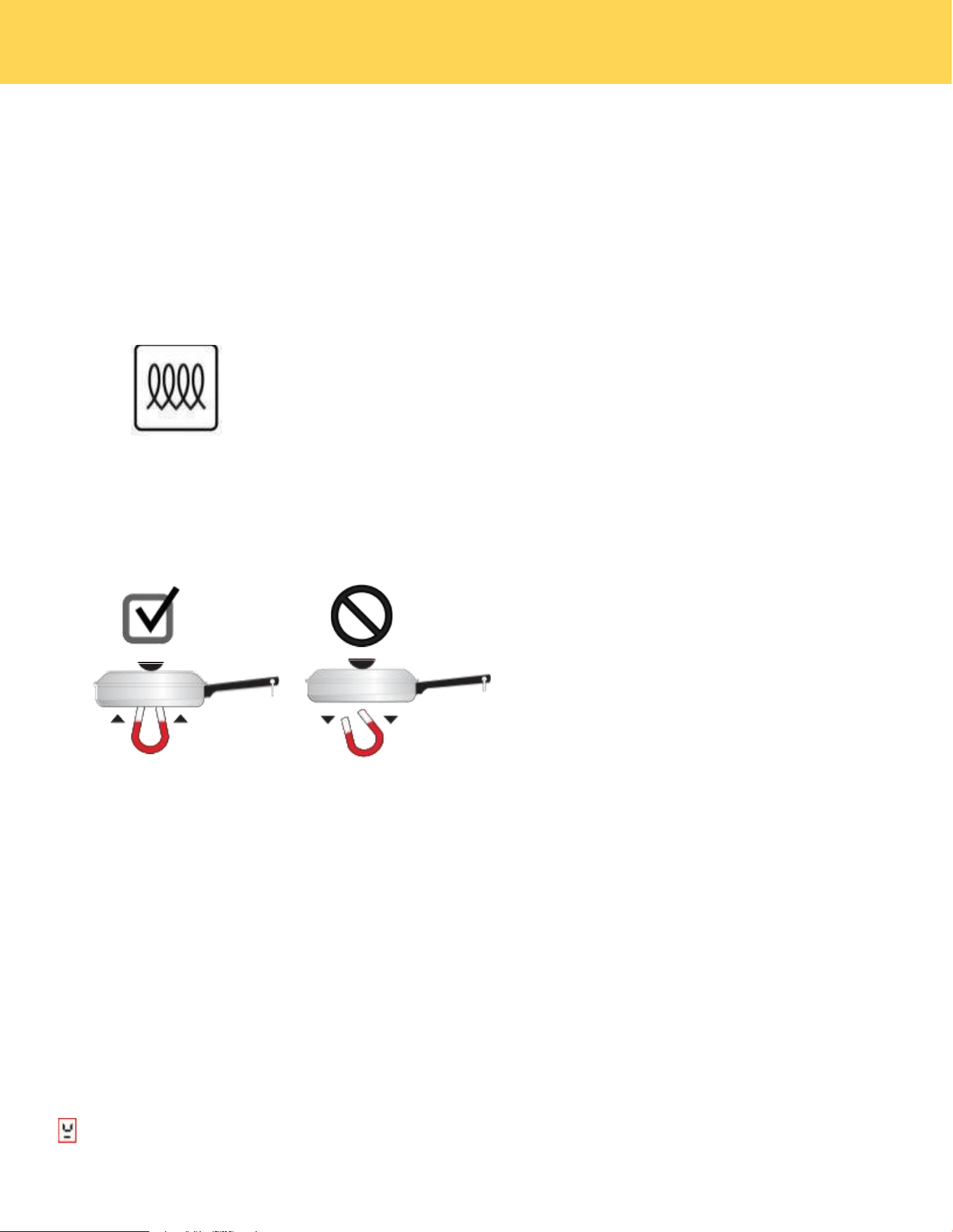

Figure 3 : Induction symbol
The Magnet Test
To see if a piece of cookware will work on your induction cooktop , try to stick a magnet to it (see Figure 4 ) .
BEFORE SETTING SURFACE CONTROLS
Magnet
Sticks
Magnet
Falls
18
Magnet
Sticks
Magnet
Falls
• Cookware base material has
good magnetic characteristics .
• Cookware centered correctly
on cooking zone .
• Flat pan bottom and straight
sides .
• Pan rests completely and is
level on the cooktop
surface .
• Pan is properly balanced.
• Cookware base material is
non-magnetic .
• Cookware not centered on
cooking zone .
• Curved or warped pan bottoms
or sides .
• Pan bottom rests on cooktop
edge .
• Heavy handle tilts pan .
CAUTION
• Although induction cooking zones do not directly generate heat , they can become hot from contact with
hot cookware . Burns may occur if a cooking zone or the surrounding area is touched before it has cooled
to a safe temperature .
• Do not place fla mmable items such as plastic salt and pepper shakers , spoon holders , or plastic wrapping
on top of the range when it is in use . Heat radiating from cookware could cause these items to melt or
ignite . Potholders , towels , or wooden spoons could catch fire if placed too close to hot cookware .
• Do not use aluminum foil to line any part of the cooktop .Improper installation of these liners may result
in risk of electric shock or fire. If these items melt on the cooktop , they will damage the cooktop .
BEFORE SETTING SURFACE CONTROLS
Figure 5 shows conditions that can prevent pan detection .
If you remove a pan from an active cooking zone , the zone will turn off after 30 seconds . If the cooktop
does not detect cookware in any zone for 30 seconds , the whole cooktop will turn off.
When a cooking zone is turned off , it may remain hot due
to contact with hot cookware.The Hot Surface Indicator will activate
and stay on.

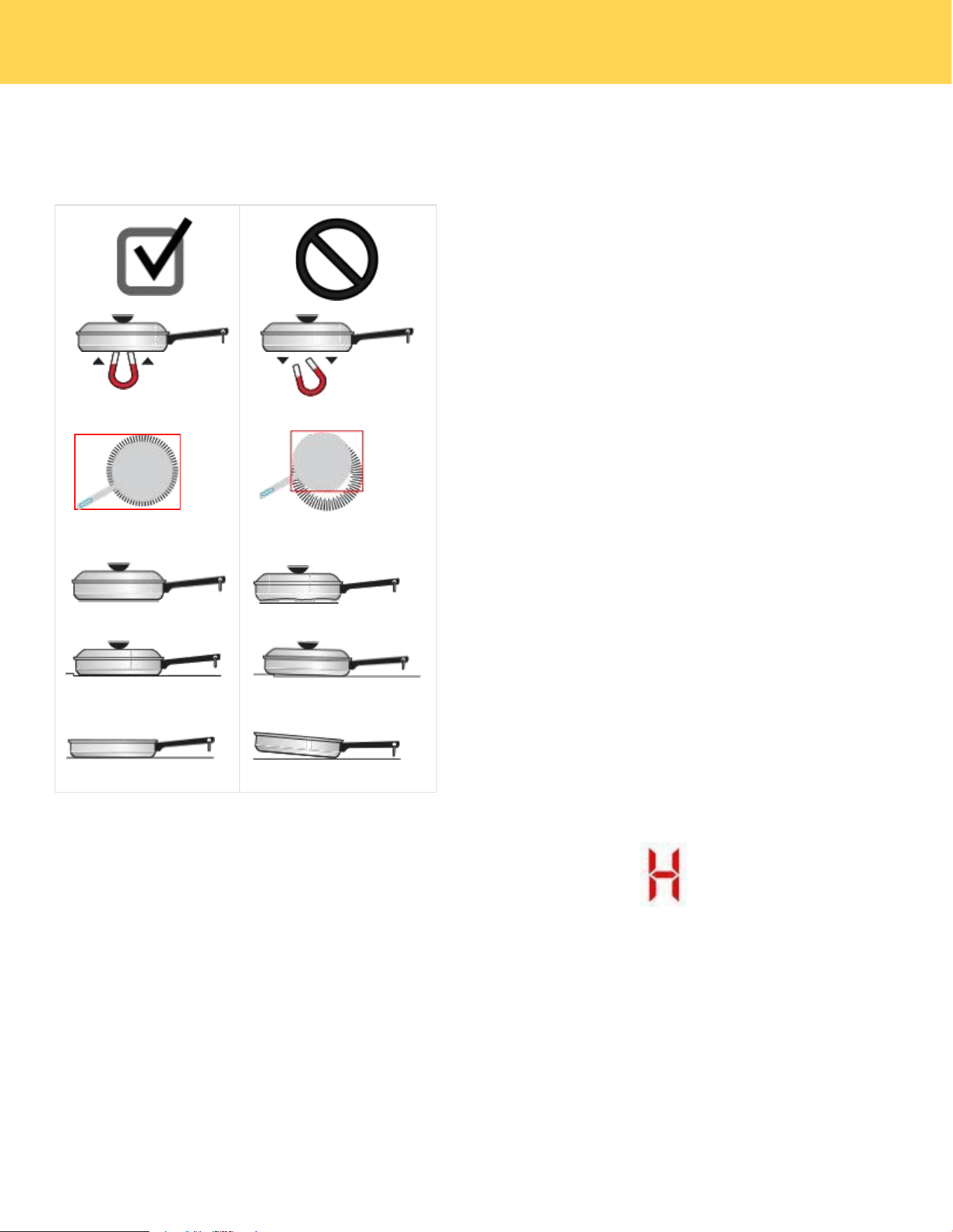

Figure 5 : Pan sensing conditions
Hot Surface Indicator
19
Figure 6:Hot Surface Indicator
Home Canning
Be sure to read and observe all the following points when home canning with your appliance . Check
with the USDA ( United States Department of Agriculture) Website and be sure to read all the
information they have available as well as follow their recommendations for home canning procedures .
• Use only a completely flat bottom can ner with no ridges that radiate from the bottom center when
home canning . Heat is spread more evenly when the bottom surface is flat . Use a straight-edge to
check can ner bottom .
• Make sure the diameter of the can ner does not exceed 1 inch beyond the surface element markings
or burner .
• It is recommended to use smaller di ameter can ners on electric coil and ceramic glass cooktops and
to center can ners on the burner grates .
• Start with hot tap water to bring water to boil more quickly .
• Use the highest heat setting when first bringing the water to a boil . Once boiling is achieved ,
reduce heat to lowest possible setting to maintain that boil .
• Use tested recipes and follow instructions carefully . Check with your local Cooperative Agri-
cultural Extension Service or a manufacturer of glass jars for the latest canning information .
• It is best to can small amounts and light loads . Do not leave water bath or pressure canners on
high heat for an extended amount of time .
BEFORE SETTING SURFACE CONTROLS
20

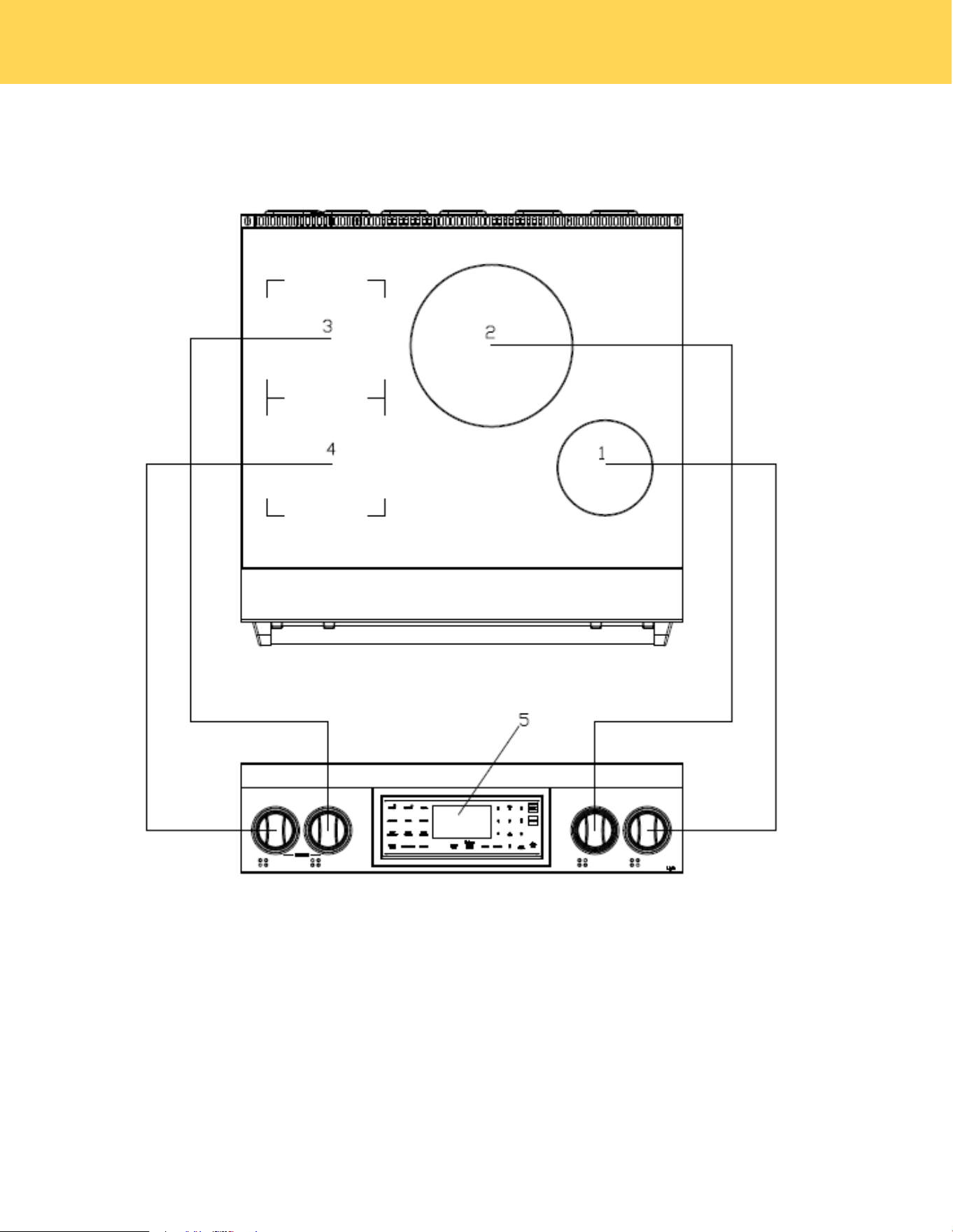

SETTING SURFACE CONTROLS
1. Right Front Burner
2 . Middle Burner
3. Left Rear Burner
4 . Left Front Burner
5 .Control Panel
Control Panel Overview
Modle: RSI3 0
21

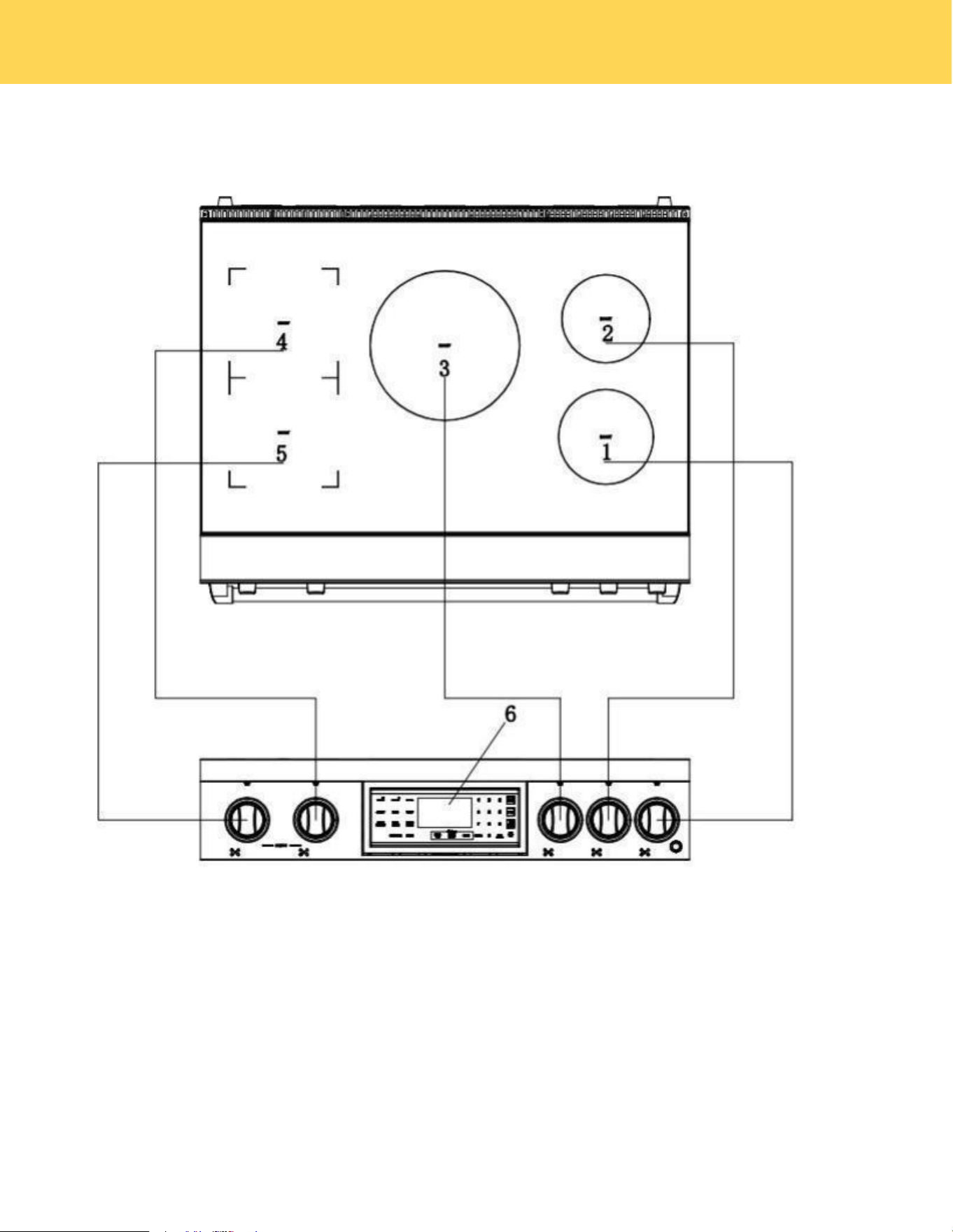

SETTING SURFACE CONTROLS
1. Right Front Burner
2 . Right Rear Burner
3 . Middle Burner
4. Left Rear Burner
5. Left Front Burner
6 .Control Panel
Modle: RSI3 6
22
SETTING SURFACE CONTROLS
How to operate the control knobs :
• Push the knob and turn clockwise to your desired cooking
level ; there are 9 temperature levels for each element .
• NOTE : When heating on level P (boost mode), after 5
minutes , the output power will switch to level 9 automatically .
Heating Power Of Each Cooking Zone
Modle: RSI3 0
USING THE RANGETOP
Modle: RSI3 6
23
Sync Burners
The two left cooking zones have the Bridge feature .The Bridge indicator is available on the front
left cooking zone if both left cooking zones detect cookware. The Bridge function makes the two left
cooking zones work together to heat a long piece of cookware , like a griddle.
How to use:
Press the Sync burners key , the burners display will both blink and show a “ 0 ” .
Press the number keys to select the power level , For example press the number key “ 9 ” ,the
burners display will both show a “ 9” .
The cooking zone will automatically turn on readiness mode if a key is not pressed within 30
seconds .
Pressing the Boost key will display a "P" and increase the heating power to the maximum level .
Boost is the highest power level , designed for quickly heating or boiling larger quantities. Boost will
operate for a maximum of 10 minutes. After 10 minutes , it will automatically revert to power level 9 .
Turn Off
A ： Press the desired cooking zone power key , and then press the number key “ 0 ” ,The cooking
zone will shut automatically if a key is not pressed within 5 seconds .The unit is now on readiness
mode .
B ： Press the power key, it will make a “beep ” sound once , and it will turn off . The unit is now on
standby mode .
Note: Please do not pull the power plug until the cooling fan has stopped.
SETTING SURFACE CONTROLS
24
According to the united sates Department of Agriculture: DO NOT hold foods at temperatures
between40℉to140℉more than2hours. cooking raw foods below275℉is not recommended.
Never cover any slots, holes or passages in the oven bottom or cover an entire rack
withmaterials such as aluminum foil. Doing so blocks air flow through the oven and may
causecarbon monoxide poisoning, Aluminum foil lining may also trap heat, causing a fire
hazard.
oven cooking safety Guidelines
Do not block the ducts on the rear of the range when cooking in the oven. It is important that the flow of
moist warm air from the oven and fresh air into the oven burner never be interrupted. Avoid touching the
vent opening or nearby surfaces during oven or broiler operation because they are hot. Do not place
plastics, paper or other items that could melt or burn near the oven vent.
Use all the oven modes with the oven door closed.
Never use aluminum foil to cover the oven shelves or to line the floor of the oven. The trapped heat can
irreversibly damage the enamel and may even cause a fire.
Do not place water, ice, or any dish or tray directly on the oven floor, as this will irreversibly damage the
enamel.
Do not cover the slotted grid of the broil/roast pan with aluminum foil. This will catch the grease and could
cause a fire.
Do not use plastic wrap or wax paper in the oven.
For food safety reasons, do not leave food in the oven for longer than two hours before andafter cooking
or defrosting. This is to avoid contamination by organisms which may cause foodpoisoning.Take care
during warmer weather.
25

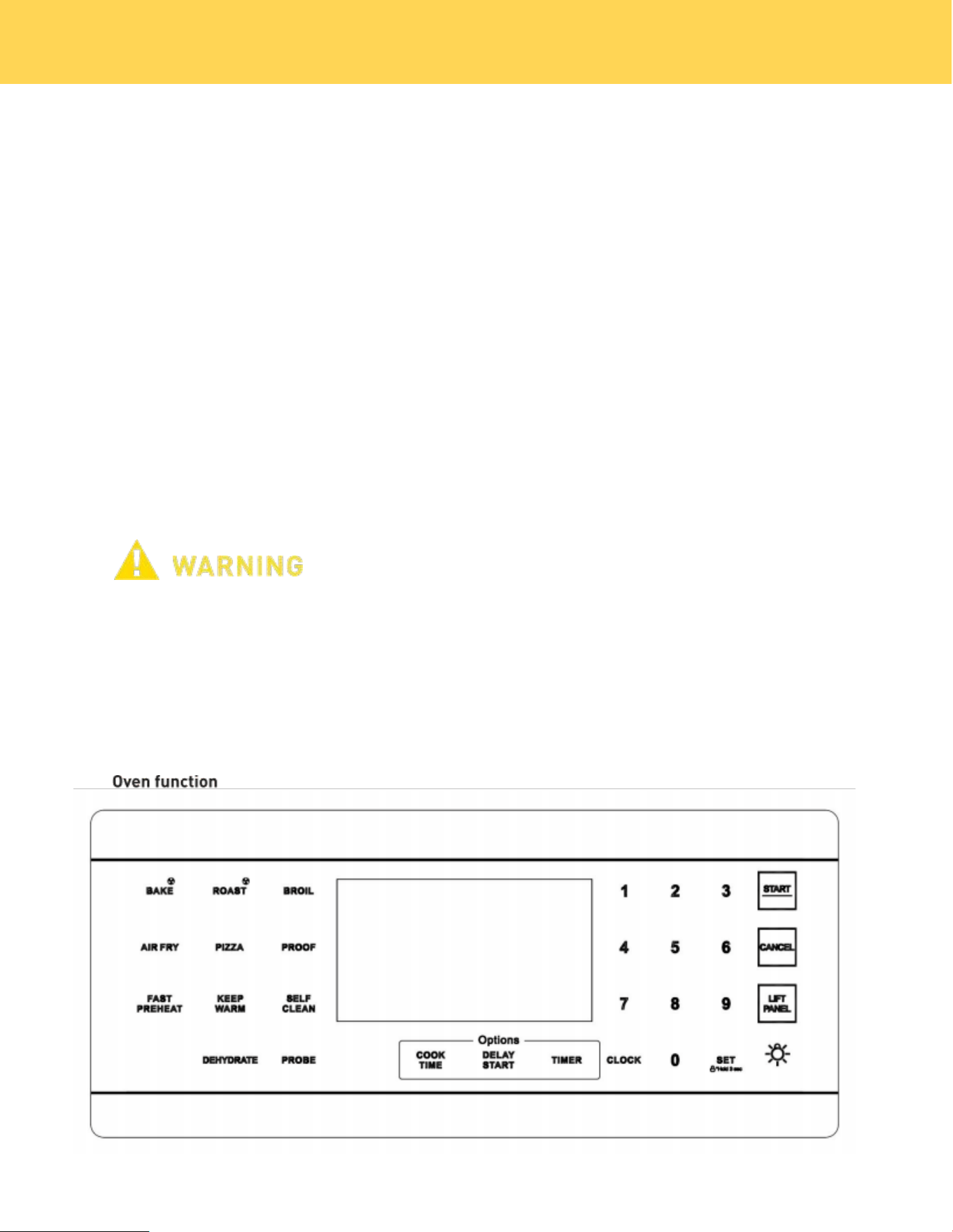

OPERATING THE OVEN
1. key:This touch key is used to enter the setting of Bake and convection Bake
functions. In the standby mode, touch fifl to enter the Bake function setting mode, touch
again to enter the convection Bake function setting mode, and touch again will re-enter.
2. :Turns on the fan while roasting. provides more consistent heat by circulating the air
inside the oven while baking. cooks large cuts of meat.
3. Broil:Turns on the Broil function. cooks foods using the top oven element only. you can
select Broil Hior Broil LOW. press once to cook using the High heat mode. press twice to
cook using the Low heat mode.
4.Air Fry:Turn the Air Fry mode on and off.
5.Pizza: use t o se lect t he pizza f unction of the oven.
6.Proof:use to select the bread proof function of the oven.
7. F ast p r eh e at: use to se l e ct t h e Fas t preh e at f unct i on of t he oven.
8.Keep Warm: keeps the oven warm after cooking. This lowers the oven temperature and
maintains it at 150℉ (65℃) up to three hours.
9.Self-cleaning:Activates the oven cleaning function. Both steam cleaning and self -cleaning
options are available. The self-cleaning mode can be adjusted based on the level of
dirtiness. Level 1 runs for 2 hours, Level 2 for 3 hours, and Level 3 for 5 hours. The default
setting is Level 2 with a cleaning duration of 3 hours.
10. Dehydrate: use to select the dehydrate function of the oven.
11. P robe: used to set the working temperature of the food probe function.
12.Warming zone: Turns the 100w warming center on the cook top on or off. After pressing the
warming zone key, use the numeric keys 1, 2, and 3 to adjust the working level.
13. Cook Time: Turns on the cook Time function. use the number pads to set the amount of
time you want your food to cook. The oven automatically shuts off when the time has
elapsed. 14. Delay start:sets the oven to start and stop automatically. use with the Bake,
convection Bake,convection Roast, or cook Time functions.
15. Timer:Turns on the kitchen timer for the amount of time you want.
16. Clock: press to turn on the clock set feature, then set the current time.
17. Set/child lock:setting function of the oven. press and hold for three seconds to turn off the
control panel touch pads to prevent the oven from accidentally being turned on. Touch pads
stay locked until you turn this function off.
18. Lift panel: used to lift and lowering the oven control panel
19. Cancel: cancels all oven operations except the clock and timer:
20. Start :starts the oven cooking, cleaning, or timing functions.
21.Oven Light: Turns the oven light on or off.
22. Numbers:sets times, temperatures, and preset oven functions.
26
OPERATING THE OVEN
23 .Preheat the oven to the temperature stated in the recipe . Depending on the temperature and
the size of the oven , preheating will vary. For better cooking performance and exact oven
cavity temperature , preheating time will be 10 mins per 100 Degrees .
24. Arrange pans and food items evenly on the shelves . Make sure pans do not touch each
other or the sides of the oven . When baking a single item , always center the item on the oven
shelf. If baking on multiple shelves, make sure you stagger item so the shelves so that one is
never directly above another:
25 .When baking using convection , either reduce the temperature stated in the recipe and leave
the baking time unchanged or reduce the baking time by several minutes and leave the
temperature unchanged. For foods with a baking time of over an hour , reducing both the
temperature and time slightly may give the best results .
26 . Dark metal baking pans or those with a dull finish absorb heat faster than shiny pans , and
are excellent for pies and breads , or anything that needs browning or a crisper crust.
27.A shiny finish may work best for foods that require lighter, delicate browning
(e.g.cakes and cookies), as it reflects some heat and gives a less intense
baking surface.
28 .Avoid opening the oven door frequently during baking.
29.For best results use the broiler pan . The pan is used to catch grease spills and has a cover to
prevent grease splatter.
30.The convection fan circulates heated air over and the around the food being roasted ,sealing
juices quickly for a moist and tender product while , at the same time , creating a rich golden-
brown exterior.
31.Use the broil/roast pan and slotted grid supplied with the range when roasting to elevate the
meat on a metal roasting rack. This allows hot air to circulate around the meat ,
browning it more evenly like a rotisserie .A suitable roasting rack can be
purchased through your RSI distributor by calling customer care .
32. When roasting larger items like a whole turkey , use only the pan and grid for greater stability.
33.Convection Defrost:With temperature control off, a motorized fan in the rear of the oven
circulates air .The fan accelerates natural defrosting of the food without heat. To avoid illness
and food waste , do not allow defrosted food to remain in the oven for more than two hours
without being cooked.
34.Defrosting:To thaw uncooked frozen food , set the oven temperature to 100-150' F. Once
thawed , cook the food immediately and do not re-freeze .
To prevent liquid from thawing food dripping on the oven floor, be sure any uncooked food is
tightly wrapped in foil and/or placed in a heat proof container.
35:Convection Dehydration:With the temperature control on 175F , warm air is radiated from the
bake burners on the bottom of the oven cavity and is circulated by a motorized fan in the rear of
the oven .The food dries by evaporation . Drying foods inhibits microbial growth and retains
certain enzymes.
27
OPERATING THE OVEN
Door must be closed during broiler operation . Broiling is a method of cooking tender cuts of
meat directly under the infrared broiler in the oven . Broiling in the oven is accomplished with the
oven door closed. It is normal and necessary for some smoke to be present to give the food a
broiled flavor. If you open the oven door to check the food , have it open for as short a time as
possible . This is to prevent the control panel from overheating and prevents melted knobs.Use
both the broil/roast pan and slotted grid supplied. The grid helps to reduce smoking and splatter
by letting grease drip into the bottom of the pan ,away from intense heat. To prevent food
sticking, spray the grid with a light coating of non-stick cooking-spray.
Preheating
Preheating is suggested when searing rare steaks (Remove the broiler pan before preheating
with the infrared broiler. Foods will stick to hot metal. To preheat, turn the fi oven fl selector knob
to the Broil position .wait for the burner to become hot ,approximately 2 minutes . preheating is
not necessary when broiling meat well-done .
To Broil
Broil one side until the food is browned ; turn and cook on the second side . season and serve .
Always pull the rack out to the fi stop fl position before turning or removing food.
Setting Broil
The oven selector knob controls the Broil feature . When broiling , heat radiates downward from
the oven broiler for even coverage. The Broil feature temperature is 500℉ (260℃).
The broil pan and insert used together allow dripping grease to drain and be kept away from the
high-heat of the oven broiler. DO NOT use the broil pan without the insert.
DO NOT cover the broil pan insert with foil. The exposed grease could catch fire. To set the oven
to Broil:
1 . Place the broiler pan insert on the broiler pan . Then place the food on the broiler pan insert.
2 . Arrange the interior oven rack and place the broiler pan on the rack. Be sure to center the
broiler pan and position directly under the broil burner . If preheating the broil burner first ,
position the broiler pan after the broil burner is preheated.
3. Turn selector knob to broil.
The oven indicator light will remain on until the selector knob is turned to the off position or
the temperature control cycles off.
To Broil
Broil one side until the food is browned ; turn and cook on the second side . season and serve .
Always pull the rack out to the fi stop fl position before turning or removing food.
Broiling guidelines
Choose a suitable shelf position . To ensure that meat is cooked through rather than just
browned on the outside , broil thick pieces of meat and poultry on shelf positions 2 or 3 . use
shelf position 4 for thinner items that need less cooking time like steaks , chops , or hamburger
patties . when finishing off meals by browning the top under the broiler ,use metal or glass-ceramic
bakeware. Do not use heat-proof glass or earthenware, as these cannot withstand the intense heat
of the broiler. C enter the item in the oven , so that it is directly under the broiler.
Br oi le r O perat ion
28
OPERATING THE OVEN
Temp adjust
The temperature in the oven has been calibrated at the factory. When first using the oven , be sure to
follow recipe times and temperatures .If you think the oven is too hot or too cool , you can correct the
temperature in the oven.Before correcting , test a recipe by using a temperature setting that is higher or
lower than the recommended temperature.The baking results should help you to decide how much of an
adjustment is needed.
The oven temperature can be adjusted +35 °F (+ 19 °C ) .
How to correct the oven temperature:
* In the standby state , touch the "Set" key and the number "5 " key for three seconds at the same time ,
the temperature calibration will be set.
NOTE
This adjustment will not affect the broiling or the self- cleaning temperatures. The adjustment will be
retained in memory after a power failure .
Temp Unit (Fahrenheit or Celsius Temperature Selection)
You can program the oven control to display the temperature in Fahrenheit or Celsius .
The oven has been preset at the factory to display in Fahrenheit.
How to change the display from Fahrenheit to Celsius or Celsius to Fahrenheit.
* Touch the " Set" key and the number " 4 " key for three seconds to switch between °F/°C .
Time of Day (12hr/24hr)
The oven control can be programmed to display time of day in the 1 2 hour or 2 4 hour mode.
The oven has been preset at the factory to display in the 12 hour mode .
How to change between the 12 and 24 hour time of day display:
* Touch the " Set" button and the number " 2 " button for three seconds to switch the 12/ 24 hour clock
mode.
Sound On/Off
Using Sound On/OFF , you can set the oven controls to operate silently.
How to turn the sound on or off:
* Touch the " Set" key and the number " 3 " key for three seconds to switch the sound on/ off mode.
Control Lockout
This feature lets you lock the buttons on the touch pad so they cannot be activated accidentally.After the
lock ,only " Cancel" and " SETTING" can operate.
How to activate the control lockout feature:
*.Press SETTING/ LOC( Hold 3 sec) for 3 seconds.
LoC and the lock icon appear in the display as well as the current time .
*.After activating the lockout in the non-cleaning function , the oven will lock the door and the screen will
display the lock icon . Only Cancel and SETTING/ LOC( Hold 3 sec) can be operated, and other buttons
are invalid. If the oven is currently heating , press Cancel to stop the oven .
Press SETTING/ LOC( Hold 3 sec) 3 sec can cancel the lockout function , and the oven lock will
automatically unlock.
* .After the lockout is activated in the self-cleaning function , the lock icon will be displayed on the screen .
Only Cancel and SETTING/ LOC( Hold 3 sec) can be operated, and other buttons are invalid. You can
press Cancel to cancel self- cleaning , and if the temperature in the oven is below 2 1 2 ° F , the
oven door lock will automatically unlock.
Otherwise the door will remain locked.
How to unlock the controls:
* .Press SETTING/ LOC( Hold 3 sec) for 3 seconds . Loc and the lock icon will disappear from the display.
12-Hour Energy Saving
If you accidentally leave the oven on , this feature will automatically turn off the oven after 12-hours
during baking functions or after 3 hours during a broil function.
Touch the "Set" button and the number " 1 " button for three seconds to switch the 12-hour energy saving
mode .
29
OPERATING THE OVEN
- Do not use a steel-wool pad or abrasive cleaners on stainless steel surfaces .
Abrasive pads and cleaners will scratch the surface and damage the finish.
- If you previously used a mineral oil-based stainless steel appliance cleaner ,
wash the surface with dish washing liquid and water before using the stainless
steel cleaner or polish.
Cleaning the Oven Racks
Clean by hand in hot, soapy water with a plastic or soap-filled scouring pad, then dry
with a soft cloth.
If a rack becomes difficult to slide , rub the side rails with wax paper or a cloth
containing a small amount of cooking oil. This helps the rack slide more easily in
the tracks .
To prevent any discolorations or grease stains , we recommend that you clean and
remove any spills , spots , and grease from your range after each use .
1 . Place a small amount of a stainless steel appliance cleaner or polish on a damp
cloth or damp paper towel.
2 . Clean a small area , rubbing along the grain of the stainless steel , if applicable .
3 . Dry and buff with a clean , dry paper towel or soft cloth.
4 . Repeat as necessary.
- Always make sure that the controls are off and all surfaces are cool before
removing or cleaning any of the range parts . This will prevent you from
getting burned.
- If your range is pulled out from the wall for any reason , make sure that the
anti-tip device is re engaged after your range has been pushed back into
place . Failure to take this precaution
could result in your range tipping and personal injury.
Cleaning Stainless Steel Surfaces
Do not use a steel-wool pad or abrasive cleaners on stainless steel surfaces .
Abrasive pads and cleaners will scratch the surface and damage the finish.
30
CLEANING AND MAINTENANCE
2. Rinse and dry thoroughly with a clean, soft cloth.
3. clean the outside door stainless st eet surfaces by following the instructions in cleaning
stainless steel surfaces on page30.
4. clean the glass window with glass cleaner or warm, soapy water with a thorough rinse. DO
not let moisture get inside the door assembly
-DO NOT clean the oven door gasket. The oven door gasket is made ofa woven materia t which is
essential fora good seal. care should betaken not to rub, damage, or remove this gasket.
-DO NOT immerse the door in water.
-DO NOT spray or let water or the glass cleaner to enter the door vents.
-DO NOT use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the
outside of the oven door.
The oven door has multiple surfaces that require different cleaning techniques.
The gasket on the oven door frame should never be cleaned or moved to clean other
surfaces. The gasket is made of woven material which is essential fora good heat seal.
1. clean the inside door surface by hand with hot, soapy water and a soapy plastic scouring pad. Do
not let moisture get inside the door assembly.
Door gasket–Do not
clean.
Oven door
Cleaning the OvenDoor
31
CLEANING AND MAINTENANCE
Do not use spray cleaners on the surface burner control panel.Spray entering the
valve holes could contact electrical components resulting in death , personal injury
,or product damage.
1 . Make sure that all surface burner knobs are in the off position .
2 . Pull the control knobs straight off the surface burner control valve stems . Do not
clean the control knobs in a dishwasher . They are not dishwasher-safe .
3. Clean the knobs in warm, soapy water. Rinse and completely dry all surfaces including the
back and stem hole.
4 .Clean stainless steel surfaces with a stainless steel cleaner on a damp , soft cloth.
5 .Replace the control knobs in the oFF position by pushing them straight onto the
control valve stems.
Cleaning the Cooktop
The cook top surface is a porcelain-enamel surface . To prevent this surface from
becoming dull ,
wipe up and clean spills as they happen. Foods with a lot of acid(for example, tomatoes, sauer-
kraut, and fruit juices) or foods with high sugar content can cause dull spots if allowed to set.
Daily use of a ceramic cook top cleaner helps keep the cook top looking new .
Use only a ceramic cook top cleaner. Other creams may not be as effective.By
following these steps , you can maintain and protect the surface of the glass cook top.
Before using the cook top for the first time , clean it with a ceramic cook top cleaner.
This helps protect the top and makes cleanup easier:
1 .S hake the cleaning cream well , then apply a few drops of cleaner directly on the
cook top.
2.Use a paper towel or a cleaning pad for ceramic cook tops to clean the entire cook
top surface .
3 .Use a dry cloth or paper towel to remove all cleaning residue . You do not need to
rinse .
- Do not use a steel-wool pad or abrasive cleaners on stainless steel surfaces .
Abrasive pads and cleaners will scratch the surface and damage the finish.-
carefully check the bottoms of pans for roughness that may scratch the cook top.
Cleaning the Surface Burner Control Knobs
32
CLEANING AND MAINTENANCE
Normal Daily Use Cleaning
lf pitting or indentations in the glass surface have already occurred, they can't be
repaired. The cook top glass will have to be replaced.
Sugary spillovers(such jellies, fudge, candy ,and syrups) or melted plastics can cause
pitting of the cook top surface . This is not covered under the warranty.
you should clean the spill while it is still hot. Take special care when removing hot
substances.
When using a scraper , make sure that it is new and the razor blade is still sharp.
Do not use a dull or nicked blade.
1. Turn off all surface burners . Remove hot pans.
2 . Wearing an oven mitt, use a single-edge , razor-blade scraper to move the spill to
a cool area of the cook top. Remove the spill with paper towels .
3. Wait until the cook top has cooled, then remove any remaining spillover. D o n ' t use the surface
burners again until all of the residue has been completely removed.
Removing Burned-On Residue
1 . Make sure that all surface burners are turned off, then let the cook top cool.
2 .Spread a few drops of ceramic cook top cleaner on the entire burned residue area .
3 .Using a cleaning pad for ceramic cook tops , rub the residue area . Apply pressure
as needed.
4. If any residue remains , repeat the steps listed above as needed.
5 . For additional protection , after all residue has been removed , polish the entire
surface with a ceramic cook top cleaner and a paper towel.
Removing Heavy , Burned-on Residue
1 .Make sure that all surface burners are turned off, then let the cook top cool.
2 .Use a single-edge , razor-blade scraper at approximately a 45 d e g r e e angle
against the glass surface and scrape the residue .You need to remove the residue .
Do not scrape the seal.
3 .After scraping with the scraper , spread a few drops of ceramic cook top cleaner on
the entire burned residue area .Use the cleaning pad to remove any remaining
residue .
4 . For additional protection , after all residue has been removed , polish the entire
surface with a ceramic cook top cleaner and a paper towel.
Cleaning the Cooktop Seal
- Lay a wet cloth on the seal for a few minutes , then wipe clean with a nonabrasive
cleaner.
Cleaning Sugary Spills and Melted Plastics
33
CLEANING AND MAINTENANCE
Before removing the door, ensure there is a large, clean, and protected
surface in the kitchen to rest the door on.
Caution: The oven door is heavy.
Removing the oven door
Do not lift the oven door by its handle. Doing so may damage the door.
Make sure the oven and the door are cool before you begin to remove the door.
4. Disengage the hinges and remove the door;
gently close it about halfway; place the door on
a protected surface.
IM PORTANT
3. Hold the door firmly on both sides.
2. Open the levers fully on both sides.
1. Open the door very carefully.
REMOVE AND REPLACE THE OVEN DOOR
34
Replacing the Oven Door
1. Hold the door firmly in an approximately open position.
2. Insert the hinge tongues into the slots making sure that the notches on bothsides drop into
place as shown.
3. Open the door fully.
4. Fully close the levers on the left and right hinges,then close the door.
REMOVE AND REPLACE THE OVEN DOOR
35
Problem Possible cause Solution
The
range is
n
ot level.
The appliance has
been installed
improp
erly.
•
Place the oven rack in the center of
the
oven.Place a level on the oven
rack. Adju
st the leveling legs at the
base
of the range until the oven rack
is
level.
•
Insure the floor is level and strong
and
stable enough to adequately
su
pport the range.
The floor
is sagging or sloping.
Contact
a carpenter to correct the
situation.
The
kitchen cabinets are not properly
aligned and make the range appear
to be not level.
Insure the cabinets are
square and
provide
sufficient room for
installation.
The appliance
must
be
accessed
for
servicing
and
cannot
be
moved
easily.
The kitchen cabinets are not square
and
too close to the appliance.
Contact a
builder or installer to make
the
appliance accessible.
Carpet
is interfering with
movement of
the
range.
Provide sufficient space so
the range
can be
lifted over the carpet.
Problem Possible cause
Solution
The surface units
will
not mainta
in
a
rolling boil or
will
not cook fast
enough.
You
may be using inappropriate
cookwar
e.
Use
pans which are flat and match
the
diameter
of the surface unit selected.
In some areas, the
power (voltage)
may
be low.
Cover the
pan with a lid until the
desired
heat is obtained.
The surface units
will
not turn on.
A fuse
in your homemay be blown or
the
circuit breaker tripped.
Replace the fuse
or reset the circuit
breaker
.
The
cooktop controls are set
improperly.
Check
if the correct control is set for
the
surface unit you are using.
Areas
of
discoloration on
the
cooktop.
Food spil
lover was not cleaned.
Refer to the section on the
care and
cleani
ng of the glass cooktop
The surface
is hot and the model
features a light-colored cooktop.
This
is normal. The surface may
appear
discolored when it is hot. This
is temp
orary and will disappear as the
glass
cools.
If you are experiencing any problems, please first look for a solution in the table below. After
trying any suggested solutions, if you're still having trouble, call Thor Kitchen at 877-288-
8099.
Cooktop
36
TROUBLESHOOTING
Problem
Possible cause
Solution
The surface
unit
frequently cycles
on
and off. The
surface
unit
stops
glowing w
hen
changed to
a
lower
setting.
The
element will cycle on and off to
maintain
the power setting.
This
is normal operation, and not a
syst
em failure. Use the range as
usual.
Scratches
or
abrasions on
the
cooktop surface.
The cooktop is being cleaned
improperly.
Scratches
are not removable. Tiny
scratches
will become less visible in
time as
a result of cleaning. Use
ceramic
glass top cleaning cream. Do
not
use chemical or corrosive agents.
These
agents may damage the
surface
of
the product.
Cookware with
rough bottoms was
used on
the cooktop or there were
coarse
particles (eg. salt or sand)
present
between the cookware
and the
sur
face of the cooktop.
To avoid
scratches, use the
recommended
cleaning procedures.
Make sure cookware
bottoms are
clean
bef
ore use, and use cookware with
smooth
bottoms.
Cookware
has been slid across the
cooktop
surface.
Brown streaks
or
specks.
Boilovers
have been cooked on to the
surface.
•
Wait until the surface cools down.
Then,use
a scraper to remove those
impurities.Use the blade scraper to
remov
e soil.• See the section on the
care
and cleaning of the glass
cooktop
Areas
of discolo
ration with
metall
ic sheen.
Mineral deposits from water
and food
have been left on the surface of the
cooktop.
• Remove using
a ceramic-glass
cooktop
cleaning cream.
• Use
cookware with clean, dry
bottoms.
Clean the cooktop with a
ceramic
cleaning agent regularly
every
week.
“Cracking”
or
“popping ” sound.
This
is the sound of the metal heating
and
cooling during both the cooking
and
self-cleaning functions.
This
is normal operation, and not a
syst
em failure. Use the oven a
s usual.
37
TROUBLESHOOTING
Problem
Possible cause
What to do
The
oven doesn’t
work
(no heating).
No
power supply (oven light and
halos
do not come on either).
No
gas supply (gas ovens).
Check
that the circuit breaker
hasn
’t tripped and there is no
power
outage in your area . If
there
is
a power outage , you cannot
use
the oven until power has
been
restored.
The
supply to the house may
not
be working or there may be
an
outage . Contact your local
gas
supplier .
One
of the oven
lights
does not
come
on, but the
oven works.
The
light bulb is loose.
The
light bulb has blown.
If
the bulb is loose , tighten it.If
the
bulb has blown , replace it
according
to the instructions in
section
‘’Replace Oven Light Bulb
”
Condensation
around
oven (e.g.
on
control panel
or
top
of oven door.)
Food
has high moisture content or
local
climate (temperature, humidity)
is co
ntributing to condensation.
Condensation is
normal. You
can
wipe
the drops off the control
p
anel. If there is frequent or
excessive
condensation , make
sure
that cabinet ry around the
range
is moisture-proofed.
Steam coming from
oven vents at
the
ba
ck of the range.
Moisture from food evaporating
during
cooking.
This
is normal , especially if you
are
cooking large quantities of
food
in the oven using a
CONVE
CTION mode .
The convection fan
does
not come
on
in a
CONVECTION
mode.
Technical
fault.
Contact
your Authorized Service
Center
or CustomerCare.
Oven will
not heat
Oven settings are not
correct.
Follow
mode selection and clock
settings
as specified in Oven
Operation
section of the manual.
Foods
over-
cooked
or
under-cooked
Incorrect
cooking time or
tem
perature.
Adjust time, temperature, or
rack
position.
“Cracking”
or
“Popping
” sound.
This
is the sound of metal heating
and
cooling.
This
is normal.
Oven
38
TROUBLESHOOTING
TROUBLESHOOTING
There is a
power
failure
- can I still
use the
oven?
Power
outage in your home or
neighborhood.
The
oven cannot be used until power
is
restored.
The
oven is not
cooking
evenly
Large
item like a turkey being
cooked.
If
you are cooking a large item ,
be
prepared to turn it round
during
cooking.
If
two shelves are used , check
that
space has been left for the
heat
to circulate . When a baking
tr
ay is put into the oven , make
sure
that it is placed centrally on
the
shelf.
Check
that the door seal is not
damaged.
A
dish of water when placed on
the
shelf should be the same
depth
all over .( For example , if
it
is
deeper at the back , then the
back
of the range should be
raised up
or the
front lowered.) If
the range
is not level , arrange
for
your supplier to level it for
you
.
Oven
not coming
on
Power supply interrupted
Is
the power on?
If
not , there may be something
wrong
with the power supply.
Is
the range supply on at the
circuit
breaker?
Oven temperature
getting
hotter as
the range
gets
older
Thermostat
If turning the temperature down using
the
oven control knob has
not worked,
or
has only worked for a short time,
then you
may need a new
thermostat.
This should be fitted
by a qualified
service
person.
39
Error code
Error Description
E0
Oven temperature detection circuit failure.
E1
The oven heats up slowly after it starts to heat up.
E2
Oven door switch detection failure.
E3
The oven cannot be heated.
E5
The oven's normal cooking temperature exceeds 343°C.
E8
Communication failure between display board and main control
board.
E9
The main control board AC main power frequency detection failure.
E10
The oven cannot be locked or unlocked.
E11
Main control board CPU internal failure.
E12
Display board CPU internal failure.
E13
The ambient temperature of the main control board PCB is too
high.
E14
The ambient temperature detection NTC circuit of the main control
board PCB is faulty.
E15
The
software information of the main control board and the display
boar
d do not match.
E16
After the oven is locked, the oven door can be opened or the
detection circuit that locks the door in place fails, causing the
door to
not be securely locked.
E17
The cooling fan motor speed detection circuit is faulty.
E18
Communication failure between the touch chip of the display board
and the CPU.
Information code
40
TROUBLESHOOTING
Warranty and Service
This product has been manufactured by Thor Kitchen, 4651 E. Airport Drive, Ontario, CA 91761.
Thor Kitchen disclaims all express warranties except for the following:This
warranty applies to products purchased and located in the United States.
Products purchased or located outside this area are excluded. The warranty does
not apply to damage resulting from abuse , accident , natural disaster , loss of
electrical power to the product for any reason , alteration , outdoor use , improper
installation , and improper operation , repair or service of the product by anyone
other than an authorized Thor Kitchen, service agency or representative technician .
Warranties and Duration
Warranty:2 year parts and labor
lf your Thor K itchen product is used in other than S ingle Family Residential
usage , this will be considered commercial usage and product will carry a 6-
month parts and labor warranty from the date of purchase.
Implied warranties terminate upon expiration of the limited warranty.Some states
do not allow limitations on how long implied warranty lasts , so the above
limitation may not apply to your implied warranty.
Thor Kitchen Will Pay For:
All repair labor and cost of replacement parts found to be defective due to
material and
workmanship. service must be provided by a Thor Group Authorized service
Agency during normal working hours . For a service Agency nearest you , please
call 877-288-8099.
Thor Kitchen Will Pay For:
Implied warranties terminate upon expiration of the limited warranty. some
states do not allow limitations on how long implied warranty lasts , so the above
limitation may not apply to your implied warranty.This limited warranty does not
cover:
1 . Service to instruct you on how to use your Thor K itchen product to correct
house wiring ,replace or repair house fuses . Service to correct the installation of
your Thor K itchen product.
41
WARRANTY AND SERVICE
2. Repairs when your range is used for other than normal, single-family household use or when it is
used in a manner that is contrary to published user or operator instructions and/or installation
instructions.
3. Cosmetic damage, including chips, dents, scratches or other damage to the finish of your
cooktop, unless such damage results from defects in materials or workmanship and is reported
to Thor Kitchen within 30 days from the date of purchase.
4. Costs associated with the removal from your home of your cooktop for repairs. This cooktop is
designed to be repaired in the home and only in-home service is covered by this warranty.
5. Service to repair or replace consumable parts. Consumable parts are not included in the
warranty coverage.
6. The removal and reinstallation of your range if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions.
7.This warranty is void if the factory applied serial number has been altered or removed form your
Thor Kitchen product.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service if your cooktop is located in a remote
area where service by an authorized Thor Kitchen servicer is not available.
The warranty applies to appliances purchased and used for personal, family or household purposes
only. It does not cover appliances used for commercial applications.
Should the appliance be sold by the original purchaser during the warranty period, warranty shall
extend to the new owner until the expiration date of the original purchaser warranty period.
42
WARRANTY AND SERVICE
Warranty and Product Registration
Thor K i t c h e n is not responsible for incidental or consequential damages. Under no
circumstances will Thor Kitchen’s liability exceed the cost that you paid for the product. Some
states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from
state to state.
Whenever you call our customer service at 877-288-8099 (THOR KITCHEN range) for technical
information and parts sales in the United States or to request service for your appliance, please
have your complete model number and serial number ready. The model and serial number can be
found on the product data plate. Please enter the information requested in the spaces provided.
Warranty Notification:
Thor Kitchen Appliance is designed for Single Family Residential Personal Use.
If your Thor Kitchen product is used in other than Single Family Residential Personal Usage, this
will be considered commercial usage and product will carry a 6-month parts and labor warranty (6-
month Parts Warranty for the products with parts warranty only) from the date of purchase.
For any warranty inquiries, please contact:
+ 1877-288-8099
service@thorinternational.com
Model NO .
Date of purchase
Dealer
Town
serial NO.
purchaser
suburb
country
Note:you must provide proof of purchased or installation date for in-warranty
service .
43
WARRANTY AND SERVICE
