Please read the user manual thoroughly before using
USER MANUAL
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
AC OUTPUT - 3600W
18W
18W
USB
12V
12V-10A12V-5A
12V-30A
DC OUTPUT
DC
E3600
AC
100W 18W
18W 18W
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
AC OUTPUT - 3600W
18W
18W
USB
12V
12V-10A12V-5A
12V-30A
DC OUTPUT
DC
E3600
AC
100W 18W
18W 18W
①
④
⑦
⑩
⑬
⑯

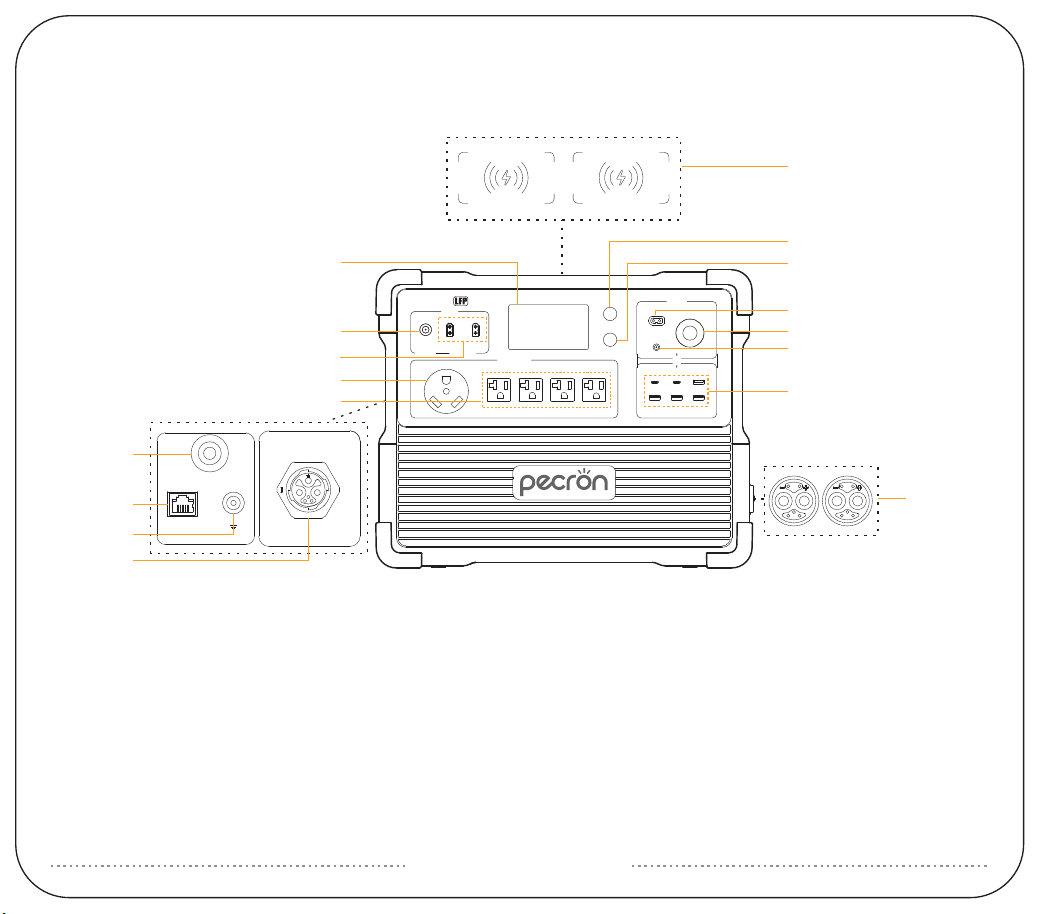

LCD Display
AC TT30-R Output
RJ45 Signal Sync Interface
Wireless Charger
DC12V XT60 Output
USB-A/USB-C Ports
②
⑤
⑧
⑪
⑭
⑰
DC 12V~30V Charging Port
AC 100V~120V Output
External Grounding Port
DC 12V/USB/ Wireless Switch
DC12V Auxiliary Output
Battery Expansion Port
③
⑥
⑨
⑫
⑮
DC 32V~150V Charging Port
Overcurrent Protection
AC 100V~120V Input
AC 100V~120V Switch
DC12V(5525)Output
FUNCTION INTRODUCTION
AC INPUT
Overcurrent Protection
Synchronous
interface
100Vac~120Vac 30A MAX
L N
3
1 2
①
②
③
⑤
④
⑥
⑦
⑧
⑨
⑪
⑫
⑬
⑭
⑯
⑩
⑮
⑰
3 5
4
2 1
3 5
4
2 1
SPECIFICATIONS
Battery Type
Capacity
3072Wh(51.2V60Ah)
LiFePO4 (3500+Cycles to 80%)
BS-U20 *4
USB-A *4 (5V,9V,12V,Max 18W)*4
USB-C *2
DC 12V-10ACigar Port *1
15W MaxWireless Charger *2
DC 12V-30A
360W Max
XT60-F Output *1
DC 12V-5ADC 5525 Output *1
AC OUTPUT
DC OUTPUT
GENERAL INFO
Temperature
Dimension
0℃~45℃/32°F~113°F (Charging)
-20℃~45℃/-4°F~113°F (Discharging)
L17.5*W12.1*H13.8 in
L445*W307*H350 mm
Around 79lb
Around 36Kg
Net Weight
DC INPUT
32V~150V1200W(MAX)*212V~30V150W(MAX)
AC OUTPUT - 3600W
18W
18W
USB
12V
12V-10A12V-5A
12V-30A
DC OUTPUT
DC
E3600
AC
100W 18W
18W 18W
TT30-R *1
Pure sine wave 100V~120V
Rated 3600W Max
(5V,9V,12V,Max 18W)*1
(5V,9V,12V,20V,Max 100W)*1
HOW TO USE THE E3600 LFP
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
AC OUTPUT - 3600W
18W
18W
USB
12V
12V-10A12V-5A
12V-30A
DC OUTPUT
DC
E3600
AC
100W 18W
18W 18W
press and hold to turn on / off DC / USB / Wireless Charger
press and hold to turn on / off AC
(Please turn off the AC function if there is no AC load on the unit)
5521 *1
MJ32 *2 Cascade with max 4 pieces of EP3000-48V
3 5
4
2 1
12V~30V Max 7A Max 150W
DC INPUT
EXTRA BATTERY PORT
MJ25 (3+2) *1
XT60-M *2
AC INPUT
100Vac~120Vac 50/60HZ
3200W Max (Charging cable with 30A）
32V~150V Max 20A Max 1200W*2

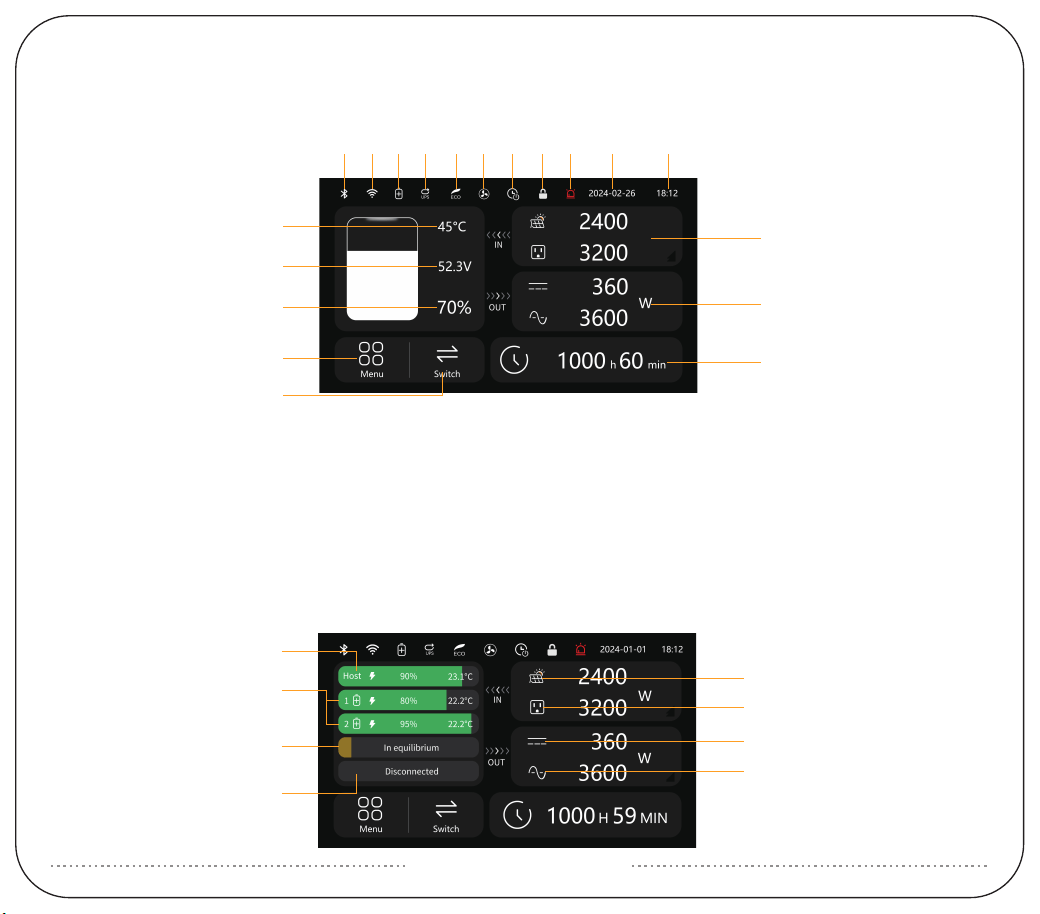

DETAILS AND OPERATING INSTRUCTIONS OF THE DISPLAY
①
⑫
② ③ ④ ⑤ ⑥ ⑧⑦ ⑨ ⑩ ⑪
⑬
⑭
⑲
⑮
⑯
⑰
⑱
Display and switch of home page 1
Display and switch of home page 2
②
①
③
④
⑤
⑥
⑦
⑧
Remaining volume of
the main power station
DC Input
AC Input
DC Output
AC Output
Remaining volume of the
expansion battery pack
Equilibrium state of the
main power station and
expansion battery pack
Disconnection of the
main power station and
expansion battery pack
⑥
⑦
⑧
⑨
⑩
FANS ON
TIMER SWITH ON
Touchscreen Lock
Warning
Date
⑪
⑫
⑬
⑭
⑮
Time
Battery Temperature
Battery Voltage
Battery Volume Percentage
Menu
⑯
⑰
⑱
⑲
Switch Button
Display of Input
Display of Output
Remaining Discharge Time
/Remaining Charge Time
①
②
③
④
⑤
Bluetooth connection
WIFI connection
UPS ON
ECO ON
Connection of
expansion battery pack

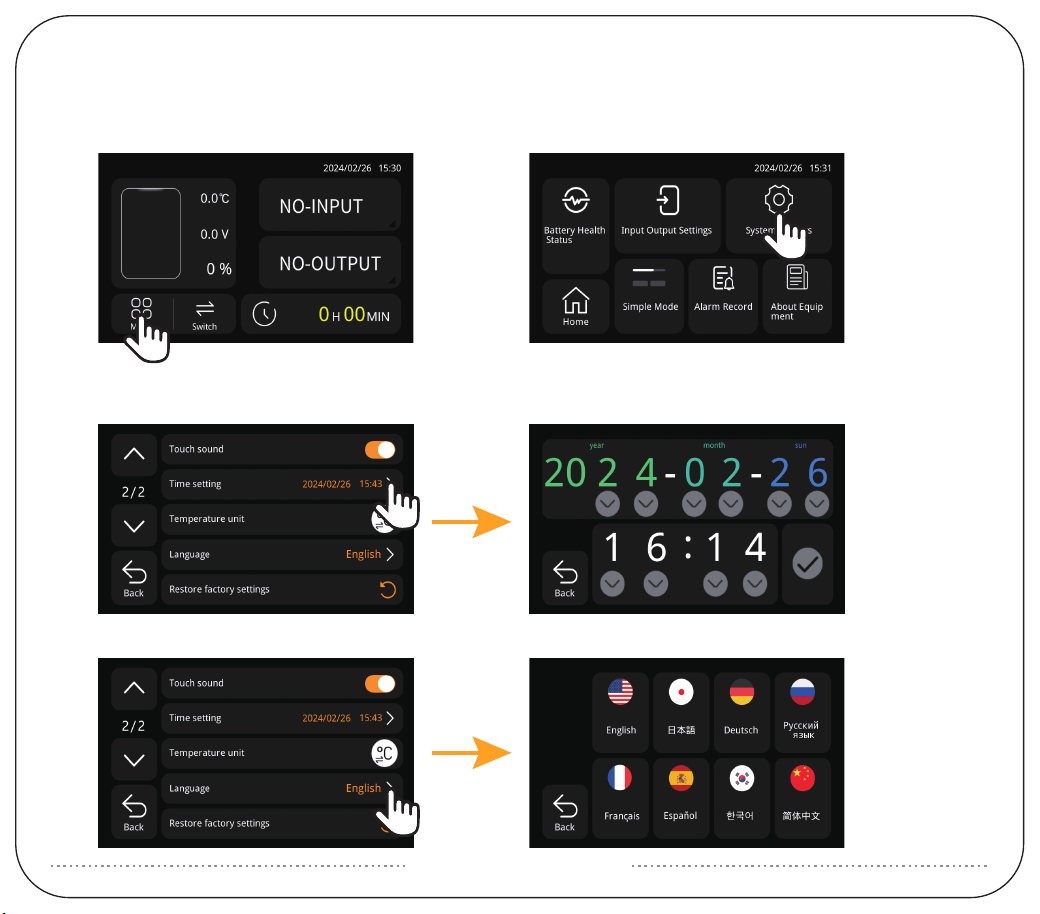

HOW TO SET THE TIME AND LANGUAGE OF THE SCREEN ?
Click "Menu" showed as (Picture 1).
Then click "System Setting" showed as (Picture 2).
(Picture 1) (Picture 2)
1: Page up/down by clicking "∧"/"∨" on the left side.
2: Click "Time setting" to adjust the time showed as (Picture 3).
(Picture 3)
3: Click "Language" to adjust language type. Showed as (Picture 4).
(Picture 4)
Click "Menu" showed as (Picture 1).
Then click "System Setting" showed as (Picture 2).
(Picture 1) (Picture 2)
HOW TO CONNECT WITH APP ?
1: Click "WIFI reset" showed as (Picture 5).
2: Click "√" to reset the WIFI and enter the pairing mode showed as (Picture 6).
And then search the device model through the near field on the APP.
If you connect to the APP via WIFI successfully, the WIFI symbol will be displayed.
(Picture 5) (Picture 6)
Click "Menu" showed as (Picture 1).

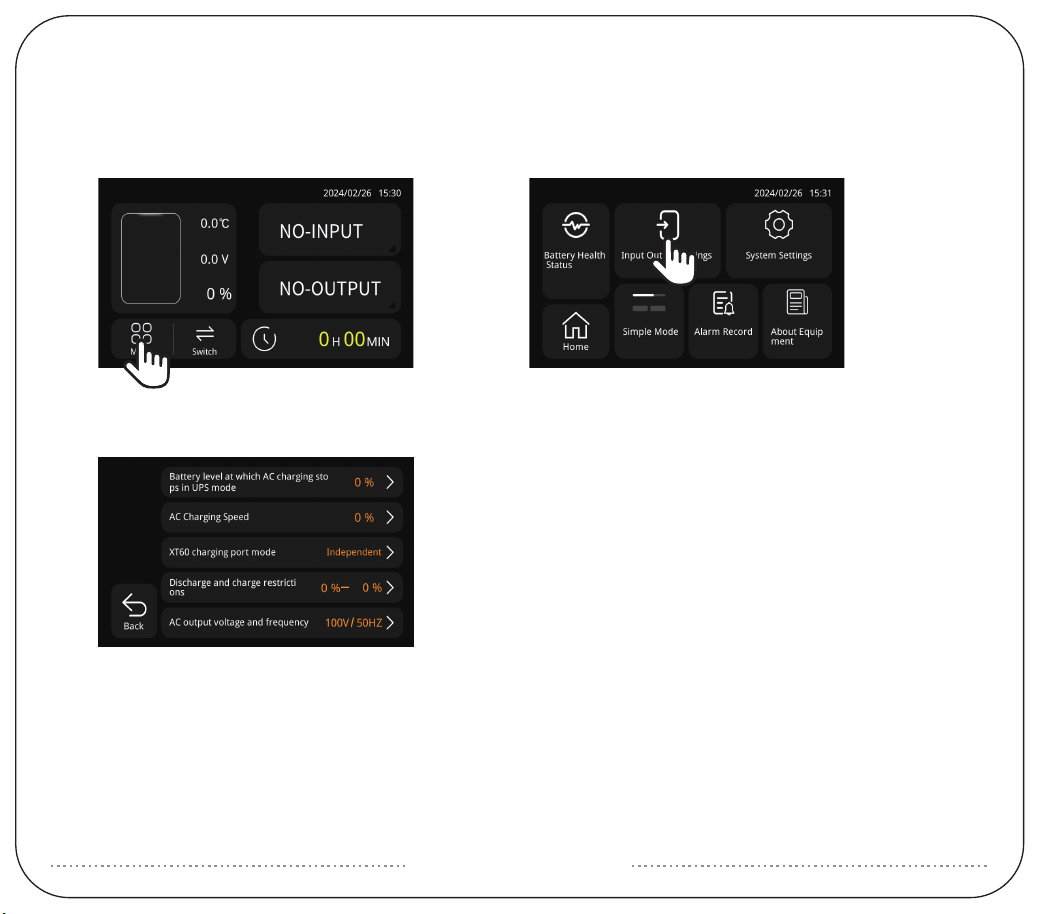

Then click "Input Output Settings" showed as (Picture 7).
(Picture 1)
(Picture 8)
(Picture 7)
HOW TO OPERATE THE SETTING OF INPUT AND OUTPUT ?
Click each option to make the corresponding settings showed as (Picture 8).
Standard Product List
Optional product accessory
(* The following accessories are not included in the standard package and can be purchased separately from PECRON)

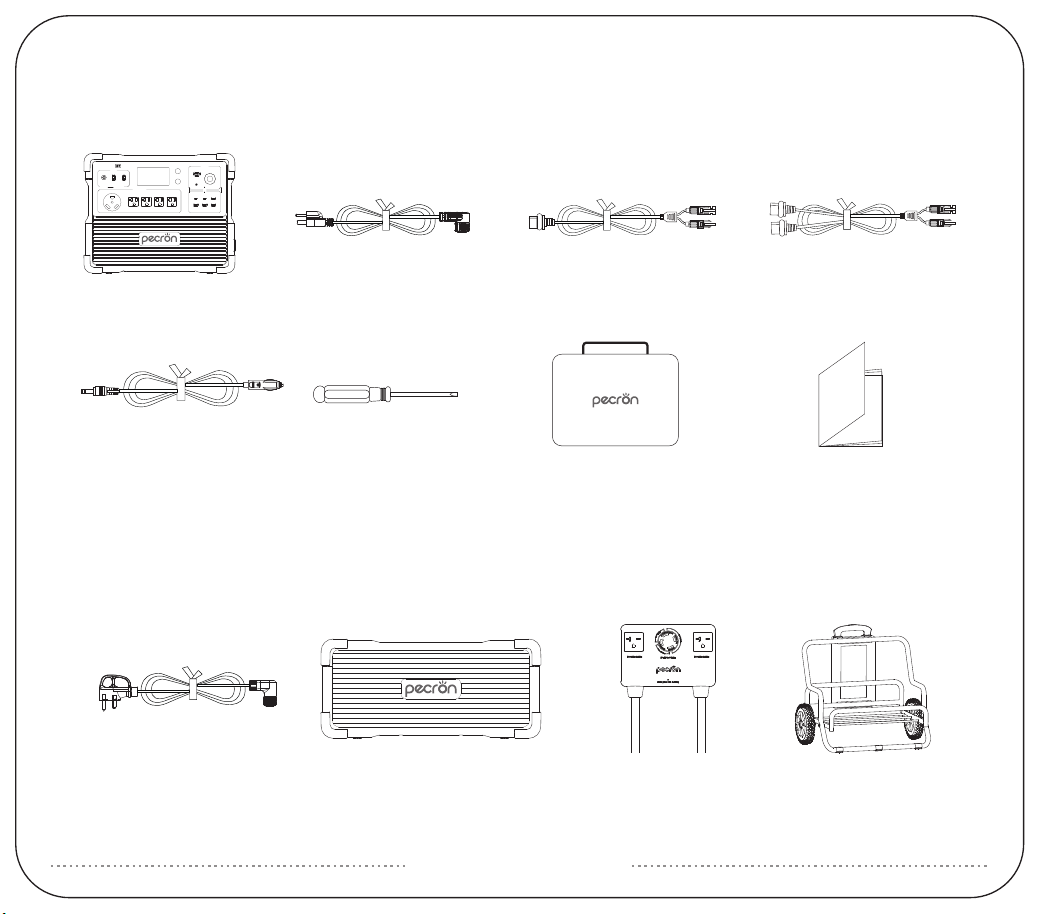

PACKING LIST
Car Charging Cable *1
PECRON E3600 LFP *1
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
AC OUTPUT - 3600W
18W
18W
USB
12V
12V-10A12V-5A
12V-30A
DC OUTPUT
DC
E3600
AC
100W 18W
18W 18W
15A AC cable *1
30A AC cable *1
Accessory Pouch *1Slotted Screwdriver *1 User Instruction *1
T2 TrolleyEP3000-48V
EP3000-48V 3072Wh
Completed set for
series connection to 240V
Single port XT60 to
MC4 solar charging cable *1
Parallel dual port XT60 to
MC4 solar charging cable *1
Please use the official cascading cable with MJ32 socket when you want to connect
with 4 pcs of expansion battery pack (EP3000-48V) to avoid damage of the power station.
Notes about cascade:
1: Cascading will be faster if there is only 10% difference between the main power station
and the expansion battery pack.
2: Before cascading, please make sure the number of knob on the battery pack is unique.
The number should be adjusted to 0,1,2,3 according to the number of packs.
If the number is wrong, the parameters of the packs
will not be shown on the display of the main power
station.

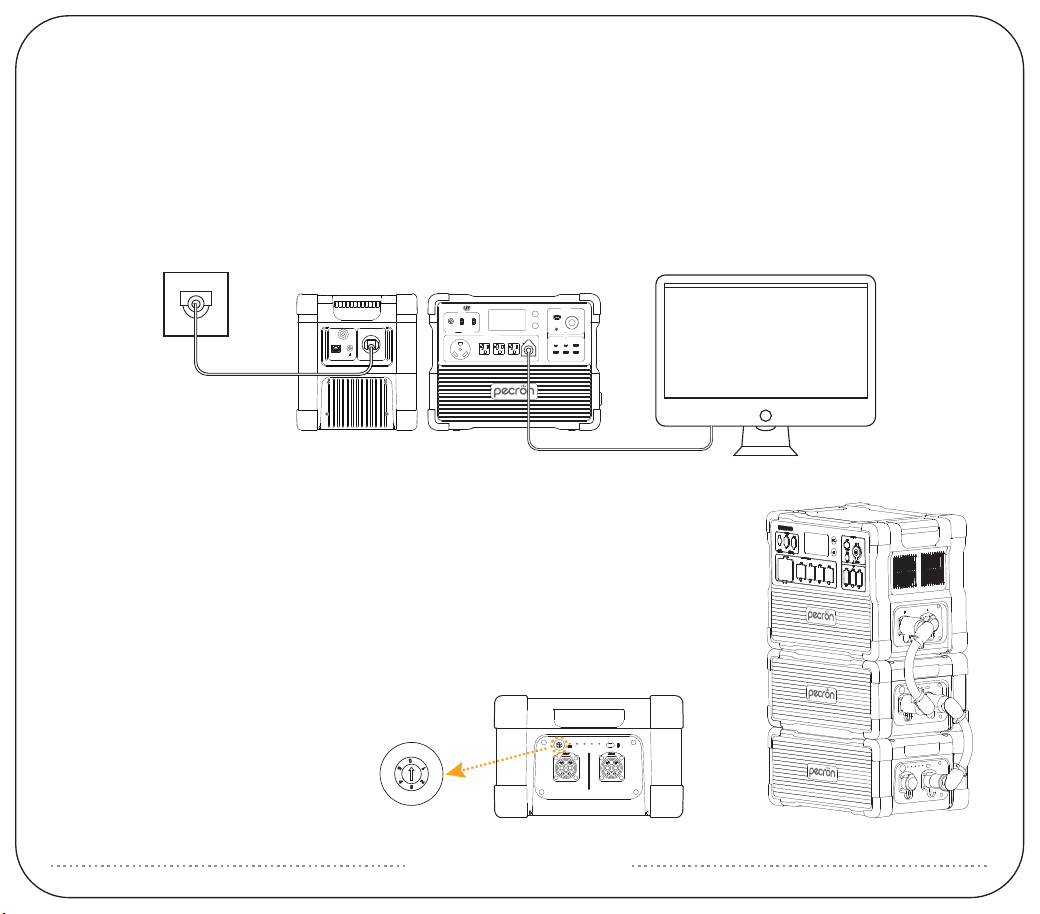

EXPANDABLE BATTERY
UPS FUNCTION
The E3600 LFP supports UPS function. It can provide the loads(such as computers, data centers, telecommunication
equipment) near-instantaneous(within 8~20ms) protection from unexpected power interruptions of the main power
supply.
Note: Not applicable to specific applications that need transfer time under 8ms, such as servers and workstations.
This UPS function only support protection for loads under 3600W(120V), we recommend that you only
connect one device at a time to avoid overload and thus result in protection failure.
PECRON is not responsible for any devices damage or loss of data resulting from failing to follow the instructions.
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
AC OUTPUT - 3600W
18W
18W
USB
12V
12V-10A12V-5A
12V-30A
DC OUTPUT
DC
E3600
AC
100W 18W
18W 18W
AC INPUT
Overcurrent Protection
Synchronous
interface
100Vac~120Vac 30A MAX
L N
3
1 2
EP3000-48V 3072Wh
EP3000-48V 3072Wh
3 5
4
2 1
3 5
4
2 1
25%
EXTRA BATTERY PORT 1 EXTRA BATTERY PORT 2
50% 75% 100%
EP3000-48V
A 15A cable will come together with the power station as standard accessories.
The type of the cable will be automatically detected by the power station.
When you charge the power station with a 15A cable.

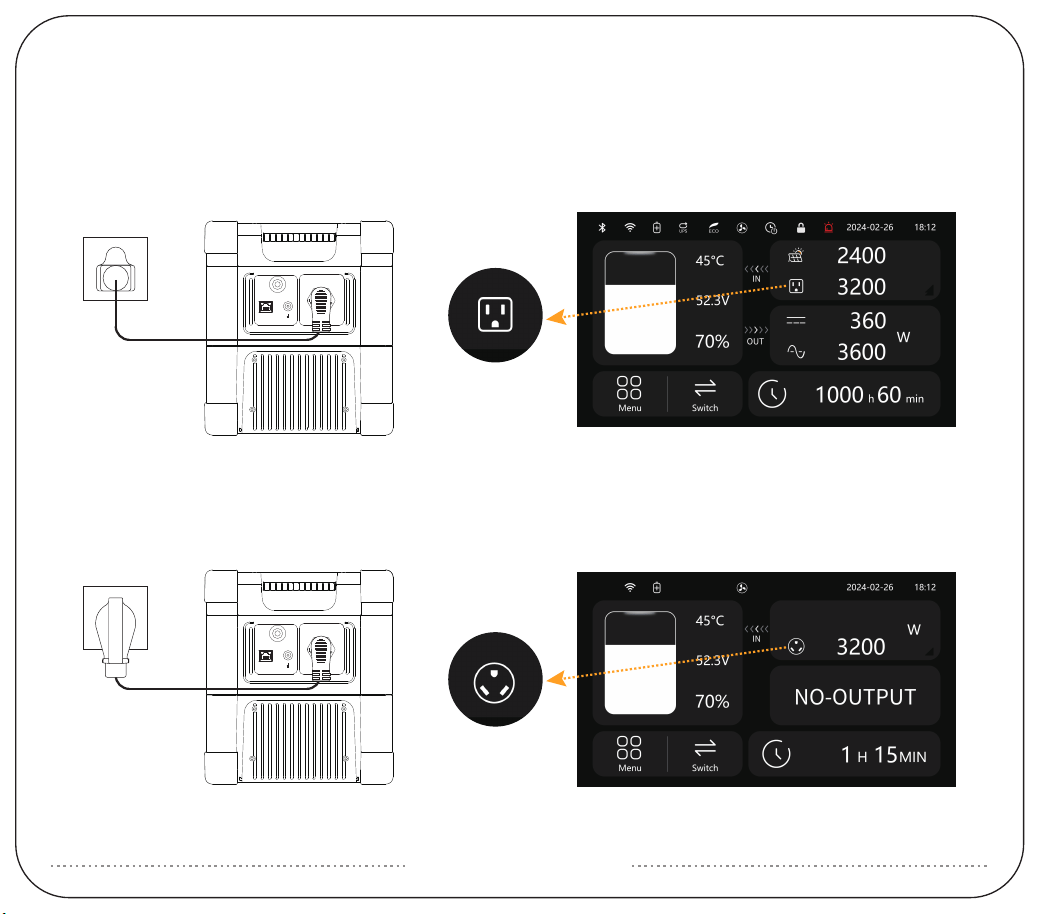

HOW TO CHARGE THE E3600 LFP BY AC ?
When you charge the power station with a 30A cable.
AC INPUT
Overcurrent Protection
Synchronous
interface
100Vac~120Vac 30A MAX
L N
3
1 2
AC INPUT
Overcurrent Protection
Synchronous
interface
100Vac~120Vac 30A MAX
L N
3
1 2
USING SOLAR PANELS TO CHARGE THE E3600 LFP
1. DC5521 Charging Port: PV/DC 12V~30V, 150W maximum; VOC(open circuit voltage) of solar panel must be less than
25V;
2. XT60-M Charging Port: PV(operating voltage) range 32V~150V, 2400W maximum; VOC(open circuit voltage) of solar
panel/array must be less than 150V, otherwise, it will damage the unit! Do not wire more than three 36V solar panels
in series, or more than six 18V solar panels in series.
(18V/36V stands for Vmp of the solar panel)
3. If you have any questions, feel free to contact us：[email protected]

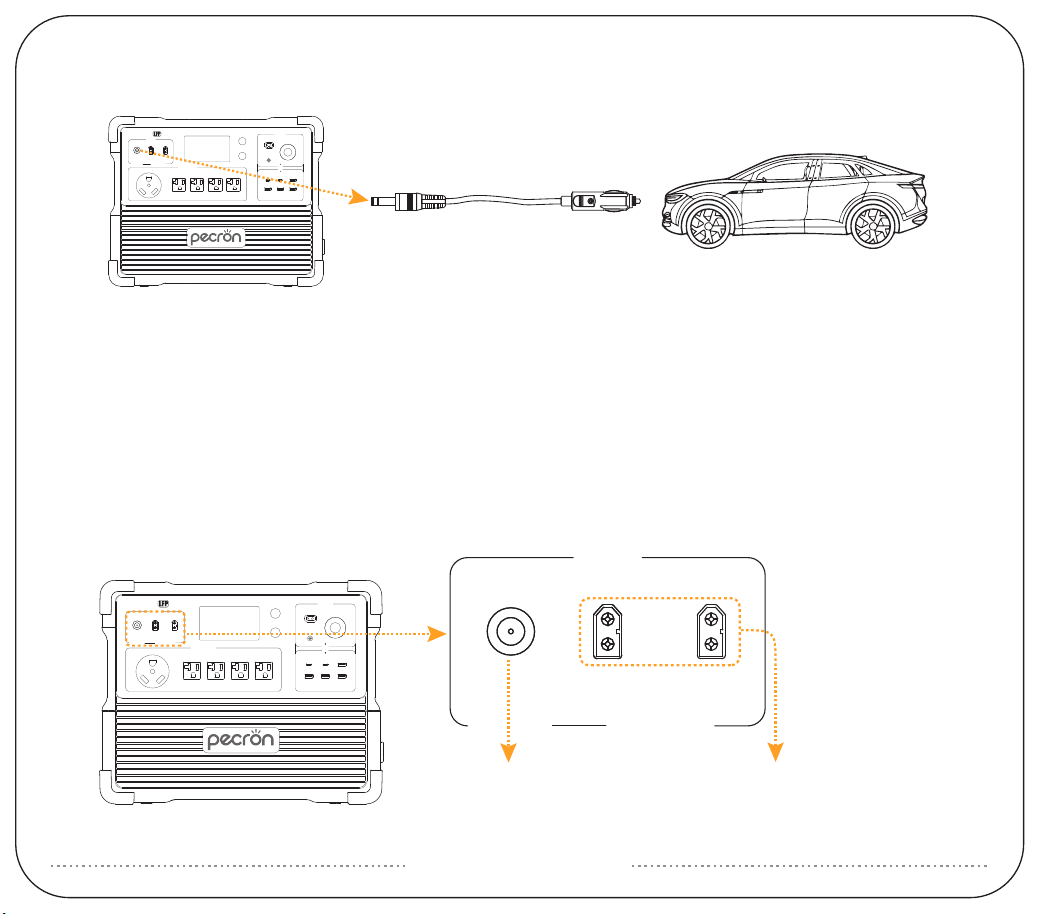

HOW TO CHARGE THE E3600 LFP BY VEHICLE ?
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
AC OUTPUT - 3600W
18W
18W
USB
12V
12V-10A12V-5A
12V-30A
DC OUTPUT
DC
E3600
AC
100W 18W
18W 18W
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
DC 5521 Charging Port:
PV12V~30V-150W Maximum Input
XT60-M Charging Port:
PV32V~150V-2400W Maximum Input
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
AC OUTPUT - 3600W
18W
18W
USB
12V
12V-10A12V-5A
12V-30A
DC OUTPUT
DC
E3600
AC
100W 18W
18W 18W
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
USING SOLAR PANELS TO CHARGE THE E3600 LFP

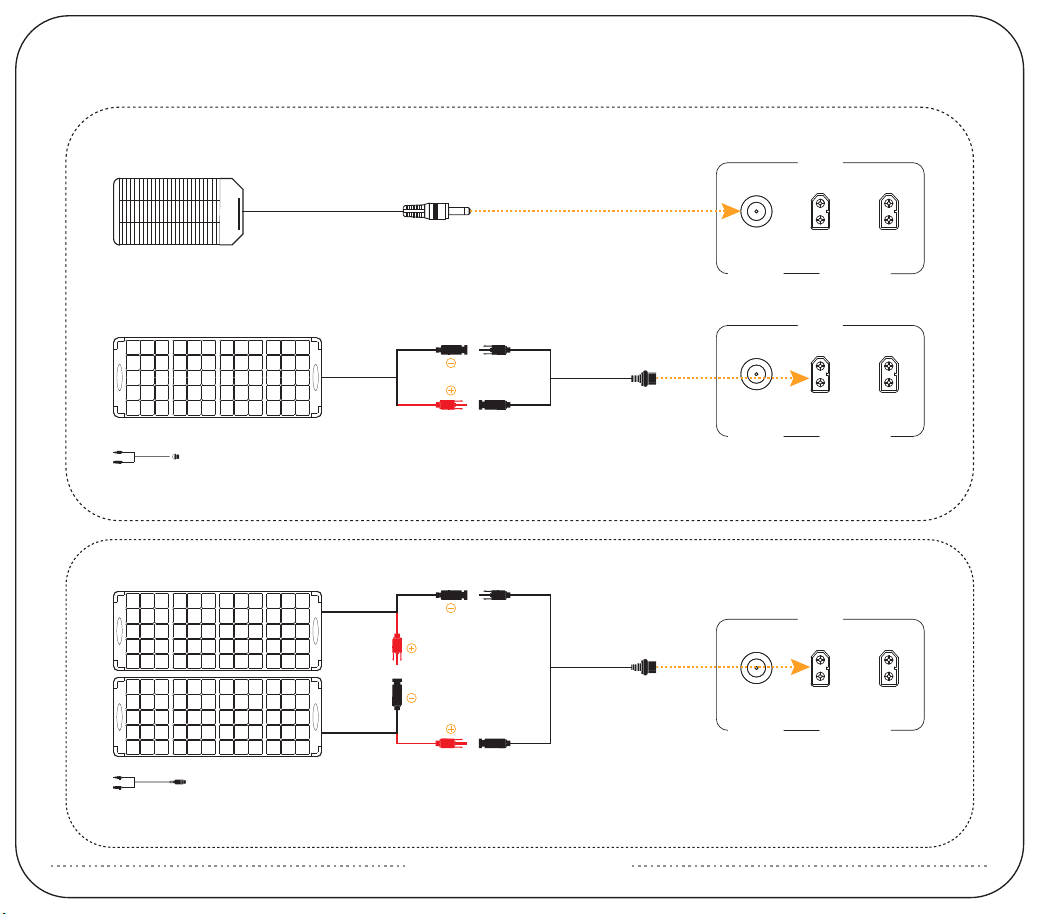

Charging the E3600 LFP with one solar panel
MC4 Solar Charging Cable *1
※ It is recommended to choose PECRON solar panels for optimal user experience! The VOC of a single solar panel should be
less than 150V, and the VMP should be greater than 32V.
MC4 Solar Charging Cable *1
Use two solar panels in series to charge the E3600 LFP
※ It is recommended to choose PECRON solar panels for optimal user experience! The VOC of a single solar panel should be
less than 75V, and the VMP should be greater than 16V.
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)

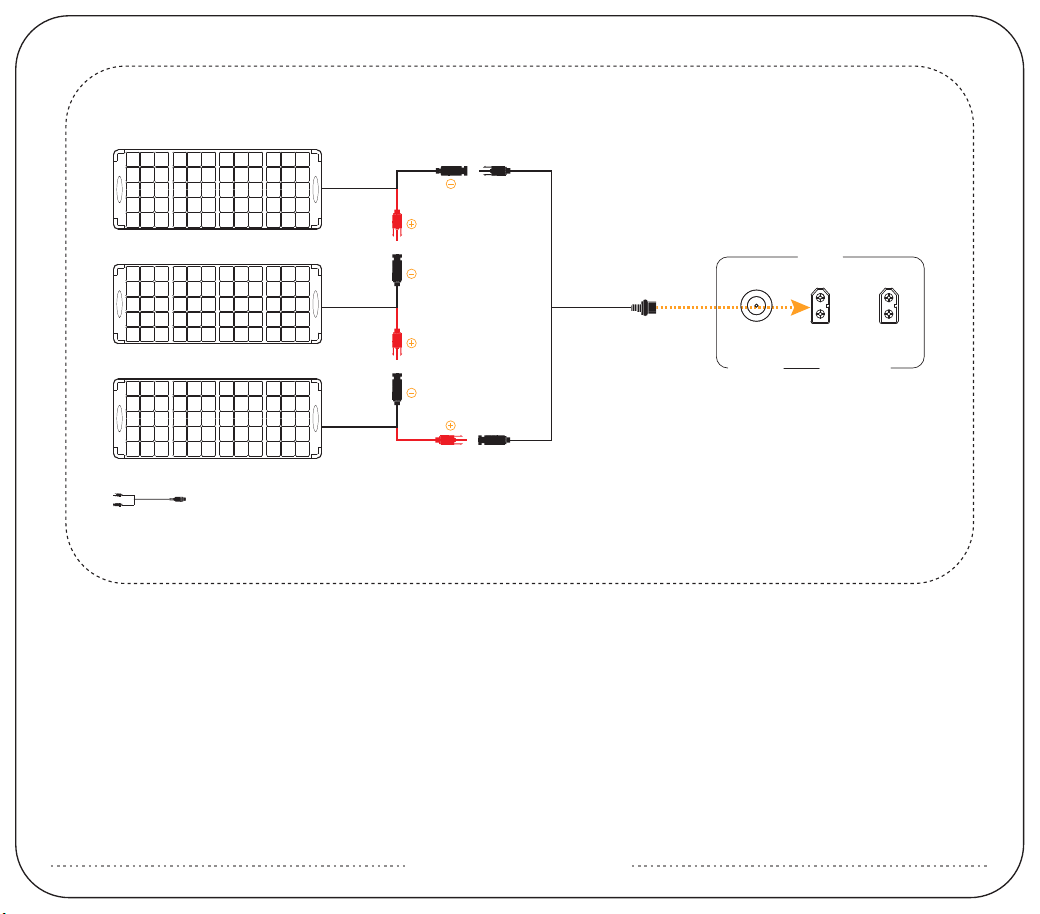

Use three solar panels in series to charge the E3600 LFP
(It is recommended to use solar panels with same specifications for optimal power.)
MC4 Solar Charging Cable *1
※ It is recommended to choose PECRON solar panels for optimal user experience! The VOC of a single solar panel should be
less than 50V, and the VMP should be greater than 11V.
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)

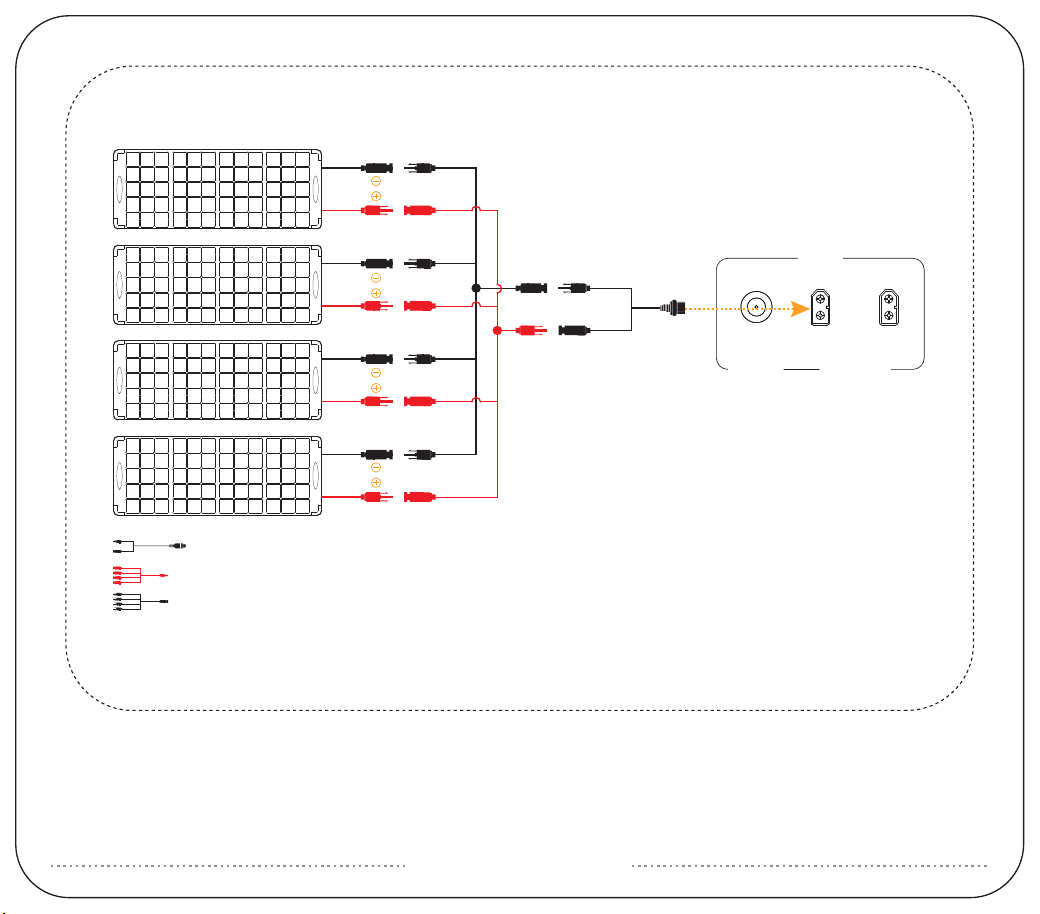

Use four solar panels in parallel to charge the E3600 LFP
(It is recommended to use solar panels with same specifications for optimal power.)
MC4 Solar Charging Cable *1
※ It is recommended to choose PECRON solar panels for optimal user experience! The VOC of a single solar panel should be
less than 150V, and the VMP should be greater than 32V.
Y Branch MC4 Charging Cable(+)*1
Y Branch MC4 Charging Cable(-)*1
(NOTE：This parallel charging cable sold separately)
Q1： What kind of battery is used in E3600 LFP? How long it can last?
A： E3600 LFP utilizes high quality UL certified automotive LiFePO4 battery, it can retain 80% of its original capacity at
3500 complete charge cycles.
Q2： What devices can E3600 LFP power?
A： Please note that the AC output port can only charge or power devices that operate at less than 3600W.
DC output port can only charge or power that operate at less than 12V-30A.
FAQS

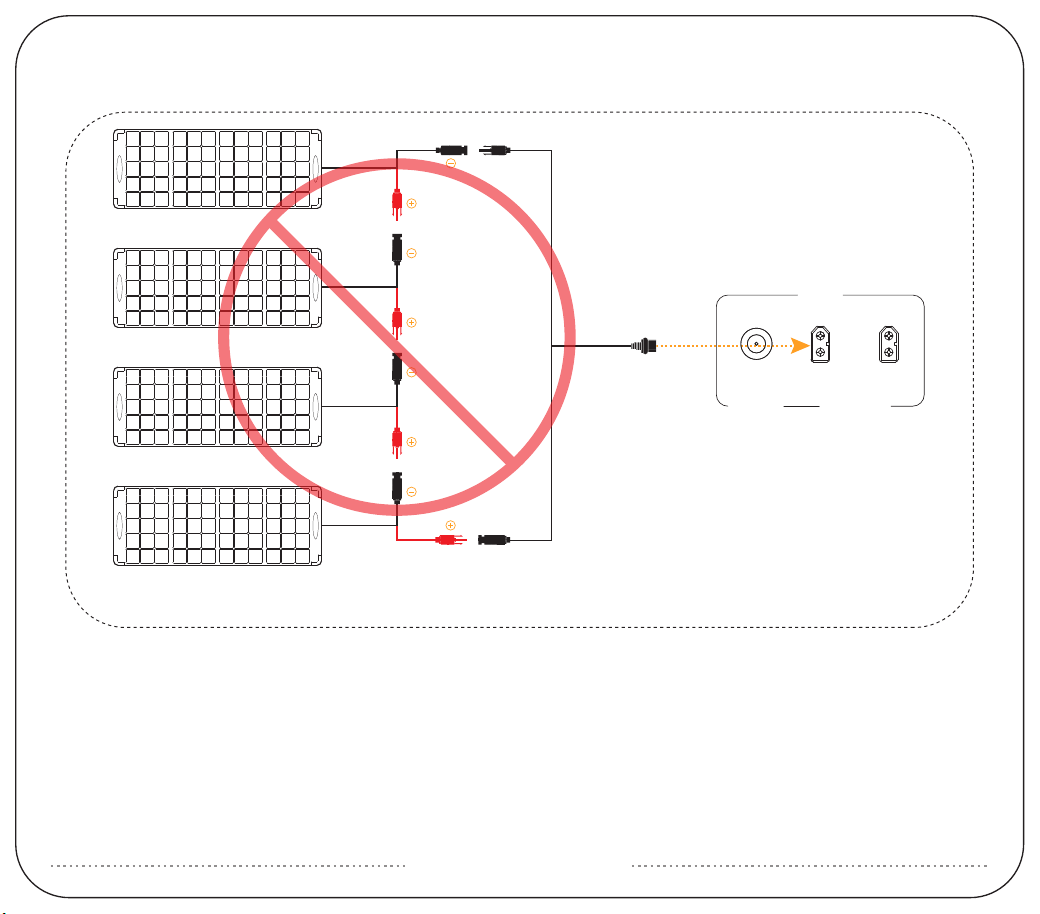

DO NOT WIRE FOUR SOLAR PANELS IN SERIES！
DC INPUT
32V~150V
1200W(MAX)*2
12V~30V
150W(MAX)
※ PV(XT60) Port Only work within 32V~150V Open Circuit voltage, exceeding 150V will damage the machine.
1、 Do not place the device near heat source, such as a fire or a heating furnace.
2、 Do not immerse in any liquid, or expose the unit to rain or wet conditions.
3、 Do not use the battery in a strong static electricity or electromagnetic environment.
4、 Do not disassemble or puncture the product with sharp objects in any way.
Please read the user manual thoroughly before using this product, and keep this manual in a safe place for future
reference. Failure to follow the instructions for proper set up, use, and care for the device can increase the risk of serious
personal injury, death, or property damage. Once you use this device, you are deemed to have understood, recognized
and accepted all terms and contents of this document. The user shall be responsible for his own actions and all
consequences arising from failure to use the device in accordance with the “User Manual”, or as authorized in PECRON's
current product literature.
In compliance with laws and regulations, PECRON reserves all rights for final explanation, and to change these terms and
conditions at any time without prior notice. In the event that any revisions are made, the revised terms and conditions
shall be posted on our website immediately, please visit our website to inform yourself of any changes.
DISCLAIMER
WARNING
Q3： Can the E3600 LFP be used as UPS?
A： E3600 LFP supports UPS function with an automatic switchover time of 8~20ms.
Q4： Can the E3600 LFP be charged while discharging?
A： Yes, E3600 LFP can run devices while it is being charged. The battery will eventually run out if the discharging is
greater than the charging during the pass through charging.
Q5： How to calculate the E3600 LFP running time?
A： Running Time=Total Capacity(3072Wh) * 0.85(Depth of Discharge)/Loading Power(Watts)
Q6： Can I use the E3600 LFP indoors and charge the E3600 LFP indoors?
A： Yes, the E3600 LFP is safe to use indoors.
Q7： Does E3600 LFP have built-in MPPT charge controller?
A： Yes, there are two independent 1200W(PV 32V-150V) MPPT charge controllers inside, and one step up 150W
(PV 12V~30V) MPPT charge controller, The Voc ( Open Circuit Voltage) of the solar panels should not exceed 150V.
Q8： How to store the E3600 LFP?
A： Please turn off the unit and then store it in a dry, ventilated place at normal room temperature. Do not place this
unit near water sources or a wet/moist environment. For long-term storage, it is recommended to discharge the
battery to 30% every three months and recharge it to 60% to sustain the battery life.
DISPOSAL
1、When conditions permit, please be sure to completely discharge the battery of this product, and then put the product
in the designated battery recycling box. This product contains batteries. Batteries are dangerous chemicals and are
strictly prohibited from being disposed of in ordinary trash. For details, please follow local laws and regulations on
battery recycling and disposal.
2、If the battery cannot be completely discharged due to the failure of the product itself, please do not dispose of the
battery directly in the battery recycling box, and contact a professional battery recycling company for further disposal.
3、The battery will not be able to start after being over-discharged, please dispose of it according to the principle of
disposal.
5、 Short circuits can be caused by: vermin or pests chewing through wires; water or other fluids coming into contact
with electrical wiring.
6、 It's prohibited to be used as car jump starter, only can be used to charge the car battery.
7、 Do not use accessories or parts other than those provided by PECRON. Please visit our website www.pecron.com or
reach our support team for a complete list of accessories and parts.
8、 When using this product, please strictly follow the ambient temperature for use in the user manual. If the temperature
is too high, the battery can potentially result in self-combustion and will burst into flames, which can cause
widespread damage. If the temperature is too low, the performance of the battery will be seriously degraded, and it
may even fail to meet the normal use requirements.
9、 Do not stack heavy objects on this product.
10、Do not block the air vents during use, or leave the device in a non-ventilated or dusty space.
11、Please avoid impacts, fall off, and violent vibration. Please turn off the device immediately and stop using it in the
event of major exterior impact. Please fasten the unit firmly during transportation to avoid vibration and impact.
12、In the event of immersing the device into the water accidently, please place the unit in a safe open area and keep
away from the unit until it is completely dry. The dried unit should not be reused and should be disposed of properly
according to the local regulation. If the device catches fire, use the fire extinguishing equipment in the following
recommended order: water or mist, sand, fire blanket, dry chemical, carbon dioxide fire extinguisher.
13、Please wipe it with a dry cloth to clean the surface of the device.
14、Please place this device with care to prevent the product from being damaged due to fall off. If the product is
damaged due to fall off, please turn off the unit immediately and place it in an open area, keep away from
combustibles and crowds, and dispose of in accordance with local laws and regulations.
15、Please store this device in a place out of reach of children and pets.
WEBSITE：www.pecron.com
EXCLUSIONS
PECRON’s warranty does not apply to：
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer
use as authorized in PECRON’s current product literature.
CUSTOMER SUPPORT：[email protected]
