Page 16 of 23

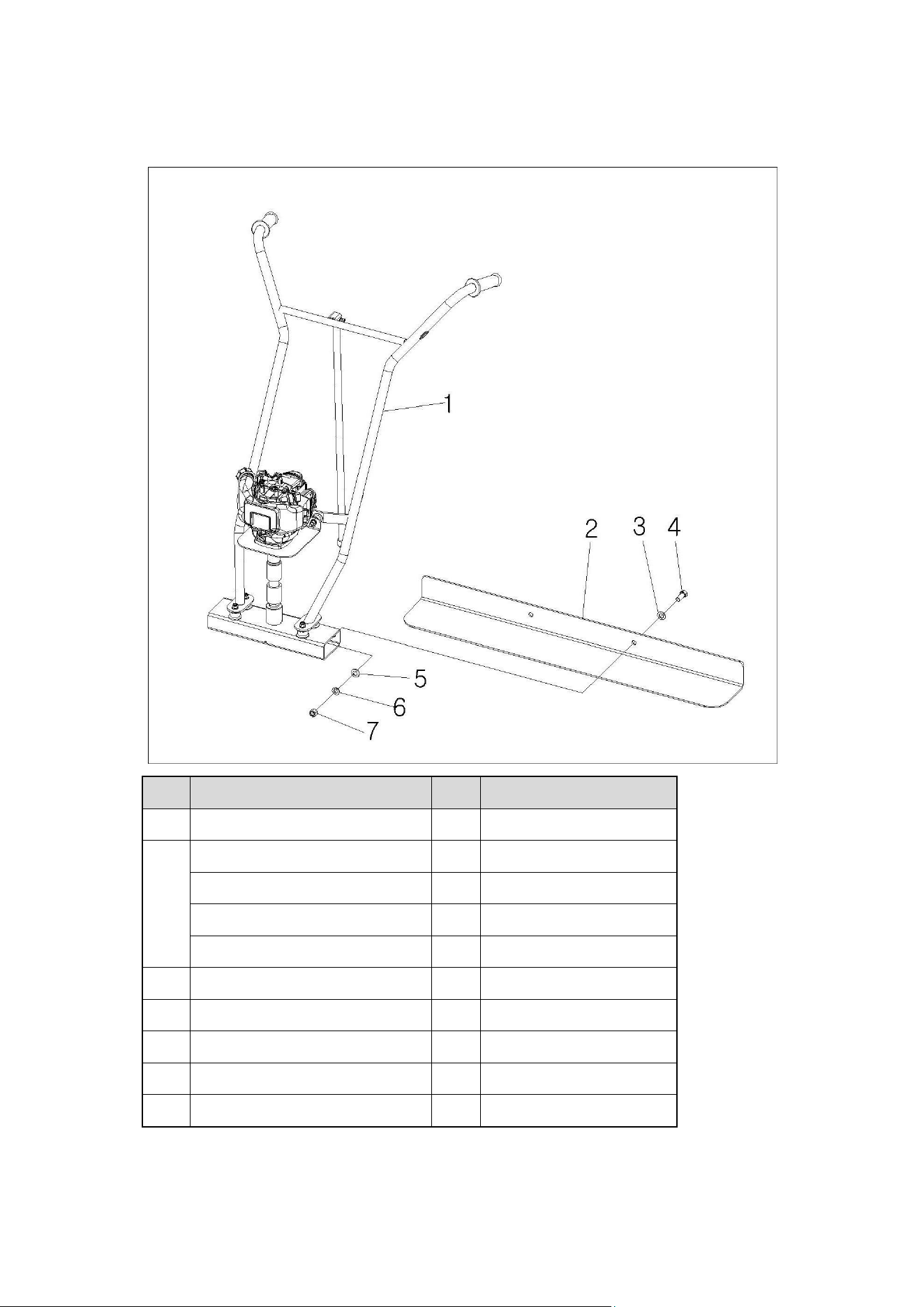

Screed Assembly TVSA-T
No.
Descriptions
Qty
Size or Dimension
1
Vibrator Screed
1
2
Screed Board 8 Feet
1
8ft
Screed Board 10 Feet
1
10ft
Screed Board 12 Feet
1
12ft
Screed Board 14 Feet
1
14ft
3
Plain Washer
2
M12
4
Bolt
2
M12x30
5
Plain Washer
2
M12
6
Spring Washer
2
M12
7
Cap Nut
2
M12
Page 17 of 23

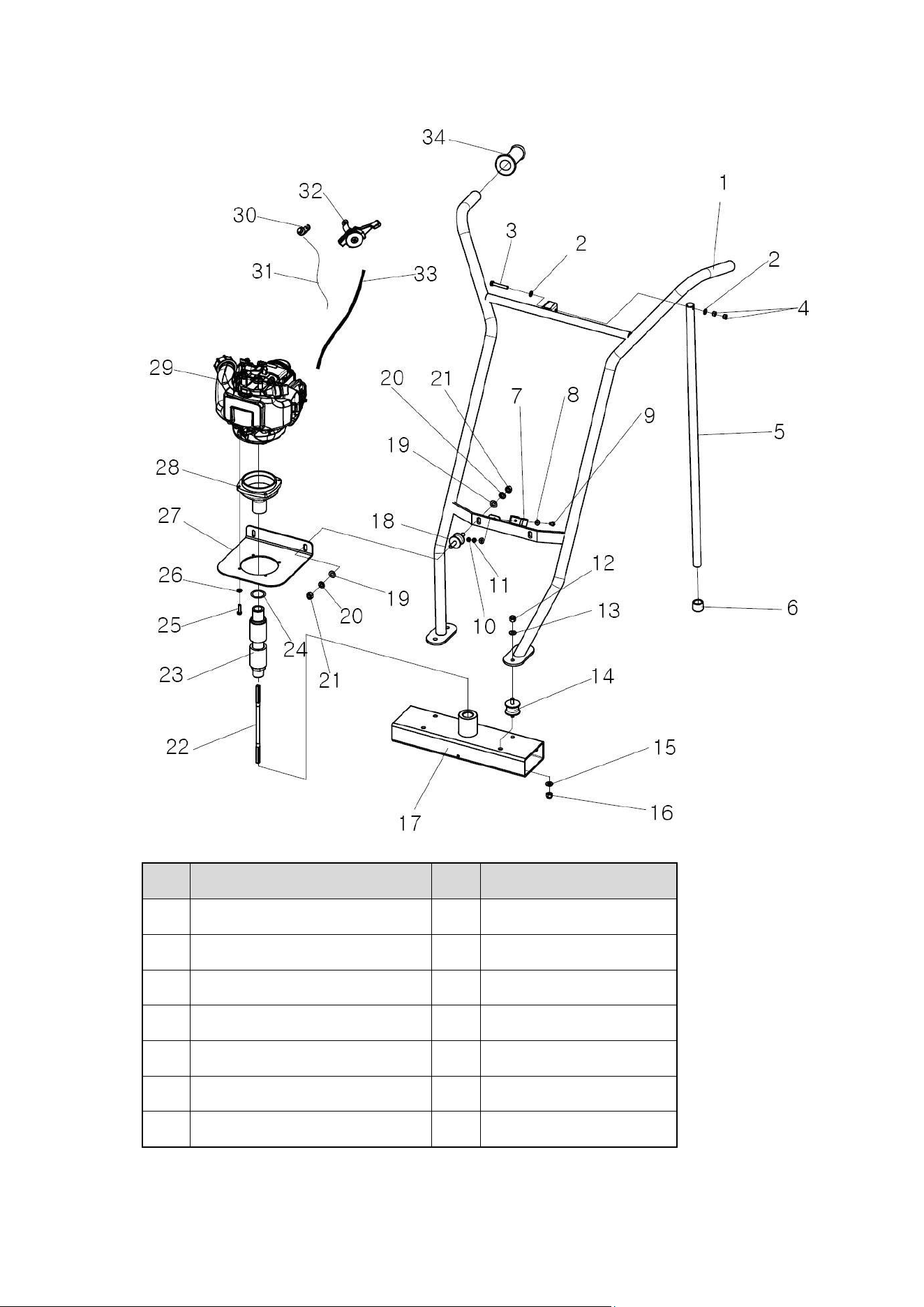

Explosion Diagram TVSA-T
No.
Descriptions
Qty
Size or Dimension
1
Handle Welding Assembly
1
2
Plain Washer
2
3
Bolt
1
M6*40L
4
Nut
2
M6
5
Handle Support Pipe
1
6
Handle Support Pipe Rubber
1
7
Clip
1
Page 18 of 23
No.
Descriptions
Qty
Size or Dimension
8
Plain Washer
2
M5
9
Bolt
1
M5x15
10
Nut
1
M5
11
Spring Washer
1
M5
12
Cap Nut
4
M8
13
Plain Washer
4
M8
14
Handle Support Rubber
4
15
Plain Washer
4
M8
16
Cap Nut
4
M8
17
Vibratory Housing Assembly
1
18
Handle Support Rubber
2
19
Plain Washer
4
M8
20
Spring Washer
4
M8
21
Nut
4
M8
22
Wire
1
23
Hose Assembly
1
24
O-Ring
1
P20
25
Bolt
4
M6x20L
26
Spring Washer
4
M6
27
Engine Plate
1
28
Clutch Housing Assembly
1
29
Engine
1
Tomahawk 37.7cc
30
Engine Stop Switch
1
31
Engine Electric Stop Wire
1
32
Throttle Lever Lever
1
33
Throttle Lever W/ Cable
1
34
Handle Rubber
2
