Instructions
Begin by removing the dust cap from the pulley if applicable. If you are working with an
OWC pulley only one bit is needed, you can remove the pulley by turning left or right
depending on mfg. If you have an OAD pulley two bits are needed. In this case once
the proper bits are located for your make and model alternator, slide bit (A) over shaft
of bit (B) as pictured below. To remove these pulleys the shaft coming from alternator
needs to be locked in place while the pulley is spun either clockwise or counterclock-
wise, depending on the manufacturer. The opposite would be used in installation.
Note: You will notice that there appears to be duplicate bits, but these are in fact
included for clearance issues in certain vehicles so the alternator or other components
do not need to be removed.
(A)
(B)
Type Make Model Year Engine
OAD Audi A4, A5, S5 2010-2011 2.0 L / 3.0 L / 3.2 L / 4.2 L
OWC Audi A3 & TT 2007-2011 2.0 L
OWC Audi A3 & TT 2006-2009 3.2 L
OWC BMW 325I, 328I, 328XI, 330I, 525I, 525XI, 530I, 530XI, Z4 2004-2009 2.5 L and 3.0 L
OAD Buick Lucerne 2009-2011 3.9L
OAD Buick Enclave 2007-2010 3.6L
OAD Cadillac CTS 2010-2011 3.0 L and 3.6 L
OAD Chevrolet Corvette 1997-2004 5.7 L
OAD Chevrolet Traverse 2007-2010 3.6L
OAD Chevrolet Impala, Malibu 2006-2011 3.9 L
OAD Chevrolet Cobalt, HHR (2008-2010) 2005-2010 2.0 L
OAD Chrysler Voyager, Town & Country, Pacifica 2001-2007 3.3 L / 3.5 L / 3.8 L
OAD Chrysler Sebring, Jeep Compass & Patriot 2007-2008 2.4 L
OAD Dodge Avenger, Caliber 2007-2009 1.8 L / 2.0 L / 2.4 L
OAD Dodge Caravan, Grand Caravan 2001-2007 3.3 L and 3.8 L
OAD Ford Expedition 2003-2008 4.6 L, 5.4 L
OAD Ford Lincoln Navigator 2003-2008 5.4 L
OAD Ford, Mercury Crown Victoria, Grand Marquis 2000-2011 4.6 L 190A / 200A Alt
OAD Ford, Mercury Focus, Escape, Mariner 2005-2007 2.0L & 2.3L
OAD GMC Acadia 2007-2010 3.6L
OAD Jeep Wrangler 2003-2006 2.4
OAD Lexus ES350, GS350, IS250, RX350 2009-2010 2.5 L and 3.5 L
OAD Mazda Tribute 2005-2007 2.3 L
OWC Mercedes-Benz E300D 1996-1997 3.0 L Diesel
OAD Pontiac G6 2006-2010 3.9 L
OWC Porsche Boxter, Cayman, 911 2000-2009 2.7 L / 3.2 L / 3.4 L
OAD Saturn Sky 2007-2010 2.0 L
OAD Scion XD 2008-2010 2008-2010
OAD Toyota Camry, Corolla, Matrix, Rav 4, Solara 2006-2010 2.4 L
OAD Toyota Camry 2010-2011 2.5 L
OAD Toyota Celica, Corolla, Matrix 1998-2010 1.8 L
OAD Toyota Avalon, Camry, Highlander, RAV4, Sienna, Venza 2005-2011 3.5 L
OAD Toyota 4 Runner 2005-2011 2.7 L and 4.0 L
OAD Volvo S80, V70, XC70, XC90 2007 - ON 3.0, 3.2
OAD Toyota Tacoma 2007-2011 2.7 L
OWC VW Beetle, Golf, Jetta, Passat 1998-2008 1.8 L & 2.0 L / 1.9 L Diesel
OWC VW Touareg, Touareg 2 2004-2008 5.0 L Diesel
Application Chart
Due to constantly changing markets your make and model may not be present. Please refer to your pulley or alternator
supplier to see if this kit is needed.
This chart is a general list of applications, but this kit will work on many
other vehicles than listed above.

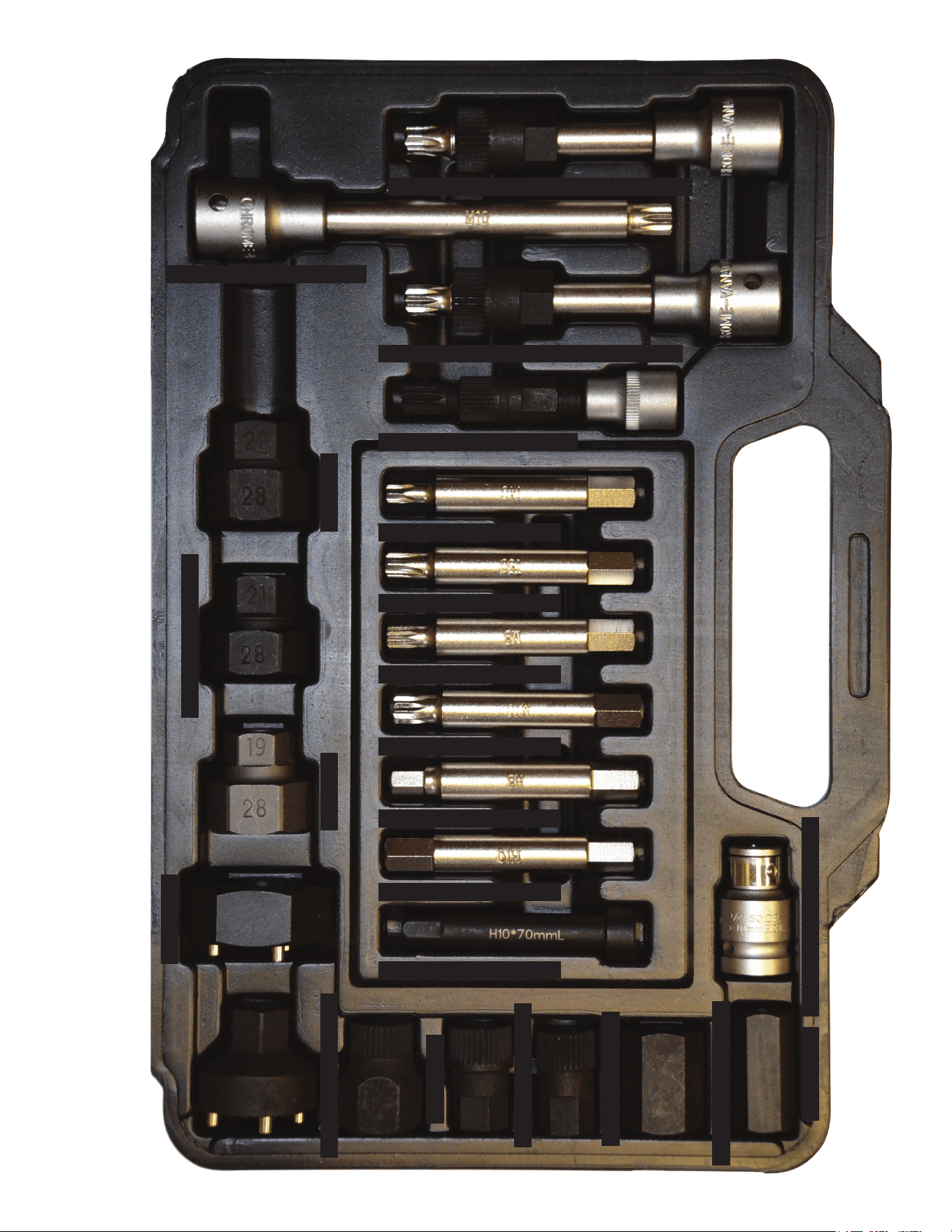

ADP Kit Components
36 Round x H17 x 4 Pins
H38 x 3 Pins
H10 x 67mmL x H10 Shaft
Bit 12 Round x 75mmL x T40
Bit 12 Round x 75mmL x T50
Bit 12 Round x 75mmL x M10
Bit 12 Round x 75mmL x M8
Bit 12 Round x 75mmL x H10
Bit 12 Round x 75mmL x H8
H19 x H28
H21 x H28 with O-RING
H15 x 33T (19.7 Round)
H15 x 33T (18 Round)
H22 x 30mmL with O-RING
H17 x 35mmL
H22 x 33T
1/2” Sq. Dr. x 10mm Hex Adapter
H22 x H28
Bit Socket 1/2” DR x 140L x M10
Bit Socket 3/8” DR x M10 x 31T
Bit Socket 1/2” DR x 113L x M10 x 19.4 mm x 33T
Bit Socket 1/2” DR x 113L x T50 x 19.4 mm x 33T
