CAUTION:
Weight on this product should not exceed 250 lbs.
Owner's
Manual
Product May Vary Slightly From Pictured.
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
!
WARNING
STAMINA PRODUCTS
MADE IN CHINA
© 2020 Stamina Products, Inc.
2020, 12
When calling for parts or
service, please specify
the following numbers
:
Model#: 55-1703A
S/N: _____________
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
Quickstart Guide
Go to the App Store on your device or
scan the QR Code for quick access.
Smart Audio Workouts for Your Elliptical
Download the app and get moving!
Assembly video included in app.
IMPORTANT
Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service
mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC.
TABLE OF CONTENTS
Safety Instructions ...................................... 3
Before You Begin ........................................ 5
Equipment Warning, Caution & Notice Labels
... 6
Hardware Identication Chart .................... 7
Assembly Instructions ................................ 8
Set Up Instructions ................................... 12
Operational Instructions ........................... 13
Storage ....................................................... 16
Maintenance ............................................... 16
Conditioning Guidelines ........................... 17
Warm-Up and Cool-Down ......................... 18
Warranty ..................................................... 19

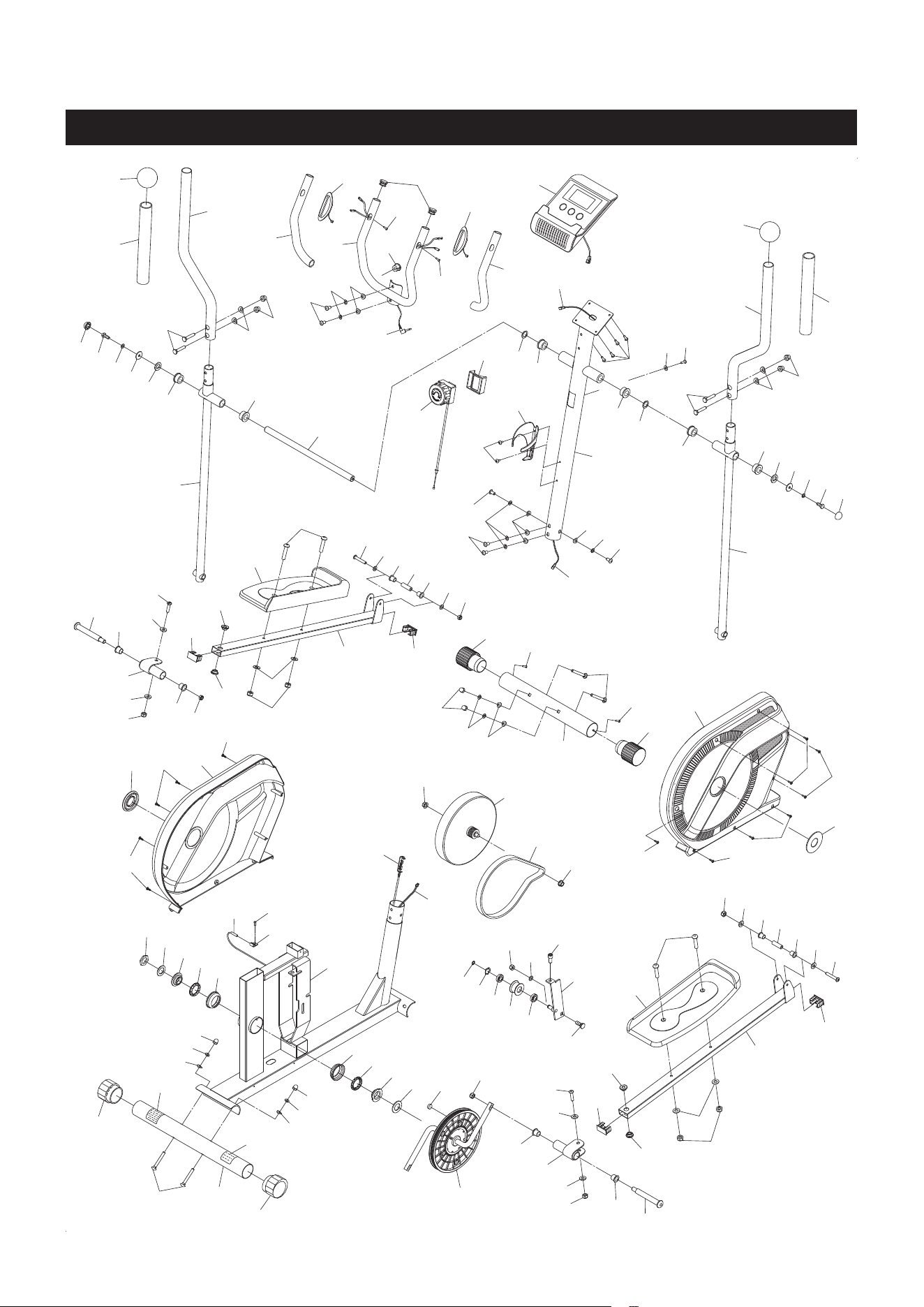

Product Parts Drawing .............................. 20
Parts List .................................................... 21
Fax/Mail Ordering Form ............................ 23
SAFETY INSTRUCTIONS
3
1. Save these instructions and ensure that other exercisers read this manual prior to using the
Stamina® Elliptical Trainer 703 for the rst time.
2. Read all warnings and cautions posted on the Stamina® Elliptical Trainer 703.
3. The Stamina® Elliptical Trainer 703 should only be used after a thorough review of the Owner’s
Manual. Make sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. Keep children away from the Stamina® Elliptical Trainer 703. Do not allow children to use or
play on the Stamina® Elliptical Trainer 703. Keep children and pets away from the Stamina®
Elliptical Trainer 703 when it is in use.
6. The Stamina® Elliptical Trainer 703 is not equipped with a free-wheel. Pedal speed should be
reduced in a controlled manner.
7. It is recommended that you place this exercise equipment on an equipment mat.
8. Set up and operate the Stamina® Elliptical Trainer 703 on a solid level surface. Do not position
the Stamina® Elliptical Trainer 703 on loose rugs or uneven surfaces.
9. Make sure that adequate space is available for access to and around the Stamina® Elliptical
Trainer 703.
10. Adjust the Leveling Caps(39) on the Rear Stabilizer(6) so that the bike sits on the oor without
rocking.
11. Before using, inspect Stamina® Elliptical Trainer 703 for worn or loose components, and
securely tighten or replace any worn or loose components prior to use.
12. Consult a physician prior to commencing an exercise program and follow his/her
recommendations in developing your tness program. If at any time during exercise you feel faint,
dizzy, or experience pain, stop and consult your physician.
13. Always choose the workout which best ts your physical strength and exibility level. Know your
limits and train within them. Always use common sense when exercising.
14. Do not wear loose or dangling clothing while using the Stamina® Elliptical Trainer 703.
15. Never exercise in bare feet or socks; always wear proper footwear such as running, walking, or
cross training shoes that t well, provide foot support, and feature non-skid rubber soles.
16. Be careful to maintain your balance while using, mounting, dismounting, or assembling the
Stamina® Elliptical Trainer 703, loss of balance may result in a fall and serious bodily injury.
17. The Stamina® Elliptical Trainer 703 should not be used by persons weighing over 250 pounds.
18. The Stamina® Elliptical Trainer 703 should be used by only one person at a time.
19. The Stamina® Elliptical Trainer 703 is for consumer use only. It is not for use in public or
semipublic facilities.
!
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in serious injury or death.
To reduce the risk of serious injury, read the following Safety Instructions
before using the Stamina® Elliptical Trainer 703.
!
WARNING
!
WARNING
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.care@staminaproducts.com
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
2040 N Alliance Ave
Springfield, MO 65803
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.
BEFORE YOU BEGIN
5
Caution Label
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY :
Allen Wrench w/ Screwdriver (5mm)
Allen Wrench (8mm)
Wrench
(2 pieces)
Right Handlebar
Upright
Pivoting Arm
Pedal Arm
Pedal Arm Connector
Leveling Cap
Pivoting Arm
Left Pedal Cap
Left & Right Covers
Rear Stabilizer
Pulse Sensor
Main Frame
Meter
Stationary Handlebar
Crank
Tension Knob
Front Stabilizer
Left Handlebar
Wheel Cap
Dome Plug
Serial Decal
Pedal Arm Connector
Water Bottle Holder
Pedal Arm
Right Pedal Cap
Leveling Cap
Dome Plug
Thank you for choosing the Stamina® Elliptical
Trainer 703. We take great pride in this quality
product and hope it will provide many hours of
quality exercise to make you feel better, look
better, and enjoy life to its fullest.
It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The Stamina® Elliptical
Trainer 703 provides a convenient and simple
method to begin your journey of getting your body
in shape and achieving a happier and healthier
lifestyle.

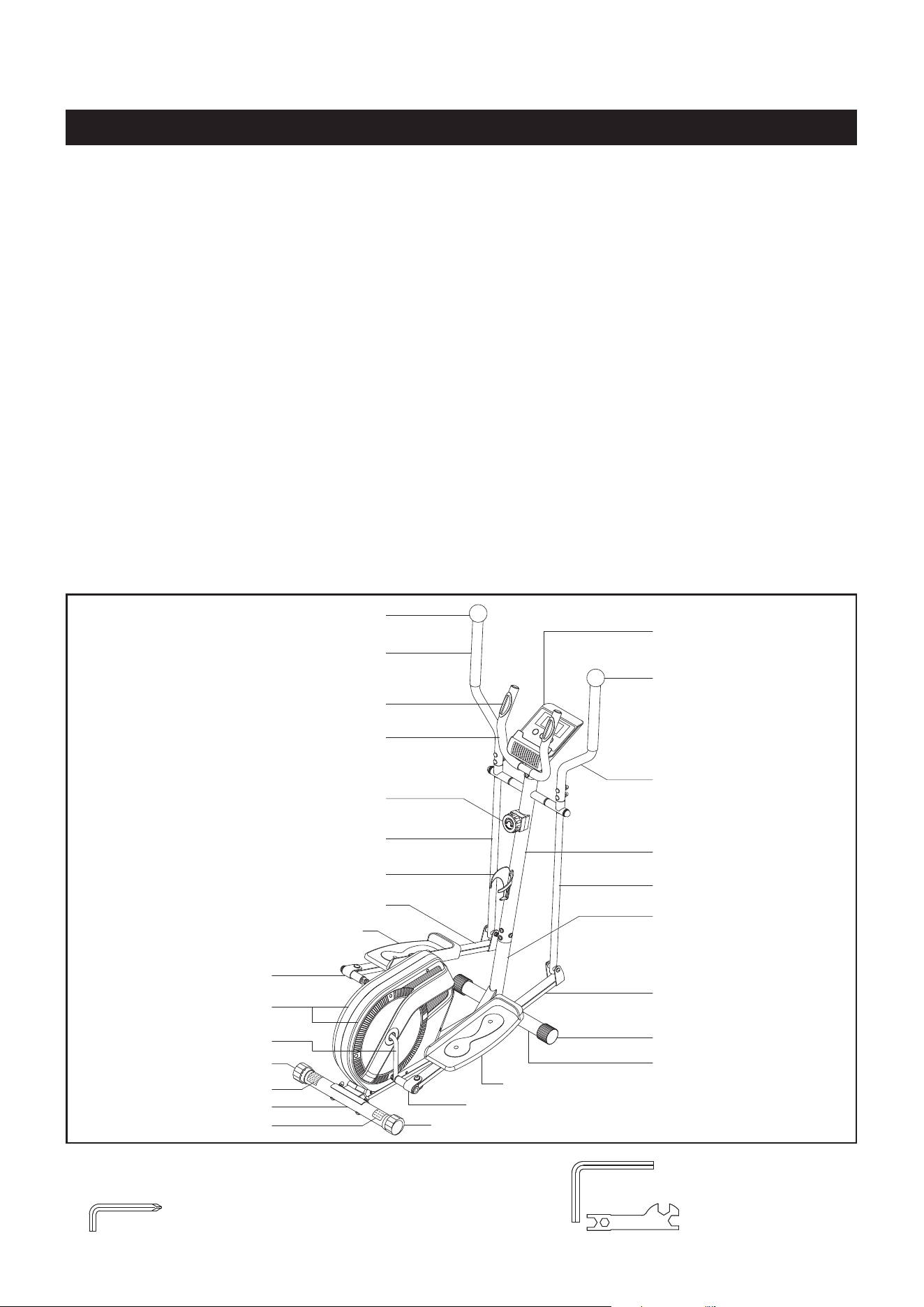

Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled. Locate the serial decal on
the product and write the serial number on the
cover of the manual in the space provided. See the
next page for an image of the serial decal. Model
number and serial number are required when
calling for assistance.
Read this manual carefully before using the
Stamina® Elliptical Trainer 703.
Providing you with a quality product is Stamina's
top priority. However, sometimes there could be a
missing or incorrectly sized part. If you have any
questions or problems with the parts included with
your Stamina® Elliptical Trainer 703, please do
not return the product. Contact us FIRST!
If a part is missing or defective, please contact
Customer Care for assistance. Call us toll free
at 1-800-375-7520 (in the U.S.) or live chat on
staminaproducts.com. Our Customer Care Sta is
available to assist you from 7:30 A.M. to 5:00 P.M.
(Central Time) Monday through Thursday and 8:00
A.M. to 3:00 P.M. (Central Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
This chart is provided to help identify the warning, caution, and notice labels on the Stamina®
Elliptical Trainer 703. Please take a moment to familiarize yourself with all of the warning, caution,
and notice labels.

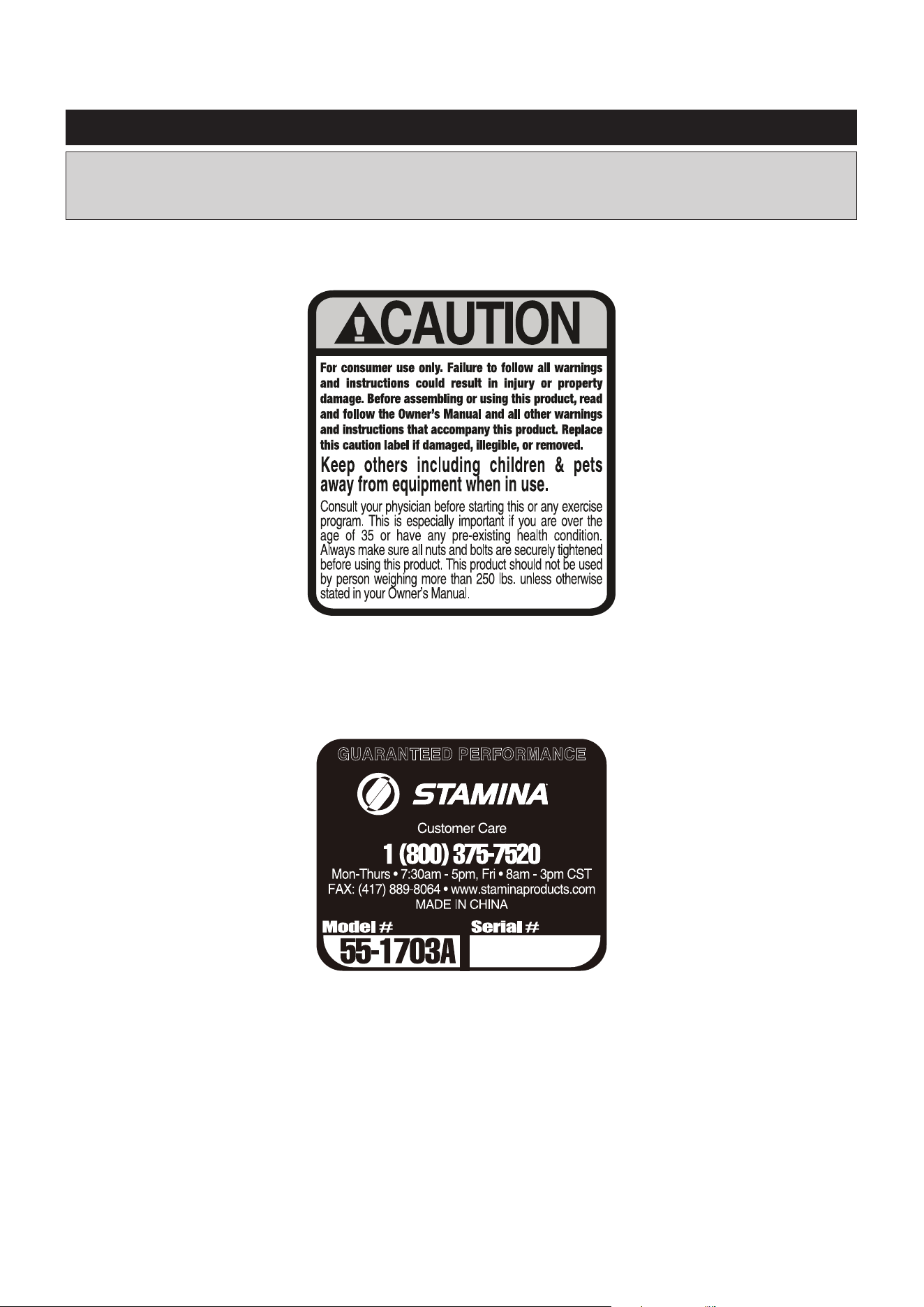

EQUIPMENT WARNING, CAUTION & NOTICE LABELS
6
CAUTION LABEL(89)
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
SERIAL DECAL(90)
7
length
length
mm.
in.
INCHES
This chart is provided to help identify the fasteners used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following
fasteners. Some fasteners may be already attached to the parts.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"

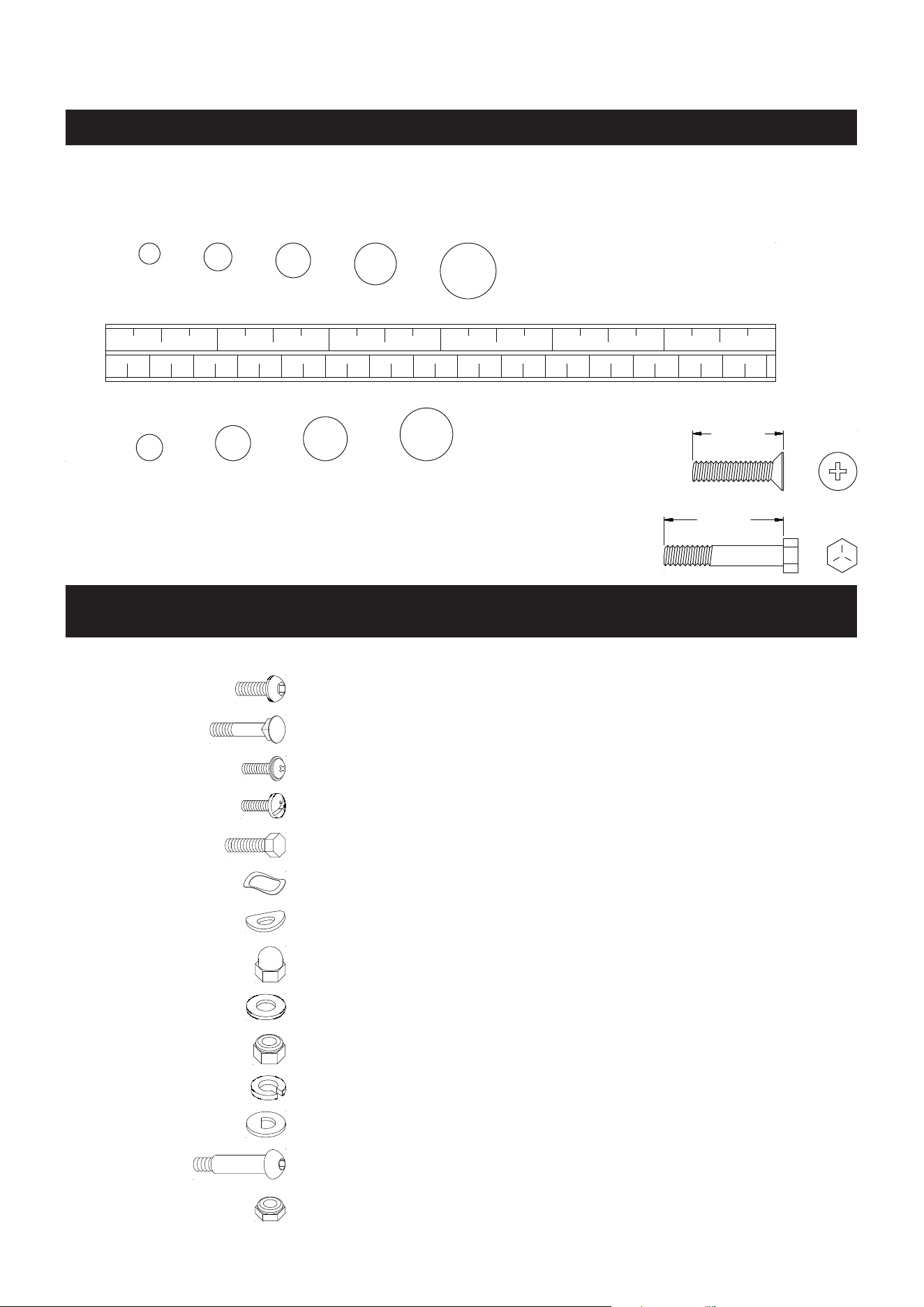

HARDWARE IDENTIFICATION CHART
Part No. and Description
Qty
49 Carriage Bolt (M8 x 1.25 x 65mm) 4
73 Carriage Bolt (M8 x 1.25 x 40mm) 4
45 Bolt, Button Head (M8 x 1.25 x 15mm) 6
50 Acorn Nut (M8 x 1.25) 8
59 Washer (M8) 4
76 Large Washer (M8 x ø28mm) 2
46 Arc Washer (M8) 14
63 Screw, Round Head (M5 x 0.8 x 12mm) 4
75 Lock Washer (M8) 12
60 Nylock Nut (M8 x 1.25) 4
53 Screw, Washer Head (M5 x 0.8 x 12mm) 2
36 Wave Washer (S16) 2
74 Bolt, Hex Head (M8 x 1.25 x 20mm) 2
80 Bolt, Hex Head (M8 x 1.25 x 40mm) 4
77 D Hole Washer 2
81 Left Shaft Bolt,
Brass Color (1/2”-20, Left Hand Threads)
1
82 Right Shaft Bolt (1/2”-20) 1
84 Left Thin Nylock Nut,
Brass Color (1/2”-20, Left Hand Threads)
1
85 Right Thin Nylock Nut
(1/2”-20)
1
3
49
49
6
39
39
46
75
50
46
75
50
38
75
50
46
38
1
ASSEMBLY INSTRUCTIONS
8

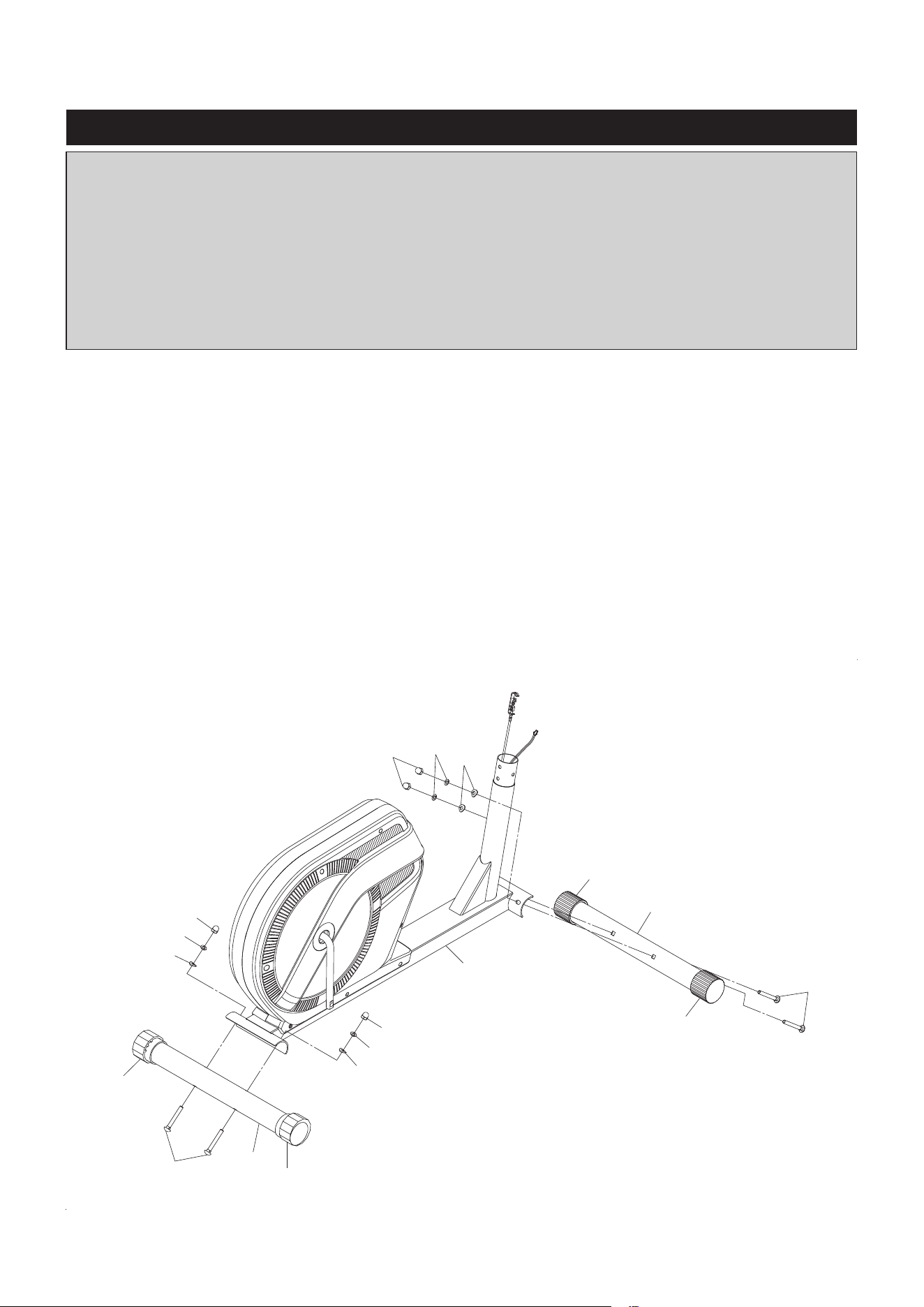

STEP 1
Position the Wheels in the WHEEL CAPS(38) on the FRONT STABILIZER(3) facing the front. Attach the
FRONT STABILIZER(3) to the front of the MAIN FRAME(1) with CARRIAGE BOLTS(M8x1.25x65mm)
(49), ARC WASHERS(M8)(46), LOCK WASHERS(M8)(75), and ACORN NUTS(M8x1.25)(50).
STEP 2
Attach the REAR STABILIZER(6) to the MAIN FRAME(1) with CARRIAGE BOLTS(M8x1.25x65mm)(49),
ARC WASHERS(M8)(46), LOCK WASHERS(M8)(75), and ACORN NUTS(M8x1.25)(50).

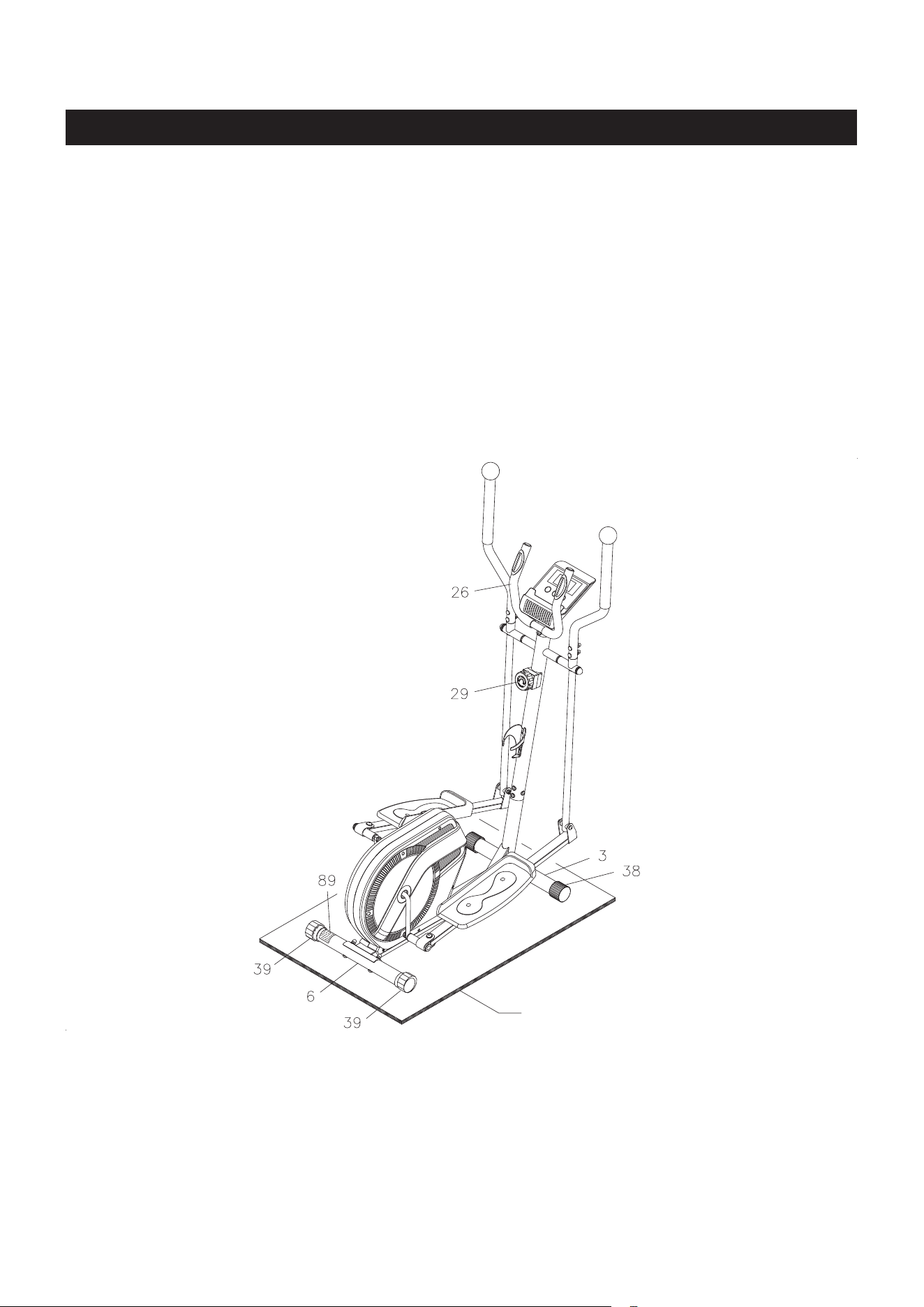

NOTE: You can adjust the LEVELING CAPS(39) on the REAR STABILIZER(6) to keep the Elliptical stable.
FRONT
BACK
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
needed, e-mail us at customer[email protected], or call us toll free at 1-800-375-7520
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Some product parts are t tested at the factory to ensure proper t and alignment. Marks in
the paint may be noticeable, but are not an indication of damage.
46
75
45
45
46
75
45
2
8
1
29
31
9
29
ASSEMBLY INSTRUCTIONS
9
Cable End
Hook
Bracket
Metal Fitting
3
2
1

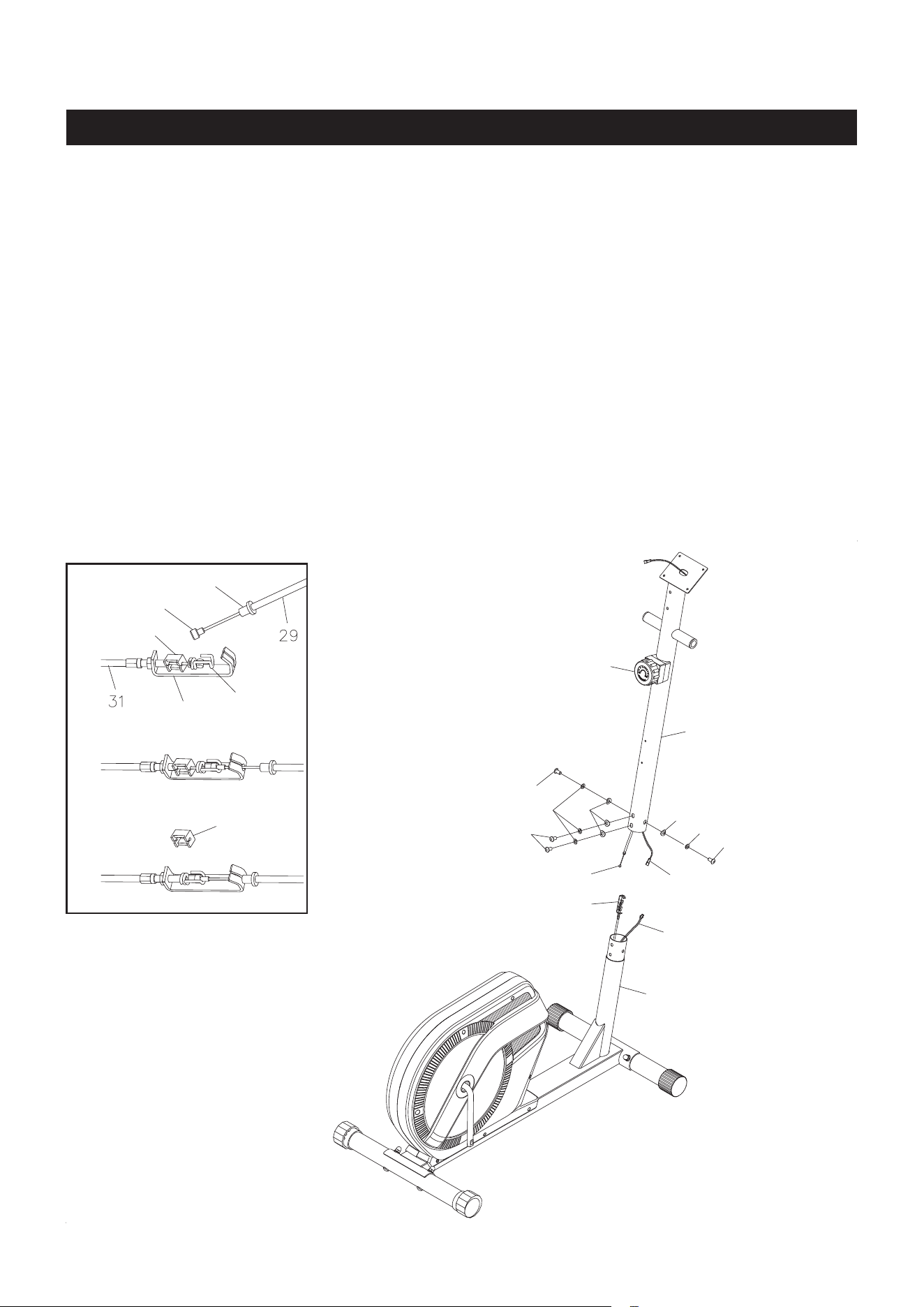

STEP 3
Refer to the inset drawing and the illustration below to connect the TENSION KNOB(29) to the TENSION
CABLE(31) and assemble the UPRIGHT(2):
1.
Set the TENSION KNOB(29) at position “8”, so the CABLE END extends out of the METAL FITTING
as far as possible.
Connect the CABLE END of the TENSION KNOB(29) to the HOOK on the end of the
TENSION CABLE(31).
2.
Pull on the Cable of the TENSION KNOB(29) rmly
so that enough cable is available to allow the METAL
FITTING to go through the slot in the top of the BRACKET.
3. Insert the METAL FITTING into the hole at the end of the slot in the BRACKET. Remove the CLIP.
NOTE:
The CLIP is used for helping the assembly only. It can be thrown away after assembly is completed.
4. Adjust the TENSION KNOB(29) and verify that the HOOK moves when the TENSION KNOB(29) is
adjusted.
5.
Connect the EXTENSION WIRE(8) to the SENSOR WIRE(9).
6. Insert the UPRIGHT(2) onto the MAIN FRAME(1) and secure with BUTTON HEAD BOLTS
(M8x1.25x15mm)(45), LOCK WASHERS(M8)(75), and ARC WASHERS(M8)(46).
Clip
Clip
77
76
75
74
42
2
1
85
84
32L
81
37
35
37
82
35
32R
13
13
42
74
75
76
77
36
36
64
ASSEMBLY INSTRUCTIONS
10
L
R

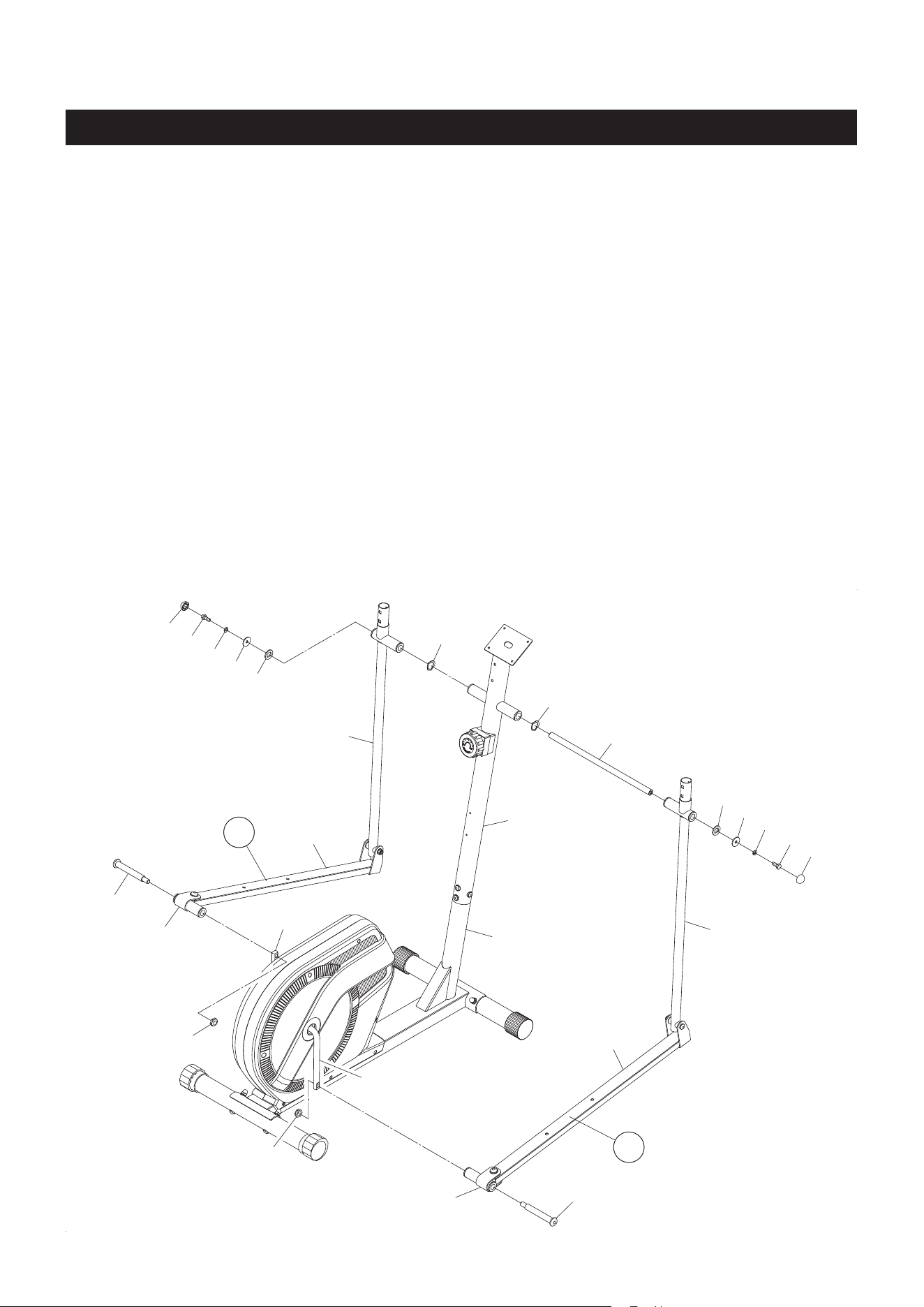

STEP 4: There is an “L” decal on the LEFT PEDAL ARM ASSEMBLY(32L), and an “R” decal on the
RIGHT PEDAL ARM ASSEMBLY(32R). Insert the SHAFT(64) through the tube on the UPRIGHT(2).
Place a WAVE WASHER(S16)(36) on each side of the SHAFT(64). Slide the PIVOTING ARMS(35) on
the LEFT and RIGHT PEDAL ARM ASSEMBLY(32L, 32R) onto the SHAFT(64) on both sides and secure
with D HOLE WASHERS(77), LARGE WASHERS(M8xø28mm)(76), LOCK WASHERS(M8)(75), and HEX
HEAD BOLTS(M8x1.25x20mm)(74). You need to use two wrenches to tighten the HEX HEAD BOLTS
(M8x1.25x20mm)(74) at both ends of the SHAFT(64) at the same time. Place a NUT CAP(42) onto the
HEX HEAD BOLTS(M8x1.25x20mm)(74).
NOTE: Make sure the D HOLE WASHERS(77) t onto the D shaped ends of the SHAFT(64) before securely
tighten the HEX HEAD BOLTS(M8x1.25x20mm)(74).
STEP 5
NOTE: The LEFT SHAFT BOLT(81) has L stamped on the end of the bolt. The RIGHT SHAFT BOLT(82)
has R stamped on the end of the bolt. The LEFT SHAFT BOLT(81) and LEFT THIN NYLOCK
NUT(1/2”-20)(84) are in brass color, both of them have left hand threads and are tightened by
turning counterclockwise. The RIGHT SHAFT BOLT(82) and RIGHT THIN NYLOCK NUT(1/2”-20)
(85) have right hand threads and are tightened by turning clockwise.
Connect the back end of the RIGHT PEDAL ARM(32R) to the right side of the CRANK(13) with the RIGHT
SHAFT BOLT(82) and tightening securely. Thread the RIGHT THIN NYLOCK NUT(1/2”-20)(85) onto the
RIGHT SHAFT BOLT(82) and tighten securely. Repeat on the left side.
80
73
46
50
73
46
50
35
35
4
59
60
32L
32R
34
80
33
59
60
5
59
60
ASSEMBLY INSTRUCTIONS
11

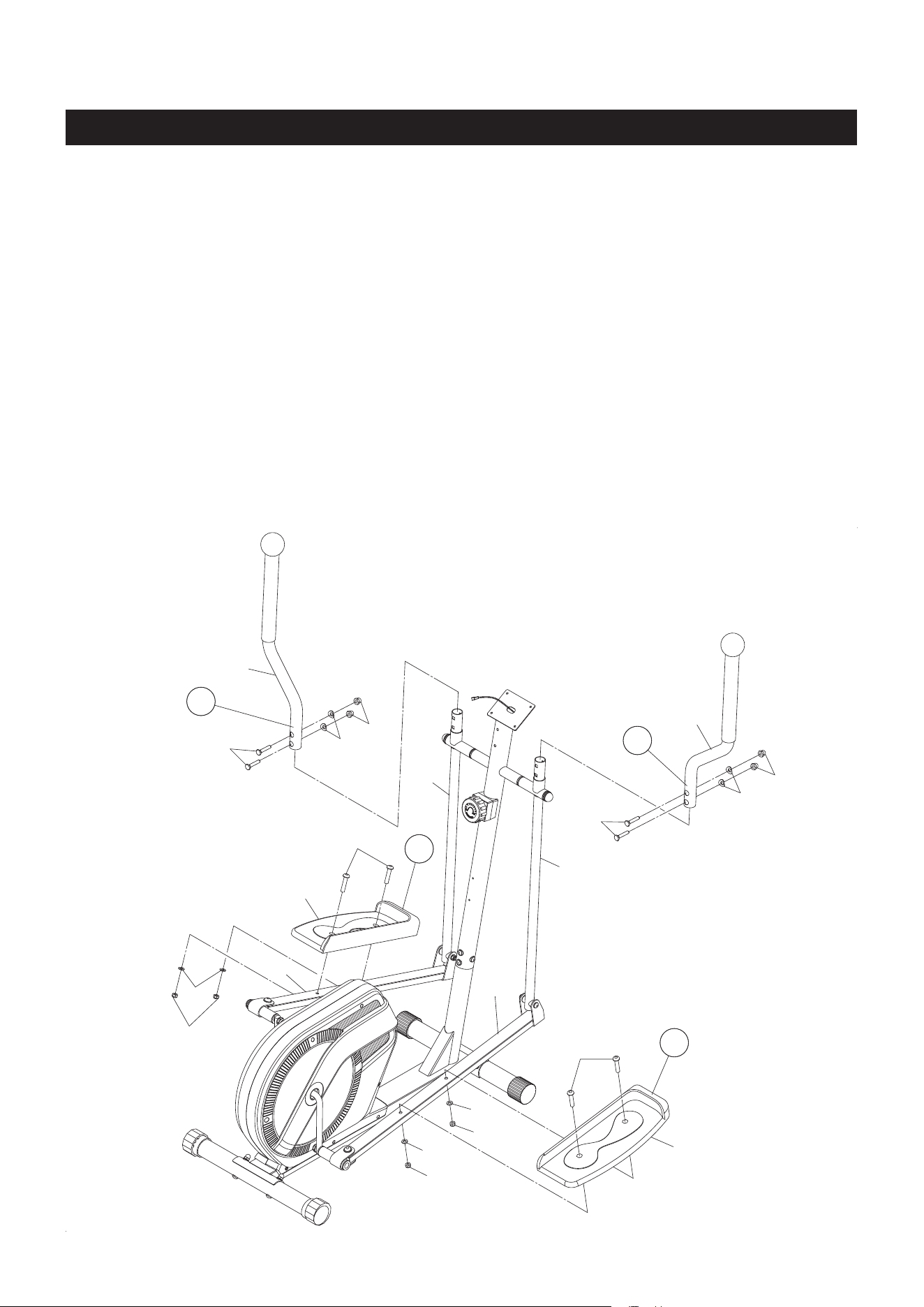

STEP 6
There is an “L” decal on the LEFT HANDLEBAR(4), and an “R” decal on the RIGHT HANDLEBAR(5).
Insert the RIGHT HANDLEBAR(5) into the PIVOTING ARM(35) on the right side and secure with CARRIAGE
BOLTS(M8x1.25x40mm)(73), ARC WASHERS(M8)(46), and ACORN NUTS(M8x1.25)(50). Repeat on
the left side.
STEP 7
There is an “L” decal on the LEFT PEDAL CAP(33), and an “R” decal on the RIGHT PEDAL CAP(34).
Attach the RIGHT PEDAL CAP(34) to the RIGHT PEDAL ARM(32R) with HEX HEAD BOLTS
(M8x1.25x40mm)(80), WASHERS(M8)(59), and NYLOCK NUTS(M8x1.25)(60). Repeat on the left side.
NOTE: The LEFT and RIGHT PEDAL CAPS(33, 34) have a raised lip on two sides. Attach the LEFT and
RIGHT PEDAL CAPS(33, 34) to the PEDAL ARMS(32) so that the sides without the raised lip are
on the outside and backside.
L
R
FRONT
BACK
L
R
ASSEMBLY INSTRUCTIONS
12

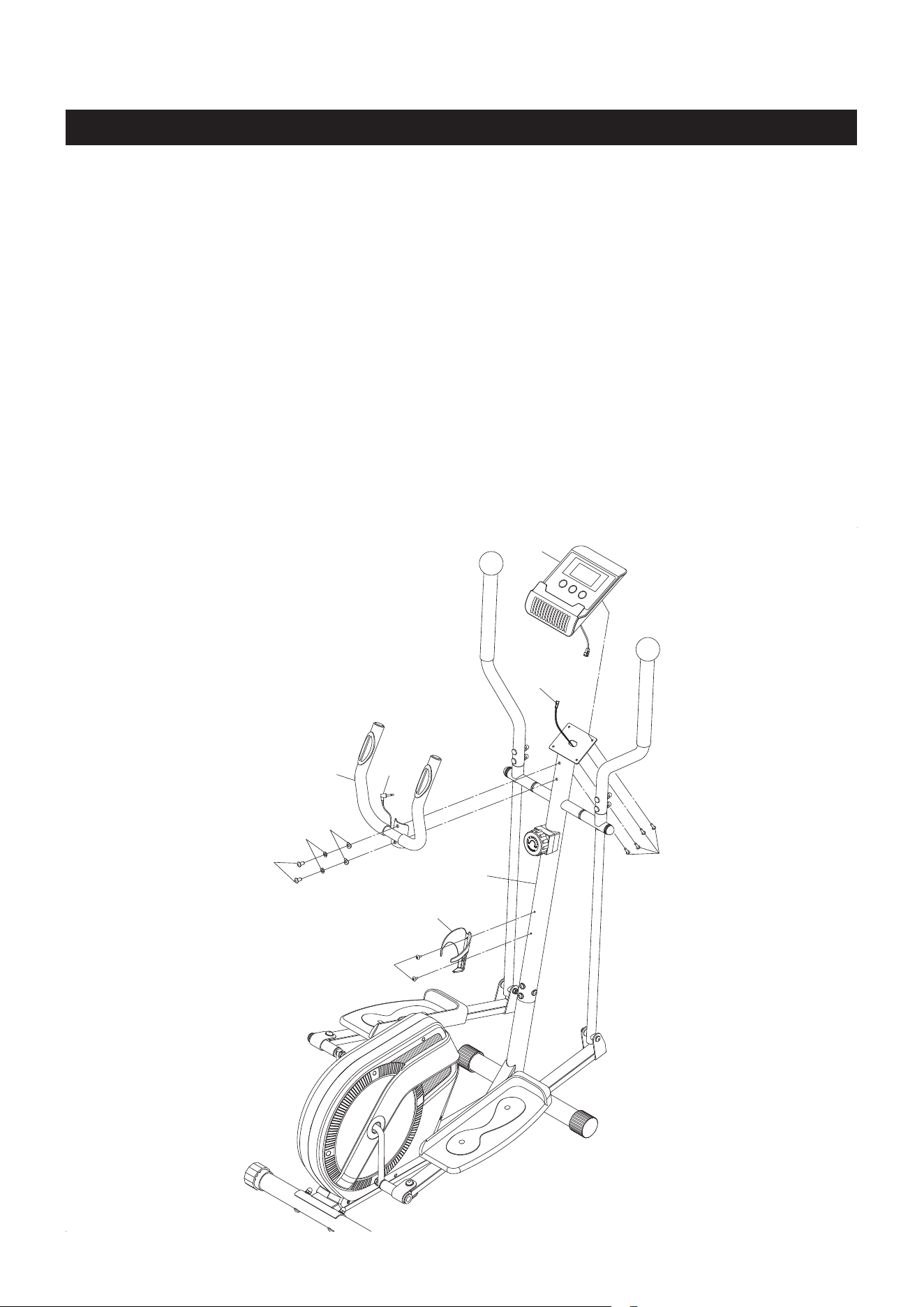

STEP 8
Attach the STATIONARY HANDLEBAR(26) to the UPRIGHT(2) with BUTTON HEAD BOLTS
(M8x1.25x15mm)(45), LOCK WASHERS(M8)(75), and ARC WASHERS(M8)(46).
STEP 9
Install two AAA batteries into the METER(11), the batteries are not included. See page 15 for detailed battery
installation instructions. Plug the EXTENSION WIRE(8) into the connecting wires of the METER(11), and
push the excess wires back into the UPRIGHT(2). Attach the METER(11) to the plate on the UPRIGHT(2)
with ROUND HEAD SCREWS(M5x0.8x12mm)(63). Plug the PULSE SENSOR WIRES(86) into the back
of the METER(11).
NOTE: Be careful not to damage the wires when attaching the METER(11).
STEP 10
Attach the WATER BOTTLE HOLDER(41) to the UPRIGHT(2) with WASHER HEAD SCREWS
(M5x0.8x12mm)(53).
63
8
46
75
45
41
53
2
11
26
86
CAUTION: Locate and read the CAUTION LABEL(89) on the Stamina® Elliptical Trainer 703. Make
sure that all users read the CAUTION LABEL(89) before using the product.
SET UP INSTRUCTIONS
13
Equipment Mat
FUNCTION INSPECTION:
Visually inspect the Stamina® Elliptical Trainer 703 to verify that assembly is as shown in the above
illustration. Check the function of the Stamina® Elliptical Trainer 703, stand on the PEDAL CAPS(33, 34)
and place your hands at a comfortable position on the HANDLEBARS(4, 5). Slowly move the crank through
one complete revolution to verify that the drive train functions properly. Adjust the TENSION KNOB(29) and
verify that it functions properly and the resistance changes.
LEVELING: Adjust the LEVELING CAPS(39) on the REAR STABILIZER(6) so the Stamina® Elliptical
Trainer 703 sits on the floor without rocking. Remove and reposition the LEVELING
CAPS(39) on the REAR STABILIZER(6) to level the Stamina® Elliptical Trainer 703.
MOVING: The Stamina® Elliptical Trainer 703 has a pair of Wheels in the WHEEL CAPS(38) on
the FRONT STABILIZER(3). Grasp on the STATIONARY HANDLEBAR(26) and tip the
Stamina® Elliptical Trainer 703 forward to move.
Place the Stamina® Elliptical Trainer 703 in the area where it will be used. It is recommended that the
Stamina® Elliptical Trainer 703 be placed on an equipment mat. The maximum operation dimensions of
the Stamina® Elliptical Trainer 703 are approximately 46.3 inches long x 25.7 inches wide x 63 inches
tall. (These dimensions may vary up to one inch.) Make sure that adequate space is available for access
to move around and emergency dismount from the Stamina® Elliptical Trainer 703. A minimum of 20
inches on at least one side and 20 inches either behind or in front of the Stamina® Elliptical Trainer 703
is required for safe operation.
NOTE:
1.
You may preset values for several functions. The preset function values will start to count down. When you
complete one of the preset functions, the value of this completed function will start to count up, while the other
preset functions will continue to count down.
2. The Meter will shut off automatically after 4 minutes of inactivity. All function values will be kept. You can
continue to work out with these function values. Or, press the RESET or MODE button and hold it down for two
seconds to reset all functions to zero, except ODOMETER. The ODOMETER will be reset to zero after batteries
are removed for battery replacement or storage of the unit.
OPERATIONAL INSTRUCTIONS
14
In the STOP mode, press to set target values for TIME,
DISTANCE, and CALORIES. Press the button and hold it
down for two seconds, the meter will continue to add the
values, release the button to stop.

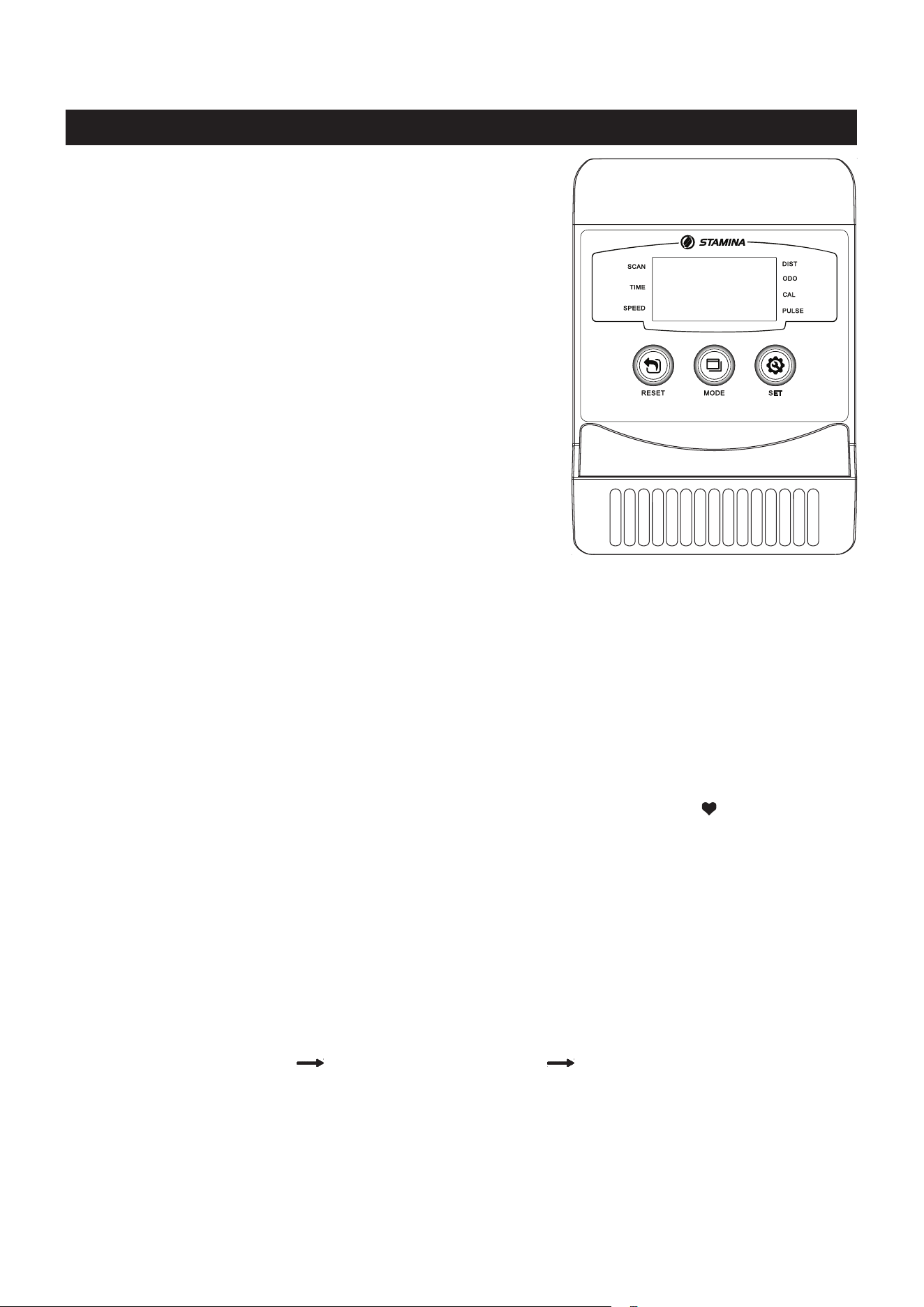

USING THE FITNESS METER
POWER OFF:
Automatically shuts o after 4 minutes of inactivity.
POWER ON:
FUNCTIONS:
FUNCTION BUTTONS :
MODE :
Press and release to select functions for display or to preset
target values.
Press the button and hold it down for two seconds to reset
all functions to zero, except ODOMETER.
In the STOP mode, press the button to reset the setting
values to zero.
Press the button and hold it down for two seconds to reset
all functions to zero, except ODOMETER.
RESET :
Move the pedals or press any button.
PRESET VALUES OPERATION:
You can begin pedaling to power on the meter and workout with the meter directly. Or, you can preset the function
values for counting down. Press and release the MODE button until “SCAN” does not appear on display, the meter
will enter setting mode. Use SET and RESET buttons to input the values, and press MODE button to conrm. Or, just
press the MODE button to skip the setting and move on to the next function. After all the desired settings are chosen,
begin pedaling to start the workout.
Time (1:00 to 99:00)
Distance (1.00 to 999.0 mile) Calories (1.0 to 999.0 Kcal)
SET :
Automatically scans TIME, SPEED, DISTANCE, CALORIES, ODOMETER, and PULSE in
sequence with a change every six seconds. Press and release the MODE button until “SCAN”
appears on display.
Displays the time from 1 sec. up to 99:59 minutes. Counts down from preset value.
Displays the current speed from zero to 999.9 miles per hour.
Displays distance from zero to 999.9 Miles. Counts down from preset value.
Displays the total accumulated distance you have traveled from zero to 999.9 miles. The total
accumulated distance is retained when the meter is turned o, until the batteries are removed.
Displays the calories burned from zero to 999.9 Kcal. Counts down from preset value.
The calorie readout is an estimate for an average user. It should be used only as a comparison
between workouts on this unit.
Displays your pulse rate in beats per minute. To display pulse, select the PULSE mode and grasp
the pulse sensors on the handlebar, one in each hand. The heart symbol “ “ will begin ashing
when the meter senses your pulse. Your pulse will be displayed approximately ve (5) seconds after
the heart symbol is displayed. If the heart symbol does not appear, relax your grip or change your
grip on the pulse sensors.
NOTE: The pulse function is a great tool to optimize your workout, but should be used as a
reference only.
SCAN:
TIME:
SPEED:
DISTANCE:
ODOMETER:
CALORIES:
PULSE:
OPERATIONAL INSTRUCTIONS

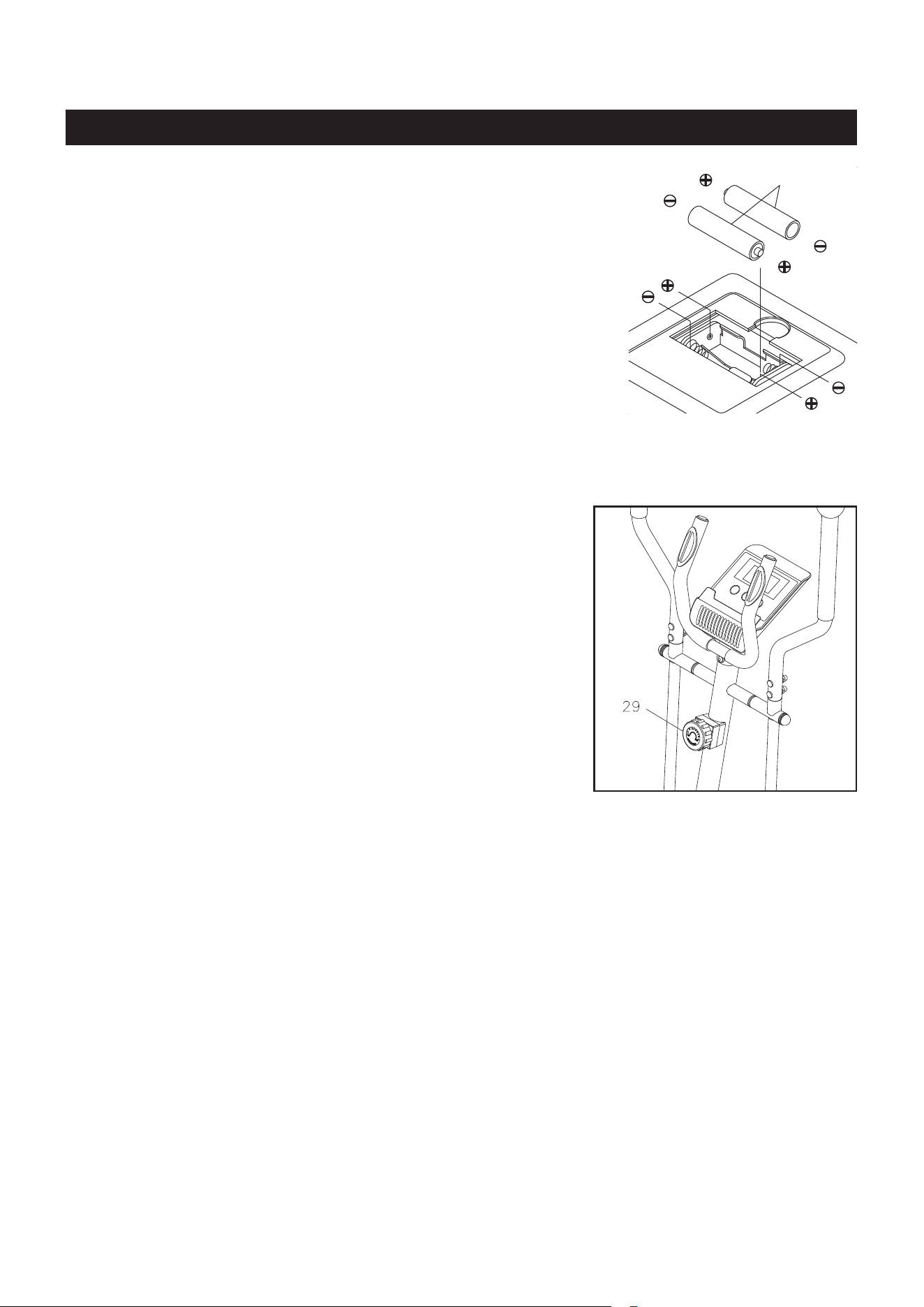

HOW TO INSTALL AND REPLACE BATTERIES:
1. Open the Battery Door on the back of the meter.
2. The meter operates with two AAA batteries (1.5V each), the batteries are
not included. Refer to the illustration to install or replace the batteries.
1. Do not mix a new battery with an old battery.
2. Use the same type of battery. Do not mix an alkaline battery with
another type of battery.
3. Rechargeable batteries are not recommended.
4. Ultimate disposal of battery should be handled according to
all state and federal laws and regulations.
5. Do not dispose of batteries in re.
NOTE:
AAA Batteries
EXERCISE WORKOUT
To start using the Stamina® Elliptical Trainer 703 simply stand on the foot pedals with the front of your
shoes close to the front edge of the pedal cap. Place your hands at a comfortable position on the handlebars.
Simply move your highest foot forward and follow the natural path of the machine.
Start on a load level that is comfortable to familiarize yourself with the machine. Once you are comfortable,
start adjusting the load level to achieve the workout desired.
Forward and Reverse
The Stamina® Elliptical Trainer 703 can be used in the forward and reverse direction to vary the muscles
that you work out. This will also vary your workout, helping you to stay motivated. To change directions,
simply slow the pedals down until they stop, and switch directions.
Load Level Adjustment
The load level of Stamina® Elliptical Trainer 703 can be changed at any time during your workout. Adjusting
your load level will allow you to increase or decrease your intensity level.
LOAD ADJUSTMENT
To increase the load, turn the TENSION KNOB(29) clockwise. To
decrease the load, turn the TENSION KNOB(29) counterclockwise.
There are eight levels for the load adjustment.
15
1. To store the Stamina® Elliptical Trainer 703, simply keep it in a clean dry place.
2. The minimum rest dimensions of the Stamina® Elliptical Trainer 703 are approximately 46 inches
long x 25.7 inches wide x 63 inches tall. These dimensions will vary. Please measure your Stamina®
Elliptical Trainer 703 if exact dimensions are needed.
3. To move the Stamina® Elliptical Trainer 703, grasp on the STATIONARY HANDLEBAR(26) and tip
the Stamina® Elliptical Trainer 703 forward to use the Wheels on the FRONT STABILIZER(3).
4. To avoid damage to the meter, remove the batteries before storing the Stamina® Elliptical Trainer
703 for one year or more.
The safety and integrity designed into the Stamina® Elliptical Trainer 703 can only be maintained
when the Stamina® Elliptical Trainer 703 is regularly examined for damage and wear. Special attention
should be given to the following:
1. Adjust the TENSION KNOB(29) and verify that it functions properly and the resistance changes.
2. Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts.
Tighten loose nuts and bolts.
3. Verify that the CAUTION LABEL(89) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement CAUTION LABEL(89) if it is missing or damaged.
4. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
5. Worn or damaged components must be replaced immediately or the Stamina® Elliptical Trainer 703
removed from service until repair is made.
6. Only Stamina Products supplied components should be used to maintain/repair the Stamina®
Elliptical Trainer 703.
7. Keep your Stamina® Elliptical Trainer 703 clean by wiping it o with an absorbent cloth after use.
STORAGE
MAINTENANCE
16
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
17
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
18
LIMITED WARRANTY
WARRANTY
MODEL 55-1703A
19
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and one
year on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
prot making enterprise, and all other use which is not for personal purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance
Ave, Springeld, Missouri, USA, MO 65803, or email us at customer[email protected], or call
us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return
the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These warranties
are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED
WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE
EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any implied warranty, Stamina
reserves the right to require the product to be returned for inspection, at the purchaser’s expense, to
Stamina’s premises in Springfield, Missouri. Return of the enclosed warranty registration card is not
required for warranty coverage, but is merely a way of establishing the date and place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states aect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.
29
30
12
15
52
52
56
58
57
7
17
16
17
88
51
51
38
75
50
3
49
14
44
43
43
44
43
25
27
43
43
43
27
11
54
24
55
18
19
23
22
20
18
19
72
21
13
61
85
87
37
87
82
56
57
79
56
65
65
70
59
60
32
34
80
49
6
39
39
46
75
50
46
75
50
46
81
87
57
56
37
87
84
59
60
70
65
65
79
56
80
67
59
78
67
59
60
38
70
63
48
47
36
87
77
76
75
74
42
87
35
46
75
45
45
46
75
45
53
41
2
5
42
74
75
76
77
87
35
73
73
32
33
78
59
67
14
67
59
60
70
69
64
87
69
36
46
50
71
68
4
71
68
40
62
10
28
26
45
75
46
46
50
86
83
40
10
62
8
31
9
1
8
66
43
9
89
90
PRODUCT PARTS DRAWING
20
FRONT
BACK
PARTS LIST
21
PART# PART NAME QTY
1 Main Frame 1
2 Upright 1
3 Front Stabilizer 1
4 Left Handlebar 1
5 Right Handlebar 1
6 Rear Stabilizer 1
7 Idler Arm 1
8 Extension Wire 1
9 Sensor Wire 1
10 Pulse Sensor Plate 2
11 Meter 1
12 Magnetic Unit 1
13 Crank w/ Pulley 1
14 Sleeve 2
15 V-Ribbed Belt (400-J6) 1
16 Idler Wheel 1
17 Bearing (6000zz) 2
18 Bearing Housing 2
19 Ball Bearing 2
20 Bearing Nut 1
21 Bearing Washer 1
22 Bearing Snap Washer 1
23 Outside Bearing Collar 1
24 Left Cover 1
25 Right Cover 1
26 Stationary Handlebar 1
27 Crank Cap 2
28 Round Plug (25mm) 2
29 Tension Knob 1
30 Tension Knob Support 1
31 Tension Cable 1
32 Pedal Arm 2
33 Left Pedal Cap 1
34 Right Pedal Cap 1
35 Pivoting Arm 2
36 Wave Washer (S16) 2
37 Pedal Arm Connector 2
38 Wheel Cap 2
39 Leveling Cap 2
40 Foam Tube 2
41 Water Bottle Holder 1
42 Nut Cap (M8) 2
43 Screw, Round Head Self-Drilling (ST4.2 x 16mm) 11
44 Screw, Round Head (ST4.2 x 16mm) 3
45 Bolt, Button Head (M8 x 1.25 x 15mm) 6
46 Arc Washer (M8) 14
47 Screw, Round Head (M5 x 0.8 x 16mm) 1
48 Arc Washer (M5) 1
49 Carriage Bolt (M8 x 1.25 x 65mm) 4
50 Acorn Nut (M8 x 1.25) 8
PARTS LIST
22
51 Screw, Round Head (ST4.2 x 20mm) 2
52 Flange Nut (M10 x 1.0) 2
53 Screw, Washer Head (M5 x 0.8 x 12mm) 2
54 C Ring (ø10mm) 1
55 Carriage Bolt (M10 x 1.5 x 20mm) 1
56 Washer (M10) 5
57 Nylock Nut (M10 x 1.5) 3
58 Bolt, Socket Head (M10 x 1.5 x 35mm) 1
59 Washer (M8) 8
60 Nylock Nut (M8 x 1.25) 6
61 Magnet 1
62 Screw, Flat Head (ST4.2 x 20mm) 2
63 Screw, Round Head (M5 x 0.8 x 12mm) 4
64 Shaft 1
65 Pedal Arm Bushing 4
66 Sensor Clip 1
67 Low Pivoting Arm Bushing 4
68 Dome Plug (ø50mm) 2
69 Upright Bushing 2
70 Rectangular Plug (20mm x 40mm) 4
71 Handlebar Foam Tube 2
72 Inside Bearing Collar 1
73 Carriage Bolt (M8 x 1.25 x 40mm) 4
74 Bolt, Hex Head (M8 x 1.25 x 20mm) 2
75 Lock Washer (M8) 12
76 Large Washer (M8 x ø28mm) 2
77 D Hole Washer 2
78 Bolt, Button Head (M8 x 1.25 x 60mm) 2
79 Bolt, Button Head (M10 x 1.5 x 50mm) 2
80 Bolt, Hex Head (M8 x 1.25 x 40mm) 4
81 Left Shaft Bolt,
Brass Color (1/2”-20, Left Hand Threads)
1
82 Right Shaft Bolt (
1/2”-20
) 1
83 Grommet Plug 1
84 Left Thin Nylock Nut,
Brass Color (1/2”-20, Left Hand Threads)
1
85 Right Thin Nylock Nut
(
1/2”-20
)
1
86 Pulse Plug Wire 1
87 Pivoting Arm Bushing 8
88 Wave Washer (S10) 1
89 Caution Label 1
90 Serial Decal 1
91 Allen Wrench (5mm) w/ Screwdriver 1
92 Allen Wrench (8mm) 1
93 Wrench 2
94 Manual 1
PART# PART NAME QTY
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
Would you like to receive email information or special oers from Stamina Products?* ____Yes ____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
Would you like to recieve email information or special oers from Stamina Products? Register at contact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
2040 N Alliance Ave, Springeld, MO 65803
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
If you don’t have internet access, you can call customer care at 1-800-375-7520, or ll out and mail the product registration form
below to Stamina Products, Inc.; 2040 N Alliance Ave, Springeld, MO 65803.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
