PLMRBTRD1
Wireless BT Audio Controller
Waterproof-Rated Marine Receiver
Remote Control for Car, Truck, Boat, 4x4,
PowerSport Vehicles
www.PyleUSA.com
2
ACC Remote IN
(RED)
Remote OUT
(BLUE)

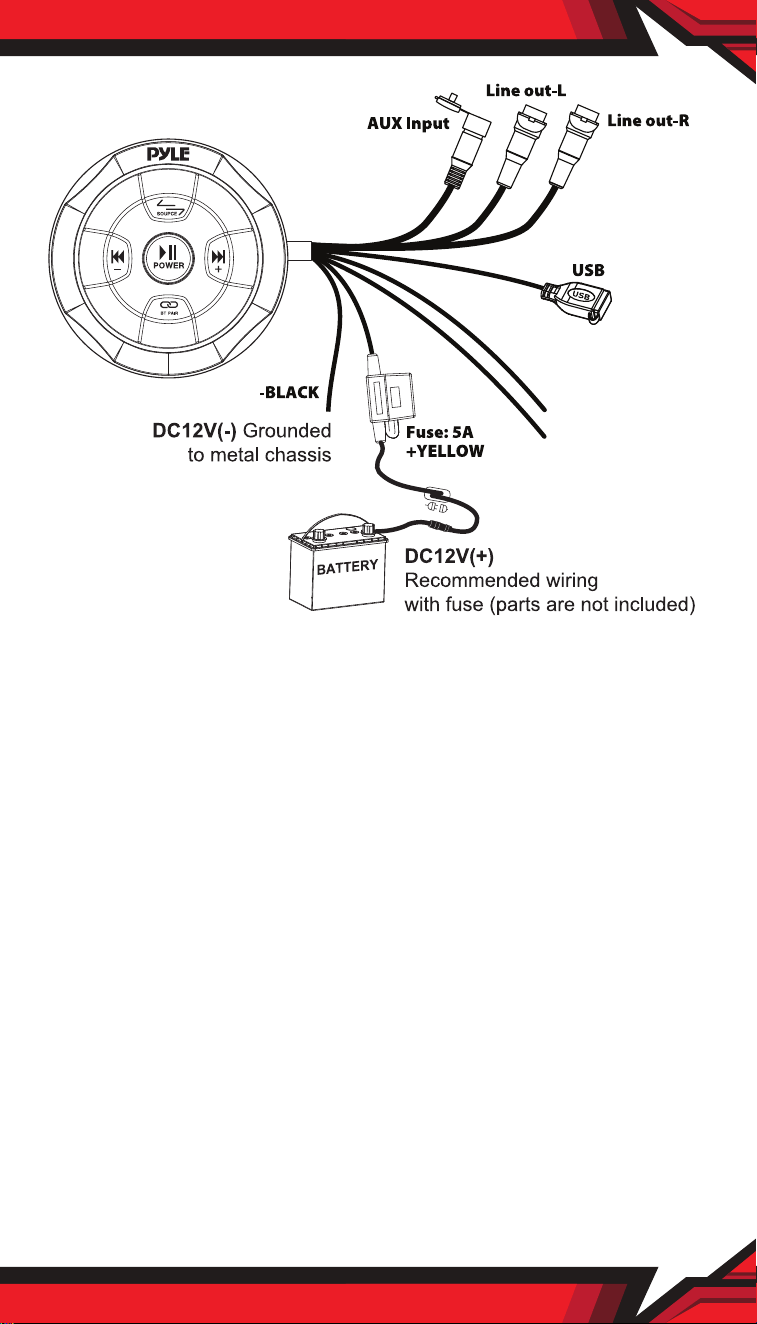

WIRE DIAGRAM
WIRELESS BT PAIRING AND CONNECTION
Power:
1. Press and hold the power button to power ON/OFF.
Wireless BT Streaming Connection:
a. Ensure BT ability is activated, then search for the PLMRBTRD1
from your BT-enabled device. The light will turn blue and blinks
while waiting for BT connection.
b. The PLMRBTRD1 BT Network Name will appear as "PyleUSA"
(No password is required for connecting).
c. When the BT is connected, the light will turn blue and stops
blinking.
Wire Color
Yellow
Black
White
Red
Red
Blue
Description
Battery (+), 12dc
Battery (-), Ground
Line out- L
Line out- R
ACC
REMOTE
www.PyleUSA.com
3
AUX-IN/USB
Short press to switch BT mode to Aux-in mode/USB mode.
Auto Reconnection
a. When the device is out of BT range, BT will be disconnected
automatically, the light turns blue while blinking.
b. BT will automatically reconnect when detected in range again
in 10 minutes.
c. Disconnected BT after 10 minutes, you need to process BT
connection steps (above) to reconnect BT again.
d. If the other device occupied the BT during this period (10mins),
you need to process BT connection steps (above).

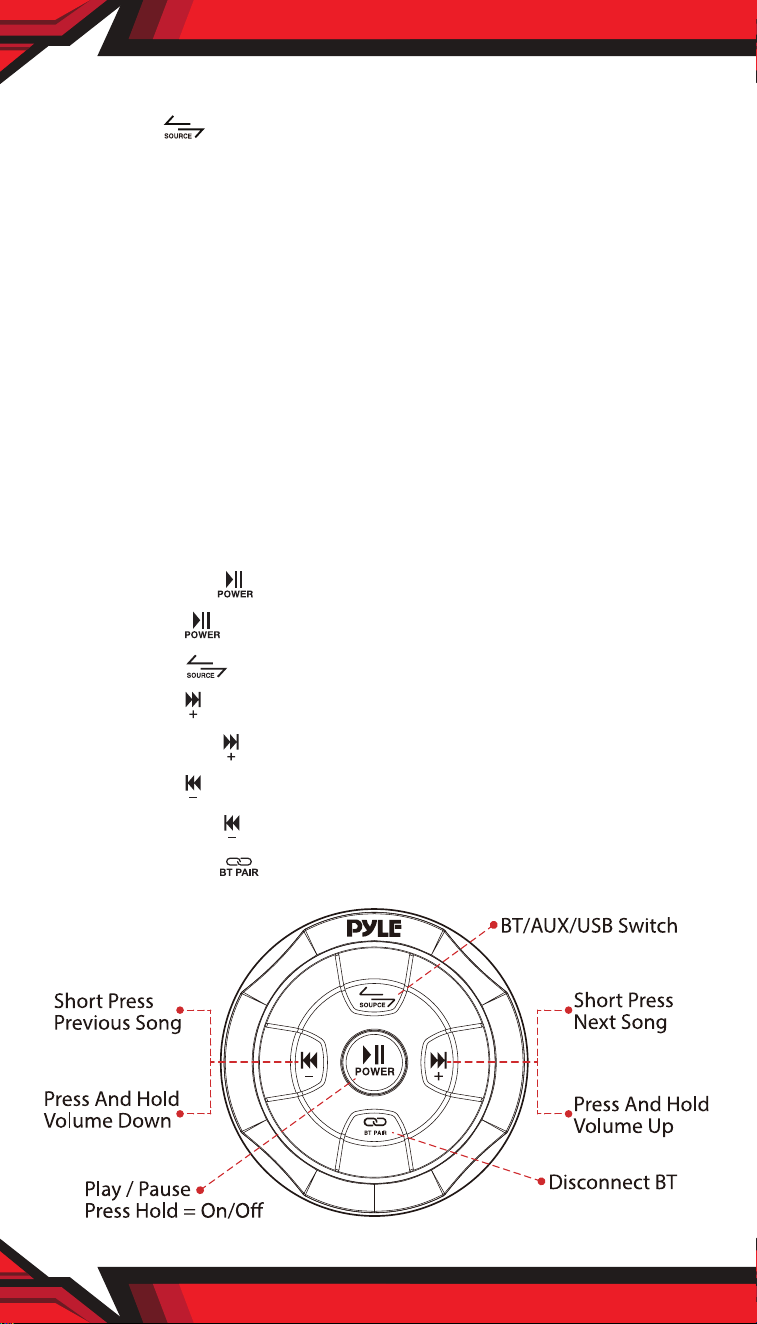

PLAYING MUSIC
1. Press and hold for 3 seconds to Power ON or OFF.
2. Short press to play music or pause.
3. Short press to switch BT mode/Aux-in mode/USB mode.
4. Short press for next track,
Press and hold for volume up.
5. Short press for previous track,
Press and hold for volume down.
6. Press and hold to disconnect BT.
www.PyleUSA.com
4

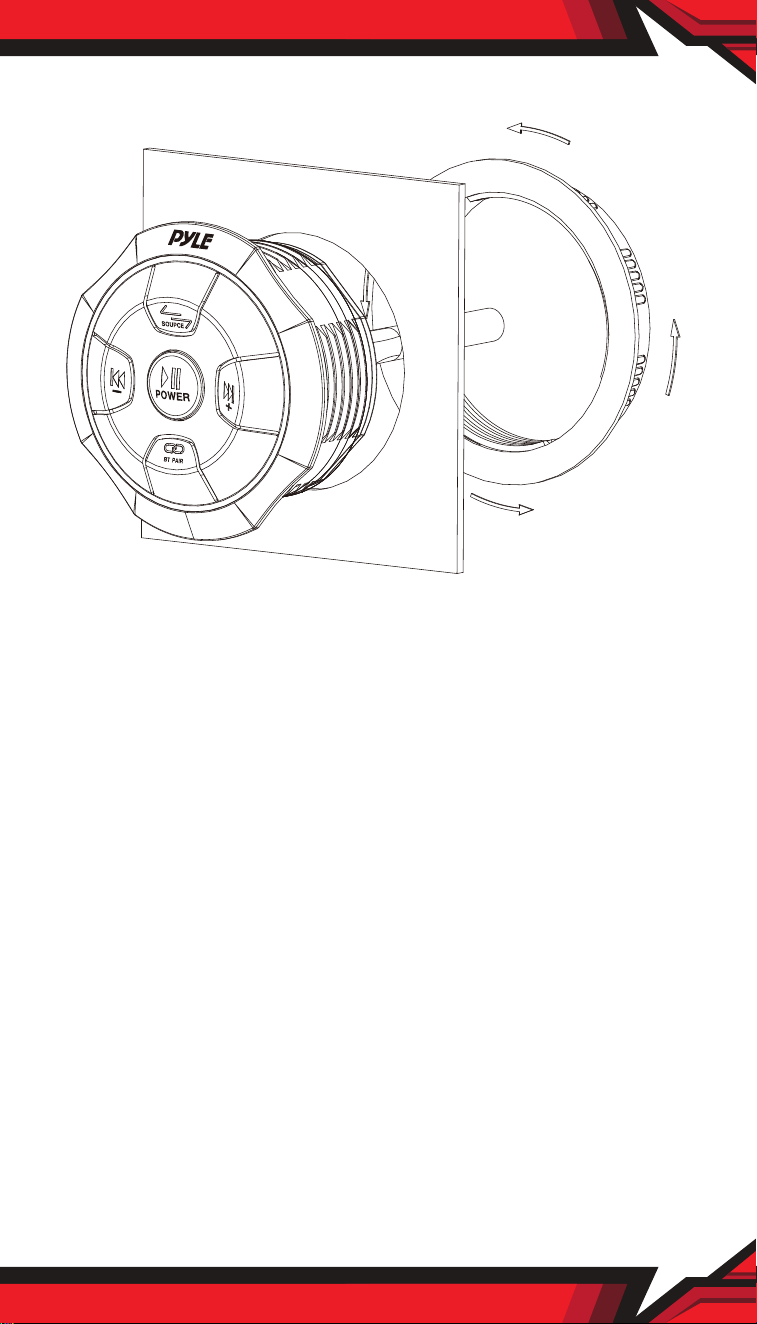

INSTALLATION (SEAMLESS FLUSH MOUNT)
Size:
• 96mm/3.7" (Overall Diameter)
• 70mm/2.76" (Overall Depth)
• 76mm/3.0" (Mounting Hole Diameter)
• 52mm/2.05" (Mounting Depth)
Wireless BT Music Streaming:
• Simple & Hassle-Free Pairing
• Instant Wireless Audio-Streaming Receiver
• Works with All of Today's Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Wireless BT Version: 5.0
• Wireless BT Network Name: 'PyleUSA'
• Wireless Range: Up to 30+ ft
What's in the Box:
• (1) Wireless BT Control Unit
• (1) 3.5 mm Auto Connection Cable
www.PyleUSA.com
5
Features:
• Universal Mount BT Control Unit
• Built-in Wireless BT Audio Receiver
• Marine Grade Construction
• Water-Resistant, Weatherproof Design
• Connect & Stream Audio from Additional External Devices
• Aux (3.5mm) Input
• Full-Range Stereo Sound Reproduction
• Integrated Power Wiring Harness
• Pre-Amp RCA Out to Any OEM/Factory-Made Mono-Block/
Full-Range Amplier
• USB Input to Play Your Favorite Music Files
• Universal Vehicle Mounting
• Can be In-Console Flush Mounted
• Anti-Thump On/Off Option
• Soft Turn On/Off Option
• Overload & Power Protection Circuitry
• Great For Cars, Trucks, ATV’s, UTV’s, 4x4’s, Boats, Marine Water
crafts, & PowerSport Vehicles
Technical Specs:
• Marine Grade Waterproof Rating: IPX6
• Fuse: 5A
• RCA Line Out (Pre-Amp): 1 Pair (Left & Right) 2.5Volts
• Aux Line Input: Plug 3.5mm
• Remote Out: 200mA
• USB Player: 4FT Extension Cord
• Cut-Out Diameter: 3” -inches
• Mounting Depth: 2.05” -inches
• Power: DC 12V-14.4V
• Total Unit Dimensions (Lx W x H): 3.7” x 3.7” x 2.76” -inches
(Flush Mount)
