PLMRBT19
Amplified Wireless BT Audio Controller
Waterproof-Rated Marine Receiver
Remote Control for Car, Truck, Boat, 4x4,
PowerSport Vehicles (800 Watt)
www.PyleUSA.com
2

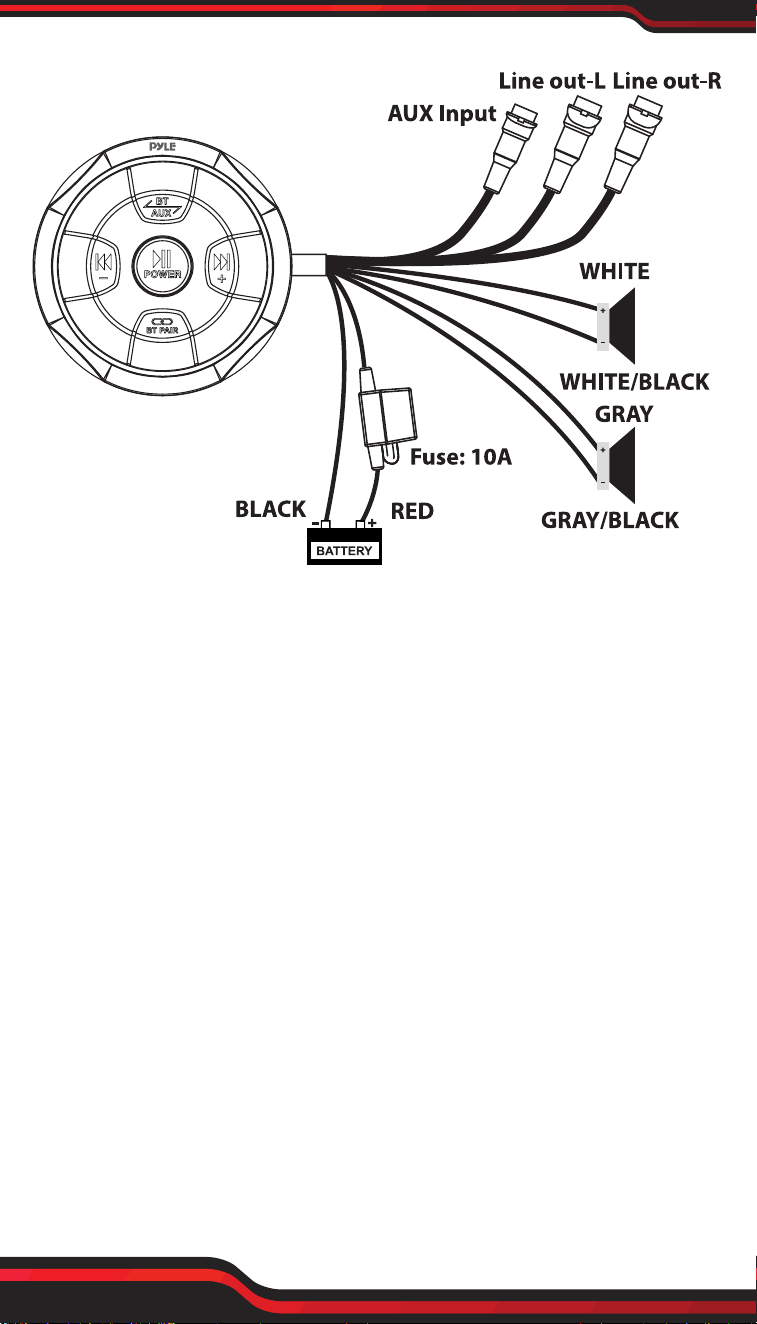

Wire Diagram
BT Pairing and Connection
Power:
1. Press and hold the power button to power ON/OFF.
Wireless BT Streaming Connection:
a. Ensure BT ability is activated, then search for the PLMRBT19 from
your BT-enabled device. The light will turn blue and blinks while
waiting for BT connection.
b. The PLMRBT19 BT Network Name will appear as “PyleUSA” (No
password is required for connecting).
c. When the BT is connected, the light will turn blue and stops
blinking.
Wire Color
Red
Black
White
White/Black
Gray
Gray/Black
Description
Battery (+), 12dc
Battery (-), Ground
Output L (+)
Output L (-)
Output R (+)
Output R (-)
www.PyleUSA.com
3
AUX-IN:
a. Short press to switch BT mode to Aux-in mode.
Auto Reconnection:
a. When the device is out of the BT range, BT will be disconnected
automatically, the light turns blue while blinking.
b. BT will automatically reconnect when detected in range again in
10 minutes.
c. Disconnected BT after 10 minutes, you need to process BT
connection steps (above) to reconnect BT again.
d. If the other device occupied the BT during this period (10mins),
you need to process BT connection steps (above).

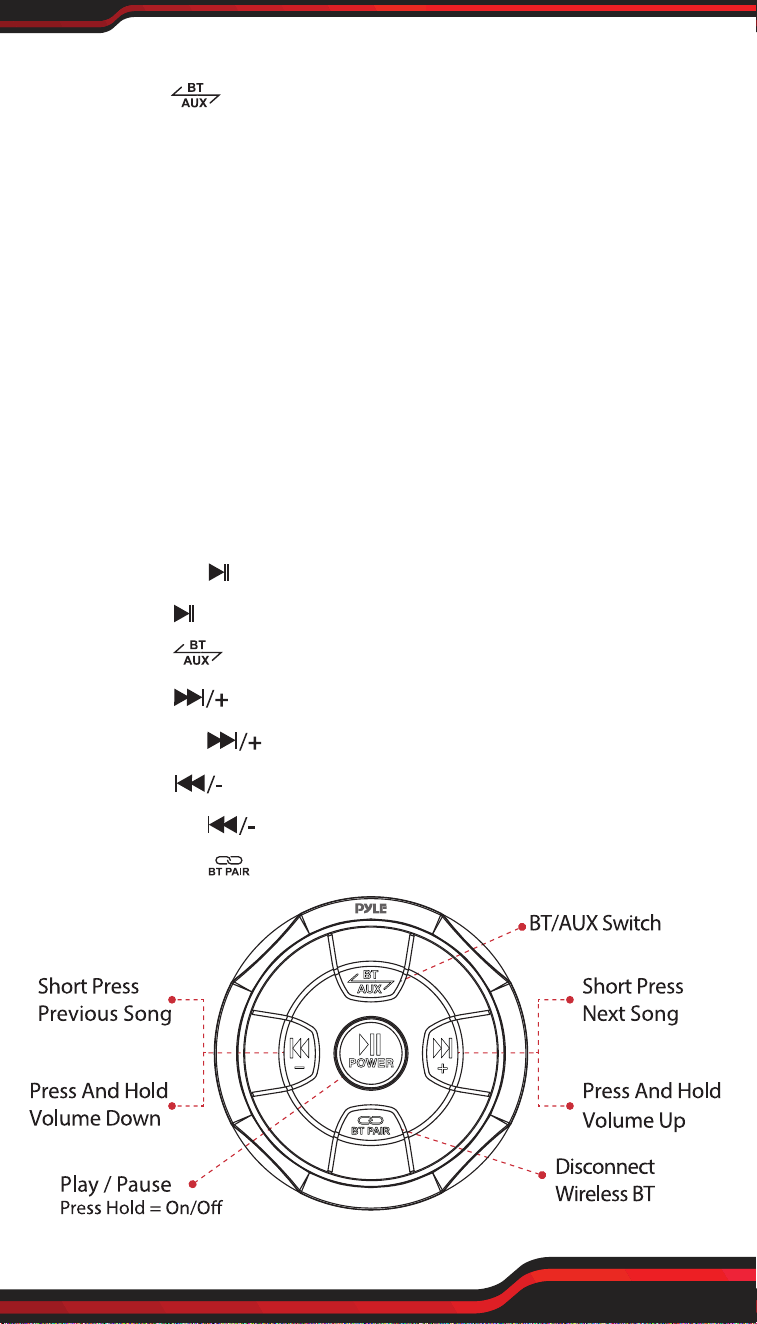

Playing Music
1. Press and hold 3 seconds for Power ON or OFF
2. Short press to play music or pause
3. Short press to switch BT mode to Aux-in mode.
4. Short press for next track,
press and hold for volume up
5. Short press for previous track,
press and hold for volume down
6. Press and hold to disconnect Bluetooth
www.PyleUSA.com
4

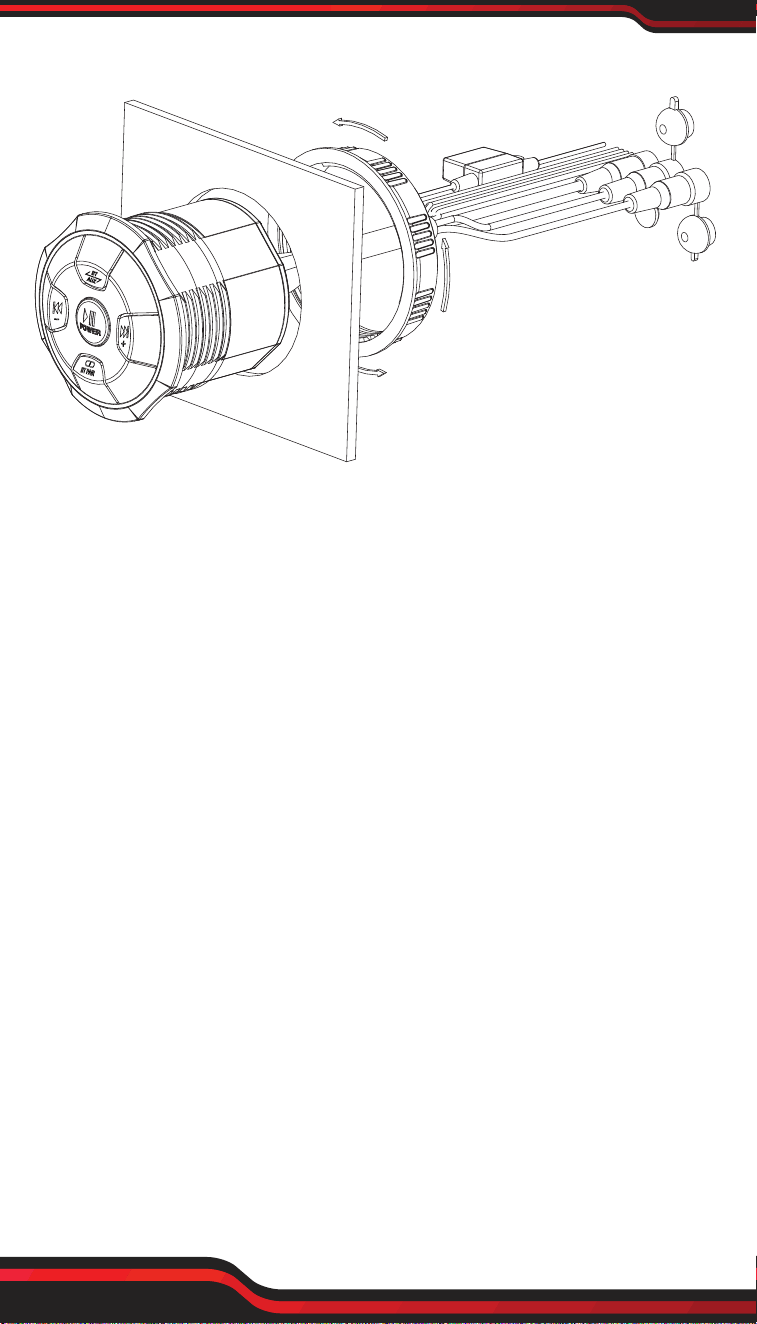

Installation (Seamless Flush Mount)
Features:
• Universal Mount BT Control Unit
• Built-in Wireless BT Audio Receiver
• Marine Grade Construction
• Water-Resistant, Weatherproof Design
• 2-Channel Amplier Style
• Connect & Stream Audio from Additional External Devices
• Aux (3.5mm) Input
• Full-Range Stereo Sound Reproduction
• Integrated Power Wiring Harness
• Pre-Amp RCA Out to Any OEM/Factory-Made Mono-Block/
Full-Range Amplier
• Flush Mount Mounting Kit Included
• Universal Vehicle Mounting
• Can be In-Console Flush Mounted
• Anti-Thump On/O Option
• Soft Turn On/O Option
• Overload & Power Protection Circuitry
• Great For Cars, Trucks, ATV’s, UTV’s, 4x4’s, Boats,
Marine Watercrafts, & PowerSport Vehicles
Size:
89mm / 3.5’’ (Out Diameter)
76mm / 3.0’’ (Cutout Diameter)
93mm / 3.7’’ (Depth)
www.PyleUSA.com
5
Wireless BT Music Streaming:
• Simple & Hassle-Free Pairing
• Instant Wireless Audio-Streaming Receiver
• Works with All of Today's Latest Devices
Smartphones, Tablets, Laptops, Computers, etc.
• Wireless BT Version: 5.0
• Wireless BT Network Name: 'PyleUSA'
• Wireless Range: Up to 30+ ft
What’s in the Box:
• (1) Wireless BT Control Unit
• (1) 3.5 mm Auto Connection Cable
Technical Specs:
• Power Output: 800 Watt MAX
• 2 x 400 Watts MAX @ 4 Ohm
• 2 x 200 Watts RMS @ 4 Ohm
• Marine Grade Waterproof Rating: IP-65
• Amplier Type: Class-D
• T.H.D：≤ 1%
• S/N Ratio：≥ 80 dB
• Channel Separation：≥ 65 dB
• Frequency Response: 20 Hz - 20 kHz
• Fuse: 15A
• Cut-Out Diameter: 3” -inches
• Mounting Depth: 3.7” -inches
• Power: DC 12V
• Total Unit Dimensions (Lx W x H):
3.5” x 3.5” x 4.17” -inches (Flush Mount)
This product can expose you to a chemical or group of checmicals, which
may include “Di (2-ethylhexyl) phthalate (DEHP)” which is known in the
state of California to cause cancer, birth defects, or other reproductive harm.
For more info, go to https://www.p65warnings.ca.gov/.
