ENGINEERED IN GERMANY
200200mm mm / 8/ 8inchinch
SPEAKER ADAPTOR RINGSSPEAKER ADAPTOR RINGS
FOR COMPOSE FOR COMPOSE S200FMS200FM FLAT WOOFER FLAT WOOFER
CFMK200 BMW.1S
USER MANUAL
suitable for BMW | Mini | Land Rover | Jaguar
2

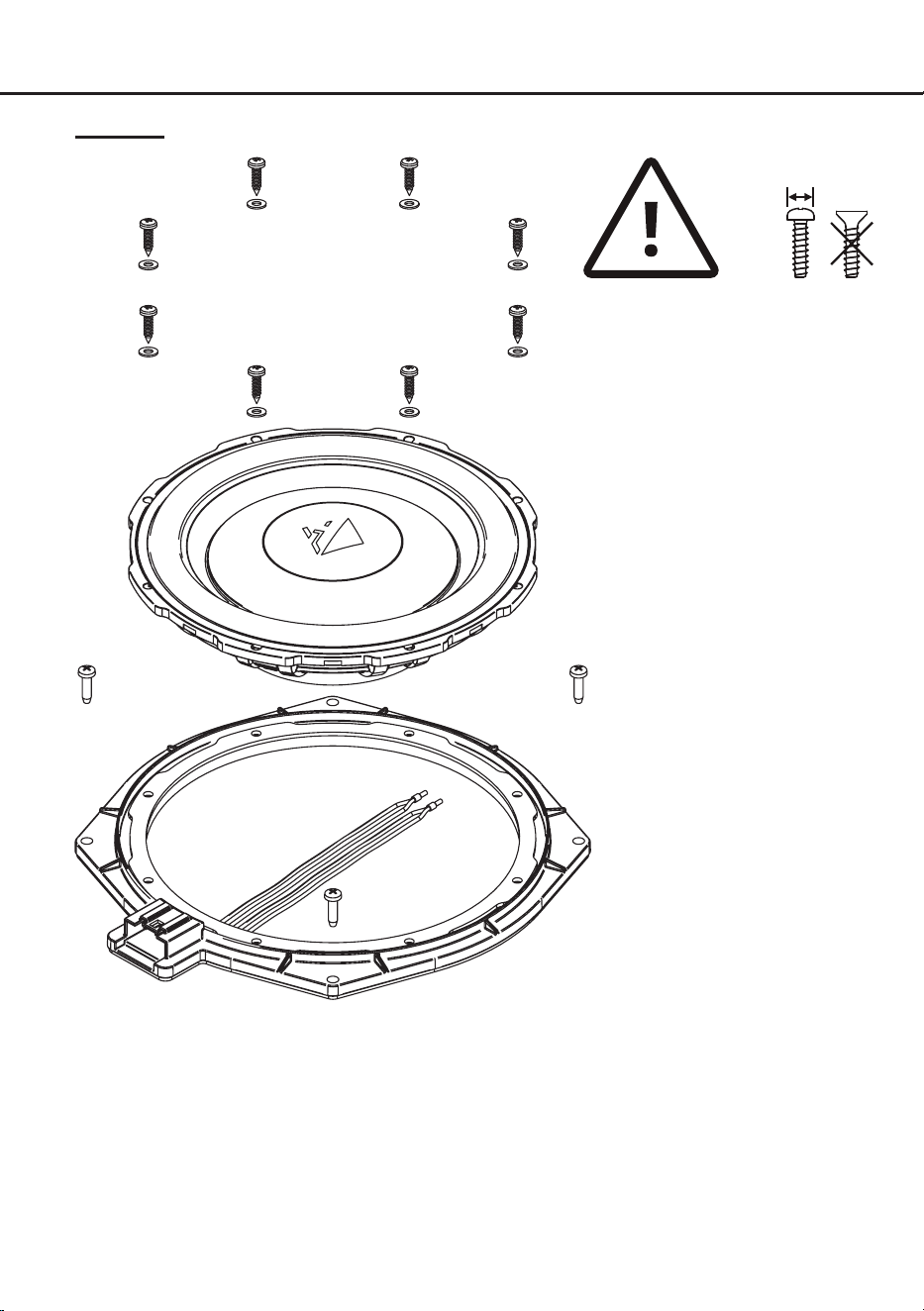

Installation
Mounting
max.
8 mm
Attention: To avoid damage to the speak-
ers, use the screws which are delivered
with the adaptor. Do not use countersunk
screws and do not overtighten the screws!
Note: To attach the adaptor, use the
original screws from the factory-t-
ted loudspeaker
Note: Once the installation have been completed, the grilles of the original factory-tted loudspeakers can be retted.
3
Wiring
Factory replacement with OEM wiring using the 1 x 2 Ω single voice coil Ci5 S200FM-S2 hybrid woofer
OEM cable
harness
Custom installation of the 1 x 2 Ω single voice coil hybrid woofer Ci5 S200FM-S2 with self-made
connection cable, enclosed connector plug, and crimp contacts
Amplier2Ω
Self-made
connection
cable
Custom installation of the 2 x 2 Ω dual voice coil hybrid woofer Ci5 S200FM-D2 with self-made
connection cable, enclosed connector plug, and crimp contacts
Self-made
connection
cable
2Ω
2Ω
Amplier
Note: Further wiring examples of the Ci5 S200FM-S2 and Ci5 S200FM-D2 can be found in the respective manual of
the woofer.

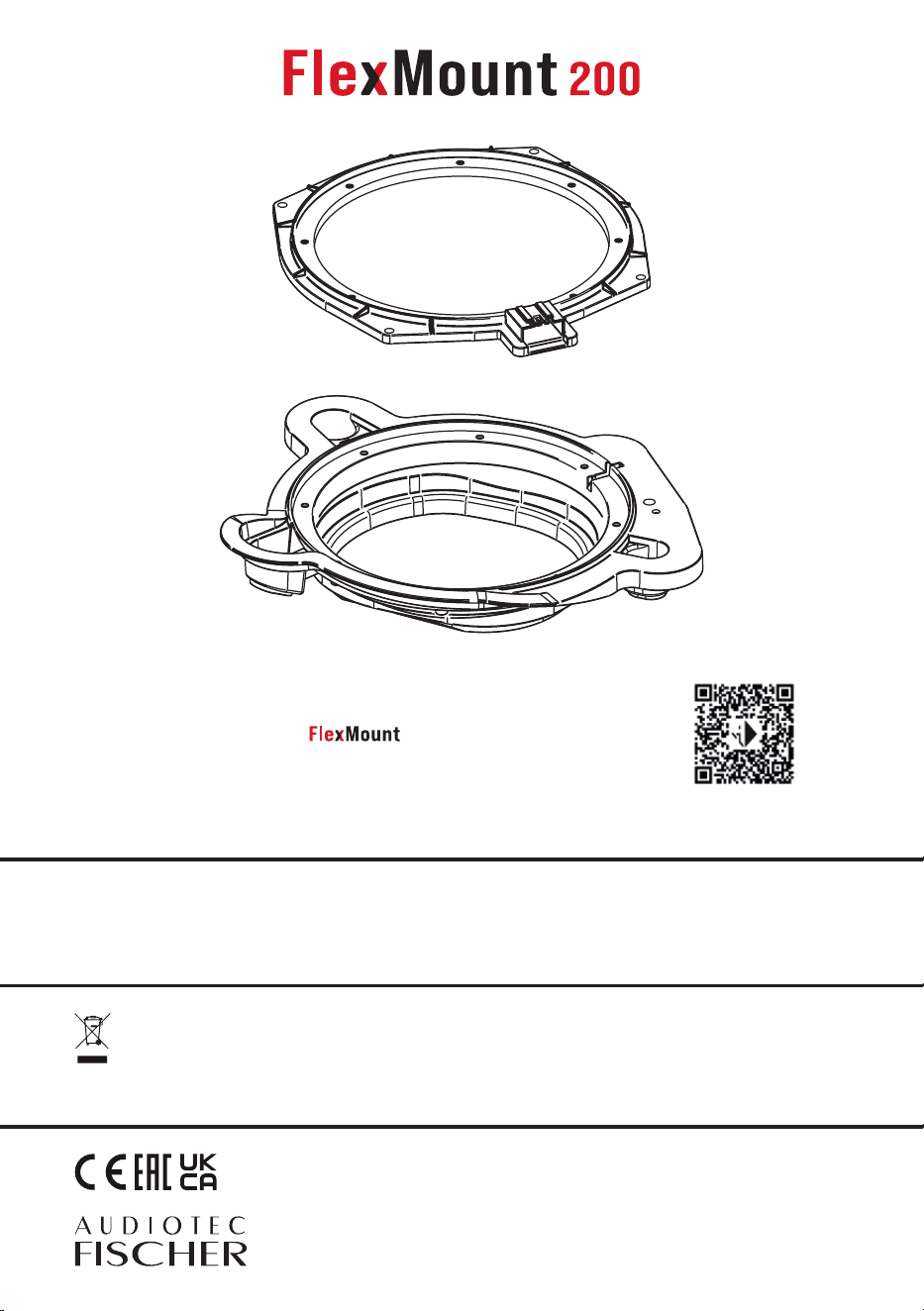

AUDIOTEC FISCHER GmbH
Hünegräben 26 - 28
57392 Schmallenberg
Germany
Information on compatibility can be found in our
Finder at
www.audiotec-scher.com
This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recy-
cling. Follow local rules and never dispose of the product with normal household waste. Correct disposal of old products helps prevent negative
consequences for the environment and human health.
Correct disposal of this product
The warranty service is based on the statutory regulations. Defects and damage caused by improper handling are excluded from the warranty service. Any return can
only take place following prior consultation, in the original packaging together with a detailed description of the error and a valid proof of purchase. Technical modica-
tions, misprints and errors excepted! For damages on the vehicle and the sound system, caused by handling errors, we can’t assume liability.
Warranty disclaimer
Made in China
This product has been issued a CE / UKCA / EAC marking. This means that the device is certied for use in vehicles within the
European Union (EU) / United Kingdom / Eurasian Customs Union.
Regular notes
