PLANNING GUIDE
30" PROFESSIONAL
RANGES & BACKGUARDS
—
RGV2-304, RDV2-304, RGV2-305, RDV2-305,
BGRV2-1230, BGRV2-3030, BGRV2-3030H models
CONTENTS
30" Professional Range
RGV2-304 & RDV2-304, RGV2-305, RDV2-305
PAGE
in mm
Key Design Decisions 5 17
Ventilation Requirements 6 18
30" Professional Range
RGV2-304 & RDV2-304
Product & Cavity Dimensions 7 19
Clearance Dimensions 8 20
Cavity Preparation 9 21
30" Professional Range
RGV2-305, RDV2-305
Product & Cavity Dimensions 10 22
Clearance Dimensions 11 23
Cavity Preparation 12 24
CONTENTS (continued)

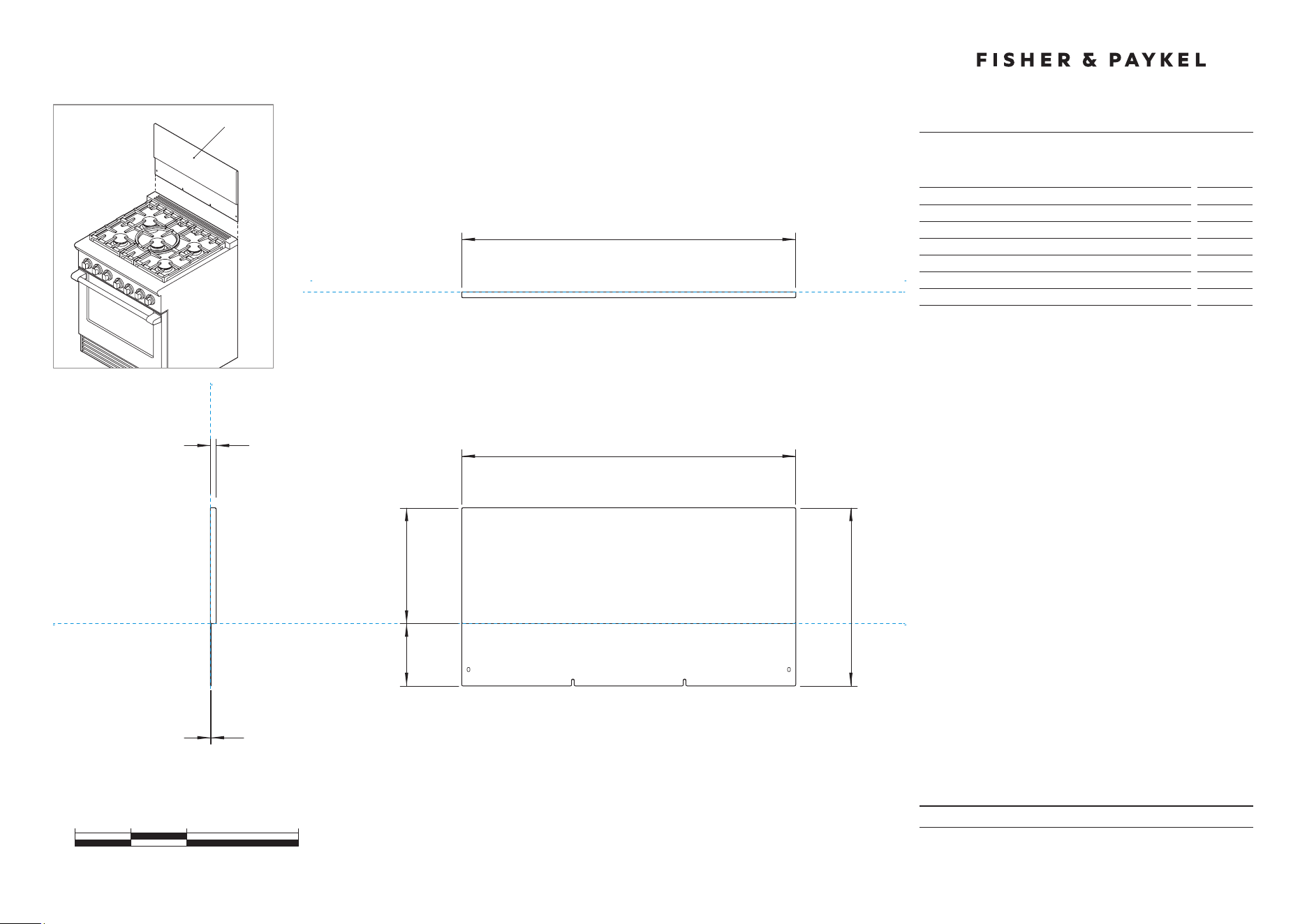

30" Professional Range Backguard
BGRV2-1230
PAGE
in mm
Product Dimensions 13 25

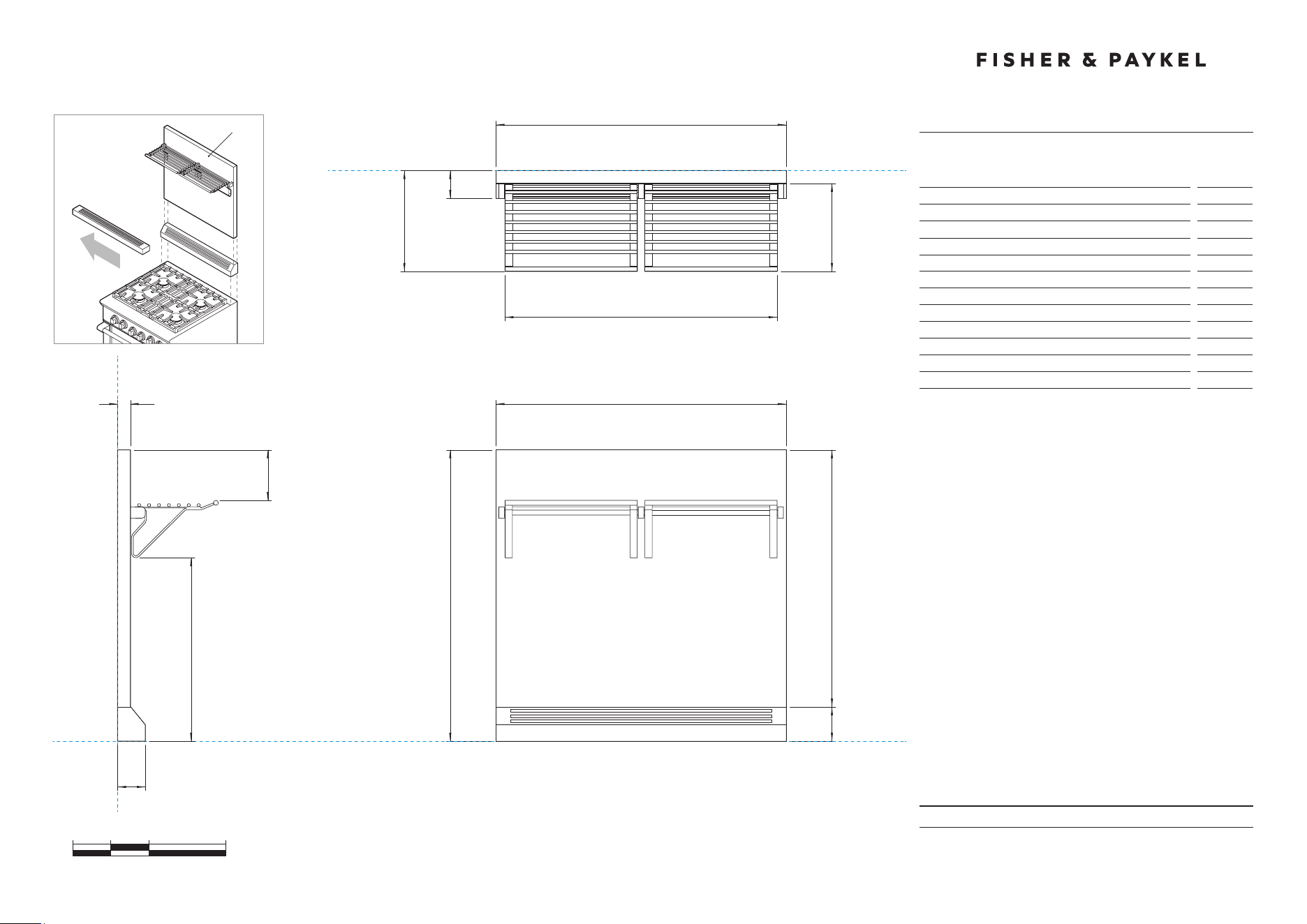

30" Professional Range Backguard
BGRV2-3030
Product Dimensions 14 26

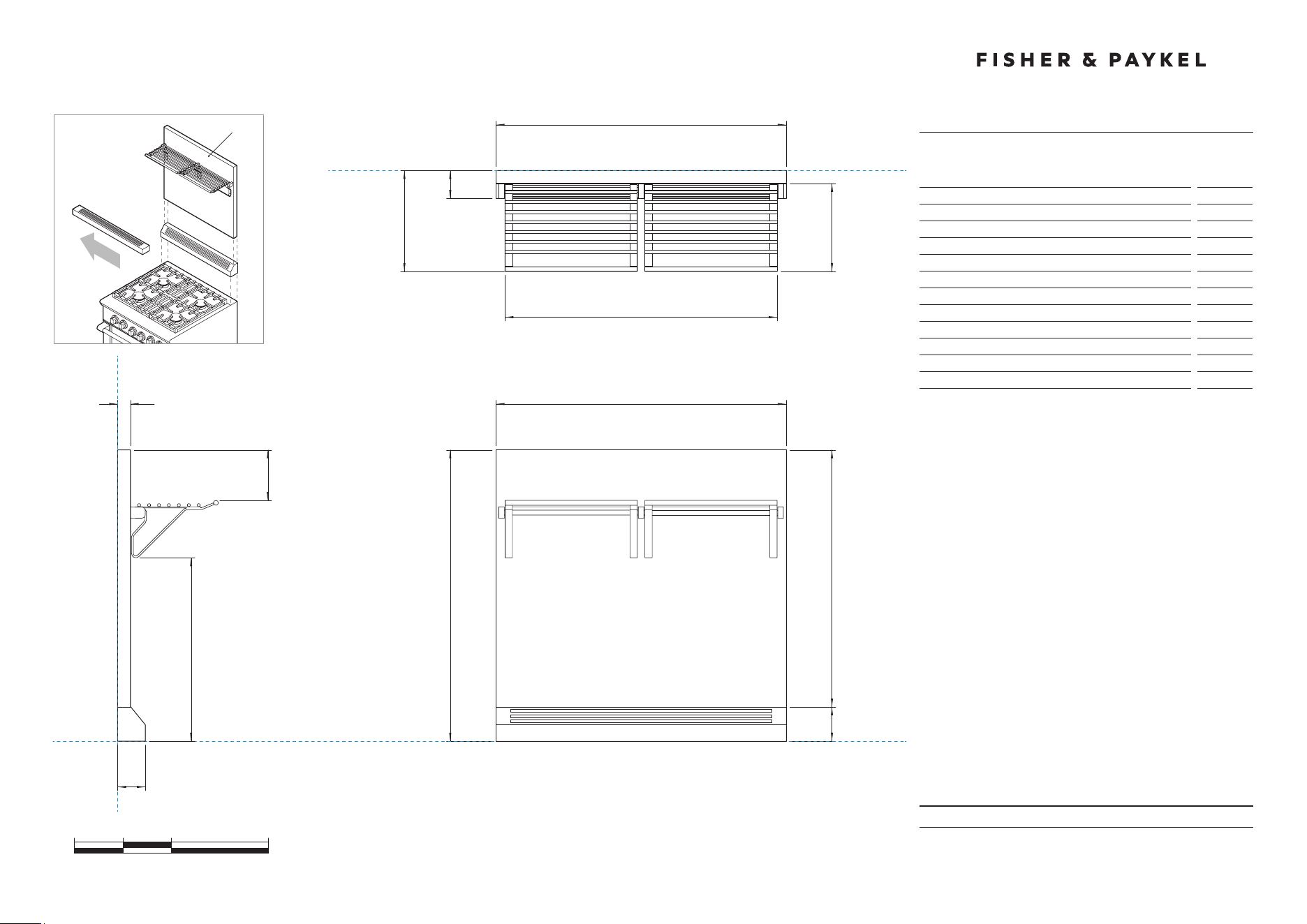

30" Professional Range Backguard
BGRV2-3030H in mm
Product Dimensions 15 27
IMPERIAL
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
Model no:
RGV2-304, RDV2-304
RGV2-305, RDV2-305

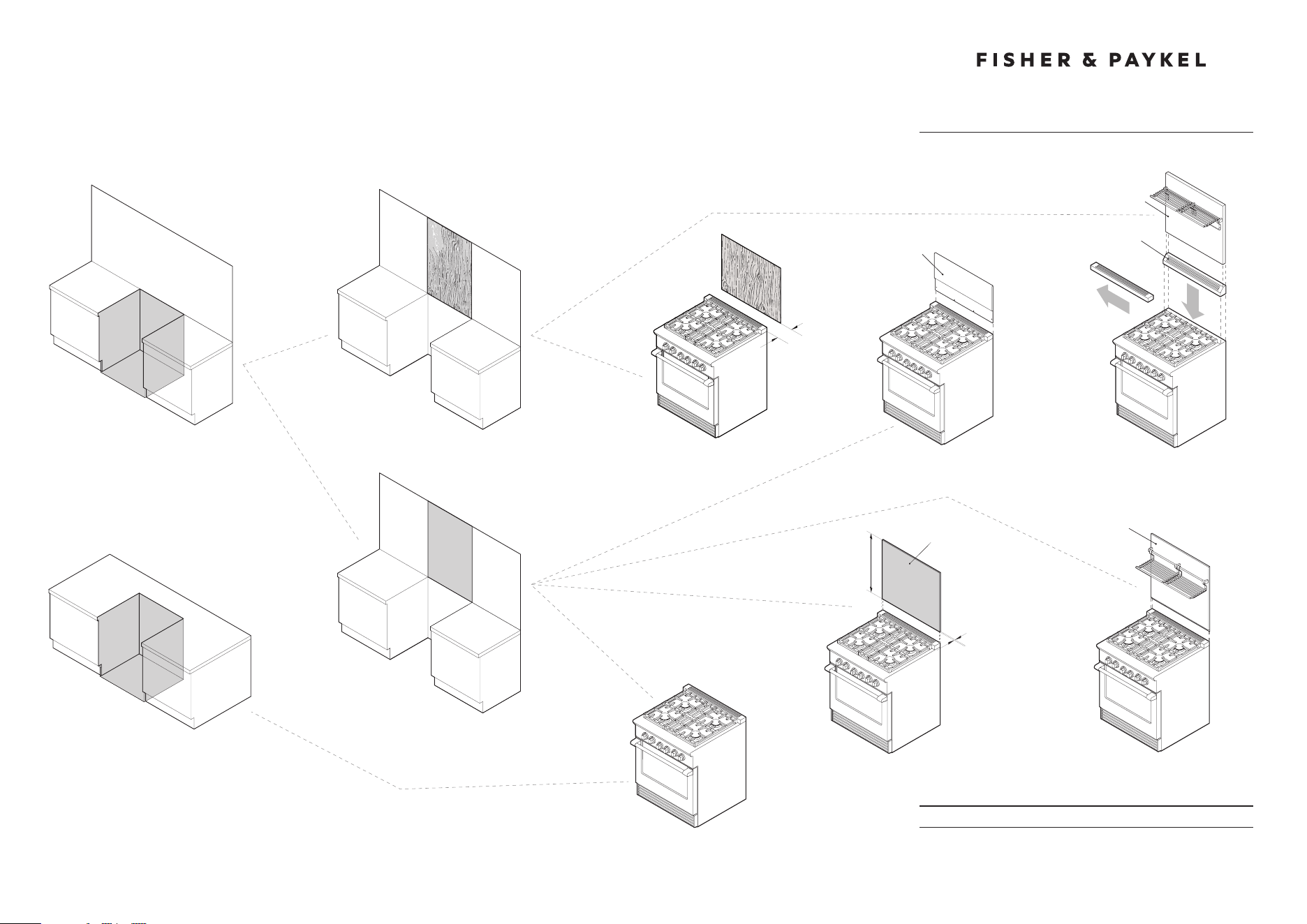

KEY DESIGN DECISIONS
30" Professional Range

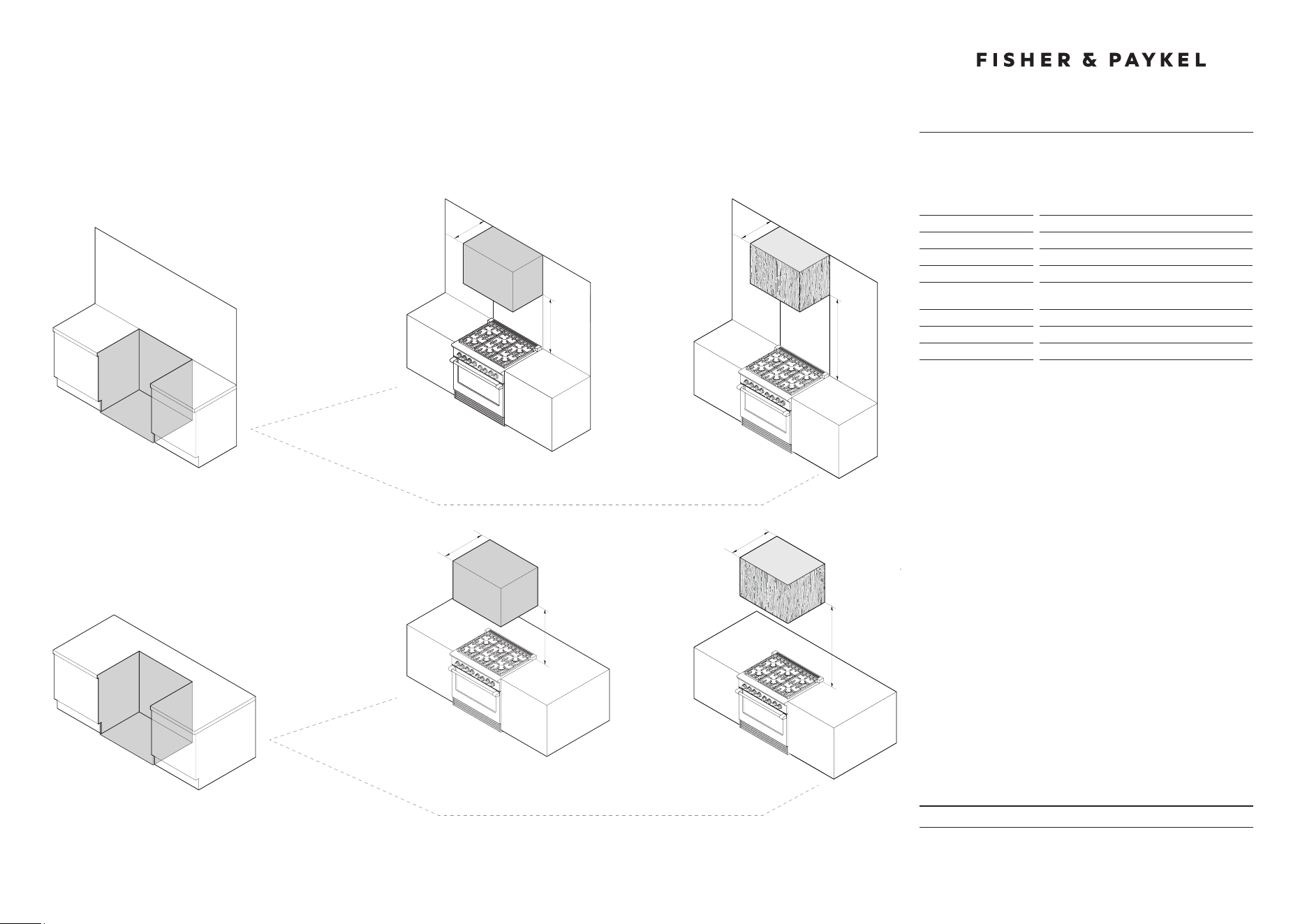

INSTALL TYPE
1
WALL
ISLAND
REAR SURFACE
2
COMBUSTIBLE
NON COMBUSTIBLE
BACKGUARD OPTIONS
3
NO BACKGUARD
HIGH THICK BACKGUARD
WITH ANGLED TRIM
BGRV2-3030H
ANGLED TRIM
(Supplied with
backguard)
LOW THIN BACKGUARD
BGRV2-1230
NO BACKGUARD
MIN 6"
CLEARANCE
HIGH THIN BACKGUARD
BGRV2-3030
CUSTOM FABRICATED* BACKGUARD
*Fabricated from non combustible materials only.
CUSTOM
BACKGUARD*
MAX 1/2"
MIN 30"
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
INSTALL TYPE
1
WALL
ISLAND
HOOD SURROUND MATERIAL
2
NON COMBUSTIBLE
23"
NON COMBUSTIBLE
MIN 30"
MAX 36"
MIN 30"
MAX 36"
30"
COMBUSTIBLE
COMBUSTIBLE
30"
MIN 36"
MIN 36"
23"
Model no:
RGV2-304, RDV2-304
RGV2-305, RDV2-305
(Note: RGV2-366 illustrated but all dimensions apply to the above models)
Specifications
Ventilation Unit
Wall Installation
Hood
23'' Deep x Unit Width
Blower
600 CFM
Ventilation Unit
Island Installation
Hood
30'' Deep x Unit Width
Blower
600 CFM
Note: A suitable hood must be installed above the range. The above indicates
the minimum blower capacity recommended for hood ventilation.
VENTILATION REQUIREMENTS
30" Professional Range
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

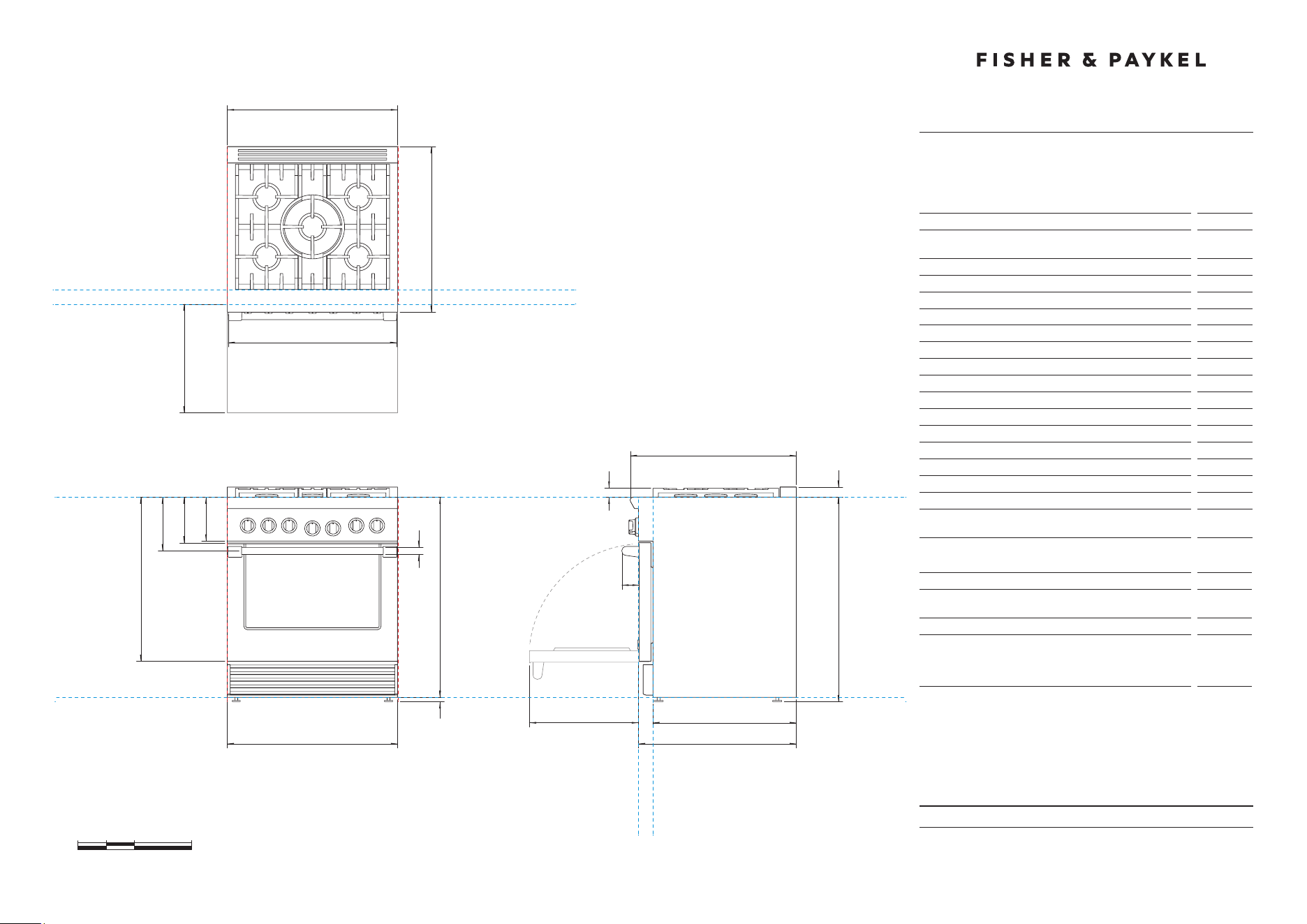

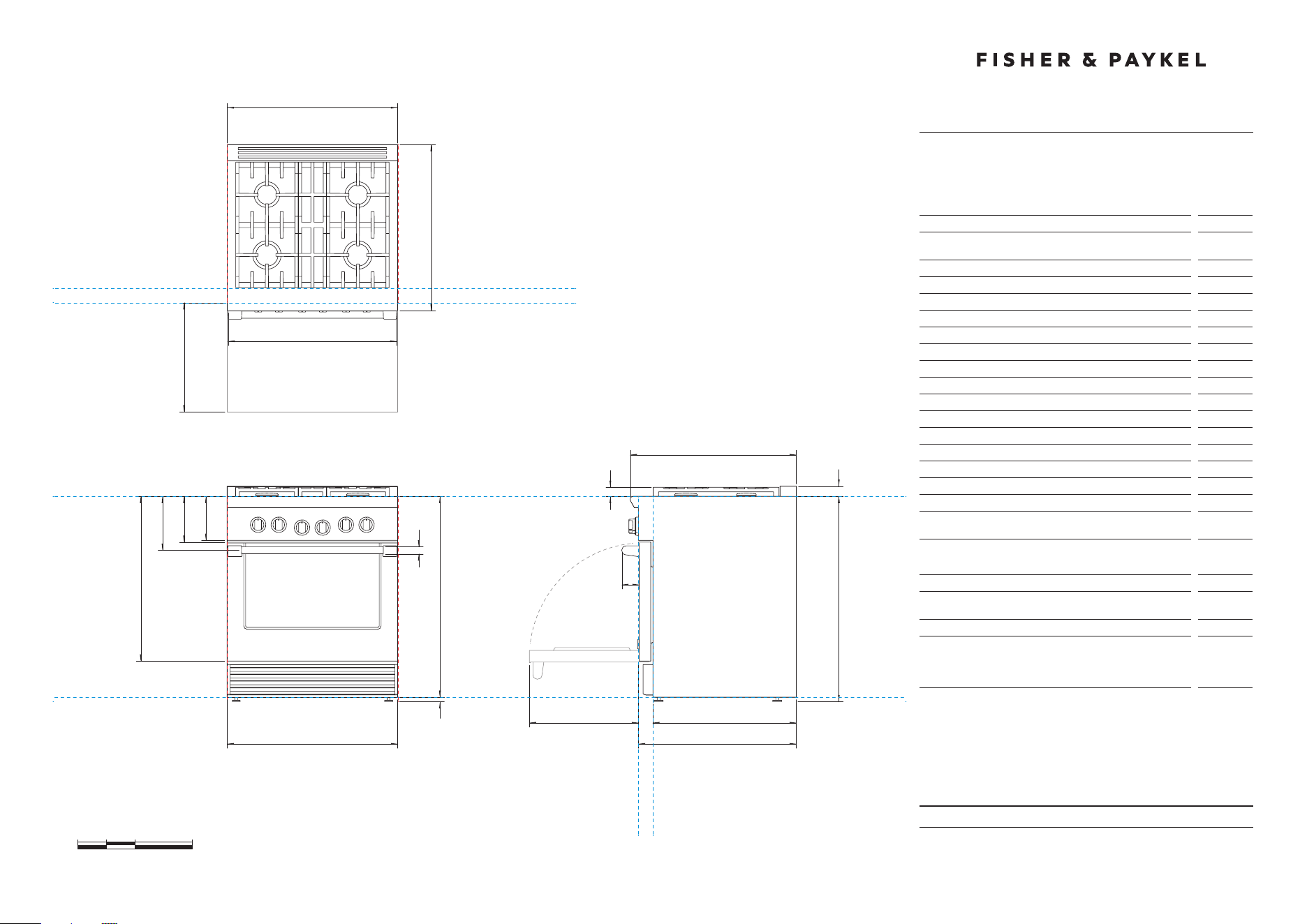

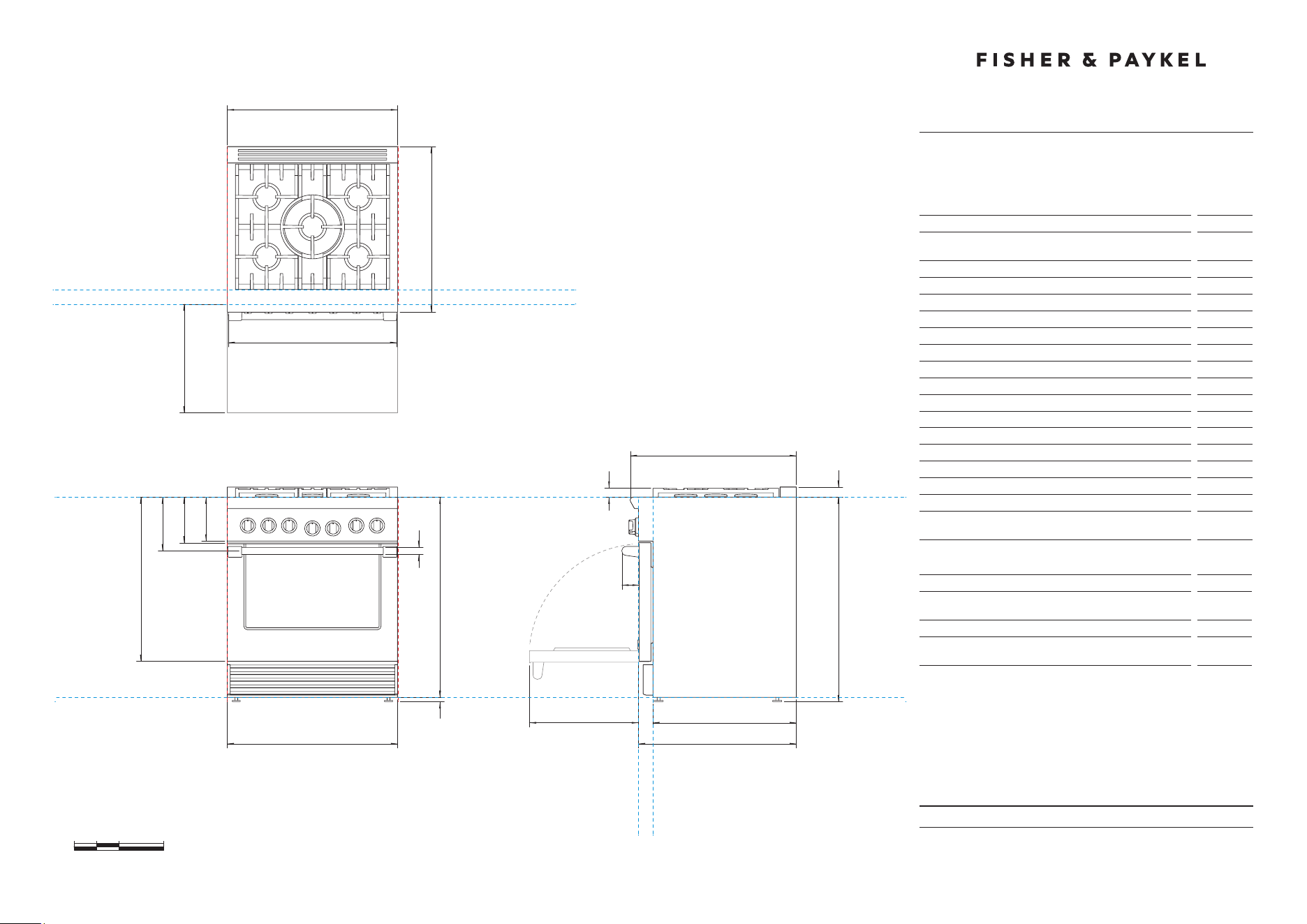

PRODUCT & CAVITY DIMENSIONS
30" Professional Range
0 5 10 20
inches
DATUM : BOTTOM OF CHASSIS
29 7/8''
B
29 1/8''
A
FRONT VIEW PROFILE VIEW
C
m
K J I H
G
F
l
DATUM :
TOP OF
COUNTERTOP
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
29 7/8''
B
35 3/4'' -
36 3/4''
o
D
p
E
C
29 1/8''
PLAN VIEW
n
p
Q
Model no:
RGV2-304-N, RGV2-304-L
RDV2-304-N, RDV2-304-L
Supplied with Integral Flat Vent Trim
Product Dimensions
in
A Overall height of range (from floor to cooktop, excluding
grates and vent trim)
min 35 3/4''
max 36 3/4''
B Overall width of range
29 7/8''
C Overall depth of range (excluding handle and dials)
29 1/8''
D Depth from rear of chassis to cabinetry face - projecting
25 1/8''
E Depth from rear of chassis to cabinetry face - flush
27 11/16''
F Height from countertop to top of pan supports
1 9/16''
G Height from countertop to top of vent trim
1 3/4''
H Height from countertop to bottom of control panel
7 3/4''
I Height from countertop to top of door
8 1/16''
J Height from countertop to center of handle
9 7/16''
K Height from countertop to bottom of door
28 7/8''
L Height from countertop to bottom of chassis
35 1/4''
M Thickness of handle (not including standoffs)
1 1/4''
N Width of handle (including standoffs)
29 9/16''
O Depth of handle (measured from front of door)
3 1/16''
P Depth of open door to cabinetry face - flush
19 1/8''
Q Adjustable feet height
min 1/2''
max 1 1/2''
Cavity Dimensions
in
Overall height of cavity
min 35 3/4''
max 36 3/4''
Overall width of cavity
min 30''
Overall depth of cavity for projecting control panel
Overall depth of cavity for flush control panel
max
25 1/8''
max
27 11/16''
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

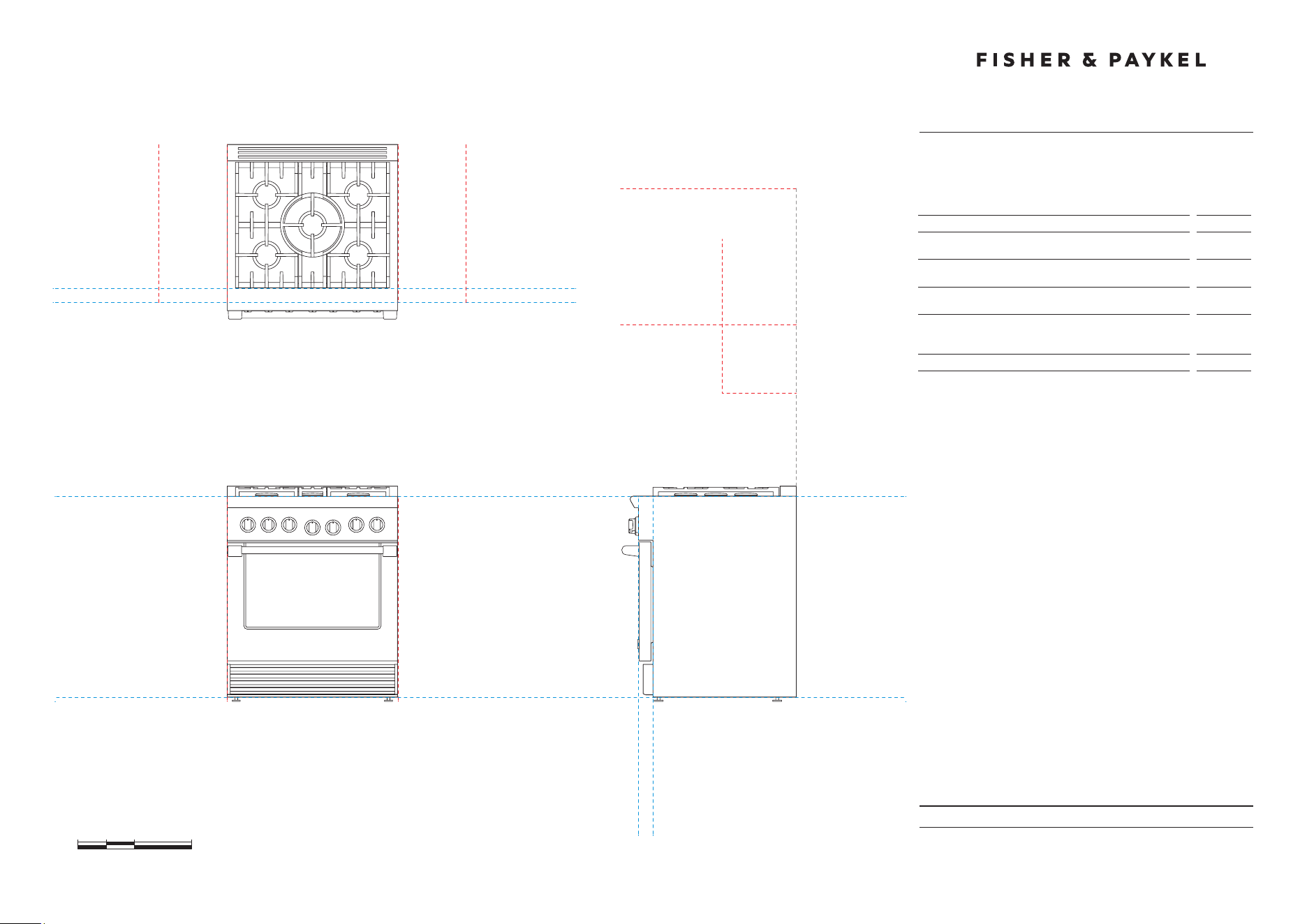

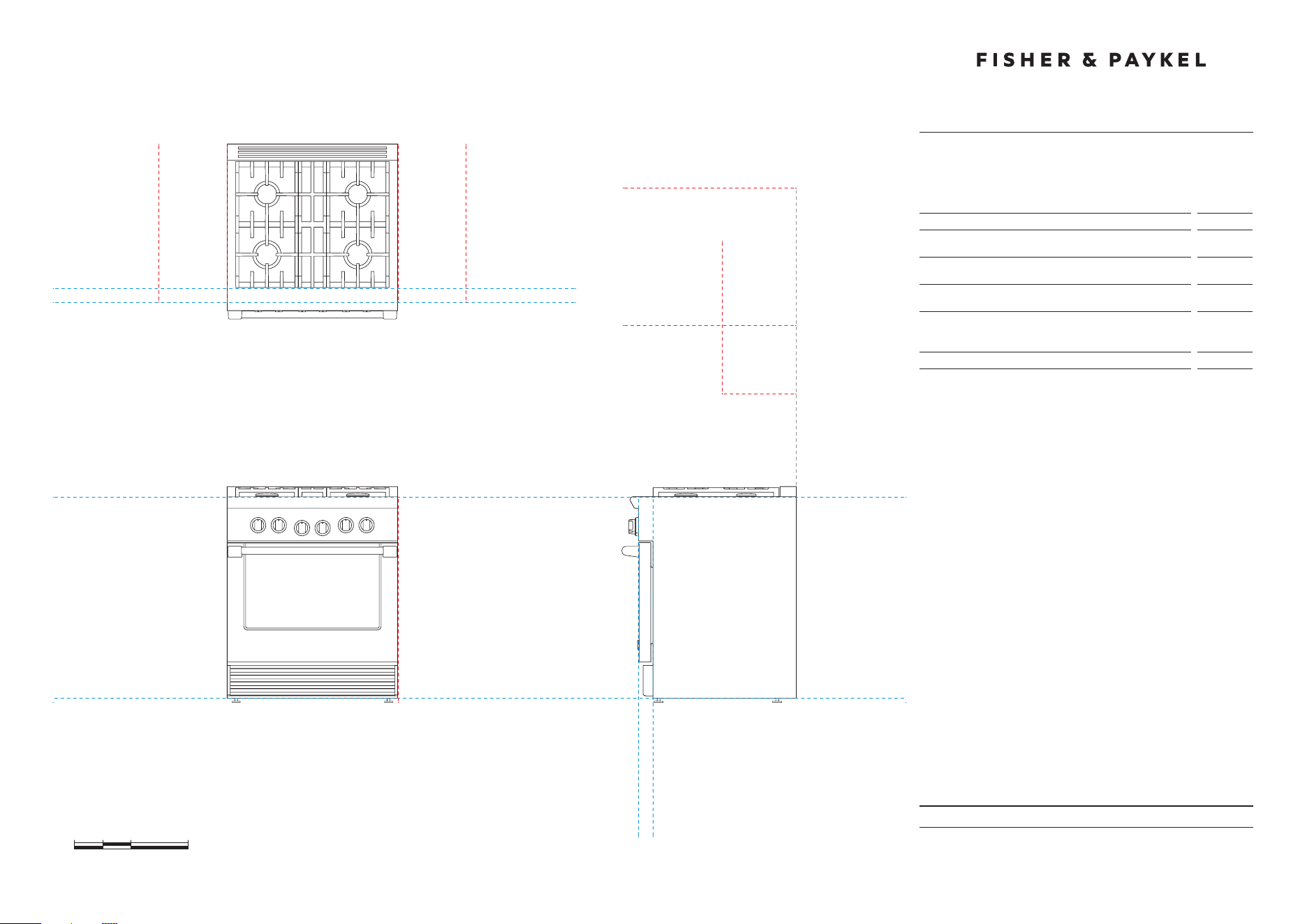

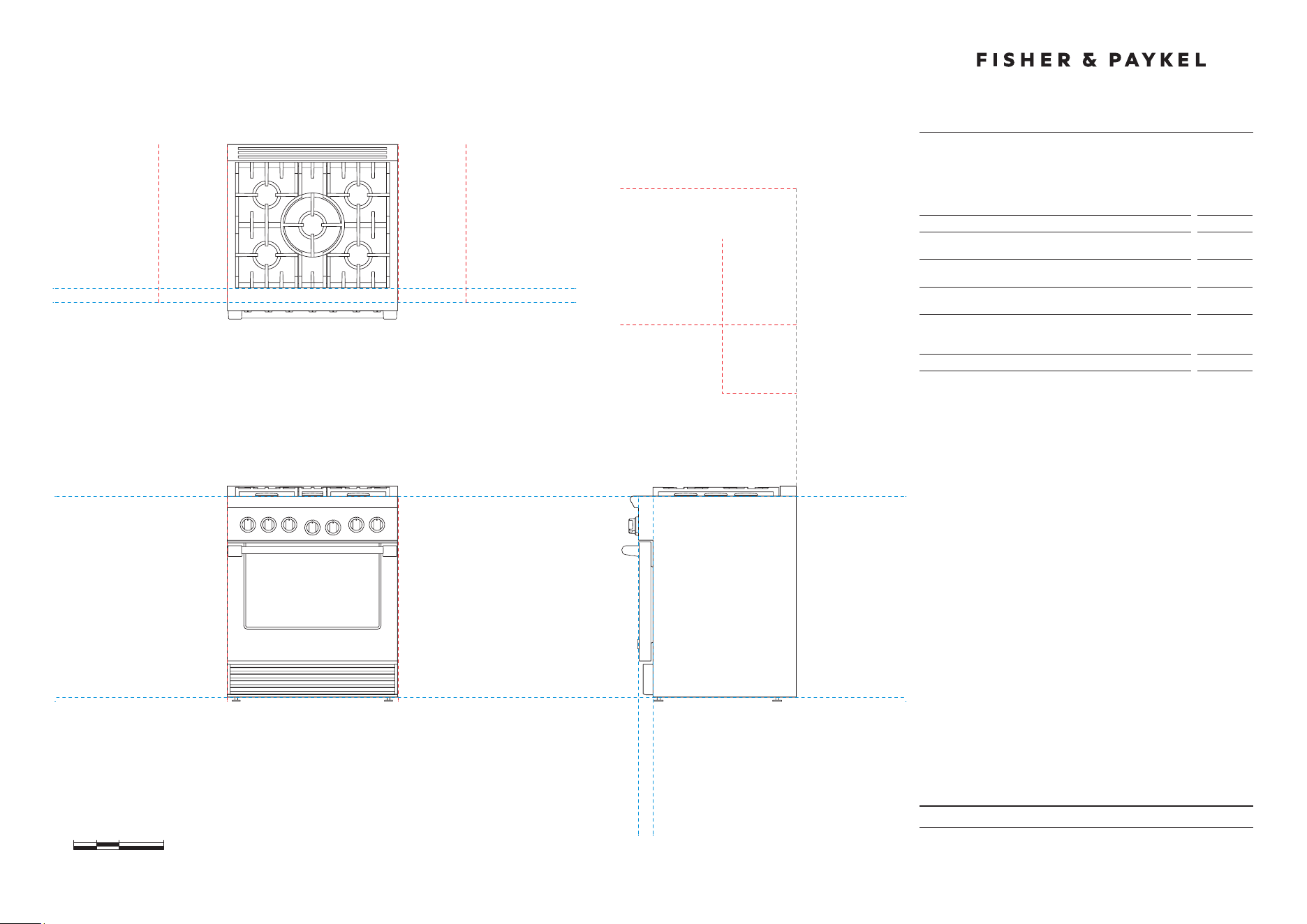

CLEARANCE DIMENSIONS
30" Professional Range
0 5 10 20
inches
DATUM : BOTTOM OF CHASSIS
FRONT VIEW PROFILE VIEW
DATUM :
TOP OF COUNTERTOP
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
PLAN VIEW
MINIMUM CLEARANCE:
COMBUSTIBLE SURFACE
MAXIMUM OVERALL DEPTH
OF OVERHEAD CABINETRY
MINIMUM CLEARANCE:
ADJACENT OVERHEAD CABINET
MINIMUM CLEARANCE:
NON-COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
D
E
D
B
CC
Model no:
RGV2-304-N, RGV2-304-L
RDV2-304-N, RDV2-304-L
Supplied with Integral Flat Vent Trim
Clearance Dimensions
in
A Minimum width of ventilation hood installed above range
- not shown*
30''
B Minimum vertical distance between countertop and cabinet
extending above counter
18''
C Minimum clearance from left and right edge of range to
nearest vertical combustible surface
12''
D Minimum clearance from cooking surface to:
– combustible surface centered above the cooking surface
– non-combustible surface centered above the cooking surface
54''
30''
E Maximum overall depth of overhead cabinetry
13''
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

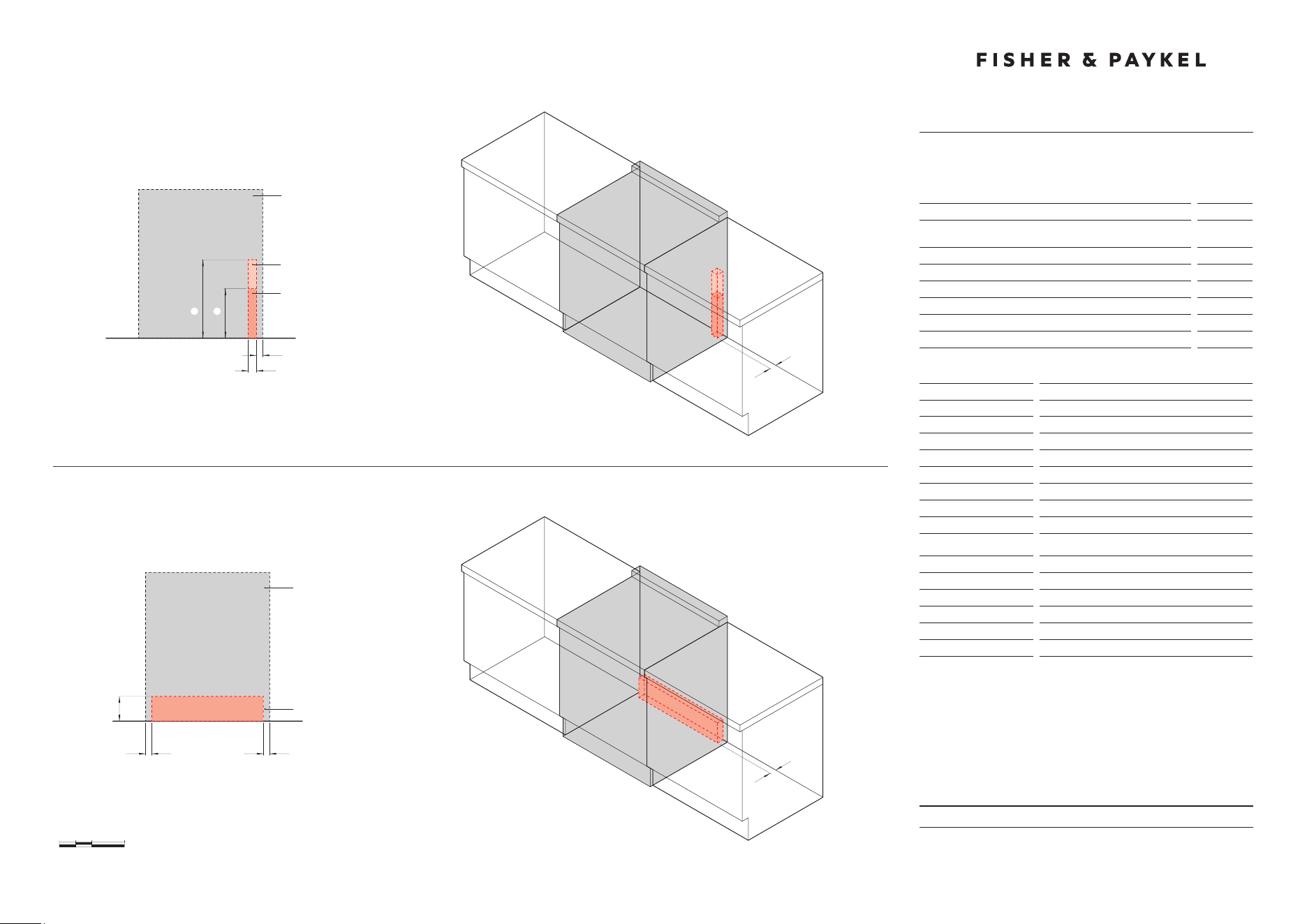

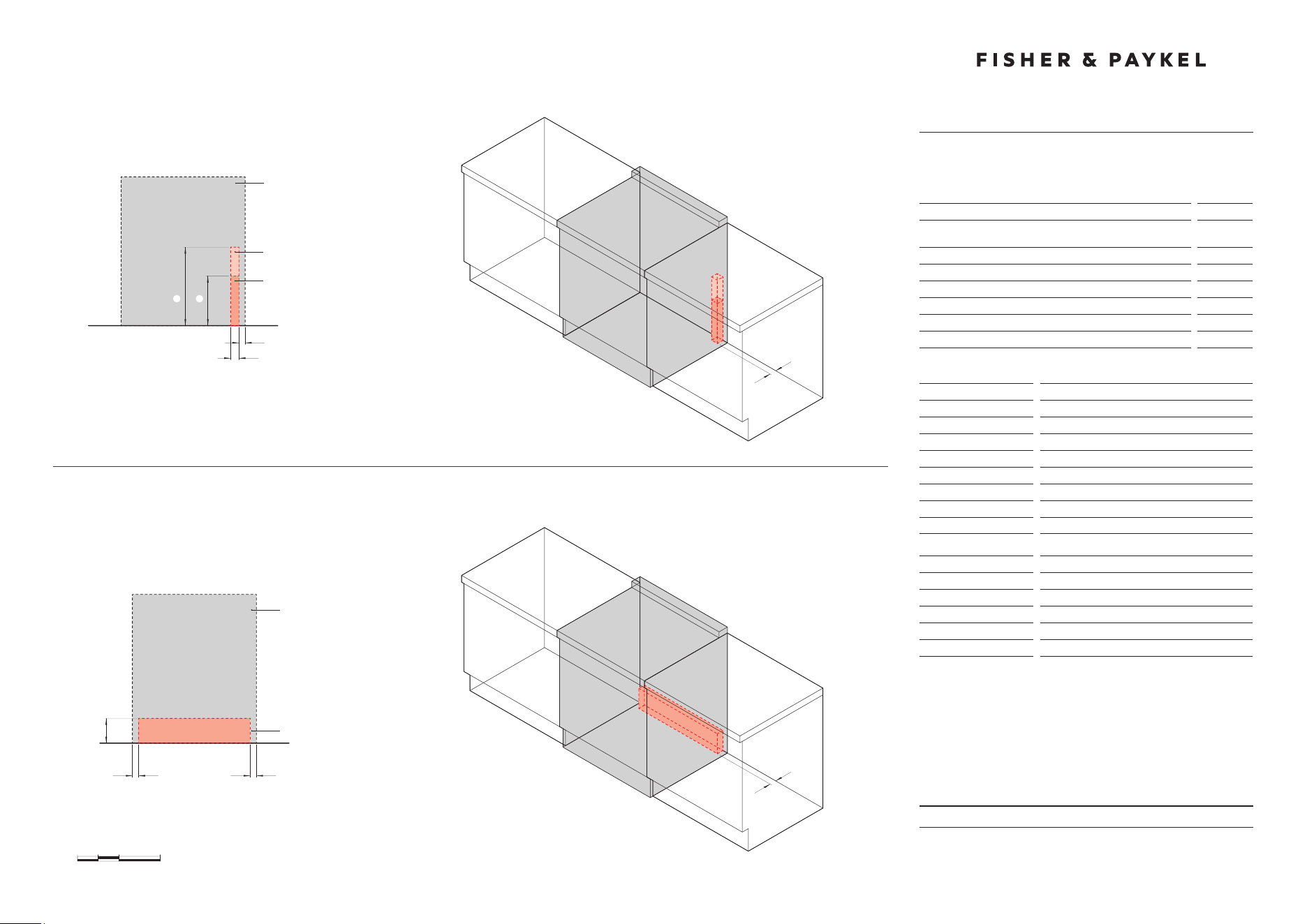

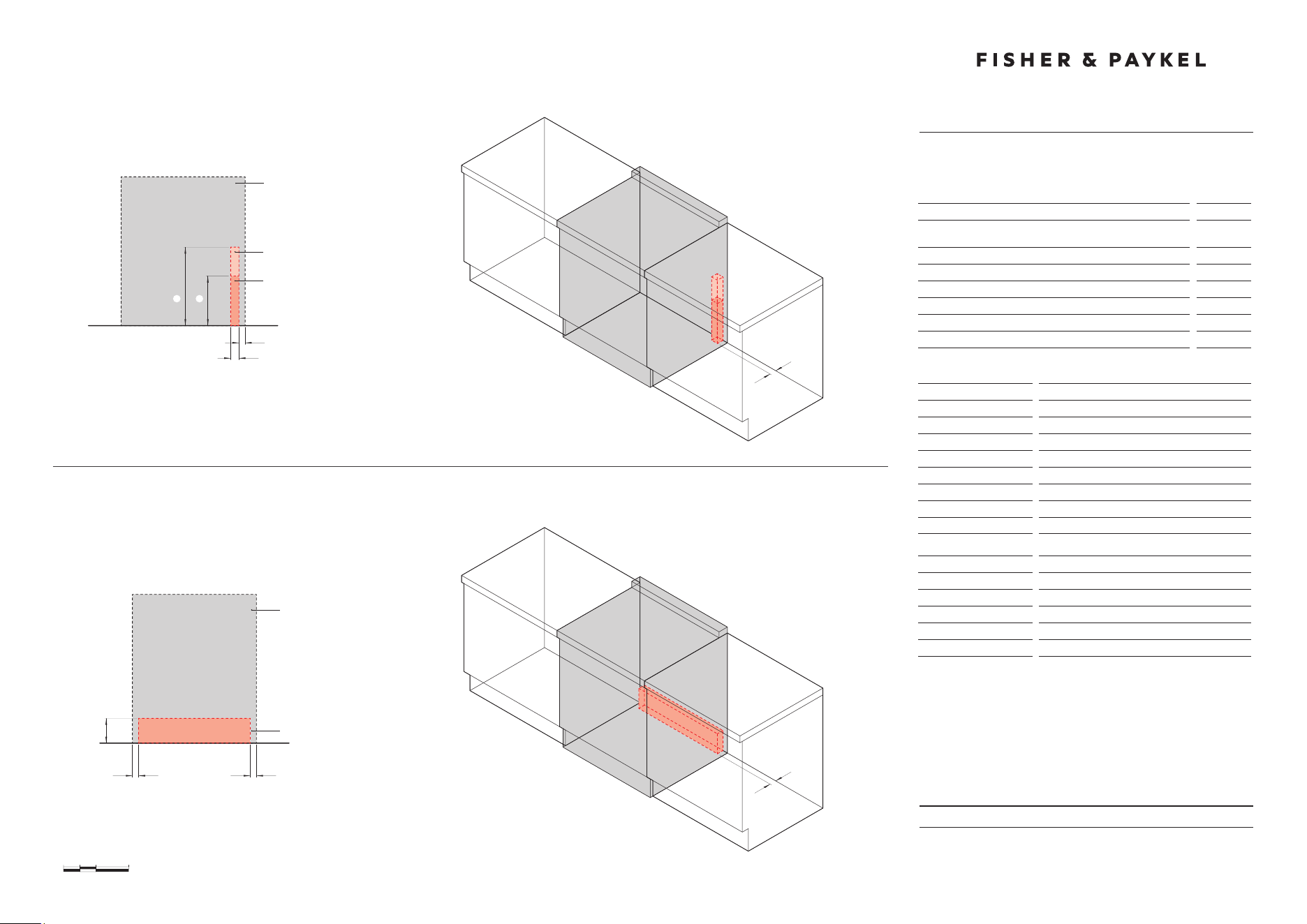

CAVITY PREPARATION
30" Professional Range
0 5 10 20
inches
RGV models
RDV models
c d
e
b
g
b
a
a
FINAL POSITION OF
RANGE AGAINST WALL
FINAL POSITION OF
RANGE AGAINST WALL
ELECTRICAL
ELECTRICAL & GAS
GAS
f
Model no:
RGV2-304-N, RGV2-304-L
RDV2-304-N, RDV2-304-L
Location of Electrical and Gas Supply
in
A Depth of supply area (ie maximum protrusion of gas
connection from wall)
2''
B Distance from right hand edge of range to supply area
1 1/2''
C (RGV) Height of electrical supply area (from floor)
19''
D (RGV) Height of gas supply area (from floor)
12''
E (RGV) Width of supply area
2''
F (RDV) Distance from left hand edge of range to supply area
1 1/2''
G (RDV) Height of electrical and gas supply area (from floor)
6''
Specifications
Electrical
RGV Models
Supply
120 VAC, 60Hz
Max. Current Draw
8 amp
Service
15 amp circuit
Electrical
RDV Models
Supply
120/240 VAC, 60Hz
Max. Current Draw
21 amp
Service
30 amp circuit
Gas – Natural
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure
Supply Pressure: 6” to 9” W.C.
Gas – LP
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure*
11” to 14” W.C.
A regulator is required at the LP source to provide a maximum pressure
of14”W.C. to the range regulator
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT & CAVITY DIMENSIONS
30" Professional Range
0 5 10 20
inches
DATUM : BOTTOM OF CHASSIS
29 7/8''
B
29 1/8''
A
FRONT VIEW PROFILE VIEW
C
m
K J I H
G
F
l
DATUM :
TOP OF
COUNTERTOP
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
29 7/8''
B
35 3/4'' -
36 3/4''
o
Dp
E
C
29 1/8''
PLAN VIEW
n
p
Q
Model no:
RGV2-305-N, RGV2-305-L
RDV2-305-N, RDV2-305-L
Supplied with Integral Flat Vent Trim
Product Dimensions
in
A Overall height of range (from floor to cooktop, excluding
grates and vent trim)
min 35 3/4''
max 36 3/4''
B Overall width of range
29 7/8''
C Overall depth of range (excluding handle and dials)
29 1/8''
D Depth from rear of chassis to cabinetry face - projecting
25 1/8''
E Depth from rear of chassis to cabinetry face - flush
27 11/16''
F Height from countertop to top of pan supports
1 9/16''
G Height from countertop to top of vent trim
1 3/4''
H Height from countertop to bottom of control panel
7 3/4''
I Height from countertop to top of door
8 1/16''
J Height from countertop to center of handle
9 7/16''
K Height from countertop to bottom of door
28 7/8''
L Height from countertop to bottom of chassis
35 1/4''
M Thickness of handle (not including standoffs)
1 1/4''
N Width of handle (including standoffs)
29 9/16''
O Depth of handle (measured from front of door)
3 1/16''
P Depth of open door to cabinetry face - flush
19 1/8''
Q Adjustable feet height
min 1/2''
max 1 1/2''
Cavity Dimensions in
Overall height of cavity
min 35 3/4''
max 36 3/4''
Overall width of cavity
min 30''
Overall depth of cavity for projecting control panel
Overall depth of cavity for flush control panel
max
25 1/8''
max
27 11/16''
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CLEARANCE DIMENSIONS
30" Professional Range
DATUM : BOTTOM OF CHASSIS
FRONT VIEW PROFILE VIEW
DATUM :
TOP OF COUNTERTOP
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
PLAN VIEW
MINIMUM CLEARANCE:
COMBUSTIBLE SURFACE
MAXIMUM OVERALL DEPTH
OF OVERHEAD CABINETRY
MINIMUM CLEARANCE:
ADJACENT OVERHEAD CABINET
MINIMUM CLEARANCE:
NON-COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
D
E
D
B
CC
0 5 10 20
inches
Model no:
RGV2-305-N, RGV2-305-L
RDV2-305-N, RDV2-305-L
Supplied with Integral Flat Vent Trim
Clearance Dimensions
in
A Minimum width of ventilation hood installed above range
- not shown*
30''
B Minimum vertical distance between countertop and cabinet
extending above counter
18''
C Minimum clearance from left and right edge of range to
nearest vertical combustible surface
12''
D Minimum clearance from cooking surface to:
– combustible surface centered above the cooking surface
– non-combustible surface centered above the cooking surface
54''
30''
E Maximum overall depth of overhead cabinetry
13''
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CAVITY PREPARATION
30" Professional Range
0 5 10 20
inches
RGV models
RDV models
c d
e
b
g
b
a
a
FINAL POSITION OF
RANGE AGAINST WALL
FINAL POSITION OF
RANGE AGAINST WALL
ELECTRICAL
ELECTRICAL & GAS
GAS
f
Model no:
RGV2-305-N, RGV2-305-L
RDV2-305-N, RDV2-305-L
Location of Electrical and Gas Supply
in
A Depth of supply area (ie maximum protrusion of gas
connection from wall)
2''
B Distance from right hand edge of range to supply area
1 1/2''
C (RGV) Height of electrical supply area (from floor)
19''
D (RGV) Height of gas supply area (from floor)
12''
E (RGV) Width of supply area
2''
F (RDV) Distance from left hand edge of range to supply area
1 1/2''
G (RDV) Height of electrical and gas supply area (from floor)
6''
Specifications
Electrical
RGV Models
Supply
120 VAC, 60Hz
Max. Current Draw
8 amp
Service
15 amp circuit
Electrical
RDV Models
Supply
120/240 VAC, 60Hz
Max. Current Draw
18 amp
Service
30 amp circuit
Gas – Natural
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure
Supply Pressure: 6” to 9” W.C.
Gas – LP
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure*
11” to 14” W.C.
A regulator is required at the LP source to provide a maximum pressure
of 14” W.C. to the range regulator
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

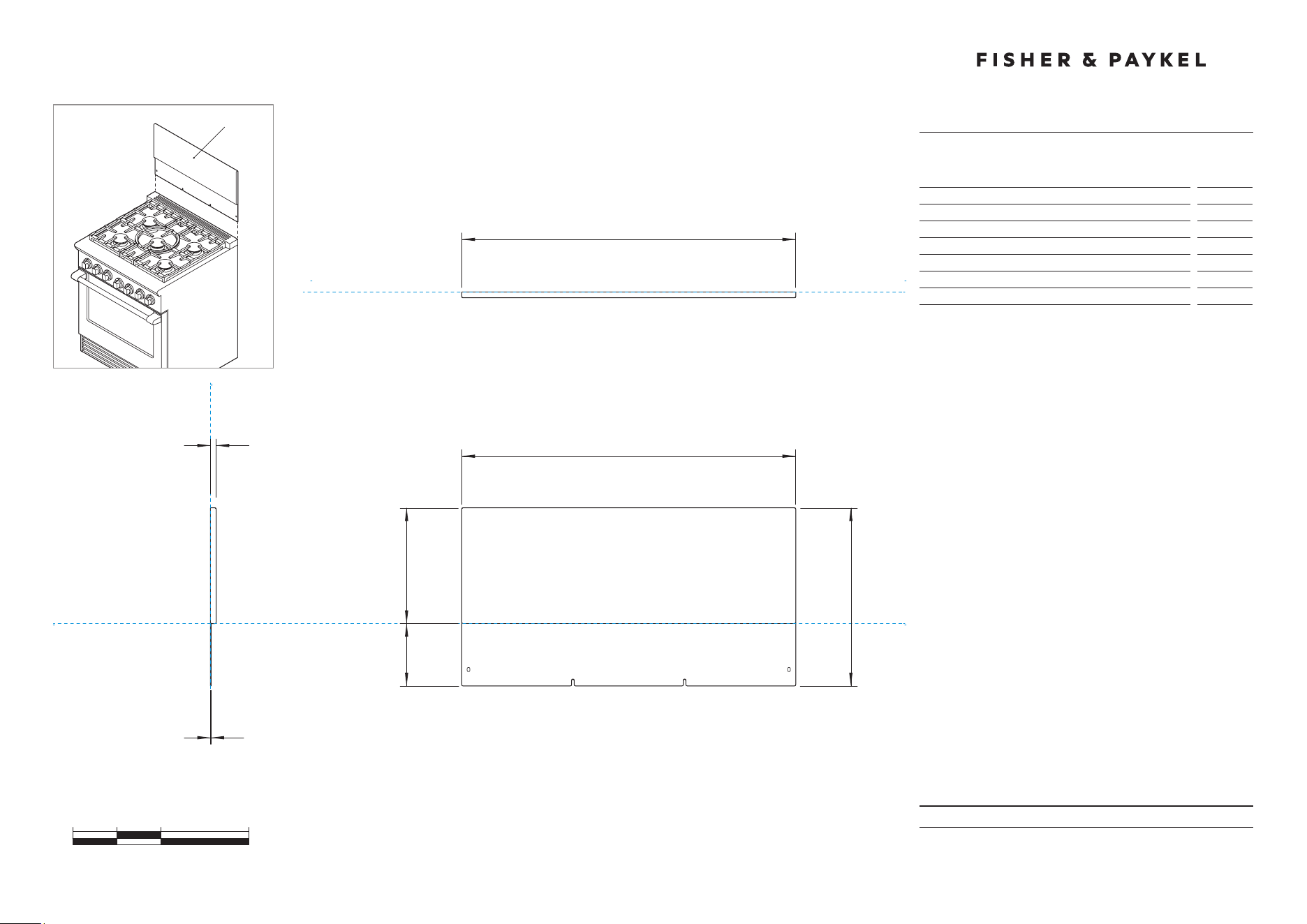

PRODUCT DIMENSIONS
30" Professional Range Backguard
0 5 10 20
inches
29 7/8''
c
29 7/8''
c
10 3/8''
1/2''
b
f
e
A
FRONT VIEW
PLAN VIEW
PROFILE VIEW
d

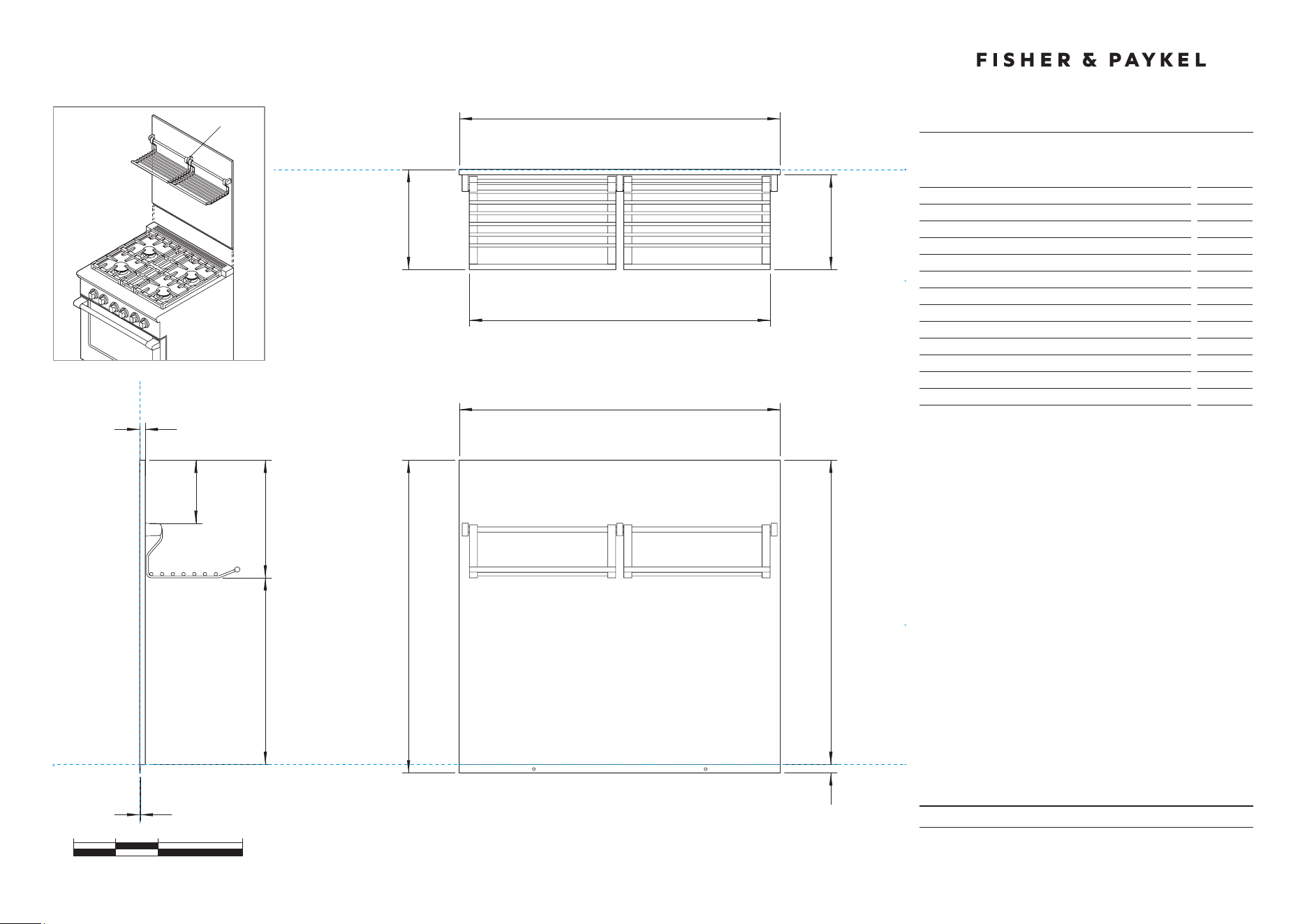

DATUM : TOP OF
VENT TRIM ON RANGE
DATUM : BACK OF PRODUCT
DATUM : BACK OF PRODUCT
BGRV2-1230NOT TO SCALE
RGV2-304/
RDV2-304
(illustrated)
Model no:
BGRV2-1230
Product Dimensions
in
A Height of backguard above vent trim on range
10 3/8''
B Overall height of backguard
15 15/16''
C Overall width of backguard
29 7/8
''
D Overall depth of backguard
1/2
''
E Height of backguard below vent trim on range
5 9/16''
F Depth of backguard below vent trim on range
1/16
''
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT DIMENSIONS
30" Professional Range Backguard
B
l k
BGRV2-3030NOT TO SCALE
0 5 10 20
inches
29 7/8"
c
29 7/8"
c
28 3/8"
1/2"
A
d
g
f
i
h
j
e
FRONT VIEW
PLAN VIEW
PROFILE VIEW
DATUM : BACK OF PRODUCT
DATUM : BACK OF PRODUCT
RGV2-304/
RDV2-304
(illustrated)
DATUM : TOP OF
VENT TRIM ON RANGE
Model no:
BGRV2-3030
Product Dimensions
in
A Height of backguard above vent trim on range
28 3/8"
B Overall height of backguard
29 1/8"
C Overall width of backguard
29 7/8"
D Overall depth of backguard and racks
9 5/16"
E Depth of backguard
1/2"
F Depth of racks
8 13/16"
G Width of racks
28"
H Distance from top of backguard to bottom of racks
10 15/16"
I Distance from bottom of backguard to bottom of racks
17 3/8"
J Distance from top of backguard to top of brackets
5 7/8"
K Height of backguard below vent trim on range
13/16''
L Depth of backguard below vent trim on range
1/16''
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

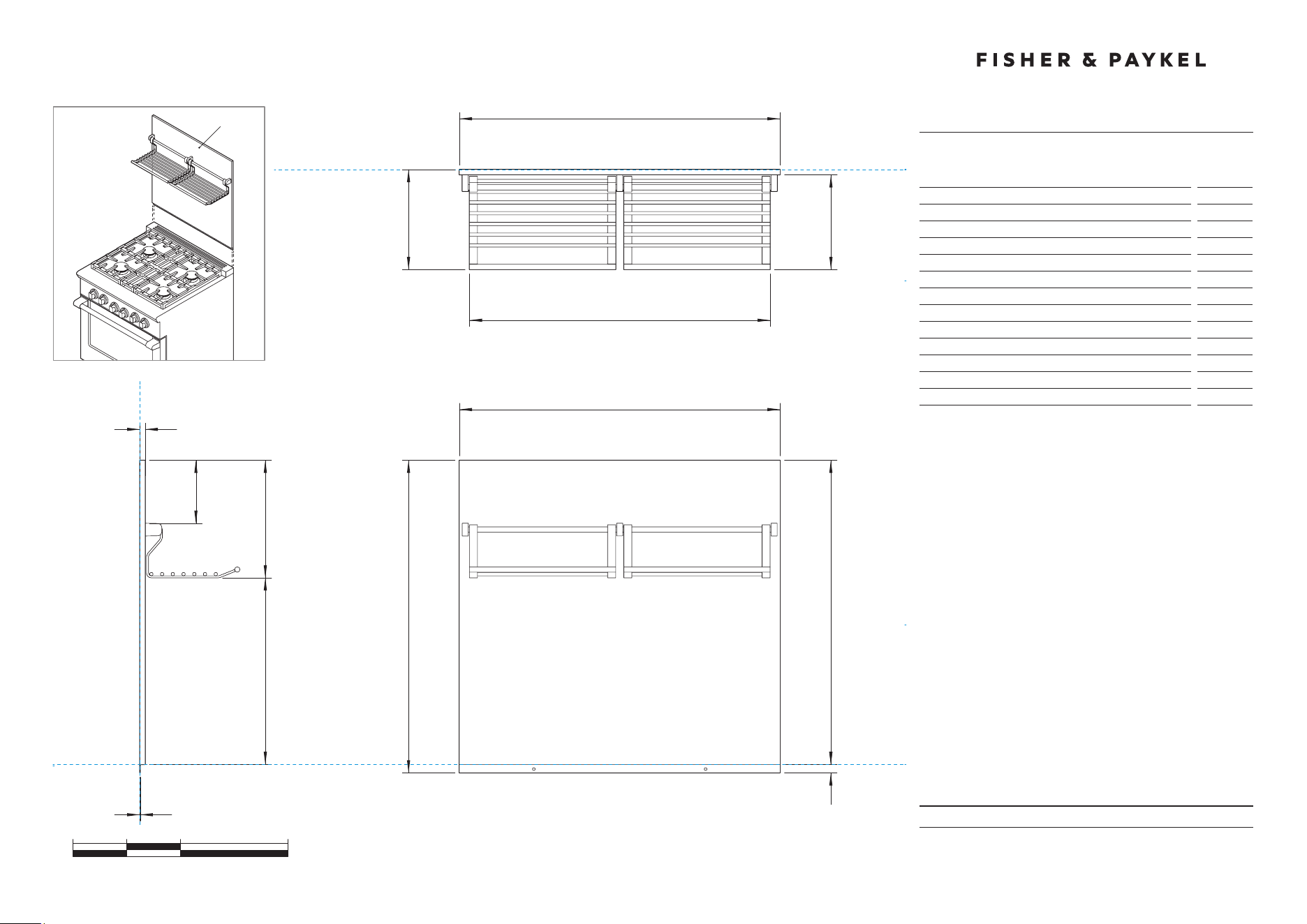

PRODUCT DIMENSIONS
30" Professional Range Backguard with Angled Vent Trim
0 5 10 20
inches
Model no:
BGRV2-3030H
Product Dimensions
in
A Overall height of backguard with angled vent trim
30''
B Overall width of backguard
29 7/8''
C Overall depth of backguard and racks
10 3/8''
D Height of backguard
26 1/2''
E Height of angled vent trim
3 1/2''
F Depth of angled vent trim
2 7/8''
G Depth of backguard
1 5/16''
H Depth of racks
9 1/16''
I Width of racks
28"
J Distance from top of backguard to top of racks
5 3/8''
K Distance from bottom of angled vent trim to bottom of racks
18 7/8''
Note: Angled vent trim supplied with BGRV2-3030H.
Remove flat vent trim and replace with angled vent trim.
INDICATES PRODUCT DATUM -------------------------------------------
29 7/8''
B
29 7/8''
B
30''
1 5/16''
d
A
i
h
k
j
FRONT VIEW
PLAN VIEW
PROFILE VIEW
c
DATUM : BOTTOM OF ANGLED VENT TRIM
DATUM : BACK OF BACKGUARD
DATUM : BACK OF BACKGUARD
BGRV2-3030HNOT TO SCALE
g
f
f
e
RGV2-304/
RDV2-304
(illustrated)
METRIC
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
Model no:
RGV2-304, RDV2-304,
RGV2-305, RDV2-305
KEY DESIGN DECISIONS
30" Professional Range
INSTALL TYPE
1
WALL
ISLAND
REAR SURFACE
2
COMBUSTIBLE
NON COMBUSTIBLE
BACKGUARD OPTIONS
3
NO BACKGUARD
HIGH THICK BACKGUARD
WITH ANGLED TRIM
BGRV2-3030H
ANGLED TRIM
(Supplied with
backguard)
LOW THIN BACKGUARD
BGRV2-1230
NO BACKGUARD
HIGH THIN BACKGUARD
BGRV2-3030
CUSTOM FABRICATED* BACKGUARD
*Fabricated from non combustible materials only.
CUSTOM
BACKGUARD*
MIN 152mm
CLEARANCE
MAX 24mm
MIN 762mm
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
INSTALL TYPE
1
WALL
ISLAND
HOOD SURROUND MATERIAL
2
NON COMBUSTIBLE
NON COMBUSTIBLE
COMBUSTIBLE
COMBUSTIBLE
VENTILATION REQUIREMENTS
30" Professional Range
584mm
MIN
762mm
MAX
914mm
MIN 762mm
MAX 914mm
762mm
762mm
914mm
914mm
584mm
Model no:
RGV2-304, RDV2-304,
RGV2-305, RDV2-305
(Note: RGV2-366 illustrated but all dimensions apply to the above models)
Specifications
Ventilation Unit
Wall Installation
Hood
584mm Deep x Unit Width
Blower
600 CFM
Ventilation Unit
Island Installation
Hood
762mm Deep x Unit Width
Blower
600 CFM
Note: A suitable hood must be installed above the range. The above indicates
the minimum blower capacity recommended for hood ventilation.
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT & CAVITY DIMENSIONS
30" Professional Range
0 100 200 400
millimetres
DATUM : BOTTOM OF CHASSIS
759
B
740
A
FRONT VIEW PROFILE VIEW
C
m
K J I H
G
F
l
DATUM :
TOP OF
COUNTERTOP
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
759
B
908 -
933
o
Dp
E
C
740
PLAN VIEW
n
p
Q
Model no:
RGV2-304-N, RGV2-304-L
RDV2-304-N, RDV2-304-L
Supplied with Integral Flat Vent Trim
Product Dimensions
mm
A Overall height of range (from floor to cooktop, excluding
grates and vent trim)
min 908
max 933
B Overall width of range
759
C Overall depth of range (excluding handle and dials)
740
D Depth from rear of chassis to cabinetry face - projecting
638
E Depth from rear of chassis to cabinetry face - flush
703
F Height from countertop to top of pan supports
40
G Height from countertop to top of vent trim
45
H Height from countertop to bottom of control panel
196
I Height from countertop to top of door
204
J Height from countertop to centre of handle
240
K Height from countertop to bottom of door
734
L Height from countertop to bottom of chassis
895
M Thickness of handle (not including standoffs)
32
N Width of handle (including standoffs)
751
O Depth of handle (measured from front of door)
77
P Depth of open door to cabinetry face - flush
486
Q Adjustable feet height
min 13
max 38
Cavity Dimensions
mm
Overall height of cavity
min 908
max 933
Overall width of cavity
min 762
Overall depth of cavity for projecting control panel
Overall depth of cavity for flush control panel
max 638
max 703
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CLEARANCE DIMENSIONS
30" Professional Range
0 100 200 400
millimetres
DATUM : BOTTOM OF CHASSIS
FRONT VIEW PROFILE VIEW
DATUM :
TOP OF COUNTERTOP
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
PLAN VIEW
MINIMUM CLEARANCE:
COMBUSTIBLE SURFACE
MAXIMUM OVERALL DEPTH
OF OVERHEAD CABINETRY
MINIMUM CLEARANCE:
ADJACENT OVERHEAD CABINET
MINIMUM CLEARANCE:
NON-COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
D
E
D
B
CC
Model no:
RGV2-304-N, RGV2-304-L
RDV2-304-N, RDV2-304-L
Supplied with Integral Flat Vent Trim
Clearance Dimensions
mm
A Minimum width of ventilation hood installed above range
- not shown*
762
B Minimum vertical distance between countertop and cabinet
extending above counter
457
C Minimum clearance from left and right edge of range to
nearest vertical combustible surface
305
D Minimum clearance from cooking surface to:
– combustible surface centred above the cooking surface
– non-combustible surface centred above the cooking surface
1372
762
E Maximum overall depth of overhead cabinetry
330
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CAVITY PREPARATION
30" Professional Range
0 100 200 400
millimetres
Model no:
RGV2-304-N, RGV2-304-L
RDV2-304-N, RDV2-304-L
Location of Electrical and Gas Supply
mm
A Depth of supply area (ie maximum protrusion of gas
connection from wall)
51
B Distance from right hand edge of range to supply area
38
C (RGV) Height of electrical supply area (from floor)
483
D (RGV) Height of gas supply area (from floor)
305
E (RGV) Width of supply area
51
F (RDV) Distance from left hand edge of range to supply area
38
G (RDV) Height of electrical and gas supply area (from floor)
152
Specifications
Electrical
RGV Models
Supply
120 VAC, 60Hz
Max. Current Draw
8 amp
Service
15 amp circuit
Electrical
RDV Models
Supply
120/240 VAC, 60Hz
Max. Current Draw
21 amp
Service
30 amp circuit
Gas – Natural
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure
Supply Pressure: 6” to 9” W.C.
Gas – LP
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure*
11” to 14” W.C.
A regulator is required at the LP source to provide a maximum pressure
of 14” W.C. to the range regulator
RGV models
RDV models
c d
e
b
g
b
a
a
FINAL POSITION OF
RANGE AGAINST WALL
FINAL POSITION OF
RANGE AGAINST WALL
ELECTRICAL
ELECTRICAL & GAS
GAS
f
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT & CAVITY DIMENSIONS
30" Professional Range
0 100 200 400
millimetres
DATUM : BOTTOM OF CHASSIS
759
B
740
A
FRONT VIEW PROFILE VIEW
C
m
K J I H
G
F
l
DATUM :
TOP OF
COUNTERTOP
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
759
B
908 -
933
o
Dp
E
C
740
PLAN VIEW
n
p
Q
Model no:
RGV2-305-N, RGV2-305-L
RDV2-305-N, RDV2-305-L
Supplied with Integral Flat Vent Trim
Product Dimensions
mm
A Overall height of range (from floor to cooktop, excluding
grates and vent trim)
min 908
max 933
B Overall width of range
759
C Overall depth of range (excluding handle and dials)
740
D Depth from rear of chassis to cabinetry face - projecting
638
E Depth from rear of chassis to cabinetry face - flush
703
F Height from countertop to top of pan supports
40
G Height from countertop to top of vent trim
45
H Height from countertop to bottom of control panel
196
I Height from countertop to top of door
204
J Height from countertop to centre of handle
240
K Height from countertop to bottom of door
734
L Height from countertop to bottom of chassis
895
M Thickness of handle (not including standoffs)
32
N Width of handle (including standoffs)
751
O Depth of handle (measured from front of door)
77
P Depth of open door to cabinetry face - flush
486
Q Adjustable feet height
min 13
max 38
Cavity Dimensions
mm
Overall height of cavity
min 908
max 933
Overall width of cavity
min 762
Overall depth of cavity for projecting control panel
Overall depth of cavity for flush control panel
max 638
max 703
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CLEARANCE DIMENSIONS
30" Professional Range
0 100 200 400
millimetres
DATUM : BOTTOM OF CHASSIS
FRONT VIEW PROFILE VIEW
DATUM :
TOP OF COUNTERTOP
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
PLAN VIEW
MINIMUM CLEARANCE:
COMBUSTIBLE SURFACE
MAXIMUM OVERALL DEPTH
OF OVERHEAD CABINETRY
MINIMUM CLEARANCE:
ADJACENT OVERHEAD CABINET
MINIMUM CLEARANCE:
NON-COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
D
E
D
B
CC
Model no:
RGV2-305-N, RGV2-305-L
RDV2-305-N, RDV2-305-L
Supplied with Integral Flat Vent Trim
Clearance Dimensions
mm
A Minimum width of ventilation hood installed above range
- not shown*
762
B Minimum vertical distance between countertop and cabinet
extending above counter
457
C Minimum clearance from left and right edge of range to
nearest vertical combustible surface
305
D Minimum clearance from cooking surface to:
– combustible surface centred above the cooking surface
– non-combustible surface centred above the cooking surface
1372
762
E Maximum overall depth of overhead cabinetry
330
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CAVITY PREPARATION
30" Professional Range
0 100 200 400
millimetres
Model no:
RGV2-305-N, RGV2-305-L
RDV2-305-N, RDV2-305-L
Location of Electrical and Gas Supply
mm
A Depth of supply area (ie maximum protrusion of gas
connection from wall)
51
B Distance from right hand edge of range to supply area
38
C (RGV) Height of electrical supply area (from floor)
483
D (RGV) Height of gas supply area (from floor)
305
E (RGV) Width of supply area
51
F (RDV) Distance from left hand edge of range to supply area
38
G (RDV) Height of electrical and gas supply area (from floor)
152
Specifications
Electrical
RGV Models
Supply
120 VAC, 60Hz
Max. Current Draw
8 amp
Service
15 amp circuit
Electrical
RDV Models
Supply
120/240 VAC, 60Hz
Max. Current Draw
18 amp
Service
30 amp circuit
Gas – Natural
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure
Supply Pressure: 6” to 9” W.C.
Gas – LP
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure*
11” to 14” W.C.
A regulator is required at the LP source to provide a maximum pressure
of 14” W.C. to the range regulator
RGV models
RDV models
c d
e
b
g
b
a
a
FINAL POSITION OF
RANGE AGAINST WALL
FINAL POSITION OF
RANGE AGAINST WALL
ELECTRICAL
ELECTRICAL & GAS
GAS
f
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT DIMENSIONS
30" Professional Range Backguard
BGRV2-1230NOT TO SCALE
0 100 200 400
millimetres
759
c
759
c
263
13
b
f
e
A
FRONT VIEW
PLAN VIEW
PROFILE VIEW
d
DATUM : TOP OF
VENT TRIM ON RANGE
DATUM : BACK OF PRODUCT
DATUM : BACK OF PRODUCT
RGV2-304/
RDV2-304
(illustrated)
Model no:
BGRV2-1230
Product Dimensions
mm
A Height of backguard above vent trim on range
263
B Overall height of backguard
405
C Overall width of backguard
759
D Overall depth of backguard
13
E Height of backguard below vent trim on range
142
F Depth of backguard below vent trim on range
1
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT DIMENSIONS
30" Professional Range Backguard
BGRV2-3030NOT TO SCALE
0 100 200 400
millimetres
759
c
759
c
720
13
A
B
d
f
g
i
l
h
j
e
FRONT VIEW
PLAN VIEW
PROFILE VIEW
DATUM : BACK OF PRODUCT
DATUM : BACK OF PRODUCT
RGV2-304/
RDV2-304
(illustrated)
k
DATUM : TOP OF
VENT TRIM ON RANGE
Model no:
BGRV2-3030
Product Dimensions
mm
A Height of backguard above vent trim on range
720
B Overall height of backguard
740
C Overall width of backguard
759
D Overall depth of backguard and racks
237
E Depth of backguard
13
F Depth of racks
224
G Width of racks
711
H Distance from top of backguard to bottom of racks
278
I Distance from bottom of backguard to bottom of racks
442
J Distance from top of backguard to top of brackets
149
K Height of backguard below vent trim on range
20
L Depth of backguard below vent trim on range
1
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 24.04.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT DIMENSIONS
30" Professional Range Backguard with Angled Vent Trim
0 100 200 400
millimetres
759
B
759
B
763
264
d
A
i
h
k
j
FRONT VIEW
PLAN VIEW
PROFILE VIEW
c
DATUM : BOTTOM OF ANGLED VENT TRIM
DATUM : BACK OF BACKGUARD
DATUM : BACK OF BACKGUARD
BGRV2-3030HNOT TO SCALE
g
f
f
e
RGV2-304/
RDV2-304
(illustrated)
Model no:
BGRV2-3030H
Product Dimensions
mm
A Overall height of backguard with angled vent trim
763
B Overall width of backguard
759
C Overall depth of backguard and racks
264
D Height of backguard
673
E Height of angled vent trim
90
F Depth of angled vent trim
72
G Depth of backguard
33
H Depth of racks
230
I Width of racks
712
J Distance from top of backguard to top of racks
136
K Distance from bottom of angled vent trim to bottom of racks
480
Note: Angled vent trim supplied with BGRV2-3030H.
Remove flat vent trim and replace with angled vent trim.
INDICATES PRODUCT DATUM -------------------------------------------
IMPORTANT: The product dimensions and specifications
applyat the date of issue. Under our policy of continuous
product improvement, these dimensions and specifications
may change at any time. Dimensions may vary by ±2mm (1/16").
Please read the installation guide for detailed information
oninstalling the product or visit fisherpaykel.com.
April 2018
