PLANNING GUIDE
FABRIC CARE
Series 11 Fabric Care Cabinet, Glass | FC1260FZB2
Series 11 Front Loader Washer, Glass | WH1260YZB5
Series 11 Heat Pump Dryer, Glass | DH1060YZB5
Series 11 Display-free Heat Pump Dryer, Glass | DH1060YLZB5
Series 11 Storage Plinth Storage Plinth | FM2060SZB2
Stacking Kit with Tray | ASKS60ZB5
© FISHER & PAYKEL APPLIANCES LIMITED 2025© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 290004466A PLANNING GUIDE VERSION B - APRIL 2025
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
PRODUCT OVERVIEW
Product Overview 4
Product Configurations 5
SPECIFICATION GUIDE
Fabric Care - All Models 7
Fabric Care - Cabinet 8
Front Loader Washer Specification 9
Heat Pump Dryer Specification 10
Fabric Care Cabinet Specification 11
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | FABRIC CARE
CONTENTS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. For the
latest version of this document, please visit our website at
fisherpaykel.com. Product specifications may vary from those
shown.
This Planning Guide is not intended to be used as installation
guidance for any product. Detailed installation instructions are
available on our website.
FC1260FZB2 | WH1260YZB5 | DH1060YLZB5 | DH1060YZB5
i
i
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE VERSION B - APRIL 202590004466A
PRODUCT OVERVIEW
PAGE 490004466A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
© FISHER & PAYKEL APPLIANCES LIMITED 2025
SPECIFICATION GUIDE | PRODUCT OVERVIEW FC1260FZB2 | WH1260YZB5 | DH1060YLZB5 | DH1060YZB5
PRODUCT OVERVIEW
1
FC1260FZB2
60cm Series 11 Fabric Care Cabinet, Glass
2
WH1260YZB5
12kg Series 11 Front Loader Washer, Glass
3
DH1060YLZB5
10kg Series 11 Display-free Heat Pump Dryer, Glass
4
DH1060YZB5
10kg Series 11 Heat Pump Dryer, Glass
ACCESSORIES OVERVIEW
5
ASKS60ZB5
Stacking Kit with Tray
6
FM2060SZB2
18L Series 11 Storage Plinth
1 2 43
5
6
Product Overview
<< CONTENTS
PAGE 590004466A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
© FISHER & PAYKEL APPLIANCES LIMITED 2025
SPECIFICATION GUIDE | CONFIGURATIONS FC1260FZB2 | WH1260YZB5 | DH1060YLZB5 | DH1060YZB5
1
2
4
3
5
6

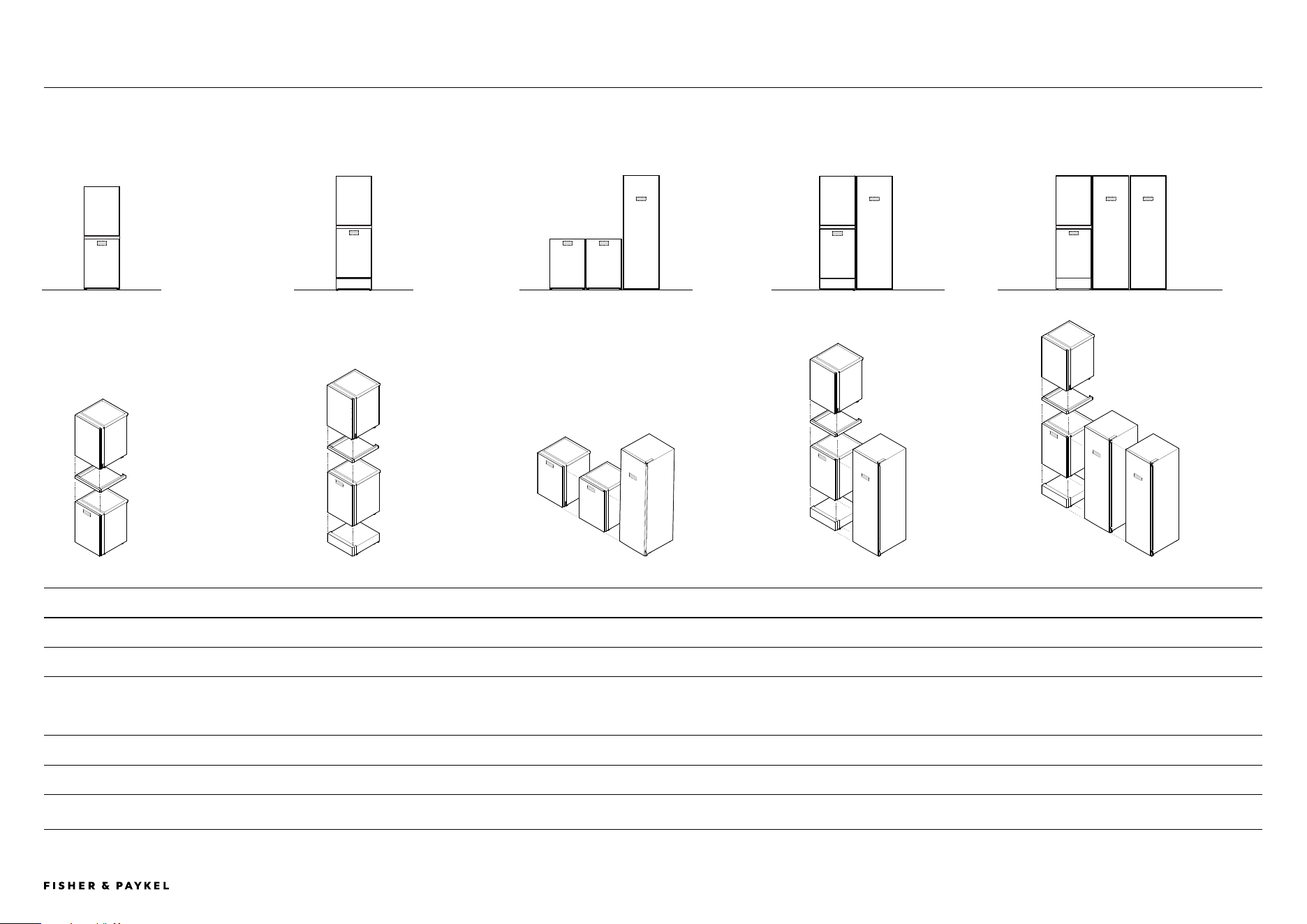

Product Configurations
1
1
1
2
2
2
2
3
3
3
5
5
5
6
6
MODEL CODE FINISH PRODUCT DESCRIPTION HINGE LOCATION
1
FC1260FZB2 Glass Fabric Care Cabinet, Glass
Right Hand Hinge
2
WH1260YZB5 Glass Front Loader Washer, Glass
Left Hand Hinge
3
DH1060YLZB5 Glass Display-free Heat Pump Dryer, Glass
Left Hand Hinge
4
DH1060YZB5 Glass Heat Pump Dryer, Glass
Right hand Hinge
5
ASKS60ZB5 Glass Stacking Kit with Tray
-
6
FM2060SZB2 Glass 18L Series 11 Storage Plinth
-
* Other product configuration possible - Stacking Kit (ASKS60ZB5) cannot be installed side by side due to hinge clashes.
<< CONTENTS
PAGE 6© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE VERSION B - APRIL 202590004466A
SPECIFICATION GUIDE
PAGE 790004466A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
© FISHER & PAYKEL APPLIANCES LIMITED 2025
OVERVIEW
Care for every corner of the wardrobe with an ecosystem of
fabric care products that combine diverse functions to deliver
exceptional results. From precision sensing to autonomous
technologies, the fabric care suite removes the guesswork,
delivering the perfect balance across each product to ensure
optimal care for every garment. Now available in a sleek Glass
Finish, adding a considered touch to any laundry space.
PRODUCTS | SERIES 11
FC1260FZB2
60cm Fabric Care Cabinet, Glass
WH1260YZB5
12kg Front Loader Washer, Glass
DH1060YLZB5
10kg Display-free Heat Pump Dryer, Glass
DH1060YZB5
10kg Heat Pump Dryer, Glass
ACCESSORIES | SERIES 11
ASKS60ZB5
Stacking Kit with Tray
FM2060SZB2
18L Storage Plinth
FEATURES
1 With multiple configurations from compact to large, this
modular fabric care solution is designed to work for every
space of the evolving home.
2 From delicates to durables, and everyday to occasional,
there is a specialist cycle that ensures optimal care for a
wide range of garments.
3 A range of specialised environments and cycles extends the
life of your garments while caring for them with minimal
environmental impact.
4 Timeless in design, the fabric care suite is engineered with
premium materials and precise manufacturing, enabling
long-lasting care for both product and garment.
5 With sleek Glass finish, perfect for adding a refined, modern
touch to any laundry.
FC1260FZB2 | WH1260YZB5 | DH1060YLZB5 | DH1060YZB5SPECIFICATION GUIDE | FABRIC CARE
<< CONTENTS
PAGE 890004466A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
© FISHER & PAYKEL APPLIANCES LIMITED 2025
OVERVIEW
Enjoy the luxury of ready-to-wear convenience with the Fabric
Care Cabinet, thoughtfully designe d to bring tailored care to
your wardrobe. Gentle features like refreshing, deodorising,
sanitising, and drying help keep your delicate fabrics, from silk
to wool and leather, looking their best. Now available in a sleek
Glass Finish, adding a considered touch to any laundry space.
PRODUCTS | SERIES 11
FC1260FZB2
60cm Fabric Care Cabinet, Glass
FEATURES
1 Experience effortless garment care with treatments like
refreshing, drying, deodorising, and sanitising, all tailored
for different fabric types in a convenient cabinet.
2 Create a complete fabric care ecosystem by pairing with our
Front Loader Washing Machine and Heat Pump Dryer.
3 With sleek Glass finish, perfect for adding a refined, modern
touch to any laundry.
4 Connected Home and Wi-Fi enabled. The cabinet connects
with the Fisher & Paykel SmartHQ™ app for seamless
control.
5 The non-plumbed design provides flexibility, making it
suitable for any area in your home.
6 Customised care for a wide range of garment types, from
leather, wool and silk to outdoor gear, with treatments
tailored to varying durability levels. Conveniently treat up to
12 garments at a time.
7 Preserve the quality of delicate silks, woollens, and cottons
by reducing the need for frequent washing.
8 Spacious capacity with multiple loading configurations, and
four adjustable folding racks.
9 Keep footwear fresh and hygienic with a dedicated shoe
care cycle, complete with a specialised shoe rack.
!0 Designed to minimise energy and water usage by reducing
the reliance on traditional washing methods.
FC1260FZB2 SPECIFICATION GUIDE | FABRIC CARE CABINET
<< CONTENTS
PAGE 990004466A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
© FISHER & PAYKEL APPLIANCES LIMITED 2025

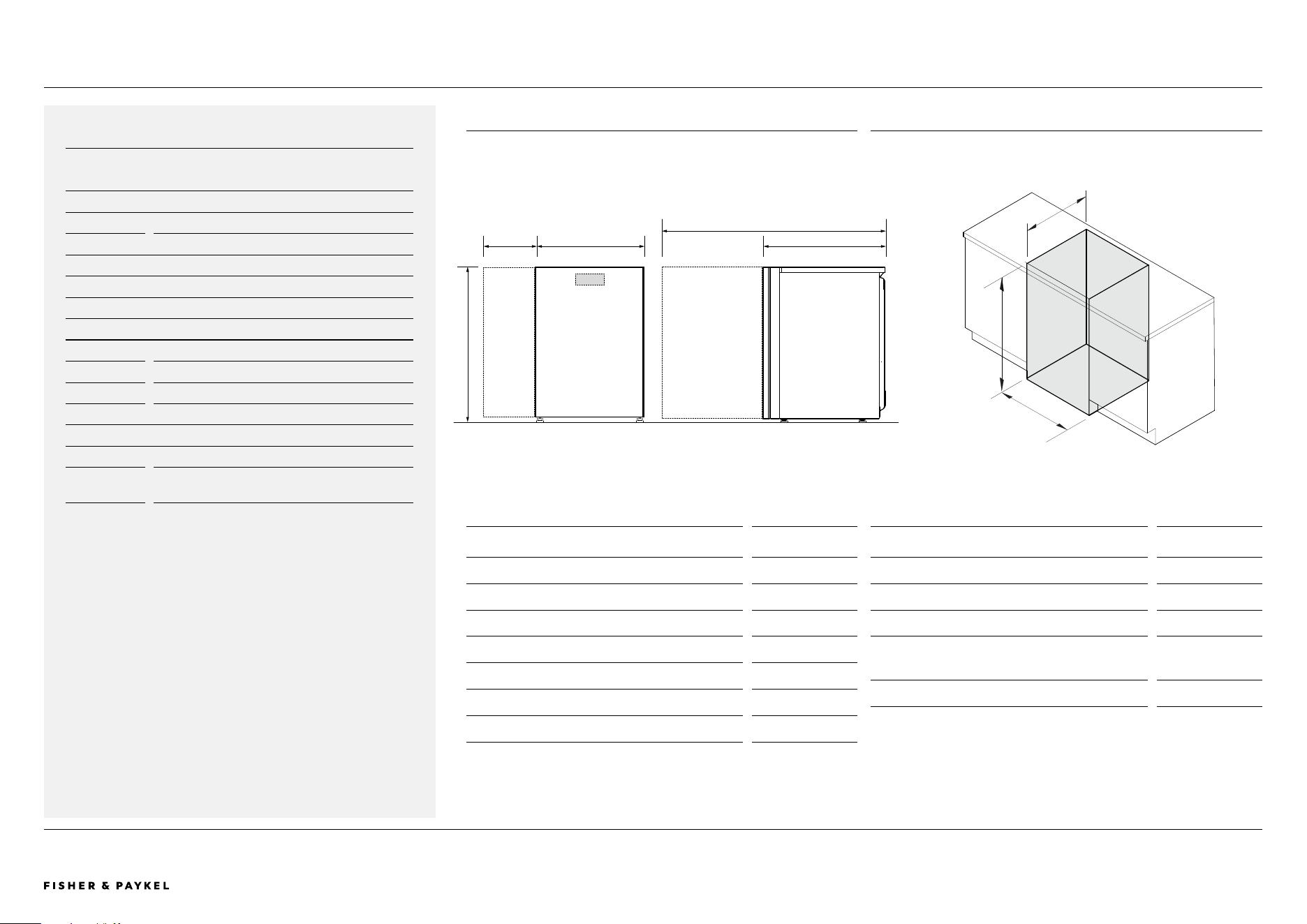

WH1260YZB5
Front Loader Washer Specification
ISOMETRIC VIEW
SPECIFICATION GUIDE | FRONT LOAD WASHER
PRODUCT DIMENSIONS
mm
A Overall height 850
Height of adjustable mounted feet
max +10
B Overall width 602
Door width 595
C Overall depth* 676
D Depth with the door open**
1235
E Door clearance to adjacent wall 245
*Includes door when closed
SPECIFICATIONS
Model Number
WH1260YZB5 Front Loader Washer, Glass
Product Dimensions
H 850mm W 602mm D 676mm
Electrical
Supply 220–240 V, 50 Hz
Service 10 A
Connection 3-prong grounding-type
Plumbing
Supply Hose set provided
Service Max. 1MPa (150psi); Min. 50KPa (7psi);
Min 6 litres/min
CAVITY DIMENSIONS
mm
A Minimum height 870
B Minimum width 635
C Minimum depth 706
Minimum visual gap to adjacent
cabinetry*
20
Minimum visual gap to adjacent product 33
*Applies to sides and top
FRONT VIEW PROFILE VIEW
b
a
c
a
b
c
d
e
<< CONTENTS
PAGE 1090004466A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
© FISHER & PAYKEL APPLIANCES LIMITED 2025

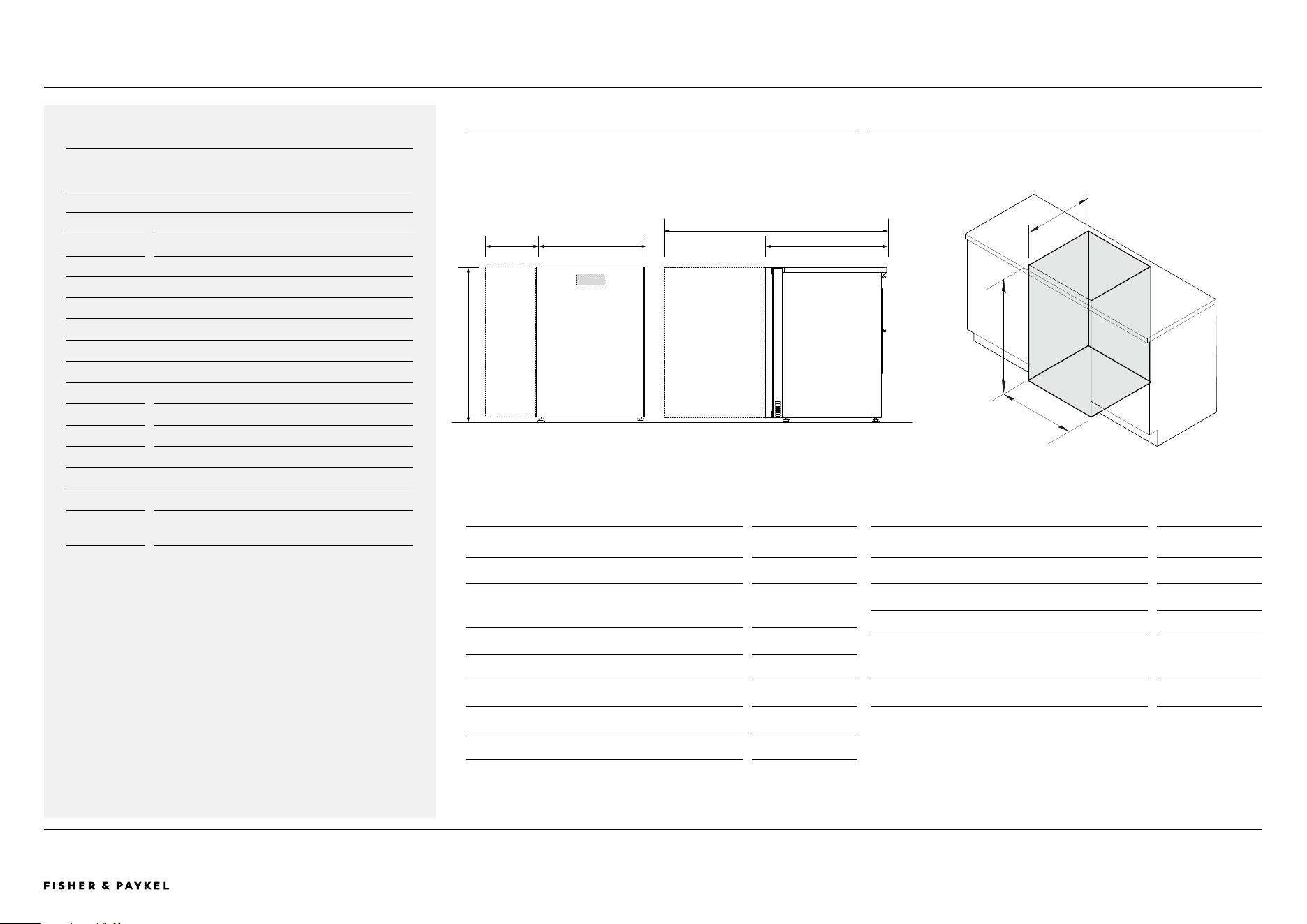

DH1060YZB5 | DH1060YLZB5
Heat Pump Dryer Specification
SPECIFICATION GUIDE | HEAT PUMP DRYER
b
a
c
a
b
c
SPECIFICATIONS
Model Number
DH1060YZB5 Heat Pump Dryer, Glass
DH1060YLZB5* Display-free Heat Pump Dryer, Glass
* Inter-Product communication cable is included
Product Dimensions
H 850mm W 602mm D 695mm
Electrical
Supply 220–240 V, 50 Hz
Service 10 A
Connection 3-prong grounding-type
Plumbing
Supply Hose set provided
Service Max. 1MPa (150psi); Min. 50KPa (7psi);
Min 6 litres/min
PRODUCT DIMENSIONS
mm
A Overall height 850
Height of adjustable mounted feet
min -5
max +5
B Overall width 602
Door width 595
C Overall depth* 695
D Depth with the door open**
1255
E Door clearance to adjacent wall 245
*Includes door when closed
CAVITY DIMENSIONS
mm
A Minimum height 870
B Minimum width 635
C Minimum depth 725
Minimum visual gap to adjacent
cabinetry*
20
Minimum visual gap to adjacent product 33
*Applies to sides and top
ISOMETRIC VIEWFRONT VIEW PROFILE VIEW
d
e
<< CONTENTS
PAGE 1190004466A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
© FISHER & PAYKEL APPLIANCES LIMITED 2025

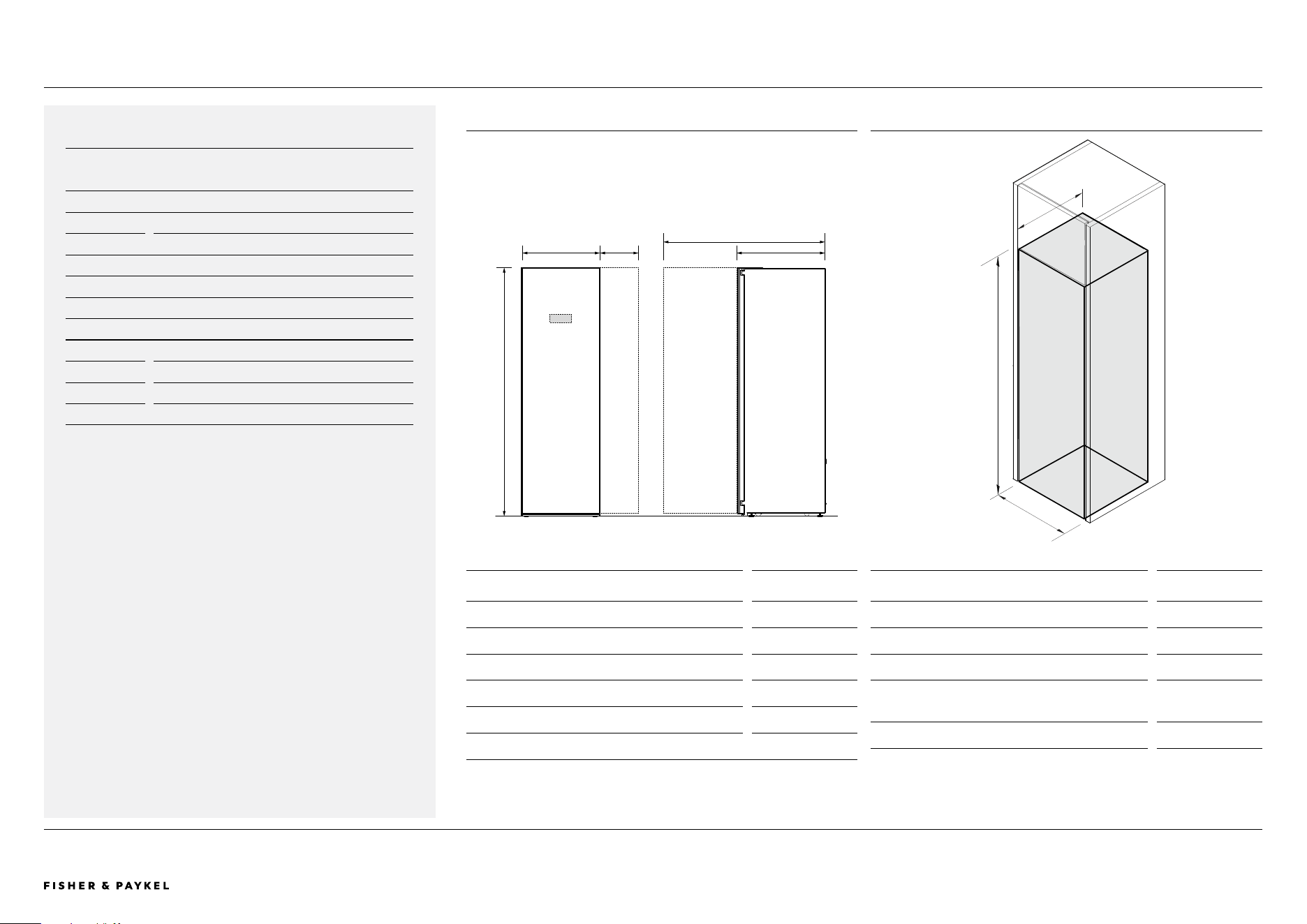

FC1260FZB2
Fabric Care Cabinet Specification
ISOMETRIC VIEW
SPECIFICATION GUIDE | FABRIC CARE CABINET
PRODUCT DIMENSIONS
mm
A Overall height 1900
Height of adjustable mounted feet
max +12
B Overall width 600
C Overall depth* 660
D Depth with the door open 1250
E Door clearance to adjacent wall min 235
*With door closed
ISOMETRIC VIEW
b
a
c
a
b
c
SPECIFICATIONS
Model Number
FC1260FZB2 Fabric Care Cabinet, Glass
Product Dimensions
H 1900mm W 600mm D 660mm
Electrical
Supply 220–240 V, 50 Hz
Service 10 A
Connection 3-prong grounding-type
CAVITY DIMENSIONS
mm
A Minimum height 1920
B Minimum width 640
C Minimum depth 700
Minimum visual gap to adjacent
cabinetry*
20
Minimum visual gap to adjacent product 33
*Applies to sides and top
e
d
